Fundamental Limits to Coherent Photon Generation with Solid-State Atomlike Transitions

TL;DR

This paper investigates the fundamental coherence limits of solid-state quantum emitters for single-photon generation, revealing intrinsic decoherence mechanisms that restrict deterministic quantum protocols.

Contribution

It introduces a polaron master equation approach to model non-Markovian dynamics, providing new insights into decoherence sources in solid-state photon emitters.

Findings

Coupling to vibronic transitions is independent of excitation strength.

Photon coherence is limited by non-Markovian vibrational dynamics.

Deterministic single-photon protocols are fundamentally impossible in these systems.

Abstract

Coherent generation of indistinguishable single photons is crucial for many quantum communication and processing protocols. Solid-state realizations of two-level atomic transitions or three-level spin-$\Lambda$ systems offer significant advantages over their atomic counterparts for this purpose, albeit decoherence can arise due to environmental couplings. One popular approach to mitigate dephasing is to operate in the weak excitation limit, where excited state population is minimal and coherently scattered photons dominate over incoherent emission. Here we probe the coherence of photons produced using two-level and spin-$\Lambda$ solid-state systems. We observe that the coupling of the atomic-like transitions to the vibronic transitions of the crystal lattice is independent of driving strength and detuning. We apply a polaron master equation to capture the non-Markovian dynamics of the ground state vibrational manifolds. These results provide insight into the fundamental limitations for photon coherence from solid-state quantum emitters, with the consequence that deterministic single-shot quantum protocols are impossible and inherently probabilistic approaches must be embraced.

Figures

Equations

$$CF=\frac{T_2}{2T_1}\frac{1}{1+\Omega /{\Omega }_{\mathrm{sat}}},$$

$$C{F}^{\prime }={\alpha }_{\mathrm{DW}}CF,$$

Full text

Solid-state quantum emitters can mimic the behavior of few-level atomic systems. Two-level optical transitions can be driven resonantly for coherent manipulation Wrigge et al. (2008); Nick Vamivakas et al. (2009); Flagg et al. (2009) which can be used to generate transform-limited single photons Kuhlmann et al. (2015) with a high degree of indistinguishability from single Ding et al. (2016); Somaschi et al. (2016) or multiple emitters Lettow et al. (2010); Bernien et al. (2012). Coherent excitation and control can be extended to solid-state three-level spin-$\Lambda$ systems, which enables spin initialization, manipulation, and readout Press et al. (2008); Yale et al. (2013); Bechtold et al. (2015) as well as spin-photon entanglement Togan et al. (2010); Gao et al. (2012); De Greve et al. (2012) and indistinguishable single photon generation with tunable temporal and spectral properties Santori et al. (2009); Fernandez et al. (2009); He et al. (2013); Sun et al. (2016); Béguin et al. (2018); Pursley et al. (2018). These advances can be applied to quantum information applications, for example, distribution of entanglement among independent quantum nodes Cabrillo et al. (1999); Barrett and Kok (2005); Bernien et al. (2013); Delteil et al. (2016); Stockill et al. (2017) or multiphoton boson sampling Wang et al. (2017); Loredo et al. (2017).

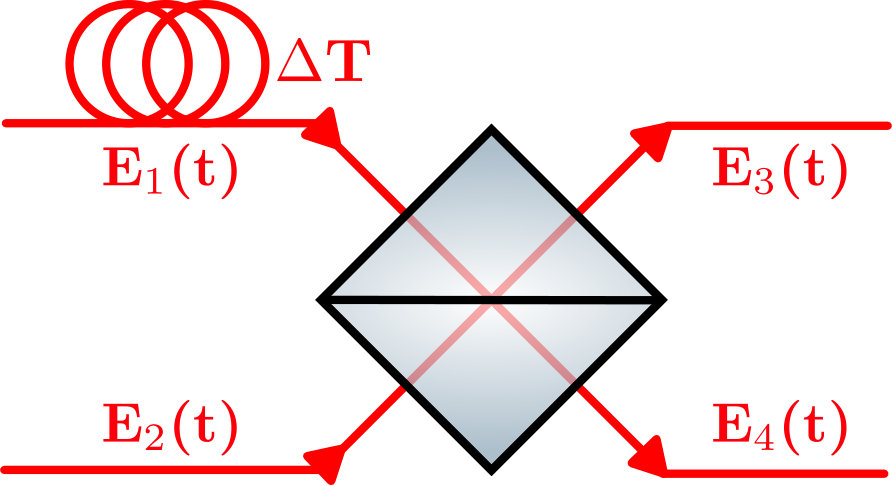

At the heart of such quantum applications are photon-photon interactions, achieved when two single-photon wave packets interfere at a beam splitter Hong et al. (1987). Maximum interference visibility demands both coherent and indistinguishable photon wave packets. However, interactions between the atomlike eigenstates and the solid-state environment can degrade the coherence and indistinguishability of even coherently generated photons. The most prominent mechanisms involve charge Houel et al. (2012); Kuhlmann et al. (2015) and spin Kuhlmann et al. (2015); Bechtold et al. (2015) fluctuations and interactions with acoustic phonons Hameau et al. (1999); Seebeck et al. (2005); Vagov et al. (2004); Borri et al. (2005); Kaer et al. (2013); Roy-Choudhury and Hughes (2015); Thoma et al. (2016); Reigue et al. (2017); Tighineanu et al. (2018); Grange et al. (2017); Iles-Smith et al. (2017a). One popular approach to mitigate these effects is to use weak coherent excitation. In the weak-excitation regime of a transform-limited optical transition, coherent scattering dominates over incoherent (spontaneous) emission due to minimal excited-state population Nguyen et al. (2011); Konthasinghe et al. (2012); Matthiesen et al. (2012, 2013); Proux et al. (2015); Schulte et al. (2015); Malein et al. (2016); Baudin et al. (2019). Likewise, spin-flip Raman scattered photons from solid-state spin-$\Lambda$ systems produce highly coherent photons; in the atomic picture such photons have coherence determined solely by the excitation source and ground (spin) state dephasing Santori et al. (2009); Fernandez et al. (2009); He et al. (2013); Sun et al. (2016); Béguin et al. (2018); Pursley et al. (2018).

In this Letter, we experimentally test the assumption that detrimental interactions with longitudinal acoustic phonons can be minimized by suppressing the excited-state population in the weak-driving limit. We probe both two-level atomiclike transitions and spin-$\Lambda$ systems in a prototypical solid-state quantum emitter: a charge tunable semiconductor quantum dot (QD). We demonstrate experimentally that the vibrational environment–intrinsic to all solid-state emitters–imposes a fundamental limit on the coherence and indistinguishability of resonantly generated photons from a two-level quantum emitter, independent of driving strength or excited-state population, as recently predicted Iles-Smith et al. (2017b). We proceed to show that this limit equally affects spin-flip Raman scattered photons, contrary to expectations Santori et al. (2009); Fernandez et al. (2009); He et al. (2013); Sun et al. (2016); Béguin et al. (2018); Pursley et al. (2018).

Using a non-Markovian master equation model, we quantitatively explain the coherence as a function of driving strength for both the two-level and spin-$\Lambda$ systems, and we interpret the nonvanishing fraction of incoherently scattered photons as attributable to the vibrational manifolds dressing both the excited and the ground-state, and thus also affecting the optical dipole operator (see Fig. 1), even in the absence of excited electronic population. Our results imply that spectral filtering is necessary for perfectly indistinguishable photons, even in the weak-driving and Raman-detuned regimes. This introduces a probabilistic element, hindering the use of solid-state emitters in deterministic single-shot protocols Lindner and Rudolph (2009); Buterakos et al. (2017); Gimeno-Segovia et al. (2019), even in optimized solid-state phononic or photonic structures Iles-Smith et al. (2017a); Grange et al. (2017); Tighineanu et al. (2018). Protocols embracing probabilistic operation Rudolph (2017); Scerri et al. (2018), or where the detection of a photon heralds success Cabrillo et al. (1999); Barrett and Kok (2005); Bernien et al. (2013); Delteil et al. (2016); Stockill et al. (2017), provide mitigation but this limitation remains detrimental.

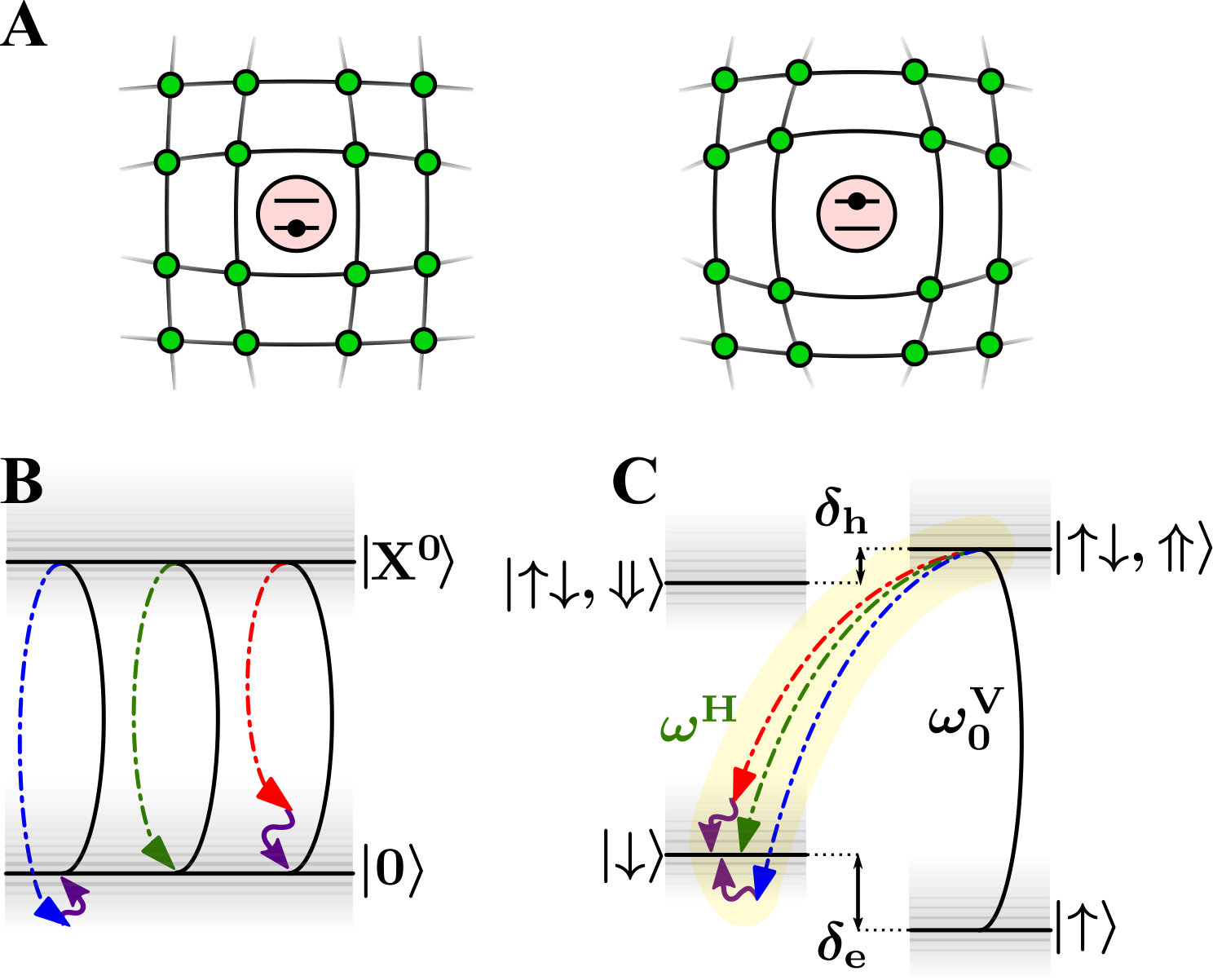

Fig. 1A graphically illustrates the electron-phonon coupling, where the charge state of the QD is dressed by lattice displacements. In the strong-driving regime, this interaction is sometimes modeled using a Markovian weak-coupling approach which correctly captures excitation-induced dephasing Ramsay et al. (2010a) and phonon-induced Rabi frequency renormalization Ramsay et al. (2010b). However, the standard weak-coupling approach generally fails to adequately resolve the electron-phonon interaction, and this is particularly evident in the weak-driving regime: here it becomes necessary to treat the electron lattice interaction in terms of phonon-dressed electronic states, so-called polaron quasiparticles. This leads to intrinsically non-Markovian dynamics for the evolution of the QD charge state, which is also reflected in its optical properties. In the Supplemental Material [SeeSupplementalMaterialat\url{http://link.aps.org/supplemental/10.1103/PhysRevLett.123.167402}fordescriptionoftheexperimentalsetup; detailsonthepostselecttwo-photoninterferencemeasurement; coalescencetimewindow; thenuclearspincouplingtoRamanphotons; andthederivationoftheassociatedpolaronmasterequationforaspin-$Λ$system; whichincludesRefs.~\cite[cite]{@@bibref{AuthorsPhrase1YearPhrase2}{Ficke2005; Lebreton et al. (2013); Urbaszek et al. (2013); Scerri et al. (2017); Roy-Choudhury and Hughes (2015); Breuer2007}{@@citephrase{(}}{@@citephrase{)}}}]SupMat (SI), we extend the non-Markovian polaron model for the neutral exciton Nazir and McCutcheon (2016) to account for the vibrational effects on the charged exciton (which in our case reduces to a spin-$\Lambda$ system). To briefly summarize here: we begin with the canonical Lang-Firsov transformation Lang and Firsov (1962) applied to our Hamiltonian prior to solving its dynamics. In this frame the original electron-phonon coupling term disappears from the effective Hamiltonian (see Eq. (20-22) in the SI Sup ). Instead, we are left with a weaker remnant vibrational coupling term, which we proceed to treat perturbatively. Importantly, both ground and excited-states now possess vibrational manifolds, in analogy to the Franck-Condon model Mahan (2000).

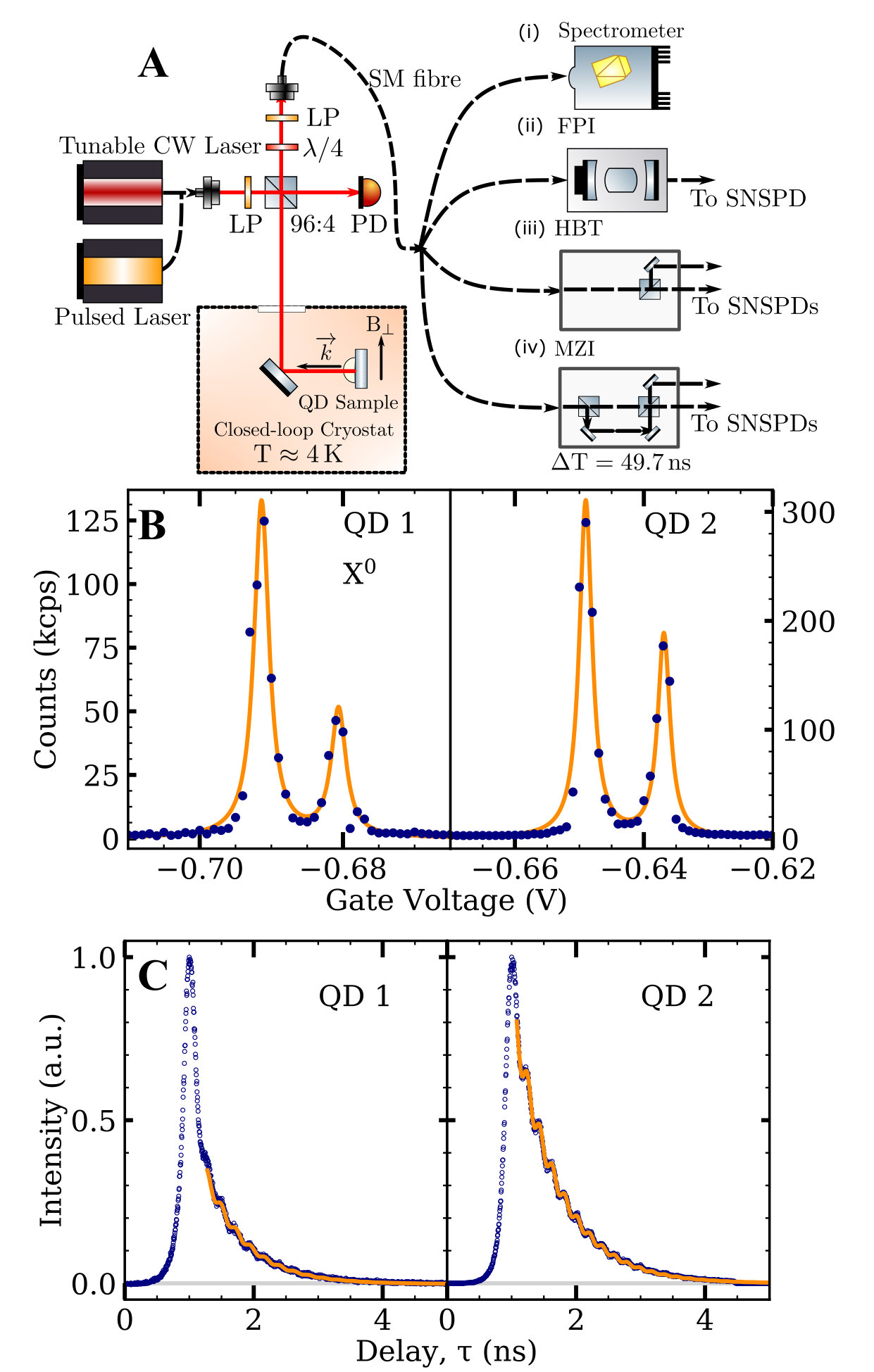

We experimentally probe effective two-level optical transitions and spin-$\Lambda$ systems using the neutral ($\mathrm{X^{0}}$) and negatively charged ($\mathrm{X^{1-}}$) excitons respectively, from a charge tunable QD device Malein et al. (2016) at a temperature of 4 K. For $\mathrm{X^{0}}$, we resonantly excite and collect from just one of the fine-structure split peaks using orthogonal linear polarizers to suppress the scattered laser background. For $\mathrm{X^{1-}}$, we apply an in plane magnetic field (Voigt geometry) of 4 T to mix the spin states and create “diagonal” spin-flipping transitions (e.g. $\ket{\downarrow}\leftrightarrow\ket{\uparrow\downarrow,\Uparrow}$) with horizontal polarization ($\omega^{H}$) and equal oscillator strength to the spin-conserving transitions (e.g. $\ket{\uparrow}\leftrightarrow\ket{\uparrow\downarrow,\Uparrow}$) with vertical polarization ($\omega_{0}^{V}$). Here, the single (double) arrows refer to electron (heavy-hole) spin states. We resonantly excite the spin-conserving transition with $\omega_{0}^{V}$ and collect $\omega^{H}$ from the spin-flipping transition, as shown in Fig. 1C. Photon spectra are characterized by a $\sim 30\,\mu\mathrm{eV}$ resolution spectrometer and a $\sim 0.1\,\mu\mathrm{eV}$ resolution scanning Fabry-Pérot interferometer. A Hanbury Brown-Twiss interferometer and an unbalanced Mach-Zehnder interferometer (with an interferometric delay of $49.7\,\mathrm{ns}$) are used to characterize the intensity correlation $g^{(2)}(\tau)$ and postselected, two-photon interference, respectively.

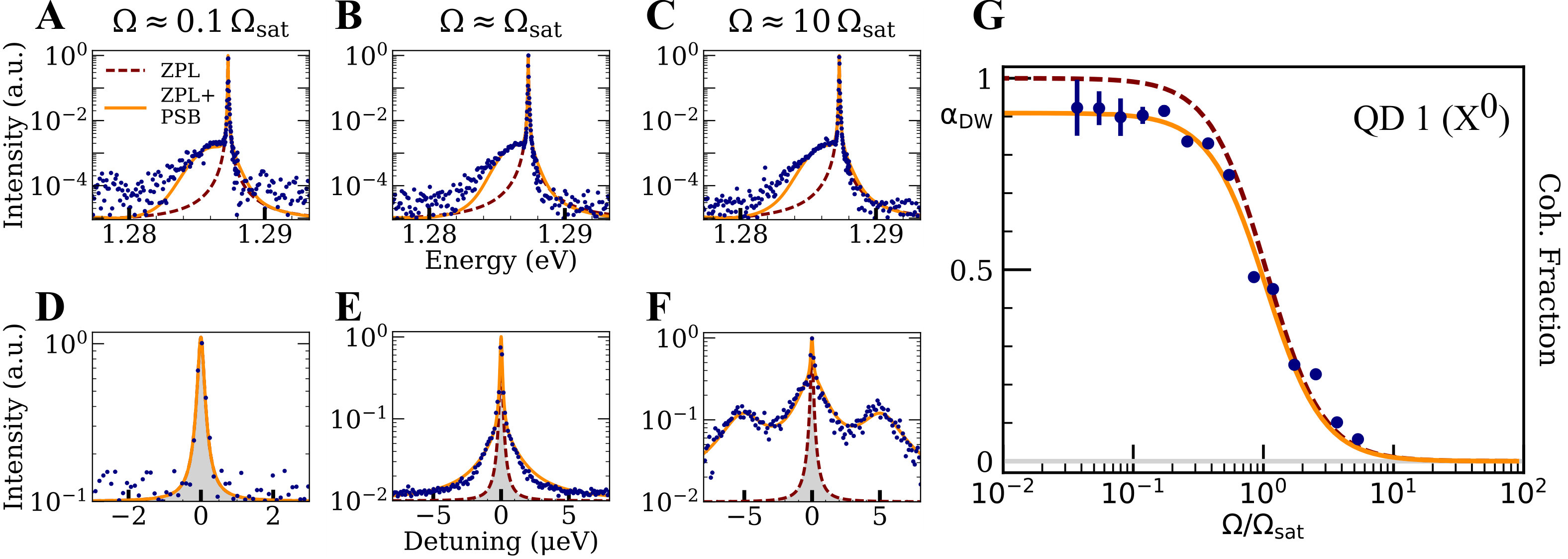

Fig. 2(A-F) show the resonantly scattered photon spectra from the $\ket{0}\leftrightarrow\ket{\mathrm{X^{0}}}$ transition at three different driving regimes: $\Omega\approx\,0.1\,\Omega_{\mathrm{sat}}$, $\Omega_{\mathrm{sat}}$, and $10\,\Omega_{\mathrm{sat}}$, where $\Omega$ ($\Omega_{\mathrm{sat}}$) is the Rabi (saturation) frequency. The spectra exhibit identical features as measured by the spectrometer: a narrow zero-phonon line (ZPL, red dashed line) and a broad shoulder near the ZPL—the phonon sideband (PSB). High-resolution spectra of the ZPL reveal a single resolution-limited elastic peak at $\Omega\approx 0.1\,\Omega_{\mathrm{sat}}$  Proux et al. (2015); Matthiesen et al. (2013); Konthasinghe et al. (2012); Nguyen et al. (2011); Matthiesen et al. (2012), the emergence of a broad incoherent spectrum at $\Omega\approx\Omega_{\mathrm{sat}}$, and a Mollow triplet at $\Omega>\Omega_{\mathrm{sat}}$ Wrigge et al. (2008); Nick Vamivakas et al. (2009); Flagg et al. (2009). The orange lines in Fig. 2D to 2F are fits to the experimental data using the theoretical functions as described in Ref. Scully and Zubairy (1997) by fixing the lifetime $T_{1}=0.625\,\mathrm{ns}$ and coherence time $T_{2}=2\,T_{1}=1.250\,\mathrm{ns}$. The lifetime is independently measured using time-resolved resonance fluorescence Sup .

Fig. 2(D-F) exhibit textbook atomiclike behaviour of resonance fluorescence of a two-level system for the ZPL. On the other hand, the consistent PSB regardless of $\Omega$ in Fig. 2(A-C) reveals a fundamental departure from atomiclike behavior, which can be modeled using the polaron master equation. To tune our microscopic theoretical model to the specific properties of this QD, we have extracted the system-phonon coupling strength and frequency cutoff from the fits to the data in Fig. 2 to be $\alpha=0.03\,\mathrm{ps}^{2}$ and $\omega_{c}=2.2\,\mathrm{ps}^{-1}$, respectively. The frequency cutoff provides an indication on the size and confinement of the QD Iles-Smith et al. (2017b). By fitting the experimental data, we extract the ratio of coherent to total (coherent and incoherent) light in the spectrum in the range $0.04\,\Omega_{\mathrm{sat}}\leq\Omega\leq 6\,\Omega_{\mathrm{sat}}$, as shown in Fig. 2G, which, at low power, gives the fraction of photons coherently scattered in the ZPL. For an atomic two-level system, this coherent fraction (CF) is determined by Cohen-Tannoudji et al. (1998)

[TABLE]

represented by the dashed red curve in Fig. 2G. The experimental data depart from Eq. (1) in the weak-excitation regime; to fit the data, we modify the coherent fraction according to

[TABLE]

where $\alpha_{\mathrm{DW}}$ is the Debye-Waller coefficient, which quantifies the influence of the vibrational manifold on the nature of scattering process Lipkin and is equivalent to the square of the Franck-Condon factor $\left\langle B\right\rangle$ Mahan (2000) 111The equivalence between $\langle B\rangle$ and the Franck-Condon factor stems from the fact that both quantities emerge as vibrational prefactors when taking the transition probability of the system coupled to the vibrational environment., i.e., $\alpha_{\mathrm{DW}}=\left\langle B\right\rangle^{2}$ (cf. Refs. Iles-Smith et al. (2017b, a)). Based on the fits of the PSB in the spectra, the theoretical model gives an upper bound of $\alpha_{\mathrm{DW}}=0.91$ as the fraction of maximum coherence in the weak-driving regime.

The fact that the coherent fraction of a two-level system in this QD is capped at $\alpha_{\mathrm{DW}}\approx 0.91$ in the weak-driving regime shows that a substantial number of emitted photons still interact with the phonon bath, despite the QD population remaining in the ground state throughout. This demonstrates that the phonon sideband is independent of excited-state occupation. Hence, the phonon sideband remains a detrimental effect in exploiting the properties of the photons, namely, the long coherence time of the resonantly scattered photons in the weak-driving regime, contrary to previous claims Nguyen et al. (2011); Konthasinghe et al. (2012); Matthiesen et al. (2012, 2013).

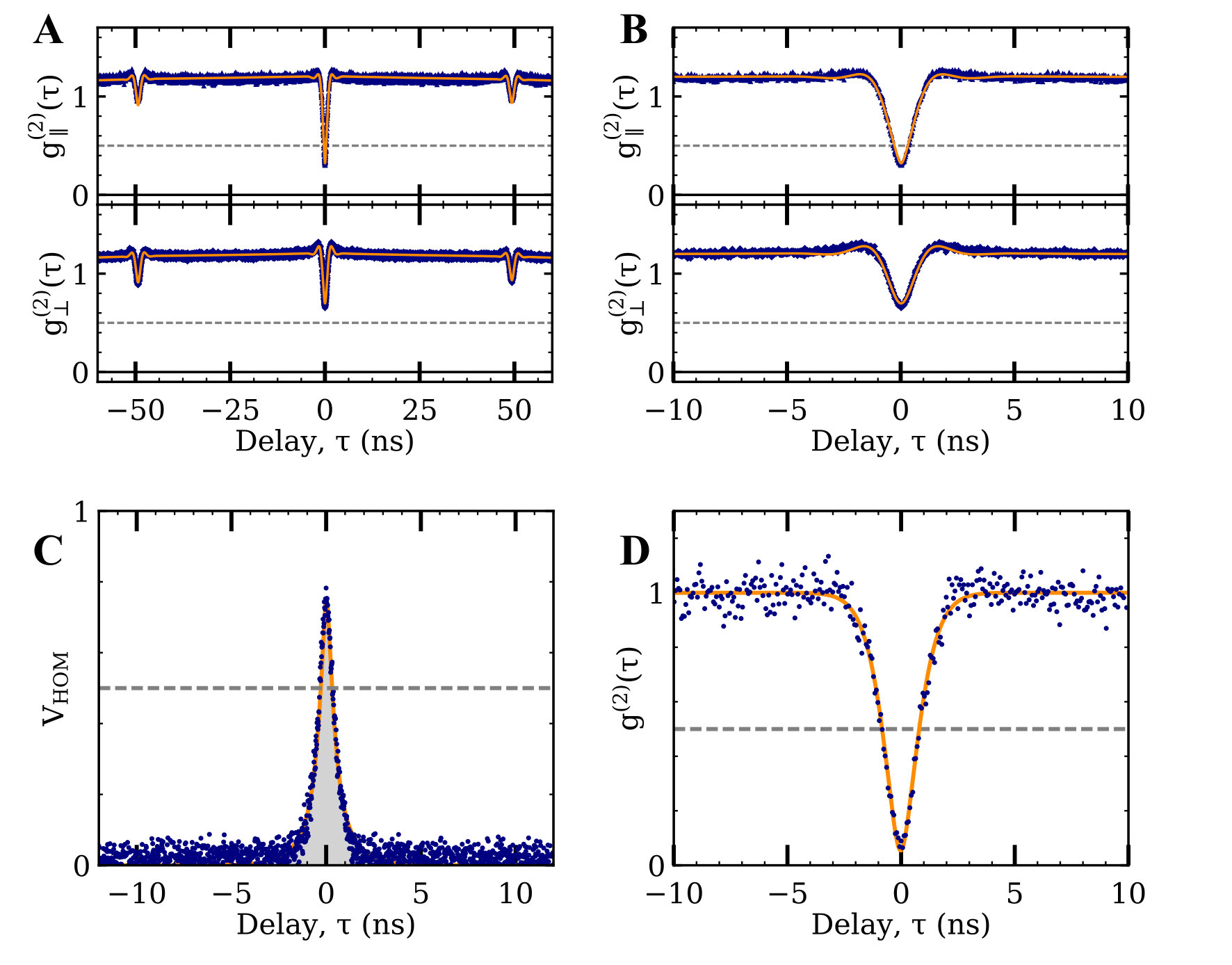

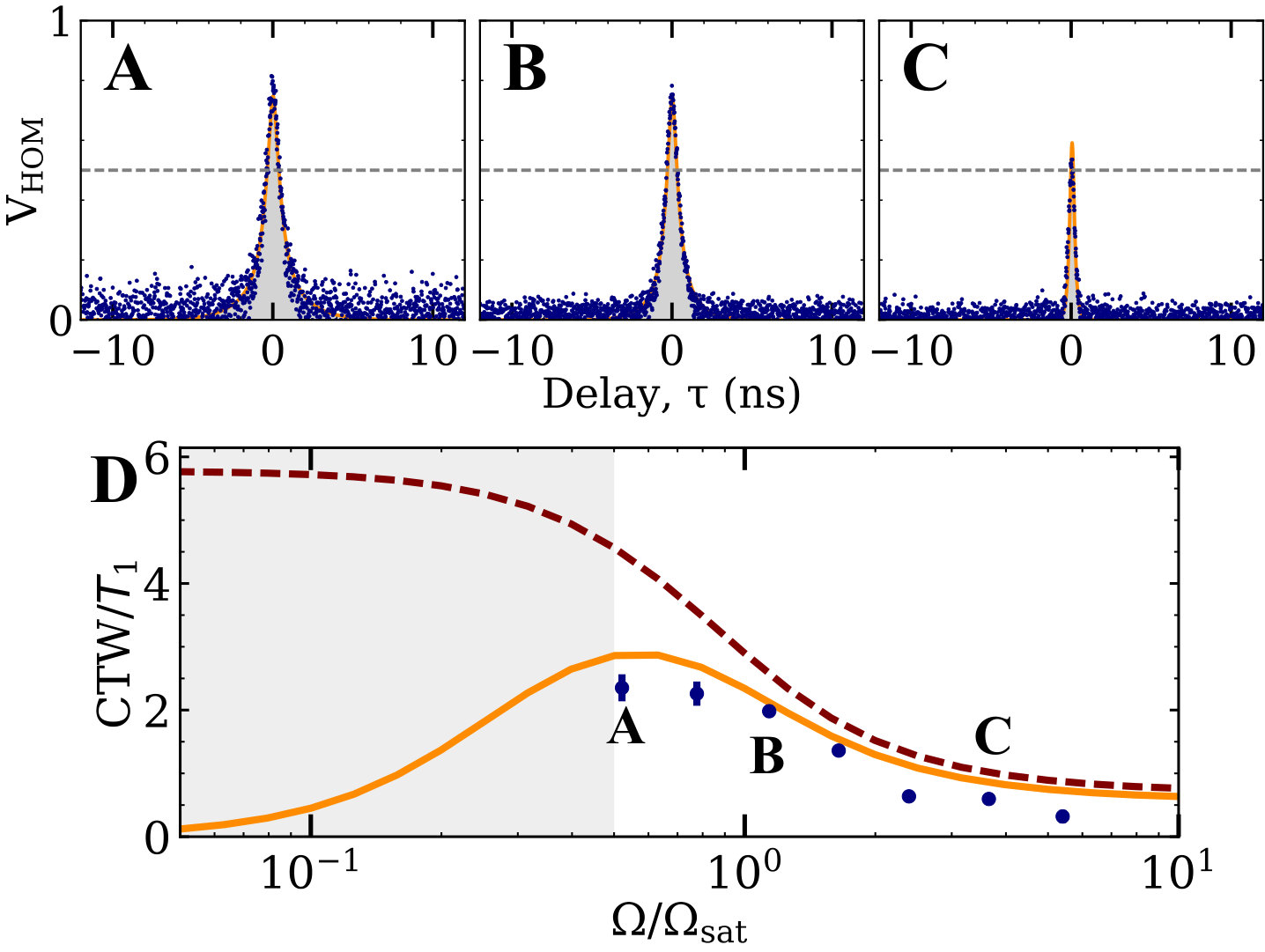

To verify the spectroscopic observations regarding exciton-phonon coupling and scattered photon coherence, we investigate the two-photon interference. First, we measure the second-order correlation $g^{(2)}(\tau)$ of the scattered photons, which exhibits a suppressed multiphoton emission probability of $g^{(2)}(0)=0.046\,(13)$ at $\Omega\approx 0.1\,\Omega_{\mathrm{sat}}$ (see Fig. S2 in the SI Sup ). Next, we perform Hong-Ou-Mandel (HOM)-type two-photon interference with the unbalanced Mach-Zehnder interferometer. As the two-photon interference visibility $V_{\mathrm{HOM}}(\tau)$ at zero-time delay is solely determined by the detector response time under continuous wave excitation, its maximum value is not indicative of indistinguishability of the photon wave packets Legero et al. (2004). Therefore, we instead consider the coalescence time window $\mathrm{CTW}=\int V_{\mathrm{HOM}}(\tau)\,d\tau$, given by the shaded area in Fig. 3(A-C), which depends on the full duration of $V_{\mathrm{HOM}}(\tau)$ and is thus independent of detector jitter Proux et al. (2015); Baudin et al. (2019). A detailed analysis of CTW for atomic two-level systems and solid-state nanostructures interacting with a vibrational environment is described in the SI Sup . We now investigate the effect of PSB on the CTW as shown in Fig. 3D. The experimental data points around $\Omega\gtrsim\Omega_{\mathrm{sat}}$ show qualitative agreement with our theoretical model (solid line): the quantitative discrepancy originates from experimental imperfections (e.g. spatial mode overlap or unbalanced splitting ratio of the beam splitter Giesz et al. (2015)). In the absence of phonons (dashed curve), we find that it differs from our data around $\Omega_{\mathrm{sat}}$ and leads to very different predicted limiting behavior for $\Omega\ll\Omega_{\mathrm{sat}}$. The saturation at low-excitation power is due to the lifetime limit of the QD: the photon coherence is not solely determined by the laser coherence in this power regime. Thus, the width of the visibility dip should converge as $\Omega\rightarrow 0$, resulting in the convergence of the CTW to a finite value, as opposed to increasing indefinitely, even for an ideal continuous wave source Proux et al. (2015); Baudin et al. (2019).

Unfortunately, the shaded region $\Omega\lesssim 0.5\,\Omega_{\mathrm{sat}}$ is inaccessible in our experimental setup: here the predominantly Rayleigh scattered photons inherit the laser coherence ($\sim 100\,\mathrm{kHz}$). This coherence exceeds the interferometric delay in our unbalanced Mach-Zehnder setup, and undesired one-photon interference dominates the measurement Proux et al. (2015); Baudin et al. (2019). Nonetheless, the agreement between measured data and the theoretical model for $\Omega\gtrapprox\Omega_{\mathrm{sat}}$ supports the validity of the polaron model and justifies the extrapolation into the low-excitation regime. The decreasing CTW is consistent with the reduced $V_{\mathrm{HOM}}(0)$ in Ref. Iles-Smith et al. (2017b), owing to the large separation of timescales between phonon dynamics and average time between scattering events. Our results thus show that the vibrational environment of solid-state emitters degrades the achievable indistinguishability of resonantly scattered photons.

Motivated by the observation that the vibrational environment impacts the ground state of the two-level transition, we proceed to investigate how the phonon interaction affects the spin-flip Raman photon spectrum. The three-level spin-$\Lambda$ system for $\mathrm{X^{1-}}$ with an in plane magnetic field is shown in Fig. 1C.

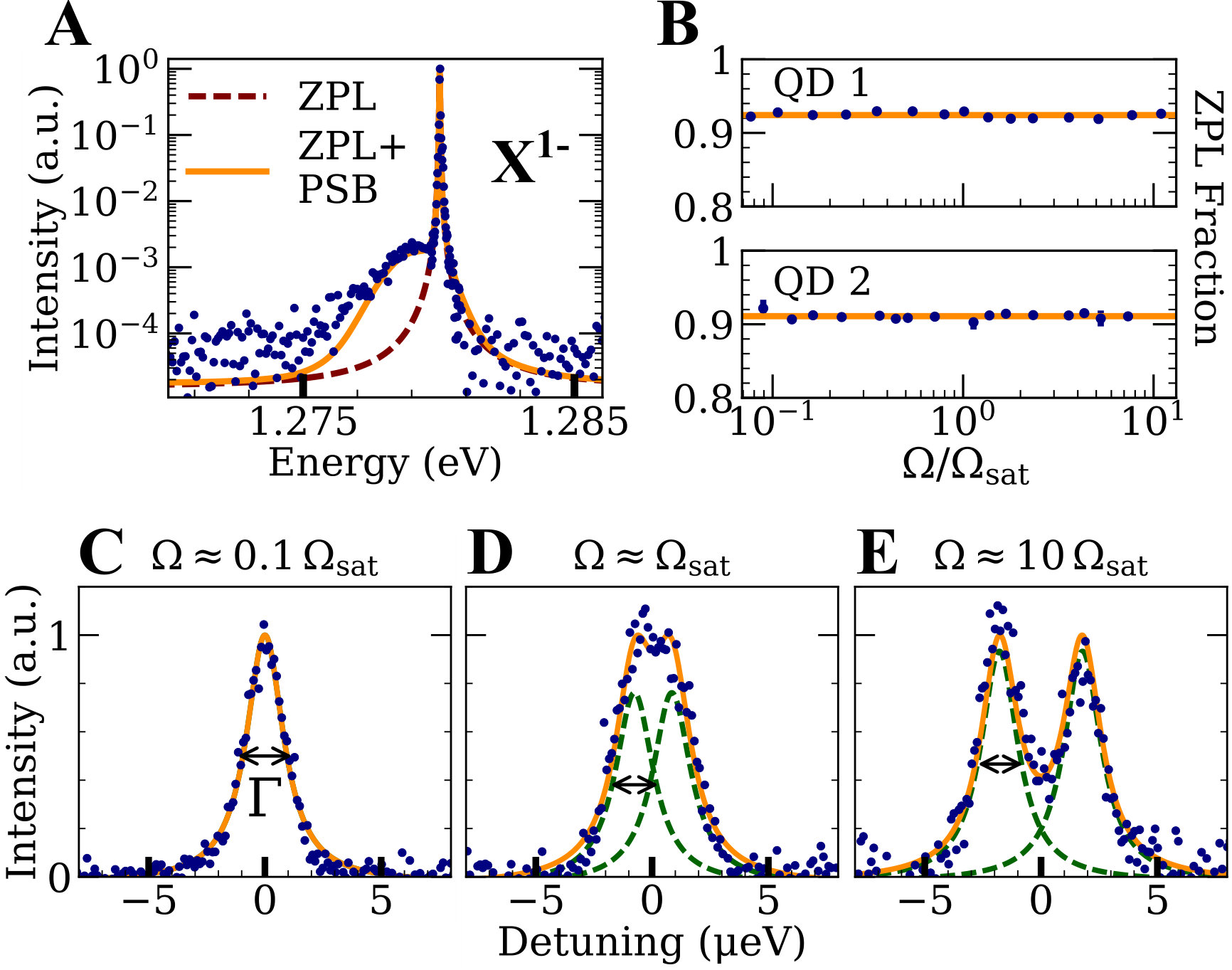

The vertical transition $\Ket{\uparrow}\leftrightarrow\Ket{\uparrow\downarrow,\Uparrow}$ is resonantly excited and we collect the scattered Raman photons from the diagonal transition $\Ket{\downarrow}\leftrightarrow\Ket{\uparrow\downarrow,\Uparrow}$. Fig. 4A shows the spin-flip Raman photon spectrum in the weak-driving regime, $\Omega\approx\,0.1\,\Omega_{\mathrm{sat}}$. We observe a narrow ZPL and a broad PSB, independent of $\Omega$, in the low-resolution spectra–similar to the two-level case. The ZPL fraction, given by the ratio of the integrated intensity of the ZPL to the total emission spectrum (ZPL + PSB) is shown in Fig. 4B for two QDs, with $\alpha_{\mathrm{DW}}=0.924\,(4)$ and $\alpha_{\mathrm{DW}}=0.911\,(4)$ for QD1 and QD2, respectively. The observation that the ratio of ZPL to PSB of the Raman photons remains constant over 2 orders of magnitude in Rabi frequency leads to the conclusion that the ground spin states are dressed by the vibrational couplings. This contradicts the common consensus that Raman photons are highly coherent and limited only by ground-state spin dephasing Santori et al. (2009); Fernandez et al. (2009); He et al. (2013); Sun et al. (2016); Béguin et al. (2018); Pursley et al. (2018). We note that the detrimental effect of the electron-phonon interaction persists even when there is only negligible excited QD population, so that even Raman red-detuned excitation of the spin-$\Lambda$ system will not eliminate the phonon sideband. Furthermore, we expect the same effect on the wave packet indistinguishability (CTW) as we have discussed for the two-level transition.

To further characterize the coherence of the ZPL of the Raman photons, we measure the spectra from QD2 with the high-resolution Fabry-Pérot interferometer. The emergence of a single Gaussian peak with width $\approx 2\,\mu\mathrm{eV}$ (FWHM) at $\Omega\approx 0.1\,\Omega_{\mathrm{sat}}$ (Fig. 4C) and an Autler-Townes doublet at $\Omega\gtrapprox\Omega_{\mathrm{sat}}$ (Fig. 4D and 4E) confirm the nature of coherent driving in the spin-$\Lambda$ system. As explained in the SI Sup , the relatively broad linewidth ($\Gamma\approx 2\,\mu\mathrm{eV}$) of the spin-flip Raman photon is due to the spin ground-state dephasing which is dominated by the coupling of electron spin to the nuclear spin bath  Malein et al. (2016); Sun et al. (2016).

In summary, our experimental and theoretical results contradict the expectation that perfectly coherent photons can be obtained from a solid-state emitter, either by weak resonant driving of a two-level transition or as Raman scattered photons. Instead, we have shown that the solid-state environment, and the associated exciton-phonon interaction, invariably limit the coherence of resonantly scattered photons: a minimum fraction $\alpha_{\mathrm{DW}}$ of photons are scattered incoherently, for any excitation power and scheme. We argue that these phonon-induced effects are due to the relaxation of the phonon bath in the excitonic ground-state, explaining why neither the weak-driving nor Raman red-detuned excitation regimes mitigate the interaction. While it is possible to filter the phonon sideband, this introduces a probabilistic element to the success rate of obtaining indistinguishable photons. Furthermore, despite being an intuitive solution, embedding the QD inside a cavity or waveguide for strong Purcell enhancement can only partly reduce the adverse effects of the vibrational environment, and, in the case of a cavity-embedded QD, at the cost of efficiency Iles-Smith et al. (2017a). Our non-Markovian polaron frame model agrees well with the experimental data for both the two- and three-level solid-state systems, showing that the presence of the vibrational environment impacts the emitter’s dynamics even in the low-power, Raman red-detuned regime.
