Evidence in favor of Single Parton Scattering mechanism in $\Upsilon$ and $D$ associated production at the LHC

TL;DR

This paper investigates the production of $mbda(1S)$ and $D$ mesons at the LHC, providing evidence that Single Parton Scattering significantly contributes to the process, challenging the assumption that Double Parton Scattering dominates.

Contribution

The study applies the Parton Reggeization Approach and NRQCD-factorization to show that Single Parton Scattering accounts for over half of the observed cross-section, reducing the expected role of Double Parton Scattering.

Findings

Single Parton Scattering explains over 50% of the cross-section.

Good agreement with LHCb data for most distributions.

Discrepancy in azimuthal angle difference spectra at small angles.

Abstract

Associated production of prompt $\Upsilon(1S)$ and $D^{+,0}$ mesons has been proposed as a golden channel for the search of Double Parton Scattering, because Single Parton Scattering contribution to the cross-section is believed to be negligible on a basis of leading order calculations in the Collinear Parton Model. We study this process in the leading order approximation of the Parton Reggeization Approach. Hadronization of $b\bar{b}$-pair into bottomonium states is described within framework of the NRQCD-factorization approach while production of $D$ mesons is described in the fragmentation model with scale-dependent fragmentation functions. We have found good agreement with LHCb data for various normalized differential distributions, except for the case of spectra on azimuthal angle differences at the small $\Delta\varphi$ values. Crucially, the total cross-section in our Single Parton Scattering model accounts for more than one half of observed cross-section, thus dramatically shrinking the room for Double Parton Scattering mechanism.

Figures

Tables

Table 1. Table 1: The color-singlet and color-octet NMEs from Ref.  NSSUpsilon used in the calculation.

NME	Fit in LO PRA.
$⟨{𝓞}^{𝚼\left(\mathrm{𝟏}𝑺\right)}\left[{}_{}{}^{\mathrm{𝟑}}𝑺_{\mathrm{𝟏}}^{\left(\mathrm{𝟏}\right)}\right]⟩\times$ GeV-3	$9.28$
$⟨{𝓞}^{𝚼\left(\mathrm{𝟏}𝑺\right)}\left[{}_{}{}^{\mathrm{𝟑}}𝑺_{\mathrm{𝟏}}^{\left(\mathrm{𝟖}\right)}\right]⟩\times {\mathrm{𝟏𝟎}}^{\mathrm{𝟐}}$ GeV-3	$2.31\pm 0.25$
$⟨{𝓞}^{𝚼\left(\mathrm{𝟏}𝑺\right)}\left[{}_{}{}^{\mathrm{𝟏}}𝑺_{\mathrm{𝟎}}^{\left(\mathrm{𝟖}\right)}\right]⟩\times {\mathrm{𝟏𝟎}}^{\mathrm{𝟐}}$ GeV-3	$0.0\pm 0.05$
$⟨{𝓞}^{𝚼\left(\mathrm{𝟏}𝑺\right)}\left[{}_{}{}^{\mathrm{𝟑}}𝑷_{\mathrm{𝟎}}^{\left(\mathrm{𝟖}\right)}\right]⟩\times {\mathrm{𝟏𝟎}}^{\mathrm{𝟐}}$ GeV-5	$0.0\pm 0.38$
$⟨{𝓞}^{𝚼\left(\mathrm{𝟐}𝑺\right)}\left[{}_{}{}^{\mathrm{𝟑}}𝑺_{\mathrm{𝟏}}^{\left(\mathrm{𝟏}\right)}\right]⟩\times$ GeV-3	$4.62$
$⟨{𝓞}^{𝚼\left(\mathrm{𝟐}𝑺\right)}\left[{}_{}{}^{\mathrm{𝟑}}𝑺_{\mathrm{𝟏}}^{\left(\mathrm{𝟖}\right)}\right]⟩\times {\mathrm{𝟏𝟎}}^{\mathrm{𝟐}}$ GeV-3	$1.51\pm 0.17$
$⟨{𝓞}^{𝚼\left(\mathrm{𝟐}𝑺\right)}\left[{}_{}{}^{\mathrm{𝟏}}𝑺_{\mathrm{𝟎}}^{\left(\mathrm{𝟖}\right)}\right]⟩\times {\mathrm{𝟏𝟎}}^{\mathrm{𝟐}}$ GeV-3	$0.0\pm 0.01$
$⟨{𝓞}^{𝚼\left(\mathrm{𝟐}𝑺\right)}\left[{}_{}{}^{\mathrm{𝟑}}𝑷_{\mathrm{𝟎}}^{\left(\mathrm{𝟖}\right)}\right]⟩\times {\mathrm{𝟏𝟎}}^{\mathrm{𝟐}}$ GeV-5	$0.0\pm 0.03$
$⟨{𝓞}^{𝚼\left(\mathrm{𝟑}𝑺\right)}\left[{}_{}{}^{\mathrm{𝟑}}𝑺_{\mathrm{𝟏}}^{\left(\mathrm{𝟏}\right)}\right]⟩\times$ GeV-3	$3.54$
$⟨{𝓞}^{𝚼\left(\mathrm{𝟑}𝑺\right)}\left[{}_{}{}^{\mathrm{𝟑}}𝑺_{\mathrm{𝟏}}^{\left(\mathrm{𝟖}\right)}\right]⟩\times {\mathrm{𝟏𝟎}}^{\mathrm{𝟐}}$ GeV-3	$1.24\pm 0.13$
$⟨{𝓞}^{𝚼\left(\mathrm{𝟑}𝑺\right)}\left[{}_{}{}^{\mathrm{𝟏}}𝑺_{\mathrm{𝟎}}^{\left(\mathrm{𝟖}\right)}\right]⟩\times {\mathrm{𝟏𝟎}}^{\mathrm{𝟐}}$ GeV-3	$0.0\pm 0.01$
$⟨{𝓞}^{𝚼\left(\mathrm{𝟑}𝑺\right)}\left[{}_{}{}^{\mathrm{𝟑}}𝑷_{\mathrm{𝟎}}^{\left(\mathrm{𝟖}\right)}\right]⟩\times {\mathrm{𝟏𝟎}}^{\mathrm{𝟐}}$ GeV-5	$0.0\pm 0.02$
$⟨{𝓞}^{𝝌\left(\mathrm{𝟏}𝑷\right)}\left[{}_{}{}^{\mathrm{𝟑}}𝑷_{\mathrm{𝟎}}^{\left(\mathrm{𝟏}\right)}\right]⟩\times$ GeV-5	$2.03$
$⟨{𝓞}^{𝝌\left(\mathrm{𝟏}𝑷\right)}\left[{}_{}{}^{\mathrm{𝟑}}𝑺_{\mathrm{𝟏}}^{\left(\mathrm{𝟖}\right)}\right]⟩\times {\mathrm{𝟏𝟎}}^{\mathrm{𝟐}}$ GeV-3	$0.0$
$⟨{𝓞}^{𝝌\left(\mathrm{𝟐}𝑷\right)}\left[{}_{}{}^{\mathrm{𝟑}}𝑷_{\mathrm{𝟎}}^{\left(\mathrm{𝟏}\right)}\right]⟩\times$ GeV-5	$2.36$
$⟨{𝓞}^{𝝌\left(\mathrm{𝟐}𝑷\right)}\left[{}_{}{}^{\mathrm{𝟑}}𝑺_{\mathrm{𝟏}}^{\left(\mathrm{𝟖}\right)}\right]⟩\times {\mathrm{𝟏𝟎}}^{\mathrm{𝟐}}$ GeV-3	$0.0$

Table 2. Table 2: The total cross sections of 𝚼 ​ 𝑫 + , 𝟎 𝚼 superscript 𝑫 0 \Upsilon D^{+,0} production at the LHCb for 𝑺 = 𝟕 𝑺 7 \sqrt{S}=7 TeV.

	${𝑩}_{{𝝁}^{+}{𝝁}^{-}}\times {𝝈}^{𝚼\left(\mathrm{𝟏}𝑺\right){𝑫}^{\mathrm{𝟎}}}$, pb	${𝑩}_{{𝝁}^{+}{𝝁}^{-}}\times {𝝈}^{𝚼\left(\mathrm{𝟏}𝑺\right){𝑫}^{+}}$, pb
Direct contributions:	51	20
$𝑹+𝑹\to 𝚼{[}^{\mathrm{𝟑}}{𝑺}_{\mathrm{𝟏}}^{\left(\mathrm{𝟏}\right)}]+𝒈$	37	15
$𝑹+𝑹\to 𝚼{[}^{\mathrm{𝟑}}{𝑺}_{\mathrm{𝟏}}^{\left(\mathrm{𝟖}\right)}]+𝒈$	14	5
Sum of feed-down contributions (5), (6)	40	16
Total cross section, LO PRA	${\mathrm{𝟗𝟏}}_{-\mathrm{𝟒𝟏}}^{+\mathrm{𝟒𝟖}}$	${\mathrm{𝟑𝟔}}_{-\mathrm{𝟏𝟔}}^{+\mathrm{𝟏𝟗}}$
Total cross section, experiment LHCb_ups_D	$\mathrm{𝟏𝟓𝟓}\pm \mathrm{𝟐𝟖}$	$\mathrm{𝟖𝟐}\pm \mathrm{𝟐𝟒}$

Table 3. Table 3: The cross sections of 𝚼 ​ 𝑫 + , 𝟎 𝚼 superscript 𝑫 0 \Upsilon D^{+,0} production at the LHCb for 𝑺 = 𝟖 𝑺 8 \sqrt{S}=8 TeV.

	${𝑩}_{{𝝁}^{+}{𝝁}^{-}}\times {𝝈}^{𝚼\left(\mathrm{𝟏}𝑺\right){𝑫}^{\mathrm{𝟎}}}$, pb	${𝑩}_{{𝝁}^{+}{𝝁}^{-}}\times {𝝈}^{𝚼\left(\mathrm{𝟏}𝑺\right){𝑫}^{+}}$, pb
Direct contributions:	61	24
$𝑹+𝑹\to 𝚼{[}^{\mathrm{𝟑}}{𝑺}_{\mathrm{𝟏}}^{\left(\mathrm{𝟏}\right)}]+𝒈$	44	18
$𝑹+𝑹\to 𝚼{[}^{\mathrm{𝟑}}{𝑺}_{\mathrm{𝟏}}^{\left(\mathrm{𝟖}\right)}]+𝒈$	17	6
Sum of feed-down contributions (5), (6)	49	19
Total cross section, LO PRA	${\mathrm{𝟏𝟎𝟖}}_{-\mathrm{𝟒𝟖}}^{+\mathrm{𝟓𝟔}}$	${\mathrm{𝟒𝟐}}_{-\mathrm{𝟏𝟗}}^{+\mathrm{𝟐𝟐}}$
Total cross section, experiment LHCb_ups_D	$\mathrm{𝟐𝟓𝟎}\pm \mathrm{𝟑𝟗}$	$\mathrm{𝟖𝟎}\pm \mathrm{𝟐𝟏}$

Equations

$${\sigma }_{\mathrm{DPS}}\simeq \frac{{\sigma }_{\mathrm{SPS}}^{(1)}\times {\sigma }_{\mathrm{SPS}}^{(2)}}{{\sigma }_{\mathrm{eff}}},$$

$$d\sigma$$

$$T_i(t,{\mu }^2)=\exp \left[-\underset{t}{\overset{{\mu }^2}{\int }}\frac{d{t}^{\prime }}{t^{\prime }}\frac{{\alpha }_s(t^{\prime })}{2\pi }\sum _{j=q,\bar{q},g}\underset{0}{\overset{1}{\int }}dzz\cdot P_{ji}(z)\theta \left(1-{\Delta }_{KMR}(t^{\prime },{\mu }^2)-z\right)\right],$$

$${\Phi }_i(x,t,{\mu }^2)=\frac{T_i(t,{\mu }^2)}{t}\frac{{\alpha }_s(t)}{2\pi }\sum _{j=q,\bar{q},g}\underset{x}{\overset{1}{\int }}dz{P}_{ij}(z)\cdot \frac{x}{z}{f}_j\left(\frac{x}{z},t\right)\cdot \theta \left(1-{\Delta }_{KMR}(t,{\mu }^2)-z\right),$$

$$R+R$$

$$R+R\to b\bar{b}{[}^3{S}_1^{(1,8)}]+c+\bar{c}.$$

$$⟨\overline{|\mathcal{M}[RR\to b\bar{b}+c(p_c)+\bar{c}(p_{\bar{c}})]{|}^2}⟩\simeq \frac{2g_s^2}{s_{c\bar{c}}}{P}_{qg}(z)\cdot \overline{|\mathcal{M}[RR\to b\bar{b}+g(p_c+p_{\bar{c}}))]{|}^2},$$

$$\frac{{\sigma }_{\mathrm{direct}}^{D^0}[R+R\to b\bar{b}{[}^3{S}_1^{(1+8)}]+g]}{{\sigma }_{\mathrm{direct}}^{D^0}[R+R\to b\bar{b}{[}^3{S}_1^{(1+8)}]+c+\bar{c}]}\simeq 2.6÷2.5,$$

Full text

I Introduction

Double Parton Scattering (DPS) mechanism attracts a lot of attention, both theoretically and experimentally. Recent advances in theory of DPS include computation Diehl:2019rdh of NLO corrections to $1\to 2$ splitting functions, contributing to the scale-evolution of two-parton collinear Parton Diastrbution Functions (PDFs) and filling remaining gaps in the proof of TMD-factorization theorem for double Drell-Yan process Diehl:2018wfy .

While for single-scale observables, such as total inclusive cross-section of some hard process with hard scale $Q$, the DPS contribution is always suppressed by powers of $\Lambda^{2}/Q^{2}$, where $\Lambda$ is some typical hadronic scale, the DPS contribution can be comparable with Single Parton Scattering contribution for the differential distributions in some regions of phase space Diehl:2011yj . In the DPS picture, longitudinal and transverse-momentum correlations of small-$x$ partons, participating in two independent hard scatterings, are quickly washed-out by effects of scale evolution of two-parton PDFs Elias:2017flu , so that double parton PDF effectively factorizes into a product of usual PDFs, leading to the “pocket-formula” description of DPS as:

[TABLE]

where $\sigma_{\rm DPS}$ is the DPS contribution to the production cross-section of the pair of objects, $\sigma^{(1,2)}_{\rm SPS}$ is the Single Parton Scattering (SPS) cross-section of the production of one final-state object and $\sigma_{\rm eff}$ is the non-perturbative “effective cross-section” which is typically assumed to be universal, energy-independent parameter. Eq. (1) leads to flat distributions for observables correlating momenta of particles produced in independent hard scatterings, in particular, for the azimuthal angle $\Delta\varphi$ or rapidity difference $\Delta y$ between momenta of components of the pair. In contrast, the SPS contribution to differential distributions in the processes of pair-production of jets, vector bosons or mesons containing heavy flavors, typically decreases rather steeply with increasing $|\Delta y|$ or $\Delta\varphi$ varying from $\Delta\varphi=\pi$ down to zero. Therefore, an overshoot of experimentally-observed cross-section over best available SPS predictions in the region $\Delta\varphi\to 0$ or $|\Delta y|\gg 1$ can be interpreted as a signature of DPS.

Another way to probe the DPS mechanism is to use the fact that due to Eq. (1) the DPS cross-section grows with energy roughly as a square of SPS cross-section, so at sufficiently high energy the power-supression by hard scale will be compensated by quickly growing cross-section and the DPS contribution will dominate. To observe this effect at available energies, one chooses the process, for which SPS cross-section is as small as possible, due to suppression by high power of $\alpha_{s}$. The hard scale also should be small in comparison to the collision energy, so that one stays in the low-$x$ region, where Eq. (1) is applicable. Pair production of mesons containing $c$ and $b$ quarks seems to be an ideal playground for this kind of studies. But one have to anticipate, that due to low hard scales and involvement of relatively poorly understood physics of hadronization, the SPS cross-section could receive unexpectedly large higher-order QCD corrections, which could invalidate the assumption of negligibility of the SPS contribution. Moreover, at low-$x$ plenty of phase space is available for emission of additional relatively hard partons, which will broaden the distributions in variables like $\Delta\varphi$ and $\Delta y$, thus mimicking the effects of DPS and making the extraction of the DPS signal from differential distributions more model-dependent.

In Ref. LHCb_ups_D the strategy described in previous paragraph has been applied by LHCb-Collaboration for the search of DPS contribution in the process of associated production of prompt bottomonim $\Upsilon(1S)$ and open-charm mesons $D^{0}$ or $D^{+}$ in forward-rapidity region in $pp$-collisions with center-of-mass energies $\sqrt{S}=7$ and $8$ TeV at the Large Hadron Collider. The leading order (LO, $O(\alpha_{s}^{4})$ in this case) calculations in Collinear Parton Model Likhoded2015 ; Likhoded2016 and Color-Singlet approximation for the hadronization of $b\bar{b}\to\Upsilon$ lead to a very small SPS total cross-section of this process, compared with the cross-section of inclusive production of $\Upsilon$-mesons, calculated in a same approximation: $R_{\rm SPS}^{\rm(LO)}=\sigma^{(LO,\ CS)}_{SPS}(\Upsilon+c\bar{c})/\sigma^{(LO,\ CS)}_{SPS}(\Upsilon)=(0.2-0.6)\%$, while experimentally this ratio reaches almost $8\%$ at $\sqrt{S}=8$ TeV LHCb_ups_D . Such a large discrepancy was interpreted in Ref. LHCb_ups_D as a clear signal of DPS mechanism. This interpretation was supported by the fact, that shapes of differential distributions measured in Ref. LHCb_ups_D can be reasonably described by simple Monte-Carlo calculations based on measured inclusive cross-sections of production of $\Upsilon$ and $D$-mesons and “pocket-formula” (1).

In the present paper we reconsider the estimation of SPS contribution to above-described process, adding a few effects which were missed in calculations of Refs. Likhoded2015 ; Likhoded2016 . First, we approximately take into account higher-order corrections coming from Initial-State Radiation (ISR) effects, by virtue of Parton Reggeization Approach (PRA) NSS2013 ; NKS2017 , which allows to factorize most significant part of ISR corrections into unintegrated Parton Distribution Functions (unPDFs) consistently with QCD gauge-invariance. The latter fact allows us to take into account the contributions to the $b\bar{b}\to\Upsilon$ coming from color-octet $b\bar{b}$-pair in a framework of nonrelativistic QCD (NRQCD) factorization approach NRQCD . An importance of color-octet contributions for bottomonium production in PRA has been demonstrated by us in Ref. NSSUpsilon . And finally, we consistently take into account parton to $D$-meson hadronization, using the scale-dependent fragmentation functions, obtained in a global analysis of open-charm hadron production in $e^{+}e^{-}$-annihilation in Ref. KKSS . Counter-intuitively, not only $c\to D$ but also $g\to D$ fragmentation plays an important role in the associated $\Upsilon$ and $D$ production. Gluon fragmentation has also been found to be important for the same-sign $DD$-pair production in Refs. PLB2016 ; PRD2016DD . In total and taking into account the uncertainties, our hybrid PRA+NRQCD+fragmentation model can account more than a half of experimentally observed cross-section for $\Upsilon D$ pair production. The shapes of all differential distributions in our SPS model also turn out to reproduce experimental data rather well, except for the shape of $\Delta\varphi$-spectrum which has a puzzling “upside-down” behavior, un-explainable even by the DPS model (1). Therefore, we show that radiative corrections to the SPS cross-section of the process under consideration are large and mimicking the behavior of DPS, thus weakening the case for DPS-dominance in this process.

The paper is organized as follows. We describe the basics of PRA in the Sec. II. In the Sec. III we present our model of $\Upsilon(1S)D^{0,+}$ pair production. Then we concentrate on the numerical results and comparison with experimental data of the Ref. LHCb_ups_D in the Sec. IV. Finally, we summarize our conclusions in the Sec. V.

II Parton Reggeization Approach

The brief description of LO approximation of PRA is presented below. More details can be found in Ref. NKS2017 , the development of PRA in the next-to-leading order (NLO) approximation is further discussed in PRANLO1 ; PRANLO2 . The main ingredients of PRA are $k_{T}-$dependent factorization formula, unintegrated parton distribution functions (unPDF’s) and gauge-invariant amplitudes with off-shell initial-state partons, derived using the Lipatov’s Effective Field Theory (EFT) of Reggeized gluons Lipatov95 and Reggeized quarks LipatovVyazovsky .

Factorization formula of PRA in LO approximation for the process $p+p\to{\cal Y}+X$, can be obtained from factorization formula of the CPM for the auxiliary hard subprocess $g+g\to g+{\cal Y}+g$. In the Ref. NKS2017 the modified Multi-Regge Kinematics (mMRK) approximation for the auxiliary amplitude is constructed, which correctly reproduces the Multi-Regge and collinear limits of corresponding QCD amplitude. This mMRK-amplitude has $t$-channel factorized form, which allows one to rewrite the cross-section of auxiliary subprocess in a $k_{T}$-factorized form:

[TABLE]

where $t_{1,2}=-{\bf q}_{T1,2}^{2}$, the off-shell partonic cross-section $\hat{\sigma}_{\rm PRA}$ in PRA is determined by squared PRA amplitude, $\overline{|{\cal A}_{PRA}|^{2}}$. Despite the fact that four-momenta ($q_{1,2}$) of partons in the initial state of amplitude ${\cal A}_{PRA}$ are off-shell ($q_{1,2}^{2}=-t_{1,2}<0$), the PRA hard-scattering amplitude is gauge-invariant because the initial-state off-shell gluons are treated as Reggeized gluons ($R$) in a sense of gauge-invariant EFT for QCD processes in Multi-Regge Kinematics(MRK), introduced by L.N. Lipatov in Lipatov95 . The Feynman rules of this EFT are written down in Ref. AntonovLipatov .

The tree-level ”unintegrated PDFs”  (unPDFs) $\tilde{\Phi}_{g}(x_{1,2},t_{1,2},\mu^{2})$ in Eq. (2) are equal to the convolution of the collinear PDF $f_{g}(x,\mu^{2})$ and Dokshitzer-Gribov-Lipatov-Altarelli-Parisi (DGLAP) splitting function $P_{gg}(z)$ with the factor $1/t_{1,2}$. Consequently, the cross-section (2) with such unPDFs contains the collinear divergence at $t_{1,2}\to 0$ and infrared (IR) divergence at $z_{1,2}\to 1$. To regularize the latter, we observe, that the mMRK expression gives a reasonable approximation for the exact matrix element only in the rapidity-ordered part of the phase-space $y_{g_{1}}>y_{\cal Y}>y_{g_{2}}$. From this requirement, the following cutoff on $z_{1,2}$ can be derived: $z_{1,2}<1-\Delta_{KMR}(t_{1,2},\mu^{2}),$ where $\Delta_{KMR}(t,\mu^{2})=\sqrt{t}/(\sqrt{\mu^{2}}+\sqrt{t})$ is the Kimber-Martin-Ryskin (KMR) cutoff function KMR , and we have taken into account that $\mu^{2}\sim M_{T{\cal Y}}^{2}$. The collinear singularity at $t_{1,2}\to 0$ is regularized by the Sudakov formfactor:

[TABLE]

which resums doubly-logarithmic corrections $\sim\log^{2}(t/\mu^{2})$ in the Leading-Logarithmic-Approximation.

The final form of our unPDF in PRA is:

[TABLE]

which coincides with Kimber, Martin and Ryskin unPDF KMR . The KMR unPDF is actively used in the phenomenological studies employing $k_{T}$-factorization, but to our knowledge, the derivation, presented in NKS2017 is the first systematic attempt to clarify it’s relationships with MRK limit of the QCD amplitudes.

In contrast to most of studies in the $k_{T}$-factorization, the gauge-invariant matrix elements with off-shell initial-state partons (Reggeized quarks and gluons) from Lipatov’s EFT Lipatov95 ; LipatovVyazovsky allow one to study arbitrary processes involving non-Abelian structure of QCD without violation of Slavnov-Taylor identities due to the nonzero virtuality of initial-state partons. This approach, together with KMR unPDFs gives stable and consistent results in a wide range of phenomenological applications, which include the description of the angular correlations of dijets NSS2013 , $b$-jets SSbb , charmed PLB2016 and bottom-flavored NKS2017 mesons, as well as some other examples.

A few years ago, the new approach to derive gauge-invariant scattering amplitudes with off-shell initial-state partons for high-energy scattering, using the spinor-helicity techniques and BCFW-like recursion relations for such amplitudes has been introduced in the Refs. hameren1 ; hameren2 ; katie . This formalism for numerical generation of off-shell amplitudes is equivalent to the Lipatov’s EFT at the tree level, but for some observables, e. g. related with production of heavy quarkonia, or for the generalization of the formalism to NLO PRANLO1 ; PRANLO2 , the use of explicit Feynman rules and the structure of EFT is more convenient.

III Model for $\Upsilon D$ pair production

In the Leading Order (LO), ($O(\alpha_{s}^{3})$), in PRA plus fragmentation model Frag , only gluon fragmentation contributes to the process of associated production of bottomonium and $D$-meson:

[TABLE]

One might worry, that the gain of one power of $\alpha_{s}$ will be compensated by small numerical value of $g\to D$ fragmentation function in comparison with $c\to D$ fragmentation and thus the numerically leading contribution comes from the Next-to-Leading-Order (NLO) ($O(\alpha_{s}^{4})$) subprocesses:

[TABLE]

We address this question in Sec. IV and show, that contribution of $2\to 3$ subprocesses is actually subleading, so in the final predictions for the cross-sections and spectra we take into account only subprocesses (5, 6).

According to NRQCD factorization formalism NRQCD , final heavy quarkonium can be produced via color-singlet and color-octet intermediate states of $b\bar{b}$-pair. We use the set of color-singlet and color-octet nonperturbative (long-distance) matrix elements (NMEs or LDMEs), which has been obtained in the LO PRA plus NRQCD-factorization approximation in the Ref. NSSUpsilon from the fit of inclusive $p_{T}-$spectra of prompt $\Upsilon(nS)$-mesons, measured by ATLAS, CMS and LHCb Collaborations at the LHC. For reader’s convenience, we collect these NMEs in the Table 1. The color-octet contributions for the production of $P$-wave bottomonia tend to be negligible in comparison with color-singlet contributions NSSUpsilon , so in the $P$-wave case we take into accunt only the singlet channel. Thus at the quark level we are left with the following list of LO partonic subprocesses:

[TABLE]

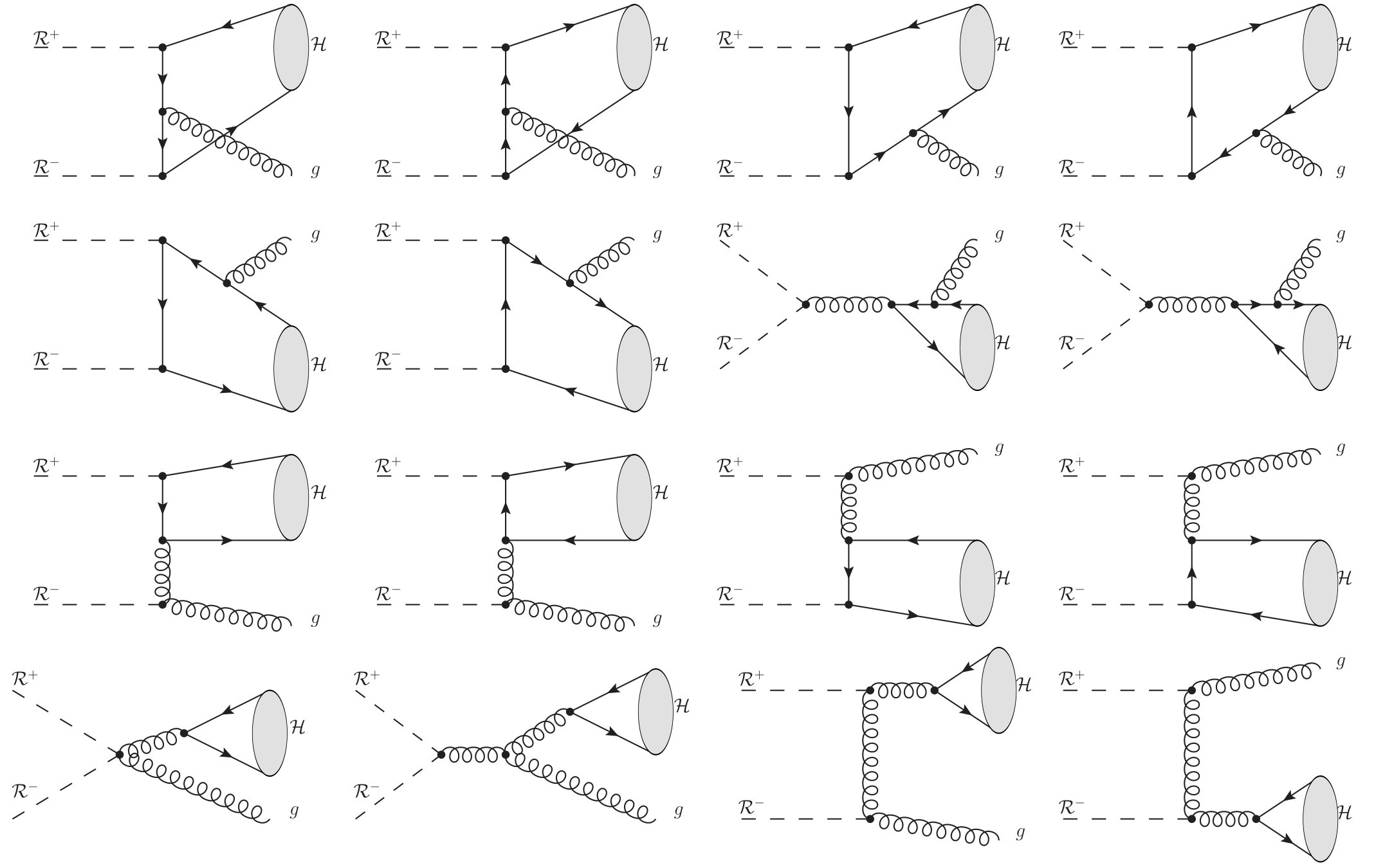

The sets of Feynman diagrams of Lipatov’s EFT which describe subprocesses (9-11) are shown in Fig. 1. Squared off-shell amplitude of subprocess (9) is well known, it was calculated many years ago in the Ref. KVS2006 . Squared off-shell amplitudes of subprocess (10) and (11) are calculated here for the first time. However, corresponding on-shell squared amplitudes are known ChoLeibovich and they have been used for the test of collinear limit of obtained PRA amplitudes with off-shell initial-state partons. To automatize the analytic calculations we have implemented the Feynman rules of EFT Lipatov95 ; LipatovVyazovsky as a model for FeynArts package FeynArts . The further calculation of helicity amplitudes for $2\to 2$ and $2\to 3$ processes has been performed using FeynCalc FeynCalc package and for the numerical evaluation, amplitudes had been squared, summed over colors and helicities and implemented as a FORTRAN code. Unfortunately, due to complicated dependence on light-cone and transverse components of four-momenta of initial and final-state particles, PRA amplitudes even for $2\to 2$ processes tend to become prohibitively large for the journal publication. In fact, in the case of ${}^{3}S_{1}^{(8)}$-subprocess (10) the arithmetic with quadruple precision inside the squared-amplitude routine is required to reach numerical stability of the calculation.

Considering the associated production of $\Upsilon(1S)D^{0,+}$ pairs, one should take into account both direct and feed-down production of $\Upsilon(1S)$ via decays of higher-lying $\Upsilon(3S,2S)$ and $\chi_{b}(2P,1P)$ states, which in turn are produced directly or via decays of even excited states. Taking known branching fractions of different decays from PDG and considering cascades of up to three consequent decays we have obtained the following cascade branching fractions for $\Upsilon(1S)$-state: $\mbox{Br}(\Upsilon(3S)\to\Upsilon(1S))=0.138$, $\mbox{Br}(\chi_{b2}(2P)\to\Upsilon(1S))=0.114$, $\mbox{Br}(\chi_{b1}(2P)\to\Upsilon(1S))=0.171$, $\mbox{Br}(\chi_{b0}(2P)\to\Upsilon(1S))=0.023$, $\mbox{Br}(\Upsilon(2S)\to\Upsilon(1S))=0.302$, $\mbox{Br}(\chi_{b2}(1P)\to\Upsilon(1S))=0.191$, $\mbox{Br}(\chi_{b1}(1P)\to\Upsilon(1S))=0.339$, $\mbox{Br}(\chi_{b0}(2P)\to\Upsilon(1S))=0.018$, which are used in the calculation.

To describe the $D$-meson production we use the fragmentation model in which the transition of gluon to the $D$ meson is described by corresponding scale-dependent fragmentation function (FF) $D_{g}(z,\mu^{2})$ Frag . Recently, the non-trivial role of gluon fragmentation in associated production of same-sign $D-$meson pairs at the LHC has been demonstrated by some of us PLB2016 . The latter process has been considered by some authors as clean signal of DPS production mechanism DD_DPS . In Ref. PLB2016 it has been shown that main mechanism of same-sign $DD-$pair production is gluon to $D$ meson fragmentation via production of gluon pair in the LO PRA subprocess $RR\to gg$. The description of LHCb data LHCb_DD has been archived without hypothesis on large DPS contribution. In the present paper, as well as in the Ref. PLB2016 use universal scale-dependent LO FFs of the Ref. KKSS , fitted to $e^{+}e^{-}$-annihilation data from CERN LEP1.

IV Results and discussion

Here we discuss our numerical results obtained for prompt $\Upsilon(1S)D^{0,+}$ pair production in $pp$-collisions at energies $\sqrt{S}=7$ TeV and $\sqrt{S}=8$ TeV. We use the unPDFs obtained by the KMR formula (3, 4) from the LO collinear PDFs MSTW-2008 Martin:2009iq and the corresponding value of $\alpha_{s}(M_{Z})=0.13939$. We set the renormalization and factorization scales to $\mu_{R}=\mu_{F}=\frac{\xi}{2}\left(\sqrt{M_{\Upsilon}^{2}+p_{T\Upsilon}^{2}}+\sqrt{M_{D}^{2}+p_{TD}^{2}}\right)$ where $\xi=1$ for the central lines of our predictions, and we vary $1/2<\xi<2$ to estimate the scale-uncertainty of our prediction, which is shown in the figures by the gray band for the curve corresponding to the sum of all contributions.

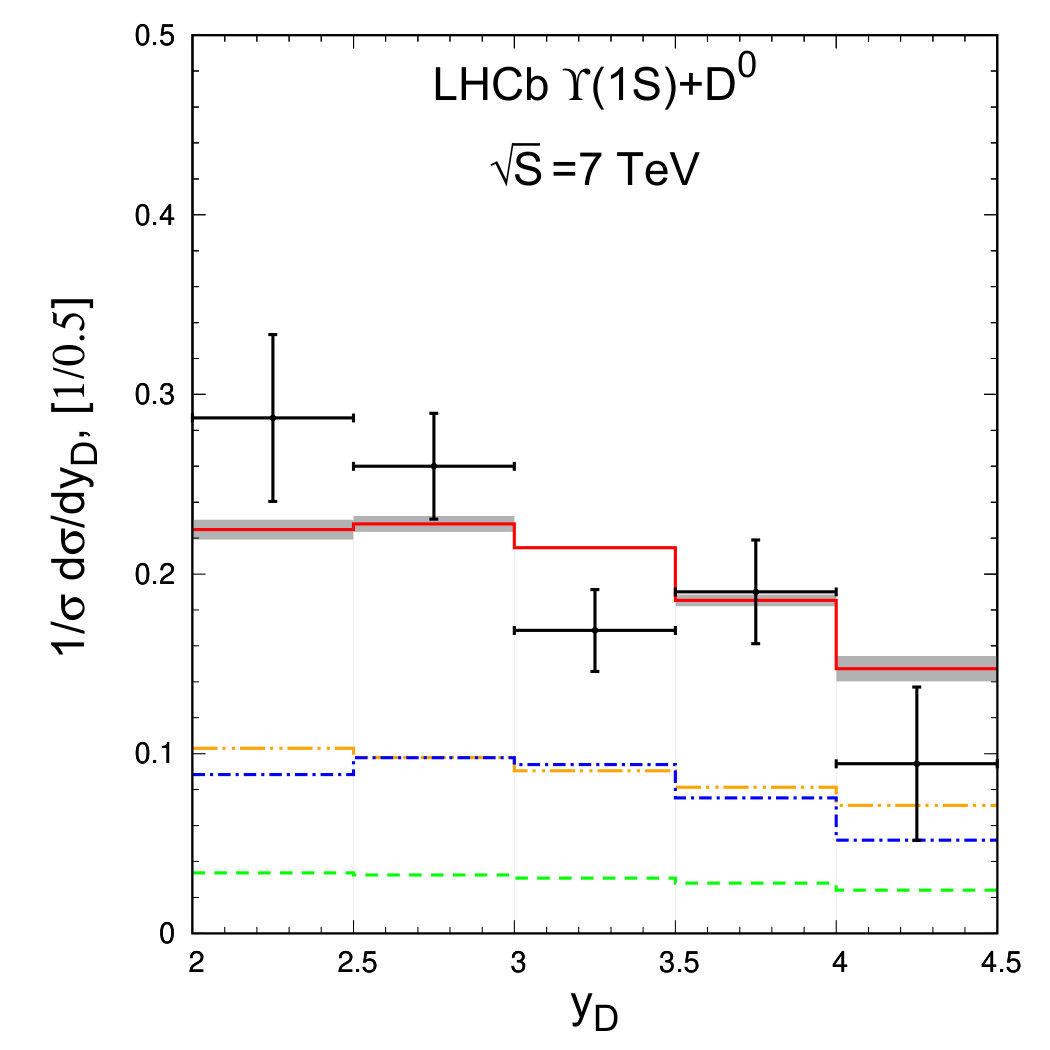

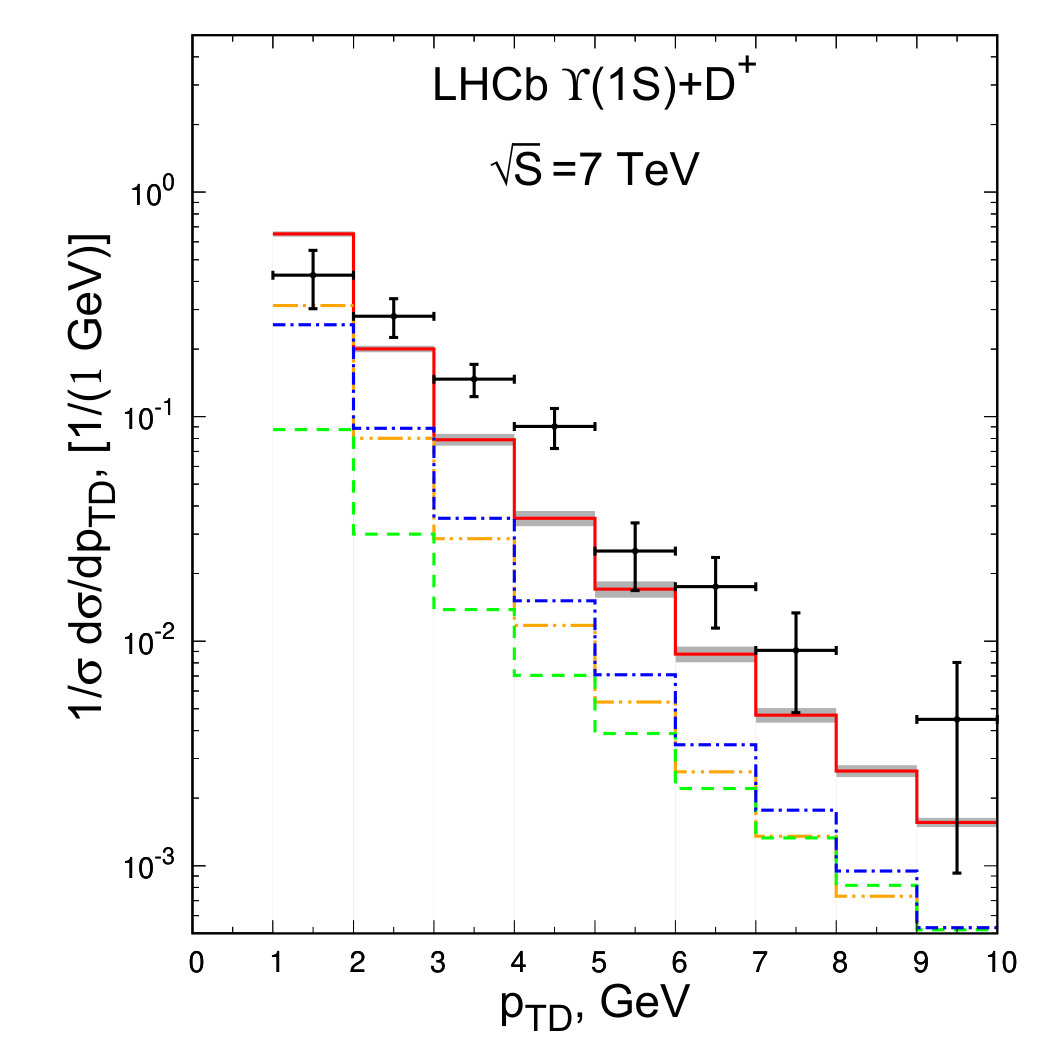

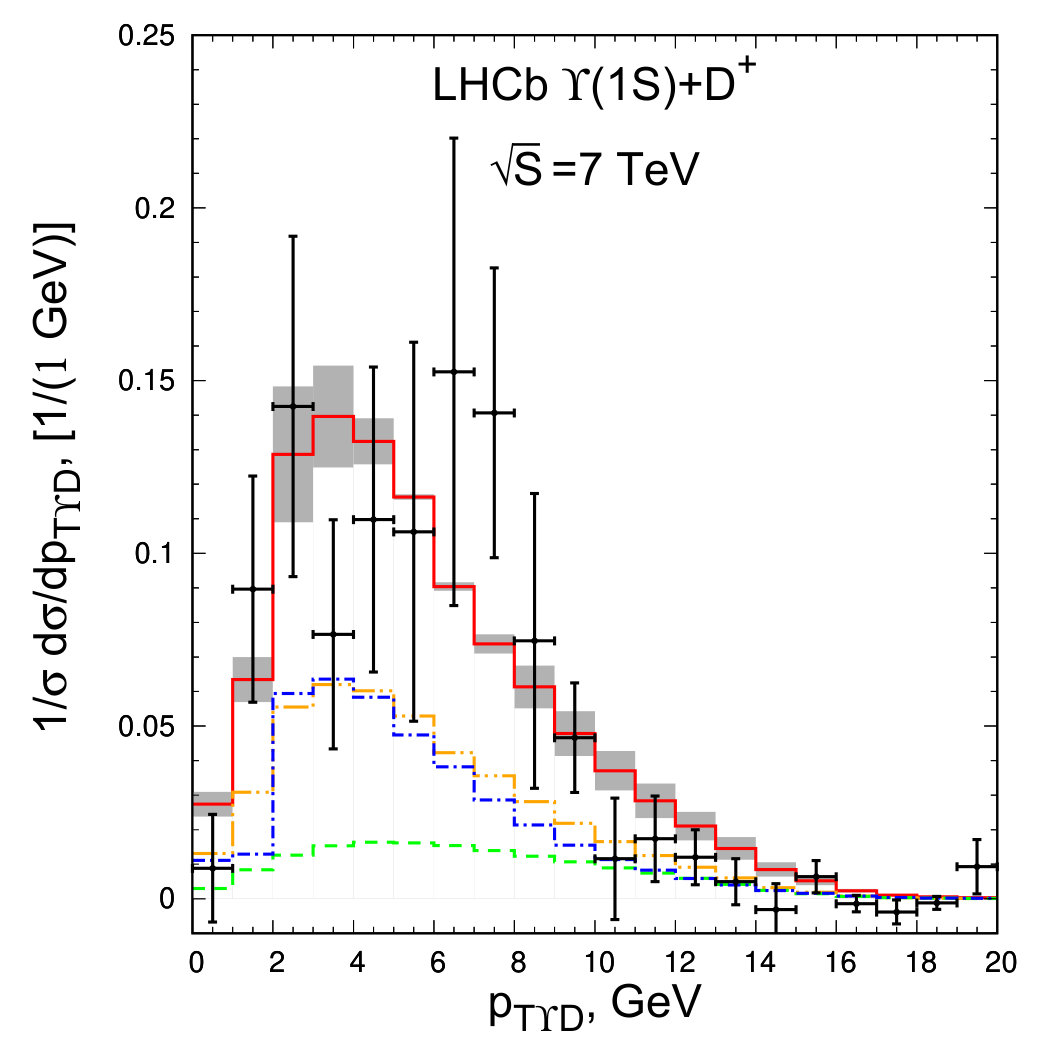

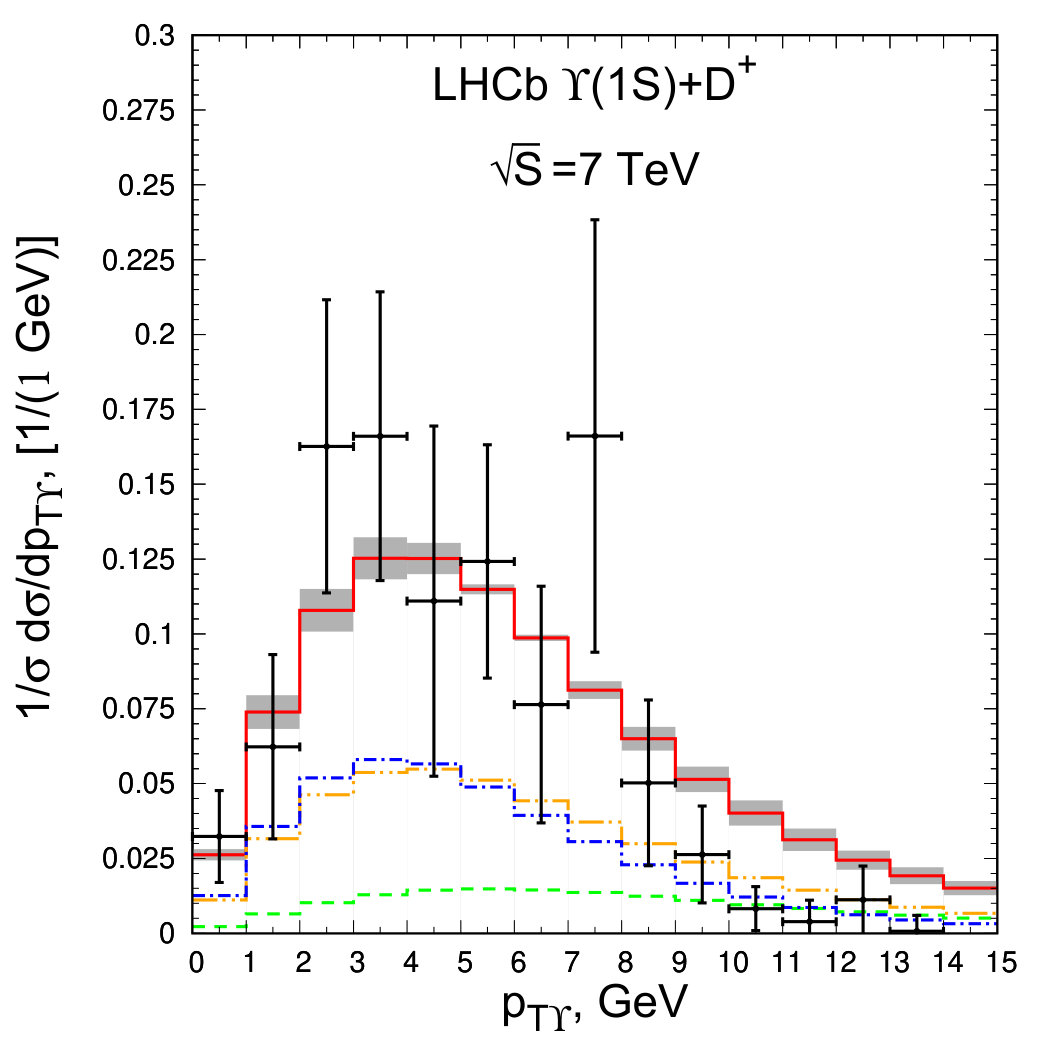

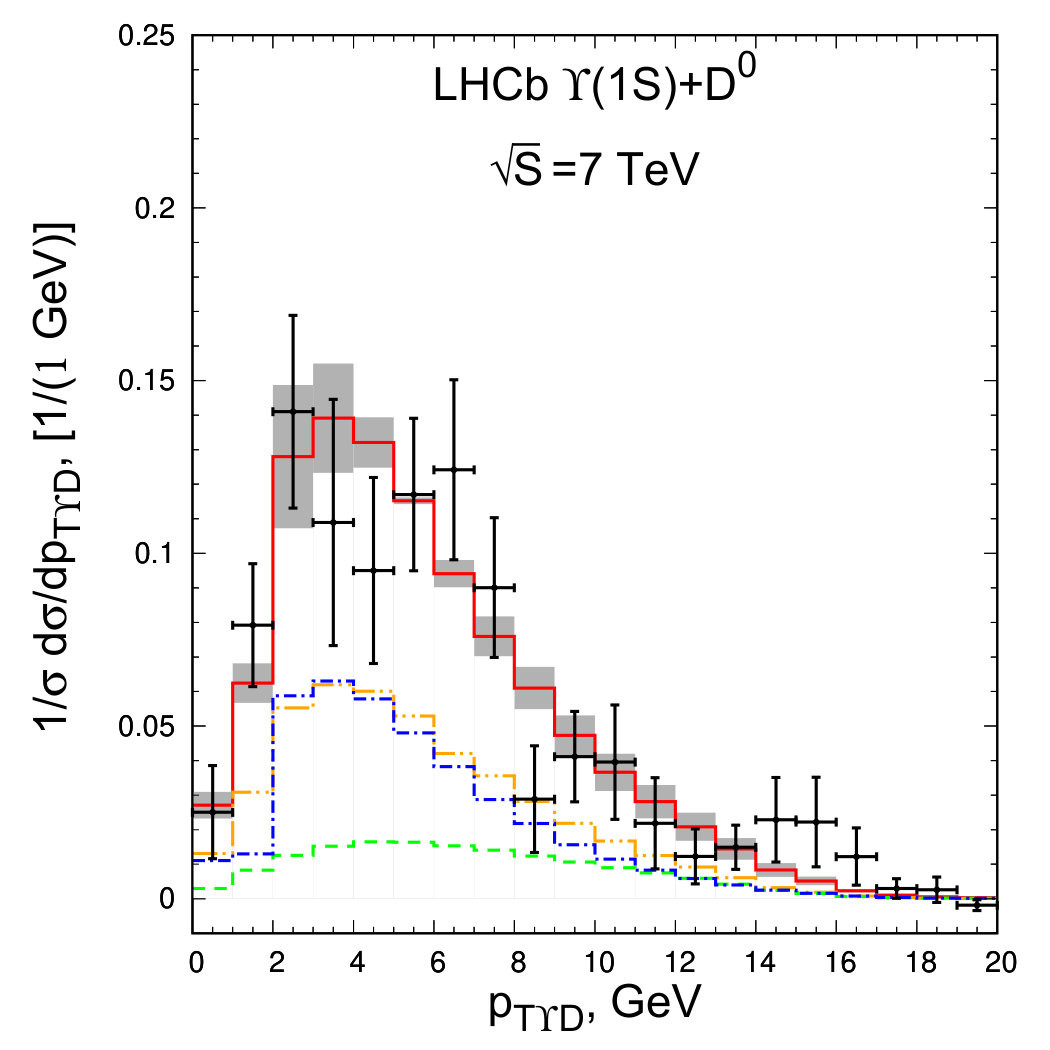

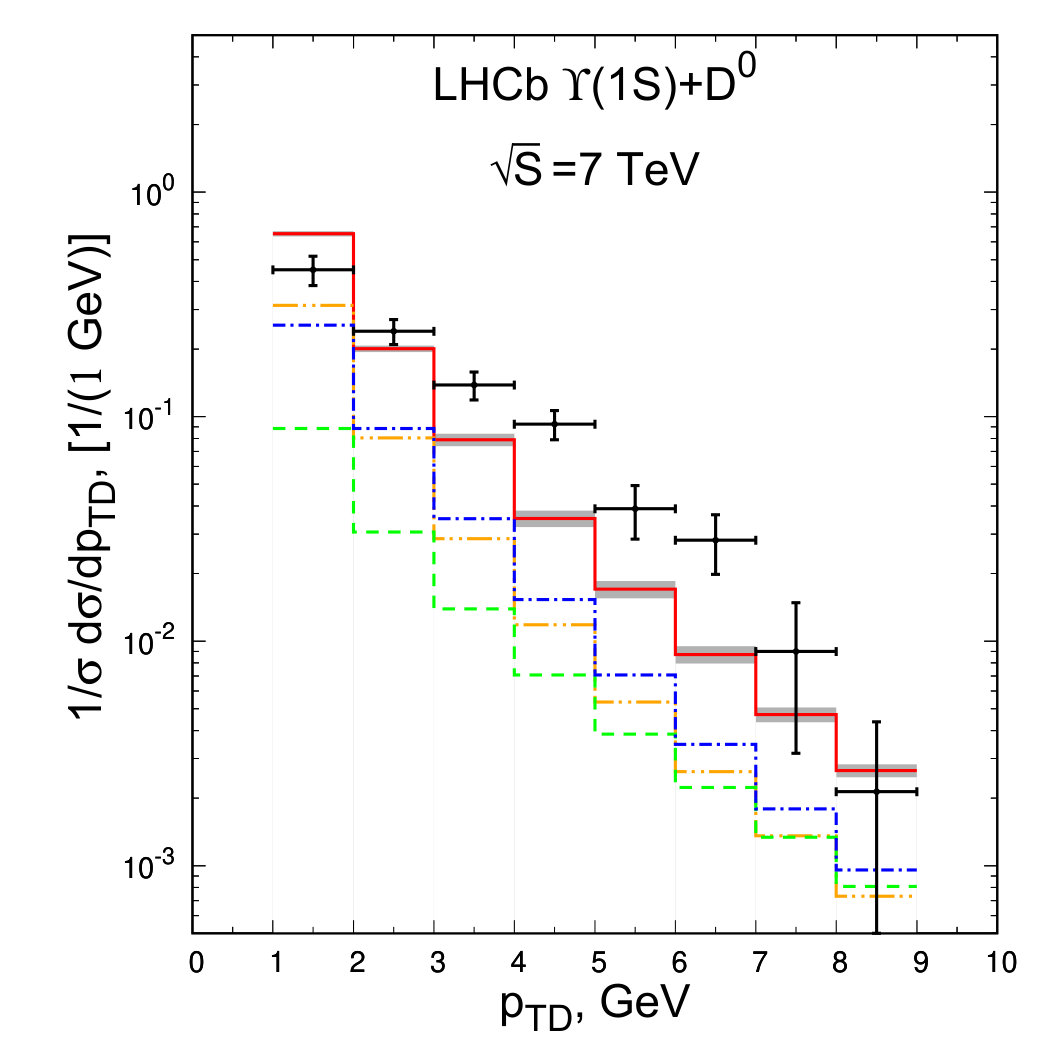

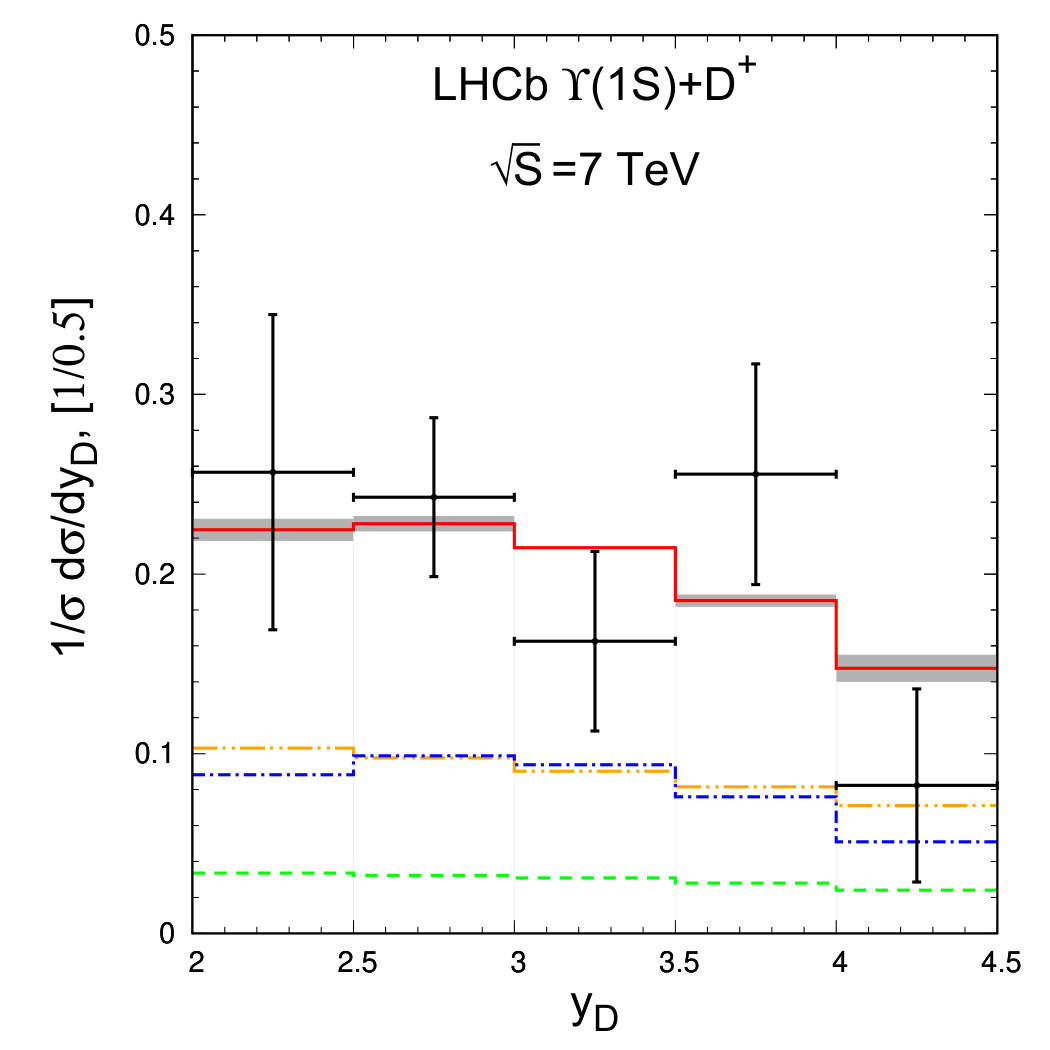

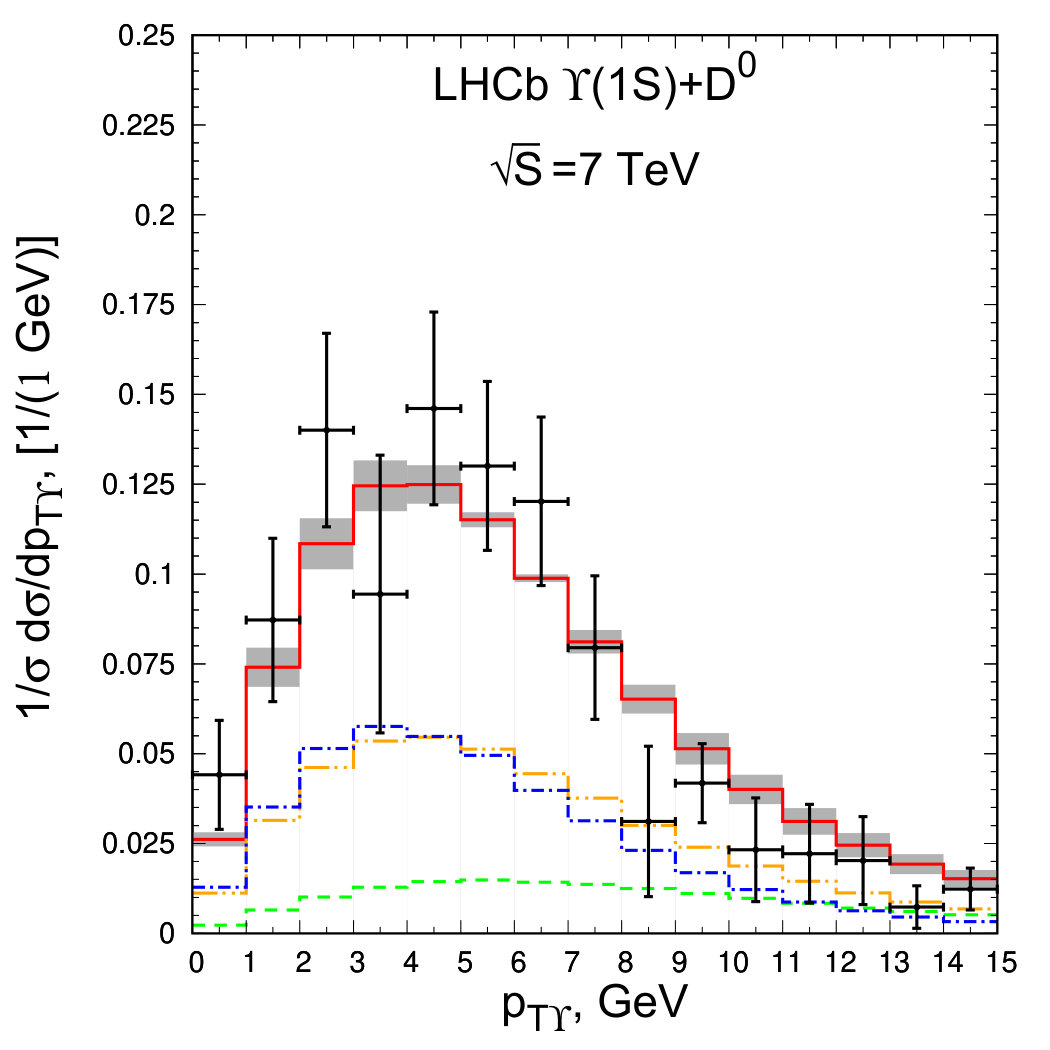

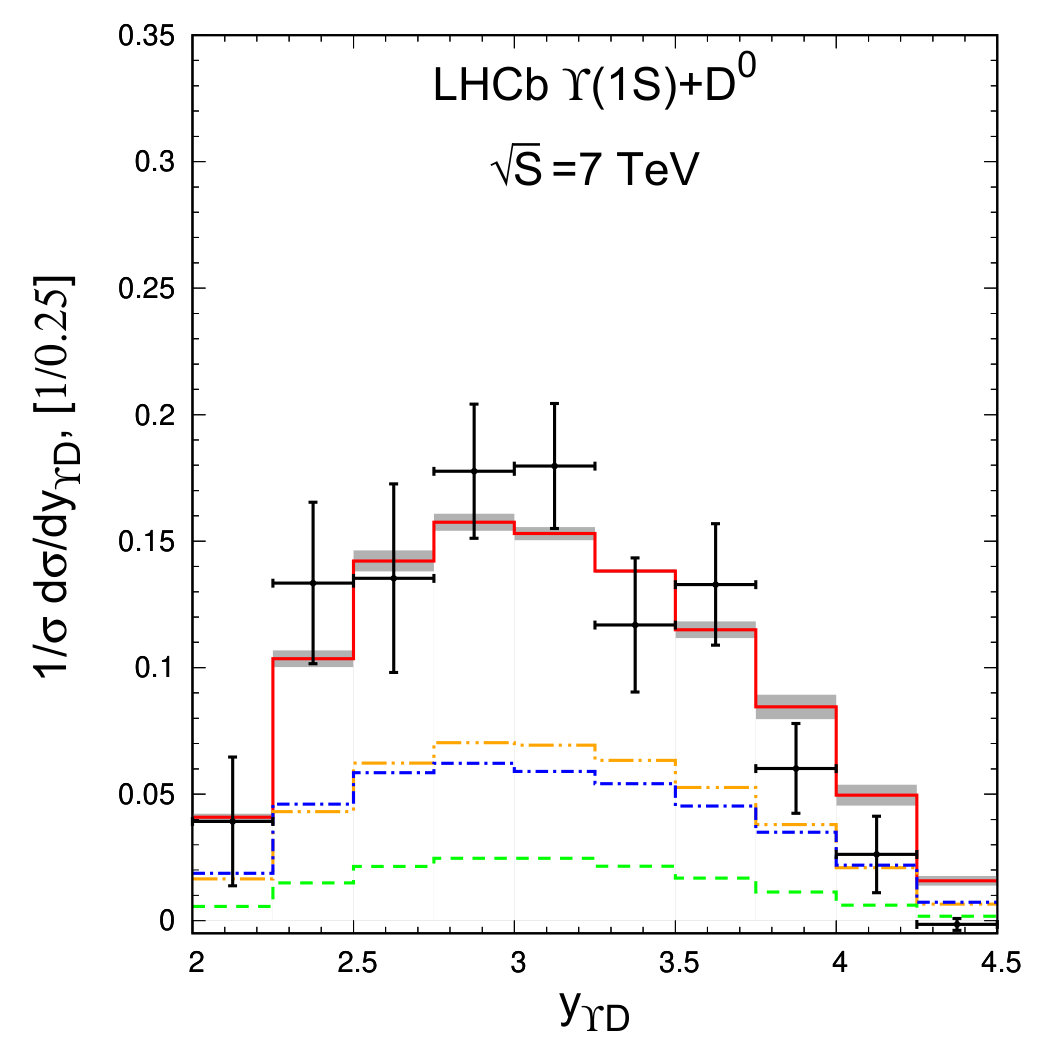

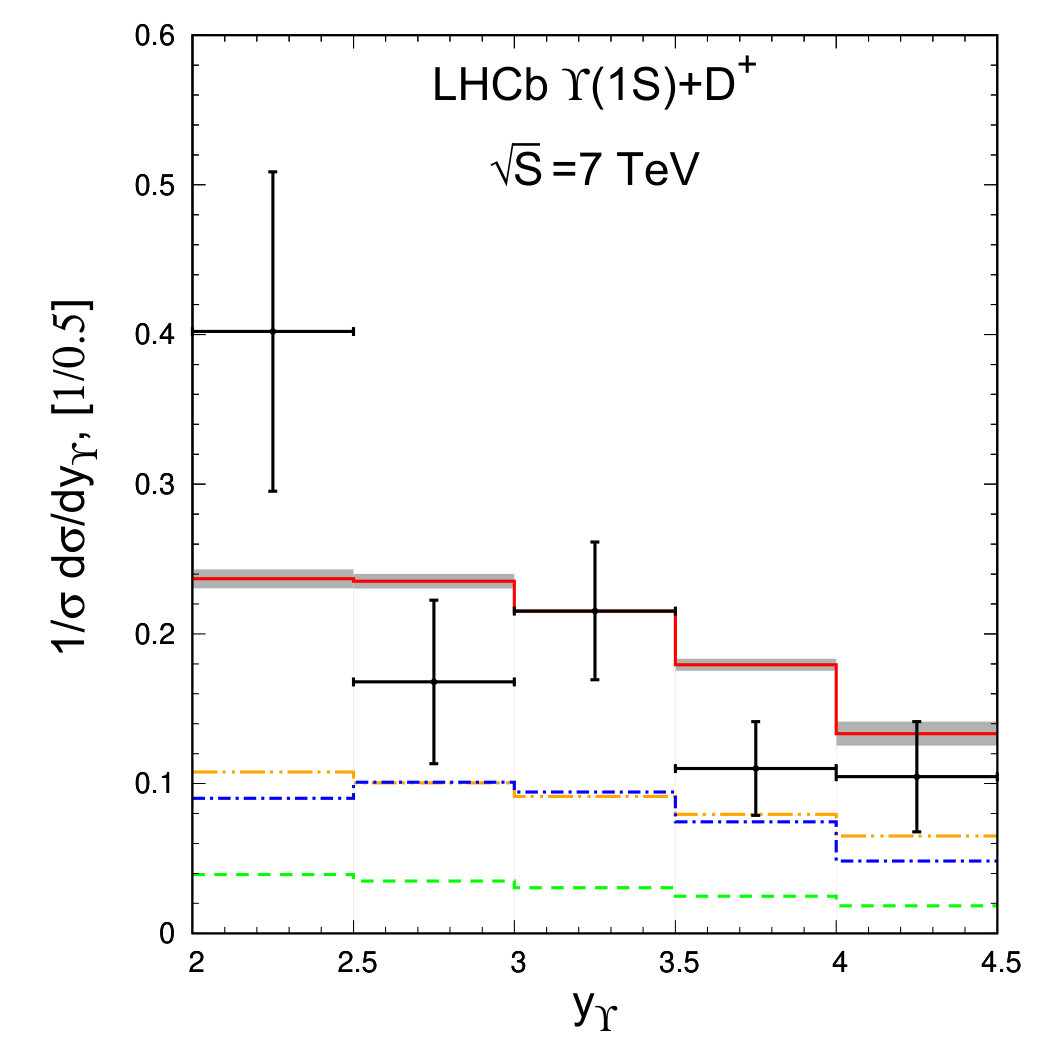

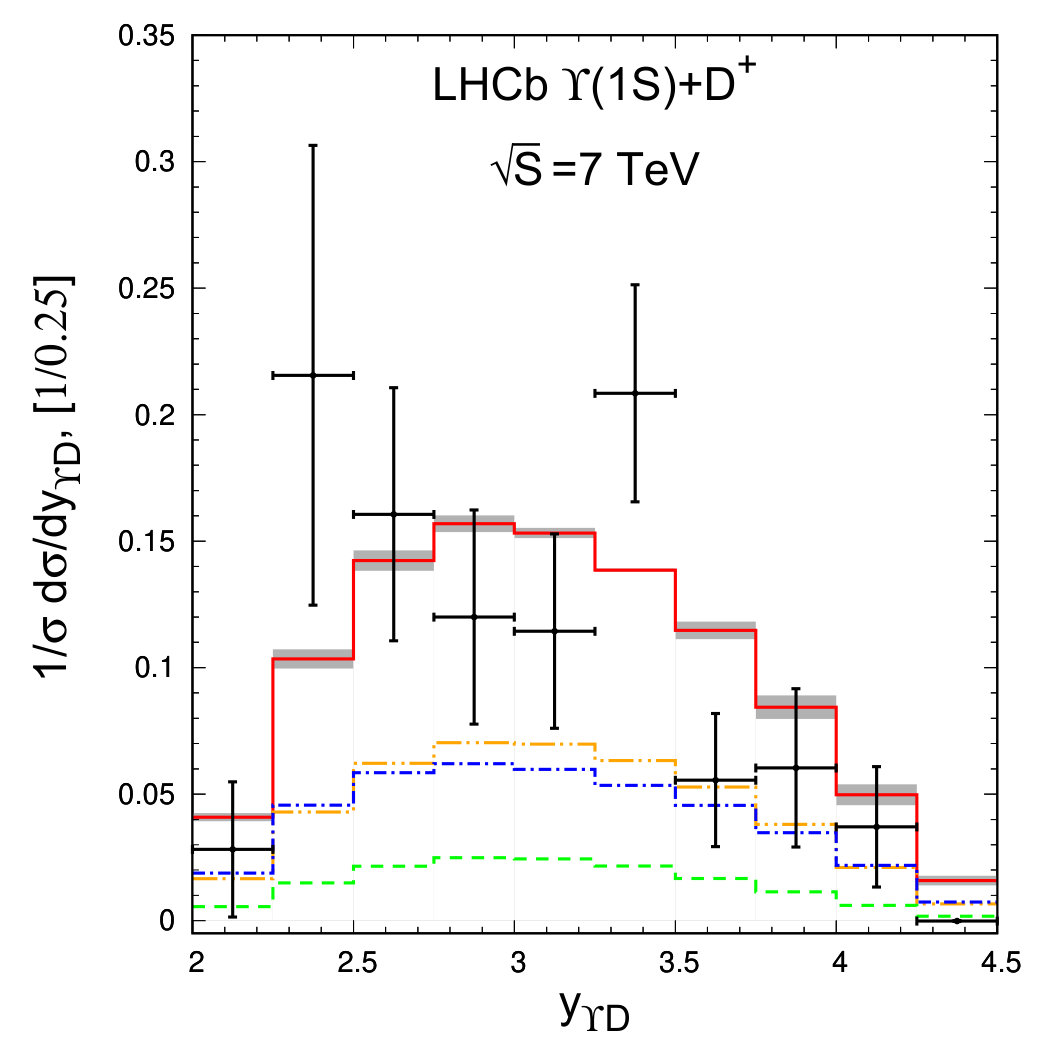

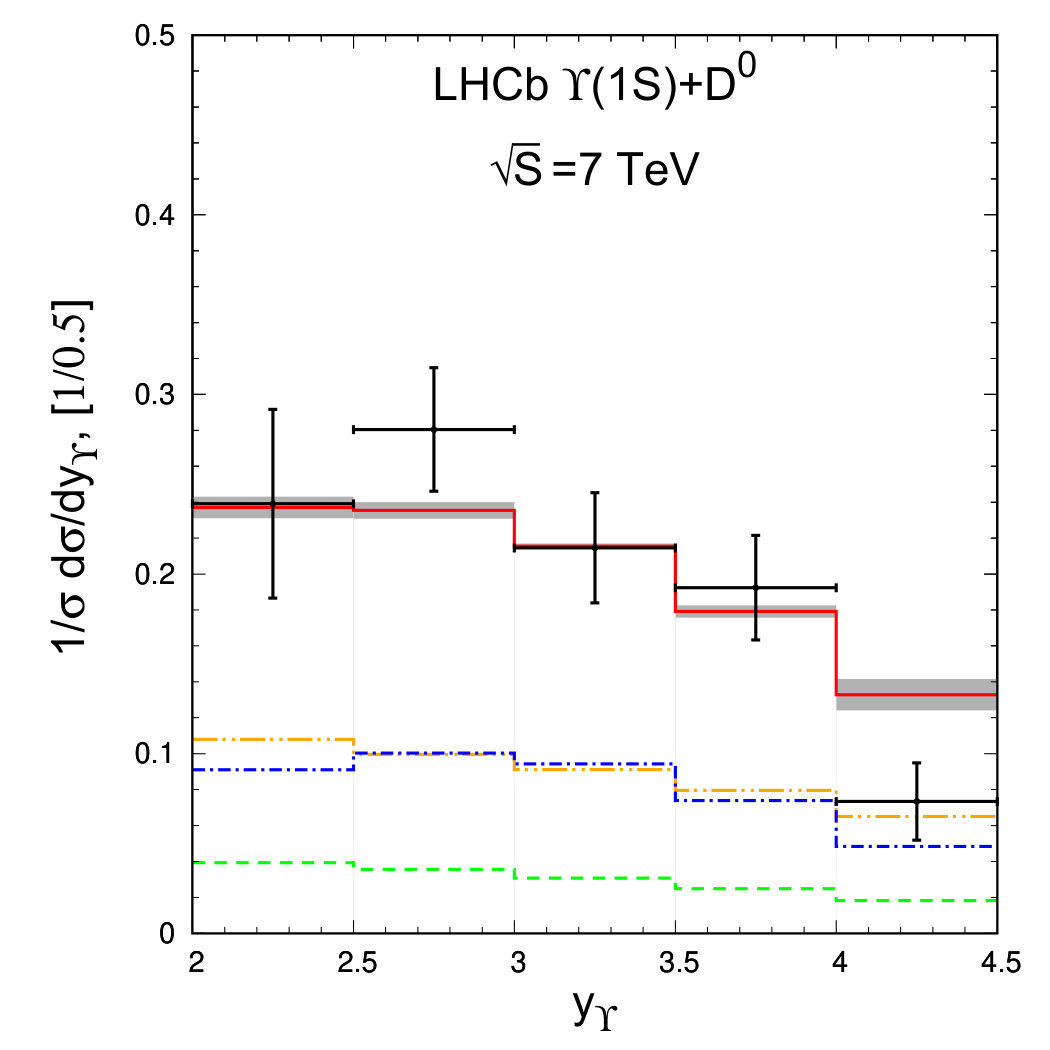

In the Figs. 2 and 5, we compare normalized transverse momentum and rapidity spectra of $\Upsilon(1S)$ and $D^{0,+}$ predicted by our model with LHCb data LHCb_ups_D . The top panels of Figs. 3 and 6 collect rapidity and and transverse momentum spectra of $\Upsilon(1S)D^{0,+}$ pairs. For all above-mentioned spectra, our hybrid LO PRA plus NRQCD plus fragmentation model does reasonably well in explaining the experimental data.

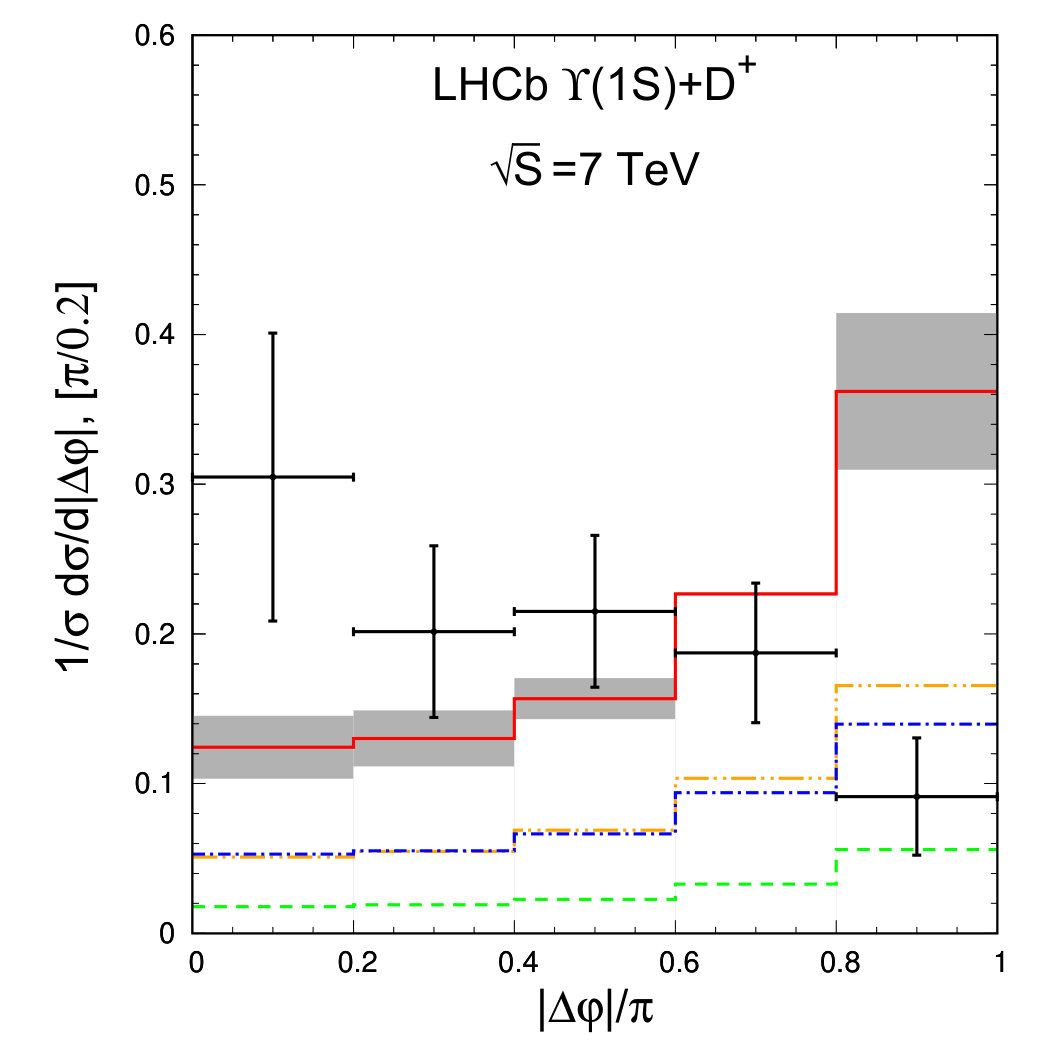

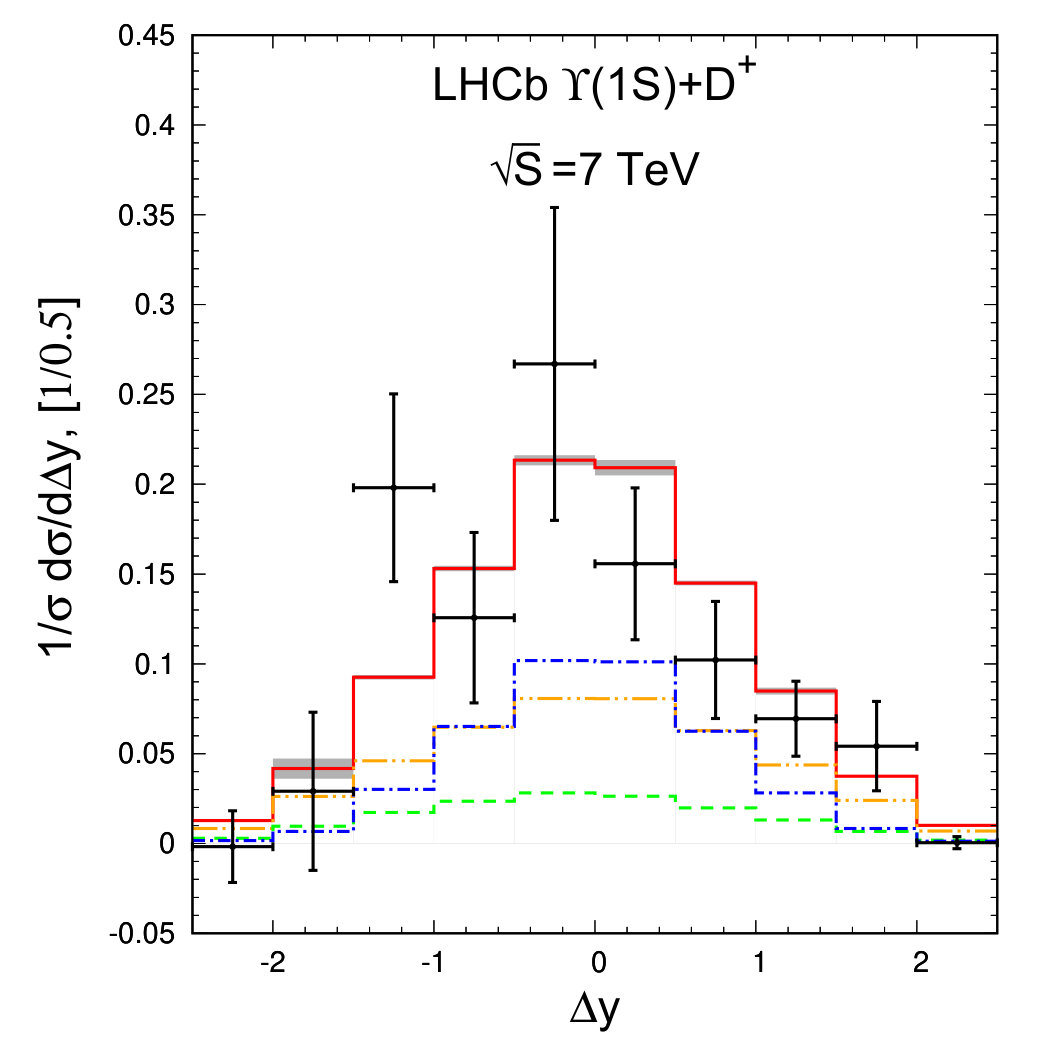

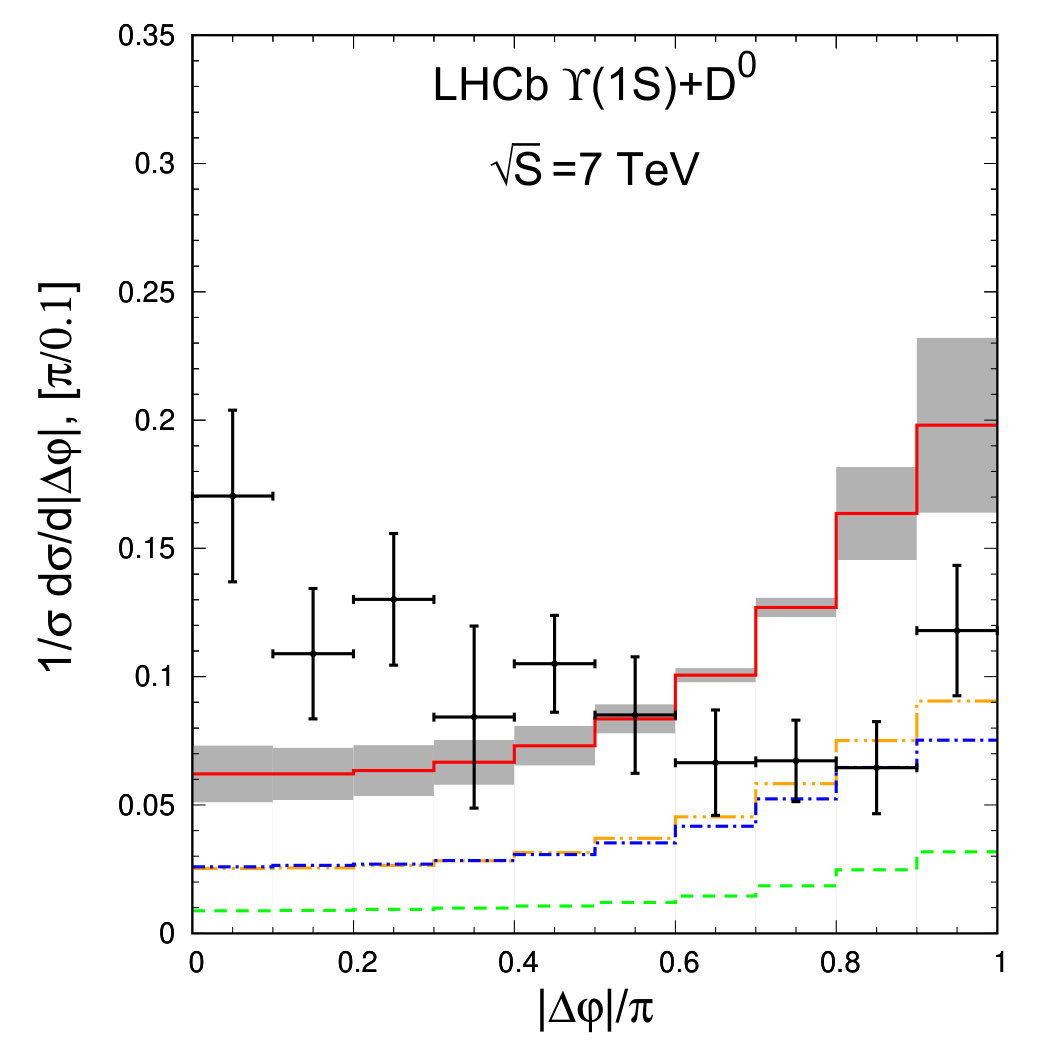

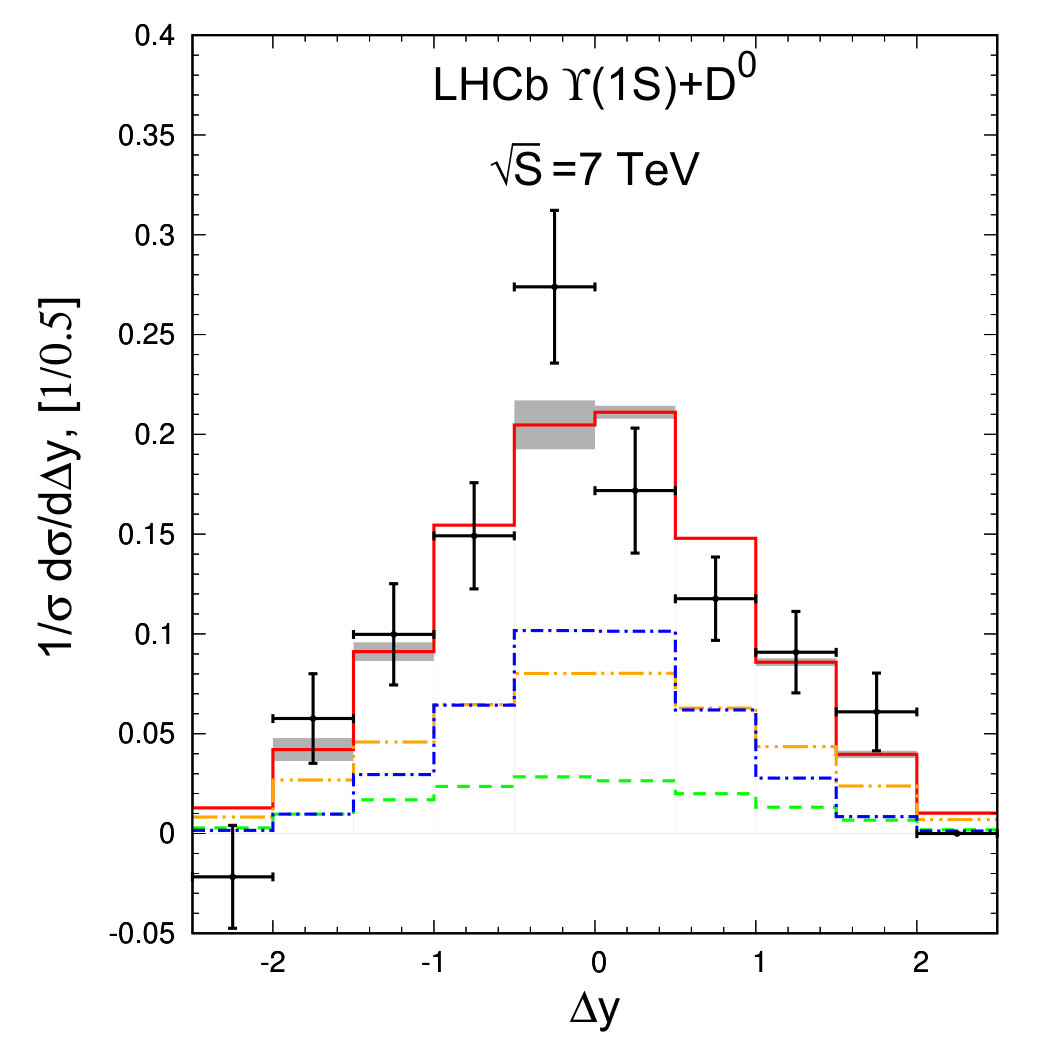

At the bottom panels of Figs. 3 and 6 we plot spectra for the rapidity difference $\Delta y=|y_{\Upsilon}-y_{D}|$ and for the azimuthal angle difference $\Delta\varphi=|\varphi_{\Upsilon}-\varphi_{D}|$. The $\Delta y$ spectra are reasonably well descried. The $\Delta\varphi$ spectrum obtained in our model has typical shape for this kind of spectra. It has one peak at the $\Delta\varphi\to\pi$ and plateau at the $\Delta\varphi\leq\pi/2$. However, the experimental data from LHCb Collaboration, though having large errors, demonstrate existence of the second peak for $\Delta\varphi\to 0$. This feature of the data can not be explained even by the DPS-model based on Eq. (1), which predicts the flat, un-correlated $\Delta\varphi$-spectrum.

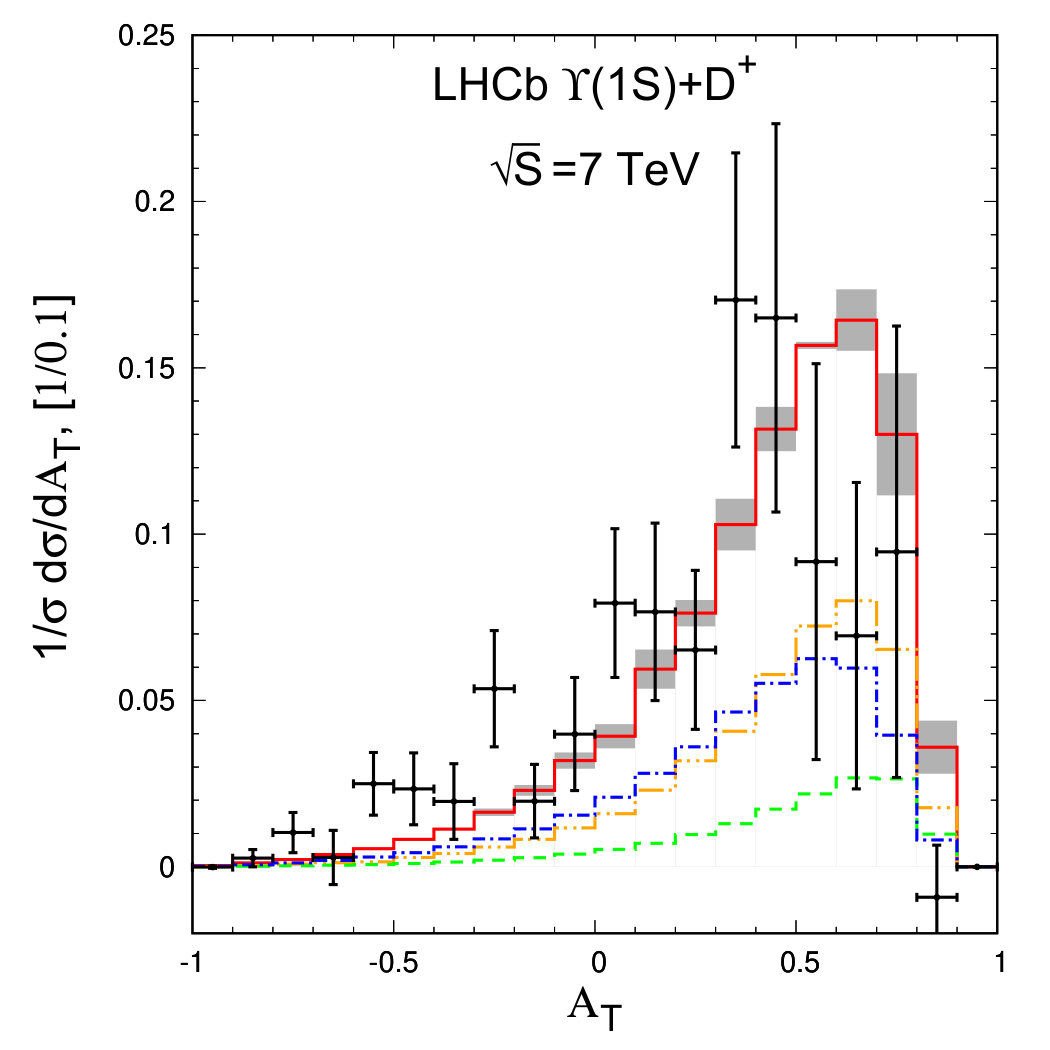

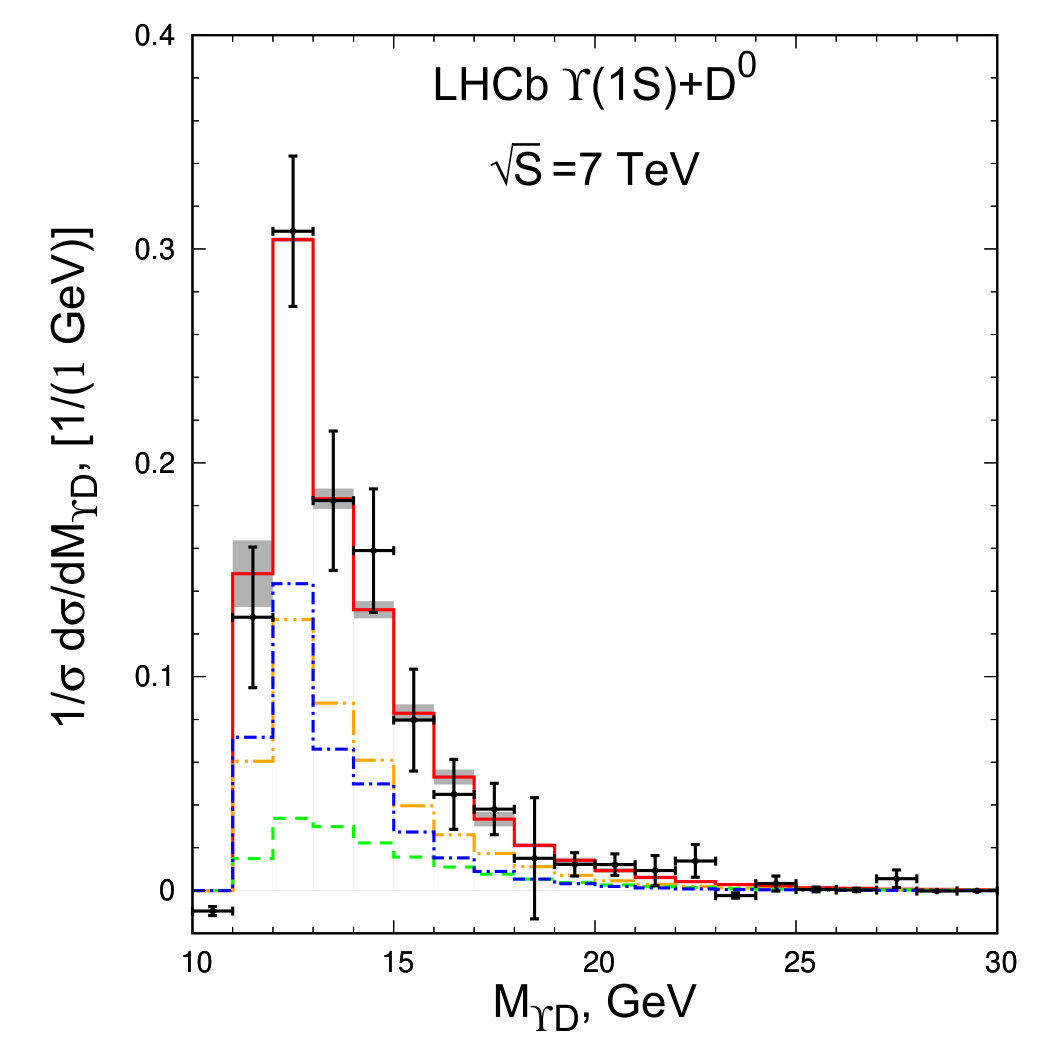

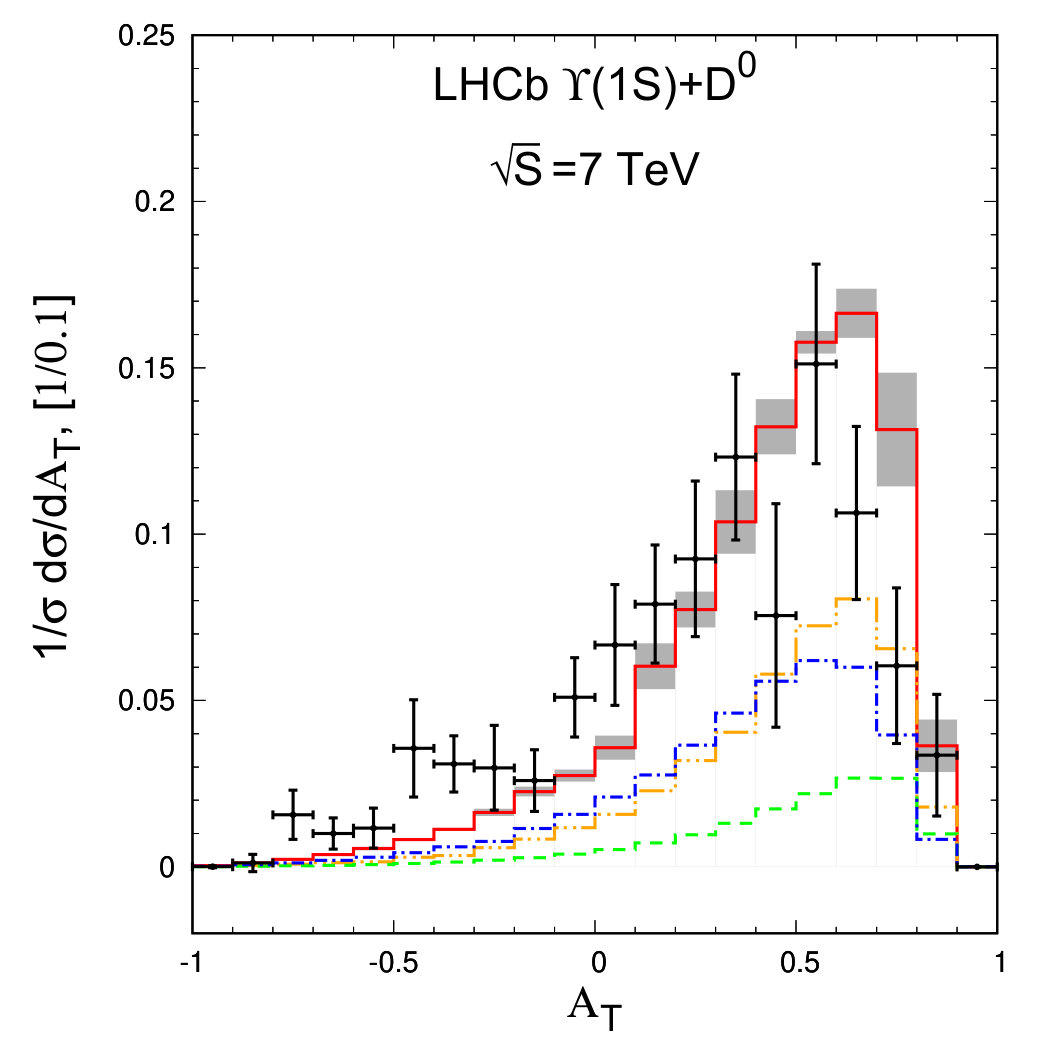

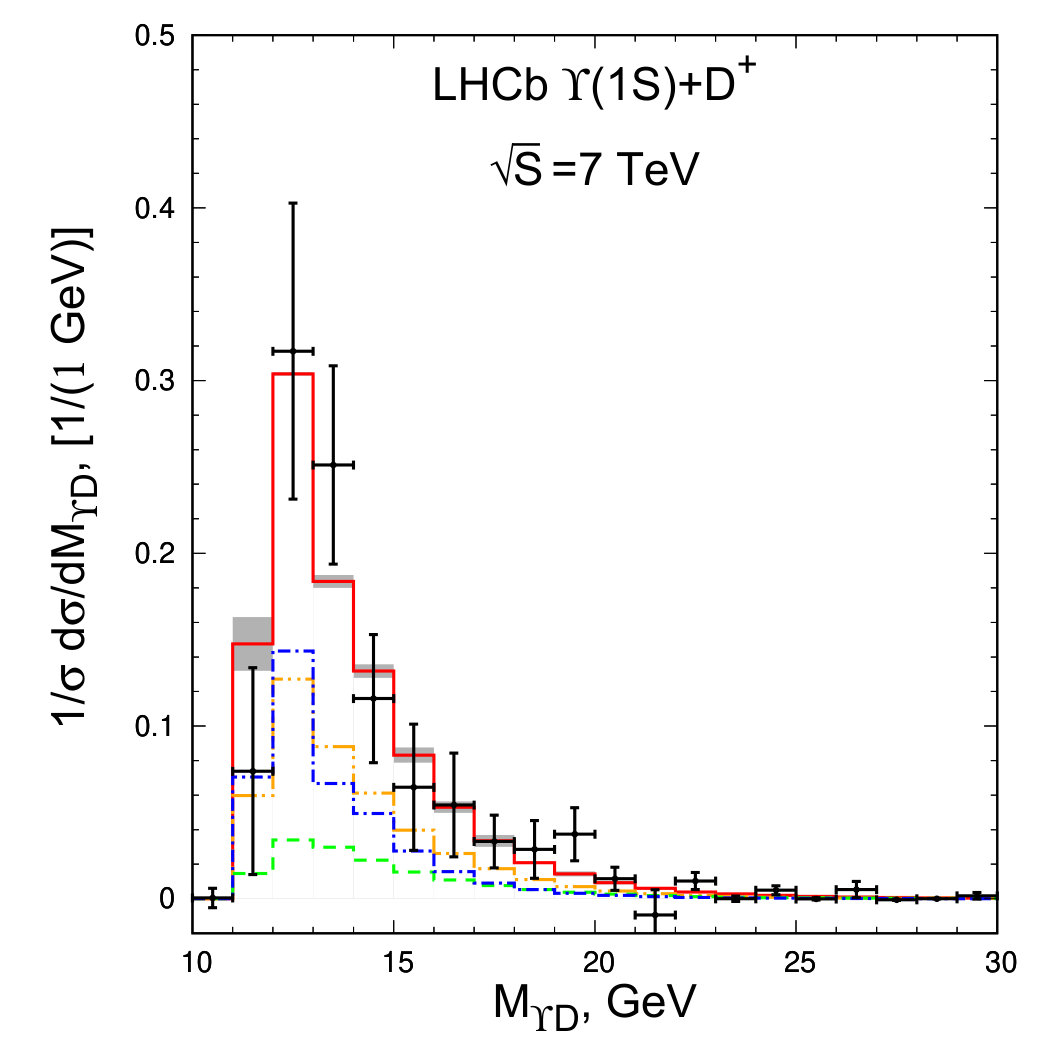

In the Figs. 4 and 7, we plot spectra for the invariant mass of $\Upsilon(1S)D^{0,+}$ pair ($M$) and transverse momentum asymmetry $A_{T}=(p_{T\Upsilon}-p_{TD})/(p_{T\Upsilon}+p_{TD})$. Predictions of our model with this correlation spectra also agree reasonably well with LHCb data.

Now we turn to the discussion of predictions of our SPS model for total cross-sections $B_{\mu^{+}\mu^{-}}\times\sigma^{\Upsilon D^{0,+}}$ (where $\Upsilon(1S)\to\mu^{+}\mu^{-}$ branching fraction $B_{\mu^{+}\mu^{-}}=0.025$ is taken into account). At $\sqrt{S}=7$ TeV, central values of our predictions for $\Upsilon(1S)D^{0}$ and $\Upsilon(1S)D^{+}$ production are 91 pb and 36 pb respectively (Tab. 2) which, especially taking into account large scale-uncertainty, reaches almost more than one half of the experimental cross-section, which is respectively 155 and 82 pb. Different contributions to the total cross section and it’s scale-uncertainty are presented in Tables 2 and 3, correspondingly for the energies $\sqrt{S}=7$ TeV and $\sqrt{S}=8$ TeV. Feed-down contribution from decays of higher lying bottomonium states $(\Upsilon(3S),\Upsilon(2S),\chi_{b}(2P),\chi_{b}(1P))$ is not small, it is about 50% from total calculated cross section. Contribution of color-singlet processes (5) and (6) is always dominant, but contribution of $[^{3}S_{1}^{(8)}]$ intermediate state is also very important, reaching up to a half of the $[^{3}S_{1}^{(1)}]$ intermediate state contribution.

In our model, the main source of $D^{0,+}$ mesons is the gluon fragmentation. Let’s compare above results with the model based on $c-$quark fragmentation into $D$ mesons. We have calculated direct production cross sections via color-singlet and color-octet intermediate states in process (7) which on the quark level corresponds to

[TABLE]

Due to fragmentation model, we have to take the $c-$quark as massless, however we take into account threshold condition for invariant mass of $c\bar{c}$-pair: $s_{c\bar{c}}=(p_{c}+p_{\bar{c}})^{2}>4m_{c}^{2}$ with $m_{c}=1.5$ GeV. Our $2\to 3$ amplitudes passed numerous cross-checks, in particular, we have numerically checked, that final-state collinear limit ($s_{c\bar{c}}\ll\min(p^{2}_{Tc},p^{2}_{T\bar{c}})$) of the squared amplitudes of the processes (12) is related with the squared amplitudes of the processes (9, 10) by the well-known collinear-factorization relation for tree-level amplitudes:

[TABLE]

where $z=p_{c}^{0}/(p_{c}^{0}+p_{\bar{c}}^{0})$, $P_{qg}(z)=[z^{2}+(1-z)^{2}]/2$ and angular brackets in the l.h.s. stand for the averaging over azimuthal angle parametrizing the directions of momenta ${\bf p}_{c}$ and ${\bf p}_{\bar{c}}$ for constant ${\bf p}_{c}+{\bf p}_{\bar{c}}$ and $z$.

For the direct contributions from the subprocesses (12) we obtain $B_{\mu^{+}\mu^{-}}\times\sigma^{D^{0}}_{\rm direct}[R+R\to b\bar{b}[^{3}S_{1}^{(1+8)}]+c+\bar{c}]=20$ pb at $\sqrt{S}=7$ TeV and $24$ pb at $\sqrt{S}=8$ TeV, so for ratio of direct cross sections we obtain:

[TABLE]

at $\sqrt{S}=7$ and $8$ TeV. So our expectation of the dominant role of the gluon fragmentation in this process turns out to be correct.

V Conclusions

In the present paper we have demonstrated, that conclusion about DPS-dominance in the total cross-section for the process of associated hadroproduction of $\Upsilon$ and $D$ mesons, based on the LO CPM calculations of Refs. Likhoded2015 ; Likhoded2016 was premature and one can relatively easily come up with the model which accounts more than a half of the observed cross-section. Also, due to the use of High-Energy factorization with unPDFs dependent on transverse momenta of initial-state partons, the leading part of ISR corrections has been taken into account and all differential distributions are described reasonably well. Therefore one have to be rather careful about the statements that DPS dominates total cross-section of relatively low-scale, hadronization-sensitive processes like one considered in the present paper. Most likely, the solid evidence in favor of DPS can be obtained only from studies of differential distributions in specific regions of phase space and at high scales, where radiative corrections to SPS contribution can be put under theoretical control.
