Hyper-Parameter Tuning for the (1+(\lambda,\lambda)) GA

TL;DR

This paper conducts an empirical study on the hyper-parameters of the self-adjusting $(1+(nd(mbda,mbda))$ GA, revealing that slight modifications can significantly improve performance and that theoretical parameter settings may extend to dynamic variants.

Contribution

It provides the first detailed empirical analysis of hyper-parameter effects in the self-adjusting $(1+(nd(mbda,mbda))$ GA, including a new setup that reduces runtime and insights on parameter transferability.

Findings

15% reduction in average runtime with modified parameters

Non-identical offspring population sizes improve efficiency

Theoretical parameter settings extend to non-static variants

Abstract

It is known that the $(1+(\lambda,\lambda))$~Genetic Algorithm (GA) with self-adjusting parameter choices achieves a linear expected optimization time on OneMax if its hyper-parameters are suitably chosen. However, it is not very well understood how the hyper-parameter settings influences the overall performance of the $(1+(\lambda,\lambda))$~GA. Analyzing such multi-dimensional dependencies precisely is at the edge of what running time analysis can offer. To make a step forward on this question, we present an in-depth empirical study of the self-adjusting $(1+(\lambda,\lambda))$~GA and its hyper-parameters. We show, among many other results, that a 15\% reduction of the average running time is possible by a slightly different setup, which allows non-identical offspring population sizes of mutation and crossover phase, and more flexibility in the choice of mutation rate and crossover bias --a generalization which may be of independent interest. We also show indication that the parametrization of mutation rate and crossover bias derived by theoretical means for the static variant of the $(1+(\lambda,\lambda))$~GA extends to the non-static case.

Figures

Tables

Table 1. Table 1 : Performance statistics for 500 independent runs of the configurations suggested by irace for dyn ⁡ ( 1 , 1 , 1 , A , b ) dyn 1 1 1 𝐴 𝑏 \operatorname{dyn}(1,1,1,A,b) . rsd abbreviates “relative standard deviation”, i.e., standard deviation divided by the mean value.

	quantiles
$n$	20%	25%	50%	75%	98%	mean	rsd	$A$	$b$	success rate
500	3,009	3,048	3,239	3,493	4,214	3,296	11.5	1.11	0.65	5.05
1,000	6,118	6,207	6,534	6,876	7,719	6,573	7.9	1.07	0.79	4.52
1,500	9,682	9,764	10,199	10,646	11,775	10,267	6.6	1.08	0.63	6.68
2,000	12,764	12,897	13,349	13,877	15,082	13,411	5.6	1.08	0.73	5.29
2,500	15,879	16,038	16,650	17,241	18,649	16,683	5.5	1.05	0.85	4.11
3,000	19,733	19,896	20,653	21,458	23,924	20,778	6.2	1.12	0.63	4.92
3,500	22,675	22,808	23,458	24,196	25,902	23,537	4.3	1.06	0.79	5.02
4,000	26,573	26,730	27,518	28,378	30,688	27,639	4.7	1.11	0.64	5.40
4,500	29,368	29,649	30,354	31,289	33,506	30,494	4.3	1.07	0.78	4.71
5,000	33,243	33,454	34,358	35,607	38,232	34,601	4.6	1.10	0.63	5.74
6,000	40,279	40,543	41,406	42,373	45,166	41,535	3.7	1.09	0.65	6.01
7,000	46,469	46,712	47,840	48,992	52,307	47,977	3.8	1.08	0.74	5.01
8,000	53,206	53,529	54,666	55,956	58,903	54,807	3.5	1.07	0.76	5.08
9,000	59,949	60,206	61,279	62,618	66,868	61,547	3.4	1.07	0.76	4.96
10,000	65,761	66,144	67,315	68,767	71,414	67,444	2.8	1.04	0.86	4.89

Table 2. Table 2: Performance statistics for 500 independent runs of the configurations suggested by irace for dyn ⁡ ( α , β , γ , A , b ) dyn 𝛼 𝛽 𝛾 𝐴 𝑏 \operatorname{dyn}(\alpha,\beta,\gamma,A,b) . rsd abbreviates “relative standard deviation”, i.e., standard deviation divided by the mean value.

	quantiles
$n$	20%	25%	50%	75%	98%	mean	rsd	$\alpha$	$\beta$	$\gamma$	$A$	$b$	success rate
500	2,659	2,683	2,807	2,972	3,328	2,835	8.1	0.522	1.854	0.876	1.229	0.598	3.497
1,000	5,414	5,462	5,680	5,949	6,447	5,711	6.1	0.428	1.438	1.053	1.157	0.740	3.063
1,500	8,281	8,336	8,568	8,870	9,365	8,600	4.6	0.378	1.727	1.004	1.143	0.736	3.288
2,000	11,193	11,278	11,616	12,009	12,795	11,652	4.5	0.414	1.380	1.125	1.153	0.660	3.913
2,500	13,973	14,064	14,432	14,801	15,865	14,472	4.1	0.473	1.494	1.150	1.145	0.723	3.391
3,000	17,333	17,428	17,782	18,206	19,065	17,822	3.2	0.504	2.524	0.619	1.255	0.526	3.824
3,500	19,702	19,855	20,296	20,822	21,861	20,336	3.6	0.441	1.686	0.842	1.160	0.702	3.386
4,000	22,679	22,762	23,262	23,811	25,133	23,325	3.3	0.426	1.720	0.896	1.168	0.675	3.539
4,500	25,473	25,566	26,095	26,676	27,788	26,133	3.1	0.363	1.429	1.202	1.149	0.719	3.372
5,000	28,454	28,572	29,162	29,670	31,114	29,165	2.9	0.359	1.413	1.238	1.167	0.691	3.391
6,000	34,238	34,436	34,978	35,694	37,000	35,056	2.7	0.373	1.654	1.070	1.164	0.711	3.255
7,000	40,065	40,260	40,982	41,733	43,422	41,021	2.7	0.342	1.187	1.227	1.109	0.738	3.934
8,000	45,477	45,660	46,410	47,178	48,546	46,412	2.3	0.490	1.606	0.954	1.110	0.783	3.352
9,000	51,284	51,464	52,176	52,995	54,696	52,248	2.3	0.447	1.447	1.109	1.106	0.779	3.482
10,000	57,852	58,064	59,013	59,931	62,026	59,033	2.4	0.435	1.271	1.111	1.141	0.722	3.475

Table 3. Table 3 : Performance statistics for 500 independent runs of the configurations suggested by irace for static ⁡ ( λ 1 , λ 2 , k , c ) static subscript 𝜆 1 subscript 𝜆 2 𝑘 𝑐 \operatorname{static}(\lambda_{1},\lambda_{2},k,c) . rsd abbreviates “relative standard deviation”, i.e., standard deviation divided by the mean value.

	quantiles
$n$	20%	25%	50%	75%	98%	mean	rsd	${\lambda }_1$	${\lambda }_2$	$k$	$c$
500	3,142	3,181	3,382	3,652	4,386	3,437	11.2	6	49	7	0.0151
1,000	6,599	6,702	7,102	7,650	9,124	7,225	10.3	5	60	7	0.0143
1,500	10,321	10,428	11,048	11,880	14,492	11,277	10.7	6	62	5	0.0125
2,000	13,951	14,178	14,884	15,930	18,409	15,130	9.6	5	67	7	0.0117
2,500	18,056	18,228	19,178	20,376	23,125	19,398	8.6	6	58	7	0.0158
3,000	21,545	21,867	23,049	24,551	29,181	23,373	9.5	5	66	7	0.0109
3,500	25,946	26,218	27,258	28,670	33,538	27,677	7.9	6	76	7	0.0121
4,000	29,619	29,950	31,698	33,432	39,096	32,034	9	6	66	6	0.013
4,500	33,727	34,072	35,502	37,298	43,695	36,049	8.2	6	63	8	0.0124
5,000	37,728	38,200	39,900	42,145	49,722	40,540	8.6	6	61	7	0.013
6,000	46,126	46,656	48,946	51,592	58,755	49,475	8	6	78	6	0.0124
7,000	53,793	54,275	56,802	59,802	67,465	57,401	7.5	5	64	10	0.0108
8,000	61,621	62,201	64,872	68,728	79,383	65,957	8.1	6	43	9	0.0153
9,000	71,811	72,596	75,198	79,792	92,431	76,500	7.8	7	71	6	0.0126
10,000	79,349	80,324	83,984	88,606	102,910	85,087	8.6	5	75	7	0.0112

Table 4. Table 4: Performance statistics for 500 independent runs of the self-adjusting ( 1 + ( λ , λ ) ) 1 𝜆 𝜆 (1+(\lambda,\lambda))  GA with the following configurations: dyn(C)= dyn ⁡ ( 0.45 , 1.6 , 1 , 1.16 , 0.7 ) dyn 0.45 1.6 1 1.16 0.7 \operatorname{dyn}(0.45,1.6,1,1.16,0.7) , dyn(C2)= dyn ⁡ ( 1 / 2 , 2 , 1 / 2 , ( 3 / 2 ) 1 / 4 , 2 / 3 ) dyn 1 2 2 1 2 superscript 3 2 1 4 2 3 \operatorname{dyn}(1/2,2,1/2,(3/2)^{1/4},2/3) , and dyn(default)= dyn ⁡ ( 1 , 1 , 1 , ( 3 / 2 ) 1 / 4 , 2 / 3 ) dyn 1 1 1 superscript 3 2 1 4 2 3 \operatorname{dyn}(1,1,1,(3/2)^{1/4},2/3) . rsd abbreviates “relative standard deviation”, i.e., standard deviation divided by the mean value.

	quantiles
configuration	$n$	20%	25%	50%	75%	98%	mean	rsd	mean/$n$
dyn(C)	500	2626.8	2662.75	2789.5	2941.5	3361.82	2810.562	8.32	5.62
dyn(C2)	500	2714	2747	2894	3033	3392.06	2904.076	7.69	5.81
dyn(default)	500	2981	3024.75	3222	3467.25	4166.72	3278.202	11.04	6.56
dyn(C)	1000	5417.8	5454.5	5686	5926.75	6398.26	5695.144	5.76	5.70
dyn(C2)	1000	5580.8	5645.75	5869	6112.25	6668.9	5893.592	6.04	5.89
dyn(default)	1000	6232	6299.5	6652	6980.25	7847.54	6671.378	7.86	6.67
dyn(C)	1500	8203.4	8277.75	8586	8880.75	9528.1	8591.36	5.21	5.73
dyn(C2)	1500	8546	8603.5	8928	9206.75	9868.02	8919.98	4.96	5.95
dyn(default)	1500	9528	9610.75	10068	10554.75	11866.46	10164.5	7.55	6.78
dyn(C)	2000	11099.4	11172	11465	11805	12716.14	11495.294	4.66	5.75
dyn(C2)	2000	11450.8	11532.5	11881	12223.5	12951.24	11893.274	4.21	5.95
dyn(default)	2000	12919.4	13010.75	13514	14079.25	15930.84	13636.004	6.9	6.82
dyn(C)	2500	13985.8	14076.25	14502	14910	15772.26	14509.296	4.1	5.80
dyn(C2)	2500	14431.6	14556.75	14903.5	15330.5	16292.36	14942.674	4.01	5.98
dyn(default)	2500	16342.4	16452.75	16948	17717.75	19403.6	17071.06	5.78	6.83
dyn(C)	3000	16861	16962.25	17376.5	17821	18880.14	17408.882	3.7	5.80
dyn(C2)	3000	17486.2	17582	17997	18444.5	19379.24	18021.416	3.6	6.01
dyn(default)	3000	19606	19750.75	20374	21125.25	23078.9	20492.278	5.4	6.83
dyn(C)	3500	19759	19844.5	20286.5	20736.75	21958.32	20329.532	3.34	5.81
dyn(C2)	3500	20526.2	20650	21029.5	21518.25	22560.68	21080.554	3.35	6.02
dyn(default)	3500	22966.2	23138.75	23958	24812.5	27550.58	24090.904	5.4	6.88
dyn(C)	4000	22674.8	22785.5	23333.5	23799.5	24974.34	23300.608	3.24	5.83
dyn(C2)	4000	23394.8	23511.5	24028	24476.75	25979.2	24031.834	3.32	6.01
dyn(default)	4000	26475.6	26681.5	27404.5	28250.75	30781.46	27543.488	4.81	6.89
dyn(C)	4500	25492.2	25614.25	26165.5	26790.25	28047.02	26225.81	3.21	5.83
dyn(C2)	4500	26358.2	26465.25	27053.5	27593.25	28873.2	27039.558	3.09	6.01
dyn(default)	4500	29849.8	30119.5	30932	31905.75	34210.14	31120.334	5.06	6.92
dyn(C)	5000	28394.6	28506	29045.5	29662.25	31293.42	29118.248	3.14	5.82
dyn(C2)	5000	29372	29533.75	30082.5	30720	32104.12	30148.46	3.01	6.03
dyn(default)	5000	33250.6	33419.75	34246.5	35297.25	38290.32	34445.674	4.43	6.89
dyn(C)	6000	34199.8	34371.75	34931	35606.5	37094.12	35010.002	2.71	5.84
dyn(C2)	6000	35347.6	35558.75	36206	36879.25	38274.04	36215.806	2.64	6.04
dyn(default)	6000	40115.2	40376.25	41403	42590	46005.26	41583.822	4.34	6.93
dyn(C)	7000	39937.8	40122.5	40832	41505.75	43196.24	40855.698	2.6	5.84
dyn(C2)	7000	41354.4	41556.75	42195	42814.75	44653.86	42235.238	2.48	6.03
dyn(default)	7000	46882.8	47156.25	48378.5	49780.5	53550.36	48597.422	4.11	6.94
dyn(C)	8000	45862	46084	46886.5	47539	49443.74	46865.952	2.48	5.86
dyn(C2)	8000	47440.8	47651.75	48352.5	49104.5	51046.26	48391.546	2.44	6.05
dyn(default)	8000	53844.8	54192	55451	56728	60514.12	55551.484	3.69	6.94
dyn(C)	9000	51605.6	51799.75	52525.5	53357.75	55259.4	52609.86	2.33	5.85
dyn(C2)	9000	53401	53591.5	54402.5	55290.5	56978.2	54434.674	2.26	6.05
dyn(default)	9000	60961	61244.5	62592.5	64145.75	67863.7	62824.338	3.52	6.98
dyn(C)	10000	57456.6	57635.25	58522	59468	61273.56	58563.928	2.19	5.86
dyn(C2)	10000	59399	59634.25	60561	61362.75	63161.1	60536.716	2.12	6.05
dyn(default)	10000	67604.2	68112	69470.5	71157.75	74865.24	69679.228	3.41	6.97
dyn(C)	20000	116124.4	116421.5	117812.5	119032.25	121907.32	117795.328	1.72	5.89
dyn(C2)	20000	119667.6	119940.25	121234	122663	125482.96	121326.13	1.65	6.07
dyn(default)	20000	137199	137519.5	139915.5	142270.25	149804.72	140264.274	2.77	7.01
dyn(C)	30000	174611.8	175053.75	176968.5	178318	181736	176833.916	1.39	5.89
dyn(C2)	30000	180407.8	180792	182259	183875.75	186964.2	182249.43	1.3	6.07
dyn(default)	30000	207066.8	207579.75	210926.5	214517.25	224366.5	211485.7	2.57	7.05

Full text

1 Introduction

The $(1+(\lambda,\lambda))$ Genetic Algorithm (GA) is a crossover-based evolutionary algorithm that was introduced in [DDE15] to demonstrate that the idea of recombining previously evaluated solutions can be beneficial also on very smooth functions. More precisely, it was proven in [DDE15, DD18a] that the $(1+(\lambda,\lambda))$ GA achieves an $o(n\log n)$ expected optimization time on OneMax, the problem of maximizing functions of the type $f_{z}:\{0,1\}^{n}\to\mathbb{R},x\mapsto|\{1\leq i\leq n\mid x_{i}=z_{i}\}|$. All purely mutation-based algorithms, in contrast, are known to require $\Omega(n\log n)$ function evaluations, on average, to optimize these functions [LW12, DDY16].

The $(1+(\lambda,\lambda))$ GA has three parameters, the population size $\lambda$ of mutation and crossover phase, the mutation rate $p$, and the crossover bias $c$. It was shown in [DDE15] that an asymptotically optimal linear expected running time can be achieved by the $(1+(\lambda,\lambda))$ GA when choosing these parameters in an optimal way, which depends on the fitness of a current-best solution. This result was extended in [DD18a] to a self-adjusting variant of the $(1+(\lambda,\lambda))$ GA, which uses a fixed parametrization $p=\lambda/n$, $c=1/\lambda$, and an adaptive success-based choice of $\lambda$. More precisely, in the self-adjusting $(1+(\lambda,\lambda))$ GA the parameter $\lambda$ is chosen according to a one-fifth success rule, which decreases $\lambda$ to $\lambda/F$ if an iteration has produced a strictly better solution, and increases $\lambda$ to $F^{1/4}\lambda$ otherwise. This linear runtime result proven in [DD18a] was the first example where a self-adjusting choice of the parameter values could be rigorously shown to outperform any possible static setting.

Despite these theoretically appealing results, the performances reported in the original work introducing this algorithm [DDE15] are rather disappointing in that they are much worse than those of Randomized Local Search for all tested problem dimensions up to $n=5\,000$. It was pointed out in [CD18] that this is partially due to a sub-optimal implementation; the average optimization times reduce drastically when enforcing that at least one bit is flipped in the mutation phase. In this case, the self-adjusting $(1+(\lambda,\lambda))$ GA starts to outperform RLS already for dimensions around $1\,000$. Another possible reason lies in the fact that the hyper-parameters of the self-adjusting $(1+(\lambda,\lambda))$ GA had not been optimized. In [DDE15] the authors had taken some default values from the literature, and show only some very basic sensitivity analysis with respect to the update strength, but not with respect to any of the other parameters such as the success rate. In [DD18a] some general advice on choosing the hyper-parameters is given, but their influence on the explicit running time is not discussed, mostly due to missing precision in the available results, which state the asymptotic linear order only, but not the leading constants or lower order terms. Also the update strength $F$ for which the linear running time is obtained is only shown to exist, but not made explicit in [DD18a].

To shed light on the question how much performance can be gained by choosing the hyper-parameters of the $(1+(\lambda,\lambda))$ GA with more care, we present in this work a detailed empirical evaluation of this parameter tuning question. Our first finding is that the default setting studied in [DDE15], which uses update strength $F=3/2$ and the mentioned $1/5$-th success rule is almost optimal. More precisely, we show that for all tested problem dimensions between $n=500$ and $n=10\,000$ only marginal gains are possible by choosing different update strengths $F$ and/or a success rule different from 1/5.

We then introduce a more general variant of the $(1+(\lambda,\lambda))$ GA, in which the offspring population sizes of mutation and crossover phase need not be identical, and in which more flexible choices of mutation strength and crossover bias are possible. This leaves us with a five-dimensional hyper-parameter tuning problem, which we address with the irace software [LDC*+*16]. We thereby find configurations whose average optimization times are around $15\%$ better than that of the default self-adjusting $(1+(\lambda,\lambda))$ GA, for each of the tested dimensions. The configurations achieving these advantages are quite stable across all dimensions, so that we are able to derive configurations achieving these gains for all dimensions. We furthermore show that the relative advantage also extends to dimensions $20\,000$ and $30\,000$, for which we did not perform any hyper-parameter tuning. This five-dimensional variant of the $(1+(\lambda,\lambda))$ GA is also of independent interest, since it allows much greater flexibility than the standard versions introduced in [DDE15, DD18a].

We finally study if hyper-parameter tuning of a similarly extended static $(1+(\lambda,\lambda))$ GA can give similar results, or whether the asymptotic discrepancy between non-static and static parameter settings proven in [DD18a] also applies relatively small dimensions. We show that indeed already for the smallest tested dimension, $n=500$, the average optimization time of the best static setting identified by our methods is around 5% worse than the standard self-adjusting $(1+(\lambda,\lambda))$ GA from [DDE15, DD18a], and by 22% worse than the best found five-dimensional configuration. This disadvantage increases to $22\%$ and $45\%$ in dimension $n=10\,000$, respectively, thus showing that not only the advantage of the self-adjusting $(1+(\lambda,\lambda))$ GA kicks in already for small dimensions, but also confirming that the relative advantage increases with increasing problem dimensions.

Apart from introducing the new $(1+(\lambda,\lambda))$ GA variants, which offer much greater flexibility than the standard versions, our work significantly enhance our understanding of the hyper-parameter setting in the $(1+(\lambda,\lambda))$ GA, paving the way for a precise rigorous theoretical analysis. In particular the stable performance of the tuned configurations indicates that a precise running time analysis might be possible. We furthermore learn from our work that the parametrization of the mutation rate and the crossover bias, which were suggested and proven to be asymptotically optimal for the static case in [DD18a], seem to be optimal also in the non-static case with self-adjusting parameter choices. Finally, we also observe that for the generalized dynamic setting $1:x$ success rules with success rates between $3$ to $4$ seem to be slightly better than the classic one-fifth success rule with $F=3/2$.

Broader Context: Parameter Control and Hyper-Parameter Tuning. All iterative optimization heuristics such as EAs, GAs, local search variants, etc. are parametrized algorithms. Choosing the right parameter values is a tedious, but important task, frequently coined the “Achilles’ heel of evolutionary computation” [FCSS10]. It is well known that choosing the parameter values of different parameter settings can result in much different performances. Extreme cases in which a small constant change in the mutation rate result in super-polynomial performance gaps were shown, for example, in [DJS*+*13, Len18].

To guide the user in the parameter selection task, two main approaches have been developed: parameter tuning and parameter control. Parameter tuning aims at developing tools that automatize the process of identifying reasonable parameter values, cf. [HHLB11, LDC*+*16, LJD*+*17, HHLBS09, AMS*+*15] for examples. Parameter control, in contrast, aims to not only identify such good values, but to also track the evolution of good configurations during the whole optimization process, thereby achieving additional performance gains over an optimally tuned static configuration, cf. [KHE15, AM16, DD18b] for surveys. In practice, parameter control mechanisms are parametrized themselves, thus introducing hyper-parameters, which again need to be chosen by the user or one of the tuning tools mentioned above. This is also the route taken in this present work: in Sections 2 and 3 we will use the iterated racing algorithm irace [LDC*+*16] to tune two different sets of hyper-parameters of the self-adjusting $(1+(\lambda,\lambda))$ GA, a two-dimensional and a five-dimensional one. In Section 4 we then tune the four parameters of a generalized static $(1+(\lambda,\lambda))$ GA variant. By comparing the results of these tuning steps, we obtain the mentioned estimates for the relative advantage of the self-adjusting over the best tuned static parameter configuration.

Reproducibility, Raw Data, and Computational Resources. We concentrate on reporting average values to match with the available theoretical and empirical results. We recall that in theoretical works the expected optimization time dominates all other performance measures. Selected boxplots for the most relevant configurations are provided in Section 5. Information about the selected parameter values and the empirical quantiles of the running times can be found in the appendix. Source codes, additional performance statistics, summarizing plots, heatmaps with different colormaps, and raw data can be found on our GitHub repository at [DD19]. All experiments were run on the HPCaVe cluster [aSU], whose each node consists of two 12-core Intel Xeon E5 2.3GHz with 128Gb memory.

2 Tuning the default $(1+(\lambda,\lambda))$ GA

Our main interest is in tuning the self-adjusting variant of the $(1+(\lambda,\lambda))$ GA proposed in [DDE15] and analyzed in [DD18a]. As in these works, we regard the performance of this algorithm on the OneMax problem. The OneMax problem is one of the most classic benchmark problems in the evolutionary computation literature. It asks to find a secret string $z$ via calls to the function $f_{z}:\{0,1\}^{n}\to\mathbb{R},x\mapsto|\{1\leq i\leq n\mid x_{i}=z_{i}\}|$ and is thus identical to the problem of minimizing the Hamming distance to an unknown string $z\in\{0,1\}^{n}$. It is referred to as “OneMax” in evolutionary computation, since the performance of most EAs (including the $(1+(\lambda,\lambda))$ GA) is identical on any of the functions $f_{z}$, and it therefore suffices to study the instance $f_{(1,\ldots,1)}$.

It is known that the best possible mutation-based (i.e., formally, the best unary unbiased) black-box algorithms have an expected optimization time on OneMax of order $n\log n$ [LW12, DDY16]. The $(1+(\lambda,\lambda))$ GA, in contrast, achieves a linear expected optimization time if its parameters are suitably chosen [DDE15, DD18a]. Parameter control, i.e., a non-static choice of these parameters, is essential for the linear performance, since the $(1+(\lambda,\lambda))$ GA with static parameter values cannot have an expected optimization time that is of better order than $n\sqrt{\log(n)\log\log\log(n)/\log\log(n)}$, which is super-linear.

2.1 The dynamic $(1+(\lambda,\lambda))$ GA $\operatorname{dyn}(\alpha,\beta,\gamma,A,b)$

The $(1+(\lambda,\lambda))$ GA is a binary unbiased algorithm, i.e., it applies crossover but uses only variation operators that are invariant with respect to the problem representation. We present the pseudo-code of the $(1+(\lambda,\lambda))$ GA in Algorithm 1, in which we denote by $\operatorname{nint}(.)$ the nearest integer function, i.e., $\operatorname{nint}(r)=\lfloor(r)\rfloor$ if $r-\lfloor r\rfloor<1/2$ and $\operatorname{nint}(r)=\lceil(r)\rceil$ otherwise.

The $(1+(\lambda,\lambda))$ GA has two phases, a mutation phase and a crossover phase, followed by a selection step. In the mutation phase $\lambda_{1}=\operatorname{nint}(\lambda)$ offspring are evaluated. Each of them is sampled by the operator $\operatorname{flip}_{\ell}(.)$ uniformly at random (u.a.r.) from all the points at a radius $\ell$ around the current-best solution $x$. The radius $\ell$ is sampled from the conditional binomial distribution $\operatorname{Bin}_{>0}(n,p)$, which assigns to each positive integer $1\leq k\leq n$ the probability $\operatorname{Bin}_{>0}(n,p)=\binom{n}{k}p^{k}(1-p)^{n-k}/(1-(1-p)^{n})$. Following the reasoning made in [CD18] we deviate here from the $(1+(\lambda,\lambda))$ GA variants investigated in [DDE15], to avoid useless iterations. The variants analyzed in [DDE15, DD18a] allow $\ell=0$, which is easily seen to create copies of the parent only. As it cannot advance the search, we enforce $\ell\geq 1$.

In the crossover phase, $\lambda_{2}$ offspring are evaluated. They are sampled by the crossover operator $\operatorname{cross}_{c}(\cdot,\cdot)$, which creates an offspring by copying with probability $c$, independently for each position, the entry of the second argument, and by copying from the first argument otherwise. We refer to the parameter $0<c<1$ as the crossover bias. Again following [CD18], we evaluate only those offspring that differ from both their two parents; i.e., offspring that are merely copies of $x$ or $x^{\prime}$ do not count towards the cost of the algorithm, since their function values are already known.

In the selection step, we replace the parent by its best offspring if the latter is at least as good. When a strict improvement has been found, the value of $\lambda$ is updated to $\max\{b\lambda,1\}$. It is increased to $\min\{A\lambda,n-1\}$ otherwise.

Note that in the description above and Algorithm 1 we have deviated from the commonly used representation of the $(1+(\lambda,\lambda))$ GA, in that we have parametrized the mutation rate as $p=\alpha\lambda/n$, the offspring population size of the crossover phase as $\lambda_{2}=\operatorname{nint}(\beta\lambda)$, the crossover bias as $c=\gamma/\lambda$, and in that we allow more flexible update strengths $A$ and $b$. We thereby obtain a more general variant of the $(1+(\lambda,\lambda))$ GA, which we will show to outperform the standard self-adjusting one considerably. In this present section, however, we only generalize the update rule, not yet the other parameters. That is, we work in this section only with the $(1+(\lambda,\lambda))$ GA variant $\operatorname{dyn}(1,1,1,A,b)$, which uses $\lambda_{1}=\lambda_{2}$, $p=\lambda/n$, and $c=1/\lambda$.

In our implementation we always ensure that $p$ and $c$ are at least $1/n$ and at most $0.99$, by capping these values if needed. Slightly better performances may be obtained by allowing even smaller $p$-values, but we put this question aside for this present work.

2.2 Influence of the Update Strengths

As mentioned above, in our first set of experiments we focus on investigating the influence of the update strengths $A$ and $b$, i.e., we fix $\alpha=\beta=\gamma=1$ in the notation of Algorithm 1. In [DDE15] it was suggested to set $A=(3/2)^{1/4}\approx 1.11$ and $b=2/3$. These settings had previously been suggested in [Aug09, KMH*+*04] in a much different context, but seemed to work well enough for the purposes of [DDE15] and was hence not questioned further in that work (apart from a simple evaluation showing that for $n=400$ the influence of varying the update strength $F$ within the interval $[1.1,2]$ is not very pronounced). Note that the choices of $A$ and $b$ correspond to an implicit one-fifth success rule, in the sense that the value of $\lambda$ is stable if one out of five iterations is successful. The success rate (five in this case) can be computed as $1-\ln(b)/\ln(A)$. We emphasize that for notational convenience we prefer to speak of a success rate $x$ instead of a $1/x$-th success rule.

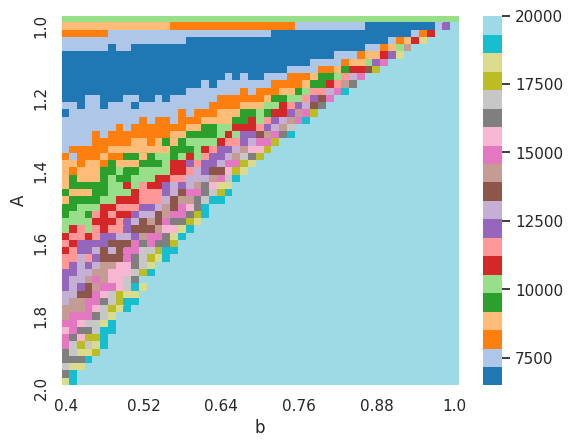

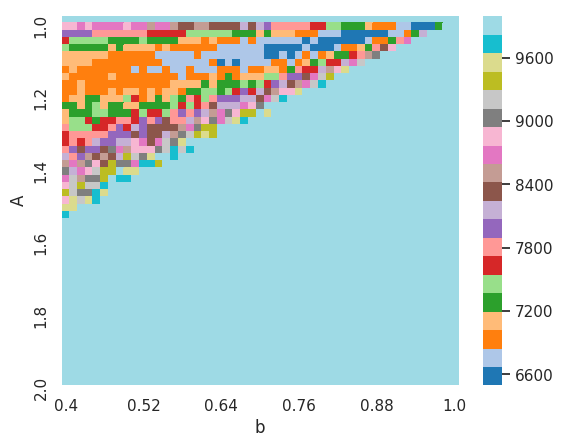

The heatmap in Figure 1 shows the average running time of the self-adjusting $(1+(\lambda,\lambda))$ GA in dependence of the update strengths $A$ and $b$. We considered all combinations of 50 equally spaced values for $A\in\{1.02,1.04,\ldots,2\}$ and for $b\in\{0.4,0.412,\ldots,0.988\}$ (2 500 hyper-parameter settings). For each setting, we performed 100 independent runs of the algorithm $\operatorname{dyn}(1,1,1,A,b)$. Each run has a maximum budget of 150 000 function evaluations. Our results are for problem dimension $n=1\,000$. To show more structure, we cap in Figure 1. (a) the values at $20\,000$. A zoom into the interesting region of combinations achieving an average optimization time $\leq 10\,000$ can be found in Figure 1.(b). More versions with different color schemes and cappings are available at [DD19].

The best configuration is $(A=1.06,b=0.82)$ with an estimated average optimization time of $6\,495$. This configuration has a success rate of $4.4$. The average optimization time of the default variant $\operatorname{dyn}(1,1,1,(3/2)^{1/4},2/3)$ from [DDE15], denoted by $\operatorname{dyn}(\text{default})$ in the following, over 500 runs is $6,671$, and thus only $2.7\%$ worse than $\operatorname{dyn}(1,1,1,1.06,0.82)$. $29$ of the $2\,500$ tested configurations have a smaller average optimization time than $\operatorname{dyn}(\text{default})$, all of them with $A$-values at most $1.12$ and $b$-value at least $0.64$. 106 configurations are worse by at most 3%, and 188 by at most 5%.

For a more stable comparison, we also ran $\operatorname{dyn}(1,1,1,1.06,0.82)$ 500 times, and its average optimization time increased to $6\,573$ for these 500 independent runs, reducing the relative advantage over $\operatorname{dyn}(\text{default})$ to $1.5\%$. Boxplots with information about the runtime distributions can be found in Section 5.

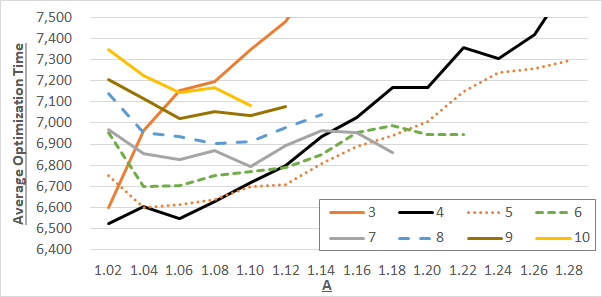

In Figure 2 we plot the average optimization time for different success rates, sorted by the value $A$. Note that for each tested $A$-value we have averaged here over all configurations using the same rounded (by $\operatorname{nint}(\cdot)$) success rate. The performance of success rates 1 and 2 is much worse than $7\,500$ and is therefore not plotted. We plot only results for success rates at most 10, for readability purposes. We see that success rates 4 and 5 are particularly efficient, given the proper values of $A$. The performance curves for success rates $\geq 4$ seem to be roughly U-shaped with different values of $A$ in which the minimum is obtained. It could be worthwhile to extend the mathematical analysis of the $\operatorname{dyn}(1,1,1,A,b)$ presented in [DD18a] in order to identify the precise relationship.

2.3 Tuning with irace

The computation of the heatmaps presented above is quite resource-consuming, around 286 CPU days for the full heatmap with $2\,500$ parameter combinations for $n=1\,000$. Since we are interested in studying the quality of the $(1+(\lambda,\lambda))$ GA also for other problem dimensions, we therefore investigate how well automated tuning tools approximate the best known configuration. To this end, we run the configuration tool irace  [LDC*+*16] with adaptive capping [CLHS17] enabled. This new mechanism was recently added to irace to make its search procedure more efficient when optimizing running time or time-compatible performance measurement. We use irace to optimize the configuration of the $\operatorname{dyn}(1,1,1,A,b)$ for values of $A$ between $1$ and $2.5$, and values of $b$ between $0.4$ and $1$. The allocated budget is 10 and 20 hours of walltime on one 24-core cluster node for $n\leq 5\,000$ and $n>5\,000$, respectively. This time budget is only a fraction of the ones required by heatmaps (around $3\%$ for $n=1\,000$).

For $n=1\,000$ irace suggests to use configuration $(A=1.071,b=0.7854)$, which is similar to the one showing best performance in the heatmap. The average optimization time of this configuration is $6,573$ (this number, like all numbers for the configurations suggested by irace are simulated from 500 independent runs each), and thus identical to the best one from the heatmap computations. The suggested configuration corresponds to a $4.52$ success rate.

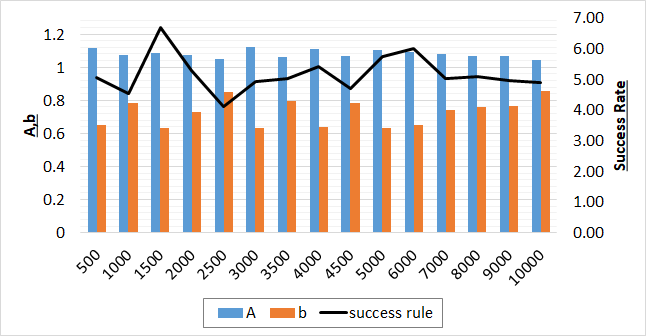

Confident that irace is capable of identifying good parameter settings, we then run irace for various problem dimensions between $500$ and $10\,000$. The by $n$ normalized average optimization time of the suggested configurations are reported in Figure 4 in column $\operatorname{dyn}(1,1,1,A,b)$. The chosen $A$-values are between $1.04$ and $1.12$ and the $b$-values are between $0.63$ and $0.88$, with corresponding success rates between $4.41$ and $6.68$, cf. Figure 3. We observe a quite stable suggestion for the parameter values. The suggested configurations, along with statistical data can be found in Table 1 in the appendix.

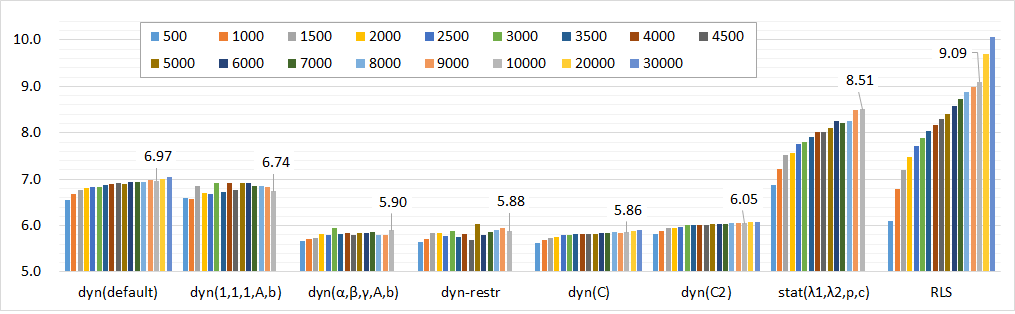

In Figure 4 we also display, in column $\operatorname{dyn}(\text{default})$, the normalized average optimization times of the default setting $(1,1,1,(3/2)^{1/4},2/3)$. The relative disadvantage of the $\operatorname{dyn}(1,1,1,A,b)$ over the $\operatorname{dyn}(\text{default})$ ranges from $-1.3\%$ to $3.3\%$. The negative values (in four dimensions) may be due to a suboptimal suggestion of irace, or due to the variance of the algorithms; the relative standard deviation is between $5\%$ and $10\%$, cf. also the boxplots in Section 5.

We also observe that the normalized average optimization times of $\operatorname{dyn}(\text{default})$ increase slightly with increasing problem dimension. Note, however, that this does not necessarily tell us something about the constant factor in the linear running time of this algorithm, although the results indicate that this factor might be larger than $7$. Already for $n=1\,000$ the $\operatorname{dyn}(\text{default})$ has a smaller average optimization time than RLS, the relative advantage of $\operatorname{dyn}(\text{default})$ is around $2\%$, and increases to around $31\%$ for $n=30\,000$.

3 5-dimensional Parameter Tuning

Next we turn our attention to the five-dimensional $(1+(\lambda,\lambda))$ GA variant $\operatorname{dyn}(\alpha,\beta,\gamma,A,b)$, in which not only the update strengths $A$ and $b$ are configurable, but also the dependence of $p=\alpha\lambda/n$, $\lambda_{2}=\operatorname{nint}(\beta\lambda)$, $c=\gamma/\lambda$. The dependencies of the parameters on $\lambda$ are based on a theoretical result proven in [DD18a], where it is shown that any static configuration with $\lambda_{2}=\lambda_{1}$ (i.e., $A=b=\beta=1$) that achieves optimal asymptotic expected performance must necessarily satisfy $p=\Theta(\lambda/n)$ and $\gamma=\Theta(1/\lambda)$.

To investigate how much performance can be gained by this flexibility, and how reasonable parameter values look like, we run again irace, this time using the following parameter ranges: $\alpha\in(1/3,10)$, $\beta\in(1,10)$, $\gamma\in(1/3,10)$, $A\in(1.01,2.5)$ and $b\in(0.4,0.99)$. The allocated budget is the same as for the $\operatorname{dyn}(1,1,1,A,b)$, i.e., 240 CPU hours for $n\leq 5\,000$ and 480 CPU hours for $n>5\,000$.

The normalized average running times of the suggested configurations are presented in Column $\operatorname{dyn}(\alpha,\beta,\gamma,A,b)$ in Figure 4. We observe that the parametrization of $\lambda_{2}$, $p$, and $c$ consistently allows to decrease the average optimization time by around 14%, when measured against the best $\operatorname{dyn}(1,1,1,A,b)$ variant.

3.1 Suggested Hyper-Parameters

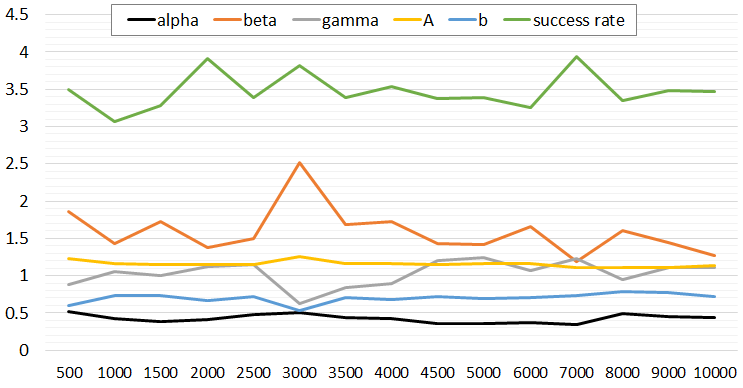

The suggested parameter values are displayed in Figure 5. We observe that these are quite stable, in particular when ignoring the $3\,000$ and $7\,000$ dimensional configurations. More precisely, irace consistently suggests configurations with $\alpha\approx 0.45$, $\beta\approx 1.6$, $\gamma\approx 1$, $A\approx 1.16$, and $b\approx 0.7$, with corresponding success rates between $3$ and $4$. These stable values suggest that the parametrization chosen in Algorithm 1 (and originally derived in [DD18a] for the static $(1+(\lambda,\lambda))$ GA) is indeed suitable also for the non-static setting.

In Figure 6 we plot the average optimization time of the configurations tested by irace for $n=5\,000$ in dependence of each of the five hyper-parameters $\alpha,\beta,\gamma,A,b$ and in dependence of the success rate $1-\ln(b)/\ln(A)$. Note that the number of runs differs from point to point, depending on how many evaluations irace has performed for each of these configurations. It is important to note that the capping procedure may stop an algorithm before it has found an optimal solution, in order to save time for the evaluation of more promising configurations. The plotted values are the averages of the successful runs only. An exception to this rule is the chart on the lower right, which shows the whole range of all $2\,212$ tested configurations; these values are the average time after which the configurations had either found the optimum or were stopped by the capping procedure. We thus see that irace has indeed tested across the whole range of admitted parameter values. Around $38\%$ of all $4\,961$ runs were stopped before an optimum had been found. However, we already see here that for each parameter there are configurations which use a good value for this parameter, but which shows quite poor overall performance. These results indicate that no parameter alone explains the performance, but that interaction between different parameter values is indeed highly relevant; we will discuss this aspect in more detail below.

Out of the $2\,212$ tested configurations only $765$ configurations had at least one successful run. The averages of all successful runs are plotted in the upper right chart of Figure 6. We observe that the well-performing region of values for each parameter is quite concentrated. The charts on the left and in the middle column zoom into those configurations which had an average optimization time smaller than $35\,000$. These plots give a good indication where the interesting regions for each parameter are. We also plot the average optimization time in dependence of the success rate and see good performance for success rates between 3 and 4.

For $348$ tested configurations only successful runs were reported; i.e., for these configurations none of the runs had been stopped before it had found an optimal solution. When restricting the zoomed plots in Figure 6 to only those $348$ configurations, we obtain a very similar picture. We omit a detailed discussion but note that these plots can be found in our repository [DD19].

The final configuration suggested by irace, $\operatorname{dyn}(0.3594,1.4128,1.2379,1.1672,0.691)$ has an average optimization time of $29\,165$ in the 500 independent runs conducted for the values reported in Figure 4. During the irace optimization the estimated average was $28\,876$ (across $50$ runs).

We see that some of the configurations in Figure 6 have a smaller average optimization time than this latter value. In fact, there are 292 such configurations with at least one successful run and $62$ configurations with only successful runs. As we can see from the plots in Figure 6 all these configurations have very similar parameter values. This observation nevertheless raises the question why irace has not suggested one of these presumably better configurations instead. To understand this behavior, we investigate in more detail the working principles of irace, and find two main reasons. One is that the time budget did not allow a further investigation of these configurations, so that statistical evidence that they are indeed superior to the suggested one was not sufficient. A second reason is that the capping suggested in [CLHS17] resulted in a somewhat harsh selection of “surviving” configurations. We leave the question if any of the 292 configurations would have been significantly better than the suggested one for future work. Overall, our investigation suggests that some adjustments to irace’s default setting might be useful for applications similar to ours, where the performance measure may potentially suffer from high variance.

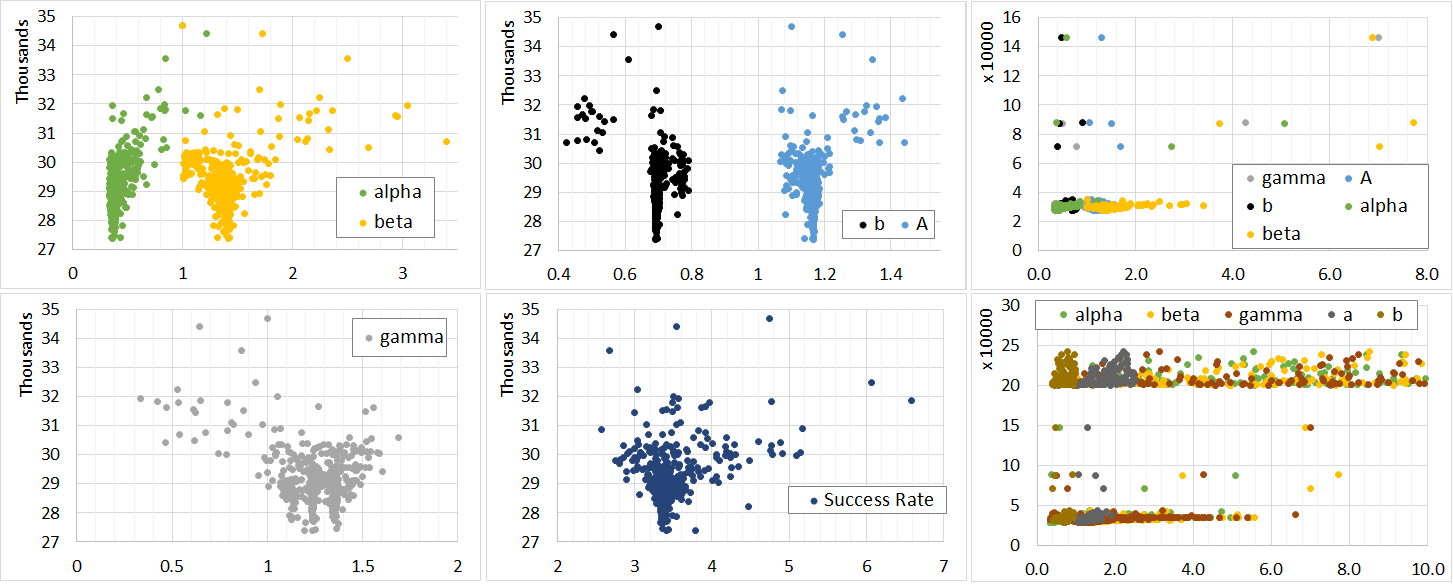

We next investigated the influence of each parameter on the overall running time. To this end, we have applied the functional analysis of variance (fANOVA) [HLB14] on the performance data given by irace. fANOVA can efficiently recognize the importance of both individual algorithm parameters and their interactions through their percentage of contributions on the total performance variance. The software PyImp [aFU] is used for the analysis. Obtained results are quite consistent among different dimensions. The most important parameter is $\alpha$, which explains on average $57\%$ of the total variance. The second most important parameter is $\gamma$, explaining around $22\%$ of the total variance, on average. Other important effects include pairwise interaction between $\alpha$ and $\gamma$ or $A$. Individual parameters and their pairwise interaction effects are able to explain almost $100\%$ of the total variance, so that there is no need to consider higher-order interactions.

In light of the quite stable parameter values suggested by irace (Figure 5) one might hope to obtain even better results when restricting the ranges of possible parameter values further. To investigate this question we run irace again on the $\operatorname{dyn}(\alpha,\beta,\gamma,A,b)$ configuration problem, this time with restricted parameter ranges $\alpha\in(1/3,4)$, $\beta\in(1,3)$, $\gamma\in(1/3,4)$, $A\in(1.01,2)$ and $b\in(0.4,0.99)$. The normalized average running time results are reported in column dyn-restr. of Figure 4. We observe that the advantage is negligible, and in four of the tested dimensions the suggested configurations even have a slightly worse average optimization time. This effect is likely to be caused by the randomness of the running times and/or the irace procedure itself.

Finally, we derive from the suggested parameter values two configurations that we investigate in more detail: $\operatorname{dyn}(0.45,1.6,1,1.16,0.7)$ and $\operatorname{dyn}(1/2,2,1/2,(3/2)^{1/4},2/3)$, which we abbreviate as dyn(C) and dyn(C2), respectively. While dyn(C) consistently shows better performance than dyn(C2), the latter might be easier to analyze by theoretical means. Their normalized average optimization time across all tested dimensions can be found again in Figure 4. They are considerably better than that of $\operatorname{dyn}(\text{default})=\operatorname{dyn}(1,1,1,(3/2)^{1/4},2/3)$, between $14\%$ and $16\%$ across all tested dimensions for dyn(C) and between $11\%$ and $13\%$ for dyn(C2). dyn(C2) is between $1\%$ and $4\%$ worse than the (for each dimension independently tuned) best suggested $\operatorname{dyn}(\alpha,\beta,\gamma,A,b)$ configuration. For dyn(C) we even observe that the average running times for the 500 runs are smaller than those of $\operatorname{dyn}(\alpha,\beta,\gamma,A,b)$ for 10 out of the 15 tested dimensions. The advantages of dyn(C) and dyn(C2) over $\operatorname{dyn}(\text{default})$ also translate to larger dimensions, for which we did not perform hyper-parameter tuning. For $n=20,000$ and $n=30,000$ the advantage of dyn(C) over $\operatorname{dyn}(\text{default})$ are 16% each, and for dyn(C2) a relative advantage of 14% is observed.

3.2 Fixed-Target Analysis

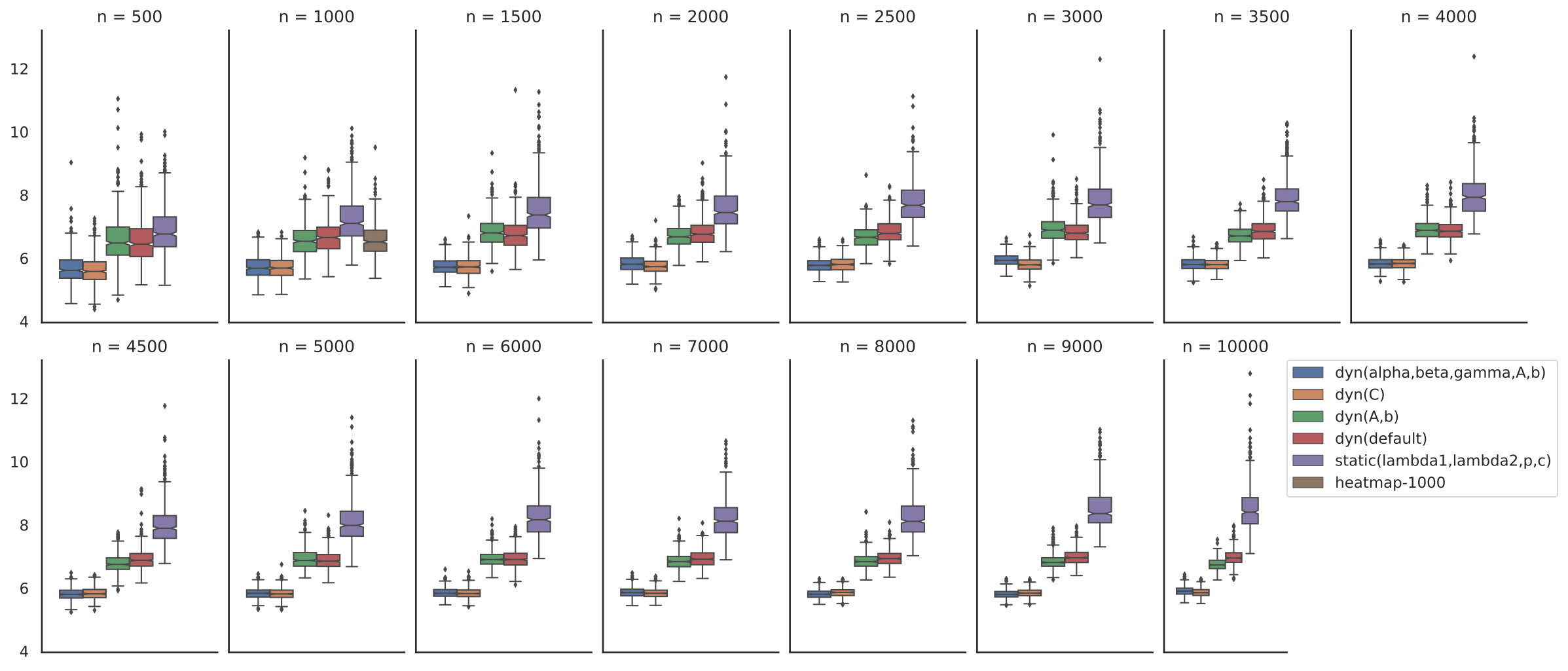

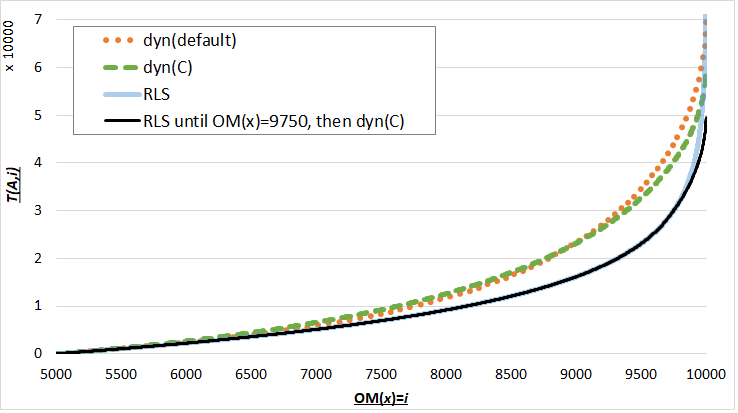

Finally, we address the question where the advantage of the self-adjusting $(1+(\lambda,\lambda))$ GA over RLS originates from. To this end we perform an empirical fixed-target runtime analysis for two selected configurations, the default configuration $\operatorname{dyn}(\text{default})$ and the configuration dyn(C) mentioned above.

The fixed-target running times have been computed with IOHprofiler [DWY*+*18], a recently announced tool which automates the performance analysis of iterative optimization heuristics. The average results of $100$ independent runs for $n=10\,000$ are shown in Figure 7. We observe that RLS is significantly better for almost all target values. In fact, the configuration dyn(C) has better first hitting times than RLS only for OneMax values greater than $9\,978$, i.e., only for the last 22 target values. We recall from Figure 4 that the average optimization time of dyn(C) is better than that of RLS by around $36\%$ for $n=10\,000$. To study at which point dyn(C) starts to perform better than RLS, we compute the gradient of the curves plotted in Figure 7, showing that this happens around target value $9\,750$. For the default configuration $\operatorname{dyn}(\text{default})$ the situation is as follows: It is has smaller first hitting time than RLS only for target values $\geq 9\,995$, although its overall average running time is smaller by around 23%. The gradient of $\operatorname{dyn}(\text{default})$ is better than that of RLS starting at target value around $9\,850$. Finally, dyn(C) has smaller average hitting time than $\operatorname{dyn}(\text{default})$ for Om-values at least $8,934$, and a better gradient starting at around $8\,370$. We show in Figure 7 the hypothetical running times of an algorithm that runs RLS until target value $\textsc{Om}(x)=9\,750$ and then switches to dyn(C). Its average running time is $17\%$ smaller than that of dyn(C), raising the interesting question how to detect such switching points on the fly.

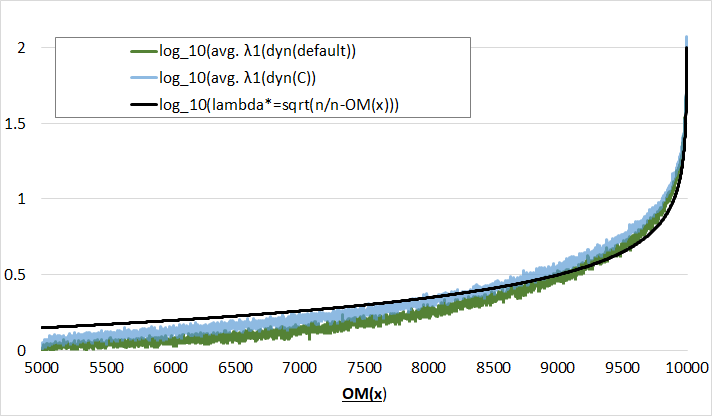

We also want to understand how the value of $\lambda$ evolves during the optimization process. We plot in Figure 8 for each target value the average value of $\lambda_{1}$ in the iteration in which for the first a solution of this quality has been sampled. More precisely, we display in Figure 8 the logarithm of these parameter values. These results have again been computed with IOHprofiler [DWY*+*18]. We also show in this plot the logarithm of $\lambda^{*}=\sqrt{n/(n-\textsc{Om}(x))}$, the value for which the standard dynamic $(1+(\lambda,\lambda))$ GA (with $\alpha=\beta=\gamma=1$) was first shown to have linear optimization time, cf. [DDE15]. We observe that for both configurations the average value of $\lambda$ increases with already obtained function value, with a final value of $95$ for $\operatorname{dyn}(\text{default})$ and $117$ for dyn(C). We recall that the number of offspring generated in each iteration is $2\lambda_{1}$ for $\operatorname{dyn}(\text{default})$ and around $2.6\operatorname{nint}(\lambda)$ for dyn(C).

4 Tuning the Static $(1+(\lambda,\lambda))$ GA

We had concentrated in the previous sections on optimizing dynamic versions of the $(1+(\lambda,\lambda))$ GA, since the theoretical results guarantee configurations for which linear expected running time can be obtained. In contrast, the best possible expected running time that can be achieved with static parameters $\lambda=\lambda_{1}=\lambda_{2}$, and arbitrary $p$ and $c$ is of order $n\sqrt{\log(n)\log\log\log(n)/\log\log(n)}$ [DD18a]. While this rules out the possibility that there exists a static configuration that performs similarly well as $\operatorname{dyn}(C)$ across all dimensions, it is not known to date whether for concrete problem dimensions there exist static configurations that are similar in performance than the dynamic variants $\operatorname{dyn}(\text{default})$, dyn(C), or even $\operatorname{dyn}(\alpha,\beta,\gamma,A,b)$. We next show that for the tested problem dimensions between 500 and $10\,000$ this does not seem to be the case.

We study the four-dimensional variant $\operatorname{static}(\lambda_{1},\lambda_{2},p,c)$ presented in Algorithm 2. Following [DDE15], we enforce again that the mutation strength $\ell$ is strictly greater than zero, by sampling from the conditional distribution $\operatorname{Bin}_{>0}(n,p)$ in line 2. We also allow $\lambda_{1}\neq\lambda_{2}$, which was not the case in [DDE15]. In line with suggestions from [DDE15, DD18a] we set $p=k/n$, and optimize for integer $k\in\{1,\ldots,100\}$. We allow the same range for $\lambda_{1}$ and $\lambda_{2}$. The crossover bias $c$ is optimized within the range $[0.01,1/2]$.

The normalized average running time of the best configuration that irace has been able to identify with its given budget are reported in column $\operatorname{static}(\lambda_{1},\lambda_{2},p=k/n,c)$ of Figure 4. We observe that these running times are significantly larger than those of the dynamic $(1+(\lambda,\lambda))$ GA variants. The relative disadvantage against the default dynamic variant $\operatorname{dyn}(\text{default})$ monotonically increases from around $5\%$ for $n=500$ to around $22\%$ for $n=10,000$. Against the best dynamic variant $\operatorname{dyn}(\alpha,\beta,\gamma,A,b)$ this relative disadvantage increases from around $21\%$ to around $44\%$.

We also see from the results in Figure 4 that, with few exceptions, the normalized average running time increases with the problem dimension. This is in line with what the super-linear lower bound proven in [DD18a] suggests (note, however, that the theoretical results for the static $(1+(\lambda,\lambda))$ GA assumes $\lambda_{1}=\lambda_{2}$). The relative increase of the normalized average running time is smaller than for RLS, again in line with the known theoretical results. The comparison with RLS also shows that the static $(1+(\lambda,\lambda))$ GA variants start to outperform RLS at problem dimension $3\,000$. For $n=10\,000$ the relative advantage of $\operatorname{static}(\lambda_{1},\lambda_{2},p,c)$ over RLS is around $6\%$.

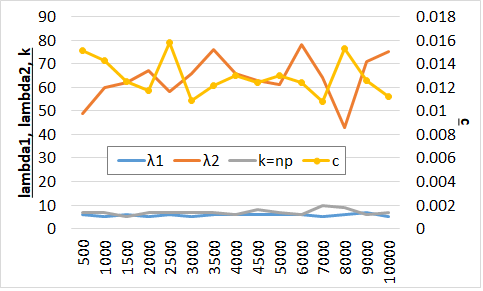

Finally, we study in Figure 9 the parameter values of the configurations suggested by irace. We observe that across all dimensions $\lambda_{1}$ is significantly smaller than $\lambda_{2}$, which was different for the dynamic $(1+(\lambda,\lambda))$ GA variants. Both $\lambda_{1}$ and $k$ are relatively stable, with values ranging between 5 and 7 for $\lambda_{1}$ and between 5 and 10 for $k$. The values of $\lambda_{2}$ fluctuates significantly more, between 43 and 78. The crossover rate is always within the range $[0.0108,0.0158]$, and thus also quite stable. Since in the original works $c=1/\lambda$ is assumed, we also note that for both $c\lambda_{1}$ and $c\lambda_{2}$ the factor between the minimal and maximal value is as small as $1.8$ and $1.5$, respectively, with no clear monotonic relationship.

5 Runtime Distribution

In all figures mentioned above we have only considered average values, to obtain results that are more easily comparable with existing theoretical and empirical works. With Figure 10 we address the question how the running times are distributed. This figure provides boxplots for all tested dimensions $\leq 10\,000$. The plots confirm the performance advantages of the five-dimensional dynamic $(1+(\lambda,\lambda))$ GA variants $\operatorname{dyn}(\alpha,\beta,\gamma,A,b)$ and dyn(C) over the 2-dimensional versions $\operatorname{dyn}(1,1,1,A,b)$ and $\operatorname{dyn}(\text{default})$. All adaptive versions perform consistently better than the best static version $\operatorname{static}(\lambda_{1},\lambda_{2},p,c)$ in term of both median values and variance. These advantages get more visible as the problem sizes increase. We also perform two types of statistical tests - paired Student t-test and Wilcoxon signed-rank test - between those versions. Results confirm that the difference between them are statistically significant with a confidence level of 99.9%.

6 Conclusion

We have presented a very detailed study of the hyper-parameters of the static and the self-adjusting $(1+(\lambda,\lambda))$ GA on the OneMax problem. Among other results, we have seen that the self-adjusting $(1+(\lambda,\lambda))$ GA gains only around $1\%-3\%$ in average optimization time with optimized update strengths $A$ and $b$. We have then introduced a more flexible variant, the $\operatorname{dyn}(\alpha,\beta,\gamma,A,b)$, in which the offspring population sizes of mutation and crossover phase need not be identical, and which offers more flexibility in the choice of the mutation rate and the crossover bias. This has reduced the average optimization times by another 15%. Interestingly, the parameter values by which these performance gains are achieved are quite consistent across all tested dimensions. We then analyzed a configuration in which we fixed the hyper-parameters according to the suggestions made by the tuning in lower dimensions $500$ to $10\,000$, and show that it performs very well also on the $20\,000$ and $30\,000$ dimensional OneMax problem.

Our results suggest that the $(1+(\lambda,\lambda))$ GA can gain performance by introducing the additional hyper-parameters. We plan on investigating the gains for other problems, in particular the MaxSAT instances studied in [BD17]. Since all results shown in this work are quite consistent across all dimensions, we also plan on analyzing the advantages of the $\operatorname{dyn}(\alpha,\beta,\gamma,A,b)$ by rigorous means, both in terms of optimization time, but also in terms of more general fixed-target running times. As we have demonstrated in Section 3.2, the latter reveal that the advantage of the $(1+(\lambda,\lambda))$ GA over RLS lies in the very final phases of the OneMax optimization problem, i.e., when finding improving moves is hard. Efficiently switching between the two algorithms at the time at which the $(1+(\lambda,\lambda))$ GA starts to outperform RLS carries the potential to reduce the optimization time further. Automating such online algorithm selection is another line of research that we plan to investigate further. Techniques from the literature on parameter control [KHE15, DD18b], adaptive operator selection [FCSS10], and hyper-heuristics [BGH*+*13] might prove useful in this context.

On a meta-level, we have demonstrated with this work that hyper-parameter tuning provides useful insights that help us understand the working principles of randomized search heuristics. As mentioned, we are confident that we can leverage the empirical findings of this work for a precise theoretical analysis of the self-adjusting $(1+(\lambda,\lambda))$ GA. Similar to the tuning in the loop approach suggested in [dOAS11], we thus see that there is important room for tuning in the theory loop. On the other hand, we also show an example that raises the question of how to adjust the default setting of current hyper-parameter tuning methods when a priori knowledge about the scenario is given (e.g., high variance in performance measure in our case). This is another line of research raised by this work.

Acknowledgments.

This work was supported by the Paris Ile-de-France Region, by a public grant as part of the Investissement d’avenir project ANR-11-LABX-0056-LMH, LabEx LMH, by the European Cooperation in Science and Technology (COST) action CA15140, and by the UK EPSRC grant EP/P015638/1. The simulations were performed at the HPCaVe at UPMC-Sorbonne Université.

Appendix A Selected Optimization Time Statistics
