Reflectionless Filters for Generalized Transmission Functions

TL;DR

This paper introduces a new theorem for designing reflectionless filters with zero reflection at all frequencies, demonstrating a practical sixth-order low-pass filter with excellent return loss and theoretical advantages over classical methods.

Contribution

It presents a novel theorem for single-ended, reflectionless filter topologies, extending the coupled-ladder approach to pseudo-elliptic responses and comparing it favorably to traditional methods.

Findings

Constructed a sixth-order reflectionless filter with pseudo-elliptic response.

Achieved return loss better than 20 dB across pass-band, transition, and stop-band.

Theoretical predictions closely matched measured results.

Abstract

Single-ended circuit topologies, and a theorem for the development thereof, are presented with which one may realize constant-resistance (or reflectionless) filters, having ideally zero reflection coefficient at all frequencies and from all ports, suitable for elliptic and pseudo-elliptic filter responses. The proposed theorem produces topologies of a type known as the coupled-ladder, which has been previously studied for only polynomial responses (e.g. Butterworth, Chebyshev, etc.). A comparison between these topologies and another classical approach known as the economy bridge reveals that those proposed here have a number of theoretical and practical advantages. The theory is tested by the construction of a sixth-order, low-pass reflectionless filter exhibiting a pseudo-elliptic frequency response. Measured results are in excellent agreement with theory, and show return loss better than 20 dB throughout the pass-band, the transition-band, and up to two octaves into the stop-band.

Figures

Tables

Table 1. TABLE I: Series Cell Adjunction

Ladder Increment	Constant-Resistance Network Construction
	Configuration 1†	Configuration 2	Configuration 3	Configuration 4
Typical Cell Cases
	$\bullet$ Always realizable, even if pole frequencies are different $\bullet$ Can be realized with transformers, or coupled-coils having finite inductance $\bullet$ Good high-frequency isolation	$\bullet$ Always realizable if poles have the same frequency, conditionally if the poles are different $\bullet$ Can be realized with transformers, or coupled-coils having finite inductance $\bullet$ Best high-frequency isolation	NOT RECOMMENDED $\bullet$ Prone to parasitic resonance due to small mistuning. $\bullet$ Realizable only if poles have the same frequency	NOT RECOMMENDED $\bullet$ Prone to parasitic resonance due to small mistuning. $\bullet$ Loss of common ground reference $\bullet$ Realizable only if poles have the same frequency
	$\bullet$ Always realizable $\bullet$ Can be realized with transformers, or coupled-coils having finite inductance $\bullet$ Lone inductor’s stray capacitance may limit high-frequency isolation.	$\bullet$ Realizable if $\bullet$ Lone inductor’s stray capacitance may limit high-frequency isolation.	NOT REALIZABLE except when single inductor has degenerated to a short.	NOT REALIZABLE except when $Z_a$ degenerates to a short and $Z_b$ is a tank.

Table 2. TABLE II: Shunt Cell Adjunction

Ladder Increment	Constant-Resistance Network Construction
	Configuration 1†	Configuration 2	Configuration 3
Typical Cell Cases
	$\bullet$ Always realizable	$\bullet$ Always realizable $\bullet$ Transformer necessary when $C_b>C_a$	$\bullet$ Always realizable $\bullet$ Transformer necessary when $C_b>C_a$
	$\bullet$ Always realizable	$\bullet$ NOT REALIZABLE	$\bullet$ Realizable if $\bullet$ Simple, free of coupling
	$\bullet$ Always realizable	$\bullet$ NOT REALIZABLE	$\bullet$ Realizable if $C_b>C_a$ and using transformer
	$\bullet$ Always realizable, even if pole frequencies are different	NOT RECOMMENDED $\bullet$ Always realizable if pole frequencies are the same $\bullet$ Prone to parasitic resonance due to small mistuning $\bullet$ Transformer necessary when	$\bullet$ Always realizable if pole frequencies are the same, conditionally if they are different $\bullet$ No coupling if $L_b>L_a$ and pole frequencies are the same

Table 3. TABLE III: Final Element Values and Parts for the Sixth-Order Pseudo-Elliptic Reflectionless Filter

Element	Ideal Value	Actual Value
$C_1$, $C_2$	239.4 pF	240 pF
$C_3$	116.1 pF	120 pF
$C_4$, $C_5$	142.7 pF	150 pF
$C_6$	15.94 pF	16 pF
$C_7$, $C_8$	394.0 pF	390 pF
$C_9$	15.11 pF	15 pF
$C_{10}$, $C_{11}$	355.9 pF	360 pF
$C_{1}2$	74.45 pF	75 pF
$C_{13}$, $C_{14}$	114.0 pF	110 pF
$C_{15}$, $C_{16}$	262.3 pF	270 pF
$L_1$, $L_2$	466.8 nH	(tuned)
$L_3$, $L_4$	1107 nH	(tuned)
$L_5$	9909 nH	(tuned)
$L_6$, $L_7$	685.7 nH	(tuned)
$L_8$	3278 nH	(tuned)
$R_1$, $R_2$	$50\Omega$	$49.9\Omega$

Table 4. TABLE IV: Basic Equivalences for Lattice Reduction to Unbalanced Form

Case	Lattice Form		Unbalanced Equivalent
0		If $\leftrightarrow$ Then:
1		$\to$
2		$\to$
3		$\to$
4		$\to$
5		$\to$
6		$\to$

Table 5. TABLE V: Elements of the Reflectionless Filter from Fig.  5 , Denormalized to f 0 = 8.200 subscript 𝑓 0 8.200 f_{0}=8.200 MHz and R 0 = 50 ​ Ω subscript 𝑅 0 50 Ω R_{0}=50\Omega

Element	Value ($\mu$H)	Element	Value (pF)
$L_1$	3.9601	$C_1$	108.7
$L_2$	0.89796	$C_2$	193.2
$L_3$	0.89796	$C_3$	545.8
$L_4$	0.14314	$C_4$	545.8
$L_5$	9.1868	$C_5$	3675
$L_6$	1.3644	$C_6$	57.26
$L_7$	1.3644	$C_7$	359.2
$L_8$	0.48304	$C_8$	359.2
$L_9$	0.2717	$C_9$	1584

Equations

$$Z_A=\Delta Z_{An}+\frac{1}{\Delta Y_{A(n-1)}+\frac{1}{\frac{\ddots }{\Delta Y_{A2}+\frac{1}{\Delta Z_{A1}+1}}}}$$

$$Y_A=\Delta Y_{An}+\frac{1}{\Delta Z_{A(n-1)}+\frac{1}{\frac{\ddots }{\Delta Z_{A2}+\frac{1}{\Delta Y_{A1}+1}}}}$$

$${\mathbf{Z}}_{NW}=\frac{1}{2}\left(\begin{array}{cc}{Z}_B+Z_A& Z_B-Z_A\\ Z_B-Z_A& Z_B+Z_A\end{array}\right)$$

$${\mathbf{Z}}_{NW}=\Delta {\mathbf{Z}}_n+\frac{\mathbf{I}}{\Delta {\mathbf{Y}}_{n-1}+\frac{\mathbf{I}}{\frac{\ddots }{\Delta {\mathbf{Y}}_2+\frac{\mathbf{I}}{\Delta {\mathbf{Z}}_1+\mathbf{I}}}}}$$

$${\mathbf{Y}}_{NW}=\Delta {\mathbf{Y}}_n+\frac{\mathbf{I}}{\Delta {\mathbf{Z}}_{n-1}+\frac{\mathbf{I}}{\frac{\ddots }{\Delta {\mathbf{Z}}_2+\frac{\mathbf{I}}{\Delta {\mathbf{Y}}_1+\mathbf{I}}}}}$$

$$\Delta {\mathbf{Z}}_j=\frac{1}{2}\left(\begin{array}{cc}\Delta Z_{Bj}+\Delta Z_{Aj}& \Delta Z_{Bj}-\Delta Z_{Aj}\\ \Delta Z_{Bj}-\Delta Z_{Aj}& \Delta Z_{Bj}+\Delta Z_{Aj}\end{array}\right)$$

$$\Delta {\mathbf{Y}}_k=\frac{1}{2}\left(\begin{array}{cc}\Delta Y_{Bk}+\Delta Y_{Ak}& \Delta Y_{Bk}-\Delta Y_{Ak}\\ \Delta Y_{Bk}-\Delta Y_{Ak}& \Delta Y_{Bk}+\Delta Y_{Ak}\end{array}\right)$$

$${\mathbf{S}}_{EB}=\left(\begin{array}{cccc}0& {\rho }_d& \frac{\tau }{\sqrt{2}}& \frac{\tau }{\sqrt{2}}\\ {\rho }_d& 0& -\frac{\tau }{\sqrt{2}}& \frac{\tau }{\sqrt{2}}\\ \frac{\tau }{\sqrt{2}}& -\frac{\tau }{\sqrt{2}}& {\rho }_r& 0\\ \frac{\tau }{\sqrt{2}}& \frac{\tau }{\sqrt{2}}& 0& -{\rho }_r\end{array}\right)$$

$$\tau (s)=\frac{P(s)}{E(s)}=\frac{1}{H(s)}$$

$${\rho }_d=\frac{F(s)}{E(s)}$$

$${\rho }_r=\frac{\mp F(-s)}{E(s)}$$

$${\mathbf{S}}_{CL}=\left(\begin{array}{cccc}0& {\rho }_d& \tau & 0\\ {\rho }_d& 0& 0& \tau \\ \tau & 0& 0& {\rho }_r\\ 0& \tau & {\rho }_r& 0\end{array}\right)$$

$$Z_{Aj}=Z_{A(j-1)}+\Delta Z_{Aj}$$

$$Z_{Bj}=Z_{B(j-1)}+\Delta Z_{Bj}$$

$$\begin{gathered} \frac{1}{2}\left(\begin{array}{cc}{Z}_{Bj}+Z_{Aj}& Z_{Bj}-Z_{Aj}\\ Z_{Bj}-Z_{Aj}& Z_{Bj}+Z_{Aj}\end{array}\right) \\ =\frac{1}{2}\left(\begin{array}{cc}{Z}_{B(j-1)}+Z_{A(j-1)}& Z_{B(j-1)}-Z_{A(j-1)}\\ Z_{B(j-1)}-Z_{A(j-1)}& Z_{B(j-1)}+Z_{A(j-1)}\end{array}\right) \\ +\frac{1}{2}\left(\begin{array}{cc}\Delta Z_{Bj}+\Delta Z_{Aj}& \Delta Z_{Bj}-\Delta Z_{Aj}\\ \Delta Z_{Bj}-\Delta Z_{Aj}& \Delta Z_{Bj}+\Delta Z_{Aj}\end{array}\right) \end{gathered}$$

Full text

††publicationid: pubid: 0000–0000/00$00.00 © 2019 IEEE

I Introduction

Constant resistance, or reflectionless, filters make use of lattice networks where the arms $Z_{A}$ and $Z_{B}$ are conventional dual reflective filters (to be named reference filters). An unbalanced equivalent, presented by Cauer in [1] uses a single economy bridge with only two arms, each comprising one of the dual reference filters. The characteristic function of these filters must be the reciprocal of that desired for the transmission path of the global network. Another method to obtain a practical unbalanced structure, referred to herein as a coupled-ladder, has been developed in [2, 3, 4, 5] and makes use of the progressive construction of the reflectionless network from even-/odd-mode analysis operating on the ladder topology itself. Applications of this coupled-ladder synthesis operating with polynomial reference filters have been studied in [5]. The more general case, e.g. filters having equiripple in both the pass-band and stop-band as provided by Cauer elliptic functions, or of any arbitrary suitable configuration of poles and reflection zeroes on the $j\omega$ axis, will be addressed here.

First, a review of the conceptual scheme underlying coupled-ladder synthesis, set forth by an equivalence theorem, is given in Section II. The theorem is this time more easily approached by an algebraic method instead of the traditionally used even-/odd-mode analysis. A comparison between the economy bridge and coupled ladder synthesis results will be given in Section III. In Section IV, specific issues concerning the realization of elliptic or quasi-elliptic cases will be addressed under the guidance of the presented theorem. Finally, Section V will describe a practical realization in hardware along with the measured results.

A well-known predecessor of the coupled-ladder method is the lattice reduction technique used to obtain an unbalanced equivalent of a given lattice [6]. The relationship between both methods will be commented upon in Appendix A.

II A Realization Theorem for Lattice Networks with Ladder Arms

Here, we present a theorem for the construction of a single-ended circuit equivalent in performance to a balanced lattice network with ladder arms, as an alternative to Cauer’s economy bridge and having certain practical advantages which will be described in Section III. For the derivation, the approach this time will consist of an algebraic method, instead of even-/odd-mode analysis, but the resulting family of networks will be the same as the one studied in [2, 3, 4, 5].

II-A Preliminary Definitions

• •

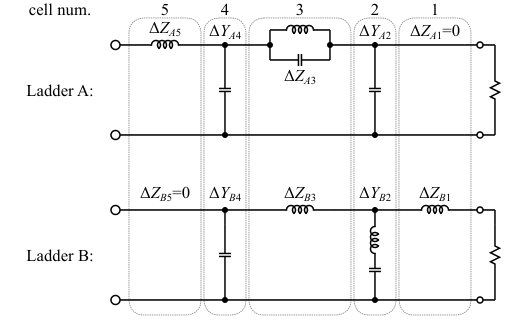

Any two ladders A and B may be driven to an isomorphic form, where both have an identical number of branches grouped into cells by pairs, one from each ladder, where the two branches paired in each cell have both to be series or shunt in the corresponding ladder, and in the same relative position. Cells are then characterized as being of the series or shunt type. Zero impedance or zero admittance branches are admitted in series or shunt cells, respectively. It should be noted that the isomorphic form is not unique, as different associations are possible. See the example in Fig. 1.

• •

$\Delta Z_{Ai}$ and $\Delta Z_{Bi}$ (or $\Delta Y_{Ai}=1/\Delta Z_{Ai}$ and $\Delta Y_{Bi}=1/\Delta Z_{Bi}$) are the impedances (admittances) of cell $i$ in ladders A and B, respectively.

• •

Cells shall be indexed consecutively, starting at the termination, independent of whether they are the series or shunt type; they do not need to be alternating, though this is the usually the case.

• •

Elementary lattice $J$ is a network equivalent to the lattice constructed with arms corresponding to cell $J$.

• •

The two normalized termination resistances can be interpreted as a termination lattice with a $z$- or $y$-parameter matrix given by the 2x2 identity matrix, $\mathbf{I}$.

• •

The input impedance of reference ladder A may be written as a finite continued fraction, whose exact form will depend on whether the first and last elements are series or shunt. In case (a), where the first and last cells are both series,

[TABLE]

Similarly, in case (b), where both are shunt,

[TABLE]

and so on for the remaining two cases (c) and (d), where the first/last elements are series/shunt, and shunt/series, respectively. Similar expressions hold for $Z_{B}$ and $Y_{B}$.

• •

Let $\mathbf{Z}_{NW}$ be the $z$-parameter matrix of the global lattice network NW comprising the complete ladders A and B, having impedances $Z_{A}$ and $Z_{B}$, as the main arms,

[TABLE]

II-B Equivalence Theorem

The theorem expresses the validity of the following alternative development of $\mathbf{Z}_{NW}$. For case (a) above (first and last cells both series),

[TABLE]

where $\mathbf{I}$ is again the 2x2 identity matrix and the fraction notation shall be understood to mean the matrix inverse. For case (b), where the first and last elements are both shunt,

[TABLE]

and similarly for cases (c) and (d). In the above expressions, $\Delta\mathbf{Z}_{j}$ and $\Delta\mathbf{Y}_{k}$ are the $z$- and $y$-parameter matrices of the elementary lattices corresponding to cell $j$ and $k$. That is,

[TABLE]

Equations (4)-(6) show that that a two-port equivalent to the lattice-network NW can be constructed alternatively as a ladder connection of elementary lattices corresponding to the cells established in the previous isomorphic definition, with the same order and type of connection. The proof of the theorem is straight-forward, and is summarized in Appendix B.

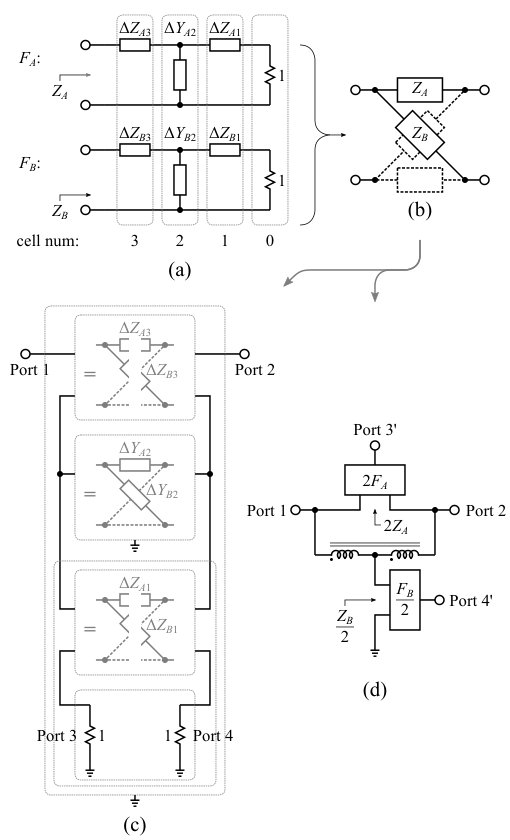

Fig. 2

illustrates the theorem in graphical form. Fig. 2(a) shows the reference filter ladders with impedance $Z_{A}$ and $Z_{B}$ broken down into series and shunt cells. For the purpose of this illustration, a simple case of three cells has been drawn, with the cell number 1, adjacent to the terminations, being series type. Fig. 2(b) shows the balanced lattice network we wish to draw an equivalent to. Fig. 2(c) illustrates, conceptually, the construction of a coupled ladder of elementary lattice equivalents from bottom to top in series and shunt fashion in accordance with the cells of the reference ladders. All connections, frames, and elements in grey indicate that the given schematics are conceptual, or equivalent to. For instance, the series connection of two-ports may be stacked vertically as drawn, or by any other convenient and known method of network combination that leads to the addition of $Z$ parameters. The necessary condition for lateral current continuity of the lattice equivalent is symbolically represented in the series cases by a drawing cut. The resulting partial network after each step is framed again in grey.

A summary of elementary lattice equivalent networks which can be used in this construction process for series and shunt cells will be given in Tables I and II of Section IV, respectively. Typical application cases are included. The incremental ladder immittances in these tables are labelled $Z_{a}$, $Y_{a}$, etc.

Briefly put, the theorem states that a lattice of two ladders is equivalent to a ladder of elementary lattices. Further implications in more mathematical terms include:

• •

In the scope of two-port equivalence, successive application of ladder and lattice “two-port construction” operators to a set of indexed, paired, two-poles (with genders series and shunt) obey the commutative property.

• •

For a lattice network, the availability of the continued fraction expansions of arm immittances leads directly to the same kind of realizable expansion of the global lattice $Z$ (resp. $Y$) matrix. The corresponding transformation preserves ladder branch entities.

In the praxis, it allows the direct breakdown of a lattice with complex arms (e.g. ladder filters) into simple interconnected lattices or lattice-equivalents.

The classical alternative to the lattice network is the Cauer economy bridge, shown in Fig. 2(d). Although easier to draw, conceptually, the simplicity of this diagram is somewhat deceptive considering the number of elements that may be contained in $2F_{A}$ and $F_{B}/2$ ladders. Furthermore, there are number of drawbacks, both fundamental and practical, with this approach. A thorough comparison of the coupled-ladder and economy bridge topologies will be given in Section III.

Some important features to note of the theorem we have presented:

The equivalence is valid in general; no requirement has been made on duality, but when ladders $F_{A}$ and $F_{B}$ do behave as dual two-ports, reflectionless networks result. Black-box duality — that is, dual electrical behavior as opposed to topology — is sufficient in this case. 2. 2.

It is a simple matter to show that each network-half of a constructed network reproduces the structure of reference ladder $F_{B}$ in the even-mode, and that of ladder $F_{A}$ in the odd-mode. The global network satisfies, then, the main design criterion used in [2, 3, 4, 5], constituting an extension of the network family studied therein. 3. 3.

In practice, having cells with proportional impedances — that is, $\Delta Z_{Bi}=\alpha\Delta Z_{Ai}$ where $\alpha$ is real and positive — may lead to more simple and realizable associated elementary two-ports, without need of magnetic coupling. This case corresponds to realizable tee- or pi-equivalent networks. Potentially harmful side effects of certain coupling-free realizations (and some with coupling as well) will be discussed in Section IV. 4. 4.

The rules of the known lattice-reduction technique (summarized in Appendix A) can be considered as particular implementation cases of the presented concept. 5. 5.

The theorem has general coverage in that it is equally applicable to non-proportional $Z$ ($Y$) cell immittances, and the corresponding elementary lattice equivalents are realizable, even without coupling in some cases (e.g.: Fig. 3).

Once the reference filter isomorphism and elementary lattices are defined, the application of well-known combination rules for the safe series and parallel connection of those lattices, together with their practical transformation according to Tables I and II, will generate the network. Typically, some of the stages will require coupling while others do not.

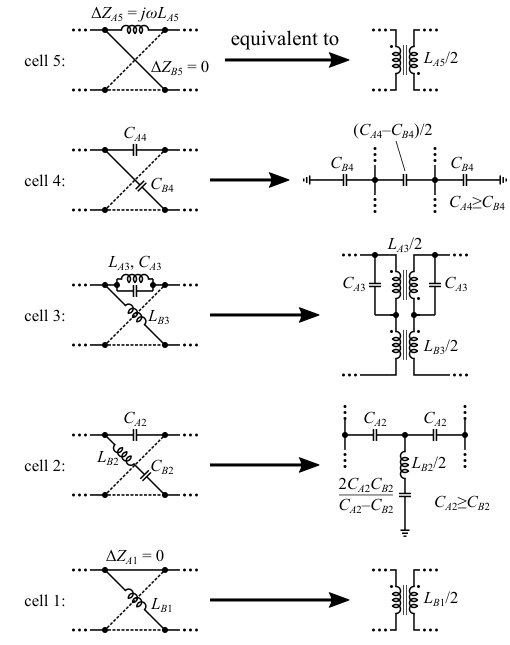

As an example, consider the application of this process to the reference ladders in Fig. 1. The elementary lattices for each cell along with their equivalent networks are shown in Fig. 3(a)

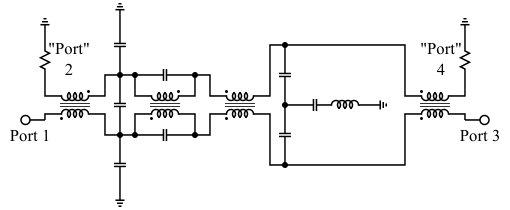

and the final resulting coupled-ladder network is shown in Fig. 3(b). Other realizations are also possible, using elementary lattice equivalents given in Tables I and II of Section IV.

III Comparison with Cauer’s Economy Bridge

An alternative, single-ended network configuration is Cauer’s economy bridge, shown earlier in Fig. 2(d). The theorem in Section II establishes the equivalence of the coupled-ladder to the economy bridge, where ports 1 and 2 are the input and output ports; their transmission from port 1 to port 2 is the same. Nothing is stated, however, about the transmission from port 1 to port 3 (or port 1 to port 4) in the coupled-ladder, or from port 1 to port 3’ (port 1 to port 4’) in the economy bridge. As we shall see, the two networks behave quite differently in this respect.

In the economy bridge structure, if ladders $Z_{A}$ and $Z_{B}$ are dual reflective filter structures, which themselves realize a certain transmission function e.g. high-pass, then power is equally divided into both (high-pass) ladders, and power arriving to the output ports 3’ and 4’ will have additional 3 dB flat-loss. This is a clear limitation of economy bridge structures. Further, ports 3’ and 4’ do not exhibit reflectionless behavior. In fact, the full, four-port scattering parameter matrix for the economy bridge with dual arms is

[TABLE]

where $\tau$, $\rho_{d}$, and $\rho_{r}$ are specific functions of the even-mode reference filter. Using the notation established in [7] and [8], where $E(s)$, $F(s)$, and $P(s)$ are the transfer polynomials of the even-mode reflective filter, $\tau(s)$ is the inverse of the transducer function $H(s)$, or

[TABLE]

Further, the input reflection coefficient of the reference filter is

[TABLE]

and the output reflection coefficient of the reference filter (see [8], p. 82) is

[TABLE]

where the ‘$-$’ above is used if $P(s)$ is even, and ‘$+$’ if $P(s)$ is odd.

In contrast, for case of the coupled ladder, also constructed from dual reference filters, both transmission paths 1-2 and 1-3 are candidates to be exploited, since both ideally realize 0-dB loss in pass-band. The scattering parameter matrix in this case is simply

[TABLE]

which is clearly distinct from (7). If the coupled-ladder 1-2 signal path is chosen, the same high-pass reference filters of the economy bridge design can be used, for a desired low-pass transmission function. If, however, the coupled-ladder 1-3 path is chosen, the reference filters must have exactly the same transmission function, $\tau(s)$, as that which is desired for the overall reflectionless filter. As previously shown [3], and explicit in (11), the coupled-ladder structure exhibits directional behavior, wherein no power is transmitted from port 1 to 4 (they are decoupled, and also between 2 and 3), and the desired transmission function appears from 1 to 3, with no flat loss and constant resistance at all ports (not the case in economy bridge). The derived coupled-ladder structure belongs to a wider class of reflectionless reciprocal and lossless 4-ports, named biconjugate networks. See [9] for a clever theoretical presentation.

One could argue that the comparison of the two structures should be limited to their 0-dB transmission paths only (1-2 for the economy bridge, and 1-2 or 1-3 for the coupled ladder). The 1-2 path, however, seems to have inherent practical disadvantages for both structures. A desired low-pass behavior between 1-2 would require two dual reflective reference high-pass designs. The high-pass reflective structures, however, have unavoidable matching degradation at high frequencies due to strays. That inevitably results in degraded suppression in the stop-band at high-frequency [5].

In fact, stop-band rejection is totally reliant on bridge symmetry in the case of the economy bridge structure. This seems to indicate a theoretical preference for the coupled-ladder 1-3 path, which is illustrated by the practical simulation in Fig. 4.

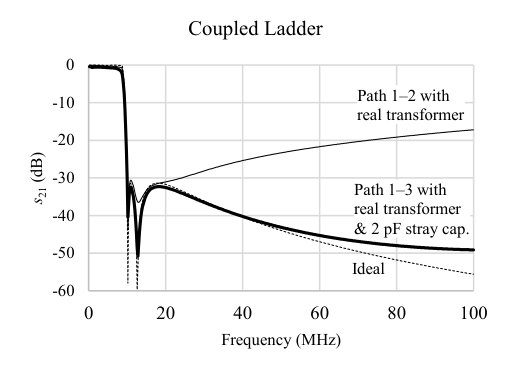

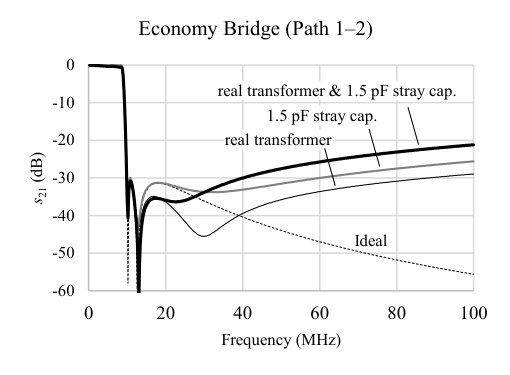

This figure compares the 1-2 transmission response of an economy bridge structure realizing a sixth-order antimetric low-pass filter (having two finite poles), with the 1-2 and 1-3 transmission responses of coupled-ladder structures targeting the same transfer function. The last option was selected for prototype implementation, which will be described in Section V. Nominally ideal-element models were subjected to stray-resistance tests wherein measured commercial transformers were included and realistic stray capacitance added to certain critical nodes. The difference in performance is decisive in favour of the coupled-ladder structure exploiting the 1-3 transmission path. The coupled-ladder is thus recommended for low-pass and band-pass designs. It is, however, true that the complexity of coupled-ladder realizations is higher, requiring, typically, several wideband transformers (or equivalently custom coupled inductors), but the difference in the resulting performance is deemed worthwhile.

Finally, it should be mentioned that the economy bridge structure can be completed to become a true biconjugate network, now fully 4-port equivalent to the coupled ladder structure. The cost is replacing the main transformer by a true hybrid coil, and using a second one to combine the outputs 3’ and 4’ of the reference filter arms (see the named “canonical realization” in Fig. 27 of [9]).

IV Implementation Strategies for Elliptic/Quasi-Elliptic Functions

In Tables I and II we summarize the lattice equivalences needed for filter implementation, as each elementary lattice has to be converted into an equivalent two-port with the minimum number of components and adequate structure. Equivalences are given in a generic form, with incremental ladder immittances now labelled $Z_{a}$, $Y_{a}$, etc.

• •

Elementary lattices connected in shunt (Table II) will be converted to unbalanced form.

• •

Those connected in series (Table I) will have to provide transformer isolation if they are connected on-top (configurations 1-3, Table I). Alternatively, the series connection can be implemented by the addition of tee-equivalent arms, as per configuration 4 (supposing $Z_{b}-Z_{a}$ is realizable); this is the only configuration in Table I which can be implemented without transformer coupling.

Some typical specific cell cases are highlighted in these tables (focusing on finite frequency attenuation poles), with their strong and weak points. The following summary conclusions, restricted to these cases, can be articulated:

1. a.

Configuration 1 (using Cauer’s bridges) is a general solution for both connection kinds, but implies coupling. It is suitable even in cases where the cell corresponds to two different finite-frequency poles. This configuration has some canonical equivalents [1], listed in Appendix D for reference. The version reflected in Table I is frequently suitable for realization with coupling coils instead of an ideal transformer, while still providing adequate isolation. 2. b.

For series connection (Table I), the only configuration without coupling is number 4, but it is not recommended for parallel resonators. Therefore, series connection of an elementary lattice will imply coupling in general. Configuration 2 is the appropriate non-canonical alternative to configuration 1. 3. c.

For shunt connection (Table II), configuration 3 is the appropriate alternative to configuration 1. 4. d.

For the just mentioned non-canonical alternatives, and when both cell branches are finite-pole resonators, realizability is assured and the likelihood of coupling-free realization increases, if they correspond to the same pole frequency.

Let us now consider the preparation of the reference dual filters prior to the process of cell assignment. Since only electrical duality (as opposed to topological duality) is required, and if both ladders are to be designed while targeting the minimum number of inductors, then, whenever possible, partial removal with a capacitor is preferred. This would imply that the same kind of resonator would result for the same pole in both dual structures (e.g. a parallel resonator for an upper stop-band pole and a series resonator for a lower stop-band pole).

This last condition is feasible in the case of an even degree quasi-elliptic (and generalized similar) low-pass filter, due to the availability of a double pole at infinity. In fact, for these transfer functions, a dual reference filter is obtained simply by reversing the input and output ports, since the conditions for antimetry are satisfied (assuming, as is is usually the case, that all reflection zeroes lie on the $j\omega$ axis). Additionally, if condition (d) above is attempted, the pole removal sequence can be appropriately altered in the dual with respect to the original, so that after reversing the ports, the same sequence of finite pole frequencies still results from input to output. In that case, a single cell can be associated with a finite-frequency pole. This is the strategy chosen in the prototype described in Section V. It nevertheless can be the case that negative component values appear in some desired pole sequence. If so, one should give up some constraint, for instance condition (d), and/or use configuration 1 whenever necessary.

In the case of an odd degree elliptic (generalized similar) low-pass filter, the poles must be realized in series branches as a parallel tank in one reference filter, and in shunt branches as a series resonator in the dual reference filter. A single cell cannot be associated with a specific pole, and the unrestricted usage of configuration 1 (or any preferred canonical equivalent) will likely be necessary at several places. Fig. 5

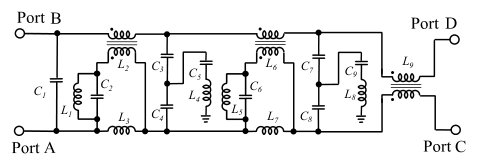

shows the structure of a reflectionless realization of a fifth-degree elliptic low-pass filter tabulated in [10] as “C05 15 $\Theta$=55”. Some synthesis details are available in Appendix C.

If the odd degree low-pass response is not elliptic-like, and has several poles at infinity, then the strategy described for even degree is applicable.

In the same way the strategy can be extended to direct-band-pass filter designs, with two facts to be taken into account:

• •

Band-pass reference designs usually require a higher degree, such that a higher number of coupling devices is needed.

• •

Direct-band-pass designs are also subject to unequal resistive terminations. Suitable Norton transformations have to be introduced so that both dual filters have the same terminations. These transformations increase the complexity and the number of required coupling devices in the derived reflectionless structure.

For these reasons, a preferable procedure could be to use band-pass designs derived via frequency transformation of a low-pass prototype. A practical method is to construct the low-pass reflectionless network first, and apply the frequency transformation to it directly. The number of required transformers is not affected by this last step. The resulting reflectionless band-pass structure maintains the same general complexity of the low-pass filter (degree halved), so in the end it is usually more economical, despite the increased number of inductors. Additionally, the issue with different resistive terminations is absent. Should resonances appear due to misalignments, applying the canonical configuration 1 to the concerned section already in the reflectionless low-pass prototype solves the issue.

Another possible strategy for band-pass designs with a very high relative bandwidth value could be to take advantage of the reflectionless cascading capability, and then to construct the band-pass filter by cascading a low-pass filter with a high-pass filter, each of them reflectionless. [11].

Finally for band-stop designs, we believe that deriving them from a reflectionless high-pass design (via low-pass to band-pass frequency transformation) is a reasonable procedure in our context.

V Practical Implementation Example

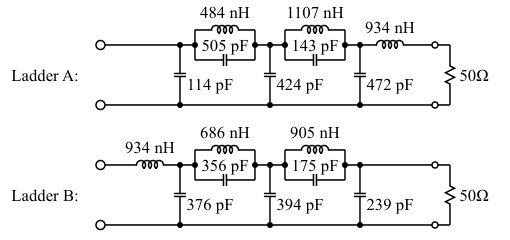

In order to test the theory described above, we have selected a sixth-order quasi-elliptic response for practical implementation. The reference ladders are shown in Fig. 6.

Notably, the ladders have similar structures (floating parallel resonators in between grounded shunt capacitors) with an extra series element at the end of ladder A and the beginning of ladder B. These features facilitate the construction of elementary lattices having minimal complexity.

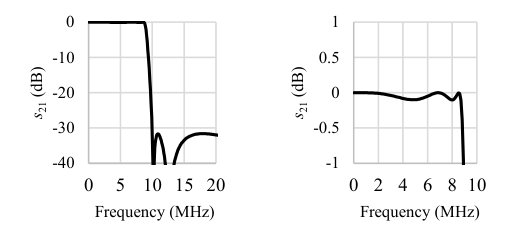

The transmission response of these reference ladders is given in Fig. 7.

It has pass-band ripple of about 0.1 dB, while the stop-band ripple provides minimum rejection of about 31.6 dB, with steep cutoff near 10 MHz.

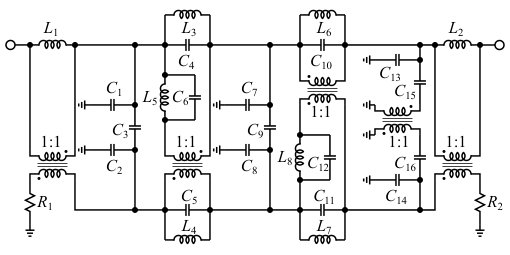

The proposed coupled-ladder solution is shown in Fig. 8.

and the final values for all components are given in Table III.

All of the transformers have unity turns ratio, for which the authors selected part number TC1-6X+ from Mini-Circuits. Ceramic capacitors, size 0805, with 1% tolerance were used, and the terminations were made with $49.9\Omega$ thin-film resistors, also 1% tolerance.

The selectivity of the transition demands elements of the highest precision, higher than is readily available from inexpensive, commercially available inductors, especially at these frequencies. We have therefore chosen to use shielded, tunable inductors instead (series 7M3 from Coilcraft). To facilitate tuning, a separate circuit board was fabricated comprising a parallel $LC$-resonator, shown in Fig. 9.

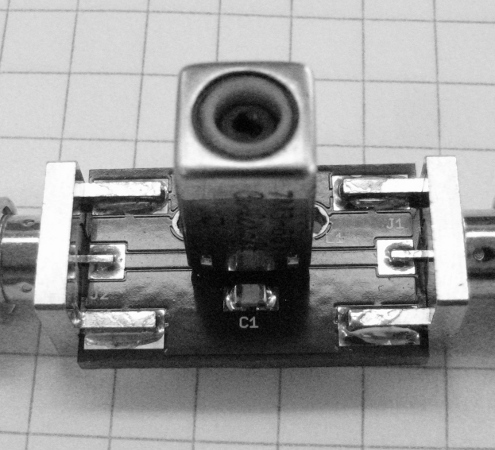

The inductor pin locations on the circuit board were equipped with tiny, press-in spring contacts (part no. 0531-0-15-15-31-27-10-0 from Mill-Max). Each inductor was then individually plugged into this board along with a tight-tolerance (1%) reference capacitor, and tuned while monitoring the resonance on a Vector Network Analyzer (VNA). Once the resonance matched the predicted value of a given desired inductance, the inductor was withdrawn from the tuner board and permanently soldered into the final circuit. Multiple trials showed repeatability in the achieved resonance of $\pm 10$ kHz, or typically $\pm 0.05\%$, which is 20 times better than the reference capacitor itself or the other capacitors in the filter.

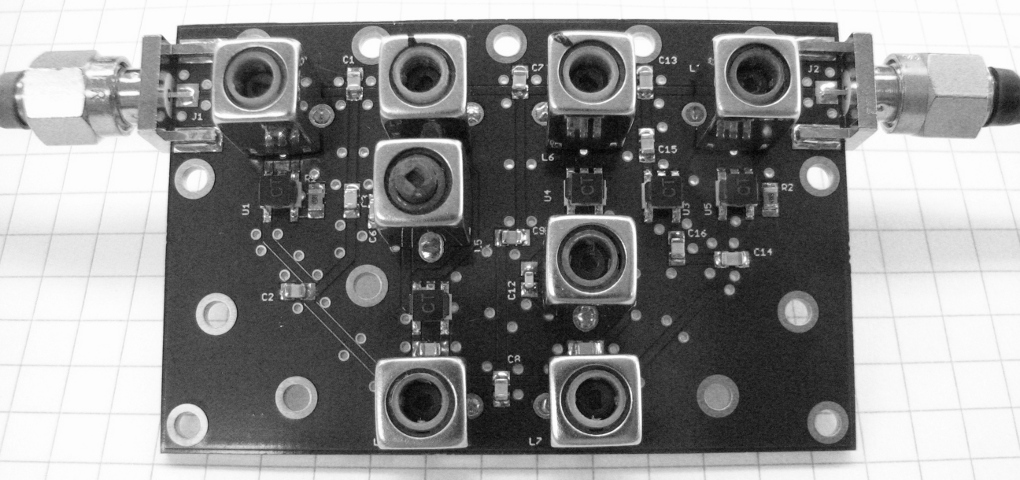

The final filter circuit board is shown in Fig. 10

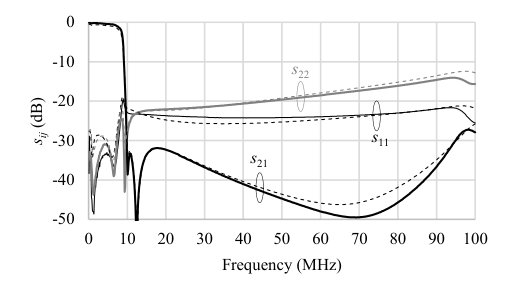

and its measured response is in Fig. 11.

Also plotted in dashed lines are the simulated results using detailed capacitor and inductor circuit models, which include their parasitics, and typical measured data for the transformers which are available from the vendor as a touchstone file. With the further addition of realistic electrical lengths for the traces on the circuit board, the agreement between measurement and theory throughout the pass-band, transition-band, and stop-band is excellent (in fact, the pass-band insertion loss is even less than expected). In particular, the nearly 20 dB return loss over the first two octaves beyond the cutoff into the stop-band is an exemplary demonstration of the critical feature which distinguishes this “reflectionless” topology from more conventional ones.

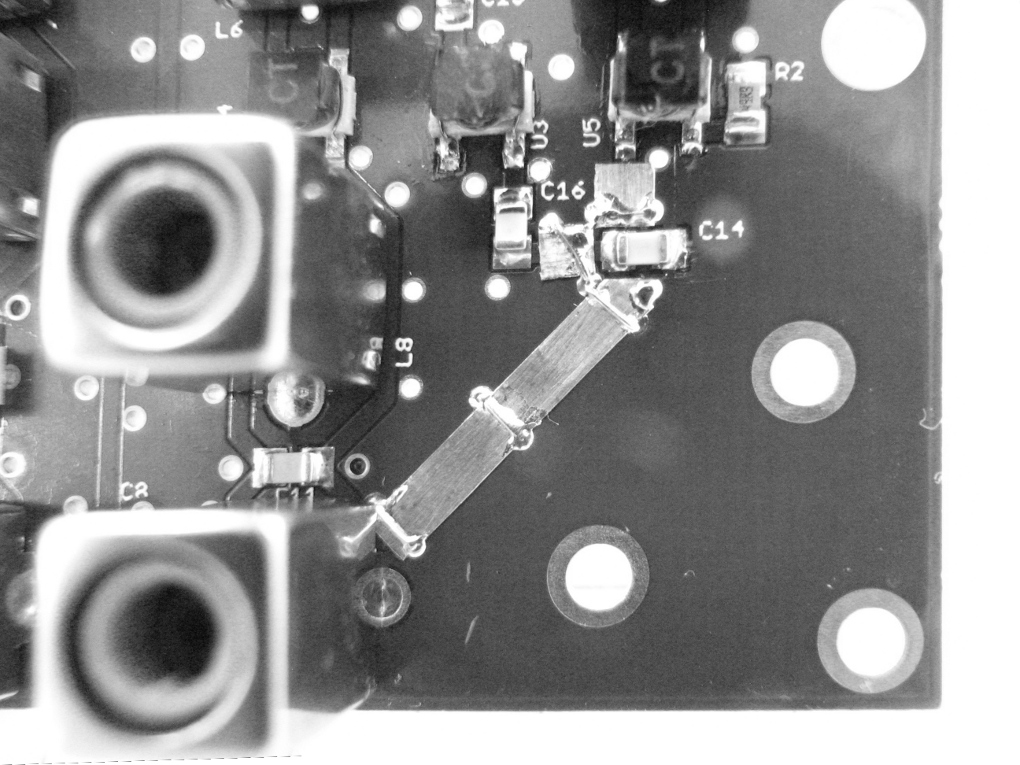

Like any low-pass filter, layout parasitics including trace inductance and inter-component coupling will ultimately lead to a degradation in stop-band performance at high frequency. An attempt was made to slightly mitigate these effects by applying strips of copper tape over the longest traces and then shorting them to the via fence in the top-side ground-plane (detail shown in Figure 12).

This had the effect of shifting the onset of stop-band degradation to higher frequencies, as indicated in Figure 13.

Thus, the stop-band rejection is better than 31 dB for a full decade beyond the cutoff frequency. If further stop-band extension was needed, the parasitic degradation could be further suppressed by cascading another small, lower-order reflectionless filter with higher cutoff.

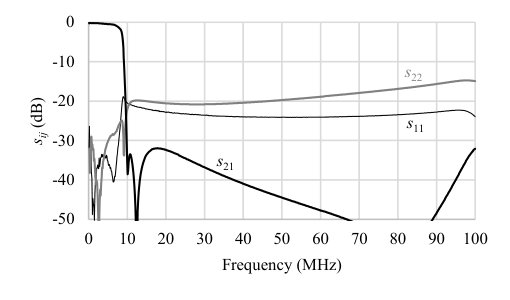

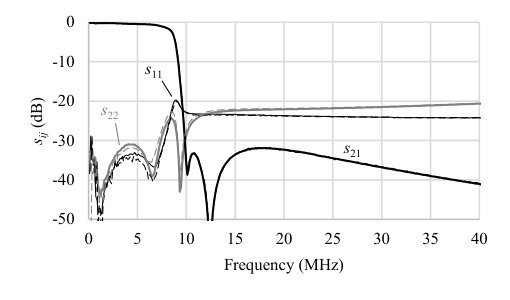

In order to further demonstrate the repeatability of the design, a second circuit board was assembled using the same layout and tuning technique (without the hand-cut copper tape shielding). A detail of the two responses is shown in Fig. 14

highlighting that the manufacturing repeatability is excellent.

VI Conclusion

A new theorem for the development of coupled-ladder, reflectionless filter topologies has been described, and illustrated by examples. Tables of elementary lattices — equivalent circuits which are building blocks of the coupled-ladder topology — are presented to aid the reader in developing reflectionless filters to implement a wide variety of custom responses. A practical test circuit comprising a sixth-order, low-pass, reflectionless filter having a pseudo-elliptic frequency response has been constructed, and measurements show excellent agreement with the theory.

Appendix A The Lattice Reduction Method, a Predecessor

The lattice reduction method has been known for a long time. L. Weinberg included it in is his doctoral thesis [6] from 1951, as a systematic transformation algorithm. He applied it for the first time to derive an unbalanced equivalent of a lattice whose arms are ladder networks, by progressive construction (see Fig.24 of [6]). As presented, however, it requires proportionality between cell branches, with a real positive factor $Z_{b}/Z_{a}\geq 1$, since only transformer-free realization was considered. Consequently, only part of the possible equivalences needed for network construction were presented. The elementary lattice breakdown presented in Section II has a wider scope, without such restrictions, and more importantly points to the true objective of the transformation: a ladder of elementary symmetrical two-ports. Nevertheless, the rules of this predecessor are still of interest, in that, for example, they allow one to quickly derive some of the useful equivalents for typical elementary lattices. These rules are summarized in Table IV,

along with two rather natural additions (cases 5 and 6) solving realization when $Z_{b}/Z_{a}<1$ (but still real positive), and which were not articulated in the past.

Appendix B Demonstration of Equivalence Theorem

Demonstration of the equivalence theorem from Section II-B is constructive, and proceeds by mathematical induction. Let us assume we know an unbalanced equivalent of the lattice network whose arms are that portion of ladders A and B from the terminations through cell $(j-1)$. Let us further designate $Z_{A(j-1)}$ and $Z_{B(j-1)}$ the input impedance of these partial ladders. Then, when a new series cell is added to the partial arm ladders, we have

[TABLE]

The $Z$-parameter matrix of any equivalent to the lattice with augmented ladder arms may then be decomposed in the following way,

[TABLE]

The first term corresponds to the $Z$-parameters of the network before augmentation, and the second one to an elementary lattice with arms $\Delta Z_{Aj}$ and $\Delta Z_{Bj}$. The incremental part is obviously a realizable two-port, and the matrix sum indicates that the augmented network can then be built by connecting these two two-ports in series.

In the same way, and operating with $Y$-parameters instead of $Z$-parameters, the case of a shunt-cell adjunction is solved, leading to the parallel connection of the elementary lattice with the original lattice. Applying this construction algorithm repetitively from the initial “resistive termination lattice” up to the complete ladders provides the desired equivalent global network, expressed by the development of (4) and (5) in Section II-B.

Appendix C Synthesis data for an odd degree elliptic reflectionless realization

The two dual reference filters, taken from tables in [10], are reflected in Fig. 15.

The dual filter $Z_{B}$ has been reversed between input/output ports, to get the minimum number of coupling devices in the reflectionless development. This is possible because both references are symmetrical filters, having odd degree. This is similar to the pole removal sequence adaptation, mentioned previously in Section IV.

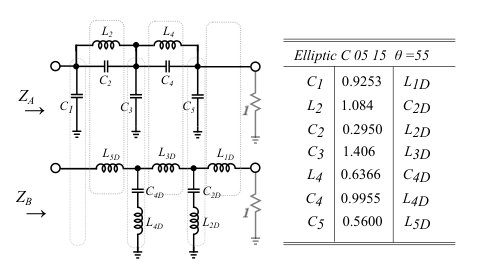

With the cell assignment shown in Fig. 15, the reflectionless filter of Fig. 5 results. The denormalized element values are listed in Table V.

The turns-ratio of all coupled coils is 1:1. The filter response is similar to that of the prototype sixth-degree filter described in Section V, with only a slightly less-steep cut-off transition.

Acknowledgment

The primary author would like to express his grateful remembrance of Dr. E. Christian, once professor of Electrical Engineering at North-Carolina State University, for his teaching style and enduring influence.
