Flexible and Comprehensive Patient-Specific Mitral Valve Silicone Models with Chordae Tendinae Made From 3D-Printable Molds

TL;DR

This paper presents a novel, fully customizable, patient-specific mitral valve silicone model with chordae tendineae, created using 3D-printed molds from ultrasound data, to enhance surgical training and realism.

Contribution

It introduces a comprehensive workflow for producing realistic, patient-specific mitral valve models with full anatomy, including chordae tendineae, using 3D printing and silicone casting.

Findings

Models are highly anatomically accurate and realistic.

Production time around 36 hours per valve.

Surgeons rated the models' realism very positively.

Abstract

Given the multitude of challenges surgeons face during mitral valve repair surgery, they should have a high confidence in handling of instruments and in the application of surgical techniques before they enter the operating room. Unfortunately, opportunities for surgical training of minimally-invasive repair are very limited, leading to a situation where most surgeons undergo a steep learning curve while operating the first patients. In order to provide a realistic tool for surgical training, a commercial simulator was augmented by flexible patient-specific mitral valve replica. In an elaborated production pipeline, finalized after many optimization cycles, models were segmented from 3D ultrasound and then 3D-printable molds were computed automatically and printed in rigid material, the lower part being water-soluble. After silicone injection, the silicone model was dissolved from the mold and anchored in the simulator. To our knowledge, our models are the first to comprise the full mitral valve apparatus, i.e. the annulus, leaflets, chordae tendineae and papillary muscles. Nine different valve molds were automatically created according to the proposed workflow (seven prolapsed valves and two valves with functional mitral insufficiency). From these mold geometries, 16 replica were manufactured. A material test revealed that Ecoflex\textsuperscript{TM} 00-30 is the most suitable material for leaflet-mimicking tissue out of seven mixtures. Production time was around 36h per valve. Twelve surgeons performed various surgical techniques, e.g. annuloplasty, neo-chordae implantation, triangular leaflet resection and assessed the realism of the valves very positively. The standardized production process guarantees a high anatomical recapitulation of the silicone valves to the segmented models and the ultrasound data...

Figures

Tables

Table 1. Table 1: Technical criteria for suitability of injection molding for various silicone mixtures were assessed on a 5-point Likert scale (1 - best mark, 5 - worst mork). Surgical properties were evaluated by a mitral valve surgeon.

Base Material	A:B:Slacker	Viscosity	Air bubbles	Filling degree	Suturing	Cutting
Erosil 10	1:1:0	2	2	2	too solid	ok
Dragon SkinTM 10 Fast	1:1:0	5	2	4	good	good
Dragon SkinTM 10 Fast	1:1:1	4	2	3	too soft	too soft, sticky
Dragon SkinTM 10 Fast	1:1:2	4	3	2	too sticky	too sticky
EcoflexTM 00-10	1:1:0	2	3	2	too soft	ok
EcoflexTM 00-30	1:1:0	1	3	3	very good	very good
EcoflexTM 00-50	1:1:0	1	3	3	very good	very good

Table 2. Table 2: Approximate production times and costs for a single valve. *can be reused, **can be produced on stock independent of the valve geometry

	Production times
Segmentation	\cellcolorgray!1010 min
	Upper Shell*	Lower Shell	Leaflet Holder**
Negative mold	\cellcolorgray!1015 min	\cellcolorgray!10 25 min	-
Slicing	\cellcolorgray!10 5 min	\cellcolorgray!10 5 min	\cellcolorgray!10 2 min
3D printing	\cellcolorgray!10 320 min	\cellcolorgray!10 540 min	\cellcolorgray!10 120 min
Silicone injection	\cellcolorgray!1015 min
Silicone curing	\cellcolorgray!10240 min
Water quench	\cellcolorgray!10720-840 min
total	2137 min $\approx$ 36 h
	Production costs
Printing material	\cellcolorgray!10PLA ($50g$) $\approx$ 3,35 €	\cellcolorgray!10 PVA ($70g$) $\approx$ 9,35 €	\cellcolorgray!10 PLA ($15g$) $\approx$ 1,00 €
Silicone	\cellcolorgray!10 approx. $35g$ $\approx$ 1,70 €
total	\cellcolorgray!10 $\approx$ 16 €

Full text

Methods In order to provide a realistic tool for surgical training, a commercial simulator was augmented by flexible patient-specific mitral valve replica. In an elaborated production pipeline, finalized after many optimization cycles, models were segmented from 3D ultrasound and then 3D-printable molds were computed automatically and printed in rigid material, the lower part being water-soluble. After silicone injection, the silicone model was dissolved from the mold and anchored in the simulator.

Results To our knowledge, our models are the first to comprise the full mitral valve apparatus, i.e. the annulus, leaflets, chordae tendineae and papillary muscles. Nine different valve molds were automatically created according to the proposed workflow (seven prolapsed valves and two valves with functional mitral insufficiency). From these mold geometries, 16 replica were manufactured. A material test revealed that EcoflexTM 00-30 is the most suitable material for leaflet-mimicking tissue out of seven mixtures. Production time was around 36h per valve.Twelve surgeons performed various surgical techniques, e.g. annuloplasty, neo-chordae implantation, triangular leaflet resection and assessed the realism of the valves very positively.

Conclusion The standardized production process guarantees a high anatomical recapitulation of the silicone valves to the segmented models and the ultrasound data. Models are of unprecedented quality and maintain a high realism during haptic interaction with instruments and suture material.

1 Introduction

Reconstructive mitral valve surgery is a demanding surgical sub-speciality due to variation in valve pathologies, required dexterity and tedious acquirement of surgical techniques. Mastering the technical skills to successfully performing needs years of training. At the same time, opportunities to practice are limited and most of the training is conducted by assisting and performing real surgeries, following the surgical principle of “see one, do one, teach one” Kotsis2013 .

Especially minimally-invasive procedures are considered as very complicated. It comprises a 5-6 cm incision in the intercostal space, which is referred to as a right lateral thoracotomy. The space constraints and special long-shafted instruments require surgeons to operate differently than in open surgery, e.g. the needle must be fixed in other angles to the needle holder as usually, which makes the stitching process more difficult. Additionally, knot tying is performed with a knot pusher, which can easily result in an air knot if done inappropriately. According to Holzhey et al. Holzhey483 , who analyzed a total of 3895 operations by 17 surgeons performing their first minimally invasive surgery of the mitral valve, the typical number of operations to reach a high quality level was between 75 and 125. In addition, more than one of such an operation per week was necessary to maintain good results. They identified a clear need for good mentoring and training utilities in the learning phase.

Besides ‘wetlabs’ or virtual simulators, physical phantoms provide options for surgical training. However, only the latter has the unique ability to bring the patient’s anatomy into physical reality as a model. Additionally, it provides excellent opportunity for dexterity training with authentic instruments and suture material Kenngott2015 , while offering materials that are pliable enough to be cut and sewn. Moreover, such models have the advantage that they could be used before the actual surgery takes place to rehearse the procedure and to discuss with colleagues without time constraints.

Mitral valve repair is a highly experienced-based surgery and techniques are chosen according to the surgeon’s preference. Various surgical repair techniques exist (e.g. annuloplasty, leaflet plasty, chordae plasty), which may address different parts of the valve Praet2018 . A patient-specific mitral valve phantom consisting of the annulus, leaflets and the subvalvular apparatus would allow the performance of the full spectrum of repair techniques and may be a valuable tool for comparison of current ‘competing’ techniques like triangular leaflet resection and neo-chordae implantation. The measurement of chordae length as well as implantation and knot tying of neo-chordae at their determined length are procedures considered most crucial in mitral valve repair today. Performing this procedure with a high confidence after training on a phantom can avoid a sub-optimal surgical outcome such as re-occurrence of valve leakage or restricted leaflet motion.

In a previous work EngelhardtBVM2018 , we demonstrated the feasibility for producing elastic 3D-replica consisting of mitral annulus and the two mitral leaflets. Using our customized software for valve modelling EngelhardtFIMH allowed us to extract models with high fidelity from 3D echocardiography, which is one elementary key to the work at hand. The production pipeline consisted of several comprehensive steps, e.g. image acquisition, 3D-segmentation of the mitral valve, computation of negative molds and material casting. In this work, we extended the models to incorporate the complete mitral valve apparatus, which includes the complex branching structure of the chordae tendineae and the papillary muscles. For this task, we had to completely revise the molding and casting concept and optimized it in several development cycles, as it is not straightforward to produce a negative mold that can be easily disassembled after silicone casting due to the complex nature of the valvular shape. In this paper, we present the revised production process, novel generic computer-aided design parts, a material study and a larger user study conducted with trainee and expert surgeons. The goal of this work was to develop unique valve models of unprecedented quality that combine highly realistic anatomy and material properties suitable for surgical training in a cost-effective production process to motivate dissemination in the medical community.

2 Related Work

A handful of companies provide physical mitral valve simulators. The Mitral valve holder (LifeLike BioTissue Inc., Ontario, Canada) or the MA-TRAC High Fidelity Minimally invasive Mitral Valve Repair simulator (Maastricht Trading Company, Inc., Maastricht, The Netherlands) are equipped with mitral valves made of silicone. Others companies provide 2D valves models made of felt, such as the MICS MVR Simulator (Fehling Instruments GmbH & Co. KG, Karlstein, Germany). However, such valves are generic, lack patient-specific properties and are therefore not suitable to address strategies for particular valvular conditions.

Existing works already dealt with direct 3D-printing of the mitral valve using acrylonitrile butadiene styrene (ABS) plastic material 2611-ref02 . Such stiff material showed benefits for surgery planning and surgical teaching, but it is certainly inadequate for dexterity training. Vukicevic et al. 2611-ref03 also used direct printing, but employed multi-material elastomeric TangoPlus materials (Stratasys, Eden Prairie, Minnesota, USA) that were compared to freshly harvested porcine leaflet tissue. All TangoPlus varieties were less stiff than the maximum tensile elastic modulus of porcine mitral valve tissue. Furthermore, the mesh creation required a lot of manual input and chordae tendineae were not included in the final rapid prototyping models.

Scanlan et al. Ilina2017SPIE ; Scanlan2017 proposed a method for creating 3D-printable molds, which can be filled with an elastic material such as silicone to create flexible and tear-resistant pediatric leaflet models. Beyond that, they compared direct printing with flexible material. Molding required more time and labor than directly printed models, but permits materials that better simulate real tissue and that are more economical at scale. Furthermore, direct printing of flexible material usually requires expensive 3D printers and materials. Surgeons reported good tissue properties for the cast valves (realistic flexibility, cuts and holds sutures well without tearing) from their personal experiences and considered the silicone models to be useful for surgical planning and training. However, their valve models did not include the subvalvular apparatus.

In a very recent medical review, Ginty et al. Ginty2018 describe a general guidance for creation of dynamic valve models usable in a flow simulator. The authors provide an overview of the production pipeline (imaging, segmentation, 3D printing, material casting) and discuss viable options for each step. Moreover, they present an approach, for which two interesting points shall be highlighted: They just printed the lower impression of the valve and not a full mold. Silicone was painted on the printed surface in a thin layer, which then cured to the shape of the valve. Furthermore, they incorporated braided nylon fishing line strings into the leaflets to mimic some strings of the chordae tendineae. With the mentioned steps, it seems to be difficult to obtain results of the same quality when multiple valves are produced from the same mold (e.g. two models could have different thicknesses or varying chordae attachments). The phantoms do not seem to include papillary muscles.

To sum up, none of the current approaches allow for production of comprehensive and flexible models consisting of all anatomical substructures of the valve within the scope of a standardized production process that maintains the quality over different fabrications.

3 Materials and Methods

Our developments are based on the commercially available MICS MVR Simulator, which resembles intraoperative space constraints. The flat valve dummies, that are delivered with the simulator, are concealed inside this simulator, anchored on a bar and can be reached via a small circular access of 50 mm diameter. Note that the geometry of the valve is neither patient-specific nor three-dimensional. Given the generic nature of the dummy, the surgeon can perform some reconstruction techniques, but the “created” dummy geometry is meaningless from an anatomical and functional point of view, not fostering individualized therapy.

To offer advanced means for training and preparing of surgery, we extended the existing simulator by flexible patient-specific mitral valves generated from medical images. We identified the following requirements (R2 extends our previous requirements EngelhardtBVM2018 ; R1-R3 refers to position and shape; R4-R7 to material, costs and reproducibility):

• •

R1: The model must be fixable into the MICS MVR simulator to provide a realistic port-to-valve relation.

• •

R2: The model should consist of all parts of the valve: annulus, anterior and posterior leaflets, papillary muscles and chordae tendineae to allow for training of the full spectrum of repair techniques.

• •

R3: The leaflets should reflect end-systolic shape of patient-specific valve to incorporate the morphology of potential prolapsing leaflet segments at the moment of valve closure.

• •

R4: Stitching properties of the material should be realistic such that needles can be inserted and sutures pass through with similar tissue resistance as in real surgery.

• •

R5: Cutting properties of the materials should be realistic in terms of resistance.

• •

R6: Common materials for low-cost 3D-printing should be used to facilitate reproducibility of the approach by other groups.

• •

R7: Total production time should be less than 2 days and the process as automated as possible to facilitate integration into the routine clinical use.

In the following, we elaborate on the automatic mold creation process. In short, from given 3D virtual models, a negative shape is computed that is connected to generic CAD-parts to build a sealed block for material insertion.

3.1 Medical Imaging and Mitral Valve Modeling

3D polygonal surface models of the mitral valve are obtained from transesophageal echocardiography (TEE) using customized software EngelhardtFIMH . The software was extended such that the position of papillary muscle heads can be localized. The mitral valve’s annulus, mitral leaflets and the position of the papillary muscle heads are segmented from the end systolic time frame (R3). This information is used to create an ‘enhanced model’ (Fig. 1): The fine branching structures of the chordae tendineae are not completely visible on current clinical image modalities Ginty2018 , therefore, a chordal distribution is automatically created. It consists of primary and secondary chordae tendineae, taken the leaflet geometry and the papillary muscle tip as reference. We employed anatomical descriptions as guide for creating the distribution. For the primary chordae, points at the free edge of the leaflet surface are connected to the respective papillary muscle tip. The number of main chordal strings is an adjustable parameter in the software and the insertion points are automatically adopted accordingly. The chordal strings are equidistantly distributed along the free edge of each leaflet and connected to the anterolateral or posteromedial papillary muscle. Each main chordal string gives rise to an additional left and right branch randomly attached at the mid of the string or higher.

3.2 CAD-Modelling of Generic Parts

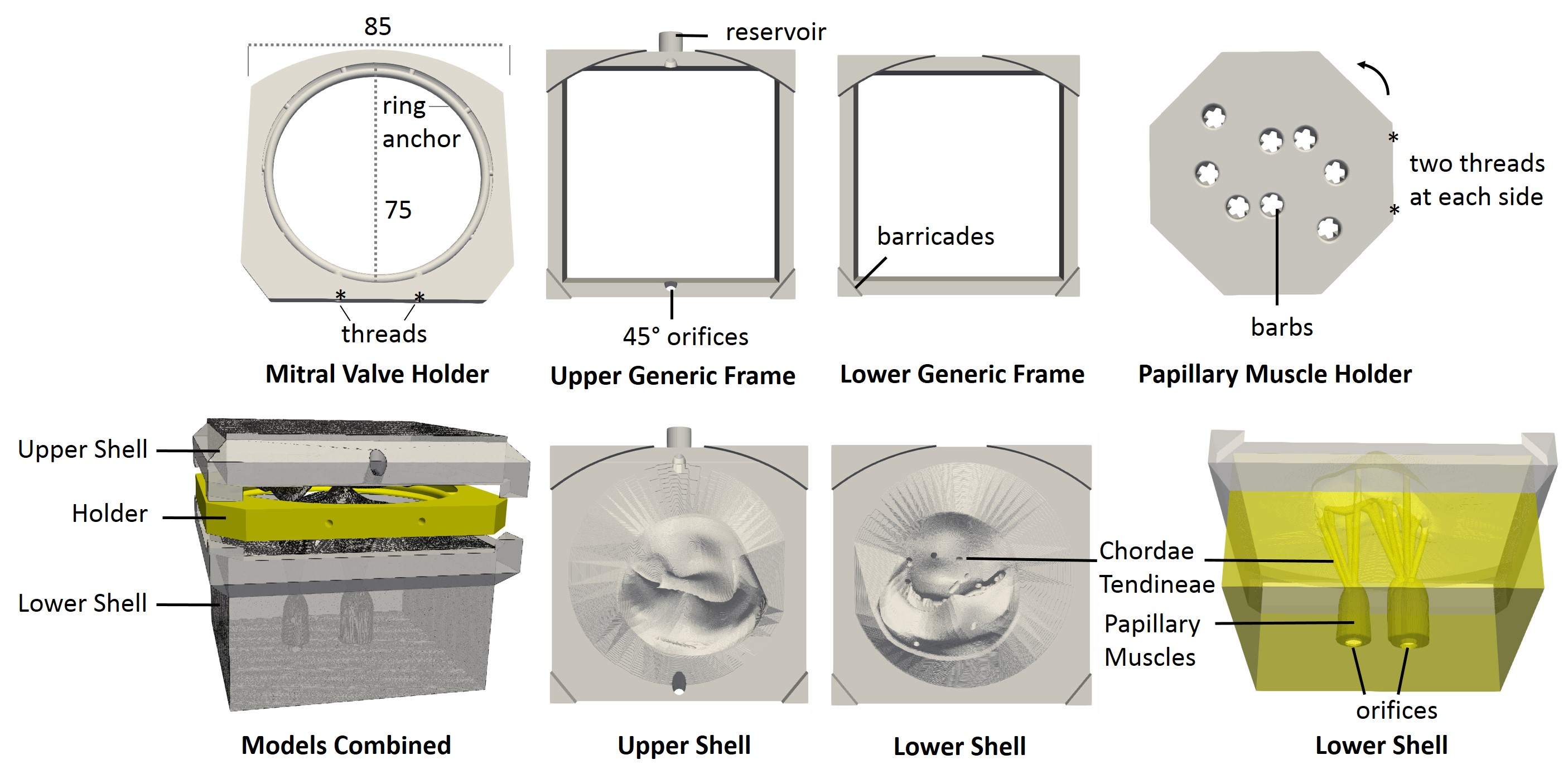

Two papillary muscle models were created in the freely available software Blender v2.79 and were aligned with the individual papillary muscle tips. The anterolateral head (diameter of 8.7 mm) has a single head, whereas the posteromedial papillary muscle has three heads (diameter of 11 mm). They both extend towards the lower end to anchor them in a specifically designed papillary muscle holder (Fig. 2). Other parts are modeled once in the CAD software Autodesk Fusion 360 (v.2.0). The parts either serve as a common frame for the mold parts (referred to as upper and lower shells or mold parts) or as a fixture for securing of the valve into the simulator (referred to as leaflet holder and papillary holder (R1)). The first row in Fig. 2 provides an overview of the generic parts. The leaflet holder incorporates a circular hole with a ring anchor, which will be enclosed by silicone when placed in between the two shells. This concept ensures that the holder remains permanently connected to the valve model. The leaflet holder and the shells have undergone several modifications in an iterative process during the scope of this project in comparison to our previous work EngelhardtBVM2018 : the frames have several 4 mm orifices that allow for injection of silicone by a Luer lock syringe (previously, the material has been cast and not injected); barricades were added to the frames to secure them when they are stuck together; the size of the holder with ring anchor was increased to accommodate bigger valves; $90^{\circ}$ overhangs were removed to cut down support structures.

3.3 Generation of Upper and Lower Casting Mold Part

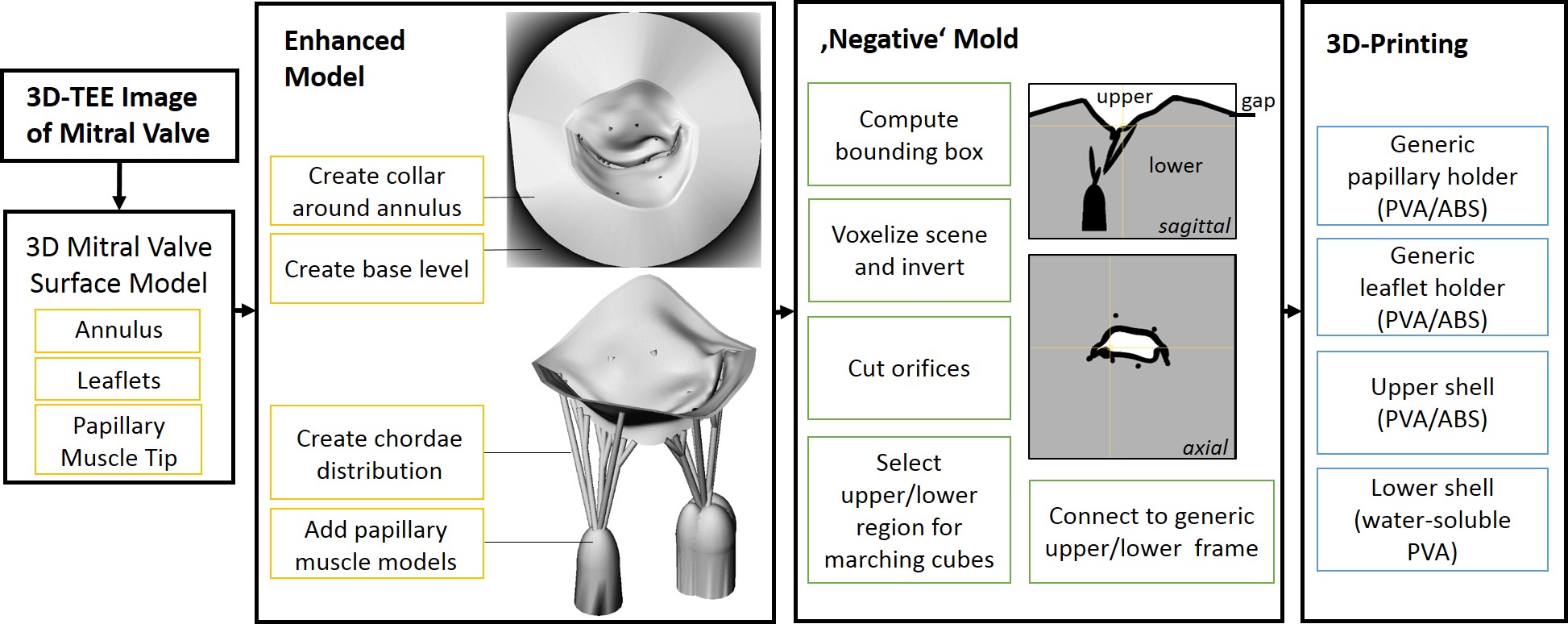

In a next step, the mesh of the generic frames are extended with the patient-specific valve surfaces (Fig. 1). The software toolkit MeVisLab 3.0.2 and the C++ software library Visualization Toolkit (VTK) 8.0.1 were used for this task. First, the valve model’s position and orientation is normalized. Then, the gaps between generic frame and valve model are closed by triangle strips. After obtaining this “enhanced surface model” (Fig. 1), leaflets of a certain thickness had to be created from the provided surfaces. The previously used method VTK implicit function EngelhardtBVM2018 delivered a lot of artifacts due to complicated triangular topology and multiple surfaces. To circumvent this issue, the MeVisLab module VoxelizeInventorScene has been employed, which enables the computation of a voxel representation of the scene, i.e. a 3D bounding box volume that masks out the valve. As voxel size, we chose (0.01 mm)3. A distance in $\mathrm{mm}$ to the leaflet needs to be set, which adds a thickness to this otherwise flat surface representation. We set this parameter to 0.8, which extends the surface to both sides. The resulting image mask content was separated into a lower and an upper region representing the patient-specific part of the shells. Each part was connected to the respective generic frame yielding the final printable molds.

3.4 3D-Printing and Silicone Injection

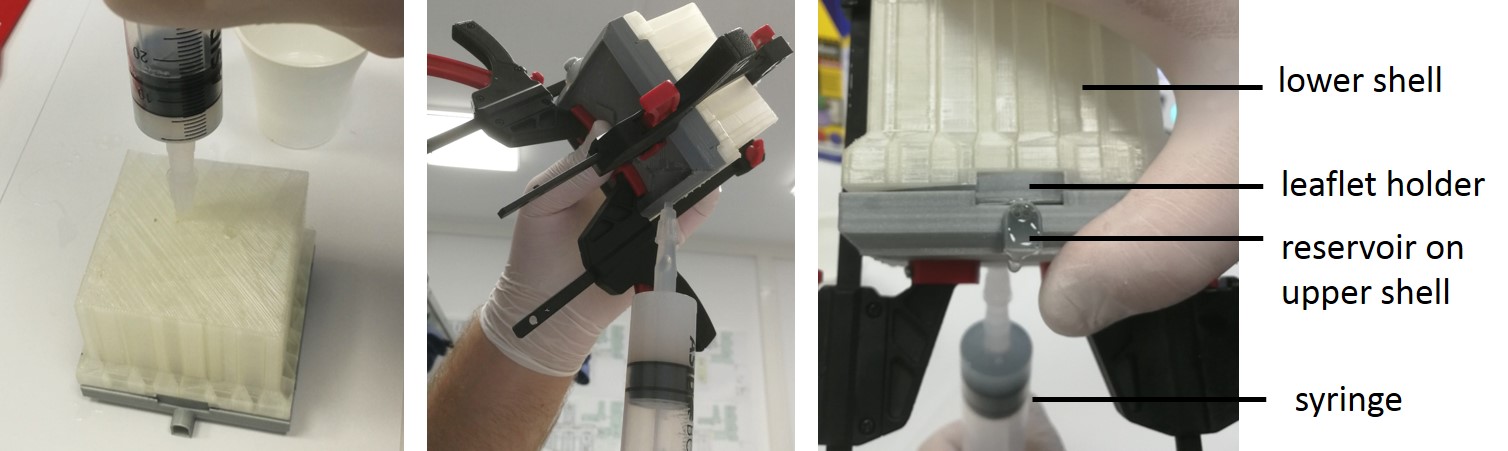

The lower and upper shell and the valve holders are sliced in the freely available Ultimaker CURA software and 3D-printed. For all parts except of the lower shell a common rigid filament can be used, e.g. polylactic acid (PLA) or ABS. However, one of the key conceptual points is that we use water-soluble polyvinyl alcohol (PVA) for printing of the lower shell. Recent low-cost 3D printer with dual extrusion, such as the Ultimaker3 (Ultimaker B.V., Geldermalsen, The Netherlands) employ this material for support structures (R6). We use it as main material for printing of the lower shell, which is dissolved in water after silicone injection. We decided to use silicone early on, as other groups have made good experiences with it Ginty2018 ; Scanlan2017 and it is relatively easy to handle. Different silicone mixtures exist (e.g. with different shore indices) and the suitable mixture for mitral valve repair was assessed experimentally.

As a side note, in the previous work EngelhardtBVM2018 , silicone was cast. This is suitable for creation of leaflet models. However, to fill the thin tubes of the chordae tendinae, more pressure is employable with a syringe. Several specific issues are to mention about the developed injection process. If not done in the way described in the following, large air bubbles remain in the mold or the mold is not filled completely with material. The silicone material has to be stirred and drawn up in a syringe with luer lock. The syringe is closed airtight and a vacuum is created by further drawing up the syringe’s piston. This procedure is conducted for approx. 30s to completely degas the silicone. Subsequently, the connected mold parts are fixated with a C-clamp, placed upside down and half of the silicone is injected through the orifice at the papillary muscles. This will fill up the subvalvular apparatus. Then, the lower orifices are sealed; the mold is turned around and placed in a 45 ∘ angle. The orifice opposite to the reservoir (Fig. 2) is chosen for injection and as much silicone is inserted until silicone oozes out the orifice at the opposite side (Fig. 3). Finally, the orifice is sealed and the mold is put to rest in the same $45^{\circ}$ position.

4 Experiments

Experiments were conducted to evaluate the material, the chordal thickness, the feasibility and accuracy and surgeons assessed the quality of the models.

Silicone mixture:

For this experiment, a special reusable material test mold was developed and printed in PLA. This mold only consists of the leaflet geometry, but is otherwise similar to the mold we presented in Fig. 2. The subvalvular apparatus was assessed in a separate experiment. In total, seven different material mixtures were tested (Tab. 1): Erosil 10 (Silikonfabrik.de, Ahrensburg, Germany), Dragon SkinTM 10 Fast and EcoflexTM 00-10, 00-30 and 00-50 (Smooth-On, Inc., Macungie, Pennsylvania, USA). The goal of this experiment was to find appropriate material for injecting into the gap of the mitral valve leaflets such that 1) the whole gap is filled and 2) no air bubbles remain. Furthermore, the chosen material’s viscosity must enable injection molding in general. Viscosity, amount of air bubbles and filling degree was accessed on a 5-point Likert scale. Key surgical factors such as leaflet-like tissue feeling when stitching with authentic suture material and when cutting with scissors were assessed by an expert mitral valve surgeon.

Chordae thickness:

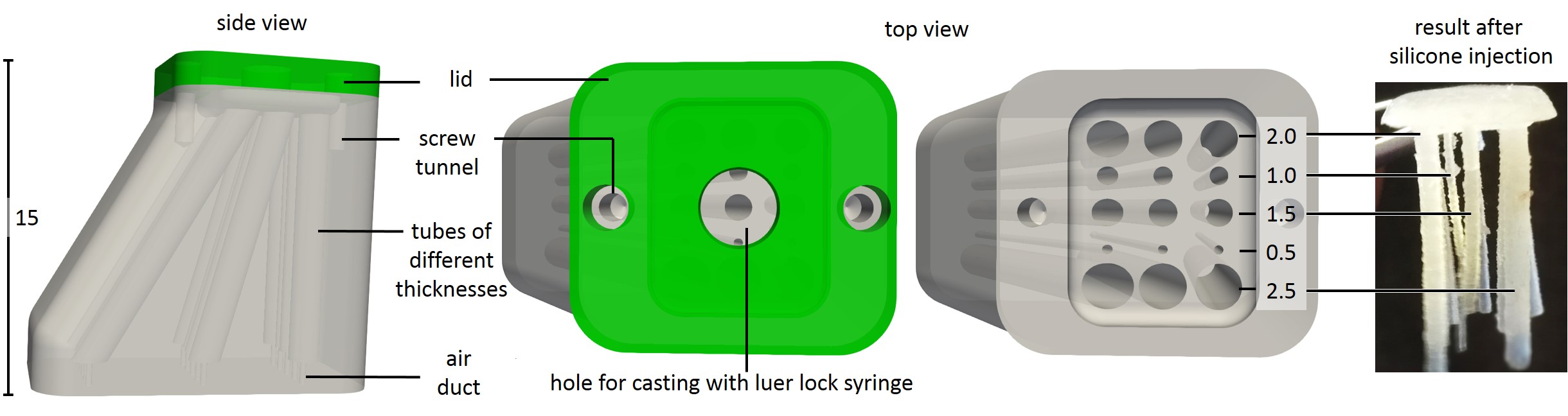

The second experiment was conducted to determine the minimum possible thickness of the individual chordae threads for the chosen material of the previous experiment. Therefore, a specific test mold object was created with the CAD-program that incorporates a casting hole in a lit (Fig. 4). This mold furthermore consisted of different tubes with multiple diameters (0.5, 1.0, 1.5, 2.0, 2.5 mm) each having tiny air ducts to release spare gas. The mold was printed from water-soluble PVA. Silicone was injected, the mold dissolved in warm water and it was visually assessed whether the respective tube was filled completely or not.

Feasibility and accuracy in producing different valve geometries from TEE:

Nine different virtual valve mold geometries were created from TEE acquired with a Philips IE33 X7-2T matrix array transducer (Philips Healthcare, Andover, MA, USA). The data sets contain different pathologies (seven prolapsed valves and two functional mitral valve insufficiency) and degrees of mitral insufficiency (I-III). Valves were segmented and 16 molds were printed using Ultimaker2+ and Ultimaker3 (R6) to produce 16 replica. The production quality, production issues, approximate production time and costs were assessed. Furthermore, we evaluate the phantom-to-virtual model and the TEE image-to-virtual model accuracy of each valve similarly as in Scanlan2017 , by measuring different distances: the anterolateral diameter, the posteromedial diameter and the chordae length between leaflet and each papillary muscle tip, using a caliper and virtual measurement tools on a) the phantoms, b) the corresponding virtual models and c) the corresponding TEEs.

Surgical Assessment:

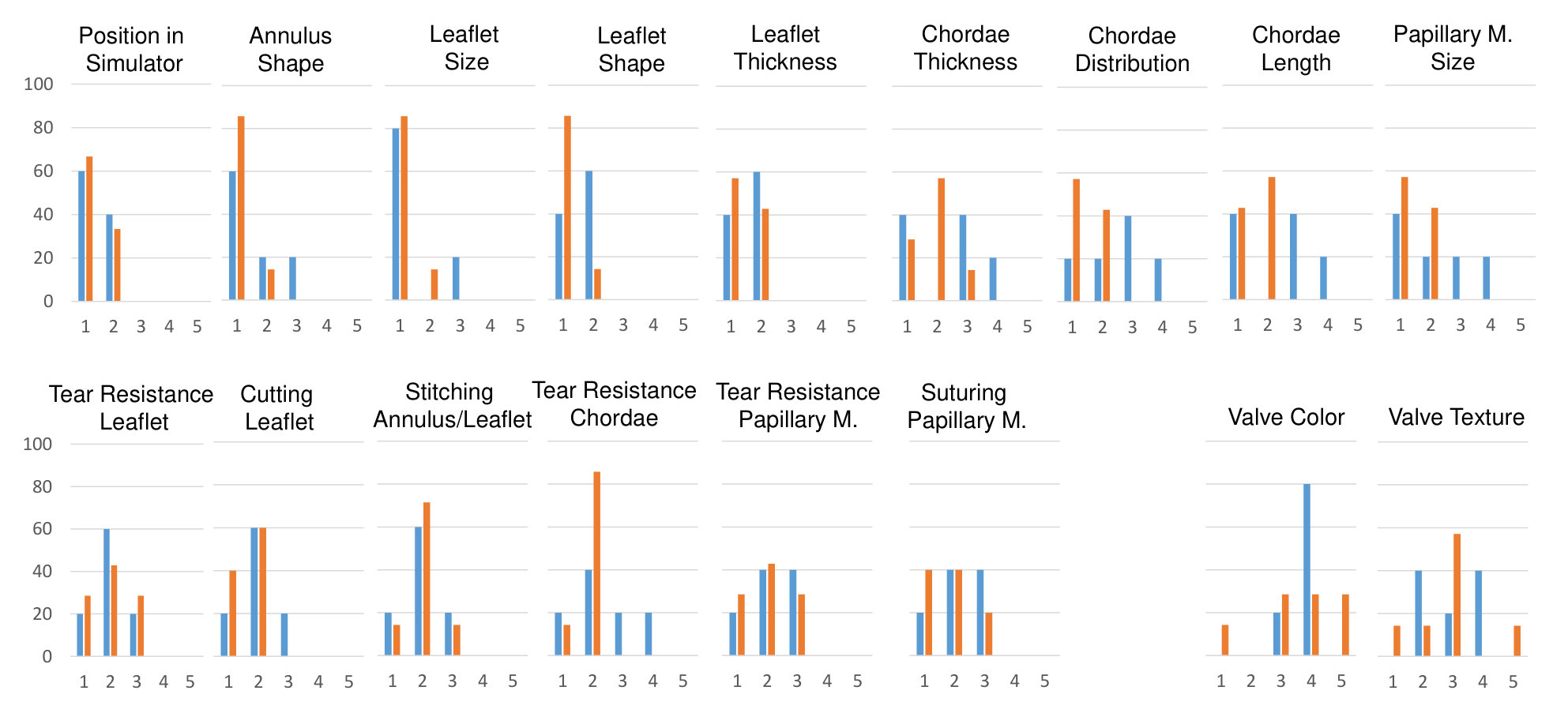

A group of 12 cardiac surgeons from Heidelberg University Hospital, ranging from surgical residents to mitral valve experts, assessed the realism of the simulator on a 5-point Likert scale in a questionnaire. Each of them performed a mitral valve reconstruction on the produced silicone models. The choice of the respective repair techniques was left to the decisions of the surgeons. The group was divided into five expert mitral valve surgeons and seven non-experts. A surgeon was considered to be an expert if his volume of mitral valve reconstructions exceeded 50 open and minimally-invasive operations. The following categories were assessed: position in simulator, annulus shape, leaflet size, leaflet shape, leaflet thickness, chordae thickness, chordae distribution, chordae length, papillary muscle size, tear resistance at leaflet, cutting leaflet, stitching annulus/leaflet, tear resistance at chordae, tear resistance at papillary muscle, suturing papillary muscle, valve color and valve texture.

5 Results

Silicone mixture:

Tab. 1 summarizes the results of the material tests. Both, EcoflexTM 00-30 and EcoflexTM 00-50 (without Slacker) were assessed equally well as leaflet tissue mimicking material. They furthermore got highest ranking in their suitability for injection molding. We use the silicone with a lower Shore index, EcoflexTM 00-30, for the rest of our experiments.

Chordae thickness:

After dissolving the test object in water, it could be seen that small ducts of less than 1.5 mm were not reliably filled by silicone (Fig. 4). The smallest tubes of diameter 0.5 mm are not represented in the created model at all. This could be due to printing inaccuracies or viscosity of the silicone material. For the rest of the experiments, we set the chordae thickness to 1.5 mm. This does not fully resemble the fine properties of the chordae strings, however, we want to make sure that the strings are reliably represented in the final valve model.

Feasibility and accuracy in producing

different valve geometries from TEE: 16 replica from nine different valve models, incorporating the full valvular apparatus of specific patients (R2), were successfully produced. Tab. 2 summarizes the production times and costs. They depend on the size of the valve, in particular on the distance of the annulus plane to the papillary muscle tips, as the lower mold’s height increases with greater distances. Production took approx. 36h (R7). It could be significantly accelerated by approx. 7 hours by using two 3D printers at the same time and by printing the leaflet holder on stock. The actual producer workload time was around 80 min. Material costs were about 16 € for a single valve, depending on the size of the valve.

Overall production quality was very good and could be maintained over several valves (the upper shell can be re-used, the leaflet holder and lower shell need to be printed for each valve). Visual agreement to the virtual model (R3) is high in all cases. Mean phantom-to-virtual model and the TEE image-to-virtual model distances are $0.87\pm 0.92$ mm and $1.27\pm 0.92$ mm for the anterolateral diameter, $0.44\pm 0.34$ mm and $1.36\pm 0.95$ mm for the posteromedial diameter, $0.70\pm 0.45$ mm and $2.20\pm 2.25$ mm for the distance between leaflet and anterolateral papillary muscle as well as $0.56\pm 0.49$ mm and $1.91\pm 1.22$ mm for the same distance on the posteromedial side. For a few valves, we could identify the following shortcomings: It happened once that the printed mold had a hole and silicone was erroneously released into a supporting structure compartment. After mold dissolving, this could be fixed by simply cutting away unwanted parts. One model had an air bubble at the position of a thin chordae string, leading to a rupture. Minor air bubbles at papillary muscle prolongations and upper portion of the ring fixture appeared, however, they never effected the valve itself.

Surgical Assessment:

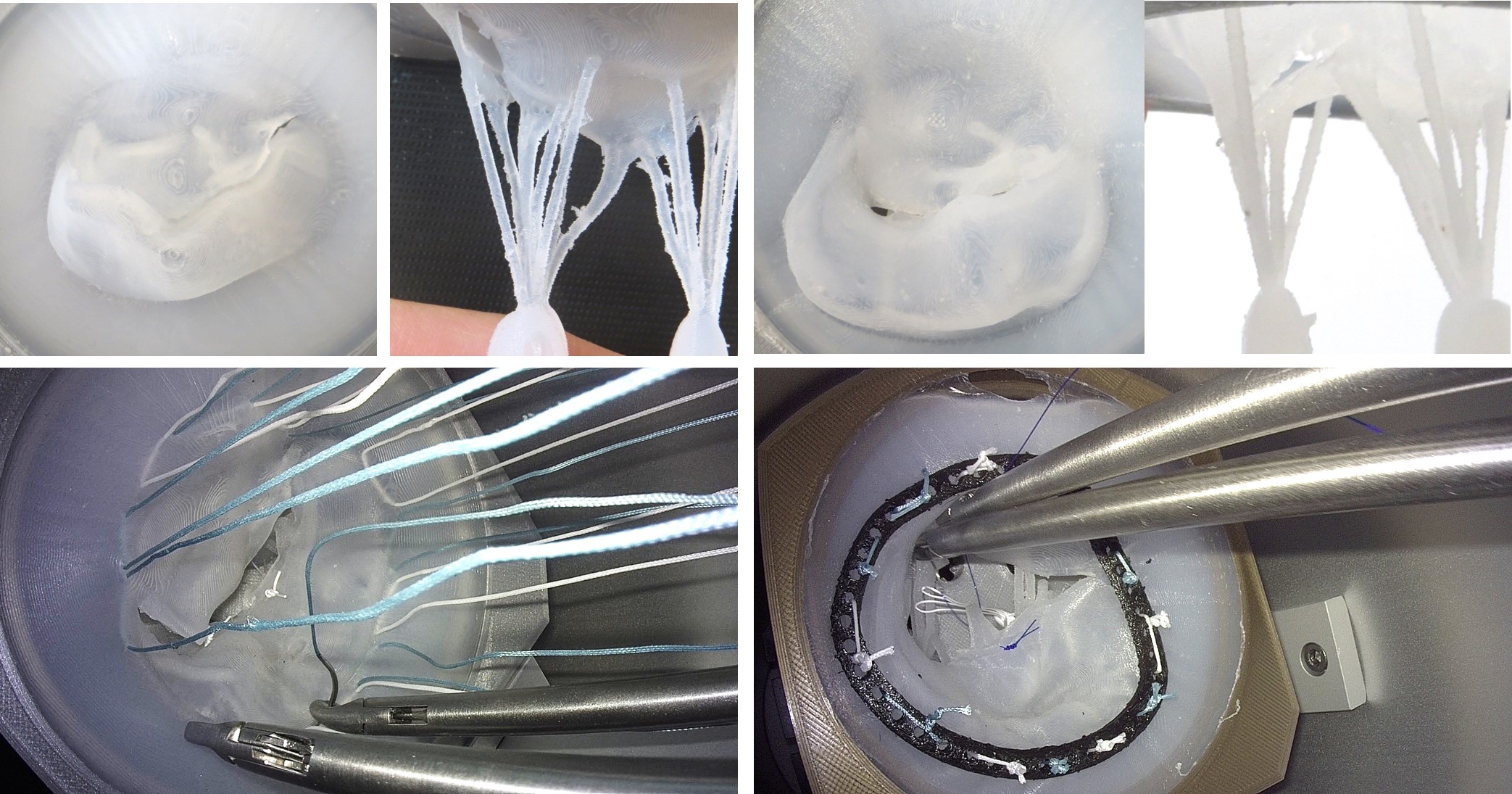

Fig. 5 and the supplemental video show examples of silicone replica and different procedures conducted on these models, e.g. annuloplasty, neo-chordae implantation, chordae-loop implantation. The results of the questionnaire are presented in Fig.  6. Models maintain a high realism during haptic interaction with instruments and suture material. The realism of leaflet and the annulus (shape, size, thickness) was assessed more positive than the subvalvular apparatus. This was expected, since, due to manufacturing constraints, these structures can not be replicated to reach full satisfaction. The worst vote relates to the realism of the color (median 4) and the texture (median 3) of the material.

6 Discussion

The production of individualized high fidelity and flexible models from TEE, which, for the first time, also include the chordae tendineae attached to the papillary muscles, is feasible with our approach. The included chordae maintain a realistic leaflet-to-papillary muscle distance and constrain the moving space of the surgical instruments. The standardized production process guarantees a high anatomical recapitulation of the silicone valves to the segmented models. From a medical point of view, the silicone models are extremely useful for training and patient-individualized rehearsal before surgery, as thoroughly discussed in our related medical publication EngelhardtEJCTS2018 . Apart from its benefits for surgical training, the presented method is employable for benchmarking novel technology in development EngelhardtATS or potentially, after some adjustments, for investigating catheter-based techniques. Since the most valid type of evaluation of techniques for valvular interventions is the assessment in realistic hemodynamic environments, we plan the integration of the valves into a flow simulator, exploiting the echogenicity of the silicone material EngelhardtEJCTS2018 . This will require a comprehensive re-assessment of the currently used soft materials with regard to their suitability for mimicking realistic valve functions. However, it is worth mentioning that Ginty et al. Ginty2018 used the same soft material in their dynamic valve simulator. In-vitro cardiac tissue models are becoming increasingly important Mathur2015 , but are still out of reach to be employed for surgical training. As a surrogate, porcine hearts are often used (e.g. Ramphal2005 ).

The current resolution of typical image modalities is not high enough to acquire the thin chordal tree. Researchers lately captured the exercised ovine mitral valve with Micro-CT Sacks2013 or an exercised porcine mitral valve with 7T MRT Stephens2017 to gain information on its structure. Having improved imaging data would be a valuable asset for rendering patient-specific valves. A limitation is that the chordae strength is not perfectly resembled in our models owing to the relative soft silicone. In principle, our proposed concept would easily allow usage of two different silicone materials due to the multiple injection holes: A harder silicone type could be injected in the lower shell to fill the subvalvular apparatus first, whereas a softer silicone could be used subsequently for the leaflets.

Another limiting factor is the current phantom color and texture. In a related work EngelhardtMICCAI , we were able to show how the realism of the silicone model appearance could be significantly increased using a generative adversarial network called tempCycleGAN, which was trained on video sequences of simulated and real mitral valve repairs. The predicted frames replace artificial looking parts of the simulator by more realistic appearances. Our vision is that the surgeon will perceive these ‘hyperrealistic’ frames on the endoscopic monitor while operating on the phantom, increasing photo-realism of the surgical target.

Compliance with Ethical Standards

Conflict of interest

The authors declare that they have no conflict of interest.

Ethical standard

All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee and with the 1964 Helsinki Declaration and its later amendments or comparable ethical standards.

Informed Consent

Informed consent was obtained from all individual participants included in the study.
