Long-term photometric monitoring of the dwarf planet (136472) Makemake

TL;DR

This study provides detailed long-term photometric data on Makemake, revealing a slower rotation period, near-spherical shape, and stable absolute magnitude, with discussions on potential satellites.

Contribution

It offers the first precise rotation period and shape indication for Makemake based on extensive multi-year photometry, refining previous estimates.

Findings

Makemake's rotation period is approximately 22.83 hours.

The lightcurve amplitude suggests an almost spherical shape or pole-on view.

No new satellite was detected in the photometric data.

Abstract

We studied the rotational properties of the dwarf planet Makemake. The photometric observations were carried out at different telescopes between 2006 and 2017. Most of the measurements were acquired in BVRI broad-band filters of a standard Johnson-Cousins photometric system. We found that Makemake rotates more slowly than was previously reported. A possible lightcurve asymmetry suggests a double-peaked period of P = 22.8266$\pm$0.0001~h. A small peak-to-peak lightcurve amplitude in R-filter A = 0.032$\pm$0.005 mag implies an almost spherical shape or near pole-on orientation. We also measured BVRI colours and the R-filter phase-angle slope and revised the absolute magnitudes. The absolute magnitude of Makemake has remained unchanged since its discovery in 2005. No direct evidence of a newly discovered satellite was found in our photometric data; however, we discuss the possible existence of another larger satellite.

Figures

Tables

Table 1. Table 1: Summary of observational data

Obs.	D (m)	CCD camera	Number of pixels	Binning	Pixel scale (”/pxl)	Field of view	Exp. time (sec)	Filters	Nights
TNGa	3.6	E2V 4240	2048 $\times$ 2048	1 $\times$ 1	0.252	8.6 $\times$ 8.6	90	R	1
CrAOb	2.6	FLI PL-4240	2048 $\times$ 2048	2 $\times$ 2	0.56	9.5 $\times$ 9.5	180	R	3
INTc	2.5	x4 EEV	2000 $\times$ 4000	1 $\times$ 1	0.33	11 $\times$ 22	60	BVR	2
Terskold	2.0	FLI PL-4301	2048 $\times$ 2048	1 $\times$ 1	0.31	10.7 $\times$ 10.7	180	BVRI	2
OSNe	1.5	CCDT150	2000 $\times$ 2000	2 $\times$ 2	0.46	7.8 $\times$ 7.8	400, 600	VR	16
CAOf	1.2	DLR-III	4000 $\times$ 4000	1 $\times$ 1	0.314	21.5 $\times$ 21.5	300, 500	VR	8
Simeizg	1.0	FLI PL09000	3072 $\times$ 3072	3 $\times$ 3	0.56	9.5 $\times$ 9.5	240	R, Clear	8
Tian Shanh	1.0	Apogee Alta F9000	3056 $\times$ 3056	1 $\times$ 1	0.74	18.9 $\times$ 18.9	300	R, Clear	4
AbAOi	0.7	FLI IMG6303E	3072 $\times$ 2048	1 $\times$ 1	0.87	44.3 $\times$ 29.5	180	Clear	6
Chuguevj	0.7	ML47-10	1056 $\times$ 1027	1 $\times$ 1	0.95	16.8 $\times$ 16.3	240, 300	R	3

Table 2. Table 2: Geometrical circumstances and magnitudes

UT date	r (AU)	$\Delta$ (AU)	$\alpha$ (deg)	$\lambda$ (deg)	$\beta$ (deg)	M (1, $\alpha$) (mag)	Error∗ (mag)	Filter	$\Delta$T (h)	Obs.
2006 05 28.88	51.941	51.729	1.09	171.816	28.980	-0.364	0.01	R	4.4	OSN
2009 03 29.10	52.102	51.255	0.59	174.685	28.902	–	0.006	R	6.4	TNG
2012 01 25.20	52.248	51.740	0.93	178.012	28.919	0.956	0.02	B	–	INT
2012 01 25.20	52.248	51.740	0.93	178.012	28.919	0.062	0.02	V	–	INT
2012 01 25.20	52.248	51.740	0.93	178.012	28.919	-0.357	0.01	R	–	INT
2012 01 26.00	52.250	51.727	0.92	178.001	28.922	0.948	0.02	B	–	INT
2012 01 26.00	52.250	51.727	0.92	178.001	28.922	0.077	0.02	V	–	INT
2012 01 26.00	52.250	51.727	0.92	178.001	28.922	-0.355	0.01	R	–	INT
2012 04 07.98	52.260	51.442	0.64	177.491	29.001	0.055	0.02	V	6.5	CAO
2012 04 08.00	52.260	51.442	0.64	177.491	29.001	-0.351	0.01	R	5.5	CAO
2012 04 09.02	52.260	51.447	0.63	177.483	28.999	0.054	0.02	V	8.7	CAO
2012 04 09.02	52.260	51.447	0.63	177.483	28.999	-0.354	0.02	R	8.2	CAO
2012 05 21.90	52.261	51.874	1.03	176.696	28.98	-0.348	0.02	R	4.3	Chuguev
2012 05 22.84	52.266	51.886	1.03	176.690	28.972	-0.345	0.02	R	3.1	Chuguev
2012 06 08.83	52.268	52.128	1.10	176.630	28.823	-0.347	0.02	R	1.6	Chuguev
2012 06 18.84	52.269	52.277	1.11	177.913	28.737	-0.343	0.02	R	3.1	Simeiz
2012 06 19.84	52.269	52.292	1.11	177.915	28.737	-0.339	0.02	R	2.5	Simeiz
2013 05 06.86	52.312	51.720	0.90	178.791	28.678	0.044	0.03	V	–	OSN
2013 05 06.87	52.312	51.720	0.90	178.791	28.678	-0.333	0.02	R	–	OSN
2013 05 08.02	52.313	51.734	0.91	178.315	28.855	0.087	0.02	V	–	OSN
2013 05 08.02	52.313	51.734	0.91	178.315	28.855	-0.359	0.02	R	–	OSN
2013 05 09.10	52.313	51.734	0.92	178.311	28.851	0.012	0.03	V	–	OSN
2013 05 09.10	52.313	51.734	0.92	178.311	28.851	-0.358	0.02	R	–	OSN
2014 11 19.23	52.876	52.385	0.93	181.535	28.271	–	0.007	R	0.5	CAO
2014 11 23.07	52.839	52.386	0.95	180.327	28.562	0.974	0.03	B	–	Terskol
2014 11 23.07	52.839	52.386	0.95	180.327	28.562	0.023	0.02	V	–	Terskol
2014 11 23.07	52.839	52.386	0.95	180.327	28.562	-0.359	0.02	R	0.8	Terskol
2014 11 23.07	52.839	52.386	0.95	180.327	28.562	-0.623	0.03	I	–	Terskol
2014 11 24.07	52.813	52.386	0.97	180.333	28.561	0.975	0.03	B	–	Terskol
2014 11 24.07	52.813	52.386	0.97	180.333	28.561	0.049	0.02	V	–	Terskol
2014 11 24.07	52.813	52.386	0.97	180.333	28.561	-0.358	0.02	R	2.1	Terskol
2014 11 24.07	52.813	52.386	0.97	180.333	28.561	-0.602	0.03	I	–	Terskol
2015 02 19.89	52.396	51.647	0.71	181.415	28.993	-0.352	0.02	R	7.2	Tian Shan
2015 02 20.91	52.397	51.638	0.70	181.398	28.998	-0.361	0.02	R	5.7	Tian Shan
2015 02 21.11	52.397	51.639	0.70	181.397	28.998	-0.360	0.02	R	3.2	OSN
2015 02 23.98	52.395	51.616	0.67	181.348	29.011	–	0.018	Clear	3.0	AbAO
2015 02 25.04	52.395	51.609	0.66	181.331	29.015	–	0.016	Clear	4.2	AbAO
2015 02 25.95	52.396	51.603	0.65	181.314	29.019	–	0.018	Clear	8.2	AbAO
2015 02 26.95	52.397	51.598	0.65	181.297	29.022	–	0.019	Clear	8.0	AbAO
2015 02 27.95	52.397	51.592	0.64	181.280	29.026	–	0.021	Clear	7.7	AbAO
2015 03 12.13	52.399	51.541	0.55	181.060	29.056	–	0.009	R	4.9	OSN
2015 03 13.13	52.399	51.538	0.55	181.041	29.058	–	0.06	R	4.5	OSN
2015 03 15.17	52.399	51.534	0.54	181.004	29.060	–	0.06	R	1.8	OSN
2015 03 16.10	52.399	51.534	0.54	180.085	29.061	–	0.07	R	2.8	CAO
2015 03 27.88	52.399	51.531	0.54	180.757	29.060	–	0.022	Clear	7.0	AbAO
2015 04 20.04	52.403	51.633	0.71	180.342	28.995	–	0.08	R	6.0	CAO
2016 05 10.93	52.447	51.867	0.90	181.782	28.440	-0.339	0.02	R	1.5	CrAO
2016 06 08.89	52.450	52.250	1.09	181.860	28.429	-0.346	0.02	R	3.0	CrAO
2016 06 09.89	52.451	52.264	1.09	181.863	28.429	-0.348	0.02	R	3.4	CrAO
2017 02 27.00	52.478	51.686	0.66	182.572	28.362	–	0.019	R	6.8	Simeiz
2017 02 27.85	52.476	51.680	0.65	183.070	28.840	–	0.011	R	7.6	Tian Shan
2017 02 28.04	52.478	51.680	0.65	182.575	28.362	–	0.008	Clear	4.5	Simeiz
2017 02 28.99	52.478	51.674	0.64	182.578	28.361	–	0.009	Clear	7.2	Simeiz
2017 03 22.93	52.480	51.605	0.53	182.637	28.355	–	0.007	Clear	8.1	Simeiz
2017 03 23.92	52.480	51.605	0.53	182.640	28.355	–	0.008	Clear	8.3	Simeiz
2017 03 24.03	52.480	51.605	0.53	182.640	28.355	0.056	0.02	V	–	OSN
2017 03 24.03	52.480	51.605	0.53	182.640	28.355	-0.35	0.01	R	–	OSN
2017 03 24.92	52.479	51.604	0.53	182.610	28.880	–	0.008	R	6.4	Simeiz
2017 03 28.69	52.479	51.607	0.53	182.540	28.880	–	0.009	R	3.9	Tian Shan
2017 03 29.06	52.481	51.609	0.53	182.653	28.354	0.054	0.02	V	–	OSN

Table continued
2017 03 29.06	52.481	51.609	0.53	182.653	28.354	-0.356	0.01	R	–	OSN
2017 03 30.05	52.481	51.610	0.54	182.656	28.353	0.074	0.02	V	–	OSN
2017 03 30.05	52.481	51.610	0.54	182.656	28.353	-0.343	0.01	R	–	OSN
2017 03 31.07	52.481	51.612	0.54	182.659	28.353	0.108	0.02	V	–	OSN
2017 03 31.07	52.481	51.612	0.54	182.659	28.353	-0.345	0.01	R	–	OSN
2017 04 02.07	52.481	51.616	0.53	182.664	28.353	0.094	0.02	V	–	OSN
2017 04 02.07	52.481	51.616	0.53	182.664	28.353	-0.339	0.01	R	–	OSN
2017 04 03.06	52.481	51.619	0.55	182.667	28.353	0.074	0.02	V	–	OSN
2017 04 03.06	52.481	51.619	0.55	182.667	28.353	-0.359	0.01	R	–	OSN
2017 04 03.99	52.481	51.621	0.56	182.669	28.352	0.051	0.02	V	–	OSN
2017 04 03.99	52.481	51.621	0.56	182.669	28.352	-0.353	0.01	R	–	OSN
2017 04 25.97	52.484	51.745	0.75	182.729	28.347	–	0.009	R	6.0	CAO
2017 05 23.95	52.486	52.048	1.00	182.804	28.339	–	0.011	R	5.6	CAO
2017 05 24.94	52.486	52.061	1.00	182.807	28.339	–	0.011	R	5.3	CAO
2017 05 25.90	52.487	52.074	1.01	182.810	28.339	–	0.009	R	2.3	CAO
2017 05 26.91	52.487	52.087	1.02	182.812	28.338	–	0.009	R	2.6	CAO

Equations

$$t=\sum _{j=1}^{N/2}\frac{\mid b_{j+N/2}-b_j\mid }{s\sqrt{B_j^{-1}+B_{j+N/2}^{-1}}},$$

$$s=\sqrt{\frac{(B_j-1)\delta b_j^2+(B_{j+N/2})\delta b_{j+N/2}^2}{B_j+B_{j+N/2}-2}};$$

Full text

*Methods. *The photometric observations were carried out at different telescopes between 2006 and 2017. Most of the measurements were acquired in BVRI broad-band filters of a standard Johnson-Cousins photometric system.

*Results. *We found that Makemake rotates more slowly than was previously reported. A possible lightcurve asymmetry suggests a double-peaked period of P = 22.8266$\pm$0.0001 h. A small peak-to-peak lightcurve amplitude in R-filter A = 0.032$\pm$0.005 mag implies an almost spherical shape or near pole-on orientation. We also measured BVRI colours and the R-filter phase-angle slope and revised the absolute magnitudes. The absolute magnitude of Makemake has remained unchanged since its discovery in 2005. No direct evidence of a newly discovered satellite was found in our photometric data; however, we discuss the possible existence of another larger satellite.

1 Introduction

Dwarf planet (136472) Makemake is one of the largest (D $\sim$1400 km) and brightest (geometric albedo p${}_{\text{v}}$ $\sim$0.8) known transneptunian objects (TNOs) (Ortiz et al., 2012; Lim et al., 2010; Brown, 2013). Multiple spectral observations since its discovery in 2005 have revealed strong absorption bands of methane ice, which puts Makemake among only five methane ice-rich bodies in our solar system, together with (134340) Pluto, (136199) Eris, Triton, and (90377) Sedna (cf. Licandro et al., 2006b; Tegler et al., 2008, 2012; Brown et al., 2015; Lorenzi et al., 2015).

The spectral slope of Makemake implies a somewhat reddish surface that could be explained by the presence of complex organic materials (Brown et al., 2007, 2015; Lorenzi et al., 2015; Perna et al., 2017). This makes Makemake’s surface more similar to that of Pluto, rather than Eris with its more neutral spectral slope (e.g. Licandro et al., 2006a; Alvarez-Candal et al., 2011; Merlin, 2015; Tegler et al., 2010, 2012; Dumas et al., 2007). However, unlike Pluto, according to rotationally resolved visible spectroscopy it seems that the surface of Makemake is very homogeneous at the low spatial resolution achieved from the ground-based long-slit spectroscopy (Perna et al., 2017).

Polarimetric properties of Makemake are also similar to those of other large methane-dominated surfaces and differ from those of water-rich surfaces such as (136108) Haumea and (50000) Quaoar (Belskaya et al., 2012).

Several authors have performed photometric observations of Makemake in order to estimate its rotational period. The first attempt was made by Ortiz et al. (2007), who suggested two possible values: 11.24 h and its double value of 22.48 h. Then, based on more precise observational data, a new value of 7.77 h was proposed by Heinze & de Lahunta (2009). Finally, Thirouin et al. (2010) proposed a 7.7 h rotational period together with its alias 11.5 h period, the former being more preferable. The difficulties in determining Makemake’s rotation period are due to a small lightcurve amplitude of 0.03 mag (Heinze & de Lahunta, 2009). Robust characterisation of such small brightness variations requires very precise photometric measurements.

Acquiring further photometric observations of Makemake is particularly important given the recent discovery of a Makemakean satellite (Parker et al., 2016). Although the influence on a rotation lightcurve from such a satellite is expected to be minimal, certain additional harmonics might be detected, which in turn could be used to constrain physical and orbital properties of the satellite. This discovery has also given a new interpretation on the thermal modelling results performed by Stansberry et al. (2008) and Lim et al. (2010). The authors were able to fit Makemake’s profile only while using a two-terrain model. The discovery of a moon may suggest that a possible dark spot may correspond (at least partially) to the satellite’s surface and not to a certain dark area on Makemake.

We present a photometric study of the dwarf planet Makemake based on new observational data. A description of observations taken and data reduction is presented in Section 2. In Section 3 we show the results and analysis of photometric data, which are followed by discussion and conclusions in Section 4.

2 Observations and data reduction

The observations were carried out during 53 nights between 2006 and 2017. We used ten mid-sized telescopes at different observational sites, namely, the 3.6m Telescopio Nazionale Galileo (TNG), the 2.6m Shain Telescope at Crimean Astrophysical Observatory (CrAO), the 2.5m Isaac Newton Telescope (INT) at Roque de los Muchachos Observatory, the 2.0m telescope at Peak Terskol Observatory (Terskol), the 1.5m telescope at Sierra Nevada Observatory (OSN), the 1.2m telescope at Calar Alto Observatory (CAO), the 1.0m Zeiss 1000 telescope at Simeiz Observatory (Simeiz), the 1.0m East and West telescopes at Tien Shan Astronomical Observatory (Tien Shan), the 0.7m Maksutov meniscus telescope at Abastumani Astrophysical Observatory (AbAO), and the 0.7m telescope at Chuguev Observatory of V. N. Karazin Kharkiv National University (Chuguev).

The majority of data were acquired in 2012, 2015, and 2017. Table 1 shows the information about the telescopes and the instruments, as well as the total number of nights on each telescope and photometric filters that were used. All the measurements were made using standard Johnson-Cousins photometric system in BVRI broad-band filters or using no filters at all. Most of the observational data were obtained in R filter. Image reduction procedures were performed in a standard way which includes dark and/or bias subtraction and flat-field correction. The flat-field images were obtained during evening or morning twilight.

Aperture photometry of Makemake was performed using the astphot package developed at DLR (German Aerospace Center) by S. Mottola (Mottola et al., 1994). We used from three to five comparison stars in the object’s field, which were inspected for possible variability. The radius of the photometry aperture was set using the full width at half maximum (FWHM) of the seeing profile at each night.

The typical errors of the differential photometry were about 0.007-0.015 mag. The accuracy of the Makemake’s measured magnitudes in each filter are given in Table 2.

3 Results and analysis

The observational circumstances and mean measured magnitudes of Makemake are shown in the Appendix (Table 2). The columns include mean UT, heliocentric (r) and geocentric ($\Delta$) distances, solar phase angle ($\alpha$), ecliptic longitude ($\lambda$) and latitude ($\beta$) in epoch J2000.0, mean reduced magnitude M(1, $\alpha$) and corresponding error, the filter in which the magnitude was measured, duration of observations ($\Delta$T), and finally, the telescope/observatory acronym. We note that for the nights when only a few data points were acquired, the duration of observations is not shown in the table.

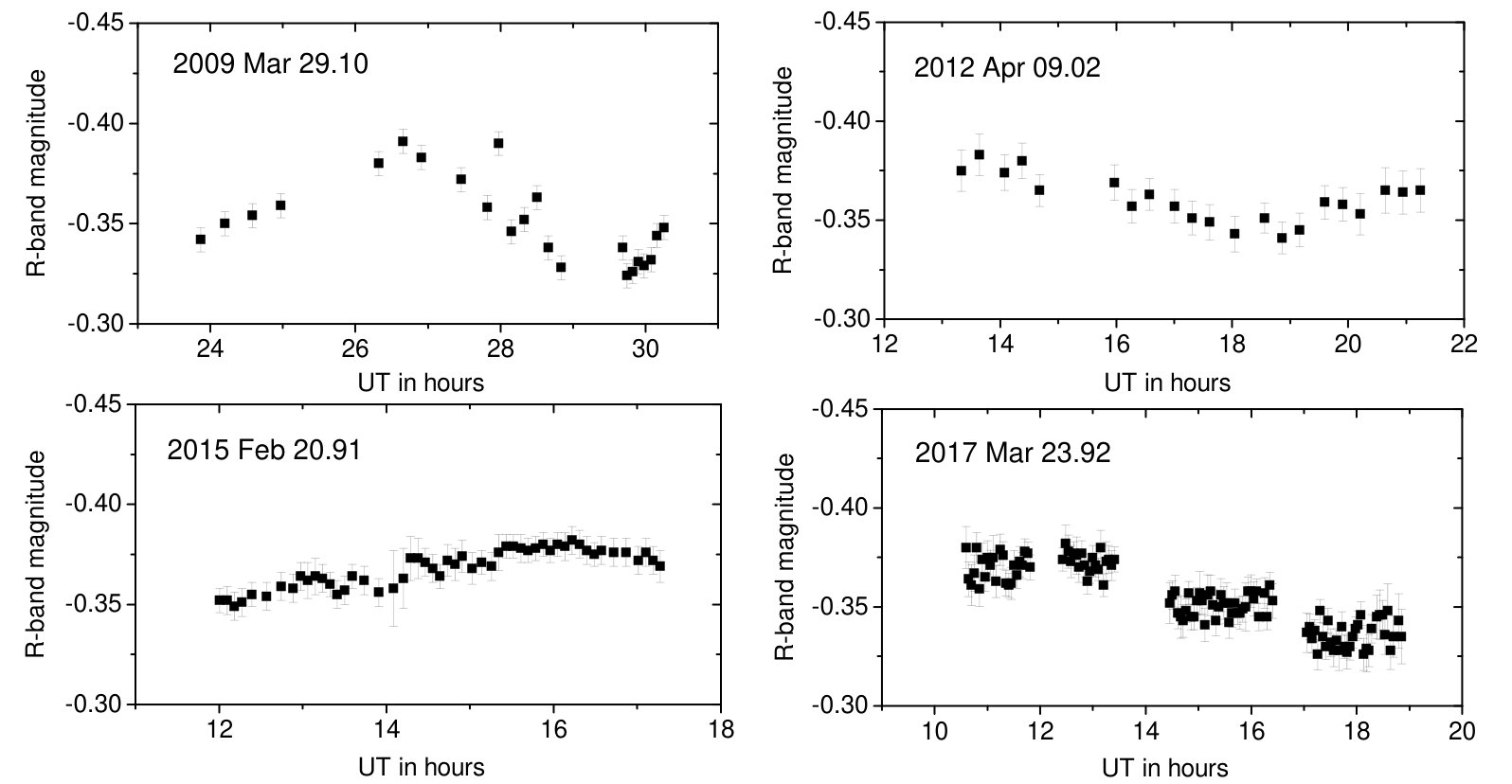

Examples of individual lightcurves from different oppositions are given in Fig. 1. The amplitudes are small, but the lightcurve extrema can be clearly seen within our accuracy of measurements.

3.1 Search for rotational period

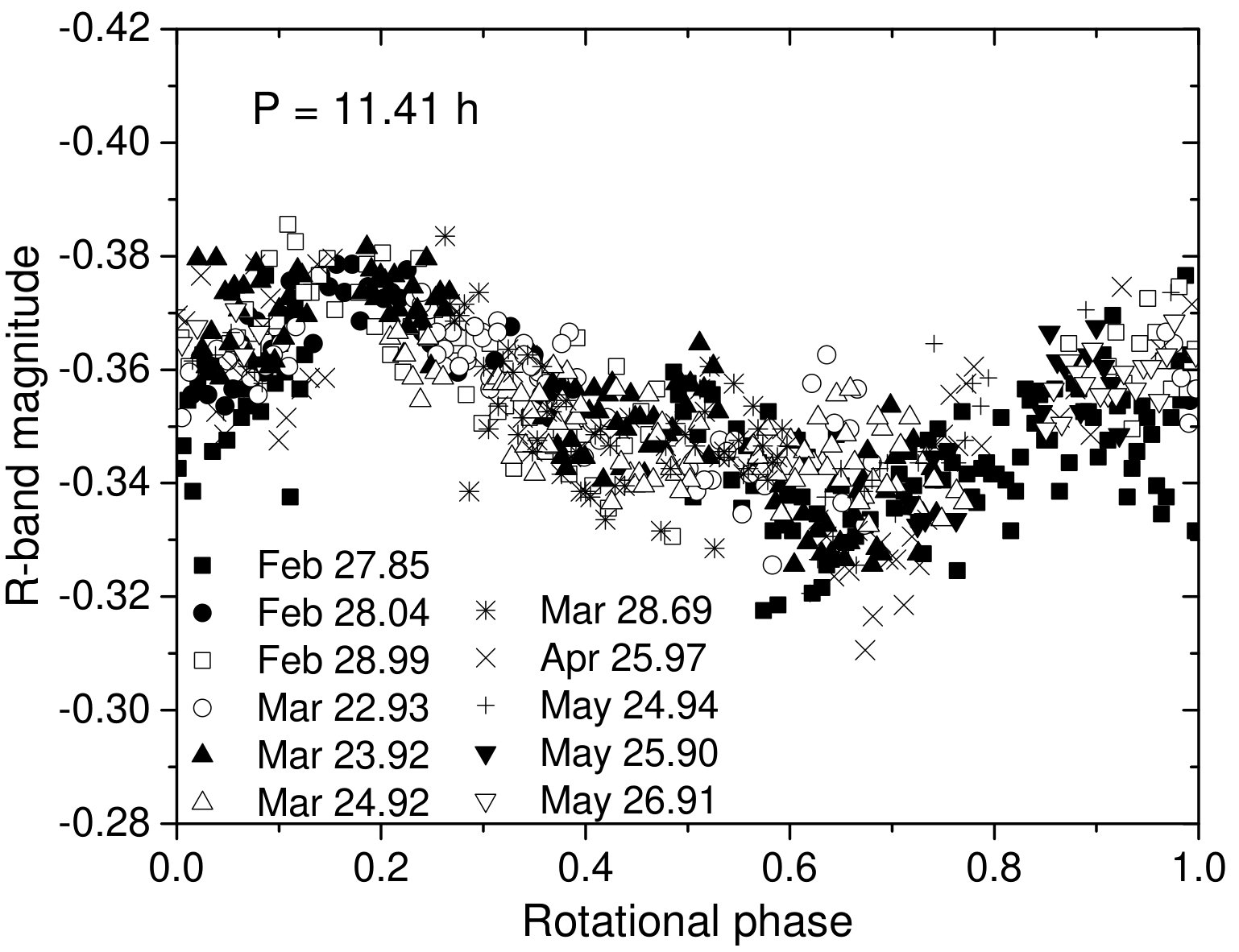

We found that some of our long observations were inconsistent with a $\sim$7.7 h period, which is the preferred solution in the literature (Heinze & de Lahunta, 2009; Thirouin et al., 2010). In particular, this can be seen from the $\sim$8-hour individual lightcurve, obtained on 23 March 2017 (Fig. 1, lower right panel).

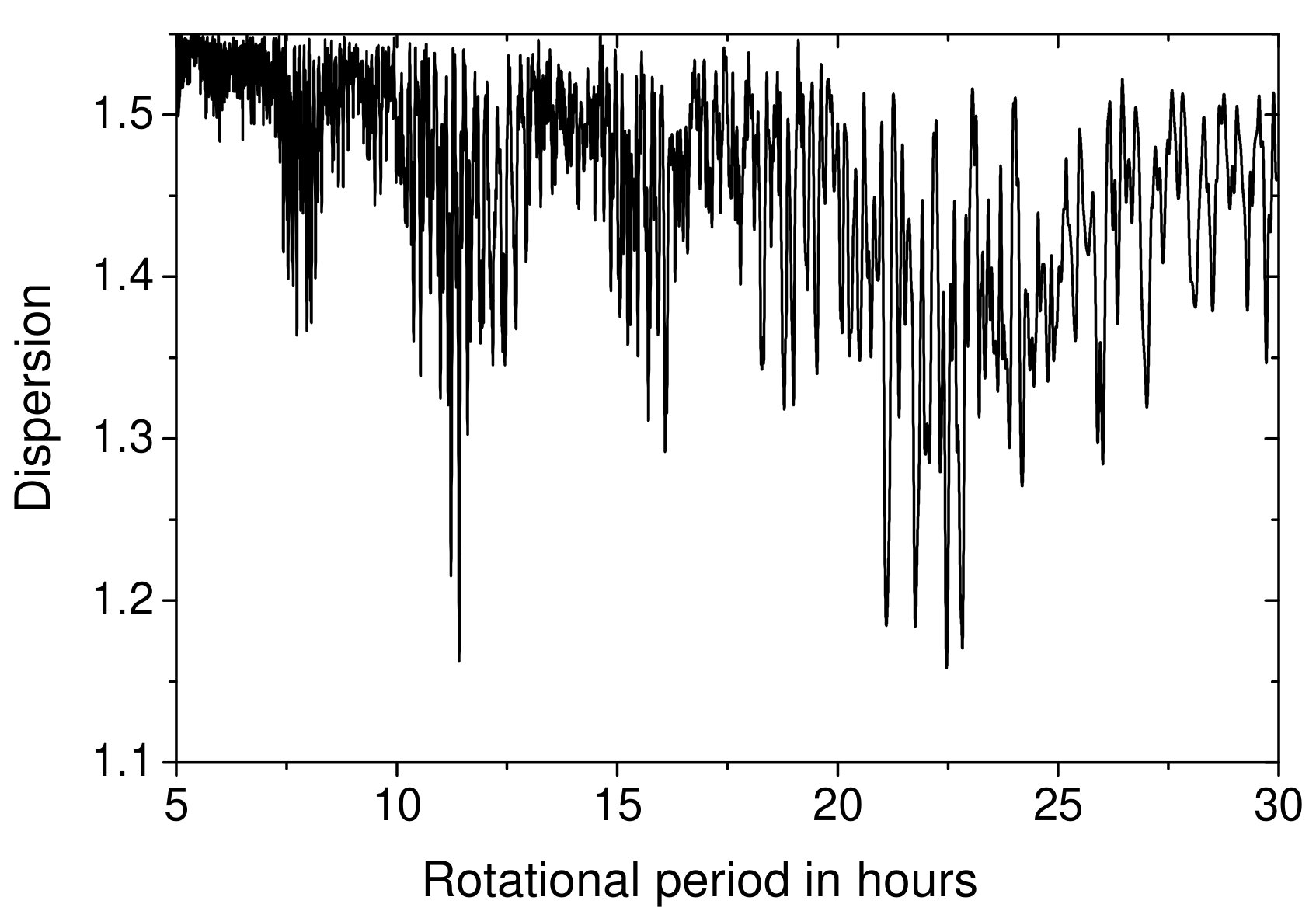

We made a search for the rotational period following the method of Fourier analysis described by Harris & Lupishko (1989). Specifically, a fourth-order Fourier function was used in the search. To derive the rotational period only R-filter data were considered. The probed periods were in the range from 5 to 30 hours and the step rate was equal to 1E-3 hours. For the initial search we used the data from a single opposition in 2017. The resulting rotation spectrum is presented in Fig. 2. It shows that the true period is around 11.41 h (or its double value), while the previously reported value around 7.73 h is connected with aliasing in the data. The composite lightcurve for the 2017 data with a 11.41 h rotational period is presented in Fig. 3.

Since Makemake’s aspect of observations has changed very little over the past decade, we combined data from several oppositions to determine a more precise value of the rotation period. We used the data from 2009, 2012, and 2015-2017 when some long observations were acquired. The new rotation spectrum with an increased step rate of 1E-5 hours is presented in Fig. 4. Two definite dispersion minima at 11.4133 h and at 22.8266 h were found. The amount of data from different oppositions was sufficient to have a good coverage for the long double-peaked period. The composite lightcurves for both the single and double-peaked solutions together with their Fourier fits are presented in Fig. 5. The lightcurve with the period P = 22.8266 h has a slightly lower RMS than that with the period P = 11.4133 h. Naturally, the fit is better only because there is less data overlap. Alternatively, this difference can also be due to the possible lightcurve asymmetry which is analysed in Sect. 3.2.

3.2 Analysis of the lightcurve behaviour

In the case of Makemake with its small amplitude, both single and double-peaked periods are possible (see section 4 for the discussion), but the existence of a lightcurve asymmetry would be good evidence of a double-peaked lightcurve. For the analysis we used only those observations that covered a time span of more than 4 hours and had photometric errors ¡0.01 mag (cf. Table A.1.)

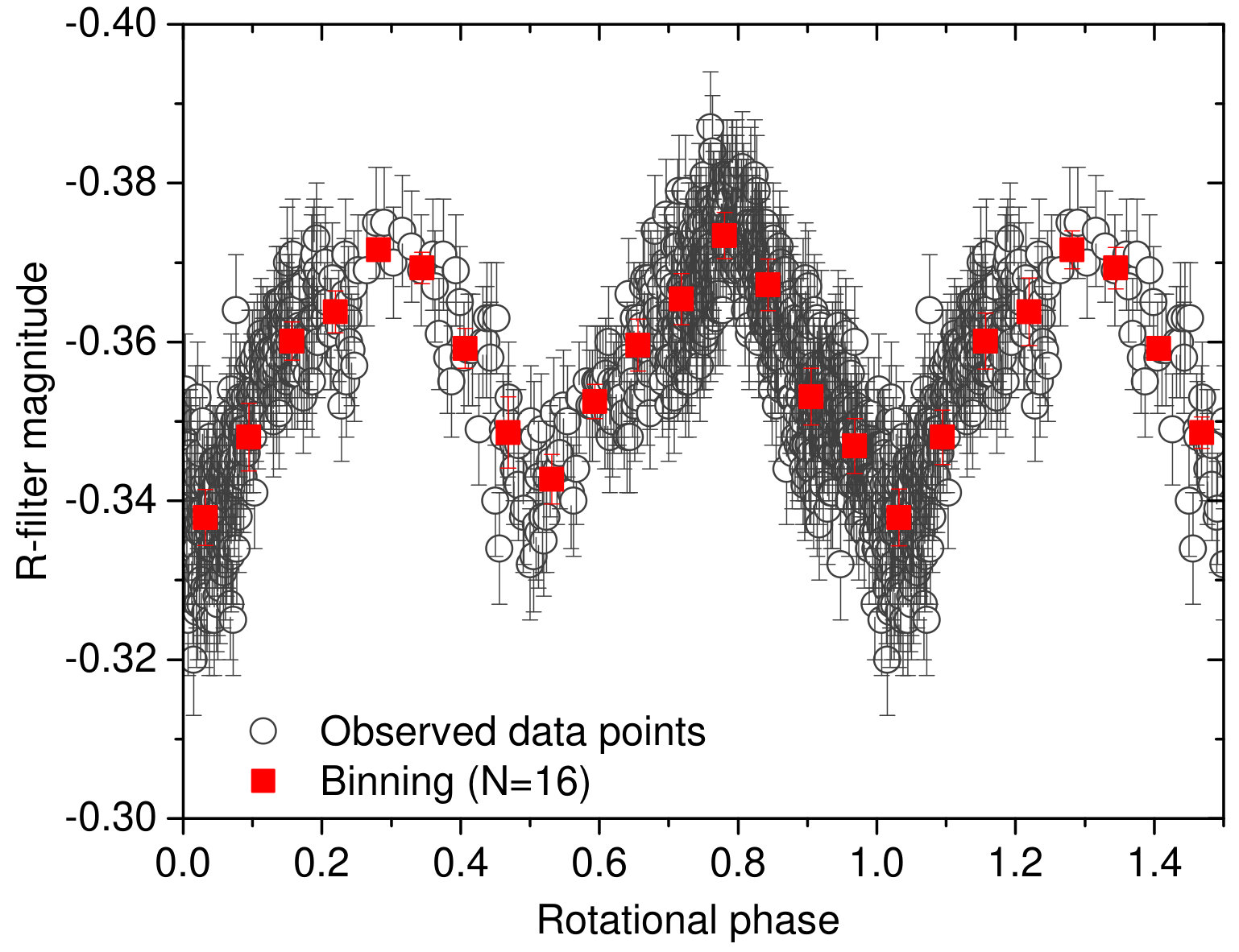

The lightcurve for a 22.8266 h period showed certain signs of asymmetry, as can be seen in Fig. 6: one maximum looks sharper, or more angular, than the other. In order to estimate the level of significance of such an asymmetry, we performed a binning analysis. The lightcurve was binned by calculating the average of data points that fall into each binning area. The binning was done using an even number of bins, so for each $j$-th bin $b_{j}$ in the first half of a lightcurve there would be a corresponding bin $b_{j+N/2}$ in the second half, where $N$ is a total bin count. To obtain the significance of a difference between two parts of a lightcurve, we calculated the Student’s t-test value as

[TABLE]

where

[TABLE]

$\delta b_{j}$ and $\delta b_{j+N/2}$ are the uncertainties of the corresponding bin values, which were calculated as a standard deviation from the average of the real data points that fall into the $j$-th and $i+N/2$-th binning sections, respectively; and $B$ is the total number of points in the bin.

For $N$ in the range from 10 to 30 the existence of an asymmetry is confirmed at a confidence level of 95%. Thus, we consider the long double-peaked rotational period to be more likely, although the single-peaked solutions cannot be completely discarded.

3.3 Coincidence of the long rotation period with literature data

In order to further investigate our finding of a long double-peaked rotational lightcurve we made use of literature values published by Heinze & de Lahunta (2009), which were the only data obtained with a very good precision (around 0.01 mag) The authors indicated the 11.4 h period as an alias.

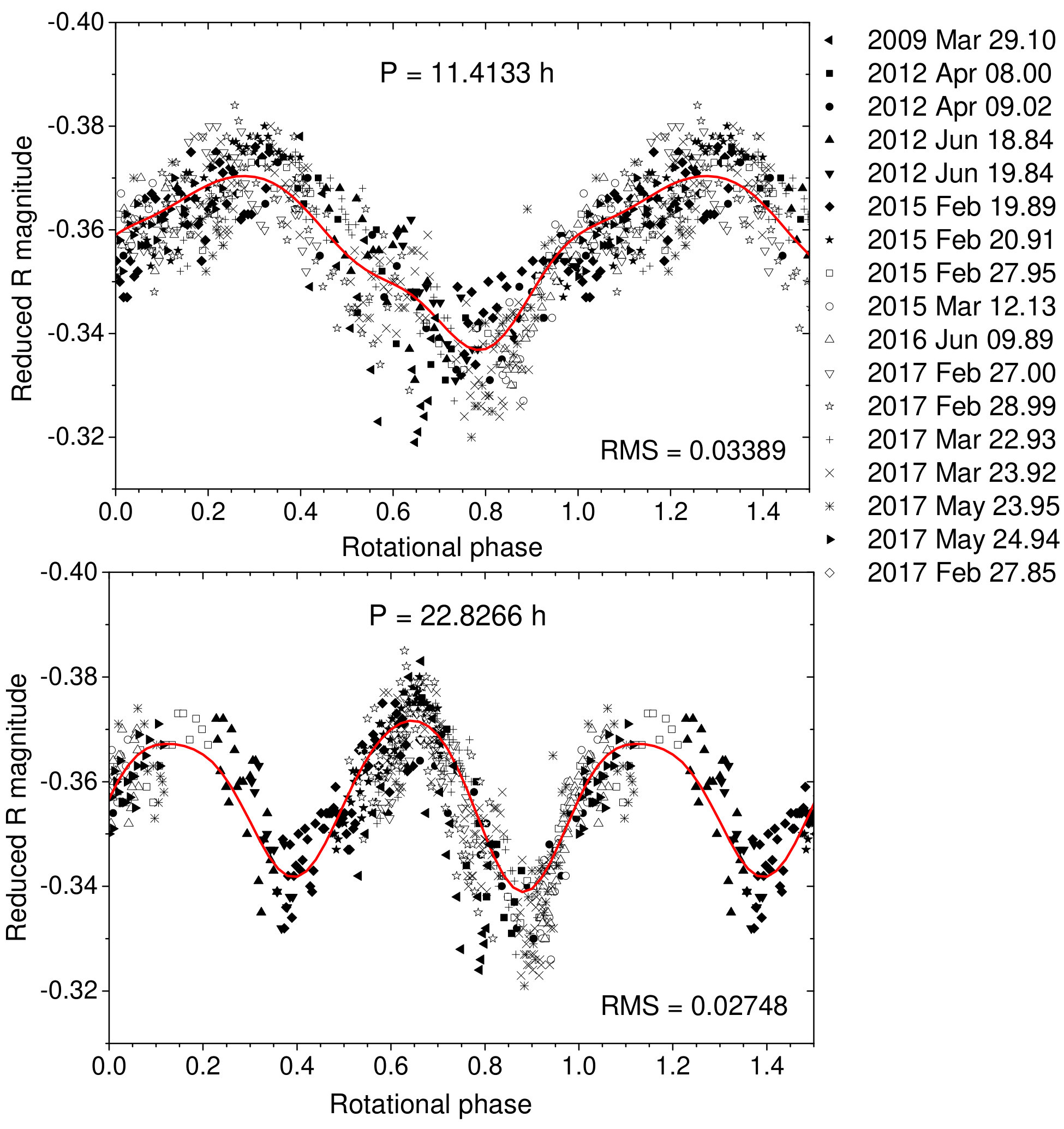

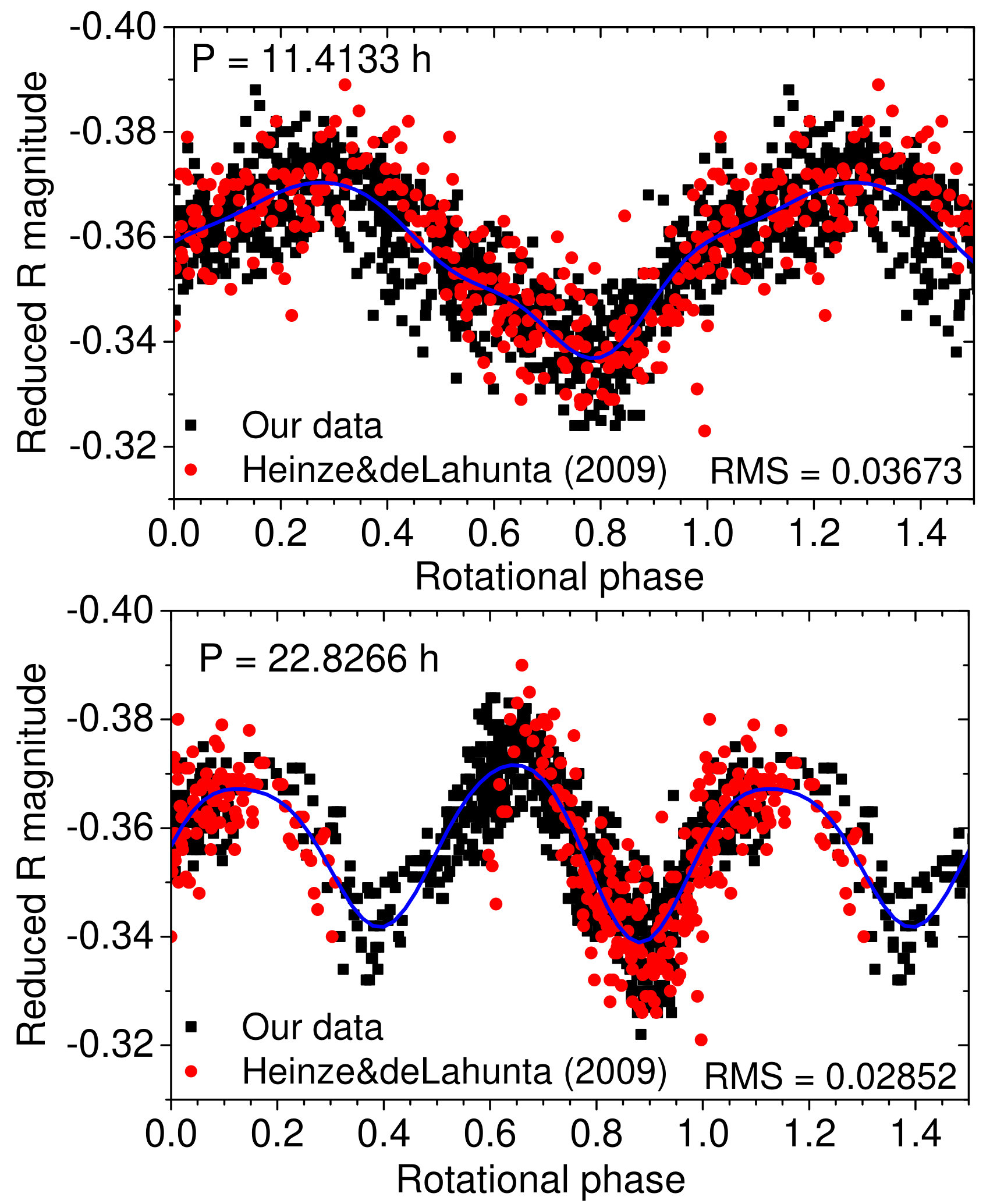

The composite lichtcurves with the rotational periods of 11.4133 h and 22.8266 h that were made using our and literature data are presented in Fig. 7. Both periods are consistent with literature data. In particular, in the data from Heinze & de Lahunta (2009) we notice a similar type of lightcurve behaviour for the double-peaked lightcurve as seen in our data.

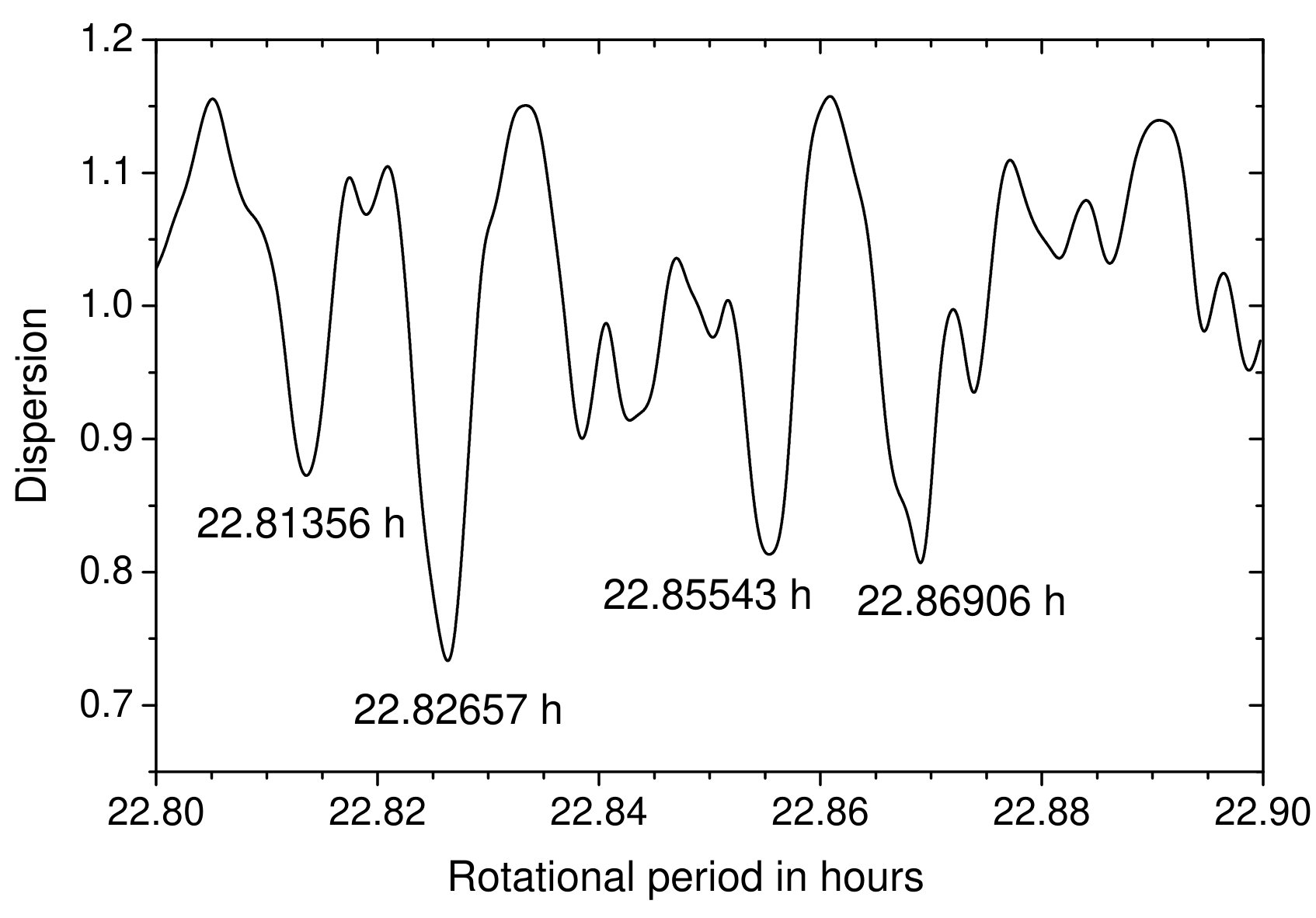

In order to increase the precision of a rotational period, we performed a period search using our data and the literature values in the area around $\sim$22.82 h with a step size of 1E-5 hours. The rotation spectrum is shown in Fig. 8. The minimal dispersion ‘noise spectrum’ corresponds to the same period value that was already found during the search using only our data.

As was already mentioned, the data that was used for the rotation period determination was acquired in R filter. However, on April 8-9, 2012, long lightcurves in both V and R filters were obtained. We have not found any significant differences between them. Also, we did not find any difference in our R-band data and V-band data from Heinze & de Lahunta (2009). In all filters Makemake has extremely low peak-to-peak lightcurve amplitude of $\sim$0.03 mag and shows the same lightcurve features.

Hence, we conclude the value of rotational period is P = 22.8266$\pm$0.0001 h. The calculated peak-to-peak lightcurve amplitude using a Fourier fit is A = 0.032$\pm$0.005 mag. The high accuracy of the rotational period is achieved by the long time span of observations (around 10 years including the literature data). The uncertainty was determined by changing the found period until all of the data in the composite lightcurve still fits, and by using a more formal estimation that depends on the total number of rotational cycles ($N$) during a given period of time. When using the first method the noticeable mismatches in the composite lightcurve started appearing with a shift of less than 0.0001 h. In the second case, the accuracy can be found as the relation of $\Delta t/N$, where $\Delta t$ is the uncertainty of the time distance between two consequent extrema, which depends on the accuracy of measurements and on the sharpness of the extrema. For our data we can safely assume that this value is within half an hour. Then, for P = 22.8266 h the error will also be around 0.0001 h.

Makemake is large enough to be in hydrostatic equilibrium and to have an oblate Maclaurin spheroid shape (a=b¿c). With the discovery of a satellite on the edge-on orbit the near equator-on aspect of observation became more feasible than the pole-on orientation (Parker et al., 2016). In this case, Makemake’s lightcurve variations are more likely caused by surface heterogeneity.

3.4 Magnitude phase dependence and colour indices

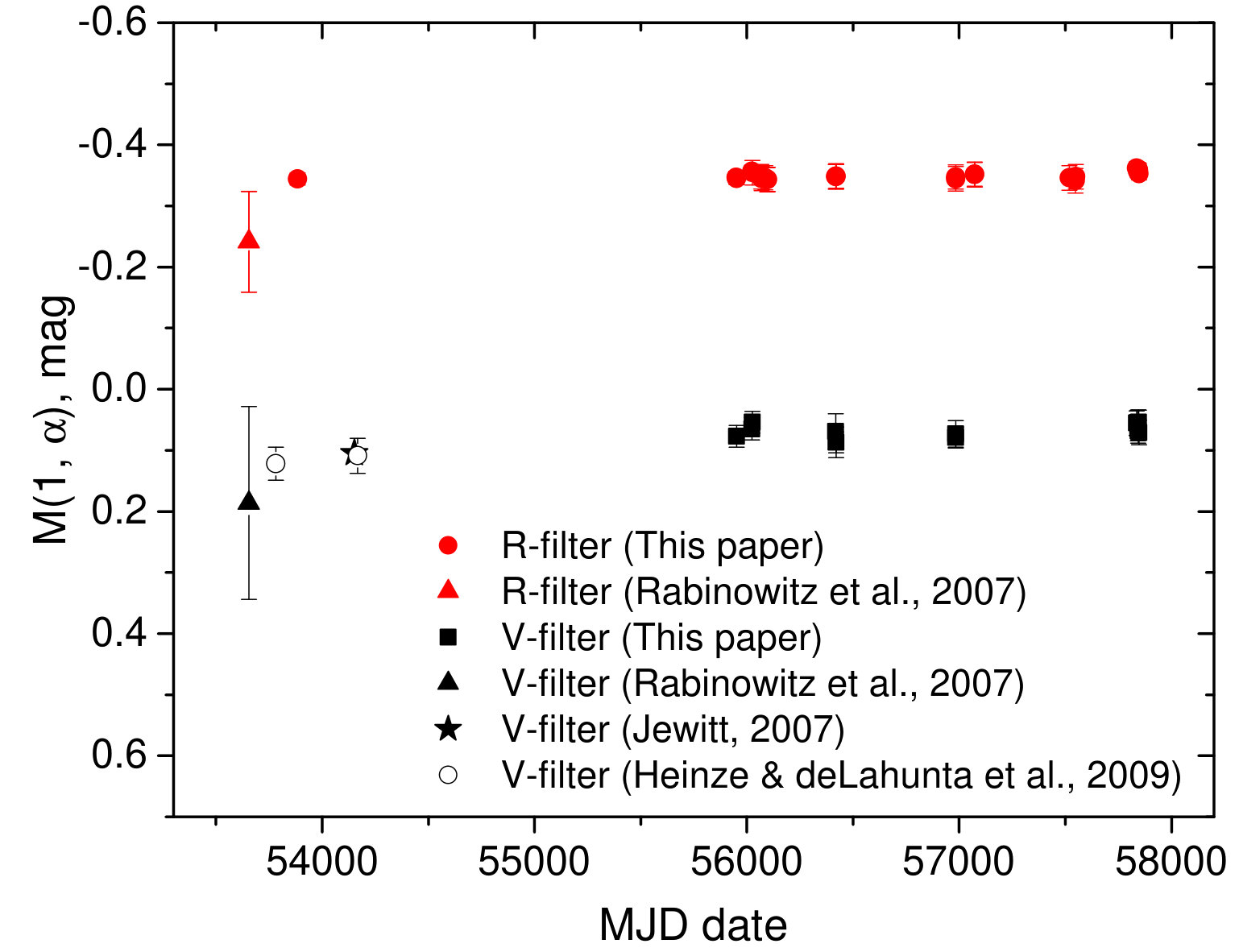

From our multi-colour observations we were able to determine the mean surface colour indices of Makemake. In order to account for possible surface albedo variations, colours were first calculated using almost simultaneously acquired data during only one night. We were not able to detect any colour variations within the uncertainties, thus we report here the averaged values when multiple observations were available. The measured surface colours for Makemake are B-V = 0.91$\pm$0.03 mag, V-R = 0.41$\pm$0.02 mag, and V-I = 0.65$\pm$0.03 mag. Our results are in agreement with previously reported values (Rabinowitz et al., 2007; Jewitt et al., 2007). Thus, we can confirm a reddish surface similar to that of Pluto. This is consistent with the findings of Perna et al. (2010) that both Pluto and Makemake belong to the BR taxonomic class, whereas the surface of Eris is more neutral and was classified in the BB taxon.

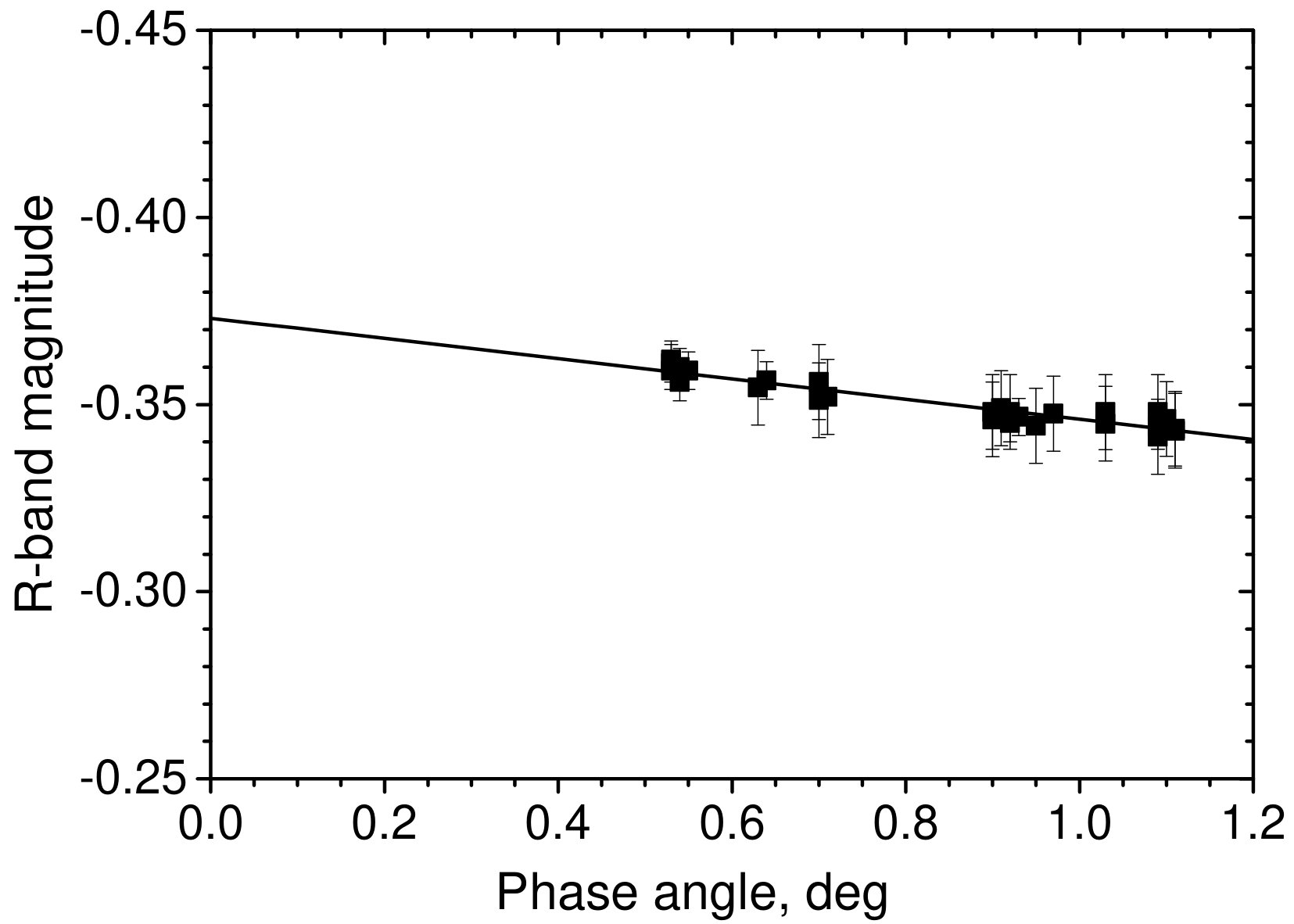

The phase-angle dependence of Makemake’s magnitude was measured in the phase angle range of 0.5-1.1*∘. It is the largest angle range that available for observations from Earth since the discovery of Makemake in 2005. We have taken into account the lightcurve variations even if they are small. The magnitude phase dependence of Makemake is presented in Fig. 9. We found a linear slope of the phase dependence to be 0.027$\pm$0.011 mag/deg in R filter. This value of a phase slope is slightly smaller than previously determined values for the same phase angle range in V filter: 0.037$\pm$0.013 mag/deg (Heinze & de Lahunta, 2009), and 0.054$\pm$0.019 mag/deg (Rabinowitz et al., 2007). No opposition surge was seen in our data. We assume that the opposition surge of high-albedo Makemake is very narrow, starting at phase angles of less than 0.5∘, which are not covered by our observations. Furthermore, Belskaya et al. (2003) showed that very narrow opposition surges seem to be typical for TNOs. For example, an opposition effect (at phase angles of less than 0.1∘*) was found at Triton, Neptune’s satellite (Buratti et al., 2011).

4 Discussion and conclusions

Photometric variability of small solar system bodies is most often caused by aspherical shape, surface albedo variations, or binarity. Single-peaked lightcurves are typically associated with albedo variations, and double-peaked lightcurves with elongated shape. Quite frequently it is hard to distinguish between these two cases, and additional information is needed.

In the case of distant solar system objects, such as Makemake, this is a particularly challenging task. Firstly, the body could be near its polar aspect and hence have very small lightcurve amplitude. In the near-equatorial aspect a small lightcurve amplitude undoubtedly implies an almost spherical shape for the body. An example of an object with a polar aspect is the New Horizons flyby target 2014 MU69. From a small lightcurve amplitude, Benecchi et al. (2018) suggested that the object is either nearly spherical or its polar axis is oriented towards the line of sight to Earth. The recent close up observations confirmed the pole-on orientation and revealed that 2014 MU69 is a bi-lobate contact binary (Stern et al., 2019).

From the analysis of our data and the literature values we discovered a possible asymmetry in the photometric lightcurve. The existence of asymmetry suggests that the most probable cause of brightness variability would be shape irregularities and/or surface variations of albedo. In the case of the dwarf planet Ceres, an asymmetrical double-peaked lightcurve with a small amplitude of $\sim$0.03 mag is primarily caused by albedo variations (Chamberlain et al., 2007; Reddy et al., 2015).

A previous study of Makemake’s spectral data suggests that its surface is quite rotationally homogeneous (Perna et al., 2017), although these data cannot pinpoint variations of $\sim$3%. Moreover, neither photometric nor spectroscopic observations can detect latitude variations, if such are present on Makemake’s surface.

Lightcurve asymmetry due to shape can be explained by surface topographic features. However, taking into account Makemake’s size and assuming a range of possible densities by varying ice/rock ratio, Rambaux et al. (2017) argue that a possible mountain on Makemake cannot be higher than 10 km. Such a relatively small feature (assuming that its albedo is not different from the rest of the surface) would give very little input of less than 0.001 mag into the brightness lightcurve. The observed amplitude difference for Makemake, on the other hand, reaches $\sim$0.01 mag. From this we can assume that both variability causes might be present on Makemake: small albedo variations that were not detected from spectral observations together with minor deviations from the symmetrical shape.

The first observations of the Makemakean satellite by Parker et al. (2016) were quite sparse and it was therefore not possible to determine its orbit and consequently the total mass of the Makemake plus satellite system. Using the known magnitude difference between the primary and secondary, and assuming the lowest possible albedo for solar system objects of 4%, the upper limit of the satellite’s diameter would be $\sim$100 km. A satellite of this size can decrease the total brightness by about 0.01 mag. From our data we could not find any effect on a lightcurve from the satellite. Given such a small input and an orbital period of more than $\sim$12 days the chance of a confident detection of a satellite influencing the rotational lightcurve from a mid-sized telescope is rather small.

The slow rotational period of Makemake can be caused by the tidal effects between the primary and secondary body. It was shown by Thirouin et al. (2014) that binary bodies tend to have longer rotational periods. The discovered satellite lacks sufficient mass to have slowed down Makemake to the current slow rotational period. Moreover, Parker et al. (2016) argues that the known Makemake satellite can partially account for the dark area needed to fit the thermal observations by Lim et al. (2010). However, it can account for only about 1% of the dark terrain and the rest of the area should correspond to Makemake’s surface or to another, as yet undiscovered, larger dark satellite.

In this regard, we can consider the possibility that Makemake’s photomeric variability is due to the existence of one more satellite. Using the formalism from Descamps & Marchis (2008) in order to slow down Makemake’s rotational period to 22.8 h, the satellite should reside at a distance of 5000 km and have a mass ratio of 0.03 with respect to the primary body. This would give a specific angular momentum of 0.14. Depending on its density, the size of such a satellite would be of the order of 400 km in diameter and its area would be more than 9% of Makemake’s total area. At this distance from the primary body, the satellite would be outside the Roche limit. Assuming 1500 kg m*-3* density of Makemake, tidal locking would occur at about 3000 km distance from the primary, still away from the Roche limit, but the mass ratio of the satellite to Makemake would have to be higher than 0.05 to have slowed down Makemake’s rotation from a primordial spin to 22.8 h. In this case the required size of the putative satellite should be at least 550 km. By area, such an object would have more than 15% of Makemake’s surface. Hence, such an undiscovered satellite could also potentially explain the need for two-albedo terrains in the thermal modelling. Notably, it will be close enough to Makemake so that it would not be detectable even with the current space telescopes or the large ground-based ones (e.g. Brown et al., 2006).

If such an undiscovered satellite exists and has an irregular shape, it could induce periodic variations of a small amplitude in Makemake’s rotational lightcurve. The satellite would have to be outside the hydrostatic equilibrium, and consequently could be responsible for the detected photometric lightcurve. Hence, the existence of an undiscovered satellite would have slowed down Makemake’s rotation, provide enough dark terrain to explain the two-terrain model needed by the thermal data. It could also explain the double-peaked nature of the lightcurve without requiring an asymmetry in Makemake’s shape. Such a close-in satellite might be discovered during a stellar occultation, but the non-detection of any satellite during the 2011 occultation observed by Ortiz et al. (2012) does not rule it out, as the object could easily have been located north of the S. Pedro de Atacama chord.

Our sidereal rotation period measurement was determined with enough precision to allow us to find the rotational phase during the occultation event observed by Ortiz et al. (2012). We found that the occultation event happened when Makemake was near its maximum brightness. Using the phase-angle slopes that are reported in this paper, the brightness at the moment of occultation, and assuming the absence of an opposition effect, we found new values of the absolute magnitudes to be H${}_{\text{V}}$=0.049$\pm$0.02 mag and H${}_{\text{R}}$=-0.388$\pm$0.02 mag in V and R filters, respectively. We used those values together with an equivalent diameter of Makemake found from occultation to recalculate Makemake’s geometric albedo. The revised albedo values are p${}_{\text{v}}$=0.82$\pm$0.02 in V filter and p${}_{\text{r}}$=0.89$\pm$0.02 in R filter. This result is more similar to that proposed by Brown (2013) and Lim et al. (2010).

However, if rotational variability is indeed caused by an undiscovered satellite, its contribution in Makemake’s absolute magnitude should be taken into account. Using the above-mentioned calculations of a possible satellite’s size, the absolute magnitude of Makemake should be fainter by at least 0.1 mag. This kind of correction was already performed in the case of Haumea (Ortiz et al., 2017). For Makemake it would imply that the geometric albedo should be about 10% lower. Also, we tested Makemake’s brightness for long-term variability. Namely, we were looking for changes in brightness lightcurve amplitude and absolute magnitude with time. This information can help us make the assumption about the aspect of the observations and its evolution over ten years. The lightcurve amplitude of our data and the literature values remains very low. The absolute magnitude of Makemake is also almost constant over the years (see Fig. 10). Makemake’s brightness seems to differ only in the Rabinowitz et al. (2007) data, whereas our data is constant within the errors and is in agreement with the Jewitt et al. (2007) results. It should be noted, however, that the photometry errors in Rabinowitz et al. (2007) are rather large and for some data points well exceed the magnitude difference. In the graph we show the average magnitude value from Rabinowitz et al. (2007), the error bars are the corresponding standard deviations of the data. Because of the large distance from Earth, Makemake’s aspect changes very slowly: since its discovery more than ten years ago, the ecliptic longitude has only changed by about 11*∘*. This means that in order to notice some aspect changes from ground-based sites a much longer monitoring period is needed. At this point we can only exclude that Makemake was reaching polar aspect during last ten years because this would suggest a noticeable simultaneous decrease in brightness amplitude (to its complete disappearance) and increase in absolute magnitude.

Overall, long and consistent monitoring is required in order to detect some aspect changes, which would lead to a better understanding of the true nature of Makemake’s rotational period and to the physical and orbital properties of its satellite(s).

Acknowledgements

This research was partially based on data taken at the Sierra Nevada Observatory, which is operated by the Instituto de Astrofisica de Andalucia (CSIC). This research is also partially based on data taken at the German-Spanish Calar Alto observatory, which is jointly operated by the Max Planck Institute für Astronomie and the Instituto de Astrofisica de Andalucia (CSIC). J.L.Ortiz, R. Duffard, and P. Santos-Sanz acknowledges financial support from the State Agency for Research of the Spanish MCIU through the ‘Center of Excellence Severo Ochoa’ award for the Instituto de Astrofisica de Andalucia (SEV-2017-0709). Funding from MINECO project AYA2017-89637-R is acknowledged. Part of the research leading to these results has received funding from the European Union’s Horizon 2020 Research and Innovation Programme, under Grant Agreement no 687378, as part of the project ‘Small Bodies Near and Far’ (SBNAF). R.Ya.I., V.R.A., and V.T.Z. are grateful to the Shota Rustaveli National Science Foundation grant FR-18-1193 for the partial financial support. D.P. has received funding from the European Union’s Horizon 2020 research and innovation programme under the Marie Sklodowska-Curie grant agreement n. 664931. I.V.R. and A.V.S. were partly supported by the programme BR05236322 of the Ministry of Education and Science of the Republic of Kazakhstan and the scientific and technical program BR05336383 ‘Applied scientific research in the field of space activities’. We thank D. Chestnov and I. Nikolenko for their help with obtaining observational data. We also want to thank S. Lowry and A. Heinze for providing feedback on the manuscript, which helped to improve the paper.

Appendix A Geometrical circumstances and magnitudes of Makemake
