Extracting Factual Min/Max Age Information from Clinical Trial Studies

TL;DR

This paper presents a neural network-based question answering approach to extract and validate minimum and maximum age information from clinical trial articles, outperforming previous methods.

Contribution

It introduces a novel QA model trained on clinical trial data to accurately extract and verify age range information from research articles.

Findings

Significant improvement over passage retrieval and CRF-based systems

Effective filtering of non-factual age expressions

High accuracy on a dataset of smoking cessation studies

Abstract

Population age information is an essential characteristic of clinical trials. In this paper, we focus on extracting minimum and maximum (min/max) age values for the study samples from clinical research articles. Specifically, we investigate the use of a neural network model for question answering to address this information extraction task. The min/max age QA model is trained on the massive structured clinical study records from ClinicalTrials.gov. For each article, based on multiple min and max age values extracted from the QA model, we predict both actual min/max age values for the study samples and filter out non-factual age expressions. Our system improves the results over (i) a passage retrieval based IE system and (ii) a CRF-based system by a large margin when evaluated on an annotated dataset consisting of 50 research papers on smoking cessation.

Figures

Tables

Table 1. Table 1: Statistics for the testing dataset.

Testing Dataset
# of articles	50
# of sentences	18,417
# of tokens (main text)	432,056
# of sentences containing	843
“age/ages/aged” or “year/years”
# of numeric tokens in sentences containing	2,226
“age/ages/aged” or “year/years”

Table 2. Table 2: A training instance for the min age extraction CRF model.

Token	POS tag	MinAgeAnnotation
Women	NNS	O
and	CC	O
men	NNS	O
at	IN	O
least	JJS	O
21	CD	B
years	NNS	O
of	IN	O
age	NN	O
with	IN	O
suspected	VBN	O
NSCLC	NNP	O
…	…	…

Table 3. Table 3: Experimental results. Bold indicates statistically significant differences over the baseline using randomization test (p < < 0.01).

	MinAge			MaxAge
	R	P	F	R	P	F
Baseline 1: PassageRetrievalBasedMinMaxAgeExtractor	28.6	90.9	43.5	32.0	72.7	44.4
Baseline 2: CRFBasedMinMaxAgeExtractor	50.0	42.5	45.9	25.0	18.2	21.1
This work: QABasedMinMaxAgeExtractor	65.7	79.3	71.9	60.0	75.0	66.7

Table 4. Table 4: Contribution of each component to the overall system performance.

	MinAge			MaxAge
	R	P	F	R	P	F
This work: QABasedMinMaxAgeExtractor	65.7	79.3	71.9	60.0	75.0	66.7
—WO MinMaxAgeSentFinder	68.6	68.6	68.6	52.0	56.5	54.2
—WO MinMaxAgeQA	31.4	84.6	45.8	40.0	71.4	51.3
—WO Non-factualSentFilter	68.6	70.6	69.6	60.0	71.4	65.2

Equations

$$sim(c,Q)=\frac{1}{|Q|}\sum _{q\in Q}exp(-(p_c-p_q{)}^2/\sigma )$$

Full text

1 Introduction

Clinical trials are an important source of scientific evidence for guiding the practice of evidence-based medicine. However, many characteristics of clinical trials are only reported in the published research articles. The health service community could benefit from knowledge bases populated with detailed information from clinical trials reported in research articles. With this in mind, clinical information extraction aims to extract such information from journal articles that report randomized controlled trials Kiritchenko et al. (2010); Wallace et al. (2016).

Relevant information about clinical trials can be categorised along: *(i) * trial’s population characteristics (e.g. minimum and maximum age of the participants, education level, marital status, health status), *(ii) *intervention methods, both what is being done (e.g. specific drug and dosage, planning sessions, use of an app for daily reporting) and how it is being administered (e.g., where, how often and by whom), and (iii) outcome of the study (e.g., 30% of the population stopped smoking after 6 months).

In this paper, we focus on extracting population characteristics and in particular minimum and maximum (min/max) age values associated with the study samples from clinical trials research articles.

Unlike Summerscales (2013), our aim is to extract information from the full article, rather than only from the abstract, as we have observed that age information is not always described in the abstracts. In our testing dataset consisting of 50 research papers, only nine papers describe the min/max age information in their abstracts.

Naturally, analysing the entire article presents many challenges. Our goal is to identify the factual min/max age value information for the persons who actually participated in the clinical trial (see Example 1 and Example 1 below). This should be distinguished from non-factual min/max age information (Example 1 and Example 1) and also from min/max age information which is not related to the participants in the study (Example 1 and Example 1).

• Participants were 83 smokers, who were 18-23 years old and undergraduate students …

participants aged 18-24 years were randomized to a brief office intervention (n=99) or to an expressive writing plus brief office intervention (n=97).

To be included in the study, smokers had to be between the ages of 18 and 60 years …

The subjects were eligible for inclusion if they were at least 18 years of age, reported smoking 10 or more cigarettes per day, …

An estimated 23.6% of young adults aged 18-24 years are current smokers.

Smoking Dutch youths had in many cases tried their first cigarette at the age of 11-12 years.

Our proposed system extracts factual min/max age values of the study samples directly from research articles in PDF format. We leverage the massive structured clinical study records from ClinicalTrials.gov to provide distant supervision for min/max age value extraction. Furthermore, inspired by the work on hedging detection on Bioscience domain Light et al. (2004); Kilicoglu and Bergler (2008); Farkas et al. (2010), we explore a list of “speculation cues” to filter out non-factual min/max age expressions. Our system improves the results over (i) a passage retrieval based IE system and (ii) a CRF-based system by a large margin when evaluated on an annotated dataset consisting of 50 research papers on smoking cessation.

2 Related Work

2.1 Clinical Information Extraction

In general, research on information extraction from medical literature is still in its infancy involving a number of limitations, such as lack of common benchmarking datasets, and a lack of general consensus on the class of approaches that are reported to work well on such benchmarks.

Some work has been conducted on supervised approaches for medical information extraction. Multiple studies have concentrated their efforts on medical abstract. In Kim et al. (2011), the authors propose a conditional random filed (CRF) classification method for labelling medical abstract sentences according to medical categories, such as outcome, intervention, population. Hansen et al., 2008 Hansen et al. (2008) developed a Support Vector Machine algorithm for extracting the number of trials participants from medical abstracts, while in Hassanzadeh et al. (2014), the authors use a machine learning approach for classifying abstract sentences according to the PICO (Population, Intervention, Comparison, Outcome) scheme.

Other studies have exploited the entire article, for the extraction of papers’ metadata as Lin et al. (2010): the authors propose a preliminary system based on CRF for extracting formulaic text (authors names, email and institution) as well as some key study parameters as free text, from PubMedCentral articles. They reach promising results for the formulaic text, but only moderate success for the free text attributes. The study in Luan et al. (2017) involves finding key-phrases from scientific articles and then classifying them. However, these categories are much broader (coarse-grained), e.g. ‘process’, ‘task’ etc., than the fine-grained categories in our task (min/max age).

A few studies have tackled the min/max age extraction problem. Most research work on extracting information from clinical trial literature considers “eligibility criteria” as a target element, which often contains min/max age information de Bruijn et al. (2008); Kiritchenko et al. (2010).

However, min/max age information contained in the eligibility criteria refers to the planned min/max age and may be different from the actual min/max age values of the study samples (for example: the researchers could decide to test a population of women between 20-30 years, but realistically they could gather participants only between 22 and 28 years old). Summerscales (2013) carefully designed a number of heuristic rules to extract min/max age values of the study population from the abstracts. We differ from this latter work as we (a) extract such information from the full articles and (b) use a machine learning approach. In addition, we integrate the rules designed by Summerscales (2013) into our passage retrieval based IE system as a baseline.

Generally, in contrast to previous work, in this paper we a) concentrate on the extraction of population characteristics, b) use the entire article for detecting the min/max age and c) compare an unsupervised approach with a QA-based approach.

2.2 Question Answering

Most recently, reading comprehension or question answering based on context has gained popularity within the NLP community, in particular since Rajpurkar et al. (2016) released a large-scale dataset (SQuAD) consisting of 100,000+ questions on a set of Wikipedia articles. In the medical domain, S̆uster and Daelemans (2018) created a dataset of clinical case reports for machine reading comprehension (CliCR). The dataset contains around 100,000 gap-filling queries on 12,000 case reports. These queries are created by blanking out medical entities in the learning points sections using some heuristics.

We explore the QA framework for min/max age value extraction. Various neural network models have been proposed for question answering but these models trained on SQuAD or CliCR do not work well in our scenario because these datasets do not contain the queries targeting the specific min/max age values expressed in the text. Therefore, we leverage instead the massive structured clinical study records on ClinicalTrials.gov and create the training data for our min/max age value extraction component.

2.3 Non-factual Information Detection

There has been a significant amount of research in detecting speculative language in scientific research articles Hyland (1998); Light et al. (2004); Kilicoglu and Bergler (2008); Medlock and Briscoe (2007); Farkas et al. (2010); Morante and Sporleder (2012). Our task requires to extract information from definite statements, therefore we use a list of speculation cues to filter out sentences where min/max age information are expressed speculatively.

3 Approach

We develop a pipeline to extract factual min/max age information from clinical trial studies. We divide the task in two steps: 1) finding sentences containing min/max age information; 2) extracting the value from those sentences. For the first we develop Min/Max age Sentence Classifier and for the second we propose a QA approach and develop the module Min/Max Age QA Model.

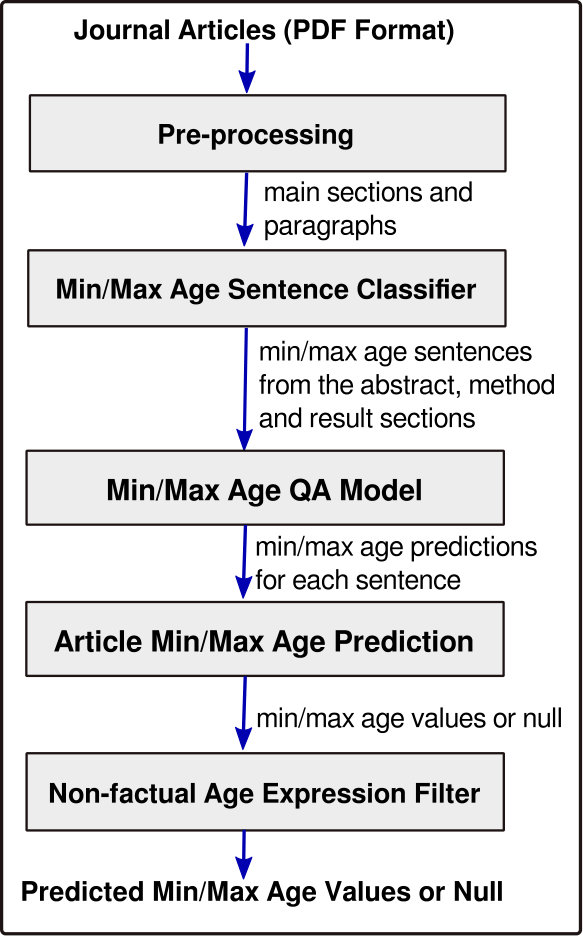

Figure 1 illustrated the process associated with our proposed system. In the following sections, we describe how we create training data from ClinicalTrials.gov as well as each component of our system in detail.

3.1 Creating Training Data Using Clinical Study Records

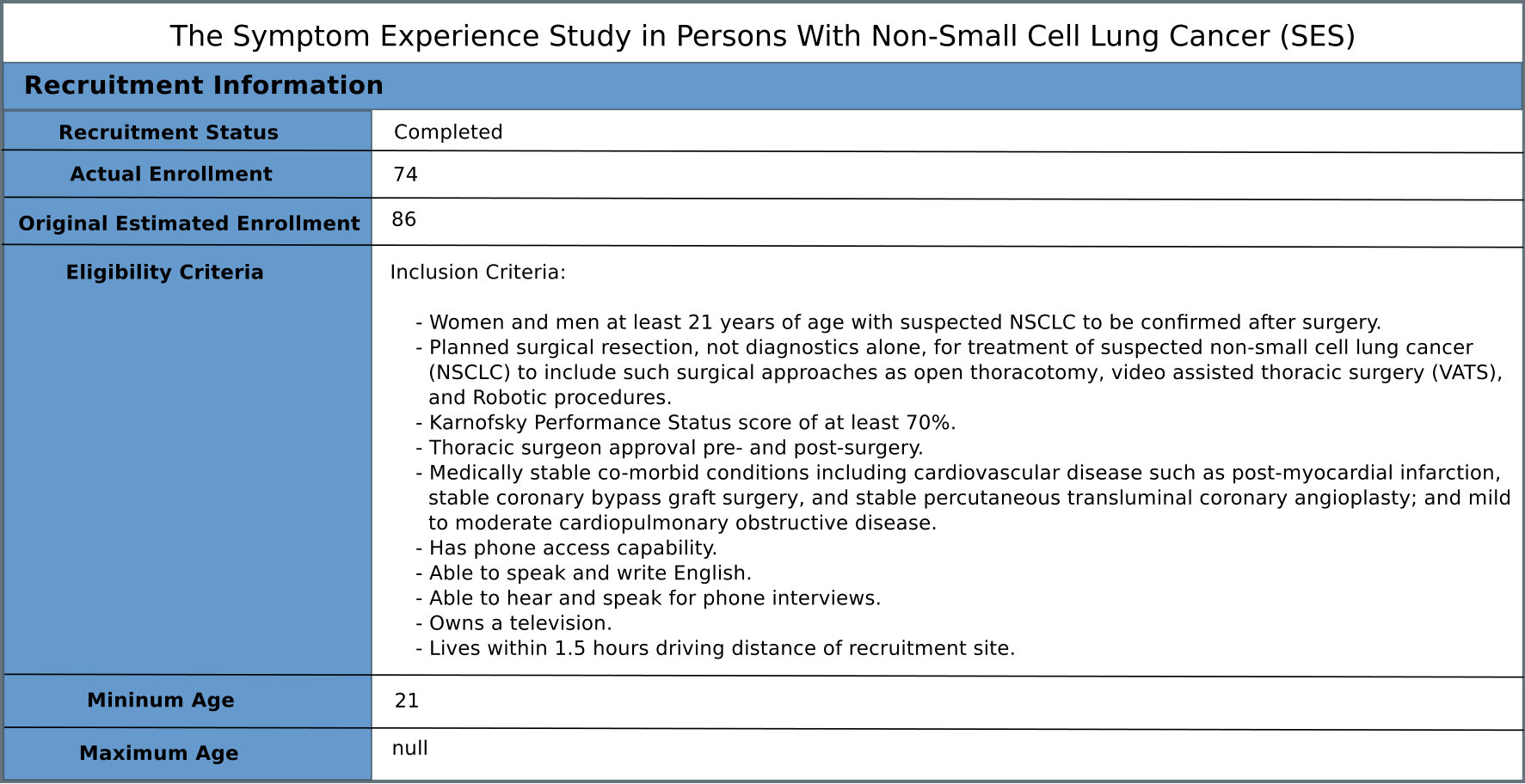

We leverage the massive structured clinical study records on ClinicalTrials.gov to create training data for Min/Max Age Sentence classifier and Min/Max Age QA Model. ClinicalTrials.gov is one of the largest database of clinical studies conducted around the world. It currently holds registrations around 273,000 trials from 204 countries. Each trial registration record contains a column called “Eligibility Criteria”, additionally min and/or max age values are indicated if they are present in the description text of the eligibility criteria. Figure 2 shows an example of a clinical study record from ClinicalTrials.gov.

Note that most min/age expressions in eligibility criteria are speculative (e.g., at least 21 years of age, or child must be ages 6-12 years old), nevertheless they are still reflective of various linguistic forms for factual min/max age (e.g., aged 6-12 years old or *age $\geq 18$ years *). Therefore we expect that the models trained on this “noisy” dataset can still (1) identify sentences containing min/max age information and (2) predict the min/max age values.

3.2 Pre-processing

Given a research article in PDF format, we first extract clean text from the PDF file using GROBID Lopez (2009). We associate each paragraph to one of the five main sections: abstract, introduction, method, result and discussion. This step may introduce some noise (e.g., including the content from the table as the main body text) because parsing PDF file in different styles is a challenging task in itself.

3.3 Identifying Sentences Containing Min/Max Age Information:Min/Max age Sentence Classifier

After pre-processing, we identify sentences that contain min/max age information. At the inference stage, we first split paragraphs to sentences using Stanford CoreNLP Toolkit Manning et al. (2014), then apply a classifier (MinMaxAgeSentFinder) to predict sentences containing min/max age information among all sentences containing the word “age/ages/aged” or “year/years”.

To train our MinMaxAgeSentFinder classifier, we create the training data using the eligibility criteria of the structured clinical study records from ClinicalTrials.gov. Text in eligibility criteria can be quite long (for instance, some criteria contain more than 10 clauses/sentences), so we only keep the clause/sentence which contains the annotated min/max age value(s). More specifically, we first split the eligibility criteria into sentences/clauses using the delimiter “-”, then choose the clauses/sentences which contain the annotated min/max age values as well as the word “age/ages/aged” or “year/years”. For instance, in the example shown in Figure 2, we will keep the sentence “Women and men at least 21 years of age with suspected NSCLC to be confirmed after surgery.” as the positive training instance and filter out other sentences/clauses.

We randomly choose 20,000 such sentences/clauses (10,000 for min age and 10,000 for max age) as positive training instances. Negative training instances are sentences which do not contain the word “age/ages/aged” or “year/years” from 60 clinical research articles. Note that these articles are different from the articles in the testing dataset. We use MaxEnt classifier to train MinMaxAgeSentFinder with the following features: adjacent word n-grams (n=1-4) and adjacent letter n-grams within words.

3.4 Predicting Min/Max Age Values for Each Sentence: Min/Max Age QA Model

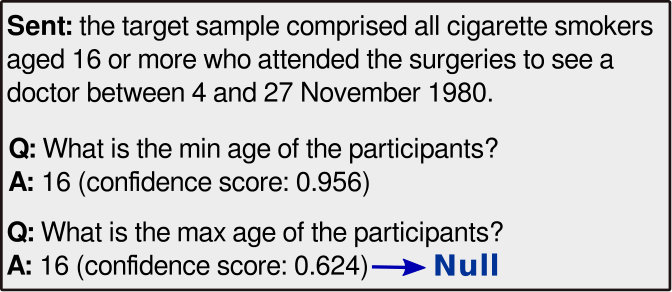

We approach the problem of extracting values of min/max age from a question-answering perspective. Specifically, our system first reads a sentence, then answers the questions “what is the min/max age of the participants?”.

Various neural network models have been proposed for this task but these models trained on SQuAD do not work well in our scenario, because SQuAD does not contain this type of question-answer pairs. Therefore we create training data for max/min age value extraction by leveraging the massive structured clinical study records from ClinicalTrials.gov The training data are 10,000 $<$eligibility criteria–min age$>$ pairs and 10,000 $<$eligibility criteria–max age$>$ pairs described previously. Note that we use the whole eligibility criteria instead of choosing the specific sentence/clause which contain the min/max age value. We believe that with the additional min/max age information, the question-answering module can locate the position of the min/max age value and learn various patterns for the target question.

We train our min/max age question-answering module (MinMaxAgeQA) using the Bi-Directional Attention Flow (BiDAF) Network Seo et al. (2017). BiDAF uses attention mechanisms in both directions (i.e., question-to-context and context-to-question) to find a sub-phrase from the input text to answer the question.

BiDAF includes both character-level and word-level embeddings. Most word tokenization models are not robust for numeric expressions in scientific literature. For instance, the Stanford CoreNLP tokenizer tokenizes the clause: “aged 6-12 years old” as ”{aged, 6-12, years, old}” - it does not recognize 6 and 12 as two different tokens. The character-level embeddings in BiDAF can overcome this problem and the module correctly predicts 6 is the value of min age for this example.

3.5 Predicting Min/Max Age Values for Each Article

To predict min/max age values of the study samples for each article, we apply MinMaxAgeQA to each predicted sentence containing min/max age information from the abstract, method, and result sections on both questions (i.e., what is the min age of the participants? and what is the max age of the participants?). Answers that do not represent a valid integer number or answers whose confidence score are less than 0.5 are discarded. For each question, we keep the answer with the highest confidence score.

We do not include sentences from the introduction section because it may include other min/max age information which is not related to the study samples (see Example 1 and Example 1). We leave filtering out unrelated min/max age information from introductions as future work.

Finally, if both min and max age values are predicted for an article, we check whether the min age value is smaller than the max age value. Otherwise we keep the answer with the higher confidence score and discard the other one. For instance, as shown in Figure 3, the number 16 is predicted as both the min age value (with the probability of 0.956) and the max age value (with the probability of 0.624) for an article, we keep 16 as the prediction for the min age value and set the prediction of the max age to ”Null“.

3.6 Non-factual Age Expression Filter

In this component, we filter out a min/max age value prediction if it is expressed speculatively. We first extract the clause which contains the prediction, then check whether a speculation cue word/phrase is present in the clause using the speculation cues from Light et al. (2004). These cue words are: {if, at least, must, had to, has to, have to, need, needs}.

4 Evaluation

4.1 Testing Dataset

The ground-truth dataset used for evaluation comprises a set of 50 published journal articles in PDF format on smoking cessation. The dataset contains around 432k tokens and 18k sentences. Table 1 shows some statistics about the testing dataset. Overall, we have 843 sentences containing the word “age/ages/aged” or “year/years” and these sentences contain 2,226 numeric tokens.

The articles were annotated by a team of four behaviour science domain experts in the context of a broader project focused on leveraging the scientific literature in behaviour change Michie et al. (2017). Annotation for a particular document was performed by two human annotators using the EPPI tool111http://eppi.ioe.ac.uk/CMS/. The annotation process involved highlighting relevant pieces of text and then assigning them to the corresponding min/max age attribute. Additionally, in order to disambiguate the highlighted text, the annotators were asked to annotate the entire sentence containing the highlighted piece as the additional context. Conflicts in the annotation process were resolved through discussions. Note that not every document contains a min/max age annotation. This is because not every article reports the min/max age of the overall study samples. In the testing dataset, 35 papers have min age annotations and 25 papers have max age annotations.

4.2 Evaluation Metric

We use recall, precision and F-score for evaluation. Recall is calculated as the number of articles where the min/max age values are correctly predicted divided by the number of articles where min/max age values are annotated. Precision is calculated as the number of articles where the min/max age values are correctly predicted divided by the number of articles where the system makes a min/max age value prediction. F-score is the harmonic average of the precision and recall.

4.3 Baseline 1: PassageRetrievalBasedMinMaxAgeExtractor

We developed a passage retrieval based IE system to extract min/max age values Ganguly et al. (2018). The first step is to retrieve the passages containing 10, 20, and 30 words using the query “(age OR ages OR aged OR year OR years)”. The intention of retrieving passages is to restrict extraction of factoid answers to potentially relevant small semantic units of text rather than the text of the whole document.

The next step is to use validation criteria to select the likely answer candidates. We use the min/max age patterns from Summerscales (2013) as the validation criteria to choose the likely answer candidates from each retrieved passage for min age and max age respectively. These patterns can be viewed as rules which are carefully designed by humans to extract min/max age values. For instance, a rule can be: if a passage contains the phrase “greater than X” or “older than X” and X is an integer number between 10 to 100, then choose X as an answer candidate. It is worth noting that Summerscales (2013) is the only previous work targeting the same task according to our best knowledge. We integrate all the heuristic rules for min/max age value extraction from Summerscales (2013) into our passage retrieval based IE system.

Finally, we score the answer candidates by a term proximity function that takes into account the differences in position between the query terms and the candidate answers Zhao and Yun (2009). The function is formally defined in the following Equation:

[TABLE]

Equation 1 describes the proximity based ranking function between a candidate answer $c$ and a query $Q$, denoted by $sim(c,Q)$. Practically, for each word in the passage that matches the query terms ($q$), the similarity function increases the score of that candidate by an amount that depends on the distance between that matched word and the candidate answer $(p_{c}-p_{q})$. Specifically, we use a Gaussian function centered at each query term to determine the increase in similarity score. The parameter $\sigma$ controls the bandwidth of the Gaussians and is set to $1$ in our experiments.

4.4 Baseline 2: CRFBasedMinMaxAgeExtractor

We also developed the second baseline using CRF Sutton and McCallum (2012). The training dataset contains the clauses/sentences which contains the annotated min/max age value(s) from the eligibility criteria of the clinical studies registered in ClinicalTrials.gov. For each clause/sentence, we use Stanford CoreNLP Toolkit Manning et al. (2014) to obtain the tokens as well as the POS tags, then we create the corresponding training instance using BIO labels (i.e., Beginning/Inside/Outside of a min/max age). Table 2 shows the training instance for the example illustrated in Figure 2.

We train two CRF models for min age and max age extraction respectively, using 10,000 training instances for each model. We use words as well as POS tags as features. More specifically, for the word type features, we consider the current word $w_{i}$, the surrounding words ($w_{i-2}$, $w_{i-1}$, $w_{i+1}$, $w_{i+2}$), as well as bi-grams ($w_{i-1}$ + $w_{i}$, $w_{i}$ + $w_{i+1}$) and tri-grams ($w_{i-2}$ + $w_{i-1}$ + $w_{i}$, $w_{i-1}$ + $w_{i}$ + $w_{i+1}$, $w_{i}$ + $w_{i+1}$ + $w_{i+2}$) created from words. We create similar unigram, bi-gram and tri-gram features using the automatically predicted POS tags as well. We also include the combinations of the previous prediction and the current prediction as bi-gram features.

At the inference stage, for each article, we first extract all sentences containing the word “age/ages/aged” or “year/years”. We then apply the min/max age CRF model on these sentences and extract all tokens with the predicted label “B”. In the end, among all predicted words, we choose the word which represents a valid integer number and has the highest confidence score as the predicted min/max age value for the article.

4.5 Results and Discussion

Table 3 shows the performance of the baselines (PassageRetrievalBasedMinMaxAgeExtractor and CRFBasedMinMaxAgeExtractor) as well as our system (QABasedMinMaxAgeExtractor, described in Section 3) for extracting min/max age values of the study samples.

For MinAge, the first baseline (PassageRetrievalBasedMinMaxAgeExtractor) achieves a very high precision score ($90.9\%$) but suffers from low recall ($28.6\%$). The second baseline (CRFBasedMinMaxAgeExtractor) improves the recall by 21.4 points but only achieves a precision score of 42.5%. Compared to the first baseline, our system manages to improve recall by 37.1 points and still achieves a reasonable level of precision ($79.3\%$). Overall, our system improves the results over the two baselines by a large margin regarding F-score ($71.9\%$ vs. $43.5\%$, and $71.9\%$ vs. $45.9\%$).

The similar pattern is also observed for MaxAge: Our system improves the results over the first baseline by a substantial margin on recall ($60.0\%$ vs. $32.0\%$) and F-score ($66.7\%$ vs. $44.4\%$) respectively.

It might seem surprising that CRFBasedMinMaxAgeExtractor performs much worse than PassageRetrievalBasedMinMaxAgeExtractor for MaxAge. This is because many max age values in scientific articles are not correctly recognized as a single token by Stanford CoreNLP Toolkit. For instance, the tokenization model predicts that “18-60” or “$<=$60” as single tokens. In contrast, our system is more robust for parsing such numeric expressions.

In addition, it seems that the carefully designed min/max age patterns in the first baseline only cover a few forms of min/max age expressions. On the contrary, our min/max age question-answering module (MinMaxAgeQA, Section 3.4) trained over a large-scale dataset can capture various linguistic expressions of min/max age in natural language, for instance, “$\geq 18$ years of age” or “age $>=$ 18 years”.

4.6 Analysis

To better understand the roles of different components in our system, we carried out a few experiments:

• •

—WO MinMaxAgeSentFinder: instead of using MinMaxAgeSentFinder to find the sentences containing min/max age information, we pass all sentences containing the word “age/ages/aged” or “year/years” from the abstract, method, and result sections to the next component MinMaxAgeQA.

• •

—WO MinMaxAgeQA: we use the most common min/max age expression pattern in clinical trial studies “X-Y” (e.g., 18-23 years old) to predict min and max age values from the first sentence contain such a pattern.

• •

—WO Non-factualSentFilter: Non-factual age expression filter is not used.

The results of these experiments are shown in Table 4. It seems that MinMaxAgeQA has the most impact on the performance while Non-factualSentFilter has less of an impact. In addition, MinMaxAgeSentFinder has more impact on the results of MaxAge compared to MinAge.

We also performed some error analysis on our full system. We noticed that the noise introduced in the pre-processing step (e.g., missing some paragraphs) is the main reason to cause our system to predict “Null” for articles with min/max age annotation. For cases where a wrong min/max age value is predicted, they are often embedded in the speculative expressions which are not captured by our current Non-factualSentFilter. For instance, the system predicts 24 as the max age for one article in which 24 appears in a speculative sentence (see speculative expression in Example 4.6). For this article, the annotation for max age is 23 (see factual expression in Example 4.6).

• (speculative expression) Eligibility for this study included being a student (full or part time), smoking at least 1 cigarette/day in each of the past 7 days, being aged 18-24 years, and being interested in quitting smoking in the next 6 months.

(factual expression) Participants were 83 smokers, who were 18-23 years old and undergraduate students at a university.

5 Conclusions

This paper aims to extract factual min/max age values of the study samples from clinical research papers. We leverage the large-scale records from the ClinicalTrials.gov database to provide distant supervision for our system. We also explore “speculative cues” and the structure of the scientific papers to extract information from factual statements about the target study. We show that our approach outperforms a passage retrieval based IE system and a CRF-based model by a large margin on a testing dataset consisting of 50 journal articles and around 18,000 sentences.

In the future, we plan to extend our framework to extract other types of numeric values from the clinical research papers, such as the outcome values of the different intervention groups and the control group (e.g., 40% of PP abstinence rates), as well as the time frame of the follow up (e.g., 52 weeks or 6 months).

Acknowledgments

This work was supported by a Wellcome Trust collaborative award as a part of the Human Behaviour-Change Project (HBCP): Building the science of behaviour change for complex intervention development (grant no. 201,524/Z/16/Z).
