From the Standard Model towards a Theory of Matter: Quarks

TL;DR

This paper revises the Standard Model to propose a universal fermion mass structure, highlighting the need for BSM physics to fully explain observed masses and providing constraints on new physics, with implications for perturbative calculations.

Contribution

It introduces a universal Higgs coupling framework for fermions, moving towards a Theory of Matter and constraining BSM matrix elements based on quark phenomenology.

Findings

Reduces the Higgs coupling constant by an order of magnitude.

Highlights the role of BSM physics in fermion mass hierarchy.

Provides constraints on BSM matrix elements.

Abstract

We follow the example of Cabibbo by revising the Standard Model (SM) to present a universal mass structure for fermions. A universal Higgs coupling for each species of fundamental fermions moves the SM towards a Theory of Matter, albeit without correctly describing the observed mass spectrum. It exposes a need for a complete Theory of Matter to include components from physics beyond the Standard Model (BSM). Describing the effect of these components phenomenologically provides a means to infer the nature of some of the BSM physics required. Our results also provide constraints on some BSM matrix elements. Here we apply this concept to quarks; the application to leptons will appear in a separate paper. An immediate benefit for theory is the reduction of the largest fine structure constant for the Higgs coupling to fermions by an order of magnitude, which improves the perturbative appearance of the weak interactions. The small mixing of the third generation of each fermion in the fermion families to the others is attributed to the small BSM perturbations that produce the small mass ratio of the lighter generations to the most massive one.

Figures

Equations

$$TBM=\left[\begin{array}[]{ccc}\frac{1}{\sqrt{6}}&-\frac{1}{\sqrt{2}}&\frac{1}{\sqrt{3}}\\ \frac{1}{\sqrt{6}}&\frac{1}{\sqrt{2}}&\frac{1}{\sqrt{3}}\\ -\frac{2}{\sqrt{6}}&0&\frac{1}{\sqrt{3}}\\ \end{array}\right]$$

$$M_{dem}=\frac{1}{3}\times\left[\begin{array}[]{ccc}1&1&1\\ 1&1&1\\ 1&1&1\\ \end{array}\right]$$

$$M_m$$

$$m_{u}=\left[\begin{array}[]{ccc}2.3&0&0\\ 0&1275&0\\ 0&0&173500\end{array}\right]\\$$

$$m_{d}=\left[\begin{array}[]{ccc}3.8&0&0\\ 0&95&0\\ 0&0&4150\end{array}\right]$$

$$m_{u-TBM}$$

$$m_{d-TBM}=(4150)\times\left[\begin{array}[]{ccc}0.34493&0.32204&0.33303\\ 0.32204&0.34493&0.33303\\ 0.33303&0.33303&0.33394\end{array}\right]$$

$${\mathcal{M}}_{HUB}=m\times [{\mathcal{M}}_{HU}+{\mathcal{M}}_{BSM}]$$

$${\mathcal{M}_{BSM}}=\epsilon\left[\begin{array}[]{ccc}\sqrt{\frac{2}{3}}y_{0}+y_{3}+\frac{1}{\sqrt{3}}y_{8}&y_{1}-I{y_{2}}&y_{4}-I{y_{5}}\\ y_{1}+I{y_{2}}&\sqrt{\frac{2}{3}}y_{0}-y_{3}+\frac{1}{\sqrt{3}}y_{8}&y_{6}-I{y_{7}}\\ y_{4}+I{y_{5}}&y_{6}+I{y_{7}}&\sqrt{\frac{2}{3}}y_{0}-\frac{2}{\sqrt{3}}y_{8}\\ \end{array}\right]$$

$$M_{diag}={\tilde{m}}\times\left[\begin{array}[]{ccc}\epsilon\delta&0&0\\ 0&\epsilon&0\\ 0&0&1\\ \end{array}\right]$$

$${ϵ}_u=7.35\times 10^{-3},$$

$${ϵ}_d=2.29\times 10^{-2},$$

$$X_{tot}$$

$$=$$

$$y_0$$

$$y_3$$

$$y_8$$

$$y_1$$

$$y_4$$

$$y_6$$

$$y_2$$

$$CKM=U\times V^{†}.$$

$$CK{M}_0=R{2}_{\omega u}^{†}{X}_{3\to 2u}^{†}TB{M}^{†}TBM{X}_{3\to 2d}R{2}_{\omega d}$$

$$CK{M}_1$$

$$CK{M}_1(1,3)$$

$$CK{M}_1(2,3)$$

$$CK{M}_1(3,1)$$

$$CK{M}_1(3,2)$$

$$X$$

$$Y$$

$$Z$$

$$CK{M}_1(1,3)$$

$$CK{M}_1(2,3)$$

$$CK{M}_1(3,1)$$

$$CK{M}_1(3,2)$$

$$\Phi =\arctan \left(\frac{Z\sin ({\omega }_u)}{X\cos ({\omega }_u)+Y\sin ({\omega }_u)}\right)$$

$$PHS=\left[\begin{array}[]{ccc}1&0&0\\ 0&1&0\\ 0&0&e^{-\imath\Phi}\\ \end{array}\right]$$

$$CKM_{BSM}=\left[\begin{array}[]{ccc}{\rm cos}(\Theta_{C})&{\rm sin}(\Theta_{C})&{\mathcal{R}}[(1,3)]+\imath\frac{XZ}{Q}\\ -{\rm sin}(\Theta_{C})&{\rm cos}(\Theta_{C})&Q\\ {\mathcal{R}}[(3,1)]+\imath\frac{XZ}{Q}{\rm cos}(\Theta_{C})&{\mathcal{R}}[(3,2)]+\imath\frac{XZ}{Q}{\rm sin}(\Theta_{C})&1\\ \end{array}\right]$$

Full text

I Introduction

The Standard Model (SM) consists of two parts: 1) a theory of interactions, namely the strong interactions (QCD), electroweak theory and Higgs field theory with its vacuum expectation value ($vev$), for the origin of the masses of the weak bosons, and 2) a model of fermions, namely a compendium of fermion degrees of freedom that are subject to these interactions with a relatively large number of ad hoc parameters to describe the range of observed masses (all still arising from the Higgs $vev$) and the mismatches between the fermion mass and weak interaction eigenstates (weak doublets). This latter part was implicit in the title of Weinberg’s seminal 1967 paper SW .

We focus on the implication in the SM that there are quantum numbers beyond weak isospin and charge – additional flavors – which distinguish among the three generations of families of fermions. However, none are known despite decades of effort to discern them, and the additional flavor quantity that presently defines the distinctions is, in fact, simply mass, for the charged fermions. This is made abundantly clear by the fact that this kind of flavor for neutrinos is not defined by neutrino mass but rather by the mass of the charged lepton to which the neutrino couples. All of this is further emphasized by the misalignment, between the weak interaction current isospin doublets and the mass eigenstate pairs, which is described by the Cabibbo-Kobayashi-Maskawa (CKM) matrix Cab ; KM for quarks and the corresponding Pontecorvo-Maki-Nakagawa-Sakakta (PMNS) matrix PMNS for leptons.

Nonetheless, there certainly must be quantum numbers that distinguish fermions of the same charge since, for example, the indefinite mass states constructed by inverting the action of the CKM on the massive states, are fermions with left-chiral parts that appear in precisely aligned pairs under the weak interaction and the coupling to the Higgs field. These states may properly be termed “current” fermions and must have some distinguishing feature so that both the charged vector bosons of the SM and the Higgs scalar recognize which pairs couple with unit strength.

I.1 Historical Considerations

Of course, the SM has been exceptionally successful with only a few recent hints of possible problems. SMprobs However, it remains a combination of model and theory. We apply two lessons from the history of physics in an attempt to resolve this issue.

One, from particle physics, is the value of insisting upon universality, most famously invoked by Cabibbo Cab to solve the problem of the decay rates in kaon decays that are markedly different compared to the expectations from Fermi theory as applied in nuclear beta decay and pion decay. This ultimately led to Glashow, Illiopoulos and Maiani GIM predicting the existence of the charm quark and influenced Kobayashi and Maskawa KM as they improved our understanding of CP-violation and predicted the existence of another pair of quarks which have also since been identified.

The other, from nuclear physics, is that a good starting model may have “too much” physics in it. As remarked by Weisskopf VW , several early nuclear models suffered from deviating more strongly from data when what appeared to be additional correctional elements of physics were added. This could be interpreted as being due to some of that physics already being included in the initial model.

Applying both of these lessons produces a theory of luminous (known) matter that does not agree with data as well as the SM, but points the way to contributions from new (BSM) physics which can be interpreted as being due to interactions with unknown, non-luminous, dark matter which is now known to exist. DM

I.2 Application Elements

As it stands, the SM remains an incomplete theory with model components. As observed by Kaus and Meshkov othrKM almost 30 years ago, one way to advance to a theory is to recognize that, although the Higgs field precisely responds to which pairs of left-chiral, weak doublet Weyl spinors are related by the weak interaction, in parallel to the transitions due to the charged W-bosons, it has no known means to determine which of these combine with the (independent) particular right-chiral, Weyl spinors that appear in weak singlets. This feature of the resulting theory was called “democracy” by Jarlskog Jarl .

Aspects of this observation were made earlier by a number of authors, notably Fritzsch and Planckl. FP However, the corrective efforts involved either assuming a substructure to the quarks and leptons or embedding them in larger (“grand unifying”) gauge theories to acquire quantum numbers to distinguish distinct fermions of the same charge. PDGU

The apparent problem of the “democratic” theory is that it provides mass via the Higgs $vev$ to only one mass eigenstate of each triplet of Dirac bi-spinors, of each (electric) charge, that are formed from appropriate pairs of the Weyl spinors (as will be displayed below). In the past, this was viewed as an impediment to proceeding along this path. Nonetheless, it has an appeal in restoring a kind of universality much as Cabibbo restored the universality of the weak interaction strength by inferring that the weak interaction eigenstates consisted of combinations of strong interactions mass eigenstates that we now describe in terms of quarks.

More recently, the existence of dark matter (DM) has been amply confirmed DM and the question of its possible very weak interaction with luminous (known) matter has arisen. We note here that this affords an opportunity to reconsider the Kaus-Meshkov othrKM approach to a theory by considering the possibility that there are perturbatively small corrections to the Higgs mass matrices due to very weak interactions of luminous matter with DM. Following this theory route allows for the unambiguous identification of some of the BSM physics needed if this formulation is correct. We examine this in detail and show that it can indeed provide an accounting for all of the observed masses and (weak) mixings using only perturbatively small corrections (less than several percent) which should be calculable in any theoretical extension that includes DM. Our results provide constraints on those extensions.

Consistent with the retrenchment from the SM to Higgs Universality plus phenomenological additions, the small corrections from the additional physics necessarily involve DM degrees of freedom and so illuminate (a part of) that sector. Without assuming detailed knowledge of the new physics, but with the assumption of the validity of the see-saw mechanism for neutrino masses seesaw , it is also possible to predict, consistent with current experimental observations, the approximate range of the ratios of the masses of three sterile neutrinos. These predictions constitute a test of this approach as long as the see-saw mechanism is also valid. Without it, a different approach would be required. We defer an analysis of leptons to a separate paper.

II Weyl-Spinor/Chiral Basis for Democracy

As demonstrated by the attempts at Grand Unification Georgi-Glashow ; SO10 , mass terms in the SM are well-described as arising from elements of the Lagrangian in which a Weyl spinor from a weak interaction (SU(2)) doublet is coupled via the Higgs boson to a Weyl spinor that is a weak interaction singlet. The mass term develops when the electric charge neutral component of the Higgs boson acquires a $vev$. If the two spinors involved are then phase locked together to form a Dirac bispinor, the terms may be rewritten into the conventional form of a Dirac mass term. This detail is usually obscured by writing the interaction directly in terms of left- and right-chiral projections of Dirac bispinors. To be consistent with the symmetries of the theory, this can only be done for pairs that have matching combinations of weak isospin and U(1) weak hypercharge quantum numbers which produce a conserved electric charge.

However, within the SM, there are no other quantum numbers to determine which compatible pairs of singlet and doublet components should be matched. Conventionally, in the Dirac form, one simply adjusts the Higgs coupling so that the product with its $vev$ equals one of the experimentally determined values and assigns that to a particular pair in that form. The very large value required for the dimensionless coupling for the top quark raises a concern regarding the validity of calculations using perturbation theory who1 . Furthermore, the mismatch between mass and current states that presents itself in the CKM matrix Cab ; KM , including the existence of CP-violation, is completely ad hoc (phenomenological).

To resolve this conundrum, we recall that, by means of his mixing angle, Cabibbo Cab resolved the difference of the weak interaction strength for strange hadrons from that for non-strange hadrons (including nuclei) as contrasted with the universality of the weak interaction for electrons and muons. The requirement of a universal weak interaction for hadrons, i.e., “Cabibbo Universality”, opened the door to both the prediction the charm quark GIM and the development of the SM as a whole. Here we propose that it is beneficial to extend that universality to include the interactions of the Higgs boson with all of the fundamental fermions of each charge type, i.e., Higgs Universality.

The mass spectra themselves invite consideration of such an approach: For all three triples of electrically charged fermions, two mass values are considerably smaller than the largest mass, which is reminiscent of the “pairing gap” spectrum pairing if the smaller values may be approximated as negligible. This spectrum arises from a mass matrix in which all of the entries are identical (Higgs Universality), which appears natural in the absence of quantum numbers that distinguish which pairs of the Weyl spinors (one from a weak doublet and one from a weak singlet) are specifically to be related.

This observation was essentially first made as much as four decades ago othrKM ; democ and the corresponding mass matrix was termed “democratic” Jarl . At the time, the complete set of quark and charged lepton masses was not known. Now that it is, one can apply the inverse of the unitary transformation (which in its conventional form is termed “tri-bi-maximal” or TBM) that diagonalizes the democratic matrix and determine the magnitude of the deviations from democracy. When scaled by the largest mass value, they are indeed found to be equal to each other to within a few percent or less.

This result supports a conjecture that the deviations from equality are due to perturbative corrections from physics beyond the SM which is conventionally termed BSM physics. By appropriately scaling and parametrizing these terms, they may be examined for “naturalness” and related to the two smaller masses in each triple of Dirac fermions with a common electric charge. Loop corrections involving BSM degrees of freedom are a plausible origin for such perturbations. A side benefit is the reduction of the largest dimensionless coupling between the quarks (of each charge) and the Higgs by a factor of three, corresponding to a reduction by an order of magnitude of the largest Higgs “fine structure” constant. This reduction improves the perturbative appearance of the weak interactions. who1

For the quarks, one may immediately go further as the unitary matrices (which then differ from being exactly TBM) that diagonalize the mass matrices also describe the misalignment between the mass eigenstates and the weak current eigenstates. The product of the adjoint of that unitary transformation for the (electric charge +2/3) up quarks with the one for the (electric charge -1/3) down quarks forms the CKM matrix. Cab ; KM The CKM now describes the deviations from weak interaction universality in the charge-raising quark weak current as also being due to BSM physics. In particular, the smallness of the mixing between each of the family members in the (so-called) third “generation” and those in the other two, due to the large difference in mass, follows immediately. Matching the experimental CKM values provides additional constraints on the parameters describing the BSM physics and further identifies BSM physics as the source of CP-violation. The unitary transformation matrices of both the up quarks, and the down quarks include a TBM factor, which cancels out in the product and leaves the CKM sensitive to the (presumed) BSM corrections.

In the following sections, we display the calculations that we have described here.

III Quark masses

Since there is no advantage to using the Weyl spinor formulation for the quarks, we maintain the Dirac bispinor representation here.

The conventional TBM matrix

[TABLE]

diagonalizes the (so-called) “democratic” matrix

[TABLE]

to

[TABLE]

where we have chosen the overall scale so the nonzero eigenvalue is unity.

III.1 Accuracy of a Higgs Universal Initial Mass Matrix

The accuracy of a Higgs Universality conjecture for quarks can be tested by inverting the TBM transformation on the known quark masses (taken from the Particle Data Group (PDG) PDG and) placed into diagonal mass matrices for the up quarks and down quarks, respectively, viz.,

[TABLE]

and

[TABLE]

where all values are expressed in MeV/$c^{2}$. We will ignore the significant uncertainties and variation with scale of these massesscale as the ratios vary less dramatically, and the values of even the ratios are not known to very high accuracy.

Transforming these inversely using the $TBM$ matrix given in Eq.(1), we see that the resulting mass matrices are indeed almost exactly as expected if Higgs Universality is correct:

[TABLE]

and similarly

[TABLE]

where we have scaled out the overall factor of the largest mass in each case. Although the true accuracy is, of course, far less, we keep the extra digits to display which matrix elements are not identical after the (inverse) TBM transformation and so convey the patterns that will survive even substantial (within experimental uncertainties) changes in the ratios of the diagonal values.

(We note in passing that equivalent results for two pairs of $u$- and $d$-quarks were presented by Fritzsch and Planckl. FP2 )

This demonstrates that only perturbatively small BSM corrections to a universal starting point (Higgs Universality) are needed. (We have ignored $CP$-violation considerations here, but will return to them below.) The deviations from universality are exceptionally small, $\leq 1$% in the up quark sector and $<4$% in the down quark sector (for positive and negative deviations from an average). It is clear from this that something close in structure to $M_{dem}$ (times an overall mass scale, $m$) is a reasonable ansatz to consider for an initial mass matrix. (A similar result holds for the charged leptons.)

This result confirms that the wide range of quark masses is well described by an almost “democratic” mass matrix for each charge set of quarks, leaving only the overall scale difference between up quarks and down quarks (and also leptons) to be understood. We do not address that difference here.

III.2 Mass Matrix with BSM Corrections

In the current quark basis consistently defined by the Higgs and weak vector boson couplings (which is perhaps clearer in the Weyl spinor formulation), the universal Higgs plus BSM-corrected mass matrix for each set of 3 quarks of a given electric charge has the form

[TABLE]

where ${\mathcal{M}_{HU}}=M_{dem}$ and

[TABLE]

Here, $m$ is an overall scale which is approximately one-third of the mass of the most massive of each triple of quarks of a given non-zero electric charge. The BSM correction mass matrix, ${\mathcal{M}_{BSM}}$, accommodates the most general set of deviations possible for a Hermitean $3\times 3$ matrix from the democratic mass matrix produced by universal Higgs coupling in each quark charge sector. The coefficients are chosen to match the normalization of the standard Gell-Mann $SU(3)$ ($U(3)$) basis matrices.

The BSM corrections are all taken here to be proportional to the small quantity, $\epsilon$, defined by the diagonal matrix of known mass eigenvalues, (again, with the overall scale factored out)

[TABLE]

where ${\tilde{m}}$ may differ from $m$ by a term of ${\mathcal{O}}(\epsilon)$ which is irrelevant here.

III.3 Mass Ratio Parameter Values

As is apparent from Eq.(16), $\delta$ is the ratio of the mass of the lightest mass eigenstate of the three quarks (with the same electric charge) to the mass of the intermediate mass quark, and $\epsilon$ is the ratio of that quark mass eigenstate to the most massive of the three. In particular, for the quark mass values referred to above,

[TABLE]

Even the largest of these values easily qualifies as a small expansion parameter. We will see below that the $\delta$s do not significantly influence our results, so the largest perturbation is provided by $\epsilon_{d}$.

III.4 Diagonalization by Unitary Transformation

One may solve for the eigenvectors and eigenvalues of ${\mathcal{M}_{HUB}}$ as functions of the $y_{j}$. (We carried out that approach in an earlier version of this analysis, see Ref.(usV3 ).) However, we can directly infer from the required result, Eq.(16), that to leading order in $\epsilon$, the form of the unitary matrix $X_{tot}$ that diagonalizes ${\mathcal{M}_{HUB}}$ via $X_{tot}^{\dagger}\times{\mathcal{M}_{HUB}}\times X_{tot}$ may be structured as

[TABLE]

since the TBM factor will diagonalize all of the $\mathcal{O}(1)$ contributions and, for the right values of $x_{a}$ , $x_{b}$, and $\zeta$, the second factor ($X_{3\rightarrow 2}$) will block diagonalize the $\mathcal{O}(\epsilon)$ terms to a $2X2$ matrix, which can itself be diagonalized by a simple $2X2$ rotation through an angle $\omega$ ($R2_{\omega}$).

This is a sufficient approximation as the corrections to unitarity in $X_{3\rightarrow 2}$ are $\mathcal{O}(\epsilon^{2})$ or higher everywhere and $\mathcal{O}(\delta\epsilon^{2})$ in the (1,2) and (2,1) entries. Thus they do not affect the rotation in the 1-2 plane at an order of significance for our calculations here. The angle $\omega$ need not be small, however. For instance, if the block diagonalization produces a matrix that also has almost identical entries, then $\omega\sim\frac{\pi}{4}$ would be required to produce the eigenvalues of $\epsilon$ and $\epsilon\delta$.

We recognize that this approximate block diagonalization approach does not follow the normal Euler method, but rather effectively makes a rotation of the 3-axis about a particular axis in the 1-2 plane to a new 3-axis slightly [$\mathcal{O}(\epsilon)$] tilted over the 1-2 plane, followed by a rotation about the new 3-axis produced. We have checked that, as expected, this produces the same results at each level of approximation as a sequence of small Euler rotations, first about the 1-axis, then the 2-axis and finally by a not necessarily small rotation about the 3-axis. Both methods can be taken to high orders of $\epsilon$ leaving only arbitrarily small deviations from exact diagonalization of the mass matrix and from unitarity of the resulting $X_{tot}$.

By applying the inverse of this transformation to $M_{diag}$ and expanding to $O(\epsilon)$, we can find ${\mathcal{M}_{HUB}}$ in terms of only the four unknowns, $x_{a}$ , $x_{b}$, $\zeta$ and $\omega$. By projecting both the ${\mathcal{O}}(\epsilon)$ parts of this resulting matrix and of ${\mathcal{M}_{BSM}}$ using the nine standardly normalized Gell-Mann matrices, we determine that the nine $y_{j}$ parameters are not completely independent and can be defined in terms of only these four parameters. (In fact, $\mathcal{O}(\epsilon^{2})$ corrections to the 0 and 1 entries suffice to promote unitarity uniformly up to $\mathcal{O}(\epsilon^{3})$ without additional parameters.) We find

[TABLE]

In principle, these nine $y_{j}$ are independent quantities for each type of charged fermion, in addition to the two already experimentally (approximately) known quantities, $\epsilon$ and $\delta$.

Eqs.(26) constrain the freedom of proposed BSM models and demonstrate that only four $y_{j}$ (for each type of charged fermion) can be independent (as well as $\epsilon$ and $\delta$) in any proposed BSM model, as any deviations from the relations presented here must be higher order small, or the putative BSM model must be incorrect. These relations do have higher order corrections, but calculation of them is not warranted at this time, given that many of the quark masses are poorly known at present. Furthermore, as we will see below, with the exception of $y_{0}$ which is uniquely determined in terms of $\delta$, only differences between the parameters for the pairs of quark types can be determined from the CKM mixing matrix.

We note that this construction sets $y_{2}$ to zero. This is essential, but is most easily understood by proceeding in the opposite direction, by starting with the $y_{j}$ and constructing $X_{tot}$ from them. It is then clear that if $y_{2}\neq 0$, there will be large $CP$-violation in the light quark sector as the factor of $\epsilon$ factors out as an overall factor in the $2\times 2$ rotation, leaving $\mathcal{O}(1)$ $CP$-violation terms (as we showed in Ref.(usV3 ) and repeat here later). We postpone further discussion of $CP$-violation until we have developed the explicit CKM matrix.

We also note in advance that the Cartan subalgebra terms alone are insufficient to fit the experimental results for the CKM for the small values of $\delta$ seen above. A large value of $\delta$ would obviate the entire approach. We similarly postpone further discussion of this until after we develop the explicit CKM matrix.

IV Fitting to the CKM matrix

To compute the CKM matrix, we need the result in Eq.(25) evaluated for both the up quarks, and the down quarks. The separate matrices for these are conventionally labelled $U$ and $V$ respectively PDG , so that

[TABLE]

However, the PDG description is one in which these matrices transform from mass eigenstates to current eigenstates, but our derivation above is for the transformation of current eigenstates to mass eigenstates. Hence, the Hermitian conjugates are interchanged and the $V^{\dagger}$ of the PDG is our $X_{tot}$ for the down quarks and similarly, their $U$ is the Hermitian conjugate, $X_{tot}^{\dagger}$, of our $X_{tot}$ for the up quarks.

On combining the results for up quarks and down quarks to produce the equivalent of the CKM matrix,

[TABLE]

we see that the $TBM$ factor cancels out in the product. (We will see for leptons that a more complex development is both required and available in the see-saw mechanism, to match the mixing matrix for neutrinos.) Hence, it is sufficient to calculate

[TABLE]

where we have taken advantage of simple trigonometric relations to rewrite the $2\times 2$ block in terms of the angle difference, $\omega_{d}-\omega_{u}=\Theta_{C}$, i.e., (approximately) the Cabibbo angle.

The other elements are

[TABLE]

which demonstrates that the $CKM$ mixing depends solely on the difference between the diagonalizations of the up quarks and the down quarks, as it must. By defining

[TABLE]

these elements may be simplified somewhat to the form

[TABLE]

This result still does not match the form of the CKM matrix of the PDG (see below), as it has a nonzero imaginary term in the $(2,3)$ matrix element as well as in the $(1,3)$ matrix element. This may be remedied by making use of the same phase freedoms that are used to put the CKM matrix of the PDG into its standard form. There are six phases available in the CKM matrix, three each from the up quark and down quark sectors. We have implicitly used two of each of the three available in each mass matrix to reduce the form of $X_{tot}$ in Eq.(25) to have only one phase each for the up quarks and down quarks. Of the remaining two, one is an overall phase which can have no effect. We use the last one by choosing for it the value defined by

[TABLE]

Upon multiplying $CKM_{1}$ from the right by the phase matrix

[TABLE]

and on the left by its adjoint, we obtain our final form of the mixing matrix

[TABLE]

where

[TABLE]

is real (${\mathcal{R}}$) and the other real parts are

[TABLE]

As always, all elements are only shown to first order in the small quantities. (Recall here that $\omega_{d}=\omega_{u}+\Theta_{C}$, so there is only one free angle variable in these formulas.)

IV.1 PDG evaluation

The PDG PDG provides only the absolute values of the entries of the $CKM$ matrix. It also presents a matrix form that has only real entries in the first row and third column of the $CKM$ matrix, except for the $(1,3)$ matrix element. This is achieved by locating the one required phase in the matrix that produces rotation about the second axis, where the sequence of rotations is first about the third axis (which is almost identical with the Cabibbo rotation), next about the second axis, and finally about the first axis, proceeding from right to left in the products in the usual way, viz.

[TABLE]

where as usual, $c13={\rm cos}(\theta_{2})$, etc. and we have changed the PDG phase notation from $\delta$ to $\chi$ to avoid confusion with our mass ratio parameter above.

Our construction above agrees precisely with the PDG structure through first order in $\epsilon$ as the sines of all of the angles other than $\Theta_{C}$ are small (see below), as they must be of order $\epsilon$ to be consistent with the diagonalization matrices that we have constructed for the quarks. We will see immediately that this requirement is satisfied.

To proceed, we need to have explicit real and imaginary components for the matrix entries, rather than only moduli as reported by the PDG. Therefore we have constructed a version of the PDG result where we assume that all three of the mixing angles reside in the first quadrant. This is not justified, but demonstrates how the constraints on BSM parameters may be extracted were such information available and enables us to demonstrate that an acceptable fit solution does exist.

For completeness, we report here the values of the sines of the angles that we have extracted by the procedure just described:

[TABLE]

We have taken $\theta_{12}$ to be indistinguishable from $\Theta_{C}$ at this level of accuracy. We have also evaluated the $CP$-violation phase using the value of the Jarlskog CPV invariant (see below).

Taking these values and using the PDG PDG parametrization, we obtain central values for the real and imaginary parts of these quantities, viz.:

[TABLE]

where the rhs in each case is the corresponding entry of the matrix $CKM_{PDG}$ when, as noted above, the particular set of signs for the sines is chosen corresponding to all three angles being in the first quadrant. Also, using the entries in the upper left $2\times 2$ block, (which are real through first order in small quantities as $s13$ and $s23$ are both small) we estimate the value of the Cabibbo angle, $\Theta_{C}$, as

[TABLE]

i.e., approximately $13.0^{o}$.

Other choices for extracting the full matrix elements could be investigated as well, but this demonstrates that at least one solution exists. We have investigated a number of alternatives and find that the largest differences, apart from signs, are in the real and imaginary parts of $CKM13$ and part of $CKM32$, but the changes are not large, e.g., $\sim 20$%. However, if the phase is placed in an alternate location, for example so that the first row entries are all real, then larger changes are obtained in the real and imaginary parts, although the moduli are maintained, of course.

We uniformly present 4-digit values for consistency, but the changes between the 2012, 2014 and 2016 PDG reports suggest that in a number of cases the values are not known to better than two digits, at most, although some of the uncertainties are a small fraction of a percent. On the basis of these larger uncertainties, we conclude that carrying out our analysis to order $\epsilon^{2}$ is not warranted at this time. Finally, we note that our numerical representation of $CKM_{PDG}$ is unitary to better than one part in $10^{10}$.

IV.2 BSM parameter constraints

We can solve for the values of $X$, $Y$ and $Z$ as functions of $\omega_{u}$ (using $\omega_{d}=\omega_{u}+\Theta_{C}$) by requiring agreement between the values extracted above for the real and imaginary parts of $CKM13$ and the real value of $CKM23$ and the functional forms for these elements as given in Eqs.(47,48). Using the central values labelled as

[TABLE]

we find

[TABLE]

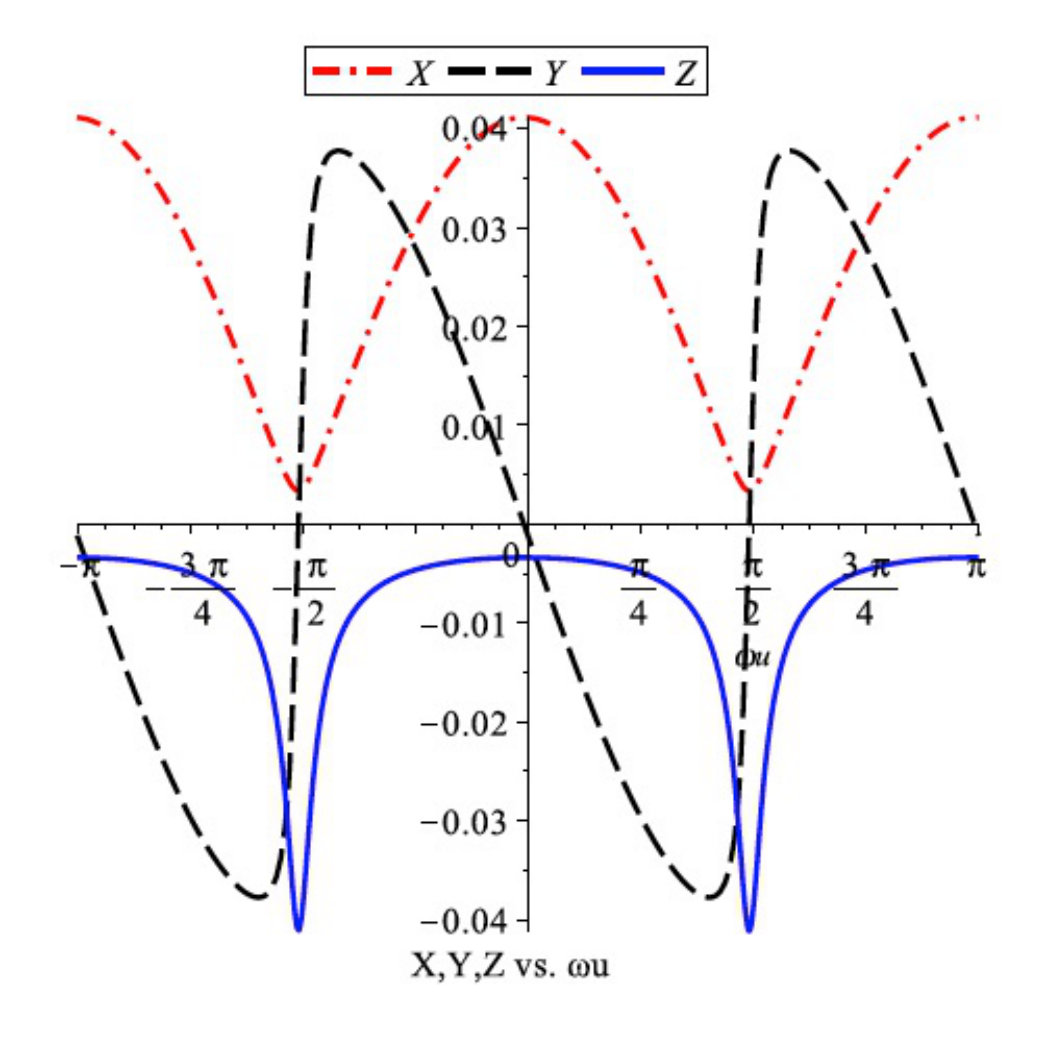

These are plotted in Fig.(1) for these values of $F$, $G$ and $H$. Note that these quantities include factors of $\epsilon$ and so must be of that order for the results to be “natural”, i.e., no parameters much larger than ${\mathcal{O}}(1)$ are required from the BSM physics to achieve the scale of these values. Fig.(1) shows that indeed they satisfy this constraint for all values of the unconstrained angle.

We have checked that all of the CKM matrix elements are consistent, that the fitted CKM matrix is unitary to a high accuracy (better than 1 part in $10^{9}$), and note that the moduli can not all be fitted without including a contribution from imaginary terms. This last means both that Higgs Universality fails without complex contributions from the BSM physics and conversely, that it is consistent to view BSM physics as the origin of CP violation, which we discuss next.

IV.3 CP Violation

Here, we examine what $CP$-violating implications are introduced by the BSM parameters that we have introduced that produce complex amplitudes. In particular, we examine whether this is sufficient to be the only source of $CP$-violation.

The invariant characterization of $CP$-violation was described by Jarlskog CPV . The Jarlskog invariant quantity, which we label ${\mathcal{J}}$, appears only at order $\epsilon^{2}$, and is given by PDG

[TABLE]

up to an overall sign ambiguity, in the standard PDG representation of the CKM matrix. (We used this value above to extract the $CP$-violating phase angle in the CKM matrix.)

At the first order in $\epsilon$ level of approximation, only the combination of matrix elements [$i=j=2,k=l=3$] reproduces the correct result for ${\mathcal{J}}$:

[TABLE]

where we have made use of the entries in Eq.(46) and the solutions for $X$ and $Z$ in Eqs.(71 ,73). We have checked that completing the unitary structure of $X_{tot}$ to second order in $\epsilon$ reproduces the correct result from any $i,j,k,l$ combination, but it is, of course, more convenient to acquire the result from the first order terms. With the value of ${\mathcal{J}}$ known, this provides a check on one pair of the combined parameters: We find that our fit agrees with the PDG value for the modulus of ${\mathcal{J}}$ to an accuracy of order 1 part in $10^{4}$.

It is straightforward to see from the imaginary parts that the $(3,1)$ and $(3,2)$ elements contain no new information beyond that from the $(1,3)$ and $(2,3)$ elements, which is true for the real parts also. It is also clear that the imaginary parts are consistent with the form of ${\mathcal{J}}$ as given in Eq.(76).

V Discussion

The most striking result of the analysis presented here is that the smallness of the non-Cabibbo mixing is directly related to the ratio of the middle to largest masses of the quarks. Both features are due to the perturbative size of BSM corrections to the initial “democratic” starting point. In contrast, the relatively large size of the Cabibbo mixing is allowed by the diagonalization process. The size of the separate rotations needed to diagonalize the lighter pairs of up and down quarks separately are at least convention dependent on the initial choice of axes in their two-dimensional subspace. (Of course, this may be constrained to a specific orientation in any particular BSM theory.)

A perhaps surprising result is that the BSM perturbations need not include all Cartan sub-algebra components, contrary to common analyses, while conversely, non-Cartan sub-algebra BSM perturbations are required and not only to induce $CP$-violation. This can be seen by setting $\zeta$ to zero and then solving the equations $y_{1}=0$, $y_{4}=0$ and $y_{6}=0$ for $x_{a}$, $x_{b}$, and $\omega$ which determines the values of $y_{3}$ and $y_{8}$ (where $y_{0}$ has been fixed independently by $\delta$). Combining these in $Q$ (and noting that $Z=0$ for $\zeta=0$) shows that, even for the largest value of $\epsilon$ available, $Q<0.02$ which is a factor of two too small compared to the experimental result. Conversely, it is possible for the required value of $Q$ to be attained with ${y_{3}}=0$ or ${y_{8}}=0$, and perhaps even both. Even with maximal constraints, only $y_{5}=y_{7}\sim 2$ is required, which is still “natural”, (while $y_{4}-y_{6}$ provides only a small contribution).

The mass ratios of the quarks are scale dependent, and one could examine the effects of that scale dependence on the CKM matrix and our fit. However, even the ratios are generally not that well known and do not vary significantly with scalescale over the range from 2 GeV, where the lightest quark masses are generally defined and determined, to the scale of the $b$-quark, nor from there to the weak scale which is also very close to the top quark mass. Refinements responding to these issues are certainly warranted, but we do not expect them to produce large corrections to the BSM parameter constraints determined here. In fact, since the effects considered here are dominated by the values of $\epsilon$, only the uncertainties associated with the masses of the strange and charmed quarks should be significant, as the $b$- and $t$-quark masses are relatively accurately known. Fortunately, the very large uncertainties associated with the ratios of the two lightest quarks do not play a significant role in establishing the configuration, although they will be important for precision analyses.

We have carried out the straightforward extension of our results to the next higher order in $\epsilon$ which might, in principle, be able to further constrain the values of the unknown parameters. Unfortunately, utilization requires knowledge of the relevant experimental values to order $\epsilon^{2}$, i.e., to of order a few parts in $10^{4}$, which is an accuracy generally not presently available. More accurate measurements could certainly change this conclusion.

V.1 Current quarks

The structure we find for the CKM also illuminates our statements about current quarks and their relation to the weak currents and Higgs couplings. If what we identify as BSM corrections were not present, then the cancellation of TBM factors would leave the CKM as an identity after transforming to the (“flavor”) mass basis as it was in the original “current” basis. This makes it apparent that it does not matter what current quark basis is implemented, not withstanding the difference between the overall mass scales for up quarks and for down quarks, as long as the mass matrices have identical structures. On the one hand, there is nothing in the SM itself to require a difference and on the other, the large separation of the individual masses of each charge means that it is possible to find a current quark basis where the mass matrices are democratic in the absence of BSM corrections. So we may conclude that a current quark basis does exist in which the mass matrices are democratic. Hence, that basis is available for our starting point as implemented here.

V.2 BSM contributions

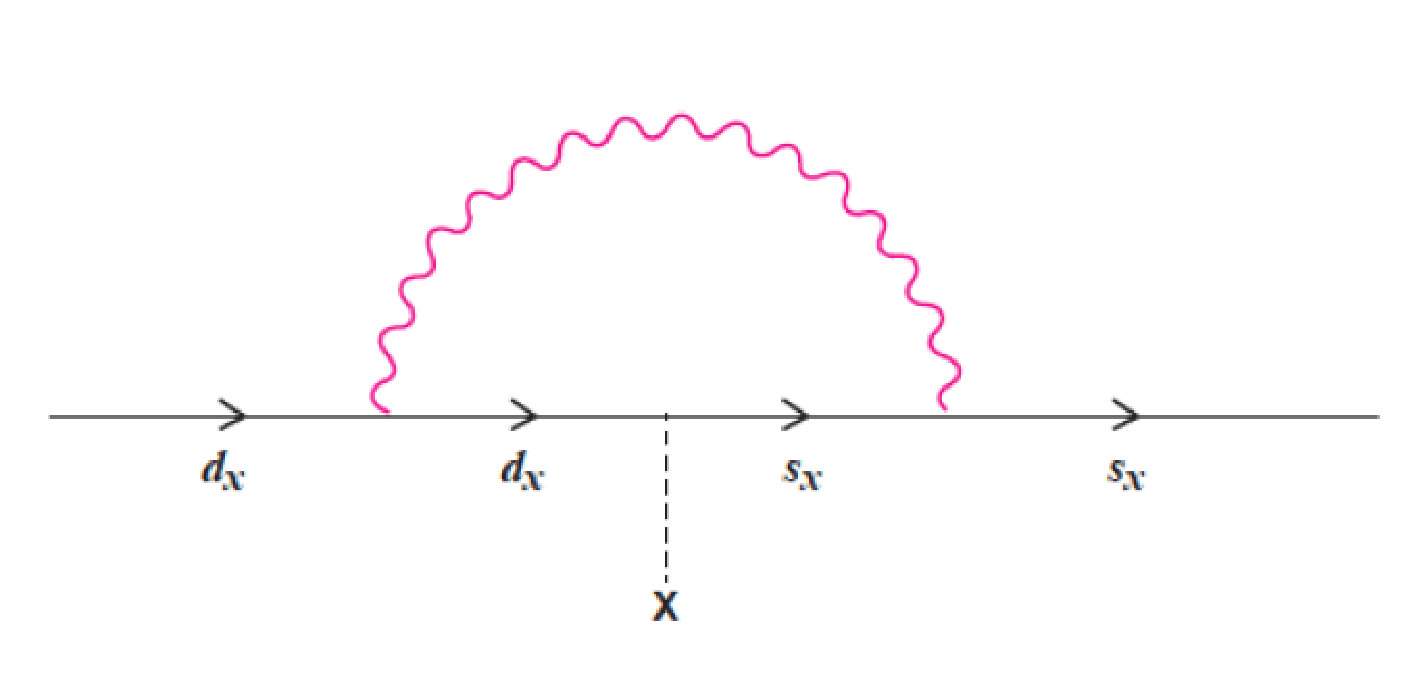

In general terms, Fig.(2) shows the nature of expected BSM corrections that do distinguish the different fermions and could lead to the small corrections that we find in our fits. The Lagrangian structure that we have in mind uses Weyl spinors for the separate left-chiral ($d_{x}$, for member of a weak interaction doublet) and right-chiral ($s_{x}$, for a weak interaction singlet) parts of the fermion Dirac bispinors, but nonetheless produces Dirac mass terms which may be simply represented as above.

(DM interacting with what we call luminous matter, at least with neutrinos intDM , as well as self-interacting DM selfintDM , has already been proposed to solve inconsistencies observed if DM had only gravitational interactions, as discussed in Ref.intDM .)

Interestingly, we expect these loop calculations to be finite as they involve only differences within the triples of fermions. This effect was observed in Ref.GG , where a symmetric, overall divergence appears but the differences in mass corrections are finite, although that model is for a quite different application of symmetry-breaking mass corrections. Also, the calculation there was done only for Cartan sub-algebra corrections, but since off-diagonal corrections simply refer to a different Cartan sub-algebra, those corrections should also be finite.

Fig.(2) is drawn for a BSM gauge vector boson interaction, but the BSM vector could in principle also couple the Weyl spinor $d_{x}$ to a ($CP$-conjugate of the) Weyl spinor $s_{x}$, which simply requires interchanging the labels on either side of the Higgs coupling to complete the loop. In that latter configuration of labels (without the $CP$-conjugation), the figure could also apply to a BSM scalar boson in the loop as well.

Note that without the intermediation of the Higgs scalar vacuum expectation value, both the $d_{x}$ and the $s_{x}$ pass through the loop unchanged and are not coupled to mass, so the BSM correction would only affect vertex renormalization.

Finally, we note that the $\epsilon$ parameter is a measure of the coupling of the BSM physics to luminous matter, but that in some sense, the $y_{j}$ represent the intrinsic strength of the BSM physics. Since the $CP$-violating $y_{2}$, $y_{5}$ and $y_{7}$ are not all zero and $y_{5}$ and $y_{7}$ are of $\mathcal{O}(1)$, this suggests that $CP$-violation in the BSM physics is not suppressed and invites thinking about the possibility that it is “maximal” in some sense, with the usual caveats about how to understand that. However, that clearly has significant implications for the development of baryon asymmetry in the early Universe as it means that the BSM $CP$-violation is not small, as in the SM. This provides alternate routes to large $CP$-violation for the development of that asymmetry.
