Universal quantum modifications to general relativistic time dilation in delocalised clocks

TL;DR

This paper explores how quantum superpositions of clock states can cause deviations from classical time dilation effects predicted by general relativity, revealing quantum modifications to proper time and measurement uncertainties.

Contribution

It introduces a framework for quantum clocks, demonstrating universal quantum effects on time dilation and quantifying the impact of delocalisation and entanglement on clock precision.

Findings

Quantum interference causes deviations in time dilation for nonclassical states.

Delocalisation increases uncertainty in time measurement due to entanglement.

Measurement of motion state can recover lost time measurement precision.

Abstract

The theory of relativity associates a proper time with each moving object via its world line. In quantum theory however, such well-defined trajectories are forbidden. After introducing a general characterisation of quantum clocks, we demonstrate that, in the weak-field, low-velocity limit, all "good" quantum clocks experience time dilation as dictated by general relativity when their state of motion is classical (i.e. Gaussian). For nonclassical states of motion, on the other hand, we find that quantum interference effects may give rise to a significant discrepancy between the proper time and the time measured by the clock. The universality of this discrepancy implies that it is not simply a systematic error, but rather a quantum modification to the proper time itself. We also show how the clock's delocalisation leads to a larger uncertainty in the time it measures -- a consequence of the unavoidable entanglement between the clock time and its center-of-mass degrees of freedom. We demonstrate how this lost precision can be recovered by performing a measurement of the clock's state of motion alongside its time reading.

Figures

Equations

$$-i\left[{\hat{T}}_{\text{c}},{\hat{H}}_{\text{c}}\right]{\rho }_{\text{c}}(t)={\rho }_{\text{c}}(t)+\hat{E}(t)$$

$$⟨{\hat{T}}_{\text{c}}{⟩}_{\text{NR}}(t)=t+{\int }_0^{t}d{t}^{\prime }\mathrm{tr}\left[\hat{E}(t^{\prime })\right]$$

$$d\tau =d\tilde{t}\left(1-\frac{v^2}{2c^2}+\frac{\Phi (r)}{c^2}\right),$$

$$\tau =\left[1-\frac{v_0^2}{2c^2}+\frac{g{x}_0}{c^2}+\frac{v_{0}gt}{c^2}-\frac{1}{3}{\left(\frac{gt}{c}\right)}^2\right]t.$$

$${\hat{H}}_{\text{c}\text{k}}={\hat{H}}_{\text{c}}\otimes \left(-\frac{{\hat{p}}^2}{2m^2{c}^2}+\frac{g\hat{x}}{c^2}\right),$$

$$⟨{\hat{T}}_{\text{c}}⟩(t)=⟨{\hat{T}}_{\text{c}}{⟩}_{\text{NR}}(t)+tR(t)\left\{1+\mathrm{tr}\left[\hat{E}(t)\right]\right\},$$

$$R(t)=-\frac{{\bar{p}}_0^2+{\sigma }_p^2}{2m^2{c}^2}+\frac{g{\bar{x}}_0}{c^2}+\frac{{\bar{p}}_{0}gt}{m{c}^2}-\frac{1}{3}{\left(\frac{gt}{c}\right)}^2.$$

$${|\psi ⟩}_{\text{k}}=\frac{1}{\sqrt{N}}\left(\sqrt{\alpha }{|{\psi }_1⟩}_{\text{k}}+\sqrt{1-\alpha }{|{\psi }_2⟩}_{\text{k}}\right)$$

$$N=1+2\sqrt{\alpha (1-\alpha )}{e}^{-\frac{1}{2}{\left(\frac{\Delta x_0}{2{\sigma }_x}\right)}^2}.$$

$$⟨{\hat{T}}_{\text{c}}{⟩}_{\mathrm{mix}}(t)=\alpha ⟨{\hat{T}}_{\text{c}}{⟩}_{{\psi }_1}(t)+(1-\alpha )⟨{\hat{T}}_{\text{c}}{⟩}_{{\psi }_2}(t),$$

$$⟨{\hat{T}}_{\text{c}}{⟩}_{\sup }(t)=⟨{\hat{T}}_{\text{c}}{⟩}_{\mathrm{mix}}(t)+T_{\text{coh}}(t),$$

$$T_{\text{coh}}(t):=\frac{N-1}{N}\left[{\left(\frac{\Delta x_0}{2{\sigma }_x}\right)}^2\frac{{\sigma }_v^2}{c^2}-\frac{g\Delta x_0}{c^2}(1-2\alpha )\right]\frac{t}{2}$$

$$\scalebox{1.3}{$\sigma$}_{\tiny{T}}(t)=\scalebox{1.3}{$\sigma$}_{\tiny{T},\textup{\tiny{NR}}}(t)+\scalebox{1.3}{$\sigma$}_{\tiny{T},\textup{\tiny{I}}}(t)+\scalebox{1.3}{$\sigma$}_{\tiny{T},\textup{\tiny{NI}}}(t),$$

$$\scalebox{1.3}{$\sigma$}_{\tiny{T},\textup{\tiny{I}}}(t):=\frac{t^{2}}{8\,\scalebox{1.3}{$\sigma$}_{\tiny{T},\textup{\tiny{NR}}}(t)}\frac{\langle\hat{p}^{4}\rangle+\sigma_{p^{2}}^{2}}{m^{4}c^{4}},$$

$${\hat{\Pi }}_{n,\delta p}:={\int }_{(n-1/2)\delta p}^{(n+1/2)\delta p}dp|p⟩{⟨p|}_{\text{k}}.$$

$${\tilde{g}}_{00}=-\left[1+\frac{2\Phi (r)}{c^2}+\frac{2\Phi (r{)}^2}{c^4}\right]+\mathcal{O}\left({\left(\frac{\Phi (r)}{c^2}\right)}^3\right)\text{ and }{\tilde{g}}_{ij}={\delta }_{ij}\left[1-\frac{2\Phi (r)}{c^2}\right]+\mathcal{O}\left({\left(\frac{\Phi (r)}{c^2}\right)}^3\right),$$

$$g_{00}={\left[1-\frac{{\Phi }_0}{c^2}\right]}^2{\tilde{g}}_{00}+\mathcal{O}\left({\left(\frac{\Phi (r)}{c^2}\right)}^3\right)\text{ and }{g}_{ij}={\tilde{g}}_{ij},$$

$$E_{\mathrm{lab}}^2=\frac{{\bar{g}}^{00}{E}_{\mathrm{rest}}^2-p_j{p}^j{c}^2}{g^{00}}=-g_{00}\left(E_{\mathrm{rest}}^2+p_j{p}^j{c}^2\right),$$

$$E_{\mathrm{rest}}=m{c}^2+E_{\text{c}}.$$

$$E_{\mathrm{lab}}=m{c}^2+mgx+\frac{p^2}{2m}-\frac{p^4}{8m^3{c}^2}+E_{\text{c}}\left(1-\frac{p^2}{2m^2{c}^2}+\frac{gx}{c^2}\right),$$

$$\hat{H}={\hat{H}}_{\text{c}}+{\hat{H}}_{\text{k}}+{\hat{H}}_{\text{c}\text{k}},$$

$${\hat{H}}_{\text{k}}=m{c}^2+mg\hat{x}+\frac{{\hat{p}}^2}{2m}-\frac{{\hat{p}}^4}{8m^3{c}^2}$$

$${\hat{H}}_{\text{c}\text{k}}={\hat{H}}_{\text{c}}\otimes \left(-\frac{{\hat{p}}^2}{2m^2{c}^2}+\frac{g\hat{x}}{c^2}\right),$$

$${\rho }^I(t)=U_0^{†}(t)\rho (t)U_0(t),\rho (t)=U(t)\rho (0)U(t{)}^{†},$$

$$\frac{\partial }{\partial t}{\rho }^I(t)=\left[{\hat{H}}_{\text{c}\text{k}}^I(t),{\rho }^I(t)\right],$$

$${\rho }^I(t)=\rho (0)-i{\int }_0^{t}d{t}^{\prime }[{\hat{H}}_{\text{c}\text{k}}^I(t^{\prime }),\rho (0)].$$

$$\rho (t)=e^{-i{\hat{H}}_{0}t}\rho (0)e^{i{\hat{H}}_{0}t}-i{e}^{-i{\hat{H}}_{0}t}\left\{{\int }_0^{t}d{t}^{\prime }[{\hat{H}}_{\text{c}\text{k}}^I(t^{\prime }),\rho (0)]\right\}{e}^{i{\hat{H}}_{0}t}.$$

$${\rho }_{\text{c}}(t)={\rho }_{\text{c},\text{NR}}(t)+{\rho }_{\text{c}}^{(1)}(t),$$

$$\displaystyle\rho_{\textup{c}}^{(1)}(t)=-i\int_{0}^{t}dt^{\prime}\mathrm{tr}_{\textup{\scriptsize{k}}}\big{[}e^{-i\hat{H}_{0}t}[\hat{H}_{{\textup{c}}\textup{\scriptsize{k}}}^{I}(t^{\prime}),\rho(0)]e^{i\hat{H}_{0}t}\big{]},$$

$$\rho (0)={\rho }_{\text{c}}(0)\otimes {\rho }_{\text{k}}(0),$$

Full text

1 Introduction

One of the most important programs in theoretical physics is the pursuit of a successful theory unifying quantum mechanics and general relativity. Arguably, many of the difficulties arising in this pursuit stem from a lack of understanding of the nature of time [1, 2, 3], particularly the conflict between how it is conceived in the two theories [4]. For example, in general relativity a given object’s proper time is defined geometrically according to that object’s world line, but according to quantum mechanics such well-defined trajectories are impossible. How do we then assign a proper time to the delocalised objects described by quantum theory?

Confusion over the nature of time is not limited to the context of quantum gravity. Indeed, even in non-relativistic quantum mechanics, there is much to clarify. In the latter, time is not treated on the same footing as other observable quantities in the theory — it is a parameter, rather than being represented by a self-adjoint operator. This aspect of the theory of quantum mechanics troubled its founders; Wolfgang Pauli, for example, famously noted the impossibility of a self-adjoint operator corresponding to time [5]. Specifically, a quantum observable with outcome $t\in{\mathbbm{R}}$ equal to the time parameterising the system’s evolution, can only be achieved in the limiting case of infinite energy, and is therefore unphysical, as we discuss in Sec. 2. It is however possible to construct self-adjoint operators whose outcome is approximately $t$, with an error that can in principle be made arbitrarily small, in systems of finite energy (see e.g. [6]).

If one takes an operationalist viewpoint, one can draw conclusions about time by discussing the behaviour of clocks. This underlies Einstein’s development of special relativity [7], the prototypical example of operationalism [8]. In a quantum setting, the clocks must of course be quantised, leading naturally to a time operator. This operational approach has revealed fundamental limitations to time-keeping in non-relativistic quantum systems [9, 6, 10, 11], and novel effects in a variety of relativistic settings [12, 13, 14, 15, 16].

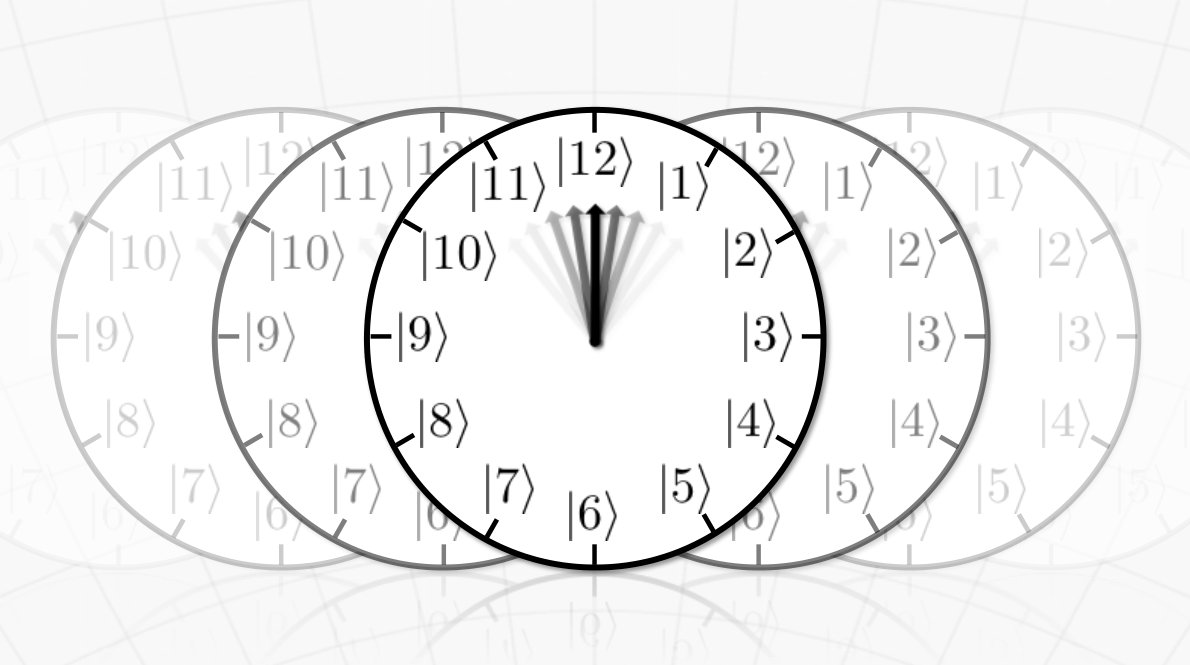

The present work concerns slowly-moving generic quantum clocks embedded in a weakly-curved spacetime. We are interested in the phenomenon of time dilation, and how quantizing the clock may result in predictions distinct from those of general relativity alone. We take the operational viewpoint noted above, associating time with the outcomes of measurements performed on generic quantum clocks. In this setting, in contrast with the study of clocks in non-relativistic quantum mechanics, we must consider the position and momentum of the clock. Quantum theory dictates that it be subject to some degree of spatial delocalisation in addition to its “temporal delocalisation” (i.e. the indeterminacy of its time-reading), as depicted in Fig. 1.

Relativistic effects manifest in this quantum setting via a coupling between the clock’s kinematic and internal (in our case, time-measuring) degrees of freedom. The form of this coupling has been derived in a number of different ways: from the relativistic dispersion relation and mass-energy equivalence [17], from the Klein-Gordon equation in curved spacetime [18] (or its corresponding Lagrangian density [16]), and as a consequence of classical time dilation between the clock and the laboratory frame of reference [19]. It has been used to predict a relativistically-induced decoherence effect [20], and a corresponding reduction in the visibility of quantum interference experiments [19]. This approach treats spacetime classically, making no reference to a quantum theory of gravity. It is applicable only in the low-energy, weak-gravity limit, so that we may consider relativistic effects as perturbative corrections to non-relativistic quantum mechanics.

We begin by introducing a way of characterising the accuracy of a generic quantum clock, before describing how to incorporate the phenomenon of time dilation into quantum dynamics. This is followed by a description of the average time dilation experienced by a quantum clock for two different states of motion. We then discuss how the incorporation of relativity increases the uncertainty associated with the measurement of time, and how this can be mitigated by gaining knowledge of the clock’s location/motion, illustrating this with a numerical example. We finish with a discussion of our results and the questions that arise from them.

2 Non-Relativistic Quantum Clocks

Before we discuss relativistic effects, it is convenient to introduce a characterisation of the extent to which a given quantum clock measures time accurately. We associate the relevant degree of freedom with a Hilbert space $\mathcal{H}_{\textup{c}}$, and consider an initial clock state ${\rho}_{\textup{c}}(0)$ which evolves according to the Schrödinger equation, with Hamiltonian $\hat{H}_{\textup{c}}$. We use the term laboratory time to refer to the parameter appearing in the Schrödinger equation. At laboratory time $t$, a measurement is performed, which corresponds to a Positive-Operator Valued Measure (POVM) $\{\hat{F}(s)\}_{s\in\,\mathcal{S}}$ with $\mathcal{S}\subseteq{\mathbbm{R}}$. We refer to the outcome $s$ of this measurement as the clock time. A quantum clock is then defined by the tuple \big{\{}\{\hat{F}(s)\}_{s\in\,\mathcal{S}},\hat{H}_{\textup{c}},{\rho}_{\textup{c}}(0)\big{\}}. In this article however, it suffices to consider \big{\{}\hat{T}_{\textup{c}},\hat{H}_{\textup{c}},{\rho}_{\textup{c}}(0)\big{\}}, where ${\hat{T}_{\textup{c}}:=\int_{\mathcal{S}}s\,\hat{F}(s)ds}$ is the first-moment operator of the POVM, which determines the expected value of the measurement. In the case where the POVM is a projection-valued measure (in other words, where the clock times are perfectly distinguishable) the definition of $\hat{T}_{\textup{c}}$ above is simply the spectral decomposition of the self-adjoint operator corresponding to the measurement. For simplicity, we choose the laboratory time $t$ to be such that $\langle\hat{T}_{\textup{c}}\rangle(0)=0$.

If a quantum clock satisfies the Heisenberg form of the canonical commutation relation, \big{[}\hat{T}_{\textup{c}},\hat{H}_{\textup{c}}\big{]}=i\,\mathbbm{1}_{\textup{c}},111Here and throughout this article, we use units such that $\hbar=1$. The symbol $\mathbbm{1}_{\textup{c}}$ denotes the identity operator on $\mathcal{H}_{\textup{c}}$. the mean clock time will exactly follow the laboratory time, i.e. $\langle\hat{T}_{\textup{c}}\rangle(t)=t\text{ mod }T_{0}$ $\forall t$, for some (possibly infinite) clock period $T_{0}>0$. Furthermore, the standard deviation of such clocks is constant and determined by the initial state which can be arbitrarily small. We refer to such a clock as idealised. If one demands only this commutation relation, one can construct an idealised clock on a dense subset of the Hilbert space, with finite period $T_{0}$ and with $\hat{H}_{\textup{c}}$ bounded below (e.g. the phase operators in [21]). If we further impose canonical commutation relations of the Weyl form, and consider measurements corresponding to projection-valued measures, we necessarily have that $\hat{H}_{\textup{c}}$ is unbounded below (Pauli’s theorem [5, 22]), which is clearly unphysical, and ${T_{0}=\infty}$. These are both examples of covariant POVMs [23, 9], i.e. those satisfying the covariance property $\hat{F}(s)=\mathrm{e}^{-\mathrm{i}s\hat{H}_{\textup{c}}}\hat{F}(0)\mathrm{e}^{\mathrm{i}s\hat{H}_{\textup{c}}}$, $s\in{\mathbbm{R}}$; where in the case that $\mathcal{S}$ is bounded, $\hat{F}(s)$ has been periodically extended to ${\mathbbm{R}}$. Furthermore, they satisfy the canonical commutator relation of the Weyl form when $\mathcal{S}$ is unbounded, and of the Heisenberg form if ${\rho}_{\textup{c}}(0)$ and $\hat{F}(0)$ have disjoint support (see Appendix C for proof).

To derive results that apply universally to all quantum clocks, regardless of whether they exhibit the idealised behaviour discussed above, we first quantify the extent to which a given clock deviates from an idealised one. To this end, we introduce a clock’s error operator $\hat{E}(t)$; for any clock characterised by \big{\{}\hat{T}_{\textup{c}},\hat{H}_{\textup{c}},{\rho}_{\textup{c}}(0)\big{\}}, we define $\hat{E}(t)$ via

[TABLE]

where ${\rho}_{\textup{c}}(t)=e^{-it\hat{H}_{\textup{c}}}{\rho}_{\textup{c}}(0)\,e^{it\hat{H}_{\textup{c}}}$. While there are a variety of ways one might characterise the deviations of any clock, it will turn out that for our purposes, the definition of $\hat{E}(t)$ is particularly convenient. As initial motivation, observe that the error operator $\hat{E}(t)$ allows us to quantify the discrepancy between the average clock time and the laboratory time $t$ via

[TABLE]

where the subscript NR denotes that the clock does not account for relativistic effects (i.e. it evolves under the action of $\hat{H}_{\textup{c}}$ alone), and we have assumed for convenience that $\langle\hat{T}_{\textup{c}}\rangle_{\textup{\tiny{NR}}}(0)=0$. For an idealised clock, we have -i\big{[}\hat{T}_{\textup{c}},\hat{H}_{\textup{c}}\big{]}=\mathbbm{1}_{\textup{c}}, and therefore $\hat{E}(t)=0$ $\forall t$. We therefore call a clock good when $\hat{E}(t)$ is small in norm relative to the other quantities involved.

An interesting case is when the clock is a $d$-dimensional spin system, with evenly-spaced energy eigenvalues (corresponding to the spin-projection states). Constructing $\hat{T}_{\textup{c}}$ such that its eigenvectors form an appropriate mutually-unbiased basis with respect to the spin-projection states, and choosing ${\rho}_{\textup{c}}(0)$ to be one of the eigenvectors of $\hat{T}_{\textup{c}}$, one arrives at the well-known Salecker-Wigner-Peres clock [12, 24] — a quantum version of the common dial clock (see Fig. 1). In this case, $\hat{E}(t)$ is not always small; one has \mathrm{tr}\big{[}\hat{E}(t)\big{]}=-1 at regular intervals of laboratory time, regardless of the dimension $d$ or energy. This arises due to the clock states’ lack of coherence in the eigenbasis of $\hat{T}_{\textup{c}}$; specifically $[\hat{T}_{\textup{c}},{\rho}_{\textup{c}}(t)]$ is zero at regular intervals of laboratory time. This issue can be removed by choosing ${\rho}_{c}(0)$ to have some quantum coherence in this basis, as in the Quasi-Ideal clock [6]. In the latter case, $\|\hat{E}(t)\|_{1}$ is exponentially small in both the dimensionality $d$ and the mean energy of the clock $\forall t$. This is a consequence of the Quasi-Ideal clock’s approximately dispersionless dynamics in the eigenbasis of $\hat{T}_{\textup{c}}$. In addition to the Quasi-Ideal clock, the Salecker-Wigner-Peres and qubit-phase clocks, which do not posses this property, are discussed in Appendix D.

3 Relativistic Time Dilation

Classically, in the post-Newtonian approximation of general relativity, the proper time $\tau$ experienced by an observer is determined by [25]

[TABLE]

to first order in $v^{2}/c^{2}$ and $\Phi/c^{2}$, where $v$ is the observer’s velocity, $r$ is the distance from a gravitating body of mass $M$, $\Phi(r)=-GM/r$ is the Newtonian gravitational potential, and $\tilde{t}$ is the proper time of a fictional observer at rest at $r=\infty$. We take the common approximation of the Newtonian potential around a point $r_{0}$, i.e. $\Phi(r)\approx\Phi(r_{0})+gx$, where $g$ is the gravitational acceleration at the point $r=r_{0}$ (e.g. $g=9.81$​ m​ s*-2* at the surface of the Earth), and $x:=r-r_{0}$. The reference frame corresponding to the laboratory is then given by $(t,x)$, where the laboratory time $t$ is the proper time of an observer at rest at $r=r_{0}$. Then, for a classical clock with initial position $x_{0}$ and velocity $v_{0}$, Eq. (3) allows us to relate the clock’s proper time $\tau$ to the laboratory time:

[TABLE]

If we now consider the clock to be subject to the laws of quantum mechanics, we must describe how its temporal degree of freedom interacts with its kinematic degrees of freedom. To that end, we consider a total Hilbert space $\mathcal{H}=\mathcal{H}_{\textup{c}}\otimes\mathcal{H}_{\textup{\scriptsize{k}}}$, where the space $\mathcal{H}_{\textup{\scriptsize{k}}}$ corresponds to the kinematic variables in one dimension, namely position $\hat{x}$ and momentum $\hat{p}$, with $[\hat{x},\hat{p}]=i\,\mathbbm{1}_{\textup{\scriptsize{k}}}$. The coupling between the temporal and kinematic spaces (which can be understood as a consequence of mass-energy equivalence [26]) is then given by the interaction Hamiltonian [18, 20, 17]

[TABLE]

where $m$ is the mass of the clock, and where we continue the approximation in Eq. (3), neglecting terms proportional to $1/c^{4}$ (see Appendix A). The two terms in Eq. (5) represent the lowest-order contributions to the time dilation due to motion (c.f. $v^{2}/2c^{2}$ in Eq. (3)) and gravity respectively. The clock is then subject to the total Hamiltonian $\hat{H}=\hat{H}_{\textup{c}}+\hat{H}_{\textup{\scriptsize{k}}}+\hat{H}_{\textup{c}\textup{\scriptsize{k}}}$, with ${\hat{H}_{\textup{\scriptsize{k}}}=mc^{2}+mg\hat{x}+\hat{p}^{2}/2m-\hat{p}^{4}/8m^{3}c^{2}}$, where the final term is the usual lowest-order relativistic correction to the kinetic energy.

4 Time Dilation in Quantum Clocks

We assume the initial state of the clock to be uncorrelated across $\mathcal{H}_{\textup{c}}$ and $\mathcal{H}_{\textup{\scriptsize{k}}}$, i.e. that $\rho_{\textup{c}\textup{\scriptsize{k}}}(0)=\rho_{\textup{c}}(0)\otimes\rho_{\textup{\scriptsize{k}}}(0)$ for some $\rho_{\textup{c}}(0)$ and $\rho_{\textup{\scriptsize{k}}}(0)$. After evolving for an amount of laboratory time $t$, the average time dilation experienced by the clock (i.e. the average clock time) is

[TABLE]

where $R(t):=\mathrm{tr}\left[\left(-\frac{\hat{p}^{2}}{2m^{2}c^{2}}+\frac{g\hat{x}}{c^{2}}+\frac{\hat{p}gt}{mc^{2}}-\frac{g^{2}t^{2}}{3c^{2}}\right)\rho_{\textup{\scriptsize{k}}}(0)\right]$ is determined by the initial kinematic state. Recall that $\hat{E}(t)$ was defined according to the non-relativistic evolution of the clock (i.e. under $\hat{H}_{\textup{c}}$ alone). We now consider two possibilities for $\rho_{\textup{\scriptsize{k}}}(0)$ — a classical (i.e. Gaussian) and a nonclassical state.

4.1 A Gaussian state of motion

We take the initial kinematic state $\rho_{\textup{\scriptsize{k}}}(0)$ to be a pure Gaussian wavepacket, denoting the mean momentum by $\bar{p}_{0}$, the standard deviation of the momentum by $\sigma_{p}$, and the mean position by $\bar{x}_{0}$. This is the most classical choice in the sense that such states are the only ones with a non-negative Wigner function [27], and saturate the position-momentum uncertainty relation. We then have

[TABLE]

In this case, setting $\hat{E}(t)=0$ and using Eqs. (2) and (6), one finds that the average time measured by an idealised quantum clock is identical to the expectation value of the classical proper time (Eq. (4)) for an observer with a momentum following the same (i.e. Gaussian) probability distribution. A non-idealised clock will exhibit a non-relativistic quantum correction (the second term in Eq. (2)) as well as a contribution arising from both relativity and quantum mechanics (the final term in Eq. (6)). However, since both these effects are proportional to \mathrm{tr}\big{[}\hat{E}(t)\big{]}, they can be made arbitrarily small, for example by using the Quasi-Ideal clock discussed in Sec. 2 with an appropriately high dimensionality and mean energy [6]. Interestingly, for the Salecker-Wigner-Peres clock discussed Sec. 2, \mathrm{tr}\big{[}\hat{E}(t)\big{]}=-1 whenever the clock is in an eigenstate of $\hat{T}_{\textup{c}}$, exactly cancelling the usual classical relativistic effect in Eq. (6) (see Appendix D). This property of the Saleker-Wigner-Peres clock states has also been identified as the cause for suboptimal performance in other areas, related to quantum error correction with clocks [28].

4.2 A superposition of heights

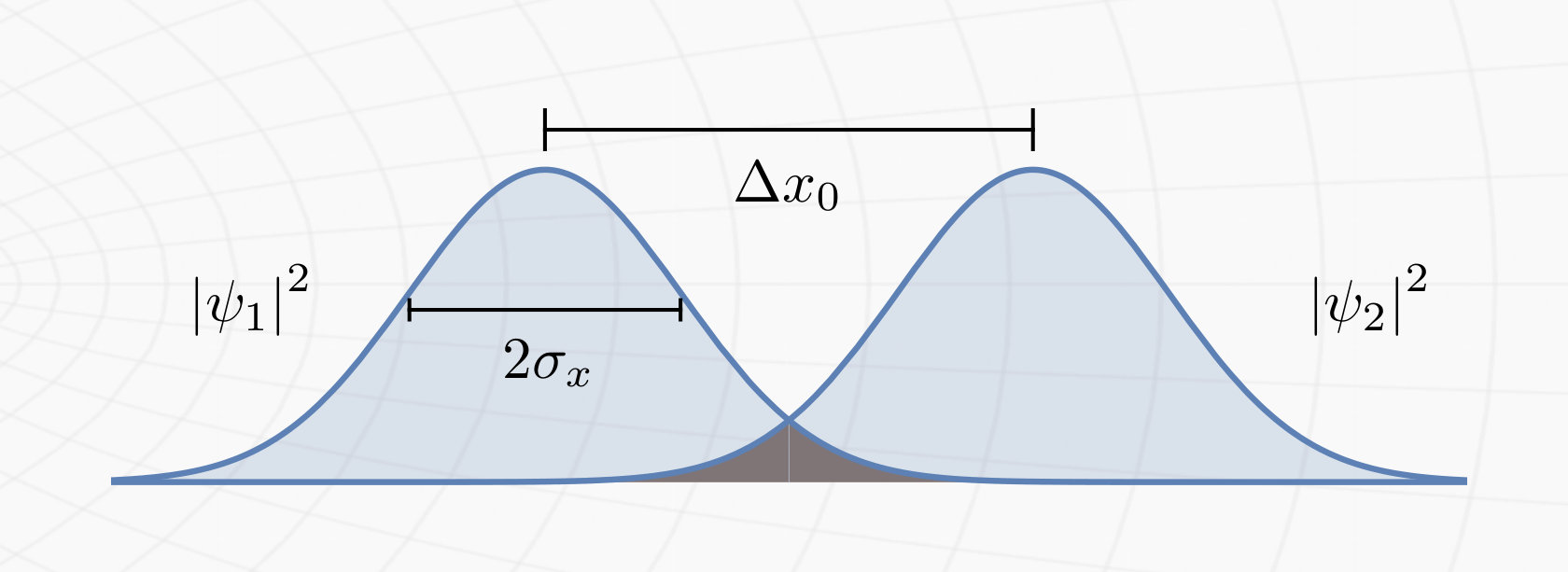

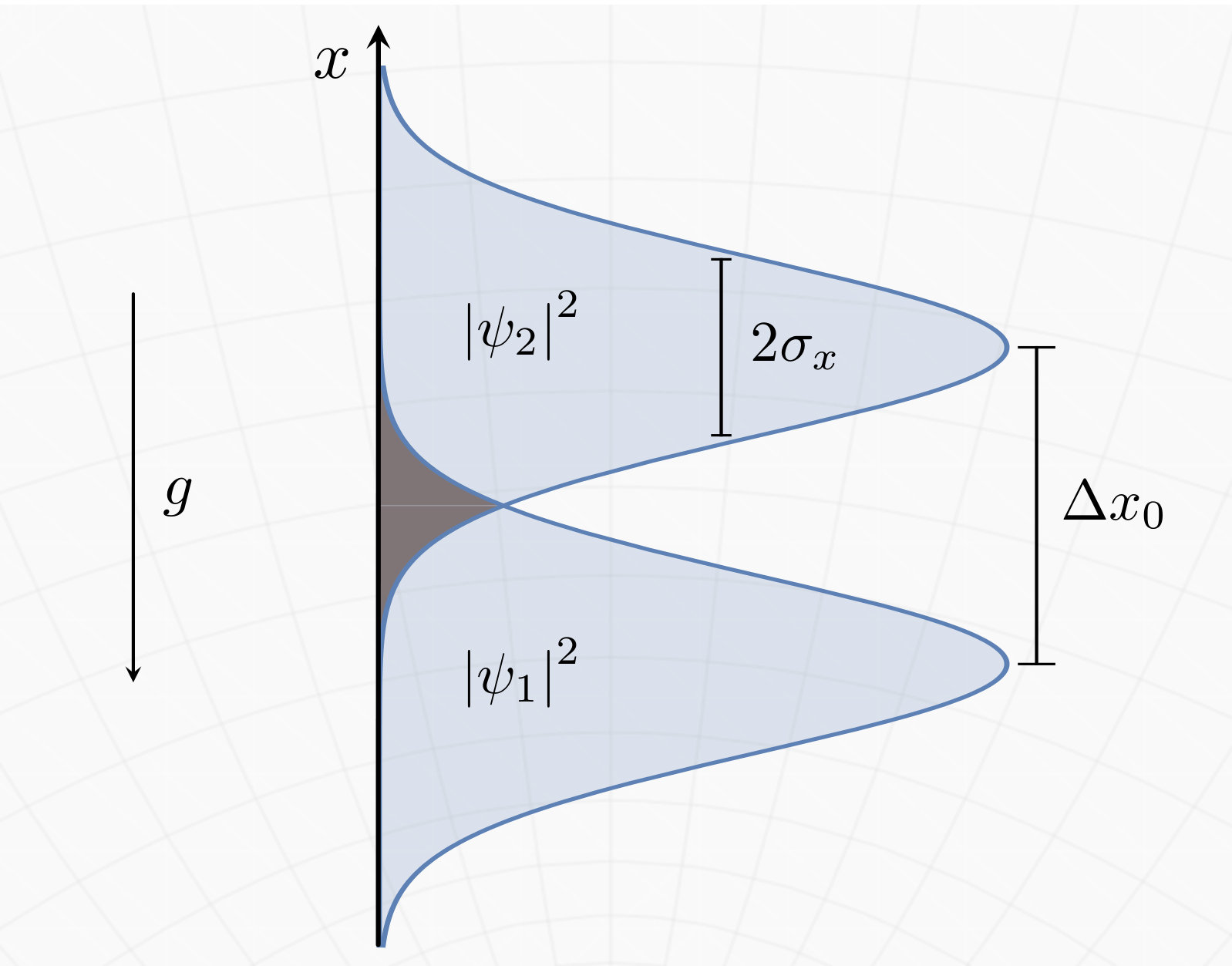

A consideration of a nonclassical initial kinematic state can result in a significant modification of the classical time-dilation effect found in Sec. 4.1. We consider an initial kinematic state constructed by superposing two Gaussian wavepackets with different mean initial heights, namely

[TABLE]

for some $0<\alpha<1$, where $\ket{\psi_{1}}_{\textup{\scriptsize{k}}}$ and $\ket{\psi_{2}}_{\textup{\scriptsize{k}}}$ are Gaussian states differing only in the value of $\langle\hat{x}\rangle$. Specifically, $\ket{\psi_{1}}_{\textup{\scriptsize{k}}}$ and $\ket{\psi_{2}}_{\textup{\scriptsize{k}}}$ have mean positions $\bar{x}_{0}$ and $\bar{x}_{0}+\Delta x_{0}$ respectively, standard deviation in position $\sigma_{x}$, standard deviation in momentum $\sigma_{p}$, and for simplicity we take both wavepackets to have the same initial mean momentum. This is illustrated in Fig. (2). The normalisation factor $N$ is then given by

[TABLE]

Note that the exponential factor in Eq. (9) is the overlap of the constituent states, $\braket{\psi_{1}}{\psi_{2}}_{\textup{\scriptsize{k}}}$ (c.f. the grey region in Fig. (2)).

We denote the average clock time in this case by $\langle\hat{T}_{\textup{c}}\rangle_{\mathrm{sup}}(t)$. To extract the part of the effect arising from quantum coherence, we contrast this with the case of a classical mixture of two such states according to probabilities $\alpha$ and $1-\alpha$. The average clock time in the latter case, which we denote $\langle\hat{T}_{\textup{c}}\rangle_{\mathrm{mix}}(t)$, can easily be calculated via Eq. (6) by taking the corresponding weighted sum, i.e.

[TABLE]

where $\langle\hat{T}_{\textup{c}}\rangle_{\psi_{i}}(t)$ is the expectation value for state $\ket{\psi_{i}}_{\textup{\scriptsize{k}}}(t)$. For simplicity of expression, we consider good clocks in the sense discussed in Sec. 2, so that the contribution arising from a nonzero $\hat{E}(t)$ is neglible. One then has

[TABLE]

where $T_{\textup{coh}}(t)$, the contribution due to coherence between the two constituent Gaussian states, is given by

[TABLE]

where ${\sigma_{v}:=\sigma_{p}/m}$ is their standard deviation in their initial “velocity”. We recall that, since the wavepackets saturate the uncertainty relation, we have that $\sigma_{p}=1/(2\,\sigma_{x})$.

In Eq. (12) we see two contributions to $T_{\textup{coh}}(t)$: one proportional to $\sigma_{v}^{2}$ and one due to the average difference in gravitational potential experienced by the wavepackets ($g\Delta x_{0}$). In other words, we see separately how motional and gravitational time dilation act on the wavefunction to generate quantum coherence effects. Noting that we can write $g\Delta x_{0}=v_{g}^{2}/2$, where $v_{g}$ is the velocity accrued by a classsical object falling a distance of $\Delta x_{0}$ from rest, we see that for a given $\Delta x_{0}/\sigma_{x}$ and $\alpha$, the relative strength of the motional and gravitational parts is determined by the comparative magnitudes of $\sigma_{v}$ and $v_{g}$.

Furthermore, considering Eq. (9), one can see that $T_{\textup{coh}}(t)$ decreases exponentially with increasing $\Delta x_{0}$, a consequence of the decreasing overlap between the two wavepackets. From this we infer that $T_{\textup{coh}}(t)$ arises due to interference between $\ket{\psi_{1}}_{\textup{\scriptsize{k}}}$ and $\ket{\psi_{2}}_{\textup{\scriptsize{k}}}$. On the other hand, we evidently have $T_{\textup{coh}}(t)=0$ when $\Delta x_{0}=0$, as in that case $\ket{\psi_{1}}_{\textup{\scriptsize{k}}}=\ket{\psi_{2}}_{\textup{\scriptsize{k}}}$, and we return to the classical-motion scenario described in Sec. 4.1. Consequently there exists, for a given $\sigma_{v}$ and $\alpha$, an intermediary value of $\Delta x_{0}/\sigma_{x}$ which maximises $T_{\textup{coh}}(t)$ by finding a balance between the wavefunction overlap and the “nonclassicality” of the kinematic state.

Given that modern-day atomic clocks are accurate and precise enough to observe classical relativistic time dilation in tabletop experiments [29], it is natural to ask whether the quantum contribution to the time dilation might also be observable. For the purposes of illustration, let us consider an aluminium atom (whose mass is approximately $27$ u). This is inspired by a state-of the-art “quantum logic clock” based on optical transitions in a single aluminium ion [30]. For clarity, we use the (Van der Waals) radius of aluminium, specifically $r_{\mathrm{Al}}=184$ pm [31], as a unit of length. Then from Eq. (12), we see that for a balanced superposition (i.e. $\alpha=1/2$), taking $\sigma_{x}=2$ $r_{\mathrm{Al}}$ and $\Delta x_{0}=4$ $r_{\mathrm{Al}}$, we have $T_{\textup{coh}}(t)\sim 10^{-16}$ s in a laboratory time of $t=1$ s,222This is well within the coherence times achievable in both trapped-ion and neutral-atom optical atomic clocks [32]. Maintaining a coherent superposition of heights for $\sim 1$ s is a separate challenge, achieved in e.g. [33]. which is well within the measurement capability of state-of-the-art clocks. We have of course, assumed good clocks so that the contribution due to the error term $\hat{E}(t)$, is neglectable. While we have demonstrated that this is a justified approximation for clocks with approximately non-dispersive dynamics, such as the Quasi-Ideal clock, this approximation might not be so well suited to the qubit-phase and Seleker-Wigner-Peres clocks previously discussed. This appears very promising, though we stress that this example is illustrative. A careful analysis concerning potential experimental platforms is required before conclusions can be drawn about the prospect of observing the effect.

5 Clock Precision and the Coupling of Temporal and Kinematic Degrees of Freedom

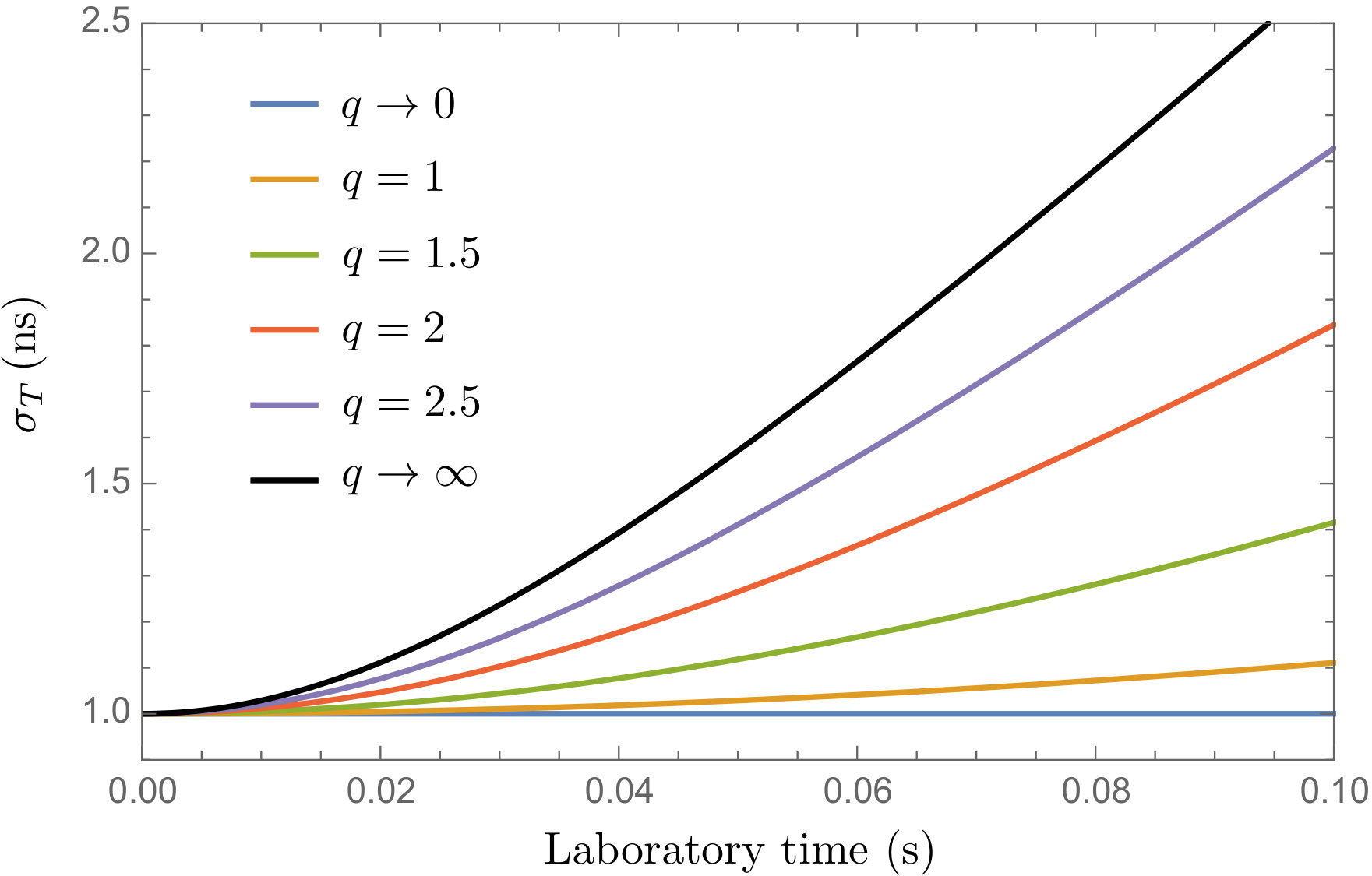

In this section we show how the clock’s precision is modified by the relativistic coupling between its kinematic and temporal degrees of freedom. In particular we show how the entanglement generated by the interaction Hamiltonian in Eq. (5) increases the uncertainty associated with measurements of the temporal variable.

We quantify the clock’s precision via the standard deviation of the clock time, which we denote \scalebox{1.3}{\sigma}_{\tiny{T}}(t). For simplicity, we ignore the contribution due to gravity by setting $g=0$, and consider only temporal measurements which correspond to a projection-valued measure. In order to calculate the relativistic contribution to \scalebox{1.3}{\sigma}_{\tiny{T}}(t) to leading order, we now include Hamiltonian terms up to order $\hat{p}^{4}/(mc)^{4}$ (see Appendix E). Let \scalebox{1.3}{\sigma}_{\tiny{T},\textup{\tiny{NR}}}(t) denote the standard deviation of the clock time in the absence of the special relativistic coupling. Then, assuming the clock’s kinematic and temporal degrees of freedom to be uncorrelated at $t=0$, one finds that \scalebox{1.3}{\sigma}_{\tiny{T}}(t) separates into

[TABLE]

where the term \scalebox{1.3}{\sigma}_{\tiny{T},\textup{\tiny{I}}}(t) is a contribution that remains finite in the case of an idealised clock, given by

[TABLE]

where $\sigma_{p^{2}}$ is the standard deviation of the observable $\hat{p}^{2}$, and the term \scalebox{1.3}{\sigma}_{\tiny{T},\textup{\tiny{NI}}}(t) is the relativistic contribution arising due the clock’s non-idealised nature. Its full form is given in Appendix E. Note that \scalebox{1.3}{\sigma}_{\tiny{T},\textup{\tiny{I}}}(t)>0, and the effect of the relativistic coupling on good clocks (in the sense discussed in Sec. 2) is therefore to increase the clock’s temporal uncertainty. In the case of an idealised clock, \scalebox{1.3}{\sigma}_{\tiny{T},\textup{\tiny{NR}}}(t) is constant in laboratory time (see Appendix C) and can be made arbitrarily small by an appropriate choice of ${\rho}_{\textup{c}}(0)$. This feature can also be well approximated with the Quasi-Ideal clock. Consequently, according to Eq. (14), the standard deviation of the clock time increases quadratically with the laboratory time in these cases.

The decrease in precision is a consequence of the clock’s temporal state losing information via its entanglement with the kinematic degrees of freedom. We now show how this effect can be reduced by recovering some of the lost information via a measurement of the clock’s momentum. We consider course-grained momentum measurements, and show how the uncertainty in the clock time decreases as the measurement is made more precise. We again choose a classical (i.e. Gaussian) state of motion, as in Sec. 4.1, and we consider an idealised clock for simplicity, as this can be approximated arbitrarily well (see the discussion in Sec. 2). We define a set of projection operators $\{\hat{\Pi}_{n,\delta p}\}_{n}$ acting on $\mathcal{H}_{\textup{\scriptsize{k}}}$, with $n\in\mathds{Z}$ and $\delta p>0$, which correspond to a partition of the range of momentum values into bins of width $\delta p$, with bin $n$ centred on momentum value $n\,\delta p$, i.e.

[TABLE]

The bin width $\delta p$ therefore characterises the amount of knowledge that we gain from the measurement, and the degree of localisation in momentum space of the post-measurement clock state. As $\delta p$ approaches zero, $\{\hat{\Pi}_{n,\delta p}\}_{n}$ approaches the set of projectors onto momentum eigenstates. As $\delta p\to\infty$, on the other hand, the projectors tend to the identity operator, i.e. the case where no measurement is performed. Fig. 3 shows examples of \scalebox{1.3}{\sigma}_{\tiny{T}}(t) conditioned on a given outcome of the measurement, at different laboratory times $t$, and for different values of $\delta p$. Quantifying the coarseness of the measurement by $q:=\delta p/\sigma_{p}$, we find that for $q\to 0$, we recover all of the information leaked into the kinematic state, i.e. after the measurement, \scalebox{1.3}{\sigma}_{\tiny{T}}(t)=\scalebox{1.3}{\sigma}_{\tiny{T}}(0)=\scalebox{1.3}{\sigma}_{\tiny{T},\textup{\tiny{NR}}}(t). For $q\to\infty$, on the other hand, no information is recovered, as no measurement had been performed.

6 Discussion

Throughout this work, we have made reference to the laboratory time $t$, which can be interpreted as the time marked by a classical clock in the laboratory frame. One may however wish to consider a fully quantum set-up, without reference to an extrinsic classical time, as in the Page and Wootters formalism [34], which can be employed in relativistic contexts [35, 36]. In our framework, one may simply treat $t$ as a bookkeeping coordinate, to be used to calculate the average clock times of multiple quantum clocks, and thus their average clock times relative to each other. In doing so, all our derived results can be written in terms of the average readings of quantum clocks without any reference to a classical clock or extrinsic time.

The effect that we describe in Sec. 4.2 is distinct from the manifestation of relativistic time dilation between paths in quantum interferometry experiments. Examples of the latter include phase shifts observed in a neutron matter-wave interferometer [37], the prediction that redshift-induced which-path information leads to a reduction in interferometric visibility [19], and the proposal to observe gravitational phase shifts in an atom interferometer [38]. We note that the latter proposal is distinct from the reinterpretation of measurements of atom-interferometry-based accelerometers as a gravitational redshift effect (see [39, 40] and subsequent criticisms [41, 42, 43]). These works concern the phase accrued between distinct paths in space as a consequence of relativistic time dilation, which is a distinct phenomenon from the one that we consider in this article. Here we ask what time is measured by a clock delocalised across distinct spacetime trajectories; a phase between two spatial components of that delocalisation affects the answer to this question, but it is not itself the quantity of interest.

The present work has been concerned with the effect of relativity in a stopwatch scenario, that is, we are interested in the time elapsed between two events. This contrasts with the ticking clocks discussed in [10, 44, 45, 11, 46, 47]. The incorporation of relativity into the latter is an open problem.

The reduction in clock precision that we predict is both a quantum and relativistic effect, as the general theory of relativity allows for clocks which are always perfectly precise, and clocks in non-relativistic quantum theory are generally uncoupled from their kinematic degrees of freedom. This leads to the interesting statement that relativity requires us to ask how a clock is moving as well as the time it measures, or we must pay a penalty in its precision. Though our explicit calculation of the decreased clock precision was carried out neglecting the effect of gravity, the same principle will hold for a nonzero gravitational field. A general initial clock state which is uncorrelated between temporal and kinematic degrees of freedom will only typically remain in the set of separable states if either the eigenstates of the total Hamiltonian are separable (which they are not), or if the initial state is particularly mixed [48]. One can therefore only escape the relativistic decrease in precision by increasing the mixedness of the initial state (and thus decreasing its precision anyway). The process of recovering the precision via measurements of the kinematic state will likely be modified by gravity, however. In particular, the gravitational coupling between the temporal degree of freedom and the clock’s spatial position will mean that a perfectly accurate measurement of the momentum degree of freedom will no longer totally restore the clock’s precision.

The decreased clock precision is related to the effective decoherence of quantum systems discussed in [20], though, contrary to our work, it is the decoherence of the kinematic degrees of freedom which is studied in that case. Other work has predicted a limit of the ability of multiple clocks to jointly measure time due to a gravity-mediated interaction between them [49], or focused on special relativistic effects [50]. Furthermore, our work shows that the qubit phase shift seen in [16] is in fact a specific instance of a universal time-dilation effect. We model the effect of mass-energy equivalence in the same manner as these authors, and in particular the resulting relativistic coupling between a system’s internal and centre-of-mass degrees of freedom described by the interaction Hamiltonian in Eq. (5) in the limit of low velocities and a weak gravitational field. Outside of this regime, a fully relativistic theory is necessary. An analysis and rebuttal of some of the criticisms of the model can be found in [51], including a discussion of the validity of describing relativistic effects via the Schrödinger equation. Since a full theory of quantum gravity is yet to be experimentally established, all results at the interface between quantum theory and gravity are naturally controversial. Ultimately, future experiments will determine the full scope of validity for these results.

7 Conclusion

In the non-relativistic limit, we characterised a generic quantum clock by an initial state ${\rho}_{\textup{c}}(0)$, a Hamiltonian $\hat{H}_{\textup{c}}$ and a POVM $\{\hat{F}(s)\}_{s\in\mathcal{S}}$ corresponding to the measurement of the clock time. Not all such systems can serve as clocks; for example, a clock where ${\rho}_{\textup{c}}(0)$ is an energy eigenstate will not evolve in time. An unavoidable consequence of quantum theory is that any finite-energy clock with perfectly distinguishable temporal states cannot be perfectly accurate (a constraint which is distinct from the uncertainty principle). We quantified the inaccuracy of a generic clock, with arbitrary temporal states, by defining an error operator. We call a clock good, when its error operator is small in norm.

Setting this framework into a relativistic context, we considered the average time dilation according to a generic quantum clock, finding that for Gaussian states of motion, any quantum clock will experience the usual classical relativistic time dilation with some quantum error (given by the trace of the error operator) which can be made arbitrarily small. Taking a nonclassical state of motion, namely a superposition of Gaussian states, we found that interference results in an average clock time which differs from the prediction of classical relativity, even when the error operator of a clock is zero (an idealised clock). Considering the example of an aluminium ion in such a state of motion, we found that this quantum relativistic time dilation discrepancy should be of an observable magnitude.

We then discussed how relativity leads to entanglement between the clock’s time-measuring and motional degrees of freedom. We calculated the corresponding reduction in clock precision for classical states of motion, showing how it increases over time. We demonstrated how the information lost from the clock’s time-measuring degrees of freedom can be recovered by performing a measurement of the clock’s motion in addition to the clock time.

It is our hope that these results will fuel interest from the experimental community, so that experiments might be devised to observe combined quantum relativistic effects, perhaps shedding light on the obscure relationship between the two theories.

Acknowledgments

The authors would like to thank Alexander Smith for useful discussions and Yanglin Hu for correcting typos. S.K. acknowledges financial support from ETH Zürich during his Master’s degree (Birkigt Scholarship). M.P.E.L. acknowledges support from the ESQ Discovery Grant Emergent time - operationalism, quantum clocks and thermodynamics of the Austrian Academy of Sciences (ÖAW), as well as from the Austrian Science Fund (FWF) through the START project Y879-N27. M.P.W. acknowledges funding from the Swiss National Science Foundation (AMBIZIONE Fellowship PZ00P2_179914), the NCCR QSIT, and FQXi grant Finite dimensional Quantum Observers (No. FQXi-RFP-1623) for the programme Physics of the Observer.

Appendices

Appendix A Relativistic coupling of the clock’s temporal and kinematic degrees of freedom

For completeness, we give a derivation of the coupling between the clock’s kinematic and time-measuring degrees of freedom, based on the one in [17]. We use the post-Newtonian metric to approximate a weak gravitational field. In coordinates $\tilde{x}^{\mu}=\left(\tilde{t},\vec{r}\right)$ corresponding to an observer at rest at $r=\infty$, this metric is given by

[TABLE]

where $r=|\vec{r}|$, $i$ and $j$ label spatial coordinates, $\Phi(r)=-GM/r$ is the gravitational potential of the Earth and $M$ is its mass. Let us now consider the laboratory frame $x^{\mu}=(t,\vec{r})$, where $t$ is the proper time of an observer at rest at $\vec{r}=\vec{r}_{0}$. Transforming the metric in Eq. (16) to the laboratory frame, we have,

[TABLE]

where $\Phi_{0}:=\Phi(r_{0})$. In the laboratory frame the clock has energy $E_{\mathrm{lab}}$ and spatial momentum $\vec{p}$, with $p=|\vec{p}|$. Now consider the rest frame of the clock, in which it has energy $E_{\mathrm{rest}}$ and zero spatial momentum. The norm of the clock’s four-momentum is a scalar quantity, and therefore the same in both frames. Equating this norm in both frames and rearranging, one finds

[TABLE]

where $\bar{g}^{00}=-1$ is the $00$-component of the metric in the clock’s rest frame, $p_{j}p^{j}=g^{ij}p_{i}p_{j}$ (using the Einstein summation convention), and we have used the fact that $g_{00}=1/g^{00}$. Now, in order to mark the passage of time the clock must have some evolving internal structure, which is associated with some internal energy. Denoting the clock’s rest mass by $m$ and its internal energy by $E_{\textup{c}}$, then by mass-energy equivalence,

[TABLE]

Let us now restrict to one spatial dimension, namely the radial one, define the coordinate $x:=r-r_{0}$ and take the common approximation of the Newtonian potential around the point $x=0$, i.e. $\Phi(x)\approx\Phi_{0}+gx$, where $g$ is the gravitational acceleration at $x=0$. Then, inserting Eqs. (16), (17) and (19) into Eq. (18), one finds that

[TABLE]

where we have neglected terms of order $(E_{\textup{c}}/mc^{2})^{2}$, $(p/mc)^{4}$, $(gx)^{2}/c^{4}$ and $gxp^{2}/m^{2}c^{4}$ and higher. In the following, we refer to such terms with the notation $\mathcal{O}(1/c^{4})$. Quantising Eq. (20), one finds that the clock evolves subject to the Hamiltonian

[TABLE]

where upon quantisation $E_{\mathrm{lab}}\to\hat{H}$ (which acts upon the space $\mathcal{H}_{\textup{c}}\otimes\mathcal{H}_{\textup{\scriptsize{k}}}$) and $E_{\textup{c}}\to\hat{H}_{\textup{c}}$ (which acts upon the space $\mathcal{H}_{\textup{c}}$),

[TABLE]

represents the rest-mass-energy, gravitational potential energy and kinetic energy (with a lowest-order relativistic correction) of the clock, and

[TABLE]

is a relativistic coupling of the temporal and kinematic degrees of freedom. We stress that $\hat{H}$ generates evolution with respect to the proper time of a classical observer at $x=0$, i.e. the laboratory time $t$.

Appendix B Time dilation in generic quantum clocks

We now calculate the average time dilation experienced by a generic quantum clock evolving under the Hamiltonian given in Eq. (21). We begin by employing perturbation theory to calculate the evolution of the clock state in the low-velocity, weak-gravity limit described in Appendix A (i.e. neglecting $\mathcal{O}(1/c^{4})$ terms). As in the main text, we choose units such that $\hbar=1$.

Defining a free Hamiltonian by $\hat{H}_{0}:=\hat{H}_{\textup{c}}+\hat{H}_{\textup{\scriptsize{k}}}$, so the total Hamiltonian can be written $\hat{H}=\hat{H}_{0}+\hat{H}_{{\textup{c}}\textup{\scriptsize{k}}}$, where $\hat{H}_{{\textup{c}}\textup{\scriptsize{k}}}$ is given in Eq. (23), one can find the evolution of the clock’s state via the interaction picture. Denoting the evolution of the state in the interaction picture by $\rho^{I}(t)$, and following standard perturbation theory (see, e.g. [52]), we have that it is related to the Schrödinger picture by

[TABLE]

where $U_{0}(t)=e^{-it\hat{H}_{0}}$ and $U(t)=e^{-it\hat{H}}$. Then $\rho^{I}(t)$ satisfies,

[TABLE]

where $\hat{H}_{{\textup{c}}\textup{\scriptsize{k}}}^{I}(t):=e^{i\hat{H}_{0}t}\hat{H}_{{\textup{c}}\textup{\scriptsize{k}}}e^{-i\hat{H}_{0}t}$ is the interaction Hamiltonian in the interaction picture. A solution to this differential equation can be obtained using the Dyson series. Neglecting terms of order $\mathcal{O}(1/c^{4})$, as in Appendix A, it yields

[TABLE]

Thus going back into the Schrödinger picture,

[TABLE]

Tracing over the kinematic space $\mathcal{H}_{\textup{\scriptsize{k}}}$, we find the reduced state corresponding to the temporal degree of freedom $\rho_{\textup{c}}(t):=\mathrm{tr}_{\textup{\scriptsize{k}}}[\rho(t)]$, which we write as

[TABLE]

where $\rho_{\textup{c},\textup{\tiny{NR}}}(t):=e^{-i\hat{H}_{\textup{c}}t}\rho_{\textup{c}}(0)\,e^{i\hat{H}_{\textup{c}}t}$ is the non-relativistic evolution of the reduced state, and the lowest-order relativistic correction to it is given by

[TABLE]

Now, we consider a clock whose temporal and kinematic degrees of freedom are initially uncorrelated, writing

[TABLE]

for some initial reduced states $\rho_{\textup{c}}(0)$ and $\rho_{\textup{\scriptsize{k}}}(0)$. Then, writing $\hat{H}_{{\textup{c}}\textup{\scriptsize{k}}}=\hat{H}_{\textup{c}}\otimes\hat{V}_{\textup{\scriptsize{k}}}$, i.e. $\hat{V}_{\textup{\scriptsize{k}}}:=-\frac{\hat{p}^{2}}{2m^{2}c^{2}}+\frac{\Phi(\hat{x})}{c^{2}}$, we calculate the integrand of Eq. (29) to find

[TABLE]

Using the relation

[TABLE]

for some $\hat{X}$ and $\hat{Y}$ (see Prop. 3.35 in [53]), one finds, by neglecting terms of order $1/c^{4}$ and higher, that

[TABLE]

Performing the integration in Eq. (29), we find

[TABLE]

where $R(t):=\mathrm{tr}\left[\left(-\frac{\hat{p}^{2}}{2m^{2}c^{2}}+\frac{g\hat{x}}{c^{2}}+\frac{\hat{p}gt}{mc^{2}}-\frac{g^{2}t^{2}}{3c^{2}}\right)\rho_{\textup{\scriptsize{k}}}(0)\right]$. Having obtained the evolution of the clock’s temporal state, one can calculate the average clock time, giving

[TABLE]

where \langle\hat{T}_{\textup{c}}\rangle_{\textup{\tiny{NR}}}:=\mathrm{tr}\big{[}\hat{T}_{\textup{c}}\,\rho_{\textup{c},\textup{\tiny{NR}}}(t)\big{]} is the clock time in the absence of relativistic effects, and where the error operator $\hat{E}(t):=-i[\hat{T}_{\textup{c}},\hat{H}_{\textup{c}}]\rho_{\textup{c},\textup{\tiny{NR}}}(t)-\rho_{\textup{c},\textup{\tiny{NR}}}(t)$ was introduced in Sec. 2 of the main text.

Appendix C Idealised clocks, covariant POVMs and higher moments (in the absence of relativistic effects)

In the main text, we defined an idealised clock as one whose first-moment operator satisfies the canonical commutation relations \big{[}\hat{T}_{\textup{c}},\hat{H}_{\textup{c}}\big{]}=i\,\mathbbm{1}_{\textup{c}} (in the Heisenberg form), and used this to motivate the definition of the error operator $\hat{E}(t)$ in Eq. (1). We now find covariant POVMs $\{\hat{F}(s)\}_{s\in\mathcal{S}}$ which are absolutely continuous, that either form an idealised clock, or whose deviation from this condition is covered by a particular form of the error operator $\hat{E}(t)$. In doing so, we show that our choice of the definition of the error operator is well motivated. We will look at both cases in which $\mathcal{S}$ is bounded or unbounded.

We start with the case that $\mathcal{S}$ is bounded, and denote the boundaries by $\mathcal{S}=[s_{0},s_{1}]$. We expand the domain of $\hat{F}$ to ${\mathbbm{R}}$ by periodic extension: $\hat{F}(s+n(s_{1}-s_{0})):=\hat{F}(s)$, $s\in\mathcal{S}$, $n\in{\mathbbm{Z}}$.

To start with, we will only need the covariance property of the POVMs and the assumption that $\mathcal{S}$ is bounded. Writing the evolution of $\hat{T}_{\textup{c}}$ in the Heisenberg picture, and using the covariant property $\hat{F}(s)=U_{\textup{c}}(s)\hat{F}(0)U^{\dagger}_{\textup{c}}(s)$; $U_{\textup{c}}(s):=e^{-i\hat{H}_{\textup{c}}s}$, we find for all $t\in{\mathbbm{R}}$:

[TABLE]

where $f(s)$ is the sawtooth function: $f(s+n(s_{1}-s_{0})):=s$, $s\in\mathcal{S}$, $n\in{\mathbbm{Z}}$. By taking limits $s_{0}\rightarrow-\infty$ and/or $s_{1}\rightarrow+\infty$ in Eq. (36) and noting that POVMs form a resolution of the identity, $\int_{s\in\mathcal{S}}\hat{F}(s)=\mathbbm{1}_{\textup{c}}$; we find

[TABLE]

for the three unbounded cases:

$\mathcal{S}=[s_{0},\infty)$ and $t\geq 0$.   2) $\mathcal{S}=(-\infty,s_{1}]$ and $t\leq 0$.   3) $\mathcal{S}=(-\infty,\infty)$ and $t\in{\mathbbm{R}}$.

On the other hand, the Heisenberg-picture equation of motion is \frac{d}{dt}\hat{T}_{\textup{c}}(t)=-i\,U_{\textup{c}}^{\dagger}(t)\big{[}\hat{T}_{\textup{c}},\hat{H}_{\textup{c}}\big{]}U_{\textup{c}}(t). Thus, equating this with the time derivative of $\hat{T}_{\textup{c}}(t)=t\,\mathbbm{1}_{\textup{c}}+\hat{T}_{\textup{c}},$ we arrive at

[TABLE]

for cases 1), 2) and 3) above. Eq. (38) represents the canonical commutation relations of a specialised Heisenberg form called the Weyl form.

We now investigate the case in which $\mathcal{S}$ is bounded. From Eq. (36) we find

[TABLE]

Differentiating under the integral sign, we find $\frac{d}{dt}\hat{T}_{\textup{c}}(t)=\mathbbm{1}_{\textup{c}}+(s_{0}-s_{1})\hat{F}(s_{1}-s_{0}-t)=\mathbbm{1}_{\textup{c}}+(s_{0}-s_{1})U_{\textup{c}}^{\dagger}(t)\hat{F}(0)U_{\textup{c}}(t).$ Hence taking into account Heisenberg-picture equation of motion as before, we obtain

[TABLE]

The family of quantum states for which the commutator \big{[}\hat{T}_{\textup{c}},\hat{H}_{\textup{c}}\big{]} is well defined, is the set \mathcal{S}_{\textup{Comm}}:=\big{\{}\rho\in\mathcal{D}(\mathcal{H_{\textup{c}}})\,\big{|}\,\,\hat{T}_{\textup{c}}\rho\in\textup{Dom}(\hat{H}_{\textup{c}})\,\,\&\,\,\hat{H}_{\textup{c}}\rho\in\textup{Dom}(\hat{T}_{\textup{c}})\big{\}}, where $\mathcal{D}(\mathcal{H_{\textup{c}}})$ is the set of density operators on $\mathcal{H}_{\textup{c}}$ and Dom is the domain of the self-adjoint operator in question. Thus Eq. (40) satisfies the canonical commutation relations on the subset of states $\mathcal{C}:=\{\rho\in\mathcal{S}_{\textup{comm}}\,|\,\hat{F}(0)\rho=0\}\subseteq\mathcal{S}_{\textup{comm}}$. If $\mathcal{C}$ is a dense subset of $\mathcal{S}_{\textup{comm}}$, one says that the pair $\hat{T}_{\textup{c}}$ and $\hat{H}_{\textup{c}}$ satisfy the Heisenberg form of the canonical commutation relation. The special case of $\mathcal{S}$ bounded and POVMs which are projective values measures, was studied in [21], where it was shown that $\mathcal{C}$ is indeed a dense subset of $\mathcal{S}_{\textup{comm}}$. Another example of a Heisenberg form of the canonical commutation relations is a “particle in a box” which is also reviewed in [21]. These (and other) aspects of covariant POVMs are discussed in detail in [54]. Moreover, our definition of an error operator $\hat{E}(t)$ in Eq. (1) readily accommodates the situation in Eq. (40). In particular, we have $\hat{E}(t)=-i(s_{0}-s_{1})\hat{F}(0)\rho(t)$.

We now move on to examine higher moments of covariant POVMs. Assuming all moments up to and including the $n$th moment are well defined, we have

[TABLE]

where $\langle\hat{T}_{\textup{c}}^{(0)}\rangle(0)=1$ for all initial states. From this Eq., it follows, for example, that the standard deviation of $\hat{T}_{\textup{c}}$ is time independent and only depends in the initial state $\rho_{\textup{c}}$.

For an idealised clock, a projection-valued measure is an example of a covariant POVM. To see this, observe that one can write in this case $\hat{F}(s)=\ket{s}\!\!\bra{s}_{\textup{c}}$, with $\hat{T}_{\textup{c}}^{(1)}\ket{s}=s\ket{s}$. From there, one can use the fact that an idealised clock satisfies $U_{\textup{c}}^{\dagger}(s)\hat{T}_{\textup{c}}^{(1)}U_{\textup{c}}(s)=T_{\textup{c}}^{(1)}+s$ to show that $U_{\textup{c}}(s^{\prime})\ket{s}=\ket{s+s^{\prime}}$, and therefore $U_{\textup{c}}(s)\hat{F}(0)U_{\textup{c}}^{\dagger}(s)=\hat{F}(s)$, i.e. the covariance property. If, in addition, the possible clock times span the entire real line (as in the case considered by Pauli [5]), then the higher moments satisfy Eq. (41), and again the variance is therefore time-independent, regardless of the initial clock state.

Appendix D Examples of relativistic time dilation in quantum clocks

D.1 An idealised quantum clock

Recall that an idealised clock is one satisfying the canonical commutation relation, $[\hat{T}_{\textup{c}},\hat{H}_{\textup{c}}]=i$, and consequently $\hat{E}(t)=0$. Let $\hat{T}_{\textup{c}}=\hat{x}_{\textup{c}}/c+a\mathbbm{1}_{\textup{c}}$ and $\hat{H}_{\textup{c}}=c\hat{p}_{\textup{c}}$, where $\hat{x}_{\textup{c}}$ and $\hat{p}_{\textup{c}}$ are position and momentum operators and $a\in{\mathbbm{R}}$ is chosen such that $\langle\hat{T}_{\textup{c}}\rangle(0)=0$. We first consider the case of “classical” motion, i.e. where the initial kinematic state of the clock is a pure Gaussian wavepacket with mean momentum $\bar{p}_{0}$, standard deviation of the momentum $\sigma_{p}$ and mean position $\bar{x}_{0}$, i.e. $\rho_{\textup{\scriptsize{k}}}(0)=\ket{\psi}\!\!\bra{\psi}_{\textup{\scriptsize{k}}}$ with

[TABLE]

We then have that ${R}(t)=-\frac{\bar{p}_{0}^{2}+\sigma_{p}^{2}}{2m^{2}c^{2}}+\frac{g\bar{x}_{0}}{c^{2}}+\frac{\bar{p}_{0}gt}{mc^{2}}-\frac{1}{3}\left(\frac{gt}{c}\right)^{2}$ and therefore

[TABLE]

This expression is the average proper time of a classical clock (see Eq. (4) in the main text) with position $\bar{x}_{0}$ and a random momentum following a Gaussian distribution with mean $\bar{p}_{0}$ and standard deviation $\sigma_{p}$. To summarise, an idealised clock in a classical (i.e. Gaussian) state of motion experiences the usual classical relativistic time dilation.

Let us now consider a nonclassical initial kinematic state, specifically a superposition of two Gaussian states, sometimes referred to as a cat state. We will contrast this with the case of comparable classical probabilistic mixture of the two states. Let

[TABLE]

We now take the initial kinematic state to be in the superposition \ket{\psi}_{\textup{\scriptsize{k}}}=\frac{1}{\sqrt{N}}\big{(}\sqrt{\alpha}\ket{\psi_{1}}_{\textup{\scriptsize{k}}}+e^{i\theta}\sqrt{1-\alpha}\ket{\psi_{2}}_{\textup{\scriptsize{k}}}\big{)} for some $\alpha\in(0,1)$ and $\theta\in{\mathbbm{R}}$, and find the average clock time, which we denote $\langle\hat{T}_{\textup{c}}\rangle_{\textup{sup}}$, using Eq. (35). We then repeat this procedure for the initial kinematic state in the probabilistic mixture, $\rho_{\textup{\scriptsize{k}}}(0)=\alpha\ket{\psi_{1}}\!\!\bra{\psi_{1}}+(1-\alpha)\ket{\psi_{2}}\!\!\bra{\psi_{2}}$, and denote the average clock time in that case by $\langle\hat{T}_{\textup{c}}\rangle_{\textup{mix}}(t)$. From the linearity of the trace, we see immediately that

[TABLE]

where $\langle\hat{T}_{\textup{c}}\rangle_{\psi_{j}}(t)$ is the average clock time of a clock with initial kinematic state $\ket{\psi_{j}}_{\textup{\scriptsize{k}}}$. One then finds that

[TABLE]

where

[TABLE]

is a contribution to the clock time arising due to interference between the two Gaussian states constituting the coherent superposition (see main text), and where ${\sigma_{v}=\sigma_{p}/m}$ and $\sigma_{x}=1/2\sigma_{p}$ are respectively the standard deviation of the velocity and position of the Gaussian wavepackets used to construct the initial state, and $\Delta x_{0}=\bar{x}_{2}-\bar{x}_{1}$. We recall that $\hbar=1$, and note that the normalisation factor $N$ is given by

[TABLE]

Setting $\theta=0$ in Eq. (47), one arrives at Eq. (12) in the main text.

D.2 Salecker-Wigner-Peres clock

Consider a $d$-dimensional Hilbert space and a clock Hamiltonian with equally-spaced energy levels, i.e. ${\hat{H}_{\textup{c}}=\sum_{j=0}^{d-1}j\omega\ket{e_{j}}\!\!\bra{e_{j}}}$, for some $\omega>0$. This corresponds, for example, to the case where the clock is a spin-$j$ system, and then $d=2j+1$. One can obtain a so-called time basis $\{\ket{\theta_{m}}\}$ by taking the discrete Fourier transform of the energy eigenstates,

[TABLE]

which are used to construct a clock-time operator $\hat{T}_{\textup{c}}=\sum_{m=0}^{d-1}m\frac{T_{0}}{d}\ket{\theta_{m}}\!\!\bra{\theta_{m}}$, with $T_{0}:=\frac{2\pi}{\omega}$. When the clock is in the state $\ket{\theta_{m}}$, we have $\langle\hat{T}_{\textup{c}}\rangle=mT_{0}/d$. Choosing an initial state $\rho_{\textup{c}}(0)=\ket{\theta_{0}}\!\!\bra{\theta_{0}}$, then the clock state will at regular time intervals $t_{m}:=mT_{0}/d$, $m\in{\mathbbm{Z}}$ “focus” into one of the time eigenstates, i.e. $\langle\hat{T}_{\textup{c}}\rangle_{\textup{\tiny{NR}}}\left(t_{m}\right)=mT_{0}/d\,(m\text{ mod }d)$. At intermediate times $t\neq t_{m}$, on the other hand, the clock will be in a superposition of its time eigenstates (see e.g. [6], Appendix B). This setup is known as the Salecker-Wigner-Peres clock (or alternatively, the Larmor clock) [12, 24].

A straightforward calculation gives $\mathrm{tr}[[\hat{T}_{\textup{c}},\hat{H}_{\textup{c}}]\ket{\theta_{m}}\!\!\bra{\theta_{m}}]=0$ for all $m=0,1,\ldots,d-1$, and therefore from the definition of the error operator $\hat{E}(t)$, we have $\mathrm{tr}[\hat{E}(t_{m})]=-1$ for all $m\in{\mathbbm{Z}}$ and for all clock dimensions $d\in{\mathbbm{N}}^{+}$. Consequently, when the Salecker-Wigner-Peres clock is in a time eigenstate, Eq. (35) tells us that $\langle\hat{T}_{\textup{c}}\rangle(t_{m})=\langle\hat{T}_{\textup{c}}\rangle_{\textup{\tiny{NR}}}(t_{m})$ for any state of the clock’s kinematic degrees of freedom. To reiterate, this clock is a special case where the average relativistic time-dilation is exactly cancelled by the quantum error of the clock at regular time intervals regardless of how large $d$ is and regardless of the motional state. In this regard, we note that the Salecker-Wigner-Peres clock was used in [50], where it was concluded that “quantum clocks do not witness classical time dilation”.

D.3 The Quasi-Ideal clock

Consider the same setting as for the Salecker-Wigner-Peres clock described above, namely the clock Hilbert space, Hamiltonian $\hat{H}_{\textup{c}}$ and clock-time operator $\hat{T}_{\textup{c}}$, but now with the initial temporal state $\rho_{\textup{c}}(0)=\ket{\Psi(m_{0})}\!\!\bra{\Psi(m_{0})}$, with

[TABLE]

where $g_{m_{0}}(m)$ is a complex Gaussian distribution centred on $m_{0}$ and with standard deviation $\bar{\sigma}_{\textup{c}}\in(0,d)$. The choice $\bar{\sigma}_{\textup{c}}=\sqrt{d}$ corresponds to the case in which the standard deviation in both the time basis $\{\ket{\theta_{m}}\}$ and energy basis time basis $\{\ket{e_{j}}\}$ is approximately the same. For other choices, one obtains a clock whose behaviour tends to that of the idealised clock when $\bar{\sigma}_{\textup{c}}\to\infty$ and $d/\bar{\sigma}_{\textup{c}}\to\infty$ as $d\to\infty$. This is then the Quasi-Ideal clock, introduced in [6]. We now show that the contribution of the quantum error to the relativistic time dilation, i.e. $\mathrm{tr}[\hat{E}(t)]$ (see Eq. (35)), tends exponentially to zero with increasing clock dimensionality. In other words, we show that the relativistic time dilation experienced by the idealised clock can be approximated arbitrarily well by a Quasi-Ideal clock of high enough dimension. Physically speaking, this is because the Quasi-Ideal clock can move at constant “velocity” in the time basis with minimal dispersion.

From the definition of the error operator $\hat{E}(t)$, we have

[TABLE]

Choosing the initial clock state $\ket{\Psi(0)}\!\!\bra{\Psi(0)}$, the non-relativistic evolution of the state $\rho_{\textup{c},\textup{\tiny{NR}}}(t)$ is given by,

[TABLE]

Now, Theorem 8.1 in [6] states that

[TABLE]

where the specific form of $\ket{\varepsilon}$ is irrelevant for the present purpose, only that as $d\to\infty$ and $d/\bar{\sigma}_{\textup{c}}\to\infty$,

[TABLE]

and furthermore Theorem 11.1 in [6] states that

[TABLE]

where, again, the specific form of $\ket{\varepsilon_{comm}}$ is irrelevant, only that as $d\to\infty$,

[TABLE]

Using these two theorems, one finds that

[TABLE]

We can now bound the terms on the r.h.s. of Eq. (58). To start with

[TABLE]

Using the Cauchy-Schwarz inequality, $\left|\mathrm{tr}[\hat{A}\hat{B}]\right|^{2}\leq\mathrm{tr}[\hat{A}^{\dagger}\hat{A}]\mathrm{tr}[B^{\dagger}B]$ for bounded linear operators $\hat{A}$, $\hat{B}$; one finds that for two kets $\ket{a}$, $\ket{b}$

[TABLE]

Therefore, using Eqs. (59), (64), and (54); one finds from Eq. (58)

[TABLE]

for all $t\in{\mathbbm{R}}$. We therefore find that for any initial clock width of the form $\bar{\sigma}_{\textup{c}}=d_{\textup{c}}^{\eta}$ for some fixed $\eta>0$, $\mathrm{tr}[\hat{E}(t)]$ is upper-bounded by a quantity which decreases exponentially with dimension. Furthermore, note that for $0<\eta<1/2$, the standard deviation of $\hat{T}_{\textup{c}}$ for the initial Quasi-Ideal clock state approaches zero as $d\to\infty$. Thus in the limit of large dimension, the relativistic time dilation (Eq. (35)) is that of the idealised clock, up to errors that decay exponentially in the dimension.

D.4 The qubit-phase clock

Another clock model sometimes found in the literature (e.g. [19, 49, 16]) uses the phase difference between the two states of a qubit system to estimate elapsed time. This can be considered a simplified model of the Ramsey method sometimes used in atomic clocks (see e.g. [32] Sec. IVA for a discussion of clock interrogation schemes), where it is assumed that the laser is perfectly tuned to the reference frequency. The qubit is put into the initial state $\frac{1}{\sqrt{2}}\left(\ket{0}+\ket{1}\right)$, whose non-relativistic evolution according to the Hamiltonian $\hat{H}_{\textup{c}}=-\frac{\omega}{2}\ket{0}\!\!\bra{0}+\frac{\omega}{2}\ket{1}\!\!\bra{1}$ results in the state

[TABLE]

where $\theta=\omega t$. The covariant (see Sec. 2 and Appendix C) POVM corresponding to the estimation of this phase is given by $\{\hat{F}(\theta)\}_{\theta\in[0,2\pi)}$ with $F(\theta)=\frac{1}{\pi}\ket{\theta}\!\!\bra{\theta}$. This measurement corresponds to a maximum-likelihood estimation of $\theta$, and therefore the laboratory time (see e.g. [55], Sec. 4.4). One can then directly calculate the error operator:

[TABLE]

Since $\mathrm{tr}[\hat{E}(t)]=1+\cos(\omega t)$, we see that this is only a good clock in the sense defined in Sec. 2 around $\theta=\pi$, which corresponds to the time at which the clock state $\ket{\theta}$ is orthogonal to the initial state. This limitation can be overcome by performing the phase estimation on many copies of the qubit system (see e.g. [56]). Now, carrying this analysis into a relativistic context, Eq. (6) gives the average time dilation experienced by the qubit-phase clock as

[TABLE]

which is of course equal to the average time dilation experienced by the idealised clock when $\theta=\pi$.

Appendix E The effect of the coupling on a clock’s precision

We now show how a clock’s precision, as quantified by the standard deviation $\sigma_{T}:=\sqrt{\langle\hat{T}_{\textup{c}}^{2}\rangle-\langle\hat{T}_{\textup{c}}\rangle^{2}}$, changes over time as a result of the relativistic coupling between temporal and kinematic degrees of freedom. For simplicity, we now consider flat (Minkowski) spacetime. Here we work to a precision one order higher than before, i.e. neglecting only $\mathcal{O}\left((\hat{p}/mc)^{6}\right)$ terms. This is because, as we shall see, relativistic effects on the precision of the idealised clock vanish below $\mathcal{O}(1/c^{4})$. Repeating the procedure outlined in Appendix A, one finds that the relativistic coupling between temporal and kinematic degrees of freedom is now

[TABLE]

with $\hat{W}_{\textup{\scriptsize{k}}}:=-\hat{p}^{2}/2m^{2}c^{2}+3\hat{p}^{4}/8m^{4}c^{4}$.

Now, since in this case $[\hat{H}_{\textup{c}\textup{\scriptsize{k}}},\hat{H}_{\textup{\scriptsize{k}}}]=[\hat{H}_{\textup{c}\textup{\scriptsize{k}}},\hat{H}_{\textup{c}}]=0$, we can simply calculate the relevant observables without going into the interaction picture. Using Eq. (32), we have

[TABLE]

where $[\cdotp,\cdot]_{q}$ denotes the $q^{\mathrm{th}}$-order nested commutator, i.e. $[\hat{A},\hat{B}]_{0}:=\hat{B}$ and $[\hat{A},\hat{B}]_{q}:=[\hat{A},[\hat{A},\hat{B}]_{q-1}]$ for $q>0$. Applying the Binomial theorem to $(\mathbbm{1}_{\textup{\scriptsize{k}}}+\hat{W}_{\textup{\scriptsize{k}}})^{q}$ and truncating at the appropriate order, one finds, after some algebra

[TABLE]

where $\rho_{\textup{\tiny{NR}}}(t):=e^{-i(\hat{H}_{\textup{c}}+\hat{H}_{\mathrm{k}})t}\rho(0)e^{i(\hat{H}_{\textup{c}}+\hat{H}_{\mathrm{k}})t}$ is the non-relativistic evolution of the clock’s total state and $\langle\hat{T}_{\textup{c}}^{n}\rangle_{\textup{\tiny{NR}}}(t):=\mathrm{tr}[\hat{T}_{\textup{c}}^{n}\rho_{\textup{c},\textup{\tiny{NR}}}(t)]$, and where it is understood that $\hat{W}_{\textup{\scriptsize{k}}}^{2}$ contains an $\mathcal{O}\left((\hat{p}/mc)^{6}\right)$ term to be neglected. Assuming an uncorrelated initial state as in Appendix B, i.e. $\rho(0)=\rho_{\textup{c}}(0)\otimes\rho_{\textup{\scriptsize{k}}}(0)$, and further defining $\langle\hat{W}_{\textup{\scriptsize{k}}}^{n}\rangle_{0}:=\mathrm{tr}[\hat{W}_{\textup{\scriptsize{k}}}^{n}\rho_{\textup{\scriptsize{k}}}(0)]$, we have

[TABLE]

Then by a straightforward, if lengthy, calculation, one finally finds that \scalebox{1.3}{\sigma}_{\tiny{T}}(t), separates into

[TABLE]

where \scalebox{1.3}{\sigma}_{\tiny{T},\textup{\tiny{NR}}}(t) is the clock’s standard deviation in the absence of relativistic effects, \scalebox{1.3}{\sigma}_{\tiny{T},\textup{\tiny{I}}}(t) is a contribution which remains in the case of an idealised clock, given by

[TABLE]

where $\sigma_{p^{2}}$ is the standard deviation of $\hat{p}^{2}$, and \scalebox{1.3}{\sigma}_{\tiny{T},\textup{\tiny{NI}}}(t) is a contribution arising due to the non-idealised nature of the clock, given by

[TABLE]

where $\hat{E}(t)$ was defined above, and $\hat{e}:=i[\hat{H}_{\textup{c}},\hat{T}_{\textup{c}}]-\mathbbm{1}_{\textup{c}}$. Note that \scalebox{1.3}{\sigma}_{\tiny{T},\textup{\tiny{I}}}(t)=\mathcal{O}\left((\hat{p}/mc)^{4}\right), which necessitated that we work to one order higher of precision than when we calculated the clock time (Appendix B).
