Short-baseline neutrino oscillations with 3+1 non-unitary mixing

TL;DR

This paper investigates a neutrino mixing model combining standard three-neutrino mixing with a non-unitary contribution from a heavier neutrino, analyzing its implications for short-baseline neutrino oscillation experiments.

Contribution

It introduces a model with non-unitary mixing from a heavy neutrino and analyzes its effects on short-baseline neutrino oscillations, providing bounds on mixing parameters.

Findings

Constant flavor-changing probabilities at short distances.

Cannot explain spectral distortions in LSND and MiniBooNE.

Survival probabilities oscillate with L/E and could explain disappearance experiments.

Abstract

We consider a scenario with unitary mixing of the three light standard neutrinos and a non-unitary mixing contribution of a heavier massive neutrino that can generate short-baseline neutrino oscillations. We show that this scenario predicts constant flavor-changing probabilities at short-baseline distances. Therefore, it cannot explain the spectral distortions observed in the LSND and MiniBooNE appearance experiments. On the other hand, the survival probabilities oscillate as functions of $L/E$ and could explain oscillations in short-baseline disappearance experiments. We also derive the bounds on the mixing parameters from the existing short-baseline neutrino oscillation data.

Figures

Equations

$$|{\nu }_{\alpha }⟩=\sum _{k=1}^4{U}_{\alpha k}^{\ast }|{\nu }_k⟩,\text{with}\alpha =e,\mu ,\tau ,s,$$

$$P_{\alpha \beta }(L/E)={\left|\sum _{k=1}^4{U}_{\alpha k}^{\ast }{U}_{\beta k}\exp \left(-i\frac{\Delta m_{k1}^{2}L}{2E}\right)\right|}^2,$$

$$P_{\alpha \beta }^{\text{SBL}}(L/E)={\left|\sum _{k=1}^3{U}_{\alpha k}^{\ast }{U}_{\beta k}+U_{\alpha 4}^{\ast }{U}_{\beta 4}\exp \left(-i\frac{\Delta m_{41}^{2}L}{2E}\right)\right|}^2.$$

$$\sum _{k=1}^4{U}_{\alpha k}^{\ast }{U}_{\beta k}={\delta }_{\alpha \beta }$$

$$\sum _{\alpha =e,\mu ,\tau ,s}{U}_{\alpha k}^{\ast }{U}_{\alpha j}={\delta }_{kj}$$

$$P_{\alpha \beta }^{\text{SBL}}(L/E)={\left|{\delta }_{\alpha \beta }-U_{\alpha 4}^{\ast }{U}_{\beta 4}\left[1-\exp \left(-i\frac{\Delta m_{41}^{2}L}{2E}\right)\right]\right|}^2,$$

$$P_{\alpha \beta }^{\text{SBL}}(L/E)={\delta }_{\alpha \beta }-4|U_{\alpha 4}{|}^2\left({\delta }_{\alpha \beta }-|U_{\beta 4}{|}^2\right){\sin }^2\left(\frac{\Delta m_{41}^{2}L}{4E}\right).$$

$$\sum _{k=1}^3{U}_{\alpha k}^{\ast }{U}_{\beta k}={\delta }_{\alpha \beta }$$

$$\sum _{\alpha =e,\mu ,\tau }{U}_{\alpha k}^{\ast }{U}_{\alpha j}={\delta }_{kj}$$

$$U=\left(\begin{array}{cccc}{U}_{e1}& U_{e2}& U_{e3}& U_{e4}\\ U_{\mu 1}& U_{\mu 2}& U_{\mu 3}& U_{\mu 4}\\ U_{\tau 1}& U_{\tau 2}& U_{\tau 3}& U_{\tau 4}\end{array}\right).$$

$${\tilde{P}}_{\alpha \beta }^{\text{SBL}}(L/E)={\delta }_{\alpha \beta }\left[1+2|U_{\alpha 4}{|}^2\cos \left(\frac{\Delta m_{41}^{2}L}{2E}\right)\right]+|U_{\alpha 4}{|}^2|U_{\beta 4}{|}^2.$$

$$\sum _{\beta =e,\mu ,\tau ,s}{P}_{\alpha \beta }(L/E)=\sum _{k=1}^4\sum _{j=1}^4{U}_{\alpha k}^{\ast }{U}_{\alpha j}\exp \left(-i\frac{\Delta m_{kj}^{2}L}{2E}\right)\sum _{\beta =e,\mu ,\tau ,s}{U}_{\beta k}{U}_{\beta j}^{\ast }.$$

$$\sum _{\beta =e,\mu ,\tau ,s}{P}_{\alpha \beta }(L/E)=1.$$

$$\sum _{\beta =e,\mu ,\tau }{\tilde{P}}_{\alpha \beta }(L/E)=1+|U_{\alpha 4}{|}^2\sum _{\beta =e,\mu ,\tau }|U_{\beta 4}{|}^2+2\mathrm{Re}\left[\sum _{\beta =e,\mu ,\tau }{U}_{\alpha 4}^{\ast }{U}_{\beta 4}\sum _{j=1}^3{U}_{\alpha j}{U}_{\beta j}^{\ast }\exp \left(-i\frac{\Delta m_{4j}^{2}L}{2E}\right)\right],$$

$$\max \left[\sum _{\beta =e,\mu ,\tau }{\tilde{P}}_{\alpha \beta }(L/E)\right]=1+|U_{\alpha 4}{|}^2\left(2+\sum _{\beta =e,\mu ,\tau }|U_{\beta 4}{|}^2\right).$$

$${\tilde{P}}_{\alpha \beta }(0)={\delta }_{\alpha \beta }{\left(1+|U_{\alpha 4}{|}^2\right)}^2+\left(1-{\delta }_{\alpha \beta }\right)|U_{\alpha 4}{|}^2|U_{\beta 4}{|}^2\text{for}\alpha ,\beta =e,\mu ,\tau .$$

$${\tilde{P}}_{\alpha \ne \beta }^{\text{SBL}}=|U_{\alpha 4}{|}^2|U_{\beta 4}{|}^2,$$

$$|{\nu }_{\alpha }⟩=|{\nu }_{\alpha }^{\text{W}}⟩+U_{\alpha 4}^{\ast }|{\nu }_4⟩,\text{with}|{\nu }_{\alpha }^{\text{W}}⟩=\sum _{k=1}^3{U}_{\alpha k}^{\ast }|{\nu }_k⟩,\text{for}\alpha =e,\mu ,\tau .$$

$$|{\nu }_{\alpha }(t){⟩}_{\text{SBL}}\simeq e^{-iEt}|{\nu }_{\alpha }^{\text{W}}⟩+e^{-i{E}_{4}t}{U}_{\alpha 4}^{\ast }|{\nu }_4⟩.$$

$$⟨P_{\alpha \beta }^{\text{SBL}}⟩=\frac{1}{2}{\sin }^{2}2{\vartheta }_{\alpha \beta }.$$

$$|U_{\alpha 4}{|}^2|U_{\beta 4}{|}^2<\frac{1}{2}{{\sin }^{2}2{\vartheta }_{\alpha \beta }^{\text{max}}|}_{\text{large Δm2}}.$$

$$|U_{\mu 4}{|}^2|U_{e4}{|}^2<7.0\times 10^{-4}$$

$$|U_{\mu 4}{|}^2|U_{\tau 4}{|}^2<1.7\times 10^{-4}$$

$$|U_{e4}{|}^2|U_{\tau 4}{|}^2<7.5\times 10^{-3}$$

$$|U_{\mu 4}{|}^2|U_{e4}{|}^2<8.5\times 10^{-4}$$

$$|U_{\mu 4}{|}^2|U_{e4}{|}^2<9.0\times 10^{-4}$$

$$|U_{\mu 4}{|}^2|U_{\tau 4}{|}^2<2.2\times 10^{-4}$$

$$|U_{e4}{|}^2|U_{\tau 4}{|}^2<2.2\times 10^{-2}$$

$${\tilde{P}}_{\alpha \alpha }^{\text{SBL}}(L/E)={\left(1+|U_{\alpha 4}{|}^2\right)}^2-4|U_{\alpha 4}{|}^2{\sin }^2\left(\frac{\Delta m_{41}^{2}L}{4E}\right).$$

$$\frac{{\tilde{P}}_{\alpha \alpha }^{\text{SBL}}(L_{\text{F}}/E)}{{\tilde{P}}_{\alpha \alpha }^{\text{SBL}}(L_{\text{N}}/E)}\simeq \frac{P_{\alpha \alpha }^{\text{SBL}}(L_{\text{F}}/E)}{P_{\alpha \alpha }^{\text{SBL}}(L_{\text{N}}/E)}=1-4|U_{\alpha 4}{|}^2\left[{\sin }^2\left(\frac{\Delta m_{41}^2{L}_{\text{F}}}{4E}\right)-{\sin }^2\left(\frac{\Delta m_{41}^2{L}_{\text{N}}}{4E}\right)\right]+\text{O}(|U_{\alpha 4}{|}^4).$$

$$\frac{{\tilde{P}}_{\alpha \alpha }^{\text{SBL}}(L/E)}{⟨{\tilde{P}}_{\alpha \alpha }^{\text{SBL}}⟩}\simeq \frac{P_{\alpha \alpha }^{\text{SBL}}(L/E)}{⟨P_{\alpha \alpha }^{\text{SBL}}⟩}=1+2|U_{\alpha 4}{|}^2-4|U_{\alpha 4}{|}^2{\sin }^2\left(\frac{\Delta m_{41}^{2}L}{4E}\right)+\text{O}(|U_{\alpha 4}{|}^4).$$

$$|U_{e4}{|}^2=0.012\pm 0.003\text{and}\Delta m_{41}^2=1.29\pm 0.03{\text{eV}}^2\text{cite[cite]@@bibrefAuthors Phrase1YearPhrase2Gariazzo:2018mwd@@citephrase(@@citephrase)}.$$

Full text

Neutrino oscillation experiments have established that neutrinos are massive and mixed particles (see Refs. Giunti and Kim (2007); Bilenky (2018)). The results of solar, atmospheric and long-baseline neutrino oscillation experiments are well fitted in the minimal framework of three-neutrino mixing de Salas et al. (2018); Capozzi et al. (2018); Esteban et al. (2019). However, there are indications in favor of short-baseline oscillations that require the addition of at least a fourth massive neutrino, that is usually called sterile (see the reviews in Refs. Bilenky et al. (1999); Maltoni et al. (2004); Gonzalez-Garcia and Maltoni (2008); Conrad et al. (2013); Gariazzo et al. (2016); Giunti and Lasserre ). This is the 3+1 neutrino mixing scenario, with the flavor neutrino states given by the following superpositions of four massive neutrino states:

[TABLE]

where $U$ is a $4\times 4$ mixing matrix. For ultrarelativistic neutrinos with energy $E$, the corresponding probability of $\nu_{\alpha}\to\nu_{\beta}$ oscillations at a distance $L$ from the source is given by

[TABLE]

where $\Delta{m}^{2}_{kj}\equiv m_{k}^{2}-m_{j}^{2}$. In short-baseline neutrino oscillation experiments the effects of the small solar and atmospheric squared-mass differences $\Delta{m}^{2}_{21}$ and $\Delta{m}^{2}_{31}$ that generate oscillations at larger distances are negligible and the effective oscillation probabilities are given by

[TABLE]

In the standard 3+1 mixing scheme the neutrino mixing is generated by the unitary diagonalization of the neutrino mass matrix (see Refs. Giunti and Kim (2007); Bilenky (2018)). Therefore, the $4\times 4$ mixing matrix $U$ is unitary, with the unitarity relations

[TABLE]

Taking into account the unitarity relation (4), the short-baseline oscillation probabilities are given by

[TABLE]

that can be written as Bilenky et al. (1998)

[TABLE]

This is the standard 3+1 formula that has been used in many phenomenological analyses of the data of short-baseline neutrino oscillation experiments (see the reviews in Refs. Bilenky et al. (1999); Maltoni et al. (2004); Gonzalez-Garcia and Maltoni (2008); Conrad et al. (2013); Gariazzo et al. (2016); Giunti and Lasserre ). The latest results on the values of the mixing parameters $|U_{\alpha 4}|^{2}$ for $\alpha=e,\mu,\tau$ and $\Delta{m}^{2}_{41}$ are given in Refs. Gariazzo et al. (2018); Dentler et al. (2018); Giunti and Lasserre .

Recently, the authors of Ref. Kim et al. (2018) considered the possibility that the $4\times 4$ mixing matrix $U$ is not unitary, keeping the unitarity of the $3\times 3$ submatrix of three-neutrino mixing that connects the three active flavor neutrinos $\nu_{e}$, $\nu_{\mu}$, and $\nu_{\tau}$ to the three light massive neutrinos $\nu_{1}$, $\nu_{2}$, and $\nu_{3}$, i.e.

[TABLE]

We refer to this scenario as 3+1 non-unitary mixing (NUM). In this case the $3\times 3$ mixing is due to the diagonalization of the mass matrix of the three active flavor neutrinos that is assumed to be generated by a mechanism that is different from the mechanism that generates the mass of the heavier neutrino $\nu_{4}$. The additional mixing of the flavor neutrinos with $\nu_{4}$ can be generated by non-standard interactions between $\nu_{4}$ and the charged leptons $e$, $\mu$, and $\tau$ Cvetic et al. (2017). The elements $U_{\alpha 4}$ of the mixing matrix for $\alpha=e,\mu,\tau$ are the coefficients that quantify the non-standard interactions of $\nu_{4}$ with respect to the standard charged-current weak interaction. Since in this scenario $\nu_{4}$ is interacting, we do not call it sterile.

In principle, the quantities $|U_{\alpha 4}|$ can have any value, smaller or bigger than one, but the current bounds on non-standard effects imply that they are very small, as shown in Ref. Kim et al. (2018) from the analysis of non-oscillation data. In the following we will derive their bounds from short-baseline neutrino oscillation data.

Since the three light neutrinos take part in weak interactions through the unitary $3\times 3$ submatrix and the new massive neutrino $\nu_{4}$ is observable only through its interactions with the three charged leptons, it is not useful to consider a $4\times 4$ mixing matrix (the fourth row is not well defined), but only the $3\times 4$ mixing matrix that connects the four massive neutrinos to the three observable charged leptons:

[TABLE]

The effective oscillation probabilities in short-baseline experiments in the 3+1 NUM scenario can be obtained from Eq. (3) with the constraint (8):

[TABLE]

Here and in the following we indicate with a tilde the probabilities obtained in the 3+1 NUM scenario. Note that the probabilities (11) depend only on the absolute values of the elements of the fourth column of the mixing matrix and are the same for neutrinos and antineutrinos, as in the standard unitary 3+1 scenario. Apart from this similarity, one can see immediately that the oscillation probabilities $\widetilde{P}_{\alpha\beta}^{\text{SBL}}(L/E)$ are different from the standard unitary 3+1 oscillation probabilities $P_{\alpha\beta}^{\text{SBL}}(L/E)$ in Eq. (7). Moreover, the effective short-baseline probabilities $\widetilde{P}_{\alpha\beta}^{\text{SBL}}(L/E)$, and in general all the probabilities obtained from Eq. (2) with the constraint (8), are not true probabilities, because some of them can be larger than one and the sum of the probabilities over the flavor index do not add up to one. Indeed, from Eq. (2) we have

[TABLE]

Using the $4\times 4$ unitarity relations (4) and (5), in the standard 3+1 mixing scheme we obtain the normal probability sum rule

[TABLE]

On the other hand, in the 3+1 NUM scenario, considering only the sum over the three active flavors we obtain a quantity that depends on $L/E$ and has a maximum that is bigger than one:

[TABLE]

with

[TABLE]

Other remarkable features of the 3+1 NUM scenario are that the initial survival probabilities are larger than one and there are zero-distance flavor violations due to the non-orthogonality of the flavor neutrino states:

[TABLE]

These features are due to the non-standard interactions that generate the coupling of the flavor neutrinos with $\nu_{4}$, and cause an increase by $1+|U_{\alpha 4}|^{2}$ of the production and detection probabilities of $\nu_{\alpha}$ and a probability $|U_{\alpha 4}|^{2}|U_{\beta 4}|^{2}$ to detect a neutrino produced as $\nu_{\alpha}$ (i.e. with a charged lepton $\alpha$) with a different flavor $\beta$ (i.e. observing a charged lepton $\beta$) at zero distance. These phenomena are analogous to those that have been studied in the framework of non-standard interactions of the three light neutrinos (see the review in Ref. Ohlsson (2013)).

Turning back to the discussion of short-baseline oscillations, for \hbox to0.0pt{\kern-2.5pt\overset{\scriptscriptstyle(-)}{\phantom{\nu}}\hss}{{\nu}_{\alpha}}\to\hbox to0.0pt{\kern-2.5pt\overset{\scriptscriptstyle(-)}{\phantom{\nu}}\hss}{{\nu}_{\beta}} appearance experiments with $\alpha\neq\beta$ we have

[TABLE]

that is a constant not dependent on energy and distance, and obviously coincides with the zero-distance flavor transition probability in Eq. (16). On the other hand, one can see from Eq. (11) that the survival probabilities oscillate as functions of $L/E$. This apparently strange behavior can be understood as follows. Let us write the flavor state in Eq. (1) as

[TABLE]

The states $|\nu_{\alpha}^{\text{W}}\rangle$ are the standard weak-interaction states, that are orthonormal because of the assumed unitarity of the $3\times 3$ submatrix of three-neutrino mixing ($\langle\nu_{\alpha}^{\text{W}}|\nu_{\beta}^{\text{W}}\rangle=\delta_{\alpha\beta}$). We also have $\langle\nu_{\alpha}^{\text{W}}|\nu_{4}\rangle=0$ because of the orthonormality of the mass eigenstates. At short-baseline distances an initial state $|\nu_{\alpha}\rangle$ evolves to

[TABLE]

when we project this state on a different flavor state $|\nu_{\beta}\rangle$ with $\beta\neq\alpha$ the standard weak-interaction states do not contribute because of their orthogonality and we obtain a constant transition probability, because there is no phase difference to generate interference. On the other hand, if we consider the survival probabilities, when we project the state (19) on $|\nu_{\alpha}\rangle$ there are contributions both from the standard weak-interaction states and $|\nu_{4}\rangle$, with a phase difference that generates interference.

Since the short-baseline flavor transition probability (17) does not depend on energy, it cannot fit spectral distortions as those observed in the LSND Aguilar et al. (2001) and MiniBooNE Aguilar-Arevalo et al. (2018) \hbox to0.0pt{\kern-2.5pt\overset{\scriptscriptstyle(-)}{\phantom{\nu}}\hss}{{\nu}_{\mu}}\to\hbox to0.0pt{\kern-2.5pt\overset{\scriptscriptstyle(-)}{\phantom{\nu}}\hss}{{\nu}_{e}} appearance experiments. Hence, it cannot explain these anomalies. This is, however, not a vital defect of the 3+1 NUM scenario with respect to the standard unitary 3+1 mixing case, because the standard unitary 3+1 interpretation of the current data suffers of a strong tension between the appearance and disappearance data mainly due to the incompatibility between the MINOS&MINOS+ bound on \hbox to0.0pt{\kern-2.5pt\overset{\scriptscriptstyle(-)}{\phantom{\nu}}\hss}{{\nu}_{\mu}} disappearance Adamson et al. (2019) and the LSND and MiniBooNE signals of \hbox to0.0pt{\kern-2.5pt\overset{\scriptscriptstyle(-)}{\phantom{\nu}}\hss}{{\nu}_{\mu}}\to\hbox to0.0pt{\kern-2.5pt\overset{\scriptscriptstyle(-)}{\phantom{\nu}}\hss}{{\nu}_{e}} appearance Gariazzo et al. (2018); Dentler et al. (2018), that disfavor the latter (see the discussion in Ref. Giunti and Lasserre ).

We can constrain the mixing matrix elements in the 3+1 NUM scenario by considering the exclusion curves in the $\sin^{2}\!2\vartheta_{\alpha\beta}$–$\Delta{m}^{2}_{41}$ plane of short-baseline \hbox to0.0pt{\kern-2.5pt\overset{\scriptscriptstyle(-)}{\phantom{\nu}}\hss}{{\nu}_{\alpha}}\to\hbox to0.0pt{\kern-2.5pt\overset{\scriptscriptstyle(-)}{\phantom{\nu}}\hss}{{\nu}_{\beta}} appearance experiments. At large values of $\Delta{m}^{2}_{41}$ these experiments are sensitive only to the constant averaged standard probability

[TABLE]

From Eqs. (17) and (20) we obtain the limits

[TABLE]

The best limits are given by the results of the NOMAD experiment:

[TABLE]

at 90% CL. These limits are corroborated by the slightly less stringent 90% CL limits

[TABLE]

Therefore, there are robust stringent limits on the products $|U_{\alpha 4}|^{2}|U_{\beta 4}|^{2}$ and the corresponding flavor appearance transitions in the 3+1 NUM scenario.

Let us now consider short-baseline disappearance experiments. From Eq. (11), the survival probabilities can be written as

[TABLE]

These survival probabilities oscillate between the maximal value $\left(1+|U_{\alpha 4}|^{2}\right)^{2}$ that is larger than one and the minimal value $\left(1-|U_{\alpha 4}|^{2}\right)^{2}$ that is smaller than one, with the average $1+|U_{\alpha 4}|^{4}$ that is larger than one. Since these survival probabilities have a form that is different from the standard ones given by Eq. (7), in general it is not possible to constrain the quantities $|U_{\alpha 4}|^{2}$ using the results of the standard unitary 3+1 analyses of short-baseline disappearance experiments. However, there is an approximate correspondence for the analyses based on the relative comparison of the survival probabilities at different distances or different energies for small values of $|U_{\alpha 4}|^{2}$. For example, for the ratio of the probabilities measured with a far detector at $L_{\text{F}}$ and a near detector at $L_{\text{N}}$ we have

[TABLE]

For spectral distortion analyses, we can consider the ratio between the probability and its average:

[TABLE]

These approximate equalities allow us to constrain small values of $|U_{e4}|^{2}$ and $|U_{\mu 4}|^{2}$ in the 3+1 NUM scenario using the results of the standard unitary 3+1 analyses of several short-baseline disappearance experiments.

Let us consider first $\nu_{e}$ and $\bar{\nu}_{e}$ disappearance. The results of the standard unitary 3+1 analyses of the absolute rates of reactor neutrino experiments that led to the reactor electron antineutrino anomaly Mention et al. (2011) and those of the Gallium radioactive source experiments that led to the Gallium electron neutrino anomaly Giunti and Laveder (2011) cannot be used in the 3+1 NUM scenario because of the different normalization of the survival probability with respect to the standard one. However, the recent short-baseline reactor neutrino experiments obtained information on $\bar{\nu}_{e}$ disappearance that is independent of the absolute neutrino flux through the ratio of the spectra measured at different distances. Therefore, their results can be applied to the 3+1 NUM scenario through Eq. (30) for small values of $|U_{e4}|^{2}$. In particular, from the combined fit of the data of the NEOS Ko et al. (2017) and DANSS Alekseev et al. (2018) experiments

[TABLE]

Since the inclusion of other experimental data on short-baseline $\nu_{e}$ and $\bar{\nu}_{e}$ disappearance do not modify substantially the results in Eq. (32) in the standard scenario Gariazzo et al. (2018); Dentler et al. (2018), we can consider the values in Eq. (32) as a good approximation of the global fit values also in the 3+1 NUM scenario.

The value of $|U_{e4}|^{2}$ in Eq. (32) was considered also in Ref. Kim et al. (2018), albeit without a correct derivation. Using a correct derivation, we confirm the statement in Ref. Kim et al. (2018) that the results of the fit of short-baseline neutrino oscillation data is compatible with the value of $|U_{e4}|^{2}$ obtained in Ref. Kim et al. (2018) from non-oscillation data ($|U_{e4}|^{2}=0.008\pm 0.005$).

The positive indication (32) in favor of the existence of new physics given by the combined analysis of the NEOS and DANSS data is under investigation in the ongoing STEREO Almazan et al. (2018), PROSPECT Ashenfelter et al. (2018), SoLid Abreu et al. (2018), and Neutrino-4 Serebrov et al. (2019) reactor experiments. From a model-building point of view the value of $|U_{e4}|^{2}$ in Eq. (32) is rather large and its experimental confirmation will require dedicated theoretical investigations. For example, in the left-right symmetric models considered in Ref. Cvetic et al. (2017) $|U_{e4}|^{2}\approx 0.012$ implies a value $M_{R}\approx 250\,\text{GeV}$ of the mass of the vector boson $W_{R}$ that mediates right-handed charged-current weak interactions. This value of $M_{R}$ is smaller than the bound $M_{R}>300\,\text{GeV}$ found in a general analysis of left-right symmetric models Langacker and Sankar (1989) (as explained in Ref. Cvetic et al. (2017), the larger lower limits on $M_{R}$ obtained in analyses of LHC data Maiezza et al. (2010); Collaboration (2017) have been obtained in specific left-right models).

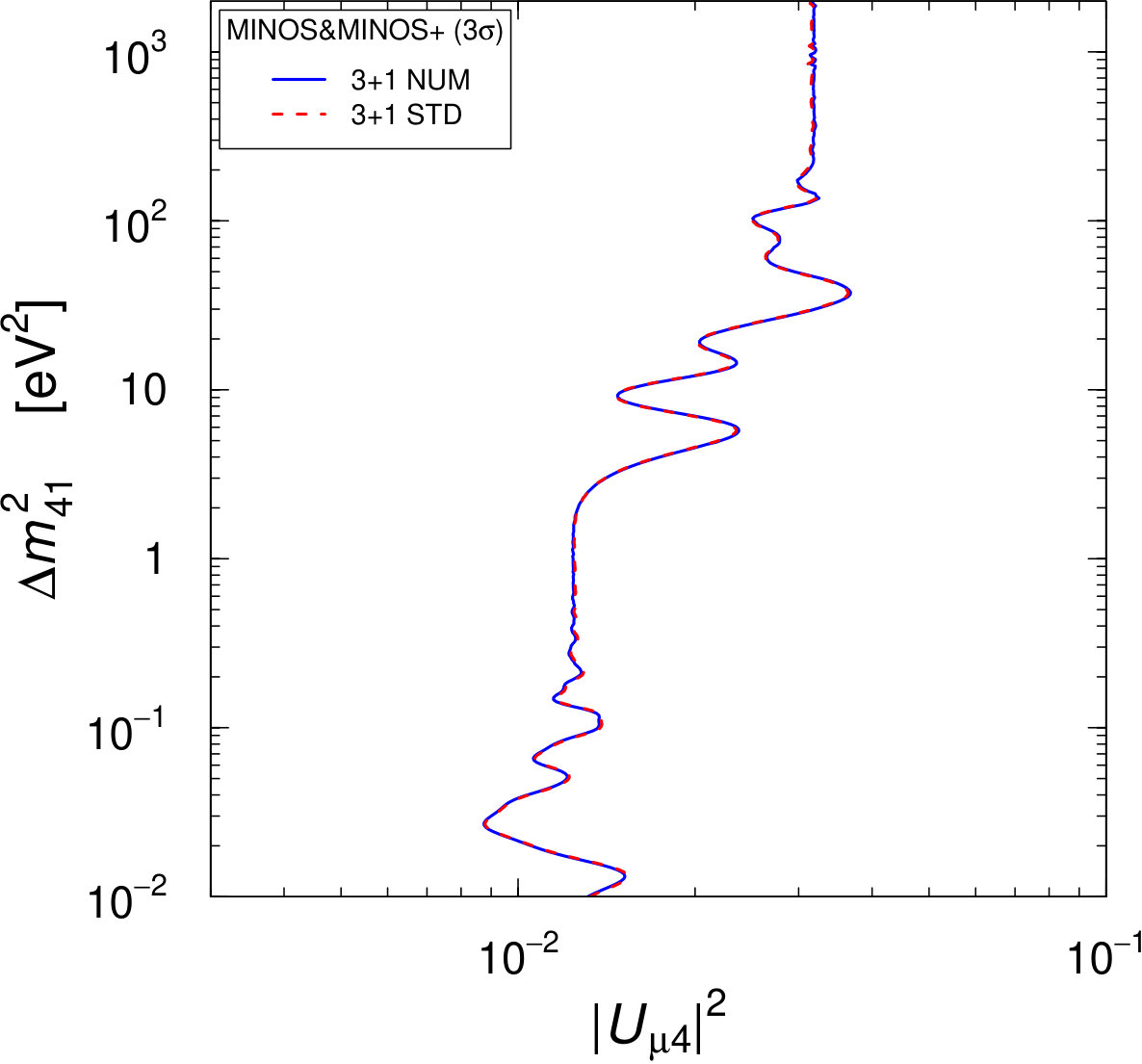

Let us now consider short-baseline $\nu_{\mu}$ and $\bar{\nu}_{\mu}$ disappearance, for which there is currently no experimental indication. The limits on $|U_{\mu 4}|^{2}$ in the standard unitary 3+1 scenario are dominated by the MINOS&MINOS+ bound Adamson et al. (2019) for $\Delta{m}^{2}_{41}\lesssim 3\,\text{eV}^{2}$ and $30\lesssim\Delta{m}^{2}_{41}\lesssim 70\,\text{eV}^{2}$ (see Ref. Giunti and Lasserre ). Since this bound was obtained taking into account the oscillations in the near and far detectors with a phenomenological neutrino flux constraint and taking into account the oscillations due to the atmospheric squared-mass difference in the far detector, we need to reanalyze the MINOS&MINOS+ data in the 3+1 NUM scenario in order to check if there is a change of the limits on $|U_{\mu 4}|^{2}$ with respect to the standard unitary 3+1 scenario. We performed this analysis adapting the MINOS&MINOS+ code that is available in the data release of Ref. Adamson et al. (2019). The result is depicted in Fig. 1, that shows that the limits on $|U_{\mu 4}|^{2}$ in the NUM and standard unitary 3+1 scenarios are practically the same. This is due to the smallness of $|U_{\mu 4}|^{2}$ (we checked that the $\chi^{2}$ is different for large values of $|U_{\mu 4}|^{2}$, that are excluded at very large confidence levels).

Other stringent limits on $\nu_{\mu}$ and $\bar{\nu}_{\mu}$ disappearance that are relevant in different ranges of $\Delta{m}^{2}_{41}$ have been obtained in the CDHSW Dydak et al. (1984), CCFR Stockdale et al. (1984), and SciBooNE-MiniBooNE Mahn et al. (2012); Cheng et al. (2012) experiments through spectral ratio measurements at different distances. Considering these limits for small values of $|U_{\mu 4}|^{2}$, we can apply the approximate equality (30) and obtain the exclusion curves in Fig. 1.

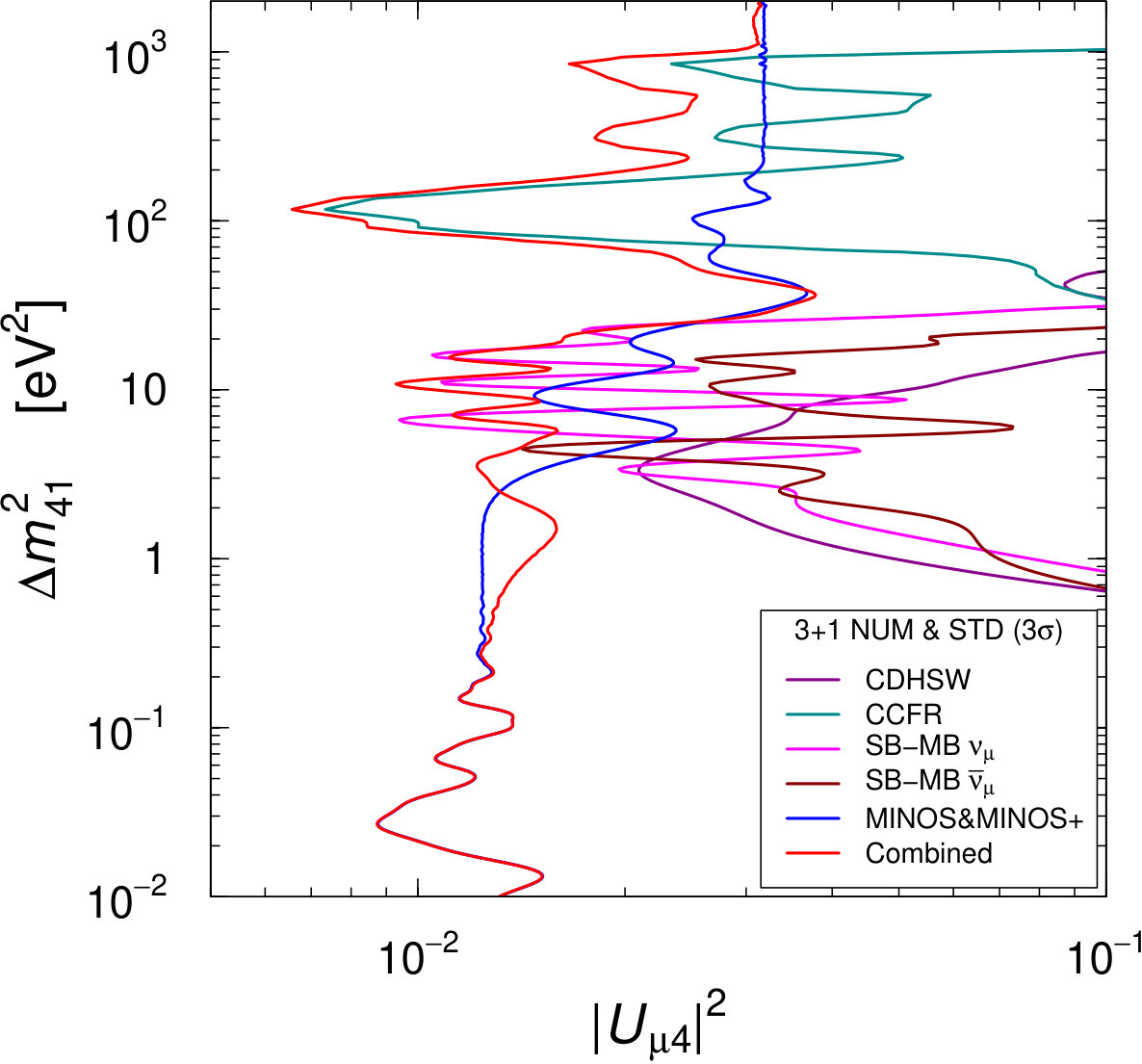

The total combined exclusion curve in Fig. 1 shows that $|U_{\mu 4}|^{2}$ is severely restricted for all values of $\Delta{m}^{2}_{41}$ larger than $10^{-2}\,\text{eV}^{2}$. The small discrepancy between the combined limit and the dominating MINOS&MINOS+ limit for $\Delta{m}^{2}_{41}\sim 1\,\text{eV}^{2}$ is due to a slight preference of the SciBooNE-MiniBooNE data for values of $|U_{\mu 4}|^{2}$ that are larger than the MINOS&MINOS+ limit. This issue will be discussed in detail in Ref. Gariazzo et al. (2019).

In conclusion, we have shown that the expressions for the oscillation probabilities in the 3+1 non-unitary mixing scenario are different from those in the standard 3+1 unitary neutrino mixing case. The phenomenology of short-baseline neutrino oscillations have some differences in the two cases. In particular, in the 3+1 NUM scenario the flavor-changing probabilities are constant at short-baseline distances and equal to their zero-distance value. Therefore, 3+1 NUM cannot explain the spectral distortions observed in the LSND and MiniBooNE appearance experiments. We presented in Eqs. (22)–(28) the current bounds on the non-unitary mixing from short-baseline appearance experiments. We have also shown that the short-baseline flavor survival probabilities oscillate as functions of $L/E$ and the phenomenology of short-baseline disappearance experiment based on the measurement of spectral distortions or ratios of rates at different distances is approximately equal to that in the standard 3+1 unitary mixing case for small values of the non-unitary mixing parameters. This approximation implies the bounds on $|U_{e4}|^{2}$ and $|U_{\mu 4}|^{2}$ presented, respectively, in Eq. (32) and Fig. 1.
