Anharmonic Lattice Relaxation during Non-radiative Carrier Capture

TL;DR

This paper develops a first-principles method to model anharmonic lattice relaxation in defect-related non-radiative carrier capture, successfully explaining experimental observations in GaAs that harmonic models cannot.

Contribution

It introduces a novel approach to account for anharmonic effects in defect lattice vibrations, improving the accuracy of carrier capture predictions in semiconductors.

Findings

Accurately predicts the electron capture barrier in GaAs DX centers.

Shows the absence of quantum tunneling at low temperatures.

Explains the composition-invariant electron emission barrier.

Abstract

Lattice vibrations of point defects are essential for understanding non-radiative electron and hole capture in semiconductors as they govern properties including persistent photoconductivity and Shockley-Read-Hall recombination rate. Although the harmonic approximation is sufficient to describe a defect with small lattice relaxation, for cases of large lattice relaxation it is likely to break down. We describe a first-principles procedure to account for anharmonic carrier capture and apply it to the important case of the \textit{DX} center in GaAs. This is a system where the harmonic approximation grossly fails. Our treatment of the anharmonic Morse-like potentials accurately describes the observed electron capture barrier, predicting the absence of quantum tunnelling at low temperature, and a high hole capture rate that is independent of temperature. The model also explains the origin of the composition-invariant electron emission barrier. These results highlight an important shortcoming of the standard approach for describing point defect ionization that is accompanied by large lattice relaxation, where charge transfer occurs far from the equilibrium configuration.

Figures

Equations

$$\begin{array}{rl}C=& \frac{2\pi }{\hslash }\text{absolutevalue}{\text{matrixelement}{\psi }_t\text{partialderivative}\ast HQ{\psi }_c}^2\\ & \sum _{m,n}{w}_m\text{absolutevalue}{\text{matrixelement}{\xi }_{tn}\Delta Q{\xi }_{cm}}^2\delta (E_{cm}-E_{tn})\end{array}$$

$$Q^2=\sum _{\alpha }{M}_{\alpha }{\mathbf{R}}_{\alpha }^2$$

$${\sigma }_n=C_n/\text{expectationvalue}{v}_{th}$$

Full text

Following the pioneering work of Landau and Zener Zener (1932), non-radiative charge transfer has been studied extensively in molecules and biological systems Marcus and Sutin (1985), as well as in condensed matter Huang et al. (1950); Henry and Lang (1977). In the Landau-Zener formula, the probability of charge transfer is proportional to the square of the coupling of initial and final states and inversely proportional to the rate of change in their energy spacing. For point defects in crystalline solids, with quantized vibrations Huang et al. (1950); Stoneham (1975); Henry and Lang (1977); Shi and Wang (2012); Alkauskas et al. (2014), the carrier capture coefficient $C$ can be expressed using the electron-phonon coupling $\matrixelement{\psi_{i}}{\partialderivative*{H}{Q}}{\psi_{f}}$ and the overlap of vibrational wave functions $\matrixelement{\xi_{im}}{\Delta Q}{\xi_{fn}}$, which is given by

[TABLE]

where $\psi$ and $\xi$ are electronic and vibrational wave functions, respectively, and the subscripts $c$ and $t$ specify the free carrier and trap states. $E_{cm}$ and $E_{tn}$ denote the energy of the carrier and trap states, respectively, where $m$ and $n$ are the indices for vibrational eigenstates. Here, we use the effective configuration coordinate $Q$.

In this formalism, the temperature-dependence is determined by the thermal occupation number $w_{m}$ of the initial vibrational state. Early theories provided a good understanding of carrier capture rates that follow Arrhenius behaviour at high temperature and are limited by quantum mechanical tunneling at low temperature. However, it is impossible to access the detailed parameters experimentally, including electron-phonon coupling matrix elements and overlap integrals of vibrational wave functions. Instead, the weighted average of the capture rate is measured.

Modern simulation approaches have been based on density functional theory (DFT) that avoid the need for empirical parameters. Shi and Wang Shi and Wang (2012) proposed an adiabatic formalism to calculate the capture rate using DFT, taking into account the full set of phonon modes for a given defect. Later, a method adopting a 1D configuration coordinate and static coupling theory was proposed by Alkauskas et al. Alkauskas et al. (2014). The two methods have been compared, and the validity of the 1D configuration coordinate has been confirmed Shi et al. (2015); Wickramaratne et al. (2018); Shi et al. (2018). The adiabatic approximation generally underestimates the capture rate compared to measurements and static coupling theory Shi et al. (2015); Wickramaratne et al. (2018); Shi et al. (2018). However, as they both adopt the harmonic approximation for the potential energy surface (PES) of defects, the role of anharmonicity in non-radiative carrier capture has not been well characterized. The vibrations of a defect may differ significantly from harmonic behavior when its atomic configuration is far from the equilibrium structure, as has been suggested in earlier work Stoneham (1975); Henry and Lang (1977); Markvart (1981).

Carrier capture that occurs far from an equilibrium configuration has been understood based on a large-lattice-relaxation (LLR) model developed by Lang and Logan Lang and Logan (1977). The LLR model successfully explained persistent photoconductivity (PPC) in \ceAl_xGa_1-xAs ($x>0.22$) and \ceGaAs under hydrostatic pressure with the lack of quantum tunneling at low temperature ($<77$ K) and a large Stokes shift of c.a. 1 eV. The model adopts the harmonic approximation with empirical paramaterization; although, the authors mentioned that anharmonic terms may be important.

One of the most intensively studied LLR defects is the DX center in \ceAl_xGa_1-xAs, owing not only to its anomalous physical properties but also its technological importance. The isolated substitutional Si atom (\ceSi_Ga) was proposed as an atomic model of the DX center by Chadi and Chang Chadi and Chang (1988, 1989), and successfully explained experimental observations. However, a detailed microscopic understanding has not been fully explored. Unusually, the electron emission barrier is invariant with respect to the variation in the composition of \ceAl_xGa_1-xAs  and hence the donor binding energy Calleja et al. (1988); Mooney (1990). With only circumstantial evidence, it has been assumed that the transition from the conduction band minimum at the $\Gamma$-point to DX center is forbidden, and a hypothetical intermediate state, presumably related to the $\mathrm{L}$ valley of the conduction band, plays an important role.

In this Letter, we report a first-principles anharmonic approach to describe non-radiative electron and hole capture in semiconductors. We apply it to investigate carrier trapping by the DX center, \ceSi_Ga, in \ceGaAs under hydrostatic pressure. During the atomic transformation accompanying carrier capture, the bond-breaking relaxation of \ceSi_Ga results in a Morse-like PES. Here the harmonic approximation significantly overestimates the electron and hole capture barriers and fails to even qualitatively describe the physical behaviour of the system.

Our procedure is implemented in the open-source CarrierCapture.jl package Kim et al. (2019). We followed static coupling theory, but removed the restriction of harmonic vibrations. Instead we calculate the vibrational wave functions $\xi$ and matrix elements $\matrixelement{\xi_{tn}}{\Delta Q}{\xi_{cm}}$ from solutions of the 1D Schrödinger equation for the anharmonic PES using a finite-difference method. The total energy of pristine and defective crystals was calculated from DFT Hohenberg and Kohn (1964); Kohn and Sham (1965) using the projector-augmented wave (PAW) method Blöchl (1994) and the hybrid exchange-correlation functional of Heyd-Scuseria-Ernzerhof (HSE06) Heyd et al. (2003), as implemented in \ceVASP Kresse and D. Joubert (1999). We used a value of screened exact exchange ($\alpha=0.28$) that reproduces the experimental band gap of GaAs. The wave functions were expanded in plane waves up to an energy cutoff of 400 eV. The all-electron wave functions were derived from the pseudo wave functions and atom-centered partial waves in the PAW method, and the overlap integrals were performed in real space using pawpyseed paw (2019) to calculate the electron-phonon coupling outlined by Alkauskas et al. Alkauskas et al. (2014). A Monkhorst-Pack $k$-mesh Monkhorst and Pack (1976) with a grid spacing less than $2\pi\times$0.03 Å*-1* was used for Brillouin zone integration. The atomic coordinates were optimized until the residual forces were less than 0.01 eV/Å. The lattice vectors were relaxed until residual stress was below 0.5 kbar under external pressure of 28 kbar, which is a regime where the DX-centre is stable. For defect formation, a $3\times 3\times 3$ supercell expansion (216 atoms) of the conventional cell was employed with $\Gamma$-point sampling to avoid spurious dispersion of the Kohn-Sham eigenstates for the defect.

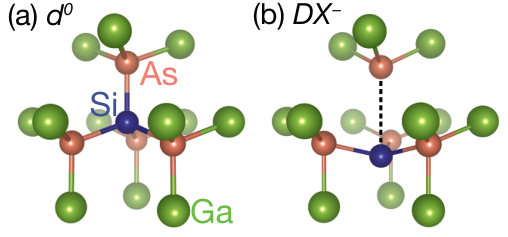

Anharmonicity of the DX centre: \ceSi_Ga is a shallow donor in \ceGaAs. The defect with \ceT_d symmetry is referred to as the d configuration (Fig. 1 (a)). In both \ceGaAs under hydrostatic pressure and the \ceAl_xGa_1-xAs ($x>0.22$) alloy, the band gap is widened and a shallow-to-deep transition occurs. A deep donor, the so-called DX configuration with \ceC_3v symmetry, becomes stable ((Fig. 1 (b)). In the DX configuration, the Si–As bond is broken and the Si atom exhibits a large lattice relaxation toward the antibonding site. We find that the neutral d configuration produces a shallow level with a delocalized Kohn-Sham eigenstate, while the negatively-charged DX produces a deep eigenstate localized around a Si–As antibonding orbital. This doubly occupied antibonding level stabilizes the DX configuration.

To begin, we mapped the PES of the \ceSi_Ga defect over a configuration coordinate $Q$ that represents the degree of collective atomic deformation (Fig. 2). $Q$ is defined by

[TABLE]

where $M_{\alpha}$ and $\mathbf{R}_{\alpha}$ are the atomic mass and the displacement vector from the equilibrium position of atom $\alpha$, respectively. The PES of d and DX are well described by a combination of two forms: a Morse potential and a polynomial potential up to fourth-order that describe the \ceSi-As bond-breaking, and additional bond-stretching and bond-bending around the defect, respectively. For neutral d0, the stretching of the \ceSi-As bond increases the potential energy significantly over a short range, but after the bond-breaking ($Q>4$ amu1/2Å), the energy increases moderately due to the bending of other bonds (Fig. 2 (a)). Further distortion results in a substantial energy penalty.

For the charged DX-, the polynomial potential shows a minimum around the DX configuration (8.8 amu1/2Å), while the minimum of the Morse potential is near the d configuration ($-0.7$ amu1/2Å). Thus, the Morse potential describes the attractive force between Si and As compensating the restoring force due to the perturbation of other bonds (Fig. 1 (b)). This competition results in the soft anharmonic PES of DX- near the d configuration. Further distortion results in strong Pauli repulsion which takes an exponential form. Despite their simplicity, the combination of Morse and polynomial potentials adequately describe the DFT energy surface and produce a physical dissociation energy of 2–3 eV for the Morse component.

The evolution of the electronic eigenstate during the lattice relaxation from DX- to d0 is shown in Fig. 2 (c). As the Si and As atoms approach, the anti-bonding level rises toward the conduction band edge; at $Q=2.4$ amu1/2Å  they cross. It is challenging to describe diabatic level-crossing within the framework of DFT / Born-Oppenheimer approximation due to variational collapse. Our practical solution is to employ a $\Delta$ self-consistent field approach and constrain the occupation of the defect level. This approach recovers the diabatic process, but results in some noise near the crossing-point (Fig. 2 (b)) as the adiabatic basis is strongly coupled. The development and application of more sophisticated excited-state techniques such as time-dependent DFT is a worthwhile line of research.

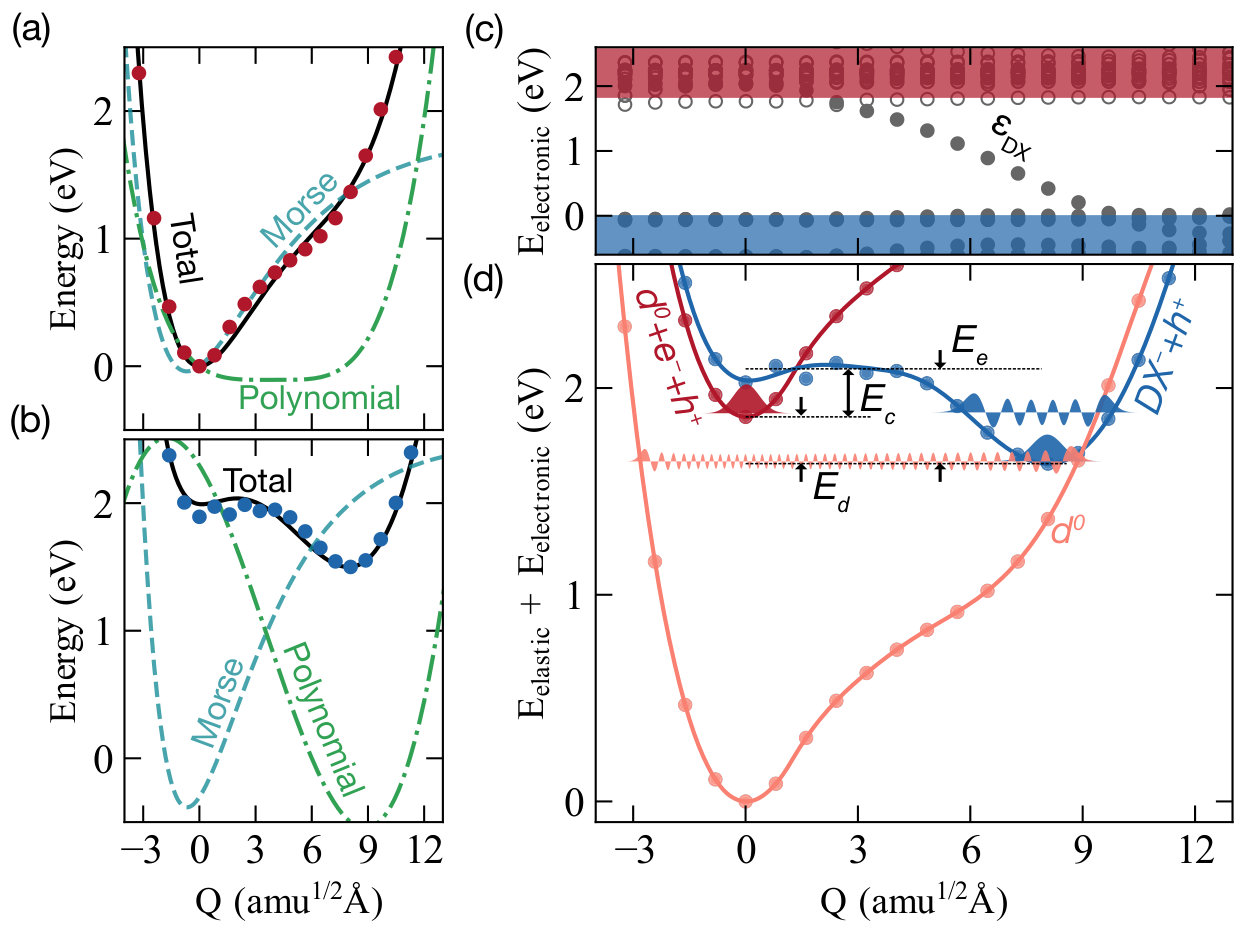

The full configuration coordinate diagram describing electron capture (Fig. 2 (d)) is obtained by aligning the PES of d0 and DX- using the donor binding energy ($E_{d}$) of the DX center, which varies from 0–0.23 eV depending on AlAs mole fraction $x$ in \ceAl_xGa_1-xAs Mooney et al. (1987) and the hydrostatic pressure Calleja et al. (1988); Fujisawa et al. (1988); Fujisawa (1989). While the decomposition of the PES into intuitive functions is useful for qualitative analysis, we use quartic splines for the best fit to the DFT energy surface (Fig. 2 (d)).

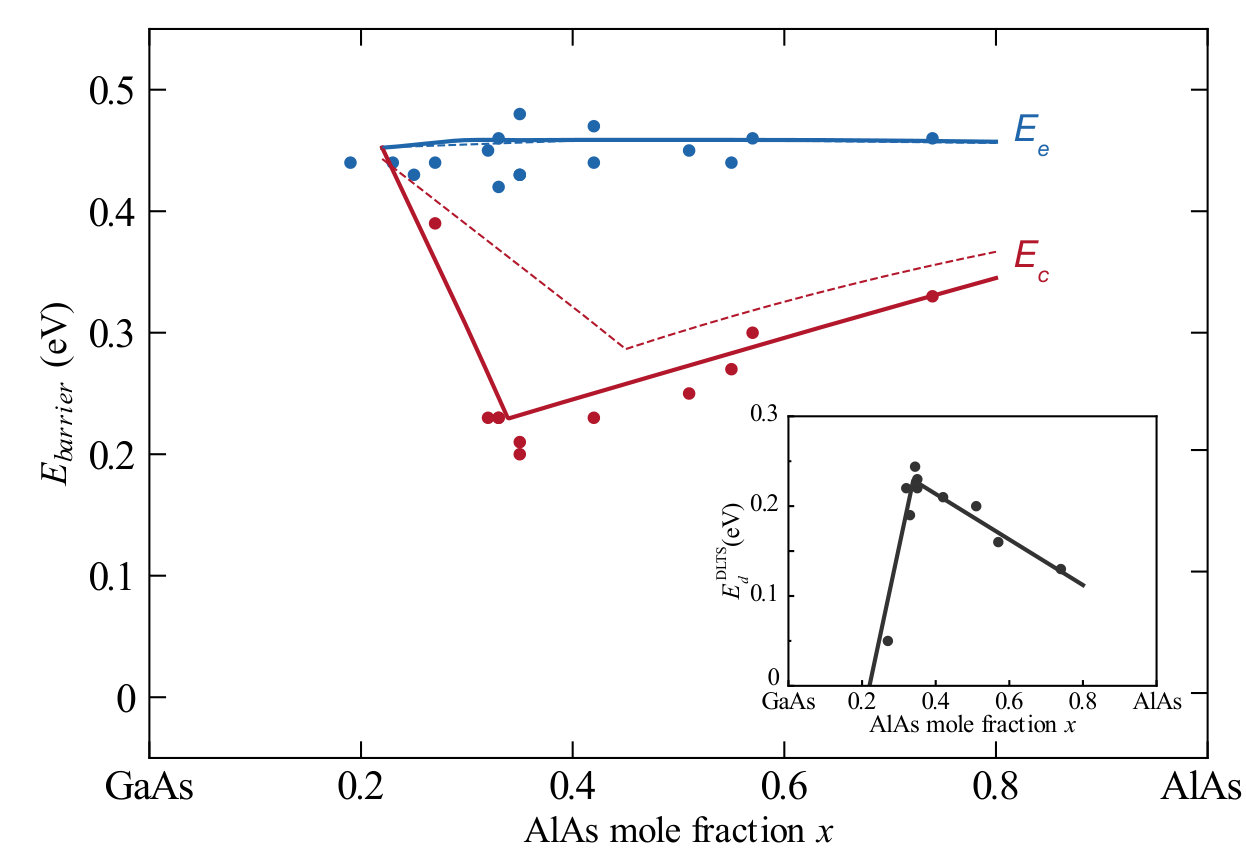

One anomaly of the DX center is that the activation energy for electron emission $E_{e}$ is nearly invariant with respect to the \ceAlAs mole fraction $x$ and, hence, the donor binding energy as shown in Fig. 3. This weak variation in $E_{e}$ can not be explained by configuration coordinates within the harmonic approximation. We have calculated the emission barrier with various donor binding energies (Fig. 3). The \ceAlAs mole fraction $x$ is estimated based on the donor binding energy measured by deep level transient spectroscopy (DLTS). Due to the plateau in the potential of DX- around $Q=3$, the activation energy is fixed to 0.45 eV above the vibrational ground-state, regardless of the donor binding energy. Thus, it is the anharmonicity of DX- that results in the constant $E_{e}$. The intermediate state that has been proposed previously Saxena (1982); Mooney (1990) is not required. Furthermore, the calculated energy barrier for electron capture also agrees well with experiments Mooney et al. (1987); Calleja et al. (1988). The donor binding energy measured by Hall experiments (Fig. 3) results in slightly higher capture energy, as they predict shallower levels Chand et al. (1984).

Rate of carrier capture: The anharmonic PES significantly lowers the electron capture barrier as compared to predictions within the harmonic approximation. The calculated electron capture barriers are 0.2–0.4 eV, depending on the donor binding energy, which agrees well with experiments Mooney et al. (1987). The harmonic approximation predicts much higher barriers of 1.5–1.6 eV.

Next, we calculate the electron capture cross-section

[TABLE]

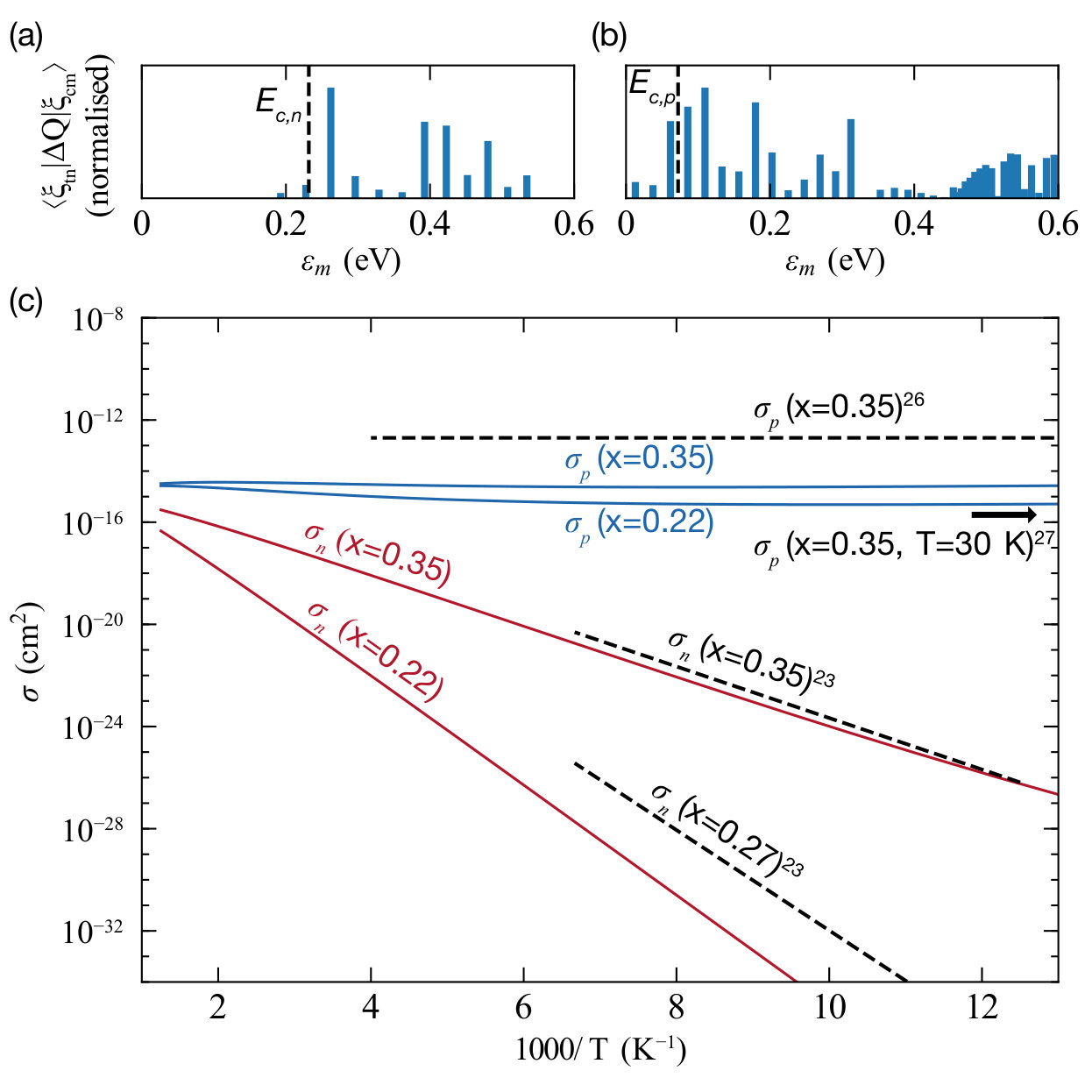

where the thermal velocity $\expectationvalue{v_{th}}=\sqrt{3k_{B}T/m^{*}}$ is calculated using the effective masses $m^{*}$ of carriers taken from Ref. Levinshtein et al. (1999). The high-temperature behavior of carrier capture is often governed by a classical energy barrier while, at low temperature, tunneling is dominant. However, for the DX center, the overlap of vibrational wave functions is negligible below the energy barrier, as shown in Fig. 4 (a), due to large lattice relaxation and the long plateau in energy of DX- (Fig. 2 (d)). Thus, tunneling is suppressed and its effect is negligible. The calculated electron capture cross-section decreases exponentially, even at low temperature of around 77 K (Fig. 4 (c)), which explains the experimental observations Mooney et al. (1987).

In contrast, hole capture occurs with large overlap of vibrational wave functions even below the small energy barrier, as shown in Fig. 4 (b). This explains the weak temperature dependence in the hole capture cross-sections. Moreover, the parallel PES ($Q>9$ amu1/2Å) of d0 and DX- produce large overlap populations above the crossing point (Fig. 4 (b)). Here, the harmonic approximation predicts much smaller cross-sections due to the high hole capture barrier of 1 eV. On the other hand, the Morse component alone does not cross the potential energy surface of DX-, which predicts that the vibrational wave function is unbounded, and only radiative recombination is allowed. The restoring force on the Si atom provided by the remaining three \ceSi-As bonds ensures bound states with high energy and large hole capture cross-section. After the hole capture, the excess energy is dissipated by emitting multiple phonons, which is mainly attributed to the Morse potential, forming the \ceSi-As bond (Fig. 2 (a)).

In summary, we have shown that anharmonicity can play an important role in the non-radiative carrier capture process mediated by defects in semiconductors. Due to the bond-breaking relaxation by the DX center in GaAs, we find large lattice relaxation with a Morse-like potential. The abnormal insensitivity of the activation energy for electron emission to \ceAlAs mole fraction can be explained by anharmonicity of the potential. The calculated carrier capture cross-sections of DX center agree well with experiments and differ significantly to those predicted from the harmonic approximation. The anharmonic potential energy surfaces of the DX center enhance the hole capture process and make it weakly dependent on temperature. Thus we conclude that the harmonic approximation is insufficient when the charge transition occurs far from the equilibrium configuration, even if the full phonon spectrum is considered. One should consider the whole shape of potential energy surface including anharmonicity of atomic vibrations.
