A 2D scintillator based proton detector for HRR experiments

TL;DR

This paper introduces a novel 2D scintillator-based proton detector capable of measuring spatial and energy data at high repetition rates, offering a simple and effective solution for laser-plasma physics experiments.

Contribution

It presents a new detector design that functions effectively in high repetition rate environments, replicating radiochromic film performance with a straightforward setup.

Findings

Successfully tested at a proton accelerator in Madrid.

Demonstrated capability to operate in high repetition rate mode.

Provides on-line spatial and energy measurements for laser-plasma experiments.

Abstract

We present a scintillator based detector able to measure both spatial and energy information at High repetition rate (HRR) with a relatively simple design. It has been built at the Center of Pulsed Laser (CLPU) in Salamanca and tested in the proton accelerator at the Centro de Micro-Analisis de Materiales (CMAM) in Madrid. The detector has been demonstrated to work in HRR mode by reproducing the performance of the radiochromic film detector. It represents a new class of on-line detectors for Laser-plasma physics experiments in the new emerging High Power and HRR laser systems.

Figures

Equations

$$D=L\text{cos}(\varphi )$$

$$d=L\text{sin}(\varphi )$$

$$T_n(\theta ,\varphi )=2L_n(\varphi )\text{tan}(\theta )$$

$$\text{w}here{L}_n(\varphi )=L_0+nL\sin (\varphi )$$

$$n<n_0(\theta ,\varphi )+n^{\prime }(L_0,L,\varphi )$$

$$n_0(\theta ,\varphi )=\frac{1}{2\text{tan}\left[\theta \text{tan}\varphi \right]}$$

$$n^{\prime }(L_0,L,\varphi )=-\frac{L_0}{L}\frac{1}{\text{sin}\varphi }$$

$$n<n_0(\theta ,\varphi )$$

Full text

††preprint: AIP/123-QED

I State of the art

The advent of High power lasers working at High repetition rate is nowadays a reality and HRR proton sources are now routinely produced with energies ranging from few to tens of MeV. Laser-driven proton sources are characterised by a divergence that in several measurements has been proved to be related with the energy of the protons and the spatial distribution of the proton beam 1Snavely2000 .

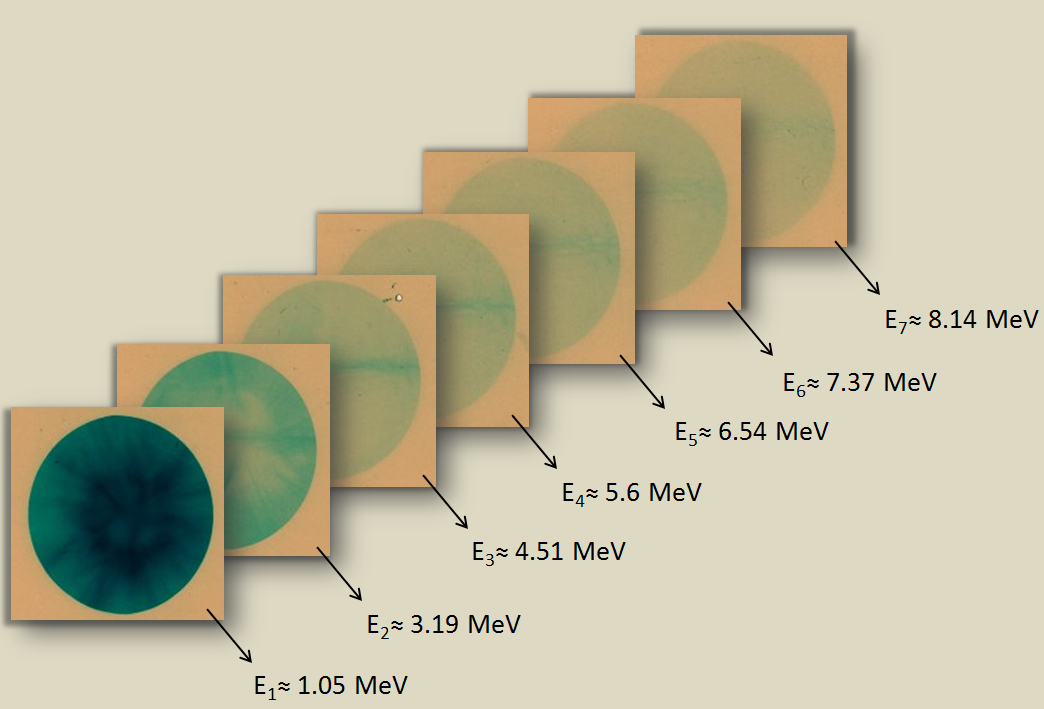

Laser-driven proton beam are becoming more and more important for several applications in different fields of physics 2Fritzler2003 , chemistry and material science 3surface ; 4Johansson1986 as well as biology, medicine 5Malka2004 and cultural heritage 6Barberio2017 . For this the spatial and energy characterisation of the proton beams is becoming more and more important for the potential use of such sources. The first demonstration of laser-driven protons production was carried out in laser system working at single shot mode and one of the most used diagnostics consist in a series of Radiochromic films 7Green2016 placed one after each other and able to recover spatial distribution as a function of the energy (see figure 1).

The possibility to extend this technique to HRR mode of operation is nowadays a challenge in laser plasma community and several laboratories and research group are working on this . The main idea is to substitute the active RCF layers with scintillator detectors capable to transform ion energy deposition in light that can be then collected by an optical ccd camera. Several research group have proposed special on-line configurations to imitate the RFC stack but up to now only a partial extension of the RCF capabilities was possible. During 2011 and 2012 two research groups from United Kingdom and from Germany have proposed scintillator based detectors. The group from Rutherford Appleton Laboratory (RAL) 8Green2011 proposed to use detectors sensitive to different wavelength which is limited only to three wavelengths and it is extremely complicated in the mode of working of the acquisition system. The group from Dresden 9Metzkes2012 ; 10Metzkes2016 proposed a stack of scintillators placed one after each other as the RCFs stack with a system to read the scintillation alonge the transversal direction; this detector have been tested in an proton beam accelerator and currently is used in the Dresden laboratory. Both the detectors can reproduce partially the mode of working of the RCFs stacks even if they are increasing the complexity of the viewing system and the data interpretation.

II Explanation of the device

Here we present a scintillator based detector able to measure both spatial and energy information at HRR with a relatively simple design. It consist in a series of scintillators placed similarly as an RCF stack (as shows in fig.1) but with a relative angle one respect the others to let the necessary field of view for an imaging system looking at the back side of each layer. The Imaging system can be arranged depending on the special condition and is not a critical part of the device. Each of the scintillator plate is covered by an aluminium foil to protect it by the light emission from the previous scintillator plate. The relative angle between each layer is the key factor in the design because it permit the acquisition of the full 2D proton distribution for each of the layer composing the stack. It is a relevant parameter because the total size of the detector depends critically on it. Indeed increasing such angle the total length of the detector increase and then the final proton emission solid angle also increase with the scintillator area. The optimal design of the detector is a trade off between $\phi$ that is the relative half angle between 2 consecutive plates and the dimension of the scintillator stack compared to the maximum accepted energy.

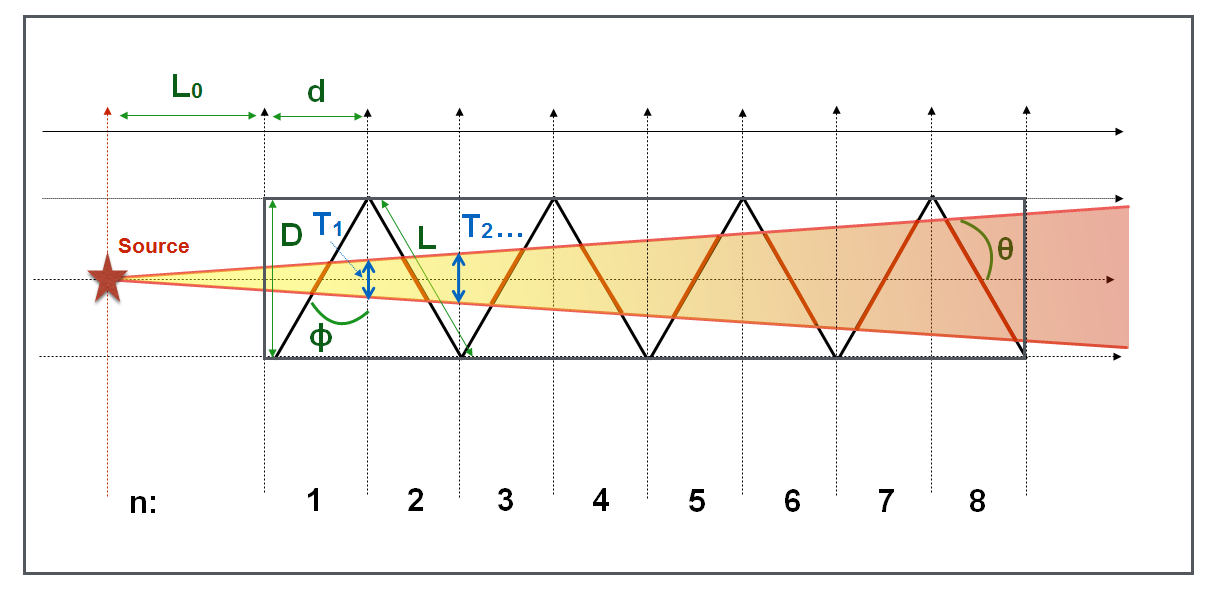

More in detail let assume a proton beam propagating in a symmetric cone with half angle $\theta$ (see figure 2), where the transversal and longitudinal dimension of each scintillator plate (which here are assumed egual) perpendicular to the proton beam direction can be written as:

[TABLE]

and

[TABLE]

The projection of proton cone in the scintillator plate can be described as:

[TABLE]

[TABLE]

$L_{n}$ is the effective length of the detector considered from the proton source emission. Lets note that $L_{0}=0$ is less realistic case because a minimum distance between detector and source must be accounted for to host a magnet to deflect electrons which are generated in the process to do not affect the scintillation signal. Finally $L_{n}$ depends both i) on the angle between two successive plates $\phi$, ii) on the dimension $L$ and iii) on the number $n$ of the scintillator foils.

The working condition can be written as $D>T_{n}(\theta,\phi)$ i.e the size of transverse projection of the scintillator D must be larger than the projection of proton solid angle $T_{n}$. This can be solved as:

[TABLE]

Where $n_{0}=n(\theta,\phi,L_{0}=0,L)$

II.1 case $L_{0}=0$

The case $L_{0}=0$ corresponds to assume the proton source just placed in the surface corresponding to n=0 so the system becomes:

[TABLE]

Equation 6 can be studied as a function of $\phi$ (for a given value of $\theta$ here 25, 20, 15 and 10 degrees).

Figure 3 shows the number of layers $n$ (representing eq. 6) as a function of $\phi$ for different divergence half angles $\theta$. The relative angle between the layers is a key parameter for the detector design and it value needs to be reduced as much as possible to maximise the possible number of layers maintaining a reasonable dimension of the detector. In addition $\phi$ cannot be below $10^{\circ}$ to let the imaging system work.

II.2 case $L_{0}\neq 0$

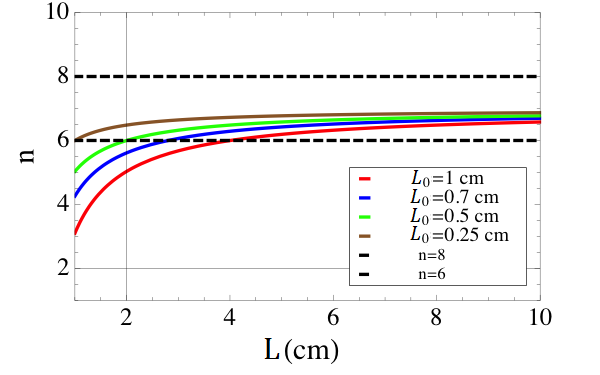

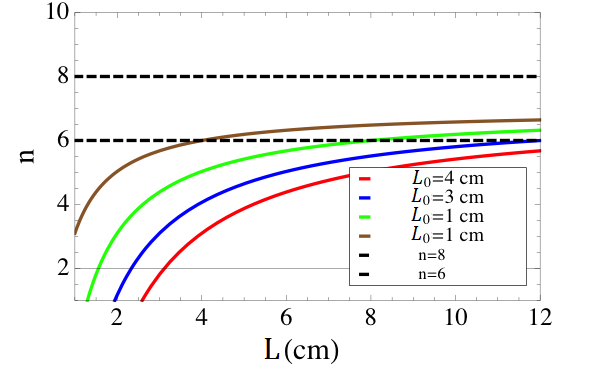

The most realistic case is $L_{0}\neq 0$, lets assume proton divergence with a maximum half angle of 20*∘* and according to fig. 3, let assume a relative half angle between 2 plates $\phi=15^{\circ}$. Considering the above mentioned parameters we can represent the eq. 6 as a function of $L_{n}$ for different values of $L_{0}$.

The final result shows that the interplay between the relative angle $\phi$ and the initial distance $L_{0}$ must be carefully adjusted to optimise the design. This limit the range of possible proton energies to be detected from the detector in one single shot but we will see that such limitations can be overcome with special and dedicated adjustments of the internal structures. In addition most of the experimental data shows that proton divergence reduce by increasing the proton energy and this will aslo mitigate the final constrains. On the contrary the detector size L is not playing a critical role for the design and can be fixed around 20-30 ,mm, this fact is very relevant in maintaining the size of the detector reasonable for the dimension of the interaction chamber . Fig. 5 shows a similar case with larger values of $L_{0}$, the result is that by increasing $L_{0}$ increase proportionally $L$ and of course $L_{n}$.

III Test of the device

A first detector prototype has been constructed at the Centro de Laseres Pulsados (CLPU) in Salamanca and tested at the Centro de Micro-Análisis de Materiales (CMAM) of the Universitad Autonoma de Madrid where a collimated proton beam up to 10 MeV is available for user access.

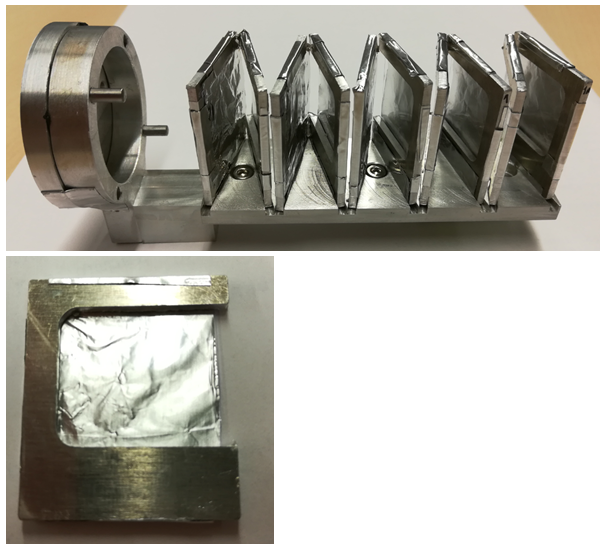

Fig.6 shows a customised version of the detector for using it in the accelerator in madrid with all the relevant parameters, the proton beam was 10 MeV energy with a $\Delta$E/E < 1 $\%$. The detector is made by 10 plates of scintillators BC-400 placed one after each other with an angle of 25º between them ($\phi$=12.5º). Each plate is about $150\ \mu$m $\pm 50\ \mu$m thick with a free detector area of 20 mm $\times$ 20 mm. With this configuration, the detector can resolve energy larger than the maximum 10 Mev achievable in CMAM.

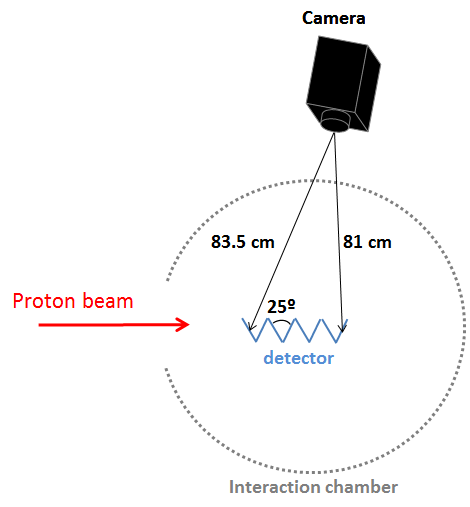

The detector was placed in the middle of the interaction chamber, on the front part of a 4-axis goniometer, able to rotate 360º around the propagation axis of the proton beam. The emission was collected from the back side of each scintillator with a CCD camera Point Grey Blackfly monochrome model and an objective NIKON AF-S DX NIKKOR 18-105 mm f/3.5-5.6G ED VR placed outside the chamber at about 83.5 cm $\pm$ 0.5 cm from the first plate and 81 cm $\pm$ 0.5 cm from the tenth plate (see fig.7 ).

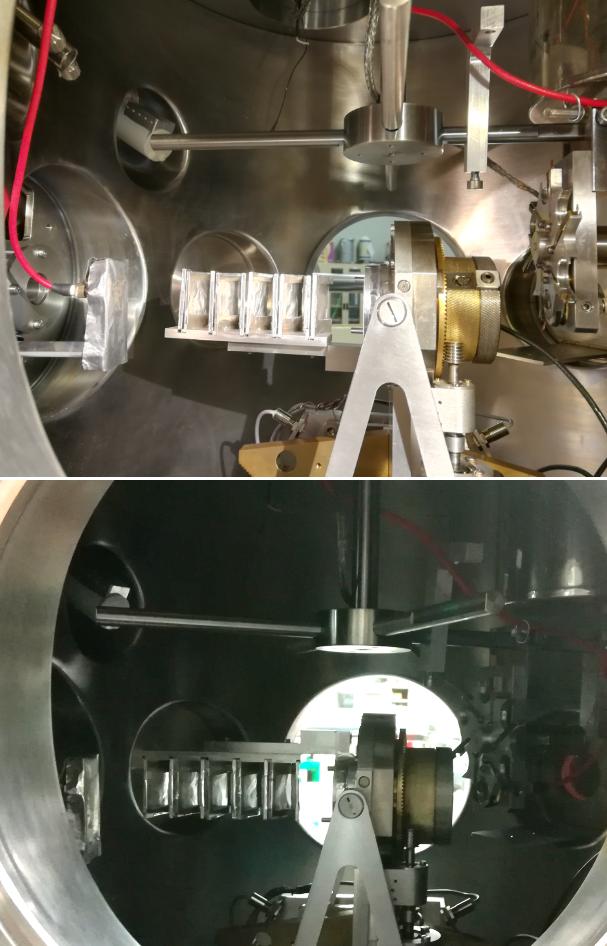

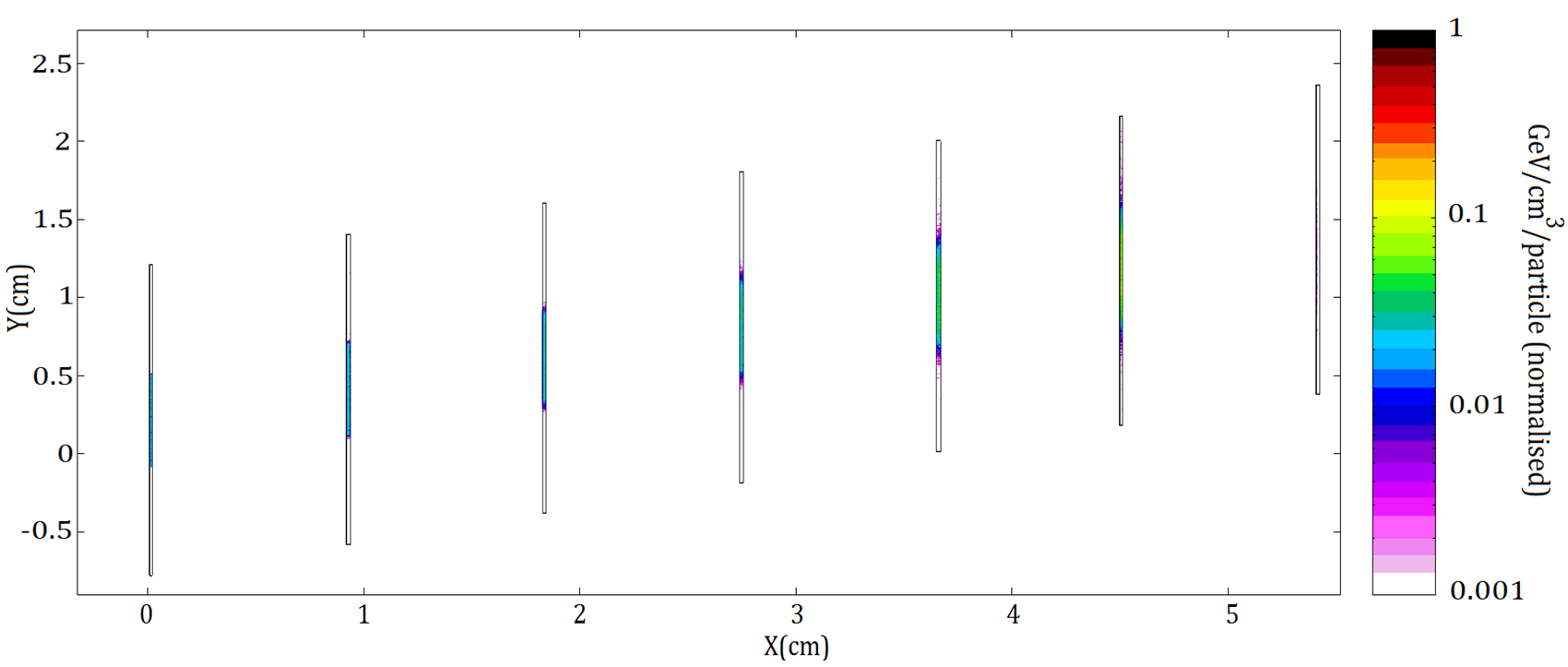

Since the proton source was considered very stable, 2 configurations of irradiation were done to be able to image the full detector with the same camera. The odd plates with the numbers 1,3,5,7 and 9 were pictured when the goniometer was in normal position (rotation axe at 0º) and the peer plates numbers 2,4,6,8 and 10 when the goniometer was at 180º of rotation (see figure 8). 10 MeV proton beam have been irradiating the detector under $10^{-6}$ mbar vacuum. Figure 9 is a simulation on the deposited energy by a beam of 10 MeV proton on FLUKA in order to reproduce the experimental results. It is expected to obtain the bragg peak withing the 6th plate and the aluminium filter of the 7th plate.

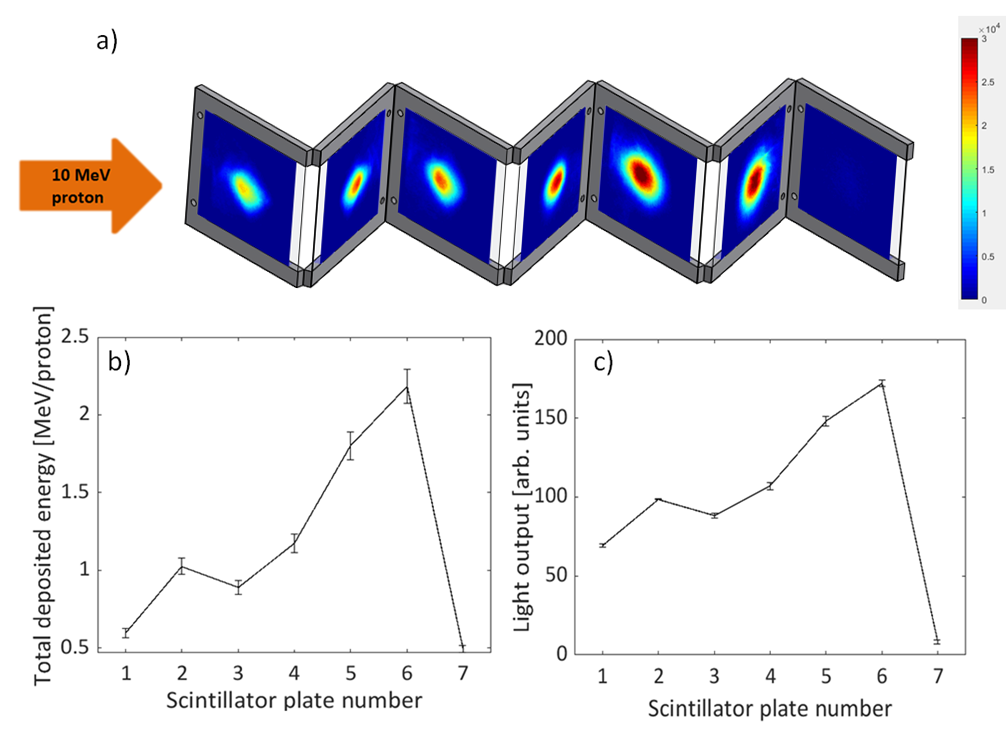

Figure 10a shows the signal recorded during the two configurations of irradiation and have been re-built to get the signal in a single image. The total deposited energy per proton for each scintillator plate has been extracted from FLUKA simulation and is represented in figure 10b. It is in good agreement with the scintillator response in figure 10c). The light output has been obtained from recorded pictures by the conversion of each pixel value into photon. We can observed a slight flattening of the scintillator response around the bragg peak (high stopping power) that can be interpreted as a saturation of the response and is due to the quenching effect. A paper will be published about its calibration in detail very soon where it has been confirmed a linear response for proton flux but non-linearity response to the absorbed dose for high stopping power proton energy. Knowing the corrective factor of this effect 11Torrisi2000 , the detector can be suitable for 2D spatial distribution measurements.

IV Discussion and conclusions

A scintillator based 2D ion detector for high repetition rate experiments has been designed, builted at the CLPU and tested in a first ideal condition in the proton accelerator at the CMAM in Madrid. The detector has been demonstrated to work in HRR mode by fully reproducing the performance of the consolidated RCF detector. With a detailed analysis we have shown that it is possible to account for the laser-driven proton divergence by maintaining a compact size of the detector and that is possible to remove electron signal by placing a relatively small size magnet in front of the detector entrance. Finally the presented design of 2D ion detector is promising for substitute the classical RCF stack detector at HRR mode of working. It represent a new class of on-line detectors to developed Laser-plasma physics experiments in the new emerging High Power and HRR laser systems.

Acknowledgements.

Authors acknowledge to FURIAM project FIS2013-4774-R, PALMA project FIS2016-81056-R, LaserLab Europe IV Grant No. 654148, from Junta de Castilla y León Grant No. CLP087U16 and the Unidad de Investigación Consolidada (UIC) 167 from Junta de Castilla y León.
