First Observation Of Coherent Elastic Neutrino-Nucleus Scattering

TL;DR

This paper reports the first observation of coherent elastic neutrino-nucleus scattering (CEvNS) with a high-confidence experiment using a CsI[Na] detector exposed to neutrinos from the Spallation Neutron Source, confirming Standard Model predictions.

Contribution

It presents the first experimental detection of CEvNS, overcoming previous detection challenges and validating theoretical predictions.

Findings

CEvNS observed at 6.7-sigma confidence level

Detected signals match Standard Model predictions

Demonstrated potential for neutrino property studies and detector miniaturization

Abstract

Coherent elastic neutrino-nucleus scattering (CE$\nu$NS) has the largest predicted cross-section of all low-energy neutrino couplings. However, as a neutral-current interaction, the only experimental signature of CE$\nu$NS is a low-energy nuclear recoil, which made its detection challenging. CE$\nu$NS remained unobserved for over four decades. This thesis describes the experiment that resulted in a CE$\nu$NS observation at a 6.7-sigma confidence level. A low-background, 14.6-kg CsI[Na] scintillator was exposed to the neutrino emissions from the Spallation Neutron Source at Oak Ridge National Laboratory. Characteristic CE$\nu$NS signatures in energy and time, compatible with predictions from the Standard Model, were observed in high signal-to-background conditions. CE$\nu$NS provides new opportunities to study neutrino properties, and enables the miniaturization of detectors.

Figures

Tables

Table 1. Table 1: High voltages for all \acp *pmt used in the CsI[Na] muon veto. Also shown is the panel number each \acs *pmt is attached to, as well as the discriminator level used for each panel.

PMT No.	Panel	High voltage (V)	Disc. level (mV)	Serial No.
1	1	-700	14.0	107027
2	1	-700		107010
3	2	-720	14.5	106958
4	2	-740		64454
5	3	-1000	13.7	64514
6	3	-660		64425
7	4	-940	13.2	64463
8	4	-700		64467
9	5	-1100	25.2	N/A

Table 2. Table 2: Description for all data values available in the settings file of each data run.

Index	Description	Index	Description
0	CH0 Coupling [AC=0, DC=1]	13	Trigger Source [CH0, CH1, Ext=3]
1	CH0 Probe Attenuation	14	Trigger Level [V]
2	CH0 Vertical Range [V]	15	Hysteresis [V]
3	CH0 Vertical Offset [V]	16	Holdoff [s]
4	CH1 Coupling [AC=0, DC=1]	17	Trigger Delay [s]
5	CH1 Probe Attenuation	18	Trigger Type [Edge=0,Hyst=1]
6	CH1 Vertical Range [V]	19	- reserved -
7	CH1 Vertical Offset [V]	20	- reserved -
8	Minimum Sample Rate [S/s]	21	- reserved -
9	Minimum Record length [S]	22	Start time stamp⋆
10	Trigger Reference Position [%]	23	End time stamp⋆
11	Trigger Coupling [AC=0, DC=1]	24	- reserved -
12	Triggering Slope [neg=0,pos=1]	25	- reserved -

Table 3. Table 1: Mean and standard deviation of a Gaussian fitted to the marginalized rise-time distributions of T 0 − 50 subscript 𝑇 0 50 T_{0-50} and T 10 − 90 subscript 𝑇 10 90 T_{10-90} . The fits are shown in Fig.  9 .

$T_{0-50}$			$T_{10-90}$
${\mu }_{0-50}$	$0.57430\pm 0.00048$$\mu s$		${\mu }_{10-90}$	$1.86958\pm 0.00059$$\mu s$
${\sigma }_{0-50}$	$0.04618\pm 0.00037$$\mu s$		${\sigma }_{10-90}$	$0.12726\pm 0.00050$$\mu s$

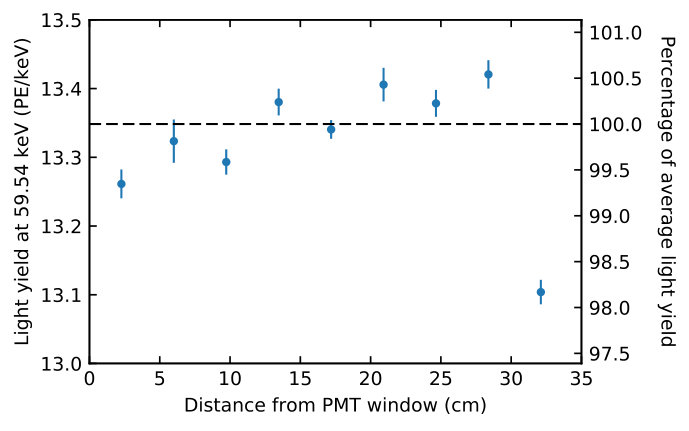

Table 4. Table 2: Variation of the light yield at 59.54   keV times 59.54 kiloelectronvolt 59.54\text{\,}\mathrm{keV} along the crystal axis. ℒ CsI subscript ℒ CsI \mathcal{L}_{\text{CsI}} was found to be 13.348 ± 0.019 plus-or-minus 13.348 0.019 13.348\pm 0.019\, (PE/   keV ee times absent keVee \text{\,}\mathrm{\text{keV}_{\text{ee}}} ).

Distance from \acs*pmt ($\mathrm{cm}$)	Light yield (PE/${\text{keV}}_{\text{ee}}$)	Variation from ${ℒ}_{\text{CsI}}$ ($\%$)
2.3	$13.261\pm 0.021$	$-0.65$
6.0	$13.324\pm 0.032$	$-0.19$
9.7	$13.293\pm 0.018$	$-0.41$
13.5	$13.380\pm 0.019$	$0.24$
17.2	$13.341\pm 0.014$	$-0.059$
20.9	$13.406\pm 0.024$	$0.43$
24.7	$13.379\pm 0.020$	$0.23$
28.4	$13.421\pm 0.020$	$0.54$
32.1	$13.104\pm 0.018$	$-1.8$

Table 5. Table 1: Start and end sample of each analysis region. The starting sample is included in the respective region whereas the ending sample is excluded. Here PT denotes the \acl pt and ROI the \acl roi.

	AC region		C region
	Start	End	Start	End
PT	$150$	$\mathrm{17\hspace{0.17em}500}$	$7650$	$\mathrm{25\hspace{0.17em}000}$
ROI	$\mathrm{17\hspace{0.17em}500}$	$\mathrm{25\hspace{0.17em}000}$	$\mathrm{25\hspace{0.17em}000}$	$\mathrm{32\hspace{0.17em}500}$

Table 6. Table 2: Overview of the parameters recorded for each waveform in the Am 241 superscript Am 241 {}^{241}\text{Am} calibration, the Ba 133 superscript Ba 133 {}^{133}\text{Ba} calibration and the \ac cenns search. Two independent data sets are created, one for the C and one for the AC region.

Parameter	Description
$t$	Timestamp of current event in seconds since epoch
$f_{\text{o}}$	The waveform contains samples exceeding the digitizer range
$f_{\text{g}}$	The waveform contains a linear gate event
$V_{\text{median}}$	Median baseline of the first $\mathrm{20\hspace{0.17em}000}$ samples
$V_{\text{avg}}$	Average baseline of the first $\mathrm{20\hspace{0.17em}000}$ samples (excluding peak regions)
${\sigma }_v$	Standard deviation of the first $\mathrm{20\hspace{0.17em}000}$ samples (excluding peak regions)
$N_{\text{pt}}$	Peaks found in the \acpt
$N_{\text{roi}}$	Peaks found in the \acroi
$N_{\text{iw}}$	Peaks found in the integration window
$T_{\text{arr}}$	Arrival time, i.e., time of first peak in \acroi with respect to \acroi onset
$Q_{\text{total}}$	Total integrated charge in integration window
$T_{10}$, $T_{50}$,$T_{90}$	Rise-times of integrated scintillation curve

Table 7. Table 3: Definition of uncut and cut data sets during the barium calibration. The naming convention only makes reference to the Cherenkov and orthogonal rise-time cuts.

Cut type	Uncut data set	Cut data set
Overflow	$✓$	$✓$
Linear gate	$✓$	$✓$
Afterglow	$✓$	$✓$
Diagonal rise-time	$✓$	$✓$
Cherenkov	-	$✓$
Orthogonal rise-time	-	$✓$

Table 8. Table 1: All EJ299-33A detector positions used in the measurement of the quenching factor of CsI[Na]. The corresponding recoil energies were calculated using Eq. ( 1 ). By increasing the distance for smaller angles the triggering of on beam-related neutrons that did not scatter off the CsI[Na] was avoided. The measurement for 18   ° times 18 degree 18\text{\,}\mathrm{\SIUnitSymbolDegree} was cut short due to time constrains imposed by the scheduling of other experiments at \acs *tunl.

Angle $\alpha$ ($°$)	Distance $d$ (cm)	Recoil Energy (${\text{keV}}_{\text{nr}}$)	Run Time (min)
45	80	18.44	165
39	90	14.04	182
33	90	10.17	225
27	100	6.86	207
24	100	5.45	178
21	100	4.19	203
18	110	3.09	71

Table 9. Table 2: Best fit results for the energy calibration of the small CsI[Na] detector used in the quenching factor measurements at \acs *tunl. The K- and L-shell escape peaks consist of two distinct lines which can not be resolved due to the limited energy resolution.

Energy (keV)	Centroid $\mu$ (a.u.)	Sigma $\sigma$ (a.u.)
	$4.877\pm 0.006$	$0.498\pm 0.007$
	$8.495\pm 0.181$	$0.534\pm 0.063$
$57.60$	$8.946\pm 0.033$	$0.667\pm 0.038$
$59.54$	$9.382\pm 0.029$	$0.499\pm 0.011$

Table 10. Table 3: Light yield calibration for the CsI[Na] detector used in the quenching factor measurements at \acs *tunl. The energies for the Cs and I K- and L-shell escape peaks were combined to a single central energy assuming an equal contribution from both isotopes.

	Polya		Gauss
Energy	Centroid	Light Yield	Centroid	Light Yield
(${\text{keV}}_{\text{ee}})$	(PE)	(PE/${\text{keV}}_{\text{ee}}$)	(PE)	(PE/${\text{keV}}_{\text{ee}}$)
$29.75$	$413\pm 11$	$13.88\pm 0.37$	$548\pm 18$	$18.42\pm 0.61$
$55.43$	$720\pm 24$	$12.99\pm 0.43$	$954\pm 38$	$17.21\pm 0.69$
$57.60$	$758\pm 19$	$13.16\pm 0.33$	$1005\pm 34$	$17.45\pm 0.59$
$59.54$	$795\pm 20$	$13.35\pm 0.34$	$1054\pm 36$	$17.70\pm 0.60$

Table 11. Table 4: CsI[Na] quenching factor and neutron flux for all EJ299-33A positions. The quenching factor data is also shown in Fig.  16 where previous measurements by others were included. The neutron flux calculated in this analysis is shown in Fig  17 , including the flux derived from an in-situ measurement of the inelastic I 127 superscript I 127 {}^{127}\text{I} ( n , n ′ ​ γ ) 𝑛 superscript 𝑛 ′ 𝛾 \left(n,n^{\prime}\gamma\right) reaction rate.

Angle$\left(°\right)$	Recoil energy$\left({\text{keV}}_{\text{nr}}\right)$	Quenching factor$Q(\%)$	Neutron flux${\varphi }_n\left(1000n/s\right)$
18	2.87$\pm$0.56	5.21$\pm$1.74	1.20$\pm$0.43
21	4.04$\pm$0.72	6.38$\pm$0.76	1.15$\pm$0.33
24	4.80$\pm$0.80	6.75$\pm$0.75	1.31$\pm$0.25
27	6.18$\pm$0.90	6.90$\pm$0.65	1.34$\pm$0.34
33	9.07$\pm$1.21	7.38$\pm$0.51	1.77$\pm$0.39
39	12.61$\pm$1.43	7.14$\pm$0.67	1.24$\pm$0.41
45	16.37$\pm$1.81	7.16$\pm$0.63	1.50$\pm$0.44

Table 12. Table 1: Start and end sample of each analysis region in the \ac cenns search. The starting sample was included in the region, whereas the ending sample was excluded.

	AC region		C region
	Start	End	Start	End
PT	$150$	$\mathrm{19\hspace{0.17em}950}$	$7675$	$\mathrm{27\hspace{0.17em}475}$
ROI	$\mathrm{19\hspace{0.17em}950}$	$\mathrm{27\hspace{0.17em}475}$	$\mathrm{27\hspace{0.17em}475}$	$\mathrm{35\hspace{0.17em}000}$

Table 13. Table 2: Beam energy-weighted afterglow cut acceptances for a number of different choices of N pt max subscript superscript 𝑁 max pt N^{\text{max}}_{\text{pt}} .

$N_{\text{pt}}^{\text{max}}$	${\eta }_{\text{afterglow}}$		$N_{\text{pt}}^{\text{max}}$	${\eta }_{\text{afterglow}}$		$N_{\text{pt}}^{\text{max}}$	${\eta }_{\text{afterglow}}$
0	0.167		4	0.817		7	0.910
1	0.405		5	0.863		8	0.923
2	0.606		6	0.891		9	0.932
3	0.738

Table 14. Table 3: Ad hoc template fit parameters for the californium calibration. The fit parameters found for N 0 , N 1 subscript 𝑁 0 subscript 𝑁 1 N_{0},\,N_{1} and δ N subscript 𝛿 𝑁 \delta_{N} were used to fix the shape of the I 127 superscript I 127 {}^{127}\text{I} (n,n’ γ 𝛾 \gamma ) peak within the \ac cenns search data set.

$I(N_{\text{pe}},a,N_0,N_1,{\delta }_N)$			$B(N_{\text{pe}},m,c)$
$a$	=	$69.1\pm 7.1$	$m$	=	$\left(-1.4\pm 4.6\right)\times {10}^{-2}$
$N_0$	=	$\left(7.99\pm 0.10\right)\times {10}^2$	$c$	=	$\left(1.29\pm 0.34\right)\times {10}^2$
$N_1$	=	$\left(8.20\pm 0.38\right)\times {10}^2$
${\delta }_N$	=	$68\pm 39$

Table 15. Table 4: Number of events surviving the different cuts applied to the \acs *cenns search data. The cuts are applied in a cumulative manner, as such each new row includes all cuts listed in the rows above.

Cumulative cuts	Number of waveforms passing all cuts
Total	$\mathrm{2\hspace{0.17em}825\hspace{0.17em}705\hspace{0.17em}648}$
Time & Power	$\mathrm{2\hspace{0.17em}393\hspace{0.17em}035\hspace{0.17em}787}$
Quality	$\mathrm{2\hspace{0.17em}336\hspace{0.17em}958\hspace{0.17em}388}$
	$𝒪𝒩$		$𝒪ℱℱ$
	$\mathrm{1\hspace{0.17em}558\hspace{0.17em}323\hspace{0.17em}928}$		$\mathrm{778\hspace{0.17em}634\hspace{0.17em}460}$
	$𝒞$	$𝒜𝒞$	$𝒞$	$𝒜𝒞$
Cherenkov	$\mathrm{7\hspace{0.17em}298\hspace{0.17em}862}$	$\mathrm{7\hspace{0.17em}362\hspace{0.17em}478}$	$\mathrm{3\hspace{0.17em}320\hspace{0.17em}220}$	$\mathrm{3\hspace{0.17em}353\hspace{0.17em}320}$
Afterglow	$\mathrm{15\hspace{0.17em}779}$	$\mathrm{15\hspace{0.17em}713}$	$7692$	$7740$
Rise-times	$\mathrm{12\hspace{0.17em}906}$	$\mathrm{12\hspace{0.17em}844}$	$6228$	$6270$

Equations

$$\frac{\text{d}{\sigma }_0}{\text{d}\cos \varphi }=\frac{G_f^2}{8\pi }{\left[Z\left(4{\sin }^2{\Theta }_{\text{W}}-1\right)+N\right]}^2{E}_{\nu }^2\left(1+\cos \varphi \right),$$

$$\frac{\text{d}{\sigma }_0}{\text{d}{q}^2}=\frac{G_f^2}{8\pi }{N}^2\left(1-\frac{q^2}{q_{\text{max}}^2}\right)\text{with}{q}^2=2E_{\nu }^2\left(1-\cos \varphi \right).$$

$$\frac{\text{d}{\sigma }_0}{\text{d}{E}_r}=\frac{G_f^2}{4\pi }{m}_a{N}^2\left(1-\frac{m_a{E}_r}{2E_{\nu }^2}\right)\text{as}{E}_r=\frac{q^2}{2m_a},$$

$$\frac{\text{d}\sigma }{\text{d}{E}_r}=\frac{\text{d}{\sigma }_0}{\text{d}{E}_r}{F}^2\left(q\right)\text{with}{q}^2=2m_a{E}_r.$$

$$F(q)$$

$$=\frac{4\pi {\rho }_0}{A{q}^3}\left(\sin \left(q{R}_A\right)-q{R}_A\cos \left(q{R}_A\right)\right)\frac{1}{1+a^2{q}^2}$$

$$\text{with}{\rho }_0$$

$${\sin }^2{\Theta }_{\text{eff}}={\sin }^2{\Theta }_{\text{W}}+\frac{\alpha }{6\pi }\ln \left(\frac{m_i^2}{m_{\text{W}}^2}\right)$$

$${\frac{\sigma ({\nu }_i)}{\sigma ({\nu }_j)}|}_{q^2=0}\approx 1+\frac{\alpha }{3\pi {\sin }^2{\Theta }_{\text{W}}}\ln \left(\frac{m_i^2}{m_j^2}\right).$$

$$\displaystyle\text{P}(E_{\nu}|\nu_{\mu})=\delta\left(E_{\nu}-\frac{m_{\pi}^{2}-m_{\mu}^{2}}{2m_{\pi}}\right)=\delta\left(E_{\nu}-$29.79\text{\,}\mathrm{MeV}$\right)$$

$$\text{P}(E_{\nu }|{\nu }_e)$$

$$\text{P}(E_{\nu }|{\bar{\nu }}_{\mu })$$

$$f_{\text{FD}}(E_{\nu },T)=\frac{E_{\nu }^2}{2T^3}\frac{1}{{\exp }^{\text{nicefrac}{E}_{\nu }T}+1}.$$

$$\alpha =1.6\text{and}{\varphi }_n=1.09\times 10^{-7}\frac{n}{{\text{cm}}^2\text{s}}.$$

$$\displaystyle\Gamma_{\text{prompt}}=0.92\,\pm\,0.23\,\frac{\text{events}}{$\text{\,}\mathrm{G}\mathrm{W}\mathrm{h}$}.$$

$$\displaystyle\Gamma^{\star}_{\text{nin}}=0.97\,\pm\,0.33\frac{\text{neutrons}}{$\text{\,}\mathrm{\text{GWh}}$\,\,\text{kg of Pb}}.$$

$$\displaystyle\Gamma_{\text{nin}}\,=0.54\,\pm\,0.18\,\frac{\text{events}}{$\text{\,}\mathrm{G}\mathrm{W}\mathrm{h}$}.$$

$$V_{\text{i8}}=2^8\times \frac{V_{\text{dbl}}}{V_{\text{Range}}},$$

$$\displaystyle V(V_{\text{Range}}=$200\text{\,}\mathrm{m\text{V}_{\text{pp}}}$)$$

$$\displaystyle V(V_{\text{Range}}=$500\text{\,}\mathrm{m\text{V}_{\text{pp}}}$)$$

$$\displaystyle\hat{V}_{i}=V_{\text{median}}-V_{i}\quad\text{for}\quad i\in[0,$35\,000$).$$

$$Q^j=\sum _{i=t_s}^{t_f}\left({\hat{V}}_i-V_{\text{median}}^j\right),$$

$$\displaystyle Q\left(\text{pC}\right)=\frac{Q\left($\text{\,}\mathrm{\text{ADC counts}}$\times$2\text{\,}\mathrm{ns}$\right)}{32}$$

$$\displaystyle\text{as}\quad$1\text{\,}\mathrm{\text{ADC counts}}$\times$2\text{\,}\mathrm{ns}$\mathrel{\widehat{=}}\frac{$0.2\text{\,}\mathrm{mV}$}{2^{8}\times$50\text{\,}\mathrm{\SIUnitSymbolOhm}$}\times{$2\text{\,}\mathrm{ns}$}=$3.125\text{\times}{10}^{-14}\text{\,}\mathrm{C}$,$$

$$f_{\text{gauss}}\left(q,a_n,{\sigma }_n,\vec{a},Q_{\text{spe}},\sigma ,k,q_0\right)$$

$$\text{where}{g}_i(q,Q_{\text{spe}},\sigma )$$

$$f_{\text{polya}}\left(q,a_n,{\sigma }_n,\vec{a},Q_{\text{spe}},\sigma ,k,q_0\right)$$

$$\text{where}{p}_i(q,Q_{\text{spe}},\sigma )$$

$$Q(t)=\sum _{i=T_{\text{arr}}}^{T_{\text{arr}}+t}\left[{\hat{V}}_i-V_{\text{baseline}}\right]$$

$$\displaystyle T_{0-50}\in[0,1500)\,\text{samples}=[0,3)$\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$$

$

$$\displaystyle T_{10-90}\in[0,1500)\,\text{samples}=[0,3)$\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$.$$

$$T_{0-50}$$

$$T_{10-90}$$

$$N_{\text{pe}}=\frac{Q_{\text{total}}}{Q_{\text{spe}}}$$

Full text

1. 0 Introduction

2. 1 Coherent Elastic Neutrino-Nucleus Scattering

3. 2 COHERENT at the Spallation Neutron Source

4. 1 The Spallation Neutron Source

5. 2 The COHERENT experiment at the SNS

6. 3 Background Studies

7. 1 Prompt neutrons

8. 2 Neutrino-induced neutrons (NINs)

9. 4 The CsI[Na] CE$\nu$NS search detector at the SNS

10. 1 Overview and wiring of the detector setup

11. 2 The central CsI[Na] detector

12. 3 The muon veto

13. 4 Data structure

14. 5 Light yield and light collection uniformity

15. 1 Detector setup

16. 2 Waveform analysis

17. 1 Mean \acs*spe charge calibration

18. 2 Arrival time distribution

19. 3 Rise-time distributions

20. 3 Determining the light yield and light collection uniformity

21. 6 Barium calibration of the CE$\nu$NS detector

22. 1 Detector setup

23. 2 Waveform analysis

24. 3 Detector stability performance over the data-taking period

25. 4 Definition and quantification of data cuts

26. 1 The Cherenkov cut

27. 2 Rise-time cuts

28. 3 Calculating cut acceptances

29. 7 Measurement of the low-energy quenching factor in CsI[Na]

30. 1 Experimental setup

31. 2 Detector calibrations

32. 1 CsI[Na] calibrations

33. 2 EJ299-33A calibrations

34. 3 Quenching factor data analysis

35. 1 Determining the experimental residual spectrum

36. 2 Simulating the detector response using MCNPX-PoliMi ver. 2.0

37. 3 Extracting the quenching factor

38. 8 CE$\nu$NS search at the SNS

39. 1 Waveform analysis

40. 2 Detector stability performance over the full data-taking period

41. 1 Beam energy delivered on the mercury target

42. 2 Baseline and mean \acs*spe charge stability

43. 3 Afterglow cut and the decay of cosmogenics

44. 4 Quality cuts

45. 5 Light yield and trigger position

46. 3 Monitoring prompt neutrons using the inelastic scattering ${}^{127}\text{I}$(n,n’$\gamma$) reaction

47. 1 Validating neutron transport simulations using a ${}^{252}\text{Cf}$ source

48. 2 Inelastic ${}^{127}\text{I}$(n,n’ $\gamma$) scattering in the CE$\nu\!$NS search data

49. 4 \acs*cenns analysis

50. 1 Optimizing cut parameters

51. 2 First observation of CE$\nu$NS

52. 3 Correlation of residual excess and integrated beam energy

53. 4 Future directions for the analysis using statistical discrimination between electronic and nuclear recoils

54. 9 Conclusion

1. 1 Scattering cross-sections for different neutrino couplings
2. 2 \acswimp discovery limit due to the expected \acscenns neutrino floor
3. 1 Feynman diagram for \acs*cenns

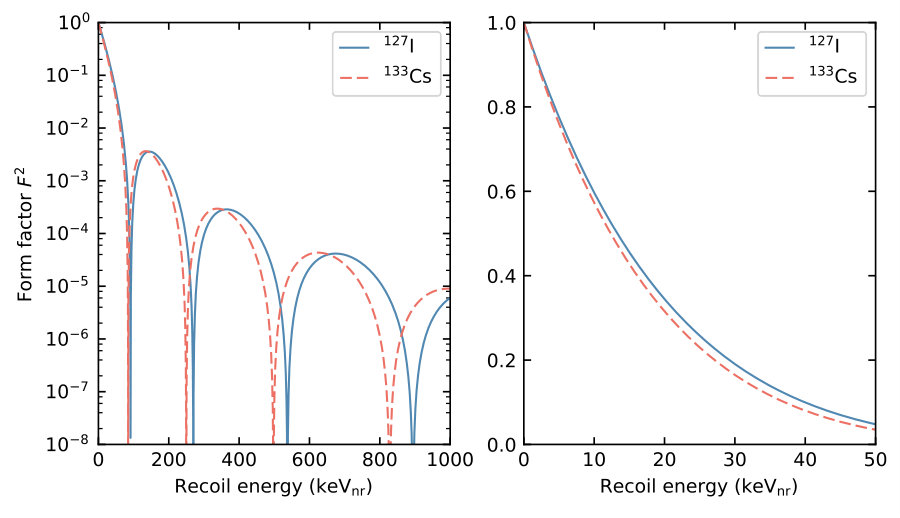

4. 2 Form factor $F^{2}$ versus recoil energy $E_{r}$ for ${}^{127}\text{I}$ (blue) and ${}^{133}\text{Cs}$ (red).
5. 3 Total \acs*cenns cross-section and average recoil energy

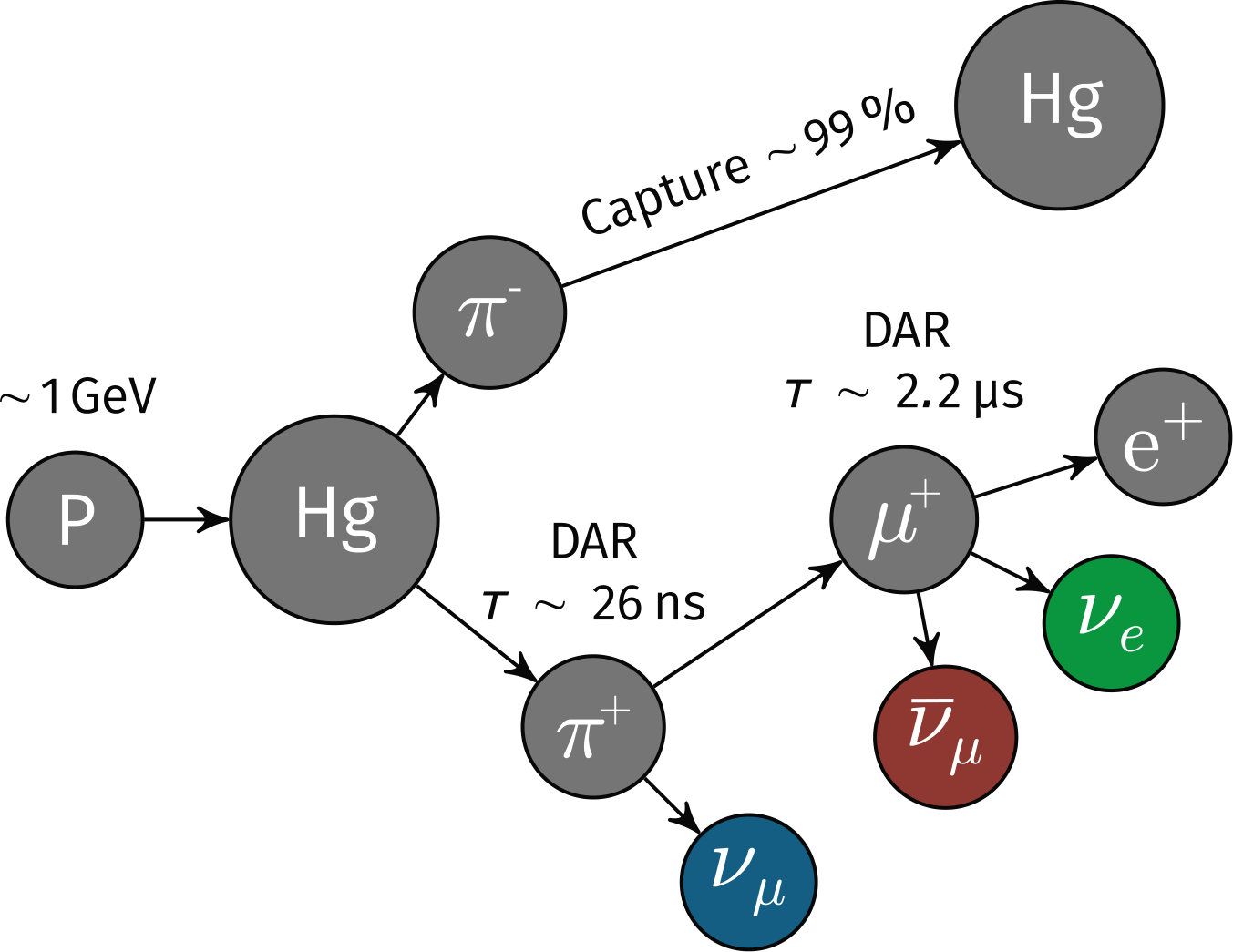

6. 1 Neutrino production mechanism at the \acs*sns and timing profile of neutrino emission
7. 2 \acs*sns and supernova neutrino emission spectrum
8. 3 Detectors deployed along the neutrino alley in the framework of the COHERENT collaboration
9. 1 \acs*psd calibration measurement for the EJ-301 scintillator cells
10. 2 Arrival time distribution of neutron-like events in the EJ-301 data set
11. 3 Spectrum of neutron-like energy depositions within the EJ-301 with arrival times consistent with prompt neutrons

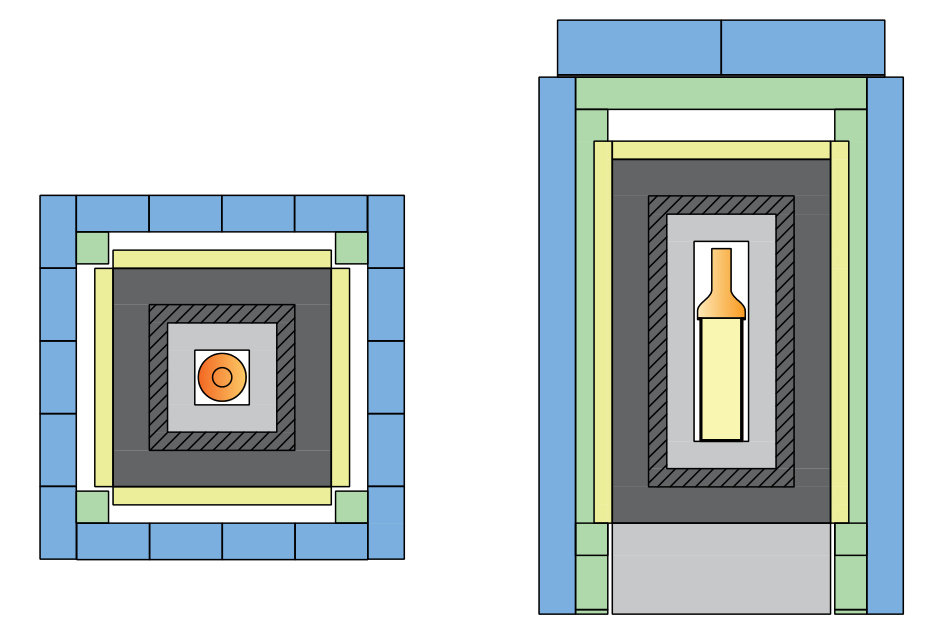

12. 1 Schematic of the CsI[Na] shielding at the \acs*sns
13. 2 Deployment of the CE$\nu$NS search detector in June 2015 at the SNS.
14. 3 Schematic of the data acquisition system used during the \acs*cenns search
15. 4 Image of the central CsI[Na] detector during installation

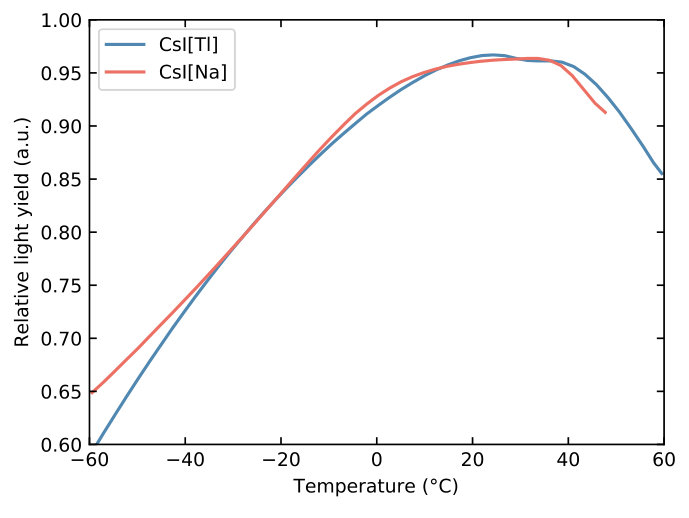

16. 5 Temperature stability of CsI[Na] and CsI(Tl)
17. 6 Scintillation decay times of low-energy events in CsI[Na] caused by electronic or nuclear recoils
18. 7 Afterglow (phosphorescence) of CsI[Na] and CsI[Tl].
19. 8 Gain curves for each \acs*pmt used in the CsI[Na] muon veto
20. 9 Schematic of muon veto panel positioning
21. 10 Folder structure created by the data acquisition system used in the CE$\nu$NS search
22. 11 Structure of the binary data files acquired during the CE$\nu$NS search

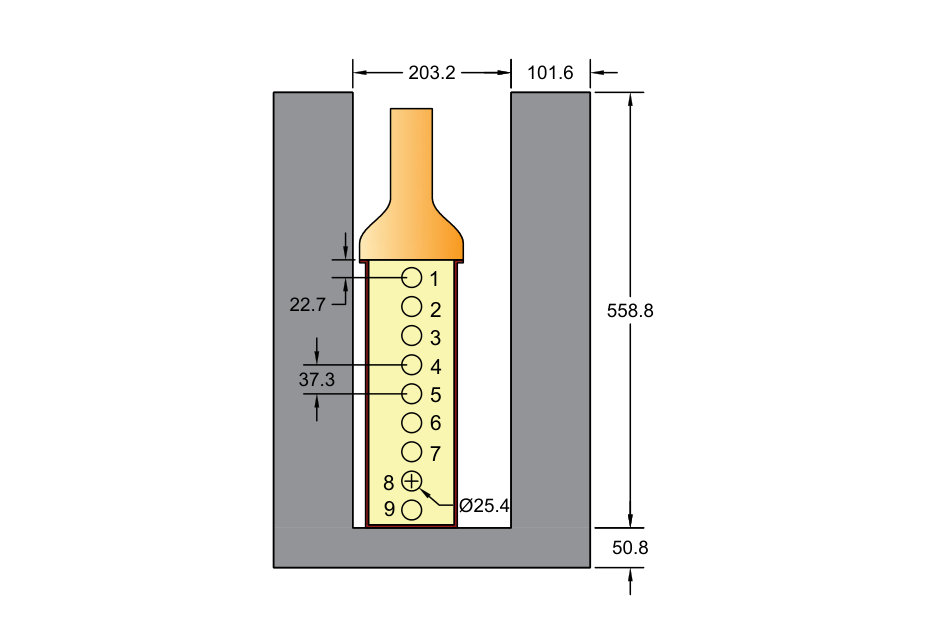

23. 1 Source placement during light yield and light collection uniformity calibrations

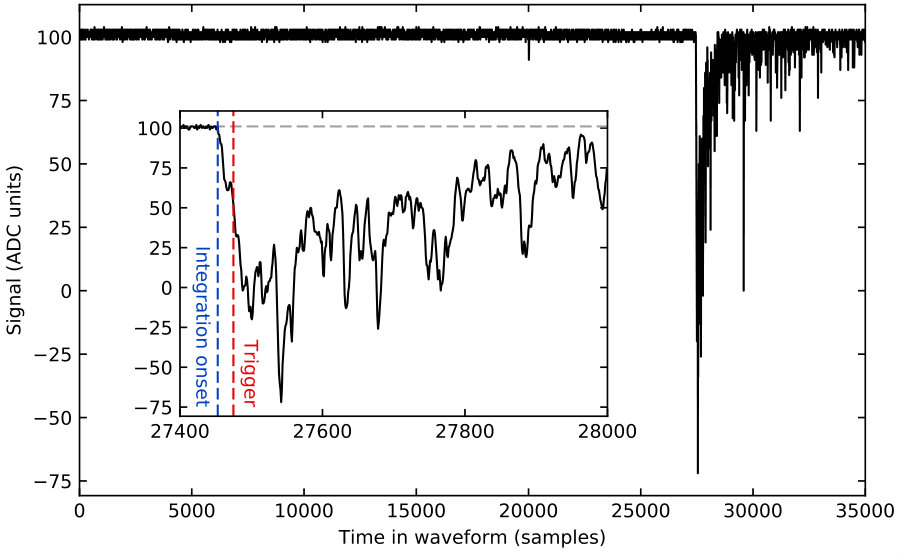

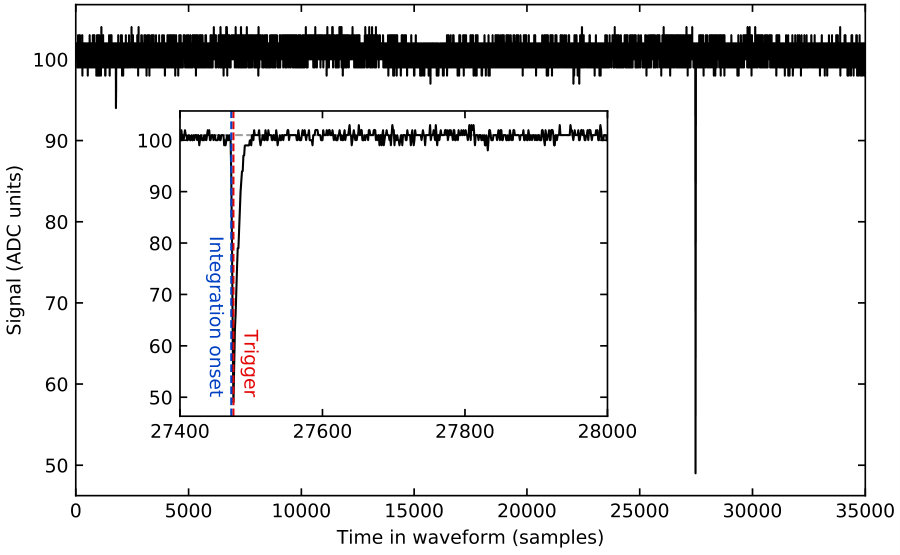

24. 2 Example waveform showing a typical ${}^{241}\text{Am}$ signal before data processing
25. 3 Process used to determine the integration window of a \acs*spe and event rise-time definitions
26. 4 Comparison of Polya and Gaussian shaped \acsspe charge distribution models for the R877-100 \acspmt

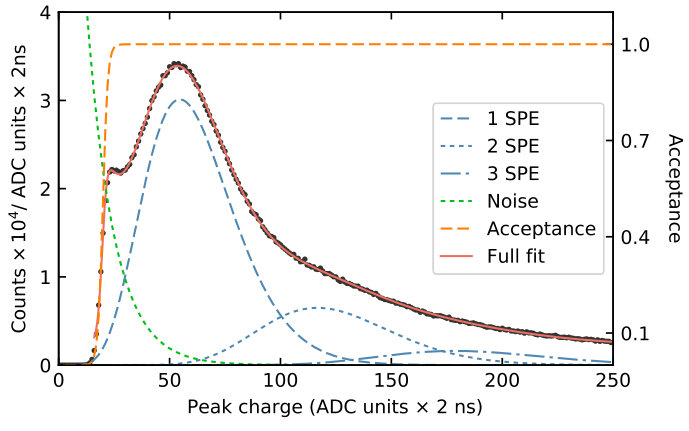

27. 5 \acs*spe charge distribution for ${}^{241}\text{Am}$ source position two of the light yield calibration
28. 6 Mean \acs*spe charge for all ${}^{241}\text{Am}$ source positions

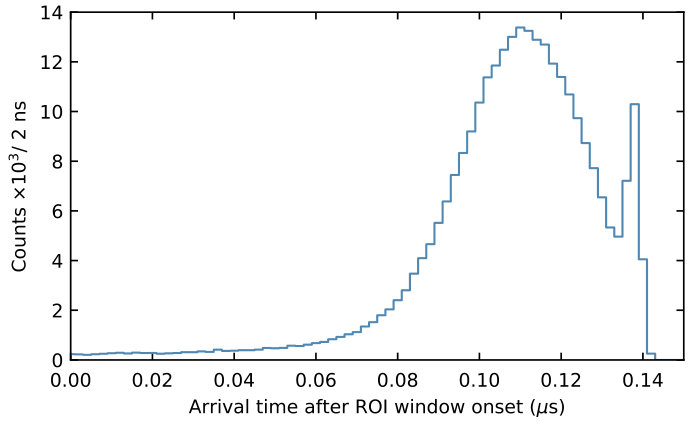

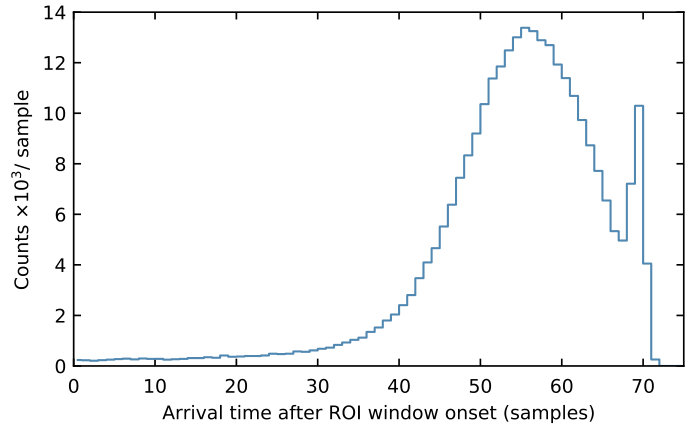

29. 7 Arrival time distribution for events in the light yield calibration
30. 8 Example waveform showing an event triggering on a Cherenkov signal
31. 9 Two-dimensional rise-time distribution for the light yield calibration
32. 10 Energy spectrum recorded during the light yield calibration for the ${}^{241}\text{Am}$ source location two
33. 11 Light yield and light collection uniformity of the CsI[Na] crystal
34. 1 Schematic of the detectors and shielding used in the ${}^{133}\text{Ba}$ calibration measurement
35. 2 Pictures of the ${}^{133}\text{Ba}$ source alignment
36. 3 Data acquisition system used in the ${}^{133}\text{Ba}$ calibration measurement
37. 4 Lag time between the CsI[Na] signal and trigger from the BrilLanCe™ detector
38. 5 Example waveform for the ${}^{133}\text{Ba}$ calibration highlighting different analysis regions
39. 6 Analysis of an example waveform for the ${}^{133}\text{Ba}$ calibration
40. 7 Stability tests performed for the ${}^{133}\text{Ba}$ calibration
41. 8 (Continued) Panel C shows the percentage of waveforms with more than ten peaks in the anti-coincidence pretrace. The high percentage of waveforms with such a large number of peaks in the pretrace can be attributed to the high level of phosphorescence in the crystal due to the presence of the ${}^{133}\text{Ba}$ source. No significant variation over time was seen in the percentage of waveforms rejected. No correlation with the mean \acspe charge (panel A) or the average baseline (panel B) is apparent. The percentage of waveforms showing more than ten peaks in the coincidence pretrace shows the same level of phosphoresence and is therefore not depicted. The last panel D shows the percentage of waveforms showing either a linear gate (red) or digitizer overflow (blue), which are again stable throughout the whole data taking period.

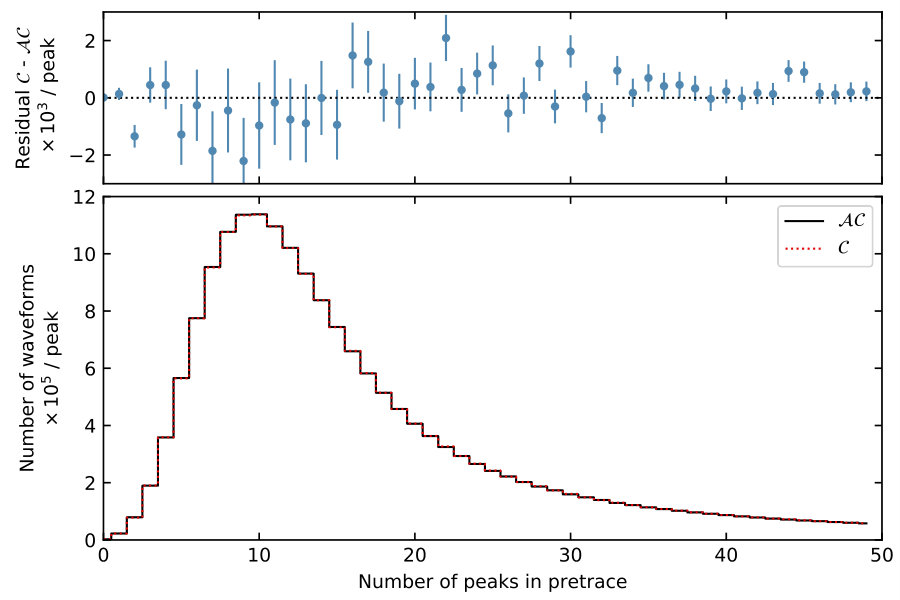

42. 9 Number of peaks in the pretrace for both AC and C regions in the ${}^{133}\text{Ba}$ calibration
43. 10 SPE peak-width distribution and Monte Carlo simulation of Cherenkov cut survival rate for radiation induced events in the ${}^{133}\text{Ba}$ calibration

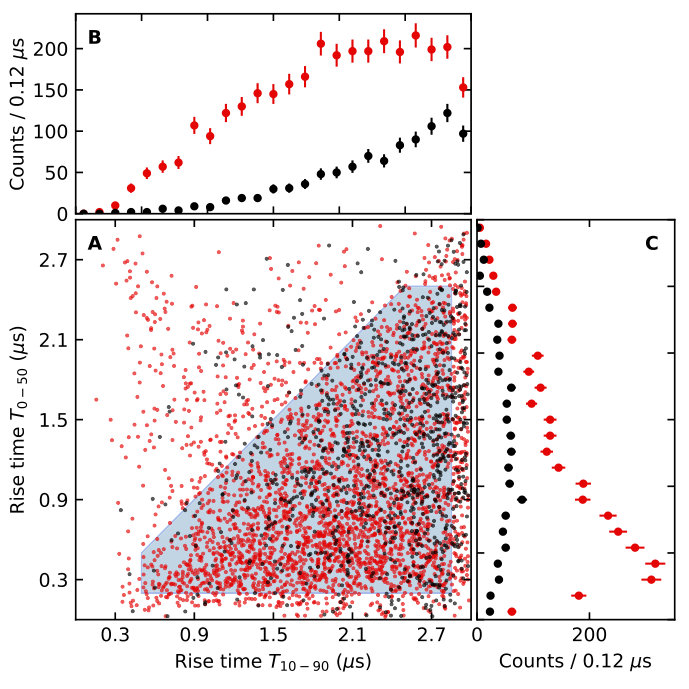

44. 11 Example rise-time distribution for the ${}^{133}\text{Ba}$ calibration with a Cherenkov cut of 5 for events with an energy of $5\,\leq\,N_{\text{pe}}\,\leq\,20$
45. 12 Example rise-time distribution for the barium calibration with a Cherenkov cut of 7 for events with an energy of $5\,\leq\,N_{\text{pe}}\,\leq\,20$
46. 13 Example of the acceptance calculation for a given set of cut parameters

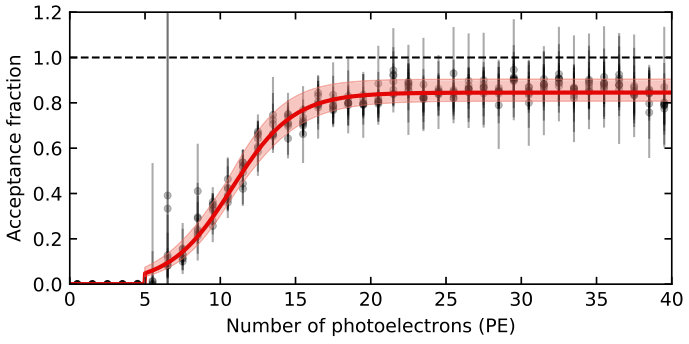

47. 14 Fit of the signal acceptance model $\eta(N_{\text{pe}},a,k,x_{0})$ to the acceptance fractions calculated for the ${}^{133}\text{Ba}$ calibration
48. 15 Bootstrapped parameter distributions of $a$, $k$ and $x_{0}$ obtained by using a bootstrap approach of resampling residuals
49. 16 Fit of the signal acceptance model $\eta(N_{\text{pe}},a,k,x_{0})$ to acceptances that include a diagonal rise-time cut
50. 17 Bootstrapped parameter distributions of $a^{\star}$,$k^{\star}$ and $x^{\star}_{0}$ obtained by using a bootstrap approach of resampling residuals
51. 18 Comparison of different approaches to incorporate the diagonal rise-time cut into the signal acceptance function
52. 1 Experimental setup of the CsI[Na] quenching factor measurements at \acs*tunl
53. 2 Schematic of the \acs*tunl facilities

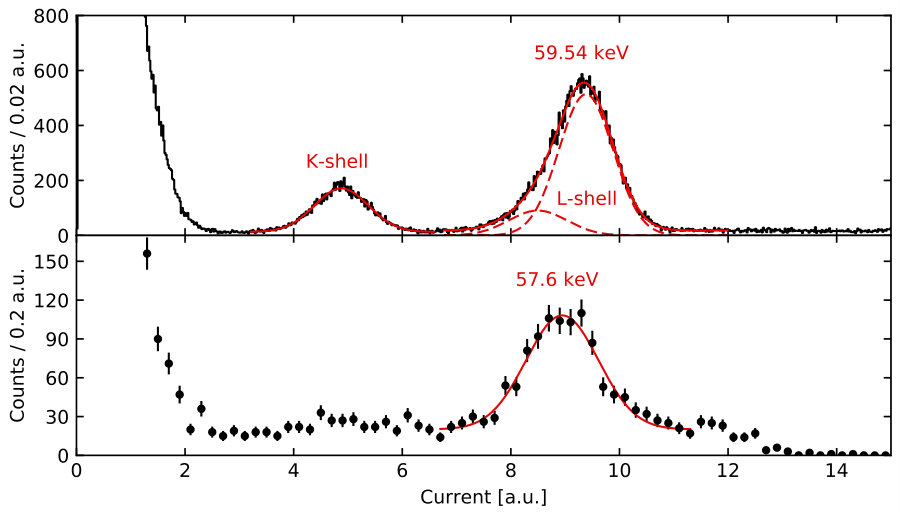

54. 3 CsI[Na] energy calibration using a ${}^{241}\text{Am}$ source and the in-situ ${}^{127}\text{I}(n,n^{\prime}\gamma)$ reaction
55. 4 \acs*spe calibration spectrum fitted by two different charge distribution models
56. 5 EJ299-33A energy calibration and photon cross-sections
57. 6 Pulse shape discrimination metric for ${}^{252}\text{Cf}$ and ${}^{137}\text{Cs}$
58. 7 Example waveform taken from the $45\text{\,}\mathrm{\SIUnitSymbolDegree}$ data set of the quenching factor measurement

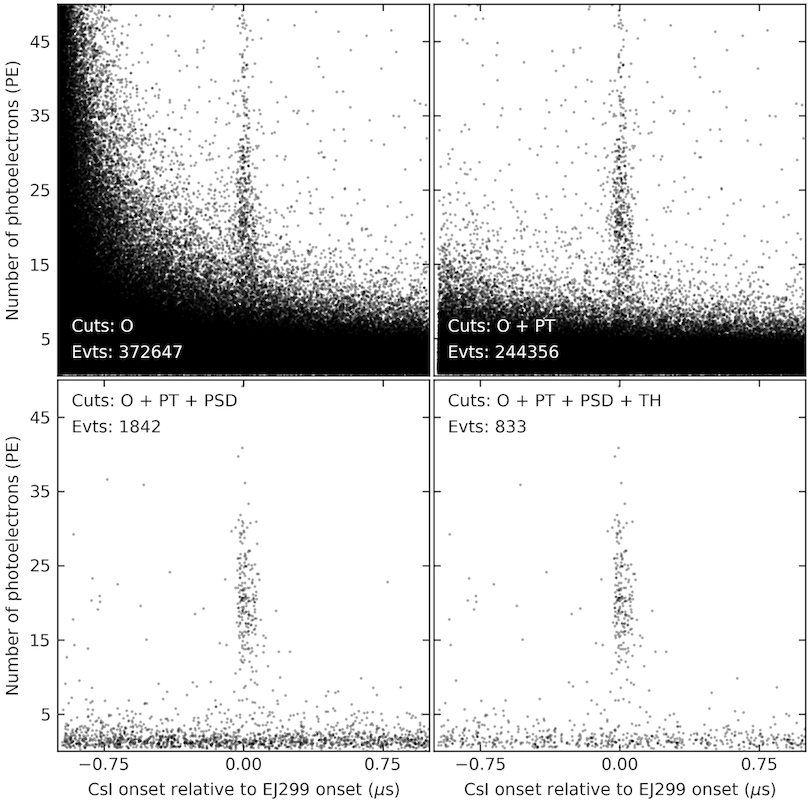

59. 8 Applying quality cuts on the data set acquired for a EJ299-33A angle of $45\text{\,}\mathrm{\SIUnitSymbolDegree}$ in the quenching factor measurements
60. 9 Theoretical arrival times for events in the quenching factor measurements
61. 10 Calculating the residual energy spectrum for the $24\text{\,}\mathrm{\SIUnitSymbolDegree}$ data set of the quenching factor measurement
62. 11 Neutron beam energy spectrum used in the MCNPX-PoliMi ver. 2.0 simulations of the quenching factor measurments.
63. 12 Neutron beam transversal profile available in the \acsssa at \acstunl

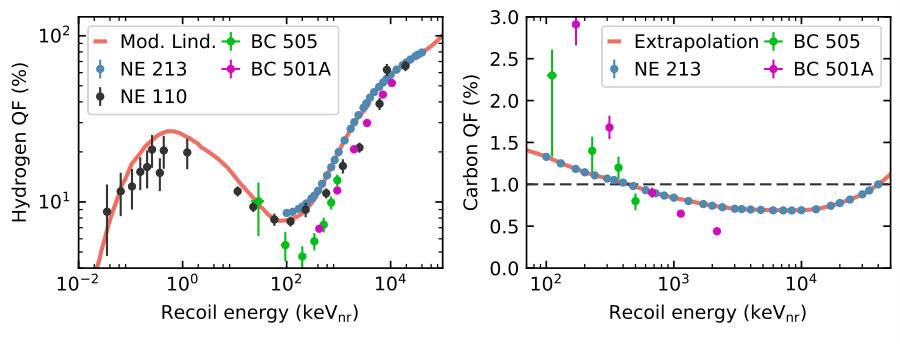

64. 13 Hydrogen and carbon quenching factors for different organic scintillators
65. 14 Results of the MCNPX-PoliMi ver. 2.0 simulations for a EJ299-33A position of $24\text{\,}\mathrm{\SIUnitSymbolDegree}$
66. 15 Fitting the simulated recoil data to the experimental residual spectrum
67. 16 Comparison of the CsI[Na] quenching factor measurements with previous experiments
68. 17 Best fit neutron flux for each detector position

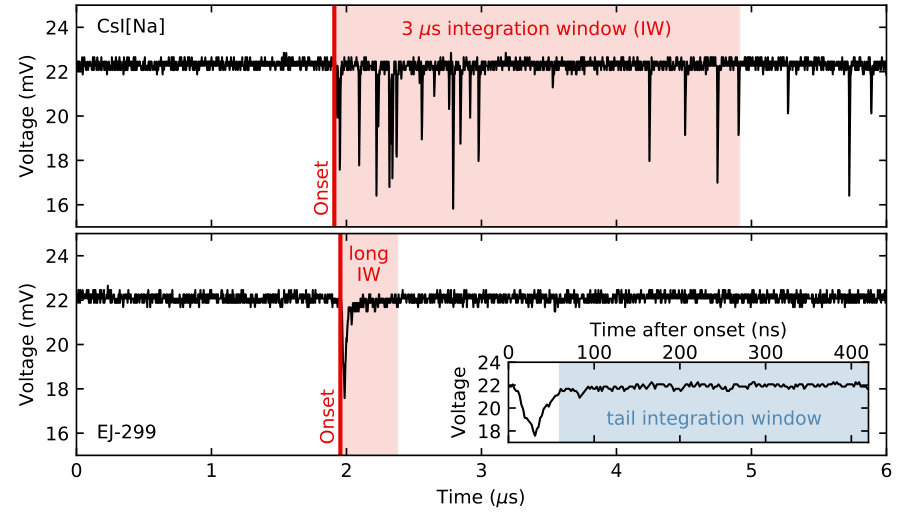

69. 1 Example CsI[Na] waveform highlighting the different analysis regions used in the CE$\nu$NS search data analysis
70. 2 Detector stability tests performed during the two years of CsI[Na] data-taking at the SNS
71. 3 Exemple beam power retrieved from the \acs*sns archives for November 21, 2015
72. 4 Example charge spectra for an occasional drop in the mean \acs*spe charge

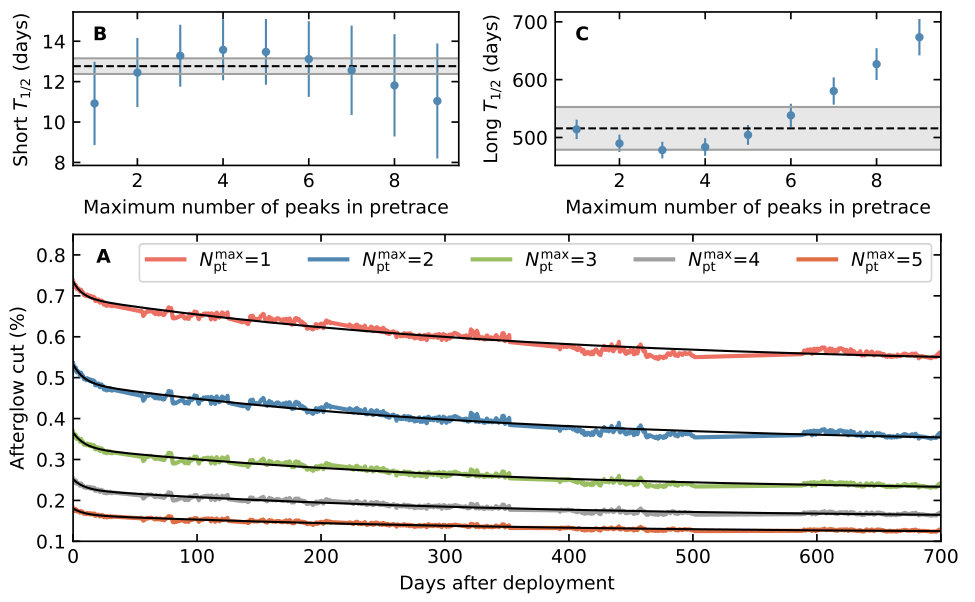

73. 5 Determining the decay times apparent in the afterglow cut
74. 6 Muon veto hit distribution showing a prompt neutron component shortly following the \acspot trigger in the \acscenns search data

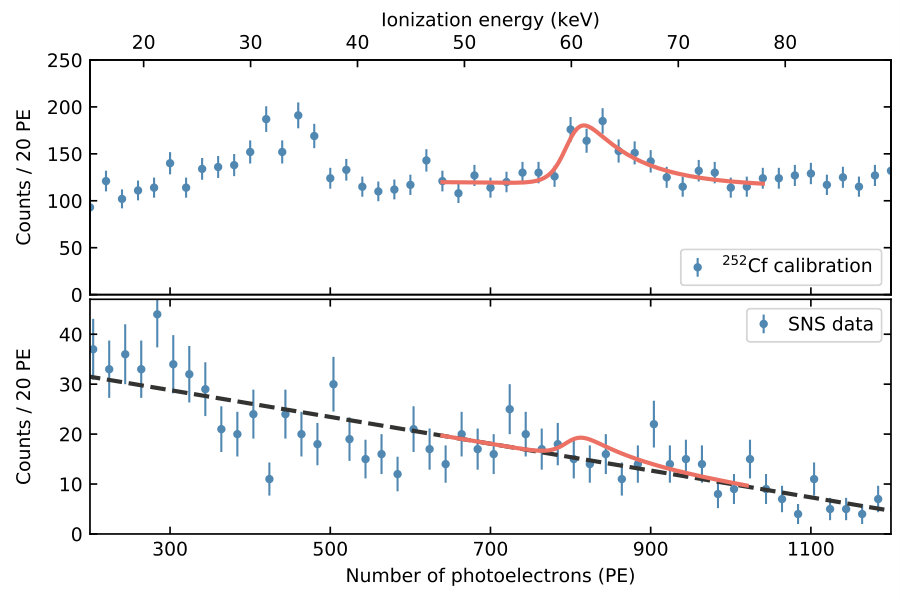

75. 7 Validating neutron transport simulations using the inelastic scattering ${}^{127}\text{I}$(n,n’$\gamma$) reaction
76. 8 Correcting the energy of events experiencing digitizer overflows
77. 9 Estimating the signal-to-background ratio using only $\mathcal{AC}$ data from the $\mathcal{OFF}$ data set
78. 10 (Continued) The afterglow cut needed to be chosen small enough to reduce this trend to a level at which the $\mathcal{OFF}$ residual shows no systematic deviation from zero in the energy and arrival time spectra. However, softening the afterglow cut increases the number of steady-state backgrounds passing all cuts. This effect is more pronounced in $\mathcal{AC}$ than in $\mathcal{C}$. As as result, the residual spectra show a systematic deviation opposite to a potential \accenns signal and can therefore not be mistaken for a \accenns signal. Panels C and D show the statistical fluctuations $\sigma_{\text{bg}}$ around zero for the corresponding residual $\mathcal{R}$, caused by random coincidences, as colored bands. The colors correspond to the data shown in panels A and B. Only the positive fluctuation is shown. The solid lines represent the predicted \accenns spectra for the different cut values. Comparing the expected \accenns spectrum to the expected steady-state background allows the definition of a \acf*fom (Eq. (21) which is used to find an optimal set of cut parameters that maximizes the \accenns signal to steady-state background ratio.
79. 11 Nuclear recoil rate from \acscenns interactions in the CsI[Na] detector at the \acssns
80. 12 Comparison between \acs*cenns spectra before and after applying the signal acceptance function to the data
81. 13 Determination of the signal acceptance fraction for the diagonal rise-time cut
82. 14 Overall signal acceptance function as calculated for the optimized cut parameters

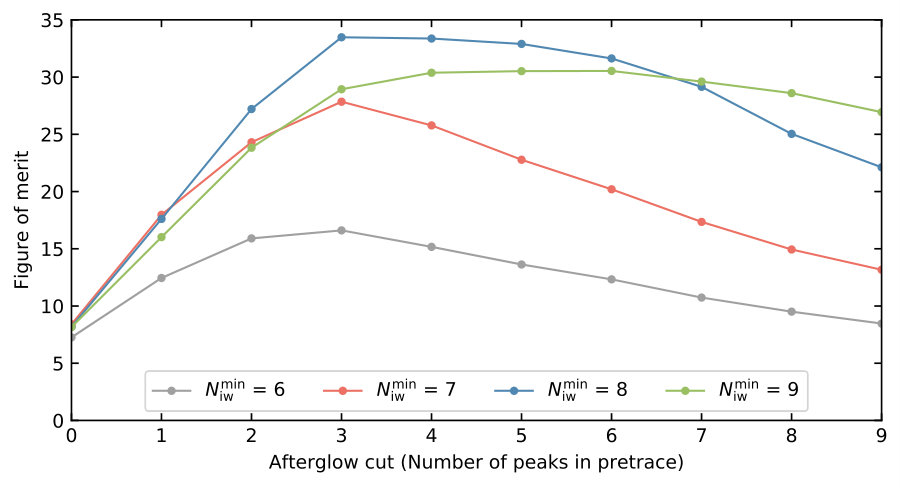

83. 15 Figure of merit, i.e., a measure of the signal-to-background ratio, for different afterglow and Cherenkov cuts in the \acs*cenns search
84. 16 Energy and arrival time spectra for all events passing the data cuts
85. 17 First observation of \acs*cenns
86. 18 Time evolution of residual counts for both $\mathcal{ON}$ and $\mathcal{OFF}$ data
87. 19 Rise-time distributions of $\mathcal{OFF}$ events passing all optimized data cuts
88. 20 Rise-time distributions of $\mathcal{ON}$ events passing all optimized data cuts
89. 21 Residual rise-time distributions of $\mathcal{ON}$ events passing all optimized data cuts

1. 1 High voltages for each \acs*pmt used in the CsI[Na] muon veto
2. 2 Description for all data values available in the settings file of each data run
3. 1 Mean and standard deviation of a Gaussian fitted to the marginalized rise-time distributions of $T_{0-50}$ and $T_{10-90}$
4. 2 Variation of the light yield at $59.54\text{\,}\mathrm{keV}$ along the crystal axis. $\mathcal{L}_{\text{CsI}}$ was found to be $13.348\pm 0.019\,$(PE/$\text{\,}\mathrm{\text{keV}_{\text{ee}}}$).
5. 1 Start and end samples of each analysis region used in the ${}^{133}\text{Ba}$ calibration
6. 2 Overview of the parameters recorded for each waveform in the ${}^{241}\text{Am}$ calibration, the ${}^{133}\text{Ba}$ calibration and the \acs*cenns search
7. 3 Definition of uncut and cut data sets during the barium calibration
8. 1 EJ299-33A detector positions, recoil energies and run times d
9. 2 Best fit results for the energy calibration of the CsI[Na] detector
10. 3 Light yield calibration for the CsI[Na] detector used in the quenching factor measurements
11. 4 CsI[Na] quenching factor and neutron flux for all EJ299-33A positions
12. 1 Start and end sample number of each analysis region in the \acs*cenns search
13. 2 Beam energy-weighted afterglow cut acceptances for varying $N^{\text{max}}_{\text{pt}}$
14. 3 Ad hoc template fit parameters for the californium calibration
15. 4 Number of events surviving the different cuts applied to the \acs*cenns search data

Chapter 0 Introduction

In 1974, shortly after the first observation of a possible weak neutral current in neutrino-nucleus interactions [1], Daniel Z. Freedman provided the first theoretical description of \accenns as a \acsm process [2]. In general, when a neutrino scatters off a nucleus the interaction depends on the non-trivial interplay between the neutrino and the individual nucleons. However, if the neutrino-nucleus momentum transfer is small enough, it does not resolve the internal structure of the nucleus, and as a consequence the neutrino scatters off the nucleus as a whole. This purely quantum mechanical effect gives rise to a coherent enhancement of the scattering cross-section, which scales approximately with the square of the target nucleus’ neutron number. The resulting scattering cross-section is therefore several orders of magnitude larger than any other neutrino-nucleus coupling (Fig. 1).

It might seem surprising that \accenns had eluded detection for over four decades given its large cross-section. However, being a neutral-current process, the only experimental signature of \accenns consists of difficult-to-detect nuclear recoils with energies of only a few $\text{\,}\mathrm{\text{eV}_{\text{nr}}}$ to $\text{\,}\mathrm{\text{keV}_{\text{nr}}}$. In what follows the subscript ‘nr’ emphasizes that the energy quoted is that of a nuclear recoil. In conventional radiation detectors only a small fraction of the total energy carried by such a nuclear recoil is converted into a detectable scintillation and ionization signal. The fraction between the detectable and the total energy is usually referred to as quenching factor [3], and is typically on the order of a few to a few ten percent. To distinguish the quenched, detectable energy from the total energy of a nuclear recoil a subscript ‘ee’ (electron equivalent) is used for the former throughout this thesis.

The low energy carried by \accenns-induced nuclear recoils combined with the aforementioned quenching factor had put a potential \accenns detection out of reach for any conventional neutrino detector. These detectors typically achieve an energy threshold of a couple of $\text{\,}\mathrm{MeV}$ [4], which is much larger than the threshold required to detect \accenns-induced recoils.

A measurement of the \accenns cross-section directly tests the description of neutrino-matter interactions as governed by the \acsm. In addition it also substantiates the coherent cross-section enhancement, which is a crucial component included in the calculation of limits on the \acwimp-nucleus scattering cross-section. For a vanishing momentum transfer between the incoming \acwimp and the target nucleus an analogous coherent enhancement of the scattering cross-section is expected. As the neutrino coupling to protons is negligible for \accenns, the \accenns cross-section scales with the total neutron number $N^{2}$. In contrast, the assumed dark matter coupling to both protons and neutrons is non-negligible and approximately equal [13]. As a consequence, the cross-section for \acwimp-nucleus scattering scales with the square of the total nucleon number $A^{2}$ instead. Thus the expected enhancement of the cross-section would be even larger.

A detection of \accenns also requires a shift in the modus operandi of the design of dark matter experiments. In the past, the response to an absent \acwimp scattering signal usually was to increase the total exposure by building ever bigger detectors. This approach will no longer yield a significant increase in sensitivity, once these dark matter searches run into an irreducible \accenns background. This background is induced by neutrinos from astrophysical sources, such as the sun, or the \acdsnb [7]. Since the sole detectable signal for both \accenns and \acwimp scattering is a low energy nuclear recoil it is impossible to distinguish the two. This inevitably requires a potential \acwimp discovery to rely on additional information gained through new approaches, e.g. directional recoil measurements [6]. Fig. 2 shows the so called neutrino floor, i.e. the hard \acwimp discovery limit for future dark matter experiments [7, 14] assuming a \acsm \accenns cross-section. It also highlights current best limits on the \acwimp-nucleus scattering cross-section by several different dark matter experiments.

Another reason to measure \accenns stems from the desire to properly understand and model supernovae. When a star undergoes core collapse most of its gravitational energy is converted into energy driving the explosion. Among others, neutrino and nuclear physics are particularly important for describing this process. During the stellar core collapse approximately $99\text{\,}\mathrm{\char 37\relax}$ of the gravitational energy, i.e. $E\approx$3\text{\times}{10}^{53}\text{,}\mathrm{erg}, is emitted in $\text{\,}\mathrm{MeV}$ neutrinos compared to $0.01\text{\,}\mathrm{\char 37\relax}$ as photons [[15](#bib.bib15)]. About $0.1\text{\,}\mathrm{s}$ after the onset of the core collapse the density within the core reaches $\rho_{c}\,\sim\,${10}^{12}\text{\,}\mathrm{g}\text{\,}{\mathrm{cm}}^{-3} [16]. At this point the neutrinos no longer escape the core freely but remain trapped, coherently scattering off the heavy nuclei produced in the core. Given the vast amount of energy released via neutrinos it is thus crucial to have confidence in the \accenns cross-sections invoked in supernova calculations to properly describe this phase of the collapse.

Given the advances in ultra-sensitive detector technologies over the last decades, which was mainly driven by rare event searches such as dark matter or $0\nu\beta\beta$-decay experiments, it is now feasible to achieve energy thresholds low enough to directly measure \accenns-induced nuclear recoils and test the \acsm prediction. There is a large variety of experiments currently being proposed and/or being built to measure \accenns using different neutrino sources as well as detector technologies.

One group of experiments aims to measure \accenns using a nuclear reactor as neutrino source [17, 18, 19, 20], whereas another group aims to detect \accenns of neutrinos produced by a stopped pion source [21]. In a stopped pion source a proton beam impinges on a heavy target, which produces mesons. If the target is large enough the produced mesons are stopped and produce several neutrinos in their subsequent decay.

The flux emitted by a nuclear power plant is several orders of magnitude higher than what is to be expected from even the most intense stopped pion sources. However, the downside is the very low energy carried by these reactor neutrinos. Reactor experiments therefore have to achieve a sub-$\text{\,}\mathrm{\text{keV}_{\text{ee}}}$ energy threshold in order to measure the tiny recoil energies induced in the target material.

A broad array of detector technologies are used in reactor experiments to achieve this sub-$\mathrm{k}\mathrm{e}\mathrm{V}\mathrm{e}\mathrm{e}$ energy threshold. Among others there is Ricochet [17], which proposes a $10\text{\,}\mathrm{kg}$ array of low temperature Ge- or Zn-based bolometers to achieve an energy threshold of $100\text{\,}\mathrm{eV}$. In contrast, CONNIE [18] uses an array of \acpccd to achieve an effective threshold of only $28\text{\,}\mathrm{eV}$. MINER [19] is planning to use cryogenic germanium and silicon detectors in close proximity to a low power research reactor and $\nu$-CLEUS [20] further proposes to use cryogenic CaWO4 and Al2O3 calorimeters to measure \accenns. All of these experiments build on the expertise gathered from previous efforts to measure \accenns, such as CoGeNT [22] and should in principle be able to measure \accenns if all design specifications are met.

The advantage of a stopped pion source lies in the higher energy of neutrinos produced, which is approximately one order of magnitude larger than the energy of reactor neutrinos. The \accenns-induced nuclear recoils at a stopped pion source therefore carry energies of up to tens of $\text{\,}\mathrm{\text{keV}_{\text{nr}}}$. Even after accounting for the quenching factor this corresponds to detectable energies of up to a few $\text{\,}\mathrm{\text{keV}_{\text{ee}}}$, removing the requirement of a sub-$\text{\,}\mathrm{\text{keV}_{\text{ee}}}$ energy threshold. The neutrinos produced at a stopped pion source include three different flavors $\nu_{\mu}$, $\bar{\nu_{\mu}}$ and $\nu_{e}$, whereas the neutrino emission from a nuclear power plant only consists of $\bar{\nu_{e}}$. However, \accenns is insensitive to the neutrino flavor and as such all three flavors produced at a stopped pion source contribute to the nuclear recoil spectrum.

The experiment presented in this thesis is located at the \acsns, a stopped pion neutrino source at \acornl. A low-background, $14.57\text{\,}\mathrm{kg}$ CsI[Na] detector was deployed $19.3\text{\,}\mathrm{m}$ away from the \acsns mercury target, which isotropically emits three different neutrino flavors with well known emission spectra. The detector is located in a sub-basement corridor, which provides at least $19\text{\,}\mathrm{m}$ of continuous shielding against beam-related backgrounds and a modest overburden of $8\text{\,}\mathrm{\text{m.w.e.}}$ which reduces backgrounds induced by cosmic-rays. CsI[Na] provides an ideal target material for a \accenns search [21]. First, the large neutron number of both cesium and iodine result in a large enhancement of the \accenns cross-section for both elements. Second, its excellent light yield, i.e. the number of \acspe produced per unit energy, makes it possible to achieve an energy threshold of $\sim$4.5\text{,}\mathrm{\text{keV}_{\text{nr}}}$$. After approximately two years of continuous data acquisition this thesis presents the first observation of \accenns at a $6.7$-$\sigma$ confidence level.

The theory of \accenns and its experimental detection is discussed in chapter 1. Chapter 2 provides detailed information on the \acsns and also provides an overview of the activities of the COHERENT collaboration. Several different background studies were performed prior to the deployment of the CsI[Na] detector and are discussed in chapter 3. Three different CsI[Na] detector calibrations are covered in chapters 5, 6 and  7. The full analysis of \accenns search data taken at the \acsns as well as the first observation of \accenns is presented in chapter 8. Chapter 9 provides a brief summary of the findings presented in this thesis and shortly discusses future efforts by COHERENT aiming to decrease the uncertainty on the \accenns cross-section, test the $N^{2}$ dependance, and to put more stringent limits on non-standard interactions.

Chapter 1 Coherent Elastic Neutrino-Nucleus Scattering

In the \acsm \accenns is mediated via $Z^{0}$ exchange (Fig. 1). Being a neutral current process \accenns is insensitive to the flavor of the incoming neutrino resulting in an identical scattering cross-section for all neutrino types apart from some minor corrections. Following Drukier and Stodolsky [23], the differential, spin-independent \accenns cross-section assuming a negligible momentum transfer (i.e. $q\equiv\left|\vec{q}\right|\rightarrow 0$) between neutrino and nucleus can be written as

[TABLE]

where $G_{f}$ is the Fermi coupling constant, $Z$ and $N$ are the number of protons and neutrons in the target nucleus respectively, $\sin^{2}\Theta_{\text{W}}$ is the weak mixing angle, $E_{\nu}$ is the incoming neutrino energy, and $\phi$ is the scattering angle. Any contribution from axial vector currents and any radiative corrections above tree level were neglected in Eq. (1). Including these contributions at this point would not lead to a deeper understanding of \accenns but would rather only distract from the core concepts driving \accenns.

Since for low momentum transfers $\sin^{2}\Theta_{\text{W}}\,=\,0.23867\pm 0.00016\,\approx\,\frac{1}{4}$ [24], Eq. (1) can be simplified by eliminating any contribution from proton coupling in a first order approximation. It is further beneficial to express Eq. (1) in terms of the three momentum transfer $q$ between neutrino and nucleus, which yields

[TABLE]

Here $q_{\text{max}}$ denotes the maximum momentum transfer at $\phi=$180\text{,}\mathrm{\SIUnitSymbolDegree}$$. As the only visible outcome of a \accenns event is an energy deposition in the detector in the form of a nuclear recoil it is advantageous from an experimental point of view to express the differential cross-section in terms of the recoil energy $E_{r}$ carried by the target nucleus. It is

[TABLE]

where $m_{a}$ denotes the nuclear mass of the target material. It is easy to verify that the maximum induced recoil energy scales with the square of the incoming neutrino energy, i.e. $E_{r}^{\text{max}}=\nicefrac{{2E_{\nu}^{2}}}{{m_{a}}}$. As such it might seem beneficial to choose a neutrino source with the highest possible energy.

However, Eq. (1) only holds in the limit of vanishing momentum transfer $q\rightarrow 0$ and as such $E_{r}\rightarrow 0$. The effective cross-section actually decreases with increasing $q$, as the effective de Broglie wavelength $\nicefrac{{h}}{{q}}$ approaches the size of the nucleus. At this point the target does no longer recoil coherently, but rather scatters as a collection of individual nucleons. This loss of coherence becomes important for momentum transfers which satisfy $qR_{A}\gtrsim 1$, where $R_{A}$ is the radius of the nucleus [23] and which is approximately given by $R_{A}=A^{\nicefrac{{1}}{{3}}}\cdot$1.2\text{,}\mathrm{fm}, where $A$ is the mass number of the target element [[25](#bib.bib25)]. For ${}^{133}\text{Cs}$ and ${}^{127}\text{I}$ this corresponds to a momentum transfer on the order of $q\approx$30\text{\,}\mathrm{MeV}. Following Lewin and Smith [26], this effect can be incorporated by introducing a form factor $F(q)$ that only depends on the momentum transfer and is independent of the nature of the interaction. It is the Fourier transform of the ground state mass density profile of the nucleus, normalized such that $F^{2}(q=0)=1$. The effective differential cross-section can then be written as [27]

[TABLE]

A form factor $F(q)$ is adopted as proposed by Klein and Nystrand [25] that is based on the approximation of a Woods-Saxon nuclear density profile by a hard sphere of radius $R_{A}$ convoluted with a Yukawa potential of range $a$. The corresponding form factor can then simply be written as the product of the Fourier transformation of each individual density profile, i.e.

[TABLE]

where $j_{1}$ denotes the first order spherical Bessel function of the first kind.

Fig. 2 shows the form factor for cesium and iodine as calculated using Eq. (5) where the momentum transfer was converted into the experimentally more accessible recoil energy of the target nucleus. The left panel shows the behavior over a wide range of recoil energies whereas the right panel focuses on the ones expected at the \acsns. There is a steep drop in $F^{2}$ for increasing recoil energies. According to Eq. (4), this directly leads to a heavy suppression of the differential cross-section for large recoil energies. The experimental consequence of this can be seen in Fig. 3. The left panel shows a comparison of the total \accenns cross-section for ${}^{127}\text{I}$, calculated with and without the inclusion of the form factor. For incoming neutrino energies of $E_{\nu}\gtrsim$30\text{,}\mathrm{MeV} the total cross-section starts to flatten out if $F^{2}$ is included. With increasing $E_{\nu}$ the available phase-space to integrate the differential cross-section increases, as $E_{r}^{\text{max}}\propto E_{\nu}^{2}$. However, large recoil energies are heavily suppressed by the form factor and as a result their contribution to the total cross-section is negligible. The right panel of Fig. [3](#Ch1.F3) shows the average recoil energy induced in a hypothetical detector, which increases linearly with the incoming neutrino energy for $E_{\nu}\lesssim$30\text{\,}\mathrm{MeV} but then again tapers off. The exact rate and shape of this tapering is solely determined by the form factor and as such the choice of $F(q)$ can significantly influence the overall recoil spectrum. It is therefore important to note that there exist several different form factor models which are based on different representations of the nucleon density. A more detailed discussion on different form factor models can be found in [26] and [28]. The latter reference also provides a more extensive and rigorous calculation of the \accenns cross-section.

More detailed \accenns cross-section calculations were carried out within the COHERENT collaboration including several different corrections to provide a precise \acsm prediction [29, 30]. These include corrections such as the inclusion of axial vector currents and radiative corrections, which lead to an increase in the total cross-section on the order of 5-$10\text{\,}\mathrm{\char 37\relax}$ depending on the exact isotope. Different form factor models were tested ($\pm\mathcal{O}($5\text{,}\mathrm{\char 37\relax}$)$), as well as the impact of differences in the proton and neutron form factor ($<$1\text{,}\mathrm{\char 37\relax}$$). The inclusion of the strange quark radius was found to be negligible. The impact of strange quark contribution to the nuclear spin was found to be $\mathcal{O}($1\text{,}\mathrm{\char 37\relax}$)$ for low $N$, and is negligible otherwise. A small contribution of weak magnetism to the cross-section was also found to be negligible. The most important correction is the inclusion of different effective neutrino charge radii for different flavors [31, 29]. At low $q\approx 0$ this can be incorporated by replacing $\sin^{2}\Theta_{\text{W}}$ with

[TABLE]

where $m_{i}$ is the mass of the charged lepton associated with the neutrino $\nu_{i}$. This immediately leads to different \accenns cross-sections for different neutrino flavors, where the ratio between cross-section can approximately be written as

[TABLE]

The cross-section of muon neutrinos over electron neutrinos is therefore increased by a factor of $\sim$3.5\text{,}\mathrm{\char 37\relax}$$. This effect grants the possibility to distinguishing different neutrino flavors via neutral current interactions once precision measurements of the \accenns cross-section are achieved.

Chapter 2 COHERENT at the Spallation Neutron Source

1 The Spallation Neutron Source

The \acfsns, located at \aclornl, provides a a large group of interdisciplinary researchers with the most intense, pulsed neutron beams in the world. A proton beam narrow in time with a timing \acfwhm of approximately $\Delta t_{\text{Beam}}\sim$380\text{,}\mathrm{ns} impinges on a liquid mercury target with a repetition rate of $60\text{\,}\mathrm{Hz}$. The \acsns is theoretically capable of delivering a total beam power on target of up to $1.4\text{\,}\mathrm{MW}$. Combined with a typical proton energy of $E_{p}\approx$1\text{\,}\mathrm{GeV} this amounts to a total proton rate of $\Gamma_{p}\approx${10}^{16}\text{,}{\mathrm{s}}^{-1}. Upon impact on a target nucleus, protons only interact with an individual nucleon instead of forming a compound, as their de Broglie wavelength is only $\sim$0.1\text{\,}\mathrm{fm}, and as such much smaller than the nucleus itself. Kinetic energy is transmitted from a proton to the nucleon via elastic collisions after which an intra-nuclear cascade ensues [32, 33]. During this nucleon-cascade neutrons are spallated from the target nucleus, and also pions $\pi^{\pm}$ are produced. The pions are stopped within the target, where the $\pi^{-}$ are mostly recaptured by the mercury. The $\pi^{+}$, in contrast, decay at rest into a positive muon and a muon neutrino. The muon subsequently decays in-flight into a positron, an electron neutrino, and an anti-muon neutrino.

After the initial nucleon-cascade, which lasts about ${10}^{-22}\text{\,}\mathrm{s}$, the nucleus is left in a highly excited state. It then loses its remaining energy over $\sim${10}^{-16}\text{,}\mathrm{s} mainly via neutron evaporation. Over the course of the intra-nuclear cascade and the following evaporation an average of 20-30 neutrons per incoming proton are spallated from the target [[34](#bib.bib34)]. Being produced in the intra-nuclear cascade the timing of this neutron emission is only associated directly with the beam. For the reminder of this thesis these beam-related neutrons are labeled as prompt. Additionally a total of $\sim 0.08$ ($\pm$10\text{\,}\mathrm{\char 37\relax}) neutrinos per flavor per proton are produced during the full process [5] where all neutrinos are emitted isotropically from the source.

A schematic of the neutrino production mechanism is illustrated in the left panel of Fig. 1. The right panel shows the timing profile of the neutrino emission and further illustrates the timing profile of each neutrino species. The $\nu_{\mu}$ are directly produced within the nucleon-cascade. As such their time profile closely follows the proton beam profile. The $\nu_{e}$ and $\bar{\nu}_{\mu}$ emission follows a convolution of the beam profile with the \sim$$2.2\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s} muon decay. The neutrino emission can therefore be categorized as prompt ($\nu_{\mu}$) and delayed ($\nu_{e}$, $\bar{\nu}_{\mu}$).

The pulsed neutrino emission profile is highly beneficial for background suppression. Potential \accenns signals can only arise within a couple of microseconds directly following the \acpot trigger. As such it is possible to reduce the steady-state contribution from environmental and cosmic-ray induced radiation by approximately three to four orders of magnitude. However, the \acsns also produces on the order of $10^{17}$ neutrons per second. Some of these can escape the shielding monolith surrounding the mercury target, leading to a potential beam-related background. This neutron background was assessed prior to the main detector deployment. It is described in chapter 3 and found to be negligible.

The exact energy emission spectra for all neutrino flavors can be analytically calculated as all processes involved in the neutrino production are well understood. The $\pi^{+}\rightarrow\mu^{+}+\nu_{\mu}$ two body decay-at-rest results in a monochromatic neutrino energy of

[TABLE]

The neutrino emission spectra for the $\mu^{+}\rightarrow e^{+}+\nu_{e}+\bar{\nu}_{\mu}$ decay can be written as [35]

[TABLE]

where $W=$52.83\text{,}\mathrm{MeV}. The energy spectrum for each flavor is shown in Fig. [2](#Ch2.F2). The emitted neutrinos meet the coherence criterion ($E_{\nu}\leq$100\text{\,}\mathrm{MeV}) introduced in chapter 1. The right panel further shows the supernova neutrino emission spectra estimated using a Fermi-Dirac distribution with characteristic neutrino temperatures of $T(\nu_{e})=$3.5\text{,}\mathrm{MeV}, $T(\bar{\nu}_{e})=$4.5\text{\,}\mathrm{MeV} and $T(\nu_{x})=$8\text{,}\mathrm{MeV}$$ [35, 37], i.e.

[TABLE]

The overlap in neutrino energies probed at the \acsns and in supernovae are apparent. The \accenns search at the \acsns dsecribed in this thesis can therefore directly validate coherent scattering for neutrinos carrying energies similar to those produced in a stellar core collapse (chapter First observation of coherent elastic neutrino-nucleus scattering). The reactor neutrino emission spectrum as provided in [36] is also shown. The emitted neutrino spectrum has a much lower energy than what is produced at the \acsns. As such, there are some advantages to detect \accenns-induced nuclear recoils at the \acsns, even if the total recoil rate is significantly lower.

Geant4 [38] simulations were performed by the Florida group of the COHERENT collaboration regarding the neutrino yield, neutrino spectra, and timing profiles as provided by the \acsns. A negligible energy contamination of $<$1\text{,}\mathrm{\char 37\relax}$$ from decay-in-flight and muon capture was found above the endpoint of the Michel spectrum [5].

2 The COHERENT experiment at the SNS

The work described in this thesis was done in the framework of the international COHERENT collaboration. COHERENT consists of approximately 80 researchers with strong backgrounds in rare event searches such as dark matter or $0\nu\beta\beta$-decay experiments. Yet, from the beginning it was clear that only a multi-target approach will be able to fully utilize the power of \accenns to probe and constrain neutrino physics beyond the \acsm. The first observation of \accenns described in this thesis is a remarkable achievement and already provided improved constraints on non-standard interactions between neutrinos and quarks [5]. However, due to the low event statistics and the large uncertainties involved, many of the more interesting physics questions beyond a first observation cannot be addressed yet.

Using multiple target materials the COHERENT experiment will further probe the $N^{2}$ dependance of the scattering cross-section as predicted by Eq. (3). Current operational \accenns detectors include $14.57\text{\,}\mathrm{kg}$ of CsI[Na] as described in this thesis, a $28\text{\,}\mathrm{kg}$ single-phase \aclar detector and $185\text{\,}\mathrm{kg}$ of NaI[Tl]. An additional \accenns search using up to $20\text{\,}\mathrm{kg}$ of p-type point contact germanium detectors [39] is planned for deployment in late 2017. Recent advancements enable a threshold of a few hundred $\text{\,}\mathrm{\text{keV}_{\text{ee}}}$ in these detectors [40]. All of these setups are located in a basement corridor at the \acsns, which is now dubbed ’neutrino alley’ (Fig. 3). This prime location provides at least $19\text{\,}\mathrm{m}$ of shielding against beam-associated backgrounds, such as prompt neutrons. It also offers an overburden of approximately $8\text{\,}\mathrm{\text{m.w.e.}}$ (meters of water equivalent) helping to further reduce cosmic-ray induced backgrounds in the detectors.

In addition to the aforementioned detectors, COHERENT also deployed several different neutron monitors to verify the low prompt neutron background expected from the source. The neutron flux was measured at several positions within the neutrino alley (Fig. 3). In the near future, COHERENT will deploy another neutron monitor close to the CsI[Na] detector further substantiate the current neutron flux measurements.

Another potential background was identified in the framework of the COHERENT collaboration. This background originates from \acpnin in the lead shield surrounding the detectors. Accordingly, another detector array was deployed that is dedicated to measuring the cross-section of this process. A detailed description of these background measurements is presented in chapter 3.

Chapter 3 Background Studies

As discussed in the previous chapter several different neutron detectors were deployed along the ’neutrino alley’ prior to the CsI[Na] experimentation. These measurements confirmed a negligible background level. This ensures a high signal-to-background level for the \accenns search described in this thesis. These measurements are described below.

Two early measurements of the prompt neutron flux used the Scibath [13] and Sandia Camera [41] neutron detectors, which were positioned at several locations along the basement corridor as well as in the \acsns instrument bay. A neutron flux of approximately $1.5\times 10^{-7}\,$neutrons/cm${}^{2}\,$s$(1-$100\text{,}\mathrm{MeV}$)$ was measured in the vicinity of the location later used in the CsI[Na] deployment. However, these measurements carried a large uncertainty. To further constrain the prompt neutron flux and a potential \acnin background, a neutron detector was positioned at the exact location later occupied by the CsI[Na] detector.

This neutron detector consisted of two $1.5\text{\,}\mathrm{L}$ liquid scintillator cells filled with EJ-301, which were housed in a shielding described in [42, 21]. The innermost layer of ultra-low background lead was removed to accommodate the detector cells. The shielding was further surrounded by an additional $3.5\text{\,}\mathrm{\text{inch}}$ of neutron moderator, i.e., aluminum tanks filled with water. The scintillator cells were read out by ET9390 \acppmt.

Both scintillator and \acpmt used in this setup were selected primarily for their excellent neutron-gamma discrimination capability down to low energies [43, 44]. Using standard \acpsd techniques neutron-like events were selected with arrival times ranging from $10\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ before the \acpot trigger to $10\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ after. Fig. 1 illustrates the \acpsd used in this selection process. The energy range of these neutron-like events is limited from 30 to $300\text{\,}\mathrm{\text{keV}_{\text{ee}}}$, where the lower bound is due to limitations in the $n$-$\gamma$ discrimination capability and the upper bound is due to non-linearities caused by \acpmt saturation. The distribution of event arrival times with respect to the \acpot trigger for neutron like events in the EJ-301 is shown in Fig. 2. During the 171.7 days of experimentation the \acsns provided a total integrated beam power on the mercury target of $3.35\text{\,}\mathrm{\text{GWh}}$. In the following sections two beam-related backgrounds identified by the COHERENT collaboration are discuss: First, prompt neutrons originating from the mercury target (section 1), and second, \acfpnin produced in the lead surrounding the CsI[Na] detector (section 2).

1 Prompt neutrons

A clear excess directly following the \acpot trigger is visible in Fig. 2. A prompt analysis window was defined from 200 to $1100\text{\,}\mathrm{ns}$ after the \acpot trigger. The event rate in this window was found to be approximately 0.7 events per \acsns live-day.

The energy spectrum between 30-$300\text{\,}\mathrm{\text{keV}_{\text{ee}}}$ for all neutron-like events within this prompt window is shown in the upper panel of Fig. 3. Multiple comprehensive MCNPX-PoliMi ver. 2.0 simulations were conducted to determine the EJ-301 response to incoming neutron spectra of differing spectral hardness. In these simulations the full detector and shielding geometry were unidirectionally exposed to neutrons coming from the \acsns target. A power law, i.e., $P(E_{n})\propto E_{n}[\text{MeV}]^{-\alpha}$, was chosen to model the spectral hardness of the incoming neutrons. This choice was informed by the previous measurements from the Scibath and Sandia Camera neutron detectors. The neutron energies simulated ranged from 1 to $100\text{\,}\mathrm{MeV}$. Neutrons with energies below $1\text{\,}\mathrm{MeV}$ lose too much energy within the neutron moderators surrounding the EJ-301 cells and do not contribute significantly to the 30-$300\text{\,}\mathrm{\text{keV}_{\text{ee}}}$ energy range. The flux of neutrons with energies above $100\text{\,}\mathrm{MeV}$ was found to be negligible by the Scibath and Sandia Camera neutron detectors.

The MCNPX-PoliMi ver. 2.0 output was post-processed to incorporate the response of EJ-301 to nuclear recoils. The recoil energies were converted into an electron equivalent energy using the known quenching factors for hydrogen and carbon [47, 48, 49, 50]. The calculation of the total scintillation light produced in an event also included statistical fluctuations in the light generation.

The simulated energy spectrum were fitted to the experimental data by varying the neutron flux $\phi_{n}$ and spectral hardness $\alpha$. The goodness-of-fit between the simulated detector response and the experimental energy spectrum is shown in Fig. 3. The spectral hardness $\alpha$ is shown on the y-axis, whereas the corresponding neutron flux $\phi_{n}$ is shown on the x-axis. A darker area represents a better agreement between the simulated and measured energy spectra. Red lines represent the corresponding 1-3$\sigma$ confidence intervals. The best fit is given by

[TABLE]

The energy spectrum calculated using this parameter set is shown as a blue line in the upper panel of Fig. 3. The blue band consists of all parameter choices covered within the $1\sigma$ confidence interval. The calculated neutron flux is compatible with previous flux measurements using the Scibath and Sandia Camera neutron detectors, which measured a prompt neutron flux of $1.5\times 10^{-7}\,$neutrons/cm${}^{2}\,$s$(1-$100\text{,}\mathrm{MeV}$)$ close to the position occupied by the EJ-301 detector.

A second MCNPX-PoliMi ver. 2.0 simulation was used to estimate the beam-related background rate caused by prompt neutrons in the CsI[Na] detector during this \accenns search. A comprehensive model of the CsI[Na] setup was uniformly bathed in neutrons coming from the \acsns target. The neutron spectral hardness and flux were fixed to the values given in Eq. (1). During the post-processing of the simulation output the proper CsI[Na] response to nuclear recoils was used, i.e. light-yield and quenching factor as calculated later in this thesis (chapters 5 and 7). Poisson fluctuation were added to the number of \acpe generated during an event. An energy spectrum was calculated from the simulated event energies and the signal acceptance model corresponding to the optimized choice of cut parameters used in the \accenns search (chapter 8) was applied to the spectrum. The uncertainties of light yield (chapter 5), quenching factor (chapter 7), and signal acceptance (chapter 8) were properly propagated through this analysis exercise. The resulting background rate from prompt neutrons was found to be

[TABLE]

The arrival time of the background events caused by prompt neutrons is highly concentrated at 200-$1100\text{\,}\mathrm{ns}$ after the \acpot trigger (Fig. 2). In chapter 8 it is shown that this event rate is approximately $25\,$times smaller than the expected \accenns signal rate.

2 Neutrino-induced neutrons (NINs)

As discussed earlier neutrons produced by neutrinos interacting with lead [45, 46] constitute another relevant background. These \acpnin are produced by the charged-current reaction

$\begin{aligned} \nu_{e}\quad+\quad^{208}\text{Pb}\quad\rightarrow&\quad{}^{208}\text{Bi}^{*}\quad+\quad e^{-}\\ &\quad\downarrow\\ &\quad{}^{208-y}\text{Bi}\quad+\quad x\times\gamma\quad+\quad y\times n\end{aligned}$

and the neutral-current interaction

$\begin{aligned} \nu_{x}\quad+\quad^{208}\text{Pb}\quad\rightarrow&\quad{}^{208}\text{Pb}^{*}\quad+\quad\nu_{x}^{\prime}\\ &\quad\downarrow\\ &\quad{}^{208-y}\text{Pb}\quad+\quad x\times\gamma\quad+\quad y\times n.\end{aligned}$

Here $x$ and $y$ denote the $\gamma$ and neutron multiplicity respectively. The \acnin background is predominantly produced by the delayed $\nu_{e}$, as the charged-current interaction has the largest cross-section. An unbinned fit [51] to the EJ-301 arrival time data (Fig. 2) was used to constrain this \acnin background. The model used in this fit incorporated the following three neutron components; a random arrival time from environmental neutrons, prompt neutrons, and a \acnin excess following the $\nu_{e}$ time-profile. The number of \acpnin found in this fit was converted into a \acnin production rate using an MCNPX-PoliMi ver. 2.0 simulation. A homogeneous and isotropic \acnin emission within the lead shield surrounding the EJ-301 was simulated. An energy spectrum corresponding to the highest stellar-collapse neutrino energies ($T=$8\text{,}\mathrm{MeV}$$) described in [52] is adopted for the \acnin emission. The energy spectrum of these stellar-collapse neutrinos is slightly softer than the energy spectrum of $\nu_{e}$ at the \acsns (Fig. 2). However, the change in \acnin spectral hardness is negligible for different neutrino energies [52]. The energy spectrum measured by the EJ-301 was calculated using an identical approach to the one described in section 1. The total \acnin production rate was found to be

[TABLE]

An additional simulation was performed using homogeneous and isotropic \acnin emission in the lead surrounding the CsI[Na] used in the \accenns search and analyzed as described in section 1. The uncertainties of light yield (chapter 5), quenching factor (chapter 7), and signal acceptance (chapter 8) were properly propagated through this exercise. Scaling the simulated \acnin event rate with the expected \acnin production rate resulted in a final background rate of

[TABLE]

In chapter 8 it is shown that this event rate is approximately $43\,$times smaller than the expected \accenns signal rate.

These calculations indicate that both prompt neutrons, and \acpnin only contribute a negligible background to the \accenns search. The validity of the neutron transport simulations are further substantiated in section 1.

Chapter 4 The CsI[Na] CE$\nu$NS search detector at the SNS

1 Overview and wiring of the detector setup

A schematic of the CsI[Na] detector setup deployed at the \acsns is shown in Fig. 1. The assembly is located $19.3\text{\,}\mathrm{m}$ from the \acsns mercury target in a basement corridor (Fig. 3). The central detector is a $34\text{\,}\mathrm{cm}$ long sodium doped cesium iodine scintillator read out by a super-bialkali R877-100 \acpmt by Hamamatsu. The detector is surrounded by $3\text{\,}\mathrm{\text{inch}}$ of \achdpe. The purpose of this innermost layer of \achdpe was to reduce the background caused by \acnin production in the surrounding lead (chapter 3). This layer of \achdpe is followed by $2\text{\,}\mathrm{\text{inch}}$ of low-background lead with an approximate ${}^{210}\text{Pb}$ contamination of $\sim$10\text{,}\mathrm{Bq}\text{,}{\mathrm{kg}}^{-1}. The outer $\gamma$-shield is made of an additional $4\text{\,}\mathrm{\text{inch}}$ of contemporary lead ($\sim$100\text{\,}\mathrm{Bq}\text{\,}{\mathrm{kg}}^{-1} of ${}^{210}\text{Pb}$). This results in a minimum of $6\text{\,}\mathrm{\text{inch}}$ of lead surrounding the CsI[Na] in a any direction with a total mass of approximately 3.5 tons. The lead shield is encased by a $2\text{\,}\mathrm{\text{inch}}$-thick high-efficiency muon veto on all vertical sides and the top. The setup rests upon a platform made of an additional $6\text{\,}\mathrm{\text{inch}}$ of \achdpe selected for its low-background properties. A heavy-duty frame made of aluminum Bosch extrusions is placed around the setup providing a secure anchor point for the muon veto panels. It provided a firm surface against which an additional layer of aluminum tanks was pushed, without disturbing the inner shielding configuration. These tanks were filled with tap water, providing at least an additional $3.5\text{\,}\mathrm{\text{inch}}$ of neutron moderator. Fig. 2 shows the setup at three different stages during the installation process in June 2015.

A schematic of the data acquisition system is shown in Fig. 3. The high-voltage of +$1350\text{\,}\mathrm{V}$ for the central CsI[Na] detector is provided by an Ortec 556 power supply. The \acpmt output signal is fed into a \acps 777 variable gain amplifier. The DC level of the signal is shifted by approximately +$90\text{\,}\mathrm{mV}$ and amplified using the \acps 777. The DC shift was necessary to make use of the full data acquisition range. The additional amplification increased the \acspe amplitude without increasing the baseline noise level, avoiding the need to operate the \acpmt at an excessive high voltage. The \acps 777 output is split, one output is fed into a \acps 710 discriminator and the other one into a \acps 744 linear gate. The \acps 710 provides a logical signal to a \acps 794 gate/delay generator whenever the CsI[Na] signal containes an energy deposition of $\gtrsim$500\text{,}\mathrm{\text{keV}_{\text{ee}}}. The \acps 794 provides a $\sim$1.6\text{\,}\mathrm{ms} long logical signal which closes the \acps 744 linear gate. The output of the \acps 744 is fed into channel 0 of the \acni 5153 fast digitizer.

The linear-gate logic, consisting of the \acps 710, 794 and 744, was necessary as any ungated high-energy deposition in the CsI[Na], caused for example by a traversing muon, would reset the data acquisition card, rendering the data acquisition system unresponsive for approximately $3\text{\,}\mathrm{s}$. The linear-gate logic prevents this reset and enables a continuous data acquisition. A gate length of $1.6\text{\,}\mathrm{ms}$ was chosen in order to cut most of the afterglow of any high-energy event while only introducing a minimal dead time of only $\mathcal{O}($1\text{,}\mathrm{\char 37\relax}$)$.

The high-voltage for all muon veto panels is provided by a Power Designs Model 1570, which is set to -$1100\text{\,}\mathrm{V}$. The 1570 output is fed into a Berkeley HV Zener Divider, which in return provides nine distinct high-voltage output levels, one for each \acpmt used within the muon veto. By operating each \acpmt at an individual high voltage it was possible to match the gain of all \acppmt (Fig. 8). The output of the five muon veto panels, i.e., four side panels and one top panel, is fed into the \acps 710 discriminator. The summed, discriminated output of all panels is fed into channel 1 of the \acni 5153. The external trigger for the data acquisition system is the event 39 signal provided by the \acsns. Event 39 is generated when there is a potential extraction of protons from the storage ring, even if there are no protons stored in the ring, which approximately happens once in every 600 triggers. As such event 39 provides a stable $60\text{\,}\mathrm{Hz}$ trigger signal with an amplitude of $\sim$2.5\text{,}\mathrm{V}$$ for all times no matter whether the \acsns actually provided \acpot or not. During the rest of this thesis this triggering signal is referred to as \acpot trigger.

A LabVIEW based data acquisition program was written, which is capable of achieving a $100\text{\,}\mathrm{\char 37\relax}$ data throughput at a trigger rate of $60\text{\,}\mathrm{Hz}$, as is the case at the \acsns. For each trigger $70\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ long traces are recorded of both channels, i.e., the CsI[Na] and muon veto. The waveforms are sampled at $500\text{\,}\mathrm{MS}\text{\,}{\mathrm{s}}^{-1}$ with a digitizer depth of 8-bit and saved as raw binary files. The data acquisition software automatically compresses the binary data files into zip-archives. Given normal operations this amounts to approximately $60\text{\,}\mathrm{MB}$ per minute or a manageable total of $\sim$90\text{,}\mathrm{GB}$$ per day. An in depth look at the data structure is provided in section 4. Once a run is completed the compressed data is pushed onto the HCDATA cluster of the \acornl Physics Division. The cluster keeps a spinning-disk copy of all data for fast access during the actual data analysis, as well as a long-term archive on tape.

Once the CsI[Na] detector was deployed an unexpected, minor complication was found in the data acquisition software. In order to minimize storage space the data is saved as I8 variables. However the data acquired from the \acni 5153 within LabVIEW is actually provided as double precision floating point numbers in $\text{\,}\mathrm{m}\mathrm{V}$. These floating point values are converted back to their $8\text{\,}\mathrm{bit}$ depth by applying

[TABLE]

where $V_{\text{dbl}}$ is the digitizer value in mV, $V_{\text{Range}}$ the current digitizer range and $V_{\text{i8}}$ the digitizer value in $\text{\,}\mathrm{\text{ADC counts}}$. Once a first batch of data had been analyzed it became apparent that $V_{\text{Range}}$ slightly differs from the setting provided, i.e., a digitizer range set to $0.2\text{\,}\mathrm{\text{V}_{\text{pp}}}$ actually shows a slightly larger range. This issue was confirmed by an \acni technician. The projection of $V_{\text{dbl}}$ onto $V_{\text{i8}}$ therefore resulted in some I8 values that never appear as no initial $V_{\text{dbl}}$ is mapped onto them. A correction needs to be applied during the analysis that maps the I8 values onto a continuous signal amplitude. This does not have any ill effect on the results presented here. Once this issue had been identified the impact of this on the data analysis was investigated. Some I8 values are simply omitted and as such the effective digitizer range is reduced by approximately $20\text{\,}\mathrm{\text{ADC counts}}$. But as all further analysis presented in this thesis was based on $\text{\,}\mathrm{\text{ADC counts}}$ and not an absolute value in $\text{\,}\mathrm{mV}$ the analysis remained unaffected by this issue.

The exact transformation depends on $V_{\text{Range}}$. For the two digitizer ranges used in this thesis, the transformations that map the recorded $V_{\text{i8}}$ data onto a continuous set of signal amplitude values $V$ are given by

[TABLE]

Here double() and int() represent data type casts into double precision floating point numbers and integers, respectively. The floor() function returns the the largest integer less than or equal to its argument.

2 The central CsI[Na] detector

The inorganic scintillator CsI[Na] was chosen as the target material due to its many beneficial properties simplifying a \accenns detection and making it possible in the first place [21]. The crystal was grown by AMCRYS-H in Ukrain, and is approximately $34\text{\,}\mathrm{cm}$ long with a total mass of $14.57\text{\,}\mathrm{kg}$. It is wrapped in an expanded PTFE membrane reflector and encapsulated in a electroformed OFHC copper can, which was grown at \acpnnl. Both ${}^{133}\text{Cs}$ and ${}^{127}\text{I}$ nuclei have a large number of neutrons, 78 and 74 respectively, which leads to a large coherent enhancement of the scattering cross-section, as shown in Eq. (3). The large size of the nucleus also allows for a larger momentum transfer between the incoming neutrino and the target nucleus before a loss of coherence sets in as governed by the form factor (Eq. (5)). Another benefit of this detector material is the very similar nuclear mass of cesium and iodine. As such, the \accenns induced recoil spectra are nearly indistinguishable from one another, leading to a much simpler data analysis. Yet, given the modest neutrino energies and the relatively large mass of the recoiling nucleus it is still necessary to achieve a low enough energy threshold to actually benefit from this enhancement.

In order to achieve such a low energy threshold, an R877-100 $5\text{\,}\mathrm{\text{inch}}$ flat-faced \acpmt from Hamamatsu was chosen to read out the scintillation light. This \acpmt uses a \acsba photocathode which provides an increased \acqe of $\sim$34\text{,}\mathrm{\char 37\relax} over the $\sim$24\text{\,}\mathrm{\char 37\relax} \acqe of common bialkali photo-cathodes [53]. The \acsba photocathode is further matched to the scintillation light of CsI[Na] as is shown in the left panel of Fig. 5. The high \acqe, paired with a light yield of CsI[Na] of $\sim$45 photons per $\text{\,}\mathrm{\text{keV}_{\text{ee}}}$ [54] made it possible to achieve an energy threshold of approximately $4.5\text{\,}\mathrm{\text{keV}_{\text{nr}}}$. CsI[Na] has the additional advantage of short scintillation decay times (Fig. 6), as well as a manageable afterglow (phosphorescence), especially when compared to thallium-doped CsI (Fig. 7). As such the detector can be operated at a modest overburden without contaminating a significant amount of \acsns proton-on-target triggers with \acpspe from previous cosmic-ray induced events.

The right panel of Fig. 5 highlights yet another advantage of CsI[Na], namely the excellent light yield stability around room temperature. A change of $\pm$10\text{,}\mathrm{\SIUnitSymbolCelsius} only results in a negligible change of its light yield on the order of less than $1\text{\,}\mathrm{\char 37\relax}$. This has been highly beneficial as over the course of the last two years several other detectors were deployed within the *neutrino alley*. As a result, the heat load was always changing which lead to fluctuations in the environmental temperature on the order of $\pm$2\text{\,}\mathrm{\SIUnitSymbolCelsius}. Yet the excellent temperature stability guaranteed a constant light emission throughout the full data run. It was also shown that CsI[Na] crystals show very low levels of internal radioactivity, i.e. ${}^{238}\text{U}$, ${}^{232}\text{Th}$, ${}^{40}\text{K}$, ${}^{126}\text{I}$ and 134, 137Cs, when grown from appropriate salts [57]. In her PhD thesis [42], Nicole Fields screened a boule slice of CsI[Na] from AMCRYS-H using low-background $\gamma$ spectroscopy. She measured an activity per isotope on the order of $\mathcal{O}($10\text{,}\mathrm{mBq}\text{,}{\mathrm{kg}}^{-1}$)$. An in depth analysis of the salts used by AMCRYS-H to grow the CsI[Na] used in this thesis, and most other materials used during the construction of this detector setup is provided in Chapter 4 of [42].

3 The muon veto

The muon veto panel consists of four side panels and one top panel, each made out of EJ-200B. The dimension for each side panel is $42\times 24\times 2$ inch, the top panel is $24\times 24\times 2$ inch. Each side panel is read out by two DC-chained, gain matched ET 9102SB \acppmt with a diameter of $1.5\text{\,}\mathrm{\text{inch}}$. The top panel is read out by a single $5\text{\,}\mathrm{\text{inch}}$ flat faced \acpmt.

Before assembly the gain curve of each ET 9102SB was mapped by attaching each \acpmt to the same crystal and irradiating the setup with a ${}^{57}\text{Co}$ source, which provides $\gamma$s with an energy of $122\text{\,}\mathrm{keV}$. An Amptek MCA 8000A (Pocket MCA) was used to record the energy spectrum for each \acpmt operated at several different high voltages. The ${}^{57}\text{Co}$ peak position was recorded for each of these spectra. The resulting gain curves are shown in Fig. 8. Once each muon veto panel was wrapped with reflecting and light-blocking material the separation between the environmental $\gamma$ background and the high-energetic muon interactions was tested for different gain levels. The final operational high voltage for each \acpmt is listed in Table 1.

The \acps 710 discriminator level for each panel is listed in Table 1. The levels for all side panels were set to achieve a maximum muon veto rejection while minimizing the triggering on the environmental $\gamma$ background. All side panels showed a similar triggering rate of $20\text{\,}\mathrm{Hz}$. The top panel showed a triggering rate of approximately $50\text{\,}\mathrm{Hz}$. All rates are in agreement with rate expectations based on the muon flux at sea level given the veto surface area. The individual panel locations with respect to the central CsI[Na] detector are shown in Fig. 9, which also includes the \acmots exhaust pipe [58] running along the ceiling of the corridor. This pipe is a major source of $\gamma$-rays, mainly carrying an energy of $511\text{\,}\mathrm{keV}$. As such, the overall triggering rate of all panels was found to be slightly elevated whenever the \acsns was operational. The increase in rate depends on the exact panel positioning. Panel five experienced the largest increase with an overall triggering rate of $\sim$100\text{,}\mathrm{Hz}$$, whereas the side panels only experienced an increase in triggering rate on the order of 2-$8\text{\,}\mathrm{Hz}$, depending on their positioning.

4 Data structure

The folder structure created by the LabVIEW DAQ system is shown in Fig. 10. The main folder is used to distinguish between different setups, e.g. calibrations or \accenns search runs. The run folders contain the year, month, day, 24-hour, minute and second in which this specific run was started. The date folders consist of six digits, representing year, month and day. During data acquisition a new date folder is created every midnight. A new data file is being created every minute per default.

During development both hardware and software were optimized to allow for a simultaneously data acquisition and data compression, without introducing any throughput limitations. The compression of a one minute binary data file with an initial size of $240\text{\,}\mathrm{MB}$ into a zip-archive takes approximately $45\text{\,}\mathrm{s}$. As such no data pile up is being introduced by compressing the data. This is highly beneficial for data storage as the compressed data only requires approximately a quarter of the disk space of the initial binary files. It also reduces the time needed to backup the data on the HCDATA cluster. Given a data transfer rate of 5-$10\text{\,}\mathrm{MB}\text{\,}{\mathrm{s}}^{-1}$ raw binary files could be transferred without introducing any data pile up. However, these transfer rates fall below $5\text{\,}\mathrm{MB}\text{\,}{\mathrm{s}}^{-1}$ for prolonged times on a regular basis. As such new data would be created faster than it can be moved onto the cluster. As such the data acquisition would have to be stopped once the local hard-drive is at full capacity. Being able to compress the data in parallel to the data acquisition fully eliminates this issue.

The settings file contains all DAQ settings used during the acquisition. For a full description of each value saved is presented in Table 2. Some parameters are saved in the settings file even though they have no effect on the \acni 5153 digitizer, e.g. the vertical offset of either channel. These parameters are technically available in the sub-VIs provided by \acni to properly initialize the hardware, yet internally the \acni 5153 digitizer is not capable of adjusting these values. Fields marked as -reserved- do not contain any meaningful parameters. They might contain non-zero entries as they were used during the development of the DAQ software. Yet, at this stage the values provided do no longer carry any meaningful information and can be disregarded.

As already stated, the acquired data is saved as binary files containing an array of I8 variables. Fig. 11 shows the internal structure of an example binary data file. Using LabVIEW for the data analysis would provide built-in functions to properly read the chunks of data and decimate the corresponding arrays. However, due to the sheer size of the data set acquired the full analysis had to be performed on the HCDATA cluster, fully utilizing its potential of parallel data analysis. The analysis code used in this thesis is available at [59].

Chapter 5 Light yield and light collection uniformity

Given the large size of the CsI[Na] detector, a crucial calibration was to probe the light collection uniformity along the crystal. An ${}^{241}\text{Am}$ source was placed on the outside of the copper can at nine equally-spaced positions along the length of the CsI[Na] detector (Fig. 1) to measure the light collection uniformity in the CsI[Na] crystal. The main $\gamma$-ray emission of this isotope only carries an energy of $E_{\gamma}=$59.54\text{,}\mathrm{keV}$$. This low energy ensures that interactions with the crystal occur in close vicinity to the source location. As a result, only a small volume of the crystal is irradiated for each source location. Comparing the total light yield, i.e., the number of \acspe produced per unit energy, found at each position provides a measure for the non-uniformity in the detector response.

1 Detector setup

The calibrations were performed at a sub-basement laboratory at the University of Chicago, providing roughly $6\text{\,}\mathrm{\text{m.w.e.}}$ of overburden as shielding from cosmic-rays. The central detector was placed within a well of contemporary lead, providing a total of $2\text{\,}\mathrm{\text{inch}}$ of $\gamma$-shielding on the bottom and $4\text{\,}\mathrm{\text{inch}}$ on the sides.

The detector was wired as shown in Fig. 3 with two exceptions. First, no muon veto was present during this calibration measurement. Second, the data was acquired triggering on the CsI[Na] signal itself instead of using an external trigger. The threshold of a standard edge trigger was set much lower than the typical amplitude of an ${}^{241}\text{Am}$ event. The threshold was further adjusted to achieve a data acquisition rate of $\mathcal{O}($60\text{,}\mathrm{Hz}$)$ to guarantee a $100\text{\,}\mathrm{\char 37\relax}$ data throughput. The trigger position was set to $78.5\text{\,}\mathrm{\char 37\relax}$ of the $70\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ long traces,i.e., at sample $27\,475$. The CsI[Na] signal was sampled at $500\text{\,}\mathrm{MS}\text{\,}{\mathrm{s}}^{-1}$ resulting in a total of $35\,000$ samples per waveform. The digitizer range was set to $200\text{\,}\mathrm{m\text{V}_{\text{pp}}}$ with a digitizer depth of $8\text{\,}\mathrm{bit}$. An example waveform is shown in Fig. 2. The CsI[Na] signal $V$ was transformed using Eq. (2). For each source position data was acquired for approximately $5\text{\,}\mathrm{min}$.

2 Waveform analysis

The analysis pipeline for each of the nine data sets was identical and is described in the following: Each acquired CsI[Na] waveform was divided into two distinct regions. The first is the \acfpt, which spans sample 0 - $27\,399$. The second region is the \acfroi, spanning sample $27\,400$ - $34\,999$. The overall baseline was estimated using the median $V_{\text{median}}$ of the first $20\,000$ samples ($=$40\text{,}\mathrm{\mu!}\text{,}\mathrm{s}$$) of the waveform. The CsI[Na] signal was shifted and inverted using

[TABLE]

All peaks within the waveform were detected using a standard threshold crossing algorithm [60]. A peak was defined as at least four consecutive samples showing a minimum deviation of at least $3\text{\,}\mathrm{\text{ADC counts}}$ from the baseline. The time of both positive and negative threshold crossings were recorded for each peak.

1 Mean \acs*spe charge calibration

The \acspe charge spectrum can be calculated using the peaks found in the \acfpt. The charge of each peak was determined by integrating the signal $\hat{V}$ within an integration window, which ranges from two samples before the positive threshold crossing of a peak to two samples after the negative threshold crossing.

The left panel of Fig. 3 illustrates the peak finding algorithm and the definition of the integration window. A new baseline $V_{\text{median}}^{j}$ was calculated for each peak $j$ using the median of the $250$ samples directly preceding and following the integration window. The total integrated charge for peak $j$ was calculated using

[TABLE]

where $t_{s}$ denotes the index of the beginning of the integration window and $t_{f}$ its end. The total charge $Q^{j}$ is given in unconventional units of \text{\,}\mathrm{\text{ADC counts}}$\times$2\text{\,}\mathrm{ns}. These units can be convert into conventional charge units using

[TABLE]

[TABLE]

However, no additional information was gained by its conversion and it was therefore omitted throughout the rest of this thesis.

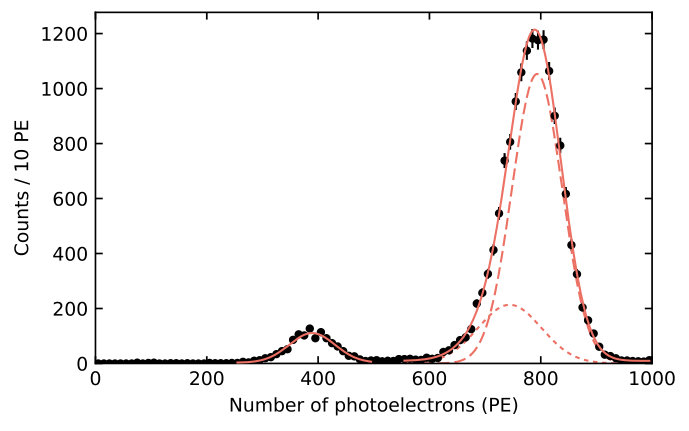

Fig. 5 shows the \acspe charge spectrum calculated for data taken with the ${}^{241}\text{Am}$ source located at position two (Fig. 1). The distribution consists of all integrated peaks found in the \acpt region for all waveforms of this data set. The mean \acspe charge $Q_{\text{spe}}$ was calculated by fitting a \acspe charge distribution model to the data. Several different models were proposed in the past [61, 62] and the average $Q_{\text{spe}}$ obtained by fitting these models to the data can slightly differ. In the following paragraph two competing models for the \acspe charge distribution are introduced. The first uses a Gaussian distribution to describe the \acspe charge spectrum, whereas the second uses a Polya distribution.

Most commonly the shape of the \acspe charge spectrum is approximated by a Gaussian distribution [62]. The corresponding fit function is given by

[TABLE]

Equation (4) includes the following components: The exponential $\text{e}^{-\nicefrac{{q}}{{\sigma_{n}}}}$ represents events caused by random baseline fluctuations that exceed the \acspe search criteria. $g_{i}$ describes the $i$-th convolution of a Gaussian distribution with a mean of ${Q_{\text{spe}}}$ and a standard deviation of $\sigma$ with itself. The sum over $g_{i}$ therefore includes the charge distributions for one ($i=1$), two ($i=2$) and three ($i=3$) \acspe. The multi-\acspe peak amplitudes $a_{2,3}$ are allowed to float freely. The amplitudes $a_{1,2,3}$ are not restricted to follow a Poisson distribution, since the measurements of the \acspe mean charge discussed throughout this thesis were not performed with a dedicated setup using an LED or laser pulse as trigger. The last factor in Eq. (4) describes a sigmoid-shaped acceptance curve, which represents the efficiency of the peak finding algorithm to detect a peak of charge $q$. In this acceptance model $k$ describes the steepness of the sigmoid and $q_{0}$ its midpoint.

For some \acppmt the complex secondary electron emission at different dynode stages can lead to inconsistencies between the recorded experimental charge spectrum and a fitted model based on a Gaussian distribution [30]. Prescott [61] instead proposed to use a Polya distribution to describe the \acspe charge spectrum. Modifying Eq. (4) yields

[TABLE]

where all Gaussian distributions $g_{i}$ were replaced with Polya distributions $p_{i}$. Similar to the Gaussian case the subscript $i$ denotes the $i$-th convolution of a Polya distribution with itself. The noise contribution as well as the sigmoid shaped acceptance curve remain unchanged.

Both Eq. (4) and Eq. (5) were fitted to a \acspe charge spectrum that was taken for an identical R877-100 \acpmt using an LED triggered setup, which was adapted from [63]. The experimental charge spectrum including both fits is shown in the top panel of Fig. 4. The bottom panel shows the deviation of each model from the data. Both distributions describe the peak region equally well. However, the overall deviation for the model based on the Polya distribution is smaller. For the remainder of this thesis a Polya based \acspe charge distribution model is used whenever a \acspe charge distribution is fitted for the R877-100 \acpmt.

The mean \acspe charge $Q_{\text{spe}}$ was determined for each ${}^{241}\text{Am}$ source location by fitting Equation (5) to the respective \acspe charge spectra. Fig. 5 shows the \acspe charge spectrum calculated for the data acquired for source position two (Fig. 1). The best fit of Equation (5) is shown in red. The individual fit components are shown in green (noise), blue (\acspe charges) and orange (acceptance). The orange curve indicates that only a tiny fraction of low-charge \acpspe are actually missed by the peak finding algorithm. Comparing the counts obtained from integrating the fitted \acspe charge model without the inclusion of the acceptance sigmoid to the counts obtained when including it shows that only $\mathcal{O}($0.5\text{,}\mathrm{\char 37\relax}$)$ of the \acpspe were missed by the peak finding algorithm. These \acpspe further carry only a small charge and as a result only a negligible amount of total charge ($\ll$0.1\text{,}\mathrm{\char 37\relax}$$) remained unidentified.

The mean \acspe charges $Q_{\text{spe}}$ for all ${}^{241}\text{Am}$ source positions are shown in Fig. 6. A slight increase in $Q_{\text{spe}}$ is apparent for ${}^{241}\text{Am}$ source distances of $\geq$10\text{,}\mathrm{cm}. This suggests that the \acpmt was not completely warmed up during the data-taking for the closest positions, resulting in a slightly smaller $Q_{\text{spe}}$. After several minutes the amplification of the \acpmt stabilized and resulted in a charge variation of less than $1\text{\,}\mathrm{\char 37\relax}$. This does not affect the light yield measurements in any significant way. The trigger threshold was chosen well below the amplitude expected from a $59.54\text{\,}\mathrm{keV}$ energy deposition. As a result all ${}^{241}\text{Am}$ events trigger the DAQ as a variation in their amplitude of $\sim$1\text{\,}\mathrm{\char 37\relax} is too small to introduce any bias.

2 Arrival time distribution

Once the mean \acspe charge was calculated for every ${}^{241}\text{Am}$ source position, the corresponding ${}^{241}\text{Am}$ charge spectra were calculated. For each waveform the onset of a potential ${}^{241}\text{Am}$ event was determined by applying a standard peak finding algorithm to the \acfroi. Peaks are defined by at least ten consecutive samples with an amplitude of at least $3\text{\,}\mathrm{\text{ADC counts}}$ above the baseline. The arrival time $T_{\text{arr}}$, i.e., the positive threshold crossing of the first peak found in the \acroi is recorded. Fig. 7 shows the distribution of all recorded arrival times for all data sets. The beginning of \acroi precedes the hardware trigger by 75 sample (inset of Fig. 2), which limits potential arrival times to $T_{\text{arr}}\in[0,75]$ sample. Events caused by the ${}^{241}\text{Am}$ $\gamma$ emission are visible as a broad peak around 55 samples after the \acroi window onset.

In contrast, the sharp rise at 69 samples after the \acroi window onset is caused by afterpulses [64] or Cherenkov light emission in the \acpmt window [65]. The first of the two processes is caused by residual ionization in the gases caused by the accelerated photoelectrons inside the \acpmt. The ions produced in this ionization are accelerated towards the photocathode. Upon impact on the photocathode an afterpulse is generated [64]. The second is caused by small trace amounts of ${}^{238}\text{U}$, ${}^{232}\text{Th}$ or ${}^{40}\text{K}$ within the \acpmt window. The $\beta-$decays of such isotopes can produce Cherenkov light emission in the \acpmt window or the electrons released in such a decay directly interact with the photocathode. The corresponding signal is a tight pulse large enough to surpass the trigger threshold (Fig. 8). These Cherenkov events usually carry charges equivalent to two to fifteen \acspe [65, 66].

3 Rise-time distributions

To calculate the total charge for an event in \acroi a $3\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ long integration window was defined. The onset of this window is given by two samples before $T_{\text{arr}}$ and spans a total of 1500 samples, i.e., $3\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$. A new baseline $V_{\text{baseline}}$ was estimated for this integration window using the median of the 500 samples ($1\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$) directly preceding it. The integrated scintillation curve $Q(t)$ is given by

[TABLE]

For each event the total integrated charge $Q_{\text{total}}=Q($1499\text{,}\mathrm{S}$)$ was recorded. In addition two different rise-times [44, 43] were calculated using $Q(t)$. Rise-times are defined as the time it takes the integrated scintillation curve $Q(t)$ to rise from one predefined percentage of its maximum to another. The right panels of Fig. 3 provide an illustration of their calculation.

The first rise-time was $T_{0-50}=T_{50}$, i.e. the time it took the integrated charge to rise from 0 to $50\text{\,}\mathrm{\char 37\relax}$ of the total charge integrated in the window. The second was $T_{10-90}=T_{90}-T_{10}$, i.e. the time between passing the 10 and $90\text{\,}\mathrm{\char 37\relax}$ charge threshold. Due to the length of the integration window both rise-times were limited to

[TABLE]

The rise-time distributions are shown in Fig. 9. Several different features are apparent in the two-dimensional rise-time distribution of all events recorded (bottom left panel). Four different phase-space regions are highlighted. Circled in red are correctly identified radiation induced events, mainly from ${}^{241}\text{Am}$ $\gamma$ emission (Fig. 2). These events are centered at $T_{10-90}=$1.87\text{,}\mathrm{\mu!}\text{,}\mathrm{s} and $T_{0-50}=$0.57\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}. It can be observed from the marginalized rise-time distributions on the top and right panel of Fig. 9, that most events recorded fell within this category. A Gaussian was fitted to both marginalized rise-time distributions. Even though the ellipse covering these events appears tilted in the two-dimensional distribution an excellent agreement between data and fit was found. The fit results are given in Table 1.

Circled in blue are events that exceeded the digitizer range. Both rise-times were biased towards higher values as the respective event signal was truncated in the early part of the integration window. The arrival time $T_{\text{arr}}$ of events circled in orange was misidentified due to a preceding spurious peak in the \acroi, leading to a misaligned integration window. Last, a fourth population consisting of triggers on a Cherenkov pulse (Fig. 8) are circled in green. Their spread is caused by spurious peaks before and after the triggering Cherenkov spike.

3 Determining the light yield and light collection uniformity

The information provided above was used to reject background events. First all events were rejected which showed at least one sample exceeding the digitizer range. Next, the following cuts on rise-time were implemented to remove Cherenkov triggers and events with a misidentified onset:

[TABLE]

These rise-time cuts were restrictive enough to remove most background events without rejecting any ${}^{241}\text{Am}$ events. In addition, events with more than ${N^{\text{max}}_{\text{pt}}}=3$ peaks in the \acpt were rejected to minimize any bias from afterglow from a preceding event. The charge of all remaining events was converted into an equivalent number of \acspe $N_{\text{pe}}$ using the corresponding mean \acspe charge $Q_{\text{spe}}$. It is

[TABLE]

The energy spectrum for ${}^{241}\text{Am}$ source position two (Fig. 1) is shown in Fig. 10. The energy spectra for all other source locations were comparable. The main ${}^{241}\text{Am}$ emission peak is apparent at $\sim$800\text{,}\mathrm{PE}. The shoulder towards lower energies is caused by the L-shell escape peaks of cesium and iodine. A secondary feature at $\sim$400\text{\,}\mathrm{PE} represents the K-shell escape peaks from cesium and iodine. Due to their low energy, $\gamma$-rays from ${}^{241}\text{Am}$ interact with the CsI[Na] crystal close to the surface making such escapes likely.

For each source position the average number of photoelectrons $N_{\text{pe}}^{\text{am}}$ produced in an ${}^{241}\text{Am}$ event was determined from the respective energy spectra. Using $N_{\text{pe}}^{\text{am}}$ the local light yield $\mathcal{L}$ for an incoming energy of $59.54\text{\,}\mathrm{keV}$ was calculated by

[TABLE]

Fig. 11 shows the light yield calculated for every source position. Only a small variation in $\mathcal{L}$ is apparent for all source locations, which was expected from discussions with the manufacturer. The largest deviation was found at the position farthest away from the \acpmt window and closest to the back reflector. The uncertainty weighted average of the closest eight positions is given by

[TABLE]

The overall variation with respect to $\mathcal{L}_{\text{CsI}}$ within the first eight locations is $\mathcal{O}($0.5\text{,}\mathrm{\char 37\relax}$)$. The position farthest away shows a deviation of $1.8\text{\,}\mathrm{\char 37\relax}$. The light yield values and their respective deviation from $\mathcal{L}_{\text{CsI}}$ for each position are given in Table 2. This measurement confirmed an almost perfect light collection uniformity throughout the crystal. For the rest of this thesis a constant light yield given by $\mathcal{L}_{\text{CsI}}$ was assumed

Chapter 6 Barium calibration of the CE$\nu$NS detector

After establishing that the variation of light collection efficiency along the CsI[Na] crystal axis was negligible, an additional low energy calibration was performed. The goal of this measurement was to build a library of low energy events taking place within the CsI[Na] crystal that can be use to define and quantify the acceptance of several different cuts used later in the analysis of the \accenns search data. Given the minimal difference in the decay times for nuclear and electronic recoils in CsI[Na] at low energies (Fig. 6), this calibration was performed using electronic recoils induced by $\gamma$ interactions instead of relying on a neutron source to induce nuclear recoils. The CsI[Na] detector used for these calibrations was later used for the \accenns search (chapter 8).

The total data acquisition for this calibration took place over the course of three months, i.e., between March 27, 2015 and June 15, 2015. This measurement provided an ideal test environment for the long term stability of the detector setup. No issues were identified and as a result the detector was deployed at the \acsns shortly after the calibration. The detector setup was located at the same sub-basement laboratory where the light yield calibrations described in chapter 5 were performed. In this location the CsI[Na] detector was shielded against activation from cosmic rays for a prolonged time by $\sim$6\text{,}\mathrm{\text{m.w.e.}}$$, reducing the backgrounds present in the \accenns search.

1 Detector setup

In order to create an event library containing interactions with only a few to a few tens of \acspe within the crystal, a highly collimated pencil beam of ${}^{133}\text{Ba}$ $\gamma$-rays was sent through the CsI[Na]. This pencil beam was produced by placing a ${}^{133}\text{Ba}$ button source in a lead collimator. The lead collimator provided a pinhole with a diameter of $\diameter=$1.2\text{,}\mathrm{mm} and a total depth of $d=$44.5\text{\,}\mathrm{mm}. This constrained the maximum aperture of the collimated ${}^{133}\text{Ba}$ $\gamma$-beam to $\theta_{c}\sim$1.9\text{,}\mathrm{\SIUnitSymbolDegree}. The setup triggered on forward Compton-scattered gammas detected using a BrilLanCe™ backing detector. A schematic of the experimental setup is shown in Fig. [1](#Ch6.F1). Pictures of the setup are shown in Fig. [2](#Ch6.F2). The maximum single forward scattering angle of a $\gamma$-ray being detected in the backing detector is given by $\theta_{\text{max}}\sim$12\text{\,}\mathrm{\SIUnitSymbolDegree}, leading to a maximum energy deposition of $E_{\text{max}}\sim$6\text{,}\mathrm{keV}$$.

The schematic of the data acquisition system used in this measurement is shown in Fig. 3. The linear-gate logic rejecting high-energy events in the CsI[Na] signal is identical to the one described in chapter 4. However, a different triggering signal was used to acquire data. The pre-amp output of the BrilLanCe™ backing detector was fed into an Ortec 550 \acsca. This modul provided a logical signal, acting as external trigger, whenever an event with an equivalent energy of 200-$500\text{\,}\mathrm{\text{keV}_{\text{ee}}}$ was detected within the BrilLanCe™ backing detector. This ensured that a trigger was active for all small angle Compton scattered gammas of all major emission lines of ${}^{133}\text{Ba}$. For each trigger waveforms with a total length of $35\,000$ samples at a sampling rate of $500\text{\,}\mathrm{MS}\text{\,}{\mathrm{s}}^{-1}$, i.e., $70\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$, were recorded. In contrast to the previous calibration, the trigger location was set to $100\text{\,}\mathrm{\char 37\relax}$ of the trace, i.e., at $70\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ into the trace. This is necessary to account for the jitter introduced by using the \acsca. The \acsca produces a trigger whenever the analyzed signal exits the analysis window (Fig. 4). This behavior causes the timing of the trigger produced by the \acsca to be directly dependent on the energy deposited in the backing detector. Consequently, events with higher energy show larger lag times between the CsI[Na] signal and the trigger from the backing detector (Fig. 4).

While adjusting the \acsca analysis levels, the CsI[Na] output was closely monitored to ensure that the maximum delay, i.e., $T_{\text{lag}}+\Delta T$, between a trigger from the \acsca and a scattering event in the CsI[Na] was less than $20\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$. Therefore, all Compton-scattered events occur no sooner than $50\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ into the waveform. However, not all triggers by the backing detector are due to small angle Compton-scattered events. Even though the BrilLanCe™ detector was surrounded by some lead, some triggers were caused by environmental radiation that deposited the right energy within the backing detector. As the triggering particle did not interact with the CsI[Na] prior to hitting the backing detector, the corresponding waveforms of these events only consist of random coincidences between the CsI[Na] and the backing detector.

2 Waveform analysis

As the low energy events of interest consist of only a few \acpe, it is challenging to determine whether a singular event was acquired due to a true Compton-scattered trigger or due to environmental background radiation. However, true and random coincidences can be discriminated on a statistical basis by using all $21\,275\,438$ waveforms acquired over the course of the three months.

To achieve this statistical discrimination, two slightly overlapping regions are defined in each waveform (Fig. 5). The first interval is the anti-coincidence (AC) region that extends from sample $150$ to $25\,000$. As discussed earlier it is impossible for a true coincidence event to occur before sample $25\,000$ (= $50\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ into the waveform). This immediately implies that this region can only contain random coincidences between events in the CsI[Na] and the backing detector. The second interval denotes the coincidence (C) region, extending from sample $7650$ to $32\,500$. This region contains both, random coincidences from environmental triggers and true coincidence events from small angle Compton-scattering. Both regions are analyzed using an identical analysis pipeline. Through this process two independent n-tuples are created for each waveform, one for the C and one for the AC region. These n-tuples contain parameters characterizing each event, e.g., the average basline or the number of peaks present in an analysis region (Table 2). These two distinct sets of n-tuples are denoted as $\mathcal{C}$ and $\mathcal{AC}$ data sets throughout the remainder of this chapter.

To extract a certain feature exhibited by low-energy events, the statistics of the feature can be extracted by subtracting its distribution derived from $\mathcal{AC}$ from the distribution derived from $\mathcal{C}$. The residual $\mathcal{R}$=$\mathcal{C}$-$\mathcal{AC}$ only contains a statistical contribution from low-energy events only, as long as both regions were treated identically throughout the full analysis. The analysis pipeline for each waveform is detailed below.

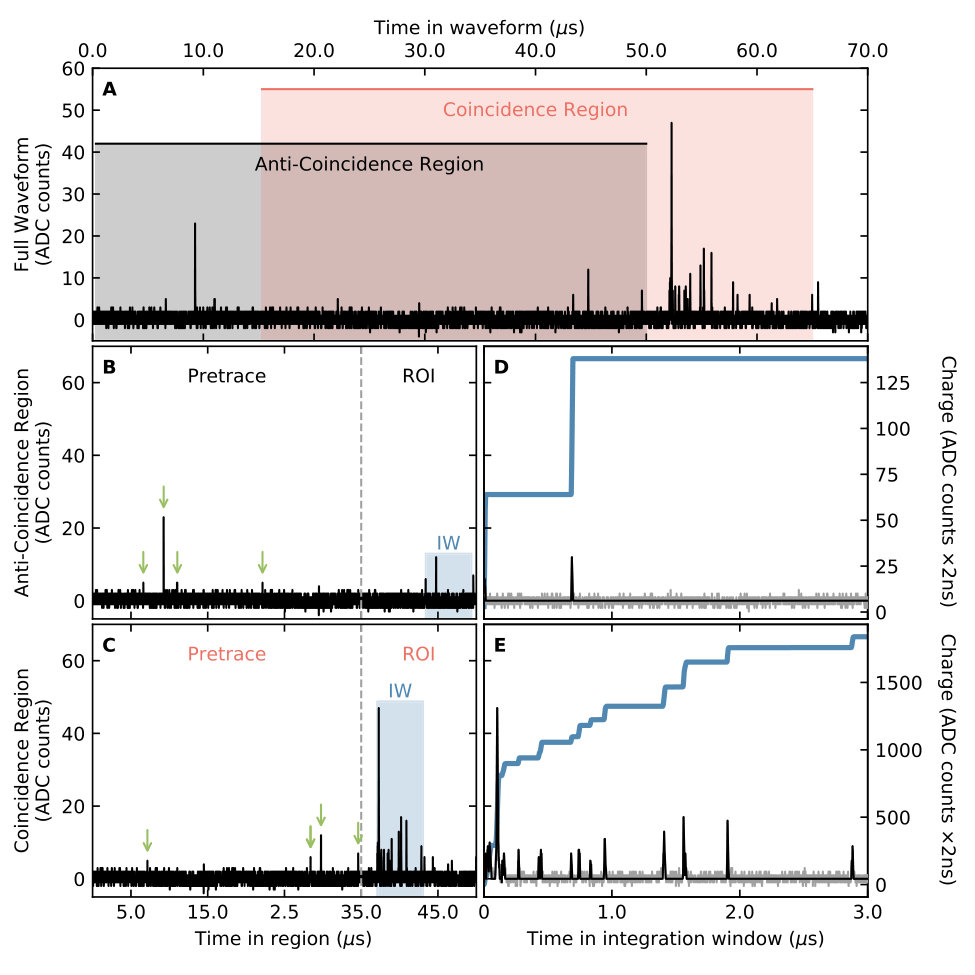

For each waveform it is determined whether the signal is fully contained within the digitizer range. A digitizer overflow is determined as any sample that shows as +127 or $-128\text{\,}\mathrm{\text{ADC counts}}$, i.e., the upper and lower limits of an I8 variable. If such an overflow is detected, the corresponding flag $f_{\text{o}}\,=\,1$ is set. Next, the waveform is checked for the presence of a linear-gate. Such an event will appear as a baseline of $0\text{\,}\mathrm{\text{ADC counts}}$, as the CsI[Na] signal is blocked for $1.6\text{\,}\mathrm{ms}$ whenever a linear gate is initiated due to a high energy deposition within the CsI[Na] (chapter 4). In contrast, the normal baseline for the CsI[Na] detector is set to $\sim$100\text{,}\mathrm{\text{ADC counts}}$$. It is possible to to implement a computationally-inexpensive way to check for these linear gates by comparing the number of times a waveform crosses a threshold of $18\text{\,}\mathrm{\text{ADC counts}}$ in a falling ($n_{f}$) and rising ($n_{r}$) manner. A linear-gate is present if $n_{f}\neq n_{r}$, which is indicated in the data by the corresponding linear-gate flag $f_{\text{g}}\,=\,1$.

To determine a global baseline $V_{\text{median}}$, the median of the first $20\,000$ samples of the current waveform is used. The signal $V$ is adjusted and inverted, i.e.,

[TABLE]

The location of any potential \acspe can be identified using a peak-finding algorithm as described in the light yield calibration (section 1). As stated, a peak was detected when at least four consecutive samples had an amplitude of at least $3\text{\,}\mathrm{\text{ADC counts}}$. Both positive and negative threshold crossings were recorded for each peak. Similar to the procedure in section 1, the charge of each peak is calculated using Eq. (2).

Instead of calculating a single, overall \acspe charge distribution for the full data set, the data is subdivided into $5\text{\,}\mathrm{min}$ intervals to monitor the stability of the mean \acspe charge $Q_{\text{spe}}$. For each interval an independent charge distribution is created. The distributions are fitted using Eq. (5) to extract the mean \acspe charge $Q_{\text{spe}}$ for the corresponding data period. In the further data analysis the appropriate $Q_{\text{spe}}$ is used to establish a proper energy scale.

In what follows the procedure applied to the analysis regions, i.e., C and AC, is described. The analysis is identical for both regions and illustrated in Fig. 6. A full example waveform is shown in panel A. The C (AC) region is shown in shaded red (gray). A zoom into both regions is shown in panel B (AC) and C (C), respectively. The non-overlapping \acpt and \acroi sub-regions are highlighted. The \acfpt is fairly long, spanning $17\,350$ samples. Its position was chosen such that it could not possibly contain a signal from a coincident Compton-scatter event for neither analysis region. Its main purpose is to provide a veto against contamination from afterglow. As discussed in chapter 4, and shown in Fig. 7, CsI[Na] can phosphorescence for up to $\mathcal{O}($10\text{,}\mathrm{ms}$)$ after an actual event. A large energy deposition, e.g., from a muon traversing the crystal, could potentially add several \acpspe from phosphorescence in a subsequent trigger and introduce a non-negligible bias in the analysis. To remove these potentially contaminated events from the data set, events were rejected based on the total number of peaks detected in the corresponding \acpt. The higher the number of peaks, the likelier it is that these were caused by phosphorescence.

The \acfroi is much shorter, spanning $7500$ samples. The AC \acroi is aligned such that it can not physically contain a coincident Compton scatter event, whereas the C \acroi could contain these events.

Peaks within both regions, i.e., \acpt and \acroi, are identified using the results from the initial peak search. The total number of peaks $N_{\text{pt}}$ in the \acpt is recorded. For the example waveform shown in Fig. 6 it is $N^{C}_{\text{pt}}=N^{AC}_{\text{pt}}=4$ as indicated by the green arrows. The location of the first peak within the \acroi defines the onset of the $1500$ sample (=$3\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$) long integration window. These windows are highlighted in shaded blue in panels B and C. A new baseline for each integration window is determined using the median of the $1\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ immediately preceding the window. A zoom into both integration windows after adjustment with the new baseline is shown in gray in panels D and E. Any sample not belonging to a peak is zero-suppressed. The resulting signal $V^{\star}$ is shown in black. It can be observed that all peaks are preserved whereas the baseline noise is completely suppressed. The integrated scintillation curve $Q(t)$ (shown in blue) for both integration windows is

[TABLE]

Besides the total integrated charge $Q_{\text{total}}=Q($1499\text{,}\mathrm{S}$)$ for each event, the rise-times $T_{10}$, $T_{50}$ and $T_{90}$ are also recorded, as described in chapter 5 and shown in Fig. 3.

The parameters extracted for each event are given in Table  2, where a separate and independent n-tuple is created for both the AC and C region containing their respective parameters where applicable. The procedure described above is repeated for each waveform and the individual n-tuples are gathered in the $\mathcal{AC}$ and $\mathcal{C}$ data sets.

3 Detector stability performance over the data-taking period

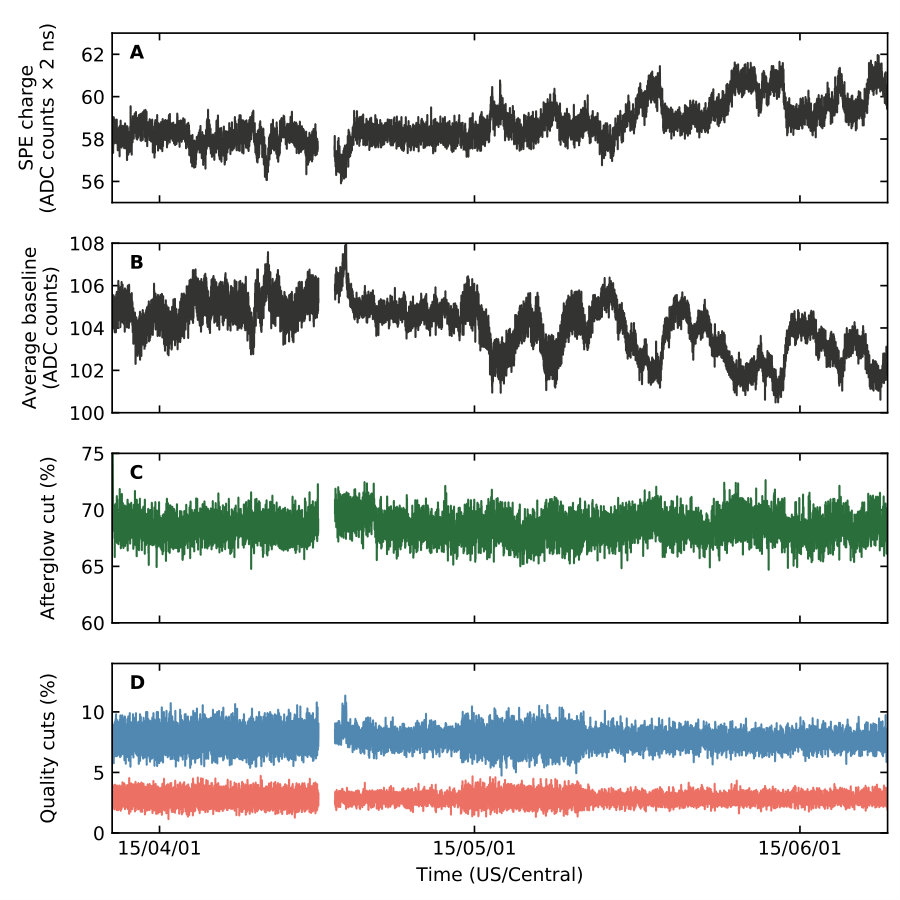

After all recorded waveforms were analyzed, the detector stability over the course of the data-taking period was tested. There are five main parameters of interest, which are all shown in Fig. 7. Each data point represents the average over a five minute long time interval. The evolution of $Q_{\text{spe}}$ over time is shown in panel A. Panel B shows the average baseline derived from the first $20\,000$ samples for the same five minute intervals. A slight variation in the mean \acspe charge over the course of the measurement that appears to be anti-correlated to the fluctuations in the average baseline can be seen. Yet no significant increase or decrease in the average number of \acpe detected per five minute interval was observed. Therefore the performance of the \acspe finding algorithm was deemed sufficient. Using the appropriate mean \acspe charge for every time period eliminates any potential bias introduced by these fluctuations.

Panel C shows the number of waveforms with more than ten peaks in the AC \acpt. Almost $70\text{\,}\mathrm{\char 37\relax}$ of all waveforms recorded showed a significant amount of scintillation in the \acpt, which is caused by afterglow due to the presence of the ${}^{133}\text{Ba}$ source. However, the percentage of waveforms showing such a high level of afterglow within their waveforms remained constant throughout the data taking period. There was also no correlation visible between the performance of the afterglow cut and the average baseline or the mean \acspe charge. The distribution of peaks in the C and AC \acpt marginalized over the full data set is shown in Fig. 9. No significant difference between $\mathcal{AC}$ and $\mathcal{C}$ was found. As a result, the afterglow cut does not introduce any bias in the event selection and the afterglow cut for $\mathcal{C}$ is not shown as it would not add any further information.

Panel D of Fig. 7 shows the percentages of events with either a linear gate event (red) or a digitizer range overflow (blue). Both showed no significant variation over the course of the data taking and are independent of any variation in other parameters. It is therefore assumed that the data quality cuts do not introduce any bias in the event selection.

In summary, the detector performed satisfactory over the full three months of data-taking. No time periods from the data analysis need to be excluded and the full data set containing $\sim 21$ million triggers could be used to quantify the cut acceptances.

4 Definition and quantification of data cuts

After establishing that the CsI[Na] detector performed as expected throughout the full data-taking period of this ${}^{133}\text{Ba}$ calibration, the statistical data analysis was performed. As discussed above, separate n-tuples were created for each trigger and each analysis region. All n-tuples belonging to the AC region are denoted as $\mathcal{AC}$ data set and all n-tuples belonging to the C region are denoted as $\mathcal{C}$ data set. For both data sets an additional entry was added to each n-tuple by converting the total charge integrated in the integration window into an equivalent number of \acpe $N_{\text{pe}}$. The conversion used the corresponding mean \acspe charge $Q_{\text{spe}}$ determined for the five minute interval that contains the event, i.e.,

[TABLE]

First a series of data quality cuts were applied to both $\mathcal{AC}$ and $\mathcal{C}$. All events containing a linear gate $f_{g}$ and/or overflow flag $f_{o}$ were removed from analysis. As these flags are raised for the full waveform they are shared between both sets and the events removed were identical for $\mathcal{AC}$ and $\mathcal{C}$. Second, all events that showed more than $N^{\text{max}}_{\text{pt}}$ peaks in their respective \acpt were removed from each data set. The purpose of this data cut is to minimize any bias introduced by excessive afterglow from previous energy depositions. Given the slight difference in the onset of the AC and C \acpt, an individual event can be deemed good in one data set, whereas it was cut in the other. However, the overall number of events passing this cut is neither biased towards $\mathcal{AC}$ nor $\mathcal{C}$ (Fig. 9). The total number of events cut is also dependent on the exact choice of $N^{\text{max}}_{\text{pt}}$ and is further examined later on. This concludes the discussion of quality cuts for the barium calibration. In the following the acceptance calculations for the data cuts used in the \accenns search are presented.

1 The Cherenkov cut

The first data cut that was applied is the so-called Cherenkov cut. As discussed in earlier, a single Cherenkov pulse usually carries a charge equivalent to two to fifteen \acspe (chapter 5), and as such would pose an unwanted background to the \accenns search. However, such an event typically only produces a single, sharp spike in the digitizer trace, whereas a \accenns event appears as multiple individual \acspe peaks following a scintillation decay time as shown in Fig. 6. The cut is therefore set to allow only events where the total number of peaks found in the integration window is at least $N^{\text{min}}_{\text{iw}}$. This cut was applied to events with a total energy of $N_{\text{pe}}\leq 40$ to avoid high energy events from being rejected by the Cherenkov cut. With increasing $N_{\text{pe}}$, i.e., increasing energy, individual \acspe will merge into larger peaks. As the peak-finding algorithm only tags peaks by their threshold crossings this would lead to a decreasing number of peaks found. Applying the Cherenkov cut only to data with $N_{\text{pe}}\leq 40$ guarantees that no high energy event was mistakenly rejected by this cut.

Fig. 9 shows that the average number of peaks found in each \acpt, i.e. AC and C region of triggers in the ${}^{133}\text{Ba}$ calibration, is on the order of ten. Assuming that this distribution is also reflective of the rest of the waveform, the estimated average number of random peaks in the $3\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ integration window is approximately given by 0.75. The Cherenkov cut should therefore provide an excellent rejection of events containing Cherenkov spikes as the probability for additional, spurious \acspe within the integration window is low. In order to ensure that the cut is not overly aggressive, which would also remove possible \accenns events, the performance of the cut was tested with an additional \acmc study. First the average width of each peak was calculated using information gathered while determining the mean \acspe charge $Q_{\text{spe}}$. The left panel of Fig. 10 shows the width distribution of each peak found in each waveform in black. The red fit function is given by

[TABLE]

which consists of an exponential representing the noise and a single Gaussian representing the width of an individual \acspe. The last term reflects the efficiency in detecting a peak with the peak finding algorithm. The average \acspe width is $\Delta t_{\text{spe}}=$12.7\text{,}\mathrm{S}$$. A $3\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$=$1500$ sample long array is populated with $N_{\text{pe}}$ \acpe, where a decay profile following Fig. 6 is assumed. Each of these \acspe is set to have a fixed width of $13\text{\,}\mathrm{S}$. The total number of separate peaks is recorded and it was checked if current waveform still passed a cut of $N^{\text{min}}_{\text{iw}}$. The procedure was repeated $10\,000$ times for varying number of photoelectrons $N_{\text{pe}}$ and different choices of $N^{\text{min}}_{\text{iw}}$ and the percentage of simulated waveforms passing the cut was scored. The results are presented in the right panel of Fig. 10. The survival rate of the Cherenkov cut quickly rises towards unity and stays at that level for the full cut window, i.e $N_{\text{pe}}\leq 40$. While the Cherenkov cut could be extended to apply to events with higher energy, given the charges to be expected from a Cherenkov spike, the $0\leq N_{\text{pe}}\leq 40$ cut range is deemed sufficient.

2 Rise-time cuts

The second type of data cuts are based on several possible rise-times of the integrated charge of an event. Conceptually these cuts use the known decay profile of a low energy radiation induced event to separate bona fide events from spurious collections of \acspe by using rise-time characteristics. Similar \acpsd approaches are discussed in [43, 44]. Given a scintillation decay profile as shown in Fig. 6, the cumulative distribution function of the charge profile can be written as

[TABLE]

Here $\tau_{\text{fast}}=$527\text{,}\mathrm{ns}, $\tau_{\text{slow}}=$5.6\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s} and $r=0.41$ as shown in [21]. The integration window used in this ${}^{133}\text{Ba}$ calibration limits $t_{\text{max}}=$3\text{,}\mathrm{\mu!}\text{,}\mathrm{s}$$. As already introduced in chapter 5, two distinct rise-times are of interest, i.e., $T_{0-50}$ and $T_{10-90}$. The theoretical threshold crossing times, i.e., $T_{10}$, $T_{50}$, and $T_{90}$, can be calculated by evaluating $F_{\text{Q}}(T_{10})=0.1$, $F_{\text{Q}}(T_{50})=0.5$ and $F_{\text{Q}}(T_{90})=0.9$. The resulting rise-times based on Eq. 5 are thus given by

[TABLE]

whereas for a flat, i.e completely random, distribution the expectation is $T_{0-50}=$1.5\text{,}\mathrm{\mu!}\text{,}\mathrm{s} and $T_{10-90}=$2.4\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}. Therefore, the rise-times provide an excellent method to reject events consisting of spurious, random \acspe.

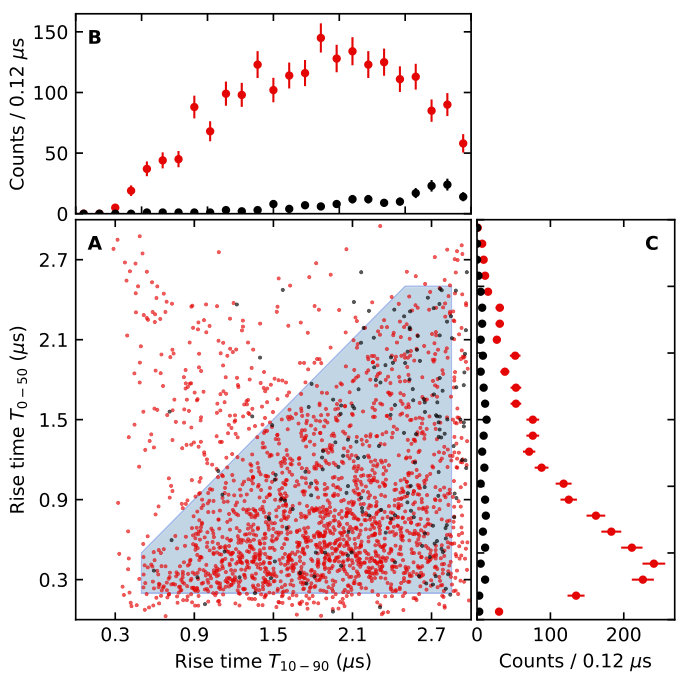

An example of the different rise-time distributions as measured for this ${}^{133}\text{Ba}$ calibration data set is shown in Fig. 11. Panel A shows the two-dimensional distribution of rise-times for events with an energy of $5\,\leq\,N_{\text{pe}}\,\leq\,20$, that pass all quality cuts and an additional Cherenkov cut of ${N^{\text{min}}_{\text{iw}}}\,=\,5$. Red (black) data points represent the $\mathcal{C}$ ($\mathcal{AC}$) data set. Panel B shows the $T_{10-90}$ distribution marginalized over $T_{0-50}$ and panel C shows $T_{0-50}$ marginalized over $T_{10-90}$. An excess of coincidence events over anti-coincidences is readily visible in all panels. Panel B suggests that the anti-coincidences ($\mathcal{AC}$, black) show a much longer $T_{10-90}$ rise-time than the events present in the coincidence region ($\mathcal{C}$, red), whereas panel C shows that the corresponding $\mathcal{AC}$ $T_{0-50}$ is centered around $1.5\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$. Both of these observations are consistent with the assumption that these anti-coincidence events mainly arise from spurious events.

The shaded blue region in panel A represents one of the proposed rise-time cuts, i.e., all events within the polygon are accepted, whereas outside events are rejected. The shape of the area incorporates two main ideas. First, several events above the diagonal of $T_{0-50}=T_{10-90}$ can be seen. As discussed in chapter 5, the onset of these events was misidentified due to a preceding \acspe in the \acroi. As a result, the integration window is misplaced and only covers part of the event, which distorts both the absolute charge and the individual rise-times. This cut is termed the diagonal rise-time cut, i.e., $T_{0-50}<T_{10-90}$. Second, additional rise-time cuts are defined that reject fringe cases, i.e., events showing rise-times close to 0 or $3\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$. These cuts form a rectangular acceptance window in the plane spanned by $T_{0-50}$ and $T_{10-90}$. Therefore, these cuts are referred to as orthogonal rise-time cuts.

To illustrate the effect of the Cherenkov cut on both $\mathcal{C}$ and $\mathcal{AC}$ data sets, the rise-time distributions were plotted for different $N^{\text{min}}_{\text{iw}}$ values. Fig. 12 shows a rise-time distribution plot similar to the one in Fig. 11, where with an increase in $N^{\text{min}}_{\text{iw}}$ from 5 to 7. It is apparent that the $\mathcal{AC}$ data were almost completely rejected by the data quality and the Cherenkov cuts alone. The low energy events in the $\mathcal{C}$ data set were almost perfectly preserved.

3 Calculating cut acceptances

The signal acceptances for different combinations of the Cherenkov and rise-time cuts need to be quantified. As the procedure is identical for each cut parameter combination, this section describes the acceptance calculation using one particular set of cuts as an example, it is

[TABLE]

The signal acceptances calculated in the following reflect the acceptances corresponding to the orthogonal rise-time and the Cherenkov cuts and were calculated based on the ${}^{133}\text{Ba}$ data set. All remaining signal acceptances later used in the \accenns search (chapter 8) were calculated using the \accenns search data recorded at the \acsns itself, rather than the ${}^{133}\text{Ba}$ data set. The rational for this is as follows: First, since the CsI[Na] crystal was exposed to a $\gamma$ source for the ${}^{133}\text{Ba}$ calibration, the phosphorescence in the crystal was much higher compared to the \accenns search data set. Second, the onset of a forward scattered Compton event is not perfectly aligned with the beginning of the \acfroi window in the ${}^{133}\text{Ba}$ calibration measurement. The combination of these two effects creates a larger amount of radiation induced events in the ${}^{133}\text{Ba}$ measurement, that are preceded by spurious \acpspe from afterglow. The onset for these events is therefore misidentified. As events with a misidentified onset are the main types of events removed by the diagonal rise-time cut, the ${}^{133}\text{Ba}$ calibration can therefore not be used to predict the percentage of events cut in the \accenns data set. The diagonal rise-time cut is further discussed at a later point in this thesis.

In order to calculate the signal acceptance for the chosen cut parameters, an energy spectrum calculated from the $\mathcal{AC}$ and $\mathcal{C}$ data sets with only the quality cuts and a diagonal rise-time cut applied was compared to a spectrum with all data cuts applied. The former is termed uncut and the latter is termed cut spectrum, making reference to the Cherenkov and orthogonal rise-time cuts only. The full list of data cuts applied to each set is shown in Table  3.

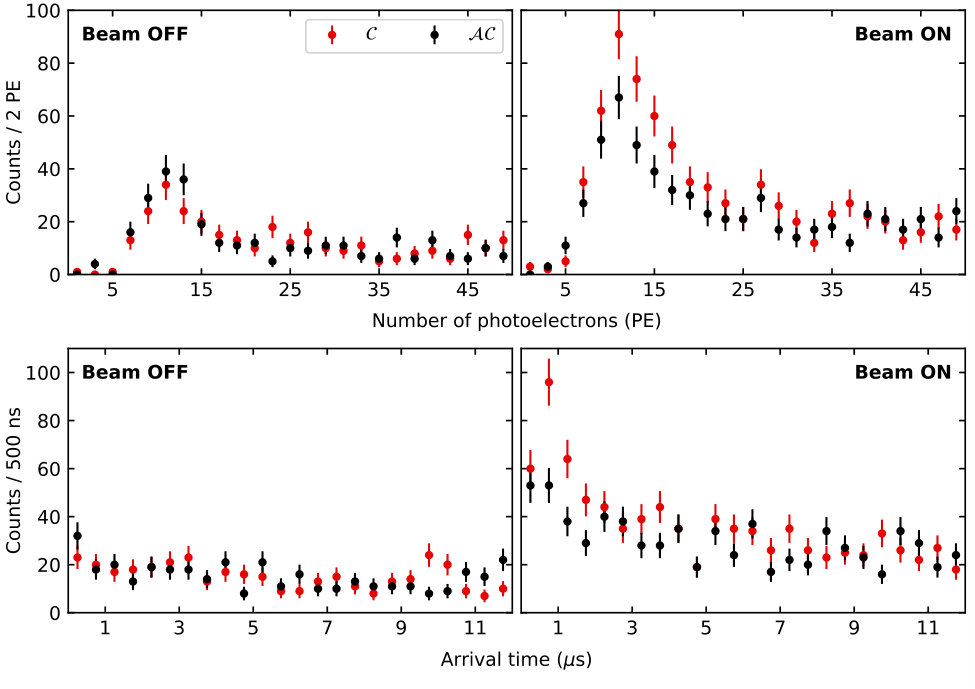

The resulting $\mathcal{AC}$ and $\mathcal{C}$ energy spectra are shown in the top panel of Fig. 13, where an afterglow cut of ${N^{\text{max}}_{\text{pt}}}=8$ was chosen. The uncut data is shown in desaturated colors, whereas the cut spectra are shown in saturated colors. Several interesting features stand out. First, there is a large excess above $15\text{\,}\mathrm{PE}$ in the $\mathcal{C}$ region over the $\mathcal{AC}$ region for both uncut and cut sets. Second, no significant difference between the $\mathcal{C}$ region of both uncut and cut sets above $15\text{\,}\mathrm{PE}$ is visible. Third, the rise for both $\mathcal{C}$ and $\mathcal{AC}$ in the uncut spectrum at low energies, i.e., below $15\text{\,}\mathrm{PE}$, is apparent. In contrast, the cut spectra both decline towards zero for ${N_{\text{pe}}}\rightarrow 0$ due to the additional Cherenkov and rise-time cuts. Fourth, these additional cuts have a much larger impact on the $\mathcal{AC}$ data than the $\mathcal{C}$ data, confirming that radiation-induced events are mostly preserved, whereas events containing spurious \acpspe are rejected.

Once the individual $\mathcal{C}$ and $\mathcal{AC}$ energy spectra had been determined, the residual spectra were calculated as ${\mathcal{R}}\,=\,{\mathcal{C}}-{\mathcal{AC}}$ for both uncut and cut sets. The residuals are shown in the middle panel of Fig. 13. As discussed earlier, the residual spectrum only contains small angle Compton-scattered events, as all random coincidences from environmental radiation were subtracted out. The cut and uncut residual spectra can be compared to find the percentage of events that survive the additional data cuts. The ratio between the cut and uncut residual spectrum is referred to as signal acceptance fraction, which is shown in the bottom panel of Fig. 13.

As noted previously, the average background level of the ${}^{133}\text{Ba}$ calibration was much higher than of the \accenns data set due to the presence of the ${}^{133}\text{Ba}$ source. To confirm that this did not introduce any bias in the signal acceptances derived from this calibration, the acceptance calculation was repeated for all ${N^{\text{max}}_{\text{pt}}}\in[3,10]$. A comparison of the resulting signal acceptance fractions found no bias was introduced by the choice of $N^{\text{max}}_{\text{pt}}$, i.e., the calculated acceptance fractions were independent of $N^{\text{max}}_{\text{pt}}$. However, in order to incorporate the uncertainty based on the choice of $N^{\text{max}}_{\text{pt}}$, a sigmoid-shaped signal acceptance function $\eta_{\text{ba}}(N_{\text{pe}})$ was fit to all acceptance fractions (bottom panel of Fig. 13) calculated for all ${N^{\text{max}}_{\text{pt}}}\in[3,10]$ simultaneously. The fit model is given by

[TABLE]

where $a$ describes the maximum amplitude, $k$ the width and $x_{0}$ the location of the sigmoid. $\Theta_{\text{H}}$ denotes the Heaviside step function and represents an ultimate lower bound, below which the acceptance is always zero.

The acceptance fractions, i.e., the ratio between the cut and the uncut residual energy spectrum, are calculated for all ${N^{\text{max}}_{\text{pt}}}\in[3,10]$. The resulting acceptances are shown in gray in Fig. 14. The best fit of Eq. (8) to all of these acceptances simultaneously is shown in solid red.

In order to estimate the uncertainty on the acceptance function, the underlying distributions of $a$, $k$ and $x_{0}$ were estimated using a bootstrap resampling procedure [67, 68]. First, the model $\eta(N_{\text{pe}})$ was fitted to the data using a least squares approach, and the residuals $\vec{r}$ between the best fit and each acceptance value (gray in Fig. 14) were calculated. For each individual acceptance value a residual was randomly drawn from $\vec{r}$ and added to its original value. As a result a new synthetic set of acceptance fractions was created. The model $\eta(N_{\text{pe}})$ was then refit to the new synthetic set of acceptance fractions and the resulting fit parameters $a$, $k$ and $x_{0}$ were recorded. The last two steps, i.e., the creation of a new synthetic set of acceptance fractions and the fit of the acceptance model, were repeated $N_{\text{B}}=$10,000$$ times to properly sample the distribution of $a$, $k$ and $x_{0}$. The result is shown in Fig. 15.

These bootstrapped parameter distributions can be used to calculate the $1\sigma$ confidence interval of each individual parameter $a$, $k$ and $x_{0}$, by determining the 15.865 and the 84.135 percentile of the respective bootstrapped distribution [69]. The final $1\sigma$ confidence interval of the acceptance function $\eta_{\text{ba}}$ is shown in shaded red in Fig. 14. The best fit parameters for the choice of cuts (Eq. 7) presented in this chapter are given by

[TABLE]

This approach only covers the acceptances due to the Cherenkov and orthogonal rise-time cuts. Comparing the calculated signal acceptance to the one obtained with a simple \acmc approach (shown in Fig. 10) shows that the real acceptance rises much slower towards unity. However, the acceptance is finite for events with $N_{\text{pe}}<8$. This shows the superiority of the ${}^{133}\text{Ba}$ measurement over the \acmc approach in quantifying the signal acceptance function. The following section details how the acceptance fraction of the diagonal rise-time can be obtained.

The signal acceptance was calculated as described above, but with an uncut data set where the diagonal rise-time cut was not applied. In this case the resulting signal acceptance reflects all cuts, Cherenkov, orthogonal and diagonal rise-time cuts. First, the ${\mathcal{R}}\,=\,{\mathcal{C}}-{\mathcal{AC}}$ residuals for both uncut and cut data sets were calculated and the resulting energy spectra were compared. Due to the missing diagonal rise-time cut there are more events in the uncut spectrum that are not present in the cut spectrum. This results in an overall reduction of the signal acceptance (Fig. 16, gray points). As described above, the acceptances calculated for different afterglow cuts $N^{\text{max}}_{\text{pt}}$ were fitted simultaneously using Eq. (8). The best fit is shown as solid red line in Fig. 16. The $1\sigma$ errors for each individual parameter ($a^{\star}$, $k^{\star}$, and $x^{\star}_{0}$) were determined with a percentile bootstrap resampling approach as described above. The bootstrapped parameter distributions are shown in Fig. 17. The fit values for an uncut data set without a diagonal rise-time cut is given by

[TABLE]

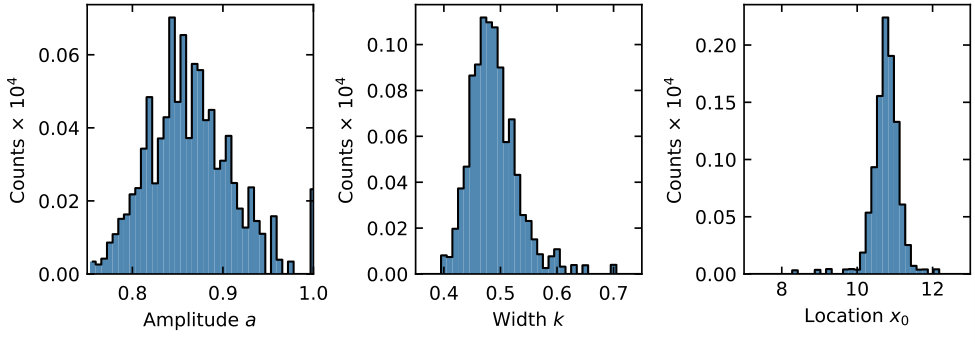

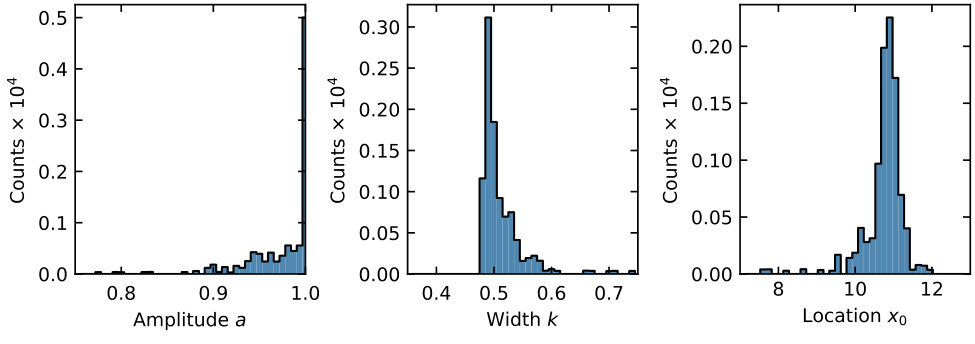

It can be observed that both $k^{\star}$ and $x^{\star}_{0}$ remain almost unchanged with respect to the previous approach for which $k=0.494^{+0.034}_{-0.013}$ and $x_{0}=10.85^{+0.18}_{-0.40}$ were found. However, $a^{\star}$ is much smaller than $a=0.979^{+0.021}_{-0.038}$.

In order to scale $a$ to match $a^{\star}$, the acceptance of the diagonal rise-time cut was calculated separately. Since the percentage of events with a misidentified onset is independent of the energy deposited, high-energy depositions in the CsI[Na] crystal can be used to estimate the overall acceptance $\eta_{\text{drt}}$ of the diagonal rise-time cut. To this end, the fraction of events with $T_{0-50}>T_{10-90}$ in the energy region of 50-$150\text{\,}\mathrm{PE}$ was computed. The same fraction was computed for all $N_{\text{pt}}\in[3,10]$ and a constant was fitted to the data. The best fit is given by

[TABLE]

The diagonal rise-time acceptance fraction $\eta_{\text{drt}}$ was then incorporated into the previous acceptance model. It is

[TABLE]

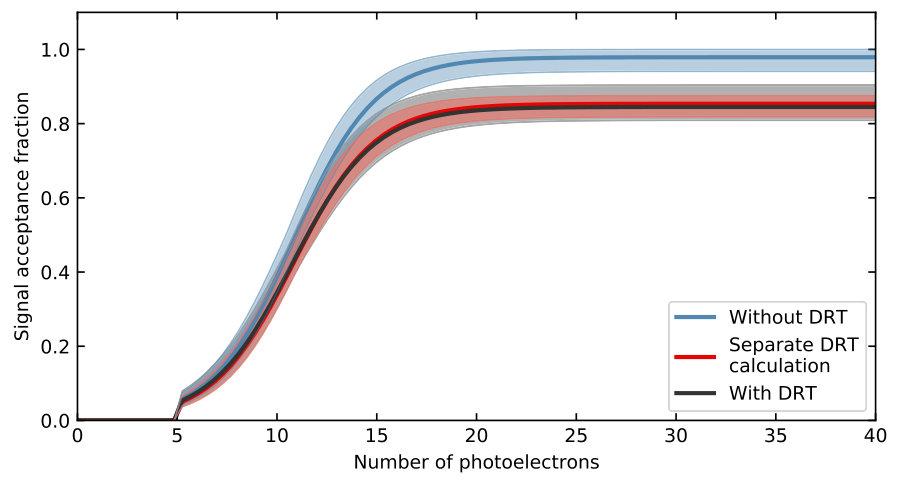

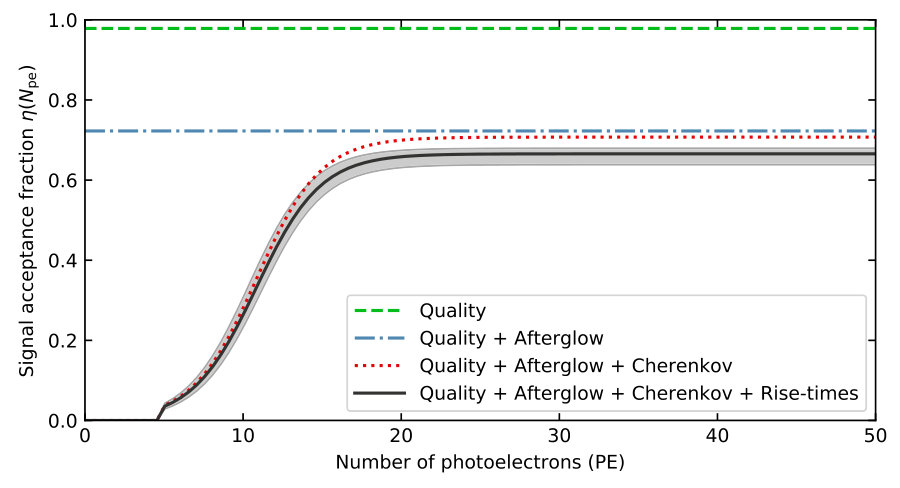

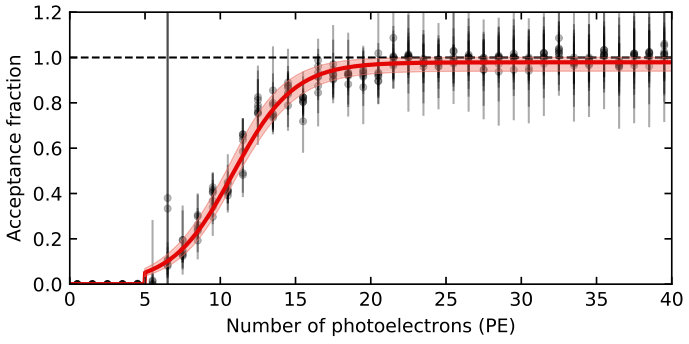

Fig. 18 shows a comparison between all signal acceptance models. The blue curve shows the signal acceptance as derived from an uncut data set from which all events with $T_{0-50}\geq T_{10-90}$ were removed. The black curve shows the model for an uncut data set that includes these events. The red curve represents the blue model after scaling with $\eta_{\text{drt}}$. As the diagonal rise-time cut only provides an overall scaling of the acceptance function, both amplitudes can be compared. It is

[TABLE]

The agreement between both approaches is apparent. As a result, the scaling approach in which the signal acceptance $\eta_{\text{drt}}$ of the diagonal rise-time cut is calculated independently was later used to incorporate the acceptance from the diagonal rise-time cut in the \accenns search data.

Chapter 7 Measurement of the low-energy quenching factor in CsI[Na]

As discussed in chapter 1, the only visible signal from a \accenns interaction is a nuclear recoil within the detector. These recoils carry only a small amount of energy. Their detection is made even more difficult due to a process typically referred to as quenching: For a low energy nuclear recoil only a small amount of energy is converted into scintillation or ionization, and the rest is dissipated via secondary nuclear recoils and heat. The quenching factor can be defined by comparing the scintillation or ionization yield of a nuclear recoil of given energy to the scintillation or ionization yield of an ionizing particle of the same energy, i.e., a particle which predominantly loses its energy through electronic recoils in the detector. The quenching factor plays a crucial role in establishing an energy scale for nuclear recoils. It is needed to convert the predicted \accenns nuclear recoil energies from $\mathrm{\text{keV}_{\text{nr}}}$ to $\mathrm{\text{keV}_{\text{ee}}}$. Using the light yield calibration measured in chapter 5 using an ${}^{241}\text{Am}$ source, the electron equivalent energy can further be converted into an equivalent number of photoelectrons $N_{\text{pe}}$, i.e., a quantifiable detector response.

To add to previous measurements of the quenching factor of CsI[Na] two new and independent measurements of the quenching factor were performed in the framework of the COHERENT collaboration at \actunl. The data acquisition system used in the measurement of the CsI[Na] quenching factor described in this chapter was different from the one used in the light yield (chapter 5) and ${}^{133}\text{Ba}$ calibration (chapter 6).

1 Experimental setup

The CsI[Na] quenching factor was measured at \acftunl (Fig. 2). The experimental setup was located in the \acssa of the facility (Fig. 1). Deuterium ions were accelerated by a FN tandem Van de Graaff accelerator and directed towards a deuterium gas chamber. The subsequent reaction of deuterium ions with the deuterated target produced a highly collimated neutron beam of known energy. A small CsI[Na] detector ($l=$55\text{,}\mathrm{mm}, $\diameter=$22.4\text{\,}\mathrm{mm}), which was procured from the same manufacturer as the \accenns detector, using an identical growth method and sodium dopant concentration of 0.114 mole $\mathrm{\char 37\relax}$, was positioned in the center of the neutron beam. The size of the detector was chosen such, that predominantly single nuclear recoils are produced within the crystal. The CsI[Na] crystal was read out by an ultra-bialkali PMT [70], which made it possible to probe recoil energies down to $\sim$3\text{,}\mathrm{\text{keV}_{\text{nr}}}$$. The high voltage for the ultra-bialkali PMT was provided by a Stanford Research Systems Inc. PS350 power supply and set to $-935\text{\,}\mathrm{V}$.

A EJ299-33A plastic scintillator ($l=$47.6\text{,}\mathrm{mm}, $\diameter=$114.3\text{\,}\mathrm{mm}) was used to detect neutrons that scattered off the CsI[Na] detector. This scintillator was read out by a 5-inch 9390B \acpmt from ET Enterprises. The EJ299-33A is capable of $n$-$\gamma$ discrimination using standard \acfpsd techniques [71]. EJ299-33A signals produced by nuclear recoils exhibit different scintillation decay times from those produced by electronic recoils. As a result, the percentage of the total scintillation light emitted in the first few nanoseconds of an event is different for nuclear and electronic recoils. This can be used for \acpsd and is further examined in section 2. The $n$-$\gamma$ discrimination was used in the quenching factor runs to reduce the background caused by triggers on environmental $\gamma$ radiation. The high voltage for the 9390B PMT was provided by an Agilent E3631A and was set to $-750\text{\,}\mathrm{V}$. The EJ299-33A output was fed into an Ortec 934 \accfd. The 934 \accfd logical output provided the trigger for the U1071A Acqiris 8-bit fast digitizer. The raw output of the ultra-bialkali PMT reading out the CsI[Na] crystal was fed into channel 1 of this fast digitizer, whereas the raw output of the 9390B \acpmt reading out the EJ299-33A was fed through a $6\text{\,}\mathrm{dB}$ attenuator and recorded as channel 2. The full energy range of neutron induced events is contained in the digitizer range using the attenuator in the data acquisition system.

For each trigger $6\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$-long waveforms were recorded for both channels, i.e., the raw output of the CsI[Na] and the EJ299-33A detectors. The sampling rate was set to $500\text{\,}\mathrm{MS}\text{\,}{\mathrm{s}}^{-1}$ with a trigger position set to $2\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ and a digitizer range of $\pm$25\text{,}\mathrm{mV}$$. The overall triggering rate for this setup in the environmental radiation field, which consists of mostly $\gamma$s, was $\mathcal{O}($250\text{,}\mathrm{Hz}$)$. Using a ${}^{22}\text{Na}$ source that emits back-to-back $511\text{\,}\mathrm{keV}$ annihilation-radiation $\gamma$-rays, and which was positioned in the midpoint of the distance between both detectors, an offset of $20\text{\,}\mathrm{ns}$ between the individual detector channels was found. This offset was corrected for in the analysis.

The simple geometry of this quenching factor measurement allowed for the selection of energy of recoiling cesium and iodine nuclei by varying the scattering angle $\alpha$. The recoil energy can be calculated using the simple kinematic relation [73]

[TABLE]

where $E_{n}$ is the energy of the incident neutron, $\alpha$ the scattering angle and $A$ the mass ratio between the target nucleus and the incoming neutron. Data was taken for a total of seven different runs with different angles $\alpha$ between the incident neutron beam and the EJ299-33A. The quenching factor measurement described in this chapter covered the full energy range of nuclear recoils that is of interest to the \accenns search at the \acsns (Fig. 16). The CsI[Na] detector position remained unchanged for every run. The exact EJ299-33A detector locations as well as additional information regarding the expected recoil energy and individual run times are given in Table 1. Besides decreasing $\alpha$, the distance $d$ between both detectors was increased in order to avoid triggering on beam-related neutrons that were not scattered off the CsI[Na]. The following sections will first discuss the calibrations performed for each detector followed by the evaluation of the quenching factor of CsI[Na].

2 Detector calibrations

1 CsI[Na] calibrations

To calibrate the light yield of the CsI[Na] detector a dedicated data set using an ${}^{241}\text{Am}$ source was taken. For this measurement waveforms were acquired using the CsI[Na] detector signal as a trigger, rather than the 934 \accfd output. The trigger position was again set to $2\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ into the digitized traces. For each trigger the DC baseline of the corresponding waveform was determined as the median of its first $2\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$. The exact pulse onset $t_{\text{csi}}^{0}$ was defined by a threshold crossing of $0.6\text{\,}\mathrm{mV}$, i.e., three digitizer steps, followed by at least ten consecutive samples above threshold. The CsI[Na] signal was integrated starting at two samples before t${}_{\text{csi}}^{0}$ for a total of $3\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ while ignoring samples below $0.6\text{\,}\mathrm{mV}$. The resulting charge spectrum is shown at the top of Fig. 3. The main $\gamma$-emission peak at $59.54\text{\,}\mathrm{keV}$ is readily visible. Due to the low energy emission of this isotope and the small detector size most of the energy depositions occur in close proximity to the source, i.e., close to the surface. Therefore the K- and L-shell escape peaks can also be resolved. These peaks consist of two distinct energies, one from Cs and one from I, which are merged due to the limited energy resolution. In order to be able to test the two competing \acspe charge distribution models described in what follows, the output was at this point not converted to \acspe.

In addition to the external ${}^{241}\text{Am}$ calibration, a light yield calibration was performed using the in-situ ${}^{127}\text{I}(n,n^{\prime}\gamma)$ reaction. During de-excitation a $\gamma$-ray with an energy of $57.6\text{\,}\mathrm{keV}$ is produced. This light yield calibration uses the data acquired during actual quenching factor runs. As a result the triggering condition were different from the ${}^{241}\text{Am}$ light yield calibration described above. The DC baseline was determined using the first $1\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$. Only events with a signal onset between $1\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ and $3\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ into the waveform are recorded. This guaranteed that each signal could be integrated over the full $3\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ integration window following the onset. The corresponding charge spectrum is shown at the bottom of Fig. 3. Fitting a gaussian to the peak gave a total of 834 events under the ${}^{127}\text{I}(n,n^{\prime}\gamma)$ peak. The best fit results for all peaks are given in Table 2.

The calibration results were converted into the light yield of the detector, i.e., the number of \acpes produced per $\text{\,}\mathrm{\text{keV}_{\text{ee}}}$ for a given energy. For this purpose the mean \acspe charge $Q_{\text{spe}}$ for this particular detector-\acpmt assembly was determined. For each trigger all potential \acspe peaks in the pretrace, i.e., the first $1\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$, were identified. A \acspe was defined as at least four consecutive samples with an amplitude of at least $0.6\text{\,}\mathrm{mV}$. The charge of each \acspe was determined by integrating over a corresponding integration window which is defined by two samples before and after the threshold crossings in the sample.

The resulting charge spectrum for the ${}^{241}\text{Am}$ run can be seen in Fig. 4. As discussed in chapter 5, the mean \acspe charge can be extracted by fitting a model to the spectrum. In chapter 5 the Polya distribution provided a better charge model for the R877-100 \acpmt used in the \accenns search. However, the CsI[Na] detector used in the quenching factor measurement described in this chapter, consists of a different crystal and used an ultra-bialkali \acpmt instead of the R877-100 \acpmt. To determine if the Polya distribution represents a better \acspe charge model than a simple Gaussian, a comparative fit procedure is used.

The competing charge models described by Eq. (4) (Gauss) and Eq. (5) (Polya) were fitted to the \acspe charge spectrum. The results are shown in the top panels of Fig. 4. The deviation of the model from the data is shown in the bottom panels. The overall deviation of both models is well within $5\text{\,}\mathrm{\char 37\relax}$ for most parts of the fit, except for the low and high charge regions. The discrepancy in the low charge region could indicate under-amplified \acspe. The deviation in the high charge region is due to the fact that only contributions from up to two \acspe are included in the fit. The mean \acspe charge for all other runs was determined in an analog fashion, which all showed the same fit quality.

The variance in the calculated mean \acspe charges over all quenching factor runs was negligible. As a result, a single mean \acspe charge value is adopted, which is used for all quenching factor runs. It is

[TABLE]

The energy calibration can be expressed in terms of the light yield, i.e., \acpes per $\mathrm{\text{keV}_{\text{ee}}}$, shown in Table 3. The slight increase in light yield around $30\text{\,}\mathrm{keV}$ compared to that at $\approx$60\text{,}\mathrm{keV} is in agreement with the non-proportional $\gamma$-response of CsI[Na] that was measured in [[74](#bib.bib74), [75](#bib.bib75)]. For the remainder of the analysis the light yield obtained from the ${}^{241}\text{Am}$ line at $59.54\text{\,}\mathrm{keV}$ was used. This choice was made as the \accenns detector was also calibrated using a ${}^{241}\text{Am}$ source (chapter [5](#Ch5)). The nominal light yield at $59.54\text{\,}\mathrm{keV}$ was linearly extrapolated to very low energies. This avoided any dependence on a particular light emission model and any uncertainty associated. Any energy deposition by nuclear recoils can still be converted directly into units of electron equivalent for any CsI[Na] detector using the quenching factor data, as long as the light yield at $\sim60\text{,}\mathrm{keV}$is known for a$3\text{,}\mathrm{\mu!}\text{,}\mathrm{s}$ long integration window. Previous measurements by Park et al. [76] and Guo et al. [77] used the same approach, which greatly simplifies the direct comparison of the results with their data.

2 EJ299-33A calibrations

The EJ299-33A plastic scintillator was calibrated using several different gamma (${}^{22}\text{Na}$, ${}^{137}\text{Cs}$) and neutron (${}^{252}\text{Cf}$) sources. During the calibrations the trigger was set to the EJ299-33A output and the CsI[Na] channel was disregarded. The trigger position was set to $2\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ into the $6\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ long waveforms. For each trigger the pulse onset was determined by looking for at least ten consecutive samples above the $0.6\text{\,}\mathrm{mV}$ threshold. For each peak two charge integrals were computed as follows,

[TABLE]

where $V(t)$ represents the digitized voltage values of the EJ299-33A output and $t=$0\text{,}\mathrm{ns}$$ denotes the pulse onset (Fig. 7). The long integral $Q_{\text{long}}$ is a measure of the total energy deposited in the detector. In contrast, the relative amount of charge contained in the tail integral $Q_{\text{tail}}$ depends on the type of the incident particle and is used for $n$-$\gamma$ \acpsd. The timings for both integrals were chosen following [71] to maximize the $n$-$\gamma$ discrimination capability for this particular scintillator.

First an energy calibration was performed using the ${}^{22}\text{Na}$ and ${}^{137}\text{Cs}$ gamma sources. These provide $\gamma$-lines at $511\text{\,}\mathrm{keV}$ and $661.7\text{\,}\mathrm{keV}$, respectively. Due to the low $Z$ number of both hydrogen and carbon and the relatively low $\gamma$ energies for both sources, only the Compton edge and not a full energy peak is visible in the spectrum. The top right panel of Fig. 5 shows the individual cross sections for the photoelectric effect, incoherent scattering and pair production in hydrogen and carbon. It can be observed that the scattering cross section in hydrogen is almost seven orders of magnitude larger than the one for the photoelectric effect at the energies of interest. In addition, the $\gamma$ energies are still well below the energy required for pair production. The maximum energy transfer in a single scatter event is given by

[TABLE]

The expected Compton edge energies are given by $341\text{\,}\mathrm{keV}$ and $477\text{\,}\mathrm{keV}$ for a ${}^{22}\text{Na}$ and ${}^{137}\text{Cs}$ source, respectively. Due to the poor energy resolution of EJ299-33A, both Compton edges appear as broad peaks. The Compton edge was therefore defined as the $1\sigma$ positive deviation from the maximum of the edge (vertical dashed lines in the left, top and bottom panels of Fig. 5). A linear fit to the data points, shown in the right of Fig. 5, provides a charge-energy conversion of

[TABLE]

Fitting a quadratic charge-energy relation to the data showed no significant deviation, i.e., $\leq$5\text{,}\mathrm{\char 37\relax}$$, between $30\text{\,}\mathrm{\text{keV}_{\text{ee}}}$ and $500\text{\,}\mathrm{\text{keV}_{\text{ee}}}$. This backs up the linearity of the EJ299-33A detector and substantiates the choices made in the definition of the Compton edges.

During the quenching factor measurements the EJ299-33A triggered with a rate of approximately $250\text{\,}\mathrm{Hz}$. Most of these triggers originated from the ambient radiation field, i.e., $\gamma$s not related to the beam. The environmental background can be reduced by exploiting the $n$-$\gamma$ \acpsd capabilities of the EJ299-33A plastic scintillator. Due to the different decay times [71, 79] for nuclear (13, 50, $460\text{\,}\mathrm{ns}$) and electronic (13, 35, $270\text{\,}\mathrm{ns}$) recoils, the percentage of charge visible in the tail region of an event is different for these different types of interactions. Following [71], the \acpsd metric below was adopted:

[TABLE]

where $Q_{\text{long}}$ and $Q_{\text{tail}}$ are defined as in Eq. (3). $f_{\text{psd}}$ ranges from 0 to 1. Given the aforementioned decay times, events produced by electronic recoils experience a higher $f_{\text{psd}}$.

Two \acpsd calibration measurements were obtained using a ${}^{137}\text{Cs}$ and ${}^{252}\text{Cf}$ source. The ${}^{137}\text{Cs}$ source only emits $\gamma$-rays. As a result all interactions measured in the EJ299-33A in the presence of this source only consist of electronic recoils. When the \acpsd feature $f_{\text{psd}}$ of each event is plotted as a function of its energy $E$ measured in the EJ299-33A these events form a band (black data points in Fig. 6). In contrast, the ${}^{252}\text{Cf}$ source emits both $\gamma$-rays and neutrons. As a result both electronic and nuclear recoils are induced in the EJ299-33A. Plotting $f_{\text{psd}}$ as a function of the measured energy for this data set results in the formation of two bands. One associated with nuclear recoils and one with electronic recoils (red data in Fig. 6). Due to the magnitude of the environmental $\gamma$ background, a \acpsd cut was implemented to provide $\geq$99\text{,}\mathrm{\char 37\relax}$$ $\gamma$ rejection. The cut is shown in shaded blue in Fig. 6. The acceptance fraction is shown in the bottom panel of the same figure.

3 Quenching factor data analysis

Quenching factor data was taken using the Ortec 934 \accfd output as trigger signal for the data acquisition system used in the quenching factor measurements. The trigger position was set to $2\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ into the digitized waveforms (Fig. 7). First, a baseline for each trigger was determined for both channels as the median of the first $1\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$. Second, the onset $t_{\text{ej}}$ of the EJ299-33A pulse was identified as described in section 2. The CsI[Na] trace was scanned for \acspe between $t_{\text{ej}}-$1\text{,}\mathrm{\mu!}\text{,}\mathrm{s} and $t_{\text{ej}}+$1\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}, where a \acspe is defined as at least three consecutive samples above $0.6\text{\,}\mathrm{mV}$. The first \acspe marks the onset $t_{\text{csi}}$ of a potential CsI[Na] signal. The lag time is given by $\Delta t\,=\,t_{\text{csi}}-t_{\text{ej}}$, where a negative lag time corresponds to an event with a CsI[Na] onset prior to the trigger. Given a neutron beam energy of $\sim$3.8\text{,}\mathrm{MeV} (section [2](#Ch7.S3.SS2)), a lagtime of $\Delta t\approx$-37\text{\,}\mathrm{ns} for a measured distance of $1\text{\,}\mathrm{m}$ between the detectors is expected. After determining $t_{\text{csi}}$ the CsI[Na] signal is integrated for a total of $3\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$, where only samples associated with a \acspe contribute to the integral. The total charge $Q_{\text{total}}$ is converted into a number of photoelectrons $N_{\text{pe}}$ using either $Q_{\text{spe}}$(polya) or $Q_{\text{spe}}$(gauss) (Eq. 2).

1 Determining the experimental residual spectrum

In order to optimize the signal-to-background ratio, a number of different cuts were applied to the data. First, all events with digitizer range overflow in either channel are excluded. Second, triggers showing more than one peak in the pretrace, i.e., in the first $1\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ are removed. Third, only events with a neutron-like \acpsd feature $f_{\text{psd}}$ are accepted. Last, a threshold cut on the energy deposited in the plastic scintillator is applied. All of these cuts are independent of the energy deposited in the CsI[Na] and therefore do not contribute to any acceptance bias. The impact of all of these cuts on the data set is exemplified in Fig. 8 for the $45\text{\,}\mathrm{\SIUnitSymbolDegree}$ data set. No clear excess is visible in the top left panel, whereas a clear signal arises after all cuts were applied in the lower right panel at $\Delta t\approx$0\text{,}\mathrm{\mu!}\text{,}\mathrm{s}$$ and $N_{\text{pe}}\approx 20$.

To define a signal region in $\Delta t$, a relevant time limit for which an event in the CsI[Na] could have actually been caused by a scattered neutron needs to be defined. The \actof between the CsI[Na] and EJ299-33A detectors can be calculated for non-relativistic neutrons using the energy-velocity relationship

[TABLE]

For a neutron energy of $3.8\text{\,}\mathrm{MeV}$ (section 2) and a measured distance between the detectors of one meter, the \actof is approximately $37\text{\,}\mathrm{ns}$. However, the spread in neutron energy and the change in distance for different EJ299-33A angles $\alpha$, the signal window onset was defined as $t_{0}=$-62\text{,}\mathrm{ns}$$ with respect to the EJ299-33A hardware trigger. Due to the low amount of energy deposited in the crystal and the low number of \acspe created, the stochastic nature of the light emission of these \acpe can lead to a non-negligible spread in the arrival time $T_{\text{arr}}$ of the first \acspe after the interaction. Assuming a double exponential scintillation decay profile as measured in [21], the arrival probability density function of an \acspe can be written as

[TABLE]

where for nuclear recoils $\tau_{\text{fast}}\,=\,$589\text{,}\mathrm{ns}, $\tau_{\text{slow}}\,=\,$6.7\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}, and $r\,=\,0.41$ (Fig. 6) [21]. The probability of an event with $N_{\text{pe}}$ photoelectrons to show an arrival time of $T_{\text{arr}}<\tau_{i}$ can be calculated. It is

[TABLE]

For each $N_{\text{pe}}\in[1,50]$, the time after interaction $\tau_{\text{99}}$ for which $99\text{\,}\mathrm{\char 37\relax}$ of neutron induced signals already have shown their first \acpe, i.e., $P_{\text{arr}}(T_{\text{arr}}<\tau_{99})=0.99$ was calculated.

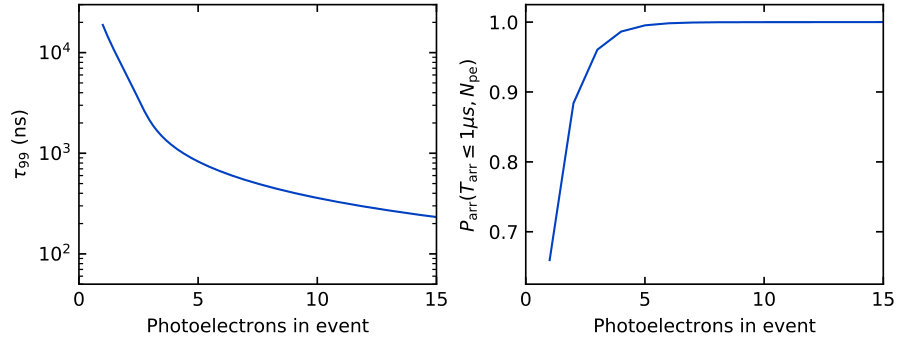

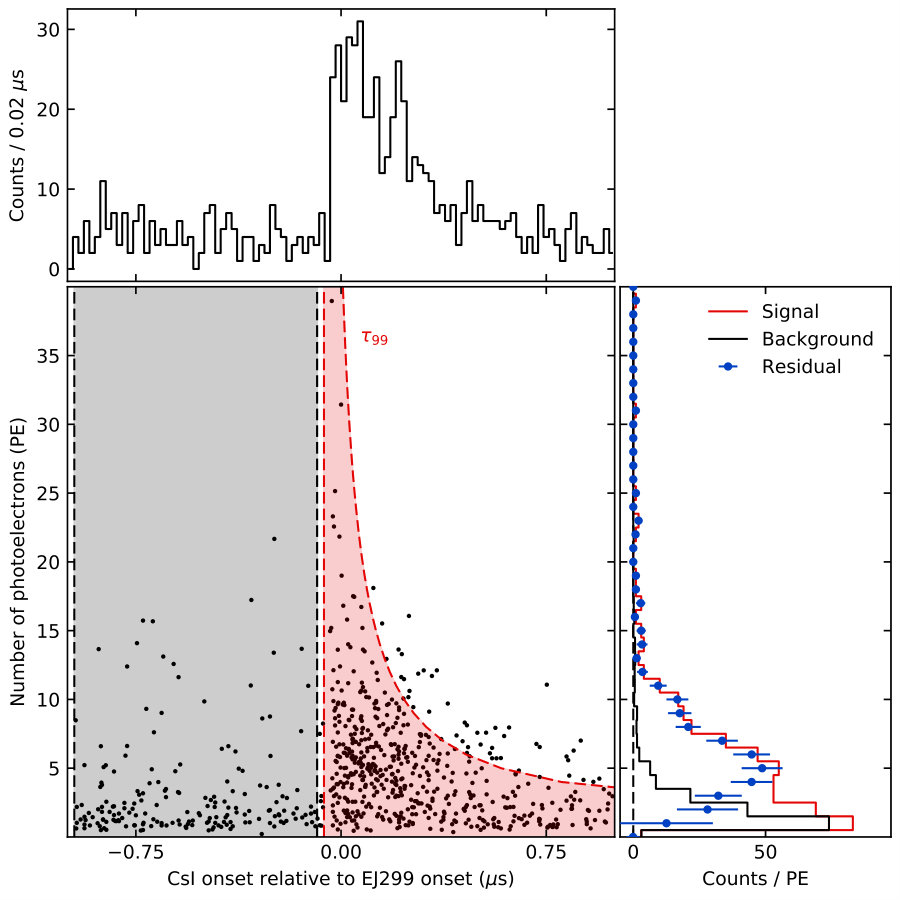

The left panel of Fig. 9 shows the evolution of $\tau_{99}$ for an increasing number of \acpe created in an event. A rapid decline in $\tau_{99}$ for $N_{\text{pe}}\leq 4$ and a more gradual decline for $N_{\text{pe}}>4$ are visible. It also becomes evident that $\tau_{99}>$1.037\text{,}\mathrm{\mu!}\text{,}\mathrm{s} for $N_{\text{pe}}\leq 4$, yet the analysis window is limited to arrival times of $T_{\text{arr}}\,\leq\,$1.037\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}. The right panel of Fig. 9 shows the percentage of events exhibiting an arrival time of $1.037\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ or less. For events with 1, 2, 3 or 4 \acpe this probability, i.e. $P_{\text{arr}}(T_{\text{arr}}<$1.037\text{,}\mathrm{\mu!}\text{,}\mathrm{s}$)$, is 65.9, 88.4, 96.0 and $98.6\text{\,}\mathrm{\char 37\relax}$, respectively. Events with more than four \acpe exhibit an arrival time of less than $1.037\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ more than $99\text{\,}\mathrm{\char 37\relax}$ of the time. An upper bound for the signal acceptance window can be defined as

[TABLE]

The additional $50\text{\,}\mathrm{ns}$ in the first case offset the $25\text{\,}\mathrm{ns}$ buffer introduced in $t_{0}$ and provide another $25\text{\,}\mathrm{ns}$ buffer at the end of the window. However, the signal window for the second case already covers the full analysis window in $\Delta t$. $25\text{\,}\mathrm{ns}$ are added to offset the buffer in $t_{0}$. The resulting signal region in $\Delta t$ is shown in shaded red in Fig. 10. By definition at least $99\text{\,}\mathrm{\char 37\relax}$ of events for a given number of \acpe exhibit arrival times within the signal region. The exception are events with 1-4 \acpe. In addition, a background region is defined as $\Delta t\in[-975,-80]$\text{,}\mathrm{ns}$$, containing random coincidences only, shown in shaded black. Both regions are marginalized over $\Delta t$ and binned in $1\,$\acpe wide bins. Each bin of the resulting background spectrum is scaled to match the exposure of the signal region, i.e.

[TABLE]

The scaled background spectrum is subtracted from the signal spectrum, removing any contribution from random coincidences within the signal region. The resulting residual spectrum therefore only includes events caused by nuclear recoils induced by neutrons scattering off CsI[Na] nuclei.

For events with $N_{\text{pe}}\in[1,4]\,$\text{,}\mathrm{PE}$$ the residual needs to be scaled to match the efficiency of all other bins due to the limited analysis window available. A correction factor of $\nicefrac{{99}}{{65.9}}$, $\nicefrac{{99}}{{88.4}}$, $\nicefrac{{99}}{{96.0}}$ and $\nicefrac{{99}}{{98.6}}$ was applied for 1 to 4 $N_{\text{pe}}$, respectively. The right panel of Fig. 10 shows an example of all three spectra. The red (black) histogram shows the marginalized spectrum for the signal (background) region, where the background data was already scaled to match the exposure of the signal region. The blue data points show the acceptance corrected residual spectrum.

2 Simulating the detector response using MCNPX-PoliMi ver. 2.0

The effective quenching factor for a given recoil energy can be calculated by comparing the experimental residual spectrum with a simulated spectrum of energy depositions within the CsI[Na] detector. Consequently, a comprehensive MCNPX-PoliMi ver. 2.0 [80] simulation spanning $10^{9}$ neutron histories for each of the seven EJ299-33A positions was run. The simulated geometry is shown in the left-hand side of Fig. 1, where the collimator is comprised of a concrete wall and a paraffin shield. Both detector geometries were implemented including their specific encapsulation. The energy spectrum of the incident neutron beam was derived by analyzing neutron \actof data taken during the measurements [81], as well as by evaluating simulations of the deuterium-deuterium reaction in the gas cell [72].

The resulting energy spectrum of the incident neutron beam, which was ultimately implemented in the simulations, is shown in Fig. 11. The spectrum peaks at approximately $3.8\text{\,}\mathrm{MeV}$ and has a \acfwhm of $0.4\text{\,}\mathrm{MeV}$. The two-dimensional beam profile was measured at two different stand-off distances from the gas cell and is shown in Fig. 12. A beam profile and spread according to these measurements was included in the simulations.

For each simulated neutron history, scattering at least once in both detectors, the energy deposited at each vertex for both detectors, as well as the type of recoiling nucleus was recorded. For scatter vertices happening within the EJ299-33A detector, the energy deposited was converted from $\text{\,}\mathrm{\text{keV}_{\text{nr}}}$ to $\text{\,}\mathrm{\text{keV}_{\text{ee}}}$ using a modified Lindhard model for hydrogen recoils [47, 84] and a constant quenching factor of $1\text{\,}\mathrm{\char 37\relax}$ for carbon recoils (Fig. 13), [49, 50, 48].

No significant difference was observed for the quenching factor results if the carbon quenching factor is extrapolated as shown in red in Fig. 13. This is unsurprising, as the energy transfer is dominated by proton recoils, with approximately $68\text{\,}\mathrm{\char 37\relax}$ of all vertices scatter off of hydrogen and contributing approximately $78\text{\,}\mathrm{\char 37\relax}$ of the total unquenched energy in the EJ299-33A. The sum of all individually quenched recoil energies represents the total energy visible in the plastic scintillator for that particular neutron history.

For the CsI[Na] detector in contrast approximately $93.4\text{\,}\mathrm{\char 37\relax}$ of all histories only scatter once within the crystal due to the small size of the detector (Fig. 14 panel B). To simplify the analysis a constant quenching factor for each angle is assumed. This allows summing over the energy deposited at each vertex in the CsI[Na] crystal to extract the total energy deposited.

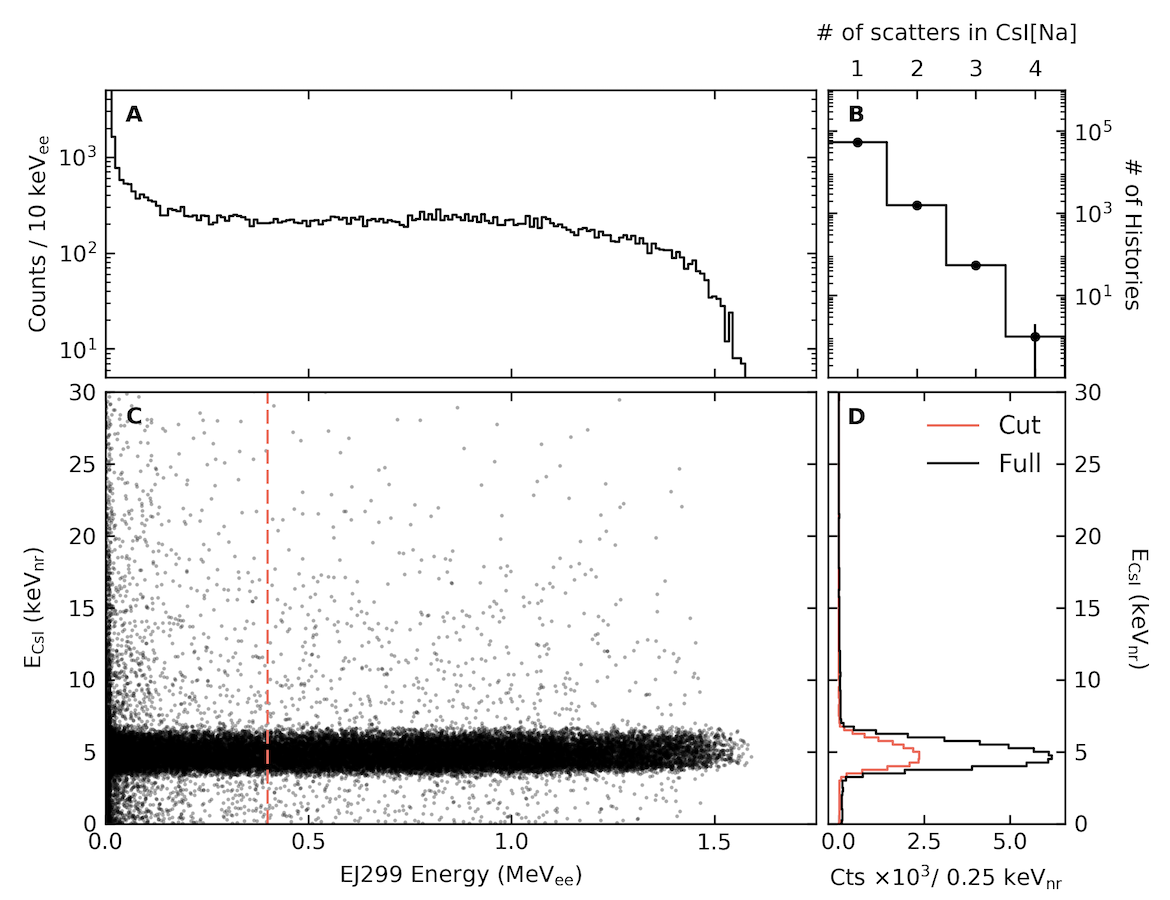

Fig. 14 shows the results of the simulation corresponding to the $24\text{\,}\mathrm{\SIUnitSymbolDegree}$ data set. Panel A shows the visible energy in the EJ299-33A from beam related neutrons after accounting for the quenching factor of hydrogen and carbon. Panel D shows the unquenched energy spectrum deposited in the CsI[Na] crystal. A distinct peak at an energy approximately predicted by Eq. (1), $5.45\text{\,}\mathrm{keV}$ in this case, can be observed. Panel C shows the energy deposited in both detectors for each history. The energy deposited in the CsI[Na] is uncorrelated to the energy deposited in the EJ299-33A above $E_{\text{ej299}}\gtrsim$50\text{,}\mathrm{\text{keV}_{\text{ee}}}$$. A simple threshold cut is therefore truly energy independent and does not introduce any bias.

3 Extracting the quenching factor

To calculate the best estimate for the quenching factor $Q_{f}$ at a given energy, the simulated recoil spectrum was compared to the experimental residual spectrum. First, the nuclear recoil energy of every simulated interaction in the CsI[Na] was converted into a an electron equivalent energy using a constant quenching factor $Q_{f}$. The electron equivalent energy was further converted into a number of photoelectrons using the the light yield calculated earlier (section 1).For each neutron history $k$ scattering $m_{k}$ times within the CsI[Na] detector, the average number $\mu^{k}_{\text{pe}}$ of \acpe produced is given by

[TABLE]

where $Q_{f}$ represents the quenching factor, $\mathcal{L}$ is the light yield and $E^{k}_{i}$ is the energy deposited at vertex $i$ for the neutron history $k$. A Poisson spreading was applied to every $\mu^{k}_{\text{pe}}$ to calculate the simulated energy spectrum $n$. For each bin $j$, where $j$ is the number of \acpe produced, it is

[TABLE]

The simulated spectrum needs to be scaled to match the exposure acquired in the experiment, i.e., the number of neutrons incident on the CsI[Na] need to match in both cases. The final simulated energy spectrum $N_{\text{sim}}$ is therefore given by

[TABLE]

where $t_{\alpha}$ is the time measured for angle $\alpha$ in seconds and $\phi_{n}$ the neutron flux provided at the neutron beam facility. The $\chi^{2}$ goodness of fit statistic for the chosen quenching factor and neutron scaling is

[TABLE]

where $n^{j}_{\text{res}}$ and $n^{j}_{\text{sim}}$ represent the experimental residual and the simulated spectrum, respectively. The best fit is given by the minimum of the two dimensional $\chi^{2}$ distribution.

Fig. 15 shows this process for the $24\text{\,}\mathrm{\SIUnitSymbolDegree}$ data set. The two-dimensional $\chi^{2}$ distribution is shown on the left. A white dot represents the minimum and 1- and 2-$\sigma$ contours are shown as solid and dashed white lines respectively, where the 1- and 2-$\sigma$ contours are defined by an increase of $\chi^{2}$ with respect to the minimum by $\Delta\chi^{2}=2.30$ and $\Delta\chi^{2}=4.61$, respectively [85]. The right panel shows the best fit of the simulated recoil spectrum (red) to the experimental residual data (blue). The excellent agreement between simulation and experimental data is readily visible. The fit quality for all other data sets is similar to the one presented.

To properly propagate any uncertainties, the fitting procedure was repeated by varying the \acspe mean charge and the light yield within their respective errors. To explore the uncertainty associated with the choice of $t_{0}$ and $t_{\text{max}}$ the signal window was varied by $\pm$24\text{,}\mathrm{ns}. Further the \acpsd cut contours were floated by $\pm$2\text{\,}\mathrm{\char 37\relax} and different threshold cuts were applied on the minimum total energy deposited in the EJ299-33A, i.e., $E_{\text{threshold}}\in[250,300,350,400,450,500]$. The best fit values for $Q_{f}$ and $\phi_{n}$ as well as the minimum $\chi^{2}$ were recorded for each of these results. The best estimate of the quenching factor $Q_{f}$ and the neutron flux $\phi_{n}$ is given by the best fit found for the initial choice of cut parameters. In contrast, the uncertainty represents the square root of the unweighted variance of all fit results added in quadrature to the 1-$\sigma$ uncertainty of the initial best fit. The final best fit values for each angle are given in Table 4.

Fig. 16 shows the measurement presented in this thesis in blue. A decreasing quenching factor for low energy recoils can be seen, where previous measurements suggested a rise (black, green). The quenching factor measurement provided in [21] was not included as the quenching factor definition employed there slightly differed from the one used in the experiments shown here. A second measurement performed by the Duke group of the COHERENT collaboration (red) found a slightly higher quenching factor, but also observed a decreasing scintillation efficiency at low energies. As semi-empirical quenching models fail to reproduce this behavior [86], a constant quenching factor is assumed for the energy region of interest in the \accenns search discussed in this thesis. To define this constant quenching factor, all available data in the \accenns search region, i.e., $\sim$5-$30\text{\,}\mathrm{\text{keV}_{\text{nr}}}$, was included in the calculation. The lower bound of this energy range is set by the threshold achieved in the \accenns search (chapter 8). The upper bound represents the energy at which the \accenns recoil rate becomes negligible. The best fit value was determined by weighing each data point with its uncertainty [5]. To estimate the uncertainty on the best fit quenching factor the unweighted standard deviation of all data points was used. The final quenching factor is given by

[TABLE]

Fig. 16 shows the quenching factor adopted in the \accenns search as a dotted brown line. The uncertainty band is shown as a shaded brown region.

Fig. 17 shows the best fit neutron flux derived from the scaling factor (Eq. (14)) for each angle. The large uncertainty of the scaling factor mainly arises from the uncertainty of the \acpsd cut efficiency. The efficiency shown in Fig. 6 does not reflect the true efficiency for accepting a neutron-induced event as the ${}^{252}\text{Cf}$ calibration still contains a large portion of $\gamma$-like triggers. As the acceptance simply compares the number of events surviving the cut after marginalizing over $f_{\text{psd}}$, the true efficiency should be larger. This error increases for smaller threshold energies. Therefore, the best fit probably slightly underestimates the neutron flux. The constant neutron flux derived for every angular position of the EJ299-33A detector substantiates that no threshold effects were introduced in this analysis [87].

The true neutron flux variation between runs was estimated to be less than $10\text{\,}\mathrm{\char 37\relax}$ [30], being compatible with the variation shown for most angles, the exception being $33\text{\,}\mathrm{\SIUnitSymbolDegree}$. Due to the large uncertainties on the neutron flux, this deviation appears not to be concerning. In addition to the neutron flux estimates from the scaling factor of the quenching factor fits, an in-situ measurement of the inelastic scattering rate {}^{127}\text{I}$$\left(n,n^{\prime}\gamma\right) can be used to estimate the neutron flux incident on the detector. Due to the triggering condition employed (beginning of section 3), the coincidence rate $\Gamma_{c}$ of an inelastic scatter event in the CsI[Na] detector being visible in the analysis window, i.e., $t_{\text{ej}}-$1\text{,}\mathrm{\mu!}\text{,}\mathrm{s} and $t_{\text{ej}}+$1\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s} (beginning of section 3), can be calculated using

[TABLE]

Here $\Gamma_{t}\approx 240-$265\text{,}\mathrm{Hz} is the average total triggering rate for each angular EJ299-33A position, $\Gamma_{i}$ the rate of inelastic scatter events in the CsI[Na] and $\Delta t=$2\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s} is the width of the analysis window in each waveform. $\Gamma_{i}$ was calculated using a dedicated MCNPX-PoliMi ver. 2.0 simulation including $10^{9}$ neutron histories and is dependent on the exact neutron flux $\phi_{n}$ delivered by the accelerator. It is

[TABLE]

where $N_{\text{c}}=834$ is the number of inelastic scatter events found in the analysis that coincide with the trigger. $N_{n}=10^{9}$ is the total number of neutrons simulated, $N_{i}=$14,518,617 the number of inelastic events produced in the simulation and $N_{t}=$18\,723\,150 the total number of triggers taken in all of the individual quenching factor runs. The average neutron flux throughout all measurements is given by $\phi_{n}\,=\,1534\pm 53$ neutrons per second, which is shown in Fig. 17 as a red band.

This secondary measurement again suggests that the true neutron flux was slightly underestimated in the quenching factor fits. However, as the neutron flux only provides an overall scaling factor this slight bias is considered negligible.

Chapter 8 CE$\nu$NS search at the SNS

The previous chapters discussed all calibration and background measurements performed prior to the \accenns search at the \acsns, which is described in this chapter. The CsI[Na] detector was described in chapter 4, which also included a schematic of the data acquisition system and the data format. The \acsns beam facility was discussed in detail in section 1. Between June 25th, 2015 and May 26th, 2017 data was almost continuously acquired at the \acsns with a $60\text{\,}\mathrm{Hz}$ triggering rate. The total number of triggers acquired in this time period was $2\,825\,705\,648$.

Two $70\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ long waveforms were acquired for each \acfpot trigger. The first channel contains the CsI[Na] signal, the second contains the discriminated output from the muon veto panels (Fig. 3). Both traces were sampled at $500\text{\,}\mathrm{MS}\text{\,}{\mathrm{s}}^{-1}$, resulting in $35\,000$ sample-long waveforms. The trigger position was set to $78.5\text{\,}\mathrm{\char 37\relax}$ of the total waveform, i.e., at sample $27\,475$. As discussed in section 1, the \acpot trigger, i.e., event 39, provided by the \acsns was used as external trigger. The \acpot trigger occurs at a constant rate of $60\text{\,}\mathrm{Hz}$ regardless of the operational status of the \acsns.

For about two thirds of the recorded data, the \acsns was operational, i.e., protons were impinging on the mercury target and neutrinos were produced. For the remaining third the \acsns underwent planned maintenance and no neutrinos were emitted. For the remainder of this thesis, the sub-set of data for which neutrinos were produced is referred to as $\mathcal{ON}$ data set. Likewise, periods for which no power on target was provided are referred to as $\mathcal{OFF}$ data set.

1 Waveform analysis

A large fraction of the \accenns search data analysis mimicked the analysis presented in chapter 6. This enabled the ${}^{133}\text{Ba}$ calibration (chapter 6 to be used to quantify the acceptances of Cherenkov and rise-time cuts employed in the \accenns search. Two overlapping sub-regions were defined for each individual CsI[Na] waveform, i.e., the coincidence (C) and anti-coincidence (AC) region. The analysis pipeline used for both C and AC region was identical. As a result, the AC region can be used to estimate the environmental steady-state background present in the C region. The subtraction of C-AC therefore only includes beam-related events (section 2).

Both C and AC are further sub-divided into a \acpt and \acroi. The positioning of AC and C was chosen such that the \acfroi of the former ends at the \acfpot trigger, whereas the \acroi of the latter begins there. This choice guaranteed that no potential \accenns signal could be present in the AC \acroi. The AC region can therefore be used to estimate the random, environmental background occurring before the \acpot trigger. These random backgrounds include Cherenkov light emission in the PMT window, spurious \acpspe from afterglow, and random groupings of dark-current photoelectrons, among others. A waveform highlighting the different regions is shown in Fig. 1. The exact start and end sample of each region are given in Table 1.

For each waveform it was first determined whether it was fully contained within the digitizer range. An overflow ($f_{\text{o}}\,=\,1$) was recorded if at least one sample showed an amplitude of +127 or $-128\text{\,}\mathrm{\text{ADC counts}}$ in either the CsI[Na] and/or the muon veto channel. Second, a linear gate flag ($f_{\text{g}}\,=\,1$) was recorded if the number of falling ($n_{f}$) and rising ($n_{r}$) threshold crossings of the $18\text{\,}\mathrm{\text{ADC counts}}$ level were unequal in the CsI[Na] signal, i.e., $n_{f}\neq n_{r}$.

The global baseline $V_{\text{median}}$ of the CsI[Na] signal was estimated using the median of the first $20\,000$ samples. The CsI[Na] signal $V$ was baseline shifted and inverted using

[TABLE]

The location of each peak $p_{i}$ was determined using the same peak detection algorithm described in chapter 5. A peak is defined as at least four consecutive samples with an amplitude of at least $3\text{\,}\mathrm{\text{ADC counts}}$. Both positive and negative threshold crossings were recorded for each peak and its charge calculated as described in chapter 5. All charges are added to an \acspe charge distribution on a $10\text{\,}\mathrm{min}$ basis, i.e., a new distribution was created for each $10\text{\,}\mathrm{min}$ time interval. Each charge distribution was fitted using Eq. (5), providing an independent mean \acspe charge $Q_{\text{spe}}$ for each time interval.

Once all peaks were integrated and added to the corresponding charge spectrum the individual C and AC regions were analyzed. The analysis for both of these regions was identical and as such no distinction is made in the following description. The analysis closely followed the that presented for the ${}^{133}\text{Ba}$ calibration (section 2), which is illustrated in Fig. 6. The only difference between the waveform analysis for the ${}^{133}\text{Ba}$ calibration data acquired at the University of Chicago and the \accenns search data acquired at the \acsns, is the exact onset of each analysis window (C and AC) and the length of the \acppt. The analysis windows for the ${}^{133}\text{Ba}$ calibration are defined in Table 1, whereas the analysis windows used for the \accenns search data are presented in Table 1.

In a first step, the respective region (C or AC) were extracted from the waveform and the \acpt and \acroi sub-regions defined. The total number of peaks present in the \acpt was recorded. The location of the first peak within the \acroi was determined, which defined the onset of the $1500$ sample =$3\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ long integration window. As already shown in section 1, CsI[Na] represents a fast scintillator (Fig. 6). As a result, the onset of an event in the CsI[Na] is well defined as long as more than four peaks are produced (Fig. 9). The \accenns search described in this chapter used a Cherenkov cut of $N^{\text{min}}_{\text{iw}}$=8, which demands the presence of at least eight peaks in the integration window. This ensured that the uncertainty on the onset is negligible.

A new baseline was determined for the integration window using the median of the $1\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ immediately preceding the window. The integration window was extracted from the \acroi and shifted using the new baseline. The amplitude of any sample, that did not belong to any peak $p_{i}$ found by the peak detection algorithm, was set to zero. The scintillation curve $Q(t)$ was calculated integrating over the zero suppressed signal (Eq. 2). The total charge $Q_{\text{total}}$ was recorded and the $T_{10}$, $T_{50}$ and $T_{90}$ rise-times were determined as described in chapter 5 and shown in Fig. 3. The parameters extracted from each CsI[Na] waveform are identical to the ones determined in the ${}^{133}\text{Ba}$ calibration (chapter 6) and are given in Table 2.

In contrast to the data acquired for the ${}^{133}\text{Ba}$ calibration the \accenns search data set also included the muon veto channel. For each trigger the location of all muon veto events present in the trace was determined, using the standard peak finding algorithm described in chapter 5. The logical signal of the discriminated muon veto output was detected if at least ten samples showed a minimum amplitude of $10\text{\,}\mathrm{\text{ADC counts}}$ above baseline. If a muon is present in either C or AC a muon veto flag ($f_{\text{m}}=1$) was raised for the trigger. If there was any muon present in the waveform, the position of the first muon event was recorded. A muon was recorded in approximately $1\text{\,}\mathrm{\char 37\relax}$ of all triggers recorded (panel E of Fig. 2).

All parameters were recorded in a separate and independent n-tuple for the AC and C region. The procedure described above was repeated for each waveform, where all n-tuples calculated based on the AC region were added to the $\mathcal{AC}$ data set and all n-tuples calculated for the C region were added to the $\mathcal{C}$ data set. Even though the analysis program was optimized to extract all necessary parameters in two passes of each waveform, it still required several weeks on a computer cluster to analyze all of the $\sim 2.8$ billion triggers acquired. The analysis was performed on the HCDATA cluster provided by the Physics Division at \acornl. The analysis program fully made use of the multi-core processing capabilities provided by the cluster. Approximately 20-30 analysis jobs were continuously running in parallel on HCDATA, using the same amount of CPUs. The full analysis code used on HCDATA is available at [59].

2 Detector stability performance over the full data-taking period

Once all data was processed, the detector stability over the two years of operation was investigated in order to ensure a high data quality for all time periods used in this analysis. Several different metrics were calculated using the n-tuples created for each waveform, all of which are shown in Fig. 2. In the following sections each panel is discussed in detail.

1 Beam energy delivered on the mercury target

Panel A of Fig. 2 shows the total daily beam energy delivered by the \acsns on the mercury target. Several distinct features are apparent. First, three time periods were excluded from the analysis, shown in shaded gray. The first two were excluded, as the muon veto was not operational during these dates. Both of these incidents were linked to power outages at the \acsns after which the high voltage supply for the muon veto did not properly restart. The last gap, in contrast, is linked to a failure of the digitizer used in the data acquisition system occurring after the full data acquisition system was restarted. The $\mathrm{N}\mathrm{I}$ 5153 was sent off to the manufacturer for repairs. Once this issue was resolved the data acquisition was restarted and no further issues were found. Second, gaps in beam energy delivered are apparent, which are not linked to any issues within the experimental setup. These represent times during which the \acsns underwent long-term maintenance and no \acppot were delivered. Third, dips within beam windows are apparent, which are caused by outages that last less than a full day, e.g., short-term maintenance every Tuesday morning.

The \acsns delivered an energy of up to $30\text{\,}\mathrm{\text{MWh}}$ on the \acsns target, per day in 2015 and early 2016. However, due to several target failures the beam power was reduced to provide a more stable operation at \sim$$24\text{\,}\mathrm{\text{MWh}}. The beam power information is available from the \acsns archive server with a timing resolution of $1\text{\,}\mathrm{s}$. A post-processing step was applied to the retrieved beam power information data, which is described in the following.

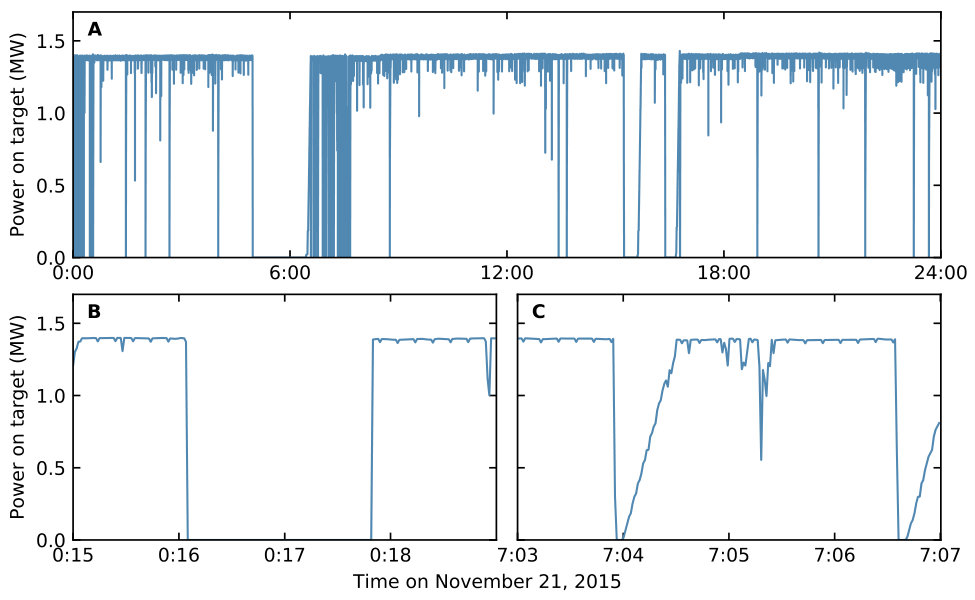

Panel A of Fig. 3 shows an example beam power time series retrieved from the archive for November 21st, 2015. The recorded power occasionally drops to zero and instantly recovers (panel B). Such a behavior is unphysical for an accelerator and to be addressed. For each drop in beam power the corresponding rise in beam power at the end of the gap is analyzed. Whenever an instantaneous rise back to full operational power is visible the gap was flagged as unphysical and exclude from the analysis. In contrast, if the beam was found to be properly ramped back up to full power (panel C) the period in question was flagged as physical and a zero power delivered on target was recorded for the gap duration. Less than $0.1\text{\,}\mathrm{\char 37\relax}$ of the triggers acquired in the \accenns search data set had to be excluded from the analysis.

Once these beam power drops were properly addressed, the CsI[Na] data acquired at the \acsns was split into $\mathcal{ON}$ and $\mathcal{OFF}$ data sets on a second by second basis. Using this information the total beam energy delivered on the mercury target was calculated for the whole $\mathcal{ON}$ data set. It is

[TABLE]

This information is used in section 1 to scale the \accenns interaction rate prediction in the CsI[Na].

2 Baseline and mean \acs*spe charge stability

Panel B of Fig. 2 shows the change in the CsI[Na] baseline over the two years of data-taking. The data shown is based on $10\text{\,}\mathrm{min}$ averages of the baseline determined using the first $40\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ of each waveform. The dashed line represents the the average for the full two years of data-taking.

Panel C of Fig. 2 shows the time evolution of the mean \acspe charge in $10\text{\,}\mathrm{min}$ intervals. Several short term drops in the \acspe charge are apparent. These drops are not correlated with a drop in baseline. Fig. 4 shows the charge spectra recorded during such a drop. The charge spectra were fitted using Eq. (5). Panel A shows the $10\text{\,}\mathrm{min}$ interval directly preceding the \acspe charge drop. The average \acspe is large enough such that less than $1\text{\,}\mathrm{\char 37\relax}$ of \acpspe are missed using the standard peak finding algorithm. In addition these \acpe only carry a charge less than one third of $Q_{\text{spe}}$. The bias introduced is therefore negligible.

Panel B highlights the spectrum calculated during the interval containing the \acspe charge drop. The full distribution is shifted towards lower charge values, i.e., the reduced charge is not the result of any fit error. The mean charge dropped by almost $20\text{\,}\mathrm{\char 37\relax}$. A much higher number of \acpspe are missed in the low charge tail.

Panel C shows the slow recovery after the initial sharp drop and panel D shows the full recovery of the mean \acspe charge. For almost all cases a drop in charge only lasts for a singular $10\text{\,}\mathrm{min}$ interval, after which the charge recovers as shown. The cause of this behavior was not determined, however, one possibility was a faulty power supply. The original Ortec 556 power supply which provides the high voltage for the CsI[Na] detector was replaced with another unit of the same kind in 2017. No more drops in the mean \acspe charge were recorded since then. As these events happened infrequently enough, all periods with a mean \acspe charge of $<$62\text{,}\mathrm{\text{ADC counts},\times,2,\text{ns}}$$ were excluded from the data analysis.

3 Afterglow cut and the decay of cosmogenics

Panel D of Fig. 2 shows the percentage of events rejected by an afterglow cut of ${N^{\text{max}}_{\text{pt}}}=3$. The overall behavior is the same for all choices of ${N^{\text{max}}_{\text{pt}}}\in[1,10]$. The rejection percentage decays over time. This decline consists of two different time scales, one on a much shorter than the other. Both decay times were determined by fitting the afterglow acceptance time evolution with

[TABLE]

Panel A of Fig. 5 shows the time evolution of the afterglow cut for multiple choices of $N^{\text{max}}_{\text{pt}}$ (colored). The black lines represent the corresponding fits of Eq. (3). Panel B (C) shows the short (long) half-life determined for different choices of $N^{\text{max}}_{\text{pt}}$. The dashed black line shows the uncertainty weighted average of the data. The shaded gray region represent the associated $1\sigma$ uncertainty. The decay times were found to be

[TABLE]

As the CsI[Na] detector was driven from the underground laboratory at the University of Chicago to \acornl there was a period of approximately one day over which the detector was above ground and during which cosmogenics could were created. The short decay time is compatible with cosmogenic ${}^{126}\text{I}$ production as the half-life of this isotope is given by $T_{\nicefrac{{1}}{{2}}}(^{126}\text{I})=12.93\pm 0.05\,$days [88]. The long decay time is probably dominated by cosmogenic-origin neutron capture on ${}^{133}\text{Cs}$, as the half-life of the associated isotope is given by $T_{\nicefrac{{1}}{{2}}}(^{134}\text{Cs})=2.0648\,$years [89, 90].

This calculation did not use the decaying event rate from a distinct peak in the recorded energy spectrum to determine the half-life of potential cosmogenics, but rather relies on the random coincidences between the afterglow from a potential ${}^{134}\text{Cs}$- or ${}^{126}\text{I}$-decay and the \acsns trigger. This might explain the difference between the measured half-life and the literature value. However, after approximately two years of operation under an overburden of $8\text{\,}\mathrm{\text{m.w.e.}}$, the level of radiation present in the crystal has stabilized as can be seen in panel D of Fig. 2.

The average afterglow cut acceptance $\eta_{\text{afterglow}}$ was calculated for different choices of $N^{\text{max}}_{\text{pt}}$. This acceptance is used in section 1 to adjust the predicted \accenns signal rate in the CsI[Na]. The overall average afterglow cut acceptance is calculated from the afterglow cut acceptances found for each $10\text{\,}\mathrm{min}$ interval shown in Fig. 2. Since the \accenns event rate is directly correlated to the beam energy delivered on the \acsns target, the afterglow cut acceptances found for each $10\text{\,}\mathrm{min}$ interval are weighted by the beam energy delivered in that interval. It is

[TABLE]

where $\eta_{\text{afterglow}}(t)$ denotes the fraction of events accepted in the $10\text{\,}\mathrm{min}$ interval $t$ and $E_{B}(t)$ represents the total integrated power on target delivered in the same window. This only includes time periods within the $\mathcal{ON}$. The exact beam energy averaged acceptances for different $N^{\text{max}}_{\text{pt}}$ is given in Table 2

4 Quality cuts

Panel E of Fig. 2 shows the time evolution of events rejected by the different quality cuts. The red line represents the percentage removed due to a linear gate being present in the CsI[Na] signal (section 1). The rejection rate remained constant over the full data acquisition period. This agrees with the assumption that most of the high energy events being cut by the linear gate were induced by cosmic ray muons traversing the crystal.

The black line represents the percentage of events rejected due to a coincident event in the muon veto waveform. A clear correlation between the energy delivered on the mercury target (panel A) and the muon veto rejection rate is visible . This correlation arises from the close proximity of the \acmots exhaust pipe to the muon veto panels, which was described in section 3.

Finally, the blue line represents the percentage of events rejected due to digitizer overflows. A correlation between the overflow rate and the average baseline level (panel B) is apparent. The closer the baseline is to the upper digitizer range the more triggers are rejected due to overflows.

A beam energy-weighted acceptance fraction is calculated for each quality cut. $\eta_{\text{muon-veto}}$, $\eta_{\text{linear-gate}}$ and $\eta_{\text{overflow}}$ were defined following Eq. (4). The beam energy weighted acceptance fractions are given by

[TABLE]

5 Light yield and trigger position

The data presented in panels F and G of Fig. 2 were both calculated by Alexey Konovalov at the National Research Nuclear University MEPhI. Panel F shows the gain stability of the CsI[Na] detector using $\gamma$-lines from backgrounds internal of the crystal, namely ${}^{212}\text{Pb}$ and ${}^{214}\text{Pb}$ [21]. These $\gamma$-rays carry energies beyond the digitizer range. Alexey estimated the total energy of each event exhibiting an overflow by removing the clipped part of the scintillation curve and measuring the charge in the tail only. The gain remained stable within $\sim$1.5\text{,}\mathrm{\char 37\relax}$$ over the course of the two year period.

Panel G shows the stability of the \acpot trigger provided by the \acsns by searching for prompt neutron interactions in the muon veto panels. Even though these panels cover a large area, their neutron efficiency is severely limited due to the high discriminator threshold. Only a small excess of events caused by prompt neutrons is visible in the muon veto over the steady state background. The low count rate is largely responsible for the large uncertainty on the measurement. The arrival times of the prompt neutrons following the \acpot trigger derived using this method are similar to those determined in chapter 3.

A replica of Alexey’s analysis is shown in Fig. 6, which included a total of $4651\text{\,}\mathrm{h}$ of $\mathcal{ON}$ data. An excess from prompt neutrons shortly following the \acpot trigger is apparent. As only the arrival time of the first muon was recorded, Fig. 6 shows an excess for low muon arrival times.

3 Monitoring prompt neutrons using the inelastic scattering ${}^{127}\text{I}$(n,n’$\gamma$) reaction

In the previous section the arrival time after the \acpot trigger was measured for beam-related, prompt neutrons using the muon veto event distribution. The event rate from these prompt neutrons in the CsI[Na] was found to be small in chapter 3. However, these calculations heavily depended on neutron transport simulations using MCNPX-PoliMi ver. 2.0. In this section a test of the accuracy of these simulations is provided using the inelastic scattering ${}^{127}\text{I}$(n,n’$\gamma$) reaction. Due to its large cross-section [21, 42], this process provides an excellent monitoring tool for prompt neutrons following the \acpot, that were able to penetrate the $\sim$20\text{,}\mathrm{m}$$ of shielding between the \acsns target and the CsI[Na] detector (Fig. 3). Using the ${}^{241}\text{Am}$ source to calibrate the CsI[Na] detector (chapter 5) ensured that the main gamma emission of the inelastic scattering reaction at $57.6\text{\,}\mathrm{keV}$ was initially contained within the digitizer range. However, due to a drift in the DC baseline of the CsI[Na] detector signal it is no longer fully contained. In the following sections a calibration measurement using a ${}^{252}\text{Cf}$ neutron source, and a search for the inelastic scattering ${}^{127}\text{I}$(n,n’$\gamma$) reaction in the CsI[Na] caused by prompt neutrons associated with the \acsns \aclpot are described.

1 Validating neutron transport simulations using a ${}^{252}\text{Cf}$ source

The prompt neutron event rate presented in chapter 3 strongly depended on MCNPX-PoliMi ver. 2.0 simulations. It is therefore crucial to confirm that these simulations are accurate. One way to test the accuracy of these simulations is to use an external neutron source and to compare the simulated prediction to the experimental measurement. As such, a ${}^{252}\text{Cf}$ neutron source with a yield of $\sim 8600$ neutrons per second was placed on the outside of CsI[Na] shielding, i.e., outside of the water tanks. The emission spectrum above $1\text{\,}\mathrm{MeV}$ for this neutron source shows a comparable hardness to the prompt neutron spectrum found in chapter 3 [91]. Its emitted neutrons carry enough energy to penetrate the neutron moderator and are still able to undergo inelastic scattering within the detector.

However, such a neutron source could potentially activate the detector or shielding material. This calibration measurement was therefore performed at the beginning of a scheduled, month-long \acsns maintenance so that any potentially activated materials could decay away before new $\mathcal{ON}$ data was acquired. In addition to this, the full \accenns search data set described in this thesis was acquired prior to this calibration measurement to avoid any possible contamination.

One of the potential long-lived backgrounds that could be produced in this ${}^{252}\text{Cf}$ calibration is ${}^{134}\text{Cs}$ due to neutron capture on ${}^{133}\text{Cs}$. As already discussed in section 3, the half-life of this isotope is approximately two years. However, a rough estimation shows that this potential background is negligible: Assuming that all of the neutrons emitted from the ${}^{252}\text{Cf}$ source actually thermalize within the moderator between the source and the CsI[Na] detector and that no neutron is captured in between a total of $\sim$160 neutrons per second would traverse the CsI[Na] detector. All of the neutrons are assumed to capture as the capture cross-section is $\mathcal{O}($50\text{,}\mathrm{b}$)$ [92]. For a total calibration period of $2\text{\,}\mathrm{h}$ this would result in the creation of $1.1\text{\times}{10}^{6}$ ${}^{134}\text{Cs}$ isotopes. Approximating a linear decay of half of these isotopes over a two year period results in 0.01 decays per second. Assuming each of these events contaminates a total of $1\text{\,}\mathrm{ms}$ due to its afterglow a rate of random coincidences between the decaying ${}^{134}\text{Cs}$ and the \acpot trigger is expected on the order of

[TABLE]

which is negligible.

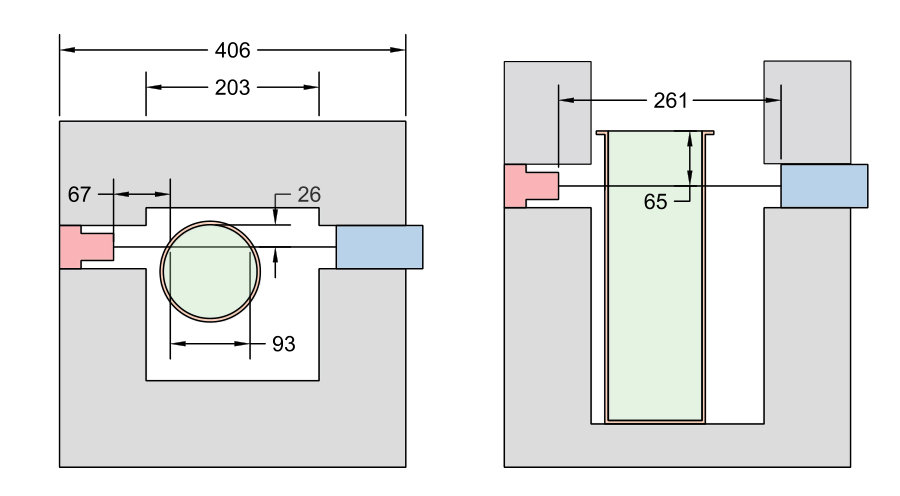

The ${}^{252}\text{Cf}$ source was placed on the outside of the CsI[Na] shielding, in the middle of the side of water tanks facing the \acmots pipe at a height of $60\text{\,}\mathrm{cm}$ measured from the floor (Fig. 1). The data acquisition was set to trigger directly on the CsI[Na] channel, similar to what is described in chapter 5. Data was acquired for a total of $107\text{\,}\mathrm{min}$. The overall data analysis closely follows the light yield calibration presented in chapter 5.

In contrast to the light yield calibration no digitizer overflows were excluded from the data set. This was necessary as a significant part of the events in the inelastic peak actually exceeded the digitizer range. As a result events showing a digitizer overflow had to be included in the data analysis to correctly determine the total number of inelastic scattering events in the CsI[Na]. The energy for events exceeding the digitizer range was corrected using the following approach.

First, events were simulated for different energies, i.e., $N_{\text{pe}}$, using the light yield calibration (chapter 5) and light emission profile as shown in Eq (8). The light emission profile for CsI[Na] slightly changes with energy. Using the ${}^{241}\text{Am}$ calibration data the following parameters were found for Eq (8) for an energy of approximately $60\text{\,}\mathrm{\text{keV}_{\text{ee}}}$

[TABLE]

The simulated events were clipped at $209\text{\,}\mathrm{\text{ADC counts}}$ to mimic the digitizer range overflow. This particular value represented the total range available given the average baseline value during the ${}^{252}\text{Cf}$ calibration.

The left panel of Fig. 8 shows a simulated light emission profile in black and the corresponding truncated profile in dashed red. Both light curves are integrated and the total number of photoelectrons $N_{\text{pe}}$ measured in both cases was compared. The evolution of the ratio between true and measured energy is shown in the right panel of Fig. 8. The following empirical model $\Gamma_{o}$ was fitted to the data

[TABLE]

The best fit parameters are given by

[TABLE]

The difference between the $N_{\text{pe}}$ calculated for the full light emission and the $N_{\text{pe}}$ calculated for the truncated emission was found to be negligible up to $\sim$1000\text{,}\mathrm{PE}$$. However, the visible energy of all events showing a digitizer range overflow was adjusted using $\Gamma_{o}$.

The resulting energy spectrum for the ${}^{252}\text{Cf}$ calibration is shown in the top panel of Fig. 7. A peak from inelastic scattering ${}^{127}\text{I}$(n,n’$\gamma$) at around $60\text{\,}\mathrm{keV}$ is apparent. The small shift towards higher energies as well as the shark tooth shape can be explained by the addition of the energy of the recoiling nucleus and additional $\gamma$ de-excitation [93, 5]. The second peak at $\sim$30\text{,}\mathrm{keV} is caused by the electron capture decay of ${}^{128}\text{I}$ ($E_{\gamma}\sim$31\text{\,}\mathrm{keV}) which is produced by thermal neutron capture [89].

The total number of inelastic scattering events was calculated by fitting an ad hoc peak template to the peak region. This template is given by

[TABLE]

where $I$ represents the inelastic peak and $B$ a linear background. The exact fit parameters are given in Table 3. The total number of inelastic scattering events was determined by integrate the contribution from $I$ alone, which yielded

[TABLE]

The number of inelastic scattering events calculated above were further compared to the prediction based on an MCNPX-PoliMi ver. 2.0 simulation. The number of inelastic scattering events expected was calculated as follows: First, the total number of neutrons emitted from the ${}^{252}\text{Cf}$ source was calculated. The source was acquired two months prior to this measurement and its activity was given as $A=$2\text{,}\mathrm{\mu!}\curie$\pm$10\text{,}\mathrm{\char 37\relax} by the manufacturer. The branching ratio of spontaneous fission is given by $3.092\text{\,}\mathrm{\char 37\relax}$ [[89](#bib.bib89)] and the number of neutrons per fission is 3.7692 [[94](#bib.bib94)]. The half-life of ${}^{252}\text{Cs}$ is given by $T_{\nicefrac{{1}}{{2}}}=$2.645\text{\,}\mathrm{yr} [89]. The total neutron yield $\Gamma_{n}$ can therefore be written as

[TABLE]

Second, the efficiency of a single neutron emitted by the ${}^{252}\text{Cf}$ source to actually undergo inelastic scattering within the CsI[Na] detector was calculated using an MCNPX-PoliMi ver. 2.0 simulation. A comprehensive MCNPX-PoliMi ver. 2.0 simulation was performed and this efficiency was found to be $\eta_{\text{is}}=$1.31\text{\times}{10}^{-5}$$. The total number $N^{\text{sim}}_{\text{is}}$ of inelastic scattering ${}^{127}\text{I}$(n,n’$\gamma$) events expected based on these simulations is given by

[TABLE]

The number of experimental counts $N^{\text{exp}}_{\text{is}}=589\pm 68$ is compatible with the predicted number $N^{\text{sim}}_{\text{is}}=662\pm 66$ within their respective errors. The shark-tooth shape of the inelastic scattering ${}^{127}\text{I}$(n,n’$\gamma$) peak was also correctly predicted by the simulations. This exercise confirmed the validity of the neutron transport simulations used in chapter 3.

2 Inelastic ${}^{127}\text{I}$(n,n’ $\gamma$) scattering in the CE$\nu\!$NS search data

Using the inelastic scattering ${}^{127}\text{I}$(n,n’$\gamma$) reaction, bounds on the maximum background rate caused by prompt neutron interactions in the CsI[Na] can be determined in addition to the ones derived in chapter 3. The high energy spectrum, i.e., 200 to $1200\text{\,}\mathrm{PE}$, is calculated for the full $\mathcal{C}$ data in the $\mathcal{ON}$ data set. Based on the arrival time spectrum of prompt neutrons measured in chapter 3, only events with an arrival time of $T_{\text{arr}}\in[200,1100]\,$ns are included in this analysis. The energy of events exceeding the digitizer range were adjusted using Eq. (8). The resulting spectrum is shown in the bottom panel of Fig. 7.

No peak is apparent at the location predicted by the ${}^{252}\text{Cf}$ calibration for the inelastic scattering ${}^{127}\text{I}$(n,n’$\gamma$) reaction. To constrain the total number of inelastic events the following fit procedure was used. First a linearly decaying background was fitted to the full energy range, shown in dashed black. Second, the ad hoc peak template, which is shown in Eq. (10), was fitted to the peak region. However, most of the fit parameters of the ad hoc template were predetermined. The parameters $m$ and $c$ are taken from the fit of the linearly decaying background. $N_{0}$, $N_{1}$, and $\delta_{N}$ were taken directly from the californium calibration (Table 3). The only remaining free parameter was given by the peak amplitude $a$.

Once the template was fitted to the data the corresponding $I$ was integrated to yield the total number of inelastic scatter events. It is

[TABLE]

which is compatible with zero. The $90\text{\,}\mathrm{\char 37\relax}$ confidence level of the upper limit is given by 22.2 counts and its corresponding fit is shown in red in the bottom panel of Fig. 7. The fit uncertainty was mainly driven by the overall background achieved and the total exposure recorded. This uncertainty will diminish with more statistics in the future. A MCNPX-PoliMi ver. 2.0 simulation of prompt neutrons was conducted. The spectral hardness and a total flux of these prompt neutrons was set to the values measured in chapter 3. The neutrons coming from the \acsns target unidirectionally bathed the CsI[Na] setup. The total number of inelastic scattering events induced by these prompt neutrons is

[TABLE]

for the full $\mathcal{ON}$ data set, i.e., a total beam energy on target of $7.475\text{\,}\mathrm{\text{GWh}}$. This prediction is compatible with the value found in Eq. (16) at the $1\sigma$ level.

The excellent agreement between simulated predictions and measurements confirms the accuracy of the simulation results presented in chapter 3.

4 \acs*cenns analysis

In section 2 the CsI[Na] detector stability over the course of the two year data-taking period was examined. Time periods were identified and excluded from the analysis for which no valid information is available regarding the beam energy delivered on the \acsns target. Rare time intervals showing a significant decrease in \acspe charge were also excluded. This section provides a detailed description of the post-processing of the n-tuples calculated for the remaining time periods.

As discussed in chapter 6 the analysis focuses on the residual $\mathcal{R}$ between the $\mathcal{AC}$ and the $\mathcal{C}$ data sets. The former precedes the \acpot trigger and as such can not contain any beam-related contributions. It only contains steady-state backgrounds due to environmental radiation. $\mathcal{C}$ in contrast contains both beam-related events and random coincidences. By calculating the residual spectra in energy and arrival time ($\mathcal{R}$=$\mathcal{C}$-$\mathcal{AC}$), all contributions from steady-state backgrounds are removed. As a result, $\mathcal{R}$ only contains contributions from beam-related events, be those \accenns, prompt neutrons, or \acpnin (chapter 3).

The theoretical \accenns prediction can be compared to the residual spectrum $\mathcal{R}$ to determine the observed level of agreement. However, both $\mathcal{R}$ and the \accenns signal prediction depend on the exact choice of cut parameters used in the post-processing. The following section therefore discusses the analysis used to determine optimized cut parameters, which yield the highest ratio of the expected \accenns signal to the steady-state environmental backgrounds.

1 Optimizing cut parameters

All data cuts used in the analysis can be classified into three main categories. The first category consists of the quality cuts (section 4), which cannot be adjusted. The three cuts in this category are the overflow, linear gate and muon veto cut. These cuts reject a fixed percentage of events and contribute an energy independent signal acceptance fraction. The second category consists of cuts for which the \accenns search data was used in order to determine their signal acceptance. The first of these is the afterglow cut (section 3), the second is the diagonal rise-time cut (its definition is analog to that in section 3), both of which also provide an energy independent signal acceptance fraction. The third category contains cuts for which the ${}^{133}\text{Ba}$ calibration data was used to calculate a proper signal acceptance (chapter 6). This category includes the Cherenkov cut (section 1), as well as the different orthogonal rise-time cuts (section 2). The signal acceptance obtained from these cuts is given by an energy-dependent acceptance fraction, as described by Eq. (8).

In order to establish the optimal choice of cut parameters, a \acfom was defined which quantifies how well a certain set of parameters performs in maximizing the \accenns signal to steady-state background ratio. In order to prevent introducing any bias, the following approach was chosen: First, the quantification was limited to the $\mathcal{OFF}$ data set, i.e., periods for which there can not be any beam related events, neither in $\mathcal{AC}$ nor $\mathcal{C}$. This represents a form of a blind analysis. All data cuts were applied to the $\mathcal{AC}$ data, and the corresponding energy and arrival time spectra of the stead-state background events were determined. Only events with an arrival time of $T_{\text{arr}}\in[0,6]$\text{,}\mathrm{\mu!}\text{,}\mathrm{s}$$ were included in the energy projection. The arrival time projection only included events with an energy of $N_{\text{pe}}\in[0,40]$. These choices are based on the expected \accenns energy and arrival time distributions, which show a negligible \accenns rate outside of these parameter bounds.

A total of $778\,634\,460$ and $1\,558\,323\,928$ triggers were recorded for the $\mathcal{OFF}$ and the $\mathcal{ON}$ data sets, respectively. As discussed earlier, the corresponding beam energy on target delivered for the $\mathcal{ON}$ data is given by $E_{\text{beam}}=$7475\text{,}\mathrm{\text{MWh}}$$. In order to provide a real background estimate for the \accenns prediction, the exposure between the $\mathcal{OFF}$ and $\mathcal{ON}$ data-taking periods needs to be matched. To this end, both energy and arrival time spectra determined from the $\mathcal{AC}$ data set, were multiplied by a factor of 2.00135. An example of the resulting, scaled spectra for different choices of the Cherenkov cut($N^{\text{min}}_{\text{iw}}$, section 1) is shown in panel A and B of Fig. 9. The number of events passing all cuts decreases significantly with more stringent Cherenkov cut choices, i.e., increasing $N^{\text{min}}_{\text{iw}}$. However, it is also apparent that most of the events rejected carry energies below $20\text{\,}\mathrm{PE}$, which is consistent with the energy expected from Cherenkov radiation in the \acpmt window. In contrast, the arrival time distribution shows an overall decrease in event rate, consistent with what is expected from random coincidences. The slight increase towards earlier arrival times is caused by afterglow. Even though a cut based on $N^{\text{max}}_{\text{pt}}$ was applied to the data set, the arrival time of \acspe from phosphorescence from high-energy depositions is still slightly biased towards earlier times in the waveform. This will further be discussed in section 2.

To quantify the steady-state background in the \accenns search, the fluctuations $\sigma_{\text{bg}}$ around zero expected for the residual $\mathcal{R}$ in the absence of any beam-related signal (\accenns, prompt neutrons, or \acpnin) were estimated. As there is no difference in the steady-state background rate between $\mathcal{AC}$ and $\mathcal{C}$ for the $\mathcal{OFF}$ data set, these fluctuations can be estimated using

[TABLE]

where $i$ denotes the $i$-th bin of either energy or arrival time distribution and $N^{i}_{\mathcal{AC}}$ the number of events found with the corresponding energy or arrival time.

The magnitude of these fluctuations is shown in panel C and D of Fig. 9 as colored areas, with only the positive band being shown. It can be observed that the size of the fluctuations naturally decreases with increasing $N^{\text{min}}_{\text{iw}}$ as fewer and fewer events pass the cuts, i.e., $N^{i}_{\mathcal{AC}}$ becomes smaller and smaller.

To estimate a proper signal-to-background ratio, the expected \accenns signal for different cut parameter combinations needs to be calculated. For this purpose, the uncut \accenns induced nuclear recoil spectrum was calculated as it would be expected in the CsI[Na] detector at the \acsns. Combining Eq. (4), (3) and (5) yields the differential cross-section for both cesium and iodine and with its dependence on the incoming neutrino energy. The differential cross-section was convolved with the three different neutrino emission spectra, Eq. (1, 2, 3), to extract a differential recoil spectrum for each neutrino type and isotope. The resulting differential recoil spectrum was further scaled to match a reference beam energy delivered on the \acsns target of $1\text{\,}\mathrm{GW}\text{\,}\mathrm{h}$.

Geant4 simulations regarding the neutrino production rate were conducted by the University of Florida group within the COHERENT collaboration. The full target geometry, the neutron moderators, as well as the beryllium reflector surrounding the target were incorporated in the simulation [5]. The QGSP_BERT physics list was chosen, which uses the Bertini model [95] to simulate the intra-nuclear cascade. A total production rate of $0.08\pm$10\text{,}\mathrm{\char 37\relax} neutrinos per flavor per proton was found, which amounts to $1.98\text{\times}{10}^{21}$ per $\text{\,}\mathrm{\text{GWh}}$ per flavor as a reference for a proton energy of $\sim$960\text{\,}\mathrm{MeV}.

With a detector mass of $14.57\text{\,}\mathrm{kg}$ and a distance between target and detector of $19.3\text{\,}\mathrm{m}$ (Fig. 3), the final recoil rate for each flavor and isotope can be determined (Fig. 11) for a beam energy delivered on the mercury target, of $1\text{\,}\mathrm{\text{GWh}}$. The total recoil rate is shown in black.

The individual recoil spectra con be integrated to extract the total number of \accenns events $N^{\alpha}_{\nu_{x}}$ that are expected in a zero-threshold detector for each neutrino flavor $x$ and isotope $\alpha$. The total number of events expected for a perfect detector is given by $N_{\text{total}}=\sum\limits_{\alpha}\sum\limits_{x}N^{\alpha}_{\nu_{x}}=1146$ events per $1\text{\,}\mathrm{GW}\text{\,}\mathrm{h}$.

This estimate does not include any threshold effects and other data quality cuts. To properly account for these, the energy deposited in an event needs to be converted into the number of \acspe produced. A \aclmc approach was used to convert the nuclear recoil energy deposited in the CsI[Na] into a corresponding number of photoelectrons produced $N_{\text{pe}}$, which is described next.

In order to extract a smooth energy spectrum, a total of $N^{\alpha}_{\nu_{x}}\times 10000$ recoil events were simulated for each isotope $\alpha$ and neutrino flavor $x$. Each event energy was drawn from the corresponding differential recoil spectrum shown in Fig. 11. The energy of each event was converted from $\text{\,}\mathrm{\text{keV}_{\text{nr}}}$ to $\text{\,}\mathrm{\text{keV}_{\text{ee}}}$ using the quenching factor calculated in chapter 7, i.e., $Q=8.78\pm$1.66\text{,}\mathrm{\char 37\relax}$$. Using the light yield determined in chapter 5, i.e., \mathcal{L}_{\text{CsI}}=13.348\pm 0.019\,\frac{\text{PE}}{\mathrm{\text{keV}_{\text{ee}}}}, the ionization energy was converted to $N_{\text{pe}}$. Poisson fluctuations were applied to the number of photoelectrons. For each event an arrival time was drawn from the distributions shown in the right panel of Fig. 1. These results were combined to calculate the uncut \accenns distributions for all neutrino flavors (Fig. 12, panels A and B), where the spectra were divided by a factor of $10\,000$ to account for the \acmc smoothing factor.

The \accenns prediction needs to be properly scaled by incorporating the signal acceptance fractions from the different cuts employed in this analysis. An overall signal acceptance function is defined that combines all different cut fractions. This overall acceptance function can be written as

[TABLE]

where $\eta_{\text{Ba}}(N_{\text{pe}},a,k,x_{0})$ is discussed in detail in chapter 6, whereas $\eta_{\text{afterglow}},\;\eta_{\text{muon-veto}}$ and $\eta_{\text{linear-gate}}$ are discussed in section 2. The following approach was used to calculate $\eta_{\text{diag-rise-time}}$, which was previously motivated and described in section 3. To determine the acceptance of the diagonal rise-time cut all other cuts had to be applied to the $\mathcal{AC}$ and $\mathcal{C}$ data of the $\mathcal{ON}$ first. Next, the percentage of events with $T_{0-50}\leq T_{10-90}$ was calculated for energies between 50 - 200 PE. As the chance to misidentify the onset of an event is independent of its energy this percentage directly represents the acceptance fraction for the diagonal rise-time cut (section 3). Fig. 13 shows the percentage of events satisfying $T_{0-50}\leq T_{10-90}$ as a function of energy for a choice of ${N^{\text{max}}_{\text{pt}}}\,=\,3$ and ${N^{\text{min}}_{\text{iw}}}\,=\,8$. The dashed blue line represents the uncertainty weighted average of the percentages shown. The $1\sigma$ uncertainty is shown as shaded blue region. The acceptance fraction found for this particular choice of afterglow and Cherenkov cut is

[TABLE]

As an example, Fig. 14 shows the overall signal acceptance function corresponding to the optimal choice of cut parameters as calculated later in this section (Eq. (23)). Shown is the evolution of the acceptance function as different cuts are added. As such, every curve includes all cuts already shown above in addition to the one shown in the label. The black curve represents the full overall signal acceptance function as given in Eq. (19).

The overall acceptance function $\eta(N_{\text{pe}})$ was applied to the predicted \accenns energy spectrum which is shown in panel A of Fig. 12. The fraction of rejected events was recorded for each individual neutrino flavor and the corresponding arrival time spectra for each flavor were scaled by this fraction. For the resulting arrival time spectrum the fraction of events with an arrival time of $T_{\text{arr}}<$6\text{,}\mathrm{\mu!}\text{,}\mathrm{s} was computed and the energy spectra were scaled accordingly. Last, the arrival time spectrum was adjusted to only include events with an energy of $\leq$30\text{\,}\mathrm{PE}. The resulting \accenns spectra are shown in panels C and D of Fig. 12.

It is apparent from panel C of Fig. 12, that a majority of \accenns events was cut due to overall signal acceptance function. However, for the choice of cuts shown in this example plot (afterglow and rise-time cuts are given in Eq. (23), Cherenkov cut $N^{\text{min}}_{\text{iw}}$ as given in the labeling of the figure) one would still expect to observe $\mathcal{O}(100-200)$ events in the energy spectrum.

A simple \acffom can be defined to maximize the \accenns signal to steady-state background ratio, by demanding that the optimized cut parameters should minimize the background $\sigma_{\text{i,bg}}$ while maximizing $N_{\text{i,signal}}$ for each bin $i$ at the same time. A straight forward choice for the \acfom is to minimize the likelihood of a residual with zero counts and a dispersion of $\sigma_{\text{i,bg}}$ to actually mimic a corresponding \accenns signal. This directly leads to

[TABLE]

which is a $\chi^{2}$ goodness-of-fit test between the predicted signal and a residual fluctuating around zero counts. In contrast to a maximum likelihood fit, the goal is to minimize the likelihood that a residual fluctuating around zero is able to reproduce the potential \accenns signal, which means the \acfom was maximized.

To identify the optimal cuts, the \acfom needs to be calculated for each possible combination of parameters. This can not be done in a sequential manner, i.e, finding the best parameter choice for one cut, since these cuts interplay on a complex manner. To efficiently find the set of parameters that jointly maximize the \acfom, the range of the parameters explored in this search was limited to

[TABLE]

This amounts to a total of $10\times 4\times 5\times 4\times 5\times 6=$24,000$$ potential cut parameter combinations. The rise-time cut parameter ranges were chosen by looking at Fig. 12 and estimating an equal percentage of signal events being cut in each step.

For all cut combinations the energy and arrival time spectra were calculated for $\mathcal{AC}$ using the $\mathcal{OFF}$ data set in order to determine $\sigma_{\text{i,bg}}$ using Eq. (18). The acceptance function of the Cherenkov and orthogonal rise-time cuts was calculated using the barium calibration (chapter 6). By combining all data cuts into a single overall signal acceptance function, (Eq. (19), the \accenns prediction (Fig. 12) was properly adjusted. Finally, the \acfom was calculated using Eq. (21). The parameter choice which maximizes the \acfom is given by

[TABLE]

In order to ensure that this choice of cut parameters indeed represents the best choice and not simply an artifact in the analysis, the evolution of the \acfom with respect to the choice of $N^{\text{min}}_{\text{iw}}$ and $N^{\text{max}}_{\text{pt}}$ was investigated. All orthogonal rise-time cuts were set to the values quoted in Eq. (23) and the \acfom was created for different $N^{\text{max}}_{\text{pt}}$ and $N^{\text{min}}_{\text{iw}}$. The evolution of the \acfom is shown in Fig. 15. It can be seen that for most choices of afterglow cuts $N^{\text{max}}_{\text{pt}}$ a Cherenkov cut of ${N^{\text{min}}_{\text{iw}}}=8$ results in the highest \acfom. It can also be verified that the \acfom peaks at an afterglow cut of 3 for most Cherenkov cuts. This additional test validates the choice of ${N^{\text{max}}_{\text{pt}}}=3$ and ${N^{\text{min}}_{\text{iw}}}=8$, which were found in Eq. 23.

The overall signal acceptance function associated with this choice of parameters can be calculated using Eq. (19). Throughout this thesis these optimal cut parameters were used to illustrate the analysis. By incorporating all individual acceptances Eq. (19) can be simplified to

[TABLE]

where $\Theta_{\text{H}}$ again represents the Heaviside step function. This acceptance function is shown in black in Fig. 14.

2 First observation of CE$\nu$NS

Once the cut parameters optimizing the signal-to-background ratio had been calculated, these cuts were applied to all of the data sets, i.e., $\mathcal{AC}$ and $\mathcal{C}$ for both $\mathcal{ON}$ and $\mathcal{OFF}$ data sets. Table 4 lists the the total number of events passing all cuts for all data set combinations. The large number of events rejected by the Cherenkov and the afterglow cut are apparent. The rise-time cuts only reject a small amount of the surviving events. The numbers presented in Table 4 include events of all energies. However, \accenns-induced recoils only deposit a small amount of energy in the crystal (lower left panel of Fig. 12). As such it is favorable to focus on events depositing an energy of ${N_{\text{pe}}}\leq$50\text{,}\mathrm{PE}$$ in the crystal. The total number of events passing all cuts in all data sets within this energy region is given by

[TABLE]

Fig. 16 shows the energy and arrival time spectra for all events passing the optimized data cuts. Two additional constraints were used during the projection of the data onto the energy and arrival time spectra. First, only events with an arrival time of $T_{\text{arr}}\leq$6\text{,}\mathrm{\mu!}\text{,}\mathrm{s} were added to the energy spectrum. Second, the energy of events contributing to the arrival time spectrum was limited to ${N_{\text{pe}}}\leq$30\text{\,}\mathrm{PE}, to maximize the contribution from \accenns induced events (Panel C of Fig. 9). The $\mathcal{OFF}$ data is shown on the left of Fig. 16 and the $\mathcal{ON}$ data set is shown on the right.

In the top left panel of Fig. 16 an excess below $15\text{\,}\mathrm{PE}$ is visible for both $\mathcal{AC}$ and $\mathcal{C}$ in the $\mathcal{OFF}$ data set. This feature is caused by steady-state environmental background in coincidence with the \acpot trigger. Without data cuts this excess would monotonically increase for ${N_{\text{pe}}}\rightarrow 0$. However, a peak like feature arises once the Cherenkov and rise-time cuts are applied (Fig. 14). Both $\mathcal{AC}$ and $\mathcal{C}$ show a comparable number of events which leads to a residual fluctuating around zero. The corresponding arrival time spectrum is shown in the lower left of Fig. 16. The slight increase towards earlier arrival times is caused by a small afterglow component from preceding high-energy depositions, introducing a slight bias in the arrival time of the environmental background.

The right panels in Fig. 16 show the energy (top) and arrival time spectra (bottom) corresponding to the $\mathcal{ON}$ data set. A clear excess of $\mathcal{C}$ over $\mathcal{AC}$ is apparent in energy and time, demonstrating the presence of a beam-related signal in the data set. Comparing the raw number of counts found in $\mathcal{AC}$ for both $\mathcal{OFF}$ and $\mathcal{ON}$ periods showed a comparable level of steady-state environmental background for both data sets. As a result, no degradation in the performance of the optimized cut parameters calculated in section 1 is to be expected.

The residual $\mathcal{R}$=$\mathcal{C}$-$\mathcal{AC}$ was calculated for all spectra shown in Fig. 16, which statistically removed all contribution from steady-state backgrounds. The resulting residual spectra are shown in Fig. 17 in black, where the error bars are statistical only. The spectra on the left were calculated using $\mathcal{AC}$ and $\mathcal{C}$ of the $\mathcal{OFF}$ data set, whereas the $\mathcal{ON}$ data is shown on the right. The residuals of the $\mathcal{OFF}$ data fluctuate around zero for both energy and arrival time. This was to be expected as steady-state environmental backgrounds contribute equally to $\mathcal{AC}$ and $\mathcal{C}$ and vanish in the subtraction.

In contrast, the $\mathcal{ON}$ residual data shows a significant excess in both energy and arrival time. The $\mathcal{ON}$ panels also include the \acsm \accenns prediction as calculated by Grayson Rich [81] as stacked green histograms. Similar \accenns predictions were found by the author of this thesis, Juan Collar (University of Chicago) and Kate Scholberg (Duke University). The calculations made by Grayson Rich were adopted in this thesis to be consistent with the result published in [5]. The prediction was scaled to match the neutrino emission expected from a total beam energy delivered on the mercury target of $7.475\text{\,}\mathrm{\text{GWh}}$ (section 1). Rich included most of the secondary corrections that were omitted in chapter 1, such as axial vector couplings and strange quark contributions [81]. However, the small differences in the \accenns cross-section for different neutrino flavors due to their different charge radii were neglected. A small contribution from prompt neutrons is shown in orange in Fig. 17. This beam-related background was calculated in chapter 3. Their arrival time is highly concentrated whereas their energy covers most of the range shown in the top panel. The contribution of prompt neutron induced events to each bin is barely discernible.

The beam-related background caused by \acpnin is omitted in the plot. The reason for this is first, the \acnin event rate (Eq. 4) is approximately 43 times smaller than the \accenns event rate (Eq. 27). Second, the arrival time of \acnin induced events closely follows the $2.2\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}$ profile and is therefore spread out over the full arrival time range shown. Third, the corresponding events cover a large energy range. As a result the \acnin background consists of just $\sim 4$ counts spread over an energy range of $\sim$25\text{,}\mathrm{PE} and an arrival time range of $\sim$6\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}. The \acnin contribution to each individual bin is therefore negligible and omitted.

The excellent overall agreement between residual data and the predicted \accenns signal is apparent. It is further evident that events produced by all three neutrino flavors are necessary to reproduce the experimental data. As \accenns is a neutral-current process this was to be expected. The full prediction model including \accenns, prompt neutrons and \acpnin is described in more detail in the supplementary online materials of [5].

The total number of events found within a two-dimensional energy-arrival time window bounded by ${N_{\text{pe}}}\in[6,30]$ and $T_{\text{arr}}\in[0,6]$\text{,}\mathrm{\mu!}\text{,}\mathrm{s}$$ was calculated to be

[TABLE]

This corresponds to a \accenns event rate of

[TABLE]

There are mainly four factors contributing to the uncertainty of this prediction. First, the uncertainty on the signal acceptance model contributes $\mathcal{O}($5\text{,}\mathrm{\char 37\relax}$)$. Second, the form factor choice has a significant impact on the overall shape of the nuclear recoil spectrum, which leads to an additional $\mathcal{O}($5\text{,}\mathrm{\char 37\relax}$)$ uncertainty. Third, a $\mathcal{O}($10\text{,}\mathrm{\char 37\relax}$)$ uncertainty is associated with the total neutrino flux emitted by the \acsns (section 1). Last, the quenching factor was calculated in chapter 7 carrying a $\mathcal{O}($25\text{,}\mathrm{\char 37\relax}$)$ uncertainty. Assuming all of these uncertainties are independent of one another, the total uncertainty on the \accenns count rate predicted by the Standard Model is $\sim$28\text{,}\mathrm{\char 37\relax}$$.

The simple \accenns model presented in section 1 yields the identical number of events within the energy and arrival time boundaries given above. This further illustrates how well the \accenns cross-section can be approximated by Eq. (1) and the relative insignificance of second-order corrections.

In a recent COHERENT publication [5], Rich further performed a binned, maximum likelihood analysis on the two-dimensional energy (${N_{\text{pe}}}\in[6,30]$\mathrm{PE}) and arrival time ($T_{\text{arr}}\in[0,6]$\text{\,}\mathrm{\mu\!}\text{\,}\mathrm{s}) data of the coincidence region ($\mathcal{C}$) in the $\mathcal{ON}$ data set presented in this thesis. The fit model included \acppdf for \accenns signal, the prompt neutron background, and steady-state environmental backgrounds. No \acpnin were included in this analysis, due to their negligible contributon. The \accenns signal \acpdf was calculated using the same approach as discussed in section 1, with the inclusion of aforementioned second-order corrections to the \accenns cross-section. The \acpdf for prompt neutron induced events was informed by the results presented in chapter 3. The steady-state environmental background \acpdf was calculated using the $\mathcal{AC}$ $\mathcal{ON}$ data. Assuming the expected lack of correlation between energy and arrival time for this background, an analytical model was fit to the energy spectrum after the data was marginalized over arrival time. Likewise, the data marginalized over energy was fitted to an analytical model describing the arrival time. The two-dimensional background \acpdf was constructed by the convolution of both models.

The uncertainties on the prompt neutron rate, the spectral hardness, and quenching factor, were included as a constraints in the likelihood fit. The amplitude of the steady-state background, and its constraint, were determined from the $\mathcal{AC}$ data. The amplitude of the \accenns signal was left unconstrained.

Rich performed this maximum likelihood fit of the $\mathcal{ON}$ residual data derived in this thesis using the RooFit analysis toolkit [51]. The best fit \accenns signal was found to be [5]

[TABLE]

This value is approximately $23\text{\,}\mathrm{\char 37\relax}$ smaller than the \acsm prediction, however it is covered by the $1\sigma$ confidence level of $N^{\text{sm}}_{\text{ce}\nu\text{ns}}=173\pm 48$.

A more simplistic approach to extract the total number of \accenns induced events in the data set is to marginalize over the two-dimensional distributions and to subtract the known background contributions. The total number of events satisfying ${N_{\text{pe}}}\in[6,30]$ and $T_{\text{arr}}\in[0,6]$\text{,}\mathrm{\mu!}\text{,}\mathrm{s}$$ are given by

[TABLE]

In chapter 3 the count rates for the two (prompt neutrons, \acpnin) main beam-related backgrounds were calculated. Recapitulating these rates were found to be

[TABLE]

Scaling these rates with the total beam energy delivered on target ($7.475\text{\,}\mathrm{\text{GWh}}$) yields a total of $6.9\pm 1.7$ counts from prompt neutrons and $4.0\pm 1.3$ counts from \acpnin. As was already discussed in the discussion of beam-related backgrounds (chapter 3) these backgrounds are $\sim 25$ (prompt neutrons) and $\sim 43$ (\acpnin) times smaller than the \acsm prediction of \accenns.

The total number of \accenns events can therefore be approximated by

[TABLE]

The total number of \accenns events determined using this approach agrees well with the number of \accenns events determined using the profile maximum likelihood fit. $N_{\text{ce}\nu\text{ns}}$ is in agreement with the \acsm prediction at the $1\sigma$ level.

Rich and Barbeau further used the maximum likelihood fit to determine the significance of this observation [5]. The alternative hypothesis, i.e., a \accenns signal is present, is favored over the null hypothesis, i.e., \accenns is absent, at the 6.7-$\sigma$ level. This experiment therefore provides ample evidence for the first observation of \aclcenns.

3 Correlation of residual excess and integrated beam energy

To further validate these results the time evolution of the number of residual events $N^{\mathcal{ON}}_{\mathcal{C}}-N^{\mathcal{ON}}_{\mathcal{AC}}$ was investigated by the author of this thesis. Fig. 18 shows the time evolution of the residual counts calculated for both $\mathcal{ON}$ (red) and $\mathcal{OFF}$ (gray) data sets. The accumulated beam energy delivered on target is shown in blue which was normalized to the same vertical scale as the residual axis. The agreement between the increase in residual counts in the $\mathcal{ON}$ data and the total beam energy delivered on the mercury target is evident. In contrast, the $\mathcal{OFF}$ residual only fluctuates around zero. The correlation between beam energy delivered per day and the rate at which $\mathcal{R}$ increases for $\mathcal{ON}$ is also apparent.

The correlation between beam energy and $\mathcal{ON}$ residual excess was further investigated by Joshua Albert (Indiana University) using a Kolmogorov-Smirnov test [97]. He created several test residual distributions using simulated event distributions. The $\mathcal{ON}$ residual as seen in Fig. 18 showed a stronger correlation with the integrated beam power than $96\text{\,}\mathrm{\char 37\relax}$ of all \acmc generated distributions. It is therefore most likely that the excess found in the $\mathcal{ON}$ residual is produced entirely by beam-related events. The correlation between the residual excess in the $\mathcal{ON}$ data set and the integrated beam energy is unmistakable in Fig. 18.

4 Future directions for the analysis using statistical discrimination between electronic and nuclear recoils

In this section it is investigated whether there is any evidence in the \accenns search data that nuclear and electronic recoils can be statistically discriminated using the event rise-times [21]. To this end, the rise-time distributions of all events that passed the optimized data cuts were analyzed by the author of this thesis. The distributions for the $\mathcal{OFF}$ data is shown in Fig. 19, whereas the $\mathcal{ON}$ data is shown in Fig. 20. The $\mathcal{C}$ ($\mathcal{AC}$) data is shown in red (black). The shaded blue region shows the acceptance window of the optimized rise-time cuts used in the \accenns search (section 1).

The rise-time distributions for both $\mathcal{OFF}$ and $\mathcal{ON}$ look similar to those extracted from the ${}^{133}\text{Ba}$ calibration data (chapter 6, Fig. 12). An excess in $\mathcal{C}$ over $\mathcal{AC}$ for the $\mathcal{ON}$ data set can be identified, which is caused by \accenns-induced nuclear recoils.

To investigate the rise-time distributions of the \accenns-induced events only, the residual spectra for $T_{0-50}$ and $T_{10-90}$ were calculated. These residual spectra only contain contributions from nuclear recoils. The resulting rise-time distributions for the $\mathcal{ON}$ data set are shown in Fig. 21. A broad excess in $T_{10-90}$, as well as a narrow excess in $T_{0-50}$ are evident.

The rise-time residuals for the $\mathcal{OFF}$ data show no significant deviation from zero. The average rise-times for \accenns-induced nuclear recoils were calculated from the residual spectra. They are

[TABLE]

where the error quoted is the standard error of the mean.

The expected rise-times for a nuclear and electronic recoil can be calculated using Eq. (5) with fast and slow scintillation decay times for nuclear and electronic recoils as measured in [21]. The rise-times from nuclear and electronic recoils according to Eq. (5) are

[TABLE]

Comparing the rise-times calculated from the residual data with the rise-times calculated using Eq. (5) shows that the current level of statistics is insufficient to discriminate nuclear and electronic recoils. However, the rise-time $T_{0-50}$ measured for the residual spectrum hints at a possible nuclear-electronic recoil discrimination given larger statistics. The CsI[Na] detector is scheduled to continue acquiring data at the \acsns. Consequently the statistics will improve and this might provide an opportunity to discriminate nuclear and electronic recoils on a statistical basis [96].

Chapter 9 Conclusion

Even though the \acfsm cross-section predicted for \acfcenns is the largest of all low-energy neutrino couplings, it had eluded detection for over four decades. This thesis described the efforts of the COHERENT collaboration that resulted in the first observation of \accenns at a $6.7$-$\sigma$ confidence level, using a low-background CsI[Na] detector with a total mass of $14.57\text{\,}\mathrm{kg}$. The detector was located at the \acsns, a stopped pion source at \acornl, where a pulsed proton beam impinges on a liquid mercury target producing $\text{\,}\mathrm{MeV}$ neutrinos. The CsI[Na] was deployed in a sub-basement approximately $20\text{\,}\mathrm{m}$ away from the target. The location provides \sim$$19\text{\,}\mathrm{m} of continuous shielding against beam-related backgrounds and a total of $8\text{\,}\mathrm{\text{m.w.e.}}$ overburden against cosmic-ray induced backgrounds.

Measurements of the beam-related background at the exact detector location found a background rate from prompt neutrons $\sim 25$ times smaller than the expected \accenns signal. The background caused by \acpnin originating in the lead surrounding the CsI[Na] detector was calculated to be $\sim 43$ times smaller than the expected \accenns rate. These low background rates allowed a \accenns search with a high signal-to-background level.

The CsI[Na] crystal and \acpmt assembly showed a large light yield of \mathcal{L}_{\text{csi}}=13.35\frac{\text{SPE}}{\mathrm{\text{keV}_{\text{ee}}}}, which is sufficient to achieve a low energy threshold. The light collection efficiency was further found to be uniform throughout the whole crystal, greatly simplifying the overall analysis.

To calibrate the analysis pipeline a library of low-energy radiation-induced events with a total energy below a few tens of \acpe was recorded using a ${}^{133}\text{Ba}$ source. Given the small difference in the scintillation decay times of nuclear and electronic recoils in CsI[Na], this library provides close replicas of the detector response to \accenns-induced nuclear recoils. It enables calculating the signal acceptance fraction for several data cuts employed in the \accenns search. The purposes of these data cuts is to reject certain spurious backgrounds, such as Cherenkov light emission in the PMT window, or random groupings of dark-current photoelectrons.

In order to calculate the expected \accenns signal rate in the CsI[Na] detector, the total energy carried by a \accenns-induced nuclear recoil has to be properly converted into an electron equivalent energy. This conversion makes use of the quenching factor. To reduce the uncertainty associated with the quenching factor, additional measurements were performed at \actunl. These measurements focused on nuclear recoils with an energy of a few $\text{\,}\mathrm{\text{keV}_{\text{nr}}}$ to a few tens of $\text{\,}\mathrm{\text{keV}_{\text{nr}}}$, covering the energy region expected for \accenns-induced nuclear recoils at the \acsns.

The CsI[Na] detector was deployed at the \acsns in June 2015. Since then data was acquired almost continuously at a $60\text{\,}\mathrm{Hz}$ acquisition rate. The \accenns search described in this thesis includes all data acquired between June 25th, 2015 and May 26th, 2017. Detector stability measurements show an excellent performance of the setup over the full two years of data taking, with only minor exceptions. Using data from time periods during which the \acsns did not produce any neutrinos, an optimized set of data cuts was calculated that maximizes the \accenns signal-to-background ratio. Excesses in energy and event arrival time are observed for neutrino production periods only, which are in agreement with signatures predicted by the \acsm for \accenns. The presence of a \accenns signal is favored at a $6.7$-$\sigma$ confidence level over the null hypothesis of environmental background only. The observed \accenns rate is further compatible with the \acsm \accenns cross-section at the $1$-$\sigma$ level. The signal rate was further found to be closely correlated to the integrated beam energy delivered on the mercury target, which itself determines the total number of neutrinos produced. This indicates that the measured excess is strictly beam-related.

This observation confirms the coherent enhancement of the neutrino-nucleus scattering cross-section in cesium and iodine at low momentum transfers and substantiates an analogous enhancement in \acwimp-nucleus scattering. It also provides confidence in the accuracy of \accenns cross-sections used in neutrino-floor calculations for \acwimp searches as well as supernova calculations.

The CsI[Na] detector remains at the \acsns and continues to acquire data. The \acsns is expected to increase its power output in the near future. During August 2017 the \acsns already operated at $\sim$1.2\text{,}\mathrm{MW} resulting in an increase in neutrino production of $\sim20\text{,}\mathrm{\char 37\relax}$ compared to earlier months of 2017. A higher beam power is beneficial as it directly increases the \accenns rate in the CsI[Na], whereas the environmental background rate remains the same. As such the expected signal-to-background ratio also increases with beam power. Combining the analysis presented in this thesis with new CsI[Na] data will therefore result in a \accenns cross-section measurement with much lower uncertainties.

The COHERENT collaboration aims to measure \accenns for multiple targets. In addition to the CsI[Na], the collaboration currently operates a $28\text{\,}\mathrm{kg}$ single-phase \aclar detector as well as $185\text{\,}\mathrm{kg}$ of NaI[Tl]. A planned expansion includes a 2 ton NaI[Tl] array, a $\sim$1 ton \aclar detector and $\sim$20\text{,}\mathrm{kg}$$ of p-type point contact germanium detectors. The precision measurements expected from these detectors enable the COHERENT collaboration to pursue new neutrino physics opportunities in the future.

\printacronyms

[name=Abbreviations]
