Photonic Anomalous Quantum Hall Effect

TL;DR

This paper demonstrates a photonic analogue of the anomalous quantum Hall effect using a 2D array of coupled ring resonators, revealing topologically protected edge states and phase transitions relevant for advanced photonic devices.

Contribution

It introduces a novel photonic system that mimics the anomalous quantum Hall insulator, including topological phase control and pseudospin-dependent edge states.

Findings

Realization of topologically robust edge states in photonic resonator arrays

Observation of a topological phase transition via frequency detuning

Pseudospin-dependent propagation of edge states

Abstract

We experimentally realize a photonic analogue of the anomalous quantum Hall insulator using a two-dimensional (2D) array of coupled ring resonators. Similar to the Haldane model, our 2D array is translation invariant, has zero net gauge flux threading the lattice, and exploits next-nearest neighbor couplings to achieve a topologically non-trivial bandgap. Using direct imaging and on-chip transmission measurements, we show that the bandgap hosts topologically robust edge states. We demonstrate a topological phase transition to a conventional insulator by frequency detuning the ring resonators and thereby breaking the inversion symmetry of the lattice. Furthermore, the clockwise or the counter-clockwise circulation of photons in the ring resonators constitutes a pseudospin degree of freedom. We show that the two pseudospins acquire opposite hopping phases and their respective edge states propagate in opposite directions. These results are promising for the development of robust reconfigurable integrated nanophotonic devices for applications in classical and quantum information processing.

Figures

Equations

$$H$$

Full text

Photonics has emerged as a versatile platform to explore model systems with nontrivial band topology, a phenomenon originally associated with condensed matter systems Lu et al. (2014); Ozawa et al. (2019). For example, photonic systems have realized analogues of the integer quantum Hall effect Raghu and Haldane (2008); Wang et al. (2009); Hafezi et al. (2011, 2013); Mittal et al. (2014), Floquet topological insulators Rechtsman et al. (2013); Minkov and Savona (2016); Maczewsky et al. (2017); Mukherjee et al. (2017), quantum spin-Hall and valley-Hall phases Khanikaev et al. (2013); Cheng et al. (2016); Ma and Shvets (2016); Gao et al. (2018); Noh et al. (2018), as well as topological crystalline insulators Wu and Hu (2015); Barik et al. (2018); Shalaev et al. (2019). From an application perspective, the inherent robustness of the topological systems has enabled the realization of photonic devices that are protected against disorder, such as optical delay lines Hafezi et al. (2013); Mittal et al. (2014), lasers St-Jean et al. (2017); Bahari et al. (2017); Bandres et al. (2018), quantum light sources Mittal et al. (2018), and quantum-optic interfaces for light-matter interactions Barik et al. (2018). At the same time, features unique to bosonic systems, such as the possibility of introducing gain and loss into the system Rudner and Levitov (2009); Zeuner et al. (2015); Leykam et al. (2017); Yao and Wang (2018); Gong et al. (2018), parametric driving, and squeezing of light Peano et al. (2016, 2016); Shi et al. (2017); Mittal et al. (2018), have provided an opportunity to explore topological phases that cannot be realized in fermionic systems.

Despite these advances, there has not yet been a nanophotonic realization of the anomalous quantum Hall phase – a two-dimensional Chern insulator with zero net gauge flux Haldane (1988); Kane and Mele (2005). This is noteworthy because the various topological phases differ significantly in the origin of non-trivial band topology, and therefore offer different forms of topological protection. For instance, topological edge states in valley-Hall and topological crystalline insulator lattices manifest on internal boundaries between “opposite” domains instead of external edges Ma and Shvets (2016); Wu and Hu (2015), and are protected only against certain boundary deformations (e.g., 120∘ bends but not 90∘ bends) Ma and Shvets (2016); Wu and Hu (2015). The quantum Hall and anomalous quantum Hall phases, by contrast, are significantly more robust: topological edge states can appear along external edges, and are protected irrespective of the lattice shape. Moreover, whereas the quantum Hall phase requires a non-zero net gauge flux Hafezi et al. (2011, 2013); Mittal et al. (2014), the anomalous quantum Hall phase can occur in a periodic lattice with zero net flux. The translational invariance of anomalous Hall lattices is an advantage, because a topological-to-trivial phase transition can be induced simply by introducing on-site potentials Haldane (1988).

In this work, we demonstrate a nanophotonic analogue of the anomalous quantum Hall system using a periodic 2D checkerboard lattice of coupled ring resonators with nearest and next-nearest neighbor couplings. As proposed in Ref. Leykam et al. (2018), the tight-binding description of the photonic lattice is similar to the Haldane model Haldane (1988), in that the net gauge flux threading the lattice is zero, but next-nearest neighbor couplings induce non-zero local gauge flux. This effectively breaks time reversal symmetry and creates a topologically nontrivial band gap. We directly image the light intensity distribution in the lattice, revealing topological edge states in this gap that are robust against missing-site defects and propagate around 90∘ corners without any scattering into the bulk. Because the overall structure is time-reversal invariant, it hosts a pseudospin degree of freedom associated with the clockwise and the counter-clockwise (time-reversed) propagation of photons in the rings. By selective excitation of the pseudospins, we show that time-reversal invariance is effectively broken within each decoupled pseudospin sector, similar to the Kane-Mele quantum spin Hall model with no Rashba coupling Kane and Mele (2005), and the edge states associated with the two pseudospins propagate in opposite directions. Furthermore, we demonstrate a transition between topologically nontrivial and trivial phases by simply detuning the ring resonance frequencies, and observe edge states at an internal boundary between the two phases. We note that the system is periodic and does not require staggering the phases of the couplings, unlike the coupled-resonator system of Refs. Hafezi et al. (2011, 2013); Bandres et al. (2018) which realizes the integer quantum Hall effect. These features are highly promising for the development of topological nanophotonic devices that can be dynamically reconfigured via optical, electrical, or thermal pumping Shalaev et al. (2018); Leykam et al. (2018). Reconfigurability of topological systems has been demonstrated at microwave frequencies Cheng et al. (2016), but is yet to be achieved in the optical regime.

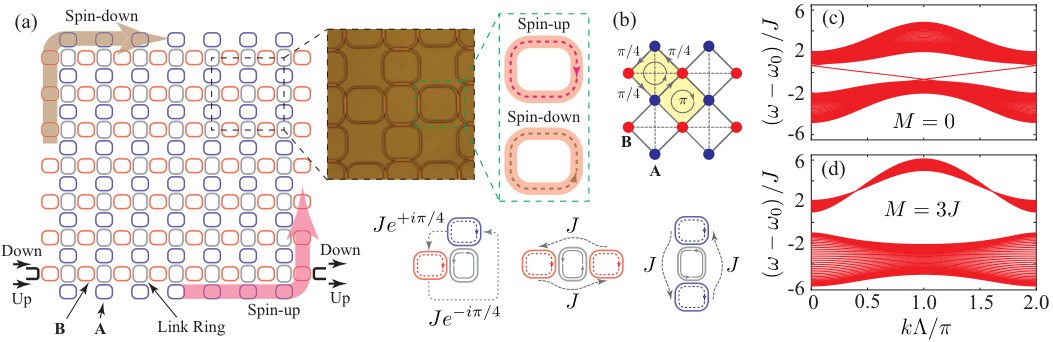

Our system, shown in Fig. 1(a), consists of two interposed square lattices of ring resonators, with respective sites labelled A and B Leykam et al. (2018). These site-ring resonators are coupled to their neighbors and also next-nearest neighbors using another set of rings, the link rings. The resonance frequencies of the link rings are detuned from those of the site-rings by one half free-spectral range by introducing an extra path-length such that the round-trip phase at site-ring frequencies is $\pi$ Hafezi et al. (2011, 2013). Therefore, the link rings introduce a direction-dependent hopping phase $\pm\pi/4$ when the photons hop from one lattice site to their nearest neighbors, while the hopping phase for next-nearest neighbors is zero (Fig.1(a)). As a result, the local effective magnetic flux (gauge flux) threading a plaquette (of two A and two B site rings) is $\pm\pi$, whereas the net flux threading a unit cell (of two plaquettes) is zero (Fig.1(b)). This staggered flux arrangement, originally conceived by Haldane, effectively breaks time-reversal symmetry and gives rise to an anomalous quantum Hall phase without Landau levels Haldane (1988).

The photonic lattice is time-reversal invariant, and supports a pseudospin (up or down) degree of freedom associated with the circulation direction (clockwise or counter-clockwise) of photons in the site-ring resonators (Fig.1(a)). The two pseudospins are time-reversed partners, and thus identical in terms of their coupling constants and resonance frequencies. Therefore, they realize two copies of the anomalous Hall phase Kane and Mele (2005). However, they differ in the hopping phase between nearest-neighbors, which indicates that time-reversal symmetry is effectively broken for each pseudospin. Specifically, if the hopping phase for the pseudospin-up is $+\pi/4$, the corresponding phase for the pseudospin-down is $-\pi/4$. The tight-binding Hamiltonian describing the system is Leykam et al. (2018)

[TABLE]

Here, $a_{i,\sigma},b_{i,\sigma}$ are the annihilation operators corresponding to site rings A and B, respectively, at lattice site index $i=\left(x,y\right)$. $\sigma=\pm 1$ is the pseudospin index for the up/down spins, respectively. $J$ is the coupling strength between nearest and the next-nearest neighbor sites, and $\phi_{i,j}=\pm\pi/4$ is the direction-dependent hopping phase between sites A and B, as shown in Fig. 1(a). We include a frequency detuning $M$ between the A and B site rings. When $M<2J$, the lattice band structure hosts a topological band gap, occupied by unidirectional, topologically-robust edge states (Fig. 1(c)). By contrast, when $M>2J$, the lattice is topologically trivial and the edge states are absent (Fig. 1(d)). Furthermore, because of the spin-dependent hopping phase, the edge states corresponding to the two spins propagate around the lattice in opposite directions. With the two pseudospins decoupled, this is similar to the Kane-Mele model of the quantum spin Hall effect Kane and Mele (2005). We note that in our system the nearest and next-nearest neighbor couplings have the same strength $J$. Because the width of the topological band gap is dictated by the next-nearest neighbor couplings, the topological band width in our system is of the order of the coupling strength, unlike the Floquet systems where the width of the topological band is limited by the frequency of modulation Rechtsman et al. (2013).

We used the silicon-on-insulator platform to realize our topological system Hafezi et al. (2013); Mittal et al. (2014, 2016). This platform is compatible with the existing CMOS fabrication process and works at telecom wavelengths. The ring resonator waveguides are 510 nm wide and 220 nm high, and support a single transverse-electric (TE) mode. The coupling gap between resonators is 180 nm, with coupling strength $J$ estimated to be $15.6(4)\,\text{GHz}$. To probe the lattice we couple input and output waveguides as shown in Fig. 1(b). Specifically, we couple a tunable, continuous-wave laser at the input port and measure the power transmission at the output port. We use a microscope objective to collect photons scattered by the ring resonator waveguides. This allows us to directly image the path followed by light in the lattice as we tune the input wavelength. Furthermore, by choosing the input and the output ports, we can selectively excite and measure a given pseudospin. The use of directional couplers and low back-scattering in the resonator waveguides ensures that mixing between the two pseudospins is negligible.

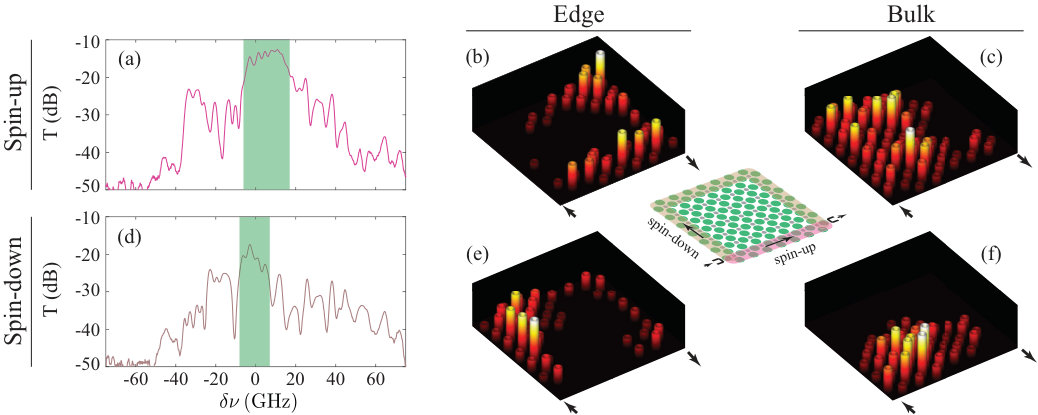

To observe topological edge states, we fabricated an array of 56 A resonators and 56 B resonators, as shown schematically in Fig. 1(a). For this device we choose $M=0$, that is, the A and B resonators are identical, corresponding to the non-trivial topological phase. Fig. 2(a) shows the measured transmission spectrum at the lattice output for the pseudospin-up excitation. We observe high transmission near the frequency detuning $\delta\nu\approx 0$. Fig. 2(b) shows the measured spatial intensity profile at $\delta\nu\approx 0$, integrated over a frequency range of $5$ GHz. The light is confined to the lattice edge and propagates around the lattice in a counter-clockwise direction. Furthermore, the light travels around two sharp $90^{o}$ bends without scattering into the bulk of the lattice. This shows that this high-transmission region around $\delta\nu\approx 0$ is indeed the topological edge band. The decrease in light intensity as it propagates along the edge is mainly due to scattering losses in the resonator waveguides. By contrast, when we excite the lattice outside this band, for example at $\delta\nu\approx-20$ GHz, the spatial intensity distribution occupies the bulk of the lattice, as shown in Fig. 2(c). Moreover, the spatial intensity profile in the bulk band is sensitive to even small changes in the excitation frequency whereas the intensity profile in the edge band is relatively constant throughout the edge band. Note that the circulation direction (CCW) around the lattice is opposite to the circulation direction (CW) in the site ring resonators.

This observation of topological edge states is also a demonstration of their robustness against fabrication-induced disorder. Although the fabrication was performed at a state-of-the-art commercial foundry (IMEC, Belgium), there is significant disorder in the ring resonance frequencies $\left(\Delta U\right)$, which we measured to be around $33\,\text{GHz}$, comparable to the band gap width of around $2J=32\text{GHz}$.

Next, we probe the spin-polarized nature of the topological edge states by exciting the lattice with the pseudospin-down. Fig. 2(d) shows the resulting transmission spectrum. The measured spatial intensity profile at $\delta\nu\approx 0$ reveals an edge state which now propagates around the lattice in a clockwise direction (Fig. 2(e)). Again, the edge state intensity is confined to the physical edge of the lattice. The transmission at $\delta\nu\approx 0$ is approximately 5 dB lower than in the pseudospin-up case, because the edge state for the pseudospin-down travels a much longer path between the input and output couplers. At frequencies outside the band gap, we again see scattering into the bulk (Fig. 2(f)).

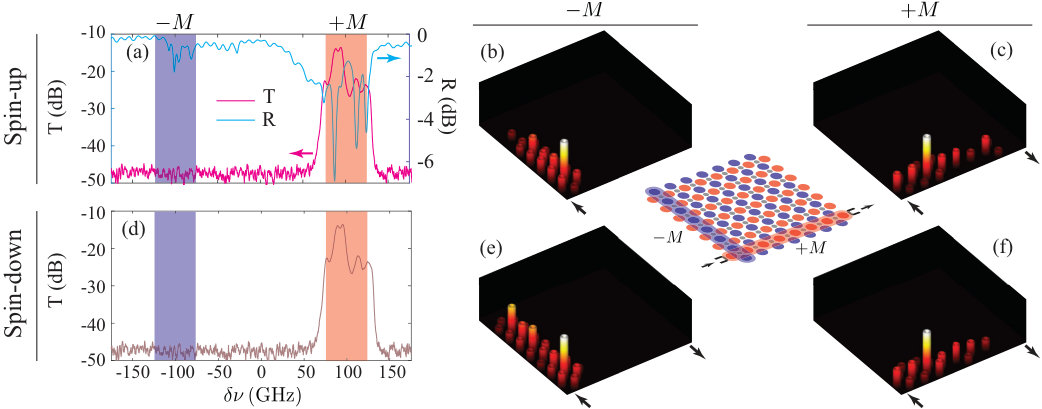

To demonstrate the existence of a topological phase transition, we fabricated another device with sublattice detuning $M\approx 98$ GHz, significantly larger than the transition threshold of $2J\approx 31\text{GHz}$. This detuning is achieved by increasing (decreasing) the length of the A (B) ring resonators by 30 nm, which red (blue) shifts their resonance frequencies and results in a non-zero value of $M$. Fig. 3(a) shows the measured transmission spectrum at the output, for the pseudospin-up input. We observe almost negligible transmission at $\delta\nu=0$, indicating the absence of any transmitting channels in the bandgap. There is a single transmission band at $\delta\nu\approx M\approx 100\,\textrm{GHz}$. The measured spatial intensity distribution at $\delta\nu=100\,\textrm{GHz}$, shown in Fig. 3(c), reveals only a few B rings (which are resonant with the input frequency) are excited near the input port. In this regime, the A and B rings are very weakly coupled due to the large resonance frequency mismatch. The transmission is negligible at $\delta\nu=-100~{}\text{GHz}$ (the resonance frequency of the A rings) because the input and output ports are coupled to B rings. A small amount of absorption by the A rings is visible in the reflection spectra shown in Fig. 3(a), and in the spatial intensity profile of Fig. 3(b). More importantly, we find that flipping the spin of excitation does not affect the transmission spectrum or the spatial intensity profile, as shown in Fig. 3(d-f); this confirms the lattice is topologically trivial.

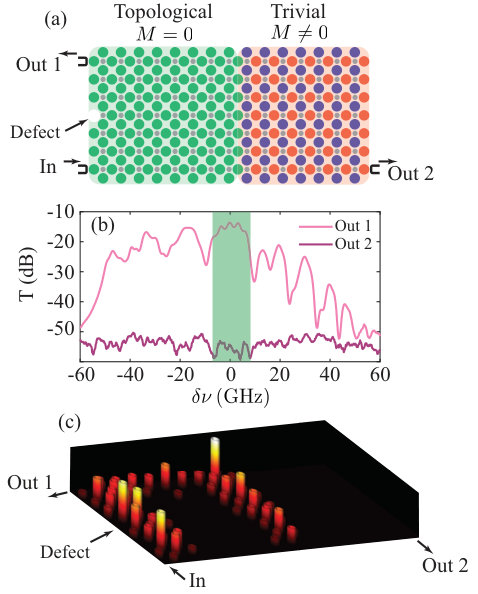

To verify that the edge states are not artifacts of the physical lattice boundary, we fabricated a device with an interface between a topological lattice $\left(M=0\right)$ and a trivial lattice $\left(M\approx 98\,\text{GHz}\right)$, shown in Fig. 4(a). We place an input port on one edge of the topologically nontrivial domain and monitor two output ports on the edges of the nontrivial and trivial domains. The measured transmission spectra at the two output ports, with the pseudospin-down excitation, are shown in Fig. 4(b). At frequencies within the bandgap of the nontrivial domain (highlighted in Fig. 4(b)), we observe edge states propagating clockwise around the nontrivial domain (Fig. 4(c)). These edge states then follow the “internal” domain boundary, and do not enter the topologically trivial domain; accordingly, negligible transmission is observed at the output port in the trivial domain. As a further test of robustness, we deliberately removed one site-ring resonator from the edge of the topologically nontrivial domain, as indicated in Fig. 4(a) and (c). The edge state routes around the defect, without scattering into the bulk. We emphasize that this topological protection is superior to recently-demonstrated crystalline symmetry-protected and valley Hall topological edge states, which are sensitive to symmetry-breaking disorder Barik et al. (2018); Gorlach et al. (2018); Noh et al. (2018); He et al. (2019); Shalaev et al. (2019).

To summarize, we demonstrated topologically robust edge states in a nanophotonic analogue of the anomalous quantum Hall effect, using a periodic 2D lattice of ring resonators with zero net gauge flux. We showed a topological-to-trivial phase transition, induced by relatively small detunings of the ring resonance frequencies. In the future, this phase transition can be utilized for robust routing and switching of light in integrated photonic devices Leykam et al. (2018). Specifically, the silicon photonics platform can easily include active components, such as metal heaters Mittal et al. (2016) or electro-optic modulators Reed et al. (2010) to dynamically tuning the ring resonances. Moreover, the large Kerr nonlinearity of silicon could be leveraged for robust, optically-reconfigurable light routing, and to explore the behavior of topological states in a nonlinear regime.
