Controlling for Biasing Signals in Images for Prognostic Models: Survival Predictions for Lung Cancer with Deep Learning

TL;DR

This paper introduces a deep learning approach that uses causal modeling techniques to improve the accuracy and unbiasedness of lung cancer prognosis predictions from CT scans by accounting for confounding factors.

Contribution

It proposes a novel method combining deep learning with causal inference to control for biasing signals in medical images for prognosis prediction.

Findings

Unbiased prognosis predictions are achievable when the collider is quantified.

Dual-task training improves the model's ability to account for confounding factors.

Enforcing independence of last layer activations reduces bias in predictions.

Abstract

Deep learning has shown remarkable results for image analysis and is expected to aid individual treatment decisions in health care. To achieve this, deep learning methods need to be promoted from the level of mere associations to being able to answer causal questions. We present a scenario with real-world medical images (CT-scans of lung cancers) and simulated outcome data. Through the sampling scheme, the images contain two distinct factors of variation that represent a collider and a prognostic factor. We show that when this collider can be quantified, unbiased individual prognosis predictions are attainable with deep learning. This is achieved by (1) setting a dual task for the network to predict both the outcome and the collider and (2) enforcing independence of the activation distributions of the last layer with ordinary least squares. Our method provides an example of combining deep learning and structural causal models for unbiased individual prognosis predictions.

Figures

Tables

Table 1. Table 1: Parameters for sampling images and modeling outcome data. For each observation i 𝑖 i , an image was drawn from the total pool of images with the closest x i subscript 𝑥 𝑖 x_{i} and z i subscript 𝑧 𝑖 z_{i} . This ensures the required association between factors of variation in the image and the simulated outcome data

	variable	variable model
$u_1$	aggressiveness	$N(0,0.7071)$
$u_2$	fitness	$N(0,0.7071)$
$z$	heterogeneity	$N(0,1)$
$x$	size	$N(u_1-u_2;0.05)$
$t$	treatment	$Bern\left(logit\left(N(1.828u_2-0.5,0.25)\right)\right)$
$y$	survival	$N(t-z-2u_1-0.5;0.05)$

Table 2. Table 2: Results: Mean squared error for survival ( M ​ S ​ E y 𝑀 𝑆 subscript 𝐸 𝑦 MSE_{y} ) along with estimated Average Treatment Effect ( A ​ T ​ E 𝐴 𝑇 𝐸 ATE ). The linear regression metrics are the expected outcomes according to whether or not the model conditions on the collider x 𝑥 x . Regression* is the optimal value for our setup: (1) predicting the outcome based on relevant prognostic information from the image while (2) retaining a valid estimate of the treatment effect. All metrics were calculated on the validation set

model	variables	$MS{E}_y$	$ATE$
Regression	$t$	2.74	1.01
Regression	$t,x^{\prime },z^{\prime }$	1.35	0.42
Regression*	$t,z^{\prime }$	2.07	1.01
BiasedNet	$t,image$	1.72	0.41
CausalNet	$t,a_j^k\left(j>1\right)$	2.00	0.99

Equations

$$L_y=\frac{1}{m}\sum _{i=1}^m(\hat{y}-y{)}^2$$

$$L_x=\frac{1}{m}\sum _{i=1}^m(a_1^k-x{)}^2$$

$$L_{reg}:=max(0,MSE(\bar{x},x)-MSE({\hat{x}}^{reg},x))$$

$$L=L_y+L_x+L_{reg}$$

Full text

Introduction

Deep learning has many possible applications in health care, especially for tasks including unstructured data such as medical images. Convolutional neural networks (CNN) are especially attractive for supervised tasks as they can be optimized end-to-end, and may detect patterns in the images that are relevant to the prediction task, but may be unknown to medical professionals. A downside is that the induced representations of the network are hidden and not readily interpretable, though visualization techniques are being developed. A much sought after holy grail of artificial intelligence is to attain personalized treatment decisions through individual prognosis prediction and individual treatment effect estimation. This is a causal question, and answering it requires techniques from causal inference [1]. A pivotal result from causal inference is that when the structural causal model underlying the data-generating mechanism is known, identifiability and estimands of causal queries can be deduced from the Directed Acyclic Graph (DAG), which represents the known causal relationships between relevant variables.

Images and DAGs

The connection between medical images and a DAG is not always straightforward to see. Fundamentally, patient outcomes are driven by biological processes, and images may contain (more or less noisy) views of these processes. For example, a particularly aggressive lung tumor may grow very large, as can be seen on a CT-scan, and this biological behavior leads to a worse expected survival. These biological processes can be seen as underlying factors of variation that cause the image in the sense of structural causal models. Conversely, information derived from medical images is often used to make treatment decisions. Here, the image is a causal factor for treatment selection. In general, when a deep learning network is used to predict a certain clinical outcome, it will use all information in an image that is $statistically$ associated with that outcome. Predicting an outcome with deep learning based on an image can be seen as conditioning on (noisy views of) causal factors of variations of these images. Medical images, especially images from large body parts such as a chest CT-scan in the case of lung cancer, may contain many different factors of variation that can have different ’roles’ in the DAG. Notably when a specific factor of variation represents a collider in the DAG, conditioning on the image by using a deep learning model may introduce bias in the estimation of causal effects.

Problem setup

We describe a fictional but realistic clinical scenario where the following conditions hold: (1) There exists a clinical need for outcome prediction (2) This outcome partly depends on treatment, and an unbiased estimate of the treatment effect is required (3) The DAG describing the data-generating process is assumed to be known (4) An image is hypothesized to contain important information for the task in (1), however, one of the factors of variation causing the image represents a collider in the DAG. Conditioning on this collider will lead to a biased estimate of (2) (5) The collider can be measured from the image (6) Deep learning is used to optimally predict (1). We stress that this poses a conflicting problem: ’simply’ using deep learning to predict the outcome based on the image may lead to a low prediction error of the outcome in the observational setting, but it will lead to bias in the estimated effect of treatment, as it conditions on a collider. This means that it does not give accurate predictions in the setting where we intervene on treatment, the predictions are only valid when treatment was assigned according to the regular clinical care through which the data where gathered. On the other hand, ignoring the image all together will lead to worse prediction error. Our contribution is that we show that by utilizing a multi-task prediction scheme for both the outcome and the collider, accompanied by an additional loss term to induce independence between final layer activations, we can satisfy both (1) the supervised prediction task and (2) attain an unbiased estimate of the treatment effect. For clarity in notation, we will reserve the term prediction error for performance on the supervised prediction task (e.g. accuracy of predicted survival time). With bias we will refer to difference between the expectation of the estimated treatment effect and the data-generating mechanism.

Methods

Clinical case

The proposed clinical case concerns the treatment of lung cancer. Optimal treatment selection for lung cancer patients is a challenging problem: depending on the disease stage, patients receive (combinations of) chemotherapy, surgery, or recently, immunotherapy or targeted therapy [2]. Some patients will be cured, while others only endure invalidating side-effects. Personalized treatment decisions may be aided by estimating the individual prognosis of a patient for the different modes of treatment that are available. Medical scans provide important information for diagnosing and staging lung cancer, but may also provide this prognostic information. Deep learning is particularly attractive to analyse these scans, as these models may discover new, previously unused prognostic factors or treatment effect modifiers.

Data generating mechanism

In our experiments we use a real-world data set of lung cancer scans from the Lung Image Database Consortium image collection (LIDC [3]). These 1018 scans each contain lung nodules ($N=2609$) suspected of lung cancer. Up to 4 radiologists segmented the nodules on each consecutive image slice, resulting in accessible measurements of the nodule sizes. A CT-scan measures radiodensity, and tissues may exhibit different density-patterns. Heterogeniety in radiodensity is known to be associated with worse biologic aggressiveness and survival [4]. We used nodule size and the variance of radiodensity in a simulated binary treatment and real-valued outcome model. Figure 1 and Table 1 illustrate the following hypothetical narrative:

There exist two possible treatments for lung cancer: $t\in\{0,1\}$, where $t=1$ is deemed more aggressive and also more effective. An unobserved noise variable $u_{2}$ influences treatment allocation: people who appear to be in better overall health, as per subjective judgement of the physician, will have a higher probability of being treated with $t=1$. At the same time they generally have a better functioning immune system. The immune system combats the lung cancer, leading to a lower tumor size ($x$). Another unobserved noise variable $u_{1}$ represents the tumor biologic aggressiveness. High aggressiveness leads to a bigger tumor and negatively impacts the overall survival. We emphasize that the tumor size ($x$) is a pre-treatment collider according to this causal graph. A third noise variable, variance of radiodensity ($z$), is a prognostic factor unrelated to the treatment, but related to the outcome. Tumors with high variance in radiodensity are more aggressive and lead to reduced survival.

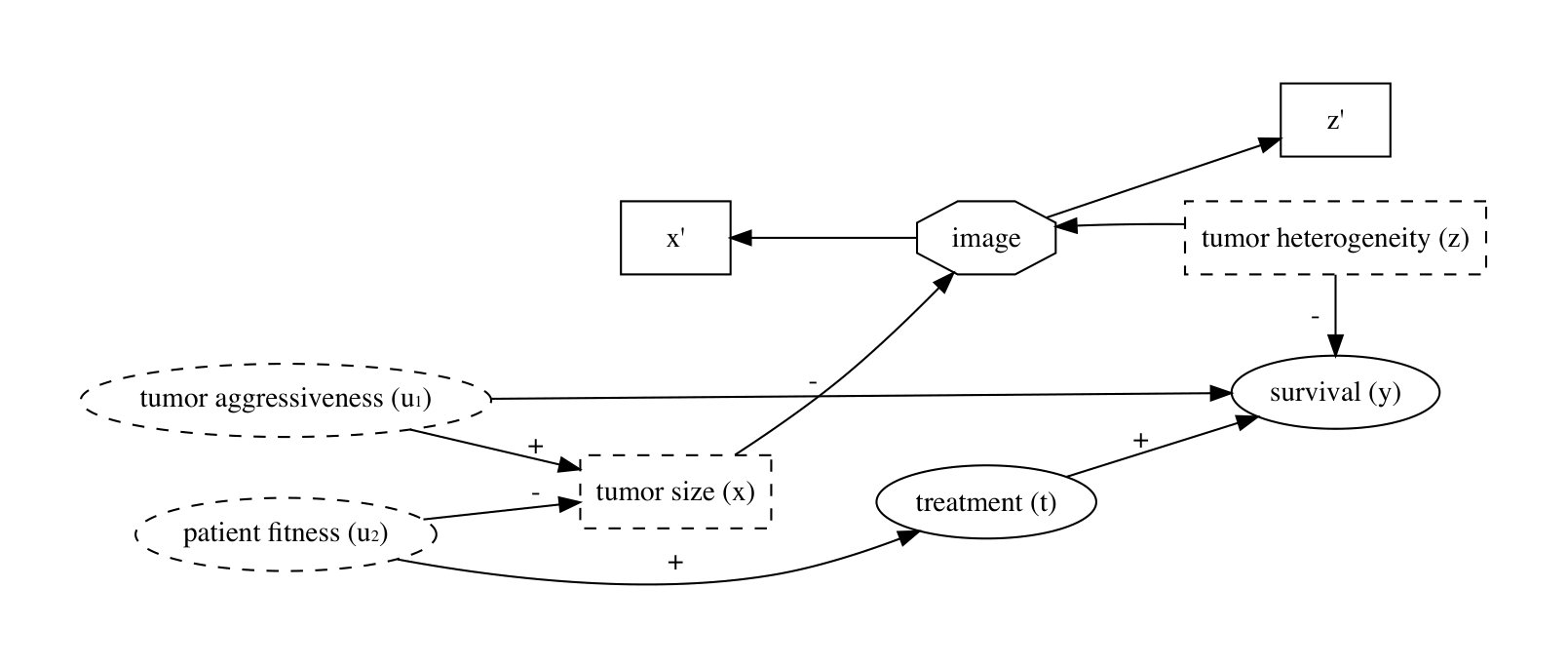

This situation leads to a conundrum. As can be seen from the DAG, the marginal average treatment effect is identified by $ATE=E[p(y|t=1)-p(y|t=0)]$. The conditional treatment effect is not identified when conditioning the entire image, which is a descendant of both $x$ and $z$. Conditioning on $x^{\prime}$ (the tumor size as measured in the image), corresponds to partly conditioning the collider $x$. This will induce dependence between $u_{1}$ and $u_{2}$, thereby opening a confounding path from $t$ to $y$ and violating of the backdoor criterion [1]. Using a convolutional neural network to predict $y$ without regard for the biasing effect of conditioning on the collider will lead to a biased estimate of the treatment effect. Disentangling the factors of variation in the image to only utilize image information that not related to the collider would enable an unbiased estimate of the $ATE$, which is the goal of this study.

Modeling

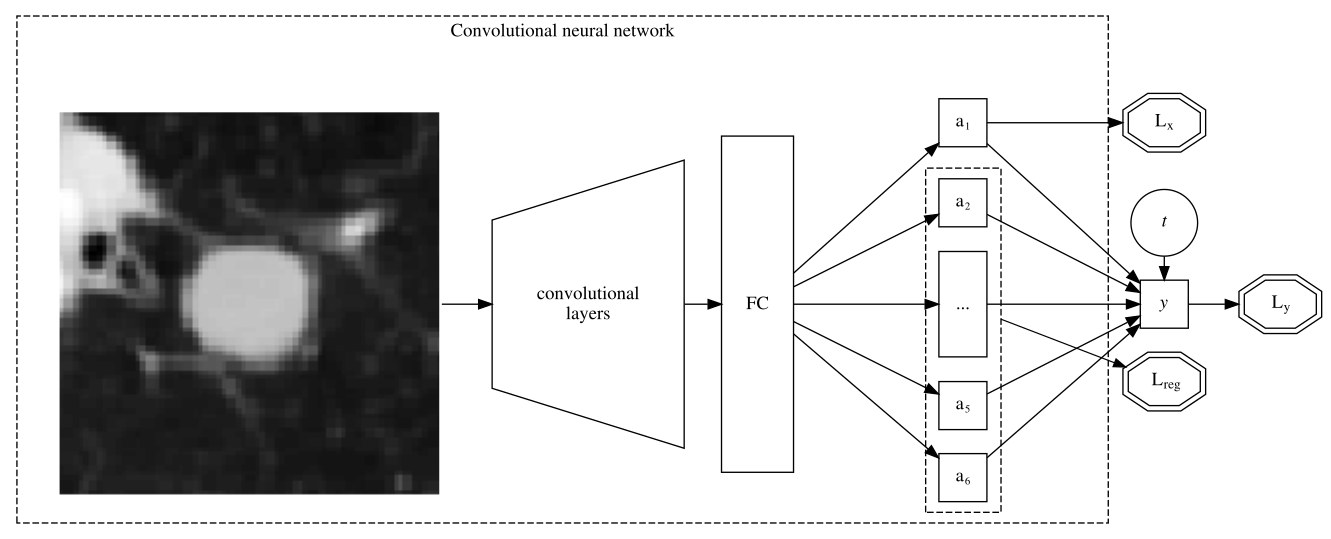

Our method revolves around two central notions:

1. Utilizing the resemblance of the final layer of a CNN with linear regression
2. Separating the contributions of different factors of variation during training, to enable ablation after model convergence. For each patient we have three observed quantities: $x_{i},y_{i}\in{\rm I\!R}$ and $t_{i}\in\{0,1\}$. Following standard practice for predicting a continuous real outcome with deep learning, the last layer of the CNN resembles linear regression where $\hat{y}=\beta_{0}+\beta_{t}t+\sum_{j=1}^{N_{k}}{\beta_{j}^{k}a_{j}^{k}}$, with $a_{j}^{k}$ the $N_{k}$ activations of the final layer of a $k$-layer CNN, $t$ the binary treatment indicator and $\beta_{0}$ an overall intercept. Indices for samples are omitted for clarity. Note that $\beta_{t}$ is the estimated average treatment effect ($ATE$). The standard minibatch mean squared error is used for $y$:

[TABLE]

where $m$ the minibatch size. During training we force a single activation of the last layer to be the best possible approximation of the collider: $a_{1}^{k}\approx x$. At the same time we restrain the other last layer activations $\{a_{j}^{k},j>1\}$ to be linearly independent of $x$. Note that this is a light constraint based on the prior knowledge represented in the DAG, namely that $x$ is a scalar and $x$ and $z$ are independent. We argue that after model convergence, we can fix all CNN parameters and do a single ordinary least squares on $\{a_{j}^{k}\cup t,j>1\}$ to get a valid estimate of the treatment effect with $\beta_{t}$, as this separates out the biasing effect of the collider, which is ’contained’ in $a_{1}^{k}$. To attain this, we add a dual target for the collider $x$:

[TABLE]

This encourages the model to have a single activation in the last layer to approximate the collider $x$. Both losses are synergistic, as predicting $x$ will improve $L_{y}$ since $x$ and $y$ are statistically associated. At each training step, a prediction $\hat{x}^{reg}:=\beta_{0}^{reg}+\sum_{j=2}^{N_{k}}{\beta_{j}^{reg}a_{j}^{k}}$ is made by fitting $\mathbf{\beta}^{reg}$ with ordinary least squares regression on the minibatch. The $MSE$ of this regression represents how well $x$ can be predicted from a linear combination of the last layer activations $\{a_{j}^{k},j>1\}$. This is compared to the $MSE$ of predicting $x_{i}$ with $\bar{x}$, the mean of $x$ of that minibatch. When predicting $x$ from $\{a_{j}^{k},j>1\}$ is no better than using the mean of $x$, we pose that these activations are sufficiently independent from $x$. Whenever the regularizing $MSE$ is lower than this mean approximation, this difference is added to the total loss.

[TABLE]

The total loss is the direct sum of these losses.

[TABLE]

Training was continued until convergence or overfitting, as assessed by an increase in total loss on an independently simulated validation set with different images than in the training set. After convergence, all CNN parameters were fixed and the final layer activations calculated for each image. A linear regression of $y$ was fitted on $\{a_{j},t;1<j\leq N_{k}\}$ resulting in a final model, dubbed ’CausalNet’.

Experiments

Observations were generated by sampling noise variables from the appropriate distributions, and dependent variables according to the structural causal model in Table 1. For each patient $i$ with $x_{i},z_{i}$, an image was drawn from the total pool of images with the closest measured $x,z$. We simulated 3000 training samples and 1000 validation samples. Images from the training set where from different patients than from the validation set. Square slices of 7x7cm surrounding the nodules were extracted from the CT-scan and resampled to isotropic 0.7mm spacing. Pixel intensities were normalized to unit scale using a global mean and variance. The images were cropped randomly to 51x51 pixels during training, center crops of the same size were used for validation. Also random vertical and horizontal mirroring was used as data augmentation during training. A simple CNN architecture with 4 layers of 3x3 convolutions with 16 feature channels, each followed by ReLU non-linearity and 2x2 max-pooling was used. These basic image features were flattened into a 1 dimensional vector of size $144$. Three fully-connected layers of output sizes $144,144,12$ were used, each followed by ReLU and dropout with $p=0.25$, after which a final fully connected layer with output size $N_{k}=6$ was used. The treatment indicator was concatenated to these activations for the final prediction. We used a batch size of 40 and the Adam optimizer [5] with a learning rate of 0.001 and no weight-decay.

Results

We calculated 3 baseline models for comparison: (1) ignoring all image information and using only the treatment indicator, or linear regression on the ’oracle’ data $\{t,x,z,y\}$ with (2) and without (3) conditioning on the collider $x$. Through the sampling scheme, along with ambiguity in manual nodule segmentations and limitations of statistical learning from finite data, there is inherent prediction error for $y$ and $x$. We estimated the $MSE$ of this inherent error by predicting the ground truth labels $x$ and $z$ with a separate run of the same CNN architecture by replacing $y$ with $z$. For fair comparison of the methods, in the regression baseline models we replaced $x,z$ by $x^{\prime},z^{\prime}$ by adding gaussian noise to the simulated $x,z$ based on the $MSE$ of the ground truth run for both variables. We compare the ’curve fitting’ approach of conditioning on the entire image for predicting $y$ (BiasNet) with the proposed method (CausalNet). As presented in Table 2, the proposed method perfectly separates the biasing effect of the collider $x$ on the estimated treatment effect, and attains a prediction error very close to the ideal expected loss for predicting $y$.

Discussion

We provide a realistic medical example where plain curve fitting with deep learning will lead to biased predictions that do not generalize to the setting where we intervene on treatment. By utilizing prior knowledge about the world in the design of the CNN-architecture and optimization scheme, accurate survival predictions were feasible with an unbiased estimate of the treatment effect. Our experiments demonstrate that deep learning can in principle be combined with insights from causal inference. Possible directions for extension of our experiments are introducing different data generating mechanisms, for example with a treatment effect modifier or with statistical dependence between factors of variation within the image. In addition, similar approaches can be explored for medical images from different sources (e.g. pathology slides), or different data domains such as audio or natural language. We leave these extensions for further work.

To attain the goal of personalized treatment recommendations with artificial intelligence, methods combining machine learning with causal inference need to be further developed. Our experiments provide an example of how deep learning and structural causal models can be combined and are a small step forward towards personalized health care.

Acknowledgements

We kindly thank Pim de Jong, Tim Leiner and Joost Verhoeff. Furthermore, we thank NVIDIA for supplying us with a Quadro P-6000 GPU through the academic seeding grant program, which was used in the experiments.
