${\it Ab~initio}$ constraints on thermal effects of the nuclear equation of state

TL;DR

This paper uses ab initio many-body calculations to analyze the thermal properties of nuclear matter, revealing the density and temperature dependence of the thermal index crucial for astrophysical models.

Contribution

It provides the first ab initio analysis of the thermal index's density and temperature dependence, highlighting the importance of many-body forces in nuclear matter.

Findings

Thermal index varies with density and temperature.

Many-body forces significantly influence the thermal index.

Constant thermal index assumptions may be invalid for neutron-star mergers.

Abstract

We exploit the many-body self-consistent Green's function method to analyze finite-temperature properties of infinite nuclear matter and to explore the behavior of the thermal index used to simulate thermal effects in equations of state for astrophysical applications. We show how the thermal index is both density and temperature dependent, unlike often considered, and we provide an error estimate based on our ${\it ab~initio}$ calculations. The inclusion of many-body forces is found to be critical for the density dependence of the thermal index. We also compare our results to a parametrization in terms of the density dependence of the nucleon effective mass. Our study questions the validity of predictions made for the gravitational-wave signal from neutron-star merger simulations with a constant thermal index.

Figures

Equations

$$G(\mathbf{p},\omega )=G_0(\mathbf{p},\omega )+G_0(\mathbf{p},\omega ){\Sigma }^{\star }(\mathbf{p},\omega )G(\mathbf{p},\omega ),$$

$$\frac{E}{A}=\frac{\nu}{n}\int\frac{{\rm d}{\bf p}}{(2\pi)^{3}}\int\frac{{\rm d}\omega}{2\pi}\,\frac{1}{2}\Big{[}\frac{p^{2}}{2m}+\omega\Big{]}\mathcal{A}({\bf p},\omega)f(\omega)-\frac{1}{2}\langle V_{3N}\rangle\,,$$

$$\frac{F}{A}=\frac{E}{A}-T\frac{S}{A}.$$

$$P=n^2\frac{\partial F/A}{\partial n}.$$

$$\tilde{P}=n(\tilde{\mu }-\frac{F}{A}),$$

$$n=\nu \int \frac{\mathrm{d}\mathbf{p}}{(2\pi {)}^3}\int \frac{\mathrm{d}\omega }{2\pi }\mathcal{A}(\mathbf{p},\omega )f(\omega ),$$

$$\frac{F}{A}(n,T)=a(T)+\sum _{\nu =2}^{{\nu }_{\max }}{a}_{\nu }(T){\left(\frac{n}{n_0}\right)}^{\nu /3},$$

$$P_{\mathrm{th}}(n,E)=\frac{E_{\mathrm{th}}}{V}(\Gamma -1),$$

$$P=P_0+P_{\mathrm{th}},$$

$${\Gamma }_{\mathrm{th}}=1+\frac{P_{\mathrm{th}}}{E_{\mathrm{th}}/V},$$

$${\Gamma }_{\mathrm{th}}^{m^{\ast }}=\frac{5}{3}-\frac{n}{m^{\ast }}\frac{\partial m^{\ast }}{\partial n},$$

$$\frac{m^{*}}{m}=\frac{p}{m}\left(\frac{\partial\varepsilon(p)}{\partial p}\right)^{-1}\bigg{|}_{\varepsilon(p)=\mu,p=p_{\mu}}\,,$$

$$\frac{m^{\ast }}{m}=m^{\omega }{m}^k,$$

$$m^{\omega }=1-\frac{\partial \mathrm{Re}\Sigma (p,\omega )}{\partial \omega },$$

$$m^k={\left(1+\frac{m}{p}\frac{\partial \mathrm{Re}\Sigma (p,\omega )}{\partial p}\right)}^{-1}.$$

Full text

I Introduction

The nuclear equation of state (EOS) is an essential relation between pressure, density, and temperature, which provides proper closure for the solution of the equations of motion in relativistic hydrodynamics Duez and Zlochower (2019). These equations are numerically implemented to simulate, among others, the merger of neutron stars Baiotti and Rezzolla (2017). The outcome of these astrophysical simulations provides insights to the gravitational-wave signal produced by such events or the modeling of short gamma-ray bursts arising from the merging Shibata et al. (2005); Anderson et al. (2008); Baiotti et al. (2008); Bernuzzi et al. (2012); Bauswein et al. (2012). During these phenomena, the temperature of matter can rise to extremes, $T\sim 100$ MeV. In order to obtain reliable results from these simulations, it is then mandatory to consider EOSs that correctly describe the thermal effects of dense matter Oechslin et al. (2007).

In view of the recent detection of a gravitational-wave signal from the merger of two neutron stars Abbott et al. (2017), it is timely for theoretical studies to provide accurate results to meet the needs for correct interpretation of observational outcomes. Apart from the complexity in solving the equations of relativistic hydrodynamics, the modeling of mergers needs to be improved regarding the knowledge of the nuclear matter EOS Hebeler et al. (2013); Oertel et al. (2017); Baym et al. (2018); Burgio and Fantina (2018); Raithel et al. (2019). This is caused by the challenges in understanding the properties of nuclear interactions and dense matter, which are governed by the theory of quantum chromodynamics (QCD). At nuclear densities, the relevant degrees of freedom are nucleons and pions (and possible $\Delta$ isobars), and most studies of nuclear structure, reactions and matter employ systematic many-body methods with internucleon interactions (see, e.g., Refs. Heiselberg and Pandharipande (2000); Hebeler et al. (2015); Hjorth-Jensen et al. (2017)) or by means of density functional theory (see, e.g., Refs. Bender et al. (2003); Kortelainen et al. (2010)). While the former are based on nuclear forces constructed to reproduce nucleon-nucleon scattering and properties of light nuclei Wiringa et al. (1995); Epelbaum et al. (2009); Machleidt and Entem (2011); Hammer et al. (2013), the latter are fit to selected nuclei and often nuclear matter Stone and Reinhard (2007). In this work, we use modern nuclear forces derived from chiral effective field theory (EFT) Epelbaum et al. (2009); Machleidt and Entem (2011); Hammer et al. (2013) and solve the nuclear many-body problem by means of a nonperturbative many-body approach, the self-consistent Green’s function (SCGF) method Dickhoff and Barbieri (2004); Barbieri and Carbone (2017). Nuclear matter at finite temperature has also been studied based on chiral low-momentum interactions within many-body perturbation theory (see, e.g., Refs. Tolos et al. (2008); Wellenhofer et al. (2014)). Moreover, while nuclear matter at $T=0$ has been the target of many works, there have been a range of more recent advances based on chiral interactions, including Refs. Hebeler and Schwenk (2010); Hebeler et al. (2011); Tews et al. (2013); Gezerlis et al. (2013); Holt et al. (2013); Hagen et al. (2014); Coraggio et al. (2014); Carbone et al. (2014); Lynn et al. (2016); Drischler et al. (2016a); Holt and Kaiser (2017); Drischler et al. (2019); Bombaci and Logoteta (2018).

Being derived from a low-energy expansion of QCD, chiral EFT interactions are organized using a power counting scheme in terms of powers of a low-momentum scale over the breakdown scale Weinberg (1990, 1991). The high-energy details, which are not resolved at low energies, are then encoded in the strength of short-range contact interactions. The remaining contributions are given by pion exchanges, and can include also $\Delta$ degrees of freedom. In this study, we will consider two-nucleon $(2N)$ interactions up to third (N2LO) Ekström et al. (2015) or fourth order (N3LO) Entem and Machleidt (2003) in the chiral expansion, while the three-nucleon $(3N)$ forces will be considered at N2LO van Kolck (1994); Epelbaum et al. (2002). We use different chiral two- and three-nucleon interactions within the finite-temperature SCGF method to study the properties of infinite nuclear matter. This approach is particularly suited because it is implemented directly at finite temperature, and so it provides the full thermodynamical properties of nuclear matter. The method is nonperturbative providing a self-energy, which resums all particle-particle and hole-hole diagrams, leading to a fully dressed definition of the single-particle Green’s function, from which the nuclear matter bulk properties are accessed Frick and Müther (2003); Rios et al. (2009); Somà and Bożek (2009).

Presenting first-principle calculations of the nuclear-matter energy and pressure at finite temperature, we demonstrate the shortcoming of taking an ideal gas to model the thermal contributions to the EOS in astrophysical simulations Shibata et al. (2005); Oechslin et al. (2007); Baiotti et al. (2008); Hotokezaka et al. (2011); Bauswein et al. (2012); Rezzolla and Takami (2016); Endrizzi et al. (2018). With our ab initio calculations, we explore how the thermal index $\Gamma_{\rm th}$, which describes the thermal effects of the EOS, in fact depends on density (and to a lesser extent temperature) in a way that has not been explored in simulations. This inevitably leads us to the conclusion that a constant $\Gamma_{\rm th}$ value provides only a crude approximation to the EOS of dense matter and may lead to shortcomings in the predictions when simulations involve higher temperatures. The effects of using a constant versus varying index in the EOS has been analyzed in studies of the gravitational-wave signal from merging neutron stars Bauswein et al. (2010). Furthermore, this had been investigated in the propagation of fast magnetosonic shocks in relativistic fluids Mignone and McKinney (2007). Recent studies within Fermi liquid theory and mean-field approaches, have also highlighted the non-constant behavior of the thermal index Constantinou et al. (2015); Lattimer and Prakash (2016). We point out that several studies of neutron star mergers already include fully finite-temperature EOS (see, e.g., Refs. Bovard et al. (2017); Radice et al. (2018a, b); Perego et al. (2019)), however based on the mean-field approximation.

The paper is organized as follows. In Sec. II we discuss the many-body SCGF formalism used to study nuclear matter. We then follow with our results in Sec. III, which is divided into three parts. First, we present results for the thermal energy, thermal pressure, and thermal index employing one particular chiral two- and three-nucleon interaction and analyze the behavior with density and temperature. Second, we provide an error estimate for the thermal effects using several chiral Hamiltonians. Then, we characterize the thermal index through the density dependence of the nucleon effective mass, which we obtain directly from our SCGF calculations as well. Finally, we conclude in Sec. IV and give an outlook.

II Formalism: Finite-temperature properties of nuclear matter

To access nuclear matter at finite temperature we use the SCGF approach. As already introduced, this method fits well for our present study because it is implemented directly at finite temperature Frick and Müther (2003); Rios et al. (2009). Furthermore, it in principle provides a thermodynamically consistent description of matter, meaning that physical properties calculated microscopically or through macroscopical (thermodynamic) relations should equal one another Baym and Kadanoff (1961); Baym (1962). The method is based on the definition of a self-energy, which resums an infinite series of particle-particle and hole-hole diagrams, also known as ladder approximation for the self-energy. This self-energy is then employed to construct a fully dressed single-particle propagator, the Green’s function $G$, from the free Green’s function $G_{0}$, via solution of the Dyson equation:

[TABLE]

where ${\bf p}$ and $\omega$ are the single-particle momentum and energy, and $\Sigma^{\star}$ is the irreducible self-energy. The imaginary part of the Green’s function yields the spectral function, which is the central quantity used to calculate both microscopic as well as bulk properties of the many-body system. The spectral function describes the probability of adding or removing a particle with momentum ${\bf p}$ and energy $\omega$ to or from the many-body system.

In the past years, the SCGF approach has been extended to include three-body forces, i.e., to start from a Hamiltonian $H=T_{\rm kin}+V$ where the interacting part includes two- and three-nucleon interactions, $V=V_{2N}+V_{3N}$ Carbone et al. (2013). Through knowledge of the spectral function, one can access the energy per nucleon $E/A$ of the system employing the Galitskii-Migdal-Koltun sum rule Galitskii and Migdal (1958); Koltun (1974):

[TABLE]

where $\nu$ is the degeneracy of the system, $n$ the number density, $\mathcal{A}({\bf p},\omega)$ is the spectral function, $f(\omega)$ is the Fermi-Dirac distribution function. $\langle V_{3N}\rangle$ is the expectation value of the three-body operator; at present we only approximate this quantity with its first-order term but calculate it employing fully dressed propagators Carbone et al. (2014). The free energy $F$ is then obtained from

[TABLE]

The entropy $S/A=-\partial\Omega/\partial T|_{\mu}$ is evaluated following the Luttinger-Ward formalism, which demonstrates that it is possible to define the grand-canonical potential $\Omega$ in terms of the Green’s function $G$ Luttinger and Ward (1960). Detailed description of the calculation of the entropy can be found in Ref. Rios (2007). From the free energy one can then directly access the pressure $P$ via

[TABLE]

As we stated above, the SCGF method is a thermodynamically consistent approach, so in principle we could also calculate the pressure starting from the microscopic chemical potential, $\tilde{\mu}$, via

[TABLE]

where $\tilde{\mu}$ is obtained inverting the density sum rule,

[TABLE]

with $f(\omega)=[1+e^{(\omega-\tilde{\mu})/T}]^{-1}$.

In view of the thermodynamical consistency of this approach, the equality $P=\tilde{P}$ should hold, up to numerical errors. We have tested wether our calculations reproduce this equality and have encountered some discrepancies which are density dependent (see Ref. Carbone et al. (2018) for details). In fact these differences depend on the strength of the three-body forces. Calculations with only two-nucleon interactions prove the equality true. We consider the error as coming from the approximation we perform on the $\langle V_{3N}\rangle$ expectation value in the evaluation of the energy sum rule, Eq. (2). Improvements that go beyond this are work in progress. However, given that the thermal index $\Gamma_{\rm th}$ depends on differences of pressures, $P(T)-P(T=0)$, at a fixed density, and that these discrepancies are mostly density dependent and only mildly temperature dependent, we can rely on the use of either $P$ or $\tilde{P}$ to obtain $\Gamma_{\rm th}$. A detailed analysis of this will be discussed in future work Carbone (2019), but overall uncertainties are small compared to the combined SCGF and interaction uncertainties.

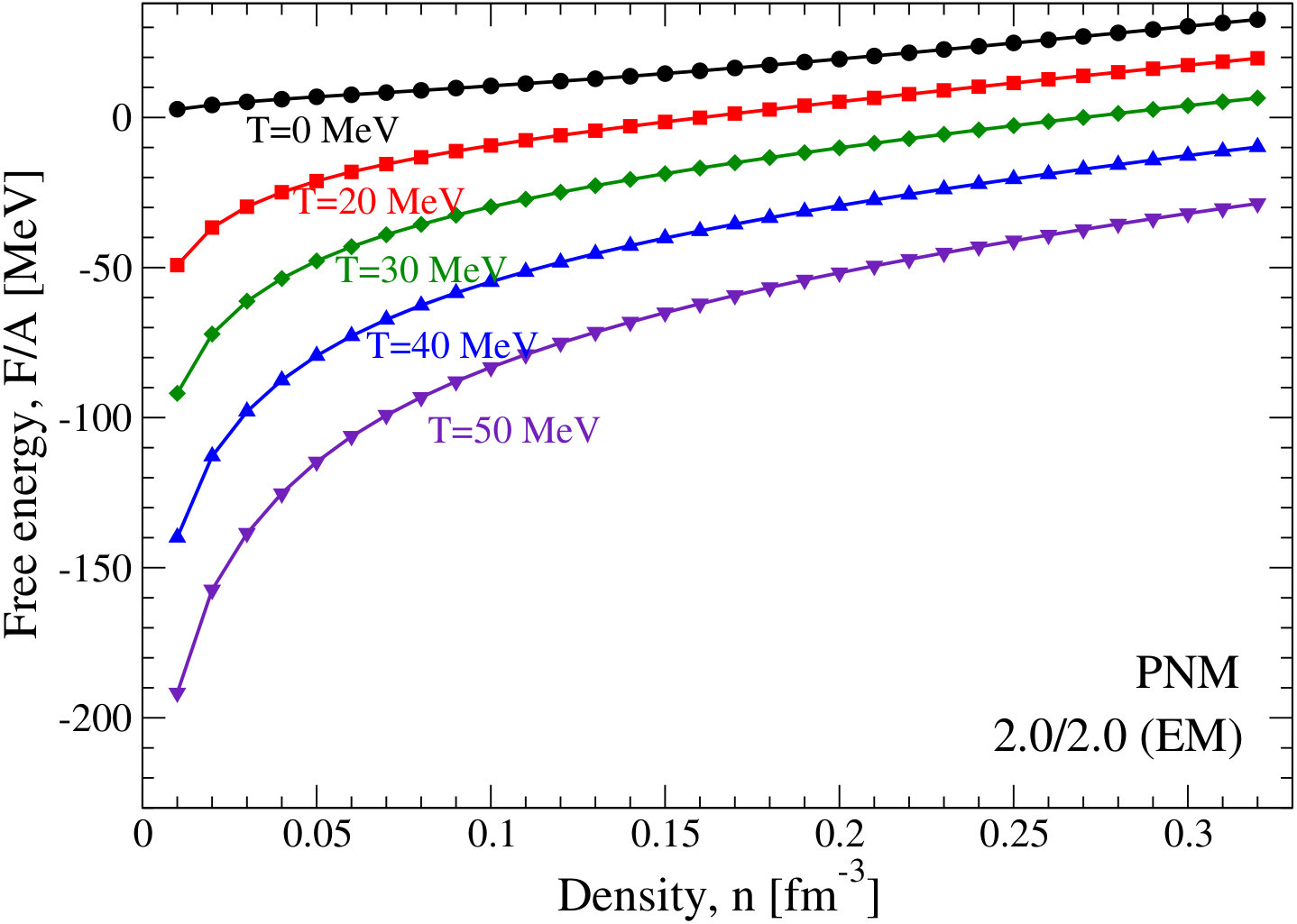

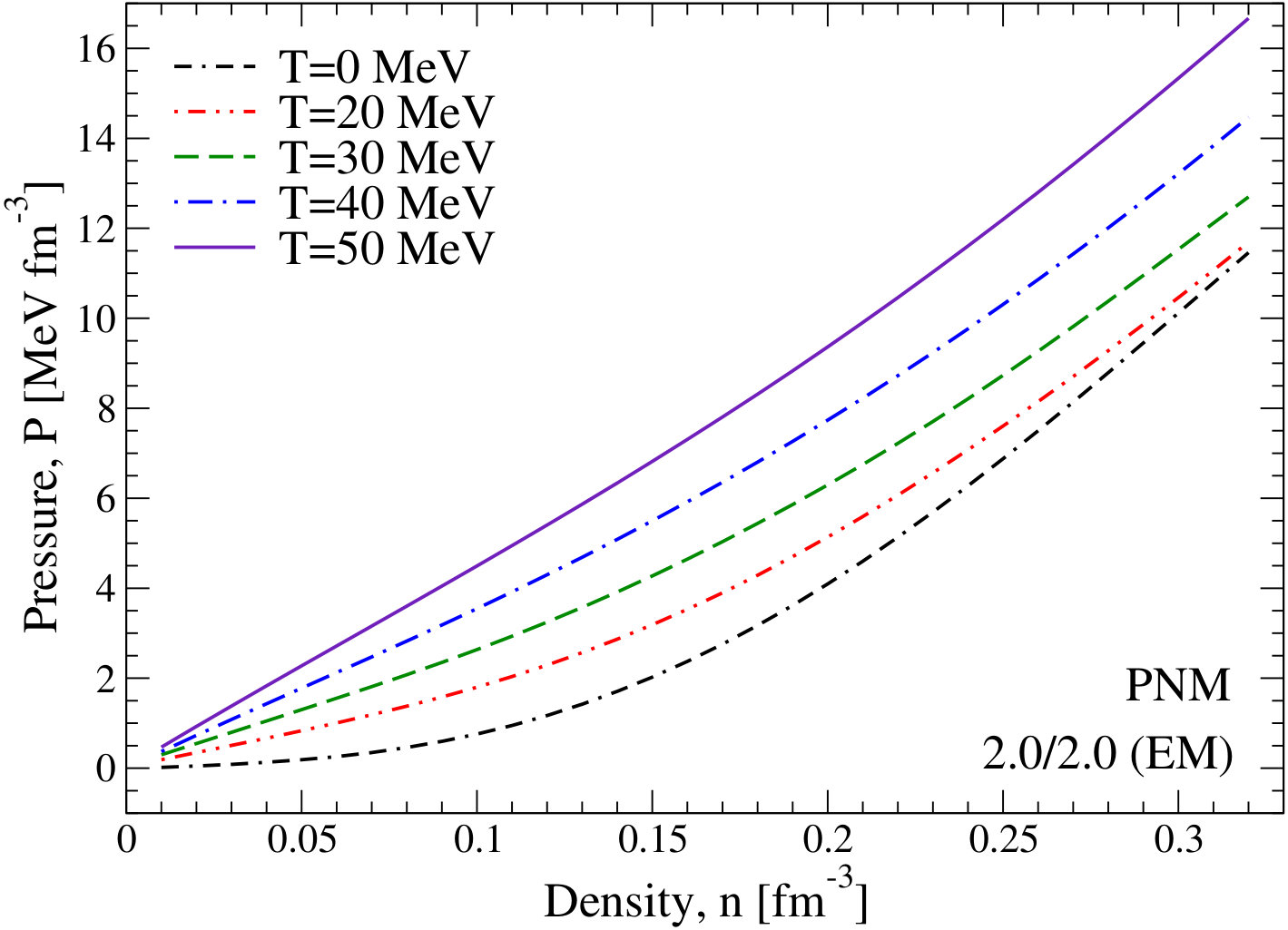

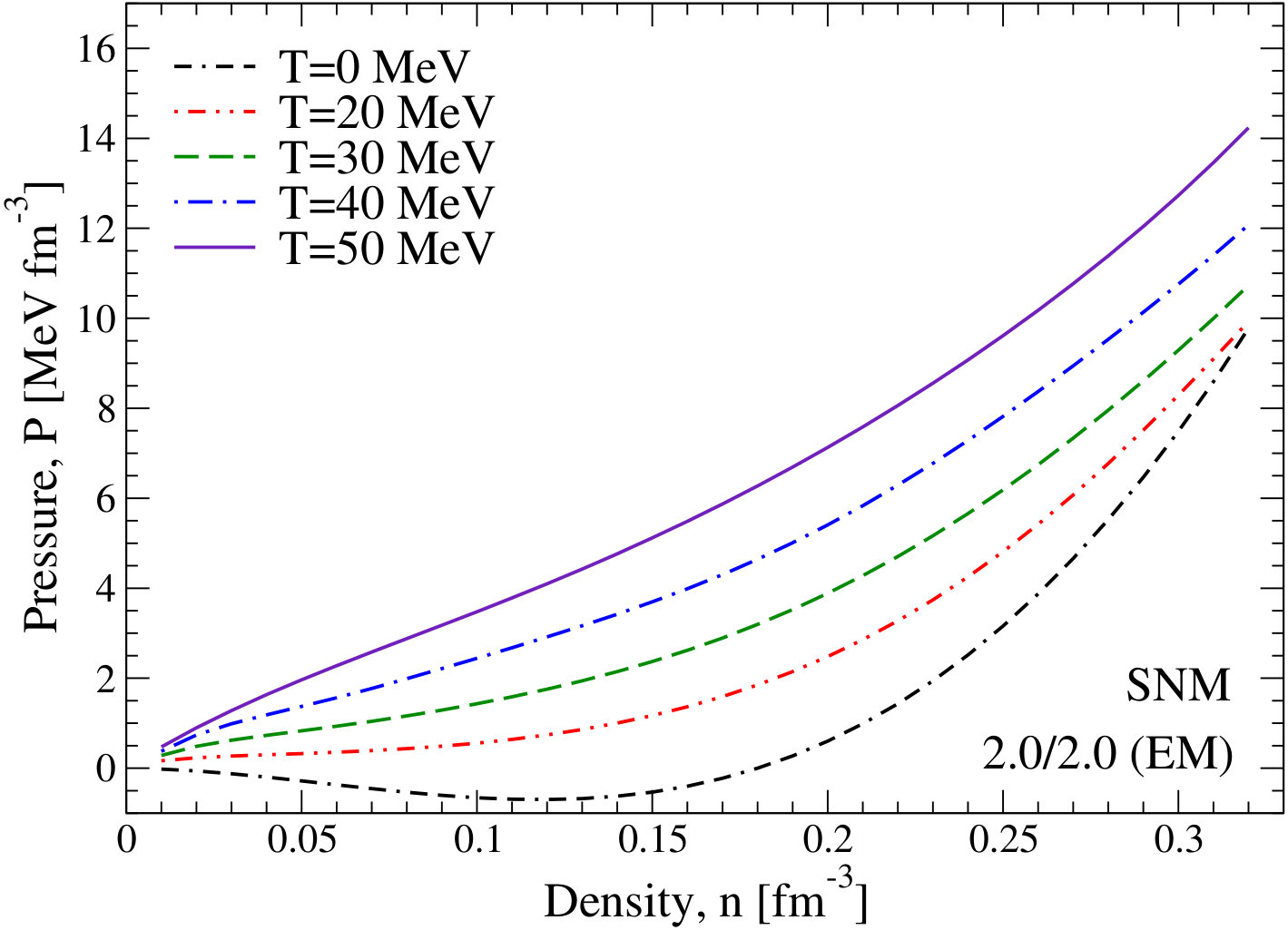

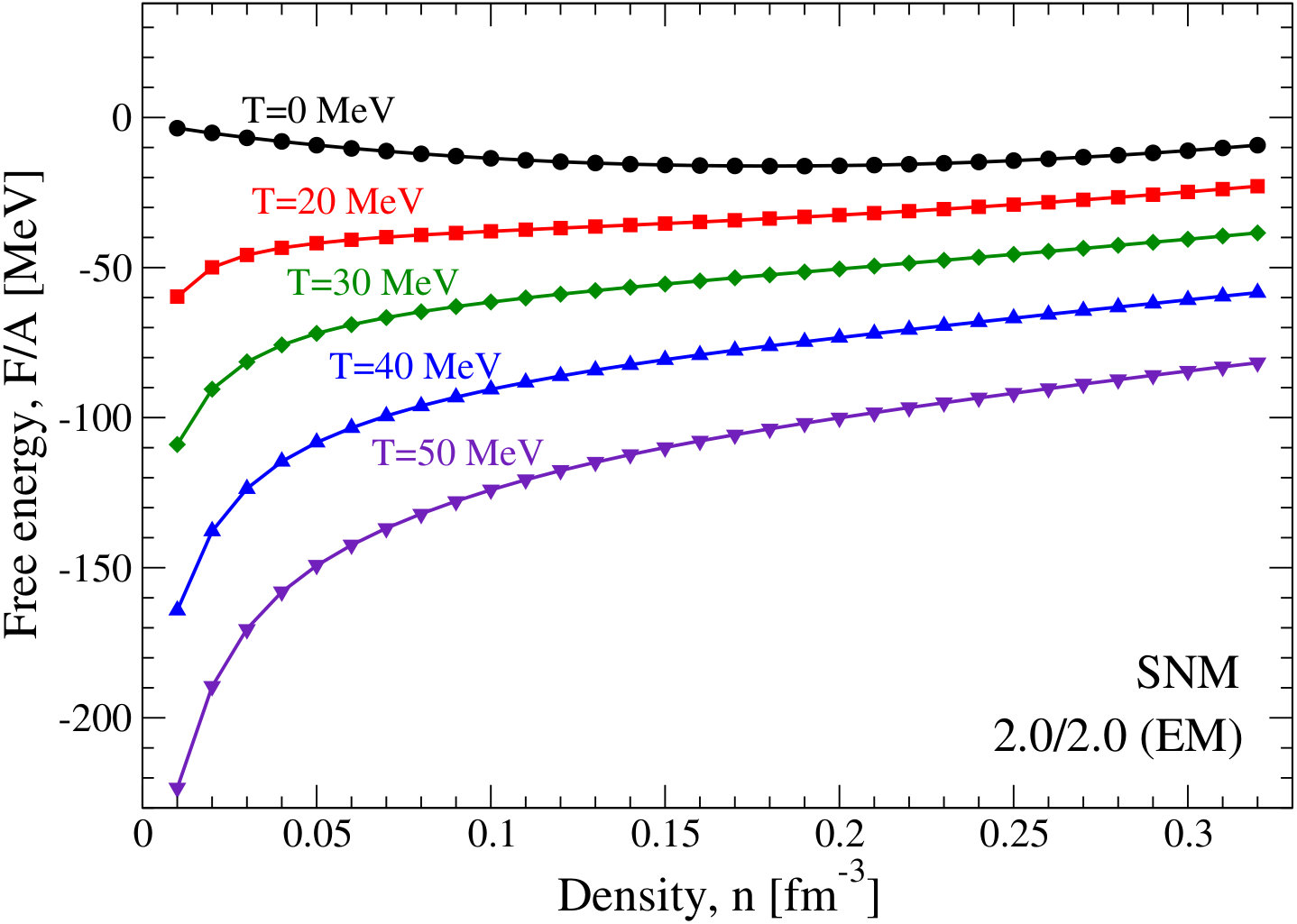

In this work, we use the pressure obtained as a derivative of the free energy, Eq. (4). In order to perform the density derivative, we fit the calculated SCGF results with a similar function to that presented in Ref. Drischler et al. (2016b) and extended to finite temperature in Ref. Carbone et al. (2018):

[TABLE]

where $\nu_{\rm max}$=6-10 is used depending on the two- and three-nucleon interactions, and $n_{0}$ is a fiducial density taken to be the saturation density $0.16$ fm*-3*. In Fig. 1 we plot the energy per nucleon at $T=0$ and the free energy per nucleon for four different temperatures, $T=20,30,40$, and 50 MeV, for symmetric nuclear matter (SNM) and pure neutron matter (PNM). The results shown are based on the 2.0/2.0 (EM) chiral two- and three-nucleon interactions (see Ref. Hebeler et al. (2011) for details). The points give the SCGF results obtained from Eqs. (2) and (3). The goodness of the fit given by Eq. (7) can be appreciated through the solid lines. Correspondingly, the pressure obtained from Eq. (4) is presented in Fig. 2 for SNM and PNM.

III Results: Thermal effects of the nuclear equation of state

In astrophysical applications, the thermal contributions to the EOS are often modelled following an ideal gas Rezzolla and Zanotti (2013). In this case, the pressure as a function of the number density $n$ and the energy density $E/V$ is expressed in terms of an adiabatic index $\Gamma$:

[TABLE]

with the volume $V=A/n$. Unlike a polytropic EOS, which describes isentropic processes, i.e., adiabatic and reversible, the pressure given by Eq. (8) allows non-isentropic irreversible transformations, such as “shock heating”, by means of which kinetic energy can be transformed into internal energy, thus increasing the temperature of the system. These shocks could be produced, as an example, during the merging of two neutron stars. For this reason, one usually writes the pressure as

[TABLE]

where only the thermal part of the pressure, $P_{\rm th}$, is modelled employing Eq. (8), while the cold part, $P_{0}=P(T=0)$, can also be a polytropic function or a microscopic EOS at $T=0$. We note that Eq. (8) has at least two shortcomings. First, the adiabatic index $\Gamma$ in Eq. (8) is often taken as a constant because it is associated with the ratio of the specific heats in the fluid Rezzolla and Zanotti (2013). Second, Eq. (8) has been shown to be incompatible with relativistic kinetic theory for arbitrary values of $\Gamma$, whose value should instead depend on the quantity $P/n$ in order to fulfill the so-called Taub’s inequality Taub (1948); Rezzolla and Zanotti (2013). In view of these considerations, it is better to express the thermal index in terms of the thermal pressure and thermal energy as:

[TABLE]

where $P_{\rm th}=P(T)-P_{0}$ and $E_{\rm th}=E(T)-E(T=0)$ are the thermal pressure and thermal energy, respectively. It should be noted that this formulation is consistent with relativistic kinetic theory and Taub’s inequality Mignone and McKinney (2007). Given that we have access to the thermal pressure and thermal energy from our SCGF calculations, we can then investigate the behavior of the thermal index, as diagnostic of the thermal effects, based on modern two- and three-nucleon interactions. Using the thermal index $\Gamma_{\rm th}$ obtained in this way to replace the constant adiabatic $\Gamma$ index in Eq. (8) will provide a more accurate representation of the thermal effects of nuclear matter.

III.1 Thermal energy, thermal pressure, and thermal index from ab initio calculations

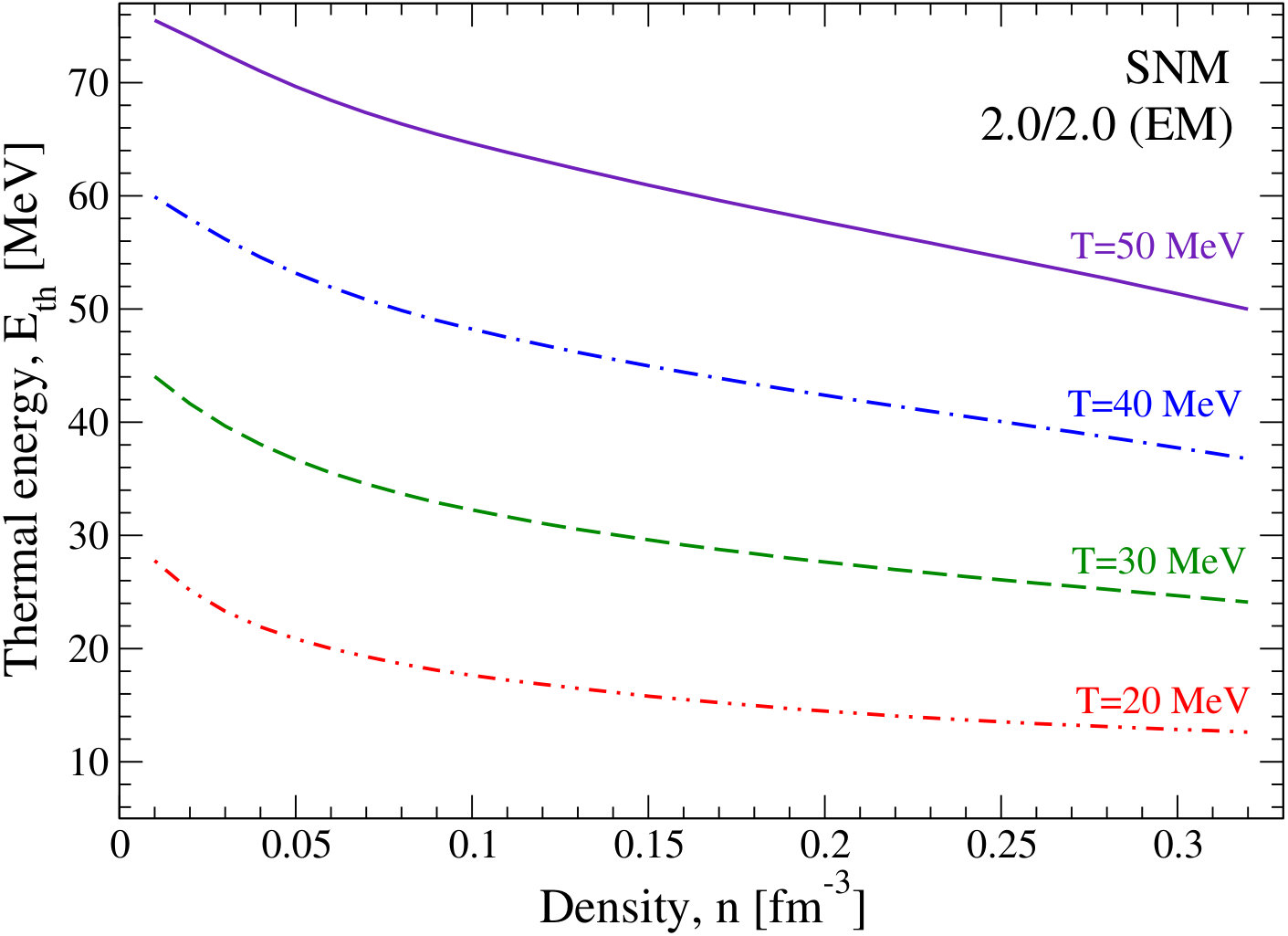

We present in Fig. 3 the thermal energy, thermal pressure, and thermal index for SNM (left panels) and PNM (right panels). We employ the same chiral two- and three-nucleon interactions as the one used in Figs. 1 and 2. The thermal quantities are presented for four different temperatures, $T=20,30,40,$ and 50 MeV.

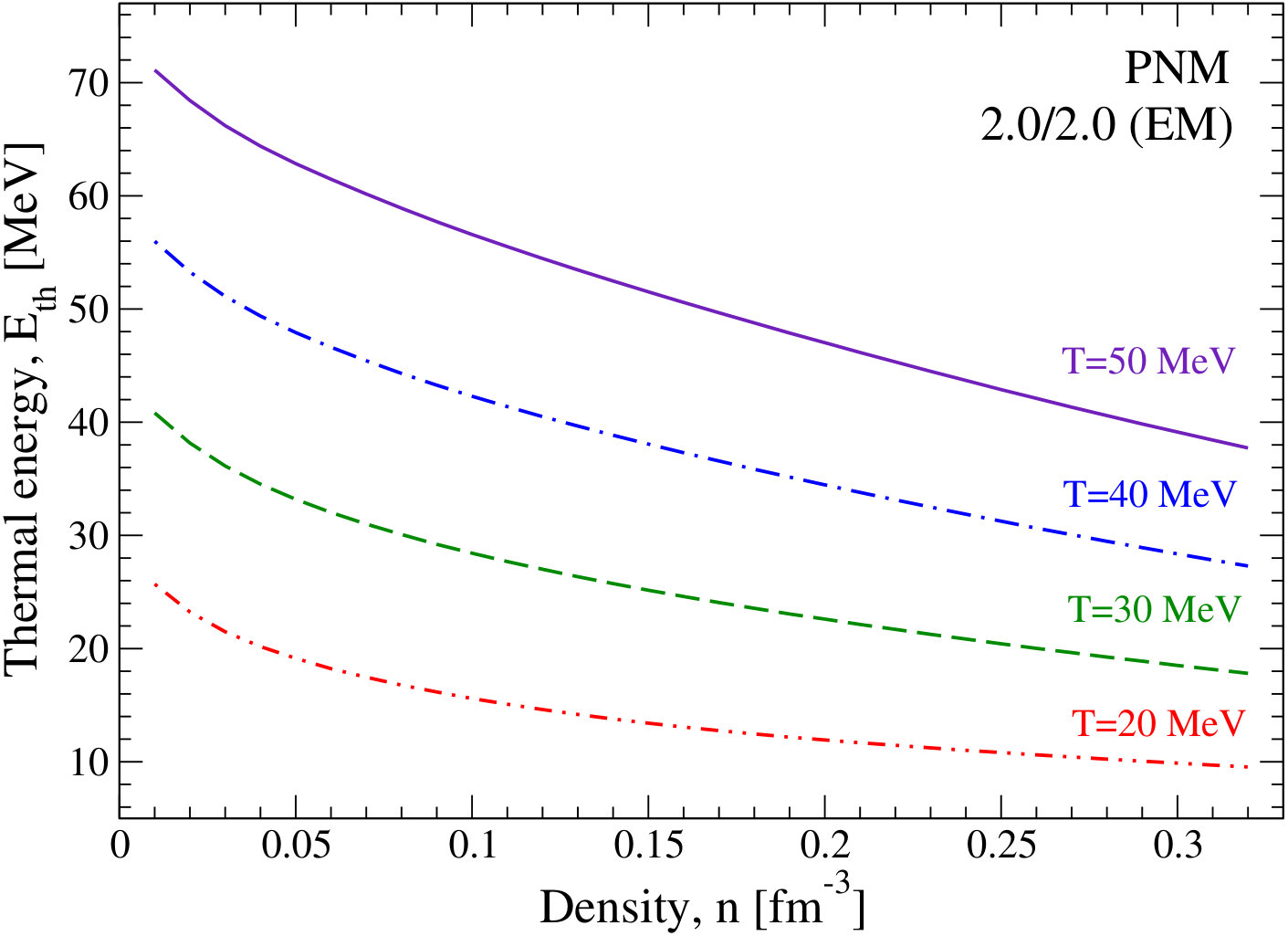

The thermal energy decreases with increasing density for all studied temperatures and for both SNM and PNM. At low densities, up to $n=A/V=0.05$ fm${}^{-3},$ the decrease appears steeper, especially in the case of PNM. This is because at constant temperature, matter is more nondegenerate at low density leading to stronger thermal effects in the low density regime, while as the density increases, the difference between the finite-temperature energy and its value at zero temperature becomes smaller. For low temperatures, $T=20$ MeV, the thermal energy becomes very weakly density dependent already around twice saturation density. However, as $T$ increases, the thermal energy decreases up to twice saturation density, which is the limit in densities we consider for our calculations. This means that, as the temperature rises, the increase in energy is stronger even at intermediate densities, and the difference with its zero-temperature counterpart slowly reduces with density. A steeper decreasing behavior appears in PNM with respect to SNM, meaning that the energy at zero temperature in PNM is already a quite stiff quantity, leading to a smaller thermal energy.

We must point out that twice saturation density is close to the limit of validity of the chiral interactions considered. In fact, especially for PNM, one is already probing the range of the resolution scale $\lambda_{\rm SRG}=2.0$ fm*-1* for this particular Hamiltonian, where $\lambda_{\rm SRG}$ defines the similarity-renormalization-group resolution scale (see Ref. Hebeler et al. (2011) for details). We explore the uncertainty in the high-density region (up to twice saturation density) by presenting calculations employing several chiral two- and three-nucleon interactions (see Fig. 4 and following discussions), but note that the sensitivity to different interactions at high densities is probably only a lower bound on the uncertainty.

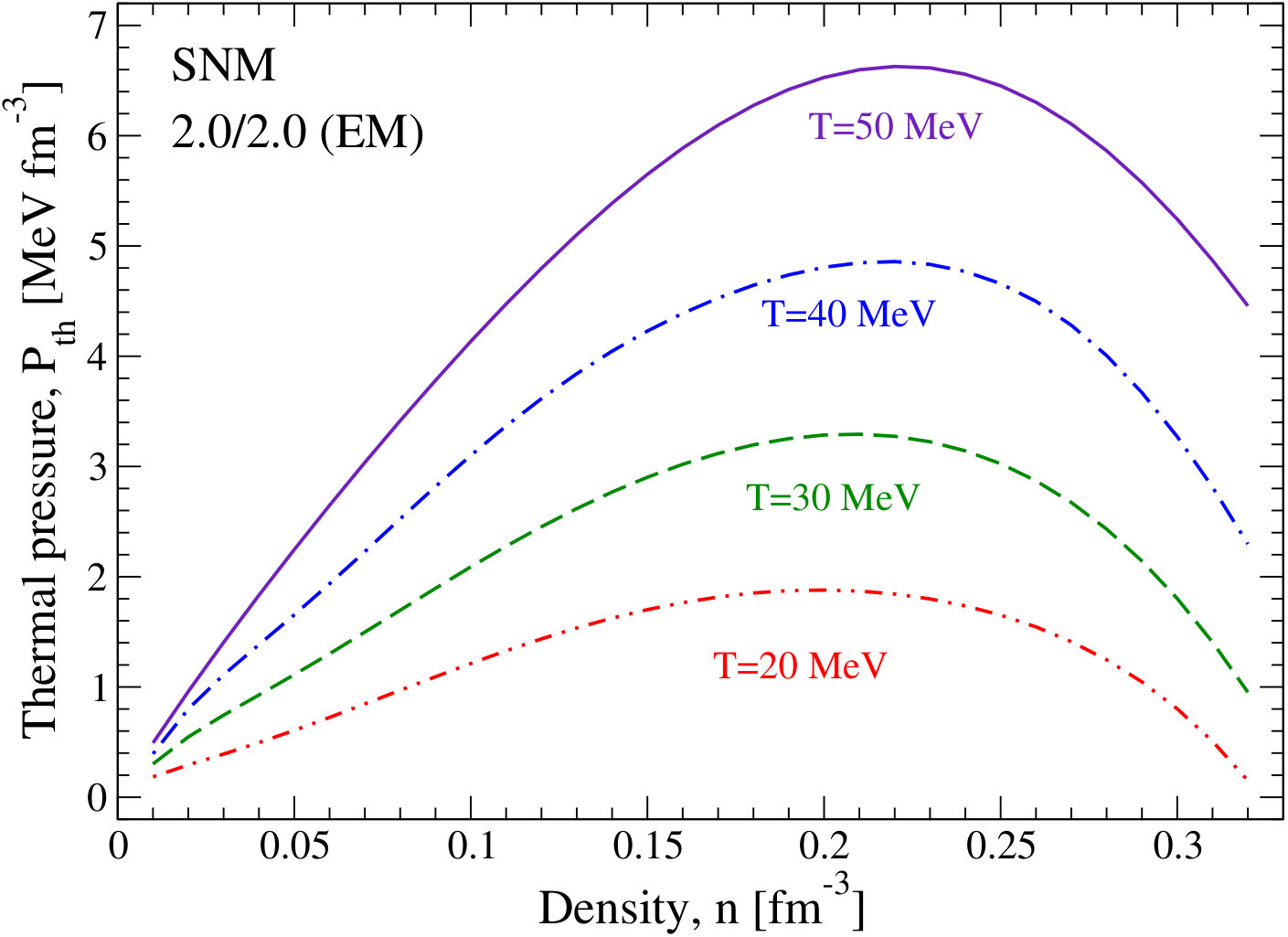

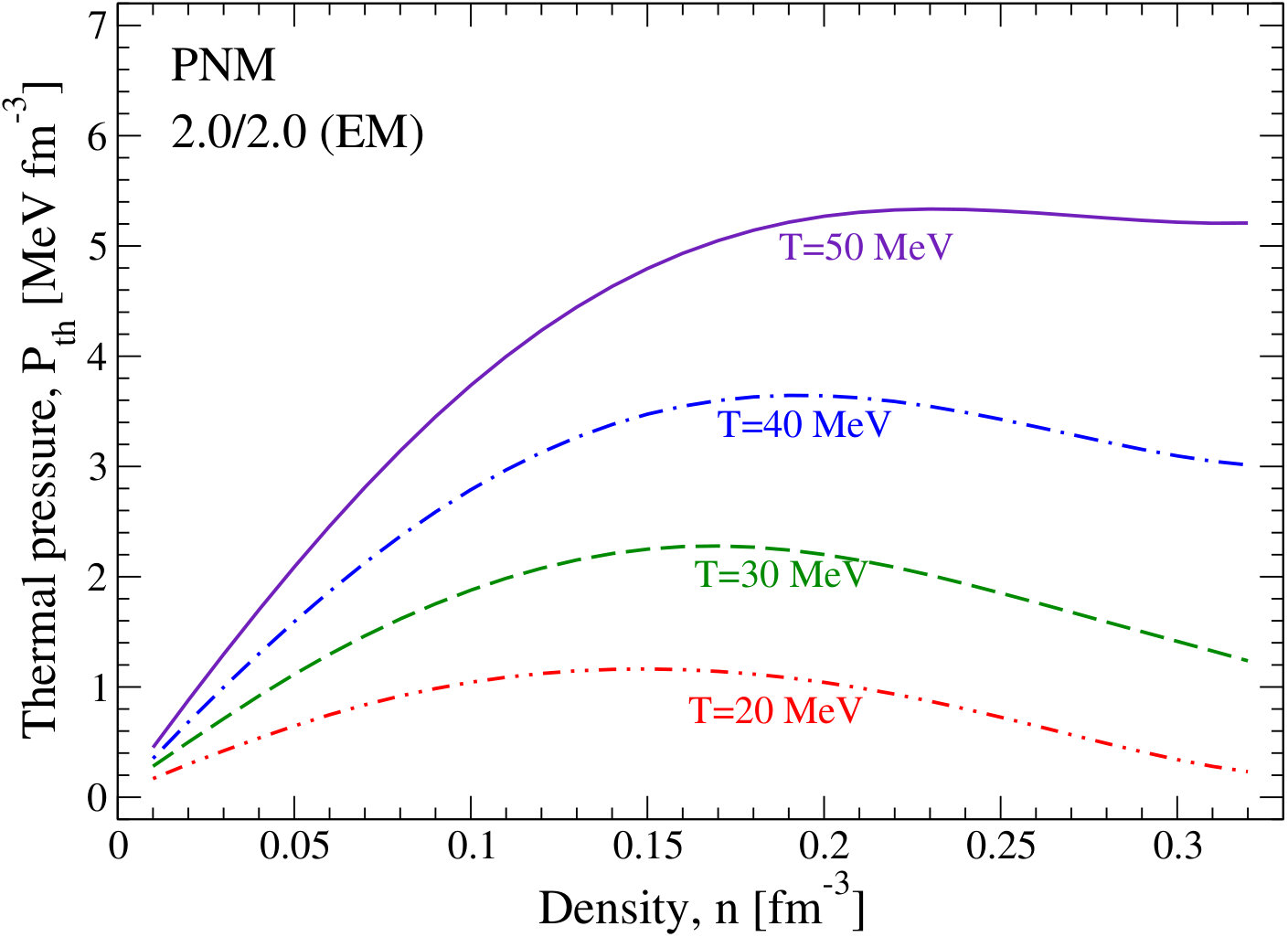

The thermal pressure $P_{\rm th}$, shown in the second row of Fig. 3, presents a very different behavior from the thermal energy and, unlike $E_{\rm th}$, it is not only quantitatively different, but also qualitatively different between SNM and PNM. For SNM, the thermal pressure first increases, reaching a maximum around $0.20$ fm*-3* for all temperatures, and then keeps decreasing with increasing density. For PNM, the increase at low densities is much softer, with a maximum reached around saturation density, and the subsequent decrease being washed out with increasing temperature. From a quantitative point of view, the thermal pressure for SNM is bigger for intermediate densities, given that nuclear matter has negative zero-temperature pressure in this density region; the equivalent quantity for PNM is smaller, approaching nevertheless a higher value with respect to SNM at higher densities. This shows that, for increasing density, the pressure at finite temperature is stronger in PNM than SNM, and this strength rises with temperature. This is clearly visible in Fig. 2. Note that the high-density behavior of the thermal pressure is the one influencing the characteristics of the thermal index in this region.

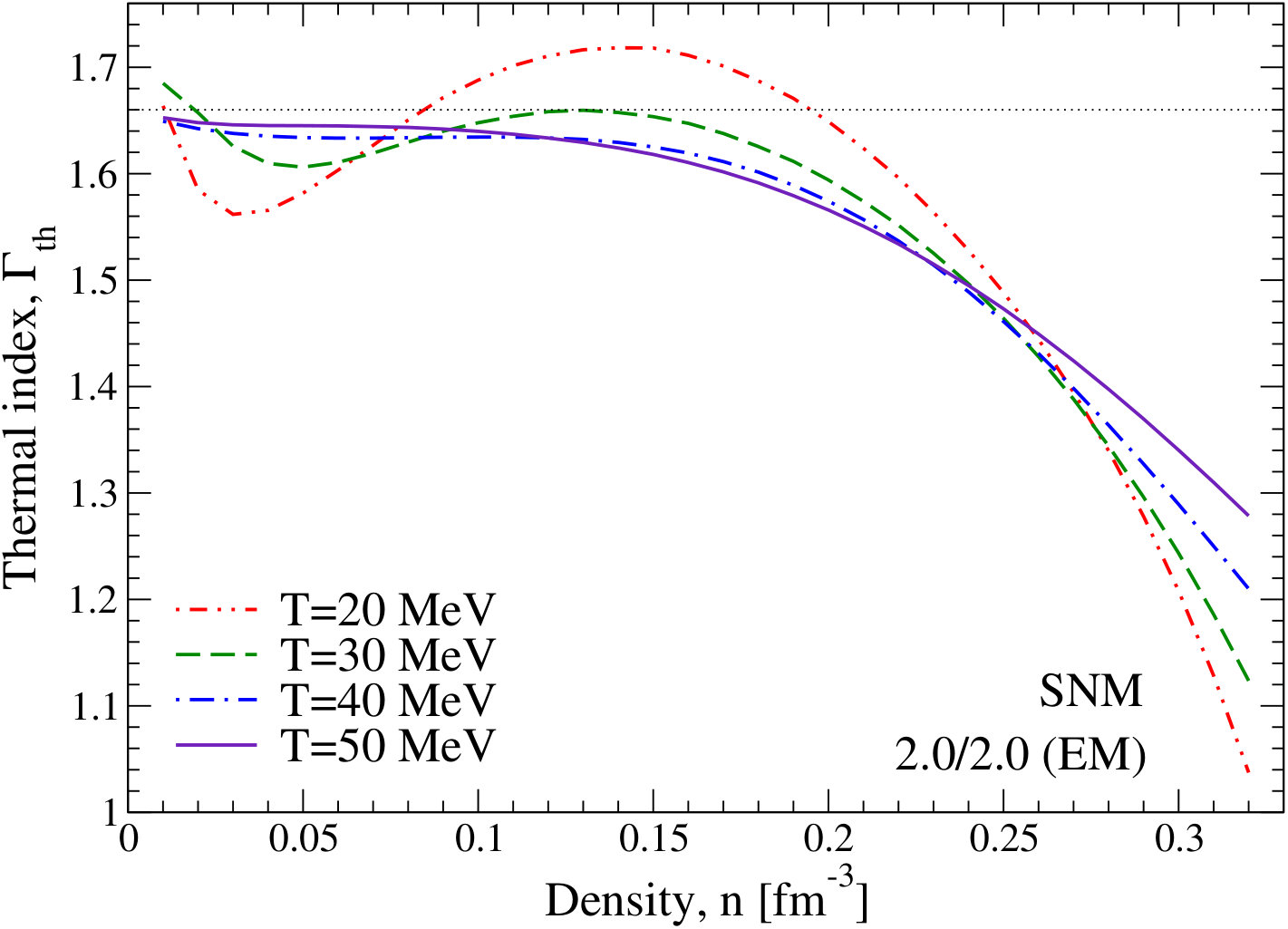

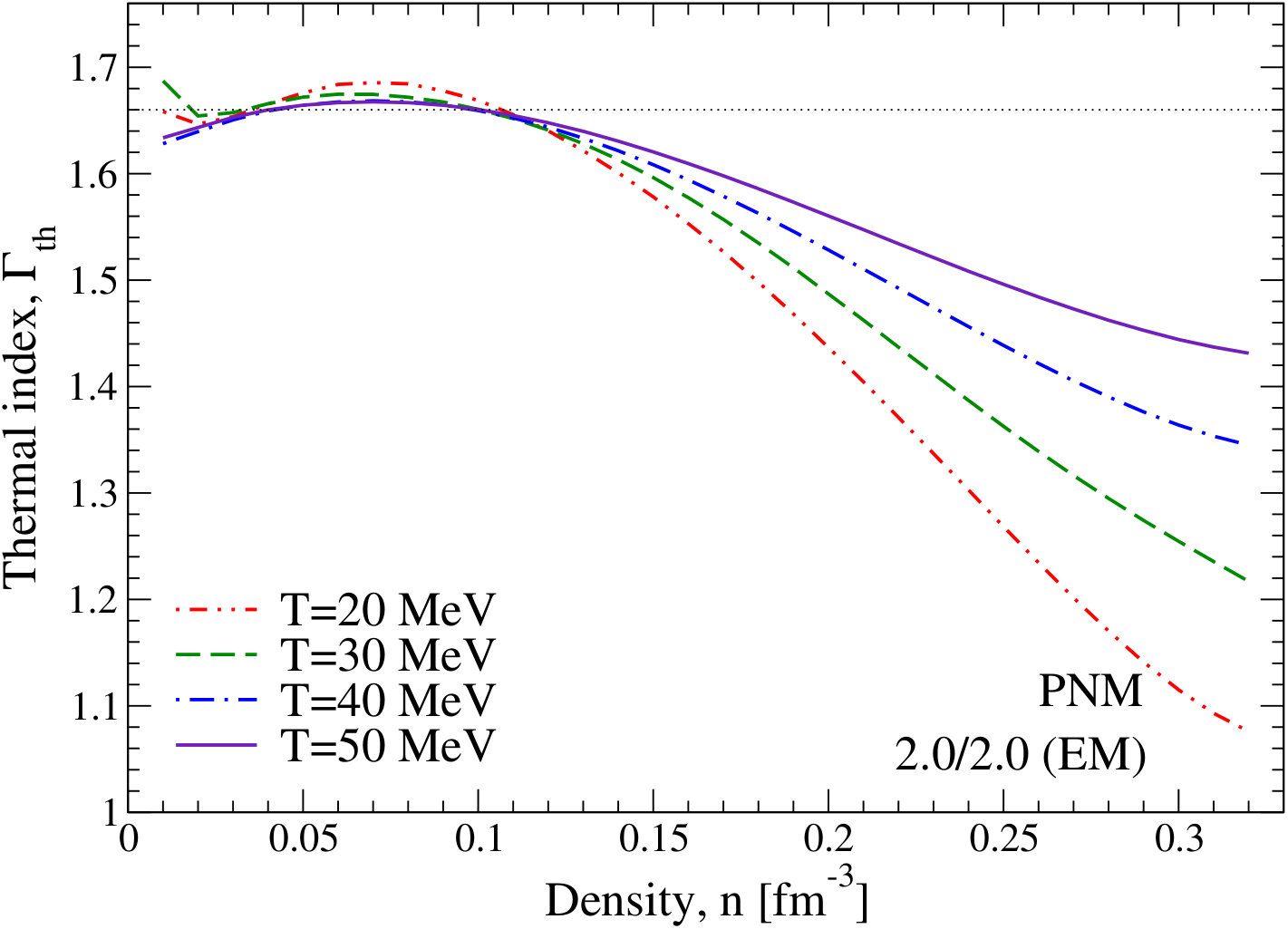

In the last row of Fig. 3 we give the thermal index extracted using Eq. (10). The qualitative behavior between SNM and PNM is similar, nevertheless quantitative differences appear. At low densities, the thermal index approaches the value of the adiabatic index for a nonrelativistic ideal gas with $\Gamma=5/3$; a small-dotted line is shown in the panels to guide the eye. The behavior observed for densities below $n=0.05$ fm*-3*, especially for SNM at low temperatures, can be traced to the difficulty in fitting the free-energy in the low-density region (see Fig. 1). For low temperatures, we observe a maximum for the thermal index which exceeds the value of 5/3. This maximum is more pronounced in SNM and appears around saturation density, while it is smaller for PNM, emerging in this case around half saturation density. However, as the temperature increases, this maximum smoothens due to a balance between the thermal pressure and the thermal energy. For higher densities, the behavior is dictated by the thermal pressure, as discussed above. In fact, while for SNM in Fig. 3 the thermal index shows a constant decrease, for PNM the decrease in $\Gamma_{\rm th}$ is levelled as the temperature increases, as it was observed for the respective thermal pressures. Note that for very high temperatures the system should behave as a relativistic gas, and relativistic effects should be taken into account. According to the limits imposed by Taub’s inequality and to be consistent with relativistic kinetic theory, the adiabatic index should never exceed the value of 5/3, and should approach the value of 4/3 in the limits of high temperature Mignone and McKinney (2007). Indeed, even though we are performing a nonrelativistic calculation of nuclear matter, the thermal index seems like not exceeding 5/3 for higher temperatures and approaching the 4/3 value as density increases.

We now turn to assessing an error estimate of the thermal effects employing several chiral Hamiltonians. We show in Fig. 4 the thermal energy, thermal pressure, and thermal index for $T=30$ MeV for SNM and PNM. We use six different chiral interactions: the evolved chiral two- and three-nucleon interactions labeled 1.8/2.0 (EM), 2.0/2.0 (EM), and 2.8/2.0 (EM) are taken from Ref. Hebeler et al. (2011); the two-nucleon potential only from Entem and Machleidt Entem and Machleidt (2003) labeled $2N$ N3LO (EM); the $2N$ N3LO (EM) + $3N$ N2LO with a three-nucleon interaction fit to the triton beta decay from Ref. Klos et al. (2017) (using the nonlocal 500/500 fit); and the N2LOsat two- and three-nucleon interaction from Ref. Ekström et al. (2015).

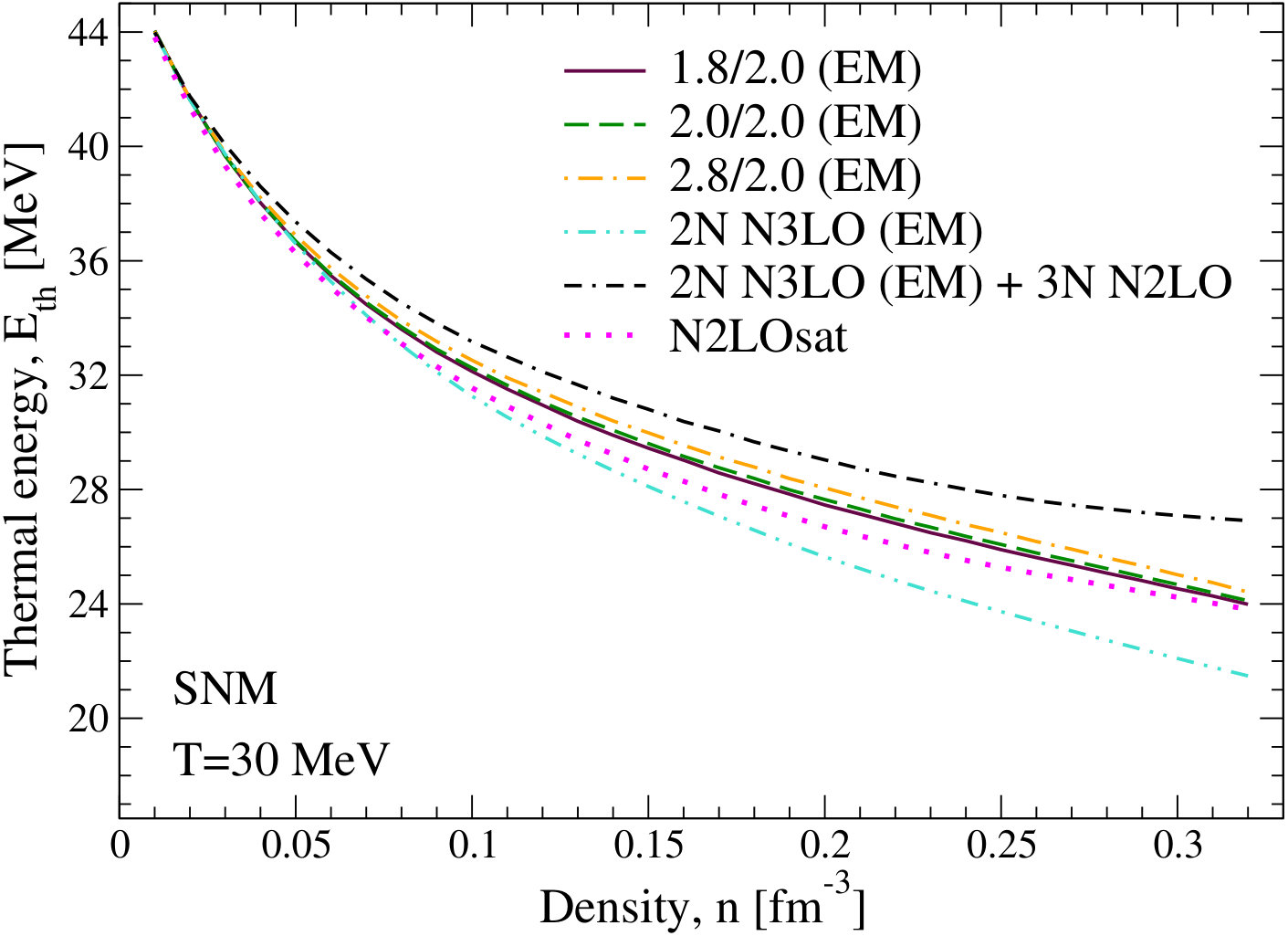

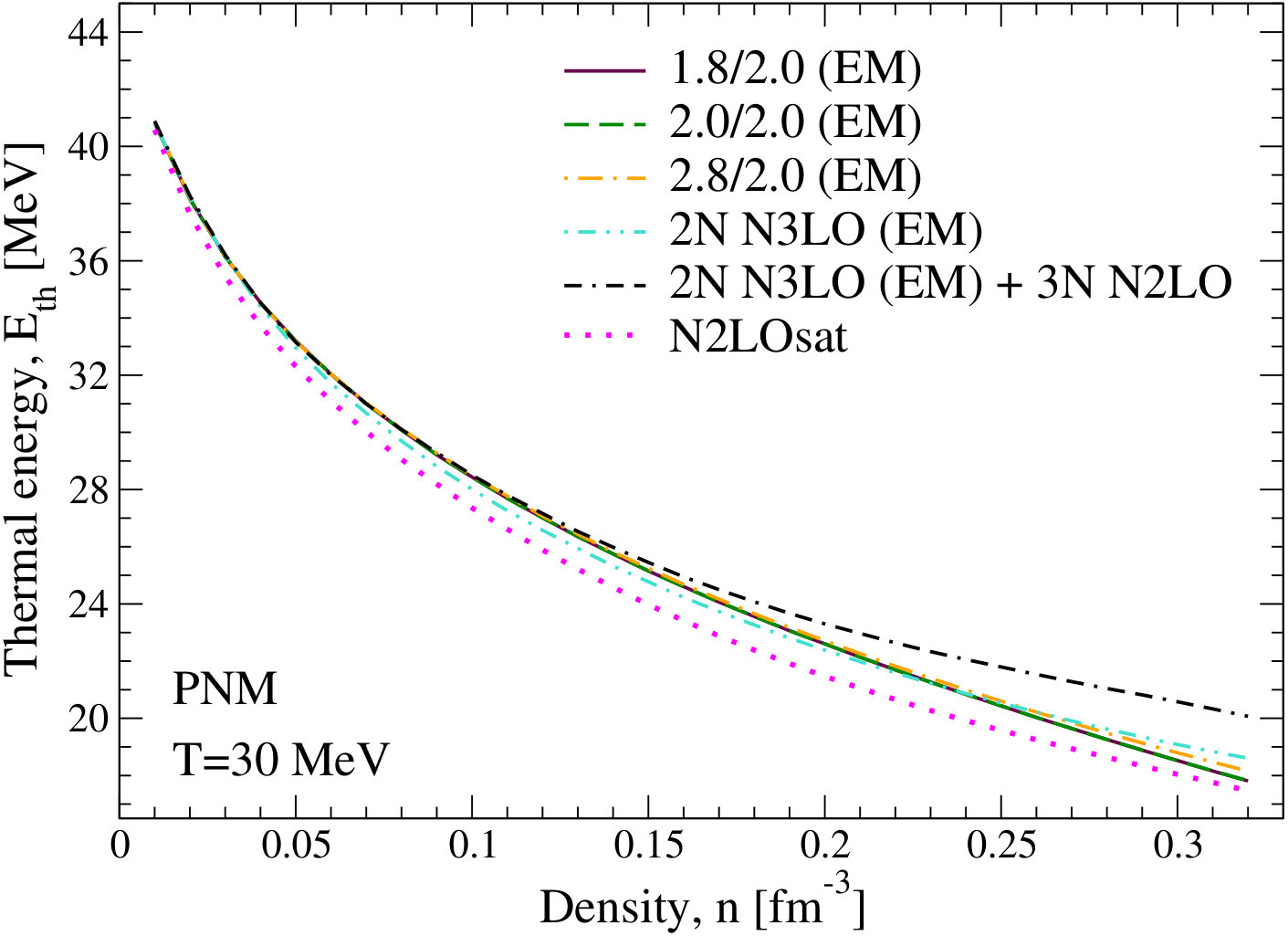

In the first row of Fig. 4, the thermal energy at $T=30$ MeV follows the behavior already described in Fig. 3: the thermal energy decreases with increasing density. The spread provided by the use of different nuclear forces is more pronounced in SNM than in PNM. In SNM the extremes of the band are encompassed by the $2N$-only calculation, for the lower part, and the corresponding $2N+3N$ calculation, for the upper part. This shows the importance of three-nucleon interactions for the thermal energy. Chiral three-nucleon forces provide important repulsive contributions that increase with density, both in PNM Hebeler and Schwenk (2010) and SNM Hebeler et al. (2011); Hagen et al. (2014). This is also the case at finite temperature and leads to larger thermal energies at higher densities. For PNM this effect is still visible, however the softer evolved interactions [1.8/2.0 (EM), 2.0/2.0 (EM), and 2.8/2.0 (EM)] result in thermal energies that are below the $2N$-only calculation, meaning that three-nucleon effects are weaker for these interactions at higher densities. It is interesting to note that this is also the case for the N2LOsat two- and three-nucleon interactions, which provide an even smaller thermal energy in PNM.

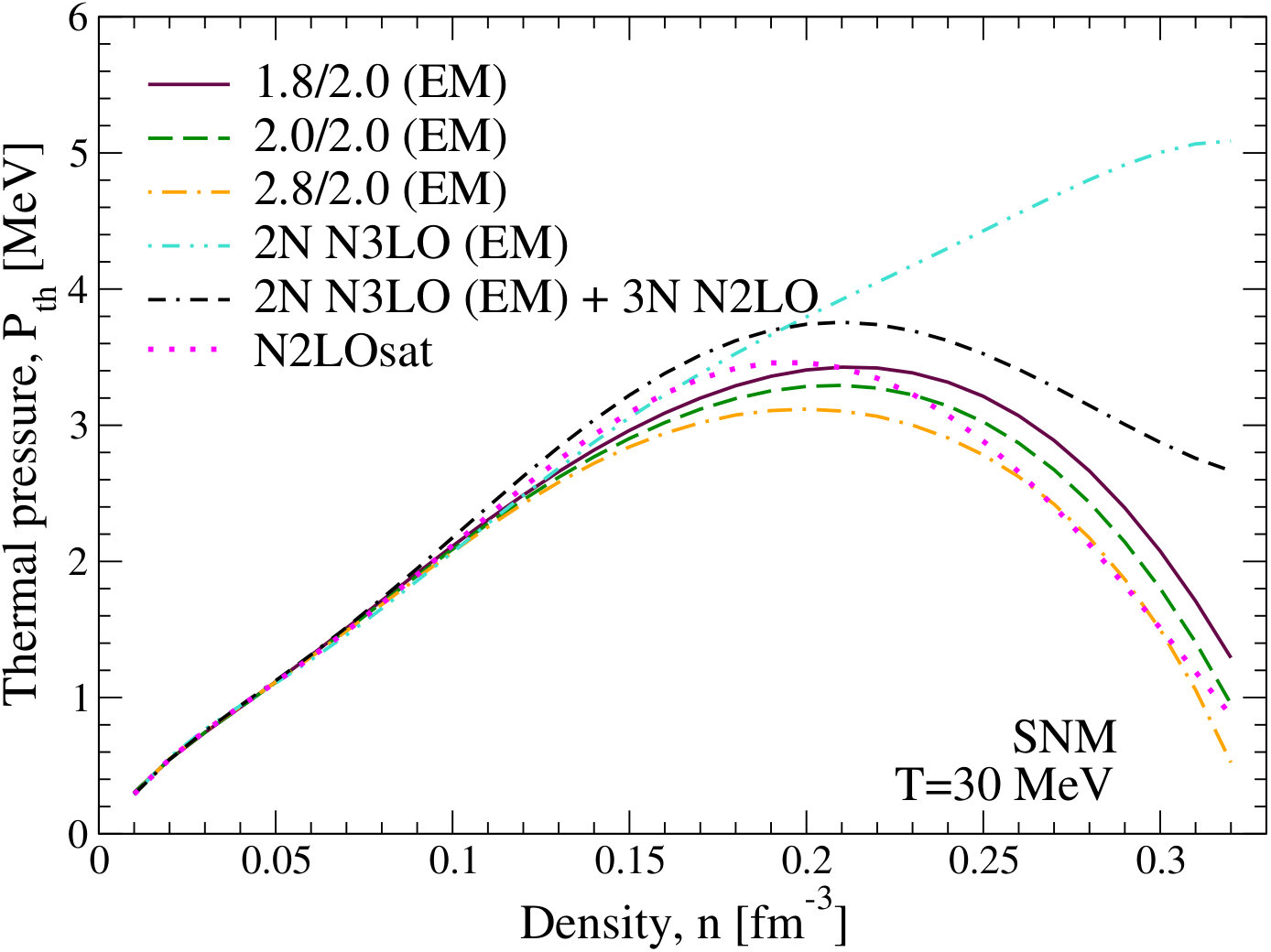

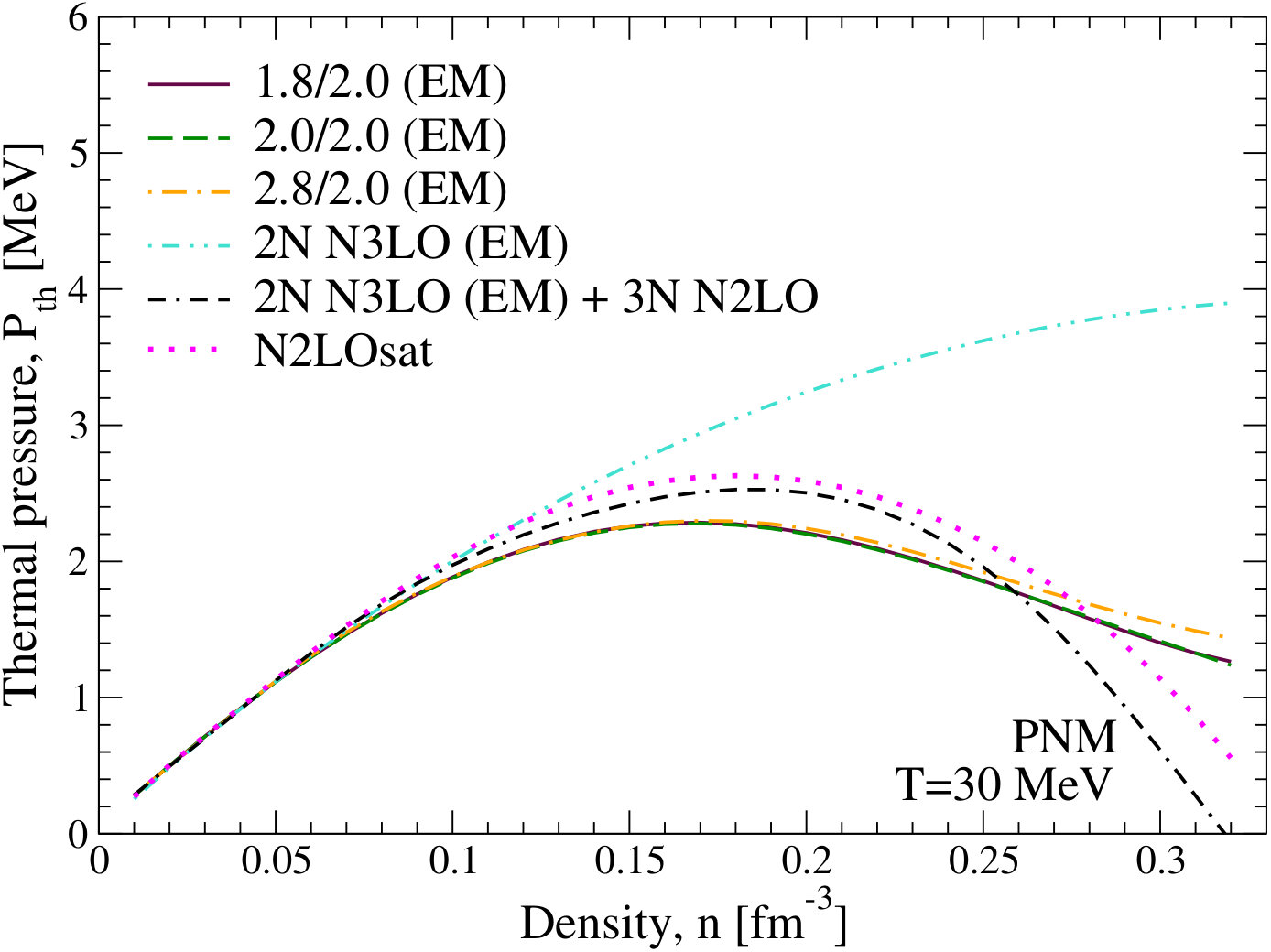

In second row of Fig. 4, we present the thermal pressure obtained for the same chiral Hamiltonians. A striking characteristic is observed for both SNM and PNM: in the case of the $2N$-only calculation the thermal pressure is a growing quantity with density, unlike observed for all other cases. This hints at the fact that the zero temperature pressure is too soft without three-nucleon interactions, while the finite-temperature pressure stiffens caused by thermal components, providing a stronger thermal pressure. For all chiral two- and three-nucleon interactions, the thermal pressure decreases with density after having reached a maximum around $n=0.20$fm*-3*. The decrease is a combined effect between how stiff the pressure is at zero temperature and how rapidly the finite-temperature pressure grows as density increases.

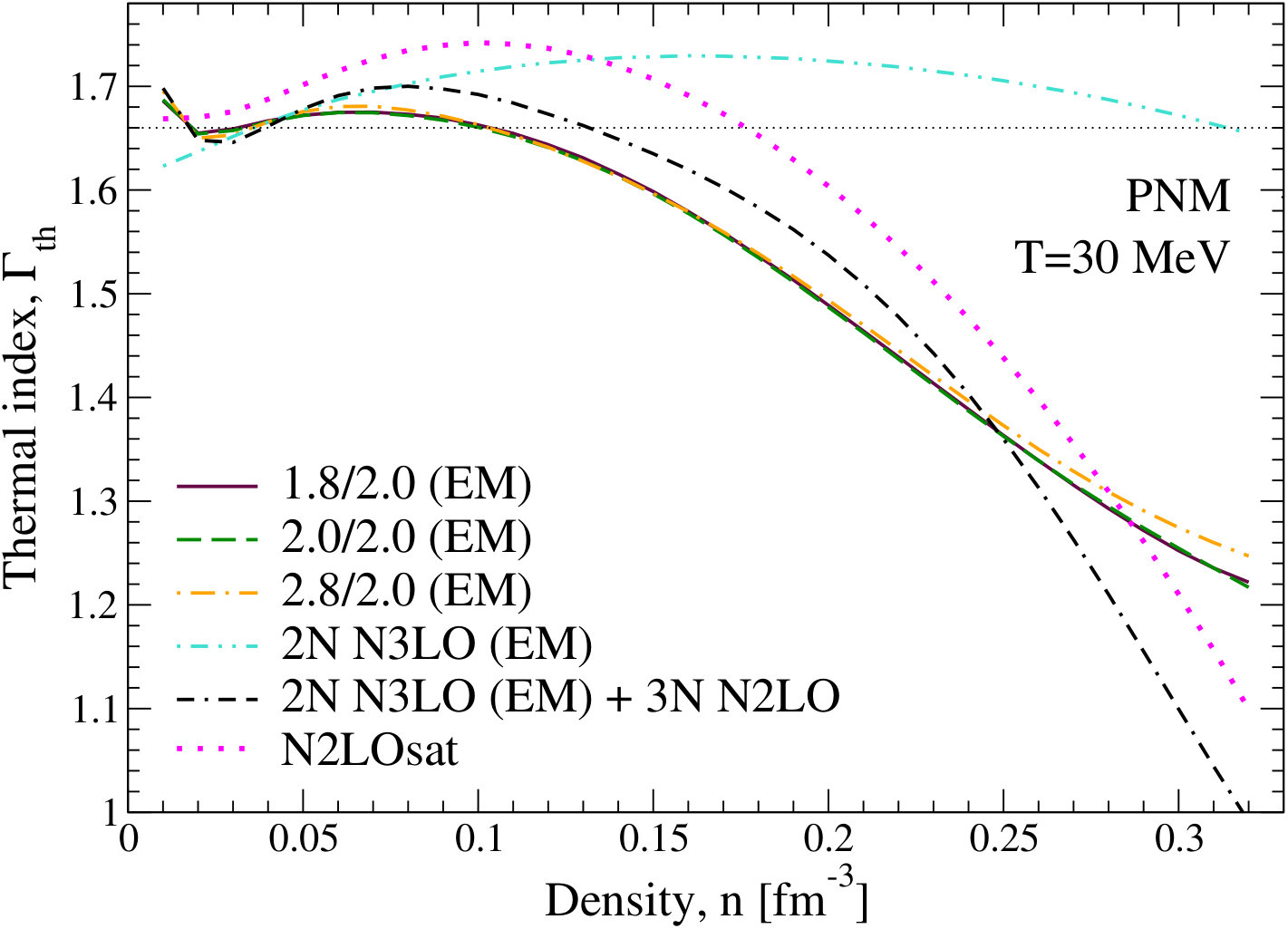

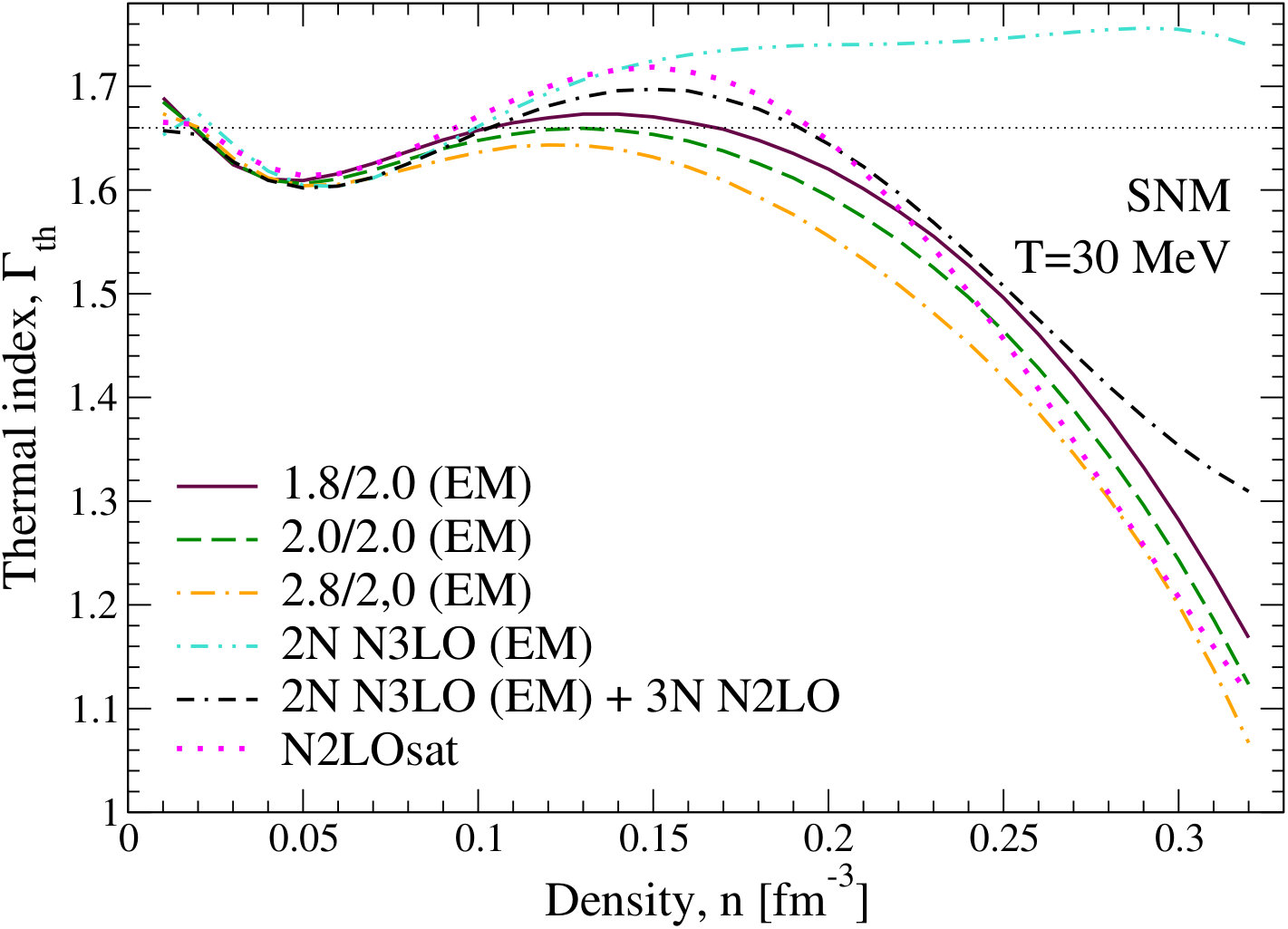

Finally, the thermal index is shown in the last row of Fig. 4. As described above, an increase is observed at intermediate densities, for both SNM and PNM, followed by a rapid decrease as density grows. However, the case where only $2N$ interactions are included in the calculation presents a thermal index with a nearly density independent behavior, in comparison to the other cases. It is worth noting that for the unevolved potentials, namely $2N$ N3LO (EM) + $3N$ N2LO and N2LOsat, a higher maximum is reached; this is mostly caused by the stronger thermal pressure obtained with these chiral Hamiltonians. These interactions also show a steeper decrease in the PNM case, which is a direct consequence of the thermal pressure trend. This is caused by the fact that the zero-temperature pressure for these interactions is stiffer due to stronger three-nucleon forces at high densities and so the thermal pressure is smaller at higher densities.

We conclude from this analysis that the thermal index behavior strongly depends on the inclusion of three-nucleon forces, on how important thermal effects are at intermediate densities for both energy and pressure, and on how stiff the pressure is at zero temperature in the high-density region. We observe a maximum value of $\approx\,$1.7, which varies slightly depending on the temperature (see last row of Fig. 3) or nuclear forces considered (see last row of Fig. 4). As density increases, $\Gamma_{\rm th}$ reaches lower values down to $\approx\,$1 or around $1.3-1.4$ at higher temperatures. We never observe a value as high as $\Gamma_{\rm th}=2$, which has been assessed as a reasonable value to simulate neutron-star mergers events Bauswein et al. (2010); Rezzolla and Takami (2016). Note that a larger value for $\Gamma_{\rm th}$ refers to stiffer thermal effects, which leads to a smaller peak frequency in the gravitational-wave signal of the post-merger remnant and a longer time delay to black-hole collapse Bauswein et al. (2010). Finally, while we do not show uncertainty estimates from the many-body SCGF calculations, this is expected to be smaller than the spread in the different chiral Hamiltonians considered (see Ref. Carbone et al. (2018); Carbone (2019)).

III.2 Characterizing thermal effects through the nucleon effective mass

In this section, we show how knowledge of the nucleon effective mass sheds light on the behavior of the thermal index. To this end, we explore a functional form, which is based on Fermi liquid theory of a weakly interacting nonrelativistic system of quasiparticles with a density-dependent effective mass $m^{*}$. In fact, assuming an ideal gas of nucleons with density-dependent $m^{*}(n)$ yields for the thermal index the following form (see, e.g., Ref. Constantinou et al. (2015)):

[TABLE]

which in the limit of zero density approaches the nonrelativistic ideal gas index 5/3.

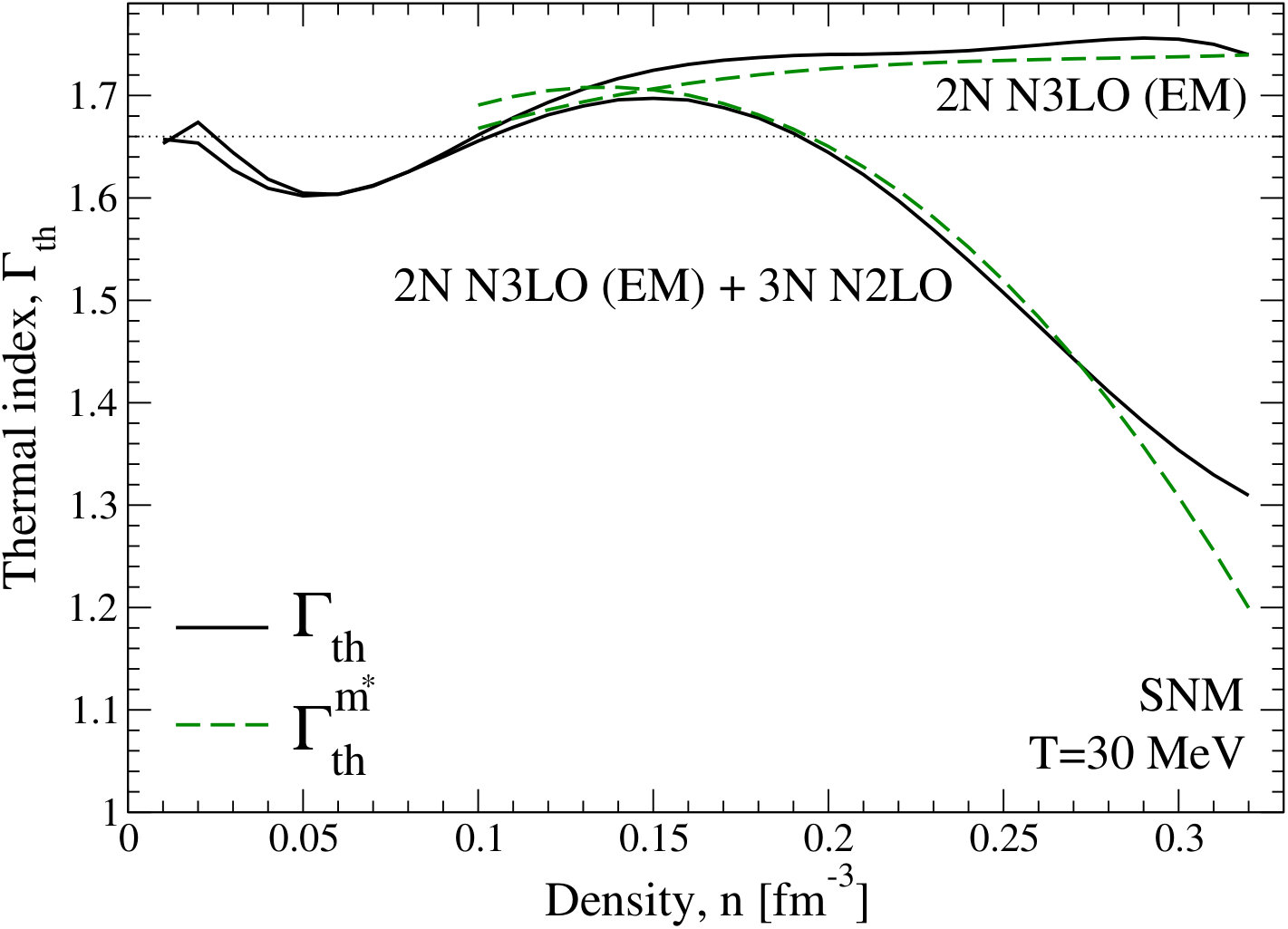

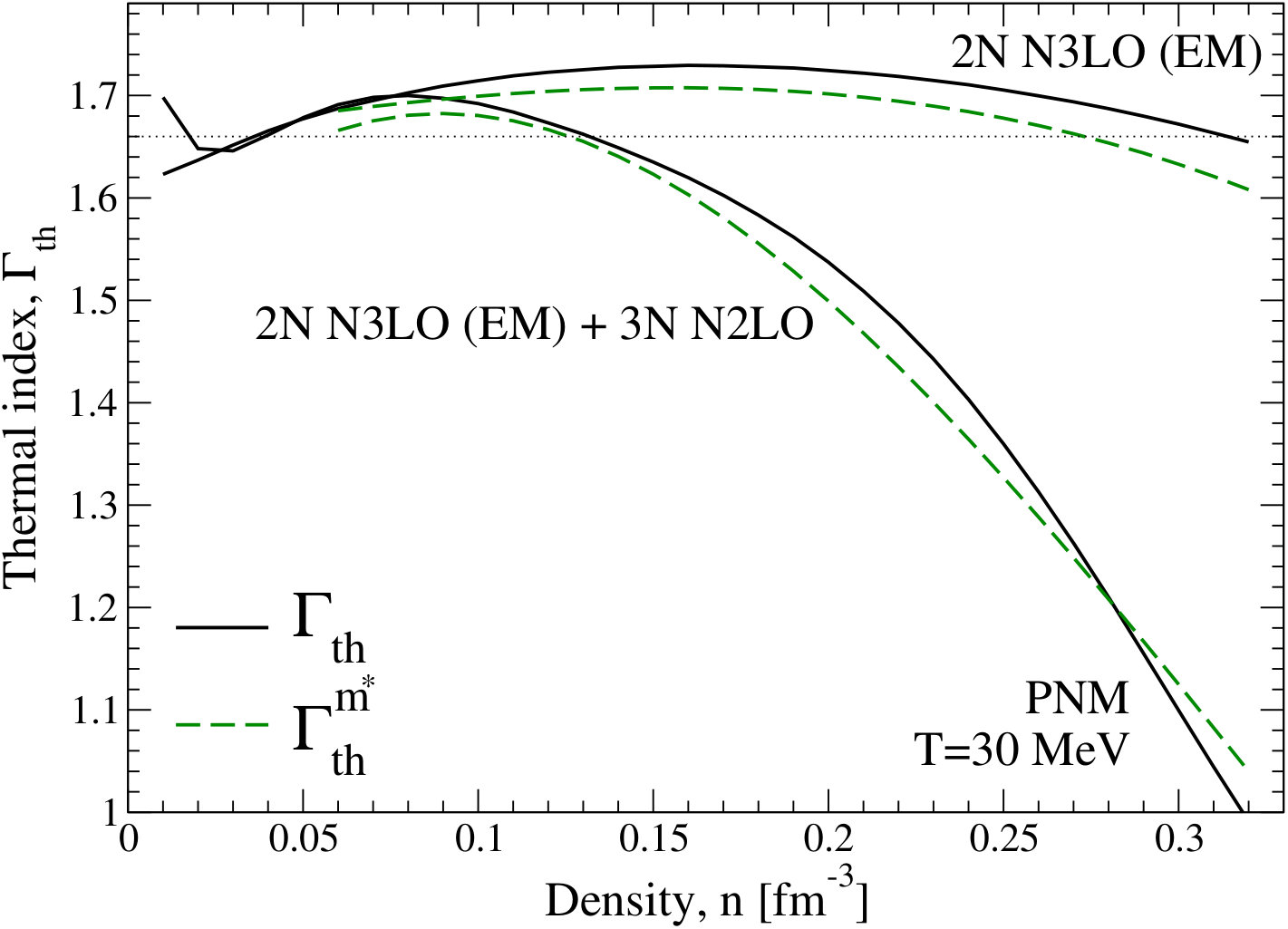

In Fig. 5, we compare the thermal index for $T=30$ MeV extracted from the thermal energy and thermal pressure using Eq. (10) to $\Gamma_{\rm th}$ based on the density dependence of the effective nucleon mass, Eq. (11). The results are shown for the $2N$ N3LO (EM) and $2N$ N3LO (EM) + $3N$ N2LO chiral interactions for SNM and PNM. Similar results are found for the other temperature and Hamiltonians studied before. It is remarkable how well the functional form given by Eq. (11) captures the behavior of the thermal index, with only small quantitative differences. This demonstrates that by far the dominant thermal effects are determined by the density-dependent effective mass of the nucleons. We note that the reason why the dashed lines in Fig. 5 do not capture the low-density behavior can be traced to how we determine the effective mass at finite temperature. In fact, we calculate the effective mass from the single-particle spectrum where the single-particle energy equals the chemical potential (see Ref.  Li et al. (2018) for a recent review on nucleon effective masses):

[TABLE]

where $p_{\mu}$ defines the momentum where the single-particle energy $\varepsilon(p)$ equals the chemical potential. In the low-density regime, especially at higher temperatures, the chemical potential becomes very negative and no solution is encountered for the equality $\varepsilon(p)=\mu$, which is why the dashed lines stop at certain low-density values, for both SNM and PNM.

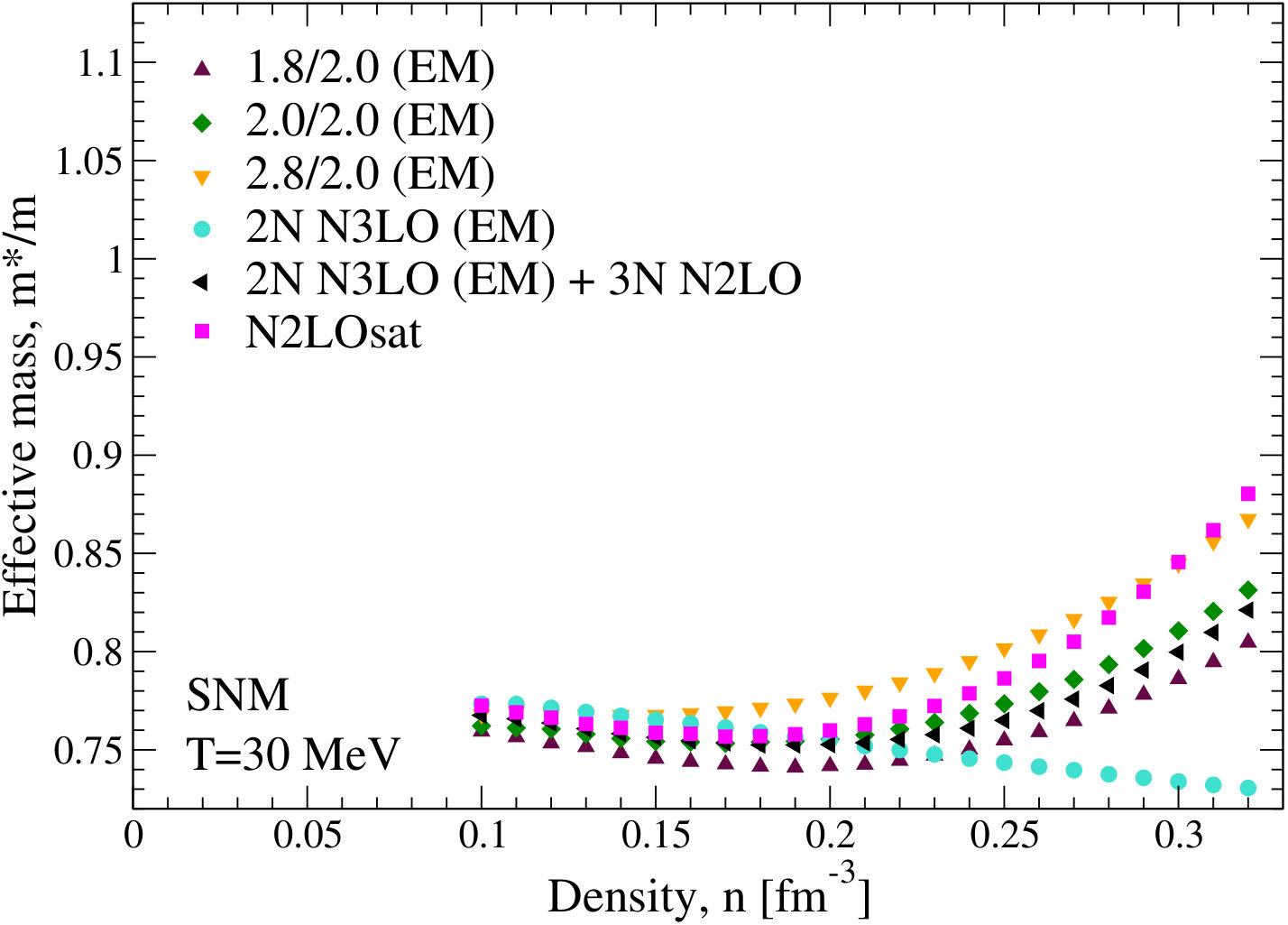

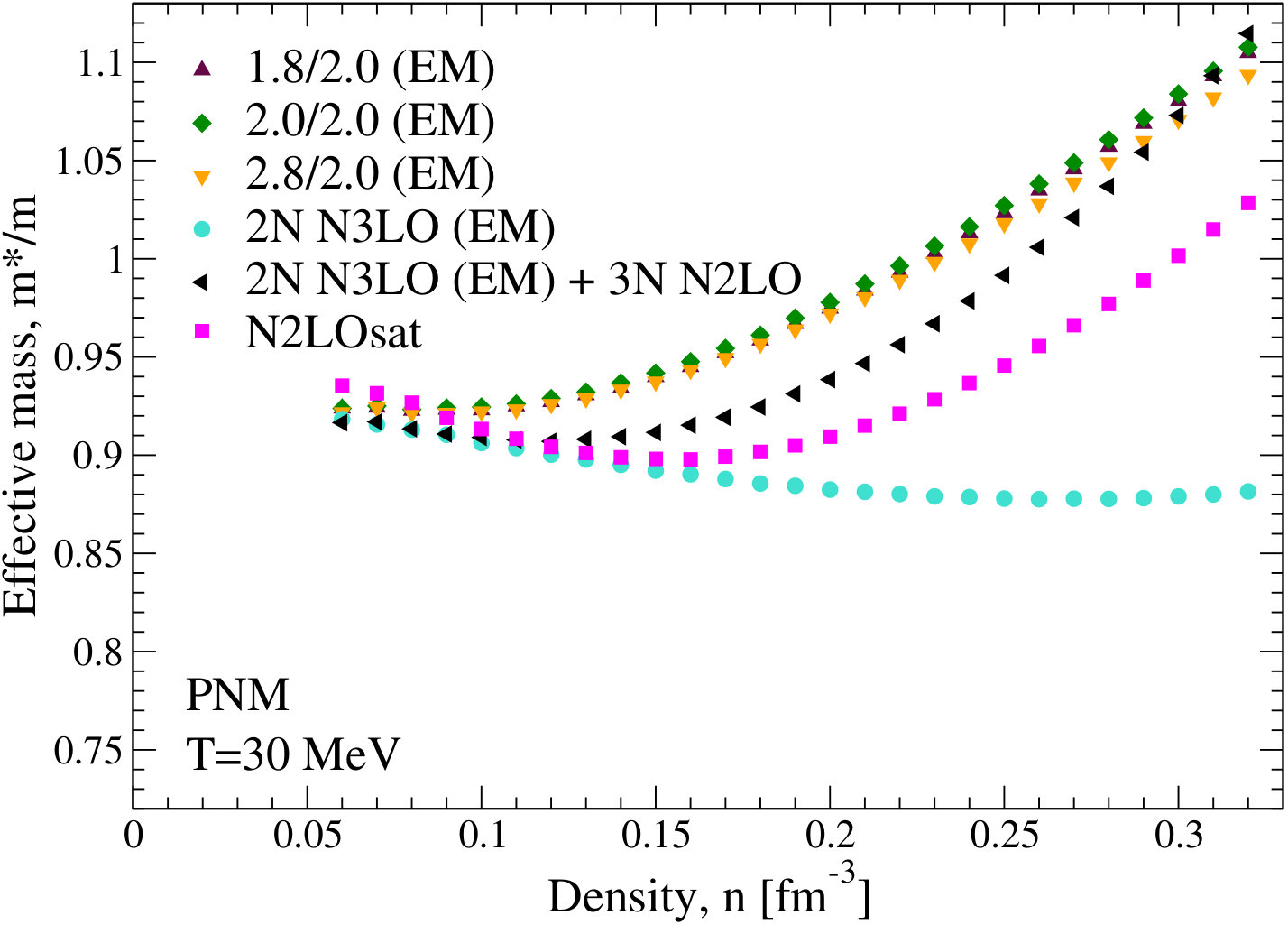

In Fig. 6 we plot the effective mass for $T=30$ MeV as determined by Eq. (12), exploring the different chiral Hamiltonians for SNM and PNM. We find a qualitatively similar behavior for SNM and PNM. The effective mass first decreases and then increases with density, except for the $2N$-only calculation, where the effective mass keeps decreasing for SNM, while it slightly grows for PNM, when reaching twice saturation density. It is worth noting that for PNM the effective mass is much closer to 1, and reaches values above 1 as density increases. The inclusion of three-nucleon forces provides important repulsive contributions to the self-energy, which was already discussed for the thermal index in Fig, 4, and can be clearly seen also for the effective mass in Fig. 6. We have checked that at low temperatures our effective masses compare reasonably well with zero temperature results from Refs. Hebeler et al. (2009); Drischler et al. (2014); Wellenhofer et al. (2014); Drischler et al. (2017); Buraczynski et al. (2019). Finally, we note that at densities where the three-nucleon contributions are small, the results for the effective mass are consistent with previous studies Hebeler et al. (2009); Wellenhofer et al. (2014).

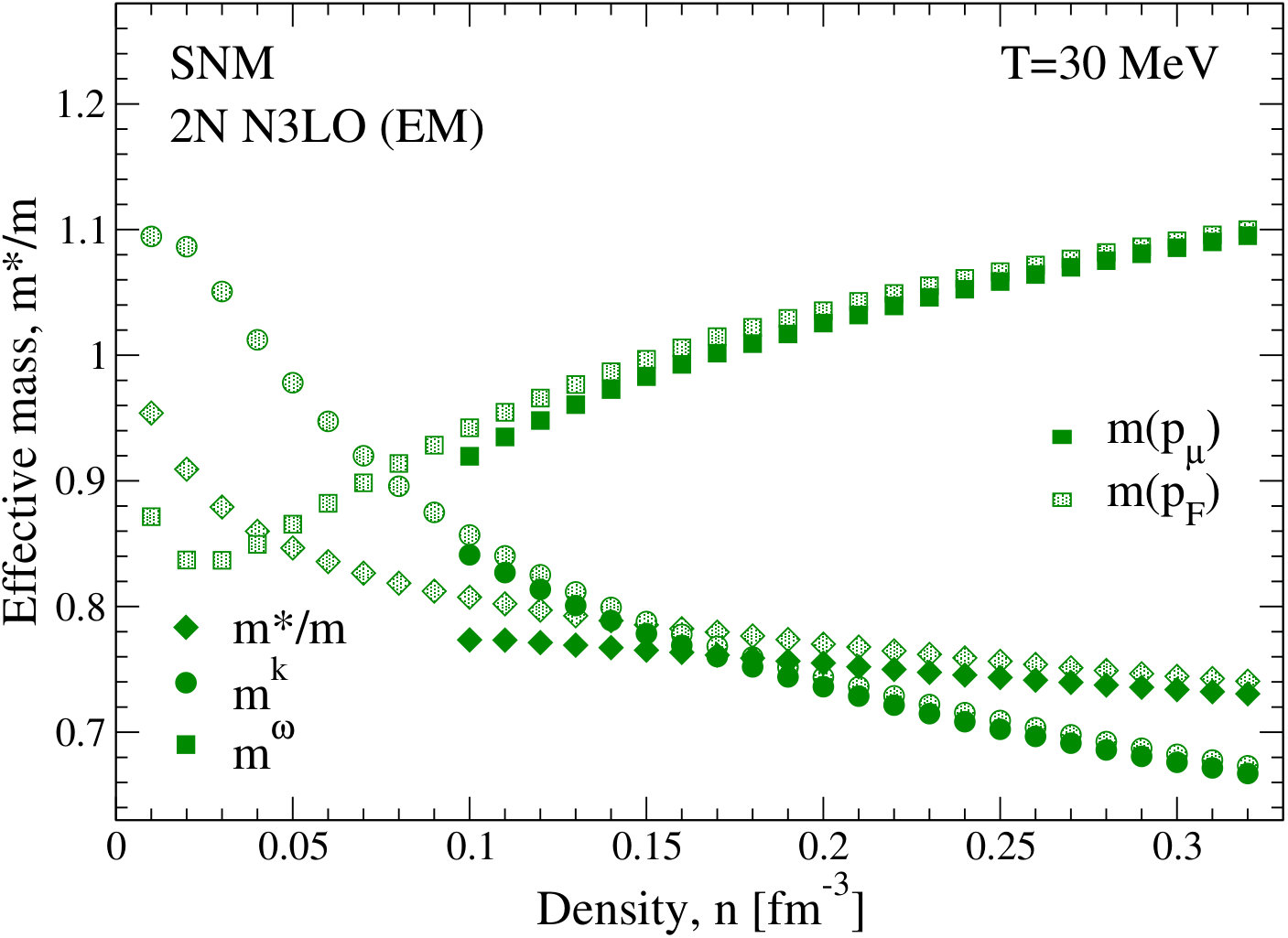

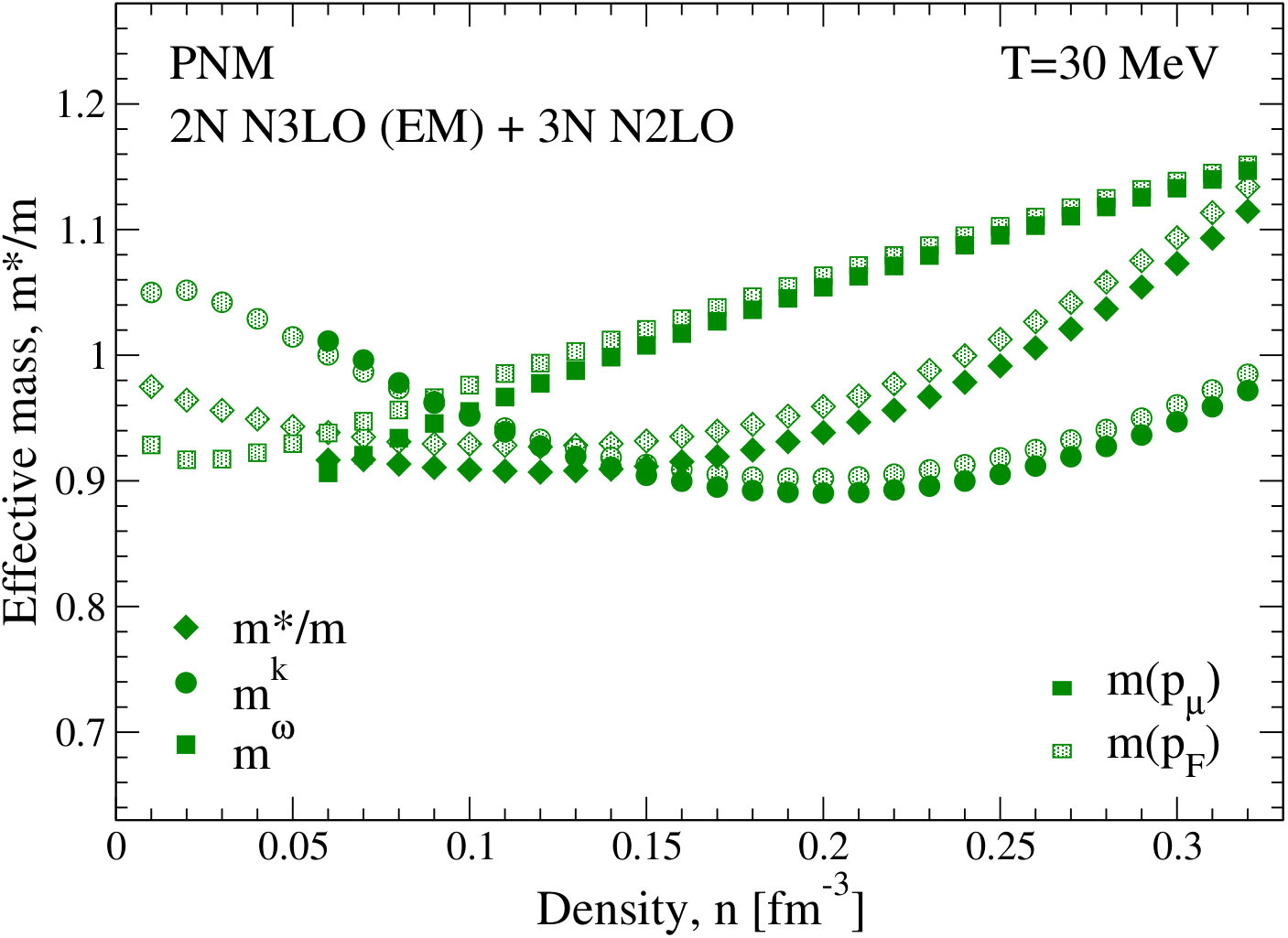

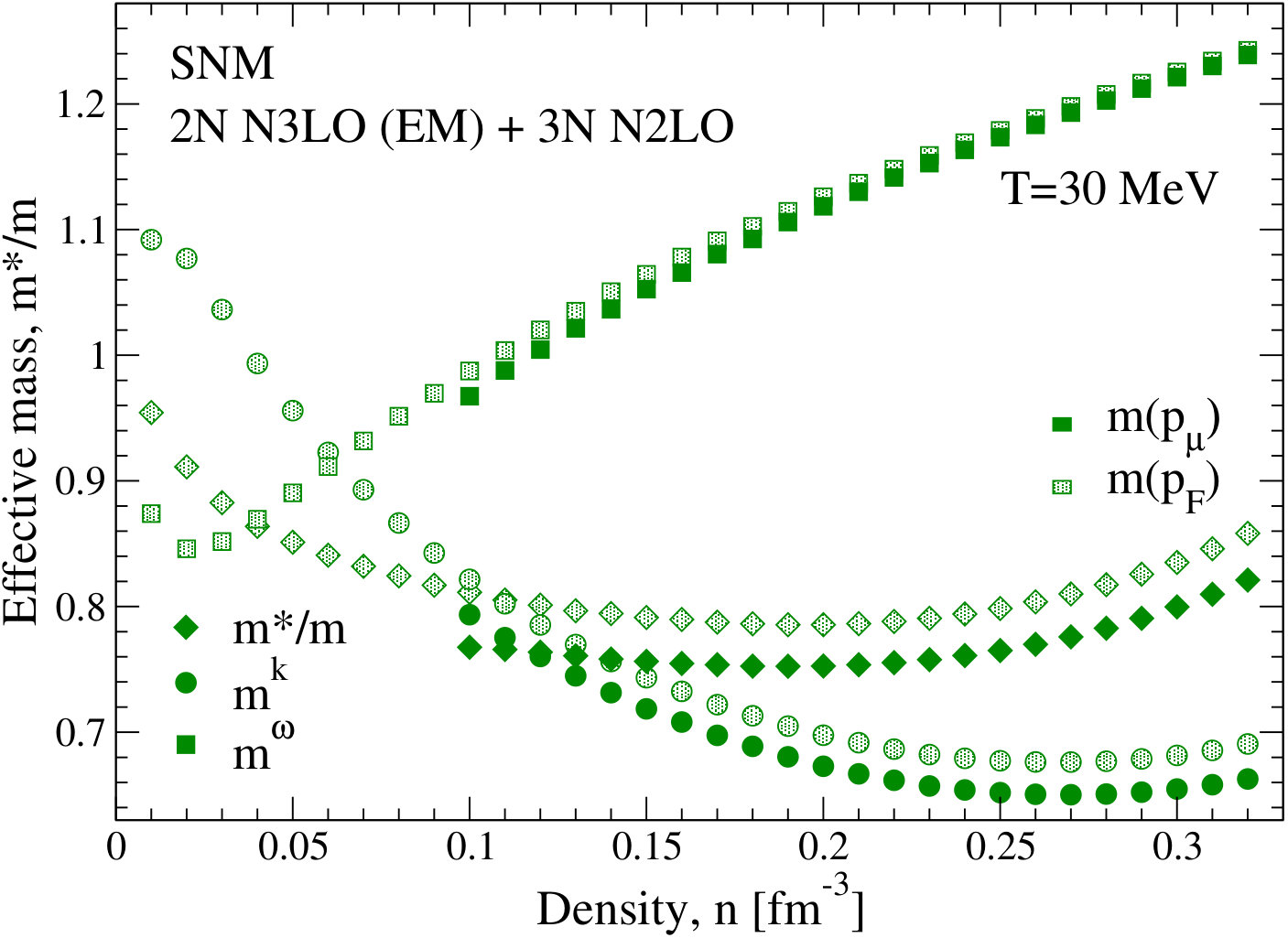

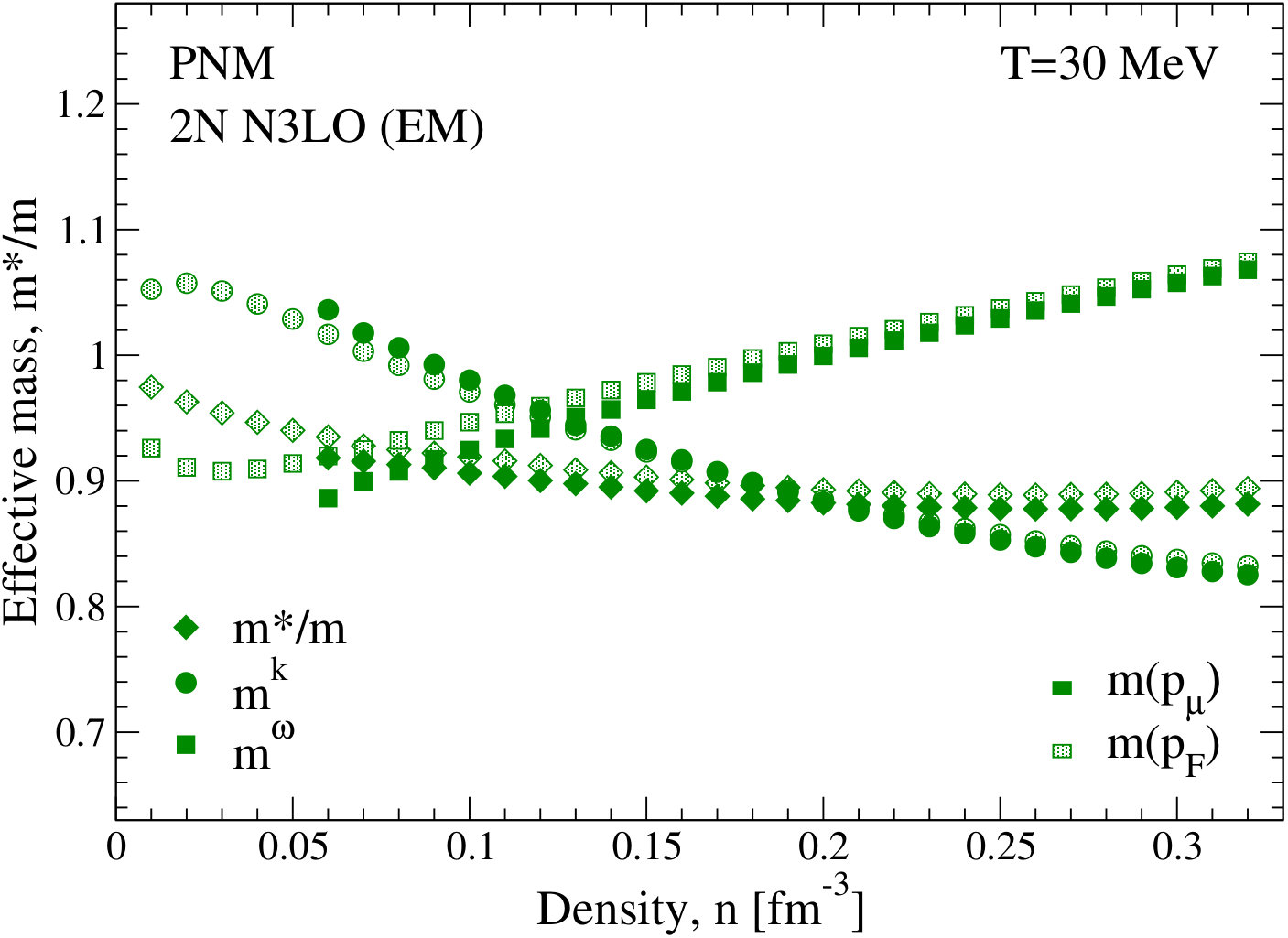

To understand the behavior of the effective mass, we present in Fig. 7 its different momentum- and energy-dependent contributions, the so called $k$- and $\omega$-mass. We focus on the same $T=30$ MeV temperature and the same chiral two- and three-nucleon interactions studied in Fig. 5. Considering the different contributions the full effective mass of Eq. (12) can be written as a product of the $k$ and $\omega$ mass, $m^{k}$ and $m^{\omega}$,

[TABLE]

where $m^{\omega}$ is given by the energy derivative of the real part of the self-energy,

[TABLE]

and $m^{k}$ by the momentum derivative,

[TABLE]

${\rm Re}\Sigma(p,\omega)$ describes the real part of the self-energy which we calculate within the SCGF approach. Note that at the Hartree-Fock level or in the mean-field approximation, the effective mass would be given by $k$ mass only. Figure 7 shows clearly that $m^{\omega}$ from energy-dependent correlations causes the increase of the effective mass with density. However, although $m^{\omega}$ is larger in SNM than in PNM, it is nevertheless balanced by a smaller value for $m^{k}$ in the former case, producing a smaller total effective mass. When three-nucleon forces are not included (in the second row of Fig. 7), the effects of $m^{\omega}$ are not as strong, both in SNM and PNM, and a combined effect with a decreasing $m^{k}$ as function of density is the main cause of the nearly density independent effective mass at higher densities, as observed in Fig. 6. In all panels of Fig. 7 we also show for comparison the effective mass calculated at the Fermi momentum determined from the density; we see that differences are larger at low densities, where thermal effects are stronger and $p_{\mu}$ differs more from $p_{\rm F}$.

We thus find important contributions to the effective mass beyond the Hartree-Fock level or mean-field approximation, and that a full description of the effective mass, as given by Eq. (13), is important to describe thermal effects for the nuclear EOS and to reproduce the behavior of the thermal index.

IV Conclusions and outlook

We have presented first ab initio SCGF calculations of thermal effects on the nuclear EOS using different chiral two- and three-nucleon interactions. In particular, we analyzed for SNM and PNM the thermal energy and thermal pressure, from which we accessed the behavior of the thermal index used widely in astrophysical simulations. Our calculations show how a density-dependent $\Gamma_{\rm th}$, which is, e.g., based on ideal-gas thermal contributions, does not capture the thermal effects based on ab initio calculations.

We have provided uncertainty estimates employing different chiral Hamiltonians. Overall the thermal index was found to vary between about 1-1.7 according to changes in density or temperature, and including the nuclear physics uncertainties. The behavior of the thermal index is strikingly affected by the inclusion of three-nucleon forces in our calculations; furthermore the stiffness of the pressure at zero temperature influences the decrease of $\Gamma_{\rm th}$ at high densities. Our results clearly point to smaller values for the thermal index, compared to the range of $\Gamma_{\rm th}$ up to 2 used in astrophysical simulations. Such low values are also expected to have a very interesting impact on core-collapse supernova simulations, based on the recent work of Ref. Yasin et al. (2018).

We have also explored a functional form for $\Gamma_{\rm th}$ based on the density dependence of the nucleon effective mass, which captures the behavior of the thermal index remarkably well. In particular, this shows that a calculation of the effective mass, beyond the Hartree-Fock level or mean-field approximation, is necessary to capture these thermal effects. This work is a first step towards a more comprehensive analysis of thermal effects in the nuclear EOS and a full finite-temperature description based on realistic nuclear interactions. This will help shed light on the dependence of the threshold mass to prompt collapse in neutron star mergers as a function of the maximum compactness Bauswein et al. (2013); Köppel et al. (2019), and also establish more realistic lower bounds for the binary tidal deformability extracted from electromagnetic counterparts Kiuchi et al. (2019). Future improvements will concentrate on asymmetric matter in beta-equilibrium, as well as extensions to explore higher densities, relevant for astrophysical applications.

Acknowledgements.

We thank A. Arcones, K. Hebeler, L. Rezzolla, S. Schäfer, C. Wellenhofer, and H. Yasin for useful discussions. This work was supported in part by the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) – Projektnummer 279384907 – SFB 1245 and by “PHAROS” COST Action CA16214. Calculations for this research were conducted on the Lichtenberg high-performance computer of the TU Darmstadt.
