Quantum chaos associated with emergent ergosurface in transition layer between type-I and type-II Weyl semimetals

TL;DR

This paper investigates emergent ergosurfaces in transition layers between type-I and type-II Weyl semimetals, revealing quantum chaos and fast scrambling behavior through OTOC calculations, with implications for understanding quantum chaos in condensed matter systems.

Contribution

It introduces the concept of emergent ergosurfaces in Weyl semimetals and demonstrates quantum chaos via OTOC analysis in a lattice model.

Findings

Emergent ergosurfaces occur at the transition layer between Weyl semimetal types.

OTOCs exhibit fast scrambling with a measurable quantum Lyapunov exponent.

Quantum chaotic behavior is confirmed through saturation of scrambling after the Ehrenfest time.

Abstract

We present emergent ergosurfaces (ES) in a transition layer between type-I and type-II Weyl semimetals (WSMs). The Hawking temperature defined by the surface gravity at the acoustic event horizon which coincides with the ES when the tangent velocity $v_{\parallel}$ is small is in a measurable interval. On the type-II WSM side, i.e., inside the {ES when $v_{\parallel}$ is large}, the motion of the quasiparticles may be chaotic {after} a critical surface as they are governed by an effective inverted oscillator potential induced by the mismatch between the type-I and type-II Weyl nodes. In a relevant lattice model, we calculate out of time ordered correlators (OTOCs). We find that the OTOCs are fast scrambling with a quantum Lyapunov exponent in high temperature and the scrambling is saturated after the Ehrenfest time. This confirms the quantum chaotic behavior.

Figures

Equations

$$H(\vec{q})=e_{\mu }^i{q}_i{\sigma }^{\mu },$$

$$E(Q_i{)}_{\pm }=e_0^j[e^{-1}{]}_j^i{Q}_i\pm |\mathbf{Q}|,$$

$$g^{\mu \nu }{q}_{\mu }{q}_{\nu }=0,$$

$$H_{I/II}$$

$$H(z)=H_{II}+(H_I-H_{II})\frac{z}{L},$$

$$H(z)$$

$$\frac{z_c}{L}=\frac{\Delta \mathbf{\alpha }\cdot {\mathbf{\alpha }}_{II}-\sqrt{(\Delta \mathbf{\alpha }\cdot {\mathbf{\alpha }}_{II}{)}^2-(\Delta \mathbf{\alpha }{)}^2({\mathbf{\alpha }}_{II}^2-1)}}{(\Delta \mathbf{\alpha }{)}^2}$$

$$d{s}^2$$

$$R_{z_h}=\frac{\Delta {\alpha }_x^2(-2(1-{\alpha }_{IIz}{)}^2\Delta {\alpha }_x^2-4{\alpha }_{IIx}(1-{\alpha }_{IIz})\Delta {\alpha }_1\Delta {\alpha }_3+(1-2{\alpha }_{IIx}^2)\Delta {\alpha }_z^2)}{2\Delta {\alpha }_z^2},$$

$$L^{\nu }{\partial }_{\nu }{L}^{\mu }{|}_{z=z_h}=\frac{\partial (1-v_z^2)}{2\partial z}{L}^{\mu }={\eta }_H{L}^{\mu },$$

$${\eta }_H=\frac{\partial (1-v_z^2)}{2\partial z}{|}_{z=z_h}=\Delta \mathbf{\alpha }\cdot \mathbf{\alpha }(z_h)\frac{1}{L},$$

$$T_H=\frac{\hslash {\eta }_H}{2\pi k_B}=\frac{\Delta \mathbf{\alpha }\cdot \mathbf{\alpha }(z_h)\hslash v_F}{2L\pi k_B},$$

$$H(z)\psi (z,t)=i\dot{\psi }(t),$$

$$\ddot{\chi }-{\partial }_{\tilde{z}}^2\chi +[\kappa {\tilde{z}}^2+B_y^2(q_x^2-\frac{2\sqrt{1-{\alpha }_z^2}}{B_x}{q}_x\tilde{z})]\chi +...=0,$$

$$\ddot{\chi }-{\partial }_{\tilde{z}}^2\chi -{\lambda }_L^2{\tilde{z}}^2\chi -B_y^2{\partial }_x^2+{ϵ}_3{\tilde{z}}^3\chi +{ϵ}_4{\tilde{z}}^4\chi$$

$$+2i{B}_y^2{B}_x^{-1}\sqrt{1-{\alpha }_z^2}\tilde{z}{\partial }_x\chi +V(x)\chi =0,$$

$$H_{I/II}^l=d_{I/II,\mu }{\sigma }^{\mu },$$

$$d_{I/II,x}$$

$$d_{I/II,y}$$

$$d_{I,0}$$

$$H^{l}=\left\{\begin{array}[]{ll}H^{l}_{II},&\gamma=\gamma_{II},n_{z}\leq L_{II},\\ H^{l}_{II}+\xi(H^{l}_{I}-H^{l}_{II}),&\gamma=\gamma_{TL},n_{z}\in(L_{II},L+L_{II}],\\ H^{l}_{I},&\gamma=\gamma_{I},n_{z}>L+L_{II},\end{array}\right.$$

$${\hat{P}}_z|{\psi }_{\mathbf{k}}(n_z)⟩\equiv \frac{1}{2}(|{\psi }_{\mathbf{k}}(n_z-1)⟩-|{\psi }_{\mathbf{k}}(n_z+1)⟩),$$

$$C_T(t)$$

$$C_T(t,{\psi }_{\mathbf{k}})=\sum _{{\psi }_1,{\psi }_2,{\psi }_3}{f}_{\psi }(1-f_{{\psi }_1})$$

$$\times (1-f_{{\psi }_2})(1-f_{{\psi }_3}){\rho }_{\psi {\psi }_1}{\rho }_{{\psi }_1{\psi }_2}{\rho }_{{\psi }_2{\psi }_3}{\rho }_{{\psi }_3\psi }$$

$$\times [n_z(t{)}_{\psi {\psi }_1}{P}_z(0{)}_{{\psi }_1{\psi }_2}{n}_z(t{)}_{{\psi }_2{\psi }_3}{P}_z(0{)}_{{\psi }_3\psi }+\cdots ],$$

$$(q_x+B_{x}z)\lambda -i(q_y+B_{y}z)\lambda +(-i{\partial }_z+B_{z}z)\chi -{\alpha }_x(q_x+B_{x}z)\chi -{\alpha }_z(z)(-i{\partial }_z+B_{z}z)\chi =i{\partial }_t\chi ,$$

$$(q_x+B_{x}z)\chi +i(q_y+B_{y}z)\chi -(-i{\partial }_z+B_{z}z)\lambda -{\alpha }_x(q_x+B_{x}z)\lambda -{\alpha }_z(z)(-i{\partial }_z+B_{z}z)\lambda =i{\partial }_t\lambda .$$

$$(((1-{\alpha }_x^2)(q_x+B_{x}z{)}^2+B_y^2{z}^2)-{\partial }_z^2+2i{\alpha }_x(q_x+B_{x}z)({\alpha }_z{\partial }_z-{\partial }_t)-2{\alpha }_z{\partial }_z{\partial }_t+{\alpha }_z^2{\partial }_z^2+{\partial }_t^2)\chi$$

$$-\frac{1}{q_x+(B_x-i{B}_y)z}({\alpha }_x(1+{\alpha }_z)B_y{q}_x+({\alpha }_z^2{B}_x-B_x+i{B}_y-i{\alpha }_z^2{B}_y){\partial }_z+((1-{\alpha }_z)B_x+i(1+{\alpha }_z)B_y{\partial }_t))\chi =0.$$

$$(i{\alpha }_x{\alpha }_z(1-{\alpha }_z^2)B_x+{\alpha }_x^2(q_x+B_{x}z{)}^2-(1-{\alpha }_z^2)((q_x+B_{x}z{)}^2+B_y^2{z}^2))\chi$$

$$+(1-{\alpha }_z^2{)}^2{\partial }_z^2\chi +2i{\alpha }_x(q_x+B_{x}z){\partial }_t\chi +2{\alpha }_z(1-{\alpha }_z^2){\partial }_t{\partial }_z\chi -(1-{\alpha }_z^2){\partial }_t^2\chi =0.$$

$${\partial }_t^2\chi -{\partial }_{\tilde{z}}^2\chi +((1-{\alpha }_x^2-{\alpha }_z^2)B_x^2{\tilde{z}}^2+B_y^2(\sqrt{1-{\alpha }_z^2}\tilde{z}-\frac{q_x}{B_x}{)}^2)\chi$$

Full text

I Introductions

Recent developments on the frontier of theoretical physics research have entangled the black hole horizon physics with quantum chaos mald2 ; kit1 ; kit2 ; mald1 ; sac ; she1 ; she2 .

In condensed matter systems, the black hole analog had been pioneered by Unruh in transsonic fluid flow unruh1 . A quantum analog had been provided in Bose-Einstein condensation BEC-BH ; N19 , and a magnonic black hole was predicted molin . The exotic emergent geometries (or gravities) have also been studied in Fermi surface Horava , fractional quantum Hall effects hald ; qiu ; ky ; luo , graphene vo6 , deformed crystal niu , type-II Weyl semimetal (WSM) vo3 ; vo1 ; vo2 ; vo5 , and type-III Dirac semimetal liu . Several systems may simulate the Hawking evaporation at a black hole event horizon hawkin ; beken . However, the chaotic behaviors at the horizon do not appear easily. For instance, for the trajectory of a moving particle outside of the horizon to be chaotic classically, there must be an external potential near the horizon hash . The Lyapunov exponent is subject to a maximal chaotic bound, the surface gravity mald2 . This bound is saturated for theories with AdS/CFT duality, such as the case in the Sachdev-Ye-Kitaev model mald1 ; kit1 ; kit2 .

Volovik et al recently studied the emergent metric in the inhomogeneous WSM vo1 ; vo2 ; vo3 . They found a general correspondence between the emergent vielbein $e^{i}_{\mu}$ and the effective Hamiltonian near a Weyl node ${\bf K}=(K_{x},K_{y},K_{z})$, i.e.,

[TABLE]

where $\mu=0,i$ with $i=x,y,z$. $q_{i}=k_{i}-K_{i}$ and $\sigma^{\mu}=(I,\sigma^{i})$ are the identity and Pauli matrices. Here the Einstein’s summation convention for repeated indices is used. The ’speed of light’ $v_{F}$ (the Fermi velocity) , the electron effective mass $m_{b}$, and $\hbar$ are set to be one unless they are explicitly restored. The spectrum is given by

[TABLE]

with $Q_{i}\equiv e_{i}^{j}q_{j}$. The vielbein components $e^{i}_{\mu}$ together with $e^{0}_{0}=-1$ and $e^{0}_{i}=0$ define an emergent acoustic metric $g^{\mu\nu}=\eta^{\alpha\beta}e^{\mu}_{\alpha}e^{\nu}_{\beta}$ with the signature $\eta^{\mu\nu}={\rm diag}(-1,1,1,1)$ vo3 . With this vielbein choice, the conical spectrum (2) can be written as

[TABLE]

where $q_{0}=E$ and the dual metric $g_{\mu\nu}$ defines the light cone with $g_{\mu\nu}x^{\mu}x^{\nu}=0$. Therefore, the ergosurface(ES) of this emergent geometry is determined by $g_{00}=-(1-\bf v^{2})=0$ ergo , i.e., $|{\bf v}|=1$ where $v^{i}=e_{0}^{j}[e^{-1}]_{j}^{i}$. A Weyl node is called type-I (type-II) if $|{\bf v}|<1$ ($|{\bf v}|>1$). Notice that the type of each one in a pairwise nodes can be arbitrary NN ; hybrid . From this effective geometry point of view, quasi particles associated with the type-I (type-II) Weyl node effectively live outside (inside) the ES.

Volovik uses the spherically symmetric metric to study inhomogeneous WSM vo1 which is difficult to be realized in reality. Both type-I and type-II WSMs have been found wan ; weng ; huang ; xu ; lv ; yang ; solu . In order to simulate an acoustic event horizon (which coincides with the ES when the normal velocity $v_{\perp}$ dominates ergo ) in a realizable geometry and study the chaos phenomena, we consider a type-I/type-II WSM transition layer (TL) where the type-I and type-II Weyl nodes may mismatch (See Fig. 1(a)). In the following, we’ll assume $v_{\perp}$ dominates whenever the horizon is mentioned. Within the TL, a black/white hole planar horizon emerges effectively at a plane with $|{\bf v}_{z}|=1$ in the TL. A fermionic shock wave and the Hawking evaporation are possible to be detected because the Hawking temperature may be as high as several tens of Kelvin.

In the effective Hamiltonian approach, we further find that when the Weyl nodes of the type-I and type-II do not completely match, the TL states inside and outside the ES may be totally different: On the type-I WSM side, the TL state is described by the Landau levels of the WSM in an effective magnetic field. On the type-II side, after a characteristic plane, the TL states are governed by an effective inverted oscillator potential bar ; yuce ; morita , and thus are chaotic due to the non-integrability caused by coupling to the environment potential hash .

To further study the quantum chaos of the quasiparticles in the TL, we study a lattice model which reduces to the effective chaotic model in the TL in the long wave length limit. We calculate out of time ordered correlators (OTOCs) of the quantum states which characterize the quantum chaotic behavior Larkin ; mald2 ; kit1 ; kit2 ; mald1 ; sac ; she1 ; she2 . For a proper hopping strength in the TL with a sufficient layer thickness, we find that in a lower temperature, the OTOC does not show a fast scrambling over a short time while it does when the temperature is higher and a quantum Lyapunov exponent is obtained. The OTOCs saturate after the Ehrenfest time. These two properties of OTOC indicate the existence of quantum chaos inside the ES hashi .

II Effective model for TL

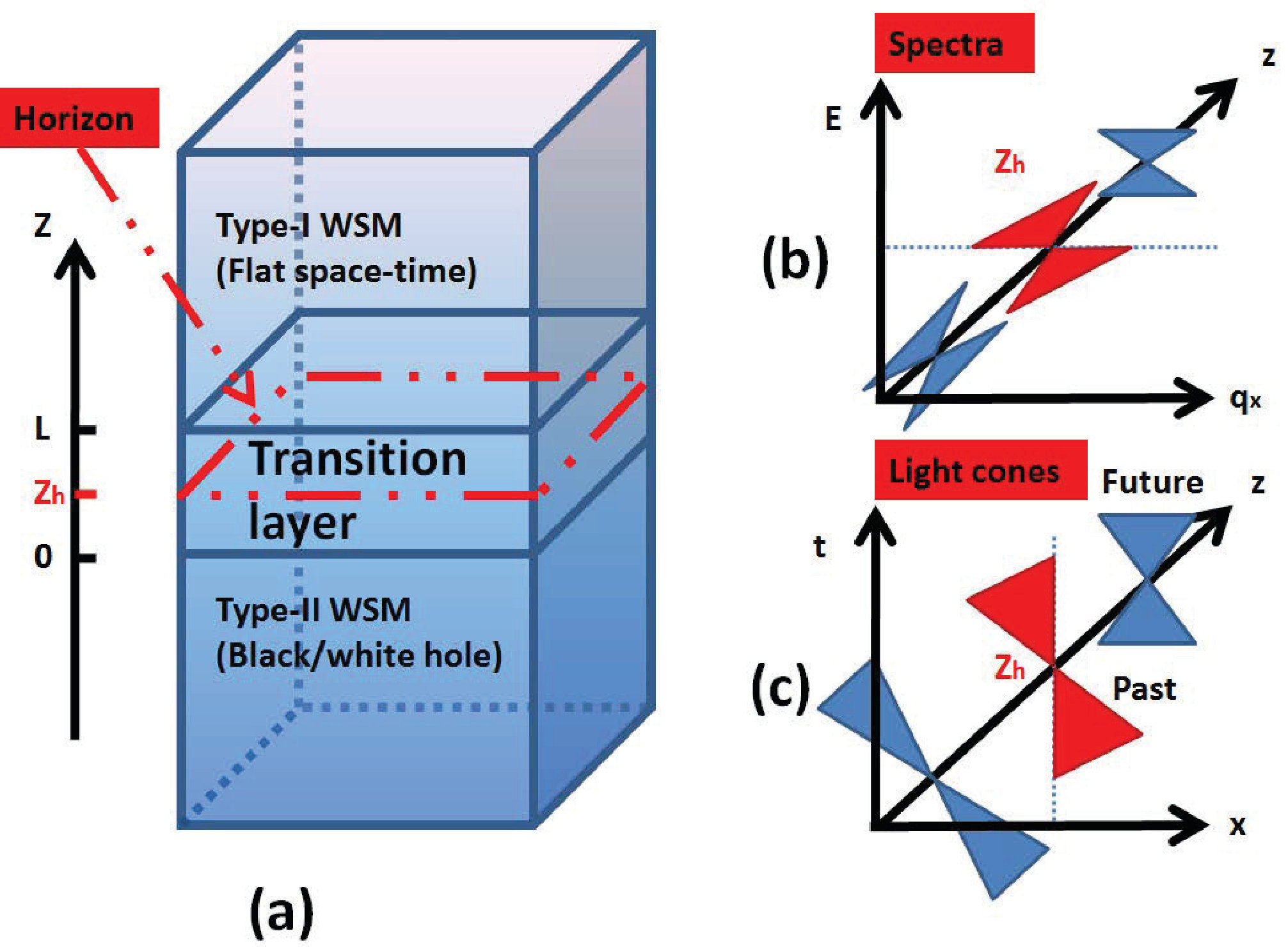

We consider that type-I and type-II WSMs couple as shown in Fig.1(a). The TL is located between $z=0$ and $z=L$. Assuming ${\bf K}^{I}$ (${\bf K}^{II}$) is a Weyl node of the type-I (type-II) WSM in the regime $z>L$ ($z<0$), and $|{\bf K}^{I}-{\bf K}^{II}|\ll K_{0}$ where $K_{0}$ is the distance between a pair of Weyl nodes in the bulk. The effective Hamiltonian in the bulk of the type-I/II WSM is given by

[TABLE]

where $\boldsymbol{\alpha}_{I/II}=(\alpha_{x,I/II},0,\alpha_{z,I/II})$ are parameters that tilt the Dirac cones. For the type-I WSM, $|\boldsymbol{\alpha}_{I}|=\sqrt{\alpha^{2}_{xI}+\alpha^{2}_{zI}}<1$ and $|\boldsymbol{\alpha}_{II}|=\sqrt{\alpha^{2}_{xII}+\alpha^{2}_{zII}}>1$ for the type-II WSM. We further assume $|\Delta\boldsymbol{\alpha}|=|\boldsymbol{\alpha}_{II}-\boldsymbol{\alpha}_{I}|\ll 1$. The small difference in the Weyl nodes can be viewed as a soft edge between the WSMs. The soft edge is achieved by a small linear deformation between the lattice constants, which corresponds to a linear interpolation between the Weyl nodes in the lowest order. Therefore the TL effective Hamiltonian can be approximated by a linear interpolation between $H_{I}$ and $H_{II}$ tch

[TABLE]

where $0\leq z\leq L$. Defining ${\bf q}={\bf k}-{\bf K}^{II}$ and $B_{i}=\frac{K_{i}^{I}-K_{i}^{II}}{L}=\frac{\Delta K_{i}}{L}$,

[TABLE]

where “…” are high order terms including $O(\Delta\boldsymbol{K}\cdot\Delta\boldsymbol{\alpha})$ etc. $q_{z}$ is replaced by $-i\partial_{z}$ and $B_{x}(B_{y})$ can be thought as an effective magnetic field in the $y(x)$-direction. One can perform a gauge transformation to change $-i\partial_{z}+B_{z}z$ to $-i\partial_{z}$ if the wave function $\psi$ changes to $e^{-i\frac{B_{z}z^{2}}{2}}\psi$ accordingly. $\boldsymbol{\alpha}(z)$ is a linear interpolation like $H(z)$, i.e., $\boldsymbol{\alpha}(z)=\boldsymbol{\alpha}_{II}-\Delta\boldsymbol{\alpha}\frac{z}{L}.$ Since $|\Delta\boldsymbol{\alpha}|\ll 1$, $\boldsymbol{\alpha}(z)$ is a slow varying vector function of $z$. $|\boldsymbol{\alpha}(z_{c})|=1$ determines the critical surface with $z=z_{c}$ which separates the type-I and type-II WSM, where

[TABLE]

III Emergent geometry and horizon

To see the emergent geometry, we first consider $B_{i}=\frac{\Delta K_{i}}{L}=0$ for simplicity. Comparing the TL Hamiltonian (6) with the effective Hamiltonian (1), we can identify the vielbein: $e^{x}_{0}=-\alpha_{x}(z),e^{y}_{0}=-\alpha_{y}(z)=0,e^{z}_{0}=-\alpha_{z}(z)$ and $e^{i}_{j}=\delta^{i}_{j}$. Therefore the effective geometry in the TL is described by the line element of the induced metric vo3

[TABLE]

with $v^{i}=e^{i}_{0}=-\alpha_{i}(z)$ and $|{\bf v}|=|\boldsymbol{\alpha}(z)|=\sqrt{\alpha^{2}_{x}+\alpha^{2}_{z}}$. The ES which is denoted as $z=z_{c}$ is defined by $g_{00}=-(1-{\bf v}(z)^{2})=0$ and the acoustic event horizon is defined by $v_{z}(z_{h})=1$ ergo ; matt . In the limit $\frac{v_{x}^{2}}{v_{z}^{2}}\rightarrow 0$, the ES coincides with the event horizon which we denote as $z=z_{h}$. For instance, we sketch the spectra and light cones with $\alpha_{z}(z)=1$ in Fig. 1 (b) and (c). In that emergent metric, the Ricci scalar $R$ at the acoustic event horizon is given by

[TABLE]

which reduces to zero when $\Delta\alpha_{x}\rightarrow 0$. Furthermore, the surface gravity $\eta_{H}$ can be identified by introducing $L^{\mu}=(1,v_{x},0,0)$ which is the null vector field on the acoustic event horizon with the integral curves generating the horizon matt ,

[TABLE]

namely,

[TABLE]

The Hawking temperature of this emergent black hole horizon is defined by matt

[TABLE]

where we have explicitly restored the Fermi velocity whose typical value for WSM is $v_{F}\sim 10^{6}$ m/s. If the thickness of the TL $L\lesssim 10$nm, $T_{H}\gtrsim 10^{2}\Delta\boldsymbol{\alpha}\cdot\boldsymbol{\alpha}(z_{h})$ K. If $\Delta\boldsymbol{\alpha}\cdot\boldsymbol{\alpha}(z_{h})\sim 0.1$, the Hawking temperature may arrive at several tens of Kelvin which are experimentally reachable.

In these discussions, we have assumed the Fermi velocity $v_{F}=1$ is a constant in the low energy effective theory. If the interactions and quantum fluctuations are considered, $v_{F}$ may be renormalized or even spatial dependent. To exactly calculate the Hawking temperature, one needs to solve the Weyl equation with the emergent metric (8), and then a Hawking evaporation may be observed by a thermal spectrum of the TL fermion when the layer is forming vo1 ; Liu2 . Similar to the transsonic wave in the bosonic fluid unruh1 ; vo4 , we shall have a fermion shock wave with a velocity ${\bf v}(z)$, which will be presented elsewhere.

IV Chaotic transition layer

To show the chaotic behavior in the effective theory, we consider the Dirac equation with mismatching Weyl nodes $0<\Delta K_{i}\ll K_{0}$,

[TABLE]

where $H(z)$ is given by Eq. (6) and $\psi^{T}=(\chi,\zeta)$ is a two-component spinor. Without loss of generality, we take $q_{y}=0$. Because $\boldsymbol{\alpha}(z)$ slowly varies, we neglect $\partial_{z}\boldsymbol{\alpha}(z)$ term. Then, the dominant part of $\chi$’s equation in the large $\tilde{z}$ limit reads

[TABLE]

where $\tilde{z}=\frac{q_{x}+B_{x}z}{B_{x}\sqrt{1-\alpha_{z}^{2}}}$ and $\kappa=(1-\boldsymbol{\alpha}^{2})B_{x}^{2}+(1-\alpha_{z}^{2})B_{y}^{2}$ (See Appendix A for “…” terms in more details). For $\kappa=\omega^{2}>0$ with a fixed $q_{x}$, Eq. (14) coincides with the Landau levels of a Weyl fermion outside the ES.

The Eq. (14) will become an inverted oscillator when $\kappa<0$ bar ; yuce ; morita . This can be satisfied for $|\boldsymbol{\alpha}|>1$ and $|\alpha_{z}|<1$ after a characterized plane $z_{c}$ inside the ES (${\bf v}(z_{c})^{2}=1$ if $B_{y}=0$) note1 . An inverted oscillator is known to lead to the chaotic dynamics when it couples to the environment $V(x)$ zuret ; miller ; hash . The detailed form of $V(x)$ is not important as long as the potential $V(x)$ is a confining one. We therefore introduce an environment potential $V(x)$ and then Eq. (14) becomes

[TABLE]

where $\lambda^{2}_{L}=(\boldsymbol{\alpha}^{2}_{II}-1)B_{x}^{2}+(\alpha^{2}_{z,II}-1)B_{y}^{2}>0$, $\epsilon_{3}\sim O(\Delta\boldsymbol{\alpha}\cdot\boldsymbol{\alpha}_{II})$, and $\epsilon_{4}\sim O((\Delta\boldsymbol{\alpha})^{2})>0$ (see Appendix A). If $V(x)=0$, Eq. (15) is integrable with a positive Lyapunov exponent $\lambda_{L}$, and basically describes an inverted oscillator. To explicitly show the classical chaos, we study the steady state solution of (15) and treat $E^{2}={\cal E}$ as a classical energy. The Poincaré sections for the classical limit of (15) with $V(x)\sim x^{2}$ show that the Kolmogorov-Arnold-Moser tori keep nice periodic orbits in lower ${\cal E}$ but break down as ${\cal E}$ raises, which indicates the existence of classical chaos. For details, see Appendix A.

At the end of this section, we’d like to point out that, in the Hawking radiation (12), the temperature is proportional to $|\alpha_{z}(z_{h})|=v_{F}$, while the Lyapunov exponent remains positive as long as $|\alpha_{x}|>1$ even if $\alpha_{z}=0$. The Hawking radiation is not directly related to the chaotic behavior in the TL, In other words, the chaos survives even if the ES does not coincide with the event horizon.

V Lattice model

To further show the quantum chaos in the TL, we study a lattice model on a cubic lattice with a lattice spacing $a=1$. For simplicity, we do not consider the environment disorder while the Lyapunov exponent remains positive. The periodic boundary conditions are implicated while the thickness in the $z$-direction is finite. We label the sizes of type-I/II WSMs and the TL as $L_{I/II}$ and $L$, respectively. We consider minimal models describing the type-I/II WSMs on a periodic cubic lattice with Hamiltonian $H^{l}_{I/II}$ lah

[TABLE]

where

[TABLE]

Here $\tilde{t}$ is the hopping strength. We introduce $\gamma$, which is a $z$-dependent parameter (see Eq. (34)), to fine tune the hopping strength in the $z$-direction. The high energy states which may be quantum chaotic and far away from the Weyl points can be moved near the Fermi level by tuning $\gamma$. The Weyl nodes are located at ${\bf K}^{I/II}=(K^{I/II}_{x},K^{I/II}_{y},0)$. The lattice Hamiltonian we use here is given by

[TABLE]

where $n_{z}$ is the lattice site index in the $z$-direction and $\xi=\frac{n_{z}-L_{II}}{L}$. In the long wave length limit, the effective Hamiltonian in the TL reduces to the form of Eq. (5) up to a $z$-dependent function which leads to a line of Weyl nodes (see Appendix C).

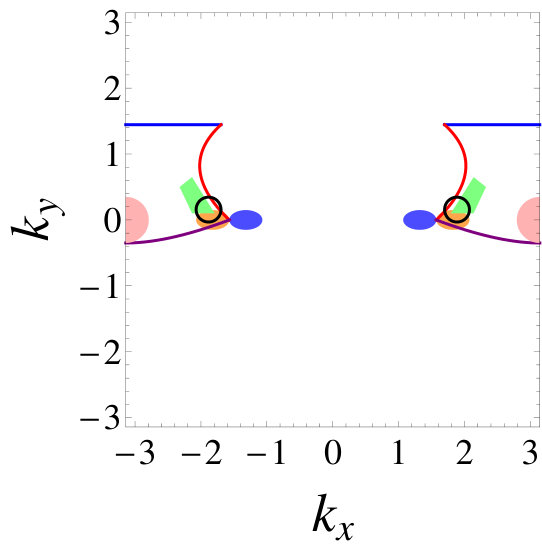

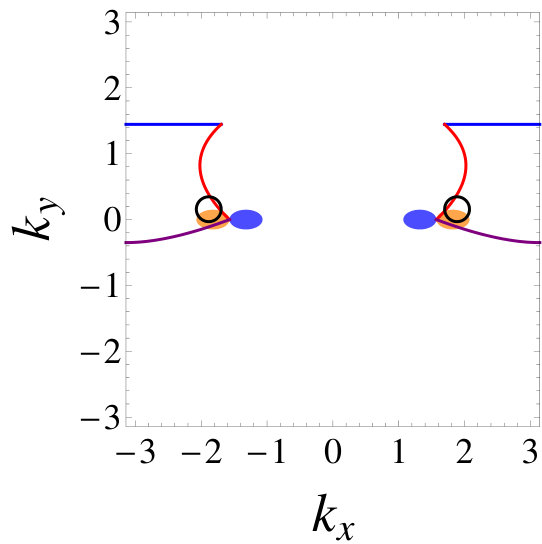

Taking ${\bf K}^{I}=(0.54\pi,0.46\pi,0),{\bf K}^{II}=(0.5\pi,0,0)$, $\eta_{II}=0.8\tilde{t}$ and considering a half filling lattice with $L=L_{I}=L_{II}=100$, we sketch the Fermi arcs and pockets projected to the $k_{x}$-$k_{y}$ plane with the colored regions in Fig. 2. There are the Fermi arcs on the surfaces of WSMs and the Fermi pockets in the type-II WSM as expected. In the TL, there are Fermi arcs that connect the type-I Weyl nodes’ images with the type-II ones with the same chirality. The Weyl nodes’ lines slightly deviate from these Fermi arcs and the ES is at $\xi_{h}\approx 0.18$ (see Appendix C). According to the band structures of the lattice model (see Appendix B), there is no Fermi pocket in the TL for $\gamma_{I}=\gamma_{II}=\gamma_{TL}=1$ (Fig. 2(a)) while Fermi pockets emerge in the TL for $\gamma_{I}=\gamma_{II}=1$ and $\gamma_{TL}=0.7$ by tuning $\gamma$ (Fig. 2(b)).

VI OTOCs

The sensitivity of the initial value in quantum chaos could be measured by OTOCs mald2 . We consider the simplest OTOC between the position and momentum operators in the $z$-direction which is measurable in the transport experiment Larkin . In the semiclassical limit, this OTOC describes the dependence on the initial condition of the particle motion. On the lattice, these operators corresponds to the site operator $n_{z}$ and the difference operator $\hat{P}_{z}$ which is defined by

[TABLE]

where ${\bf k}=(k_{x},k_{y})$ and $|\psi_{\bf k}(n_{z})\rangle$ is the state on site $n_{z}$. The OTOCs are defined by

[TABLE]

where $n_{z}(t)$ and $\hat{P}_{z}(t)$ are the time-dependent operators in Heisenberg’s picture. $f_{\psi}=\frac{1}{e^{\beta E_{\psi_{\bf k}}}+1}$ is the Fermi distribution function. More explicitly, the OTOCs are given by

[TABLE]

where the ${\bf k}$-dependent OTOC is given by

[TABLE]

$O_{\psi\psi^{\prime}}=\langle\psi|\hat{O}|\psi^{\prime}\rangle$ for $\hat{O}=n_{z}(t)$ and $\hat{P}_{z}(0)$. $\rho_{\psi\psi^{\prime}}$ is the probability that the state $|\psi^{\prime}\rangle$ transits to the state $|\psi\rangle$ due to a disturbance. For convenience, we take $\rho_{\psi\psi^{\prime}}=e^{-\beta(E_{\psi}-E_{\psi^{\prime}})}$ for $E_{\psi}>E_{\psi^{\prime}}$ or 1 otherwise; $O_{fi}=\langle f|\hat{O}|i\rangle$ for $\hat{O}=n_{z}(t)$ and $\hat{P}_{z}(0)$. $"\cdots"$ is the other three terms when explicitly writing out $[n_{z}(t),\hat{P}_{z}(0)]^{2}$.

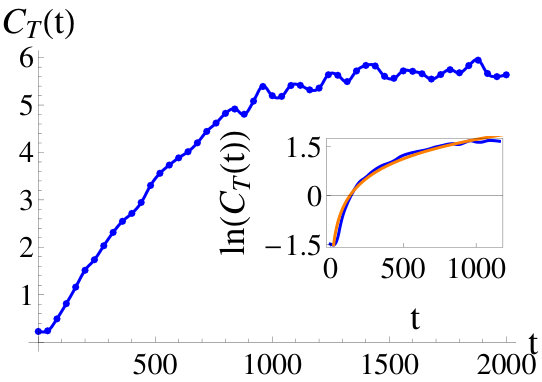

In numerical calculations, we take a lower temperature $T=1/\beta=\tilde{t}/4$ and a higher $T=2\tilde{t}/3$. For the model with $\gamma_{I}=\gamma_{II}=\gamma_{TL}=1$, the OTOC with the lower $T$ has a small magnitude and does not have an exponential fast scrambling, as show in Fig. 3(a). In the inset in Fig. 3(a), the negative slope of the $\ln C_{T}(t)$ in the very short time implies an exponential decay of the OTOC. The reason lies in the binding potential of the quasiparticles on the lattice site at the beginning. After that time period, $\ln C_{T}(t)$ behaves logarithmic. As the temperature raises, the fast scrambling of the OTOC appears and its magnitude becomes three order larger than that in the lower temperature as shown in Fig. 3(b). In the inset of Fig. 3(b), the OTOC still decays exponentially in a very short time. After this very short time period, a time-dependent positive quantum Lyapunov exponent $\lambda_{QL}(t)$ can be read out according to an exponential fitting $C_{T}(t)\sim e^{2\lambda_{QL}(t)t}$. There is a time period $t_{Q}\approx 100$ in which $\lambda_{QL}=0.006$ is constant note . This implies the fast scrambling of the OTOC. The emergence of the quantum chaotic behavior in the higher temperature is consistent with the classical chaos in the effective model because the chaos appears at higher energy. After $t_{Q}$, due to the quantum fluctuation, the fast scrambling begins to be suppressed and $\ln C_{T}(t)$ deviates from the linear fitting. After a long time $t_{E}\gtrsim 5000$, the OTOC is saturated instead of growing everlastingly in the classical chaos. This time $t_{E}$ corresponds to the Ehrenfest time. This shows a possible distinction between the quantum chaos and the classical one hashi .

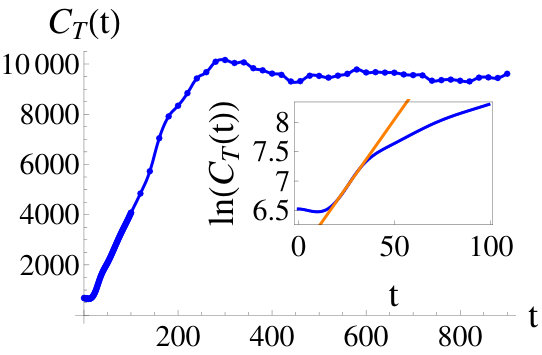

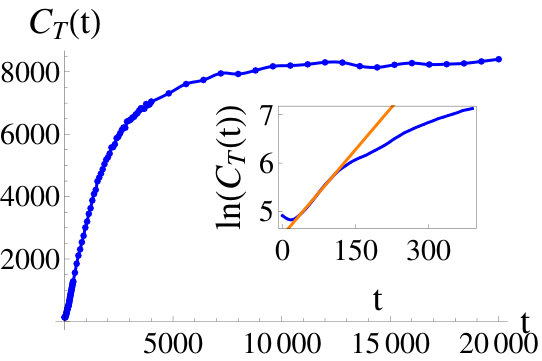

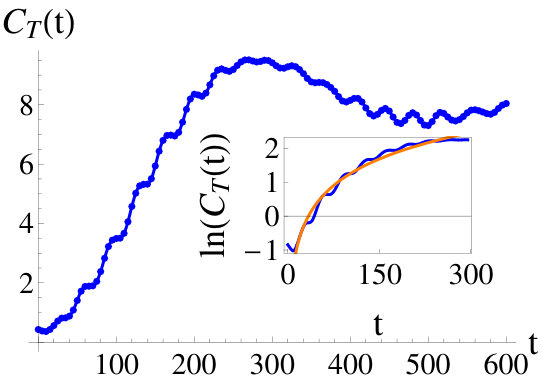

For $\gamma_{I}=\gamma_{II}=1$ and $\gamma_{TL}=0.7$, as shown in Fig. 3 (c) and (d), the fast scrambling in the OTOC is absent for the lower temperature while it exists in the higher temperature, similar to that for $\gamma_{TL}=1$. However, the time $t_{Q}\approx 40$ and the saturated time $t_{E}\approx 300$ are shorter than those for $\gamma_{TL}=1$. This is because the green pockets emerge in Fig. 2(b), which increases the density of states and then enhances the quantum fluctuation. Meanwhile, the higher density of states also raises the quantum Lyapunov exponent in linear region about 4 times, $\lambda_{QL}=0.023$. This means that the scrambling is much faster than that for $\gamma_{TL}=1$. In both cases of $\gamma_{TL}=1$ and $\gamma_{TL}=0.7$, the OTOCs are dominated by the states inside the black circle which corresponds to the inverted oscillator in the effective theory. Besides the black circle area, there are other states contribute to the positive Lyapunov exponent, such as the pink area in Fig. 2(b) which emerge by tuning $\gamma_{TL}$. These states are not predicted by the effective Hamiltonian (5).

We have yet to consider the $x$-$y$ plane environment potential in the lattice model. The integrability of the model is lost if it is turned on and then the fast scrambling of the OTOC and the Ehrenfest time identify the quantum chaos.

VII Conclusions

We pointed out that there are emergent ESs which coincides with acoustic event horizons under certain conditions in the TL between type-I and type-II WSMs. And the corresponding Hawking temperature may be measurable. When the Weyl nodes of type-I and type-II mismatch, the quasiparticles moving inside the ES may be quantum chaotic, even if the event horizon and ES do not coincide. We confirm this quantum chaotic behavior in a lattice model by calculating the OTOCs of the system. Two diagnostic quantities, the quantum Lyapunov exponent and the Ehrenfest time, which characterize the quantum chaos, were determined.

Acknowledgements.

This work is supported by NNSF of China with No. 11474061 (YGC,XL,YY), No. 11804223 (XL) and the ministry of science and technology of China with the grant No.2016YFA0301001 (FYL).

Appendix A Details on solving Eq. (13) in the main text and its classical Poincaré section

The equations of motion (13) in the main text for the wave function $\psi=(\chi,\lambda)^{T}$ read

[TABLE]

Without loss of generality, we take $q_{y}=0$. Notice that the $B_{z}z$ term is a pure gauge and can be gauged away by a gauge transformation $\psi\rightarrow\exp(-i\frac{B_{z}z^{2}}{2})\psi$. Solving Eq. (23), we have $\lambda=\lambda(\chi)$ and then substitute it into Eq. (24),

[TABLE]

When $q_{x}+B_{x}z>>1$, the second line of Eq. (25) can be neglected. Making a transformation $\chi\rightarrow\exp(i\frac{\alpha_{x}\alpha_{z}(q_{x}+B_{x}z)^{2}}{2B_{x}(1-\alpha_{z}^{2})})\chi$, Eq. (25) becomes,

[TABLE]

Defining $\tilde{z}=\frac{q_{x}+B_{x}z}{Bx\sqrt{1-\alpha_{z}^{2}}}$, Eq. (26) reads,

[TABLE]

Eq. (27) describes a harmonic oscillator when $\omega^{2}=(1-\alpha_{x}^{2}-\alpha_{z}^{2})B_{x}^{2}+(1-\alpha_{z}^{2})B_{y}^{2}>0$ or an inverted one with positive Lyapunov exponent $\lambda_{L}$ when $-\lambda^{2}_{L}=(1-\alpha_{x}^{2}-\alpha_{z}^{2})B_{x}^{2}+(1-\alpha_{z}^{2})B_{y}^{2}<0$. The leading order terms are the first line of Eq. (27), and the last three terms only shift the oscillating center and the zero point energy. Since we have treated the slow-varying functions ${\boldsymbol{\alpha}}={\boldsymbol{\alpha}_{II}-\Delta{\boldsymbol{\alpha}}\frac{z}{L}}$ as constants in the derivation of Eq. (27), the Lyapunov exponent $\Lambda_{L}$ can be expressed as

[TABLE]

Therefore the chaos related terms in Eq. (27) reads

[TABLE]

where

[TABLE]

The first three terms in Eq. (29) represent an inverted oscillator if $\Lambda_{LII}^{2}>0$. The $\tilde{z}^{3}$ and $\tilde{z}^{4}$ terms are the quantum perturbations, and the $q_{x}\tilde{z}$ term is the coupling between $\tilde{z}$ and $q_{x}$, the “environment”. Therefor Eq. (29) can be viewed as an intrinsic quantum open system and chaos raises.

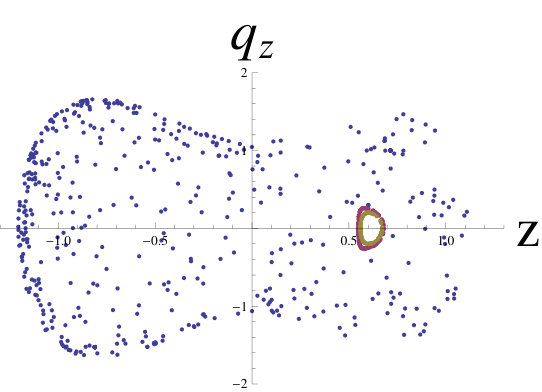

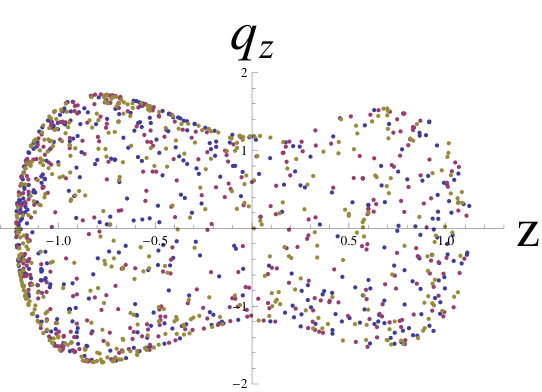

To be more specific about the emergence of chaos, we consider the poincaré section of the classical limit of Eq. (29) up to the $\tilde{z}^{4}$ terms, i.e., the classical Hamiltonian reads,

[TABLE]

where $q_{\tilde{z}}$ is the momentum for $\tilde{z}$, and we also add a harmonic potential along the $x$-direction which simulates the effects of disorders. We draw its Poincaré section numerically in Fig. 4 which clearly shows the existence of classical chaos.

Appendix B Band structure and Fermi energy

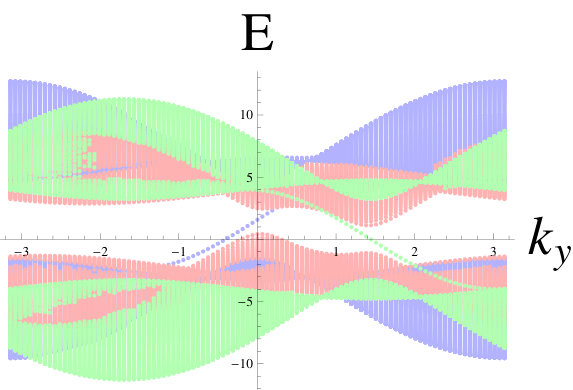

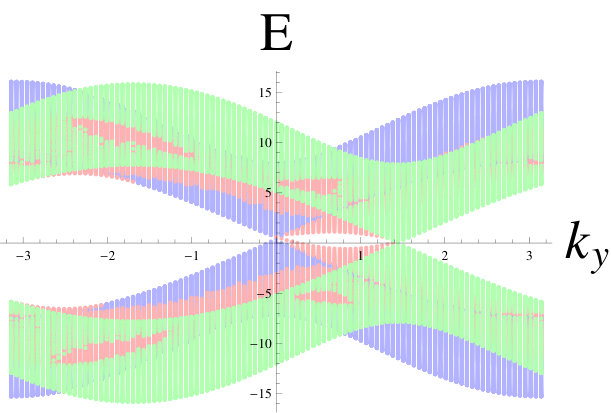

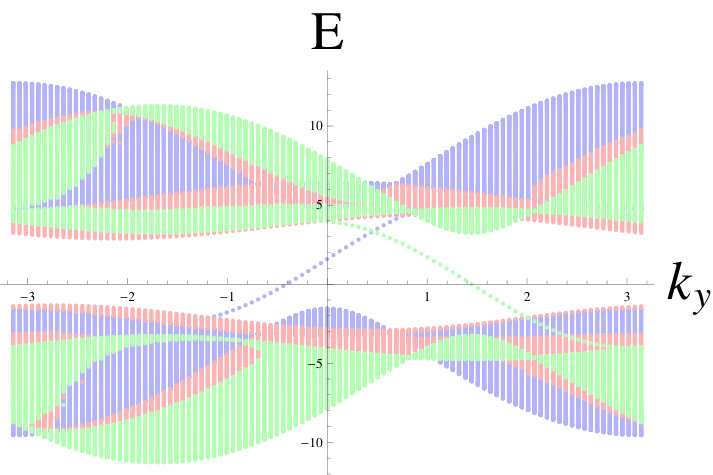

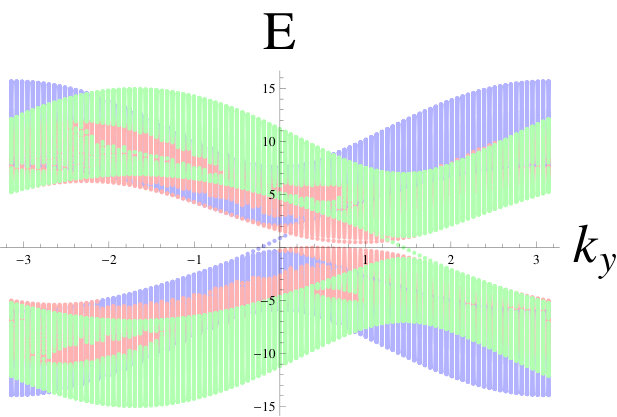

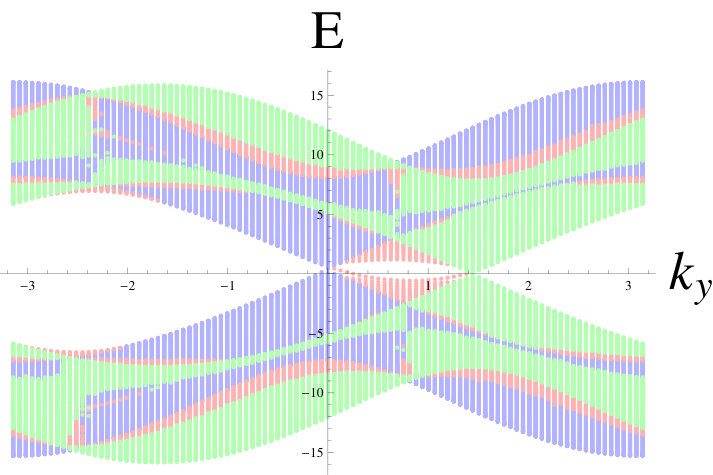

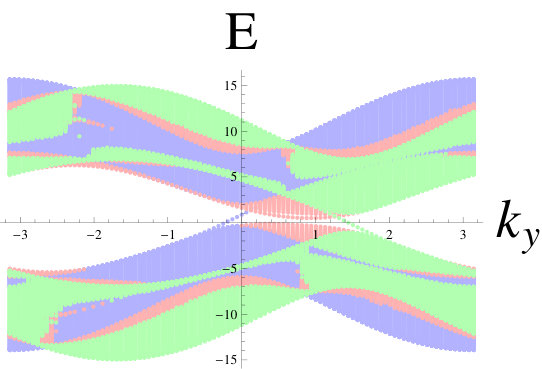

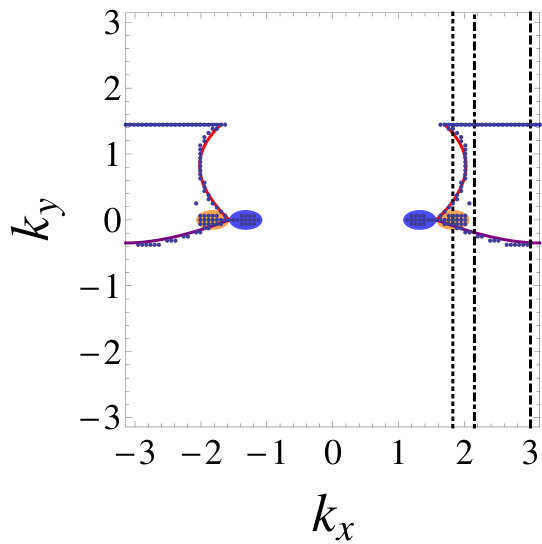

We give the band structures of the lattice model. Fig. 5(a) is for $\gamma_{I}=\gamma_{II}=\gamma_{TL}=1$ and Fig. 5(b) is for $\gamma_{I}=\gamma_{II}=\gamma_{TL}=1$. Corresponding zero energy Fermi arcs and pockets projected to the $k_{x}$-$k_{y}$ are shown in Fig. 5(c) and Fig. 5(d), respectively and they are the original data for sketching Fig. 2(a) and (b) in the main text.

Appendix C Weyl points, and ES

Writing the lattice Hamiltonian (16) in the main text explicitly

[TABLE]

where

[TABLE]

and

[TABLE]

where $n_{z}$ is the lattice site index in the $z$-direction and $\xi=\frac{n_{z}-L_{II}}{L}$. Then the Weyl points are determined by

[TABLE]

At Weyl points,

[TABLE]

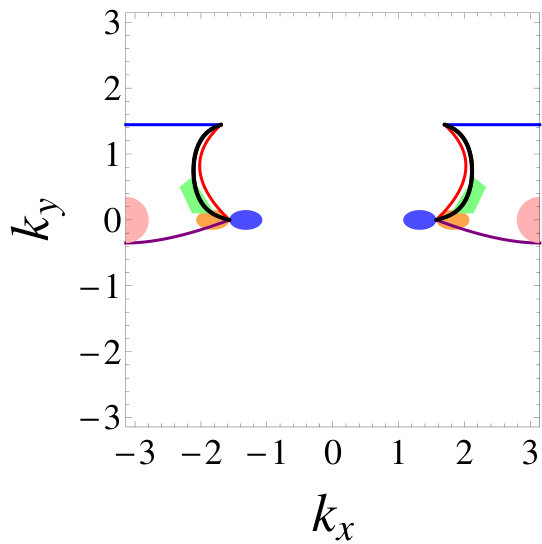

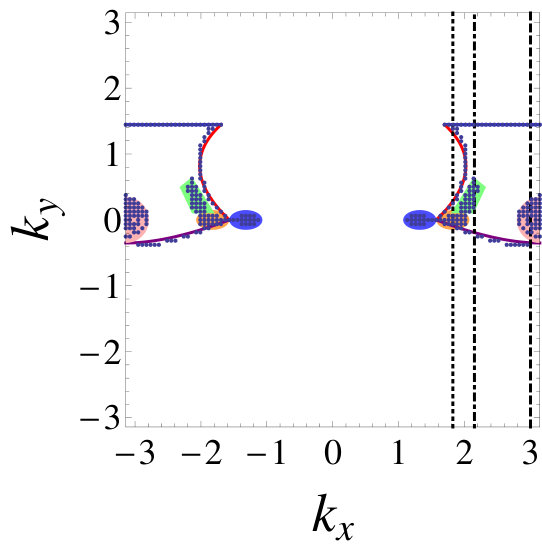

The Weyl points in the transition layer are running as $\xi$ and their projection to the $k_{x}$-$k_{y}$ plane is depicted in Fig. 6(a). Notice that these Weyl points do not lie on the Fermi surface because of the interlayer coupling. If the transition layer is replaced by an insulating layer with a large band gap, then there will be ordinary Fermi arcs that connect Weyl nodes with opposite chiralities in the type-I(II) WSM on the top(bottom) surface of the insulating layer. After turning on the hopping term between the type-I and type-II WSMs in the transition layer, the Fermi arcs will reconstruct. Changing from the surface Fermi arcs into the ones connecting type-I and type-II Weyl nodes with the same chirality inside the transition layer (see the red Fermi arcs in Fig. 6(a)).

Expanding the Hamiltonian (34) around the Weyl points and comparing the result with the effective Hamiltonians (3) and (4) in the main text, one obtains,

[TABLE]

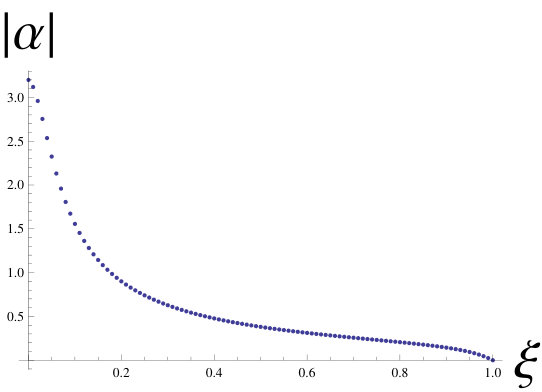

The ES can be obtained by solving $|\boldsymbol{\alpha}|=1$ which is at $\xi_{h}\approx 0.18$, reading out from 6(b).
