Shilnikov-type Dynamics in Three-Dimensional Piecewise Smooth Maps

TL;DR

This paper demonstrates the presence of Shilnikov-type chaotic dynamics in three-dimensional piecewise smooth maps, providing analytical insights and methods to analyze border return times, highlighting complex bifurcation behaviors.

Contribution

It introduces analytical results for Shilnikov-type dynamics in 3D piecewise maps and presents two methods for analyzing border return times, including a novel two-sided Shilnikov phenomenon.

Findings

Existence of two-sided Shilnikov dynamics in 3D maps

Analytical conditions for Shilnikov bifurcations

Two methods for border return time analysis

Abstract

We show the existence of Shilnikov-type dynamics and bifurcation behaviour in general discrete three-dimensional piecewise smooth maps and give analytical results for the occurence of such dynamical behaviour. Our main example in fact shows a `two-sided' Shilnikov dynamics, i.e. simultaneous looping and homoclinic intersection of the one-dimensional eigenmanfolds of fixed points on both sides of the border. We also present two complementary methods to analyse the return time of an orbit to the border: one based on recursion and another based on complex interpolation.

Figures

Equations

$$X_{n+1}=F_{\mu }(X_n)=\{\begin{array}{ll}{A}_l{X}_n+\mu C,& \text{if xn≤0}\\ A_r{X}_n+\mu C,& \text{if xn≥0}\end{array}$$

$$A_{l}=\left(\begin{array}[]{ccc}\tau_{l}&1&0\\ -\sigma_{l}&0&1\\ \delta_{l}&0&0\end{array}\right)\;\;\;\mbox{and}\;\;\;A_{r}=\left(\begin{array}[]{ccc}\tau_{r}&1&0\\ -\sigma_{r}&0&1\\ \delta_{r}&0&0\end{array}\right)$$

$$L^{\ast }$$

$$R^{\ast }$$

$${\tau }_l=1.0,{\sigma }_l=-0.25,{\delta }_l=0.3,{\tau }_r=0.58,{\sigma }_r=0.38,{\delta }_r=-1.27,\mu =1.0$$

$$P_{n}=F^{n}(P_{0})=A^{n}_{r}(P_{0})+\mu(A_{r}-I)^{-1}(A^{n}_{r}-I)\left(\begin{array}[]{c}1\\ 0\\ 0\end{array}\right)$$

$$A^{n}=\left(\begin{array}[]{ccc}a_{n}&b_{n}&c_{n}\\ d_{n}&e_{n}&f_{n}\\ g_{n}&h_{n}&i_{n}\end{array}\right)=\left(\begin{array}[]{ccc}a_{n}&a_{n-1}&a_{n-2}\\ \delta_{r}.a_{n-2}-\sigma_{r}.a_{n-1}&\delta_{r}.a_{n-3}-\sigma_{r}.a_{n-2}&\delta_{r}.a_{n-4}-\sigma_{r}.a_{n-3}\\ \delta_{r}.a_{n-1}&\delta_{r}.a_{n-2}&\delta_{r}.a_{n-3}\end{array}\right)$$

$$a_n={\tau }_r{a}_{n-1}-{\sigma }_r{a}_{n-2}+{\delta }_r{a}_{n-3}$$

$$a_0=1,a_{-1}=0,a_{-2}=0,a_{-3}=\frac{1}{{\delta }_r}$$

$$P_n$$

$$=$$

$$P_n$$

$$\overline{r}\cdot (V_2\times V_3)=0$$

$$a.x+b.y+c.z+d=0\text{ where }(a,b,c{)}^{⊺}:=V_2\times V_3$$

$$A^t:=\exp (t\ln A)$$

$$\ln (D):=\left[\begin{array}{ccc}\ln (z_1)& 0& 0\\ 0& \ln (z_2)& 0\\ 0& 0& \ln (z_3)\end{array}\right]$$

$$D^t:=\left[\begin{array}{ccc}\exp (t\ln (z_1))& 0& 0\\ 0& \exp (t\ln (z_2))& 0\\ 0& 0& \exp (t\ln (z_3))\end{array}\right]$$

$$X(t)\equiv F_{\mu }^t(X_0):=\{\begin{array}{ll}{A}_l^t{X}_0+\mu (A_l-I{)}^{-1}(A_l^t-I)C,& \text{if x0<0 or (x0=0 and y0<−μ)}\\ A_r^t{X}_0+\mu (A_r-I{)}^{-1}(A_r^t-I)C,& \text{if x0>0 or (x0=0 and y0>−μ)}\end{array}$$

$$F_{\mu }^t(X_0):=F_{\mu }^{\{t\}}(F_{\mu }^{\lfloor t\rfloor }(X_0))$$

$$\chi =P_l^{-1}X\iff \left[\begin{array}{c}{\chi }_1\\ {\chi }_2\\ {\chi }_3\end{array}\right]=P_l^{-1}\left[\begin{array}{c}x\\ y\\ z\end{array}\right]$$

$${\chi }_i(t)={\lambda }_i^t{\xi }_{0i}+\frac{{\lambda }_i^t-1}{{\lambda }_i-1}{\mu }_i$$

$$\Re (p_{11}{\chi }_1(t)+p_{12}{\chi }_2(t)+p_{13}{\chi }_3(t))=0$$

$$\Re$$

$$f(t):={\alpha }_1{\lambda }_1^t+2{\alpha }_2\cos (t{\theta }_0+\delta )r_0^t+{\alpha }_3=0,t\ge 0$$

$$f^{+}(t)$$

$$f^{-}(t)$$

$$g(t):=a_1{\kappa }_1^t+a_2{\kappa }_2^t+a_3,t\ge 0;{\kappa }_1>1>{\kappa }_2>0,\text{ and }{a}_i\in \mathbb{R}\text{ for }i=1,2,3.$$

$$t_0=\frac{\ln ((|a_2|+|a_3|)/|a_1|)}{\ln ({\kappa }_1)}$$

$$t^{\ast }=\frac{\ln (-a_2\ln ({\kappa }_2)/a_1\ln ({\kappa }_1))}{\ln ({\kappa }_1/{\kappa }_2)}$$

$$\begin{gathered} ((P_k-R^{\ast }{)}^{⊺}\cdot {\overline{n}}_{S_r}).((P_{k+1}-R^{\ast }{)}^{⊺}\cdot {\overline{n}}_{S_r})<0\text{ for some }k\le t_0+2\text{ where } \\ {t}_0=\frac{\ln ((2|{\alpha }_2|+|{\alpha }_3|)/|{\alpha }_1|)}{\ln ({\lambda }_1)}. \end{gathered}$$

Full text

1 Introduction

The phenomenon of chaos is observed in many nonlinear deterministic systems in both experimental and computer-simulation contexts. In 1965, L. Shilnikov (also written Šil’nikov) [Shilnikov, 1965] showed that in a continuous-time dynamical system if the real eigenvalue has a larger magnitude than the real part of the complex conjugate eigenvalues, then there are horseshoes present in the return maps defined near the homoclinic orbit. Shilnikov chaos normally appears when a parameter is varied towards the homoclinic condition associated with a saddle focus. The criteria is called Shilnikov criteria and orbit is called Shilnikov chaos.

Shilnikov attractors can be found in many different systems, including Ros̈sler system, Arenodo-Coullet-Tresser systems, and Rosenzweig-Mac-Arthur system. Shilnikov chaos is observed in many physical systems, including a single mode lasers with feedback ([Arecchi et al., 1987]) and with a saturable absorber ([de Tomasi et al., 1989]), the Belousov-Zhabotinskii reaction, a glow discharge plasma ([Braun et al., 1992]), an optically bistable device ([Pisarchik et al., 2000]), a multimode laser ([Viktorov et al., 1995]) and some other systems. Theoretical and experimental study of discrete behavior of Shilnikov chaos is shown in a $CO_{2}$ laser in [Pisarchik et al., 2001].

Attractors of a spiral type that appear in accordance with this scenario in discrete dynamical systems are called discrete Shilnikov attractors. First examples of such attractors were found in 3-D generalized Hénon map. [Pisarchik et al., 2000] have reported on the first experimental observation of the discrete behavior of Shilnikov chaos.

[Zhou et al., 2004] have shown that there only exist three kinds of chaos- homoclinic chaos, heteroclinic chaos, and a combination of homoclinic and heteroclinic chaos. They construct a new chaotic system of quadratic polynomial ordinary differential equations (ODE) in three dimensions, which has a single equilibrium point. They rigorously prove that this system satisfies all conditions stated in the Shilnikov theorem ([Tresser, 1984]), which clearly reveals its chaos formation mechanism and implies the existence of Smale horseshoes.

[Silva, 1993] has given a brief introduction of Shilnikov’s method to detect analytically the presence of chaos in continuous autonomous systems. As an application to a piecewise linear system they took Chua’s circuit and have shown homoclinic orbit from a saddle focus as well as heteroclinic orbit between two saddle foci.

The mechanism of formation of Shilnikov chaos has not yet been investigated in a piecewise smooth discrete dynamical system. The questions we address in this paper are- what are the criteria for a Shilnikov chaos to occur in a piecewise smooth discrete-time dynamical system? What sort of theoretical conditions can be given that can guarantee existence or non-existence of transverse homoclinic intersections, which will help create more efficient computer programs that can search for such intersections?

Since fixed-points of saddle-focus type do not appear in a 2-D piecewise linear map, to investigate the Shilnikov phenomenon in a piecewise smooth system we take a 3-D piecewise linear normal form map ([Roy and Roy, 2008, De et al., 2011, Patra and Banerjee, 2017]) and answer the questions mentioned above. We derive an analytical condition for the occurrence of a homoclinic intersection, thereby, the occurrence of a chaotic orbit. This condition is obtained keeping in view that checking the existence of a homoclinic intersection requires a computer simulation; the implementation of the algorithm is rendered more convenient by our analytic condition. In particular, it provides a finite range of iterations which should be checked, outside of which no homoclinic intersection is possible. We also show a motivating numerical example which exhibits Shilnikov-type behaviour, and show the utility of our methods with the example. The two-sided Shilnikov dynamics, (i.e. Shilnikov-type behaviour exhibited simultaneously by fixed points on both sides of the border) that this example shows is an interesting feature that occurs in three-dimensional piecewise smooth systems and may well be unique to them.

The paper is divided as follows. The description of the normal form for a three-dimensional piecewise smooth system is given in Section (2). A motivating example is shown for a two-sided Shilnikov-type dynamics in Section (3). Section (4) is the main theoretical part of the paper which gives two complementary methods to analyse the existence of transverse homoclinic intersections. The last section contains discussions of the results obtained and concluding remarks.

Acknowledgements. IR thanks A. Prasad for reading a preliminary draft of the paper, and the Indian Science and Engineering Research Board (SERB) for support via MATRICS project MTR/2017/000835.

2 3-Dimensional piecewise smooth maps: system description

The piecewise linear approximation of a general piecewise smooth 3D system evaluated in a close neighborhood of the border, called the ‘normal form’ map [di Bernardo, 2003, Roy and Roy, 2008, De et al., 2011, Patra and Banerjee, 2017] is given by

[TABLE]

where $X_{n}=(x_{n},y_{n},z_{n})^{\intercal}\in\mathbb{R}^{3}$, $C=(1,0,0)^{\intercal}\in\mathbb{R}^{3}$ and $\mu$ is a real-valued parameter. The phase space of this map is divided by the ‘border’ $X_{b}:\{x=0\}$ into two regions $\mathcal{L}:=\{(x,y,z)\in\mathbb{R}^{3}:x\leq 0\}$ and $\mathcal{R}:=\{(x,y,z)\in\mathbb{R}^{3}:x\geq 0\}$. We shall frequently refer to $\mathcal{L}$ and $\mathcal{R}$ as the ‘left’ side and the ‘right’ side of the border, respectively. In each region, the dynamics is governed by an affine map and the equations are continuous across $X_{b}$. $A_{l}$ and $A_{r}$ are real valued $3\times 3$ matrices

[TABLE]

If $\lambda_{1}$, $\lambda_{2}$ and $\lambda_{3}$ are the eigenvalues of the Jacobian matrix of the original PWS map evaluated at a fixed point placed on the left side close to the border, then the parameters of the matrix $A_{l}$ are simply the trace $\tau_{l}=\lambda_{1}+\lambda_{2}+\lambda_{3}$, the second trace $\sigma_{l}=\lambda_{1}\lambda_{2}+\lambda_{2}\lambda_{3}+\lambda_{3}\lambda_{1}$ and the determinant $\delta_{l}=\lambda_{1}\lambda_{2}\lambda_{3}$. The parameters of the matrix $A_{r}$ depends, in a similar manner, on the eigenvalues of the Jacobian matrix computed at a fixed point located on the right side.

The fixed points of the system in both sides of the boundary are given by

[TABLE]

If $L^{*}$ lies on the left side of the border, it is called admissible, otherwise it is called virtual. Similarly, $R^{*}$ is admissible if it lies on the right side of the border and virtual otherwise. We will assume the generic condition $\mu\neq 0$ for our discussions.

3 Motivating example for Shilnikov-type dynamics and bifurcation scenario

Let us consider the system given by Equation (2.1) for the following parameter values:

[TABLE]

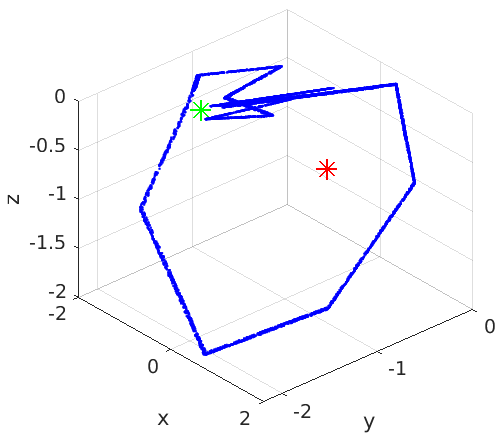

For these values, the left fixed point is admissible, located at the point $L^{*}=(−1.8182,−1,−0.5455)$. The right fixed point is also admissible and located at $(0.4878,−0.8049,−0.6195)$.

The matrix $A_{l}$ has a positive unstable eigenvalue $\lambda_{1,l}=1.3499$, and a pair of stable complex eigenvalues $\lambda_{2,l},\overline{\lambda}_{2,l}=−0.1749\pm 0.4378i$ with absolute value $|\lambda_{2,l}|=0.4714$. Therefore the left fixed point of saddle-focus type. The matrix $A_{r}$ governing the dynamics on the right side of the border $x=0$, has a negative stable eigenvalue $\lambda_{1,r}=-0.8211$ and pair of unstable complex eigenvalues $\lambda_{2,r},\overline{\lambda}_{2,r}=0.7105\pm 1.0207i$ with absolute value $1.2437$. Therefore, $R^{*}$ is a flip saddle.

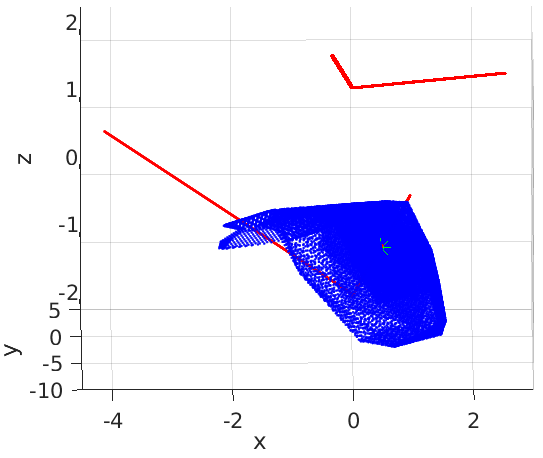

At this setting of parameter values, there exists a transverse homooclinic intersection between the 1-dimensional stable manifold $S_{r}$ and the 2-dimensional unstable plane $U_{r}$ of $R^{*}$ (see Figure (1 (d)), resulting in a chaotic attractor which is stable under small perturbations for $\tau_{r}<0.62$, see Figure (1 (a)). The Lyapunov exponents and bifurcation diagrams are shown in Figure (2).

We also observe that the unstable manifold $U_{l}$ for the left fixed point $L^{*}$ grows until hits the border (say at $B^{*}_{l}$) and passes to the right side, and then loops back towards the left side due to the unstable nature of $R^{*}$. When $U_{l}$ crosses the border again, the first iterate that crosses the border lies “above” the stable manifold $S_{l}$, i.e. in the same side of $B^{*}_{l}$ with respect to $S_{l}$. Thus the dynamics mimics the classical Shilnikov looping behaviour of the unstable manifold $U_{l}$, and a Shilnikov-type bifurcation occurs for these parameter values when $\tau_{r}$ increases from $0.58$ to $0.62$. At the critical value $\tau_{r}=0.62$, the unstable manifold $U_{l}$ has a transverse homoclinic intersection with the unstable plane $S_{l}$, which results in the sudden vanishing of the chaotic attractor (see Figure (1(c))). Note that due to the transverse intersection of $S_{r}$ and $U_{r}$, chaotic dynamics is still present in the system, but there is no attractor. The basin of attraction is plotted in the planes $z=const.$ in Figure (3), for the values $z=-1.1,0$ and $1.0$ at $\tau_{r}=0.58$ and $\tau_{r}=0.63$.

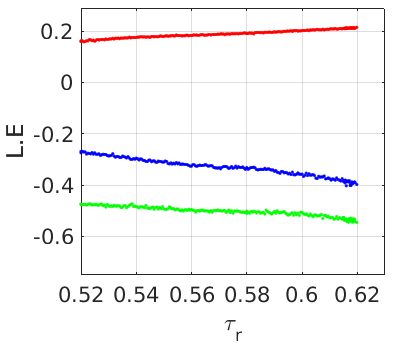

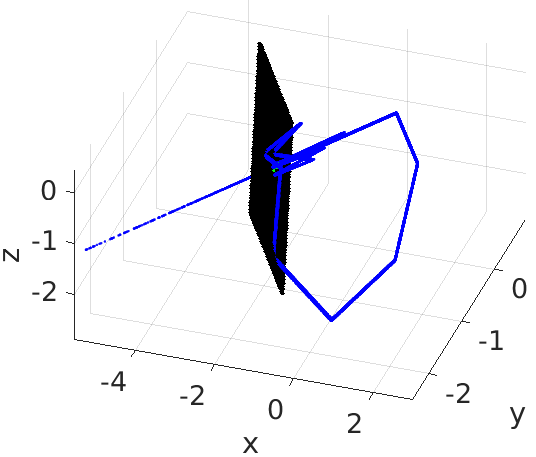

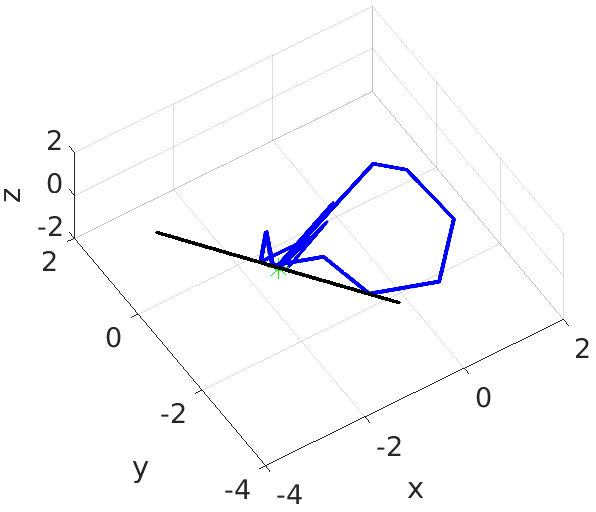

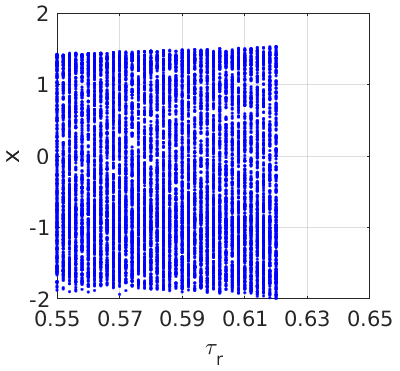

On the other hand, increasing $\tau_{L}$ from 1 to $1.05$ causes the homoclinic intersection of $U_{r}$ and $S_{r}$ to be broken, and thus the chaotic dynamics also ceases to occur. Thus near the critical values $\tau_{r}=0.62$ and $\tau_{L}=1.05$, a two-sided Shilnikov-type dynamics and bifurcation occurs. This kind of dynamics is most likely unique to piecewise smooth systems due to its inherent asymmetry.

4 Analytical conditions for homoclinic intersection

A homoclinic intersection between stable and unstable manifold implies an infinite number of intersections, therefore a horseshoe structure is born. We can give a general condition for occurrence chaos through the occurrence of homoclinic intersection.

Let $L^{*}$ be an admissible fixed point which has an unstable eigenvalue and a pair of stable eigenvalues. The procedure for finding the homoclinic intersection is as follows:

Calculate the unstable eigenvector, calculate the point $P_{0}$ where it touches the border. Consider that point as the initial point. 2. 2.

We calculate the $n$-th iteration of this initial point i.e., $P_{n}$ where $n$ is the minimum number to cross the border again. 3. 3.

Calculate $P_{n+1}$. 4. 4.

As the equation of the stable eigenplane is known we can check whether $P_{n+1}$ and $P_{n}$ are on the same side of the stable eigenplane equation or not. 5. 5.

Calculate the intersection between the stable eigenplane and the line going through the $P_{n}$ and $P_{n+1}$. Check whether the intersection point is in the same side of the fixed point or not.

If the intersection point is on the same side of the fixed point then there is a homoclinic intersection, and therefore, chaotic dynamics must occur.

Here, to calculate the $P_{n}$, i.e., the $n$-th iteration, we have taken two complementary approaches. The first one is based on a recursion method following [Avrutin et al., 2016] (see also

[Saha and Banerjee, 2015]). The recursion stops as soon as the orbit crosses the border, at which point it is easily checked whether there exists a transverse homoclinic intersection with the 2-dimensional stable manifold of $L^{*}$.

The second method is then used to provide upper bounds for the number of iterations that need to be checked for the border crossing and subsequent homoclinic intersection. This method is based on a complex interpolation scheme whereby we define fractional iterations of our system in Equation (2.1). This interpolation is then used to get a transcendental equation in the positive reals; the least positive solution of this equation then provides the border return time.

4.1 Recursive method to compute powers of a matrix

Let’s consider a situation where a period-1 fixed point $L^{*}=(x_{l},y_{l},z_{l})$ is admissible. The unstable eigenvector grows and touches the $x=0$ plane at $P_{0}=(0,C_{1},C_{2})$ and the image of this point is the 1st fold point and its coordinate is $P_{1}=(x_{1},y_{1},z_{1})=(C_{1}+\mu,C_{2},0)$. where, $C_{1}=y_{l}-\frac{v_{21}}{v_{11}}x_{l}$, and $C_{2}=z_{l}-\frac{v_{31}}{v_{11}}x_{l}$. Here $V_{1}=(v_{11},v_{21},v_{31})$ is the unstable eigenvector associated to the $A_{l}$. We shall assume that both matrices $A_{l}$ and $A_{r}$ are non-singular and do not have the eigenvalue 1. Further, we suppose that $C_{1}+\mu>0$, so that $P_{1}$ lies on the right side of the border.

Now we need to calculate the minimum number of iteration needed to cross the border again. Let’s suppose $n$ iterations are needed to come again to the left side. We shall sometimes refer to $n$ as the border return time.

[TABLE]

Suppose that $\delta_{r}\neq 0$. We need to calculate the $n$-th power of a matrix $A$. We here use a recursion method similar to the one used by [Avrutin et al., 2016] and calculate $A^{n}$ for $n\geq 1$ as

[TABLE]

which follows the recursive equation given by

[TABLE]

where the initial conditions are

[TABLE]

Assuming all the iterations are on the right side, after $n$-th iterations the coordinates are given by the following expression:

[TABLE]

where (A_{r}-I)^{-1}=\left(\begin{array}[]{ccc}a_{11}&a_{12}&a_{13}\\ a_{21}&a_{22}&a_{23}\\ a_{31}&a_{32}&a_{33}\end{array}\right)

Note that the recursion relations can be solved explicitly using standard methods (for the 2-dimensional case see [Avrutin et al., 2016], appendix B) and we omit it here. Also, a recursion scheme to compute the matrix $(A_{r}-I)^{-1}(A_{r}^{n}-I)$ can be given analogous to the one in [Saha and Banerjee, 2015], appendix E to make the computations more efficient. With this recursion scheme, we can thus calculate $P_{1},P_{2},\cdots,P_{n}$ efficiently until the $x$-coordinate of $P_{n}$ is negative. So, we get minimum number $n$ at which the orbit crosses the border again.

Equation of the stable eigenplane: $L^{*}$ is a saddle fixed point which has one unstable eigenvector and two stable eigenvectors. Equation of the stable eigenplane containing the two stable eigenvectors in vector notation, where $V_{2}$ and $V_{3}$ are the two stable eigenvectors is

[TABLE]

In Cartesian co-ordinates, we can express this equation as

[TABLE]

As the eigenplane passes through the fixed point $(x_{l},y_{l},z_{l})$, the constant term $d$ can be calculated as $-a.x_{l}-b.y_{l}-c.z_{l}$.

We then check whether the points $P_{n+1}$ and $P_{n}$ are on the opposite side of the stable eigenplane or not. If they are on the opposite side, we infer that the unstable manifold must have gone through the stable manifold, and therefore there is homoclinic intersection resulting the occurrence of chaotic dynamics.

Similar calculation can be carried out for the fixed point at $R^{*}$. In the next subsection we give a method based on complex interpolation of the discrete system given by Equation (2.1) to estimate the border return time.

4.2 Complex interpolation and estimation of border return time

In this subsection we present an interpolation method which considers the positive real exponents of a non-singular real matrix $A$, i.e. matrices of the form $A^{t}$ for $t\in\mathbb{R}^{+}$. Note that such exponents are defined using the complex logarithm of $A$ and the result takes values in the algebra of matrices with complex entries. The matrix $A^{t}$ is defined by the following formula:

[TABLE]

In general, this is a multi-valued function due to the complex logarithm. However, in this paper we shall always restrict ourselves to the principal value of the complex logarithm to get a unique matrix $A^{t}$. Therefore, unless otherwise stated $\ln(z)$ will denote the principal value of the complex logarithm.

For a $3\times 3$-diagonal matrix $D=\begin{bmatrix}z_{1}&0&0\\ 0&z_{2}&0\\ 0&0&z_{3}\end{bmatrix}$ with non-zero complex entries $z_{i},i=1,2,3$, the matrix $\ln(D)$ is easily defined as

[TABLE]

Therefore, the matrix $D^{t}$ for $t\in\mathbb{R^{+}}$ is given by

[TABLE]

Remark 4.1**.**

In case of a matrix $A$ having repeated eigenvalues, given its block-diagonal Jordan normal form, one can also define the matrix $\ln(A)$ using the so-called Jordan-Chevalley decomposition of $A$ into a sum of two matrices $S$ and $N$, where $S$ is a semisimple matrix and $N$ a nilpotent matrix. For more details, we refer the reader to [Hsieh and Sibuya, 1999], chapter 4. In this paper however, we restrict ourselves to the case of distinct eigenvalues only.

Turning to the system given by Equation (2.1), we wish to diagonalize the matrices $A_{l}$ and $A_{r}$, and then use the above formulae to define the continuous complex interpolation of the system. Let $P_{l}$( resp. $P_{r}$) be the complex base change matrix for $A_{l}$(resp. $A_{r}$). Let us assume that neither $A_{l}$ nor $A_{r}$ has repeated roots, so that the matrices $D_{l}=P_{l}A_{l}P_{l}^{-1}$ and $D_{r}=P_{r}A_{r}P_{r}^{-1}$ are diagonal (with complex entries). This excludes the case of block-diagonal matrices, although much of the analysis goes through once the matrices $\ln(D_{l})$ (or $\ln(D_{r})$) have been defined using the Jordan-Chevalley decomposition, as in Remark (4.1). We also assume as before that the matrices $A_{l}$ and $A_{r}$ do not have any eigenvalue equal to 0 or 1. As a consequence, the matrices $A_{l},A_{r}$, $A_{l}-I$ and $A_{r}-I$ are invertible.

For $t\in\mathbb{R}^{+}$, we set $A_{l}^{t}:=P_{l}^{-1}D^{t}_{l}P_{l}$ and similarly $A_{r}^{t}:=P_{r}^{-1}D^{t}_{r}P_{r}$. We use the notation $\Re(z)$ to denote the real part of any $m$-tuple of complex numbers $z\in\mathbb{C}^{m}$.

Definition 4.2**.**

The complex interpolation of the discrete system in Equation (2.1) is given by the following formula: for any $t\in[0,1]$ and a starting point $X_{0}=(x_{0},y_{0},z_{0})\in\mathbb{R}^{3}$ such that $y_{0}+\mu\neq 0$,

[TABLE]

The system given by Equation (4.41) yields a continuous, piecewise smooth curve $\Re({X(t)})$ (the real part of the complex function $X(t)$) in $\mathbb{R}^{3}$ for $t\in[0,1]$. The definition for the complex interpolation for any $t\in\mathbb{R}^{+}$ is then straightforward to deduce:

[TABLE]

where $\lfloor t\rfloor$ is the greatest integer less than or equal to $t$ and $\{t\}$ is the fractional part of $t$. It follows immediately from the definition that the complex interpolation $F^{t}_{\mu}$ agrees with the system in Equation (2.1) whenever $t$ is an integer. In the definition, we have excluded the line $y_{0}=-\mu$ in the $Y$-$Z$ plane so that there is no ambiguity in the interpolation; however, the interpolation formulae can be extended to this case according to the situation where the second iterate of $X_{0}$ under $F_{\mu}$ has $x$-coordinate positive or negative- equivalently, whether $z_{0}>-\mu$ or $z_{0}<-\mu$. That leaves us with the case $X_{0}=(0,-\mu,-\mu)^{\intercal}$ for which one should consider on which side of the border the third iterate lies. This is simply the condition $\mu>0$ or $\mu<0$. In this way one can extend the interpolation scheme to every point in the $Y$-$Z$ plane.

Definition 4.3**.**

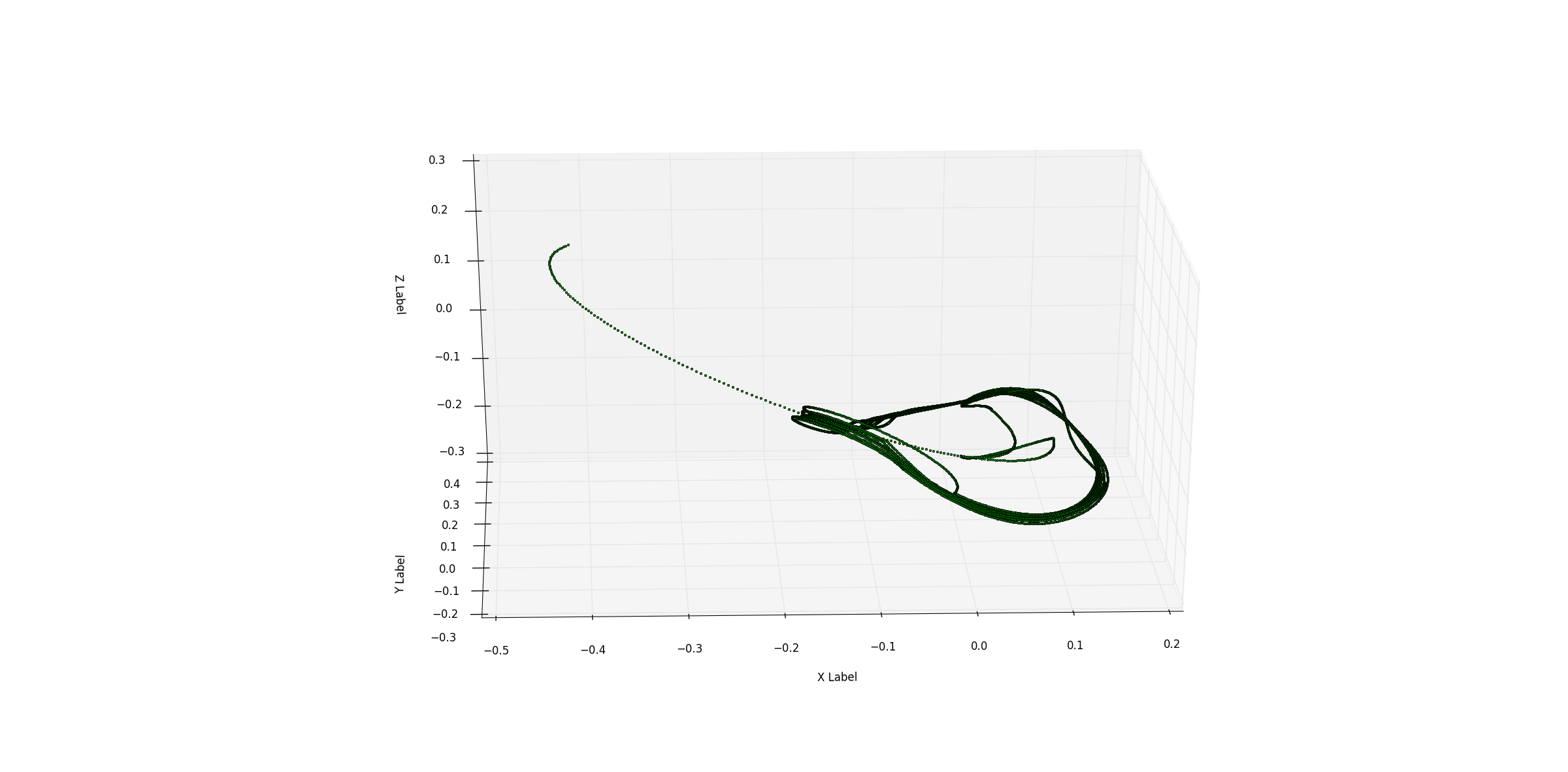

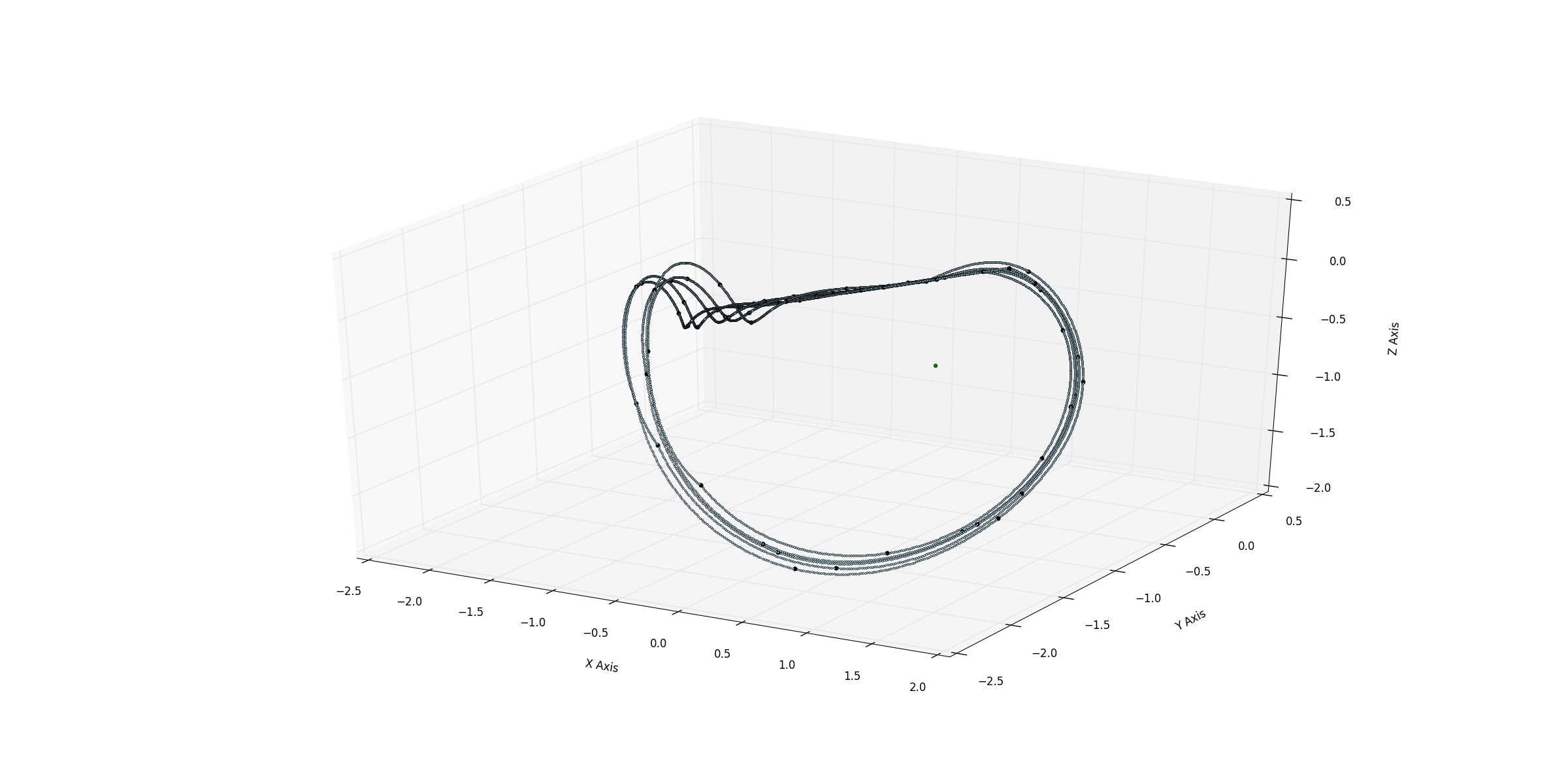

*We shall call the interpolation $X(t)$ the companion orbit of the dynamical system (2.1) starting at $X_{0}$.

If $X_{0}$ lies on the stable (resp. unstable) manifold of $L^{*}$ or $R^{*}$, we shall call $X(t)$ the companion stable (resp. companion unstable) manifold.*

Since the companion orbit must agree with the actual orbit at integer points, the following lemma is immediate:

Lemma 4.4**.**

The orbit of a point under $F_{\mu}$ is bounded if and only if the corresponding companion orbit $F^{t}_{\mu}$ is bounded for all $t\in\mathbb{R}^{+}$.

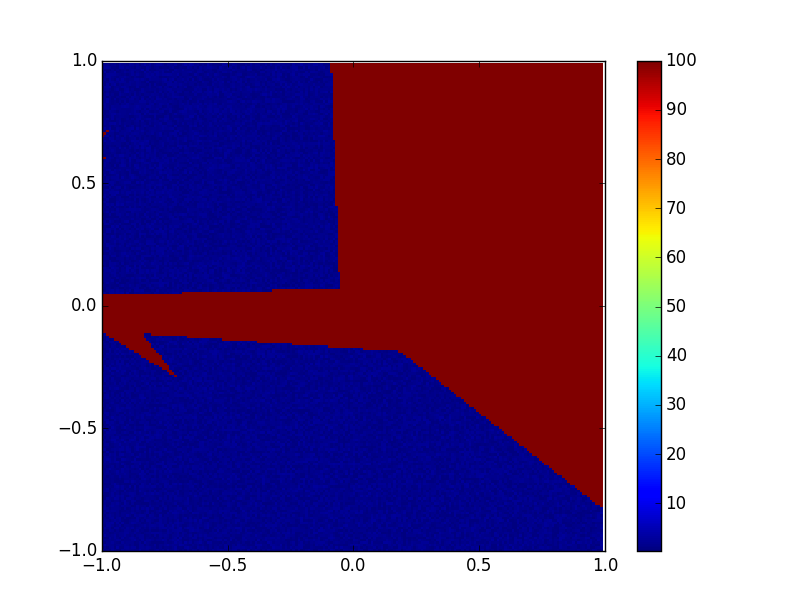

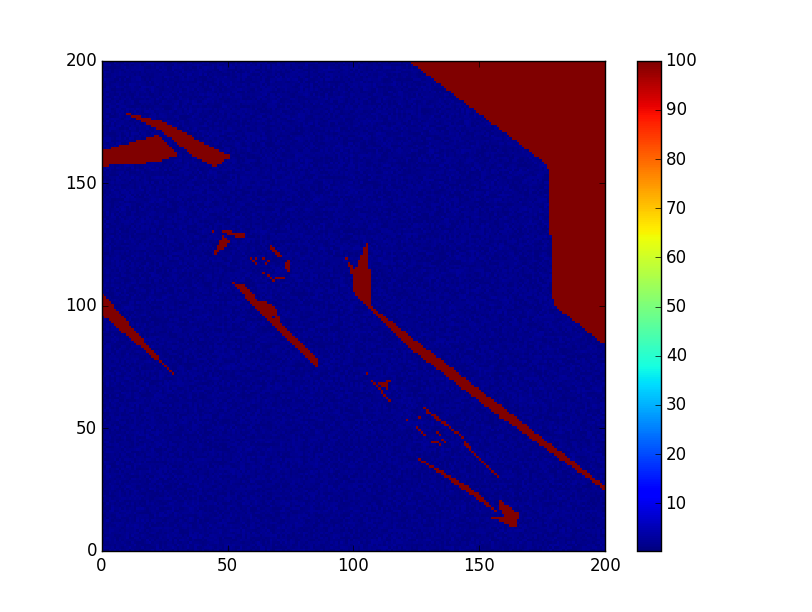

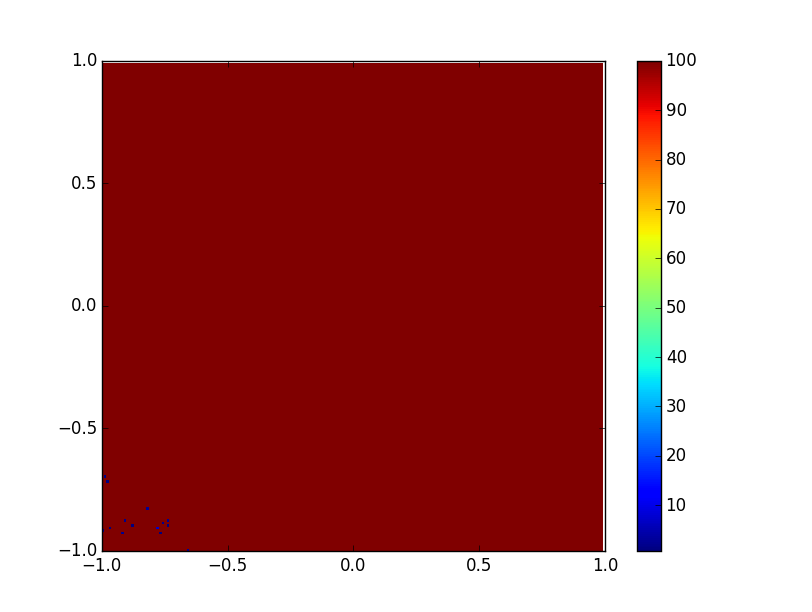

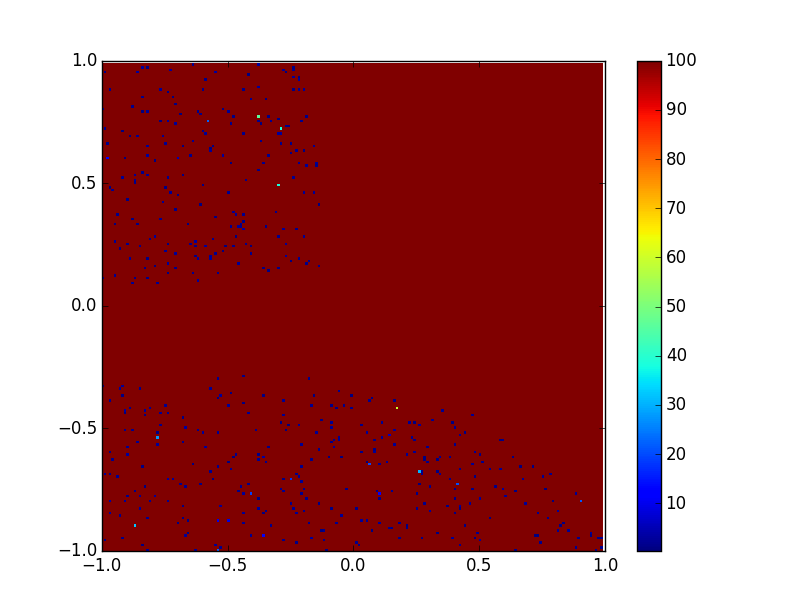

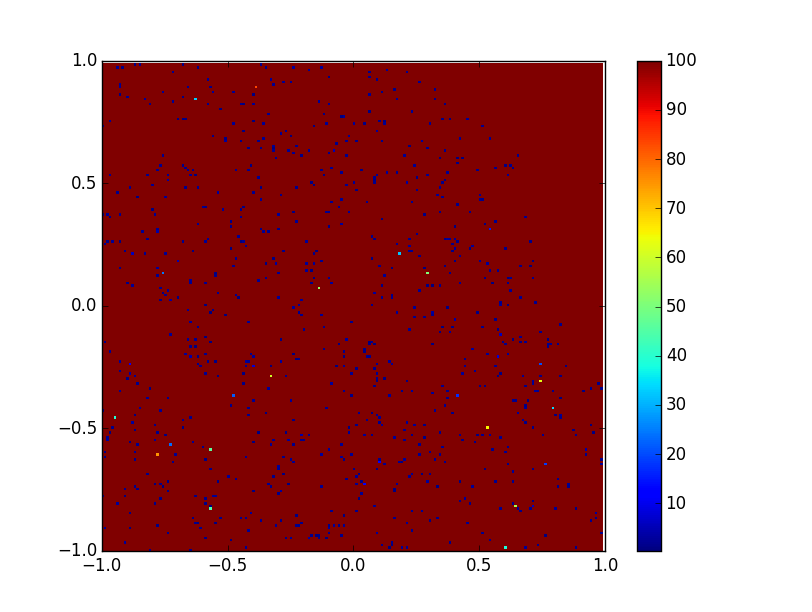

The complex interpolation function $F^{t}_{\mu}$ will be used to estimate the border return time in the next subsection. A few remarks are in order.

Remark 4.5**.**

The terminology ‘companion stable’ does not imply that the curve $X(t)$ itself is stable under iterations of $F_{\mu}$, rather it is meant to imply that it must intersect with the stable manifold infinitely many times. In particular, $F^{t}_{\mu}$ does not follow the semi-group composition law $F^{t+s}_{\mu}=F^{t}_{\mu}\circ F^{s}_{\mu}$ in general. 2. 2.

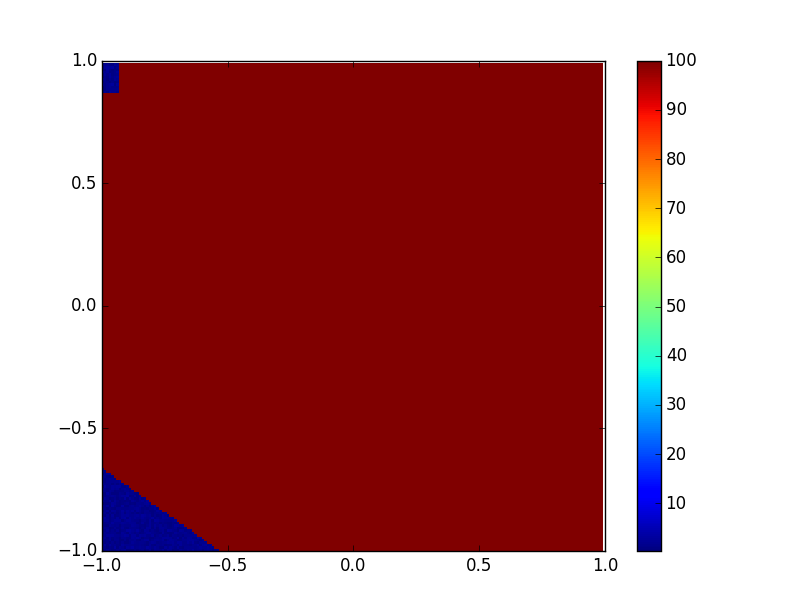

We have nevertheless found via numerical simulations that in many cases, the companion orbits (or companion stable or unstable manifolds) do capture a lot of global dynamics of the system in Equation (2.1), see Figure (4) below in which a companion orbit as well as the companion unstable manifold of $U_{l}$ for the motivating example in Section 3 is given.

4.2.1 Estimating the border return time

In this section we give some results regarding upper bounds for the border return time as well as algebraic conditions for not returning to the border. This is important in view of implementing the algorithm based on the recursive Equation (4.2) in Subsection (4.1). Indeed, in order to check the transverse intersection condition by implementing the algorithm, one must determine in advance an upper bound for the number of iterations $n$ since the border return time equation is transcendental in nature (see Equation (4.43)) and therefore has no general solution in closed form. Thus, one has to rely on a computer program to find the least positive solution for such equations. For such a program, hard-coding a fixed number of iterates to check the border crossing condition for different parameter values is clearly not a reliable method, and this is where upper bounds for various parameter regions help us determine the number of iterates to check whether a transverse homoclinic intersection exists after the orbit crosses the border.

Let us consider the system in Equation (2.1) under the change of co-ordinates corresponding to the eigenbasis of $A_{l}$. Let us denote the eigenvalues of $A_{l}$ by $(\lambda_{1},\lambda_{2},\lambda_{3})$. Let $P_{l}=(p_{ij})_{i,j=1,2,3}$ be the change of basis matrix with respect to the given eigenvalues, and let $P^{-1}_{l}$ be given by a matrix $(\rho_{ij})_{i,j=1,2,3}$. Thus, the new co-ordinates, which shall be denoted in vector form by $\chi=(\chi_{1},\chi_{2},\chi_{3})^{\intercal}$ and the old (standard Euclidean) co-ordinates denoted by $X=(x,y,z)^{\intercal}$ are related by the change of base matrix $P_{l}$:

[TABLE]

Under the $\chi$-coordinates, for a starting point $\xi_{0}=(\xi_{01},\xi_{02},\xi_{03})\in\mathbb{R}^{3}$, the complex interpolation equation takes a particularly simple form. For $i=1,2,3$, we have:

[TABLE]

where $\mu_{i}=\mu\rho_{1i}$ for $i=1,2,3$.

To compute the border return time for a point $X_{0}=(0,y_{0},z_{0})$ in the old-coordinate system for which $y_{0}+\mu<0$ (which means the first iterate lands on the left side of the border), we derive the following equation. Let $\xi_{0}=P^{-1}_{l}X_{0}$. Then, the least positive real solution of the equation below gives the border return time.

[TABLE]

When expressed in the old co-ordinate system, the Equation (4.43) takes the following form:

[TABLE]

It is straighforward to check that $t=0$ is always a solution to Equation (4.44), which corresponds to the starting position $X_{0}$. As already mentioned, the least positive real solution $t_{0}$ of Equation (4.44) gives the crossing iteration $n=\lfloor t_{0}\rfloor$, i.e. the $n$-th iteration lies on the left side of the border while the $(n+1)$-th iteration passes to the right side of the border. Note that the above equation interpolates the actual orbit of $X_{0}$ under $F_{\mu}$ correctly only for $t\leq t_{0}$, after which the corresponding equation for the matrix $A_{r}$ must be used.

If the matrix $A_{l}$ has all positive real eigenvalues, then of course the expression within the big brackets in Equation (4.44) is already real. However, if any of the eigenvalues are negative or complex, then there is a non-zero complex part of the interpolation, which we nevertheless ignore.

Remark 4.6**.**

A special case arises when the right fixed point $R^{*}$ has a flip unstable direction $U_{r}$ and the point $X_{0}$ is the intersection point of $U_{r}$ with the border $x=0$. In that case, the first iterate will never land on the left side because it flips to the “opposite side” of the flip direction with respect to the orientation of $U_{r}$ on the right side of the border, and the next iterate then lands on $U_{r}$ again but now on the left side of the border (since the direction is unstable). Therefore, in this case the starting point $X_{0}$ has non-zero $x$-coordinate (in the standard Euclidean basis) and the Equation (4.44) has to be modified accordingly. This modification is nonetheless straightforward and we omit the details here. The border return time is then estimated as $t_{0}+2$, where $t_{0}$ is the least positive solution to the modified equation. The corresponding function $f(t)$ has the same general form as in the positive eigenvalue case (see Equations (4.43) and (4.45) below).

Let us analyse Equation (4.44) in more detail for the special case when $\lambda_{1}>1$, and $\lambda_{2}=\overline{\lambda}_{3}=r_{0}e^{i\theta_{0}},r_{0}>0,\theta_{0}\in(-\pi,\pi]$ are a pair of complex eigenvalues with absolute value less than 1. Equation (4.44) then takes the following general form:

[TABLE]

where $\alpha_{1},\alpha_{2},\alpha_{3},\delta\in\mathbb{R}$. Our goal is to give upper bounds for the smallest positive root of $f(t)$.

Note that the cosine term makes $f(t)$ an oscillating function. It has two enveloping curves given by

[TABLE]

The condition $f^{-}(t)\leq f(t)\leq f^{+}(t)$ is then satisfied for all $t\geq 0$. The functions of the kind $f^{\pm}(t)$ are sometimes called *exponential polynomials * or generalized Dirichlet polynomials [Jameson, 2006], [Tossavainen, 2007]. We thus get the following general form of the enveloping curves given in Equation (4.2.1):

[TABLE]

We are interested in the location of zeros of $g(t)$ in the interval $(0,\infty)$. Note that for such functions, Descartes’ rule of signs is applicable, and we have the following nice theorem, sometimes called the lost cousin of the Fundamental Theorem of algebra:

Theorem 4.7**.**

[Jameson, 2006]** Let $\sigma(g)$ be the number of sign changes in the sequence $(a_{1},a_{2},a_{3})$. Then the number of zeros $Z(g)$ of $g(t)$ (counted with multiplicity) in the interval $(0,\infty)$, is bounded above by $\sigma(g)$. Moreover, the difference $\sigma(g)-Z(g)$ is always an even number, and $Z(g^{\prime})\geq Z(g)-1$.

The following corollaries are immediate.

Corollary 4.8**.**

With the same assumptions as in Theorem (4.7), the number of zeros of $g(t)$ is at most 2.

Corollary 4.9**.**

With the same assumptions as in Theorem (4.7), if $\sigma(g)=0$ then $g(t)$ has no solution.

Note that our original goal was to find roots of the function $f(t)$ of Equation (4.45). Since $f^{\pm}(t)$ bound $f(t)$, the following lemma is obvious:

Lemma 4.10**.**

If $f(t)$ has at least one solution for $t>0$, then either $f^{+}(t)$ or $f^{-}(t)$ must have at least one solution for $t>0$. The least positive solution of $f(t)$ is therefore bounded above by the largest positive solution of $f^{\pm}(t)$.

Therefore to find an upper bound for the least positive solution of $f(t)$, it suffices to find an upper bound for the largest solution of $f^{\pm}(t)$, and in turn it suffices to bound the solutions of the general form $g(t)$. Assuming that at least one solution of $g(t)$ exists in the interval $(0,\infty)$, we give elementary estimates for the upper bound in the following lemma.

Lemma 4.11**.**

If $Z(g)>0$, there is no solution of $g(t)$ in the region $t\geq t_{0}$, where

[TABLE]

.

Proof.

We treat separately the following two cases:

$\sigma(g)=1$: we have either (a) $a_{1},a_{2}>0$, $a_{3}<0$, or (b) $a_{1}>0$, $a_{2},a_{3}<0$, since other cases can be reduced to these two. 2. 2.

$\sigma(g)=2$: $a_{1},a_{3}>0$, $a_{2}<0$.

Case 1 (a): Since we have assumed that at least one solution exists, we must have $|a_{3}|>a_{1}$. In this case, we also have $|a_{3}|>|a_{3}|-a_{2}\kappa_{2}^{t}$. Therefore there is no solution in the region $t>t^{a}_{0}$, where $t^{a}_{0}=\frac{\ln(|a_{3}|/a_{1})}{\ln(\kappa_{1})}$, as in this region $|a_{3}|\leq a_{1}\kappa_{1}^{t}$. Since $\kappa_{1}>1$ and $|a_{3}|>a_{1}$, $t^{a}_{0}$ is positive.

Case 1 (b): One can use similar arguments as in the previous case to show that there is no solution for $t>t^{b}_{0}=\frac{\ln((|a_{2}|+|a_{3}|)/a_{1})}{\ln(\kappa_{1})}$.

Case (2): Since $a_{2}<0$ and $\kappa_{1}<1$, we have $g^{\prime}(t)=a_{1}\ln(\kappa_{1})\kappa_{1}^{t}+a_{2}\ln(\kappa_{2})\kappa_{2}^{t}>0$ for all $t>0$. Therefore $g$ can have at most 1 positive solution. Since $\sigma(g)=2$, we must have $Z(g)=0$ by Theorem (4.7), which contradicts our assumption that $Z(g)>0$. Therefore the case $\sigma(g)=2$ cannot arise for $g(t)$.

Therefore we get that there is no solution for $g(t)$ for $t>\max\{t_{0}^{a},t_{0}^{b}\}=t^{b}_{0}=\frac{\ln((|a_{2}|+|a_{3}|)/|a_{1}|)}{\ln(\kappa_{1})}$

∎

Using elementary arguments, one can also give upper bounds for solutions of the border return time Equation (4.44) in many more cases, e.g. when all three eigenvalues are real. However, we do not claim that any of these upper bounds are tight.

We also note that in case $g(t)$ has exactly one solution, the least positive solution can also be bounded below by the (unique) extremum point $t^{*}$ of $g(t)$ given by

[TABLE]

Note that this may or may not be a positive number.

Now we can summarize the discussions above and state a necessary condition for the occurence of chaos through transverse homoclinic intersection on the first return of an unstable manifold $U_{r}$ for $R^{*}$, following a Shilnikov-type dynamical behaviour:

Theorem 4.12**.**

Suppose that the left-side fixed point $L^{*}$ is admissible and has eigenvalues $(\lambda_{1},\lambda_{2},\lambda_{3})$ where $\lambda_{1}$ is real with $\lambda_{1}>1$, and $\lambda_{2}=\overline{\lambda}_{3}$ is a pair of complex-conjugate eigenvalues with absolute value $r_{0}<1$. Assume also that the right-side fixed-point $R^{*}$ is admissible with one unstable flip eigenvalue and two stable eigenvalues; denote the associated unstable manifold by $U_{r}$ and the stable manifold as $S_{r}$. Take $X_{0}=(0,y_{0},z_{0})^{\intercal}$ to be the intersection of $U_{r}$ with the border $x=0$ with $y_{0}+\mu<0$, and consider the corresponding function $f(t)$ of Equation (4.44) (see also Remark (4.6)), with upper and lower bounding curves $f^{\pm}(t)$, with either $f^{+}(t)$ or $f^{-}(t)$ having at least one solution (say $f^{+}(t)$). Then, a necessary condition for a transverse homoclinic intersection on first return to occur between $U_{r}$ and $S_{r}$, is given by:

[TABLE]

Here $P_{k}$ is the $k$-th iterate of $X_{0}$, $\overline{n}_{S_{r}}$ is the normal vector to the 2-dimensional stable eigenplane of $R^{*}$ and $v^{\intercal}\cdot w$ denotes the dot product of two vectors $v,w\in\mathbb{R}^{3}$( $v^{\intercal}$ is the transpose of $v$).

We would like to apply Theorem (4.12) to analyse our motivating example of Section 3. However, in that example, $R^{*}$ has a 1-dimensional flip stable manifold $S_{r}$ and a 2-dimensional unstable manifold $U_{r}$. In that case, our analysis must be modified as follows. Let $X_{0}=(0,y_{0},z_{0})^{\intercal}$ be the point of intersection of $S_{r}$ with the border. Since $A_{r}$ and $A_{l}$ are invertible (none of its eigenvalues are zero so it is non-singular), the orbit of $X_{0}$ under the inverse map of $F_{\mu}$ can be computed easily, which we assume to lie on the left side of the border. So, to analyse the “border return time” corresponding the backward flow of $S_{r}$ traversing the left side, we can first modify the interpolation equation for the iterates of the inverse map and use a similar formula as given in Equation (4.41), then analyse the zeros of the function analogous to $f(t)$. One gets in that case another function $G(t)$ which is also of the same form as $g(t)$ as in Equation (4.47), The rest of the analysis then follows in a similar fashion to find upper bounds of the least positive solution of $G(t)$.

5 Conclusion

In the continuous case, Shilnikov bifurcation occurs because the 1-dimensional unstable manifold loops back and intersects the 2-dimensional stable manifold. We have shown that a similar phenomenon occurs in a discrete three-dimensional piecewise smooth system, albeit the looping of the 1-dimensional unstable manifold occurs due to the nature of the fixed point on the other side of the border. Therefore we call this Shilnikov-type dynamics and the resulting chaos as Shilnikov-type chaos. In this paper we have also derived analytical conditions for the occurrence of a transverse homoclinic intersection, and therefore the occurrence of a chaotic dynamics. It is well-known that such transverse homoclinic intersections cause chaotic behaviour via the presence of Smale horseshoes. More precisely, we employ two analytical methods to give necessary conditions for the occurrence of a homoclinic orbit: one that uses recursion and another that uses complex interpolation. The two methods are complementary to each other and are meant to be used together in practice. As far as we know, this method seems to be new in the case of discrete piecewise smooth systems. In particular, since the interpolation technique provides an gives an explicitly-defined continuous curve that can be used to probe the dynamics of the system, we expect that it will be useful to study other dynamical properties of such systems as well. We also present an example, which shows a ‘two-sided Shilnikov dynamics’, where looping behaviour of 1-dimensional eigenmanifolds occurs for both fixed points on either side of the border, which then intersect transversally their respective 2-dimensional eigenmanifolds. The resulting chaotic dynamics is Shilnikov-type on either side, which can be therefore aptly named as ‘two-sided Shilnikov chaos’.
