An Optimal Graph-Search Method for Secure State Estimation

TL;DR

This paper introduces an optimal graph-search algorithm for secure state estimation in large-scale cyber-physical systems, effectively identifying malicious attacks and reconstructing states with improved speed and accuracy.

Contribution

The paper presents a novel graph-search method that guarantees optimal attack detection and state estimation, overcoming combinatorial complexity in large-scale systems.

Findings

Outperforms existing algorithms in accuracy and speed

Successfully identifies attacked sensors in simulations

Reconstructs states securely under noise conditions

Abstract

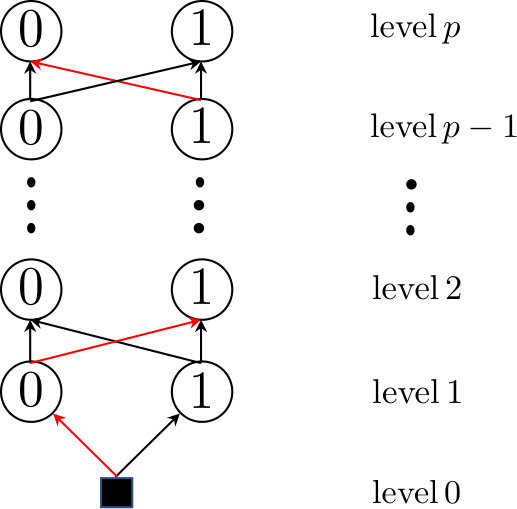

The growing complexity of modern Cyber-Physical Systems (CPS) and the frequent communication between their components make them vulnerable to malicious attacks. As a result, secure state estimation is a critical requirement for the control of these systems. Many existing secure state estimation methods suffer from combinatorial complexity which grows with the number of states and sensors in the system. This complexity can be mitigated using optimization-based methods that relax the original state estimation problem, although at the cost of optimality as these methods often identify attack-free sensors as attacked. In this paper, we propose a new optimal graph-search algorithm to correctly identify malicious attacks and to securely estimate the states even in large-scale CPS modeled as linear time-invariant systems. The graph consists of layers, each one containing two nodes capturing a truth assignment of any given sensor, and directed edges connecting adjacent layers only. Then, our algorithm searches the layers of this graph incrementally, favoring directions at higher layers with more attack-free assignments, while actively managing a repository of nodes to be expanded at later iterations. The proposed search bias and the ability to revisit nodes in the repository and self-correct, allow our graph-search algorithm to reach the optimal assignment faster and tackle larger problems. We show that our algorithm is complete and optimal provided that process and measurement noises do not dominate the attack signal. Moreover, we provide numerical simulations that demonstrate the ability of our algorithm to correctly identify attacked sensors and securely reconstruct the state. Our simulations show that our method outperforms existing algorithms both in terms of optimality and execution time.
