Spin-orbital order in LaMnO$_3$: $d-p$ model study

TL;DR

This study uses a multiband $d-p$ model and Hartree-Fock approximation to accurately simulate the spin-orbital order in LaMnO$_3$, highlighting the role of Jahn-Teller distortions and Coulomb interactions.

Contribution

It introduces a simple, computationally inexpensive $d-p$ model that successfully reproduces the complex spin-orbital order in LaMnO$_3$.

Findings

The model accurately reproduces the observed spin-orbital order.

Orbital order remains robust with minimal reduction under doping.

The Jahn-Teller effect and Coulomb interactions are key to orbital stabilization.

Abstract

Using the multiband $d-p$ model and unrestricted Hartree-Fock approximation we investigate the electronic structure and spin-orbital order in three-dimensional MnO$_3$ lattice such as realized in LaMnO$_3$. The orbital order is induced and stabilized by particular checkerboard pattern of oxygen distortions arising from the Jahn-Teller effect in the presence of strong Coulomb interactions on $e_g$ orbitals of Mn ions. We show that the spin-orbital order can be modeled using a simple \textit{Ansatz} for local crystal fields alternating between two sublattices on Mn ions, which have non-equivalent neighboring oxygen distortions in $ab$ planes. The simple and computationally very inexpensive $d-p$ model reproduces correctly nontrivial spin-orbital order observed in undoped LaMnO$_3$. Orbital order is very robust and is reduced by $\sim 3$ \% for large self-doping in the metallic regime.

Figures

Tables

Table 1. Table 1: Parameters of the multiband model ( 1 ) (all in eV) used in HF calculations. For the hopping integrals we adopt the values from Refs. miz95 ; miz96 and include oxygen-oxygen hopping elements in H p ​ p subscript 𝐻 𝑝 𝑝 H_{pp} , given by ( p ​ p ​ σ ) = 0.6 𝑝 𝑝 𝜎 0.6 (pp\sigma)=0.6 , ( p ​ p ​ π ) = − 0.15 𝑝 𝑝 𝜋 0.15 (pp\pi)=-0.15 eV (here we use the Slater notation Sla54 ). The charge-transfer energy Δ Δ \Delta ( 5 ) is defined for bare levels. The magnitude of splitting within t 2 ​ g subscript 𝑡 2 𝑔 t_{2g} and e g subscript 𝑒 𝑔 e_{g} levels is arbitrarily taken as 0.1 eV and 0.2 eV.

$\zeta$	$\left(pd\sigma \right)$	$\left(pd\pi \right)$	$\Delta$	$U_d$	$J_H^t$	$J_H^e$	$U_p$	$J_H^p$
0.04	$-1.8$	0.9	2.0	8.0	0.8	0.9	4.4	0.8

Table 2. Table 2: Spin-orbital order and electron densities ⟨ n m ​ α ⟩ delimited-⟨⟩ subscript 𝑛 𝑚 𝛼 \langle n_{m\alpha}\rangle obtained on non-equivalent Mn ions for the HF ground state (at zero temperature) as obtained for orthorhombic LaMnO 3 at self-doping x = 0 𝑥 0 x=0 and x = 0.0625 𝑥 0.0625 x=0.0625 . The index m = 1 , 2 𝑚 1 2 m=1,2 denotes a Mn site of a given sublattice, as shown in Fig. 1. Numbers in bold indicate the most appropriate quantization direction, i.e., the best local orbital basis for the description of orbital order at a given sublattice. The HF calculations are summarized by: the HF energy per MnO 3 unit cell, E HF subscript 𝐸 HF E_{\rm HF} , and the HOMO-LUMO gap G 𝐺 G , and the average magnetization value.

self-doping	$A$-AF / $C$-AO spin-orbital order
$x$	0		0.0625
$E_{\mathrm{HF}}$ (eV)	123.507		122.156
$G$ (eV)	4.76		0.23
	Mn ion sublattice
electron density	$m=1$	$m=2$	$m=1$	$m=2$
$⟨n_{m,xy}⟩$	1.02	1.02	1.02	1.02
$⟨n_{m,yz}⟩$	1.00	1.02	1.00	1.02
$⟨n_{m,zx}⟩$	1.02	1.00	1.02	1.00
$⟨n_{m,x^2-z^2}⟩$	0.12	0.88	0.11	0.80
$⟨n_{m,3y^2-r^2}⟩$	1.00	0.24	0.95	0.27
$⟨n_{m,y^2-z^2}⟩$	0.89	0.12	0.81	0.11
$⟨n_{m,3x^2-r^2}⟩$	0.23	1.00	0.26	0.96
$⟨n_{m,x^2-y^2}⟩$	0.67	0.68	0.68	0.69
$⟨n_{m,3z^2-r^2}⟩$	0.45	0.44	0.39	0.37

Table 3. Table 3: The HOMO-LUMO gap G 𝐺 G , the average magnetization value, | ⟨ S x ⟩ | delimited-⟨⟩ superscript 𝑆 𝑥 |\langle S^{x}\rangle| , and the orbital order parameters, η y / x subscript 𝜂 𝑦 𝑥 \eta_{y/x} and η z subscript 𝜂 𝑧 \eta_{z} , versus hypothetical values of self-doping x 𝑥 x for LaMnO 3 . All the presented data correspond to ground states characterized by coexisting A 𝐴 A -AF spin (with x 𝑥 x -easy axis of magnetization) and C 𝐶 C -AO order.

$x$	$G$ (eV)	$\left|⟨S^x⟩\right|$	${\eta }_{y/x}$	${\eta }_z$
$0$	4.76	1.98	0.79	$-0.20$
$1/16$	0.23	1.95	0.79	$-0.28$
$2/16$	$\simeq 0$	1.92	0.78	$-0.32$
$3/16$	$\simeq 0$	1.89	0.77	$-0.35$

Equations

$$\mathcal{H}=H_{dp}+H_{pp}+H_{\mathrm{so}}+H_{\mathrm{diag}}+H_{\mathrm{int}}^d+H_{\mathrm{int}}^p.$$

$$H_{dp}$$

$$H_{pp}$$

$$H_{\mathrm{so}}=\sum _m\left\{\sum _{\alpha \ne \beta ;\sigma ,{\sigma }^{\prime }}{t}_{\alpha ,\sigma ;\beta ,{\sigma }^{\prime }}^{so}{d}_{m\alpha ,\sigma }^{†}{d}_{m\beta ,{\sigma }^{\prime }}+H.c.\right\},$$

$$\Delta ={\epsilon }_d-{\epsilon }_p,$$

$$H_{\mathrm{diag}}=\sum _{i;\mu =x,y,z;\sigma }{\epsilon }_p{p}_{i\mu ,\sigma }^{†}{p}_{i\mu ,\sigma }$$

$$+\sum _{m;\alpha =xy,yz,...;\sigma }{f}_{\mu ,\sigma }^{cr}{d}_{m\alpha ,\sigma }^{†}{d}_{m\alpha ,\sigma }.$$

$$\left(\begin{array}[]{c}{D}_{(\bar{x})\sigma}^{\dagger}\\ {D}_{(x)\sigma}^{\dagger}\end{array}\right)=\left(\begin{array}[]{cc}-\frac{1}{2}&-\frac{\sqrt{3}}{2}\\ \frac{\sqrt{3}}{2}&-\frac{1}{2}\end{array}\right)\left(\begin{array}[]{c}{d}_{(\bar{z})\sigma}^{\dagger}\\ {d}_{(z)\sigma}^{\dagger}\end{array}\right),$$

$$D_{(\bar{x})\sigma }^{†}{D}_{(\bar{x})\sigma }$$

$$D_{(x)\sigma }^{†}{D}_{(x)\sigma }$$

$$\left(\begin{array}[]{c}\ \tilde{D}_{(\bar{y})\sigma}^{\dagger}\\ \tilde{D}_{(y)\sigma}^{\dagger}\end{array}\right)=\left(\begin{array}[]{cc}\frac{1}{2}&-\frac{\sqrt{3}}{2}\\ -\frac{\sqrt{3}}{2}&-\frac{1}{2}\end{array}\right)\left(\begin{array}[]{c}{d}_{(\bar{z})\sigma}^{\dagger}\\ {d}_{(z)\sigma}^{\dagger}\end{array}\right)$$

$${\tilde{D}}_{(\bar{y})\sigma }^{†}{\tilde{D}}_{(\bar{y})\sigma }$$

$${\tilde{D}}_{(y)\sigma }^{†}{\tilde{D}}_{(y)\sigma }$$

$$⟨D_{(x)\sigma }^{†}{D}_{(x)\sigma }⟩$$

$$H_{\mathrm{int}}^d$$

$$H_{\mathrm{int}}^p$$

$$2{\eta }_{y/x}$$

$$2{\eta }_z$$

Full text

I Introduction

The spin and orbital ordering found in three dimensional LaMnO3 perovskite is an old problem which is nowadays quite well understood Dag01 ; Tok06 , see also early and recent experimental and theoretical references ari93 ; sai95 ; mah95 ; miz95 ; saw97 ; cap00 ; tob01 ; rav02 ; end99 ; iva02 ; kat04 ; eba05 ; zen05 ; gav06 ; pav10 ; kov10 ; yin06 ; yam06 ; kov11 ; gon11 ; mel15 ; gav17 ; jan18 ; sna18 . The short summary and conclusions coming out from these papers are as follows: At zero temperature the LaMnO3 lattice has orthorhombic symmetry. The lattice is distorted due to strong Jahn-Teller (JT) effect: the MnO6 octahedra are deformed, as shown schematically using the simplified picture for the $ab$ ferromagnetic (FM) plane (nonzero tilting of the octahedra is neglected in this study) in Fig. 1. The magnetic moments on Mn ions correspond to spins $S\simeq 2$ and the magnetic structure is of the $A$-type antiferromagnetic ($A$-AF), i.e., FM order on separate $ab$ planes, coupled antiferromagnetically plane-to-plane along the crystallographic $c$ axis. The electron occupations on manganese $t_{2g}$ orbitals $\{xy,yz,zx\}$ are very close to 1, while both $e_{g}$ orbitals, $\{x^{2}-y^{2},3z^{2}-r^{2}\}$, contain together roughly one (the fourth) electron. The orbital order which settles in $e_{g}$ orbitals is not seen when using the standard $\{x^{2}-y^{2},3z^{2}-r^{2}\}$ basis (which corresponds to choosing $z$ quantization axis direction). However, if we consider a checkerboard pattern superimposed upon $ab$ plane and choose $x$ axis of quantization on “black” fields (MnO4 rhombuses $m=2$ expanded along $x$ axis, see Fig. 1), and $y$ axis of quantization on “white” fields (MnO4 rhombuses $m=1$ expanded along $y$ axis), then the orbital order becomes transparent: the orbitals with majority electron-occupations follow the $3x^{2}-r^{2}$ / $3y^{2}-r^{2}$ pattern. Oxygen distortions repeat along the $c$ axis, and $e_{g}$ orbitals follow. The common terminology to describe this type of order is $C$-type alternating orbital ($C$-AO) order.

The origin of the orbital order was under debate using effective $3d$ models taking into account electron-electron and electron-lattice interactions mil97 ; gri98 ; fei99 ; hot99 ; yin06 . It was established that large JT splitting and superexchange are together responsible for $C$-AO order observed in LaMnO3 gri98 ; fei99 ; hot99 . Surprisingly, electron-lattice interaction is too weak to induce the orbital order alone and has to be helped by electron-electron superexchange yin06 . Importance of the joint effect of strong correlations and Jahn-Teler distortions was concluded from the dynamical mean field theory yam06 . On the other hand, superexchange alone would stabilize $C$-AO order but the order would be fragile and the orbital ordering temperature would be too low fei99 ; ole05 .

The large $S=2$ spins at Mn3+ ions are coupled by spin-orbital superexchange which stabilizes $A$-AF spin order in LaMnO3 below Néel temperature $T_{\rm N}=140$ K. However, spin order parameter could be little reduced if the ideal ionic model approximation does not strictly apply and the actual number of electrons transferred from La to MnO3 subsystem is reduced to $3-x$, i.e., one has La*+(3-x)(MnO3)-3+x*, where $x$ is so-called self-doping.

The idea of self-doping comes directly from ab-initio computations and may be addressed when $d-p$ hybridization is explicitly included in the $d-p$ model. There, a rather trivial know-how is that charges on cations, computed using simple Mulliken population analysis — or better Bader population analysis — are almost never the same as in the idealized ionic-model. Therefore, it is quite reasonable to introduce into the $d-p$ model the idea that each La*+(3-x)* donates onto MnO3 lattice on average not 3 but $3-x$ electrons. The self-doping can be regarded as a free parameter which could be adjusted using some additional experimental data. However, on the other hand, one can compute $x$ using ab-initio or density functional theory (DFT) with local Coulomb interaction $U$ (DFT+$U$) cluster computations, exactly like it was done in Ref. Ros17 . This is, however, very costly, and contradicts one of the most important virtues of the $d-p$ model, i.e., time and cost efficiency of the computations.

Returning now to $x$ in LaMnO3, we note that if $x$ is finite but still small enough, other magnetic phases could be more stable — in particular ordinary FM order is found frequently. Such a situation was studied experimentally in SrxLa1-xMnO3 iva02 ; note that here subscript $x$ in the chemical formula SrxLa1-xMnO3 which routinely is identified as ordinary doping is only roughly similar to our self-doping $x$. When we increase ordinary doping $x$ from very small towards intermediate values, then the metallic regime sets in SrxLa1-xMnO3 Tok06 .

The purpose of this short paper is to investigate whether the spin-orbital order observed in LaMnO3 would arise in the multiband $d-p$ model with the explicit treatment of oxygen $2p$ electrons. Here we focus on simple modeling of the JT effect, where oxygen distortions are treated as semiempirical input for the electronic $d-p$ model. To make the model realistic, we also include in it non-zero Coulomb repulsion on oxygen ions and spin-orbit interaction on Mn ions. Note that model studies done on LaMnO3 before usually neglected these Hamiltonian components. In addition, we would like to account for the possibility of non-trivial self-doping $x\neq 0$ (just as found before in ruthenium, iridium, titanium, and vanadium oxides Ros15 ; Ros16 ; Ros17 ; Ros18 ).

The paper is organized as follows. We introduce the model Hamiltonian and its parameters in Sec. II. The numerical method is presented in Sec. III, where we treat the JT effect in a semi-empirical way (Sec. III.1), and present the unrestricted Hartree-Fock approximation in Sec. III.2 as a method of choice to describe the states with broken spin-orbital symmetries. It was shown recently that this approach gives very reliable results for doped vanadium perovskites Ave18 . The magnetization direction is there one of the open questions and we discuss possible states in Sec. III.3. The ground state of LaMnO3 is described in Secs. IV.1, IV.2, and IV.3 for three self-doping levels, $x=0$, $x=1/16$, and $x=1/8$. Finally, we also remark on the consequences of neglected $e_{g}$ and $t_{2g}$ splittings in Sec. IV.4. In Sec. V we present the dependence of orbital order parameter on the self-doping level and conclude that the order is robust. A short summary and conclusions are presented in Sec. VI.

II Hamiltonian

We introduce the multiband $d-p$ Hamiltonian for MnO3 three-dimensional $4\times 4\times 4$ (periodic boundary conditions) cluster which includes five $3d$ orbitals at each manganese ion and three $2p$ orbitals at each oxygen ion,

[TABLE]

where $H_{dp}$ stands for the $d-p$ hybridization and $H_{pp}$ for the interoxygen $p-p$ hopping, $H_{\rm so}$ is the spin-orbit coupling, $H_{\rm diag}$ is the diagonal part of kinetic energy (bare levels energies and local crystal fields). Here $H_{\rm int}^{d}$ and $H_{\rm int}^{p}$ stand for the intraatomic Coulomb interactions at Mn and O ions, respectively. Optionally one could add JT energy as $H_{\rm JT}$. However, instead of introducing this term with a quite complicated form mul10 , we shall model the JT interaction by a simple Ansatz which can be inserted into $H_{\rm diag}$ as local potentials acting on $e_{g}$ electrons. The cluster geometry and precise forms of different terms are standard; these terms were introduced in the previous realizations of the $d-p$ model devoted to transition metal oxides Ros15 ; Ros16 ; Ros17 ; Ros18 .

The kinetic energy in the Hamiltonian (1) consists of:

[TABLE]

where $d_{m\alpha,\sigma}^{\dagger}$ ($p_{j\nu,\sigma}^{\dagger}$) is the creation operator of an electron at manganese site $m$ (oxygen site $i$) in an orbital $\alpha$ ($\nu$) with up or down spin, $\sigma=\uparrow,\downarrow$. The model includes all five $3d$ orbital states $\alpha\in\{xy,yz,zx,x^{2}-y^{2},3z^{2}-r^{2}\}$, and three $2p$ oxygen orbital states, $\{\mu,\nu\}\in\{p_{x},p_{y},p_{z}\}$. In the following we will use shorthand notation, and instead of $\{x^{2}-y^{2},3z^{2}-r^{2}\}$ we shall write $\{(\bar{z}),(z)\}$ — this emphasizes the fact that $z$ axis is chosen as the quantization axis for this $e_{g}$ orbital basis, while () brackets are here to distinguish these Mn($3d$) orbitals from O($2p$) $\{x,y,z\}$ orbitals. The matrices $\{t_{m\alpha;j\nu}\}$ and $\{t_{i\mu;j\nu}\}$ are assumed to be non-zero only for nearest neighbor manganese–oxygen $d-p$ pairs, and for nearest neighbor oxygen–oxygen $p-p$ pairs. The next nearest neighbor hoppings are neglected. (The nonzero $\{t_{m\alpha;j\nu}\}$ and $\{t_{i\mu;j\nu}\}$ elements are listed in the Appendix of Ref. Ros15 ).

The spin-orbit part, $H_{\rm so}=\zeta\sum_{i}\textbf{L}_{i}\cdot\textbf{S}_{i}$, is a one-particle operator (scalar product of angular momentum and spin operators at site $i$), and it can be represented in the form similar to the kinetic energy $H_{\rm kin}$ miz96 ; Pol12 ; Mat13 ; Du13 ,

[TABLE]

with $t^{so}_{\alpha,\sigma;\beta,\sigma^{\prime}}$ elements restricted to single manganese sites. They all depend on spin-orbit coupling strength $\zeta$ ($\zeta\approx 0.04$ eV Dai08 ), which is weak but still it influences the preferred spin direction in the $A$-AF phase. For detailed formulas and tables listing $\{t^{so}_{\alpha,\sigma^{\prime};\beta,\sigma}\}$ elements, see Refs. Ros15 ; Pol12 .

The diagonal part $H_{\rm diag}$ depends on electron number operators. It takes into account the effects of local crystal fields and the difference of reference orbital energies (here we employ the electron notation),

[TABLE]

between $d$ and $p$ orbitals (for bare orbital energies) where $\varepsilon_{d}$ is the average energy of all $3d$ orbitals, i.e., the reference energy before they split in the crystal field. We fix this reference energy for $d$ orbitals to zero, $\varepsilon_{d}=0$, and use only $\Delta=-\varepsilon_{p}$ and the crystal field splittings $\{f_{\mu,\sigma}^{cr}\}$ as parameters, thus we write

[TABLE]

The first sum is restricted to oxygen sites $\{i\}$, while the second one runs over manganese sites $\{m\}$. The crystal-field splitting strength vector ($f_{\alpha,\sigma}^{cr}$) describes the splitting within $t_{2g}$ and within $e_{g}$ levels, as well as the $t_{2g}$ to $e_{g}$ splitting, respectively.

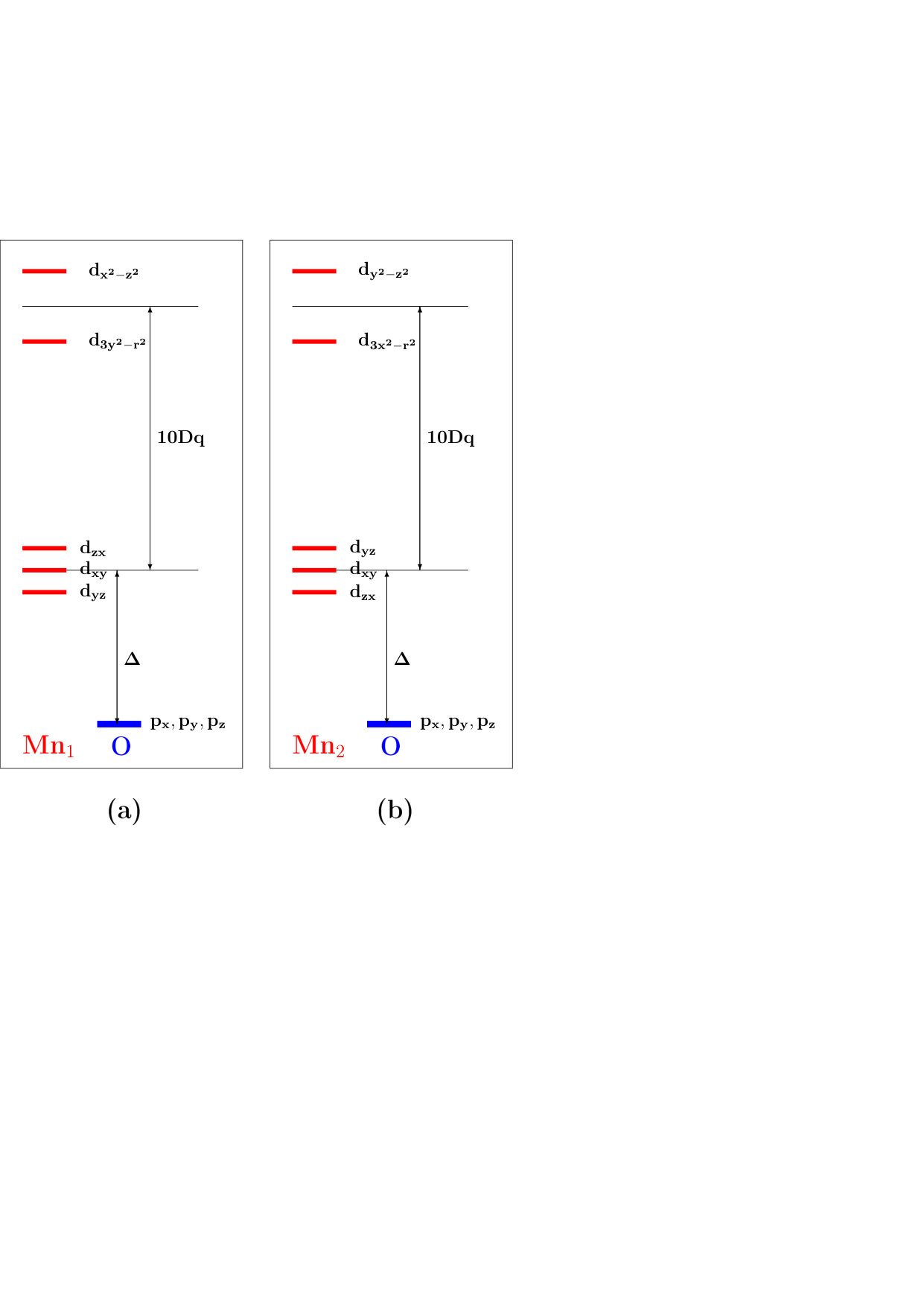

Furthermore, the distance $10Dq$ between $t_{2g}$ levels and $e_{g}$ levels is $\sim 1.7$ eV zam02 ). For the group of $t_{2g}$ levels and their splittings in accordance with local JT distortion of particular MnO6 octahedron we assume that either $yz$ is lower than $zx$ orbital which should correspond to O4 square (in $ab$ plane) when distorted from an ideal square into rhombus elongated along $y$ direction, or the opposite: $zx$ is lower than $yz$ orbital which should correspond to O4 distorted into rhombus elongated along $x$ direction (compare Fig. 2). The splitting value should be $\sim 0.1$ eV what is an educated guess (compare Ref. Ros18 ) or even smaller gav06 . What concerns the occupied $e_{g}$ levels — they are also split. We assume varying (ion to ion) local crystal fields and choose appropriately the local axes of quantization, following Mn sublattices shown in Fig. 1.

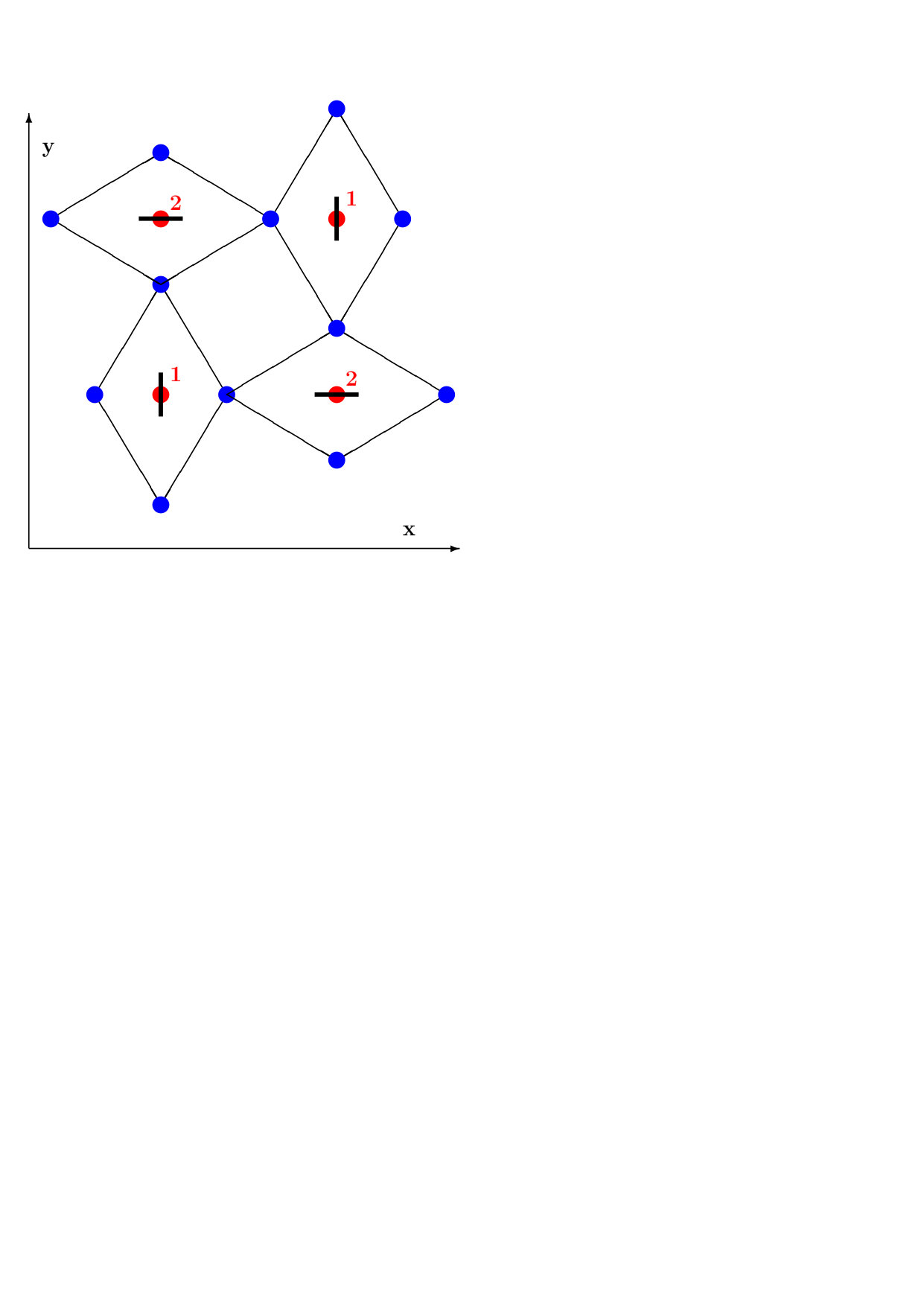

In rhombuses elongated along the $x$ axis (see Fig. 1), we use $3d$ orbital states at Mn sites $\{m\}$, $\{\alpha,\beta\}\in\{xy,yz,zx,y^{2}-z^{2},3x^{2}-r^{2}\}$ and correspondingly new $\{D_{m\alpha,\sigma}^{\dagger}\}$ creations operators; the new form of local crystal field is $f_{\mu,\sigma}D^{\dagger}_{m\mu,\sigma}D_{m\mu,\sigma}$. Here our shorthand notation for $\{y^{2}-z^{2},3x^{2}-r^{2}\}$ orbitals will be $\{(\bar{x}),(x)\}$ (now $x$ is chosen as the quantization axis). On the other hand, in rhombuses elongated along the $y$ axis (see Fig. 1), we use the following $3d$ orbital states $\alpha\in\{xy,yz,zx,x^{2}-z^{2},3y^{2}-r^{2}\}$ and correspondingly new $\tilde{D}_{j,\nu,\sigma}^{\dagger}$ creation operators and the new form of local crystal field $f_{\alpha\sigma}^{cr}\tilde{D}^{\dagger}_{m\alpha,\sigma}\tilde{D}_{m\beta,\sigma}$. Here our shorthand notation for $\{z^{2}-x^{2},3y^{2}-r^{2}\}$ orbitals is $\{(\bar{y}),(y)\}$ (now $y$ is chosen as the quantization axis).

Returning now to rhombuses expanded along the $x$ axis when we work with $D_{(x)\sigma}^{\dagger}$ and $D_{(\bar{x})\sigma}^{\dagger}$ operators ($x$ quantization axis) the corresponding canonical transformation is:

[TABLE]

where $d$ operators are standard (i.e., for the $z$ quantization axis).

We can also compute the operators of particle numbers, which are:

[TABLE]

Note that orbitals $t_{2g}$ remain the same as before, i.e., they were not transformed.

When looking at the formulae just above we immediately see that while in $H_{\rm diag}$ the part with local crystal field is formally expressed by using $f^{cr}_{\mu,\sigma}D^{\dagger}_{m,\mu,\sigma}D_{m,\mu,\sigma}$, then in fact, thanks to Eqs. (8) and (9) we can still work with old standard $d$ operators ($z$ quantization axis).

Returning to rhombuses expanded along the $y$ axis, we should work with $\tilde{D}_{(\bar{y})\sigma}^{\dagger}$ and $\tilde{D}_{(y)\sigma}^{\dagger}$ operators (for $y$ quantization axis) and the corresponding formulae are:

[TABLE]

The particle number operators are:

[TABLE]

To make a short summary: the subsequent HF computations will be performed in the framework of the standard basis (i.e., old basis with $z$ quantization axis) and after reaching self-consistency, we extract occupation numbers using formulae from Eqs. (8) and (9); to give an example the electron occupation in $3x^{2}-r^{2}$ orbitals is just

[TABLE]

etcetera.

The on-site Coulomb interactions $H_{\rm int}^{d}$ for $d$ orbitals take the form of a degenerate Hubbard model Ole83

[TABLE]

where $n_{m\alpha}=\sum_{\sigma}n_{m\alpha,\sigma}$ is the electron density operator in orbital $\alpha$; $\{\alpha,\beta\}$ enumerate different $d$ orbitals, and $J_{d,\alpha\beta}$ is the tensor of on-site interorbital exchange (Hund’s) elements for $d$ orbitals; $J^{d}_{\alpha\beta}$ has different entries for the $\{\alpha,\beta\}$ pairs corresponding to two $t_{2g}$ orbitals ($J_{\rm H}^{t}$), and for a pair of two $e_{g}$ orbitals ($J_{\rm H}^{e}$), and still different for the case of cross-symmetry terms ole05 ; Hor07 ; all these elements are included and we assume the Racah parameters: $B=0.1$ eV and $C=4B$.

The local Coulomb interactions $H_{\rm int}^{p}$ at oxygen sites (for $2p$ orbitals) are analogous,

[TABLE]

where the intraatomic Coulomb repulsion is denoted as $U_{p}$ and all off-diagonal elements of the tensor $J^{p}_{\mu\nu}$ are equal (as they connect the orbitals of the same symmetry), i.e., $J^{p}_{\mu\nu}\equiv J^{p}_{\rm H}$. Up to now, interaction at oxygen ions $H_{\rm int}^{p}$ were neglected in the majority of studies (i.e., for simplicity it was being assumed that $U_{p}=J^{p}_{\rm H}=0$).

In the following we use the parameters $U_{d}$, $J^{d}_{\mu\nu}$, $U_{p}$, and $J_{\rm H}^{p}$ similar to those used before for titanium and vanadium oxides Ros16 ; Ros17 ; Ros18 ; for the hopping integrals we follow the work by Mizokawa and Fujimori miz95 ; miz96 . The value $U_{p}\sim 4.0$ eV was previously used in copper oxides Hybe92 ; Sing13 . Concerning the parameter $\Delta$ an educated guess is necessary. Old-fashioned computations, such as those reported in the classical textbook of Harrison Har05 and shown in tables therein suggest 1.5 eV. Results of a more detailed study suggest that $\Delta<2.5$ eV Rau05 . We also use the Slater notation Sla54 . We performed our computations for the parameter set in Table I.

Our reference system is LaMnO3 where the total electron number in the $d-p$ subsystem is $N_{e}=18+4=22$ per one MnO3 unit provided we assume an ideal ionic model with no self-doping ($x=0$), i.e., all three La valence electrons are transferred to MnO3 unit. Another possibility is to take finite but small self-doping $x$. The problem how to fix $x$ is a difficult question. The best way is to perform independent, auxiliary ab-initio or local density approximation (LDA) with Coulomb interaction $U$ (LDA+$U$) computations and to extract the electronic population on the cation $R$ (in $R$MnO3) analogously like it was done in Ref. Ros17 . This is however quite expensive. Without such auxiliary ab-initio computations one is left either with speculations or one should perform computations using several different values of $x$.

III Numerical studies

III.1 Computational problems concerning the Jahn-Teller Hamiltonian

Now let us return once more to the important part of the electronic Hamiltonian in perovskites, namely to the influence of JT distortions on the electronic structure. These rarely can be treated in a direct (and exact) way during the computations. Most often a semiempirical treatment of JT terms is used: namely one assumes an explicit form and the magnitudes of the lattice distortions, such as suggested by experiments. Thus, the distorted lattice is frozen and we take this as the experimental fact. The JT modes and the JT Hamiltonian do not enter computations anymore — their only role is to deform the lattice and to change Mn$-$O distances. Instead, one collects all Mn$-$O and O$-$O bond lengths (as suggested by experiment) and because of modified bond lengths one modifies the matrix of kinetic hopping parameters. In this respect quite popular is the Harrison scaling Har05 . We have used it in the present study.

The second important consequence of changed Mn$-$O distances is the creation of additional local crystal fields (in addition to standard crystal field which is responsible for $t_{2g}$ to $e_{g}$ splitting). These additional local crystal fields renormalise bare energy levels within $e_{g}$ doublets and within $t_{2g}$ triplets. (Note that this picture is valid at the level of static one-particle effective-potential approximation; i.e., it is similar like crystal-field cubic potential approximation which gives rise to standard $10Dq$ splitting). Thus as the second part of modeling JT effect, what we do is: $e_{g}$ doublets and $t_{2g}$ triplets will be split as already discussed (in the previous Section) for $H_{\rm diag}$ and $f^{cr}_{\mu,\sigma}$.

III.2 Unrestricted Hartree-Fock computations

We use the unrestricted HF approximation (UHF) (with a single determinant wave function) to investigate the $d-p$ model (1). The technical implementation is the same as that described in Refs. miz95 ; miz96 ; Ros15 ; Ros16 featuring the averages $\langle d^{\dagger}_{m\alpha,\uparrow}d_{m\alpha,\uparrow}\rangle$ and $\langle p^{\dagger}_{i\mu,\uparrow}p_{i\mu,\uparrow}\rangle$ (in the HF Hamiltonian) which are treated as order parameters. We use the $4\times 4\times 4$ clusters which are sufficient for the present $d-p$ model with only nearest neighbor hopping terms. During HF iterations the order parameters are recalculated self-consistently until convergence. The studied scenarios for the ground state symmetry were those with spin order: FM, $A$-AF, $G$-AF (Néel state), $C$-AF (AF in $ab$ plane, repeated in the consecutive $ab$ planes when moving along the $c$ axis), or non-magnetic; the considered easy magnetization direction was either $x$ or $z$.

To improve HF-convergence we used the quantum chemistry technique called level shifting Sou73 . It is based on replacing the true HF Hamiltonian by a different Hamiltonian — the one with the identical eigenvectors (one particle eigenfunctions) as the original Hamiltonian and with identical occupied eigenenergies. The original eigenenergies of virtual states are however uniformly shifted upwards by a fixed constant value. When applying virtual level shifting we can obtain some additional information. Namely when the splitting between the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO), i.e., HOMO-LUMO splitting (after correcting for the shift) is negative or zero, then the single-determinant HF ground state we obtained is not correct and usually the reason is that the true ground state is in fact conducting. We remind that the HOMO-LUMO gap serves here as an estimate of the experimental band gap.

III.3 Searching for the magnetization direction

We performed computations for several values of self-doping $x$. They give the orbital order for $e_{g}$ orbitals of $C$-type alternating orbital ($C$-AO) order in the regime of low self-doping $x<\frac{1}{8}$ (see Table II). At the same time, the spin order is $A$-AF, with the easy-axis of magnetization along the $x$ direction. The preferred spin direction is however not generic as the ground states with $z$-easy axis and with $x$-easy axis are almost degenerate (within accuracy below 1 meV). Average spin values on Mn ions are very close to $S=2$ and the HOMO-LUMO gaps $G$ were also computed, see Table II.

Finally, we remark on the magnetic state obtained in HF calculations: The up- and down-spin occupations are equal, i.e., $\langle d^{\dagger}_{m\alpha,\uparrow}d_{m\alpha,\uparrow}\rangle=\langle d^{\dagger}_{m\alpha,\downarrow}d_{m\alpha,\downarrow}\rangle$, thus the average $z$-th spin component vanishes. However, this does not imply that the found ground states are nonmagnetic. We have found that the symmetry breaking with magnetization along $x$ or $y$ axis is equivalent, and the averages of the type, $\langle d^{\dagger}_{m\alpha,\uparrow}d_{m\alpha,\downarrow}\rangle$, are finite (not shown, but it is always the case for the data in Section IV). When the summation over $\mu$ is performed, i.e., if we calculate Re\big{\{}\sum_{\alpha}\langle d^{\dagger}_{m\alpha,\uparrow}d_{m\alpha,\downarrow}\rangle\big{\}}, we obtain the average spin component along the $x$ direction, $|\langle S^{x}\rangle|$. This provides evidence that the spins are indeed aligned along the $x$ axis, and we give the average magnetization $|\langle S^{x}\rangle|$ in Sec. V. The imaginary part of the same sum (if finite) does correspond to the average spin component along the $y$ direction.

IV Ground state of LaMnO3

IV.1 Zero self-doping $x=0$

The ground state of LaMnO3 has $C$-AO orbital order, and this is reproduced by the UHF calculations, see Table II, densities given in boldface. Note that when using only the standard orbital basis (i.e., the orbitals corresponding to the $z$ quantization axis), the orbital order is completely hidden. To get more insightful results and to describe the orbital order induced by lattice distortions, we considered all the types of O4 rhombuses.

It is important to realize that orbital order may be easily detected only for properly selected orbitals, depending on the sublattice. First, if the standard basis $\{3z^{2}-r^{2},x^{2}-y^{2}\}$ is used, no trace of any orbital order is seen, see Table II. For the other two possible $e_{g}$ bases, $\{3x^{2}-r^{2},y^{2}-z^{2}\}$ and $\{3y^{2}-r^{2},z^{2}-y^{2}\}$, one finds that the directional orbital has large electron density only on one sublattice, but on the other sublattice this is not the case. In other words, if one selects the $x$ quantization axis, the orbital order is easily visible through a distinct asymmetry between Mn ions at this and the other sublattice, i.e., in positions $m=1$ and $m=2$, see Fig. 1. Thus, the found asymmetry in the density distribution indicates that the order is of checkerboard type. Indeed, the checkerboard pattern of oxygen distortions requires choosing different local bases at two sublattices: on one with $x$ quantization axis, and with $y$ quantization axis on the other. Then the orbital order is clearly visible and the symmetry is correctly recovered, see the electron densities listed in boldface in Table II.

The spin order coexisting with $C$-AO order is $A$-AF, with the easy axis of magnetization along the $x$ ($y$) direction, see Table II. Note that the state with the same characteristics but with easy magnetization axis along the $z$ direction (not shown in Table II) is only by 0.3 meV higher (thus these two states are almost degenerate). The other HF states with $C$-AO order and with ordinary FM spin order are by 2 meV higher, while the states with $G$-AF or $C$-AF spin order are by 3.5 meV higher than the ground state. Nonmagnetic state is never realized.

With these results for the electron distribution, one could say that the experimental facts are faithfully reproduced. However, it is not so, as the HOMO-LUMO gap $G$ we obtained is 4.76 eV, much larger than the experimentally measured; the experimental data concerning band-gap are in the range of $1.1-1.7$ eV (direct gap) ari93 ; sai95 ; tob01 and 0.24 eV mah95 (indirect gap). In fact, the HOMO-LUMO gap should correspond either to direct or to indirect gap, whichever is smaller. Anyway, for these both possibilities this discrepancy is by far too large and it invites one to reject thinking in terms of ideal-ionic model and to consider instead non-zero self-dopings $x$. Note that our cluster is rather small thus we can not (in the following) consider and study any arbitrary value of self-doping $x$ as this would in some cases result in non-integer electron number (in the cluster), and is some other case would result in an open-shell system (and such systems can not represent the ground state of an infinite crystal).

The density distribution found without self-doping (at $x=0$) suggests that there is some but rather small electron transfer from O($2p$) to Mn($3d$) orbitals, see Table II. Indeed, we have verified that the electron density in all oxygen $p$-orbitals is very close to 6.0, thus we deal with an almost “perfect” ionic system with O*-2* ions.

IV.2 Weak self-doping $x=1/16$

The first possible close shell configuration is obtained by subtracting only 4 electrons from the total electron number in the $4\times 4\times 4$ cluster with $N_{\rm el}=1408$ electrons at $x=0$. In this case we obtain the orbital order and spin order virtually the same as for $x=0$ case (compare the density distribution for $x=0$ and $x=0.0625$ in Table II). However, total electron density in $e_{g}$ orbitals is reduced by self-doping, see Table II. But most importantly, the HOMO-LUMO gap $G$ becomes much reduced to 0.23 eV, in satisfactory (though probably incidental) agreement with the experimental results mah95 .

Once again, one finds the ground state with the $x$ quantization axis for the magnetization, and the complementary $A$-AF phase with the $z$ easy spin direction is by 1.5 meV higher (per one unit cell). Other magnetic states are less favorable. The state with FM order is only by 2.0 meV higher, and the states with $G$-AF and $C$-AF spin order are both by $\sim 26$ meV higher than the ground state. This result is important and reflects the proximity of the FM order in doped systems, which can be stabilized at still higher doping $x\sim 0.17$, as known from the phase diagram Cheon . In fact, in the $A$-AF ground state the exchange interactions in $ab$ planes are FM, and the described change of spin order involves just the change of sign of the exchange interaction along the $c$ axis, from AF to FM.

IV.3 Moderate self-doping: $x=1/8$

Computations for $x\geq 1/8$ invariably produce the states with zero (or negative) HOMO-LUMO gaps. This can serve as an indication that the FM metallic regime sets in already at this self-doping level in the cluster under consideration.

Note that the experimental results for La1-xSrxMnO3 systems indicate that such systems are conducting and FM for $x>0.2$ doping Cheon . If we roughly identify our theoretical value of self-doping $x=1/8\approx 0.12$ with the doping by Sr, we approach the metallic regime, even when this value of $x$ does not coincide yet with the experimental doping in metallic FM manganites ($x\sim 0.17$) end99 ; iva02 . We remark that such a discrepancy for small (not infinite) cluster and for simple non-ab-initio $d-p$ model can be expected.

IV.4 Neglecting splitting within $e_{g}$ and $t_{2g}$ states

As already discussed, the modeling of JT Hamiltonian goes in two separate steps: (i) changing the bare energies of individual orbitals, and (ii) performing Harrison Har05 scaling of hopping integrals due to modified Mn-O bond lengths sna18 , i.e., changing simultaneously static crystal-field potential and changing the kinetic part. To the best of our knowledge, only the second step (ii) is discussed in the literature.

Therefore (to conform to the main stream) we performed auxiliary computations putting to zero bare level splittings within $e_{g}$ and $t_{2g}$ multiplets but performing Harrison scaling to adjust the values of $d-p$ hopping elements to the actual bond lengths. It could appear surprising, but the results concerning the ground states did not change much. The magnetic order and orbital order persist, albeit the orbital order is somewhat weaker. Thus it seems that the change which the JT-effect brings upon kinetic Hamiltonian part (hopping elements) is the dominant change or at least it is just enough for a satisfactory modeling of the JT effect.

V ROBUSTNESS OF ORBITAL ORDER

Finally, we address the question of stability of orbital order under self-doping. In doped manganites orbital order persists at low doping up to $x\simeq 0.1$ Tok06 , and at higher doping orbital liquid Fei05 takes over which supports FM metallic phase. A remarkable feature of the perovskite vanadates is that orbital order is quite robust Miy00 ; Fuj05 and is destroyed only at high concentration of charged defects $x\simeq 0.20$ by orbital polarization interactions which frustrates orbital order Ave19 .

To investigate orbital order and its dependence on self-doping $x$, we take $N_{e}=64\times(22-x)$ electrons for $(4\times 4\times 4)$-cluster. Having in mind the charge distribution anisotropy in distorted rhombuses in $ab$ planes, we define orbital order parameter $\eta_{y/x}$ for the observed $C$-AO order as follows,

[TABLE]

where the electron densities appropriate to $y/x$ quantization directions [as applied to $(m=1)$ / $(m=2)$ rhombuses; see Fig. 1] are used.

Once again we stress that when only one $z$-quantization direction (on all rhombuses) is used, then the $C$-AO orbital order is not visible at all. To make this picture complete we can define ordinary order parameter $\eta_{z}$ as well,

[TABLE]

which only shows the difference between electron densities $\langle n_{m,x^{2}-y^{2}}\rangle$ and $\langle n_{m,3z^{2}-r^{2}}\rangle$, (influenced by $z$-direction tetragonal distortion) which is independent of $m$, i.e., they are the same for ($m=1$)-type and for ($m=2$)-type rhombuses. We remark that sometimes one finds a tiny site-to-site charge modulation which is possibly an artifact due to imperfect convergence, we neglect it — to get rid of it in Eq. (17) we average $\eta_{z}$ over $m=1$ and $m=2$ rhombuses.

The $C$-AO order parameter (16) versus hypothetical values of $x$ (self-dopings) is shown in Table 3. It is very robust and almost independent of self-doping $x$ up to rather high value $x=3/16$. It is remarkable that $C$-AO order survives in the metallic regime at $x=2/16$ and $x=3/16$. On the contrary, the parameter $\eta_{z}$ (17) is inconclusive concerning $C$-AO order. Instead, it shows that the electron density in $x^{2}-y^{2}$ orbitals is higher than the one in $3z^{2}-r^{2}$, in agreement with the model including tetragonal distortions sna18 .

VI Summary and conclusions

We have shown that the $d-p$ model with strong electron interactions reproduces correctly spin-orbital order in LaMnO3, provided the electronic configuration of Mn ions is very close to Mn3+ and the oxygen distortions due to the Jahn-Teller effect are included. This implies also selecting the adequate orbital basis which is the most appropriate to describe the orbital ordered state stabilized by oxygen distortions. Thereby occupied $e_{g}$ orbitals follow the oxygen distortions in $ab$ planes, and one finds $A$-AF / $C$-AO order, as observed Dag01 ; Cheon .

We have shown that the self-doping in LaMnO3 is small but finite and is in fact necessary to reproduce the observed insulating behavior with a small gap. This result emphasizes the importance of electronic charge delocalization over O($2p$) orbitals in the $d-p$ model for a charge-transfer insulator LaMnO3.

This study completes the series of papers Ros15 ; Ros16 ; Ros17 ; Ros18 , where we have shown that the multiband $d-p$ model is capable of reproducing coexisting spin-orbital order in various situations and in various perovskites. In contrast to time-consuming cluster-ab-initio or LDA+$U$ calculations yin06 ; yam06 ; kov11 ; gon11 ; mel15 , the computations using $d-p$ model are very efficient and should be regarded as easy and simple tool for any preliminary study to establish the electronic structure and ground state properties of an investigated perovskite. During such calculations the only difficult part is the proper choice of the Hamiltonian parameters. We suggest that this approach could be a promising technique to investigate heterostructures Yu09 ; Rog12 or superlattices Cao11 ; Don12 , where the Jahn-Teller effect plays an important role. On the other hand, when information about the correct values of Hamiltonian parameters are uncertain, one can perform computations with several sets of Hamiltonian parameters. The results of such computations when confronted with the experimental results could be eventually used for screening out wrongly chosen Hamiltonian parameter sets.

Acknowledgements.

We kindly acknowledge Narodowe Centrum Nauki (NCN, Poland) Project No. 2016/23/B/ST3/00839. A. M. O. is also grateful for the Alexander von Humboldt Foundation Fellowship (Humboldt-Forschungspreis).
