Self-assembly and complex manipulation of colloidal mesoscopic particles by active thermocapillary stress

TL;DR

This paper explores how active thermocapillary stresses from microbubbles can be used to self-assemble and manipulate colloidal particles in controlled ways, enabling complex arrangements and rotations.

Contribution

It introduces a novel method of using thermocapillary flows from microbubbles for directed self-assembly and micromanipulation of colloidal particles.

Findings

Microbubbles induce particle self-assembly in rings.

Asymmetric temperature profiles cause particle accumulation and repulsion.

Flow-induced vorticity enables particle rotation, first demonstrated with optical tweezers.

Abstract

We demonstrate that the active thermocapillary stresses induced by multiple microbubbles offer simple routes to directed self-assembly and complex but controllable micromanipulation of mesoscopic colloidal particles embedded in a liquid. The microbubbles are nucleated on a liquid-glass interface using optical tweezers. The flow around a single bubble causes self-assembly of the particles in rings at the bubble-base, while an asymmetric temperature profile generated across the bubble interface breaks the azimuthal symmetry of the flow, and induces simultaneous accumulation and repulsion of particles at different axial planes with respect to the bubble. The flows due to two adjacent bubbles lead to more diverse effects including the sorting of particles, and to local vorticity that causes radial and axial rotation of the particles - the latter being obtained for the first time using optical tweezers. The sorting is enabled by nucleating the bubbles on spatially discrete temperature profiles, while the vorticity is generated by nucleating them in the presence of a temperature gradient which once again causes a strong symmetry-breaking in the azimuthal flow. The flow profiles obtained in the experiments are explained by analytical solutions or qualitative explanations of the associated thermocapillary problem employing the Stokes and heat equations.

Figures

Equations

$$\frac{\partial \rho }{\partial t}+\nabla .(\rho \text{v})=0$$

$$\frac{\partial \theta }{\partial t}-\nabla [-\text{v}\theta +\alpha \nabla \theta ]=0$$

$$\rho \frac{\partial \text{v}}{\partial t}+\nabla [\text{v}.\text{v}-\eta (\nabla \text{v}+\nabla {\text{v}}^T)+\text{p}]=0$$

$$\nabla \cdot \mathbf{v}=0.$$

$$P_e=\frac{v\theta }{\alpha (\nabla \theta )}\sim \frac{vL}{\alpha }\sim 10^{-5}$$

$$R=\frac{\rho vL}{\eta }=\frac{vL}{\nu }\sim 10^{-6}$$

$$\frac{v.v}{\eta (\nabla v)}=\frac{vL}{\eta }\sim 10^{-6}$$

$$\nabla \cdot \mathbf{v}=0.$$

$${\nabla }^2\theta =0.$$

$$\nabla \cdot \sigma =0.$$

$${\mathbf{v}}_{\mathbf{n}}$$

$${\mathbf{f}}_{\mathbf{t}}$$

$$\mathbf{v}=0\text{ at}$$

$$\mathbf{v}\to 0,$$

$$\hat{\mathbf{\rho }}\cdot \nabla \theta =0,$$

$$\theta \to {\theta }^{\infty },\text{ as }$$

$$\theta (\mathbf{r})$$

$$+\int \hat{\mathbf{\rho }}\cdot \nabla \Phi (\mathbf{r},\mathbf{R}+\mathbf{\rho })\theta (\mathbf{r})\text{d}S.$$

$${\nabla }^2\Phi (\mathbf{r},{\mathbf{r}}^{\prime })=-\delta (\mathbf{r}-{\mathbf{r}}^{\prime }).$$

$$\frac{1}{2}\theta (\mathbf{r})$$

$$\theta =(\frac{1}{2}-\mathcal{K}{)}^{-1}{\theta }^{\infty },$$

$$\theta (\mathbf{r})=\frac{(2l+1)}{4\pi }\sum _{\mathbf{l}=0}^{\infty }{\mathbf{\Theta }}^{(\mathbf{l})}\cdot {\mathbf{Y}}^{(\mathbf{l})}(\hat{\rho }).$$

$${\mathbf{Y}}^{(\mathbf{l})}(\hat{\rho })=(-1{)}^{\mathbf{l}}{\rho }^{\mathbf{l}+1}{\nabla }^{(\mathbf{l})}{\rho }^{-1}.$$

$$\frac{1}{4\pi b^2}\int {\mathbf{Y}}^{(\mathbf{l})}(\hat{\rho }){\mathbf{Y}}^{({\mathbf{l}}^{\prime })}(\hat{\rho })\mathbf{d}\text{S}$$

$$\theta (\mathbf{r})={\theta }^{\infty }(\mathbf{r})+\sum _{l=1}^{\infty }{b}^{l+1}{\nabla }^{(l)}\Phi \cdot {\mathbf{\Theta }}^{(l)}.$$

$${\mathbf{\Theta }}^{(l)}$$

$$\theta (\mathbf{r})=$$

$$+$$

$${\mathbf{F}}^{\text{c}}$$

$${\mathbf{T}}^{\text{c}}$$

$$\mathbf{v}(\mathbf{r})={\mathbf{G}}^{\text{w}}\cdot \mathbf{F}+\frac{1}{2}\nabla \times {\mathbf{G}}^{\text{w}}\cdot \mathbf{T}.$$

$$G_{\alpha \beta }^{\text{w}}(\mathbf{r},\mathbf{R})$$

$${\mathbf{G}}^0(\mathbf{r})=({\nabla }^2\mathbf{I}-\nabla \nabla )r,$$

$$\displaystyle G_{\alpha\beta}^{*}(\boldsymbol{r}^{*})=-\frac{\delta_{\alpha\beta}}{r^{*}}-\frac{r_{\alpha}^{*}r_{\beta}^{*}}{r^{*^{3}}}+2h^{2}\bigg{(}\frac{\delta_{\alpha\nu}}{r^{*^{3}}}-\frac{3r_{\alpha}r_{\nu}}{r^{*^{5}}}\bigg{)}\mathcal{M}_{\nu\beta}$$

$$\displaystyle-2h\bigg{(}\frac{r_{3}^{*}\delta_{\alpha\nu}+\delta_{\nu 3}r_{\alpha}^{*}-\delta_{\alpha 3}r_{\nu}^{*}}{r^{*3}}-\frac{3r_{\alpha}^{*}r_{\nu}^{*}r_{3}^{*}}{r^{*^{5}}}\bigg{)}\mathcal{M}_{\nu\beta}.$$

$${\theta }^{\infty }(\mathbf{r})=c_0-c_1\cos \vartheta ,$$

Full text

Introduction

The study of active stress on mesoscopic particles in fluidic environments has evoked widespread scientific interest in recent times since it enables the understanding and ultimate control of fundamental processes involving fluid-particle interactions at a microscopic level, and leads to a variety of applications. The fundamental processes range from transport of organelles inside the fluidic environment in a cell (Leal, 2007), to the motion of cilia and flagella of swimming bacteria (Kim and Karrila, 1992). The analysis of the active stress involved in many such processes has led to the design of “active” particles (Brennen and Winet, 1977; Marchetti et al., 2013), that often mimic natural microswimmers (Dai et al., 2016; Singh et al., 2015). These active particles move in pre-designed paths by interacting with their environment and exchanging energy by diverse processes including thermophoresis (Talbot et al., 1980; Jiang et al., 2010; Di Leonardo et al., 2009), electrophoresis (Landers et al., 1993), diffusiophoresis (Sabass and Seifert, 2012), etc. Such controlled motion of mesoscopic particles under different active stress has very significant implications in different areas including cell biology (Selmeczi et al., 2008), nanomedicine (Wagner et al., 2006), and micro-patterning (Yap and Zhang, 2007). Active stress can also be induced on microparticles in a fluid by manipulating the flow environment using different techniques of actuation (Cattafesta III and Sheplak, 2011) in microfluidic channels, and by generating surface stresses by controlled modulation of fluid-fluid or fluid-solid boundaries (Darhuber and Troian, 2005; Gueyffier et al., 1999). The latter can be achieved by a number of processes such as electrowetting (Wheeler, 2008), thermocapillary action (Ascoli and Leal, 1990; Hu et al., 2014), and Marangoni stresses (Pearson, 1958; Hu and Ohta, 2011).

Recently, it has been shown that the thermocapillary flow around a thermo-optically generated bubble can be used to manipulate colloidal particles (Zhao et al., 2014; Lin et al., 2018; Zheng et al., 2011) cells (Hu et al., 2013), various nano-particles (Armon et al., 2017; Namura et al., 2016a, b; Fujii et al., 2017), quantum dots (Bangalore Rajeeva et al., 2017; Lin et al., 2015) and carbon nanotubes (Ramachandran et al., 2010). These bubbles are generated by focusing the trapping laser on an absorbing substrate on the wall of a water filled trapping chamber (Fujii et al., 2011). The rapid heating causes the water in the vicinity of the laser “hot spot” to spinodally decompose and grow into a bubble. The bubble reaches a steady state size determined by the laser power and remains thermophoretically trapped in the region of the temperature maximum. Since there is an appreciable temperature difference between the pole of the bubble which is in direct contact with the hot spot and its opposite pole which is farthest from the hot spot, an active Marangoni stress is immediately developed around the bubble surface. This active stress drives fluid flow towards the bubble and away from the wall. Particles are drawn towards the bubble due to this convective flow and attach to the bubble-wall interface (Ramachandran et al., 2010; Roy et al., 2013). The hot spot can be translated and the bubble, driven by the strong thermophoretic forces, follows it. This provides a method for transporting particles that are attached to the bubble surface.

Such thermophoretic trapping mechanisms have several advantages of over standard optical tweezers. First, thermophoretic traps are agnostic to the dielectric contrast between the particle and the suspending medium. Thus, particles with negative dielectric constant that are impossible to trap using standard optical means can easily be trapped thermophoretically. Second, thermophoretic traps can apply nN forces while optical traps can only apply much weaker forces in the range of a few hundred pN. Third, thermophoretic traps can transport multiple particles over large distances stably and simultaneously (Hu et al., 2012). While such trapping and manipulation by attaching particles to the bubble surface has been experimentally demonstrated (Hu et al., 2013, 2012; Ramachandran et al., 2010), non-contact manipulation of particle trajectories by generating diverse flow patterns by bubbles is missing. Understandably, a clear picture of the active stress driven hydrodynamic flow is also lacking. In this paper, we address both these issues. Experimentally, we demonstrate interesting and reproducible self assembly of polystyrene microparticles on a microbubble surface, and proceed to engineer novel flow patterns in the vicinity of a single and a pair of microbubbles, which induce interesting motion in polystyrene microparticles that trace the flow lines. Thus, we demonstrate simultaneous attraction and repulsion of microparticles in different axial planes around a bubble by inducing a temperature asymmetry along the azimuthal direction. Next, we grow bubbles adjacent to each other in two different configurations - first with the bubbles separated and having non-overlapping temperature profiles around them, and second with the two bubbles grown along a temperature gradient. The former leads to distinct sorting of microparticles depending upon the size of the adjacent bubbles with more particles accumulating on the larger bubble, while the latter produces vorticity in the radial and axial directions, such that microparticles sampling the flow lines exhibit rotational motion in three dimensions, akin to that produced in optical traps designed with angular momentum (both longitudinal and transverse - the latter being notoriously difficult to achieve for propagating light Aiello et al. (2015))-carrying laser beams. By solving the Stokes and heat equations with appropriate boundary conditions, we estimate the flow pattern of the fluid around a laser induced microbubble corresponding to different experimental situations, and obtain excellent qualitative agreement. We now proceed to report our experimental observations.

Experimental results

The thermo-optic tweezers setup is based on an inverted Olympus IX71 microscope with a 100x 1.3 NA objective lens focusing the tweezers laser beam at 1064 nm into the sample chamber containing an aqueous dispersion of the sample (usually polystyrene microspheres of different diameters). We use a surface that is pre-coated by linear patterns of a Mb-based soft oxometalate (SOM) material by a method developed by us (Roy et al., 2013; Ghosh et al., 2017). The SOM material has finite absorption at 1064 nm, so that a hot spot is formed leading to a bubble when the tweezers laser is focused on any region along the pattern. The absorptive surfaces (typically a standard glass coverslip which forms the bottom surface of the chamber or a microscope slide which forms the top surface of the chamber) are attached to each other by double sided sticky tape. In both cases, the temperature of the hot spot would vary between 373K (the threshold for bubble formation) to 644K - the latter corresponding to the critical temperature for water after which it cannot exist as a liquid with the surface tension tending to zero (Roy et al., 2016). The temperature of the hot spot can be modified by changing the laser intensity incident on it, which we typically achieve by changing the laser power. For some of the experiments, we couple another laser of the same wavelength into the system. This is done in three ways: 1) Focus the two lasers on a single pattern with the separation so small, that the two separate bubbles which are formed merge to form a single bubble. Now, the patterned SOM is partially conducting, with a conductivity of around 50 S/cm (Ghosh et al., 2017). Thus, we have a single bubble with a temperature asymmetry in the vicinity of the hot spot in the azimuthal direction. 2) Focus the lasers on a single pattern with the beam spots well separated, so that separate stable bubbles are formed. This changes the aysmmetry of the azimuthal temperature profile compared to 1). 3) Focus the two lasers on two separate spatially isolated linear patterns. Thus, two different bubbles are nucleated with similar temperature profiles around the hot spot. These lead to entirely different flows that can be traced using the polystyrene microspheres freely diffusing in the sample.

Before going into the detailed experimental results for the different configurations, we first confirm the fact that the heat transfer happening at the bubble surface is diffusive in nature and not convective. To confirm this, we perform a simple experiment, where we measure the size of a bubble as a function of laser power(Namura et al., 2017). Thus, the tweezers laser beam is incident on a precoated SOM pattern in the sample chamber to generate a bubble. After the bubble is generated, the radius of the bubble is measured after sufficient amount of time (10 seconds for instance) so that the bubble size reaches a quasi-steady state where it remains constant over a few minutes. Then the laser is turned off and the bubble shrinks subsequently. The same experiment is repeated with different laser powers and the result is shown in figure 1. From the graph 1 we can conclude that,

the bubble formation starts at a finite laser power, which is of the order of 3 mW in this case. 2. 2.

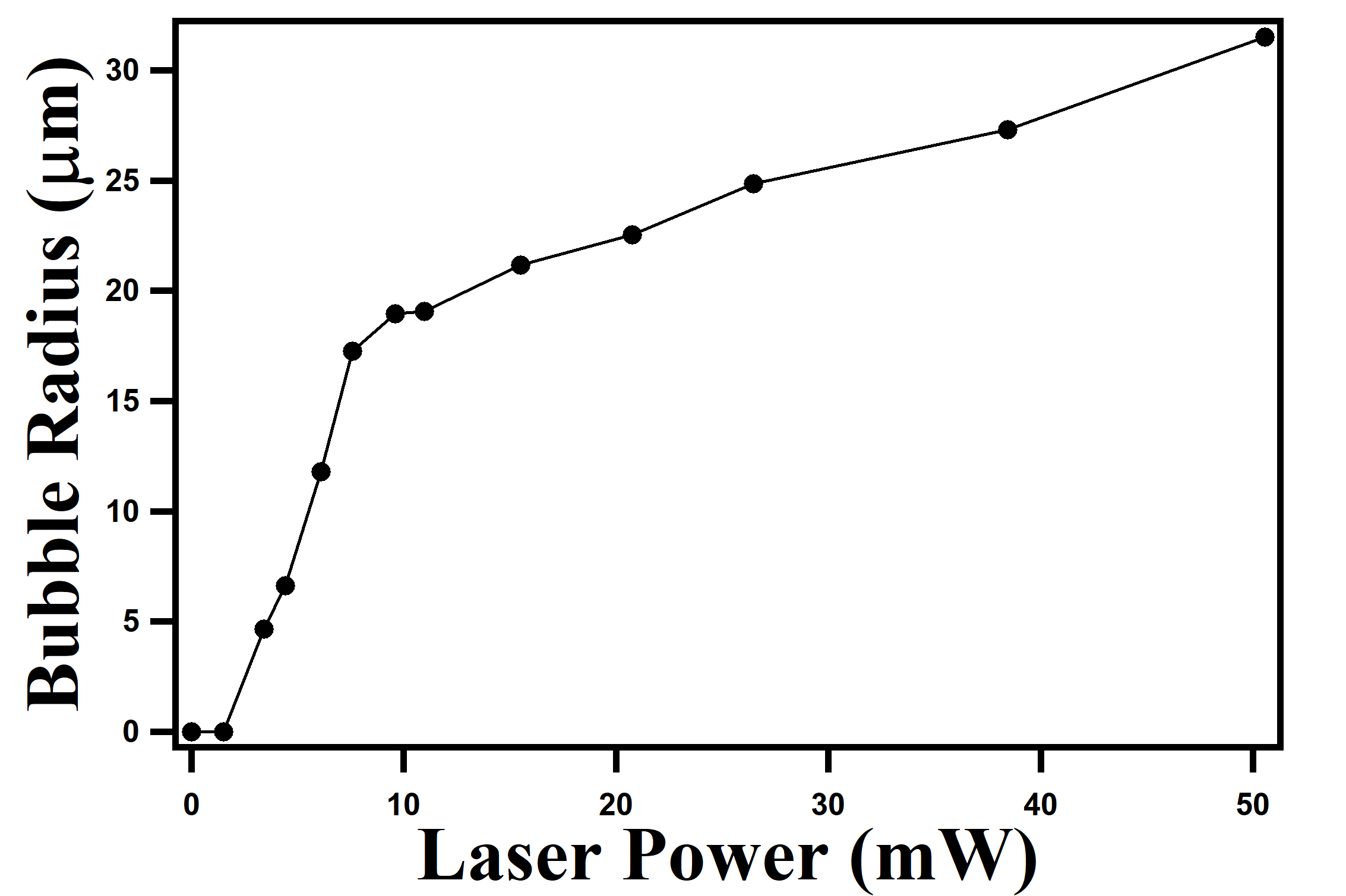

The bubble grows rapidly at first up to a certain radius, after which the rate of growth slows down significantly.

After several such runs, we determine that the limiting size of the bubble up to which it grows rapidly is around$\sim 20$ $\mu m$ . Now, in an earlier work (Roy et al., 2016), we have shown that this fast growth corresponds to heat transfer from the hot spot through the liquid by diffusion, but the growth is arrested at the onset of convection, when heat is dissipated much more efficiently by the liquid. This can be understandable from the simple fact that for small bubbles the temperature difference between the opposite poles (the point of the bubble in contact with the hot spot and the point vertically opposite point to it) is correspondingly small, so that convection is not observed. The situation changes when the bubble size increases, which increases the temperature difference so that convection switches on after a certain temperature difference is achieved. Thus, when the laser power is low, diffusion dominates the bubble growth, while after a threshold power (corresponding to a bubble radius of $\sim 20$ $\mu m$), convection takes over. This is a crucial finding, which sets the limiting size of the bubbles in our subsequent experiments, as we can only assume the Stokes flow to be valid when the energy equation obeys Laplace equation, ie, heat transfer is dominated by diffusion. We shall revisit this formulation again in Section Theory). We now proceed to the experimental results for different configurations.

Self assembly of particles on bubbles

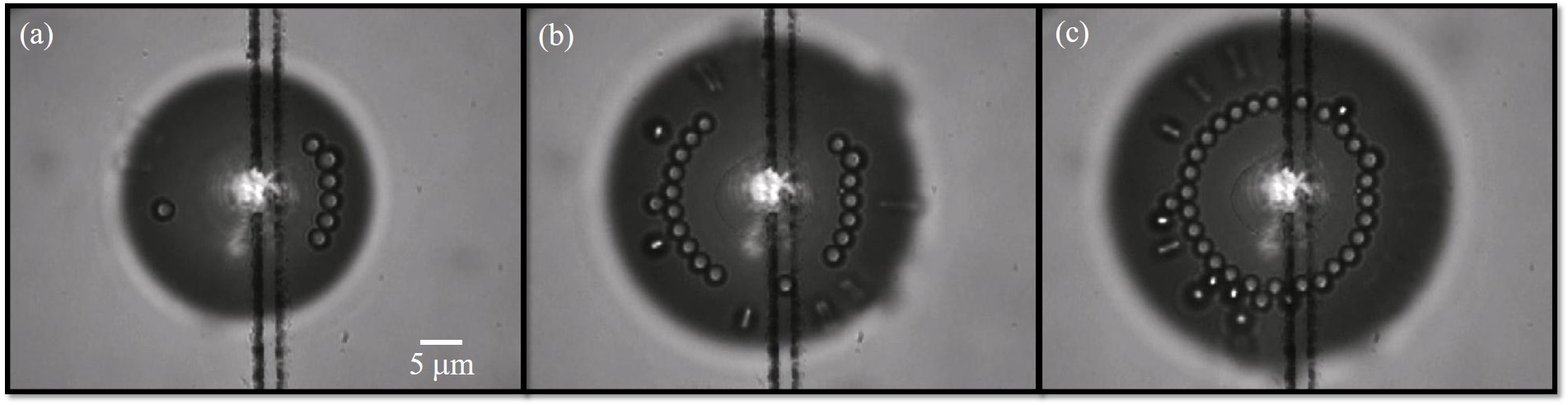

This experiment is performed using a single trapping laser coupled into the sample chamber and focused on the linear SOM pattern to nucleate a bubble. Once the bubble is formed, convective flows set in which draw particles towards it. As we demonstrate in the theoretical analysis which follows, the flow lines tend to converge towards inward direction to the bubble, so that we have an assembly of particles near that region. The particles are attracted towards the bubble and finally settle at the bubble- wall interface, where they form a ring around the bubble base. One can determine the size of the ring in the method demonstrated in Fig. 2 from a simple estimation of the contact angle shown in Fig. 3. Note that particles of different diameters form rings of different sizes for a fixed contact angle i.e. for the same size of the bubble. One such ring is shown in Fig.2, where we have a bubble of initial diameter around 30 $\mu\mathrm{m}$ formed along a SOM trail seen behind the bubble. Polystyrene microspheres of diameter 3 $\mu\mathrm{m}$ follow the flow lines and assemble with time as shown in Fig.2a - c. Video 1 in the multimedia files of the Supplementary Information shows the entire process in real time. We observe self assembly of a variety of particles including polystyrene beads of diameter 1, 3, and 10 $\mu\mathrm{m}$ (Video 2), as well as other particles including streptavidin coated magnetic beads of diameter 3 $\mu\mathrm{m}$ (Video 3), and gold micro particles (Video 4a) and silver nanoparticles (Video 4b) of around 100-1000 nm in size. Note that the magnetic and metallic nanoparticles are notoriously difficult to trap using conventional optical tweezers due to their large scattering cross-sections. However, using this technique the scattering is rendered irrelevant since the particles are not exposed to light at all. Besides self-assembly around the bubble, all such types of particles can be controllably transported by the same bubble.

Particle sorting using single and two bubbles

Sorting using a single bubble:

Here we employ Method 1 mentioned in Section Experimental results, where two laser beams of wavelength 1064 nm and equal power are focused very close to each other on the same SOM pattern. This gives rise to a single bubble (we observe nucleation of two bubbles initially,which soon merge into a single bubble) with a temperature profile that varies azimuthally.

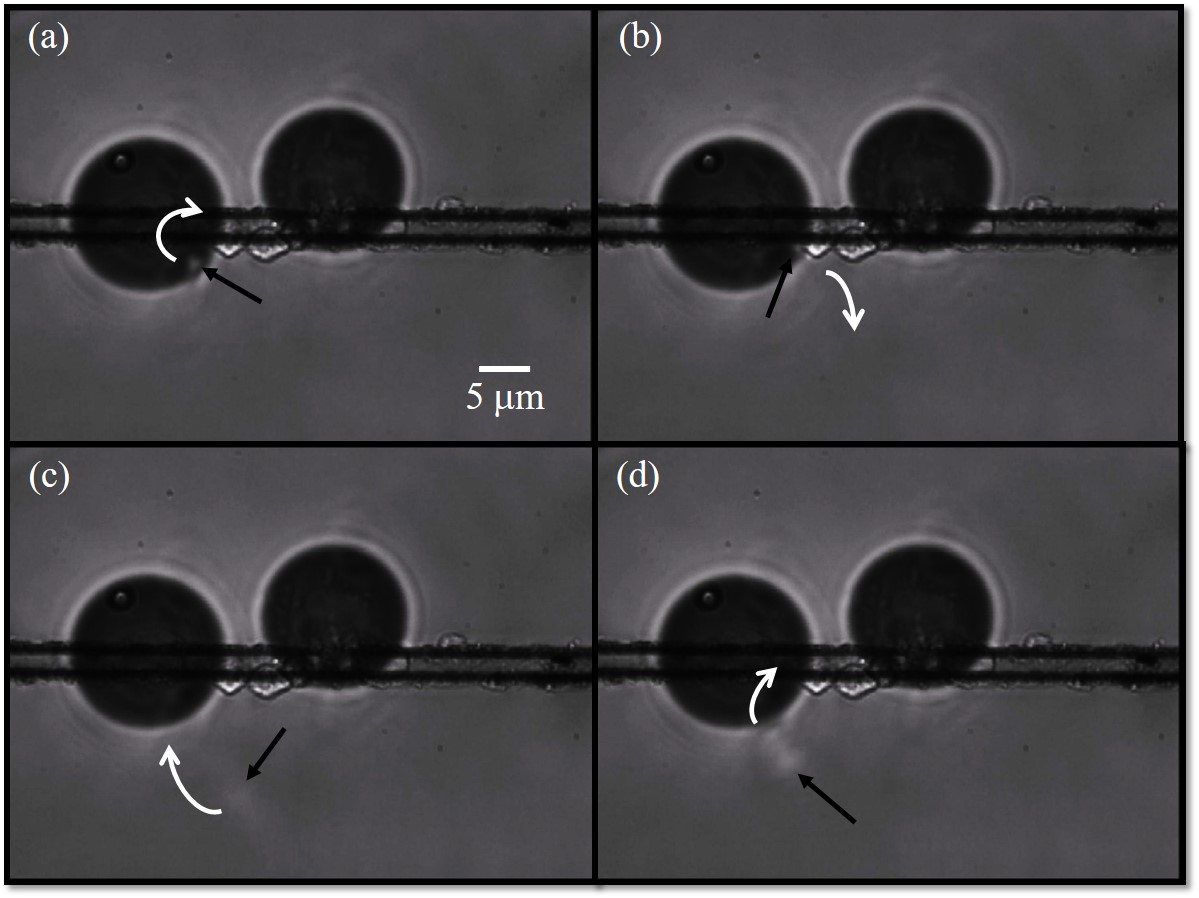

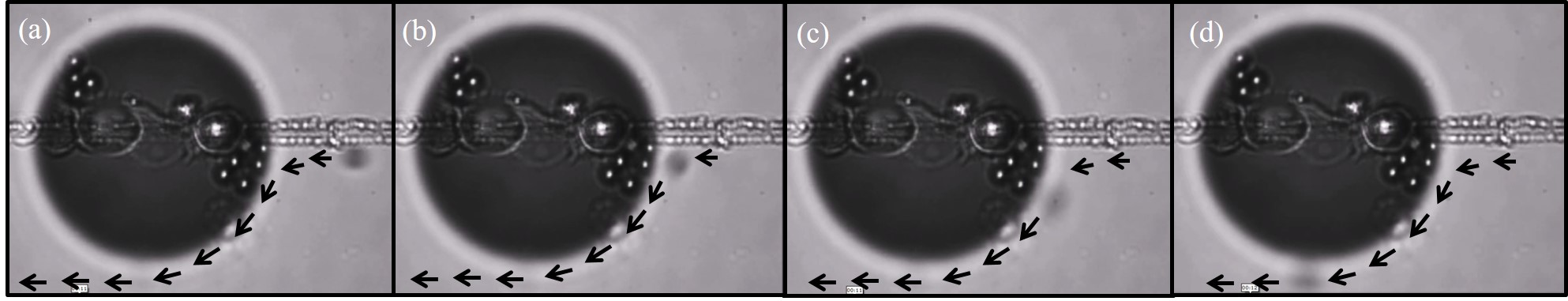

The flow generated by this design leads to the situation depicted in Figs. 4 (a) - (d), which are again time lapsed images of Video 5 in the SI. Thus, we have a set of particles which accumulate on the surface of the bubble-wall interface, and are observed in sharp focus in the figure, while other particles on different z-planes are repelled away. In the figure, we demonstrate this using a single tracer particle which appears unfocused. Thus,the particle approaches the bubble in Figs. 4 (a) and (b),while it is deflected away in Figs. 4 (c) and (d). The trajectory of the particle is qualitatively represented by the use of black arrows.This phenomenon is also captured in Fig.9, where the tracer particle follows the trajectories in X-Z plane. It should therefore be clear that by changing the size of the bubble, it should be able to sort particles which are diffusing about in a particular plane in the sample. Modifying the temperature asymmetry should also affect the z-plane(s) where particles are repelled. This can enable spectroscopy of mesoscopic particles without requiring them to be subjected to the high intensities associated with optical tweezers.

Sorting using two bubbles:

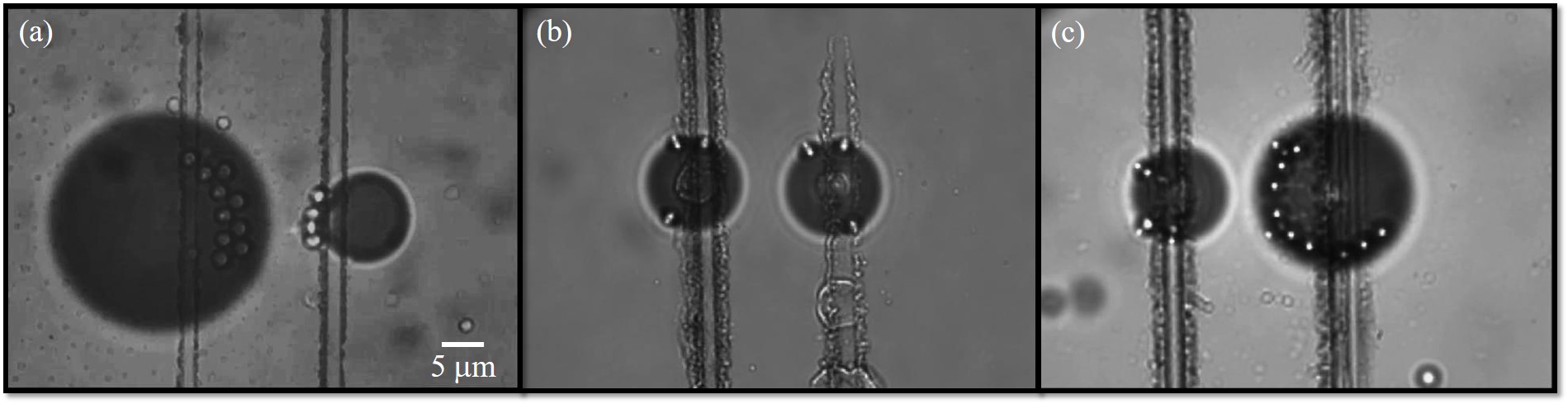

In these set of experiments, we created two adjacent bubbles on neighbouring pre-existing SOM patterns. These are shown in Figs. 5(a)-(c) (adapted from Videos 6-8 in the SI), where we have different size ratios of the bubbles in each case, namely 2.3:1, 1:1, 1:1.75, going from left to right. The effects of the resultant flow patterns are apparent from the assembly of the tracer particles assembled on the bubbles. It is clear that a separatrix can be identified in the flow between the two bubbles, and particles would be drawn towards a bubble depending on whether its trajectory lies above or below the separatrix. The position of the separatrix is modified with the change in size of the bubbles, and is more towards the smaller bubble as is clear from the figures, where we observe an equal number of particles assembled in Fig. 5(b) where the bubble sizes are equal. We can thus envisage the use of this technique to generally sort particles by size modulation of the two bubbles, where the position of the separatrix would be continuously modulated by changing the laser power, so that by a suitable choice of separation between the bubbles and modulation frequency, one can allow particles of a certain diameter to pass between the bubbles while others would be trapped on the bubble surfaces (Kapishnikov et al., 2006). We are currently working on some of these experiments.

Inducing angular momentum in particles using vortex flows

Inducing orbital motion in mesoscopic particles in optical tweezers typically involves the use of angular momentum carrying optical beams, which are non-trivial to generate. In addition, creating multiple traps with opposite angular momentum increases the complexity of the required experimental apparatus, and yet have interesting significance in a variety of experiments involving hydrodynamic coupling (Polin et al., 2006; Grier, 2003; Garcés-Chávez et al., 2003), synchronization (Di Leonardo et al., 2012), etc. To the best of our knowledge, generating angular momentum in mesoscopic particles without the use of angular momentum carrying beams has not yet been demonstrated.

Here, we demonstrate this by modifying our experimental design in the manner mentioned in Method (3) of Sec. Experimental results. Thus, we grow two bubbles on the same SOM pattern with their centers separated far enough so that the bubbles do not merge. The laser power in each beam is the same, as is apparent from the size of the bubbles demonstrated in Fig. 6. Interestingly, we now observe tracer particles exhibiting orbital motion in opposite directions at different axial planes with respect to the bubbles. The full video is available in Video 9 in the SI, here we provide time lapsed images once again. The trajectory of the tracer particles in the vicinity of the bubbles is shown by dotted lines. The instantaneous positions of unfocused particles executing the flows is shown in Figs. 6(a)-(d). Note that we observe particles randomly entering the flow, and also leaving it - possibly due to local perturbations. Interestingly, we observe clockwise and anti-clockwise flows near the left and right bubble, respectively. Now, the direction of the flow is typically dependent on the size of the bubble - for similar sized bubbles, we hypothesise that the flow direction is governed by a spontaneous symmetry breaking condition driven by the temperature gradient in the proximity of the bubble. Thus, both clockwise and anti-clockwise flows are possible in this condition around each bubble, and we explicitly demonstrate this again in Video 10 in the SI, where we have two similar sized bubbles but with anti-clockwise flow around the left bubble. We discuss this condition in greater detail in the next section. When we have bubbles whose diameters are very different, we typically observe anti-clockwise flow around the bubble which is bigger, and clockwise around that which is smaller. This has been demonstrated in Video 11 in the SI, where the right bubble is much smaller than the left, and we observe clockwise flow around it. The opposite case happens when we have the right bubble much bigger than the left one, so that a particle rotates anti-clockwise as we demonstrate in Video 12. Note that these are examples of explicit symmetry breaking in the flow profile, where we always obtain the same flow direction given a particular configuration of bubbles. Figure 7 depicts this situation schematically. We are also able to observe axial rotation in the probes as is clear in Videos 13 and 14, time lapsed images from which we show in Fig. 8(a)-(d). Here, we show the location of the probe using black arrows while the axial trajectory is depicted by white arrows. It is clear that the polystyrene probe gradually goes out of focus between (a)-(c), is barely visible in (c), before coming back near focus in (d) (the motion is much better observed in Video 13). This implies that its $z-$position is being altered with respect to the microscope imaging plane. This is due to the presence of three-dimensional flows in the system, the axial component of which is predominantly sampled by the probe. Note that even for the axial flow we obtain both clockwise and anti-clockwise rotation as is depicted in Videos 13 and 14, respectively. Such axial rotation of a probe particle is extremely difficult to achieve in optical tweezers, and is generally by optical beams referred to as “photonic wheels” in the literature (Aiello et al., 2015). Photonic wheels are a figurative description of the presence of transverse spin angular momentum in the light - which can lead to axial rotation of particles, and has been mostly reported for evanescent fields (Aiello et al., 2015).

The active stresses that we can manufacture using our methods can thus directly facilitate such complex three dimensional rotation in optical micromanipulation. The angular momentum induced in the flow

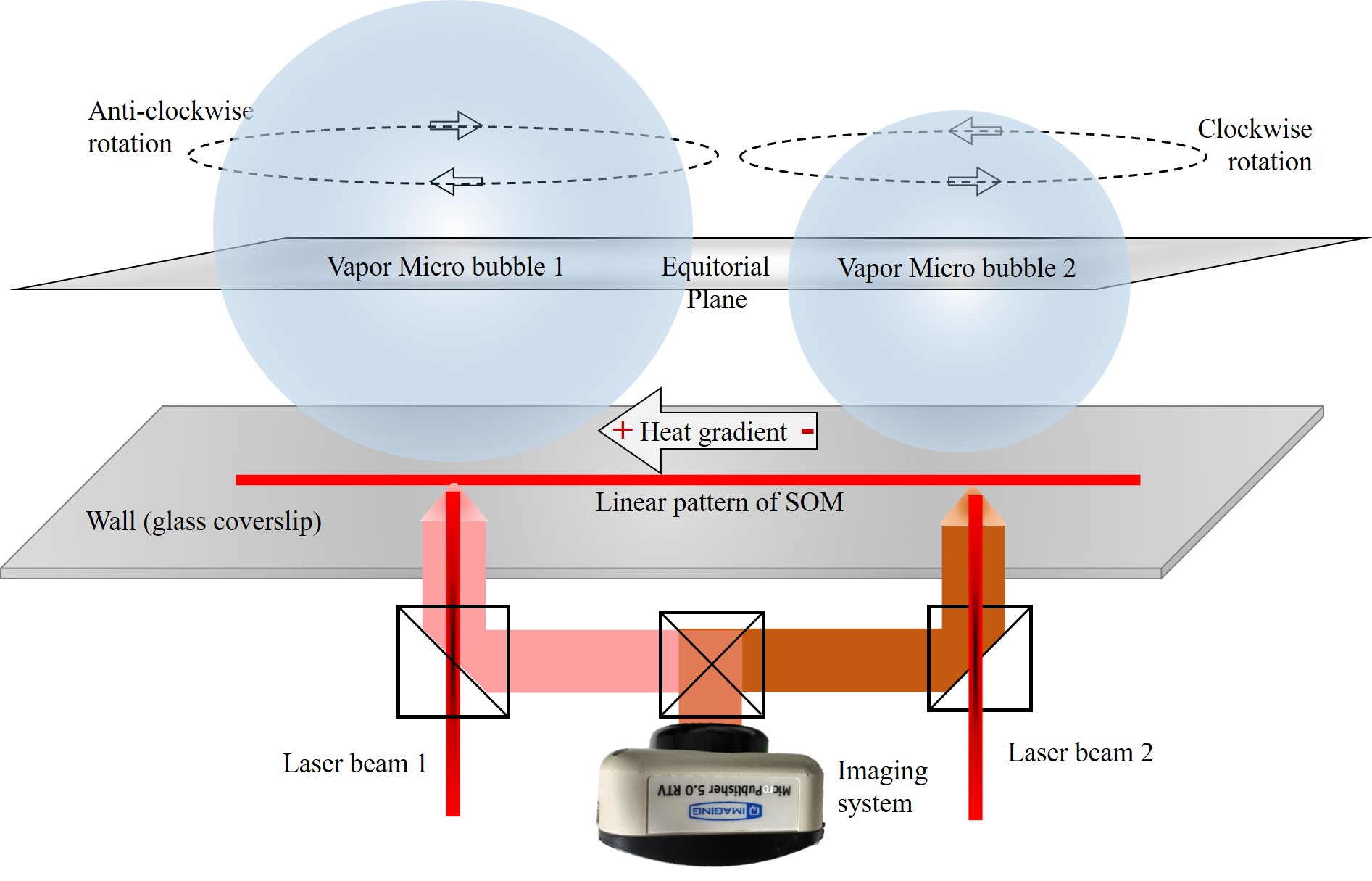

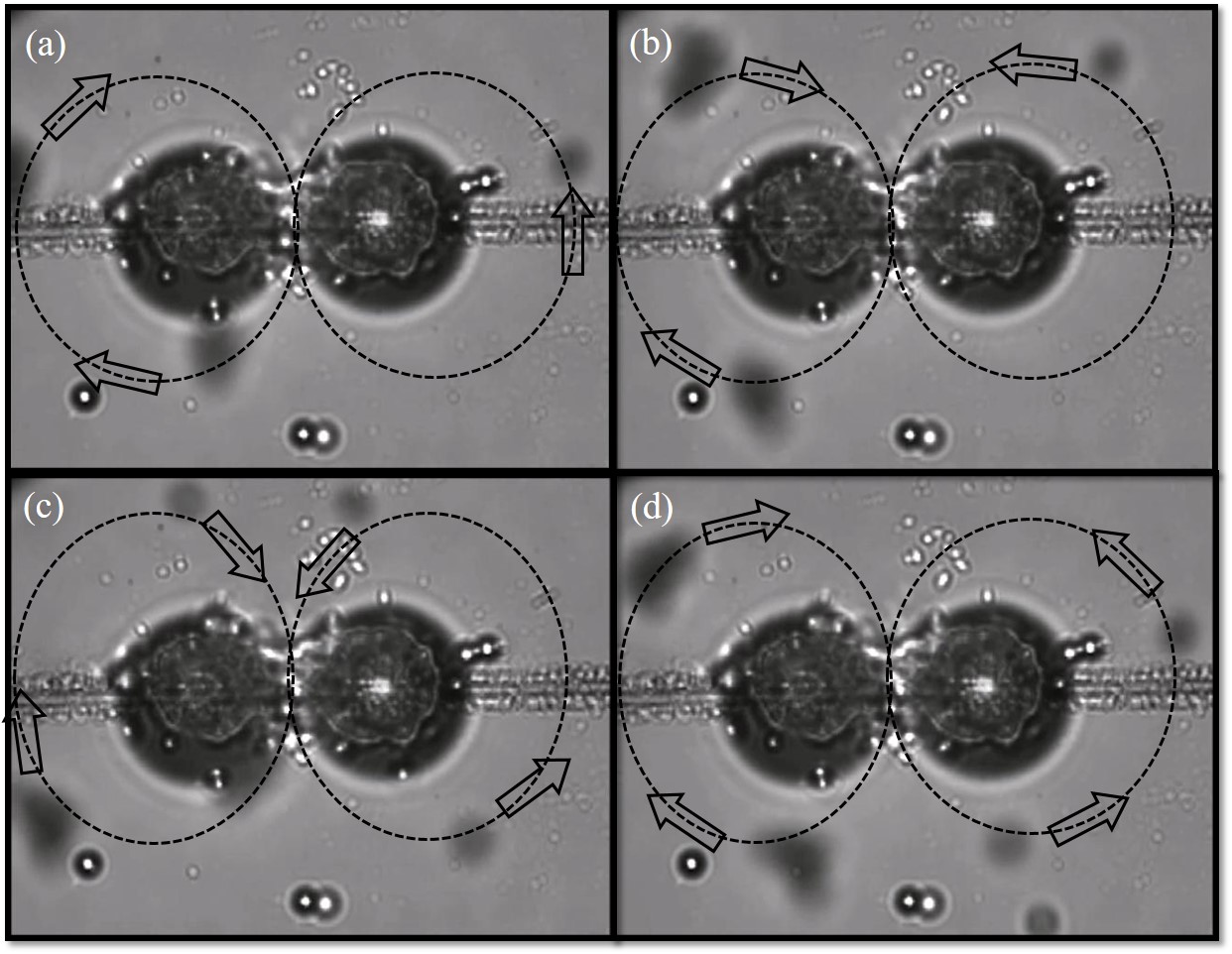

• as shown in Videos 9-14 in the SI - is facilitated by the temperature gradient on the linear pattern formed by the presence of two heat sources (and therefore two bubbles). This is confirmed from Video 15 in the SI, where we show that the axial rotation of the probe gradually comes to a stop when one of the heat sources is withdrawn (by turning off the laser), so that the corresponding bubble shrinks, and the temperature gradient is thereby destroyed.

We now develop a theoretical formalism to explain the experimental observations.

Theory

We consider the following assumptions to be true for our system:

The effects of gravitation is neglected. 2. 2.

Inside the bubble, the thermal conductivity and viscosity of the gas is considered to be negligible compared to that of the fluid outside. 3. 3.

The bubble remains spherical throughout, and deformations are assumed to be negligible.

So the generalised continuity, energy and momentum equations of our system can be written as,

[TABLE]

Here $\rho$ is the density of the fluid, $\alpha$ is the thermal diffusivity, $\eta$ is the coefficient of dynamic viscosity, $\theta$ is the temperature, p is the external pressure and $v$ represents the fluid flow . In the incomprecible limit, equation 1a becomes

[TABLE]

The Péclet number $(P_{e})$, which is the ratio of the rate of advective transport to the rate of diffusive transport for the heat transfer is given as,

[TABLE]

as for our system the characteristic length scale $L$ is of the order of $10^{-6}m$, typical velocity is of the order of $10^{-6}m/s$ and the thermal diffusivity of water is of the order of $10^{-7}m^{2}/s$ respectively. So, we can neglect the advective term compared to the diffusive term in the equation 1b. Again, The Reynolds number $(R)$, defined as the ratio of the inertial to the viscous forces, is given by

[TABLE]

where, the kinematic viscosity ($\nu$) of water at room temperature is $\sim 10^{-6}\leavevmode\nobreak\ Pa.s$. So, the inertial term can be neglected compared to the diffusive term in the equation 1c.

From dimensional analysis, the ratio of the advective to the diffusive term for the equation 1c of our system is

[TABLE]

which is very small. So, the advective term can also be ignored as well in the equation 1c compared to the diffusive term. Again, in equilibrium, all the time dependent terms in equation $1$ go to zero. So, considering all these, let us assume that we have a spherical air bubble of radius $a$ in an incompressible fluid of viscosity $\eta$ bounded by a plane wall at $z=0$. The center of the bubble is at $\boldsymbol{R}$, while $\boldsymbol{r}$ denotes a point on the surface of the bubble. The fluid flow$v(\boldsymbol{r})$, at a point $\boldsymbol{r}$ in the fluid, satisfies the flowing equations as,

[TABLE]

where$\bf{\sigma}=-p\bf{I}+\eta(\nabla\bf{v}+(\nabla\bf{v})^{T})$ is the Cauchy stress and $p$ is the fluid pressure (Happel and Brenner, 1965), equation 2c is the Stokes equation of fluid flow. We assume there is no motion normal to the interface and hence a vanishing normal velocity there. The normal Laplace pressure is balanced by the interfacial tension and the tangential Marangoni stress is balanced by the viscous stress. These lead to the following boundary conditions on the surface $S$ of the bubble

[TABLE]

where $\boldsymbol{f}=\boldsymbol{\hat{\rho}}\cdot\boldsymbol{\sigma}$ is the traction on the interface and $\boldsymbol{\rho}$ is the radius vector from the center of the bubble to a point on its surface. The temperature field $\theta$ and its tangential gradient $\boldsymbol{\nabla}_{s}\theta$ are assumed to be known, while $\Gamma^{\prime}=\partial\Gamma/\partial\theta$, where $\Gamma$ is the surface tension. In addition, the fluid flow vanishes at the plane wall and at at very large distances from it, ie,

[TABLE]

The temperature field $\theta(\boldsymbol{r})$ satisfies the steady heat equation (2b) with a no flux boundary condition on the bubble interface and a relaxation to the imposed temperature field at infinity:

[TABLE]

The vanishing of the heat flux is consistent with the negligible heat capacity of air that in the interior of the bubble. The imposed temperature field also satisfies the steady-state heat equation $\nabla^{2}\theta^{\infty}=0.$ As the energy equation is decoupled from the momentum equation, due to the assumption of negligible advective transport of energy, the temperature field can be solved for independently and the solution inserted to obtain the Marangoni stress needed to solve the velocity equation.

Integral equation for temperature

We use the boundary integral method to obtain the solution of the temperature field (Leal, 2007). In this approach, the temperature at a point $\mathbf{r}$ in the bulk is obtained from the boundary integral representation of the Laplace equation, which is given as

[TABLE]

Here $\theta^{{\scriptscriptstyle\infty}}(\mathbf{r})$ is the externally imposed temperature and $\Phi(\mathbf{r},\,\mathbf{r}^{\prime})$ is a Green’s function of Laplace equation

[TABLE]

Evaluating the boundary integral representation on the boundary of the bubble, accounting for the singular nature of the second integral, and imposing the boundary condition (see Eq.(5a)) on the first integral gives the following integral equation for the temperature distribution on the interface

[TABLE]

This is a Fredholm integral equation of the second kind with a symbolic solution

[TABLE]

where $\mathcal{K}$ is the double layer integral operator. We now obtain the explicit form of the above formal solution using the Galerkin method by expanding the temperature fields in tensorial spherical harmonics $\mathbf{Y}^{(l)}$ as

[TABLE]

The unknown expansion coefficients $\bf{\Theta}^{(l)}$ are then determined by the integral equation. The tensorial spherical harmonics are defined as

[TABLE]

The tensorial spherical harmonics form a orthogonal set of basis functions on the surface of a sphere

[TABLE]

Here $\mathbf{\Delta}^{(l)}$ is tensor of rank $2l$, projecting any lth order tensor to its symmetric irreducible form.

Inserting the tensorial expansion in the integral representation for the temperature, Eq.(6) and expanding the Green’s function about the origin of the sphere yields

[TABLE]

which gives the temperature field at any point in the bulk in terms of the Green’s function and the expansion coefficients. Thus, exploiting the spherical shape, we obtain exact analytical expressions for the boundary integrals in terms of a Green’s function (Singh and Adhikari, 2018).

We now consider the boundary integral equation for the temperature on the surface of the bubble. We multiply both sides of this integral by the l-th basis function and integrate over the surface. Tensorial harmonics are eigenfunctions of the double layer which results in a diagonal system of equations whose solutions is

[TABLE]

The temperature distribution on the interface is then

[TABLE]

Here, the derivative of the imposed distribution are evaluated at the center $\boldsymbol{R}$ of the bubble.

The externally imposed temperature $\theta^{\infty}$ leads to the surface tension $\Gamma$, which is assumed to be linearly dependent on the temperature field $\theta(\boldsymbol{r})$ of the bubble surface. The tangential derivative, $\boldsymbol{\nabla}_{s}=(\boldsymbol{I}-\hat{\rho}\hat{\rho})\cdot\boldsymbol{\nabla}$, of the temperature field, then provides the Marangoni stress in the boundary condition (Eq.(3b)) for the flow field. Thus, the force on the bubble is obtained in terms of the surface integral of the tangential gradient of the surface temperature (Subramanian, 1985). Explicitly, it is given as

[TABLE]

Using Eq.(14) in the above expressions gives forces and torques in terms of the external imposed temperature field $\theta^{\infty}$. From Eq.(15), it is clear that an average gradient of externally imposed field leads to a force on the bubble. In the experiments, the bubble is stationary at the wall, and thus these Marangoni force has to be counterbalanced by force on the bubble. It is precisely these forces which determine the exterior fluid flow and determine the dynamics of tracer particles. In the next section, we use the above form to obtain the exterior fluid flow around the bubbles and discuss the dynamics observed in the experiments.

Exterior fluid flow

We use the singularity method for Stokes flow to obtain the exterior flow around the bubbles near a plane wall (Pozrikidis, 1992). The singularity method of solution is constructed out of the fundamental solutions of the Stokes equation. These fundamental solutions are the Green’s functions of the Stokes flow. We use the Lorentz-Blake tensor, which satisfies the no-slip condition at a plane wall. The expression for the fluid flow due to a single bubble in singularity method, due to a force $\mathbf{F}$ and a torque $\mathbf{T}$, is given as

[TABLE]

Here $\mathbf{G}^{\text{w}}$ is the Lorentz-Blake tensor (Blake, 1971), whose explicit form is given as

[TABLE]

where

[TABLE]

is the Oseen tensor, and $\boldsymbol{G}^{*}(\boldsymbol{r},\,\boldsymbol{R}^{*})$ is the contribution from the image system to satisfy the boundary condition at the no-slip wall. The contribution from the image system is (Blake, 1971)

[TABLE]

Here $\boldsymbol{R}^{*}=\boldsymbol{\mathcal{M}}\cdot\boldsymbol{R}$, while $\boldsymbol{\mathcal{M}}=\boldsymbol{I}-2\mathbf{\hat{z}}\mathbf{\hat{z}}$ is the mirror operator, while h is the height of the center of the bubble from the wall. Since the bubble is stationary and attached to the wall ($h=R$), the force $\mathbf{F}=-\mathbf{F}^{\text{c}}$ and the torque $\mathbf{T}=-\mathbf{T}^{\text{c}}$are obtained from the counterbalance of the Marangoni force in Eq.(15). We compute the flow due to two bubbles, in the superposition limit, by adding the contributions of Eq.(17). The above analysis is then used to plot the fluid flow around the bubbles due to cases (a) and (b) in Fig.(10) and Fig.(11) respectively and compare them with the experiments.

We classify the experimental system in two classes for simplicity

• (i) one bubble on a pattern or two bubbles on two separate patterns, and (ii) two bubbles on a pattern. We now consider each of these cases separately below.

For the first case, the external imposed temperature field on the bubble can be approximated as

[TABLE]

where $c_{{\scriptscriptstyle 0}}$ and $c_{1}$ are constants and $\vartheta$ is the polar angle of the spherical polar coordinate ($\boldsymbol{\hat{\rho}},\boldsymbol{\hat{\vartheta}},\boldsymbol{\hat{\varphi}}$). This is then used to compute the magnitude of the force on the bubble using Eq. (15). The torque vanishes, since the temperature distribution is axisymmetric, while there is a constant force acting in the direction perpendicular to the wall. The streamlines of the fluid flow around a bubble is plotted in Fig.(9). It can be seen that there is an inward flow toward the bubble in the plane of the wall. This explains the aggregation of the tracer particles on the bubble surface in the experiments, as shown in Fig.(2) and Video 1 in SI. The simultaneous accumulation and pumping of the tracer particles at different axial planes of the bubble in Fig.(4) and Video 5 in the SI can also be mapped from the Fig.(9). Clearly, the in-plane accumulation in Fig.(2) and Fig.(4) are similar in nature, while the outward streamlines of $z>0$ planes explains the pumping shown in Fig.(4). In addition, as explicit from the Fig.(9) itself, the axial rotation of the tracer particles demonstrated in Fig.(8) and Video 12 of SI, is also depicted accurately by the closed streamlines on the X-Z plane.

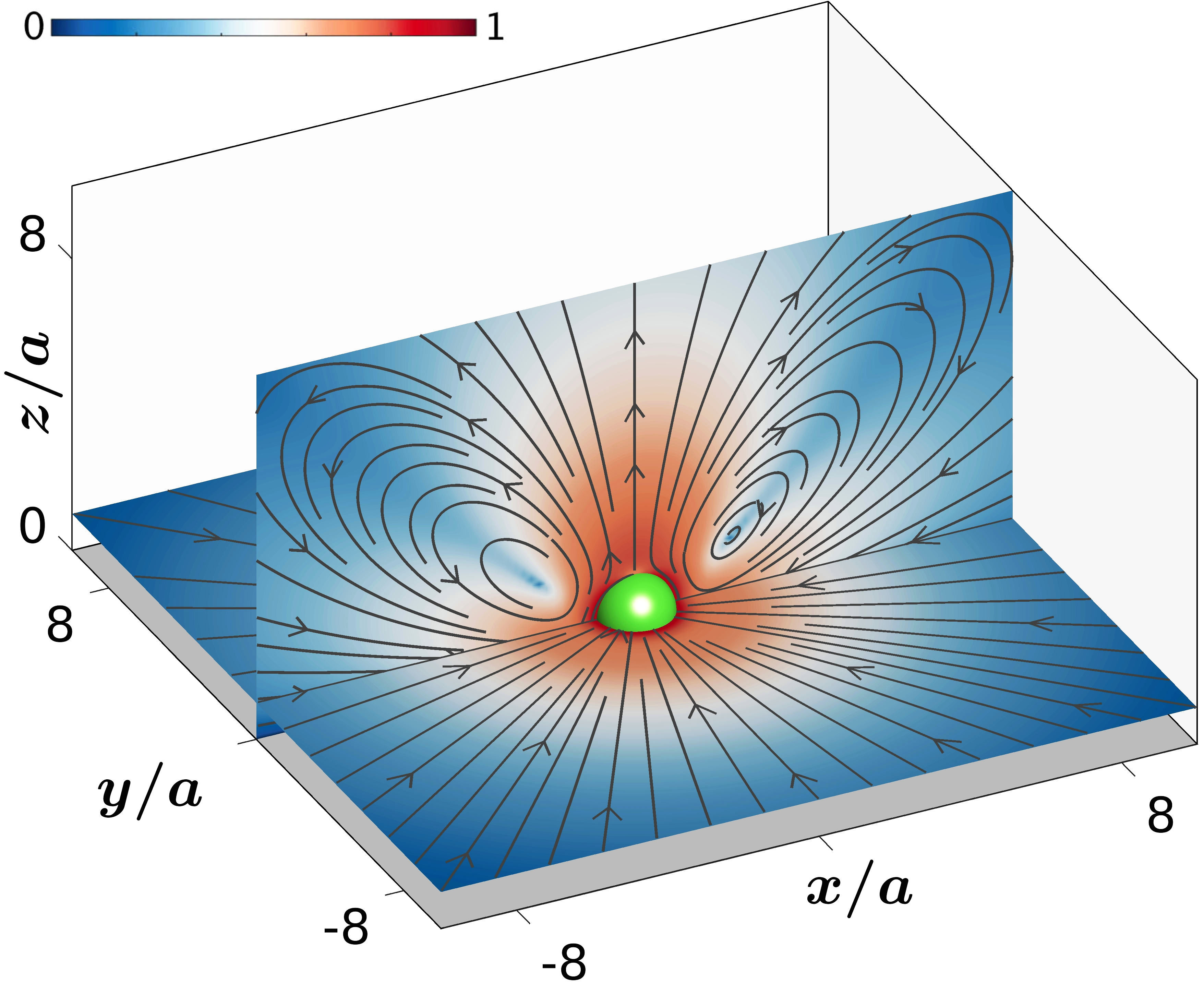

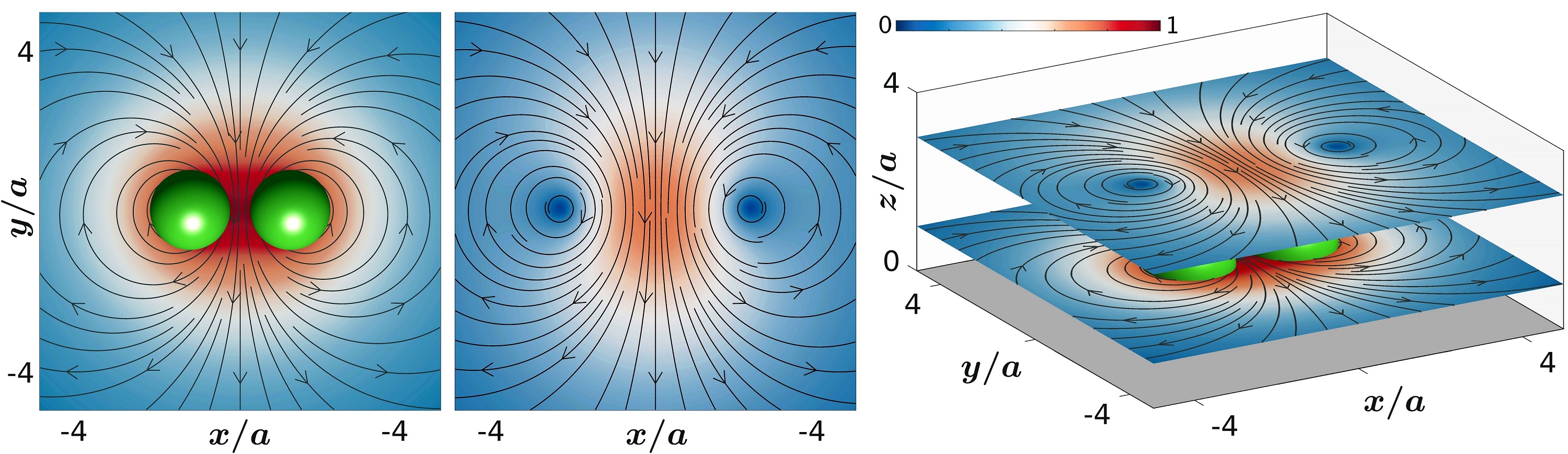

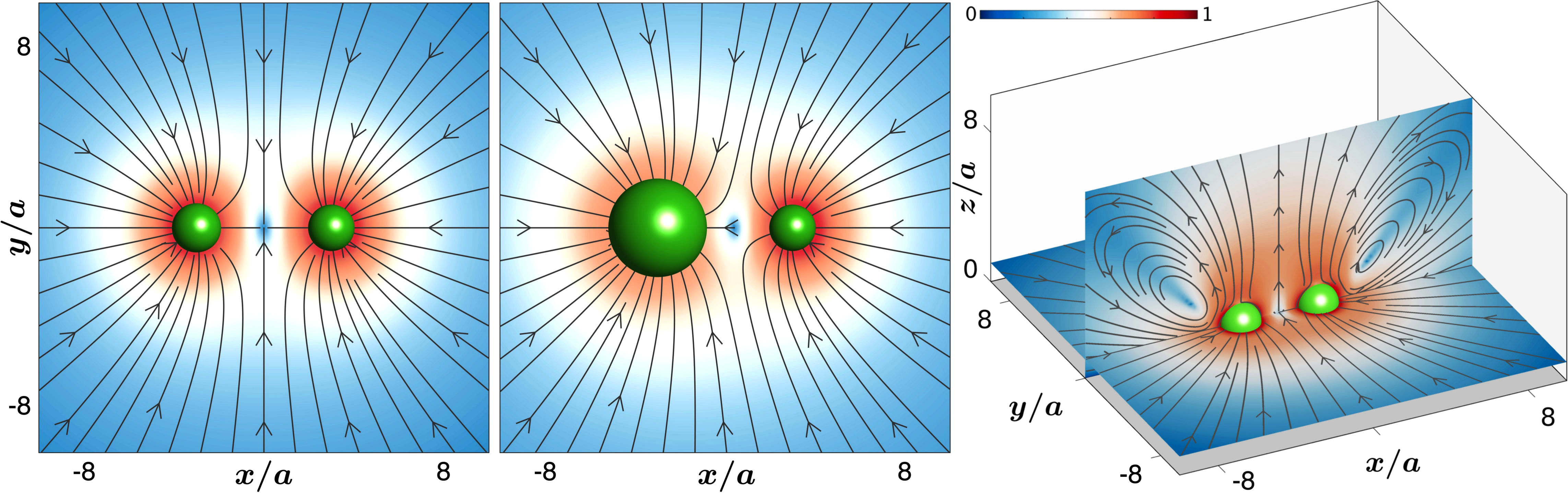

In Fig.(10), we plot the flow around two bubbles of the same size (left panel) and different sizes (middle panel). For bubbles of the same size, a separatrix is formed and the tracer particles are attracted to a bubbles depending on its position. On the other hand for bubbles of different size, since the force acting on the bubble is proportional to the square of the radius of the bubble, as can be seen from Eq. (20) and (15), the flow is predominantly towards the larger bubble. This situation is seen in the second panel of the Fig.(10). This behaviour is consistent with the experimental observation demonstrated in Fig.(5) and Videos 6-8 in the SI. The last panel shows the three-dimensional flow around two bubbles.

For the second case, where two bubbles are generated on the same linear pattern, we speculate that there is a spontaneous symmetry breaking in the plane of the wall due to the presence of a temperature gradient along the linear pattern joining the two bubbles. It should be noted that the temperature distribution now also has a dependence in the plane of the wall, hence additional boundary conditions have to be imposed in Eq.(5a), This leads to a modified temperature distribution around the two-bubble system a with non-vanishing torque in Eq.(16), which finally gives rise to anti-symmetric contributions leading to in-plane vorticity in the flow, demonstrated in the Fig.(11), which is also consistent with the experimental results of Fig.(6) and Videos 8, 9, 10, and 11 in the SI. The directions of the flow depend on the following:

1. Explicit symmetry breaking which happens when there are bubbles of very different sizes, so that the azimuthal symmetry of the flow is broken in a particular definite pattern due to the presence of a unique temperature gradient determined by the bubble sizes. In these cases, we typically observe counter-clockwise rotation around the bigger bubble.

2. The really interesting and intriguing scenario is when we have two similar-sized bubbles, and it is our subsequent observation of clockwise and anticlockwise flows around the bubbles which we attribute to spontaneous symmetry breaking. While we do not have a definitive explanation for the spontaneous symmetry breaking, we feel that geometric factors determine the nature of the flows around the bubbles when they are of the same size. Indeed, this is a situation where both clockwise and anticlockwise flows around each bubble are equally probable (Fig. 6 shows a particular flow configuration), and the system most likely collapses to one of the two possible states (a state being termed as a particular direction of flow around a particular bubble) depending crucially on initial conditions that include: a) which bubble is grown first, b) geometric differences in the shapes of the bubbles, i.e. deviations from a spheroid, c) imperfections in the flatness of the substrate which may provide a certain inclination to the plane of the bubbles, etc. Note that it is quite non-trivial to exactly model these effects, and even challenging experimentally to grow two bubbles of the same size adjacent to each other due to laser intensity fluctuations and the gradual increase in the size of the bubbles due to the self-assembly of particles at their base which prevent the dissipation of heat from the hot-spot into the neighbouring fluid. We are presently studying these effects in detail and plan to report this in future work.

To summarize, the heating of the plane wall by laser beams cause a temperature distribution in the system. We call this temperature distribution $\theta^{{\scriptscriptstyle\infty}}$. The distribution of this imposed temperature field determines the temperature field, $\theta(\mathbf{r})$, on the surface of bubbles. The surface gradients of $\theta(\mathbf{r})$ manifest itself as the active Marangoni stress on the surface of the bubble, which drives the exterior fluid flow $\boldsymbol{v}(\mathbf{r})$. The plane wall, where the bubbles are formed, plays a crucial role in modifying the exterior fluid flow, which leads to the entrainment of the mesoscopic particles in the flow.

Conclusions

In conclusion, we provide a glimpse of the fascinating possibilities of manipulating the trajectories of micro-particles by specially engineered flows driven by micro-bubbles induced by thermo-optical tweezers. We perform experiments with single and pairs of bubbles in an aqueous medium, and control microscopic flows in water by creating different temperature profiles in the vicinity of the micro-bubbles. The bubbles are nucleated on a glass surface (cover slip or microscope slide) coated with linear micro-patterns of an absorbing material on which the tweezers laser beam is focused so as to create a hot spot at the focal region. The non-uniform temperature across the bubble surface leads to a surface tension gradient which creates active Marangoni stress that drives flows in the surrounding liquid. We use polystyrene microspheres as tracer particles to visualize flow lines. With a single bubble, we observe self assembly of particles on the bubble surface as a consequence of flow lines tending to converge along an equatorial circle of the bubble. Thus, we assemble different-sized polystyrene particles, as well as magnetic and metallic microparticles, thus establishing this method as an alternative to conventional optical trapping. This should be especially useful for confinement of particles having large scattering cross-sections which renders them difficult to trap using light forces. The single bubble experiments performed with an asymmetric temperature gradient across the bubble base leads to the generation of substantially different flow lines along the axial direction, so that we have simultaneous attraction and repulsion at different z-planes. Thus, while some particles assemble on the bubble surface - others are repelled away, suggesting the use of this mechanism as an efficient sorting tool. We next manipulate the trajectory of the particles by engineering the flow around a pair of bubbles that are spatially separated and have independent temperature profiles around their vicinity, so that particles assemble differentially on the bubbles depending on their size with the larger bubble attracting a greater number of particles. This is again an excellent sorting tool, where continuous modulation of the separatrix that separates the flow lines between each bubble (easily achieved by by modulating the laser power which changes the bubble size), can enable the use of this method as a tunable particle sorter, with particles of a certain size sticking on one of the bubbles, while others may pass between them. Finally, we are also able to impart angular velocity to the tracer particles by subjecting them to vortex flows achieved by growing bubbles on the same partially conducting pattern, so that the resultant temperature asymmetry in the azimuthal direction leads to the formation of closed streamlines in the axial direction. We observe orbiting of the particles radially and axially, in both clockwise and anticlockwise direction, very similar to that produced by angular momentum carrying trapping laser beams having longitudinal and transverse spins, respectively, and opposite topological charge. Thus, our design offers an alternative mechanism to induce angular momentum on mesosopic particles - something as yet believed to be possible only with photons, with the axial rotation - produced by field configuration also known as ’photonic wheels’ being achieved only very recently, and mostly for evanescent fields. All our experiments are then validated by analytical treatments of the experimental conditions - where with a suitable juxtaposition of the Stokes and heat equations solved in the presence of appropriate boundary conditions - we are able to match qualitatively the flow profiles obtained experimentally, thus enhancing our understanding of the problem in hand. We are working on further interesting mechanisms for exercising control on particle trajectory in fluids using micro-bubbles, and have some interesting results with modulated bubbles which shall be disseminated shortly. We believe that engineered flows using active stresses may well be the new paradigm in particle manipulation in fluids in the mesoscopic world, and can enable new frontiers of research in soft matter physics and micromanipulation.

Acknowledgements
