Active topolectrical circuits

TL;DR

This paper introduces active topolectrical circuits that combine topological protection with autonomous self-organization, enabling robust edge oscillations through nonlinear components, with theoretical, simulation, and experimental validation.

Contribution

It unifies topological concepts with active matter principles to design self-exciting circuits exhibiting protected edge states, a novel integration of these fields.

Findings

Demonstrated self-organized protected edge oscillations in 1D and 2D circuits.

Validated theoretical predictions with experiments and simulations.

Showed robustness and versatility of nonlinear active topolectrical circuits.

Abstract

The transfer of topological concepts from the quantum world to classical mechanical and electronic systems has opened fundamentally new approaches to protected information transmission and wave guidance. A particularly promising technology are recently discovered topolectrical circuits that achieve robust electric signal transduction by mimicking edge currents in quantum Hall systems. In parallel, modern active matter research has shown how autonomous units driven by internal energy reservoirs can spontaneously self-organize into collective coherent dynamics. Here, we unify key ideas from these two previously disparate fields to develop design principles for active topolectrical circuits (ATCs) that can self-excite topologically protected global signal patterns. Realizing autonomous active units through nonlinear Chua diode circuits, we theoretically predict and experimentally confirm the emergence of self-organized protected edge oscillations in one- and two-dimensional ATCs. The close agreement between theory, simulations and experiments implies that nonlinear ATCs provide a robust and versatile platform for developing high-dimensional autonomous electrical circuits with topologically protected functionalities.

Figures

Tables

Table 1. Table S1: Realistic parameter values for the topological regime for a 1D SSH chain. L w subscript 𝐿 𝑤 L_{w} and L s subscript 𝐿 𝑠 L_{s} denote the inductances in the weak and strong couplings respectively while L e subscript 𝐿 𝑒 L_{e} and L b subscript 𝐿 𝑏 L_{b} denote the ground inductances of the edge and bulk nodes. Note that for the bulk nodes, we do not use ground inductances.

Dimensional parameter	Value	Nondimensional parameter	Value
$C$	$42\mathrm{nF}$	$g$	$1.05$
$L_e$	$525\mu H$	$w$	$0.05$
$L_b$	Nil	$s$	$1.0$
$L_w$	$10.5\mathrm{mH}$	$\epsilon$	$0.28$
$L_s$	$525\mu H$
$\alpha$	$2.5\mathrm{mS}$	Scaling factor	Value
$\gamma$	$0.091\mathrm{mS}/V^2$	$V_0$	$3.03V$
$R_1$	$2k\Omega$	$\tau$	$4.7\mu s$
$R_2$	$2k\Omega$	$L_0$	$525\mu H$
$R_3$	$400\Omega$
$R_4$	$3010\Omega$
$R_5$	$7900\Omega$

Table 2. Table S2: Component values used for experiments in Figs. 2 and S6 . ESR stands for equivalent series resistance, referring to the parasitic resistance present in practical, non-ideal inductors and capacitors. For the values listed, ESR was measured at an AC frequency of 1 kHz.

Component/Parameter	Node 1	Node 2	Node 3	Node 4
$\alpha$	$2.496\mathrm{mS}$	$2.494\mathrm{mS}$	$2.500\mathrm{mS}$	$2.500\mathrm{mS}$
$\gamma$	$0.09094\mathrm{mS}/V^2$	$0.09112\mathrm{mS}/V^2$	$0.09200\mathrm{mS}/V^2$	$0.09092\mathrm{mS}/V^2$
$L_{ii}$	$485.6\mu H$	Nil	Nil	$486.0\mu H$
$L_{ii}$ ESR	$0.821\Omega$	Nil	Nil	$0.810\Omega$
$C$	$41.99\mathrm{nF}$	$41.63\mathrm{nF}$	$42.07\mathrm{nF}$	$42.06\mathrm{nF}$
$C$ ESR	$0.459\Omega$	$0.620\Omega$	$0.704\Omega$	$0.760\Omega$
$L_w$	$10.5020\mathrm{mH}$		$10.5060\mathrm{mH}$
$L_w$ ESR	$2.520\Omega$		$2.528\Omega$
$L_s$		$512.0\mu H$
$L_s$ ESR		$0.940\Omega$

Equations

$${\ddot{x}}_i-\epsilon \left(1-x_i^2\right){\dot{x}}_i+x_i=0,$$

$${\ddot{x}}_i-\epsilon \left(1-x_i^2\right){\dot{x}}_i+\sum _j{\beta }_{ij}{x}_j=0,$$

$$\mathbf{\beta }=\left(\begin{array}{cccccc}g& -w& 0& 0& 0& 0\\ -w& g& -s& 0& 0& 0\\ 0& -s& g& -w& 0& 0\\ 0& 0& -w& g& -s& 0\\ 0& 0& 0& -s& g& -w\\ 0& 0& 0& 0& -w& g\end{array}\right),$$

$$C\ddot{V}_{i}-(\alpha-3\gamma V_{i}^{2})\dot{V}_{i}+\bigg{(}\frac{1}{L_{ii}}+\sum_{\begin{subarray}{c}k\\ k\neq i\end{subarray}}\frac{1}{L_{ik}}\bigg{)}V_{i}-\sum_{\begin{subarray}{c}j\\ j\neq i\end{subarray}}\frac{V_{j}}{L_{ij}}=0,$$

$$\left(\begin{array}{c}\dot{x}\\ \dot{y}\end{array}\right)=\left(\begin{array}{cc}0& \text{mathbbm}1\\ -\beta & \epsilon \text{mathbbm}1\end{array}\right)\left(\begin{array}{c}x\\ y\end{array}\right).$$

$${\lambda }^2-\epsilon \lambda =-\mu ,$$

$$\lambda=\frac{1}{2}\bigg{(}\varepsilon\pm\sqrt{\varepsilon^{2}-4\mu}\bigg{)},$$

$$\displaystyle B_{n}=\left(\begin{array}[]{cccccc}g&-w&0&\dots&&0\\ -w&g&-s&&&\\ \vdots&-s&\ddots&&&\\ &&-w&g&-s&\\ &&&-s&g&-w\\ 0&\dots&&&-w&g\\ \end{array}\right),\qquad\qquad C_{n-1}=\left(\begin{array}[]{ccccc}g&-s&\dots&&0\\ -s&\ddots&&&\\ \vdots&-w&g&-s&\\ &&-s&g&-w\\ 0&\dots&&-w&g\\ \end{array}\right),$$

$$\chi (B_n,\mu )$$

$$\chi (C_{n-1},\mu )$$

$$\chi (B_n,\mu )=(g-\mu {)}^2((g-\mu {)}^2-s^2{)}^{n/2-1},$$

$${\left(\begin{array}{cccccc}0& 1& 1& 0& \dots & 0\end{array}\right)}^{⊺},{\left(\begin{array}{cccccccc}0& 0& 0& 1& 1& 0& \dots & 0\end{array}\right)}^{⊺},\dots {\left(\begin{array}{cccccc}0& \dots & 0& 1& 1& 0\end{array}\right)}^{⊺},$$

$${\left(\begin{array}{cccccc}0& 1& -1& 0& \dots & 0\end{array}\right)}^{⊺},{\left(\begin{array}{cccccccc}0& 0& 0& 1& -1& 0& \dots & 0\end{array}\right)}^{⊺},\dots {\left(\begin{array}{cccccc}0& \dots & 0& 1& -1& 0\end{array}\right)}^{⊺}.$$

$$\ddot{x}-\epsilon (1-x^2)\dot{x}+gx=0,$$

$${\ddot{x}}_1-\epsilon (1-x_1^2){\dot{x}}_1+g{x}_1=s{x}_2,$$

$${\ddot{x}}_2-\epsilon (1-x_2^2){\dot{x}}_2+g{x}_2=s{x}_1,$$

$${\ddot{x}}_1-\epsilon (1-x_1^2){\dot{x}}_1+g{x}_1=s{x}_2+s{x}_4,$$

$${\ddot{x}}_2-\epsilon (1-x_2^2){\dot{x}}_2+g{x}_2=s{x}_3+s{x}_1,$$

$${\ddot{x}}_3-\epsilon (1-x_3^2){\dot{x}}_3+g{x}_3=s{x}_4+s{x}_2,$$

$${\ddot{x}}_4-\epsilon (1-x_4^2){\dot{x}}_4+g{x}_4=s{x}_1+s{x}_3.$$

$$\mathbf{\beta }=\left(\begin{array}{cccccc}{g}_1& -w& 0& 0& 0& 0\\ -w& g_2& -s& 0& 0& 0\\ 0& -s& g_3& -w& 0& 0\\ 0& 0& -w& g_4& -s& 0\\ 0& 0& 0& -s& g_5& -w\\ 0& 0& 0& 0& -w& g_6\end{array}\right),$$

$$g_c$$

$$g_e$$

$$g_b$$

$$s$$

$$g_c$$

Full text

Introduction

Information transfer and storage in natural and man-made active systems, from sensory organs [1, 2, 3] to the internet, rely on the robust exchange of electrical signals between a large number of autonomous units that balance local energy uptake and dissipation [4, 5]. Major advances in the understanding of photonic [6, 7, 8, 9], acoustic [10, 11, 12] and mechanical [13, 14, 15, 16] metamaterials have shown that topological protection [17, 18, 19, 20, 21, 22, 23, 24] enables the stabilization and localization of signal propagation in passive and active [25, 26, 27] dynamical systems that violate time-reversal and/or other symmetries. Recent studies have successfully applied these ideas to realize topolectrical circuits [28] in the passive linear [29, 30, 31, 32, 33, 34] and passive nonlinear [35, 36] regime. However, despite substantial progress in the development of topological wave guides [37], lasers [38, 39], and transmission lines [40, 41, 42, 43], the transfer of these concepts to active [44, 45] nonlinear circuits made from autonomously acting units still poses an unsolved challenge. From a broader perspective, harnessing topological protection in nonlinear active circuits not only promises a new generation of autonomous devices, but understanding their design and self-organization principles may also offer insights into information storage and processing mechanisms in living systems, which integrate cellular activity, electrical signaling and nonlinear feedback to coordinate essential biological functions [46, 47].

Exploiting a mathematical analogy with active Brownian particle systems [26], we theoretically develop and experimentally demonstrate general design principles for active topolectrical circuits (ATCs) that achieve self-organized, self-sustained, topologically protected electric current patterns. The main building blocks of ATCs are nonlinear dissipative elements that exhibit an effectively negative resistance over a certain voltage range. Negative resistances can be realized using van der Pol (vdP) circuits [48], tunnel diodes, unijunction transistors, solid-state thyristors [49], or operational amplifiers set as negative impedance converters through current inversion [50], and the design principles described below are applicable to all these systems. Indeed, we expect them to apply to an even broader class of nonlinear systems, as similar dynamics also describe electromagnetic resonators with Kerr-type nonlinearities [51, 52, 53].

Results

Theoretical framework. Active electronic circuits with basic non-topological interactions have been studied previously as models of neuronal networks [48] and solitary signal transport [4, 5]. To leading order, the negative resistance elements in an active circuit can be described [4, 5] by a nonlinear Rayleigh-type conductance $R^{-1}(V)=-(\alpha-\gamma V^{2})$, where $V$ denotes voltage, and $\alpha$ and $\gamma$ are positive parameters. A prototypical example is the vdP oscillator circuit with capacitance $C$ and inductance $L_{ii}$, as shown in Fig. 1(a). When expressed in terms of the rescaled dimensionless voltage $\hat{V}_{i}=x_{i}=\sqrt{3\gamma/\alpha}\,V_{i}$, the dynamics of an isolated vdP-unit $i$ is governed by [54] (Methods)

[TABLE]

where $\varepsilon=\alpha\sqrt{L/C}$, $t=\sqrt{LC}\hat{t}$, and $\dot{x}_{i}=dx_{i}/d\hat{t}$. Because this active system is linearly unstable, a stabilizing nonlinearity is necessary to obtain bounded dynamics. In this case, we find limit cycle oscillations [Fig. 1(f)]. (1) is intimately related to that of a harmonically trapped active Brownian particle [55], with position coordinate $y$ and velocity $u=\dot{y}$ described by the standard cubic friction model $\dot{u}=\varepsilon(1-u^{2}/3)u-y$. Upon taking the time derivative and identifying $u=\dot{y}=x_{i}$, one recovers (1). It was shown recently [26] that suitably coupled mechanical chains of active Brownian particles can autonomously actuate topological modes. This insight provides guidance for the design of ATCs.

To design an ATC with desired topological properties, we generalize (1) by introducing suitably chosen couplings between vdP units $i$ and $j$ through inductances $L_{ij}$; see Fig. 1(b,c) for two examples. Assuming a lattice of vdP units and introducing the symmetric coupling matrix elements $\beta_{ij}=-L_{0}/L_{ij}$ for $i\neq j$, and $\beta_{ii}=\sum_{k}L_{0}/L_{ik}$, (1) generalizes to

[TABLE]

where $L_{0}$ is the smallest inductance in the circuit.

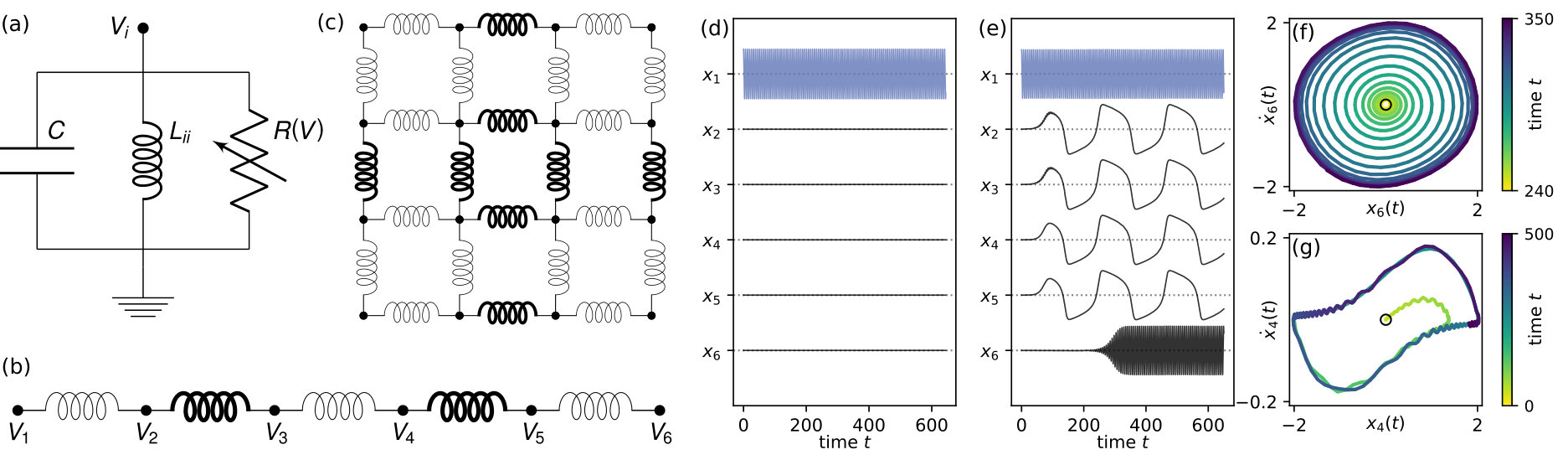

Interpreting each individual vdP unit as a node in the network graph [Fig. 1(b,c)], the effective dimension $d$ of the ATC can be tuned by increasing the number of couplings. In principle, arbitrary values $d\geq 1$ are realizable with large, densely connected networks [28]. For example, for $d$-dimensional cubic lattices, rows of the coupling matrix $\bm{\beta}=(\beta_{ij})$ corresponding to bulk nodes will have $2d$ off-diagonal entries. Below, we will focus on the cases $d=1$ [Fig. 1(b)] and $d=2$ [Fig. 1(c)] to demonstrate the implementation and key properties of ATCs. Generally, through an appropriate choice of $\bm{\beta}$, it is possible to realize a wide range of topological phases.

One-dimensional Su-Schrieffer-Heeger ATC: Theoretical analysis. As a first realization of an ATC, we consider the coupling matrix of a one-dimensional (1D) Su-Schrieffer-Heeger (SSH) model. Originally introduced to describe polyacetylene [56], the SSH model is known to support topologically protected boundary modes in a variety of quantum [57] and classical [16, 26, 28] systems. The $n\times n$ SSH coupling matrix for the case of $n=6$ unit vdPs reads (Methods)

[TABLE]

with the diagonal elements $\beta_{ii}=g>0$ representing the electrical grounds. In electrical circuits, the diagonal elements of the coupling matrix $\beta_{ii}=\sum_{k}L_{0}/L_{ik}$ depend on the neighboring inductors and are generally not uniform. Therefore, we introduce additional ground inductances $L_{ii}$ at all boundaries, such that $\beta_{ii}=g$ is uniform and the coupling matrix represents an instance of the SSH model. Upon generalizing this coupling matrix by permitting non-uniform grounds $g_{i}$, one can achieve additional frequency control (Supplementary Information). The off-diagonal entries $w>0$ and $s>w>0$ encode the weak and strong couplings, respectively. Adding more units extends the matrix symmetrically along the diagonal. As in the original quantum SSH model, the strongly coupled nodes form ‘dimers’ which are connected to each other through weak bonds [thin lines in Fig. 1(b)].

To gain intuition about the dynamics of the 1D SSH circuit, it is instructive to first consider the undamped passive topolectrical SSH circuit with $\varepsilon=0$ and $s\gg w$. In this case, (2) and (3) reduce to a linear dynamical system that exhibits topologically protected, exponentially localized modes at both ends of the chain [57]. These edge modes have finite-frequency for $g>0$ and become zero-modes as $g\to 0$. Their presence can be illustrated by considering an ideal passive ($\varepsilon=0$) circuit [28] in the almost fully dimerized topological regime ($w\ll s$) with all nodes initially at rest, $x_{i}(t)=\dot{x}_{i}(t)=0$ for $t<0$. Upon initializing the chain by imposing a nonzero voltage value at the left edge, $x_{1}(0)>0$, the boundary node will oscillate with a non-zero amplitude at frequency $\sqrt{g}$, while the amplitudes of the other nodes remain exponentially small [Fig. 1(d)]. In the next part, we will see that ATCs with $\varepsilon>0$ exhibit fundamentally different behaviors that promise a broad range of novel applications.

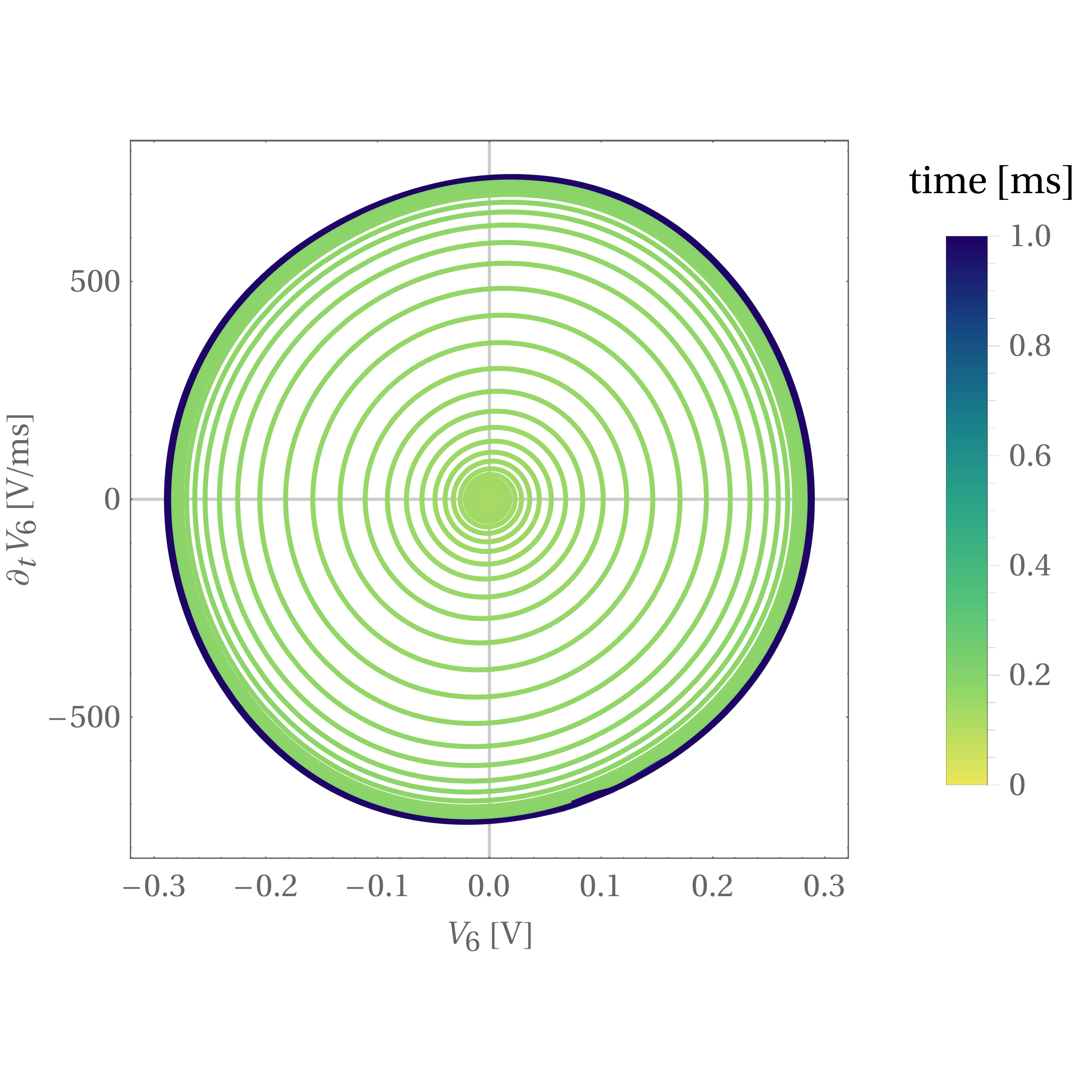

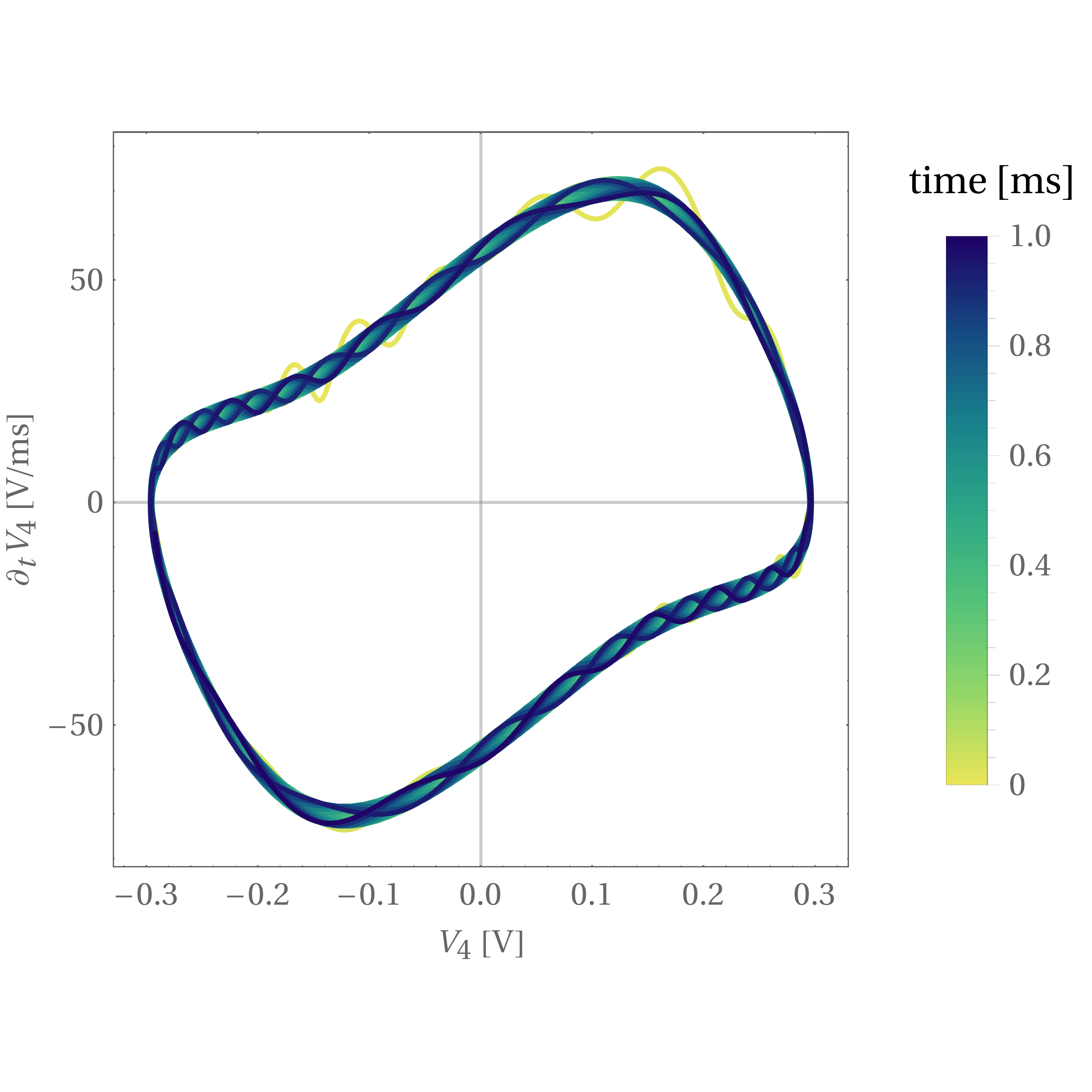

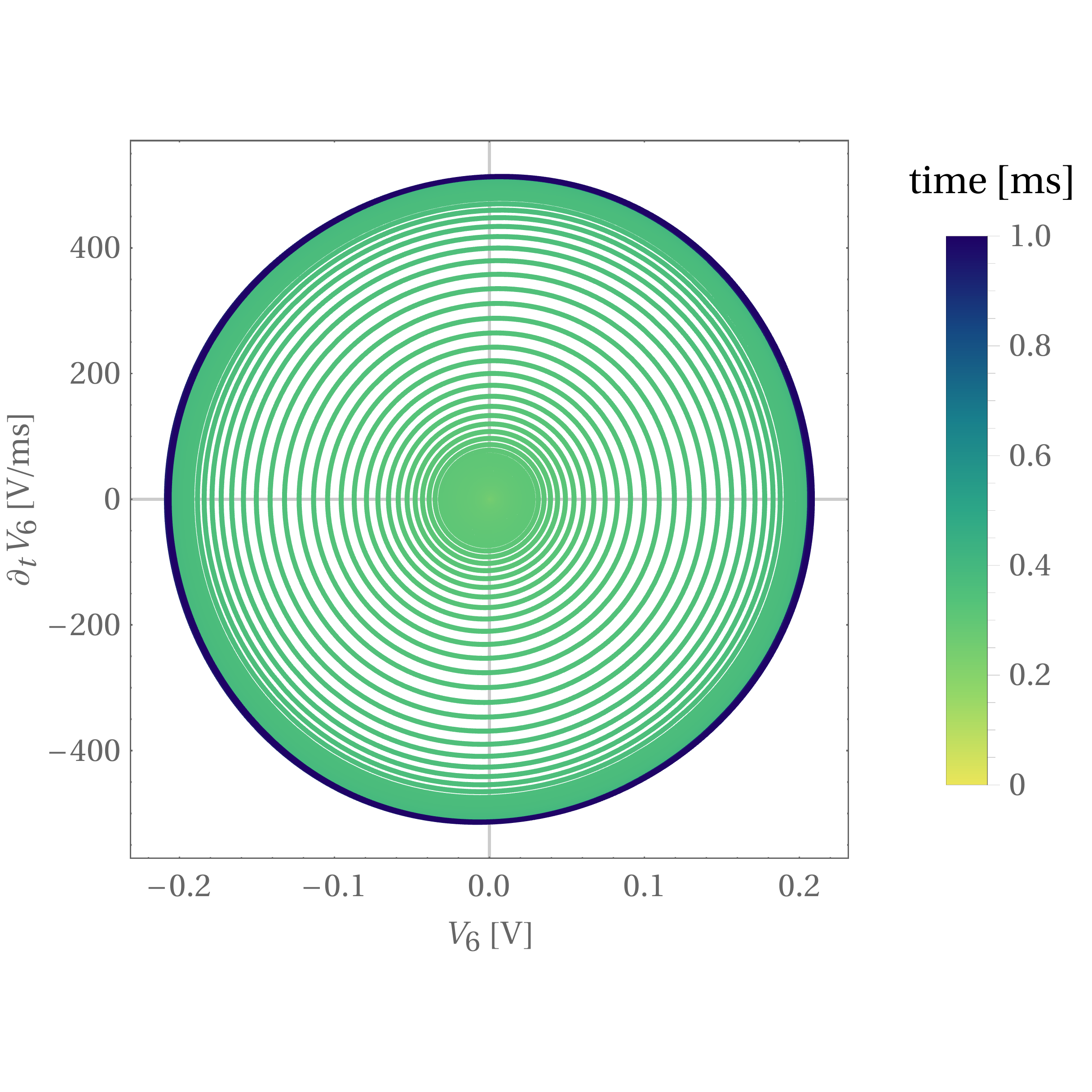

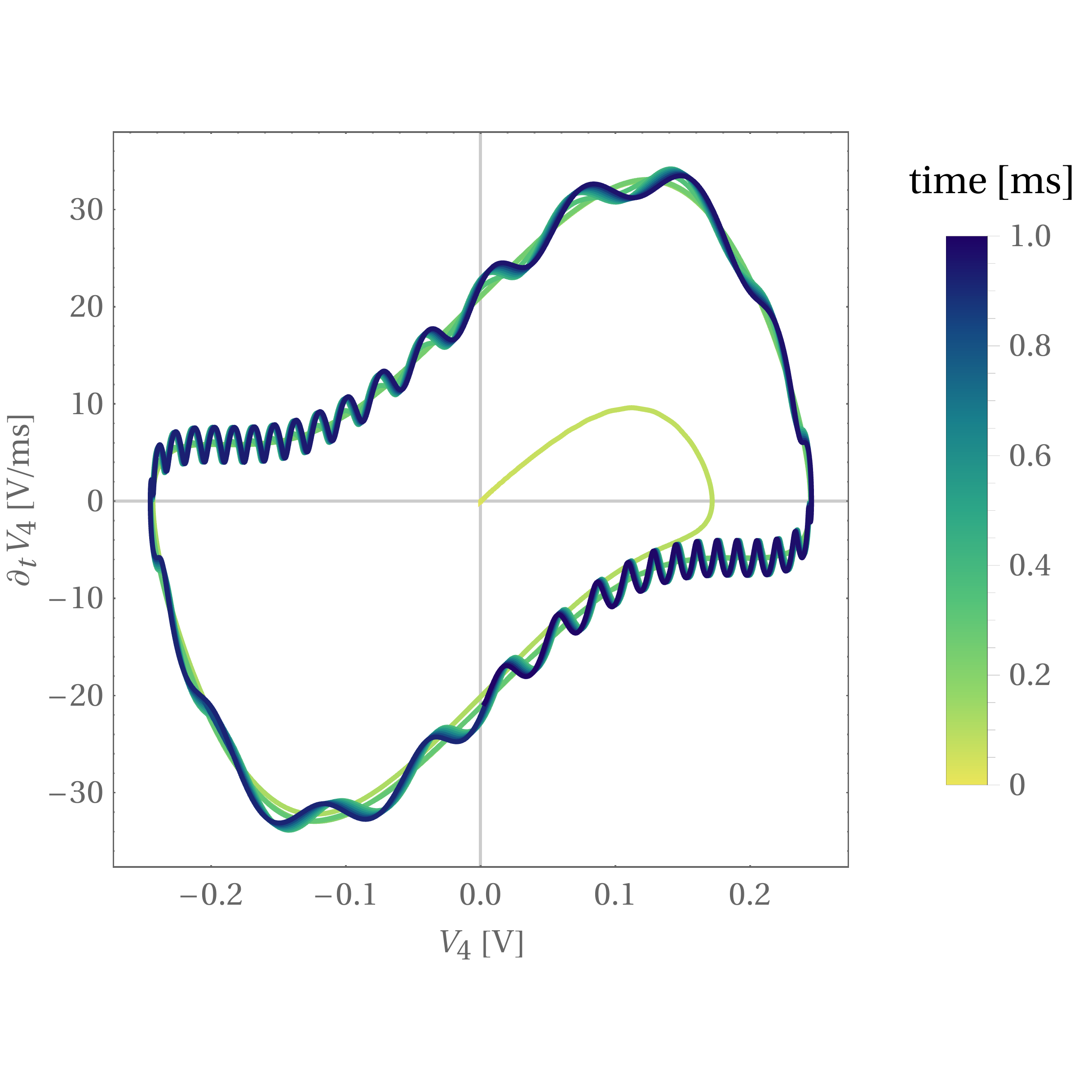

Adding just a small amount of activity ($0<\varepsilon\ll\sqrt{g}$) significantly alters the dynamics of the edge and bulk oscillators [Fig. 1(e–g)]. In the topological regime, characterized by $s\gg w$ and $g\geq s+w$, the boundary nodes are only weakly coupled to the bulk and behave similarly to isolated vdP oscillators. The active local energy input renders the rest state ($x_{i}=\dot{x}_{i}=0$) unstable, forcing the boundary nodes to approach a stable limit cycle corresponding to an oscillation at frequency $\sqrt{g}$ [Fig. 1(e,f)]. By contrast, bulk nodes are strongly coupled to one or more neighbors, resulting in a non-topological, distinct bulk dynamics reminiscent of highly nonlinear relaxation oscillations [Fig. 1(e,g)]. For fully decoupled pairs of vdP oscillators, one expects stable phase-locked solutions with relative phase [math] or $\pi$ [58, 59]. Because the system is close to the vdP oscillator’s Andronov-Hopf bifurcation [60], the frequencies of the limit cycle are approximately given by the imaginary parts of the Jacobian of the dynamics (2) at the unstable rest state. The Jacobian’s eigenvalues are $\lambda_{k,\pm}=\frac{1}{2}(\varepsilon\pm\sqrt{\varepsilon^{2}-4\mu_{k}})=\pm\sqrt{-\mu_{k}}+\mathcal{O}(\varepsilon)$, where $\mu_{k}$ are the eigenvalues of the coupling matrix $\bm{\beta}$ (Supplementary Information). This way, topological modes encoded in $\bm{\beta}$ can appear in the nonlinear regime. In the fully dimerized limit ($w\rightarrow 0$), $\mu_{k}$ can be calculated explicitly and one finds two degenerate eigenstates at $\mu_{k}=g$, corresponding to the topologically protected edge modes, and $n-2$ degenerate bulk modes at $\mu_{k}=g\pm s$ (Supplementary Information). The bulk eigenvectors are pairwise localized with components $(1,\pm 1)$ on one of the dimers, and zero everywhere else, corresponding to a low-energy in-phase oscillation ($\mu_{k}=g-s$) and a high-energy anti-phase ($\mu_{k}=g+s$) oscillation (Supplementary Information). This implies that the dimers’ dynamics near the rest state is approximately decoupled and governed by the eigenvalues $\sqrt{-g\mp s}$. If $g>s$, all modes are oscillatory, while for $g<s$, the anti-phase mode becomes unstable and is not physically realizable. Armed with these analytical insights, we proceed to numerically characterize the interesting nonlinear effects that arise in ATCs. In the simulations, we can fix $g=1$ without loss of generality, which is equivalent to dividing (2) by $g$ and rescaling $t\to t/\sqrt{g}$, $\varepsilon\to\varepsilon/\sqrt{g}$, $s\to s/g$ and $w\to w/g$.

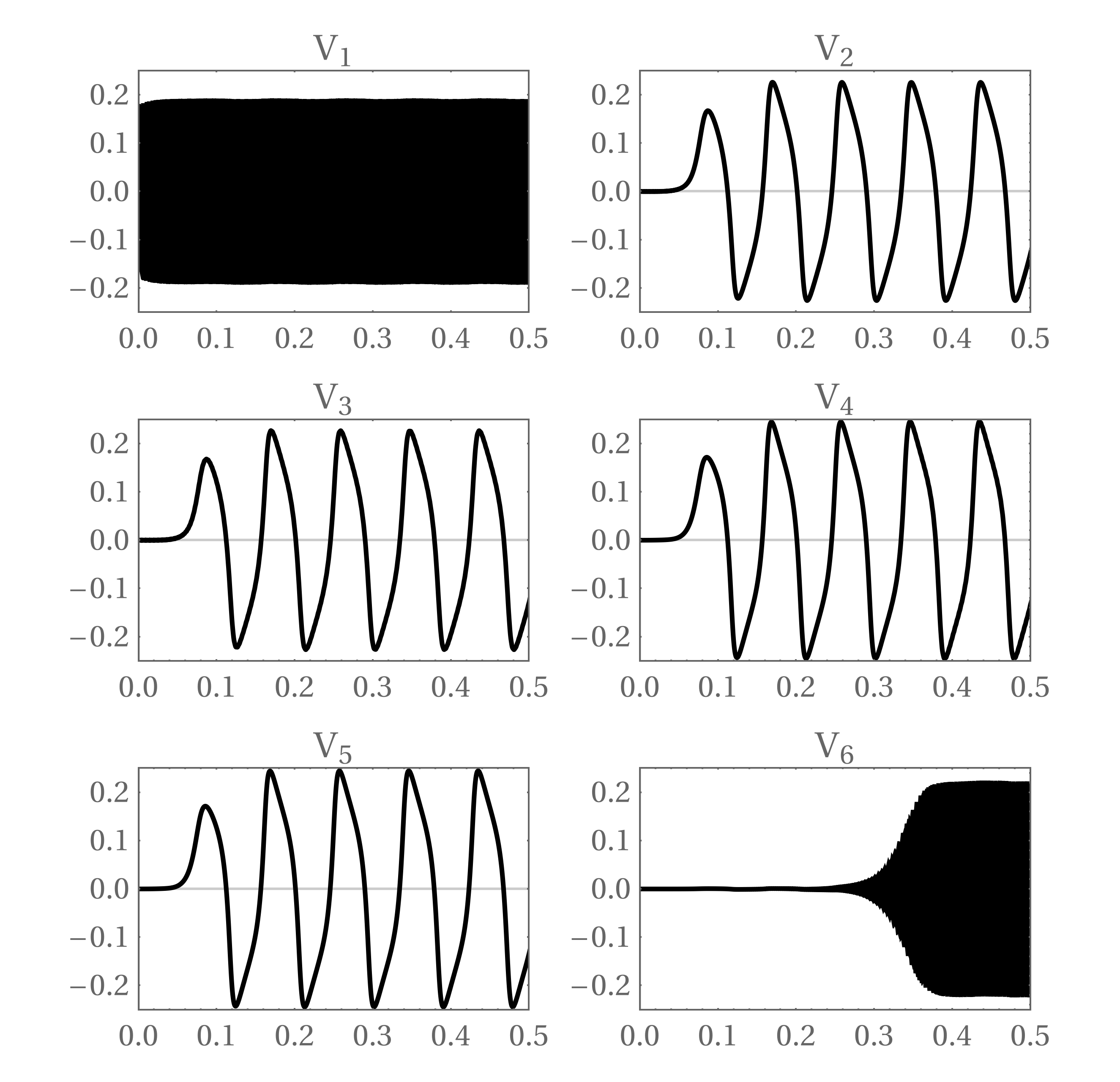

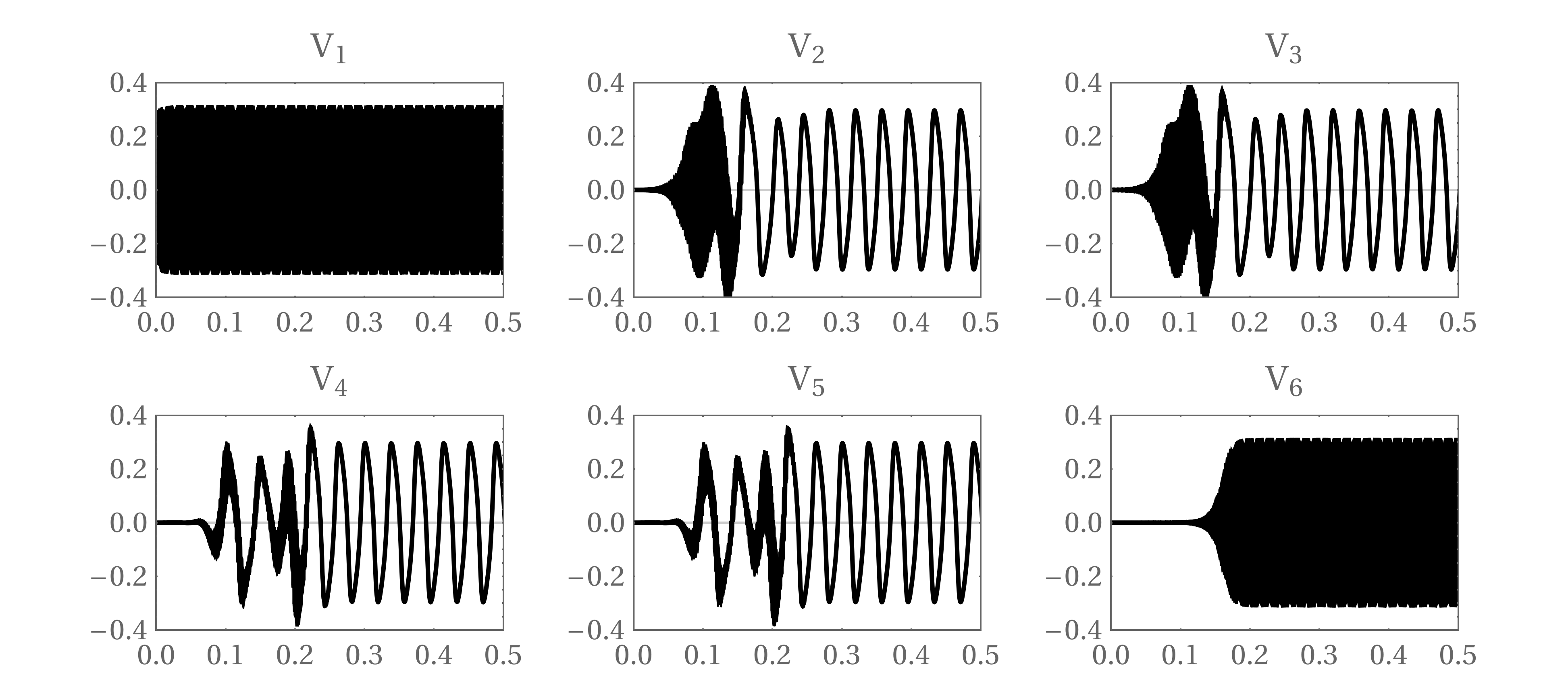

In contrast to passive ($\varepsilon=0$) topolectrical circuits, which remain quiescent in the bulk when initiated at the edge [Fig. 1(d)], ATCs with $\varepsilon>0$ exhibit complex self-organization and synchronization phenomena. To explain the underlying physical mechanisms, we consider the 1D SSH ATC from Fig. 1(b) with the same initial condition as for the passive circuit in Fig. 1(d). When one edge node of the ATC is initialized at time $t=0$, it rapidly settles into a limit-cycle oscillation [Fig. 1(e,f)], as predicted above. As it gets activated, the edge mode imparts a weak external forcing on the neighboring strongly-coupled dimer. The combination of forcing and local energy input from the negative resistance drives the dimer into its low-energy state, characterized by a slow nonlinear in-phase oscillation of the dimer nodes with period $2\pi/\sqrt{g-s}$ [Fig. 1(e,g)]. The first bulk dimer then in turn activates the second dimer, and so on, resulting in a globally synchronized bulk state. The activation front eventually reaches the last node, where it triggers the second topological edge mode [Fig. 1(f)]. The final state of the chain is a robust attractor that is self-sustained and could be used for active solitary signal transmission.

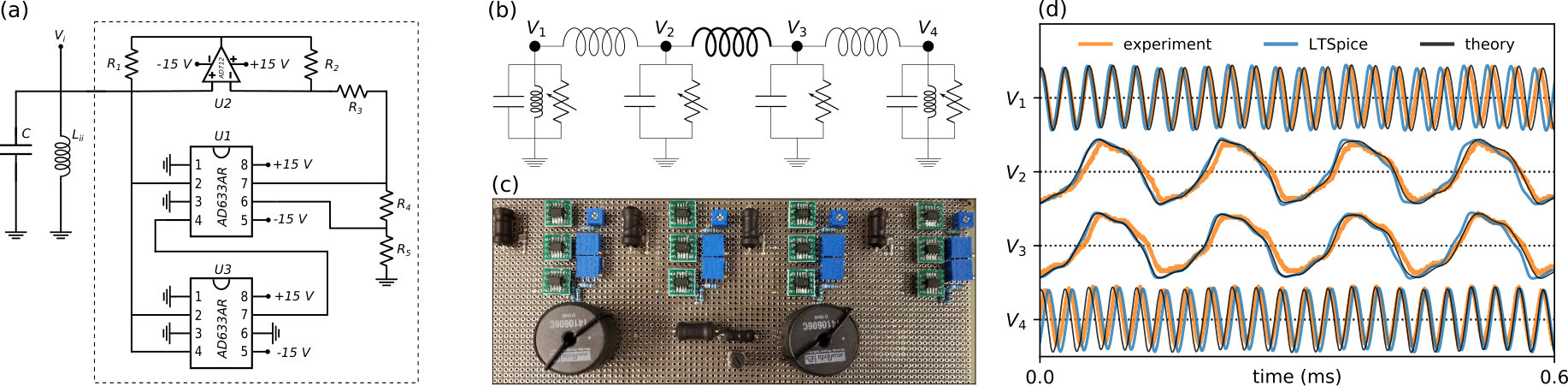

1D Su-Schrieffer-Heeger ATC: Experimental realization. As a first experimental demonstration of the underlying general concepts, we built a 1D 4-node ATC using a Chua diode circuit as the active element [Fig. 2(a,b)]. The measured time-series of the oscillator voltages exhibit the theoretically predicted topological edge modes and low-frequency bulk dynamics (Fig. 1). In the case of active circuits, the edge modes excite the bulk abruptly over the scale of just a single oscillator, even when corresponding passive circuits would exhibit exponential decay over a longer scale. The quantitative agreement of the experiments with theory as well as explicit circuit simulations (Supplementary Information)  confirms that (2) provides a predictive framework for ATCs – and that it is straightforward to realize topolectrical materials with off-the-shelf components. Indeed, the example in Fig. 2 is only one of many possible ATC implementations (Supplementary Information).

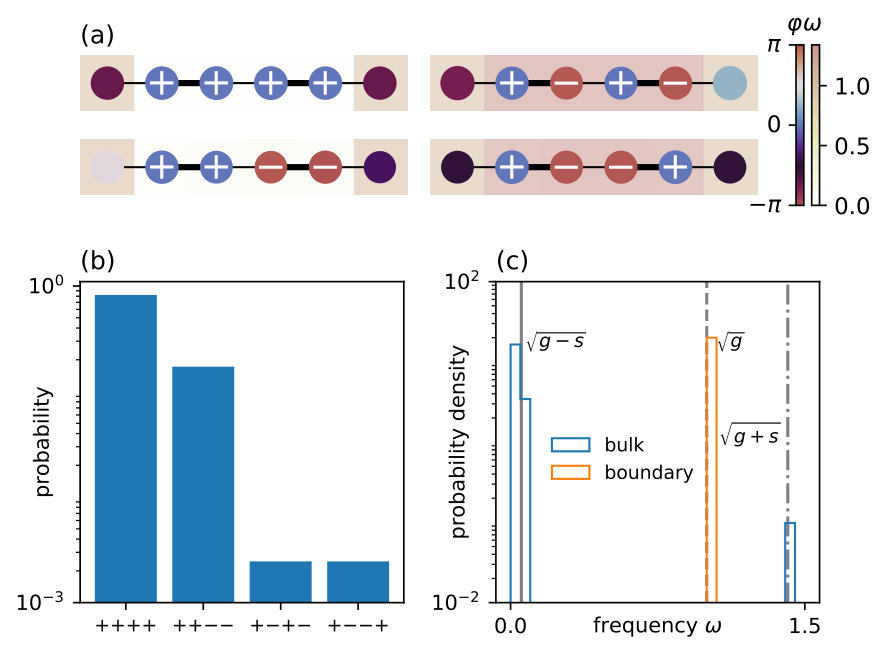

Attractor statistics. In practice, ATCs can be actuated with a wide range of initial conditions that can select different types of stable asymptotic behaviors (Fig. 3), similar to information storage in Hopfield networks. To investigate the likelihood and characteristics of possible attractors, we used (2) to simulate an active SSH circuit with $n=6$ nodes with non-zero initial conditions on the bulk. Since the edge node initial conditions become negligible in this case due to the weak edge-bulk coupling, we fixed zero-initial conditions at the edges. Thus, the topological edge modes are actuated by the bulk dynamics in these simulations. Examples of low-energy and high-energy attractors with slow and fast bulk dimer oscillations, obtained with binary initial conditions in the bulk, $x_{i}(0)=\pm 0.1$ and $\dot{x}_{i}(0)=0$, are shown [Fig. 3(a)]. These attractors can be classified in terms of the relative signs of the $n_{b}=n-2=4$ bulk voltages $x_{i}$ at a fixed time. Normalizing by the sign of the first bulk oscillator, we numerically find that there exist four different stable attractors corresponding to different possible combinations of in-phase and anti-phase dimer oscillations [Fig. 3(a)].

To estimate the likelihood of observing a specific attractor in experiments, we performed 50,000 simulations with randomly chosen bulk initial data. To explore a large neighborhood of the bulk limit cycle [Fig. 1(g)], initial conditions were sampled uniformly from the 8-dimensional domain $x_{i}(0)\in[-4,4]$, $\dot{x}_{i}(0)\in[-0.4,0.4]$. These simulations predict that, in practice, low-energy states with in-phase bulk dimers are much more likely than high-energy attractors with many anti-phase dimers [Fig. 3(b)]. Mixed in-phase/anti-phase dimer attractors are not observed for this parameter regime. Furthermore, even though the shape of the bulk limit cycles indicates a highly nonlinear relaxation dynamics [Fig. 1(g)], the numerically determined time-averaged frequencies $\langle\dot{\varphi}\rangle$, where $\varphi(t)=\arctan(\dot{x}(t)/x(t))$, agree remarkably well with the bulk oscillation frequencies $\sqrt{g\pm s}$ and boundary oscillation frequency $\sqrt{g}$ predicted by the linearized theory above [Fig. 3(c)]. Based on these observations, one expects that low-energy attractors with in-phase bulk dimer dynamics will also be dominant in more complex ATCs, and that their bulk and edge frequencies can be estimated from spectra of the coupling matrix $\bm{\beta}$ in the weak coupling limit.

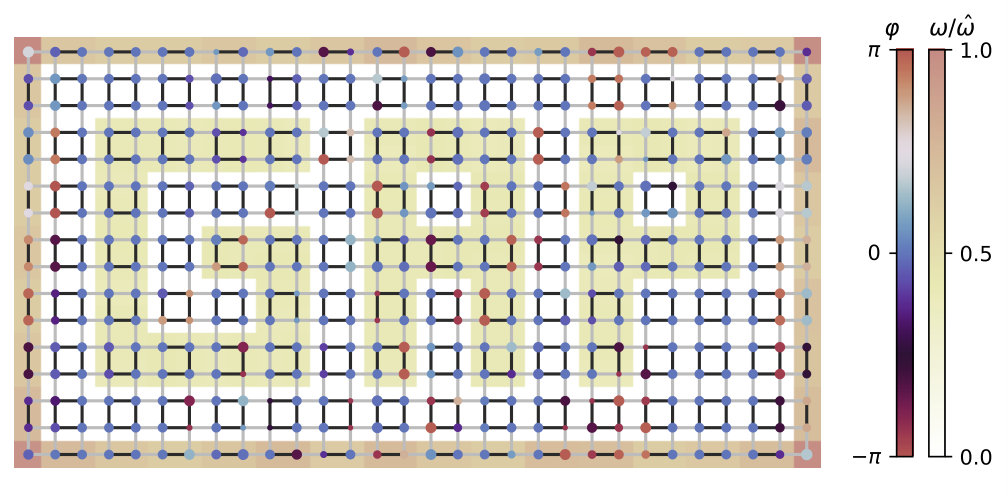

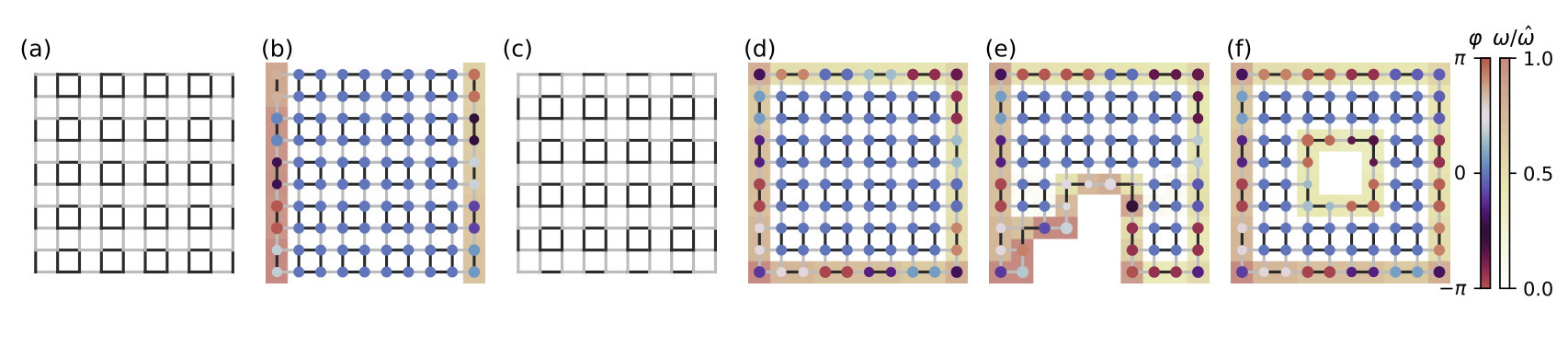

Experimental realization of a 2D SSH ATC. ATC implementations become particularly powerful in $d\geq 2$ dimensions. Different types of 2D SSH lattices can be constructed by stacking 1D SSH chains and connecting them using alternating strong and weak couplings (Fig. 4). This procedure allows the realization of two essentially different topological regimes T1 and T2, which we realized in simulations and experiments (Supplementary Information): In the T1-regime, topologically protected modes exist along two opposite edges of a finite sample [Fig. 4(a); SI Movie 1], whereas in the T2-regime such modes exist on all four of the edges including the corners [Fig. 4(b), SI Movie 2] [29]. Because essential aspects of the dynamics are qualitatively similar for both cases, we focus our discussion on the T2-regime. In this case, one can distinguish three different groups of oscillators: corner oscillators that are only weakly coupled to their neighbors, strongly coupled vdP dimers along the edges that are similar to the 1D case, and quartets of strongly coupled vdP oscillators in the bulk [Fig. 4(b,e,f,h)]. Each quartet is weakly coupled to its neighbors. Analogous to the 1D case, the linear stability of the quartets can be analyzed independently in the weak-coupling limit $w\to 0$, revealing that the lowest-frequency mode is an in-phase state $(1,1;1,1)$ with period $2\pi/\sqrt{g-2s}$ (Supplementary Information). Similar to the 1D case, in the limit $(g-2s)\to 0^{+}$, the bulk quartets collectively synchronize to the low-frequency in-phase state, avoiding mixing of bulk excitations with corners and edges [61]. However, the dimers on the boundary now oscillate at a frequency lower than that of the corner nodes, because $(g-s)\to s$ as $(g-2s)\to 0^{+}$. This opens the intriguing possibility of using topological protected modes to control oscillation patterns in 2D ATCs. In particular, by varying the ground inductances of each of the nodes one can control frequencies of each of the corner nodes, edge dimers, and bulk quartets (Supplementary Information).

Initializing the 2D active SSH circuits with a nonzero voltage at one of the corner nodes, one finds that essential qualitative features of the dynamics seen in 1D ATCs carry over to the 2D case. In particular, the boundary nodes belonging to topologically protected corner modes and edge modes become activated one after the other and settle down in their respective vdP limit cycles. Similarly, in the bulk, quartets of strongly coupled oscillators synchronize. Because the in-phase state is the lowest-energy attractor above the quiescent state, the bulk synchronizes in a global in-phase pattern [Fig. 4(b-d)]. Thus, in both 1D and 2D ATCs, topologically protected edge modes become activated via self-sustained oscillations, while the bulk dynamics is almost decoupled, leading to synchronization.

Robustness of self-excited edge modes. Crucially, this ATC self-organization principle remains valid in the presence of lattice defects, demonstrating that topological protection phenomena can survive in the nonlinear regime $\varepsilon>0$ [Fig. 4(c,d,i)]. Introducing an edge defect in a passive $(\varepsilon=0)$ 2D SSH grid by removing a few unit cells does not affect the localized nature of the edge state, which now wraps around the defect due to topological protection from the linear coupling [Fig. 4(c,i)]. Self-sustained oscillations in nonlinear active $(\varepsilon>0)$ circuits inherit this topological protection globally: in the presence of edge defects, all boundary nodes continue to oscillate at a high non-zero frequency while bulk quartets synchronize at low frequency [Fig. 4(b,e), SI Movie 3]. Similarly, bulk defects also lead to localized nonlinear edge oscillations [Fig. 4(d), SI Movie 4]. These results show that the SSH network topology can be used to precisely control the individual and collective behavior of coupled nonlinear oscillators. Furthermore, the above ideas can be extended to achieve control of active traveling wave patterns by means of non-topological defects. By strategically placing bulk defects, one can guide the self-organization of active wave patterns that can be initiated from a single corner node [Supplementary Information, SI Movie 5]. More broadly, these results open a path towards the inverse design of functionalized active topolectrical networks [62] in the future.

General design rules for ATCs. The above analysis, combined with insights from earlier studies [4, 5, 44, 26], suggests general design principles for ATCs, by additively combining local Rayleigh-type activity with suitably designed conservative node coupling interactions  [63, 62]. Previous investigations [64, 5, 44, 62] showed that, in the low-to-moderate activity regime, nonlinear Rayleigh-type driving mechanisms often select dynamical attractors that reflect the mode structure of the corresponding non-driven system. In these cases, the nonlinear driving determines the mode amplitudes while quadratic expansions of the interaction potentials determine the mode characteristics. Conversely, recent studies [26, 62] have demonstrated that, by designing the linear response of nonlinear mechanical networks, one can control the spectral features, such as band gaps, of self-excited waves in the presence of activity. Building on this general idea, the above experimental realizations of ATCs provide an extension to lattices with structured linear couplings that support self-sustained topologically protected phononic excitations. An interesting direction for future research is the design and implementation of autonomous electrical circuits that combine structured nonlinear (e.g. Toda-like [4, 36]) couplings with nonlinear activity, which can be expected to support self-sustained solitonic [4, 44] edge excitations.

Conclusion

Active topolectrical circuits promise a wide range of applications, from active wave guides to autonomous electronic circuits with topologically protected functionalities. The framework developed here can be integrated with recently developed methods for the inverse design of network-based metamaterial structures [65, 63], to optimize and tailor the node couplings and transmission properties. The close agreement with our 1D and 2D experiments suggests that the generic ATC model from (2) provides a useful theoretical basis for the implementation of more complex ATCs. For example, by designing the coupling matrix $\bm{\beta}$ such that the associated dynamical matrix possesses chiral [50] or other symmetries, one can realize different topological phases by utilizing generic vdP-type nonlinearities. Another intriguing prospect is the possibility of creating and studying electronic metamaterials with effective dimensions $d>3$ that appear to be difficult to access otherwise. Beyond man-made devices, the above results suggest that it would be interesting to explore whether active biological circuits [66, 67] may use topological coupling regimes to facilitate robust signal transport and information storage.

Materials and Methods

Non-dimensionalization of variables and parameters

Given a lattice circuit, we state the equations of its voltage dynamics using Kirchoff’s laws as follows:

[TABLE]

where $V_{i}$ is the voltage, $C$ is the capacitance, $L_{ii}$ is the ground inductance, and $\alpha$ and $\gamma$ are the van-der-Pol (vdP) parameters of the oscillator at node $i$, while $L_{ij}$ are the coupling inductances between nodes $i$ and $j$. The coupling inductances can be either of $L_{w}$ or $L_{s}$ where the subscripts $w$ and $s$ stand for weak and strong coupling respectively ($1/L_{w}<1/L_{s}$). Note that for nodes $i$ and $k$ that are not connected, we have $1/L_{ik}=0$.

We introduce a voltage scale $V_{i}=V_{0}\hat{V}_{i}$, a time scale $t=\tau\hat{t}$, and we scale all the inductances by the smallest inductance, say $L_{0}$, to get $L_{ij}=L_{0}\hat{L}_{ij}$ for all $i$ and $j$. For $\tau$, we use the natural time scale of an oscillator such that $\tau=\sqrt{L_{0}C}$, and the voltage scale is given by $V_{0}=\sqrt{\alpha/(3\gamma)}$. The dimensionless dynamics is then given by (2) where $\hat{V}_{i}=x_{i}$, $\varepsilon=\alpha\sqrt{L_{0}/C}$, $\beta_{ij}=-L_{0}/L_{ij}$ for $i\neq j$, and $\beta_{ii}=L_{0}(1/L_{ii}+\sum_{\begin{subarray}{c}k\\ k\neq i\end{subarray}}1/L_{ik})$.

In  (3), the weak and strong couplings are given by $w=L_{0}/L_{w}$ and $s=L_{0}/L_{s}$ respectively, while $L_{ii}$ are chosen such that $g=L_{0}(1/L_{ii}+\sum_{\begin{subarray}{c}k\\ k\neq i\end{subarray}}1/L_{ik})$ for each $i$. The coupling matrix can be generalized by replacing $g$ by $g_{i}$.

Circuit implementation

A detailed description of the two circuit designs based on Chua’s diode [68] and nonlinear resistors [4], respectively, and the component parameters used in our experiments is given in the Supplementary Information.

Acknowledgements.

J.D. would like to thank the Isaac Newton Institute for Mathematical Sciences for support and hospitality during the program ‘The Mathematical Design of New Materials’ (supported by EPSRC grant EP/R014604/1) when work on this paper was undertaken. This work was supported by a James S. McDonnell Foundation Complex Systems Scholar Award (J.D.), the MIT Solomon Buchsbaum Research Fund (J.D.) and Robert E. Collins Distinguished Scholar Fund (J.D.). The work in Würzburg is funded by the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) through Project-ID 258499086 - SFB 1170 and through the Würzburg-Dresden Cluster of Excellence on Complexity and Topology in Quantum Matter – ct.qmat Project-ID 39085490 - EXC 2147. J.D. conceived the project. T.Ko. and H.R. performed numerical simulations and analytical calculations and analyzed data. F.M., A.S., S.I, H.B, T.Ki. constructed and analyzed experiments. All authors contributed to writing the manuscript. T.Ko. and F.M. contributed equally and are joint first authors.

I Eigenvalues of the coupling matrix

We analyze the linear stability of the quiescent state ($x_{i}=0$) of Eq. (2) in the main text. We find for small deviations, by setting $\dot{x}=y$

[TABLE]

The eigenvalue equation immediately gives us

[TABLE]

where $\mu$ is an eigenvalue of $\beta$ and $\lambda$ is an eigenvalue of the Jacobian. Thus, we obtain

[TABLE]

to conclude that the most unstable mode occurs for $\mu$ minimal.

First, we compute the eigenvalues of the coupling matrix. We define

[TABLE]

where $B_{n}$ is an $n\times n$ matrix and $C_{n-1}$ is an $(n-1)\times(n-1)$ matrix. Then the characteristic polynomial satisfies the recursion,

[TABLE]

with initial conditions $\chi(B_{2},\mu)=(g-\mu)^{2}-w^{2}$ and $\chi(C_{1},\mu)=g-\mu$. For simplicity we solve them in the fully dimerized limit, i.e., in the limiting case, $w=0$, we find that

[TABLE]

with two modes corresponding to eigenvalue $g$ (the topological edge modes), and rest of the modes corresponding to the symmetric eigenvalues $g\pm s$.

The eigenvectors $x_{i}$ belonging to the eigenvalue $g$ are $\begin{pmatrix}1&0&\dots&0\\ \end{pmatrix}^{\intercal}$ and $\begin{pmatrix}0&\dots&0&1\\ \end{pmatrix}^{\intercal}$ which are precisely the topological edge modes. Further, the eigenvectors corresponding to $g-s$ are the modes

[TABLE]

and those belonging to the eigenvalue $g+s$ are the modes

[TABLE]

The most unstable modes are those with the minimum eigenvalue, which are the degenerate ones belonging to $g-s$. Thus, this explains why the in-phase state is the probabilistically more preferred state. This concludes the analysis near the quiescent state.

We have shown that the quiescent state is unstable by finding the ‘most preferred’ eigenvectors if perturbed. We now analyze the behavior of the system away from the quiescent state. To simplify analysis, it is often useful to consider the system in the fully dimerized limit ($w=0$). This amounts to analyzing sub-circuits made up of nodes that are only strongly coupled to each other. In essence, we are treating the ‘strong’ sub-circuit as independent to the rest of the network since it is connected to the rest of the network only through weak bonds (in other words, assume the weak bonds have zero strength).

II Fully dimerized limit

For the 1D SSH chain, in the fully dimerized limit, the system decouples into two isolated oscillators from the boundary nodes, and the rest–oscillator pairs from the bulk, called dimers. The dynamics of an isolated oscillator is given by

[TABLE]

whose natural frequency is $\sqrt{g}/(2\pi)$. In the topological state, the edge nodes of the SSH chain will oscillate with this frequency. The internal dynamics of a dimer however are given by the equations

[TABLE]

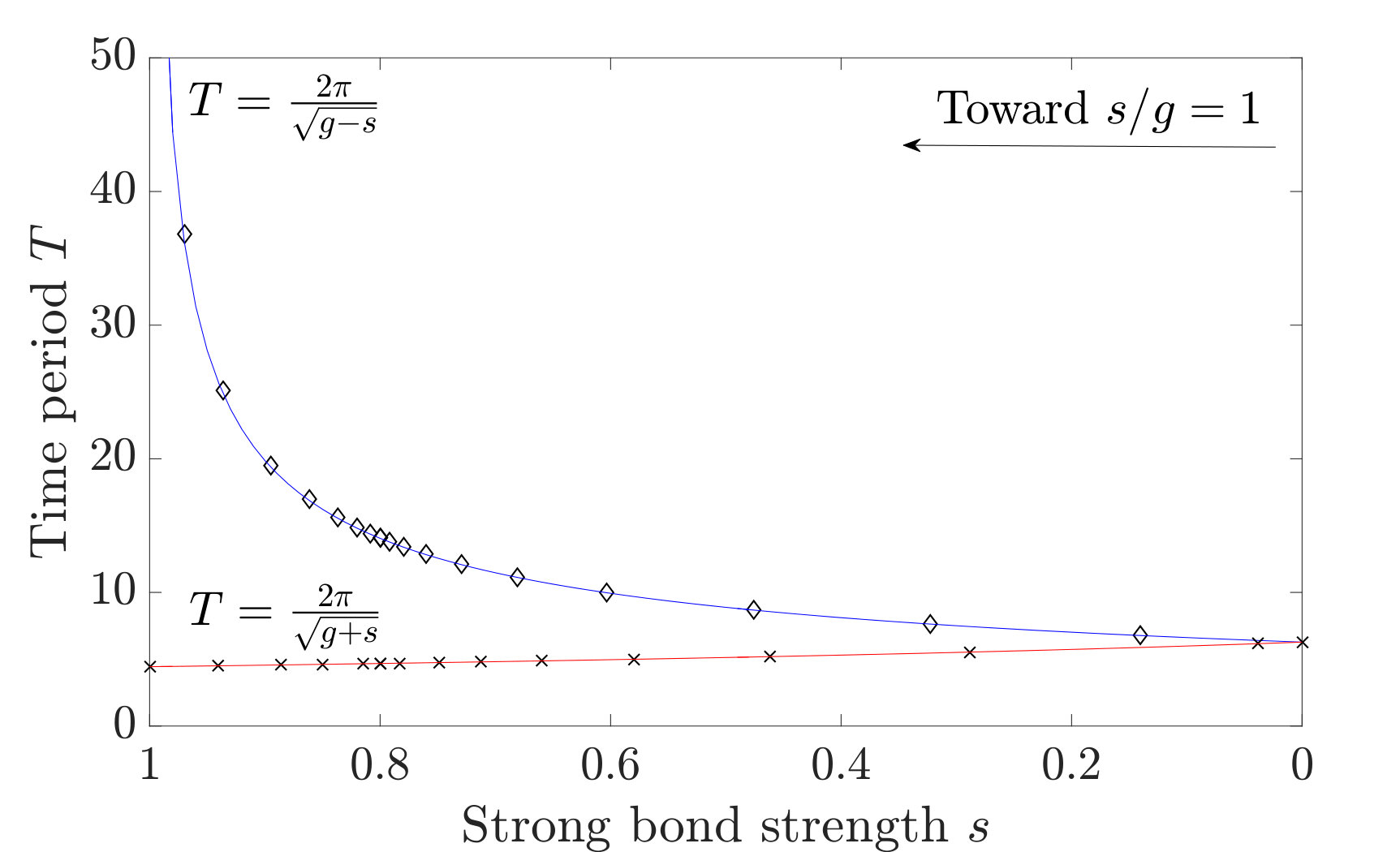

where $x_{1}$ and $x_{2}$ are the voltages of two adjacent nodes that are connected through a strong bond. It can be shown using eigenmode analysis, that the eigen-directions of the coupling matrix are $\begin{pmatrix}1&1\\ \end{pmatrix}^{\intercal}$ (in-phase) and $\begin{pmatrix}1&-1\\ \end{pmatrix}^{\intercal}$ (anti-phase) with frequencies $\sqrt{g-s}/(2\pi)$ and $\sqrt{g+s}/(2\pi)$ respectively.

We see that the eigenmodes of the decoupled dimers and boundary nodes are consistent with the eigenmodes of the whole chain. In Fig. S1, there is a strong agreement between the time period of fully dimerized sub-circuits and that of the bulk nodes in the SSH chain. Thus, we have validation that taking the fully dimerized limit is in fact accurate and hence, can prove to be advantageous as shown. It also explains why in the topological regime, we have characteristically different behavior for the boundary (isolated nodes) and the bulk (dimers).

In the same way, we extend this theory for the 2D stacked SSH sample in which we analyze bulk quartets. The internal dynamics is given by a ring of van der Pol oscillators

[TABLE]

Once again, it can be shown that the eigenmodes of the coupling matrix include the in-phase state (denoted by $\begin{pmatrix}1&1;&1&1\\ \end{pmatrix}$) and the anti-phase states (either $\begin{pmatrix}1&-1;&-1&1\\ \end{pmatrix}$ or $\begin{pmatrix}1&1;&-1&-1\\ \end{pmatrix}$ depending on which topological regime the network is in). It can be shown that the in-phase state is more stable than the anti-phase states, thereby favoring synchronization in the bulk. The natural frequencies of the bulk are calculated to be $\sqrt{g\pm s\pm s}/(2\pi)$.

III Frequency control

We generalize the coupling matrix in Eq. (3) of the main text, by replacing $g$ by $g_{i}$ to get

[TABLE]

where $g_{i}=L_{0}(1/L_{ii}+\sum_{\begin{subarray}{c}k\\ k\neq i\end{subarray}}1/L_{ik})$ such that $L_{ii}$ can be chosen independently for each $i$. Since the frequencies of the dimers and quartets are proportional to $\sqrt{g_{i}\pm s}$ and $\sqrt{g_{i}\pm s\pm s}$ respectively, by varying $L_{ii}$ appropriately, we can precisely control the frequency of each of the isolated nodes, dimers and quartets. We exploit this technique to construct two ATCs with specific frequency patterns.

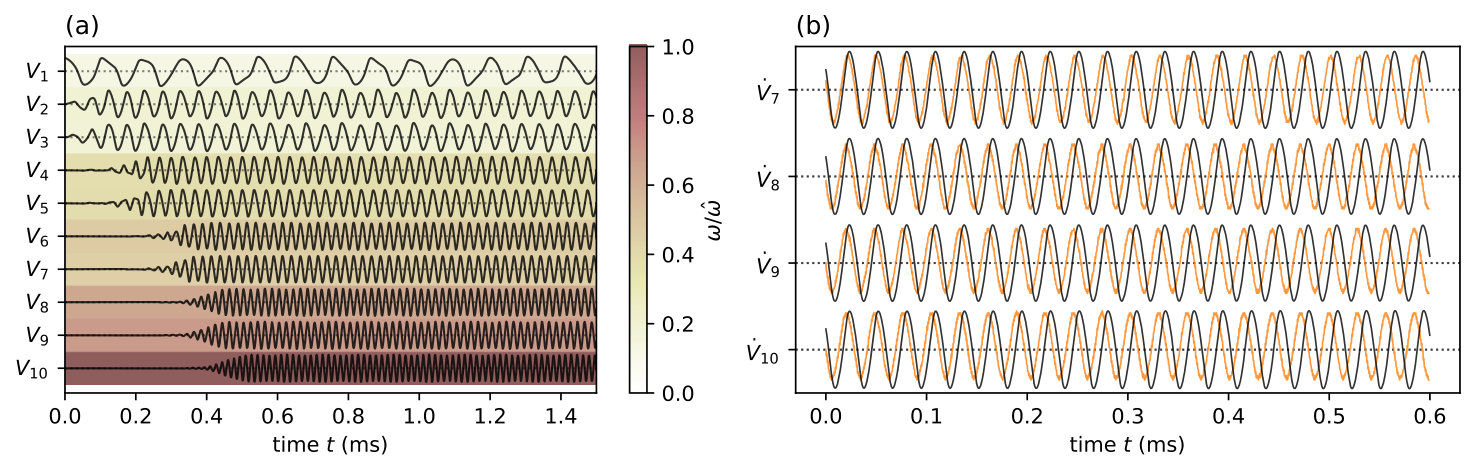

In Fig. S2 (a), we construct a 1D SSH chain of 10 nodes where the ground inductances are chosen such that there is an increase in frequency by $10\,\mathrm{kHz}$ with each successive dimer/isolated node along the length of the chain. We obtain a precise, localized frequency pattern as can be seen via the background color darkening along the length of the chain.

In Fig. S2 (b), we consider a square 2D SSH sample in the T2-corner mode regime. Choosing the ground inductances of all nodes to be equal, say $L$, we get the same in-phase frequency for all of the isolated nodes, dimers and quartets. This can be seen via the following computations:

[TABLE]

where the subscripts $c$, $e$ and $b$ stand for corner (isolated), edge (dimer) and bulk (quartet) respectively. This leads to a probabilistically favored synchronized state where the frequency of all nodes are equal. For the experiment, we make use of the same parameters used in Tab. S2 except that we include ground inductances for the bulk nodes this time. Once again, due to its topological nature, such states are robust against lattice defects.

IV Topological edge and corner modes

In Fig. S3 we show the results of numerical simulations of the two major configurations of 2D SSH models, T1 and T2. The major features of passive topological excitations are preserved in the nonlinear, active regime.

V Oscillatory pattern control

By selectively switching strong to weak bonds in the bulk, it is possible to introduce local defects which self-excite into higher frequency active oscillations that can be used to design large-scale patterns (Fig. S4).

VI Activity only on the boundary

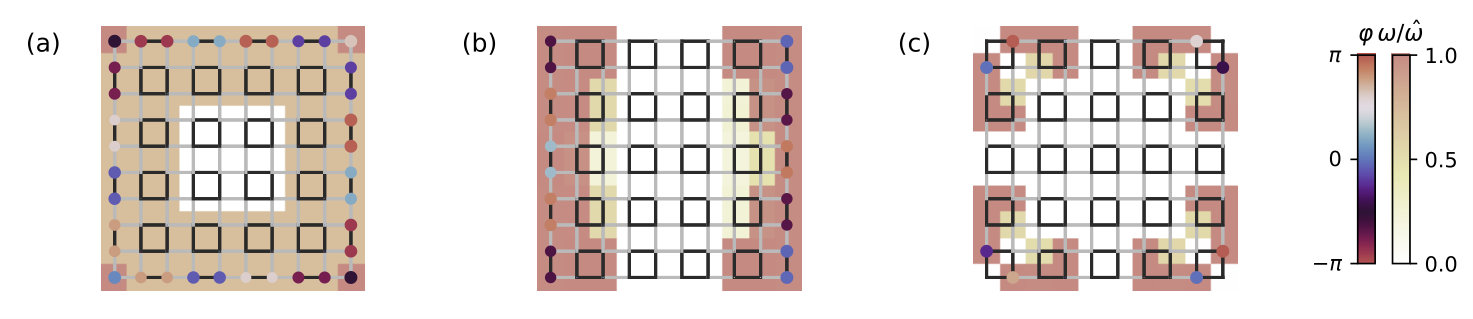

Global patterns can be realized in classical topological insulators by adding activity only to the boundary. This results in patching up of the localized topological modes giving rise to a global, robust state. Moreover, these states can be excited from the bulk as seen in the following simulations. We investigate by considering a $10\times 10$ 2D SSH sample in the T1-edge mode regime, T2-corner mode regime and the non-topological regime (Fig. S5). Upon enabling activity only on the boundary, we excite the global topological state via an initial condition in the bulk. We observe that the samples in the topological regimes (a,b) display the same topological patterns with the added feature of exponential decay in amplitude as seen in classical passive systems. However, for the non-topological regime (c), we obtain oscillations only on nodes adjacent to the corners, indicating that global patterns in ATCs are not a consequence of adding activity alone; topology is also essential.

VII Experimental realization using Chua’s circuit

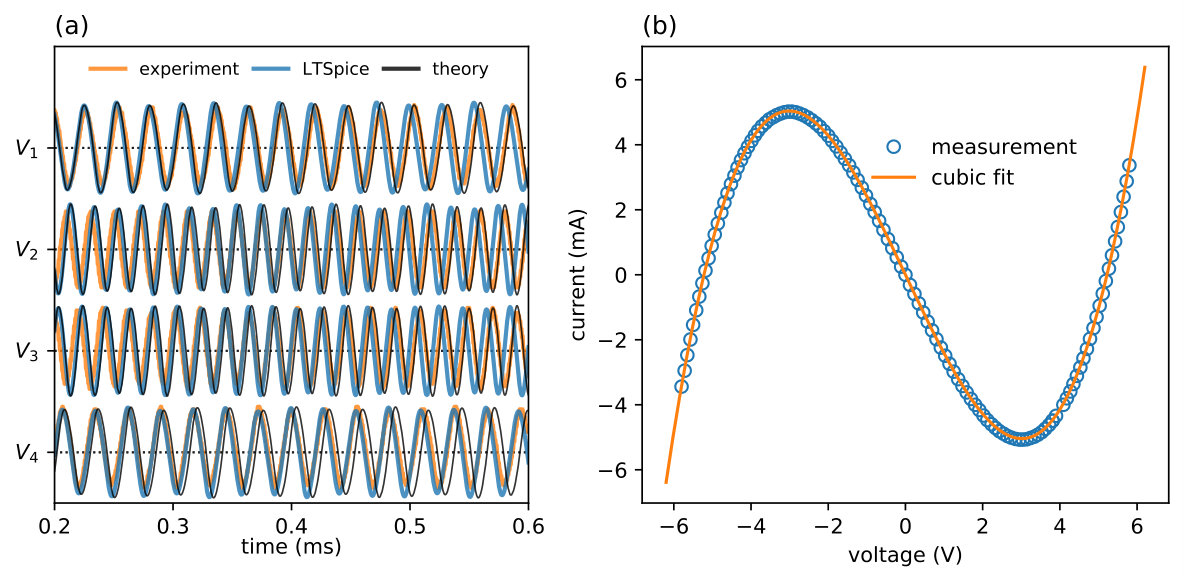

Our first experimental realization of an active topolectrical circuit implements a 4-node version of the circuit in Fig. 1(b) for nodes $V_{1}$ to $V_{4}$. The individual circuit elements are off-the-shelf components from Digi-Key Electronics (Digi-Key Electronics, Thief River Falls, MN, U.S.A). For the active nonlinear resistance, we constructed a realization of Chua’s diode [68] [Fig. 2(a)], which features a cubic current-voltage relationship. We measured the current through the Chua circuit when applying a voltage $V_{i}$ and found almost perfectly cubic behavior [Fig. S6(b)]. We fitted the curve to a cubic polynomial and discarded the small constant and quadratic terms, which resulted in the simplified model $I(V)=-\alpha V+\gamma V^{3}$, which is also shown in Fig. S6(b). The parameters of all circuit elements are collected in Tables S1 and S2.

The circuits were powered using two Extech 382260 80W switching DC power supplies (FLIR Commerical Systems, Nashuah, NH, U.S.A.), and measurements were taken using a Rigol DS 1054Z 4-channel digital oscilloscope (Rigol Technologies U.S.A., Beaverton, OR, U.S.A.).

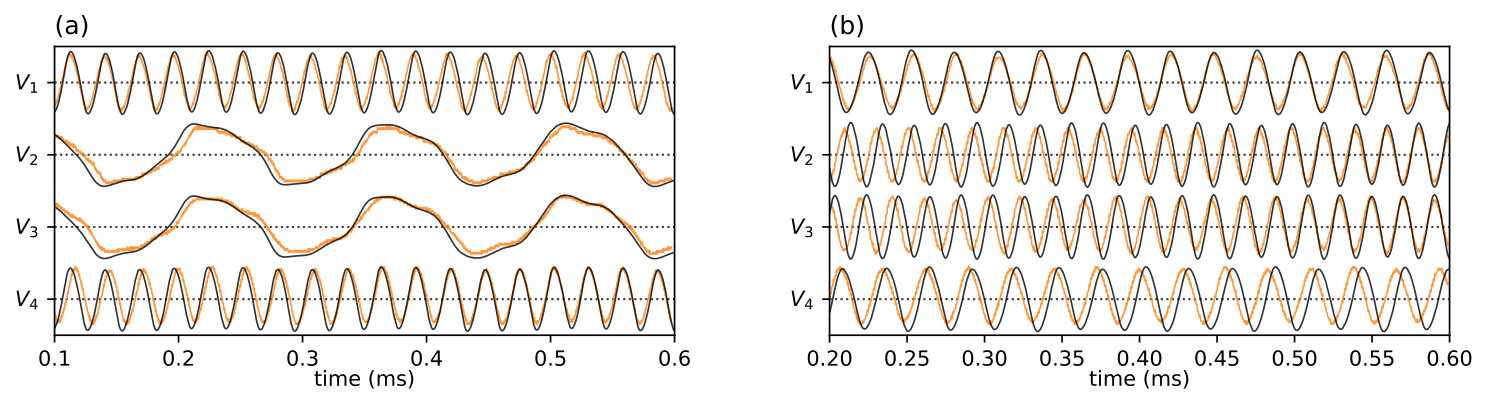

Fig. S6 (a) shows an alternate dynamical attractor which is the high-energy bulk oscillation obtained using anti-phase initial conditions. This state is achieved using the same experimental setup in Fig. 2.

VIII Alternative experimental realization

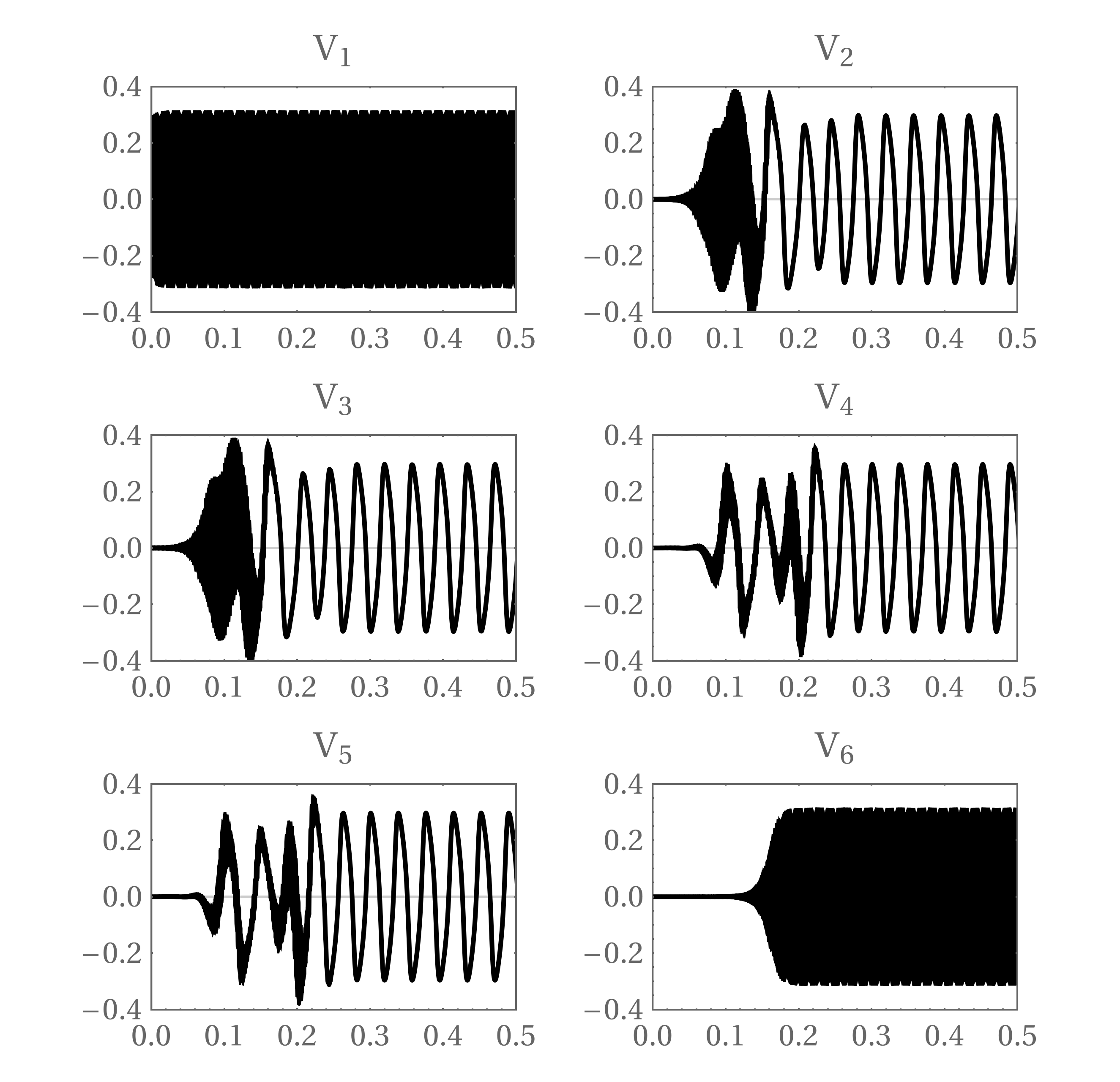

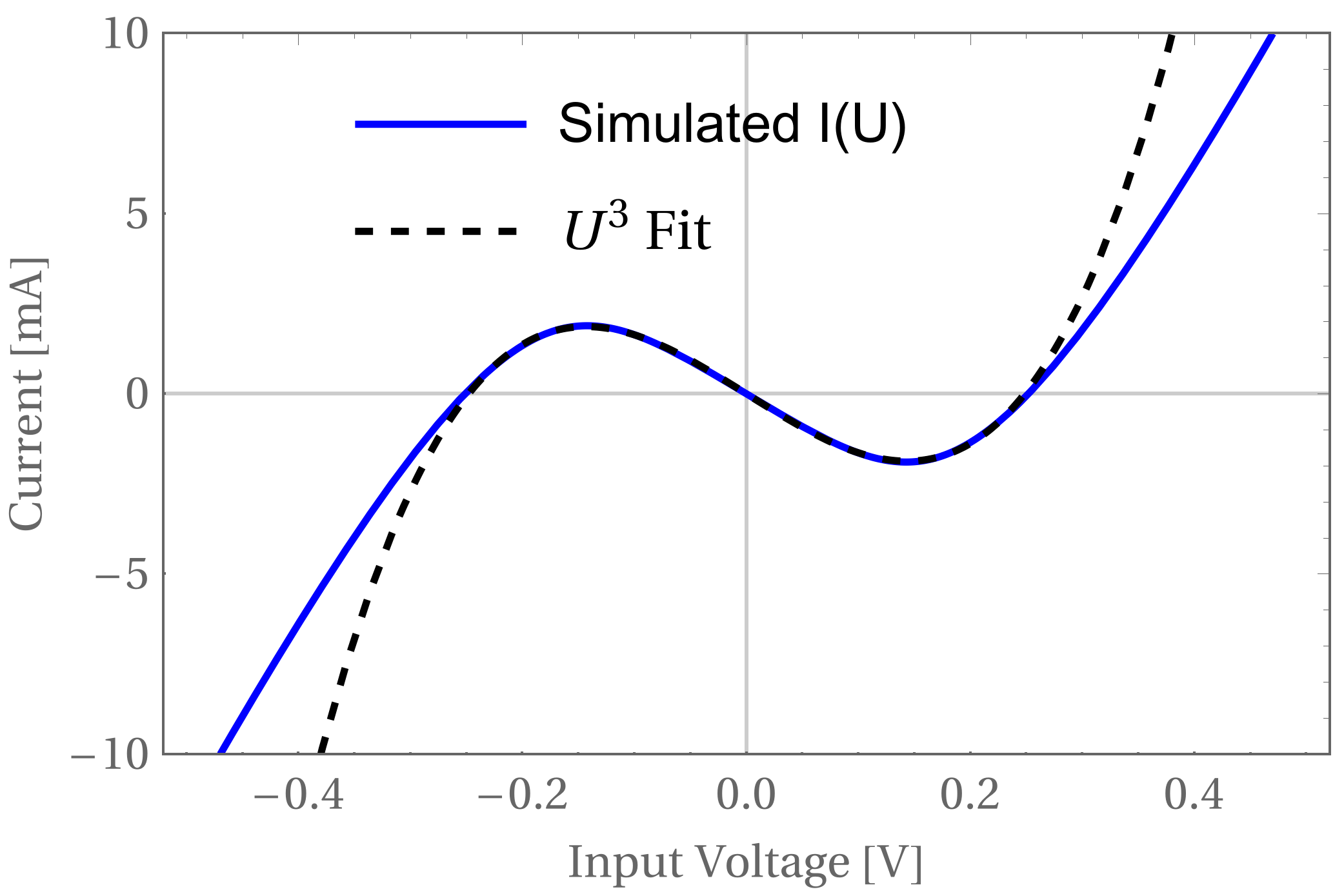

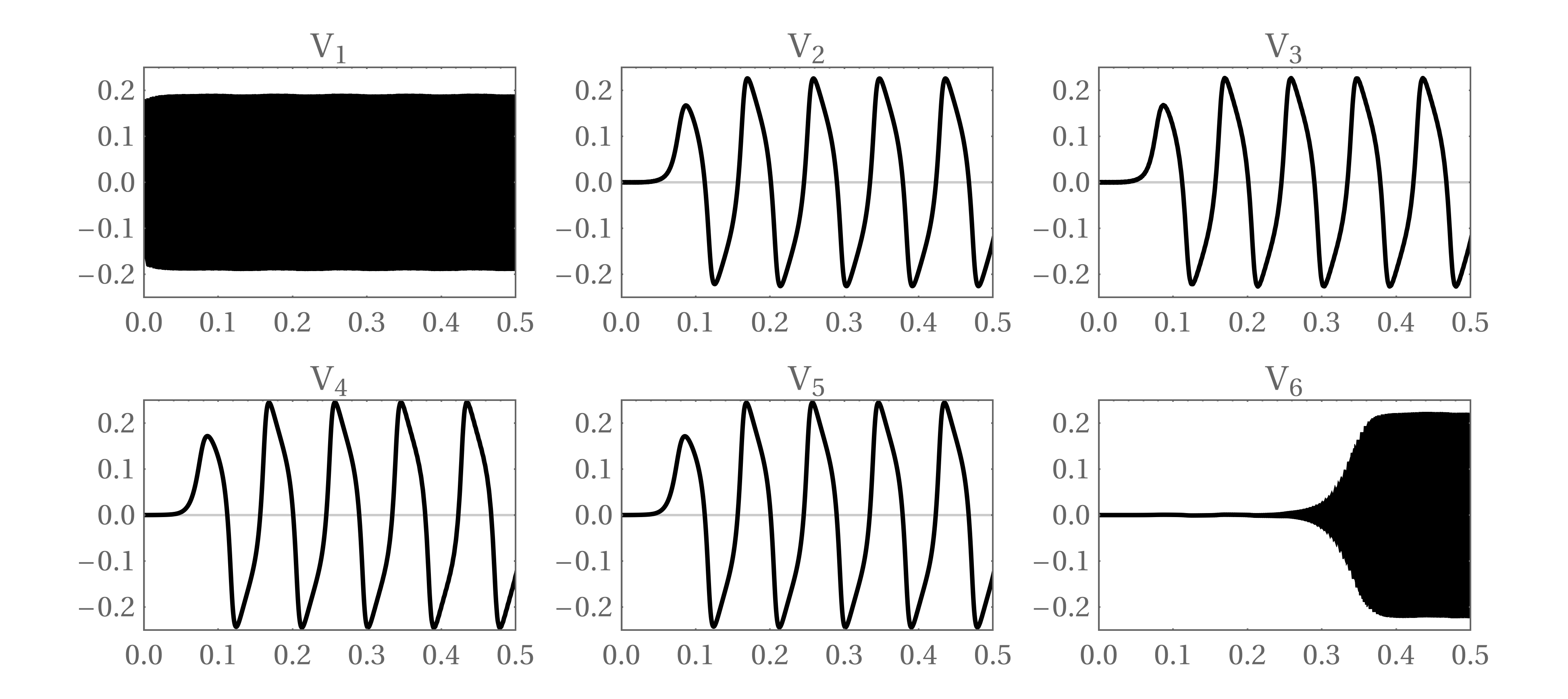

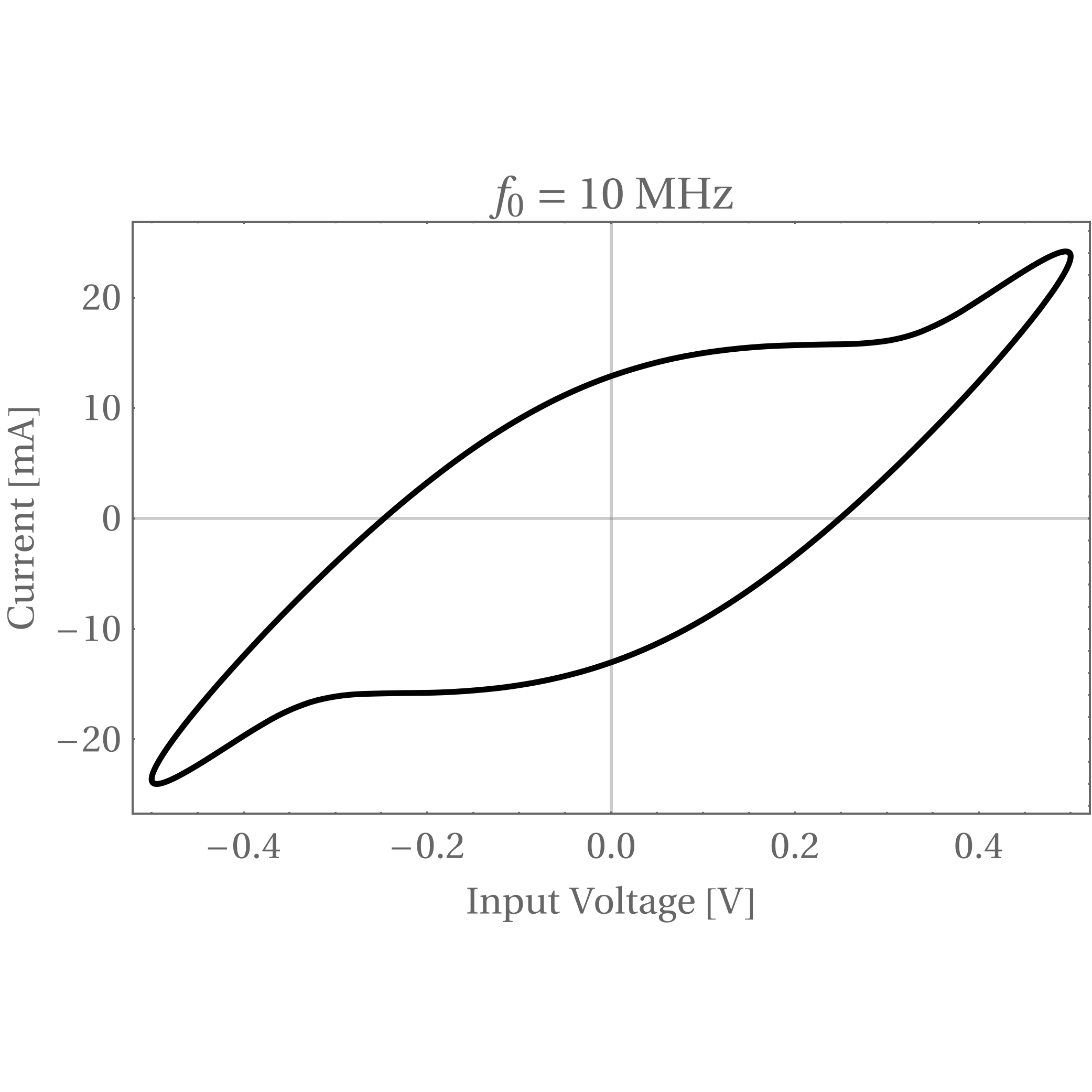

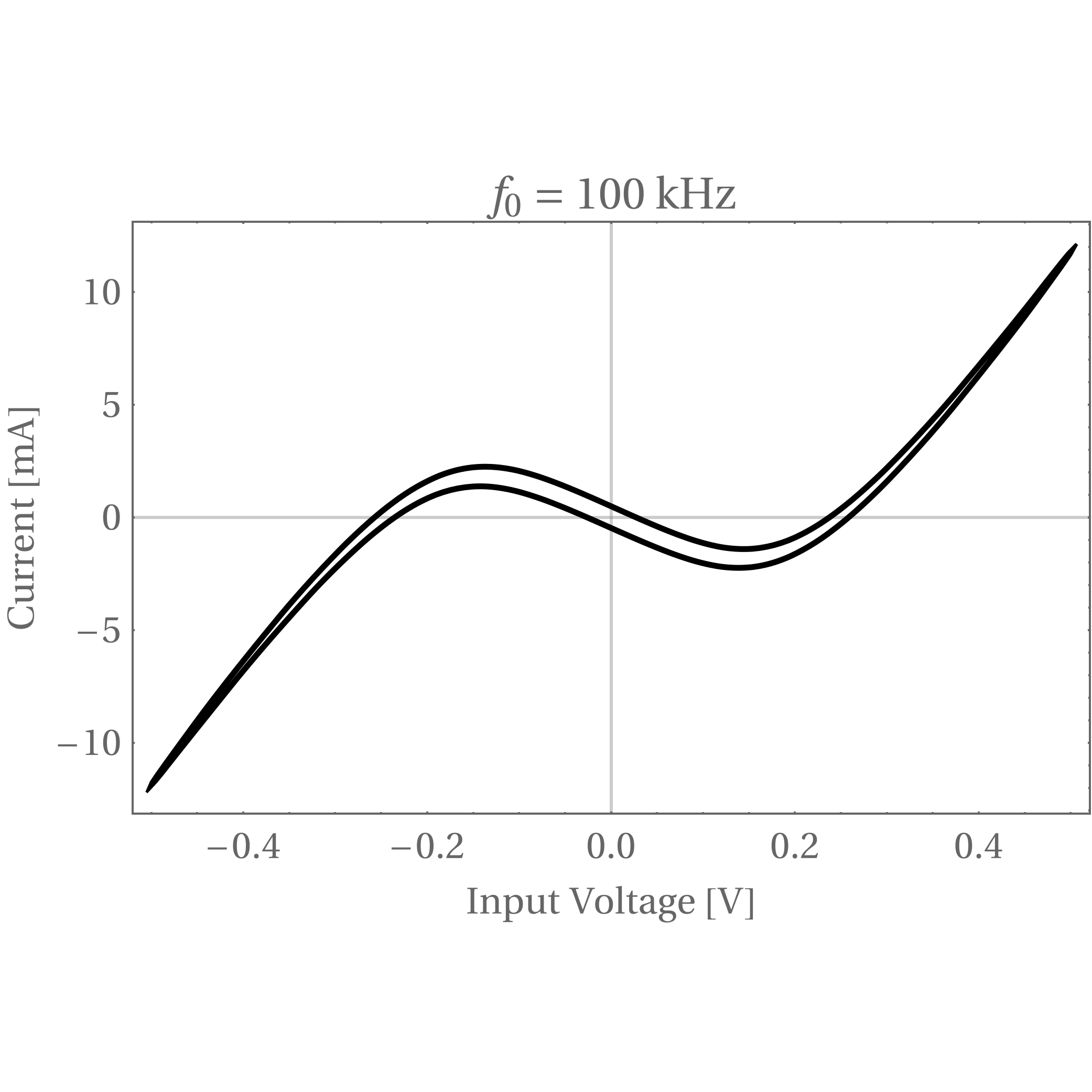

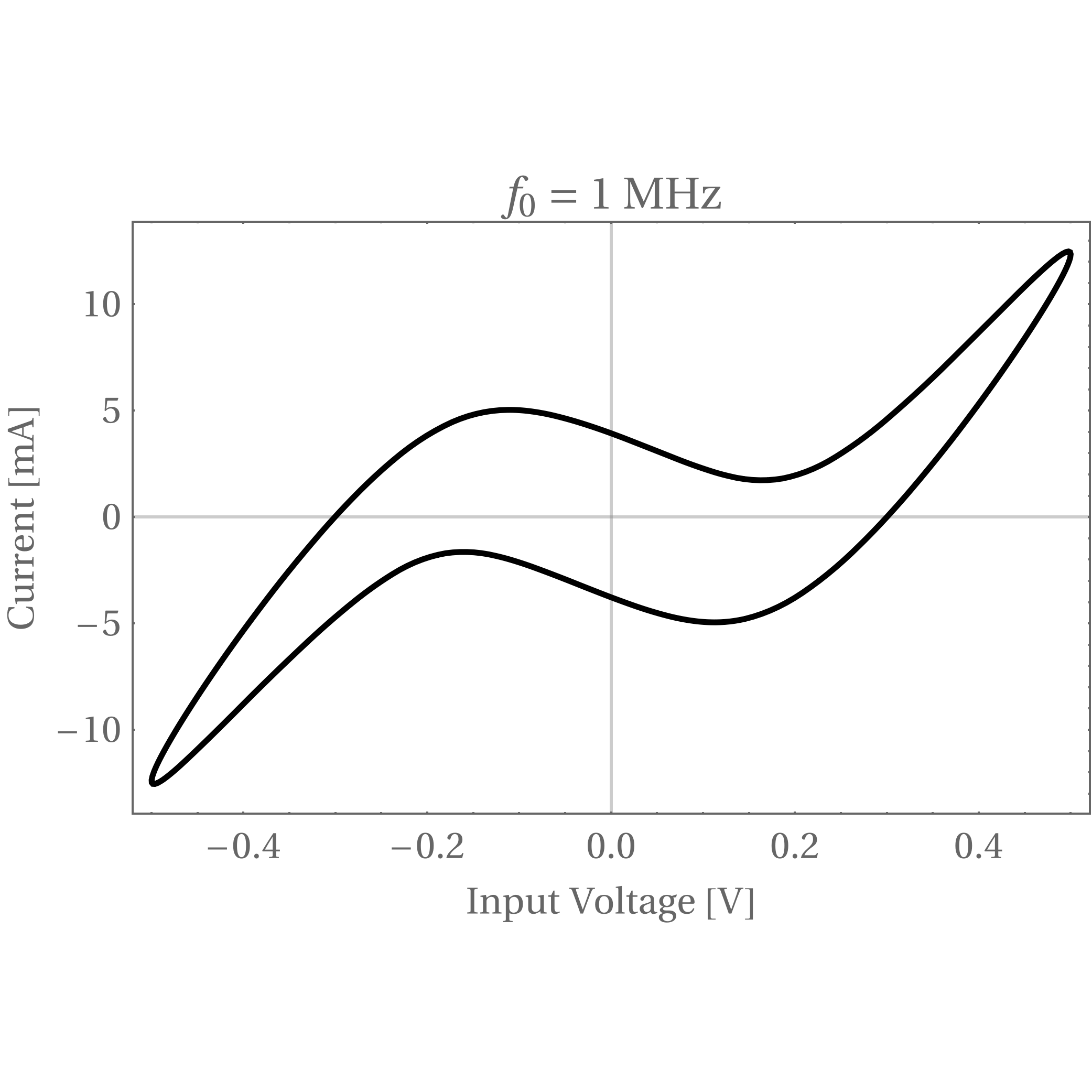

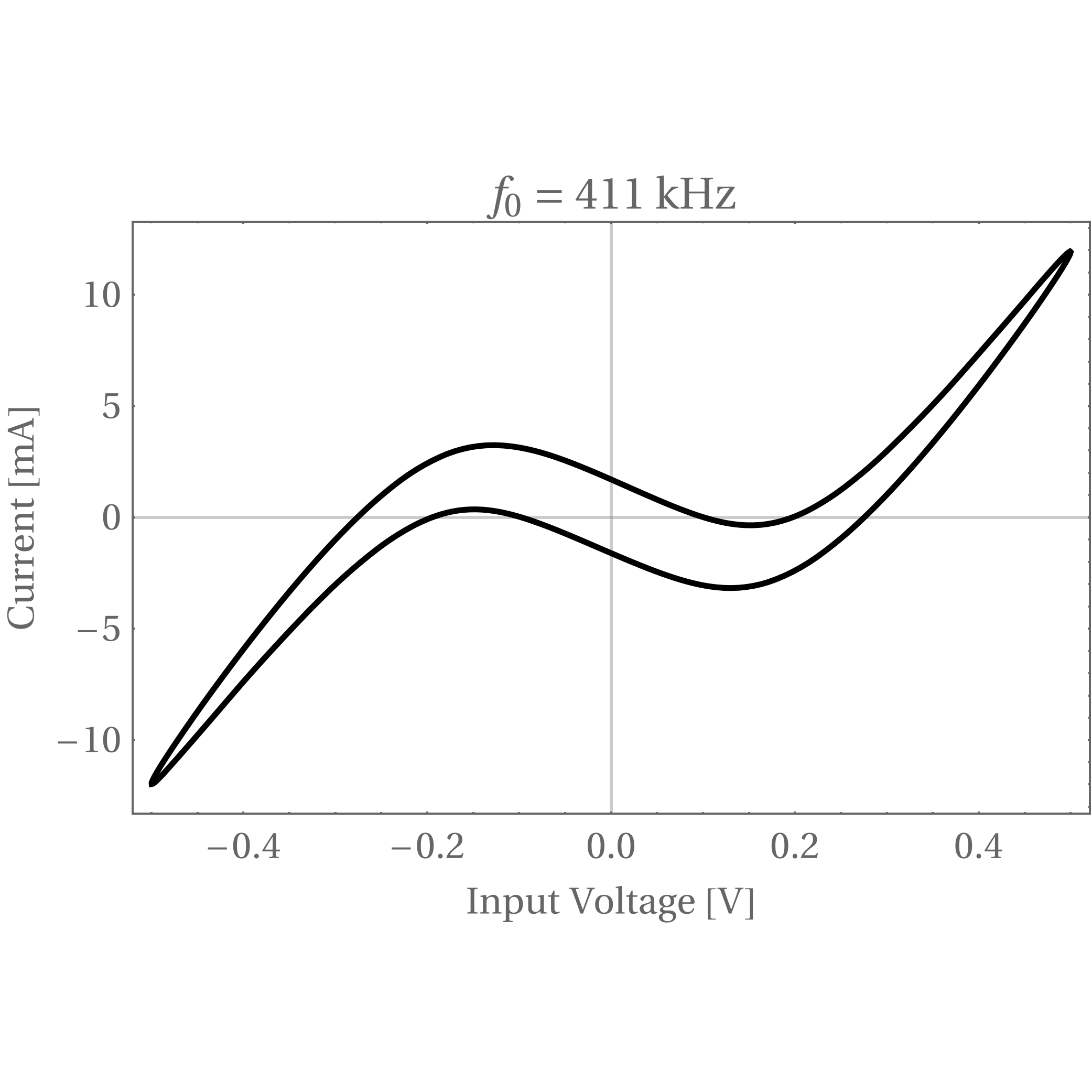

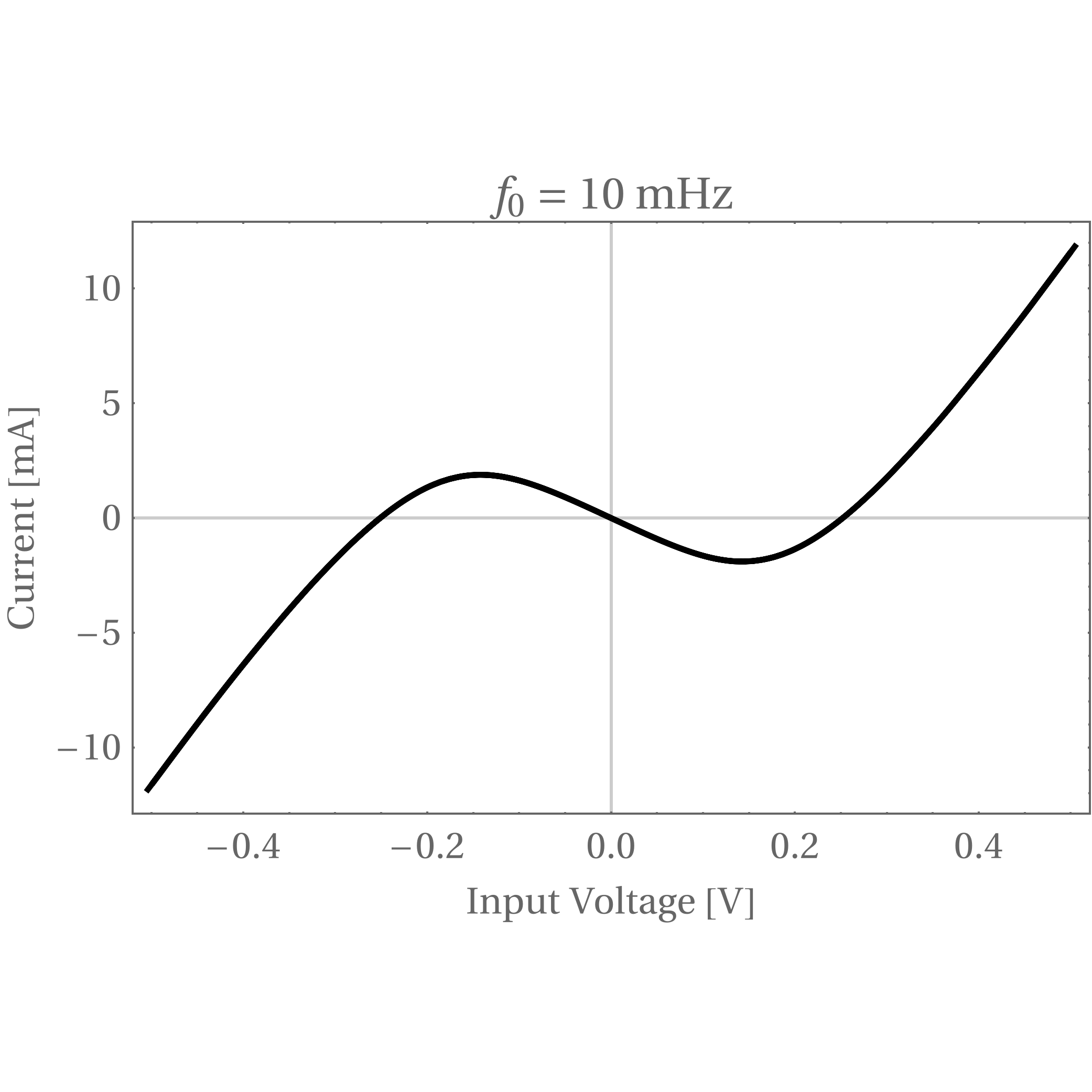

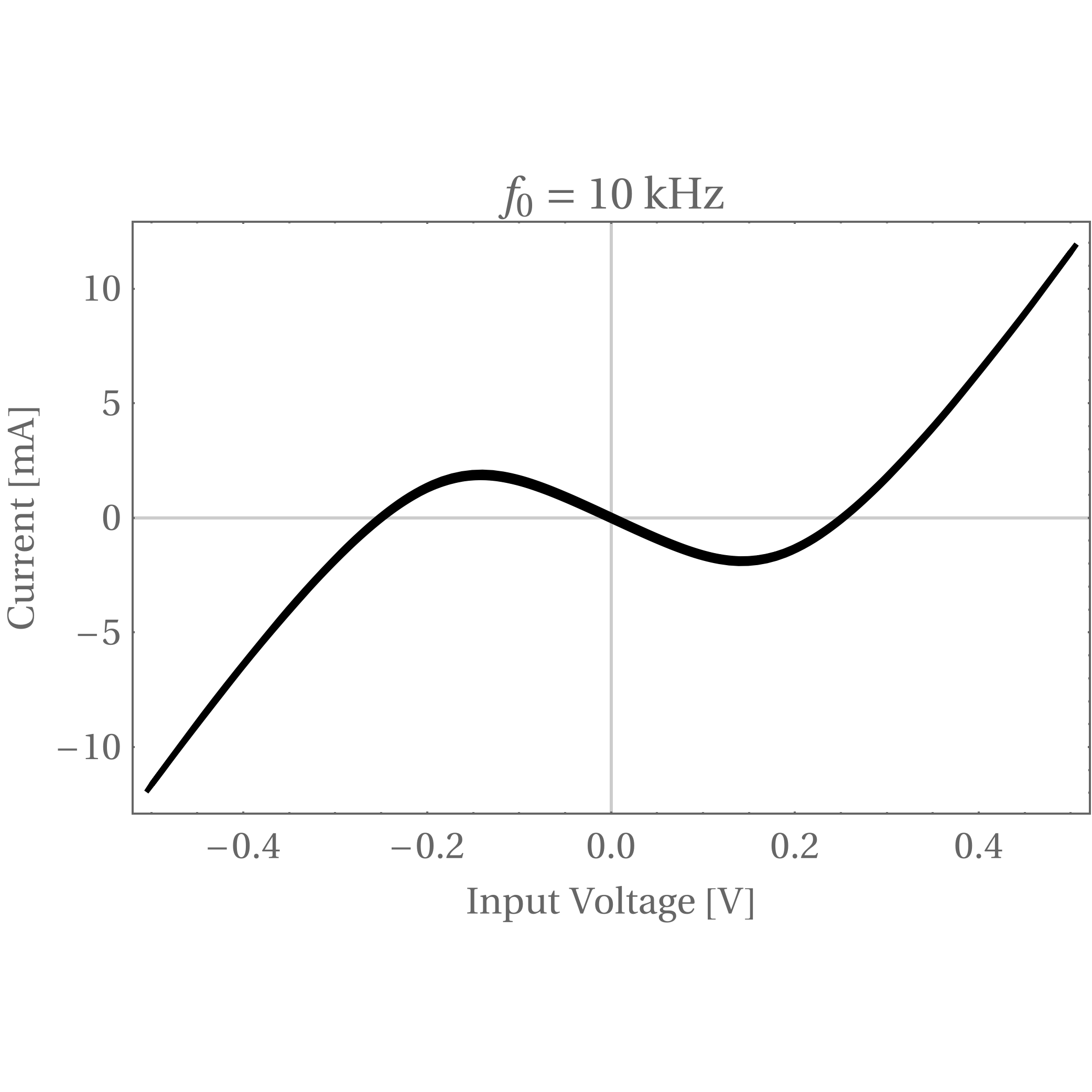

Our alternative implementation of the Van der Pol SSH circuit is based on the nonlinear resistor suggested in Ref. [69]. Fig. S7 (a) shows a circuit diagram of the resistor. The negative impedance converter provides the negative resistance at low voltages, corresponding to the negative linear term, while the two diodes approximate the nonlinear contribution. Fig. S7 (b) shows the circuit’s current-voltage characteristic, measured by applying an AC voltage for different frequencies. A third order polynomial fit $I(V)=-\alpha V+\gamma V^{3}$ to the $10\,\mathrm{kHz}$ curve in the range of $-0.3$ V to $0.3$ V gives parameter values $\alpha=(0.02494\pm 0.00007)\,\mathrm{\Omega^{-1}}$ and $\gamma=(0.2069\pm 0.00010)\mathrm{\Omega^{-1}V^{-2}}$. At large frequencies $>100~{}$\mathrm{kHz}, significant hysteresis occurs. In preliminary simulations of a 1D oscillator chain, this behavior has shown to cause problems at frequencies beyond $1\,$\mathrm{MHz} which has to be taken into consideration in the choice of the circuit’s remaining parameters.

We designed modular circuit boards, each containing four nodes, that can be connected to form 1D and 2D lattices. Fig. S8 (a) shows an illustration of a section of the board, that corresponds to one node, Fig. S8 (b) an entire four-node module. For our measurements, we connect these boards to an 8-site 1D chain and an 8x8 sites 2D lattice. In both setups, the strong coupling is represented by inductors $L_{s}=1.5\,$\mathrm{\SIUnitSymbolMicro H} (Murata 15152C) and the weak couplings by inductors $L_{w}=470\,$\mathrm{\SIUnitSymbolMicro H} (Bourns RL187-471J-RC). In the 1D circuit, all nodes are grounded by $100\,$\mathrm{nF} capacitors (Murata GCM31C5C1H104FA16L), in the 2D circuit by $39\,$\mathrm{nF} capacitors (Vishay VJ1206A393FXJTW1BC). This choice of circuit elements correspond to the non-dimensional parameter values of $g=1$, $w=0.0032$, $s=g-w=0.9968$ and $\epsilon=0.0964$ in the 1D setup. The corresponding values in the 2D setup are $g=1$, $w=0.0016$, $s=(g-w)/2=0.4984$ and $\epsilon=0.1092$.

Circuit diagram Fig. S8 (c) shows the 1D circuit’s layout. The nodes in the 1D circuit are labeled 1A, 1B, 2A, … 4B, with the number indicating the unit cell number and the character the sublattice site. When the active elements’ supply voltage is connected, the circuit is excited by background noise from the environment or active components and quickly self-organizes to a steady oscillatory pattern, see Fig. S9 (a). Fig. S9 (b) shows the different resulting oscillation patterns. As expected, the boundary sites oscillate at a relatively high frequency (approx. 380 kHz) compared to the bulk sites. The tightly coupled sites 1B and 2A, 2B and 3A, ect. show nearly identical voltage signals. There is an observable difference for the central pair of nodes 2B and 3A, that exhibit a larger oscillation amplitude than the neighboring pairs. Comparing the phase space diagrams of a bulk node (3A, Fig. S9 (c)) and a boundary node (1A, Fig. S9 (d)) confirms that the former follows a strongly nonlinear limit cycle, while the latter oscillates nearly harmonically.

Next, we examine the 2-dimensional setup. To investigate the self-organized self-sustained nonlinear oscillations shown in the simulation in Fig. S3 a time-resolved measurement of all lattice nodes in different topological regimes is shown in Fig. S10. The voltages were measured by 9 synchronized 8-channel PC hosted oscilloscopes (PicoScope 4824) and numerically differentiated to calculate the phase angle $\varphi$ in the $(x_{i},\dot{x}_{i})$ plane and the time averaged node frequency $\omega=\langle\dot{\varphi}\rangle$. The lattice is investigated in two topological regimes. In the T1-edge mode regime Fig. S10 (a) two edges (left and right) of the 2D lattice are terminated to host topological edge modes. In agreement with the simulation results in Fig. S3 (b) the topological edges host strongly coupled edge dimers which show synchronized high frequency oscillation (in respect to the bulk). In the bulk each four nodes connected by strong coupling form synchronized quartets oscillating with low frequency. The edge oscillator’s limit cycles are approximately circular whereas the bulk limit cycles are of strong relaxation type.

Contrary to the simulation results the bulk quartets are not completely in-phase due to slight variations of the oscillation frequencies induced by the components tolerances. Beside the slowly oscillating bulk quartets and the rapidly oscillating edge dimers described before, the T2-corner mode lattice Fig. S10 (b) hosts corner modes at it’s only weakly coupled corners with approximately circular limit cycles and oscillation frequencies even higher then those of the edge dimers. As it can be seen in Fig. S10 (c,d) neither an edge nor a bulk defect can affect the ATC self-organization principle. In accordance to the simulations Fig. S3 (e,f) the bulk stays organized in synchronized bulk quartets while the boundary mode wraps around the defect and keeps oscillating with high frequency.
