The $\Delta I$=2 bands in $^{109}$In: possible antimagnetic rotation

TL;DR

This study investigates high-spin rotational bands in $^{109}$In, identifying new gamma-ray transitions and suggesting possible antimagnetic rotation based on experimental data and relativistic mean-field calculations.

Contribution

The paper reports the discovery of eleven new gamma-ray transitions in $^{109}$In and proposes the first candidate bands for antimagnetic rotation in this nucleus.

Findings

Eleven new gamma-ray transitions identified in $^{109}$In.

Confirmation of $ riangle I=2$ rotational bandheads.

Possible antimagnetic rotation candidates suggested.

Abstract

The high-spin structure of $^{109}$In was investigated with the $^{100}$Mo($^{14}$N, 5$n$)$^{109}$In fusion-evaporation reaction at CIAE, Beijing. Eleven new $\gamma$-rays of $^{109}$In were identified, by which the bandheads of the $\Delta I$=2 rotational bands were confirmed. The configurations were assigned with the help of the systematic discussion. Furthermore, the rotational bands are compared with the tilted-axis cranking calculations based on a relativistic mean-field approach. The rotational bands involving the $1p1h$ excitation to the $\pi$$d_{5/2}$ and $\pi$$g_{7/2}$ orbitals are suggested as candidates for antimagnetic rotation based on the theoretical results.

Figures

Tables

Table 1. Table 1: The γ 𝛾 \gamma -ray energies, initial- and final-level energies, intensities, DCO ratios, the initial- and final- level spin-parities of 109 In deduced in the present work.

$E_{\gamma }$(keV)a	$E_i$$\to$$E_f$	$I_{\gamma }$($\%$)b	$R_{DCO}$(D)c	$R_{DCO}$(Q)d	$I_i^{\pi }$$\to$$I_f$π	Band
355.7	2447.3$\to$2091.6	0.1			(9/2+)$\to$(5/2+)	7
402.0	1428.3$\to$1026.3	23(1)	0.61(17)		13/2+$\to$11/2+
443.6	4742.8$\to$4299.2	4.0(3)		0.82(17)	25/2(+)$\to$21/2(+)	7
463.0	5218.7$\to$4755.7	2.6(2)		1.07(16)	27/2+$\to$23/2+	8
469.7	5396.8$\to$4927.1	3(1)	0.64(8)		29/2(+)$\to$27/2-	7$\to$5
475.9	5218.7$\to$4742.8	0.7(4)		0.60(10)	27/2+$\to$25/2(+)	8$\to$7
521.2	2968.5$\to$2447.3	0.1			(13/2+)$\to$(9/2+)	7
596.2	2318.5$\to$1722.2	0.3(2)		0.9(2)	11/2+$\to$(7/2)+	8
605.6	2318.5$\to$1712.5	0.7(2)		0.7(2)	11/2+$\to$(9/2)+
614.2	1712.5$\to$1099.4	0.2(1)			(9/2)+$\to$5/2+
623.6	1722.2$\to$1099.4	0.3(1)			(7/2)+$\to$5/2+
631.1	5849.8$\to$5218.7	2.9(3)		1.04(11)	31/2+$\to$27/2+	8
643.3	7149.8$\to$6506.5	0.5(2)		1.0(3)	(35/2+)$\to$(31/2+)	9
645.7	4299.2$\to$3653.5	0.8(3)		1.1(3)	21/2(+)$\to$17/2(+)	7
654.0	5396.8$\to$4742.8	3.2(2)		0.83(10)	29/2(+)$\to$25/2(+)	7
658.6	4755.7$\to$4097.1	1.2(1)		0.93(9)	23/2+$\to$19/2+	8
673.5	2101.8$\to$1428.3	69(3)			19/2+$\to$13/2+
673.7	2102.0$\to$1428.3	14.7(7)	1.62(23)		17/2+$\to$13/2+
685.0	3653.5$\to$2968.5	0.3(3)		1.1(6)	17/2(+)$\to$(13/2+)	7
816.3	6666.1$\to$5849.8	1.5(1)		1.19(16)	35/2+$\to$31/2+	8
829.6	7979.4$\to$7149.8	1.2(2)		0.96(29)	(39/2+)$\to$(35/2+)	9
837.0	3155.5$\to$2318.5	1.0(3)		0.93(7)	15/2+$\to$11/2+	8
864.8	6261.6$\to$5396.8	4.2(3)		0.80(7)	33/2(+)$\to$29/2(+)	7
888.2	7149.8$\to$6261.6	1.6(2)		0.78(17)	(35/2+)$\to$33/2(+)	9$\to$7
893.0	2995.0$\to$2102.0	7.3(7)		0.46(8)	19/2$\to$17/2+
941.6	4097.1$\to$3155.5	1.0(1)		1.10(13)	19/2+$\to$15/2+	8
973.0	7639.1$\to$6666.1	1.6(2)		0.98(13)	39/2+$\to$35/2+	8
1000.4	8979.8$\to$7979.4	0.6(1)		1.4(5)	(43/2+)$\to$(39/2+)	9
1024.8	7286.4$\to$6261.6	2.6(7)			(37/2+)$\to$33/2(+)	7
1026.3	1026.3$\to$0	31(1)	0.59(7)		11/2+$\to$9/2+
1099.4	1099.4$\to$0	0.5(1)			5/2+$\to$9/2+
1109.6	6506.5$\to$5396.8	0.1			(31/2+)$\to$29/2(+)	9$\to$7
1143.4	8782.5$\to$7639.1	0.4(2)		1.00(26)	43/2+$\to$39/2+	8
1174.4	8460.8$\to$7286.4	0.3(2)			(41/2+)$\to$(37/2${}_{}{}^{+})$	7
1304.2	4299.2$\to$2995.0	0.8(1)		0.54(11)	21/2(+)$\to$19/2
1428.3	1428.3$\to$0	100			13/2+$\to$9/2+
1551.7	3653.5$\to$2101.8	0.5(2)			17/2(+)$\to$(19/2${}_{}{}^{+})$

Equations

$$\hslash {\omega }_{\exp }=\frac{1}{2}{E}_{\gamma }(I\to I-2)$$

$${\mathfrak{J}}^{(2)}\approx \frac{dI}{d\omega }=\frac{4}{E_{\gamma }(I+2\to I)-E_{\gamma }(I\to I-2)}$$

Full text

1 Introduction

The rotational bands consisting of electric quadrupole transitions are usually related to the rotation of the deformed nucleus around an axis perpendicular to the symmetry axis of the deformed density distribution. With the development of theoretical and experimental research Frauendorfcon ; CLARK1992247 ; 197Pb ; BALDSIEFEN1992252 , a novel rotation has been found in weakly deformed or near-spherical nuclei, and is interpreted as a result of shears mechanism, i.e., the gradual closing of the angular momentum vector of relatively few high-$j$ proton particles ($j_{\pi}$) and high-$j$ neutron holes ($j_{\nu}$). Such kind of rotation is introduced as magnetic rotation. Up to now, numerous magnetic rotational bands have been observed in $A\sim 110$ mass region using the HI-13 tandem accelerator at the China Institute of Atomic Energy (CIAE), such as 106Ag M1_106Ag ; M1_106Ag_cpc ; Shapecoexistence106Ag , 107Ag 107Ag ; M1_107Ag , 112In MR_112In_LXQ ; MR112In ; MR_112In , 113In 113In ; 113In_cpl and 115In MR_115In .

Antimagnetic rotation (AMR) is another exotic rotation observed in near-spherical nuclei Frauendorf2001 ; meng2013progress ; 6 . The angular momentum is increased by simultaneous closing of the two blades of protons and neutrons toward the total angular momentum vector, which is so called “two-shears-like mechanism”. Because the transverse magnetic moments of the valence nucleons are anti-aligned, there are no $M1$ transitions in antimagnetic rotational bands. AMR is characterized by weak $E2$ transitions and decreasing $B(E2)$ values with increasing spin, which reflects the nearly spherical core. The large $\mathfrak{J}^{(2)}/B(E2)$ ratio of the order of 100 $\hbar^{2}$MeV*-1*$e$-2b*-2*, compared with around 10 $\hbar^{2}$MeV*-1*$e$-2b*-2* for well-deformed nucleus, is also a typical feature Frauendorf2001 ; meng2013progress ; 6 .

The antimagnetic rotation is expected to be realized in the same mass region with magnetic rotation. Experimentally, they have been observed simultaneously in the $A\sim 110$ mass region. Especially for Cd isotopes, the positive parity yrast bands after the alignment of neutrons at sufficiently high frequencies are perfect candidates for the two-shears-like mechanism. Up to now, the antimagnetic rotational bands have been identified in 105Cd anti105Cd , 106Cd anti106Cd , 107Cd anti107Cd , 108Cd anti106108Cd ; antimr_108Cd and 110Cd anti110Cd . For In isotopes, when an additional proton occupies the $g_{7/2}$ or $d_{5/2}$ orbital, the “two-shears-like mechanism” can also be expected. In fact, the rotational bands in 108,110In anti108110In ; Sun2016 , 112In antiMR_112In and 113In AMR113In have been taken as candidates for antimagnetic rotation.

In our previous work meng2018 , the triaxial deformation, shape evolution and possible chirality for the dipole bands in 109In were discussed in detail. However, it was unclear for the underlying nuclear structure of the $\Delta I$=2 bands. In this paper, the level scheme of those bands has been extended by eleven $\gamma$ rays. The $\Delta I$=2 rotational bands in 109In are investigated based on the systematic discussion, and the configurations have been suggested. The experimental results are compared with the tilted axis cranking relativistic mean-field (TAC-RMF) approach meng2013progress ; 6 . Candidates for antimagnetic rotational bands in 109In will be discussed.

2 EXPERIMENT AND RESULTS

The experiment was carried out using the HI-13 tandem accelerator at the China Institute of Atomic Energy (CIAE) in Beijing. Excited states in 109In were populated using the 100Mo(14N, 5$n$)109In fusion-evaporation reaction, and the beam energy was 78 MeV. The target consisted of a 0.5 mg/cm2 foil of 100Mo with a backing of 10 mg/cm2-thick 197Au. The $\gamma$ rays were detected by an array composed of nine BGO-Compton-suppressed HPGe detectors, two low-energy photon (LEP) HPGe detectors, and one clover detector. A total of 84$\times$106 $\gamma$-$\gamma$ coincidence events were sorted into a fully symmetrized $E_{\gamma}$-$E_{\gamma}$ matrix, and analyzed using the software package RADWARE Radford for the $\gamma$-ray coincidence relationship.

The data from the detectors at around 40*∘* on one axis and at around 140*∘* on the other axis were sorted into an asymmetric DCO matrix. By analyzed this asymmetric DCO matrix, the ratios of directional correlation of oriented states (DCO) can be obtained. The DCO ratios of the known $\gamma$-rays of nuclei produced in the present experiment were taken as the expected value. When the gate is set on a quadrupole transition, the expected value of stretched quadrupole transitions and pure dipole transitions are around 1.0 and 0.5 in the present array geometry. Analogously, when the gate is set on dipole transitions, the DCO ratios distribute from 1.5 to 2 for quadrupole transitions and from 0.5 to 1.3 for dipole transitions. When the gate is set on pure dipole transitions, the ratios are around 1 for pure dipole transitions.

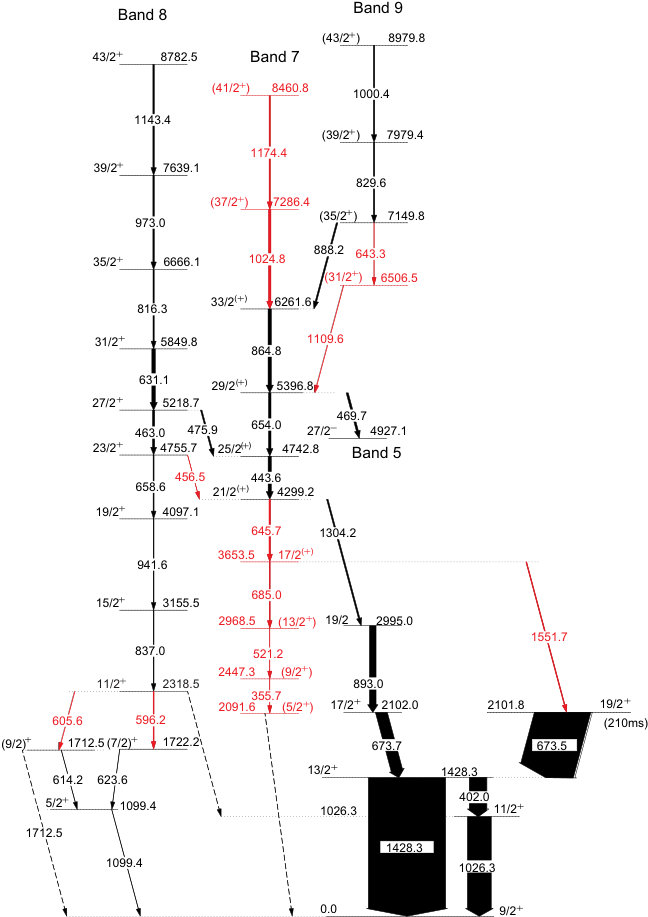

The partial level scheme focused on the $\Delta I$=2 bands in 109In is shown in Fig. 1. The placements of $\gamma$ rays in the level scheme were determined through the observed coincidence relationships, intensity balances, and energy summations. Compared with the results reported in Ref. meng2018 , the level scheme of 109In has been revised by adding eleven new $\gamma$ rays.

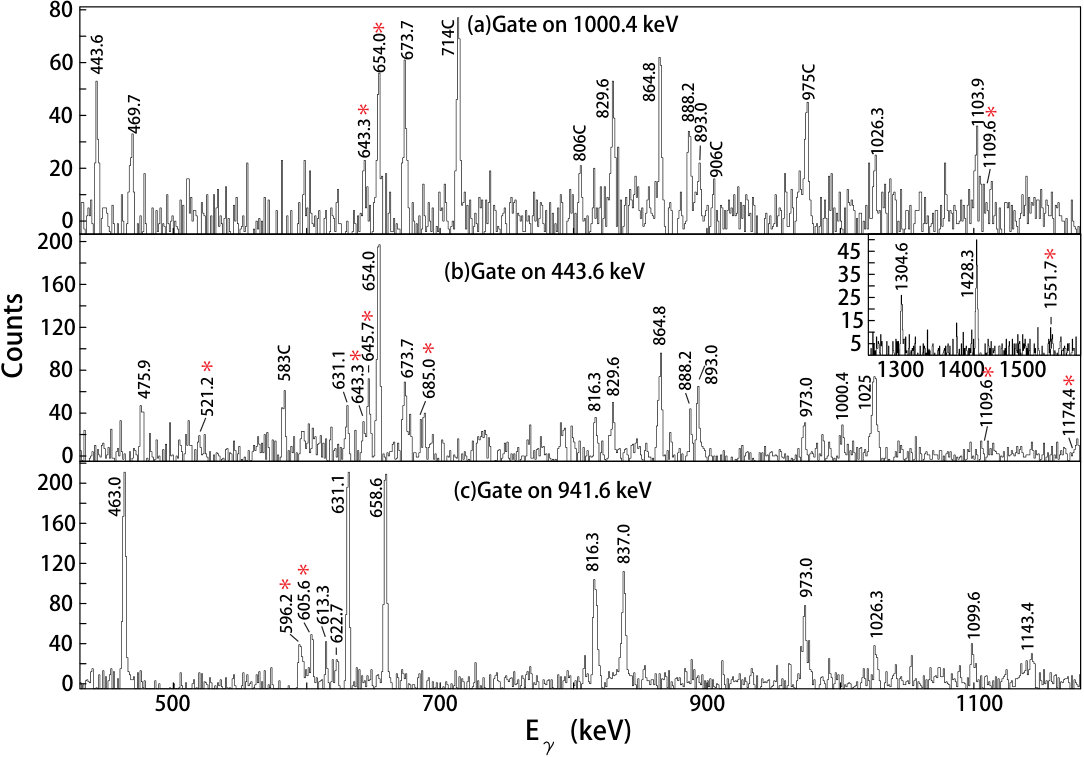

Band 7 is an $\Delta I$=2 band and extended to (41/2*+) state at energy of 8460.8 keV. In Fig. 2(a), the 1000.4 keV transition has no coincidence with the newly identified $\gamma$-rays with energies of 1174.4 and 1024.8 keV, while it has coincidene with the 1026.3 keV transition which decays from 11/2+* state at 1026.3 keV to 9/2*+* ground state, and the transitions with energies of 829.6, 888.2, 864.8, 643.3, 1109.6 keV, etc. In the spectrum gated on 443.6 keV transition, shown in Fig. 2(b), the transitions decay out from higher levels of band 7 and 9 can be seen, along with the linking transitions with energies of 1109.6, 888.2 keV. The peak with a centroid energy of 1025 keV can been seen in Fig. 2(b), which is composed of 1024.8 and 1026.3 keV transitions. This indicates the existence of 1024.8 keV transition. Moreover, the 1174.4 and 1024.8 keV transitions have mutual coincidence with the transitions of band 7, but has no coincidence with the 888.2, 1109.6 keV transitions and the $\gamma$ rays in band 9. Therefore, the 1174.4 and 1024.8 keV transitions are placed on the top of band 7, and the sequence of those transitions is determined by the intensity. The 864.8 keV transition has no coincidence with the 1109.6 and 643.3 keV transitions. Such coincident relationship along with the energy summation restricts the position of 643.4 and 1109.6 keV $\gamma$ rays to (31/2*+) $\rightarrow$ 29/2(+)*. The $R_{DCO}$ of 643.4 keV transition is consistent with the $\Delta I$=2 transition, which is similar to the 829.6 and 1000.4 keV transitions of band 9. Therefore, the 1109.6 keV transition is taken as a linking transition of band 9 and 7, and the 643.4 keV $\gamma$ ray is placed between the state at 7149.8 keV and the state at 6506.5 keV. The alignment analysis in Sec. 3.1 also supports such placement. In summary, the $\gamma$-rays with the energies of 1024.8, 1174.4 keV belong to band 7. Band 9 is built on the level at 6506.5 keV and decays to band 7 through the linking transitions with energies of 1109.6, 888.2 keV.

The DCO of the 888.2 keV transition needs special explanation. In our early work meng2018 , the 888.2 keV transition is thought to be an $E$2 transition and belong to band 7. Nevertheless, the DCO of the 888.2-keV transition is 0.78(17), which is not a strict proof for an $E$2 transition. Now the 888.2-keV transition is suggested as a linking transition between band 9 and 7, considering the newly found transitions and coincidence relationships. The DCO information of the newly found $\gamma$ rays with energy of 1109.6 keV can not been extracted for the weak intensity. However, if we suppose that the linking transitions with energies of 1109.6 and 888.2 keV are $E$2 transitions, there will be a 37/2*+* state at energy of 7149.8 keV, which is lower than that of the (37/2*+) state at 7286.4 keV of band 7. It will be inconsistent with the intensity of the 643.3 and 1024.8 keV transitions. Therefore, we suggest those linking transitions are $\Delta I$=1 transitions, and the bandhead of band 9 at energy of 6506.5 keV is (31/2+*).

The newly identified 645.7 and 685.0 keV transitions can been seen in the spectrum gated on 443.6 keV transition, as shown in Fig. 2(b). Though the 521.2 and 355.7 keV transitions can not been identified in Fig. 2(b) for their weak intensities, each of the 645.7, 685.0, 521.2, 355.7 keV transitions has mutual coincidence with their cascade $\gamma$ rays. Therefore, they are taken as the member of band 7, and the sequence of those four $\gamma$ rays are determined by the intensities.

The 443.6 keV transition has been identified as a $\Delta I$=2 transition in the early work meng2018 . The $R_{DCO}$ of 645.7 and 685.0 keV transition extracted from the spectrum gated on the 443.6 keV transition are around 1, which correspond to $\Delta I$=2 transitions. While it is difficult to extract the DCO information of the 521.2 and 355.7 keV transitions, we suggest them as $\Delta I$=2 transition considering that they are the intraband transitions of band 7. The parity of band 7 is suggested to be positive according to the alignment analysis in Sec. 3.1.

Band 8 consists of nine $\Delta I$=2 transitions and is extended to the 43/2*+* state at 8782.5 keV. From the 941.6 keV gated spectrum, as shown in Fig. 2(c), all the members of band 8 can be identified, along with the 605.6, 614.2, 623.6 and 1099.4 keV transitions. In the early work

 meng2018 , the decay path of band 8 is not clear. With the observed 605.6 and 596.2 keV transitions, the band 8 are connected to the known (9/2)+ state at 1712.5 keV and the (7/2)+ state at 1722.2 keV TOI . The 605.6 keV transition is a linking transition, which links the 11/2*+* state at 2318.5 keV to the (9/2)+ state at 1712.5 keV. Because the band 8 is composed of $\Delta I$=2 transitions, the $\gamma$ ray with energy of 596.2 keV is taken as a member of band 8, and the (7/2)+ state at 1722.2 keV is assigned as the bandhead of band 8. The positive bandhead also supports the parity assignment of band 8 in Ref. meng2018 .

3 DISCUSSION

3.1 Systemic discussion and configuration assignment

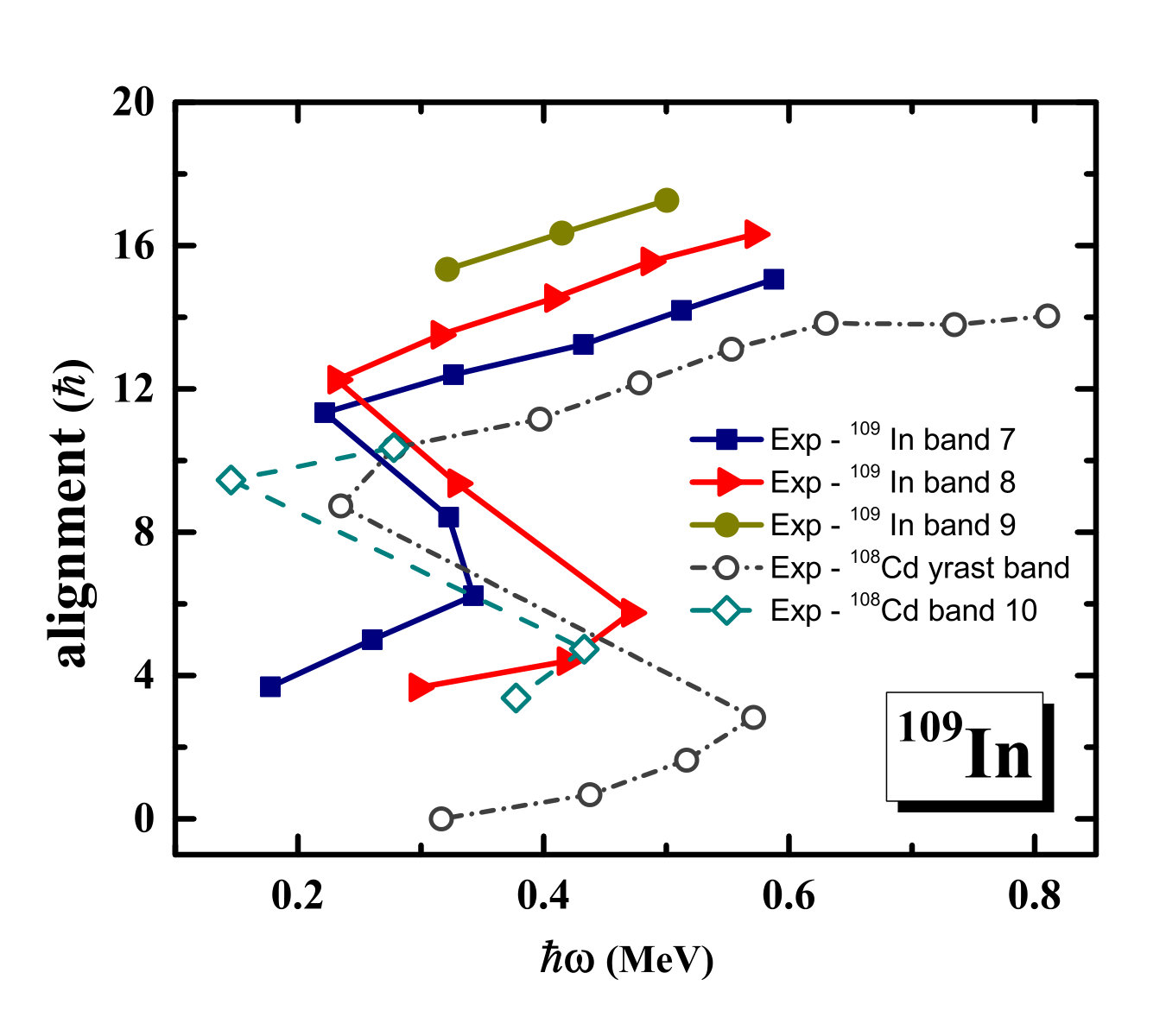

The experimental alignment as a function of rotational frequency for bands 7, 8 and 9 is shown in Fig. 3, and that of the yrast band and band 10 of the neighboring even-even nucleus 108Cd is shown as a comparison. The configuration of band 8 is assigned as $\pi g_{7/2}g^{-2}_{9/2}$ before the backbend and $\pi g_{7/2}g^{-2}_{9/2}\otimes\nu h_{11/2}^{2}$ after backbend in Ref. meng2018 . In this work, the bandhead of band 8 has been observed. The whole behaviour of band 8 before the backbend also supports the configuration assignment.

The band 10 of 108Cd is built on a non-aligned excitation into the \nu$$h_{11/2} subshell 108Cd . Before the backbend, the initial aligned spin of band 7 is nearly 2.5$\hbar$ greater than that of the band 10 of 108Cd, which can be caused by the occupation of the odd proton in the $d_{5/2}$ orbital. A sharp backbend in both bands occurs at around 0.28 MeV and with similar gains in aligned spin, which is consistent with $h_{11/2}$ neutron pair alignment. Therefore, the band 7 before the backbend should build on a non-aligned neutron excitation into the \nu$$h_{11/2} subshell associating with the \pi$$d_{5/2} orbital, and the backbend can be attributed to the alignment of the neutrons in the $h_{11/2}$ orbitals. Band 9, which decays to band 7 through two linking transitions, can be related to different neutron excitations in comparison with band 7. The alignments of band 9 is about 3 $\hbar$ greater than that of band 7, which could be attributed to the midshell $g_{7/2}(d_{5/2})$ neutron alignment.

According to the configuration assignment, bands 7 and 8 are believed to be related to $1p1h$ proton excitations from the $g_{9/2}$ orbital to one of the $g_{7/2}$ and $d_{5/2}$ orbitals above the shell gap. Similar bands related to the $g_{7/2}$ orbital in 107,111,113In SMB_107In ; MR_111In ; AMR113In are summarized in Fig 4. Even though several corresponding levels in 107In have not been observed, the isotopic regularity of the level energies is significant. It is worth noting that the excitation energies of $1p1h$ proton excitation from $g_{9/2}$ to $g_{7/2}$ orbital in 109,111,113In are within 1$\sim$2 MeV relative to the ground state, and decreases with the increasing neutron number. The proton-neutron residual interaction may play an important role in $1p1h$ excitation from \pi$$g_{9/2} to \pi$$g_{7/2} orbital at such low energy. It reduces the energy spacing between the \pi$$g_{9/2} and \pi$$g_{7/2} orbitals, and its impact is enhanced when more neutrons are occupying the midshell.

Moreover, when the additional proton of indium nuclei is occupying the $g_{7/2}$ or $d_{5/2}$ orbital, the rotational bands after the $h_{11/2}$ neutrons alignment at high frequencies are perfect candidates for the two-shears-like mechanism, such as the rotational bands in 108,110,112,113In anti108110In ; Sun2016 ; antiMR_112In ; AMR113In . The dynamic moment of inertia $\mathfrak{J}^{(2)}$ is a sensitive probe of the nuclear collectivity. The $\mathfrak{J}^{(2)}$ and rotational frequency can be extracted experimentally by the following formulae,

[TABLE]

[TABLE]

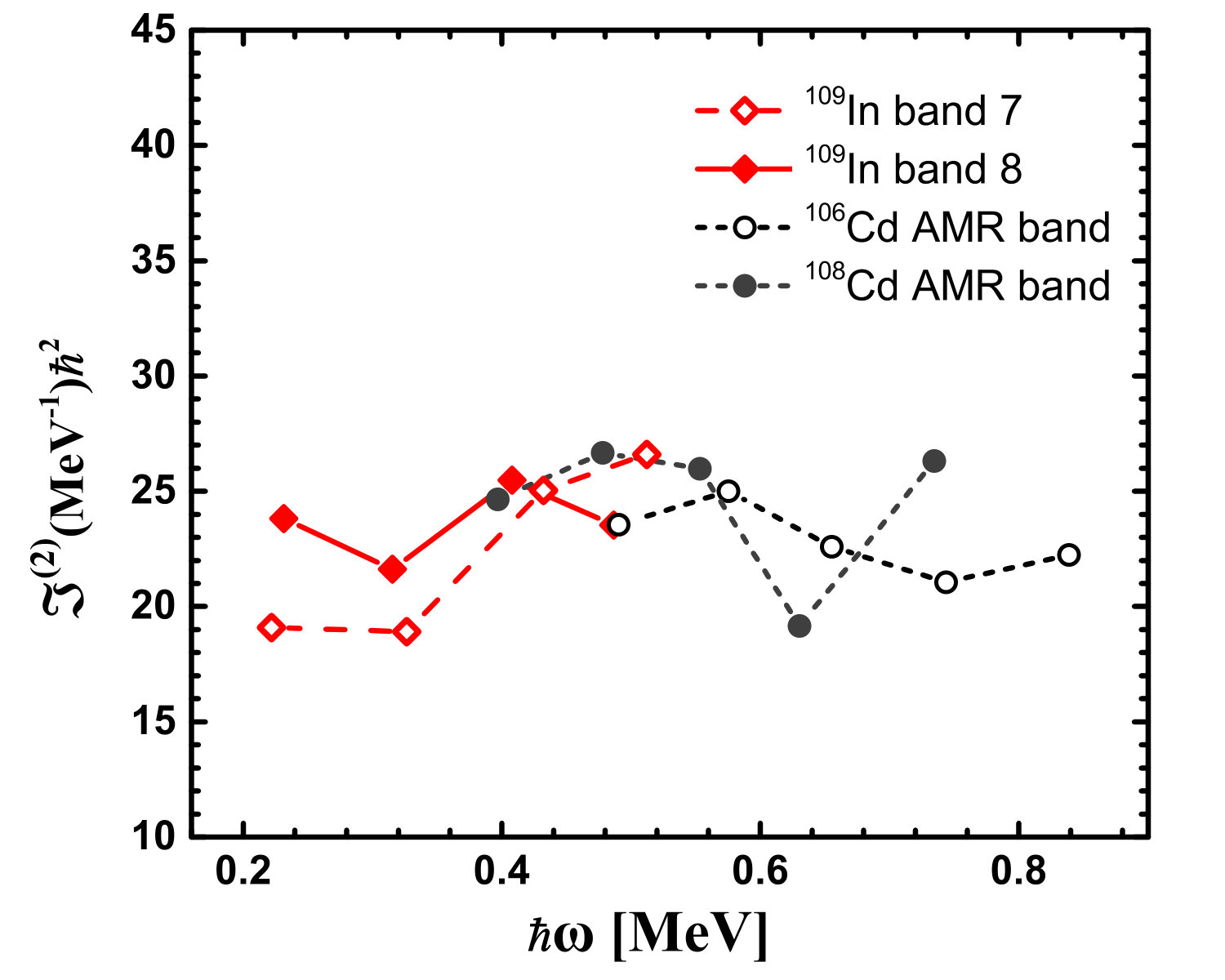

$\mathfrak{J}^{(2)}$ of bands 7 and 8 after the backbend in 109In are shown in Fig. 5. The typical antimagnetic rotational bands in 106Cd, 108Cd anti106108Cd ; antimr_108Cd are also shown for comparison. As shown in Fig. 5, $\mathfrak{J}^{(2)}$ stays around 23 MeV*-1*$\hbar$2 as rotation frequency increases for bands 7 and 8 after backbend, and have the similar pattern with that of AMR bands in 106,108Cd. Such small and stable value of $\mathfrak{J}^{(2)}$ indicates that bands 7 and 8 after backbend in 109In are much less collective, and can be candidates for antimagnetic rotation.

3.2 Theoretical interpretation

In the following, the rotational structure of two positive parity bands in 109In are investigated by tilted axis cranking relativistic mean-field (TAC-RMF) approach. In contrast to its non-relativistic counterparts 1 , the relativistic mean field (RMF) approach including point-coupling or mesonic exchange interaction lj16 ; lj17 ; lj18 , takes the fundamental Lorentz symmetry into account from the very beginning so that naturally takes care of the important spin degree of freedom and time-odd fields, resulting in great successes on many nuclear phenomena 1 ; 2 ; 3 ; 4 ; 5 ; 6 . Moreover, without any additional parameters, the rotation excitations can be described self-consistently with the tilted axis cranking relativistic mean-field (TAC-RMF) approach meng2013progress ; 6 . In particular, the TAC-RMF model has been successfully used in describing magnetic rotation (MR) and AMR microscopically and self consistently in different mass regions meng2013progress ; 6 , and especially the 110 region, such as the AMR bands in 105,109,110Cd zhao2012prc ; zhao2011prl ; zhao2012covariant ; peng2015magnetic ; zhang2014competition and 108,110,112,113In

Sun2016 ; antiMR_112In ; AMR113In , and also the MR bands in 113,114In 113In ; MR_114In . In the present TAC-RMF calculations, the point-coupling interaction PC-PK1 zhao2010new is used for the Lagrangian without any additional parameters. A basis of 10 major oscillator shells is adopted for the solving of the Dirac equation and pairing correlations are neglected. In order to describe bands 7 and 8 in 109In, the configurations $\pi d_{5/2}g_{9/2}^{-2}\otimes\nu h_{11/2}^{2}$ and $\pi g_{7/2}g_{9/2}^{-2}\otimes\nu h_{11/2}^{2}$ are adopted in the TAC-RMF calculations, respectively.

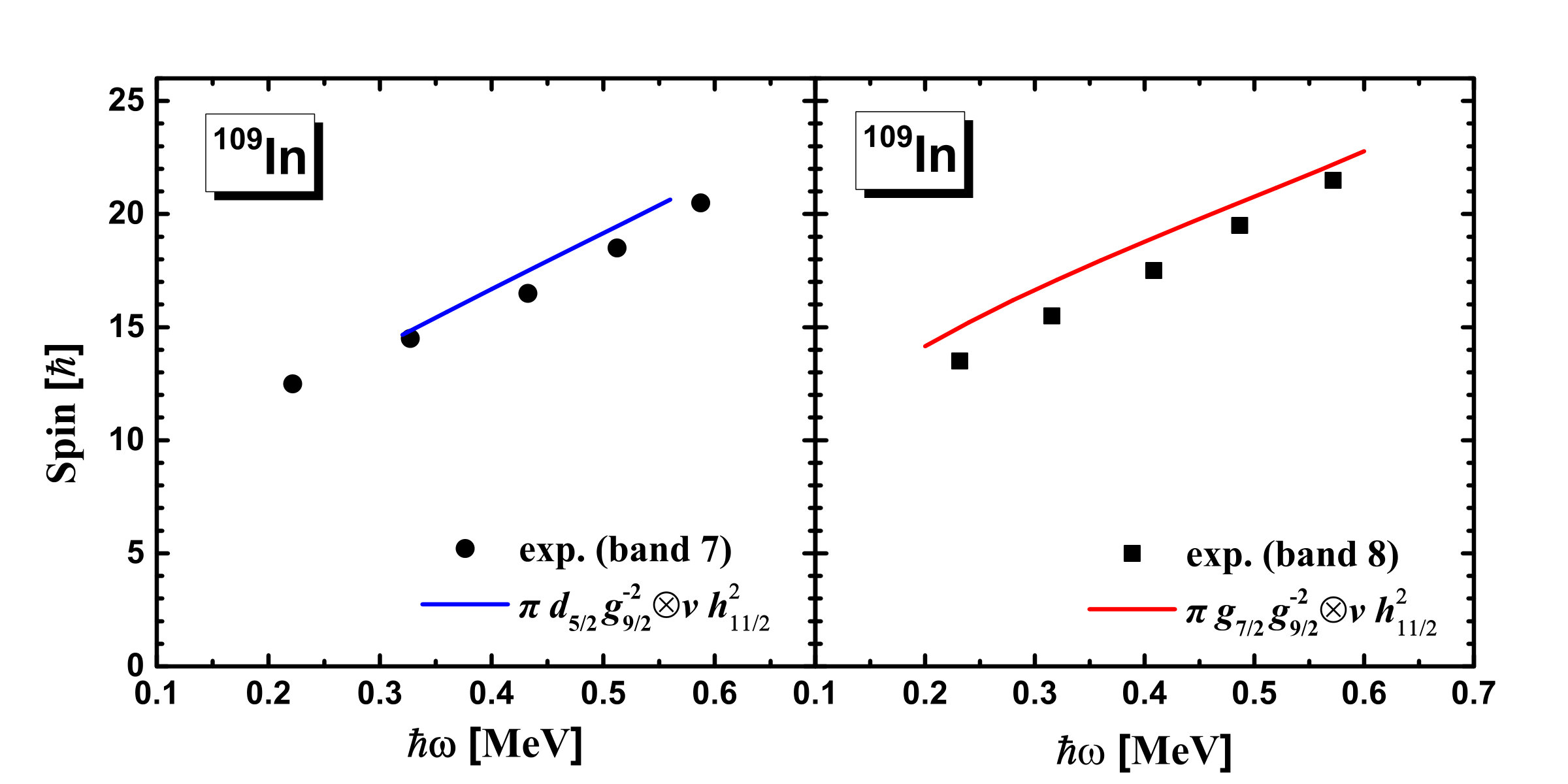

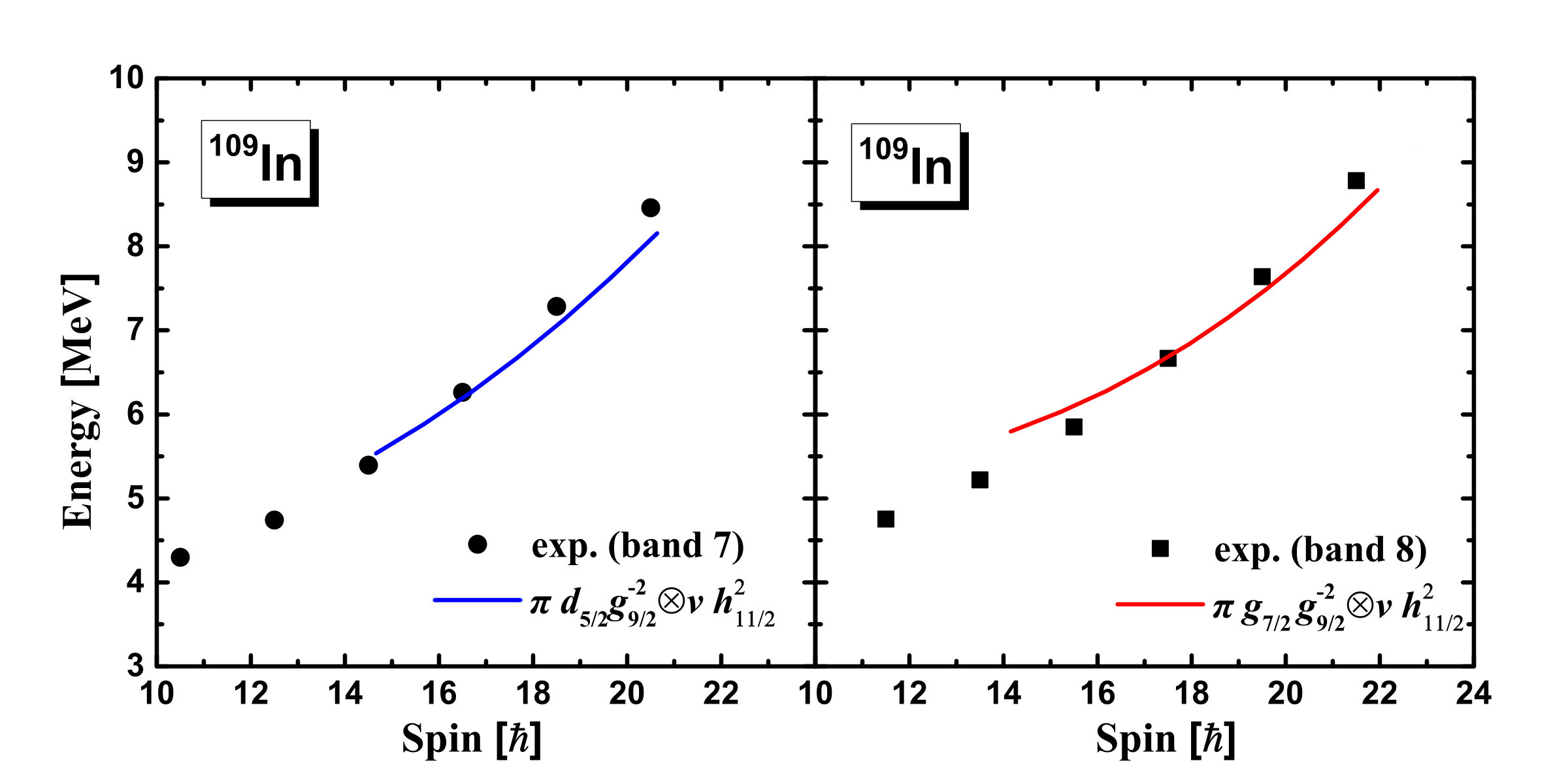

The calculated results for the $\pi d_{5/2}g_{9/2}^{-2}\otimes\nu h_{11/2}^{2}$ and $\pi g_{7/2}g_{9/2}^{-2}\otimes\nu h_{11/2}^{2}$ configuration are shown in Fig. 6 and Fig. 7 in comparison with the experimental data for bands 7 and 8 after the backbend. It could be seen that the TAC-RMF calculations including both energy spectrum and rotational frequency based on the assigned configurations are in a good agreement with the experimental data, supporting the configuration assignment.

After the backbend in bands 7 and 8, the calculated $\mathfrak{J}^{(2)}$ well reproduce the data and the $\mathfrak{J}^{(2)}$ values are around 20-25 MeV*-1*$\hbar$2, which are much smaller than the typical values ($\sim 35$ MeV*-1*$\hbar$2) for the $A=110$ rigid spherical rotor. This indicates that bands 7 and 8 are not based on a collective behavior, but most likely an antimagnetic rotation, as discussed in Section. 3.1.

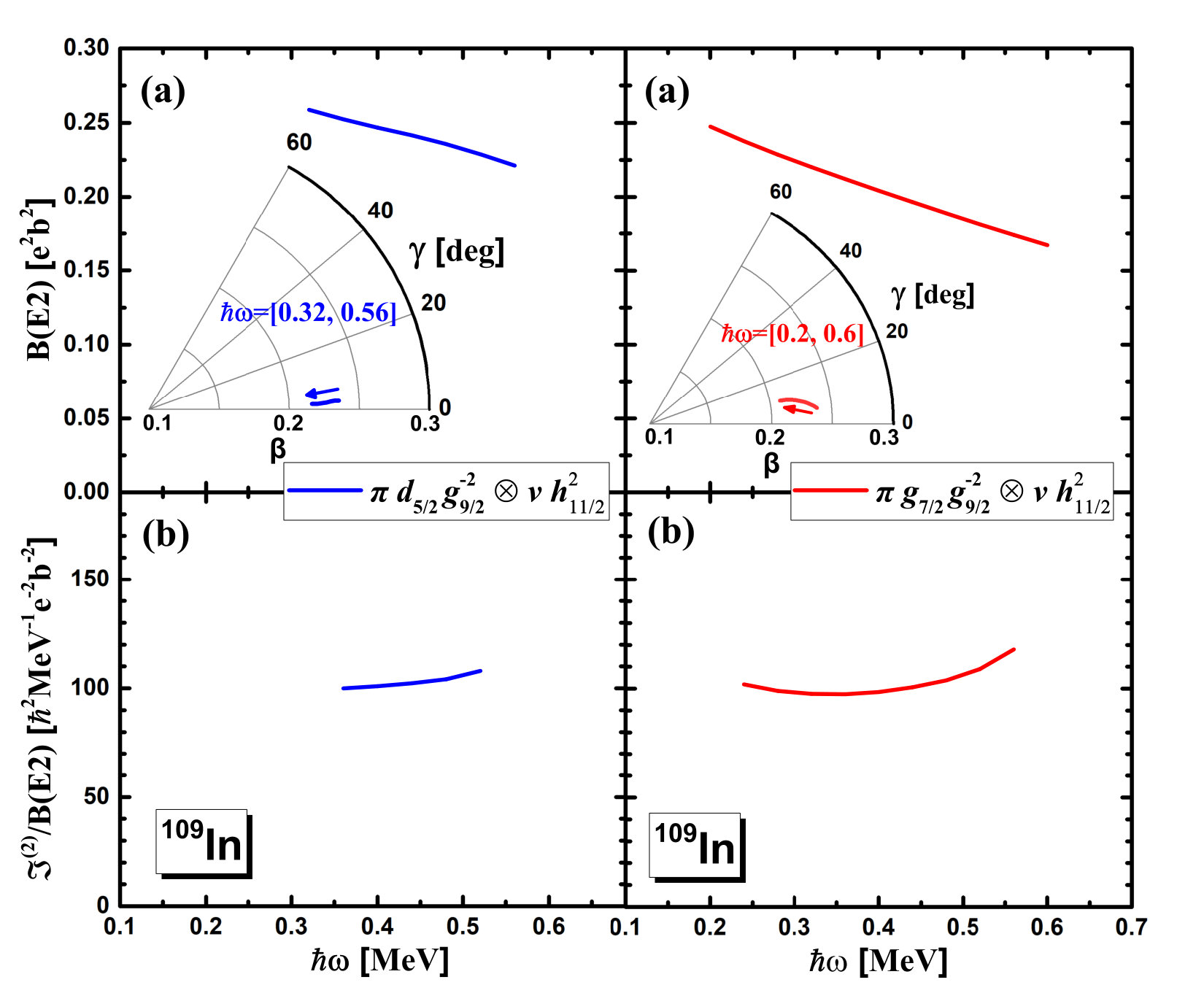

Weak $E2$ transition is one of the typical characteristics of AMR and reflects the small deformation of the core which causes large ratios of $\mathfrak{J}^{(2)}$ to the reduced transition probability $B(E2)$ values. Furthermore, the $B(E2)$ values decrease with increasing angular momentum rather rapidly. The $B(E2)$ values and $\mathfrak{J}^{(2)}/B(E2)$ ratios as functions of the rotational frequency in the TAC-RMF calculations for the assigned configurations of bands 7 and 8 are given respectively in Fig. 8. The $B(E2)$ values are shown to be decrease smoothly with increasing rotational frequency, while the $\mathfrak{J}^{(2)}/B(E2)$ ratios show rising tendencies for both bands 7 and 8. It should be noted that the calculated $\mathfrak{J}^{(2)}/B(E2)$ ratios for those two bands are around $100-120\;\hbar^{2}$MeV${}^{-1}e^{-2}b^{-2}$, which are much higher than that for a typical deformed rotational band ($\sim 10$

$\;\hbar^{2}$MeV${}^{-1}e^{-2}b^{-2}$ Frauendorf2001 ) and also in agreement with the expectations from AMR bands zhao2012prc ; antiMR_112In ; Sun2016 .

The decrease of the $B(E2)$ values can be attributed to the evolution of the nuclear deformation. As shown in the inset of Fig. 8(a), with increasing rotational frequency, the nucleus undergoes a smooth decrease in $\beta$ deformation with a rather small and steady triaxiality ($\gamma\leq 10^{\circ}$) for both bands 7 and 8, which is responsible for the falling tendency of $B(E2)$ values with rotational frequency.

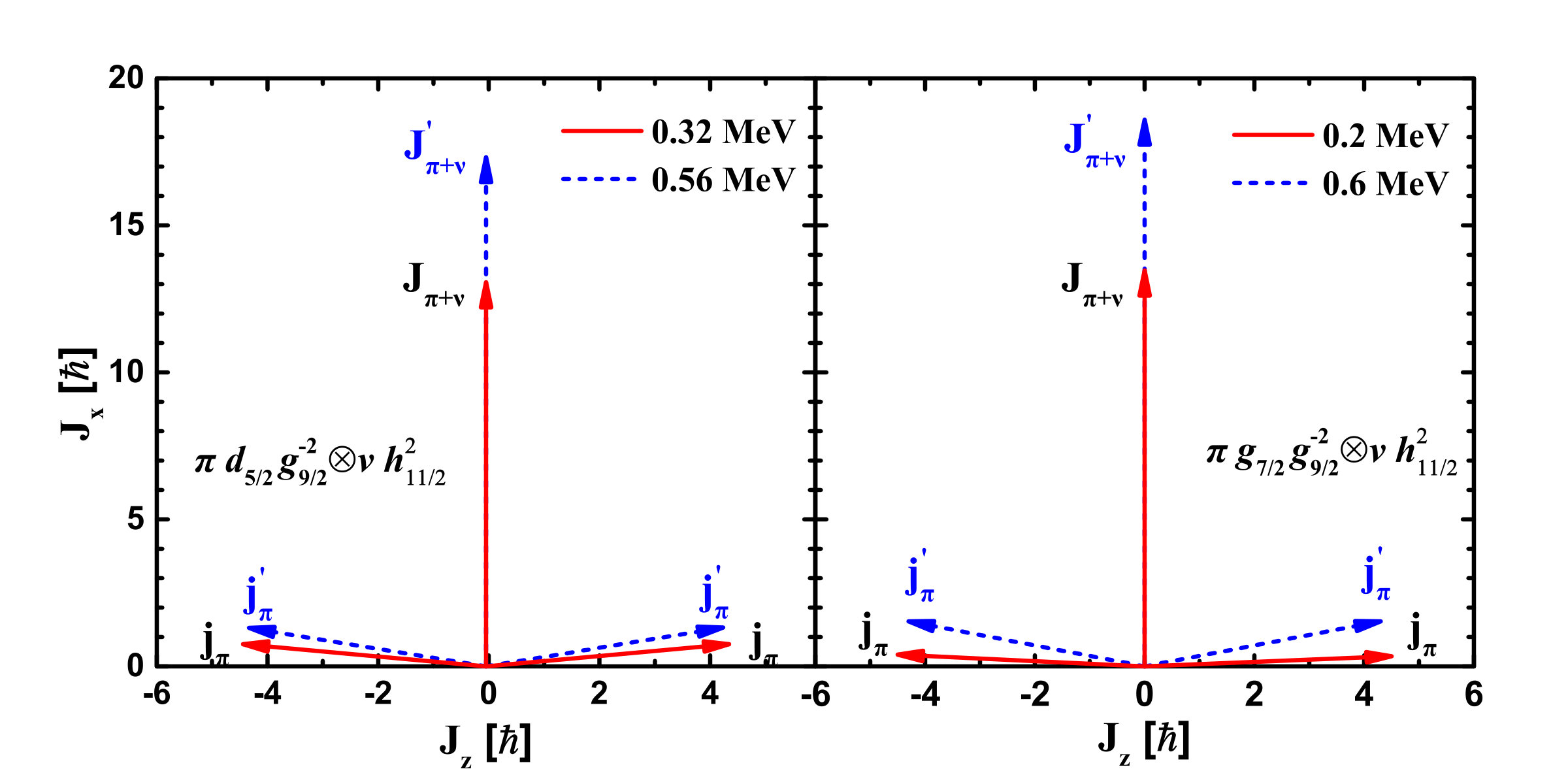

In order to examine the two-shears-like mechanism for bands 7 and 8, $J_{\pi+\nu}$ (the angular momentum vectors of neutrons and the low-$\Omega$ proton) and $j_{\pi}$ (the two high-$\Omega$ $g_{9/2}$ proton holes) in the TAC-RMF calculations have been extracted and shown in Fig. 9. Taking band 8 with the configuration $\pi g_{7/2}g_{9/2}^{-2}\otimes\nu h_{11/2}^{2}$ as an example. The angular momentum $J_{\pi+\nu}$ is related to all the neutron levels and the occupied low-$\Omega$ $g_{7/2}$ proton in the intrinsic system. At the bandhead ($\hbar\omega=\;$0.2 MeV), the two $j_{\pi}$ are nearly perpendicular to $J_{\pi+\nu}$ and pointing opposite to each other, which form the blades of the two shears. As the rotational frequency increases, the gradual alignment of the $g_{9/2}$ proton hole vectors $j_{\pi}$ toward $J_{\pi+\nu}$ generates angular momentum, while the direction of the total angular momentum stays unchanged. This leads to the closing of the two shears simultaneously by moving one blade toward the other, demonstrating the two-shears-like mechanism in band 8. A similar mechanism can also been seen in TAC-RMF calculations with assigned configuration of $\pi d_{5/2}g_{9/2}^{-2}\otimes\nu h_{11/2}^{2}$ for band 7 as shown in Fig. 9.

4 SUMMARY

In summary, the $\Delta I$=2 rotational bands populated in the 100Mo(14N, 5$n$)109In reaction have been modified and extended by eleven new $\gamma$ rays. The systematic discussion has been made and the configurations for the $\Delta I$=2 rotational bands have been assigned. The dynamic moment of inertia shows that bands 7 and 8 after backbend are much less collective.

The experimental data of bands 7 and 8 in 109In have been compared with the TAC-RMF calculations, and good agreements have been obtained. The predicted $B(E2)$, deformation $\beta$ and $\gamma$, as well as $\mathfrak{J}^{(2)}/B(E2)$ ratios in TAC-RMF calculations based on the $\pi d_{5/2}g_{9/2}^{-2}\otimes\nu h_{11/2}^{2}$ and $\pi g_{7/2}g_{9/2}^{-2}\otimes\nu h_{11/2}^{2}$ configurations have been discussed and the characteristic features of AMR for the bands 7 and 8 after the backbend have been shown. The two-shears-like mechanism for bands 7 and 8 show that they can be candidate antimagnetic rotational bands. Further experimental investigation such as life-time measurements are expected for a conclusive interpretation.

We thank the crew of the HI-13 tandem accelerator at the China Institute of Atomic Energy for their help in steady operation of the accelerator and for preparing the target. This work is partially supported by the National Natural Science Foundation of China under Contracts No. 11375023, No. 11575018, No. U1867210, No. 11675063, U1832211, and 11922501.
