On the Gravitational Force on Anti-Matter

TL;DR

This paper argues that existing experimental bounds on the gravitational behavior of antimatter are so stringent that they surpass the sensitivity of current antimatter gravity experiments, implying strong constraints on possible differences.

Contribution

The paper provides a simple theoretical argument demonstrating that existing bounds on antimatter gravity are more restrictive than current experimental capabilities.

Findings

Existing bounds on antimatter gravity are extremely tight.

Current experiments are less sensitive than the established bounds.

Theoretical constraints surpass experimental limits.

Abstract

A number of experiments are currently underway on antimatter, particularly anti-hydrogen, to test whether the fundamental interactions behave the same way as for matter. Here we present a simple argument showing that a bound on a difference in gravitational forces exerted on matter and antimatter is already so severe that is goes well beyond the sensitivity of the above measurements.

Figures

Full text

Experiments are underway and planned to test the gravitational force on antimatter ref:summary . Here we present a simple argument showing that a bound on a difference in gravitational forces exerted on matter and antimatter is already so severe that is goes well beyond the sensitivity of the above measurements. A similar argument (applied to electrodynamics) was made by Schiff ref:Schiff (see also ref:Cabbolet ) but was criticized in KT ; NG . The presented formulation leaves little room for such a criticism.

In Einstein’s theory the gravitational force is mediated by a field $h_{\mu\nu}$ that has zero mass and a ${\rm spin}=2$. Newtonian gravity is recovered in the weak field limit in which only linear interactions of $h_{\mu\nu}$ are kept. The nonlinear corrections are suppressed by higher powers of Newton’s constant and are negligible for the experiments of interests.

The consistency of the theory requires that $h_{\mu\nu}$ is sourced by the energy momentum tensor $T_{\mu\nu}$. This automatically leads to the equal strengths of gravitational interactions experienced by particles and antiparticles. There exists no consistent field theory that would enable us to split the strengths of these couplings. However, let us pretend that this is possible and try to derive a phenomenological bound on it. Let $\epsilon$ be the dimensionless parameter that controls the difference in the strengths of gravitational couplings between elementary particles of the Standard Model (quarks, leptons and gauge bosons) and their antiparticles. That is, we parameterize the relative strength of Newtonian forces between matter-matter and matter-antimatter at the same distance by $\lvert{F_{MM}\over F_{M\bar{M}}}-1\rvert\equiv\epsilon$.

Since we are breaking all the rules of the game, we could go even further and allow the splitting not to be universal for different particle species or even be distance-dependent, but these are unnecessary complications.

Naively it seems that the phenomenological bound on such a splitting is not very stringent due to the fact that nobody has ever measured the gravitational force of objects composed of anti-matter. This is however not true. The point is that most of the mass of the objects that we call matter comes from quantum fluctuations that include virtual particle-antiparticle pairs. For example, the mass of a nucleon comes from the quantum binding energy that is a result of the re-summation of an infinite number of virtual processes. The contribution from summing over virtual momenta of antiparticles is almost equal to the contribution from particles.

Obviously, if the on-shell elementary particles and antiparticles experience different gravitational couplings so do their off-shell counterparts. Thus, the splitting will be reflected as a non-equality of the inertial and gravitational masses for all objects. This will lead to the violation of the equivalence principle and, in particular, to composition-dependence of the gravitational force among macroscopic objects such as planets. On such deviations there already exist very severe bounds.

The violation of the equivalence principle is easy to visualize in the language of Feynman diagrams. For example, consider a series of diagrams that contribute to the mass of a proton. In linearized Einstein gravity the gravitational force experienced by a proton in a background classical gravitational field $h_{\mu\nu}$ can be derived in two equivalent ways.

One way is to derive the mass of a proton by summing over all diagrams without involving gravity. The technical realization of the procedure is not important to our argument. This resummation gives the physical mass (or the energy-momentum) of a proton. Then, for finding the Newtonian force at large distances we can simply replace the proton by a point-like source of the same mass coupled to the classical gravitational field.

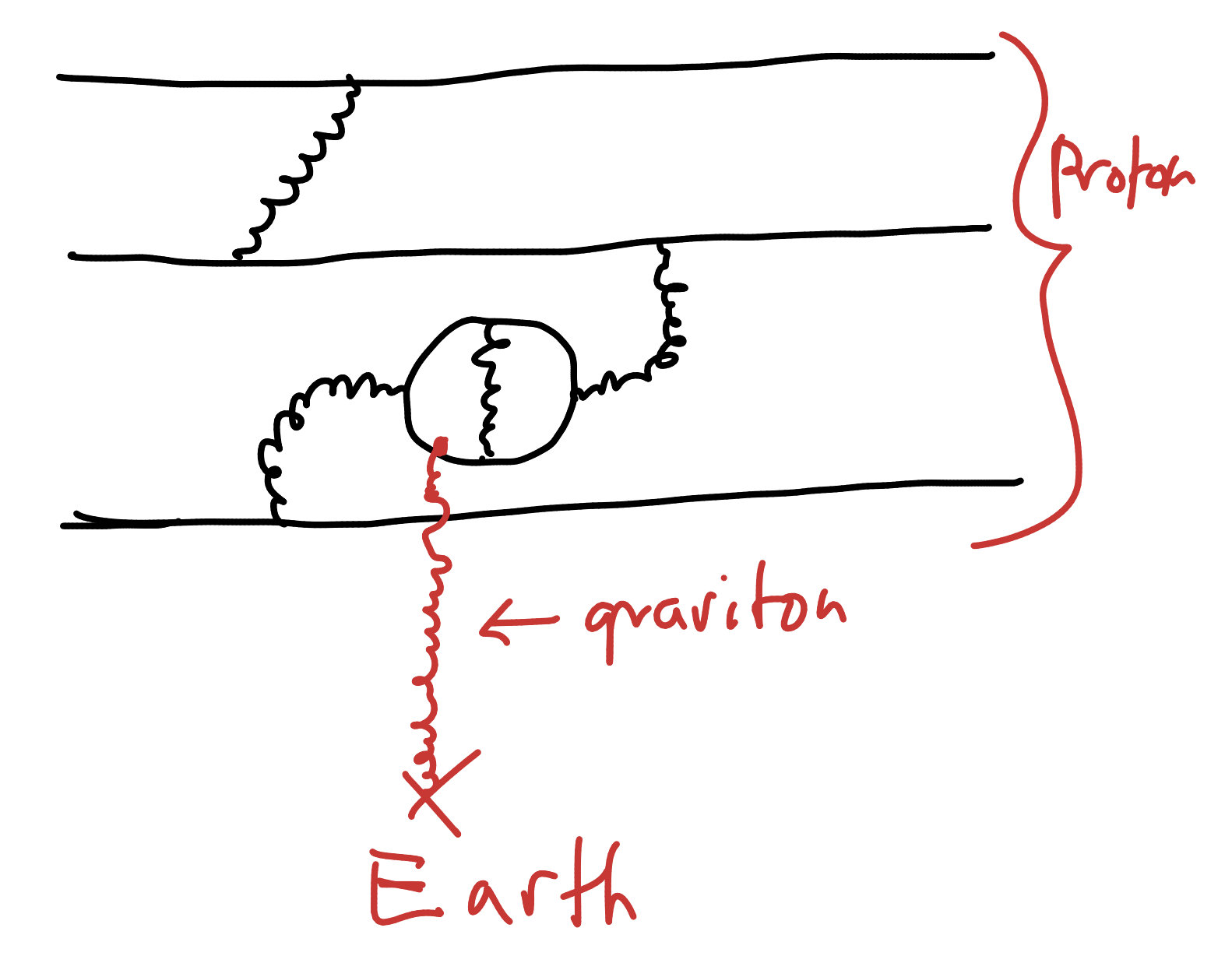

The second method is to couple gravity to the proton diagram by diagram. This is done by attaching an external graviton leg to Feynman diagrams in all possible ways and summing over them. An example diagram is presented here.

Since we are in a linear gravity, a single graviton leg must be attached in each case. Notice, this computation has nothing to do with quantum gravity since the graviton is always an external background field.

That is, we can either first compute the inertial mass of the proton by summing over an infinite set of virtual processes and then couple it to gravity, or we can couple gravity to each virtual process and sum over them. The convergence of the perturbation series is not important for this argument since the equality of the two results is guaranteed by the general covariance of the theory. In other words, this is a manifestation of the equivalence principle of Einstein gravity.

This is no longer true in “new” gravity since now the factor $\epsilon$ appears depending whether the graviton leg is attached to an intermediate particle or an antiparticle line. This will result in a difference between the two computations, or equivalently, in a difference of inertial and gravitational masses of a proton. This difference entirely comes from anti-particle contribution in the proton energy. Naively, one can say that this difference is phenomenologically unobservable since it can be rescaled in the definition of Newtons constant. This is not true since there will still be a difference that appears between relativistic and non-relativistic sources. Such a difference would be detectable, for example, in the deflection of star light by astronomical sources Will . The latter test puts a constraint $\epsilon\lesssim 10^{-4}$.

However, there is a second problem since an analogous difference between the inertial and gravitational masses for other nucleons will not be the same. This is because the neutron and proton receive contributions to their masses from distinct virtual processes. This difference will be picked up in the leading order in electromagnetic coupling $\alpha$. Thus, not only will the inertial and gravitational masses differ for each species of nucleon but in addition there will be a difference in the gravitational to inertial mass ratios of protons and neutrons of order $\epsilon\alpha$.

In other words, this is the expected strength of violation of the equivalence principle in a scattering process of a three-quark bound-state by the earth in any exotic theory of a linear “gravity” that mediates arbitrary long-range forces among the particles of the Standard Model.

This is enough to put a very severe constraint on $\epsilon$. The results can be directly read from GM where bounds on a force sensitive to electromagnetic mass difference between neutron and proton were derived. From the tests of the equivalence principle limits the bound is $\epsilon\lesssim 10^{-11}$.

Let us comment that Kostelecky and Tasson KT dismiss the argument by Schiff as based on an implicit assumption that the gravitational response of a body is determined by its mass and therefore also by its binding energy. Our formulation closes this potential loophole as it shows that the dependence on binding energy is a direct consequence of the basics of quantum field theory rather than an input assumption. Namely, with no prior assumption, the contributions in the gravitational force from virtual particles and anti-particles come from exactly the same set of Feynman diagrams but with different coefficients at insertions of an external graviton leg. Thus, our reasoning fully supports the Schiff’s original argument.

Finally, one may try to circumvent our argument by truly stretching one’s imagination and demanding that in a new hypothetical gravity particles and anti-particles gravitate differently only when they are real (on-shell) and not when they are virtual (or off-shell). This program cannot work due to the following reasons. The first reason is fundamental: Such a description is impossible to formulate consistently as it is in conflict with the basic principles of quantum field theory. The coupling to an external field cannot vanish abruptly whenever a particle is slightly off-shell. The second reason is empirical. There exist no exact on-shell particles in nature. All the observed particles are off-shell due to the interactions that they experience. The degree of off-shellness constantly varies depending on the environment. Therefore such variation would be noticeable on a daily basis and is excluded.

In conclusion, we show that a possible finding that antimatter gravitates differently than matter is very strongly limited by the fundamentals of quantum field theory and known results, precluding such a discovery in the ongoing and planned experiments.

Acknowledgements

We thank Klaus Blaum and the participants of the Max Planck FFVII workshop in Munich, January 31, 2019 for discussions leading to this article. This work was supported in part by the Humboldt Foundation under Humboldt Professorship Award and ERC Advanced Grant 339169 ”Selfcompletion”.
