Tunable MEMS VCSEL on Silicon substrate

TL;DR

This paper reports the design, fabrication, and characterization of a tunable MEMS VCSEL on a silicon substrate, demonstrating a 40 nm tuning range and high mechanical resonance frequency, with improved robustness and bidirectional tuning capabilities.

Contribution

It introduces a novel fabrication process using silicon-on-insulator and direct InP wafer bonding for a more robust, tunable MEMS VCSEL with enhanced spectral range and bidirectional tuning.

Findings

40 nm tuning range achieved

Mechanical resonance frequency exceeds 2 MHz

Robust fabrication process demonstrated

Abstract

We present design, fabrication and characterization of a MEMS VCSEL which utilizes a silicon-on-insulator wafer for the microelectromechanical system and encapsulates the MEMS by direct InP wafer bonding, which improves the protection and control of the tuning element. This procedure enables a more robust fabrication, a larger free spectral range and facilitates bidirectional tuning of the MEMS element. The MEMS VCSEL device uses a high contrast grating mirror on a MEMS stage as the bottom mirror, a wafer bonded InP with quantum wells for amplification and a deposited dielectric DBR as the top mirror. A 40 nm tuning range and a mechanical resonance frequency in excess of 2 MHz are demonstrated.

Figures

Full text

I Introduction

Optical Coherence Tomography (OCT) has grown rapidly since its introduction in 1991 [1, 2]. Imaging resolution and speed have increased by 10 and 1 000 000 times, respectively [1]. The application area which initially was eye imaging [2] has now expanded to cardiology [3, 4], dermatology [5], and urology [6] etc. Integration of OCT with endoscopes [7, 8] and surgical probes [9] for providing physicians with real-time data has also been shown. OCT has also been coupled with other imaging technologies such as multiphoton tomography [10], non-linear microscopy [11], and photoacoustic imaging [12] to extract more enriched information. In order to continue this trend and extent to more application domains, OCT systems need to be simplified. The ultimate goal should be to integrate OCT on a chip, in a compact form factor. The light source is the most important component of the OCT system, and the MEMS vertical-cavity surface-emitting laser (VCSEL) based swept sources (SS) [13, 14] are among the most promising light source technologies for future integrated OCT systems.

Most existing MEMS VCSELs, e.g., [15, 16, 17, 18] primarily based on the III-V material system, share a common design principle. The bottom mirror is grown along with the active material and the actuated part is the top mirror. As a result, they have an open MEMS design and need careful handling until hermetically sealed using an external packaging. Changes in the humidity and temperature may result in water condensation on the device which damages the MEMS element. A sealed MEMS element would make a more robust device. Moreover, the MEMS element can be actuated in one direction only since the electrostatic force is an attractive force. Also, the MEMS element can only be actuated one third of the total gap distance to prevent electrostatic snap-in. Consequently the gap must be increased in order to increase the tuning range, however, the increased gap also results in a longer laser cavity and thereby a smaller free space range (FSR). So, there is always a trade-off between a short laser cavity and a wide mirror actuation range. This also sets a limit to mode-hop-free tunable wavelength bandwidth. Thus these issues need to be addressed in order to design a more robust and better tunable MEMS VCSEL.

In the following we propose a MEMS VCSEL design based on a Silicon substrate which incorporates sealed MEMS actuation and the possibility to decouple the actuation gap from the laser cavity. The bottom mirror of the VCSEL is the actuated component defined on a Silicon-on-insulator (SOI) substrate, which is then bonded to a III-V wafer with active material followed by a deposition of the top mirror. The design of the MEMS VCSEL is discussed in Sec. II. The fabrication process flow is presented in Sec. III followed by characterization of an optically pumped 1550 nm MEMS VCSEL in Sec. IV.

II Design of MEMS VCSEL on Silicon substrate

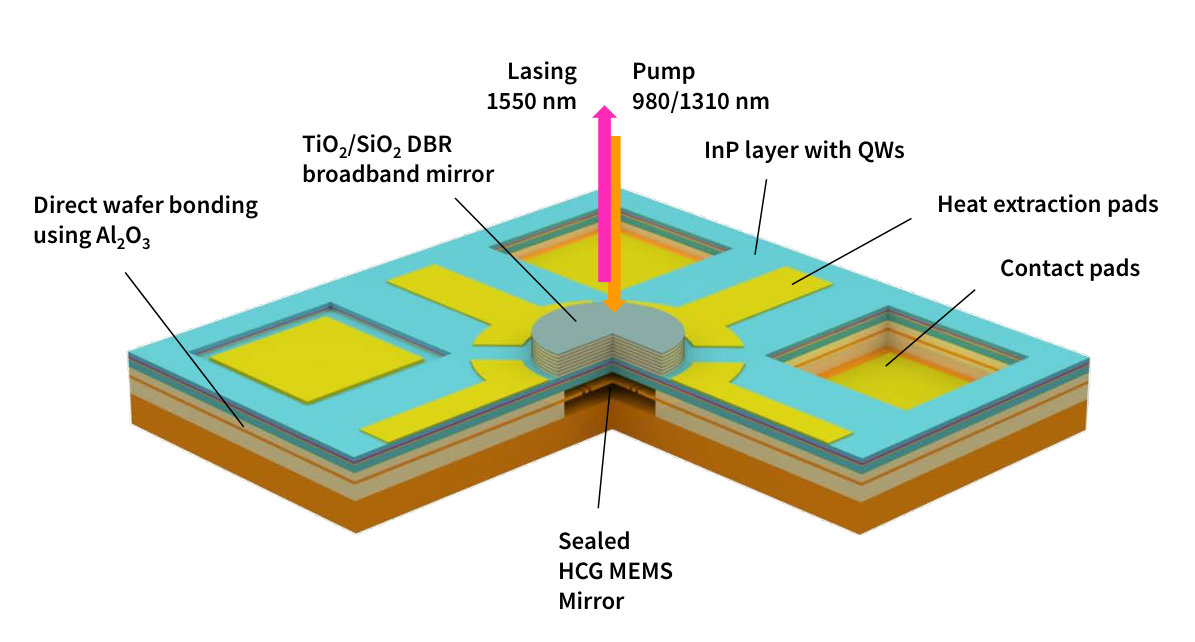

Fig. 1 shows a schematic of the MEMS VCSEL on a Silicon substrate. A high contrast grating (HCG) mirror [19] is used as the bottom mirror, which is fixed on a MEMS frame defined in the Silicon ”device” layer of an SOI substrate. The active material and the top mirror, a dielectric distributed Bragg reflector (DBR), are static and seal the MEMS cavity. Thus, the DBR and HCG mirror are no longer dependent on a challenging epitaxial growth; on the contrary both mirrors can be defined using standard complementary-metal-oxide-semiconductor (CMOS) processing steps. Last but not the least, the device is now based on a Silicon substrate which makes (automated) handling of the wafer easier and that paves the path for further integration.

A sealed cavity provides multiple benefits, such as improved control of the MEMS dynamics, since a partial vacuum or controlled gas pressure in the cavity can be used to adjust the MEMS damping. In addition, the HCG on the MEMS can now be actuated both from the top and the bottom electrodes, essentially increasing the tuning bandwidth. Actuation using only the bottom electrode is also an option, which realizes a pull-away design. This option decouples the relation between the tuning gap and the laser cavity since the HCG bottom mirror can be placed close to the active layer resulting in a wide FSR.

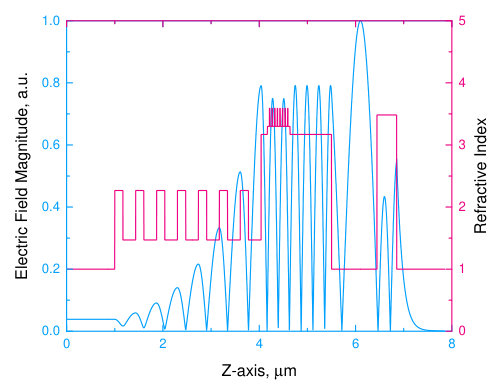

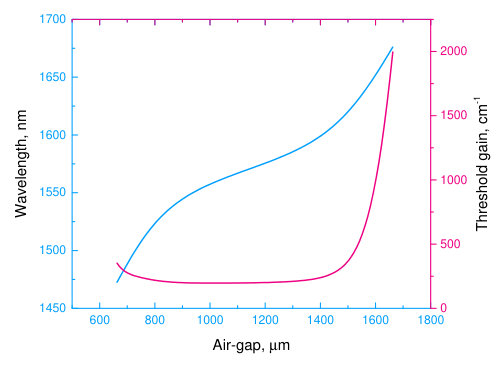

The device was modeled using a modal method [20] using CAMFR [21, 22]. Fig. 2 (a) shows the refractive index profile of the structure overlaid on the resulting electric field. From the left the alternating layers of SiO2 and TiO2 represent the top mirror, followed by a layer of active material, the tunable airgap and the HCG mirror. The active material was defined by 8 quantum wells (QWs) (InGaAsP/InGaAlAs) in InP. The air-gap thickness was varied to simulate the effect of tuning. For each air-gap thickness, the corresponding cavity mode and threshold gain were determined as shown in Fig. 2 (b). The lasing mode was obtained by satisfying the condition of unity round trip gain for the cavity and the threshold gain was equal to minimum gain required to overcome losses of the system. Multiple QWs were used to minimize the impact of the moving anti-nodes of the field when the device is tuned thus a low threshold can be achieved for the desired wavelength range. A semiconductor coupled design was chosen for the device since the attempt to incorporate an AR coating at the bonding interface failed either due to roughness or stress in the coating. An air dominant design [23] could also be done and since the HCG mirror is not the output mirror this could be done with minimum penalty from the needed high reflectivity of the MEMS mirror.

III 1550 nm MEMS VCSEL Fabrication

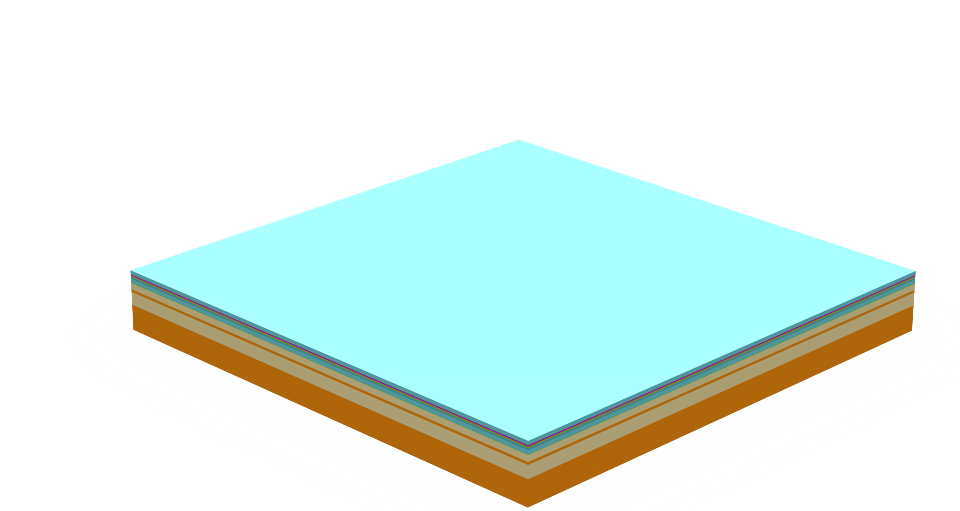

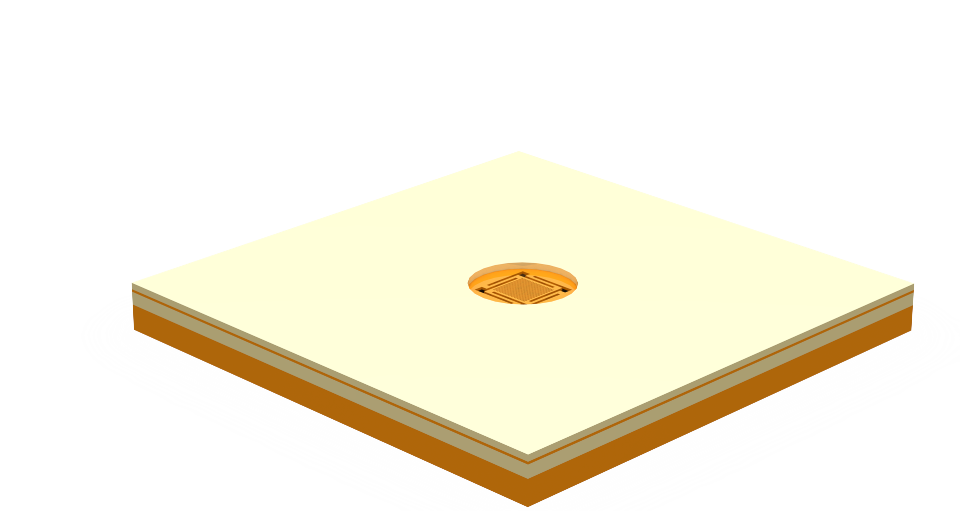

Fig. 3 shows the fabrication process flow for the MEMS VCSEL. A SOI wafer with a 400$\pm$5 nm p-doped Silicon “device” layer (10 nm less than the optimal value for the HCG) on a 1 $\mu$m thick buried oxide was used as the substrate. Electron beam lithography was used to define the HCG and the MEMS frame around it. For a reflectivity around 99.9% at 1550 nm, the HCG was defined with a periodicity of 650 nm and duty cycle of 0.63$\pm$0.08 to account for process variations. The pattern was transferred to the MEMS Silicon layer using reactive ion etching (RIE). A blanket layer of SiO2 was then deposited. The thickness of this layer equals the air-gap between the active layer and HCG mirror. SiO2 was chosen since it is a standard CMOS material and easy to work with. This layer is also the interface layer for bonding with the active material, thus the surface roughness of the SiO2 layer must be below 0.5 nm for successful direct bonding. However, SiO2 deposited by plasma enhanced chemical vapor deposition (PECVD) has a surface roughness in excess of 3 nm, thus a two-step deposition process was used to achieve the required surface roughness. Following PECVD deposition of SiO2, a layer of phosphorous boron doped silicate glass (PBSG) was deposited and then the stack was annealed at 1000 °C for re-flow of the glass. The re-flow of the PBSG resulted in a surface roughness of approximately 0.2 nm. The reason for using two types of SiO2 was the relatively low wet etch rate of PBSG in buffered HF (bHF), which becomes critical in the subsequent etch step. A dry etch step followed by a wet etch using bHF was used to release the MEMS structure. The wet etch avoided ion damage on the HCG MEMS. Using only PBSG would increase the etch time in bHF which would degrade the resist mask. The wet etch in bHF is continued to etch also the buried oxide below the HCG MEMS. Critical point drying (CPD) step was used in order to successfully release the MEMS. The processed wafer was then direct bonded to an InP wafer with the active material, using Al2O3 as an intermediate layer [24]. The wafers were annealed at 300 °C to consolidate the wafer bonding. The InP substrate on the bonded wafers was then etched away leaving a thin layer of InP with the active region. Contact-windows were etched to all the contact layers – the n-doped layer in InP, the MEMS Silicon layer and the Silicon substrate. A combination of dry and wet etch steps were used in all three contact-window etches to avoid ion damage to the contact surface. A metal stack (25 nm Ti, 75 nm Pt, 300 nm Au) was then deposited for establishing contacts using a lift-off process. In addition to the metal contacts, metal strips were added on top of the chip to improve with heat extraction from the lasing region (Visible in Fig. 4). Finally, 7 pairs of TiO2 (n = 2.31 at 1550 nm) and SiO2 (n = 1.44 at 1550 nm) layers were deposited using sputter deposition to define the top DBR mirror. The individual layer thicknesses were optimized to reduce the reflectivity near the pump wavelengths while retaining high reflectivity around 1550 nm. A scanning electron microscope (SEM) image of a completed MEMS VCSEL is shown in Fig. 4.

The design of the MEMS VCSEL adds flexibility to the fabrication process flow. All critical steps such as electron beam lithography, growth of active material and bonding are performed early in the process flow followed by the non-critical steps such as contact definition and DBR deposition. The bottom mirror (HCG on MEMS frame) and the top mirror (DBR) are defined using standard Si processing.

IV Device Characterization and Discussion

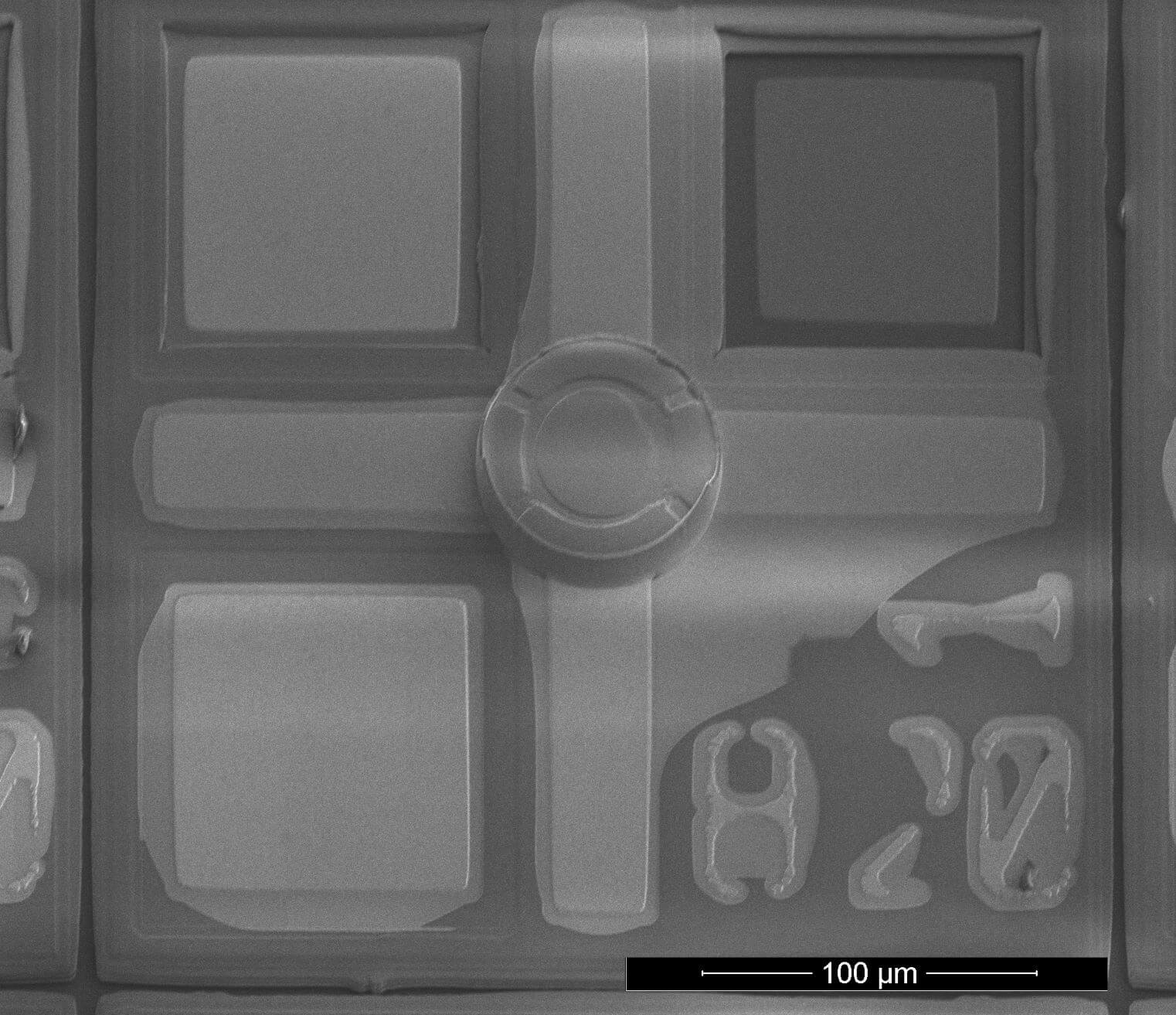

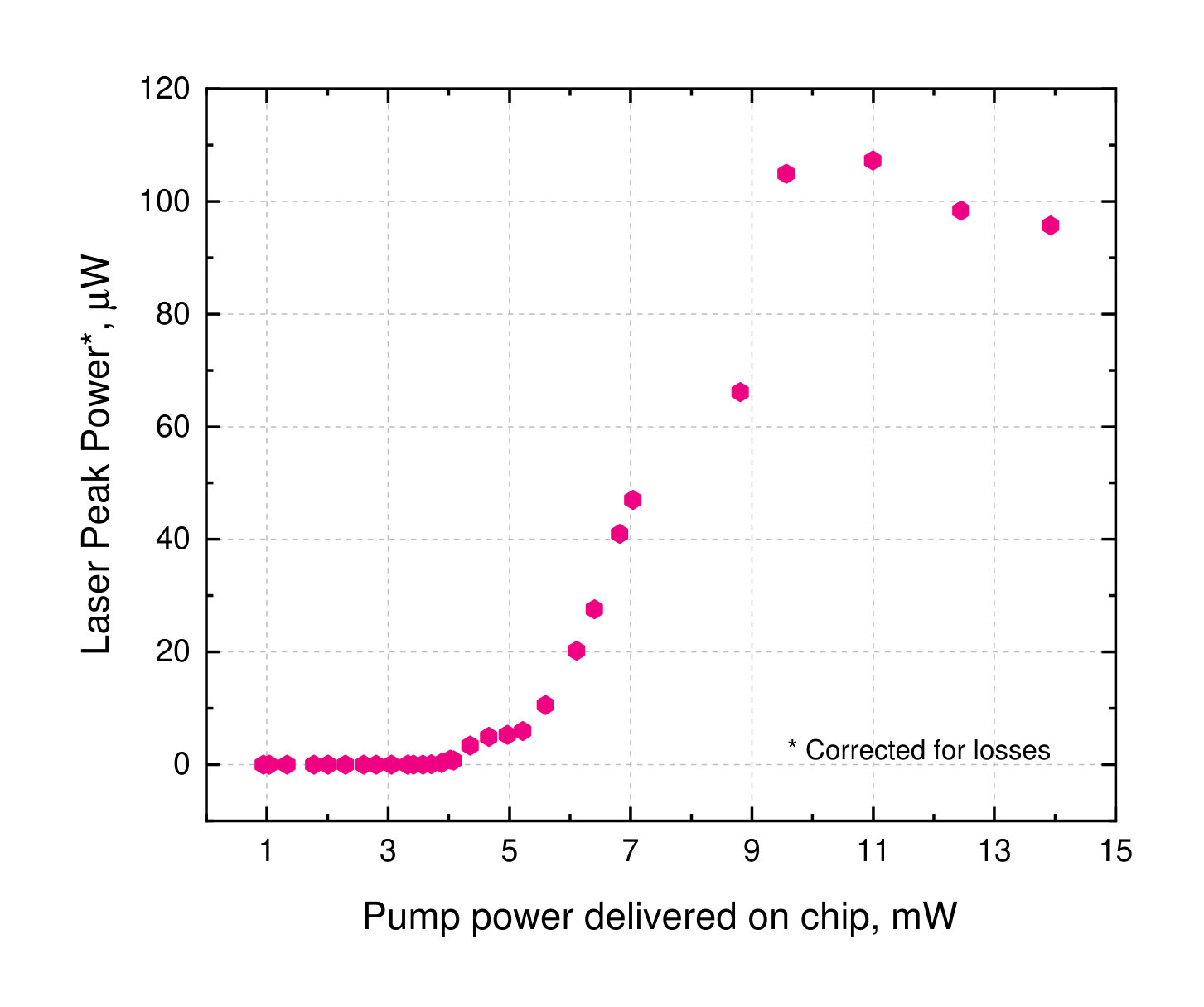

The fabricated device was optically pumped using a continuous wave 976 nm fiber Bragg grating laser diode. The pump was also used to define the aperture for lasing; part of the incident pump energy is used for the generation of photons and the remaining is released as heat. The heat increases refractive index at the incident spot and this defines the lasing mode. A microscope setup was used to focus the pump beam. Fig. 5 shows the threshold plot for a VCSEL at room temperature. The threshold input power (delivered on the chip) is $\approx$5.5 mW which translates to around 1.4 mW of absorbed power (assuming the active material has an absorption coefficient of 104 cm*-1*), which is equivalent to an electrical injection current of 1 mA. The maximum power output achieved for the device is 0.1 mW. The small variations seen in Fig. 5 are due to undesired changes in focus of the microscope.

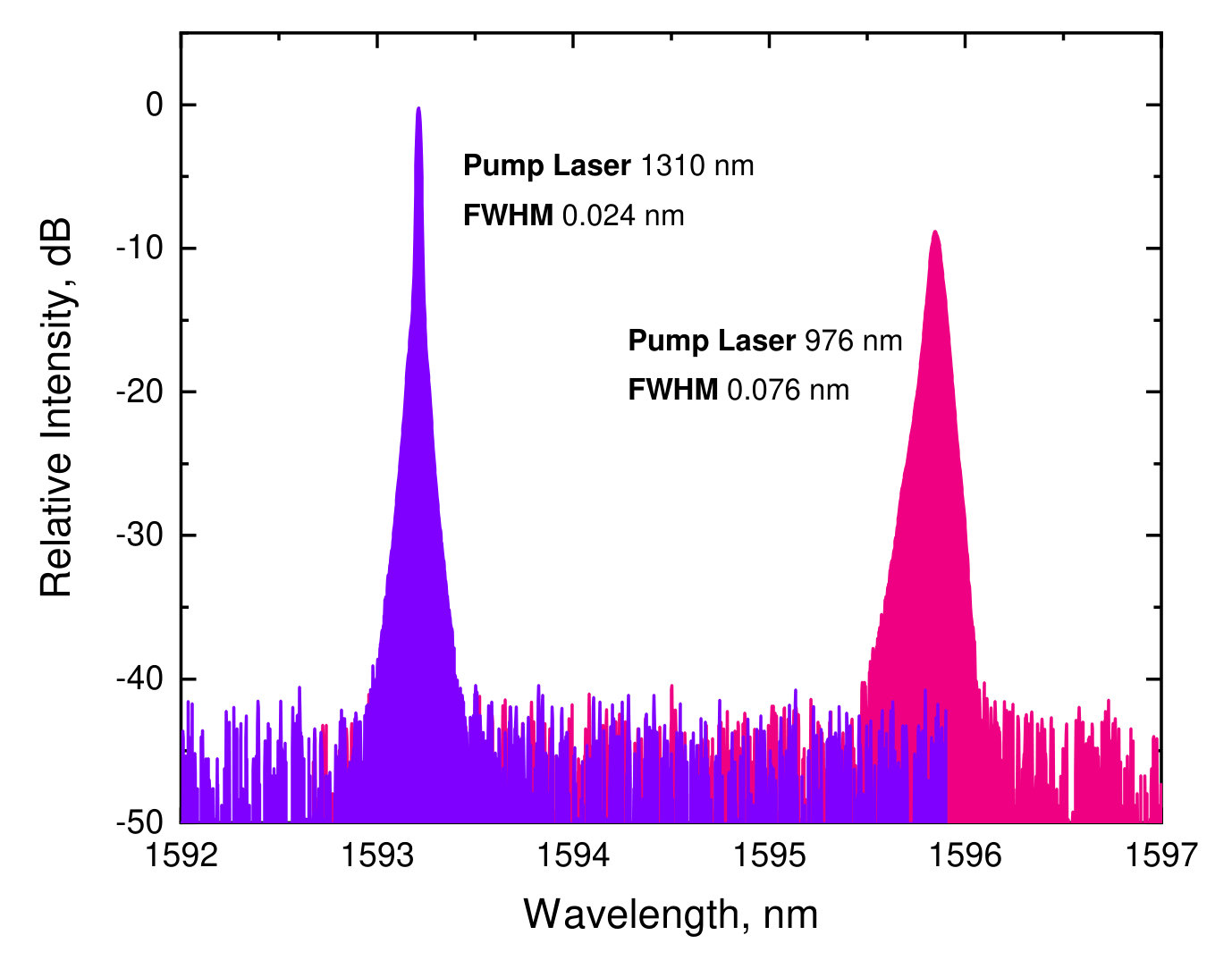

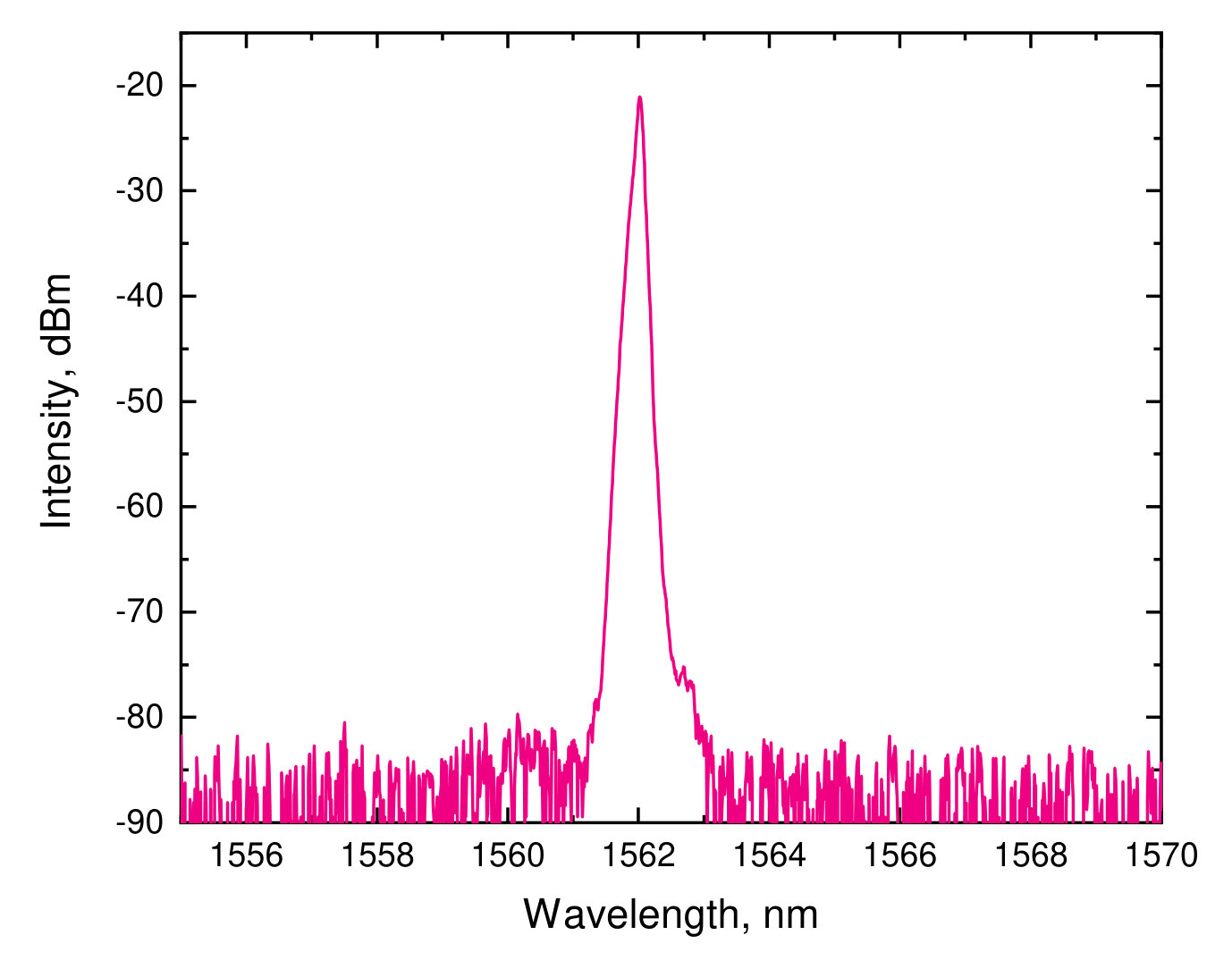

Fig. 6 shows the optical spectrum measured on the fabricated sample. The spectrum shows single mode emission with a peak at 1564 nm and a side mode suppression ratio of more than 55 dB. The use of the HCG bottom mirror also helps with suppression of higher order modes [25]. On the other hand, a HCG defined in Silicon (which absorbs 976 nm) broadens the line-width of the emission due to heating as also reported by Rao et al. [18]. Fig. 7 shows the optical spectra obtained for 980 nm and 1310 nm pumping (Note, measurements in Figs. 6 and 7 were performed on different devices). The lasing peak corresponding to 980 nm pumping is red shifted due to heating. The measured full width half maximum (FWHM) was much smaller using 1310 nm pumping. However, for the QWs used in the device, a 976 nm pump is more effective than a 1310 nm pump since the former is absorbed both in the QWs and its barriers whereas the latter is only absorbed in the available states within the QWs; thus 980 nm laser pumping was used for further characterization.

IV-A DC Characteristics

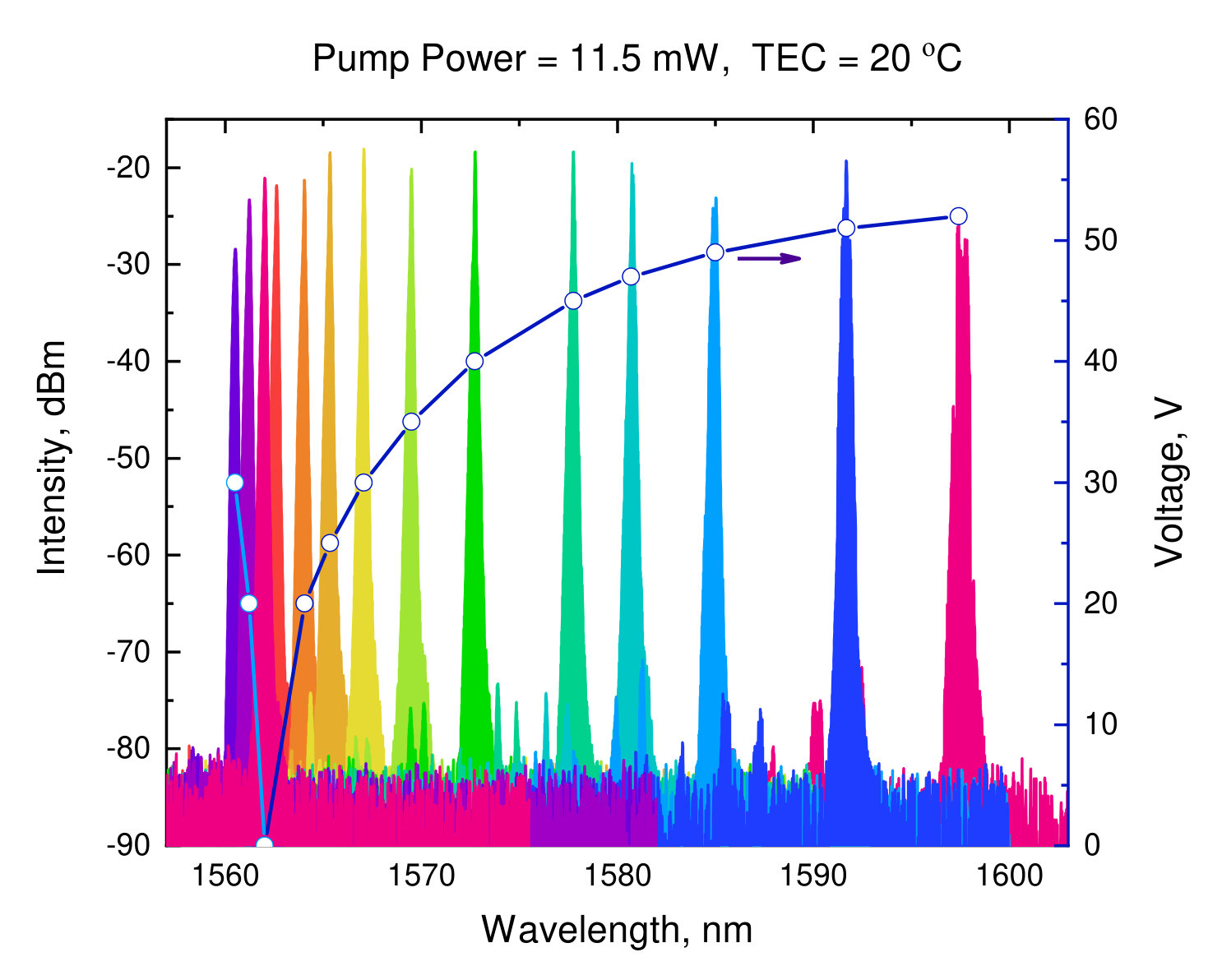

The MEMS can be actuated by applying voltage between the centre electrode (HCG MEMS silicon layer) and either top (doped InP) or bottom (silicon substrate) electrodes. Fig. 8 shows the output spectrum when the MEMS is actuated. By application of a voltage between the centre and bottom electrodes, the peak emission red shifts. Some degree of bidirectional tuning is also demonstrated since the emission wavelength blue shifts when voltage is applied between the top and centre electrodes. A very limited tuning range was achieved using top actuation either because of increased losses from heating or gain limitations. Overall, the device demonstrated a wide tuning range of approximately 40 nm, this is, however, not a fundamental limit to the maximum tuning range. The active layer can be optimized to have a wider gain bandwidth, and at the same time, heat extraction needs to be optimized to reduce the losses to further expand the tuning range.

IV-B AC Characteristics

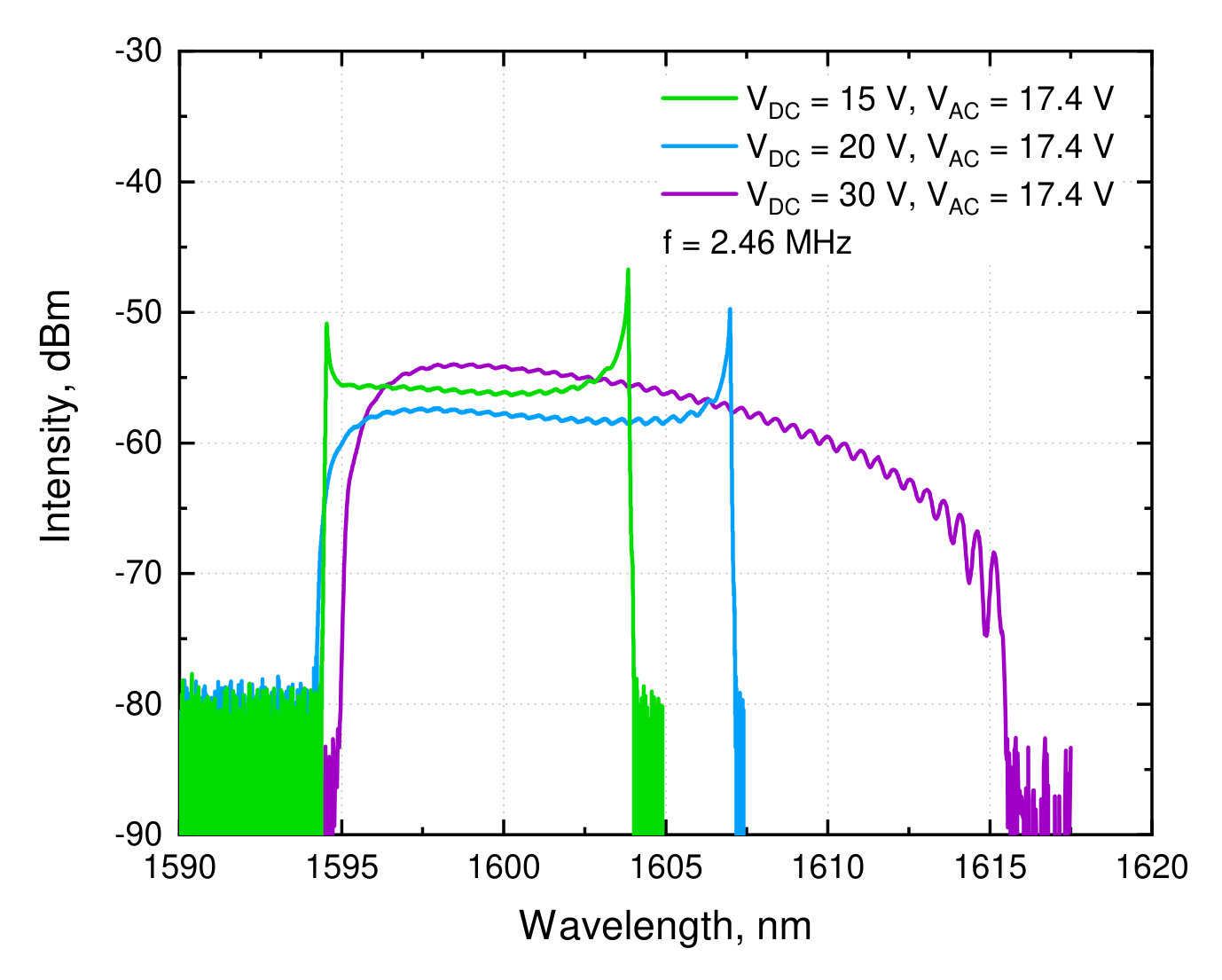

The AC dynamics of the device was studied since a continuous swept source is interesting for OCT. A voltage waveform $V(t)=V_{DC}+V_{AC}\sin(\omega t)$ where $\omega=2\pi f$, was applied between the HCG MEMS silicon layer and the silicon substrate. The DC bias $V_{DC}$ shifts the zero point for the AC bias $V_{AC}\sin(\omega t)$ and shifts the zero position for the HCG MEMS silicon layer. Fig. 9 shows the AC response of the device at the resonance frequency ($f=2.46$ MHz). The AC actuation is studied at the resonance frequency to achieve the maximum tuning range [13]. The use of silicon for the MEMS element helped to increase the resonance frequency. As the DC bias $V_{DC}$ is increased the centre of the tuning curve red shifts and there is a distinct increase in the bandwidth of the tuning curve. A higher $V_{DC}$ reduces the gap between the actuating electrodes, thus the electric field increases, and therefore the displacement at fixed $V_{AC}\sin(\omega t)$ increases. AC actuation at the resonance frequency increases the tuning range beyond the achievable DC tuning range [13]. The tuning range of around 20 nm achieved at 2.46 MHz is among the highest reported [26, 17, 13, 27]. Different devices were used for the AC and DC actuation experiments; thus, tuning range for the MEMS VCSEL can be expected to improve in future experiments. The variation in lasing wavelength between devices came mainly from non-uniformity during the SiO2 deposition process which defines the cavity length, thus a better uniformity control can improve the repeatability and performance in future devices.

IV-C Thermal Effects

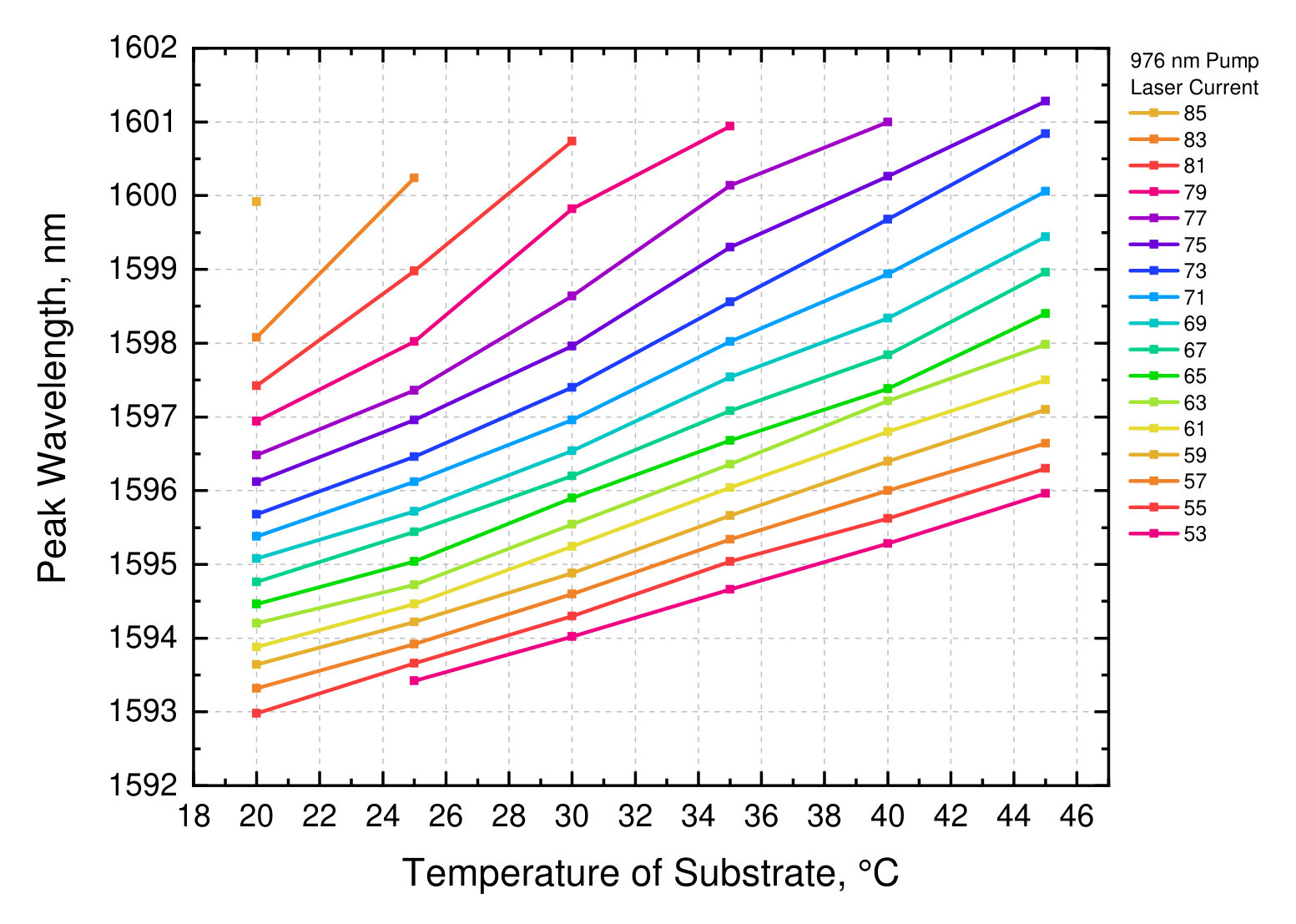

Lasers are dependent on the operating temperature as it influences the gain spectrum, threshold carrier density, radiative/non-radiative recombination and overall refractive index of the system [28]. In addition, the device in discussion also relies on temperature for thermal lensing and, thus, lasing. The active region illuminated by the pump beam is locally heated due to the injected carriers. As the pump power is increased carrier generation is increased which increases the heat generated (non-radiative transitions). This contributes to a change in refractive index and thus shifts the lasing peak. In order to study the effect of temperature, the emission was recorded for different pump powers at different substrate temperatures. Fig. 10 shows the shift in the peak of the lasing wavelength for changes in substrate temperature and pumping power. For moderate and low pumping powers, the lasing wavelength has an almost linear dependence on temperature. The temperature coefficient for low pump power is close to 0.12 nm/K. However, the wavelength changes (increases) much more rapidly with increase of pump power. The temperature coefficient increases to around 0.28 nm/K for higher pump powers. The pump power (a local phenomenon) has a more profound effect than variations with the substrate temperature. Fig. 10 can be used to estimate the amount of heating of the device due to pumping. As an example, for this device with a pump laser current of 69 mA, lasing at 1595 nm results in a temperature of 38 °C at the core, which is approximately 18 °C above room temperature.

V Conclusion

We have successfully designed and fabricated a MEMS VCSEL on a silicon substrate which encapsulates the MEMS in a cavity, enables the possibility of bi-directional tuning and is a promising robust design for future on-chip integrated devices using MEMS VCSELs. The design exploits standard silicon CMOS based processing for part of the device and all III-V processing done after bonding to silicon. The fabricated MEMS VCSEL was characterized to have a low threshold for lasing and a wide DC tuning range of 40 nm with some degree of bi-directional tuning. AC actuation was also explored to find the resonance frequency of MEMS and a high-frequency operation at 2.4 MHz with a tuning range of 15-20 nm was also achieved.

Acknowledgment

The authors would like to acknowledge the financial support from the Danish Innovation Foundation through the HERON project, the Villum Center of Excellence NATEC, and the National Basic Research Foundation center SPOC (No. DNRF123).
