On approximate validation of models: A Kolmogorov-Smirnov based approach

TL;DR

This paper introduces a Kolmogorov-Smirnov based method for approximate model validation that effectively tests for model fit in the presence of contamination, with strong error control and asymptotic properties.

Contribution

It proposes a novel contamination-aware testing approach using trimming and the Kolmogorov metric, extending classical goodness-of-fit tests to more realistic scenarios.

Findings

Estimator achieves exponentially small error probabilities.

Method effectively detects model deviations with contamination.

Connections to false discovery rate enhance applicability.

Abstract

Classical tests of fit typically reject a model for large enough real data samples. In contrast, often in statistical practice a model offers a good description of the data even though it is not the "true" random generator. We consider a more flexible approach based on contamination neighbourhoods around a model. Using trimming methods and the Kolmogorov metric we introduce a functional statistic measuring departures from a contaminated model and the associated estimator corresponding to its sample version. We show how this estimator allows testing of fit for the (slightly) contaminated model vs sensible deviations from it, with uniformly exponentially small type I and type II error probabilities. We also address the asymptotic behavior of the estimator showing that, under suitable regularity conditions, it asymptotically behaves as the supremum of a Gaussian process. As an application we explore methods of comparison between descriptive models based on the paradigm of model falseness. We also include some connections of our approach with the False-Discovery-Rate setting, showing competitive behavior when estimating the contamination level, although applicable in a wider framework.

Figures

Tables

Table 1. Table 1: Values associated to error bounds for α = 0.1 𝛼 0.1 \alpha=0.1 and N = 1000 𝑁 1000 N=1000 .

EI	EII	$\lambda$	${\rho }_{1000}$	EI	EII	$\lambda$	${\rho }_{1000}$	EI	EII	$\lambda$	${\rho }_{1000}$
0.1	0.5	0.90	0.048	0.05	0.25	0.90	0.053	0.01	0.05	0.90	0.063
0.1	0.1	0.50	0.086	0.05	0.05	0.50	0.095	0.01	0.01	0.50	0.114
0.1	0.02	0.10	0.440	0.05	0.01	0.10	0.489	0.01	0.002	0.10	0.586

Table 2. Table 2: For the first two examples we fix α = 0.05 𝛼 0.05 \alpha=0.05 and get β 0 = 1.637464 subscript 𝛽 0 1.637464 \beta_{0}=1.637464 . For F 0 0.5 subscript superscript 𝐹 0.5 0 F^{0.5}_{0} we take d α = 0.1 subscript 𝑑 𝛼 0.1 d_{\alpha}=0.1 . For all the other examples α = 0.01 𝛼 0.01 \alpha=0.01 and q = 0.01 𝑞 0.01 q=0.01 , where the first row indicates the values ( a , b ) 𝑎 𝑏 (a,b) for F 0 a , b subscript superscript 𝐹 𝑎 𝑏 0 F^{a,b}_{0} . For each example, we generate M = 1200 𝑀 1200 M=1200 samples of size N 𝑁 N from F ∼ U ​ ( 0 , 1 ) similar-to 𝐹 𝑈 0 1 F\sim U(0,1) .

	$Beta(1,{\beta }_0)$	$F_0^{1/2}$	(0.01, 0.99)	(0.49, 0.51)	(1/3, 4/3)	(0.01, 0.5)	(0.6, 0.8)
N = 100	0.985	0.993	0.957	0.955	0.947	0.949	0.942
	0.998	1.000	1.000	1.000	1.000	1.000	1.000
N = 1000	0.988	0.989	0.981	0.958	0.968	0.970	0.968
	0.992	0.976	1.000	1.000	1.000	1.000	1.000
N = 5000	0.993	0.996	0.998	0.960	0.973	0.970	0.958
	0.980	0.963	1.000	1.000	1.000	1.000	1.000

Table 3. Table 3: For F 0 ∼ N ​ ( 0 , 1 ) similar-to subscript 𝐹 0 𝑁 0 1 F_{0}\sim N(0,1) , F 1 ∼ L ​ o ​ g ​ i ​ s ​ t ​ i ​ c ​ ( 0 , 3 / π ) similar-to subscript 𝐹 1 𝐿 𝑜 𝑔 𝑖 𝑠 𝑡 𝑖 𝑐 0 3 𝜋 F_{1}\sim Logistic(0,\sqrt{3}/\pi) , F 2 ∼ 0.867 ​ N ​ ( 0 , 1 ) + 0.133 ​ N ​ ( 0 , 4 2 ) similar-to subscript 𝐹 2 0.867 𝑁 0 1 0.133 𝑁 0 superscript 4 2 F_{2}\sim 0.867N(0,1)+0.133N(0,4^{2}) and F 3 ∼ 0.9 ​ N ​ ( 0 , 1 ) + 0.1 ​ N ​ ( 3 , 1 ) similar-to subscript 𝐹 3 0.9 𝑁 0 1 0.1 𝑁 3 1 F_{3}\sim 0.9N(0,1)+0.1N(3,1) , the table shows the results obtained from samples of size n = 20000 𝑛 20000 n=20000 . We denote d K , n = d K ​ ( F 0 , R 0.05 ​ ( F i , n ) ) subscript 𝑑 𝐾 𝑛 subscript 𝑑 𝐾 subscript 𝐹 0 subscript 𝑅 0.05 subscript 𝐹 𝑖 𝑛 d_{K,n}=d_{K}\left(F_{0},R_{0.05}(F_{i,n})\right) , d K , 95 % subscript 𝑑 𝐾 percent 95 d_{K,95\%} are the 95% lower (top) and upper (bottom) confidence bounds for d K ​ ( F 0 , R 0.05 ​ ( F i ) ) subscript 𝑑 𝐾 subscript 𝐹 0 subscript 𝑅 0.05 subscript 𝐹 𝑖 d_{K}\left(F_{0},R_{0.05}(F_{i})\right) .

	$d_{K,n}$	$d_{K,95\%}$	$N_{0.5,indep}$	$L_{0.5,n}$	$U_{0.5,n}$	$N_{0.5,subs}$	${\alpha }_n^{\ast }$
$F_1$	0.0140	0.0000	12370	4170	16079	15670	0.054
		0.0262
$F_2$	0.0200	0.0000	7610	2045	7886	6840	0.069
		0.0322
$F_3$	0.0477	0.0275	1135	359	1386	1020	0.089
		0.0599

Table 4. Table 4: d K , α , n = d K ​ ( F 0 ∗ , R α ​ ( F n ) ) subscript 𝑑 𝐾 𝛼 𝑛 subscript 𝑑 𝐾 superscript subscript 𝐹 0 subscript 𝑅 𝛼 subscript 𝐹 𝑛 d_{K,\alpha,n}=d_{K}\left(F_{0}^{*},R_{\alpha}(F_{n})\right) , where F 0 ∗ ∼ N ​ ( 167.6 , 10.1 2 ) similar-to superscript subscript 𝐹 0 𝑁 167.6 superscript 10.1 2 F_{0}^{*}\sim N(167.6,10.1^{2}) and F 𝐹 F is the true generating mechanism. N 0.5 , s ​ u ​ b ​ s subscript 𝑁 0.5 𝑠 𝑢 𝑏 𝑠 N_{0.5,subs} is obtained taking 1000 sub-samples of the heights data. N 0.5 , i ​ n ​ d ​ e ​ p subscript 𝑁 0.5 𝑖 𝑛 𝑑 𝑒 𝑝 N_{0.5,indep} is obtained taking 1000 independent samples from F = F 0 𝐹 subscript 𝐹 0 F=F_{0} .

$\alpha$	$d_{K,\alpha ,n}$	$d_{K,\alpha ,95\%}$	$N_{0.5,\mathrm{indep}}$	$L_{0.5,n}$	$U_{0.5,n}$	$L_{0.5,95\%}$	$U_{0.5,95\%}$	$N_{0.5,\mathrm{subs}}$
$0.015$	0.0184	0.0000	8350	2239	8631	832	3206	7225
		0.0302				$\infty$	$\infty$
$0.035$	0.0143	0.0000	17250	3888	14993	1143	4407	13280
		0.0263				$\infty$	$\infty$
$0.055$	0.0110	0.0000	37300	6851	26417	1523	5872	25810
		0.0233				$\infty$	$\infty$

Equations

$${\mathcal{V}}_{\alpha }(P_0)=\{(1-\alpha )P_0+\alpha Q:Q\in \mathcal{P}\},$$

$$P\in {\mathcal{V}}_{\alpha }(P_0)⟺P_0\in R_{\alpha }(P),$$

$$R_{\alpha}(P)=\big{\{}Q\in\mathcal{P}:Q\ll P,\,{\textstyle\frac{dQ}{dP}\leq\frac{1}{1-\alpha}}\,P\text{-a.s.}\big{\}}.$$

$$d_K(F,G)=\underset{x\in \mathbb{R}}{\sup }|F(x)-G(x)|,$$

$$d_K(F_0,R_{\alpha }(F)):=\underset{\tilde{F}\in R_{\alpha }(F)}{\min }{d}_K(F_0,\tilde{F}),$$

$${\alpha }^{\ast }=\min \{\alpha :d_K(F_0,R_{\alpha }(F))=0\}.$$

$$R_{\alpha }(F)=\{F_h:h\in {\mathcal{C}}_{\alpha }\}.$$

$$\text{mbox}Thereexists{\tilde{F}}_0\in R_{\alpha }(F)\text{mbox}suchthat{d}_K(F_0,{\tilde{F}}_0)=d_K(F_0,R_{\alpha }(F)),\text{mbox}and$$

$$F\in {\mathcal{V}}_{\alpha }(F_0)\text{mbox}ifandonlyif{d}_K(F_0,R_{\alpha }(F))=0.$$

$$d_K(G_n,R_{\alpha }(F_m))\to d_K(G,R_{\alpha }(F)),\text{mbox}asn,m\to \infty ,\text{mbox}withprobabilityone.$$

$$d_K(F_0,R_{\alpha }(F))=\underset{h\in {\mathcal{C}}_{\alpha }}{\min }\Vert h-F_0\circ F^{-1}\Vert \text{mbox}and{d}_K(F_0,R_{\alpha }(F_n))=\underset{h\in {\mathcal{C}}_{\alpha }}{\min }\Vert h-F_0\circ F_n^{-1}\Vert .$$

$${\tilde{h}}_{\alpha }(t)=\max \left(\min \left(\frac{U(t)+L(t)}{2},0\right),\frac{-\alpha }{1-\alpha }\right).$$

$$\underset{h\in {\mathcal{C}}_{\alpha }}{\min }\Vert h-\Gamma \Vert =\Vert h_{\alpha }-\Gamma \Vert =\Vert {\tilde{h}}_{\alpha }-G\Vert .$$

$${\tilde{h}}_{\alpha ,n}(t)=\max \left(\min \left(\frac{U_n(t)+L_n(t)}{2},0\right),\frac{-\alpha }{1-\alpha }\right).$$

$$\Vert {\tilde{h}}_{\alpha ,n}-G_n\Vert =\underset{1\le i\le n}{\max }\left(\max (G_n(\frac{i-1}{n}+)-{\tilde{h}}_{\alpha ,n}(\frac{i-1}{n}),{\tilde{h}}_{\alpha ,n}(\frac{i}{n})-G_n(\frac{i}{n}))\right),$$

$$d_{K}(F_{0},R_{\alpha}(F_{n}))=\max_{1\leq i\leq n}\big{(}\max(g_{(i-1)+}-h_{i-1},h_{i}-g_{i,-}\big{)}.$$

$$d_{K}(R_{\alpha}(N(\mu,1)),N(0,1))={\textstyle\Phi\big{(}\frac{|\mu|}{2}+\frac{1}{|\mu|}\log(1-\alpha)\big{)}-\frac{1}{1-\alpha}\Phi\big{(}-\frac{|\mu|}{2}+\frac{1}{|\mu|}\log(1-\alpha)\big{)}}.$$

$${d_{K}(R_{\alpha}(N(0,\sigma^{2})),N(0,1))=\begin{cases}{\textstyle\Phi\Big{(}\frac{-\sigma\frac{\Delta}{2}}{1-\sigma^{2}}\Big{)}-\frac{1}{1-\alpha}\Phi\Big{(}\frac{-\frac{\Delta}{2}}{1-\sigma^{2}}\Big{)}},\quad\mbox{if }\sigma<1\\ 0,\quad\quad\quad\quad\quad\quad\quad\quad\mbox{ if }1\leq\sigma\leq 1/(1-\alpha)\\ {\textstyle\Phi\Big{(}\frac{\sigma\frac{\Delta}{2}}{\sigma^{2}-1}\Big{)}-\frac{\Phi\Big{(}\frac{\frac{\Delta}{2}}{\sigma^{2}-1}\Big{)}-\frac{\alpha}{2}}{1-\alpha},\mbox{ if }\sigma>1/(1-\alpha)}\\ \end{cases}}$$

$$\displaystyle P_{F}\Big{(}d_{K}(F_{0},R_{\alpha}(F_{n}))>(1-\lambda)\rho_{1}+\lambda\rho_{2}\Big{)}$$

$$\displaystyle\leq P\Big{(}d_{K}(F_{0},R_{\alpha}(F_{n}))-d_{K}(F_{0},R_{\alpha}(F))>\lambda\rho_{2}-\lambda\rho_{1}\Big{)}$$

$$\displaystyle\leq P\Big{(}\frac{1}{1-\alpha}\sup_{x}|F_{n}(x)-F(x)|>\lambda(\rho_{2}-\rho_{1})\Big{)}$$

$$\displaystyle=P\Big{(}\sup_{x}\sqrt{n}|F_{n}(x)-F(x)|>\sqrt{n}(1-\alpha)\lambda(\rho_{2}-\rho_{1})\Big{)}$$

$$\le 2e^{-2{\lambda }^{2}n(1-\alpha {)}^2({\rho }_2-{\rho }_1{)}^2}.$$

$$\displaystyle P_{F}\Big{(}d_{K}(F_{0},R_{\alpha}(F_{n}))\leq(1-\lambda)\rho_{1}+\lambda\rho_{2}\Big{)}$$

$$\displaystyle\hskip 50.0pt=P_{F}\Big{(}\rho_{2}-d_{K}(F_{0},R_{\alpha}(F_{n}))\geq\rho_{2}-((1-\lambda)\rho_{1}+\lambda\rho_{2})\Big{)}$$

$$\displaystyle\hskip 50.0pt\leq P\Big{(}d_{K}(F_{0},R_{\alpha}(F))-d_{K}(F_{0},R_{\alpha}(F_{n}))>(1-\lambda)(\rho_{2}-\rho_{1})\Big{)}$$

$$\displaystyle\hskip 50.0pt\leq P\Big{(}\sup_{x}\sqrt{n}|F_{n}(x)-F(x)|>\sqrt{n}(1-\alpha)(1-\lambda)(\rho_{2}-\rho_{1})\Big{)}$$

$$\le 2e^{-2(1-\lambda {)}^{2}n(1-\alpha {)}^2({\rho }_2-{\rho }_1{)}^2}.$$

$$H_0:d_K(F_0,R_{\alpha }(F))=0\text{ vs. }{H}_1:d_K(F_0,R_{\alpha }(F))>\rho ,$$

$$H_{0,n}:d_K(F_0,R_{\alpha }(F))=0\text{ vs. }{H}_{1,n}:d_K(F_0,R_{\alpha }(F))>{\rho }_n,$$

$${\rho }_n=\frac{\rho }{\sqrt{n}}$$

$$EI\le {ϵ}_1\text{and}EII\le {ϵ}_2,$$

$$\rho =\frac{1}{(1-\alpha )\lambda }\sqrt{\frac{1}{2}\log \frac{2}{{ϵ}_1}},\lambda =\frac{1}{2}+\frac{1}{4}\log \frac{{ϵ}_2}{{ϵ}_1},$$

$${\rho }_n=\frac{\rho }{\sqrt{n}}=\frac{1}{(1-\alpha )\lambda }\sqrt{\frac{1}{2n}\log \frac{2}{{ϵ}_1}}.$$

Full text

Keywords: Approximate model validation, Kolmogorov distance, contamination neighbourhood, trimming methods, false-discovery-rate, robustness.

1 Introduction

Classical Goodness of Fit tests try to establish if there is enough statistical evidence to reject the null hypothesis, which usually is a fixed generating mechanism. These procedures behave fairly well for moderate data sizes, but can become excessively rigid in the presence of large sample sizes. This fact was already noted for the chi-squared statistic in Berkson (1938) and interpreted by many authors as an indication of model falseness leading to statements such as ‘for every data generating mechanism there exists a sample size at which the model failure will become obvious’ (see Lindsay and Liu (2009)). The issue has been approached in different ways (see e.g. Hodges and Lehmann (1954), Álvarez-Esteban et al. (2012), Munk and Czado (1998),…), sharing the idea that we should broaden the null hypothesis to include useful nearby models. Usually this is also accompanied by a gain in robustness in the new proposals.

However, considering the celebrated Box’s phrase ‘essentially, all models are wrong, but some are useful’, even under the paradigm of model falseness, rejecting a model would not be a satisfactory goal. If all models are false, and at a certain point, with enough data, we are able to reject the model, we could provide some measure of how useful of how good is compared to other models. This topic is addressed in Davies (1995, 2016) from the perspective that a useful model is anyone able to generate similar samples to the available data. Let us present our framework to revisit both topics from a novel point of view.

Often, some feature of a predominant population is clearly different from that of another minority population, simply because of its different eating or cultural habits. In either of these situations, a data sample of that feature taken from the general population will include data that do not come from and do not look like those arising from the predominant one. Consequently, the statistical inference on the main population should be made taking into account the presence of atypical data. As a first ingredient, to address this goal, we resort to a suggestive model introduced in Huber (1964), becoming one of the very basis of Robust Statistics: An ($\alpha$-)contamination neighbourhood (CN) of a probability distribution $P_{0}$ is the set of probability distributions

[TABLE]

where $\mathcal{P}$ is the set of all probability distributions in the space (throughout the paper the real line $\mathbb{R}$). For a given probability $P_{0}$ and a particular value $\alpha_{0}\in[0,1)$, a probability $P$ in $\mathcal{V}_{\alpha_{0}}(P_{0})$ would generate samples with an approximate $(1-\alpha_{0})\times 100\%$ of data coming from $P_{0}$. Also we must note the use of particular contamination models in different statistical problems, stressing its role on the False-Discovery-Rate (FDR) setting (as considered e.g. in Genovese and Wasserman (2004)). We briefly comment on the relation of our approach with that in Section 5. Of course, if an ‘outlying label’ were available for the data coming from the contaminating distribution, $Q$, removing the labeled data would produce a legitimate sample from $P_{0}$. The relevant fact is that CN’s are related to trimmings (see Álvarez-Esteban et al. (2011)) by

[TABLE]

where $R_{\alpha}(P)$ denotes the set of $\alpha$-trimmings of the probability distribution $P$,

[TABLE]

This means that an $\alpha$-trimming, $Q$, of $P$ is characterized by a down-weighting function $f$ such that $0\leq f\leq 1$ and $Q(B)=\frac{1}{1-\alpha}\int_{B}f(x)P(dx)$ for all measurable sets $B$ in $\mathbb{R}$. In contrast with the hard 0-1 (trimmed/non-trimmed) trimming practice in data analysis, this concept allows for gradually diminishing/enhancing the importance of points in the sample space. Relation (2) allows us to work with trimmings, instead of CN’s, taking advantage of the underlying meaning of trimming and its mathematical properties. If $F$ and $F_{0}$ are distribution functions (d.f.’s in the sequel), we will also use $R_{\alpha}(F)$ and $\mathcal{V}_{\alpha}(F_{0})$, with the same meanings as before, but defined in terms of d.f.’s.

The natural absence of an outlying label has been traditionally substituted by more or less orthodox trimming criteria, including the oldest consisting in trimming just the extreme values, carrying out the analysis with the remaining data. Recently, mainly in conection with two-sample problems (see e.g. Álvarez-Esteban et al. (2008, 2011, 2012, 2016)), optimal trimmings have been introduced as the nearest ones to the original model, according to some probability distance or dissimilarity measure. This role will be played here by the Kolmogorov (or $L_{\infty}$-)distance between d.f.’s on the line, namely,

[TABLE]

(we will often use the notation $\|F-G\|$ for $d_{K}(F,G)$).

In this work, we develop a robust hypothesis testing procedure based on the previous considerations. Moreover, under the paradigm of a false-model world, we use the elements involved in the procedure to suggest some tools for comparing models or to determining the usefulness of particular models.

The use of CN’s, through their connection with trimmings, leads to consider $\mathcal{V}_{\alpha}(F_{0})$ to be the ‘reasonable’ model. Notice that (see Example 2.1), this approach differs from that based just on $d_{K}$-neighbourhoods of $F_{0}$, which would have a different meaning (see Owen (1995) for this and other classic approaches). As relation (8) shows, (2) is also equivalent to $d_{K}(F_{0},R_{\alpha}(F))=0$, giving to the ‘trimmed Kolmogorov distance’ functional

[TABLE]

and to the plug-in estimator $d_{K}(F_{0},R_{\alpha}(F_{n}))$, a main role into our analysis. (Here $F_{n}$ is the empirical d.f. based on a sample of $n$ independent random variables with common d.f. $F$). In particular, we address the possibilities of testing $H_{0}:d_{K}(F_{0},R_{\alpha}(F))=0\text{ vs. }H_{1}:d_{K}(F_{0},R_{\alpha}(F))>0,$ where ‘reasonable’ is controlled by the trimming level $\alpha$. Related null hypotheses have already been considered making use of different probability metrics or different neighbourhoods. In Álvarez-Esteban et al. (2011, 2012), the $L_{2}$-Wasserstein distance is used in a two-sample version. Previous approaches based on particular trimming procedures were considered in Munk and Czado (1998) and Álvarez-Esteban et al. (2008). The Kolmogorov-Smirnov test is probably the most widely used goodness of fit test, therefore the $d_{K}$-metric provides a privileged setting to develop our approach. Notice that, in del Barrio et al. (2019), we have included most of the mathematical tools involved in this problem. This includes existence and characterization of (a particular) minimizer, and even a result on directional differentiability, which will be used here.

As shown in Barron (1989), for any distance $d$ dominating the total variation distance, testing the null hypothesis $P=P_{0}$ vs. the alternative $d(P,P_{0})\geq\rho\ (>0)$, makes generally unachievable to get exponential bounds for the involved errors. The test provided in Section 3 has exponentially small error probabilities for testing the null $H_{0}:d_{K}(F_{0},R_{\alpha}(F))=0$ (equivalently, $H_{0}:F\in\mathcal{V}_{\alpha}(P_{0})$) against the alternative $d_{K}(F_{0},R_{\alpha}(F))>\rho$. The test is uniformly consistent (type I and type II error probabilities tend to 0 uniformly) for detecting alternatives $d_{K}(F_{0},R_{\alpha}(F))>\eta_{n}/\sqrt{n}$ with $\eta_{n}/\sqrt{n}\to 0$ if $\eta_{n}\to\infty$.

Also, in Section 4.1, we provide asymptotic theory for $d_{K}(F_{0},R_{\alpha}(F_{n}))$ for inferential purposes. It includes an extension of Theorem 2 in Raghavachari (1973) for flexible null hypotheses.

The second main goal in this paper is to provide tools to compare different models when the null hypothesis is rejected. Under the model falseness paradigm, Davies (1995, 2016) introduce the idea of adequacy region (for a data set) as the set of probabilities in a model whose samples would typically look like the actual data. Also Rudas et al. (1994) proposes the very natural concept of index of fit, namely, the contamination level necessary to make the random generator of the data a contaminated member of the model. The proposal in Rudas et al. (1994), as well as its modification in Liu and Lindsay (2009), deal with multinomial models. In our setup we consider the trimmed Kolmogorov (tK) index of fit, $\alpha^{*}$, defined by

[TABLE]

This is the minimum contamination level $\alpha$ for which $F$ is a contaminated version of $F_{0}$. This works in a very general setup, since we impose no constraints on $F$ and $F_{0}$. This is in contrast with the methodology involved in the control of FDR, which takes advantage of the dominated contamination model. With the methodology developed here, it is fairly easy to calculate the empirical version of $\alpha^{*}$ for a particular data set. Using our asymptotic theory for $d_{K}(F_{0},R_{\alpha}(F_{n}))$ we propose a consistent estimator for $\alpha^{*}$ in Section 4. We also provide comparisons with some methodologies developed in the FDR setting (as considered in Meinshausen and Rice (2006)) for estimating the proportion of false null hypotheses.

A related approach for comparing the quality of different models to describe the data is based on credibility indices, as introduced in Lindsay and Liu (2009). Given a goodness of fit procedure, the credibility index allows comparison between models based on the minimal sample size $n^{*}$ for which subsamples of size $n^{*}$ of the original data (of size $n$) reject the null hypothesis 50% of times. The idea behind this index is that for large samples, goodness of fit tests will very likely reject the null hypothesis, while often for smaller sub-samples the null would not be rejected. Of course, these credibility indices have to be estimated from the data. The proposal in Lindsay and Liu (2009) is to use subsampling to perform this estimation. However, the accuracy of the subsampling approximation is limited to small (as compared to the complete sample) subsample sizes. Here we show how our asymptotic theory for $d_{K}(F_{0},R_{\alpha}(F_{n}))$ can provide further information about the credibility indices.

Summarizing, the paper addresses the analysis and applications of $d_{K}(F_{0},R_{\alpha}(F))$, the ‘trimmed Kolmogorov distance’. Section 2 is devoted to collect the mathematical bases and provide a fast algorithm for computation on sample data. The analysis of the proposed testing procedure is carried in Section 3. In Section 4 we show how to apply this test to credibility analysis and develop some results about the tK-index of fit and the related acceptance regions. The basis for that approach relies on the CLT for the trimmed Kolmogorov distance (see Theorem 4.1). Section 5 includes some relations with the FDR setting and comparisons between several estimators of the contamination index $\alpha.$ In Section 6 we illustrate the previous techniques to compare descriptive models over simulated and real data examples. In the last section we briefly discuss the results. Finally, the proof of the main result in the paper, the CLT for the trimmed Kolmogorov distance, is given in the Appendix.

2 Trimming and Kolmogorov distance

We keep the notation used in the Introduction and notice that the set $R_{\alpha}(F)$ can be also characterized, as showed in Álvarez-Esteban et al. (2008) (Proposition 2.2 in Álvarez-Esteban et al. (2011) gives a more general result), in terms of the set of $\alpha$-trimmed versions of the uniform law $U(0,1)$. Let $\mathcal{C}_{\alpha}$ be the set of absolutely continuous functions $h:[0,1]\mapsto[0,1]$, such that $h(0)=0,h(1)=1$, with derivative $h^{\prime}$ verifying $0\leq h^{\prime}\leq\frac{1}{1-\alpha}\,\text{a.e.}.$ Then, the composition of the functions $h$ and $F$: $F_{h}=h\circ F$ gives the useful parameterization

[TABLE]

The set $R_{\alpha}(F)$ is convex and also well behaved w.r.t. weak convergence of probabilities and widely employed probability metrics (see Section 2 in Álvarez-Esteban et al. (2011)). As showed in del Barrio et al. (2019), $R_{\alpha}(F)$ keeps several nice properties under $d_{K}$; we include below the most relevant ones.

Proposition 2.1**.**

For $\alpha\in[0,1)$, if $F$, $G$ with or without suffixes are d.f.’s:

• (a)

$R_{\alpha}(F)$* is compact w.r.t. $d_{K}$.*

• (b)

$d_{K}(F_{0},R_{\alpha}(F))=\min_{\tilde{F}\in R_{\alpha}(F)}\|\tilde{F}-F_{0}\|=\min_{h\in\mathcal{C}_{\alpha}}\|h\circ F-F_{0}\|$.

• (c)

$|d_{K}(G_{1},R_{\alpha}(F_{1}))-d_{K}(G_{2},R_{\alpha}(F_{2}))|\leq d_{K}(G_{1},G_{2})+{\textstyle\frac{1}{1-\alpha}}{d_{K}(F_{1},F_{2})}.$**

• (e)

If $d_{K}(F_{n},F)\to 0,$ then:

• e1)

for every $\tilde{F}\in R_{\alpha}(F),$ there exist $\tilde{F}_{n}\in R_{\alpha}(F_{n}),n\in\mathbb{N}$ such that $d_{K}(\tilde{F}_{n},\tilde{F})\to 0.$

• e2)

if $\tilde{F}_{n}\in R_{\alpha}(F_{n}),n\geq 1$, then there exists some $d_{K}$-convergent subsequence $\{\tilde{F}_{n_{k}}\}$. If $\tilde{F}$ is the limit of such a subsequence, necessarily $\tilde{F}\in R_{\alpha}(F)$.

• e3)

if, additionally, $\{G_{n}\}$ is any sequence of d.f.’s such that $d_{K}(G_{n},G)\to 0,$ then $d_{K}(G_{n},$ $R_{\alpha}(F_{m}))\to d_{K}(G,R_{\alpha}(F))$ as $n,m\to\infty.$

Immediate consequences of Proposition 2.1 are that for $\alpha\in[0,1)$:

[TABLE]

[TABLE]

Moreover, by convexity of $R_{\alpha}(F)$, the set of optimally trimmed versions of $F$ associated to problem (7) is also convex. However, guarantying uniqueness of the minimizer (as it holds w.r.t. $L_{2}$- Wasserstein metric by Corollary 2.10 in Álvarez-Esteban et al. (2011)) is not possible. Mention apart, by its statistical interest, merits the the following consistency result, which is straightforward from Glivenko-Cantelli theorem and item e3) above.

Proposition 2.2** (Consistency of trimmed Kolmogorov distance).**

Let $\alpha\in[0,1)$ and $\{F_{n}\}$ be the sequence of empirical d.f.’s based on a sequence $\{X_{n}\}$ of independent random variables with distribution function $F$. If $\{G_{n}\}$ is any sequence of distribution functions $d_{K}$-approximating the d.f. $G$ (i.e. $d_{K}(G_{n},G)\to 0$), then:

[TABLE]

While in other contexts the roles played by discarding contamination (by trimming) and the distance under consideration seem to be clear, here the nature of Kolmogorov distance can lead to a distorted picture. To give some light on these roles, we include a very simple example based on uniform laws that allows explicit computations. We also must note that (as commented in Álvarez-Esteban et al. (2012)) contamination neighbourhoods have been extended in several ways; notably Rieder’s neighborhoods of a probability comprise contamination as well as total variation norm neighborhoods.

Example 2.1**.**

Contamination vs $d_{K}$-based neighbourhoods.* Let us fix $F_{0}$ to be the $U(0,1)$ d.f. and consider the following scenarios for $F$*

• i)

$F$* the d.f. of an $U(0,1+\varepsilon)$ or an $U(-\varepsilon,1)$ law. Then $d_{K}(F_{0},F)=\frac{\varepsilon}{1+\varepsilon}$ and $d_{K}(F_{0},R_{\alpha}(F))=\frac{\varepsilon-\alpha}{1+(\varepsilon-\alpha)}$ if $0\leq\alpha\leq\varepsilon$ (and 0 if $\alpha\geq\varepsilon).$*

• ii)

$F$* the d.f. of a $U(0,1-\varepsilon)$ law. Then $d_{K}(F_{0},F)=\varepsilon$ and $d_{K}(F_{0},R_{\alpha}(F))=\varepsilon$ for every $0\leq\alpha<1$.*

In fact, the first situation involves a contamination of exact size $\varepsilon$ of $F_{0}$, because $F=(1-\varepsilon)F_{0}+\varepsilon F^{\prime}$ where $F^{\prime}$ is the d.f. of an $U(1,1+\varepsilon)$ or an $U(-\varepsilon,0)$ law. In contrast, the second one does not fit in the contamination model at all. The following scenario includes inner contamination at the support of $F_{0}$, adding some complexity to the analysis:

• iii)

$F=(1-\varepsilon)F_{0}+\varepsilon F^{\prime}$, where $F^{\prime}$ is the d.f. of a $U(a,b)$ law with $0<a<b<1$. Then $d_{K}(F_{0},F)=\varepsilon\sup\{a,1-b\},$ and for $0\leq\alpha\leq\varepsilon$: $d_{K}(F_{0},R_{\alpha}(F))=(\varepsilon-\alpha)\sup\{a,1-b\},$ if $0<a<b\leq 1/2$ else $1/2\leq a<b<1$. If $0<a\leq 1/2<b<1$, then for $0<\alpha<\varepsilon_{0}:=\varepsilon\frac{|a+b-1|}{b-a}$, we would have $d_{K}(F_{0},R_{\alpha}(F))=(\varepsilon-\alpha)\sup\{a,1-b\},$ while for $\varepsilon_{0}\leq\alpha\leq\varepsilon,$ defining $\gamma=|1/2-\sup\{a,1-b\}|$, we would have $d_{K}(F_{0},R_{\alpha}(F))=[1/2-\gamma(\varepsilon-\alpha)/(\varepsilon-\varepsilon_{0})](\varepsilon-\alpha)$.

The analysis above shows that the effect of optimal trimming according to the $d_{K}$-distance strongly depends on several factors. Notably, they include the presence or not of a contaminating part, but also its spread and relative position. $\Box$

Throughout this paper we make frequent use of the quantile function. Given a d. f. $F$, we write $F^{-1}$ for the associated quantile function. Recall that it is just the left-continuous inverse of the d.f. $F$, namely, $F^{-1}(t):=\inf\{x\ |\ t\leq F(x)\}$. It allows a useful representation of the corresponding distribution because, if $U$ is a uniformly distributed $U(0,1)$ random variable, $F^{-1}(U)$ has d.f. $F$. Moreover, if $X$ has a continuous d.f. $F$, $F_{0}\circ F^{-1}$ is easily seen to be the quantile function associated to the r.v. $Y=F_{0}(X)$. As we showed in del Barrio et al. (2019), under some regularity assumptions, $d_{K}(F_{0},R_{\alpha}(F))$ can be expressed in terms of the function $F_{0}\circ F^{-1}$. This fact allows the practical computation of $d_{K}(F_{0},R_{\alpha}(F_{n}))$ when $F_{n}$ is an empirical d.f. based on a data sample $x_{1},\dots,x_{n}$, and even that of $d_{K}(F_{0},R_{\alpha}(F))$ for theoretical distributions (see Example 2.2). For the sake of completeness, we include below these results and a theorem which is a fundamental tool for our goals. It gives an explicit characterization of a solution of the corresponding optimization problem (see Theorem 2.5 in del Barrio et al. (2019) for a proof).

Lemma 2.1**.**

If $F,F_{0}$ are continuous d.f.’s and $F$ is additionally strictly increasing then

[TABLE]

Theorem 2.1**.**

Assume $\Gamma:[0,1]\to[0,1]$ is a continuous nondecreasing function. Define $G(t)=\Gamma(t)-\frac{t}{1-\alpha}$, $U(t)=\sup_{t\leq s\leq 1}G(s)$, $L(t)=\inf_{0\leq s\leq t}G(s)$ and

[TABLE]

Then $h_{\alpha}:=\tilde{h}_{\alpha}+\frac{\cdot}{1-\alpha}$ is an element of $\mathcal{C}_{\alpha}$, and

[TABLE]

Note that the assumption on $\Gamma$ is always verified when $\Gamma=F_{0}\circ F^{-1}$, and that taking right and left limits at 0 and 1, respectively, we can assume that $F_{0}\circ F^{-1}$ is a nondecreasing (and left continuous) function from $[0,1]$ to $[0,1]$.

A key aspect in Theorem 2.1 is that, although not necessarily unique, $h_{\alpha}$ is an optimal trimming function in the sense described above. However, from the point of view of asymptotic theory, Theorem 2.1 is the key to our Theorem 4.1 in Section 4. Moreover, from a practical point of view, it yields a simple algorithm for the computation of $d_{K}(F_{0},R_{\alpha}(F_{n}))$, as follows.

Assume $X_{1},\ldots,X_{n}$ are i.i.d. observations from the continuous and strictly increasing d.f. $F$ and assume that $F_{0}$ is continuous. From Lemma 2.1 and Theorem 2.1 we know that $d_{K}(F_{0},R_{\alpha}(F_{n}))=\|\tilde{h}_{\alpha,n}-G_{n}\|$, where $G_{n}(t)=H_{n}^{-1}(t)-\frac{t}{1-\alpha}$, $H_{n}^{-1}$ is the empirical quantile function of the transformed data, $Y_{i}=F_{0}(X_{i})$, $U_{n}(t)=\sup_{t\leq s\leq 1}G_{n}(s)$, $L_{n}(t)=\min_{0\leq s\leq t}G_{n}(s)$ and

[TABLE]

Denote by $Y_{(1)}\leq\cdots\leq Y_{(n)}$ the ordered (transformed) sample. Note that $G_{n}(t)=Y_{(i)}-\frac{t}{1-\alpha}$ if $t\in(\frac{i-1}{n},\frac{i}{n}]$, while $\tilde{h}_{\alpha,n}$ is a nonincreasing function and this implies that

[TABLE]

with $G_{n}({\textstyle\frac{i-1}{n}}+)=Y_{(i)}-\frac{i-1}{n(1-\alpha)}$, $G_{n}({\textstyle\frac{i}{n}})=Y_{(i)}-\frac{i}{n(1-\alpha)}$. For the computation of $\tilde{h}_{\alpha,n}({\textstyle\frac{i}{n}})$ we note that $U_{n}(\frac{i}{n})=\max_{i\leq j\leq n-1}G_{n}({\textstyle\frac{j}{n}}+)$ and $L_{n}(\frac{i}{n})=\min_{1\leq j\leq i}G_{n}({\textstyle\frac{j}{n}})$ for $i=1,\ldots,n-1$. Summarizing, we see that $d_{K}(F_{0},R_{\alpha}(F_{n}))$ can be computed through the following algorithm.

Algorithm for the computation of $d_{K}(F_{0},R_{\alpha}(F_{n}))$:

• •

compute $Y_{i}=F_{0}(X_{i})$, $i=1,\ldots,n$; sort $Y_{(1)}\leq\cdots\leq Y_{(n)}$.

• •

compute $g_{i+}=Y_{(i+1)}-\frac{i}{n(1-\alpha)}$, $i=0,\ldots,n-1$; $g_{i-}=Y_{(i)}-\frac{i}{n(1-\alpha)}$, $i=1,\ldots,n$.

• •

compute $u_{i}=\max_{i\leq j\leq n-1}g_{j+}$, $l_{i}=\min_{1\leq j\leq i}g_{j-}$, $i=1,\ldots,n-1$.

• •

set $h_{0}=0$, $h_{n}=-\frac{\alpha}{1-\alpha}$ and $h_{i}=\max(\min(0,\frac{u_{i}+l_{i}}{2}),-\frac{\alpha}{1-\alpha})$, $i=1,\ldots,n-1$.

• •

compute

[TABLE]

Beyond this algorithm for the empirical case, Theorem 2.1 provides a simple way for the computation of theoretical trimmed Kolmorogov distances. Example 2.1 in del Barrio et al. (2019) analyzes the problem in Gaussian model. Let us include here a summary for illustration of this use.

Example 2.2**.**

Trimmed Kolmogorov distances in the Gaussian model.* Consider the case $F_{0}=\Phi$, $F=\Phi((\cdot-\mu)/\sigma)$, where $\Phi$ denotes the standard normal d.f., $\mu\in\mathbb{R}$ and $\sigma>0$. Here we have $H^{-1}(t):=F_{0}\circ F^{-1}(t)=\Phi(\mu+\sigma\Phi^{-1}(t))$. We focus on the cases $\sigma=1$, $\mu\neq 0$ and $\mu=0$, $\sigma\neq 1$ (see del Barrio et al. (2019) for details).*

If $\sigma=1$ and $\mu\neq 0$ then

[TABLE]

In the case $\mu=0$:

[TABLE]

$\Box$**

Relations (7) and (8) state the link between CN’s and trimming, opening ways to approximately validating a model making use of trimming through the Kolmogorov distance. We end this section showing how CN’s and approximate validation in a parametric model setting can be related. For that task we focus on what are the parameters in the model leading to distributions in $\mathcal{V}_{\alpha}(F_{0})$. As pointed out in Davies (1995), we should just consider models able to generate data similar to our sample. Moreover, distributions in a CN have an intuitive appeal and, if $\alpha$ is small, we can expect to be handling reasonable models. For instance, if $F_{0}\sim N(0,1)$ then we can calculate the tolerance region given by the subset of normal distributions belonging to $\mathcal{V}_{\alpha}(F_{0})$ in an elementary fashion. This provides an approximate picture of the kind of distributions present in the CN of $F_{0}$. These tolerance regions for $\alpha=0.05$ and $\alpha=0.1$ are shown in Figure 1. Every combination of $(\tilde{\mu},\tilde{\sigma})$ inside the green border is a normal distribution that belongs to $\mathcal{V}_{0.1}(N(0,1))$. The same is true for the red border and $\mathcal{V}_{0.05}(N(0,1))$.

3 Hypothesis testing

To develop our approach for a testing procedure, throughout, $X_{1},\dots,X_{n}$ will be independent random variables with common d.f. $F$, and $F_{n}$ will be the corresponding empirical d.f. The main result, following the principles in Barron (1989), concerns control of error probabilities: a test is uniformly consistent (UC) if both type I and type II error probabilities (EI and EII in the sequel) converge uniformly to 0 as the sample size, $n\to\infty$, and it is uniformly exponentially consistent (UEC) if the error probabilities are uniformly bounded by $e^{-rn}$ for large $n$ and some $r>0$. To stress on the necessity of considering some separating zone between the null and the alternative, we include this previous slightly more general result.

Proposition 3.1**.**

Given $0\leq\rho_{1}<\rho_{2}$, for testing $H_{0}:d_{K}(F_{0},R_{\alpha}(F))\leq\rho_{1}$ vs. $H_{1}:d_{K}(F_{0},R_{\alpha}(F))>\rho_{2}$, for every $0<\lambda<1$ rejecting the null hypothesis when $d_{K}(F_{0},R_{\alpha}(F_{n}))>(1-\lambda)\rho_{1}+\lambda\rho_{2}$ is an uniformly exponentially consistent (UEC) test.

Proof. From Proposition 2.1 c) in del Barrio et al. (2019), we have the inequality $|d_{K}(F_{0},R_{\alpha}(F_{1}))-d_{K}(F_{0},R_{\alpha}(F_{2}))|\leq{\textstyle\frac{1}{1-\alpha}}\|F_{1}-F_{2}\|$, thus for EI:

[TABLE]

Note that the last bound follows from the Massart (1990) version of the Dvoretsky-Kiefer-Wolfowitz inequality.

To handle EII (thus if $d_{K}(F_{0},R_{\alpha}(F))>\rho_{2}$), we have

[TABLE]

$\Box$

As an easy consequence, taking $\rho_{1}=0$ and $\rho=\rho_{2}$, we get:

Theorem 3.1**.**

Given $\rho>0$, for testing

[TABLE]

for every $0<\lambda<1$ the critical region $d_{K}(F_{0},R_{\alpha}(F_{n}))>\lambda\rho$ defines an uniformly exponentially consistent (UEC) test.

Since the null hypothesis includes all the contamination versions (of $\alpha$-level) of $F_{0}$, rejection means that the generator of the sample is far enough of any such a contaminated version. Theorem 3.1 guarantees that alternatives will be quickly detected when farness is measured through the $d_{K}$-distance.

In statistical practice, it could be wiser to change the alternative hypothesis and make it sample size dependent. That leads to consider tests of the form

[TABLE]

for $\rho_{n}=\rho(n)>0$, and rejection when $d_{K}(F_{0},R_{\alpha}(F_{n}))>\lambda\rho_{n}$. For instance, taking $\rho_{n}=\eta_{n}/\sqrt{n}\to 0$, and $\eta_{n}\to\infty$ results in an uniformly consistent test. Uniform consistency is weaker than uniform exponential consistency, but it allows to detect, for example, alternatives at a distance $\log(n)/\sqrt{n}$. Also, we can consider $\lambda$ as a tuning parameter which can help if we have some additional information or if we want more or less conservative tests with respect to EI and EII probabilities (of course, when $\rho=0$, $\rho_{1}=\rho_{2}$ or $\lambda=0$ or $\lambda=1$, some bounds are meaningless and we can not assure uniform consistency with the previous procedure). Alternatively, we may look for the smallest possible values for $\rho_{n}$, while still controlling EI and EII. From (10) and (11) note that if $\rho_{n}$ is $o(n^{-1/2})$ we would lose the control of the errors, since $n\rho_{n}^{2}\to 0$ as $n\to\infty$. This leads us to choose $\rho_{n}$ as $O(n^{-1/2})$, or, fixing some $\rho>0$:

[TABLE]

Now, if we fix $0<\epsilon_{1},\,\epsilon_{2}<1$, looking for a rejection threshold, $\lambda\rho_{n}$, for which

[TABLE]

we get $2e^{-2\lambda^{2}(1-\alpha)^{2}\rho^{2}}=\epsilon_{1}$ and $\epsilon_{1}e^{4\lambda-2}=\epsilon_{2}.$ With a bit of algebra we get

[TABLE]

imposing $\epsilon_{1}e^{-2}<\epsilon_{2}<\epsilon_{1}e^{2}$, which gives the optimal boundary level

[TABLE]

Relations (15) and (16) summarize the balance among the different elements. Ideally, we look for small $\rho_{n}$, $\epsilon_{1}$ and $\epsilon_{2}$ but, paying the price for our demands, $\rho_{n}$ grows as $\epsilon_{1}$ gets smaller and as $\epsilon_{2}$ gets more similar to $\epsilon_{1}$. Therefore, we need to make sensible choices for $\epsilon_{1}$ and $\epsilon_{2}$. In Table 1 we show some examples of the mentioned behaviour. For instance, fixing $\epsilon_{1}=0.01$ and $\epsilon_{2}=0.05$ seems a sensible choice, giving a fairly low $\rho_{1000}$ while keeping low error probabilities.

An appealing goal would be to detect the ‘true’ contamination level, that is, the minimal level of trimming for which the postulated model would not be rejected. In this way we could, also, detect possible contaminations in the generating mechanism. To address this objective, we resort to the following result obtained in greater generality in del Barrio and Matrán (2013).

Theorem 3.2**.**

If $\alpha\in(0,1)$ and $\nu>1$, then

[TABLE]

Therefore, if $F=(1-\alpha_{0})F_{0}+\alpha_{0}G_{0}$ and we test for $\alpha>\alpha_{0}$, as $n\to\infty,$ trimming $\alpha$ from $F_{n}$ will eliminate the part of the sample coming from $G_{0}$, but also will affect the part of the sample coming from $F_{0}$. This fact and Proposition 2.2 lead to the following statement.

Proposition 3.2**.**

Let $\rho_{n}=O(n^{-1/2})$ and $\rho_{n}^{-1}=O(n^{1/2})$, and $\alpha>\alpha_{0}$. Then:

[TABLE]

This means that, for big enough samples, our testing procedure will be able to detect the overtrimming boundary, that is, the trimming level beyond which the trimmed sample is closer to the model than true random samples from that model. In Figure 2 we are able to appreciate this behaviour (see the caption for details). The frequency of rejecting the null, for both models, after trimming 0.11 or more is almost zero, the theoretical contamination being 0.1. We see that around 0.1 the models start dropping abruptly the rejection level, but that for the model contaminated with a $N(3,1)$ we need much less points to attain the expected behaviour than we need for the model contaminated with a $N(0,0.1^{2})$. In other words, the presence of a meaningful outlier contamination, even when trimming is allowed, disturbs more heavily the Kolmogorov distance than the presence of equally meaningful inlier contamination. In any case, these results suggest that it may be possible to find an estimator for the ‘true’ contamination level. We elaborate a little bit more about this in the next section.

4 A central limit theorem with applications

We divide this section in two subsections, respectively devoted to the presentation of results and to some of their applications. In particular, we stress on the extension of some of the applications that Lindsay and Liu (2009) and Liu and Lindsay (2009) explored just on multinomial models.

4.1 A central limit result

What follows is our main theoretical result which describes the asymptotic behaviour of the normalized difference between the empirical estimator and the theoretical trimmed Kolmogorov distance under some regularity assumptions. We recall from Section 2 that $d_{K}(F_{0},R_{\alpha}(F))$ can be expressed in terms of $H^{-1}:=F_{0}\circ F^{-1}$. We need to introduce the following sets, with $G$, $U$, $L$ and $\tilde{h}_{\alpha}$ standing for the same objects as in Theorem 2.1 in Section 2,

[TABLE]

A look at Theorem 4.1 in del Barrio et al. (2019) shows that $T_{1}\cup T_{2}\cup T_{3}\neq\emptyset$ provided $H^{-1}$ is continuous. We further denote ${T}^{*}_{1}=\{t\in T_{1}:\,\frac{1}{2}(U(t)+L(t))=0\}$, ${T}^{*}_{2}=\{t\in T_{2}:\,\frac{1}{2}(U(t)+L(t))=-\frac{\alpha}{1-\alpha}\}$ and ${T}^{*}_{3}=\{(s,t)\in T_{3}:\,\frac{1}{2}(G(t)+G(s))\in\{-\frac{\alpha}{1-\alpha},0\}\}$. To avoid pathological examples we will assume that

[TABLE]

Our last regularity assumptions concern $H$, the d.f. of the random variable $F_{0}(X)$, where $X\sim F$. They allow the use of the strong approximation of the quantile process in the proof of the theorem (developed in the Appendix). We assume that $H$ has a density, $h$ supported in $[a,b]$ (note that, necessarily, $[a,b]\subset[0,1]$) and either one of

[TABLE]

[TABLE]

Theorem 4.1**.**

Assume that $F_{0}$ and $F$ are continuous d.f.’s, that $F$ is strictly increasing and that the d.f. $H$ associated to $H^{-1}=F_{0}\circ F^{-1}$ satisfies (22) and either (23) or (24). Then,

[TABLE]

where $B$ is a Brownian bridge on $[0,1]$.

The limit distribution in this result corresponds to the supremum of a Gaussian process. In fact, the index set for this process is often rather simple, consisting of only one or two points as we show in our next example.

Example 4.1**.**

Trimmed Kolmogorov distances in the Gaussian model (cont.)* We revisit the cases studied in Example 2.2. Recall that $F_{0}=\Phi$, $F=\Phi((\cdot-\mu)/\sigma)$ and $H^{-1}(t)=\Phi(\mu+\sigma\Phi^{-1}(t))$. Hence H(x)=\Phi\Big{(}\frac{\Phi^{-1}(x)-\mu}{\sigma}\Big{)}, $0\leq x\leq 1$, which is supported in $[0,1]$ and has a density which is positive and continuous on $(0,1)$.*

In the case $\sigma=1$ and $\mu>0$ the computations in Example 2.2 yield that $T_{1}=\{t_{0}\}$, $T_{2}=\emptyset$, $T_{3}=\emptyset$, with t_{0}=\Phi\big{(}-\frac{\mu}{2}+\frac{1}{\mu}\log(1-\alpha)\big{)}. Applying Theorem 4.1 we obtain that

[TABLE]

When $\mu=0$ and $\sigma^{2}<1$, writing $x_{a}=-\frac{\Delta}{2(1-\sigma^{2})}$, $x_{b}=\frac{\Delta}{2(1-\sigma^{2})}$ (with $\Delta=(8(\sigma^{2}-1)\log(\sigma(1-\alpha)))^{1/2}$), $t_{a}=\Phi(x_{a})$ and $t_{b}=\Phi(x_{b})$ we get $T_{1}=\{t_{a}\}=\{1-t_{b}\}$, $T_{2}=\{t_{b}\}$, $T_{3}=\emptyset$ and Theorem 4.1 yields

[TABLE]

with $B$ a Brownian bridge.

Finally, if $\mu=0$ and $\sigma>1/(1-\alpha)$ then $T_{1}=T_{2}=\emptyset$, while $T_{3}=\{(t_{a},t_{b})\}$, with $t_{a}=\Phi(x_{a})$, $t_{b}=\Phi(x_{b})$, $x_{a}=-\frac{\Delta}{2(\sigma^{2}-1)}$ and $x_{b}=\frac{\Delta}{2(\sigma^{2}-1)}$ and we obtain

[TABLE]

$\Box$**

The asymptotics showed in the previous example would allow to build asymptotic upper and lower confidence bounds for the Kolmogorov distance between the random generator of the data and the set of $\alpha$-trimmings of the postulated normal model. In general, we would not be able to describe the sets $T_{i}$ involved in the limit law, but Theorem 4.1 can be used to obtain conservative confidence bounds. Let $\beta\in(0,\frac{1}{2})$ be given and write $Z_{\alpha}(F,F_{0})$ for the limiting random variable in Theorem 4.1. Recall that for a Brownian bridge and $0\leq s\leq t\leq 1$ we have $\mbox{Var}(B(t))=t(1-t)$ and $\mbox{Var}(\frac{1}{2}(B(t)-B(s)))=\frac{1}{4}(t-s)(1-(t-s))$. The $\beta$-quantile of $Z_{\alpha}(F,F_{0})$ must be lower bounded by the $\beta$-quantile of the centered Gaussian r.v.’s $\frac{1}{1-\alpha}B(t)$, $t\in T_{1}$, $\frac{1}{1-\alpha}(-B(t))$, $t\in T_{2}$ and $\frac{1}{2(1-\alpha)}(B(t)-B(s))$, $(s,t)\in T_{3}$ (recall that at least one of $T_{1},T_{2},T_{3}$ must be nonempty). From the last variance computation we see that any of these centered Gaussian r.v.’s has variance at most $\frac{1}{4(1-\alpha)^{2}}$, hence, a $\beta$-quantile lower bound is given by $\frac{\Phi^{-1}(\beta)}{2(1-\alpha)}=-\frac{\Phi^{-1}(1-\beta)}{2(1-\alpha)}$. Combining this with Theorem 4.1 we see that

[TABLE]

Hence,

[TABLE]

is an upper confidence bound with asymptotic confidence level at least $1-\beta$ for $d_{K}(F_{0},R_{\alpha}(F))$.

In order to get a simple and manageable lower bound for the Kolmogorov distance we need to pay attention to the worst cases inside the maximum of the limiting random variable in Theorem 4.1. This means that we have to study the cases $T_{1}=[0,a]$, $T_{2}=[b,1]$, $T_{3}=[a,b]$ where $0\leq a\leq b\leq 1$. We have the following inequalities

[TABLE]

Now, denoting $\Psi(x)=P\left(\max_{t\in[0,1]}|B(t)|\leq x\right)$ the d.f. of Kolmogorov’s distribution, we have

[TABLE]

Hence,

[TABLE]

is a lower confidence bound with asymptotic confidence level at least $1-\beta$ for $d_{K}(F_{0},R_{\alpha}(F))$.

In the following example we will show that the, arguably conservative, confidence bounds just obtained can be precise in practice. Of course, an efficient estimation of the sets $T_{i}$ could improve the precision of the coverage bands, but our simulations show that the rate of convergence can make highly unstable the estimation. In fact, Theorem 3.1 in Álvarez-Esteban et al. (2016) addressed a simpler but similar problem involving the supremum of the difference of two independent Brownian bridges on the set where two d.f.’s attain their greatest distance.

Example 4.2**.**

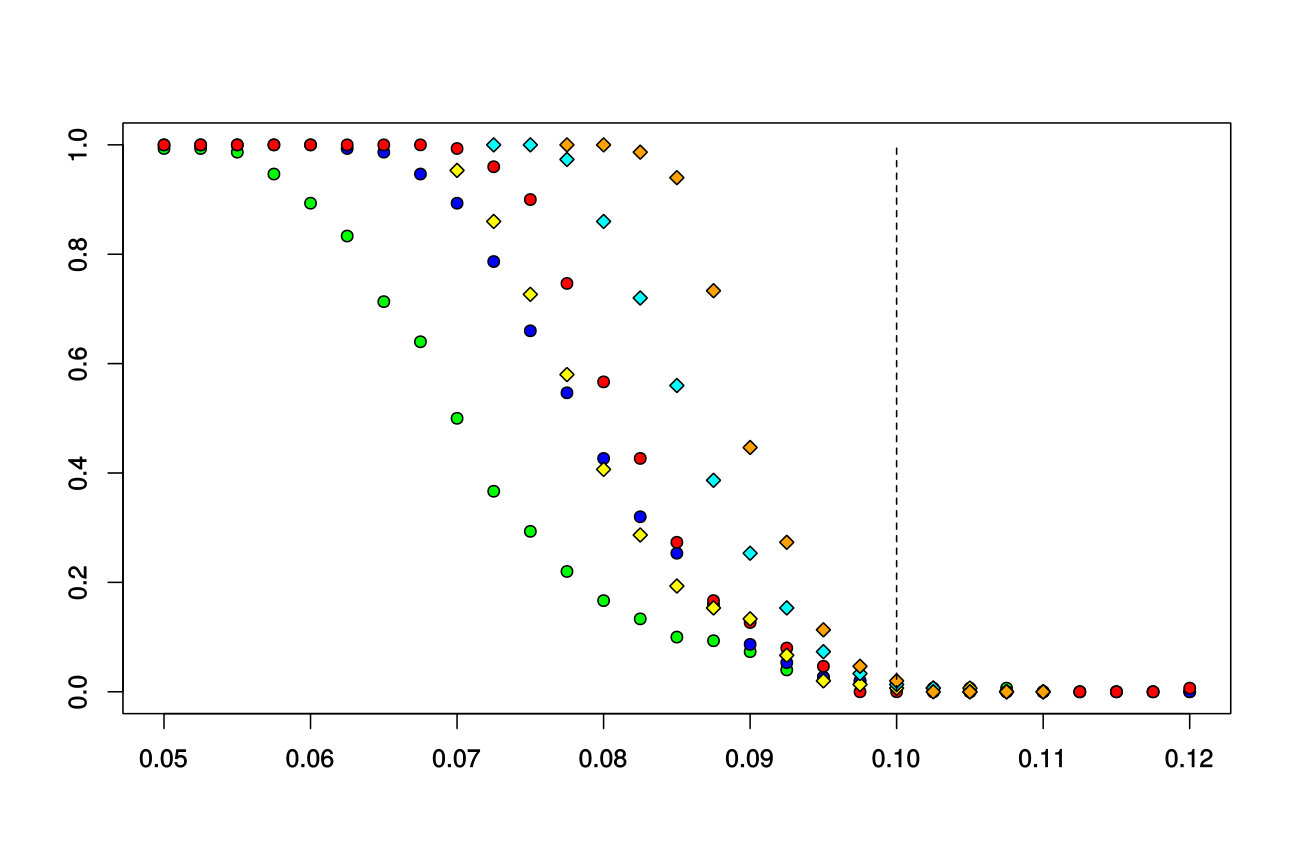

Coverage rates for extreme cases.* The bounds (25) and (26) are conservative. Nontheless, there are extreme cases for which the bounds are (almost) optimal. We present several examples of such cases in Table 2. For different combinations of $F_{0},F$ and $\alpha$, we give the observed coverage frequency of the confidence bounds (26) and (25). Figure 3 shows the he d.f.’s of some of these examples to get a better notion of the functions of interest. For simplicity in all the considered cases we fix $F\sim U(0,1)$. Then we consider instances of $F_{0}$ for which, approximately, $T_{1}\cup T_{2}\cup T_{3}$ equals $[0,1]$. For this, we fix $0\leq a\leq b\leq 1$ and define the piecewise linear function*

[TABLE]

where we take $q\in(0,1)$ such that $d_{\alpha}=\frac{(2+q)\alpha}{2(1-\alpha)}<1$ and define $t_{0}=(1-\alpha)(a-d_{\alpha}),t_{1}=(1-\alpha)a+(1+q)\alpha,t_{2}=(1-\alpha)b-q\alpha,t_{3}=(1-\alpha)(b+d_{\alpha})+\alpha$ (Figure 3 depicts $F^{0.01,0.99}_{0}$ and $F^{1/3,2/3}_{0}$ for $q=0.1$ and $\alpha=0.05$) . It is straightforward to check that $d_{K}(F_{0}^{a,b},R_{\alpha}(F))=d_{\alpha}$, and that $T_{1}=[0,t_{0}]$, $T_{2}=[t_{3},1]$ and $T_{3}=[t_{1},t_{2}]$. We note that $T_{1}$ becomes close to $[0,a]$, $T_{2}$ to $[b,1]$ and $T_{3}$ to $[a,b]$ as $\alpha\to 0$.

For different extreme behaviour we take $F_{0}$ to be the d.f. of a $Beta(1,\beta_{0})$ distribution with $\beta_{0}$ such that $f_{0}(1/2)=1/(1-\alpha)$ (this is possible for $\alpha<0.06148$). We obtain $d_{K}(F_{0},R_{\alpha}(F))=P\left(Beta(1,\beta_{0})\leq 1/2\right)-(1/2)/(1-\alpha)$, $T_{1}=\{1/2\}$ and $T_{2}=T_{3}=\emptyset$. Figure 3 includes the d.f. of $Beta(1,1.637464)$ (corresponding to $\alpha=0.05$). Finally, another extreme case follows by fixing $d_{\alpha}\in(0,1)$ and defining

[TABLE]

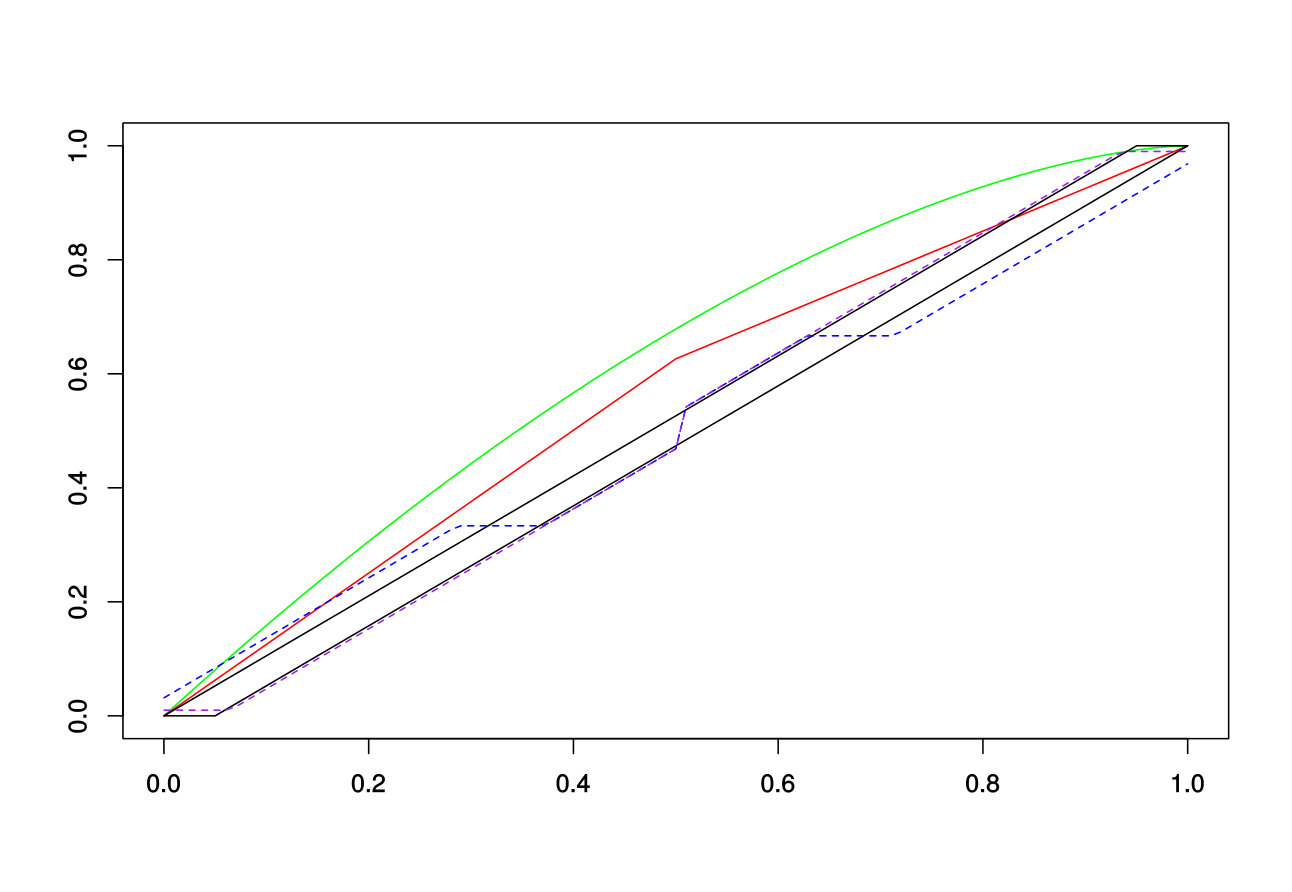

It is immediate that $d_{K}(F^{0.5}_{0},R_{\alpha}(F))=d_{\alpha}$, $T_{1}=\{1/2\}$ and $T_{2}=T_{3}=\emptyset$. In Figure 3 we included the case for $d_{\alpha}=0.1.$

Remark 4.1**.**

Notice that $F^{a,b}_{0}$ is not continuous in $(a+b)/2$ and is not differentiable in $t_{0},t_{1},t_{2}$ and $t_{3}$, also, $F^{0.5}_{0}$ is not differentiable in $1/2$. However, it is possible to modify these functions in such a way that from the point of view of simulation their behaviour becomes indistinguishable. This is why we keep the simple versions that give a better intuitive idea of what is happening.

4.2 Applications to credibility analysis

As already noted, for large enough sample sizes a classical goodness-of-fit test would reject the null hypothesis in (13) and yet we could be interested in knowing how well $F_{0}$ describes the generating mechanism behind the data. More about this idea of resemblance, understood as similarity between generated samples and the data can be found in Davies (1995). In a similar spirit, a model credibility index was introduced in Lindsay and Liu (2009). In short, for a fixed $\delta\in(0,1)$, and a given test of fit to a model, the $\delta$-credibility index is the sample size for which (for samples coming from the same random generator as the data) the model is rejected with probability $\delta$. In the setting of the testing problem (13) with rejection rule $d_{K}(F_{0},R_{\alpha}(F_{n}))>\lambda\rho_{n}$, the credibility index is the sample size $N_{\delta}$ (note the dependence of $\alpha$) for which

[TABLE]

Since the underlying random generator is unknown, $N_{\delta}$ cannot be computed. Sub-sampling techniques were proposed in Lindsay and Liu (2009), considering the estimator $N_{\delta,subs}$ as the sample size such that when we take $M$ subsamples of that size the rejection frequency of the null is $\delta$. Drawbacks of this procedure include that it is accurate only when $N_{\delta}$ is small compared to the original sample size, that $N_{\delta,subs}$ can never be bigger than that sample size and that the procedure is computationally demanding. We will try to address these shortcomings, while still maintaining the nice intuitive interpretation associated to the credibility index.

We start by writing

[TABLE]

Using Theorem 4.1, asymptotically we can look for

[TABLE]

where we keep using $N_{\delta}$ for our approximation in the asymptotic regime of the original $N_{\delta}$.

Next, we define a lower and an upper estimate for $N_{\delta}$ using the probability bounds for $Z_{\alpha}(F_{0},F)$ in Subsection 4.1. Thus, we define $L_{\delta}$ from

[TABLE]

and, similarly, $U_{\delta}$ from

[TABLE]

Equivalently,

[TABLE]

and it follows easily that $N_{\delta}\in[L_{\delta},U_{\delta}]$. We see also that the empirical estimators $L_{\delta,n}$ and $U_{\delta,n}$, built replacing $F$ by $F_{n}$ in (30), are consistent estimators of $L_{\delta}$ and $U_{\delta}$, respectively.

We end this section discussing on the practical use of the tK-index of fit, $\alpha^{*}$, introduced in (5). A consistent estimator $\alpha_{n}^{*}$ would provide an intuitive measure of proximity of the model to the data, assessing to what extent the data can be considered a contaminated sample from the model $F_{0}$. Recalling the setting of the testing problem (13) and the subsequent discussion, we would reject the null hypothesis if $d_{K}(F_{0},R_{\alpha}(F_{n}))>\lambda\rho_{n}$. This suggests to consider $\alpha_{n}^{*}$ as the smallest of the solutions of the equation

[TABLE]

and $\alpha_{n}^{*}=0$ whenever $\sqrt{\frac{1}{2n}\log\frac{2}{\epsilon_{1}}}\geq d_{K}\left(F_{0},F_{n}\right)$. This goal is feasible by numerical methods, allowing the use of $\alpha_{n}^{*}$ in practice. Moreover, from (31) and Proposition 2.2, $\alpha_{n}^{*}$ is almost surely consistent. The carried simulations show that $\alpha_{n}^{*}$ converges rather slowly to the theoretical value. In fact, there are connections between this estimator and those considered in the FDR setting (see Genovese and Wasserman (2004)), that justify this slow convergence rate even in the DCN case. Since a lower bound for $\alpha^{*}$ is a main goal in FDR analysis, we will deserve some comparisons in Section 5.

5 Relations with the FDR setting

To our effects, the False Discovery Rate model essentially assumes a dominated contamination model (DCN) like (1), $F=(1-\alpha)F_{0}+\alpha F^{\prime}$, where $F^{\prime}$ (so $F$) must be stochastically dominated by $F_{0}$. Recall that the stochastic order $F^{\prime}\leq_{st}F_{0}$ is defined by the relation $F^{\prime}(x)\geq F_{0}(x)$ for all $x\in\mathbb{R}$. The DCN assumption notably simplifies the FDR theory (which can be based on one-sided statistics), but the methodology developed in this paper can be useful for applications in FDR in which, as often happens, the DCN can be hardly justified. To appreciate the differences between the general framework of CN’s and DCN’s, it seems worthwhile to take advantage of the analyses in Examples 2.1 and 2.2.

Example 5.1**.**

Dominated contamination neighbourhoods.* In the scenarios considered in Example 2.1, only the second case of i) presents a dominated contamination $F=(1-\varepsilon)F_{0}+\varepsilon F^{\prime}$, with $F^{\prime}\leq_{st}F_{0}$. In fact, between the d.f.’s $F^{\prime}$ of $U(a,b)$ laws, only those verifying $a\leq\inf\{0,b\}$ and $b\leq 1$ are stochastically dominated by $F_{0}$. Therefore, considering*

[TABLE]

it holds $d_{K}(F_{0},R^{-}_{\alpha}(F,F_{0}))=\varepsilon-\alpha$ if $F$ is the d.f. of the $U(-\varepsilon,1)$ law and $0\leq\alpha\leq\varepsilon$; $R^{-}_{\alpha}(F,F_{0})=\{F\}$ for $0\leq\alpha<1$ under ii), while under iii): $R^{-}_{\alpha}(F,F_{0})=\{F\}$ for $0\leq\alpha<\varepsilon$ and $R^{-}_{\alpha}(F,F_{0})=\{F_{0}\}$ for $\varepsilon\leq\alpha<1.$ This shows that, in presence of non-dominated contamination, trimming under the restricting domination scheme does not necessarily improve the approximation (measured under any metric).

In the Gaussian model, stochastic dominance $N(\mu_{1},\sigma_{1}^{2})\leq_{st}N(\mu_{2},\sigma_{2}^{2})$ is equivalent to $\mu_{1}\leq\mu_{2}$ and $\sigma_{1}=\sigma_{2}$. Thus only normal distributions with $\sigma=1$ and $\mu\leq 0$ are dominated by a $N(0,1)$ law. For fixed $\alpha$, solving the relation (9)$=0$ would give the set of normal distributions that are dominated contamination versions of the $N(0,1)$ law. Therefore the only normal law in a DCN of a normal law is the same Gaussian. In particular, in the examples considered in Figure 1, only the point $(1,0)$ belongs to the DCN. Of course, non-normal distributions like the mixtures $(1-\alpha)N(0,1)+\alpha N(\mu,1)$ for any $\mu<0,$ would belong to such a DCN. $\Box$

Regarding the hypothesis testing problem and Theorem 3.1, note the very different nature of the problems of interest in the FDR setup: the control of the false discovery rate through a confidence lower bound and the detection of the particular false hypotheses. Resorting to a simplified version, the problem would be described through the DCN as $F=(1-\alpha)F_{0}+\alpha F^{\prime}$, where $F_{0}$ is the f.d. of the $U(0,1)$ law and $F^{\prime}$ is a d.f. with support on $(0,1)$ and $F^{\prime}(x)\geq x$ for every $x\in(0,1)$. The null would be $\alpha=0$, and the alternative would be $\alpha>\alpha_{0}.$ Acceptance of the null hypothesis with our testing procedure, for a given $\alpha$, under the DCN setting would indicate that a lower proportion than $\alpha$ false hypotheses are compatible with our data.

In the FDR setting, estimation and confidence intervals for the contamination level are main objectives. In fact, there are connections between the estimator defined in (31) and those considered in the FDR setting (see Genovese and Wasserman (2004)), that justify the slow convergence rate even in the DCN case. Since a lower bound for $\alpha^{*}$ is a main goal in FDR analysis, some comparison is in order, but previously we will introduce a new estimate.

It is easy to see that, (2) is also equivalent to $P(B)\geq(1-\alpha)P_{0}(B)$ for any Borel set $B\subset\mathbb{R}$ and to $P(B)\leq(1-\alpha)P_{0}(B)+\alpha$ for any such set. Moreover, the Borel sets in $\mathbb{R}$ can be arbitrarily well approximated by finite unions of disjoint intervals. From these considerations, we could use of the bound

[TABLE]

noting that $\alpha(P,P_{0})$ is a semicontinuous statistical functional in the sense of Donoho (1988), allowing the obtention of nontrivial lower confidence bounds for $\alpha$. This suggests that the combination of CN with the distance of Kuiper, $d_{{Kuiper}}(P,Q):=\sup\{|P(J)-Q(J)|,J\mbox{ interval in }\mathbb{R}\},$ could be more natural that the $d_{K}$ distance. That goal deserves future work, but now we devote some attention to another, novel (Bonferroni type) lower confidence bound for $\alpha(P,P_{0})$, thus for $\alpha^{*}$:

[TABLE]

Here $1-\gamma$ is the confidence level, $\beta_{k,l}^{-1}$ denotes the quantile function of the $Beta(k,l)$ distribution, and the minimum is taken over all $M_{n}=n(n+3)/2$ index pairs $(i,j)$ such that $0\leq i<j\leq n+1,j-i\leq n.$

Although not implemented here, we should mention that the bound could be refined in two ways: Replace the Bonferroni quantiles

[TABLE]

with

[TABLE]

where $\gamma_{n}$ is the exact $\gamma$-quantile of the distribution of

[TABLE]

with the order statistics $0=U_{(0)}<U_{(1)}<\dots<U_{(n)}<U_{(n+1)}=1$ of a random sample from the $U([0,1])$ distribution. Furthermore, since the small intervals are more important than the large ones, one could restrict attention to all pairs $(i,j)$ of indices $0\leq i<j\leq n+1$ such that $j-i\leq d_{n},$ with $d_{n}=\lfloor n/2\rfloor,$ say. This means, one would consider $M_{n}=((2n+3)d_{n}-d_{n}^{2})/2$ pairs $(i,j).$

Example 5.2**.**

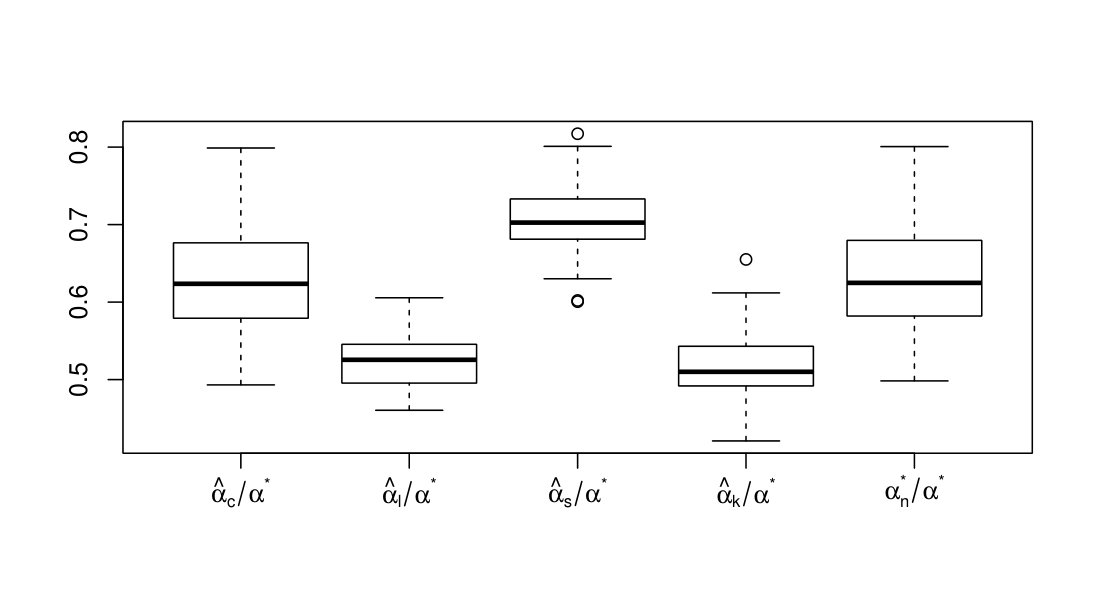

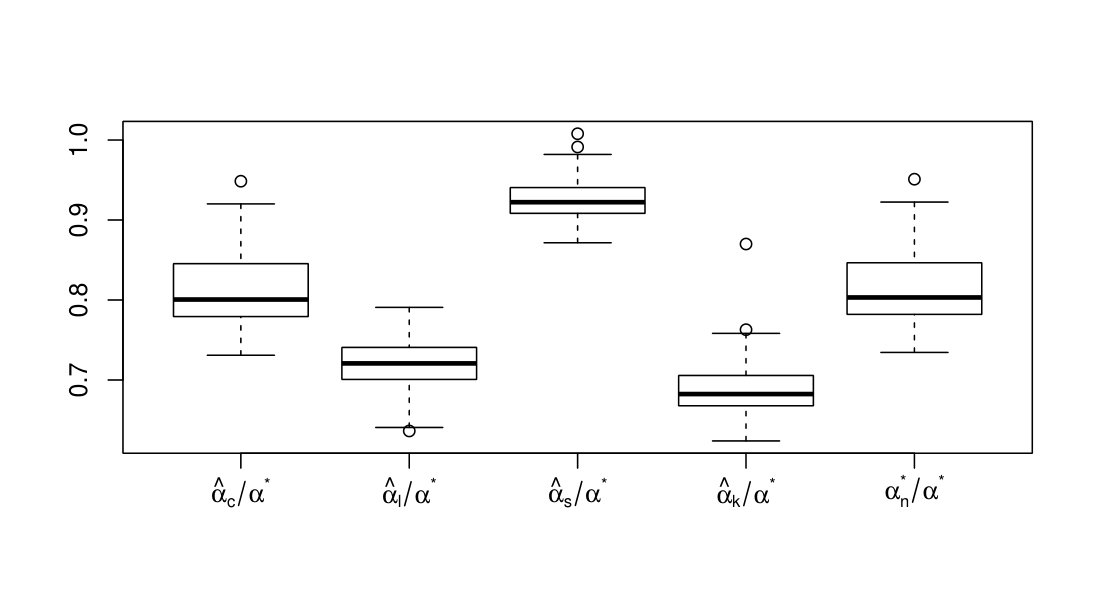

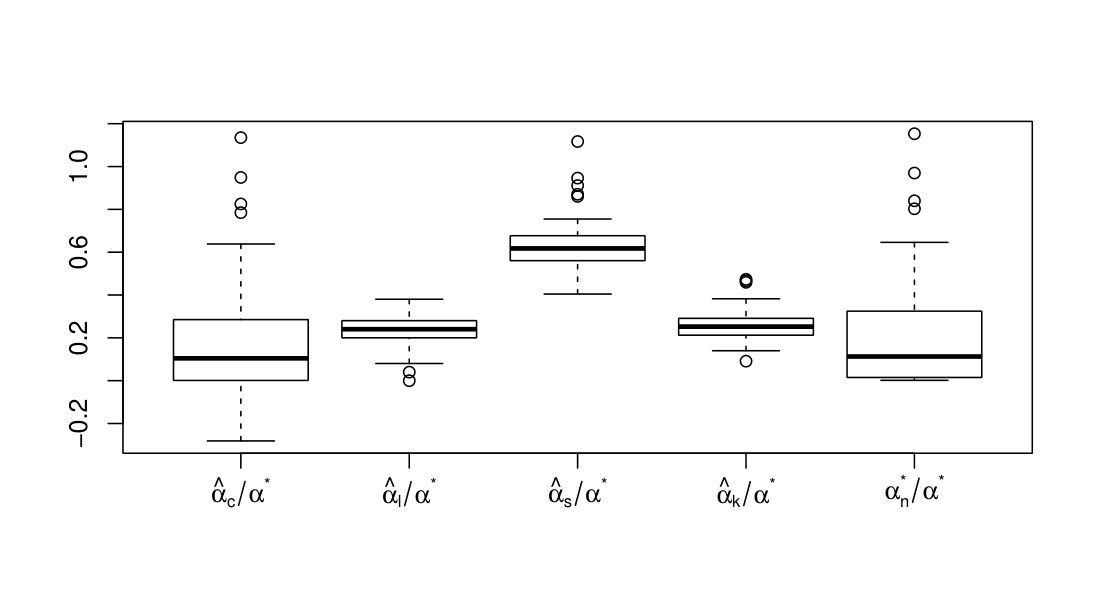

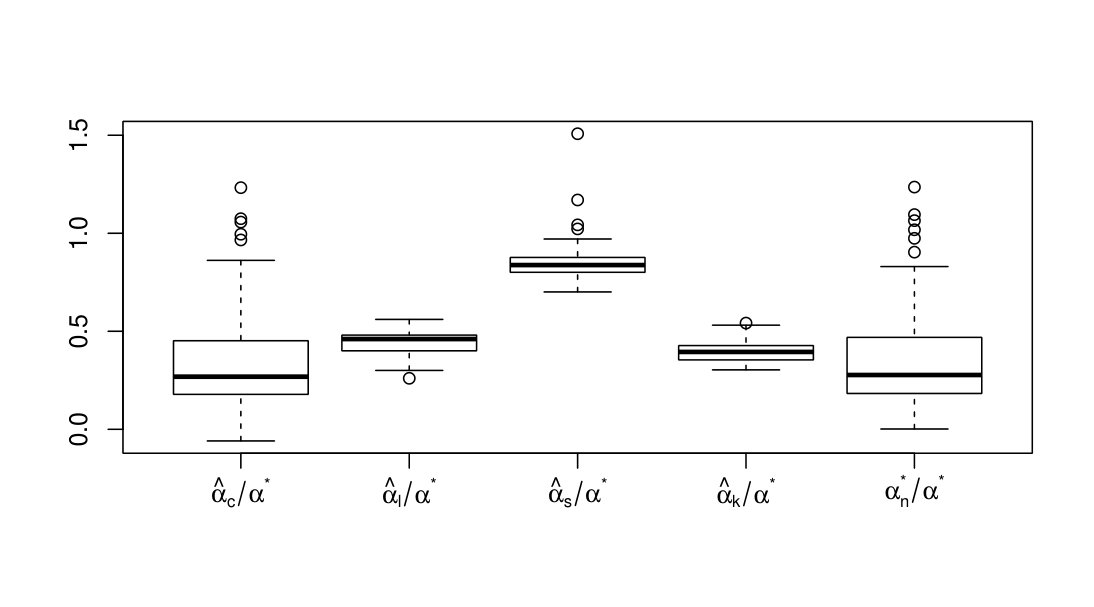

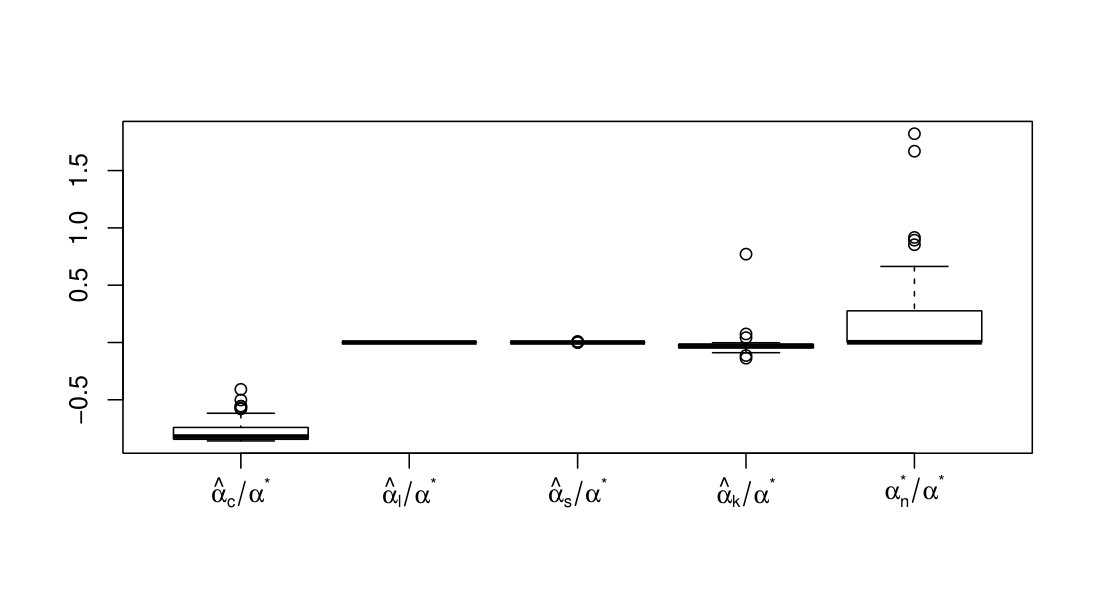

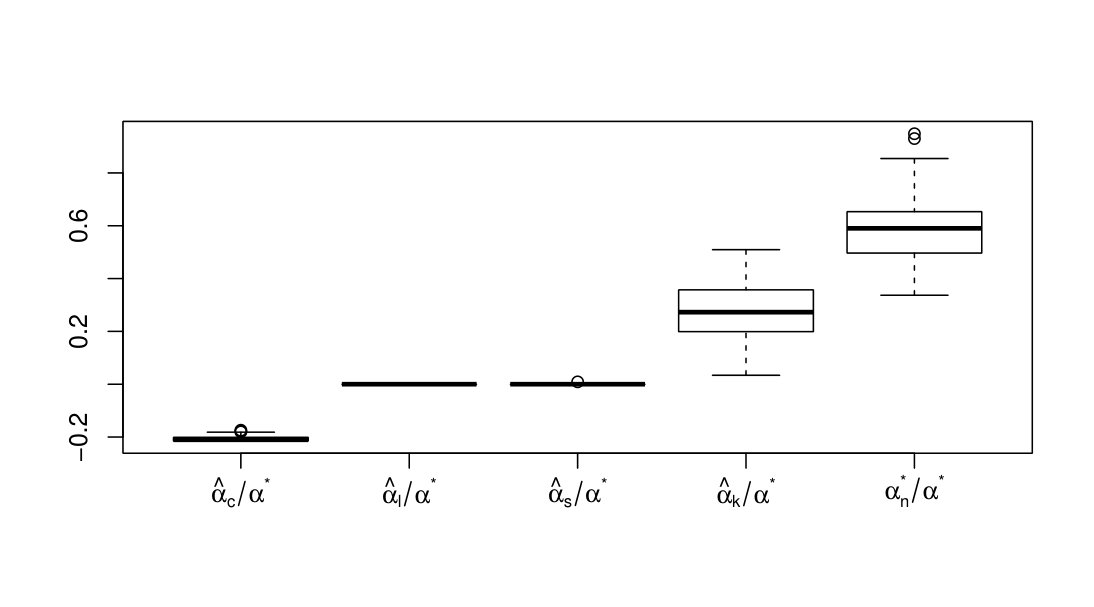

Some comparisons between estimates of $\alpha^{*}$.* In Figure 4 we compare the behaviour of our estimate $\alpha_{n}^{*}$ (based on $\epsilon_{1}=0.05$) of $\alpha^{*}$ with some confidence lower bounds, associated to bounding functions, as described in Meinshausen and Rice (2006). We denote by $\hat{\alpha}_{c}$ to the lower bound with confidence level 0.95, i.e., $P(\hat{\alpha}_{c}\leq\alpha)\geq 0.95$, associated to the constant bounding function $\delta(t)=1$; $\hat{\alpha}_{l}$ is the one associated to the linear bounding function $\delta(t)=t$; $\hat{\alpha}_{s}$ is obtained with the standard deviation-proportional bounding function $\delta(t)=\sqrt{t(1-t)}$. The legend in the figure explains the way in which the corresponding samples have been obtained. Let $X_{0}$ be a random variable with a $N(0,1)$ law and recall that $\Phi$ denotes its d.f.. In the graphics of the first row, we take $X_{1}=\Phi(X_{0})$ and $Y_{1}=\Phi(X_{0}+4)$; in those of the second row, $X_{2}=\Phi(X_{0}),Y_{2}=\Phi\left(3X_{0}+4\right)$. In the third row, we consider $X_{3}$ with a $U(0,1)$ law and $Y_{3}$ with a $Beta(5,1)$ law.*

The first row is a very favourable case for the procedures shown in Section 4 in Meinshausen and Rice (2006). The second is a perturbation of that, allowing greater dispersion on the contamination, thus breaking the domination. In the lower row, we present a case where the procedures described in Meinshausen and Rice (2006) do not give meaningful bounds, while our procedure gives sensible results. We note that Meinshausen and Rice (2006) seemingly do not use the DCM assumption but, as it is apparent from the pictures in Figure 4, in fact their proposals are not meaningful when that condition fails. We may conclude that our estimate is competitive when we are under the assumptions of Meinshausen and Rice (2006), but also works when these assumptions fail. $\Box$

6 Simulations and a real data example

6.1 A toy example

Let us explore the practical use of our tools to evaluate the quality of a given model on the basis of the sample. We fix the model $F_{0}\sim N(0,1)$ and consider three different large samples ($n=20000$) simulated from three different distributions. The first sample comes from $F_{1}\sim Logistic(0,\sqrt{3}/\pi)$, with the same mean (=0) and variance (=1) as $F_{0}$. We notice that this model distribution has been reported in Lindsay and Liu (2009) as generating datasets very close to ‘normality’. The other two samples come from contaminated normal distributions $F_{2}\sim 0.867N(0,1)+0.133N(0,4^{2})$ and $F_{3}\sim 0.9N(0,1)+0.1N(3,1)$ (we will refer to these samples as contaminated by ‘inliers’ and ‘outliers’, respectively).

Our first step is to assess whether these samples can be assumed as coming from a contamination of level at most $\alpha=0.05$ of the model $F_{0}$. We fix $\epsilon_{2}=0.05$ and $\epsilon_{1}=0.05/(0.999e^{2})$. We note (recall the discussion about the testing problem (13)) that this choice of $\epsilon_{1}$ is very close to the minimal admissible value for the validity of (15) and (16), that is, we are taking a very conservative approach, rejecting the null only if we have very strong evidence against it. From (15) and (16) we see that this amounts to fixing $\lambda=0.9997$ and $\rho_{2\times 10^{4}}=0.012555$, the null being rejected if $d_{K}(F_{0},R_{0.05}(F_{i,2\times 10^{4}}))>\lambda\rho_{2\times 10^{4}}=0.012552$. The first column in Table 3 reports the observed values of $d_{K}(F_{0},R_{0.05}(F_{i,2\times 10^{4}}))$, $i=1,2,3$. Despite the very conservative approach taken, the null is rejected for the three samples, that is, we should not consider them as ($0.05$) contaminated samples from our model $F_{0}$.

Next, we try to assess the quality of the rejected model as a good description of the underlying distributions of the samples. The simplest approach could be to use the estimated $d_{K}$ distance. Looking back at the first column of Table 3 we see that $F_{1}$ is closer to the rejection boundary than $F_{2}$, and the later is closer than $F_{3}$. This estimate is complemented by the $95\%$ lower (top cell) and upper (bottom cell) confidence bounds for $d_{K}(F_{0},R_{0.05}(F_{i}))$, included in the second column of the table. We see, for instance, that the generator of the first sample is (with $95\%$ confidence) at small $d_{K}$ distance ($0.0262$) from an $\alpha$-contamination of the standard normal distribution.

Alternatively, we could consider credibility indices, looking for the sample sizes from the generators that will be suitably represented by the model plus the corresponding CN (we keep our choice of $\alpha=0.05$). The estimators $L_{0.5,n}$ and $U_{0.5,n}$ are reported in the fourth and fifth column of Table 3, we expect the credibility index to be in the interval $[359,1386]$ for $F_{3}$, in $[2045,7886]$ for $F_{2}$ and in $[4170,16079]$ for $F_{1}$. Once more $F_{1}$ is the closest to the model in this sense, followed by $F_{2}$ and then $F_{3}$. We also see that, from a conservative point of view, $F_{1}$ can generate samples of size up to 4170 while rejecting the null less than 50% of the time. Therefore, at least in this sample size range $F_{0}$ can be considered as a useful model for the data (allowing $5\%$ contamination).

In this controlled setup we can use our knowledge of the underlying distributions of the samples to estimate the true credibility index, $N_{0.5}$. The index $N_{0.5,indep}$ denotes the sample size for which 5000 independent samples of that size from the true generator, give a rejection frequency of 50%. $N_{0.5,subs}$ is the subsampling approximation to the credibility index described in Section 4.2. We see in Table 3 that the interval $[L_{0.5,n},U_{0.5,n}]$ in all three cases contains $N_{0.5,indep}$ and $N_{0.5,subs}$, as expected.

A last way of comparison is given by $\alpha^{*}_{n}$. As before, $F_{1}$ is closest to the model ($\alpha^{*}_{n}=0.054$), then comes $F_{2}$ ($\alpha^{*}_{n}=0.069$), and last $F_{3}$ ($\alpha^{*}_{n}=0.089$). This suggests that the random generators of the samples are not too far from the model, $F_{0}$. On the other hand, $F_{0}\in R_{0.1}(F_{2})$ and $F_{0}\in R_{0.1}(F_{3})$ and in both cases we have $\alpha^{*}=0.1$. Note, in this respect, the slow convergence of $\alpha^{*}_{n}$ showed in the last column of Table 3.

To summarize, up to some ‘small’ contamination (0.05), the logistic generated sample is the closest one to normality. It is closer to normality than samples coming from 0.1-contaminations of the normal model. Also, scale contaminations with the same mean ($F_{2}$), generate samples that ‘look’ more normal than location contaminations, when allowing some (0.05) trimming.

6.2 Trying a real data example

Here we analyse the heights of 52402 individuals with ages between 2 and 84. The data has been obtained from NHANES ( https://www.cdc.gov/nchs/nhanes/) and consists of height measurements (in centimeters) of 26625 females and 25777 males. The dataset analysed here is available at

https://dataverse.harvard.edu/dataset.xhtml?persistentId=doi:10.7910/DVN/SHBF2G

We consider three age groups, which are related to human body development. The first group includes kids before puberty (ages between 2 and 10). The second group, puberty period, includes individuals aged between 11 and 18, with adults (over 18) making the third group. We start analysing the adult group (30284 individuals). The data consists of height measurements on 15679 females and 14605 males.

Notice that in our analysis we will use the population estimates of the mean and variance. This is very usual in the goodness of fit setting based on procedures designed for testing simple hypothesis and, in particular in the FDR setting. There, the $U(0,1)$ law, considered as the hypothesis, arises from the integral, or $p$-value transformation, but it depends on the (unknown) true distribution. In our framework, that license is even more permisible because we are interested in getting a useful description of the data.

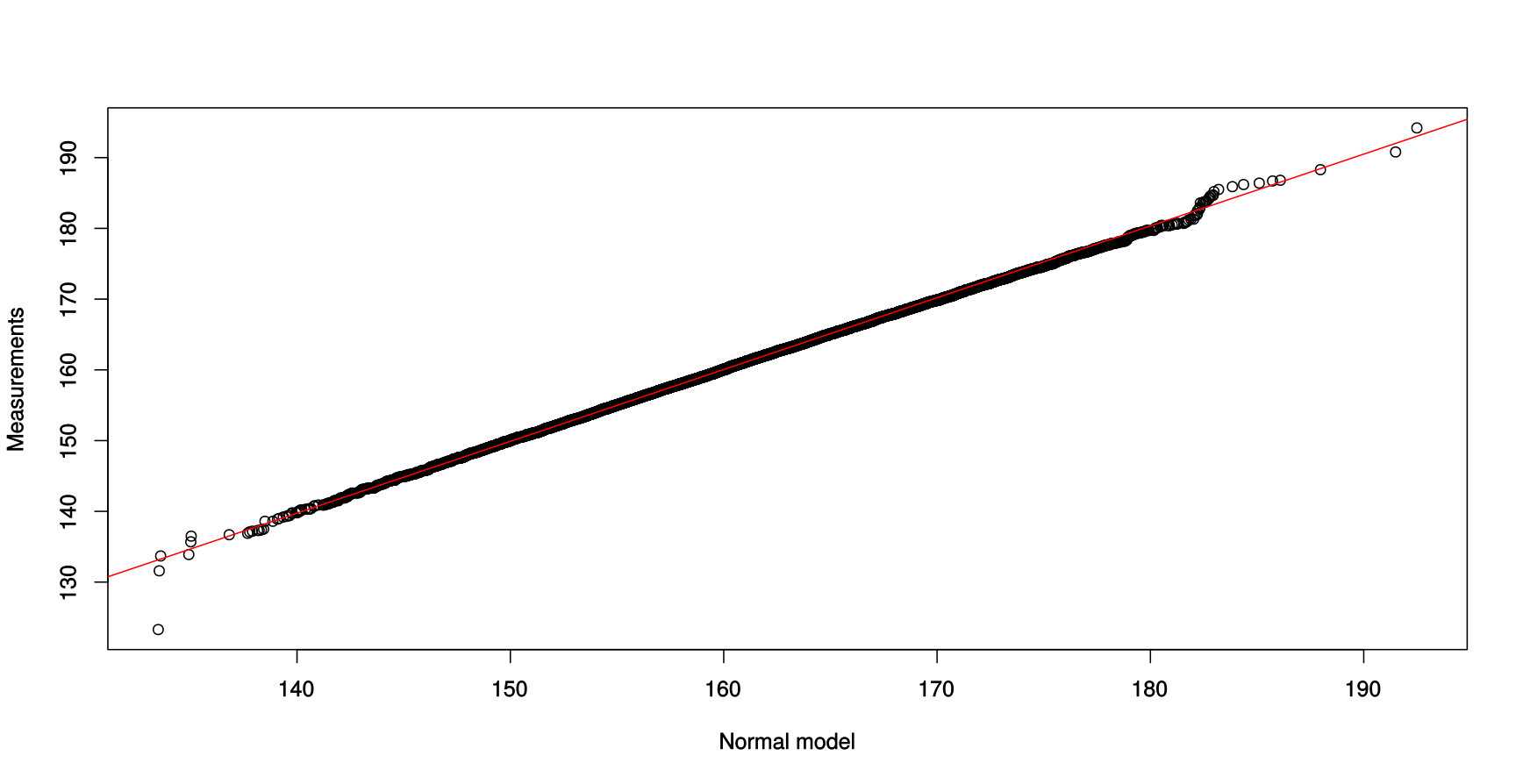

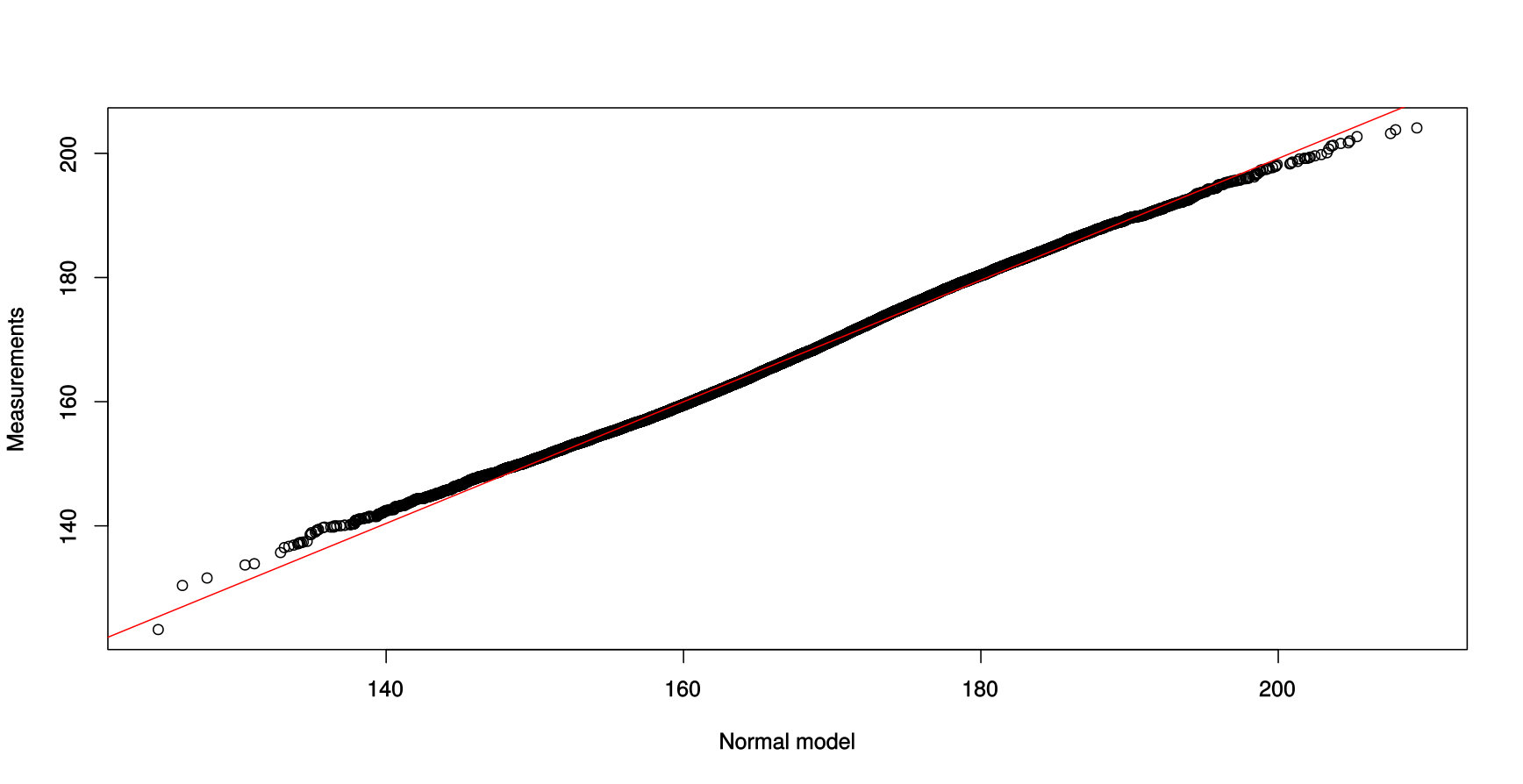

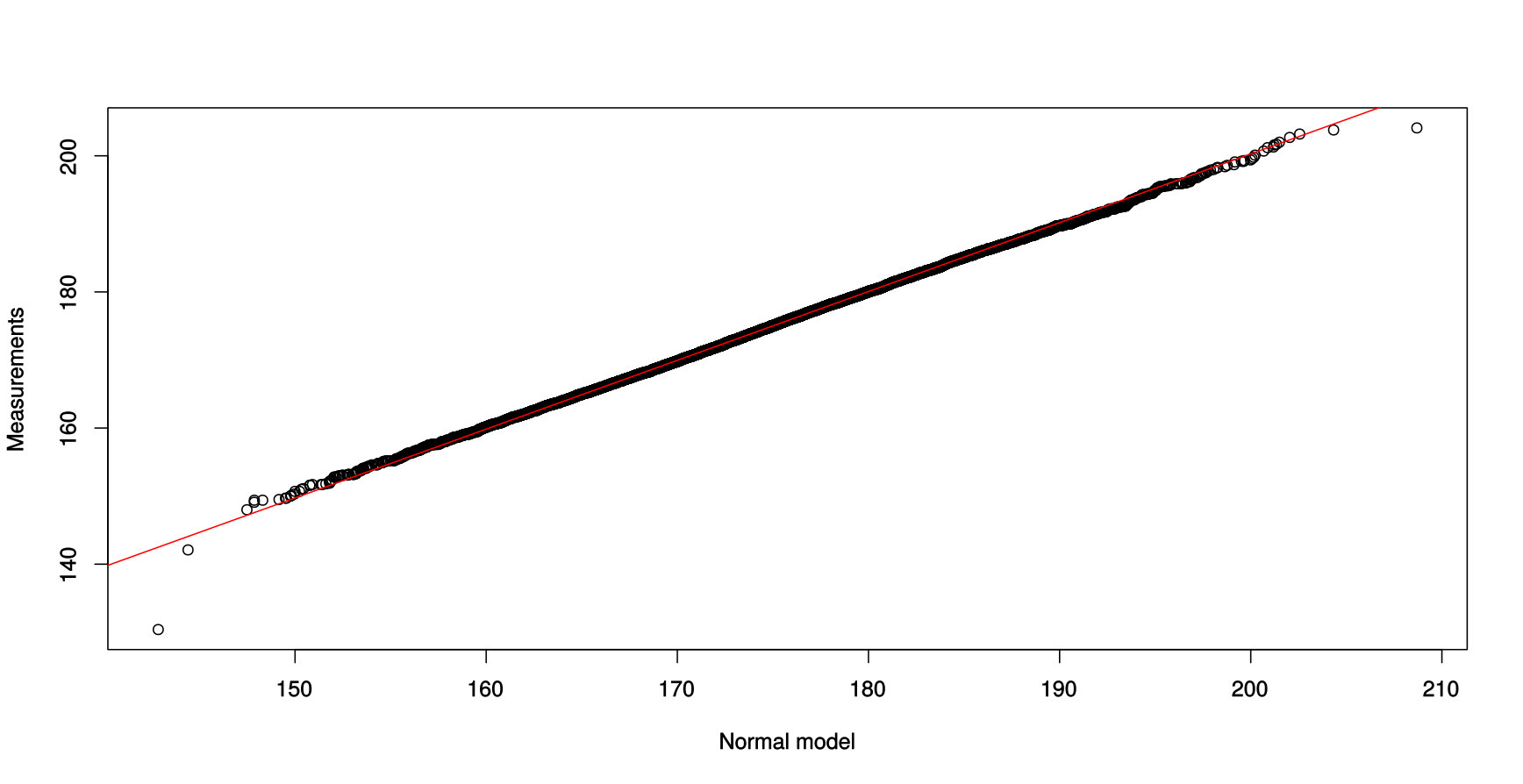

We analyse first the sample by gender group. In Figure 5 we see qq-plots from normal distributions with the same mean and variance as the female’s and male’s heights data. The pictures suggest that the normal model could provide a reasonable description of the data. Also, a Kolmogorov-Smirnov test of normality yields a $p$-value of $0.5385$ for the male group and of $0.2997$ for the female group, thus we do not get enough evidence to reject that the data sets come from normal random generators.

Next we take a look at the combined data set. The previous analysis suggests the model $F_{0}\sim 0.52N(161.0,7.1^{2})+0.48N(174.6,7.9^{2})$. If, however, we perform a gender-blind analysis and take a look at the qq-plot in the third graphic in Figure 5 for the combined sample, we may be tempted to say that the normal distribution is not a bad model for the data (nevertheless, the K-S normality test yields a $p$-value smaller than $10^{-16}$). After the discussion in the previous sections, we could yet stick to the normal model and consider $F_{0}^{*}\sim N(167.6,10.1^{2})$ hoping a useful description of the random generator of the data.

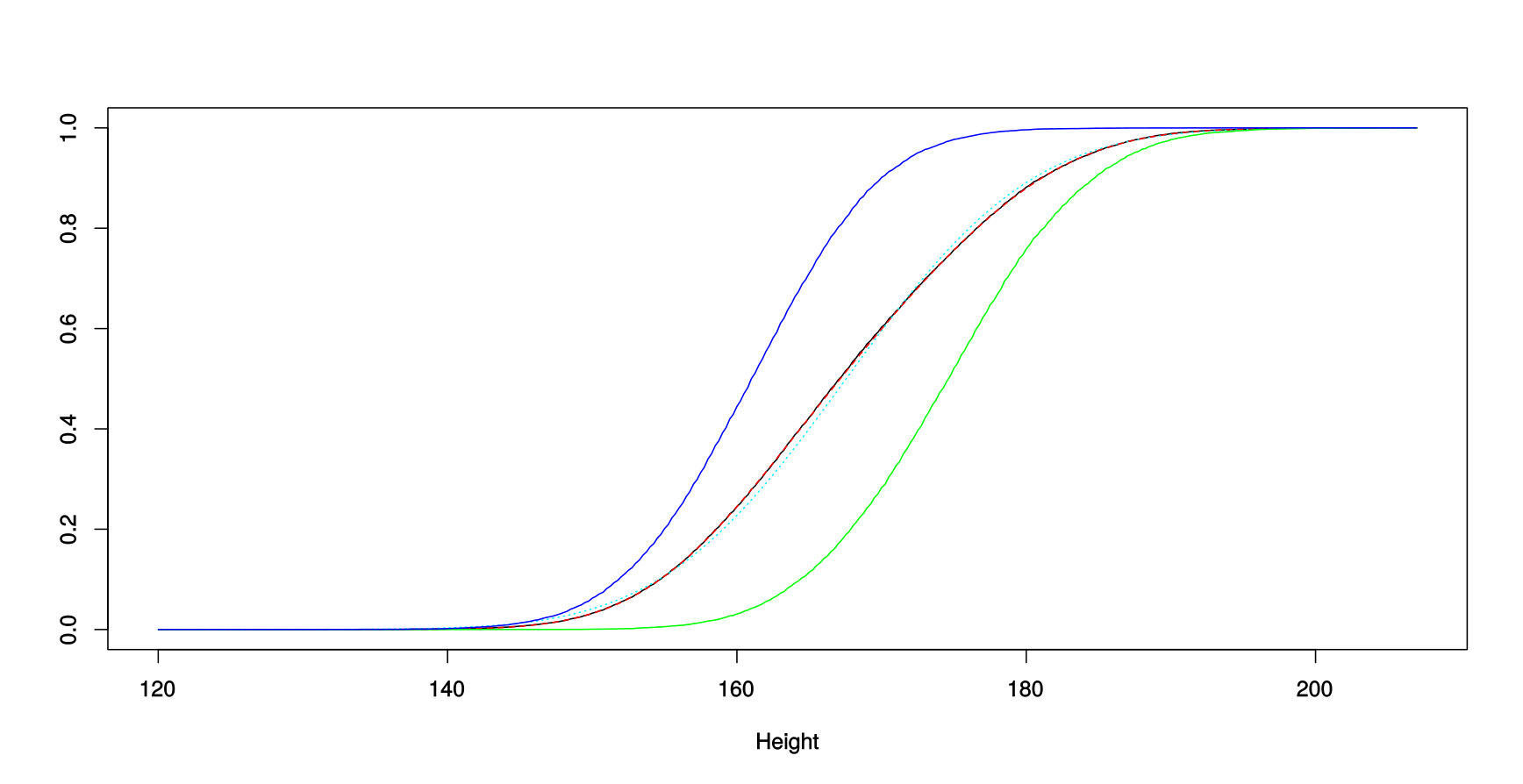

Figure 6 shows the empirical d.f. together with the models $F_{0}$ and $F_{0}^{*}$. While the gender-blind model, which is in disadvantage (since it is blinded to relevant information), is further away from the data than $F_{0}$ we may wonder how bad is $F_{0}^{*}$ as a model. If trimming is allowed, we would need a $6\%$ trimming to avoid rejection of the null hypothesis, i.e., $d_{K}(F_{0}^{*},R_{0.06}(F))=0$ would not be rejected, thus $\alpha^{*}_{n}=0.06$, and our data are compatible with a generation from $F_{0}^{*}$ with a proportion of until $6\%$ wrong data. Actually, $F_{0}$ is still a better model, since $d_{K}(F_{0},R_{0.06}(F_{n}))=0.00231$ with $95\%$ confidence interval for $d_{K}(F_{0},R_{0.06}(F))$ of $[0,0.01468]$, while $d_{K}(F_{0}^{*},R_{0.06}(F_{n}))=0.01026$ with a confidence interval for $d_{K}(F_{0}^{*},R_{0.06}(F))$ of $[0,0.02264]$. We could even look for other normal distributions inside the tolerance region, shown in green in Figure 7, and choose one as a sensible model. Alternatively, if we find this trimming level unacceptable, we may try to use smaller CN’s and asses model adequacy using credibility analysis.

The output of this type of analysis is reported in Table 4. We have fixed $\epsilon_{1}=0.01$ (recall the discussion leading to (16)) and considered three different trimming levels ($\alpha=0.015,0.035$ and $0.055$, leading to optimal rejection boundaries $\lambda\rho_{30284}=0.0098,0.0100$ and $0.0103$, respectively). Testing for these contamination levels results in rejection of the null hypothesis, since the values in the first column of Table 4 are above the respective rejection boundaries. But we see how the empirical trimmed Kolmogorov distance approaches the rejection boundary as the trimming level increases. Further informative values are provided by the intervals $[L_{0.5,n},U_{0.5,n}]$. With the available data, since we expect $N_{\delta}$ to be in $[L_{0.5,n},U_{0.5,n}]$, we see how reasonably the gender-blind model, $F_{0}^{*}$, represents the data. With a conservative point of view, after trimming only $0.055$, samples of the true generator of size $6851$ will not be rejected as coming from $F_{0}^{*}$ (more than $50\%$ of the time). If we take an optimistic point of view, we can say the same thing but for a sample size of $26417$. As in our toy example, we see that $N_{0.5,subs}\in[L_{0.5,n},U_{0.5,n}]$, therefore our estimated interval for the credibility index contains the estimation proposed in Lindsay and Liu (2009). If, on the other hand, we admit that the data comes from $F_{0}$ and calculate the estimate $N_{0.5,indep}$, we see that $N_{0.5,subs}$ is far from $N_{0.5,indep}$ and our upper bounds $U_{0.5,n}$ get closer to $N_{0.5,indep}$. Furthermore, we could plug-in our upper and lower confidence bounds (25) and (26) into (30) to get upper and lower confidence bounds for $L_{0.5}$ and $U_{0.5}$. These are reported in the columns labeled $L_{0.5,95\%}$ and $U_{0.5,95\%}$. We can assure with more than $95\%$ confidence that $N_{0.5}\geq 1143$ for $\alpha=0.035$ and, similarly, that $N_{0.5}\geq 1523$ for $\alpha=0.055$.

Finally, we study the normality of the data for grouping ages. Using the same mean and variance as the data, we propose $F_{1}\sim N(116.9,18.2^{2})$ for the age group under 11, $F_{2}\sim N(163.1,10.9^{2})$ for the ages 11 and 18, and $F_{3}(=F_{0}^{*})\sim N(167.6,10.1^{2})$ for ages over 18. The tK-index of fit allows us to compare how normal is the data in each age group. We obtain the following indices: $\alpha^{*}_{1,n}=0.3665$, $\alpha^{*}_{2,n}=0.0057$ and, as before, $\alpha^{*}_{3,n}=0.06$. This gives a clear ‘normality’ ranking. Somewhat surprisingly the data from the puberty group (ages 11 to 18) is almost normal. The adult group is close to normality and the children group is very far from normality. We emphasize that normality is rejected for each data set by a K-S test. To gain some intuition of what is really happening, we plot in Figure 7 the tolerance region for the normal family inside each respective CN for $\alpha^{*}_{2,n}$ and $\alpha^{*}_{3,n}$. The plot shows remarkably well how much closer to being normally distributed is the data of the teenagers compared to the adult group.

7 Conclusions

Through the paper we showed that the Kolmogorov distance, the credibility index bounds and the tK-index of fit, provide an intuitive and easy to understand comparison between models. The Kolmogorov distance between a contamination model and a generator gives a straightforward way of comparing accepted or rejected models and, further, allows the use of the other two indexes in the case of rejection. The credibility index bounds provide a summary of which model is closest to the data and give an idea of the region in which the model agrees well with the data. The tK-index of fit provides a single summary that can be widely used and can have attached some informative tolerance region. The procedure we have followed to calculate the normal family tolerance region can be more or less directly extended to other absolutely continuous distributions. Last but not least, we have provided an efficient algorithm for computing $d_{K}(F_{0},R_{\alpha}(F_{n}))$ which makes possible the implementation of all the previous procedures.

With these tools we elaborate on the idea that rejecting a model does not mean that the model is useless. Our testing procedure and limit results allow different applications of this idea. As showed in our toy example, we can use them to asses how some known generating mechanism produces data compatible with some fixed model when we allow some “small” contamination. In this way we may obtain some useful (hopefully simpler or faster to implement) generators for some range of sample sizes. These tools allow also to compare different data sets, from unknown generators, to a contamination model and rank how well the model agrees with the data.

Appendix

In this section we provide the proof of Theorem 4.1. The key for this result relies on appropriate characterizations of the best approximation of a function (in uniform norm) by monotone functions with a box constraint, obtained in del Barrio et al. (2019). These characterizations allowed the obtention of a directional differentiability result (Theorem 4.3 in del Barrio et al. (2019)) that we include below. We give a version that is simply a rephrasing with the present notation, and involves the sets $T_{i}$ introduced at the beginning of Section 4.1. As it is the case here, this kind of result typically allows to obtain efficiency and asymptotic distributional behaviour of functionals in the statistical setting (see e.g. Cárcamo et al. (2019)).

Theorem 7.1**.**

Assume $G,J:[0,1]\to\mathbb{R}$ are continuous functions and $r_{n}>0$ is a sequence of real numbers such that $r_{n}\to\infty$. Define $G_{n}=G+\frac{J}{r_{n}}$ and consider $U,L,\tilde{h}_{\alpha}$ as in Theorem 2.1 and $\tilde{h}_{\alpha,n}$ built in the same way as $\tilde{h}_{\alpha}$ but from $G_{n}$. Assume further that $T_{1},T_{2}$ and $T_{3}$ are as defined in (19), (20) and (21) and that there is no $t\in{T}_{1}$ with $(L(t)+U(t))/2=0$, no $t\in{T}_{2}$ with $(L(t)+U(t))/2=-\alpha/(1-\alpha)$ and no $(s,t)\in{T}_{3}$ with $\frac{1}{2}(G(t)+G(s))\in\{-\alpha/(1-\alpha),0\}$. Then

[TABLE]

Proof of Theorem 4.1. As in Theorem 2.1 for $\Gamma$, we write $G(t)=H^{-1}(t)-\frac{t}{1-\alpha}$, $G_{n}(t)=H_{n}^{-1}(t)-\frac{t}{1-\alpha}$, keep the notation for $\tilde{h}_{\alpha}$ and write $\tilde{h}_{\alpha,n}$ for the corresponding object defined from $G_{n}$. With this notation we will show weak convergence of

[TABLE]

to complete the proof. With this goal we consider the quantile process

[TABLE]

Assumption (23) allows us to apply Theorem 18.1.1, p. 640 and Example 18.1.2, p.641, in Shorack and Wellner (1986) to conclude that we can choose a version of $Q_{n}$ and a Brownian brigde, $B$, such that if $w=(H^{-1})^{\prime}$ and $\tilde{B}=wB$ then

[TABLE]

in probability. If (24), instead of (23), holds then we can still find versions of $Q_{n}$ and $\tilde{B}$ such that $\max_{\varepsilon\leq t\leq 1-\varepsilon}|Q_{n}(t)-\tilde{B}(t)|\to 0$ in probability. It is easy to see that (24) implies that

[TABLE]

and also that, in a probability one set, eventually

[TABLE]

From this point we assume that (23) (hence, also (35)) holds. Our last comments, however, show that our proof can be trivially adapted to cover the case when (24) holds. We omit further details.

Next, we note that $w$ is a continuous function and, as a consequence, $\tilde{B}$ has, with probability one, continuous trajectories. We note that $G_{n}(t)=G(t)+\frac{Q_{n}(t)}{\sqrt{n}}$ and introduce $\bar{G}_{n}(t)=G(t)+\frac{\tilde{B}(t)}{\sqrt{n}}$ and the related functions $\bar{U}_{n}$, $\bar{L}_{n}$ and $\bar{h}_{\alpha,n}$ related to $\bar{G}_{n}$ as ${U}_{n}$, ${L}_{n}$ and $\tilde{h}_{\alpha,n}$ are related to $G_{n}$. We consider

[TABLE]

and observe that $|A_{n}-C_{n}|\leq\sqrt{n}\|\tilde{h}_{\alpha,n}-\bar{h}_{\alpha,n}\|+\sqrt{n}\|G_{n}-\bar{G}_{n}\|=o_{P}(1)$ by (35) (we are using that $\sqrt{n}\|\bar{U}_{n}-U_{n}\|\leq\|Q_{n}-\tilde{B}\|$, with a similar bound for the lower envelopes). Consequently, if suffices to prove convergence of $C_{n}$. From Theorem 7.1 we conclude that

[TABLE]

The conclusion follows upon noting that (see Remark 4.2 in del Barrio et al. (2019)) in the sets $T_{i}$, the function $G$ has local maxima: if $t_{0}\in T_{1}$ then $G$ has a local maximum at $t_{0}$ and a local minimum if $t_{0}\in T_{2}$, also, if $(s_{0},t_{0})\in T_{3}$ then $G$ has a local maximum at $t_{0}$ and a local minimum at $s_{0}$. Therefore, $G^{\prime}(t_{0})=0$ and $G^{\prime}(s_{0})=0$ for every $t_{0}\in T_{1},T_{2}$ or $(s_{0},t_{0})\in T_{3}$ and this entails $w(t_{0})=w(s_{0})=\frac{1}{1-\alpha}$ for these points. $\Box$
