New Insights into the Physical Conditions and Internal Structure of a Candidate Proto-Globular Cluster

TL;DR

This study uses high-resolution ALMA observations to analyze a molecular cloud in the Antennae galaxies, providing insights into its structure, mass, and environment, which are crucial for understanding the birth conditions of globular clusters.

Contribution

It offers the first detailed characterization of a candidate proto-globular cluster environment before star formation begins, including mass, structure, and pressure conditions.

Findings

The cloud has a radius of 22 pc and a mass of 1-9×10^6 solar masses.

The CO-to-H2 conversion factor varies spatially within the cloud.

High external pressure (>10^8 K cm^-3) is needed for the cloud to be gravitationally bound.

Abstract

We present $\sim$0.1" resolution ($\sim$10 pc) ALMA observations of a molecular cloud identified in the merging Antennae galaxies with the potential to form a globular cluster, nicknamed the ``Firecracker.' Since star formation has not yet begun at an appreciable level, this cloud provides an example of what the birth environment of a globular cluster may have looked like before stars form and disrupt the natal conditions. Using emission from $^{12}$CO(2-1), $^{12}$CO(3-2), $^{13}$CO(2-1), HCN(4-3), and HCO$^+$(4-3), we are able to resolve the cloud's structure and find that it has a characteristic radius of 22 pc and a mass of 1--9$\times10^6 M_\odot$. We also constrain the abundance ratios of $^{12}$CO/$^{13}$CO and H$_2$/\twelveCO. Based on the calculated mass, we determine that the commonly used CO-to-H$_2$ conversion factor varies spatially, with average values in the range $X_{CO}=(0.12-1.1)\times10^{20}$ cm$^{-2}$ (K km s$^{-1}$)$^{-1}$. We demonstrate that if the cloud is bound (as is circumstantially suggested by its bright, compact morphology), an external pressure of $P/k > 10^8$ K cm$^{-3}$ is required. This would be consistent with theoretical expectations that globular cluster formation requires high pressure environments. The position-velocity diagram of the cloud and its surrounding material suggests that this pressure may be produced by the collision of filaments. The radial profile of the column density can be fit with both a Gaussian and Bonnor-Ebert profile. The relative line strengths of HCN and HCO$^+$ in this region suggest that these molecular lines can be used as tracers for the evolutionary stage of a cluster.

Figures

Tables

Table 1. Table 1: ALMA Band 6 and Band 7 Observations of the Antennae

Date	Central	Time on	Max.
	Freq.	Source	Baseline
	(GHz)	(minutes)	(m)
Sep 17-22 2016	226	156	3200
Aug 8 2017	226	51	3700
Nov 22 2016	226	10	704
Aug 8 2017	237	30	3700
Nov 19 2016	237	9	704
Jul 23 2017	349	19	3600
Nov 27 2016	349	6	704
Dec 12 2016	349	5	650

Table 2. Table 2: Data cube parameters for detected transitions in the Firecracker region

Transition	Robust	Synth. Beam	RMS/chan	Channel
		(arcsec2)	(mJy/beam)	(km/s)
12CO(2-1)	0.5	0.09$\times$0.12	0.6	5
12CO(3-2)	0.5	0.15$\times$0.16	2.0	5
13CO(2-1)	2.0	0.17$\times$0.18	0.25	5
HCN(4-3)	2.0	0.17$\times$0.20	1.2	15
HCO+(4-3)	2.0	0.17$\times$0.21	1.0	15

Table 3. Table 3: Molecular Cloud Measured Properties

RA	Dec	VLSR	S${}_{{}_{}{}^{12}CO\left(2-1\right)}$	S${}_{{}_{}{}^{12}CO\left(3-2\right)}$	S${}_{{}_{}{}^{13}CO\left(2-1\right)}$	${\sigma }_{V{,}^{12}CO(2-1)}$	${\sigma }_{V{,}^{12}CO(3-2)}$	Radius
(J2000)	(J2000)	(km s-1)	(Jy km s-1)	(Jy km s-1)	(Jy km s-1)	(km s-1)	(km s-1)	(arcsec)
12:01:54.73	-18:52:53.0	1516$\pm$5	14$\pm$1	26$\pm$2	0.87$\pm$0.2	36$\pm$3	38$\pm$3	0.21

Table 4. Table 4: Possible values for the mass ( 10 6 ​ M ⊙ superscript 10 6 subscript 𝑀 direct-product 10^{6}M_{\odot} )

		$X_{12}/X_{13}=$
		40	70	120	200
H2/12CO =	${10}^4$	1.0	1.4	2.1	3.1
	${10}^{4.5}$	3.3	4.5	6.5	9.7
	${10}^5$	11	14	21	31

Table 5. Table 5: Molecular Cloud Derived Properties

Radius	M	TKin	$n_{H_2}$	P/$k$
(pc)	(10${}_{}{}^{6}M_{\odot }^{}$)	(K)	(cm-3)	(K cm-3)
22	1–9	25–40	360-3150	0.5–22$\times$108

Table 6. Table 6: Integrated Fluxes of Emission Lines

	Ap. 1	Ap. 2	Ap. 3	Ap. 4
S${}_{{}_{}{}^{12}CO\left(2-1\right)}$	0.96	4.5	9.3	14
S${}_{{}_{}{}^{12}CO\left(3-2\right)}$	1.7	8.3	18	26
S${}_{{}_{}{}^{13}CO\left(2-1\right)}$	0.04	0.19	0.50	0.90
SHCN(4-3)	0.07	0.26	0.63	1.1
S${}_{HC{O}^{+}\left(4-3\right)}$	0.07	0.30	0.64	0.78

Equations

$$\frac{T_{12}}{T_{13}}=\frac{T_{x,12}}{T_{x,13}}\frac{1-e^{-{\tau }_{12}}}{1-e^{-{\tau }_{13}}}=\frac{1-e^{-{\tau }_{12}}}{1-e^{-{\tau }_{13}}},$$

$$T_{12}=(1-e^{-{\tau }_{12}})\frac{T_{\text{UL}}}{e^{T_{\text{UL}}/T_x}-1},$$

$$N_{tot}=\frac{8\pi {\nu }_0^{2}Q}{c^2{A}_{ul}{g}_u}{e}^{\frac{E_u}{k{T}_x}}{\left(e^{\frac{h{\nu }_0}{k{T}_x}}-1\right)}^{-1}{\int }_0^{\infty }{\tau }_{\nu }d\nu$$

$$\frac{N_{tot}^{12}}{{\text{cm}}^{-2}}=3.3\times 10^{14}\left(\frac{T_x}{B_0}+\frac{1}{3}\right)\frac{1}{e^{\frac{-5.53}{T_x}}-e^{\frac{-16.6}{T_x}}}{\int }_0^{\infty }{\tau }_{v}dv,$$

$$M_{dust}=74,220S_{880}{D}^2\frac{(e^{17/T}-1)}{\kappa }(M_{\odot }),$$

$$\frac{1}{{\xi }^2}\frac{d}{d\xi }\left({\xi }^2\frac{d\psi }{d\xi }\right)=\exp (-\psi )$$

$$P_e=\frac{3\Pi M{\sigma }_V^2}{4\pi R^3}$$

$$m\equiv \frac{P_e^{1/2}{G}^{3/2}M}{a^4}={\left(4\pi \frac{{\rho }_C}{{\rho }_R}\right)}^{-1/2}{\xi }_{max}^2{\frac{d\psi }{d\xi }|}_{{\xi }_{max}}$$

$$a^2=\frac{{\xi }_{max}}{m}\frac{GM}{R}{\left(\frac{{\rho }_R}{{\rho }_C}\right)}^{1/2}{\left(\frac{1}{4\pi }\right)}^{1/2}$$

$$P_e=\frac{m^2{a}^8}{M^2{G}^3}$$

Full text

1 Introduction

As some of the oldest objects in the universe, globular clusters are important probes of the early stages of galaxy formation and evolution. They are abundant in all massive galaxies (Harris et al., 2013), despite theoretical predictions that they have a high mortality rate, with potentially $\lesssim 1\%$ surviving to 10 Gyr (Fall & Zhang, 2001). This suggests that the star formation process that created globular clusters was abundant in the early universe.

The discovery of young, dense star clusters in nearby galaxies, dubbed “super star clusters” (SSCs), provided evidence that this star formation process is still occurring in the present universe (O’Connell et al., 1994). Further studies imply that these SSCs are likely very similar to the progenitors of the ancient globular clusters we are familiar with (McLaughlin & Fall, 2008), though most will not survive to $>$10 Gyr. These clusters are primarily observed at optical and UV wavelengths, so most of our knowledge is confined to stages of evolution that occur after the progenitor cloud has formed stars and the cluster has at least partially emerged from its nascent molecular cloud.

To observe the earliest stages of formation and evolution, we need to look at millimeter wavelengths that can see the structure of the molecular clouds, before stars have formed and while the birth environment is still intact. This stage of formation is expected to be short-lived, lasting only $\sim 0.5-1$ Myr (Johnson et al., 2015), and so these objects are expected to be rare and therefore difficult to find.

To form a globular cluster, a molecular cloud must have a sufficiently large mass within a relatively small radius. If we take the typical globular cluster to have a half-light radius of $\lesssim$10 pc (van den Bergh et al., 1991) and a stellar mass of $\gtrsim 10^{5}M_{\odot}$ (Harris & Pudritz, 1994), and assuming a star formation efficiency (SFE) of $20-50\%$ (Ashman & Zepf, 2001; Kroupa et al., 2001), then if a globular cluster loses approximately half its mass over the course of 10 Gyr, the progenitor molecular cloud must have an initial mass of $\gtrsim 10^{6}M_{\odot}$ and a radius of $<25$ pc (Johnson et al., 2015). To constrain the evolutionary stage of the cluster to before the onset of star formation, the cloud must also have no associated thermal radio emission, which would penetrate the surrounding material and indicate that stars have formed and begun ionizing the surrounding gas.

We also expect that a molecular cloud forming a massive star cluster must be subject to a high external pressure. Elmegreen & Efrefmov (1997) show that globular clusters with masses of $>10^{5}M_{\odot}$ and core radii of 1-10 pc would require an external pressure of $P_{0}/k\sim 10^{7}-10^{9}$ K cm*-3* during formation for the resulting object to be bound. This pressure is orders of magnitude larger than typical ISM pressures in the disc of the Milky Way, and is likely to only be achieved in particular scenarios, including interactions between galaxy systems. This makes the merging Antennae galaxies, where high densities and pressures as well as an abundant population of optically-visible SSCs have been observed (Whitmore, 2000), a prime location to search for such a molecular cloud. At a distance of 22 Mpc, it is also close enough that with ALMA, we are now able to resolve size scales that are comparable to those of the precursor molecular clouds which could generate globular clusters.

Using data from an ALMA Early Science project, Whitmore et al. (2014) found a candidate pre-SSC cloud in the overlap region of the Antennae using CO(3-2) with a beam size of 0.56"$\times$0.43". Follow up analysis by Johnson et al. (2015) characterized it as having an inferred mass of 3.3–15$\times$10${}^{6}M_{\odot}$, a deconvolved radius of $<24\pm 3$ pc, and a pressure of $P_{0}/k\gtrsim 10^{9}$ K cm*-1*, all of which are consistent with expectations for a SSC-forming cloud. It also has no detectable associated thermal radio emission, where the upper limit on the peak ionizing flux from Johnson et al. (2015) is $N_{\text{Lyc}}\approx 6\times 10^{50}\text{ s}^{-1}$, which corresponds to $\sim 60$ O-type stars, or ${\bf M_{*}}\lesssim 10^{4}M_{\odot}$, which is more than two orders of magnitude less than the inferred mass of the cloud. Given that the expected resultant cluster will have a mass of $M_{*}>10^{5}M_{\odot}$, this is taken to indicate that the Firecracker is likely to still be in a very early stage of formation. Johnson et al. (2015) also demonstrate that the cloud is most likely supported by turbulence, and so on a timescale of $\sim$ 1 Myr this turbulence will dissipate, initiating collapse if the cloud is bound, or dispersal if it is not.

This cloud has been nicknamed the “Firecracker,” and to the best of our knowledge, is the only example found thus far that has the potential to be in the earliest stages of forming a massive star cluster with the potential to evolve into a globular cluster. Some very young SSCs have been identified with associated molecular gas (e.g. Leroy et al., 2018; Turner et al., 2017; Oey et al., 2017), but all of these also have associated thermal radio emission indicative of stars having formed. With the exception of one source from Leroy et al. (2018), this star formation is above the detection threshold for the Firecracker cloud.

Here we present new, high resolution ALMA observations of 12CO(2-1), 12CO(3-2), and 13CO(2-1) emission that are capable of resolving the structure of the Firecracker cloud and improve upon the previous characterization of the source (Figure 1). The combination of the optically thick 12CO and the optically thin 13CO allow us to more directly measure the mass, while the improved resolution permits a more accurate size measurement for the cloud.

We also observe HCN(4-3) and HCO+(4-3) emission, the ratio of which is postulated to be associated with evolutionary stage for massive cluster forming molecular clouds (Johnson et al., 2018). These observations further confirm the Firecracker cloud is still in the early stages of evolution, with little disruption from star formation.

In Section 2 we will discuss the ALMA observations that are used in this analysis. In Section 3.1, we describe the extraction of the cloud from the surrounding medium, and in Sections 3.2–3.4 we discuss obtaining the mass of the cloud and constraining the associated parameters. In Section 3.5, we compare the column density structure to that predicted for a Bonnor-Ebert sphere. Section 3.6 focuses on the pressure environment of the cloud and in Section 3.7 we consider cloud-cloud collision as a source of that pressure. In Section 3.8 we discuss how HCN and HCO+ can be used as tracers of the evolutionary state of cluster formation. In Section  4, we discuss the various implications of these results for our understanding of cluster formation environments, and in Section 5 we summarize the main findings in this work.

2 Observations

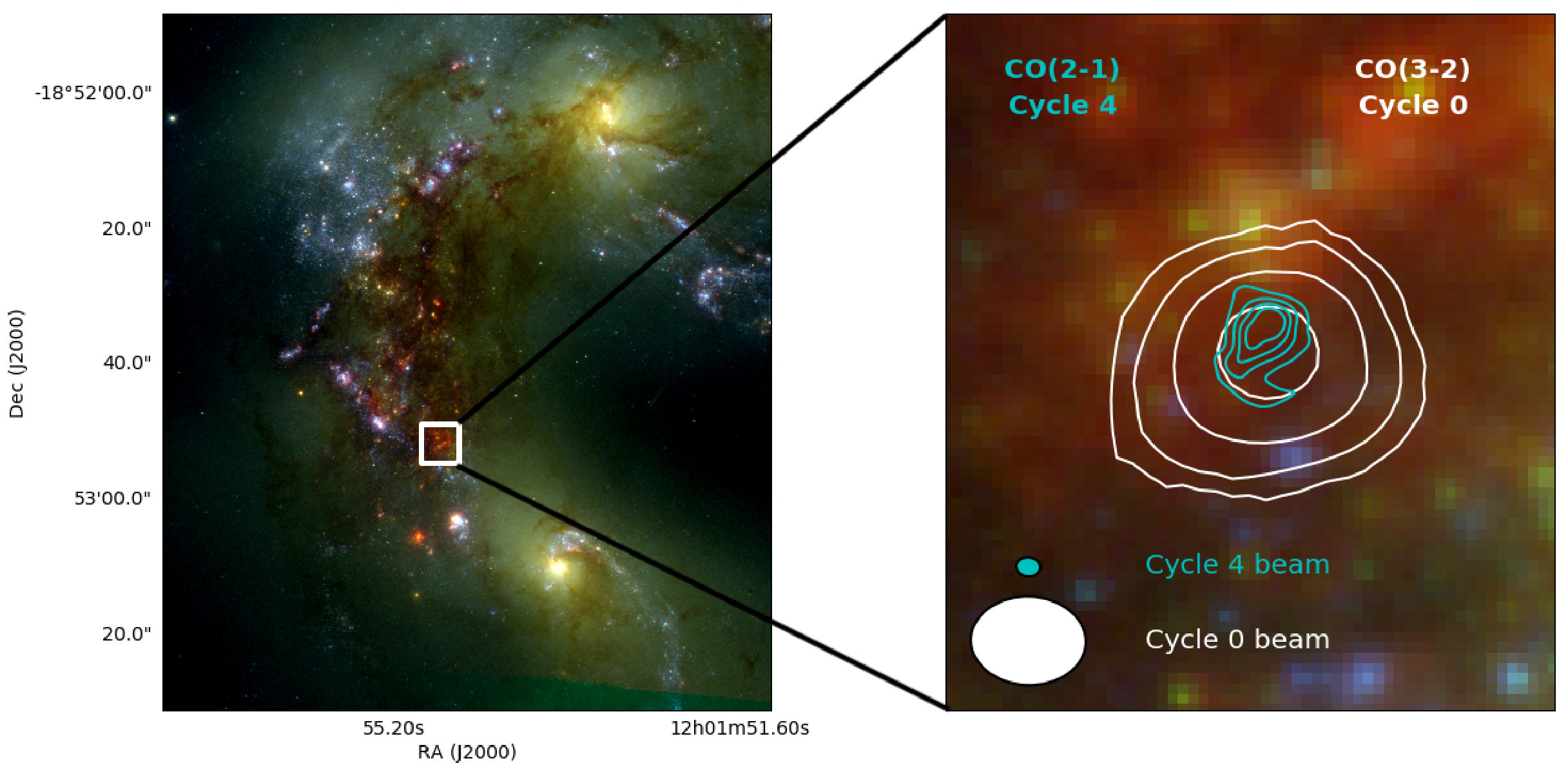

We observed the overlap region of the Antennae galaxies using ALMA Band 6 and Band 7 in both extended and compact configurations during ALMA Cycles 3 and 4 (program codes 2015.1.00977.S and 2016.1.00924.S). The number of antennae online varied between 37 and 46. These observations are summarized in Table 1. The flux calibrators used were J1256-0547 and J1037-2934, and we estimate the flux uncertainty to be 10% based on the variability in these sources. The bandpass was calibrated with J1256-0547, J1229+0203, and J1037-2934, and phase was calibrated with J1215-1731. These observations included continuum emission at each frequency, as well as emission from 12CO(2-1), 12CO(3-2), 13CO(2-1), C18O(2-1), HCN(4-3), HCO+(4-3), CS(5-4), and H30$\alpha$. The data from these observations were reduced and calibrated using the CASA 4.7.2 pipeline, and no self-calibration was performed. Images were created using Briggs weighting with robust parameters varying between 0.5 and 2.0, and using a 2646$\times$2646 pixel grid, with pixels of 0.014". The Firecracker cloud region is much smaller than the telescope primary beam (<1" compared to 16.9"-26.6" for our range of frequencies), so no primary beam correction is required.

In the vicinity of the Firecracker, there is diffuse continuum emission at all three frequencies throughout the area, associated with the SGMCs in the overlap region. However, there is no peak in emission or any morphology in the continuum associated with the Firecracker itself, based on the well-detected CO emission (see Figure 2). We therefore consider this a non-detection of the Firecracker, with 5$\sigma$ upper limits for the peak emission of $3.0\times 10^{-4}$ Jy beam*-1* at 349 GHz, $9.5\times 10^{-5}$ Jy beam*-1* at 237 GHz, and $6.0\times 10^{-5}$ Jy beam*-1* at 226 GHz. We also did not detect C18O(2-1), CS(5-4), or H30$\alpha$ in this region. The $5\sigma$ upper limits for these transitions are 0.85 mJy beam*-1* for C18O(2-1), 1.75 mJy beam*-1* for CS(5-4), and 2.25 mJy beam*-1* for H30$\alpha$ at a velocity resolution of 10 km s*-1* for each.

For the remaining transitions, the Firecracker cloud was detected strongly in 12CO(2-1), 12CO(3-2), and 13CO(2-1), and weakly in HCN(4-3) and HCO+(4-3). The parameters of the data cubes for each detected transition are summarized in Table 2. The RMS was determined using line-free channels. Figure 3 shows the three CO line profiles in this region, and Figure 4 shows the full 12CO(2-1) emission cube’s spatial and velocity structure.

3 Analysis

3.1 CO Line Profiles and Cloud Extraction

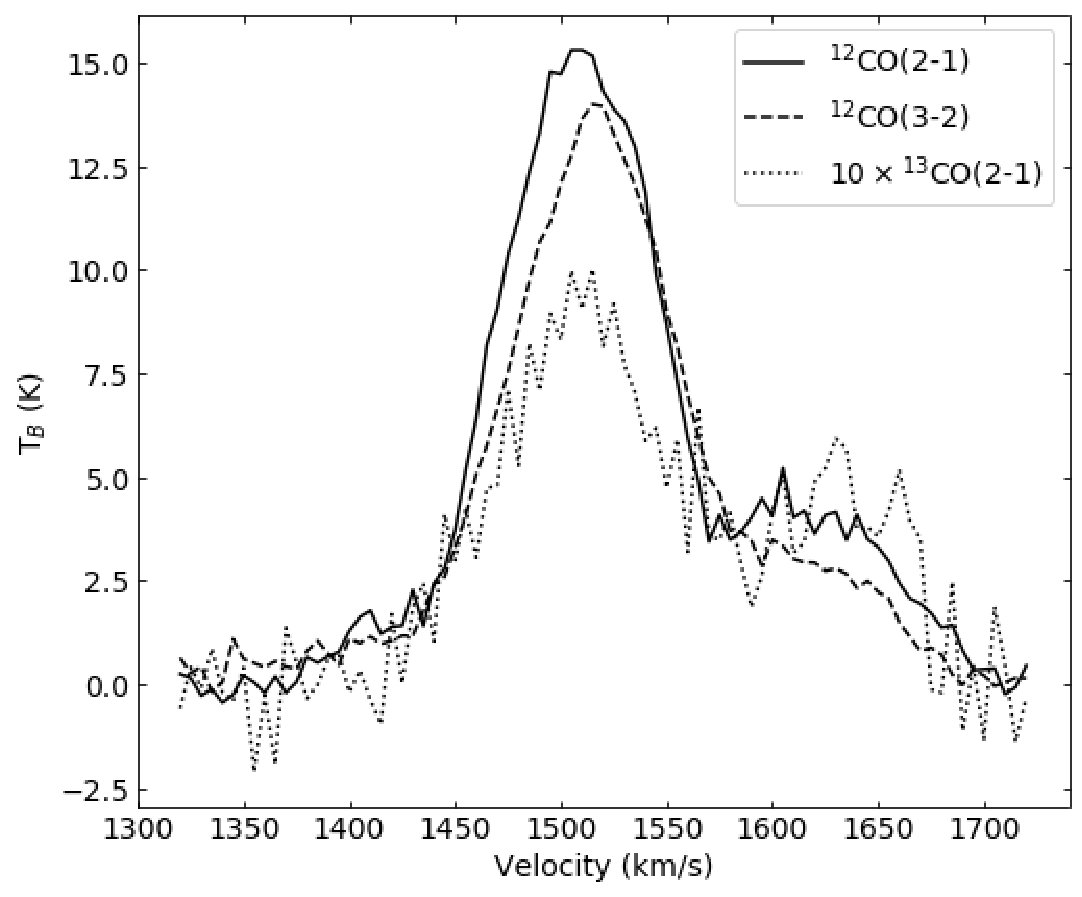

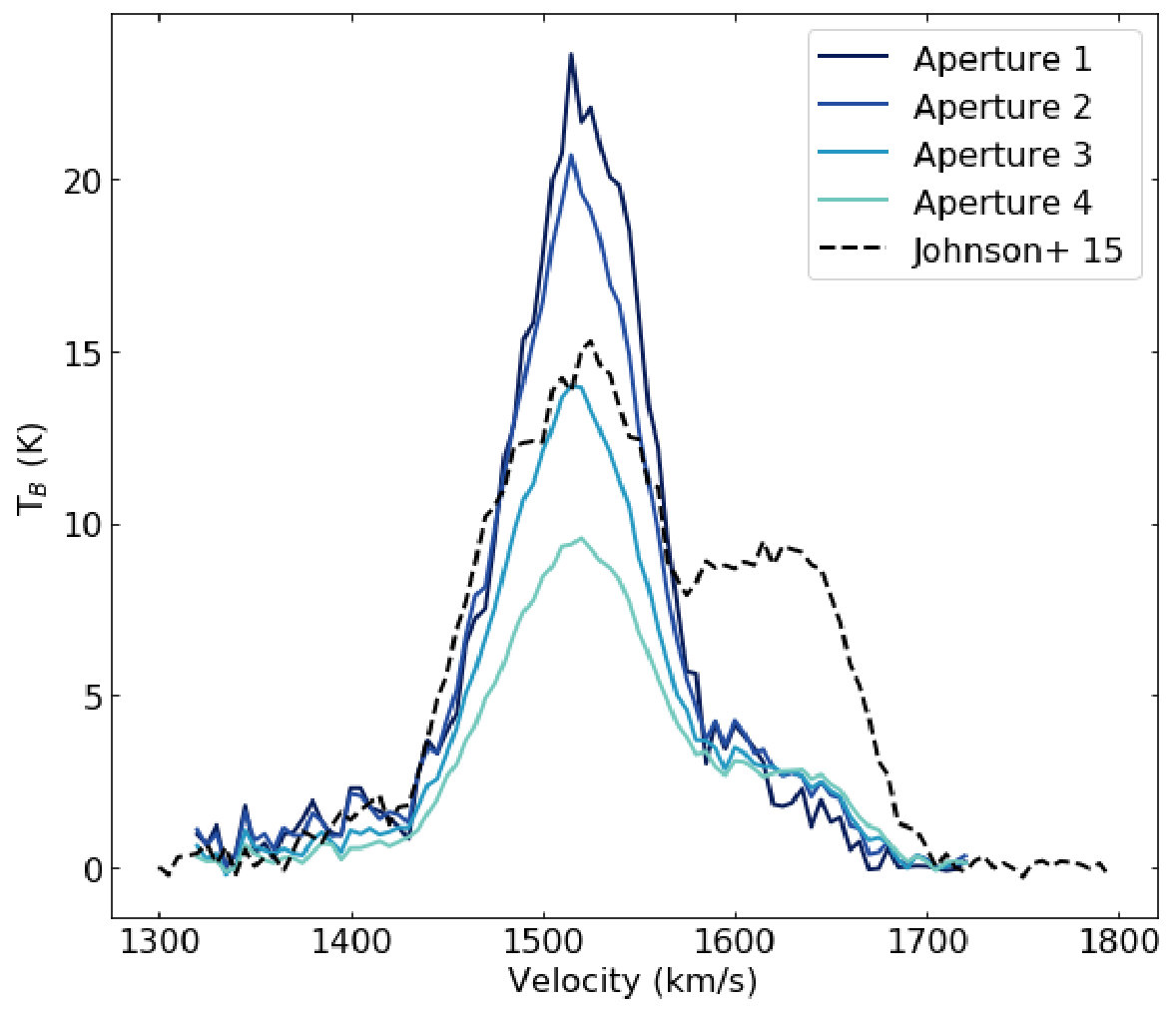

To obtain and compare line profiles for the 12CO(2-1), 12CO(3-2), and 13CO(2-1) emission, the data cubes were each convolved to the synthesized beam of 13CO(2-1) and are measured within a 0.24" radius aperture. The peak brightness temperatures of 12CO(2-1) and 12CO(3-2) are $T_{CO(2-1)}=17\pm 2$ K and $T_{CO(3-2)}=16\pm 2$ K, suggesting that these transition lines are nearly thermalized in this region. These line profiles are shown in Figure 3.

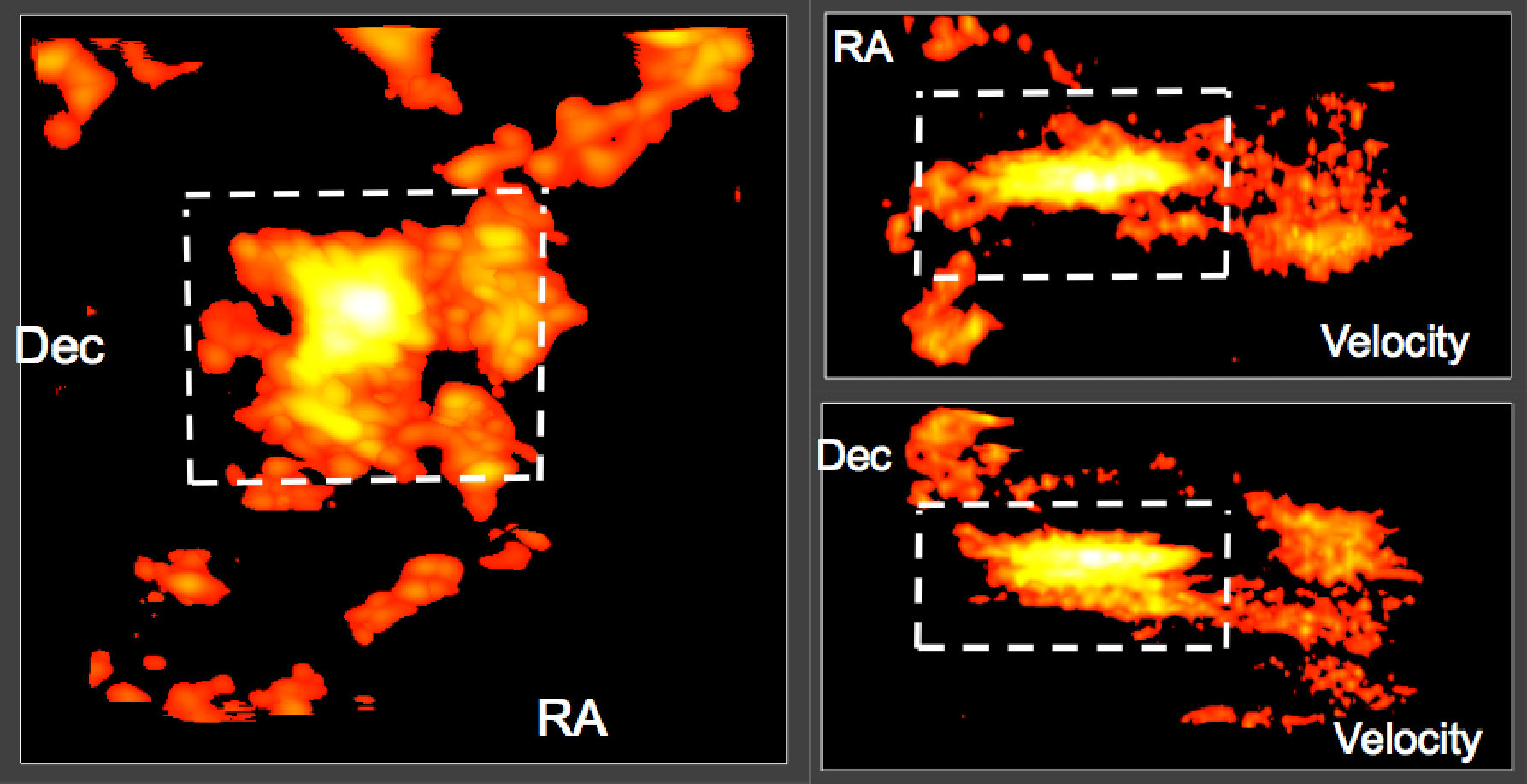

From these profiles, we also see that there is a second velocity component along the line of sight that we infer is a separate cloud that should not be included in analysis. Using the 3D visualization tool shwirl (Vohl, 2017), we show the extraction of the cloud from the surrounding field. This corresponds to a 0.98"$\times$0.84" rectangle around the cloud centered on 12:01:54.73 -18:52:53.1, and velocities in the range 1430–1555 km s*-1*.

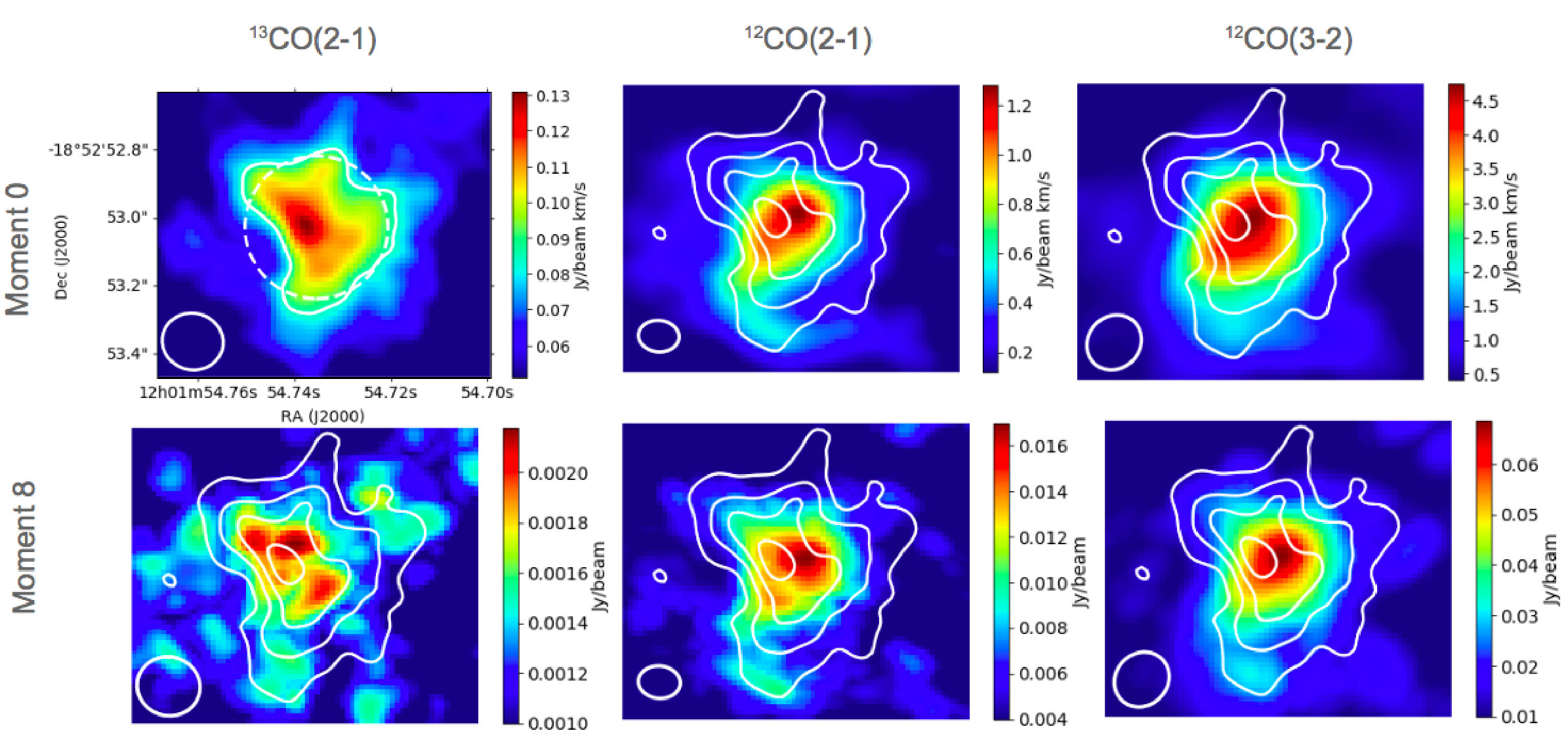

From this extraction, we made total intensity maps (moment 0), integrating over the velocity range 1430-1555 km s*-1*, and peak intensity maps (moment 8) for 12CO(2-1), 12CO(3-2), and 13CO(2-1). The total intensity (moment 0) and peak intensity (moment 8) maps for each CO transition are shown in Figure 5. The properties of the cloud measured from these cubes for the extracted region are given in Table 3.

To determine the size of the cloud from these observations, we use the 13CO(2-1) emission, since it is optically thin and gives a better representation of the cloud’s structure than the optically thick 12CO. We define a characteristic radius, which is the radius of a circle with the same area as that enclosed by the 5$\sigma$ contour of the 13CO(2-1) total intensity (moment 0) map. This characteristic radius for the Firecracker is 0.21", which corresponds to a size of 21 pc at a distance of 22 Mpc.

3.2 Cloud Mass

Observations of both 12CO(2-1) and 13CO(2-1) allow us to determine the optical depth of the cloud by assuming an abundance ratio for these two molecules and assuming that their excitation temperatures are the same. If the excitation temperature of 13CO is lower than 12CO, this assumption will underestimate the mass. We also assume that 12CO(2-1) is thermalized with respect to 12CO(1-0), as expected from the line profiles (Figure 3). If 12CO(2-1) is not thermalized, this assumption will also underestimate the mass.

In the overlap region of the Antennae, the 12CO/13CO  abundance ratio has been measured to be $X_{12}/X_{13}\simeq 70$, though it is poorly constrained in this region and could vary from 40 to 200 (Zhu et al., 2003). We convolved the 12CO(2-1) image to the synthesized beam of 13CO(2-1), then fit Gaussian profiles to the velocity profile for each 12CO(2-1) pixel. We then fit Gaussian profiles to the 13CO(2-1) velocities, fixing the central velocity to be the same as the corresponding 12CO(2-1) pixel, and masking pixels where a solution to the fit could not be found. Taking the ratio of the peak brightness temperatures of these two molecular lines at each unmasked pixel, we created a map of the peak optical depth, $\tau_{12}$, using the equation

[TABLE]

by taking $\tau_{12}/\tau_{13}=X_{12}/X_{13}$ and assuming that the excitation temperatures for 12CO and 13CO are equal ($T_{x,12}=T_{x,13}$). From these optical depths, we found the peak excitation temperature, $T_{x}$, at each pixel given by

[TABLE]

where $T_{\text{UL}}=11.07$ K for 12CO.

We then determined $\tau_{12}$ for each velocity in the cube, giving us a profile of the optical depth for each pixel. This was done by using Equation 1 with the ratio of the brightness temperature of 12CO(2-1) and 13CO(2-1) wherever 13CO(2-1) was detected ($>4\sigma$, $\sigma$ = 0.02 K). Where 13CO(2-1) was not detected and 12CO(2-1) was detected, we used Equation 2 with the brightness temperature of 12CO(2-1) only, and assuming that the excitation temperature does not vary with velocity. The data cubes were masked with thresholds of $3\sigma$ ($\sigma$ = 0.6 mJy beam*-1* for 12CO(2-1) and $\sigma$ = 0.25 mJy beam*-1* for 13CO(2-1)). With the assumption that the excitation temperature remains constant at all velocities within the cloud, we found the column density at each pixel using the equation from Mangum & Shirley (2015):

[TABLE]

For 12CO, this equation becomes

[TABLE]

where $B_{0}=2.7674$ K for 12CO.

From these column densities, we take an H2/12CO abundance ratio of H2/12CO = $10^{4}-10^{5}$, which is typical of Milky Way IRDCs, before or slightly after protostellar objects have formed, akin to the stage we expect the Firecracker to most likely be in (Gerner et al., 2014). The Antennae has a very nearly solar metallicity, [Z] = +0.07 $\pm$ 0.03 (Lardo et al., 2015), so the default expectation is that its chemistry is similar to the Milky Way’s. We then assume the total mass is 1.3 times the mass of H2 to derive the total mass surface density (shown as a map in Figure 6). Taking a pixel area of $A$ = 2.23 pc2, we can add the mass from each pixel to get the total mass of the cloud.

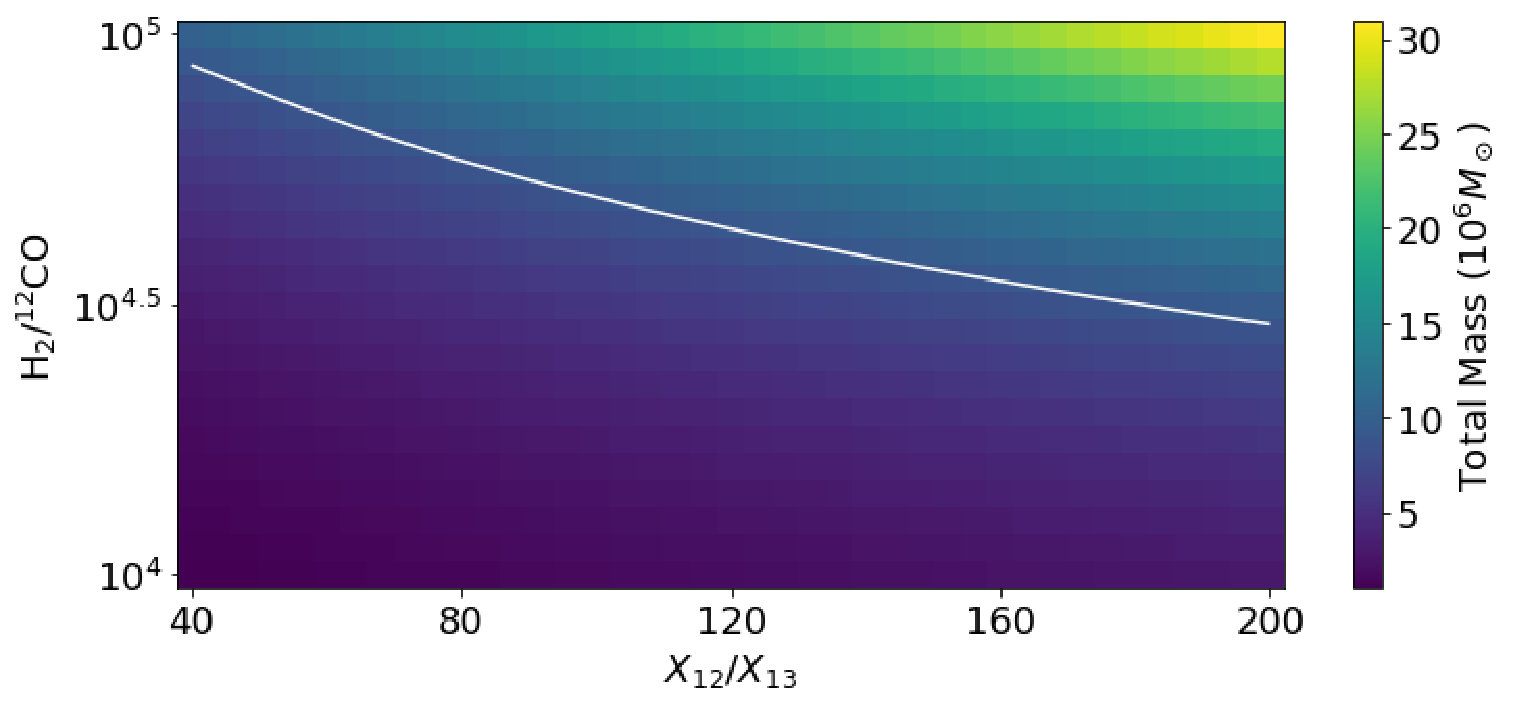

Different combinations of values in the expected ranges of $X_{12}/X_{13}$ and H2/12CO were used, resulting in masses that varied in the range 1.0–31$\times$10${}^{6}M_{\odot}$. In Section 3.3, we will put additional constraints on the upper limit of this mass range due to dust emission. Mass estimates for a few selected parameter combinations are given in Table 4, and estimates for the full range of parameter combinations are shown in Figure 7. The mass directly tracks variations in H2/12CO, with an order of magnitude change in H2/12CO corresponding to an order of magnitude change in mass. The resulting mass is less sensitive to $X_{12}/X_{13}$, with a factor of five change in this value only resulting in a factor of $\sim 3$ change in mass.

The range in masses that results from varying these parameters is in good agreement with measurements made by Johnson et al. (2015), which had lower spatial resolution (0.56"$\times$0.43") and did not have optical depth information.

3.3 Expected Continuum Emission

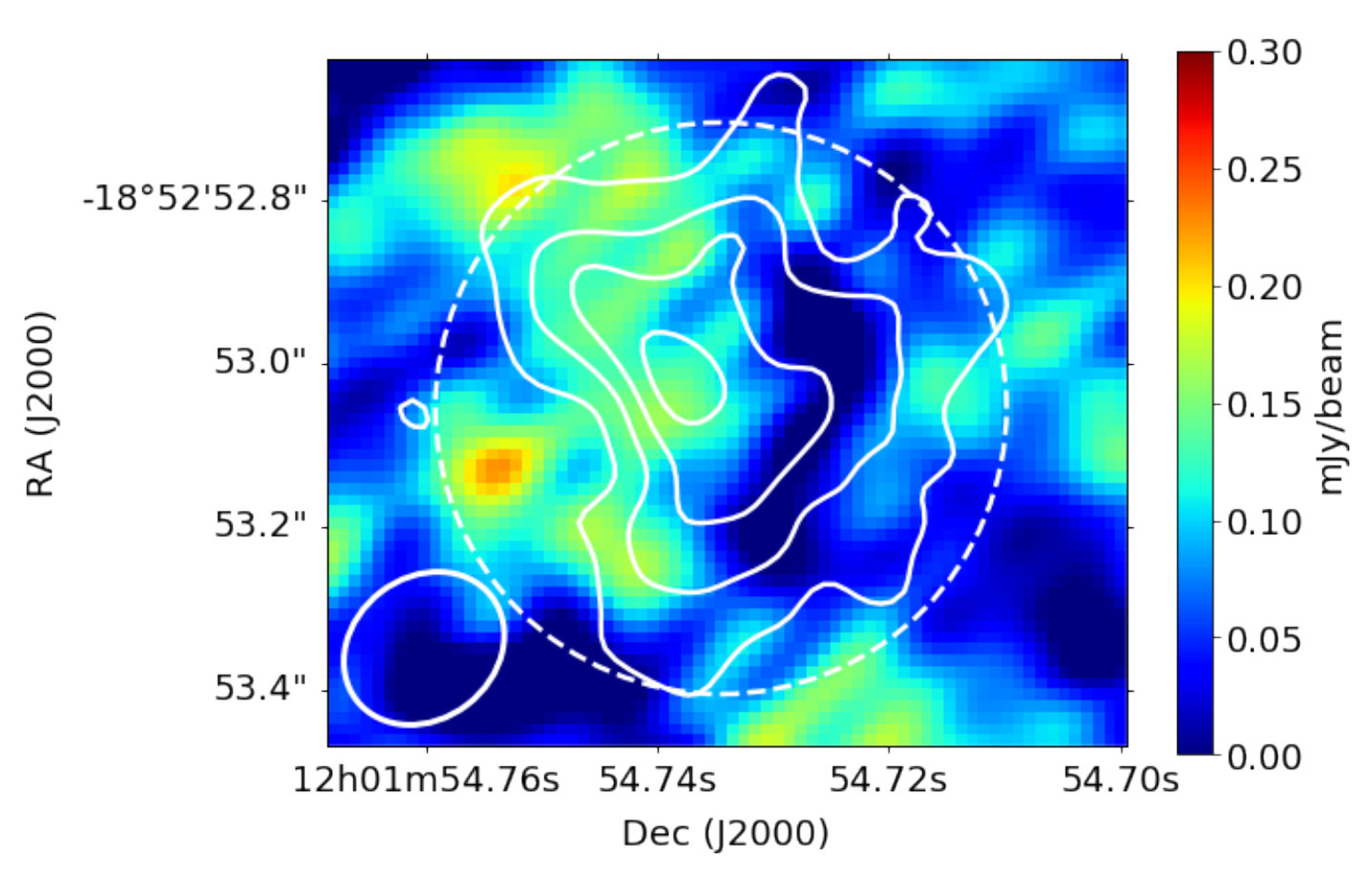

The lack of detected continuum emission associated with the Firecracker sets further constraints on the mass of the cloud. At all three frequencies, there is diffuse continuum emission associated with the larger region, but no morphology or peak emission associated with Firecracker above $3.8\sigma$ (Figure 2). We consider this a non-detection of the Firecracker, and use the integrated flux from the diffuse emission to set an upper limit on the Firecracker’s dust mass.

Using the Band 7 observations (in which the dust emission from the Firecracker should be brightest), we flagged the emission lines to create a continuum image with a beam FWHM of 0.17"$\times$0.21" and an RMS of 0.06 mJy beam*-1*. The integrated flux in a 0.35" radius circular region around the Firecracker is $S_{880}={0.78}\pm 0.2$ mJy.

From Wilson et al. (2008),

[TABLE]

where $S_{880}$ is measured in Janskys at 880$\mu$m (Band 7), $D$ is measured in Mpc, $\kappa$ is the dust emissivity measured in cm2 g*-1*, and $T$ is measured in K. For the Antennae system, $D=22$ Mpc. Taking $T_{Kin}\simeq T_{ex}$, the temperature measured in this region is 25–35 K. Typical values adopted for the dust emissivity and gas-to-dust ratio in these types of environments are $\kappa=0.9\pm 0.13$ cm2 g*-1* and a ratio of $120\pm 28$ (Wilson et al., 2008).

If we take the most extreme values to maximize $M_{dust}$ within the expected range for each parameter (so $S_{880}\leq 1.34$ mJy, $T\geq 25$ K, $\kappa\geq 0.77$ cm2 g*-1*), the upper limit on the dust mass would be $M_{dust}\leq 6\times 10^{4}M_{\odot}$. Taking the maximum gas-to-dust ratio $\leq 148$, the largest total mass that would be consistent with the continuum non-detection would be $9\times 10^{6}M_{\odot}$. This is then taken as the upper limit on the mass of the Firecracker.

We also note that this continuum non-detection at 880$\mu$m would suggest that the previous unresolved continuum detection at this frequency in Johnson et al. (2015) was likely instead picking up the diffuse emission of the larger region rather than the Firecracker itself.

We can compare this limit to the mass estimates from different combinations of $X_{12}/X_{13}$ and H2/12CO values. Mass estimates for the full range of parameter combinations are shown in Figure 7, with a line representing the upper limit derived from the lack of continuum emission. Parameter combinations above this line are ruled out for the Firecracker region. For example, if the assumed $X_{12}/X_{13}$ ratio is taken to be 200, the value of H2/12CO must be less than $10^{4.5}$.

3.4 $X_{CO}$ Conversion Factor

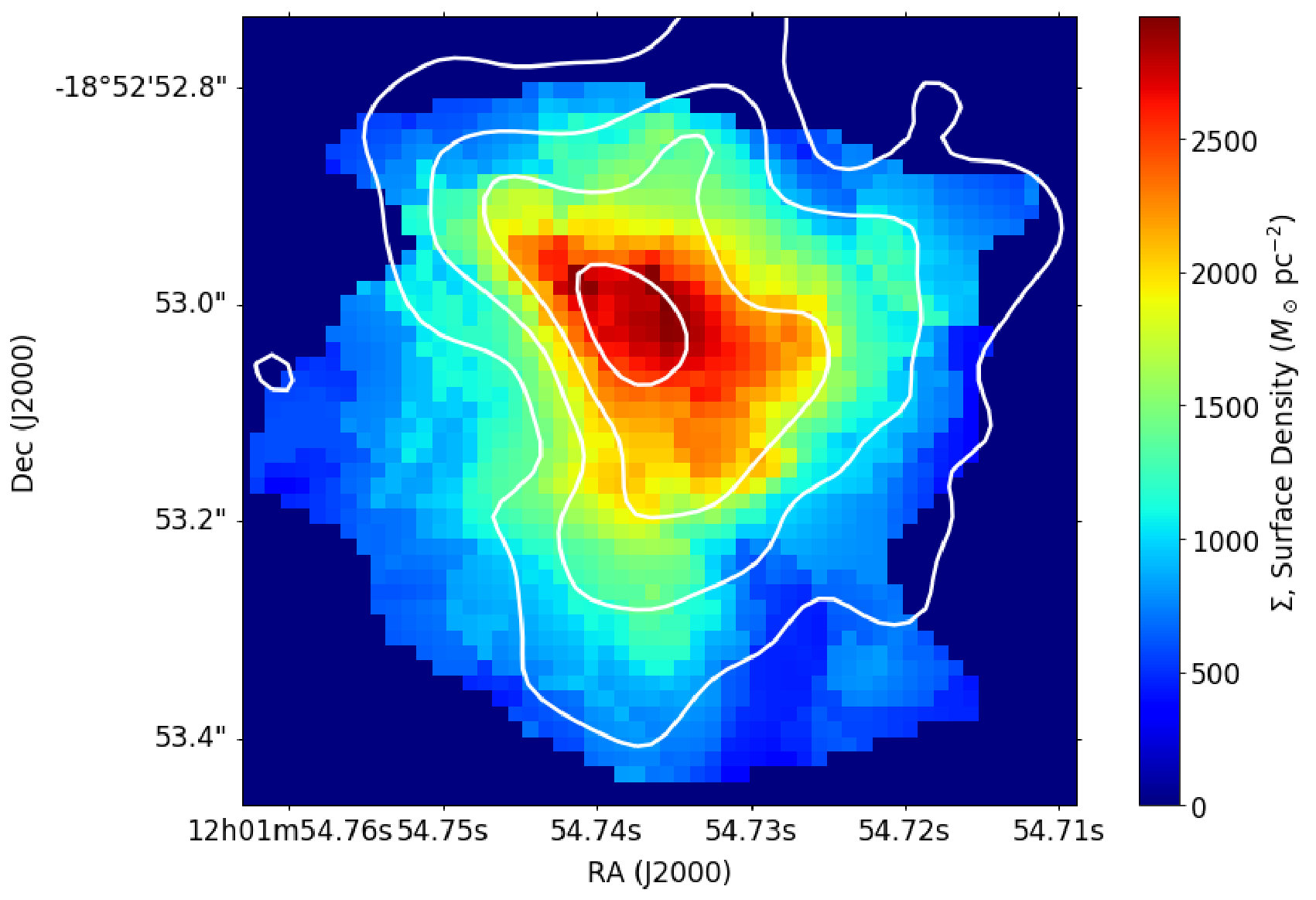

We use the masses and column densities that we derive to calculate the CO-to-H2 conversion factor, $X_{CO}$, in the Firecracker. In starburst regions, this conversion factor is typically taken to be $X_{CO}=0.5\times 10^{20}$ cm*-2* (K km s*-1*)-1, but is expected to vary by up to a factor of four (Bolatto et al., 2013). In non-starbusting regions, the typical value taken is $X_{CO}=2.0\times 10^{20}$ cm*-2* (K km s*-1*)-1.

Considering the range of expected masses up to the upper mass limit from the continuum non-detections, we create maps of $X_{CO}$ in the Firecracker cloud for each set of abundance parameter assumptions. Fitting a Gaussian to the distribution of values within each map, the average values vary in the range $X_{CO}=(0.12-1.1)\times 10^{20}$ cm*-2* (K km s*-1*)-1 for the Firecracker region. This is consistent with the typically assumed value for starbursts.

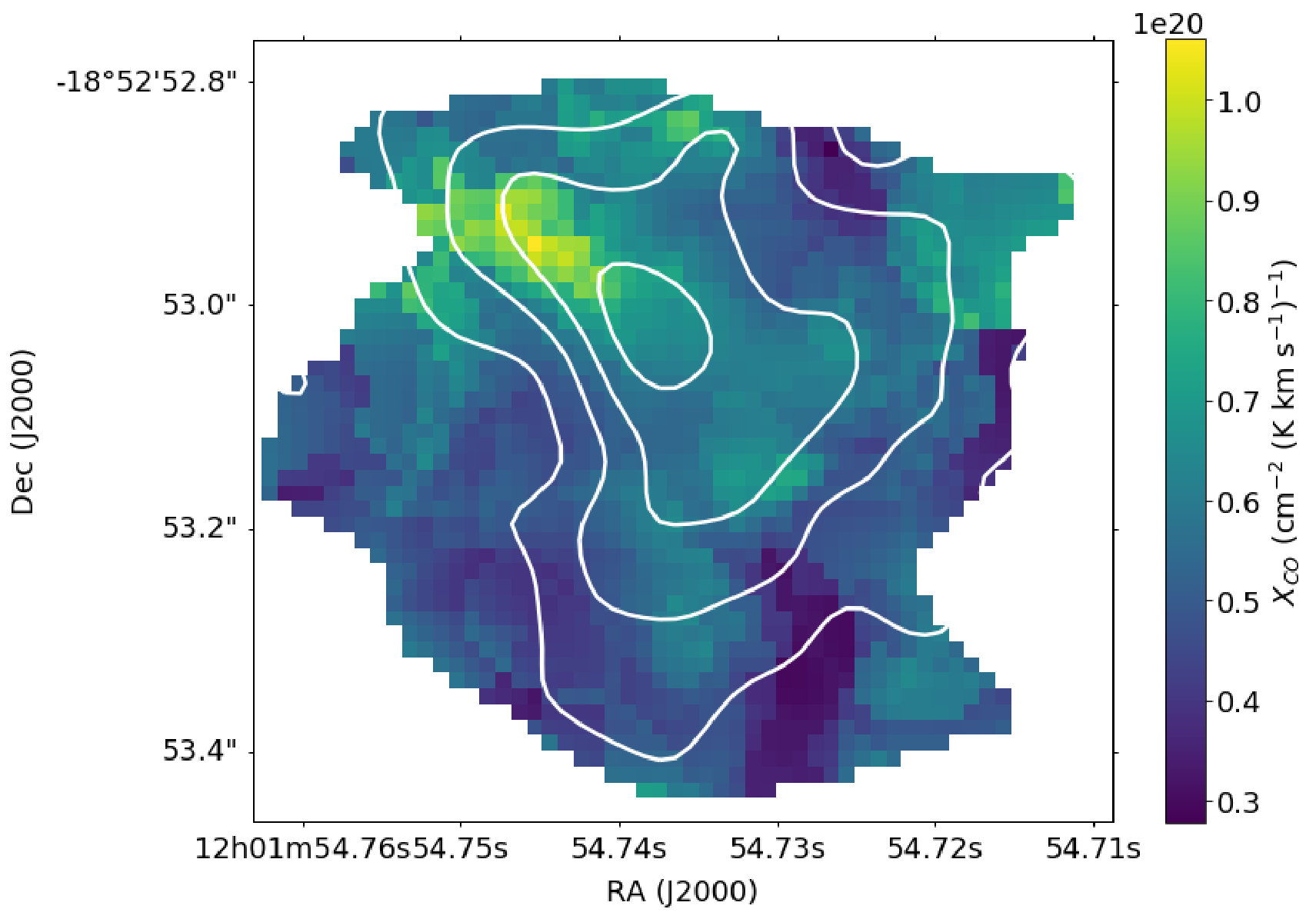

We also see that this conversion factor appears to vary spatially over the Firecracker region. Figure 8 shows a map of the derived $X_{CO}$ factor within the Firecracker region based on a map of the column density, and the map of the integrated line intensity of 12CO(2-1), which we assume is thermalized with respect to 12CO(1-0) (12CO(2-1)/12CO(1-0) = 1), and convert to K km s*-1* (Figure 5). Within such a map for a single set of $X_{12}/X_{13}$ and H2/12CO assumptions, the value of $X_{CO}$ varies by up to $\sim$80% of the average across the Firecracker region.

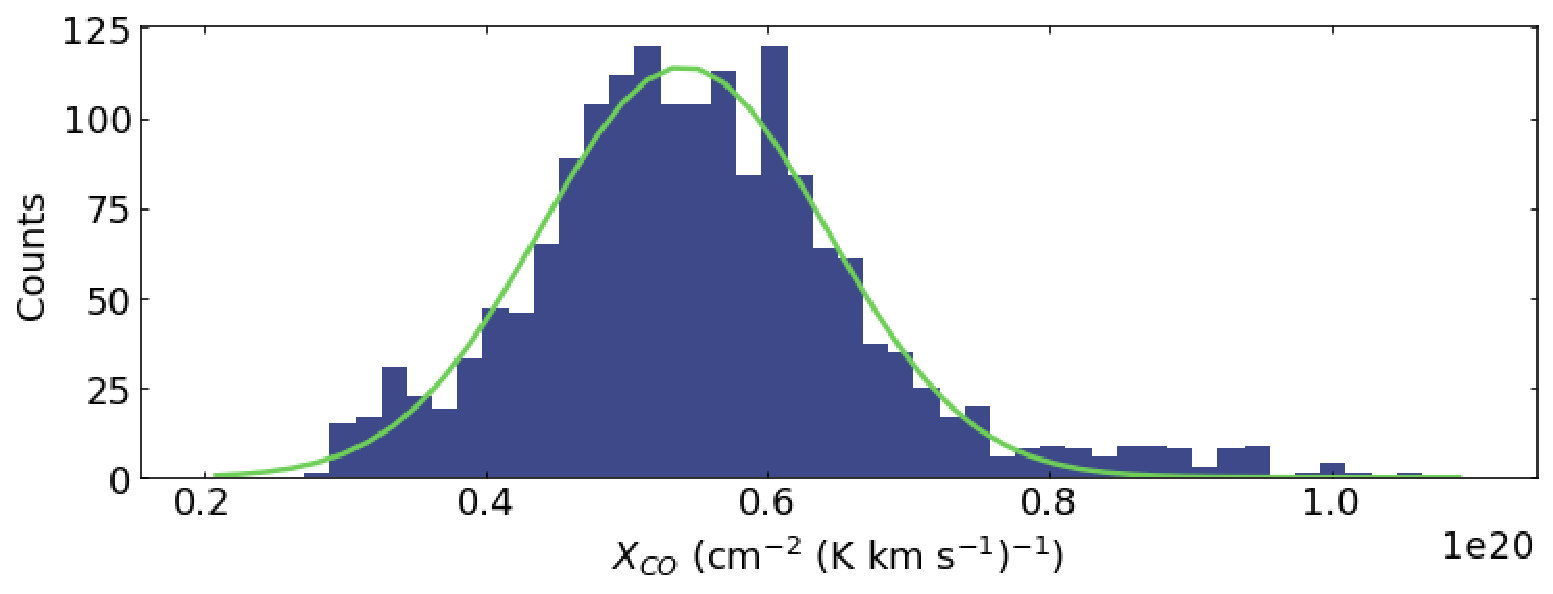

Furthermore, a histogram of the values for each map show that the distribution has a component of Gaussian noise, but the distribution at the higher and lower ends cannot be entirely explained by Gaussian noise in the measurements. These values are likely tracing physical variations in the conversion factor. When taking into account these spatial variations, as well as the range of mass estimates, we find that the conversion factor in the Firecracker can take on values in the range $X_{CO}=(0.08-2.0)\times 10^{20}$ cm*-2*.

3.5 Column Density Radial Profile

We examine the radial profile of the column density derived in Section 3.2 as a component of the mass estimate by calculating the azimuthal average of 1-pixel-wide (0.014") annuli around the center of the cloud as determined by the peak $N_{H_{2}}$ estimate. These annuli extend from a radius of 0.042" (4.5 pc) to the outer radius as determined by the 5$\sigma$ contour of the 13CO(2-1) (0.24", 26 pc). We measure this radial profile for column density estimates that assumed $X_{12}/X_{13}$ = 40, 70, 120, and 200. Since we only consider the column density normalized to the central peak when fitting the profile, assumptions of H2/12CO do not affect the fit.

To determine the physical nature of this internal structure, we compare it to the density profile of an isothermal, self-gravitating, pressure-confined sphere as described by Bonnor (1956) and Ebert (1955) and referred to as a Bonnor-Ebert profile. Starting with equations for hydrostatic equilibrium, an isothermal equation of state, and Poisson’s equation, they arrive at a form of the Lane-Emden equation (Chandrasekhar, 1967):

[TABLE]

In this equation, they have defined $\xi\equiv\left(\frac{4\pi G\rho_{C}}{a^{2}}\right)^{1/2}r$ as the dimensionless radial parameter, where $\rho_{C}$ is the central density and $a=\sqrt{\frac{k_{B}T}{\mu m_{p}}}$ is the isothermal sound speed. We have defined $\psi(\xi)\equiv\frac{\Phi_{g}}{a^{2}}=-\ln(\rho/\rho_{C})$ as the dimensionless gravitational potential.

The Bonnor-Ebert profile is derived by numerically integrating this equation with the boundary conditions $\psi(0)=0$ and $\frac{d\psi(0)}{d\xi}=0$ to obtain a relation between $\rho/\rho_{C}$ and $\xi$. This density ratio can then be converted to a column density ratio with the assumption that the cloud is spherical. This profile is then fit to the observed structure profile by determining the best-fit values of $\xi_{max}$, the value of $\xi$ at the outer radius of the cloud. The resulting best fit for the derived set of column densities is characterized by $\xi_{max}=3.4\pm 0.4$. This fit has a $\chi^{2}$ value of 7.15, although when only the profiles with $X_{12}/X_{13}$ = 70, 120, and 200 are used, this fit changes to $\xi_{max}=3.2\pm 0.2$ with a $\chi^{2}$ value of 1.66.

We note that in this fit, the cloud is resolved, but the points used in the fit are separated by less than the beam size, and so are correlated with each other. We also fit a circular Gaussian to the column density map, and plot the profile of this Gaussian in Figure 9 as well. The cloud is consistent with both the Bonnor-Ebert profile and this Gaussian profile.

The $X_{12}/X_{13}$ = 40 profile may appear separate from the other three profiles due to the slightly different morphology the mass map takes on when the 12CO is less optically thick, as is the case with this assumed lower abundance ratio. The other three profiles agree very well with each other. At the edge of the cloud, each profile begins to hit a noise threshold and so would be expected not to drop off as quickly as predicted, which agrees well with the observed profile.

The Bonnor-Ebert fit of the cloud’s structure implies that it may be well-characterized as an isothermal, self-gravitating, pressure-confined sphere. We also note, however, that simulations of evolving star forming cores by Ballesteros-Paredes et al. (2003) suggest that a Bonnor-Ebert profile can be mimicked by clouds that are not in hydrostatic equilibrium. This could be the case here for the Firecracker cloud, and so we are cautious in drawing conclusions about the cloud’s physical state from this profile fit. The implications of this fit and concerns associated with it are addressed further in Section 4.1.

3.6 Cloud Pressure

We examine the effect of the cloud’s environment on the parameters derived thus far by comparing the surface density, $\Sigma$, to a size-linewidth coefficient, $\sigma_{V}^{2}/R$. The velocity dispersions were determined by fitting two Gaussian profiles to the 12CO(3-2) emission line, one of which accounts for the second velocity component along the line of sight. The radius is taken to be the size of the aperture being measured, and the surface density is taken as the average within that aperture, based on the range of mass maps derived in Section 3.2.

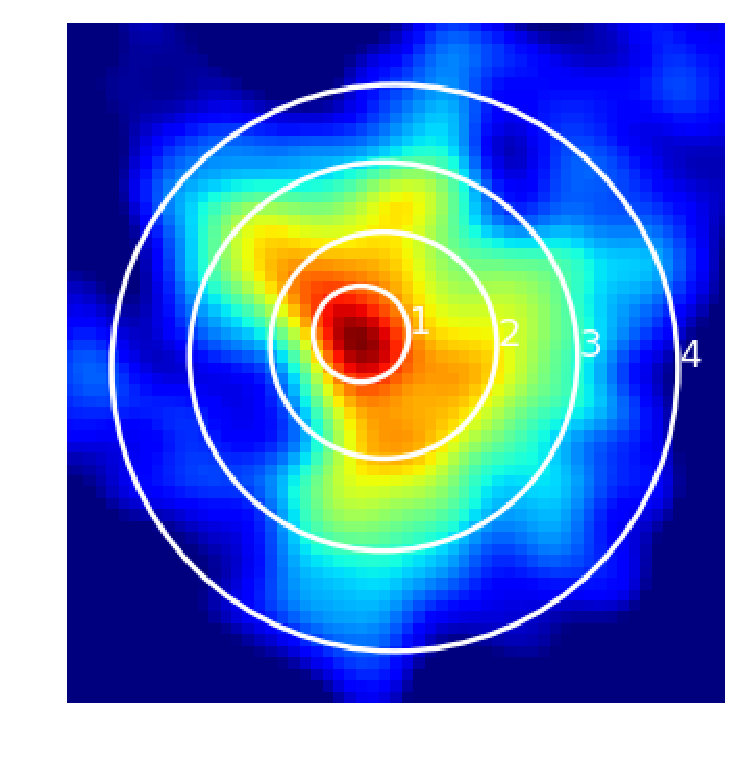

We determine these parameters for four different apertures, shown in the right panel of Figure 10. The largest, Aperture 4, is selected to include all 13CO(2-1) emission above $\approx 4\sigma$, with a radius of 0.35" (37 pc). The next, Aperture 3, is selected to approximately match the size of the 5$\sigma$ contour of the 13CO(2-1), with a radius of 0.24" (26 pc). The next, Aperture 2, is selected to approximately follow the contour of 6$\sigma$ emission, with a radius of 0.14" (15 pc). Aperture 1 is approximately the 12CO(2-1) beam size, with a radius of 0.06" (6.4 pc).

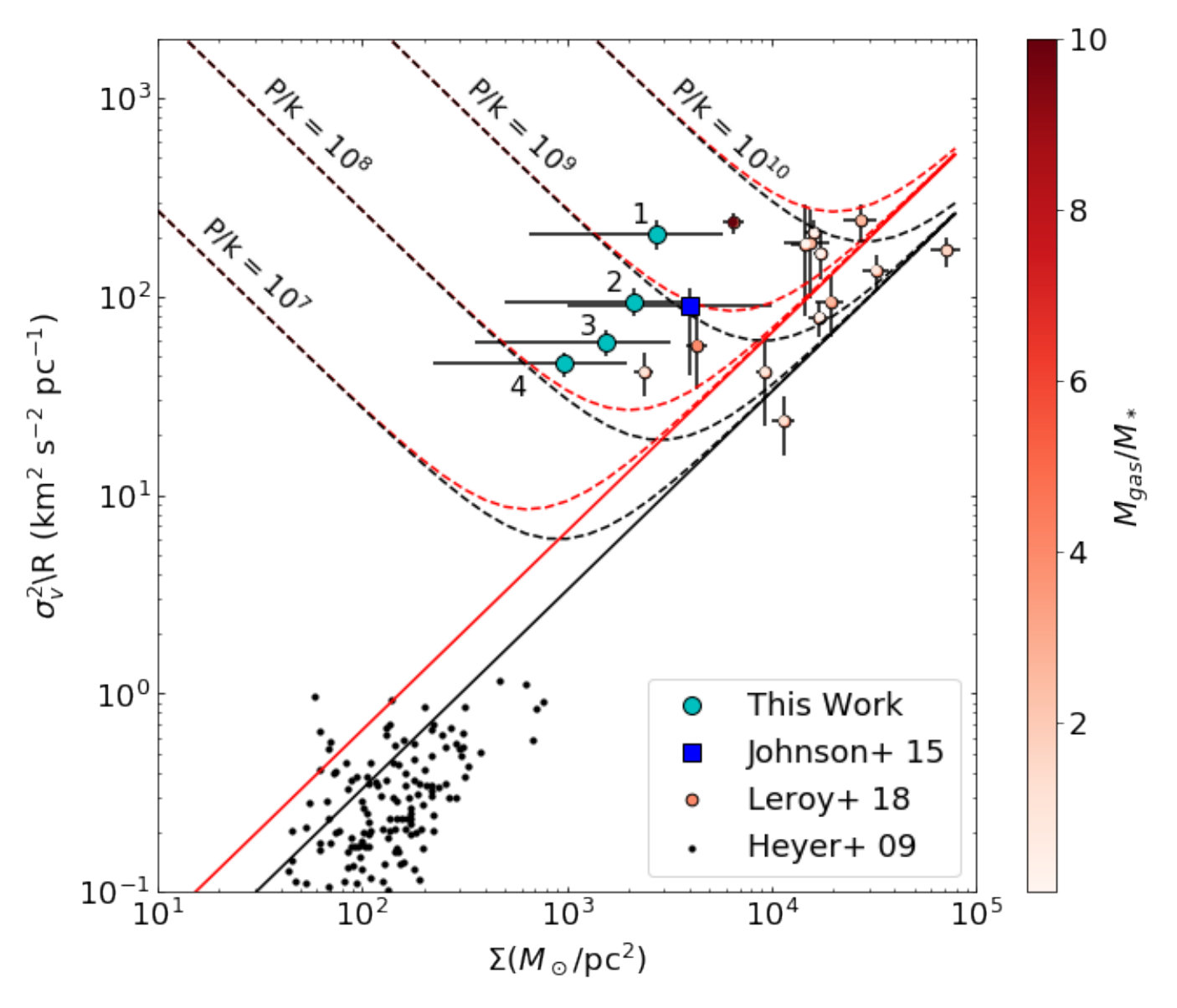

From the left panel of Figure 10, these parameters indicate that the cloud is neither in virial equilibrium nor in free fall, implying that to be bound (as circumstantially suggested by its morphology), the cloud must be subject to a high external pressure with P${}_{e}/k\gtrsim 10^{8}$ K cm*-3*. This would agree with previous analysis by Johnson et al. (2015), the fit of the Bonnor-Ebert profile in Section 3.5, and theoretical expectations for cluster formation (Elmegreen & Efrefmov, 1997).

Furthermore, we see that the inferred pressure increases as the aperture radius decreases, zooming in on the central region of the cloud. This may be an indication that we are tracing an internal pressure structure. It also may, however, be a measurement effect, since the radius of the selected aperture may not be a good indicator of the bound radius in the given region.

Also compared in the leftmost panel of Figure 10 young massive clusters discovered by Leroy et al. (2018) in NGC 253, for which star formation has been detected. These clusters include both a gas and stellar mass component (with gas masses in the range $10^{3.6}-10^{5.7}M_{\odot}$, and stellar masses in the range $10^{4.1}-10^{6.0}M_{\odot}$), and we also compare the ratio $M_{\text{gas}}/M_{*}$ to their position in this plot. Most of the clusters fall along either the free fall or virial equilibrium lines, but one notable cluster with a significantly higher $M_{\text{gas}}/M_{*}$ than all of the other clusters is above these lines, suggesting a high external pressure (P${}_{e}/k\gtrsim 10^{9}$ K cm*-3*) would be required to keep it bound. Another cluster with a more modestly enhanced $M_{\text{gas}}/M_{*}$ is also above virial and free fall lines. This may be an indication that the pressure environment of massive clusters is correlated with the evolutionary stage of the cluster. This would support a scenario in which clusters form in high pressure environments, then the pressure dissipates or is dispelled as stars form and the cluster emerges.

Assuming the cloud is bound, we can also directly calculate what the expected external pressure would be from the cloud’s mass $M$, its radius $R$, and its velocity dispersion $\sigma_{V}$ with the equation from Elmegreen (1989):

[TABLE]

where $n_{e}=\Pi\langle n_{e}\rangle$, and we take $\Pi=0.5$ (Johnson et al., 2015). If we calculate this pressure for Aperture 2 and a mid-range mass estimate, the mass within the aperture is $M=1.5\times 10^{6}M_{\odot}$, $R=15$ pc, and $\sigma_{V}=38$ km s*-1*, so the external pressure for this aperture would be P${}_{e}/k=4\times 10^{8}$ K cm*-3*. This measurement varies greatly with aperture selection and the mass estimate, and the full range of possible values is given in Table 5. This pressure range agrees with the values expected from Figure 10.

3.7 Kinematics of the Local Environment

To examine the larger local environment that may be causing the high external pressure derived above, we look at the kinematics of the surrounding region. If the source of pressure is ram pressure from the collision of molecular clouds, we might expect to see a “broad bridge” feature connecting the two clouds in the position-velocity diagram, as described by Haworth et al. (2015).

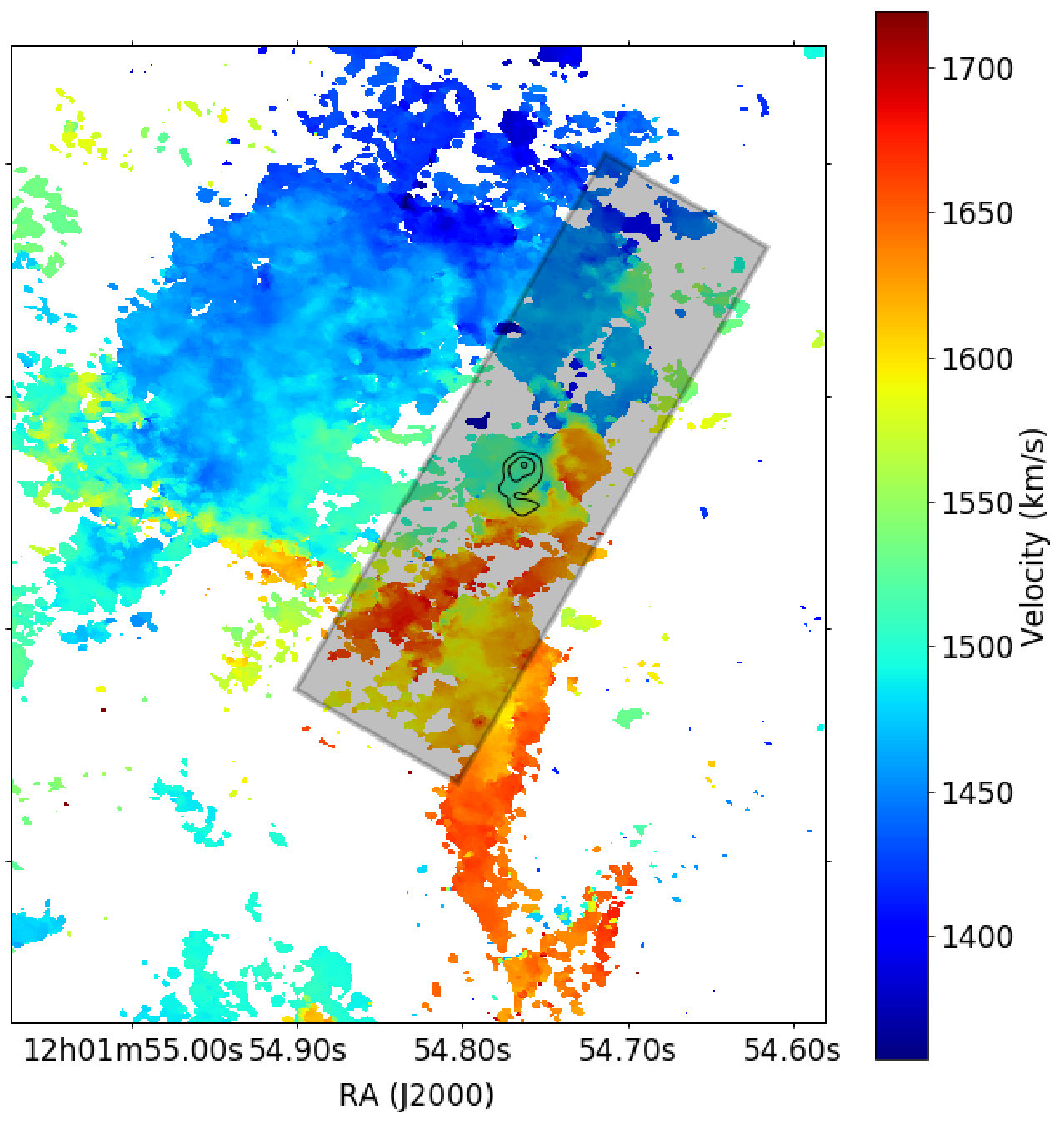

Using 12CO(2-1) emission of the Firecracker and the surrounding giant molecular cloud, we created a total intensity (moment 0) map by integrating over the velocity range 1430–1555 km s*-1*, and a mean velocity (moment 1) map using a 0.6 mJy threshold. These maps were used to choose an angle and cut for a position-velocity diagram that would capture the proposed collision axis where the velocity gradient is greatest. These cuts and the resulting position-velocity diagram are shown in Figure 11.

The Firecracker does appear as a bridge between the two adjacent clouds, although it appears somewhat spatially separated from each. Its morphology is different from that of the broad bridge feature from Haworth et al. (2015), but this may be due to a difference in viewing angle, as the line-of-sight of the simulated position-velocity diagrams from Haworth et al. (2015) were made directly along the collision axis. This would seem to suggest that cloud-cloud collision is likely occurring, and may be the source of pressure that we observe.

3.8 HCN and HCO+

HCN and HCO+ are both tracers of dense gas. HCN has an optically thin critical density of $n_{crit}=1.7\times 10^{5}$ cm*-3* at 50 K, and an upper state energy of $T=4.3$ K (Shirley, 2015). HCO+ has $n_{crit}=2.9\times 10^{4}$ cm*-3* at 50 K for optically thin gas and a very similar upper state energy of $T=4.3$ K. Despite this similarity, these molecules do not appear to always be spatially correlated (Johnson et al., 2018). This trend is continued in the Firecracker region.

Both of these species are weakly detected, with HCN(4-3) at the 4.1$\sigma$ level and HCO+(4-3) at the 5.5$\sigma$ level in the total intensity (moment 0) map. The parameters of the data cube are given in Table 2. We created total intensity maps for each transition by integrating over the velocity range 1430–1565 km s*-1*, and these are shown in Figure 12. In these images, it is apparent that the morphologies of the emission from these two molecules are quite different from each other (Figure 12).

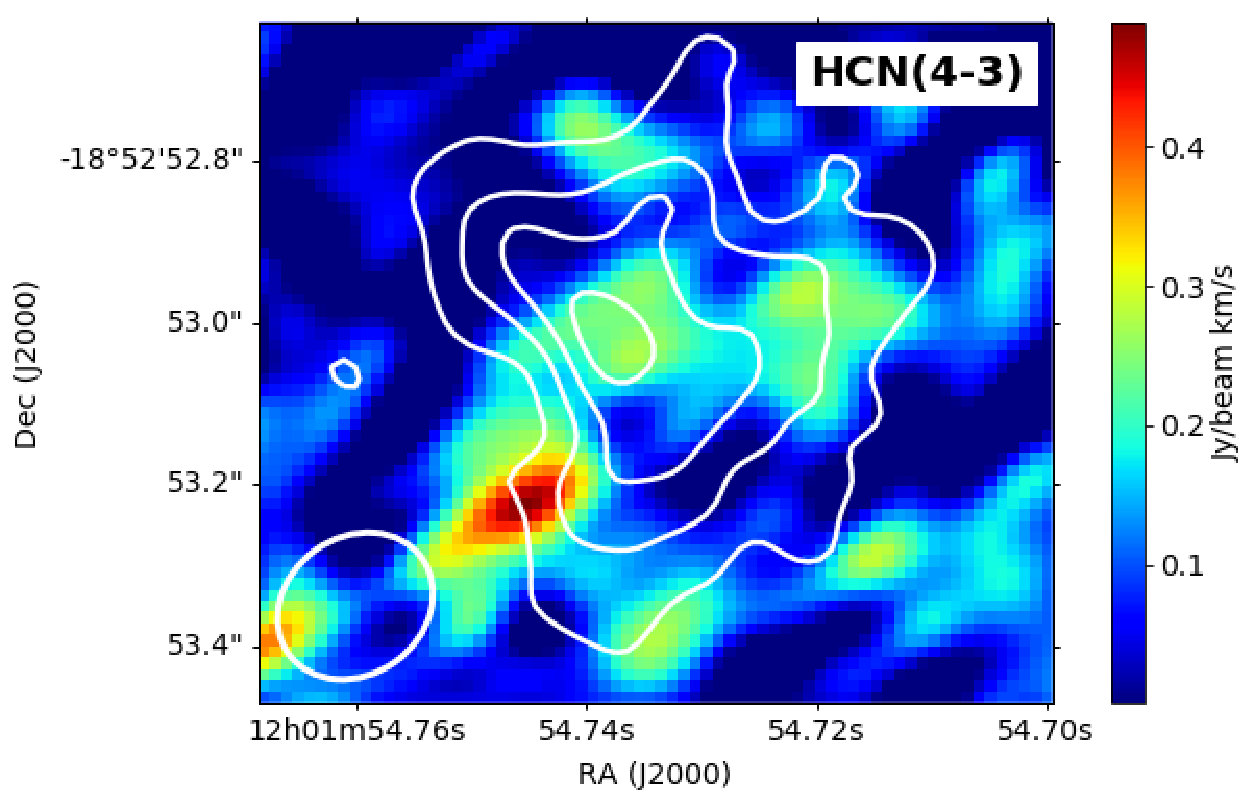

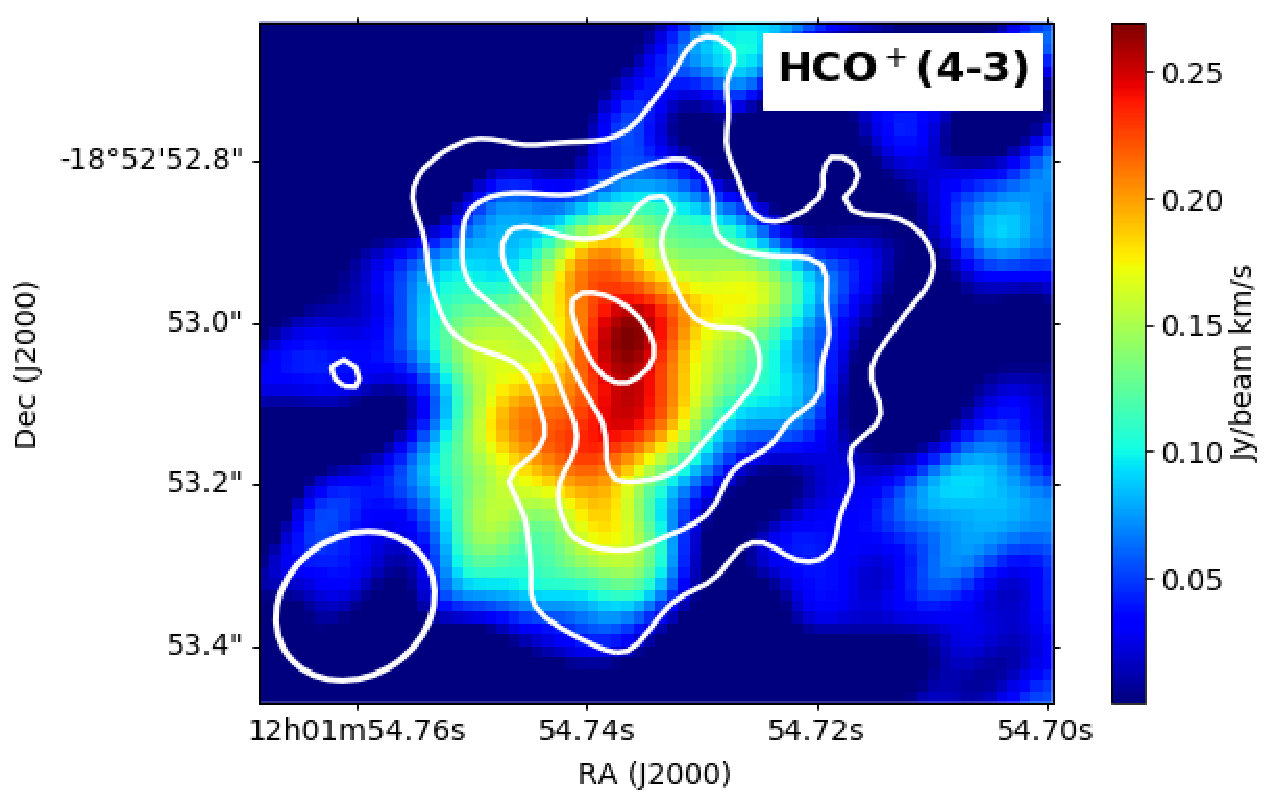

Integrated fluxes from HCN(4-3) and HCO+(4-3), as well as the 12CO(2-1), 12CO(3-2), and 13CO(2-1) lines, for each aperture described in Figure 10 are given in Table 6.

From these moment 0 maps, we determine the average surface brightness of these two molecular lines in a 0.35" region around the Firecracker cloud (Aperture 4 in Figure 10), is 33 K km s*-1* for HCN(4-3), and 22 K km s*-1* for HCO+(4-3). These are much lower than the values measured in this region by Schirm et al. (2016), which are 46 K km s*-1* for HCN(1-0) and 73 K km s*-1* for HCO+(1-0). These values from Schirm et al. (2016) have been updated to account for a beam filling factor of 0.02 that we determine based on the cloud’s now-resolved size of 0.21" and the Schirm et al. (2016) beam of 1.52"$\times$1.86" for HCN(1-0) and 1.51"$\times$1.85" for HCO+(1-0). This is expected, since Schirm et al. (2016) present their measurements as upper limits due to the low resolution likely causing contamination from the surrounding region. We also expect that HCN(4-3) and HCO+(4-3) are not thermalized with respect to HCN(1-0) and HCO+(1-0), which further accounts for our lower surface brightness.

We can next compare the relative line strengths in the Firecracker region to follow up on the analysis of Johnson et al. (2018), which suggested that HCN and HCO+ strengths are associated with the evolution of proto-clusters. To do this, we convolve these images, as well as the 12CO(2-1) emission, to the same beam size (0.17"$\times$0.21") and look at the ratios of HCN(1-0)/HCO+(4-3) and HCO+(1-0)/12CO(2-1), using the average surface brightness in K km s*-1* (Figure  13). We look at these ratios in Apertures 3 and 4 as defined in the right panel of Figure 10. Apertures 1 and 2 are not included since their radii are smaller than the synthesized beam for the new images.

We compare these ratios to those measured for HCN(1-0), HCO+(1-0), and CO(2-1) in potential natal-SSCs found in the Henize 2-10 dwarf galaxy by Johnson et al. (2018). These natal-SSCs were selected via peaks in 12CO(2-1) emission, and 6 of the 21 regions had associated thermal radio emission (Johnson & Kobulnicky, 2003), indicative of stars having already formed. Two of these regions with associated radio emission are also shown to have high optical extinction, $A_{V}>10$ (Cabanac et al., 2005), implying that the clusters are still heavily embedded and have only recently formed stars. Another region exhibits nonthermal emission, suggesting a low-luminosity AGN (Reines et al., 2011) or an older evolutionary state, while another region includes several supernova remnants, has emerged from its surrounding gas, and has a cluster age of $>6$ Myr (Cabanac et al., 2005).

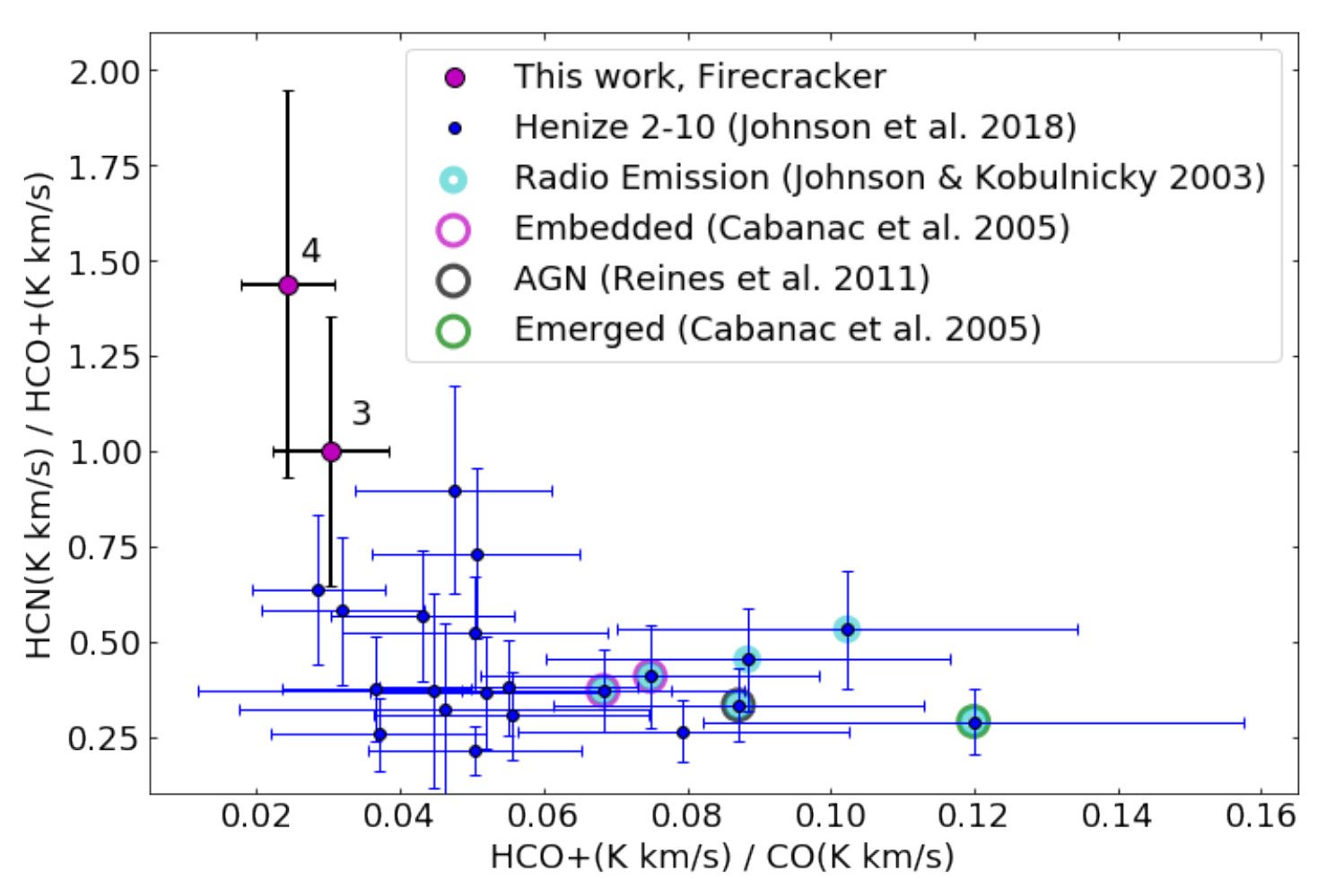

In Figure 13, we compare the two Firecracker apertures to those in Henize 2-10 and see that our new data supports the trend found by Johnson et al. (2018). As clusters evolve, these two line ratios appear to change, with regions that have already formed stars showing a higher ratio of HCO+/CO and a lower HCN/HCO+ ratio than regions at an earlier stage of evolution.

Note that in this work we measure HCN(4-3) and HCO+(4-3) rather than HCN(1-0) and HCO+(1-0) as was used by Johnson et al. (2018). Due to the same upper state energies for HCN and HCO+, we expect that the ratio of HCN/HCO+ is not much affected by this difference, but the measured values of the ratio HCO+/CO are lower limits for the Firecracker cloud.

We also note that the ratios seen in Figure 13 differ for the two regions within the Firecracker, with values measured in Aperture 4 indicating a younger evolutionary stage than in Aperture 3. This seems to once again confirm the trend, as we would expect using a smaller aperture focused on the central region would include the gas most likely to begin star formation first, while the larger aperture includes more surrounding gas that has not yet begun evolving towards star formation. Thus the gas within Aperture 3 is expected to be at a more evolved state than the gas averaged within Aperture 4.

For comparison, measurements in Henize 2-10 by Johnson et al. (2018) used an aperture of 0.8", which at a distance of 9 Mpc corresponds to a physical size of 35 pc. This is approximately the same size as Aperture 4 in the Firecracker analysis.

4 Discussion

4.1 Internal Structure

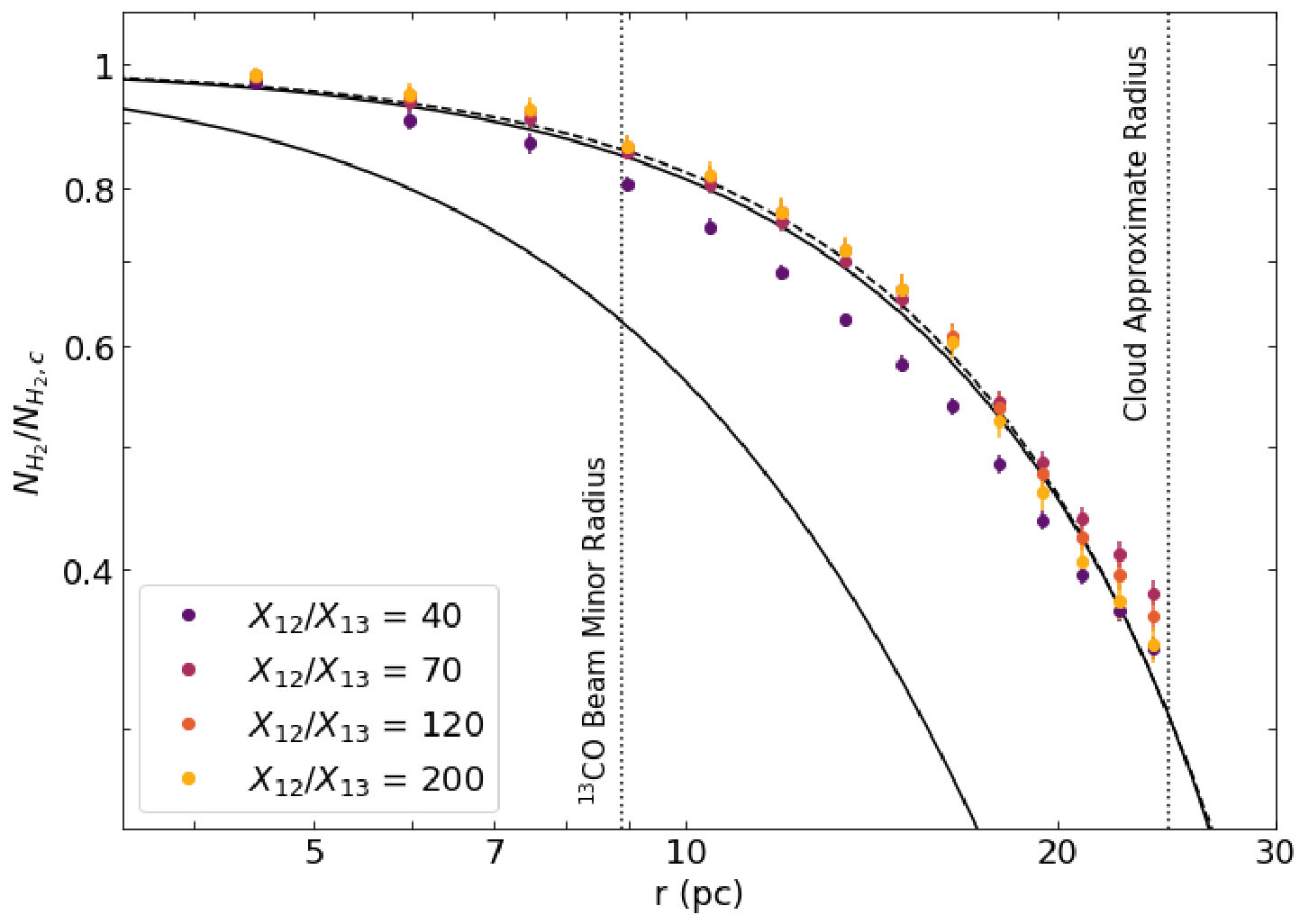

In Figure 9, we show that the radial profile of the derived column density can be fit to a Bonnor-Ebert profile with $\xi_{max}=3.4\pm 0.4$, implying that the cloud might be described by an isothermal, self-gravitating, pressure-confined sphere.

If the fit is taken to be a true indication of the physics governing the cloud, then the value of $\xi_{max}$ that characterizes the best fit has further implications for the structure and state of the Firecracker cloud. It was shown by Bonnor (1956) that values of $\xi_{max}>6.5$ are gravitationally unstable and will collapse. This would imply that our cloud, which is fit by $\xi_{max}=3.4\pm 0.4$, is still stable. This agrees with the results found in the left panel of Figure 10, which show that the cloud is not experiencing free-fall collapse. This also further supports the belief that this cloud has not begun star formation and is an example of an undisturbed precursor cloud.

Using the parameter $\xi_{max}=3.4$, we can also determine from the numerical solution of the Lane-Emden equation that the density contrast from the center to the boundary of the cloud would be $\rho_{C}/\rho_{R}=3.2$. We can define a dimensionless mass,

[TABLE]

where $P_{e}$ is the bounding pressure, $M$ is the total mass, $a$ is the isothermal sound speed, and all of the values on the right side of the equation are known via the numeric solution to the Lane-Emden equation and the boundary condition of $\xi_{max}=3.4$. We find that the dimensionless mass for the Firecracker cloud is $m=0.84$. This is less than the critical dimensionless mass derived by Bonnor (1956), $m=1.18$, which is expected since we already demonstrated the cloud is stable.

We can then derive from our definitions of $\xi$, $m$, and the isothermal pressure equation of state that

[TABLE]

which allows us to determine $a$, the characteristic velocity of the equation of state in the Firecracker cloud. This velocity would be the isothermal sound speed, but in the Firecracker, we are likely dominated by microturbulence rather than thermal velocities. Depending on the value taken for the total mass, this velocity falls in the range $a=10-30$ km s*-1*. This is within a factor $\sim 2$ to the velocity dispersion we measure in the cloud ($\sigma_{V}\sim 37$ km s*-1*).

From this value for $a^{2}$, we can also derive another estimate of the external pressure confining the cloud, using an equation derived from the definition of $m$:

[TABLE]

Taking the range of mass estimates, the external pressure in the Bonnor-Ebert profile would be $P_{e}/k=0.05-4\times 10^{8}$ K cm*-3*, which agrees with the lower end of the pressure range determined in Section 3.6.

While these results do agree with expectations from the rest of our analysis, we also note that the profile is also consistent with a Gaussian profile, and also that it is possible for cores to be fit with a Bonnor-Ebert profile despite not actually obeying the physics of a stable, isothermal, pressure-confined sphere. Ballesteros-Paredes et al. (2003) show that 65% of the dynamic cores in their hydrodynamic models can be fit by Bonnor-Ebert profiles, and nearly half of these fits would suggest the dynamically evolving clouds are in hydrostatic equilibrium. Furthermore, their work shows that the parameters determined from the fits often varied from the actual values and depended on which projection of the core was used. We therefore are cautious in drawing firm conclusions from this fitted Bonnor-Ebert profile.

4.2 High Pressure Environment

To determine the source of the high external pressure implied by Figure 10 and the Bonnor-Ebert fit, we look to the encompassing cloud and its kinematics. Johnson et al. (2015) estimate that the weight of the surrounding super giant molecular cloud would only reach $P/k\sim 10^{7}$ K cm*-3*. This falls short of the expected external pressure by one or two orders magnitude.

One mechanism that may be able to increase the pressure in the region to the values we observe is ram pressure from colliding filaments. The Firecracker cloud is located at the confluence of two CO filaments identified by Whitmore et al. (2014), the region has a large velocity gradient across it, and is associated with strong H2 emission (Herrera et al., 2011, 2012). Work by Wei et al. (2012) also shows that the overlap region may be dominated by compressive shocks. All of these would be consistent with collisions causing the high external pressure observed for the Firecracker cloud. Furthermore, the now-resolved irregular structure of the cloud is consistent with the source of pressure being non-isotropic, as we would expect in the case of colliding gas filaments. This type of cloud-cloud collision has also been invoked as a trigger for massive star formation in several young clusters within the Milky Way and LMC, such as the Orion Nebula Cluster (Fukui et al., 2018, and references therein). Oey et al. (2017) also see two kinematic components in a young SSC, which they suggest could be infall from cloud-cloud collision, or outflow due to feedback from the newly formed stars.

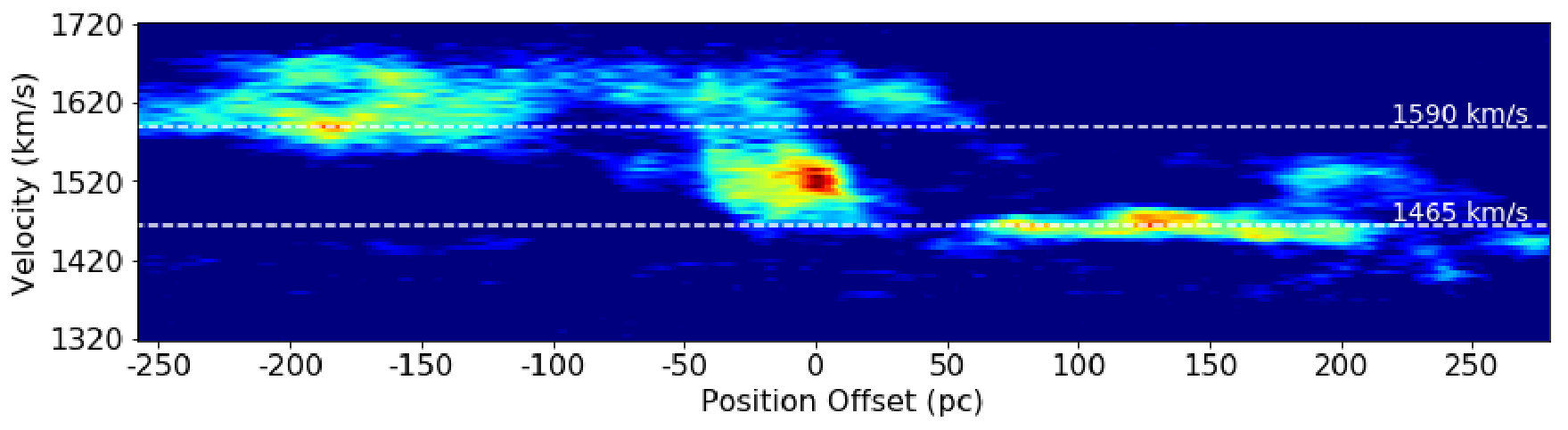

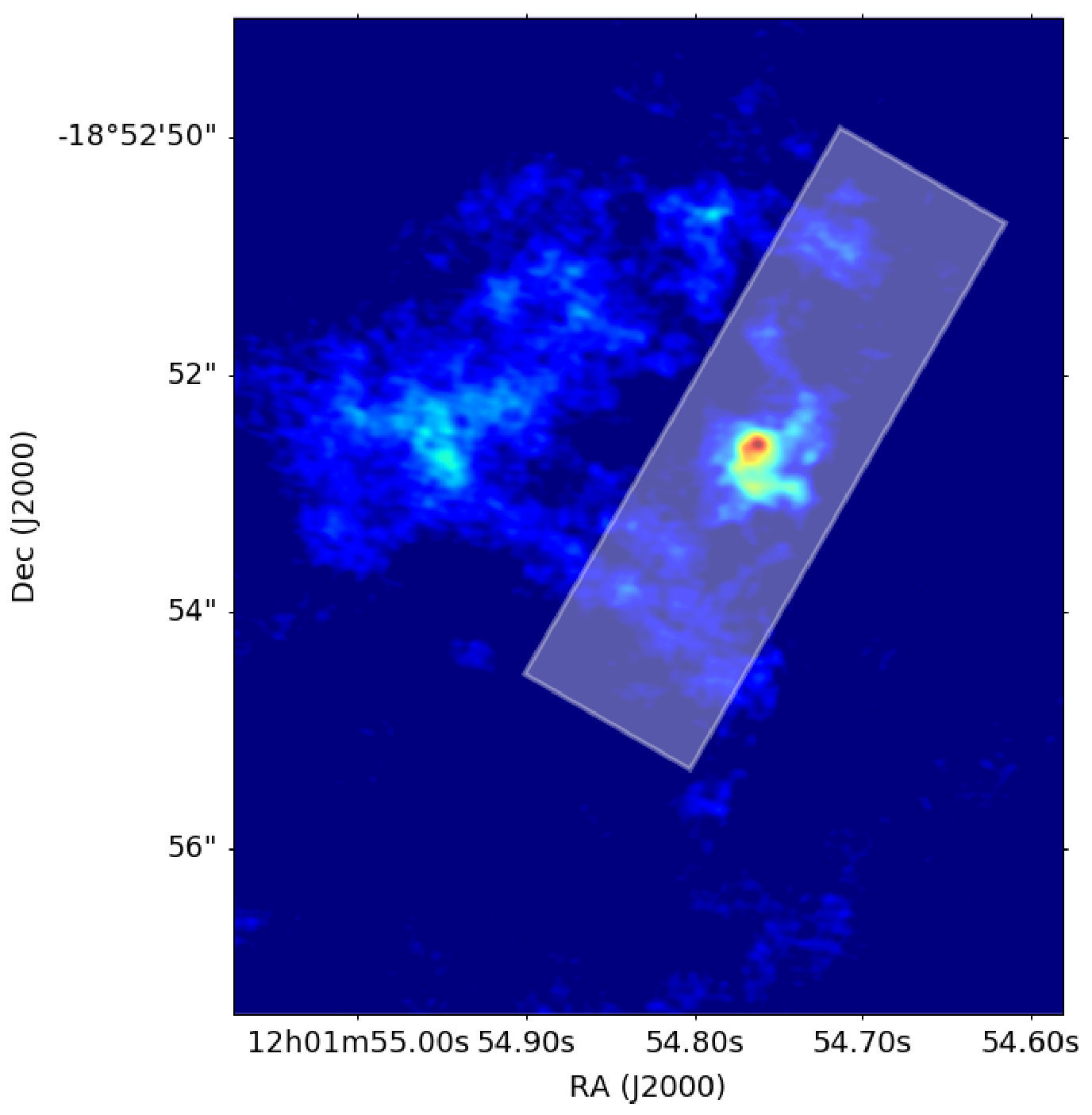

Examination of the position-velocity diagram (Figure 11) shows a hint of a “broad bridge” feature, described by Haworth et al. (2015) to be a signature of cloud-cloud collision. If this is indeed a case of cloud-cloud collision, we can use the $X_{CO}$ factor derived in Section 3.4 to determine the density of the clouds on either side of the Firecracker. Taking the average value of $X_{CO}=0.61\times 10^{20}$ cm -2 (K km s*-1*)-1, and assuming that the cross sections along the line of sight of the colliding clouds are twice the Firecracker’s diameter, so have a depth of 88 pc, we find that the density of the colliding clouds is approximately $\rho\sim 10^{-21}$ g cm*-3* ($n_{H_{2}}\sim 220$ cm*-3*).

From Figure 11, the velocities of the two colliding clouds are approximately 1465 km s*-1* and 1590 km s*-1*, suggesting that the projected velocity difference at which they would be colliding is $v\sim 125$ km s*-1*. Taking the ram pressure to be $P=\rho v^{2}$, this would imply that the pressure caused by such a cloud-cloud collision would be $P/k\sim 1.1\times 10^{9}$ K cm*-3*. While this is a fairly rough estimate of the ram pressure, it demonstrates that such a scenario would be capable of providing the high external pressures required for the Firecracker cloud to be bound.

Furthermore, this cloud-cloud collision scenario would imply that there will be a continued inflow of gas as the cloud begins to form a cluster of stars. Such an inflow would allow for accretion along filaments during the formation process, an important feature of the simulated cluster formation by Howard et al. (2018). This would support their suggestion that massive clusters can be formed by the same mechanisms that form smaller, less massive clusters.

4.3 Comparisons to Other Molecular Clouds

To the best of our knowledge, the Firecracker is the only object that has been identified as having the properties necessary for SSC formation, while also having no detected thermal radio emission above a level of $N_{\text{Lyc}}\approx 6\times 10^{50}\text{ s}^{-1}$, which corresponds to $\sim 60$ O-type stars, or $M_{*}\lesssim 10^{4}M_{\odot}$. Given the cloud’s mass of $M_{\text{gas}}=1-9\times 10^{6}M_{\odot}$, this upper limit for stars formed is still at least two orders of magnitude less than the cloud’s mass and so the Firecracker is likely to still be at a very early stage of cluster formation. Comparisons for this cloud must then come from SSCs that have detected star formation or galactic clouds that are forming less massive clusters that do not have the potential to form SSCs (where SSCs are expected to need $\gtrsim 10^{5}M_{\odot}$ to survive to be globular clusters).

Leroy et al. (2018) identified a population of young massive clusters that have begun forming stars at detectable levels in NGC 253 ($N_{\text{Lyc}}>5\times 10^{50}$ s*-1*), but most of which are still embedded in their natal material. They have gas masses in the range $10^{3.6}-10^{5.7}M_{\odot}$, stellar masses in the range $10^{4.1}-10^{6.0}M_{\odot}$, and FWHM sizes in the range 1.2-4.3 pc. Most of the clusters fall along the line for either virial equilibrium or free fall in the left panel of Figure 10, but a couple with a notably higher $M_{\text{gas}}/M_{*}$ ratio are above these lines, suggesting that they would require a high external pressure to remain bound, similar to the Firecracker cloud. This may indicate a trend with evolution, since clusters at an early stage of formation will have turned less of their gas into stars. This would then support a scenario in which massive clusters are formed in high pressure environments, and then as stars form and the cluster evolves, the high pressure dissipates or is dispelled.

We also note that the Firecracker shares several properties with the molecular cloud Sgr B2 in the CMZ of the galaxy. Sgr B2 has a mass of $8\times 10^{6}M_{\odot}$ and a diameter of 45 pc (Schmiedeke et al., 2016), which are well-matched to the Firecracker. It is also in a high pressure environment, with $P/k\sim 10^{8}$ K cm*-3* measured for embedded cores in the CMZ (Walker et al., 2018). High resolution ($\sim 0.002$ pc) observations see this cloud break into several smaller clumps, the largest of which, Sgr B2 M, has a radius of $\sim 0.5$ pc, $M_{\text{gas}}\sim 10^{4}M_{\odot}$, and $M_{*}\sim 1.5\times 10^{4}M_{\odot}$ (Schmiedeke et al., 2016; Ginsburg & Kruijssen, 2018). This comparison suggests that at higher resolutions, we may see the Firecracker break into smaller protoclusters, which may or may not result in a single bound cluster.

We also note however that the present day CMZ is a different environment from the Antennae overlap region, and the presence of a large SSC population in the Antennae ($>$2,700 clusters with $M_{*}>10^{5}M_{\odot}$; Whitmore et al., 2010) and no SSCs in the Milky Way (no young clusters with $M_{*}>10^{5}M_{\odot}$; Portegies Zwart et al., 2010) also suggests that similar massive molecular clouds in the two regions could be expected to form different objects.

Leroy et al. (2018) also examine Sgr B2 as a comparison to their massive clusters and find that at their resolution of 1.9 pc, Sgr B2 would have a wider profile, narrower line width, and lower brightness temperature, suggesting it is a less dense version of the clouds forming clusters in NGC 253. These profiles extend to radii of $10$ pc, so cannot be directly compared to the Firecracker, since our resolution is $\gtrsim 10$ pc.

4.4 Tracing Cluster Evolution

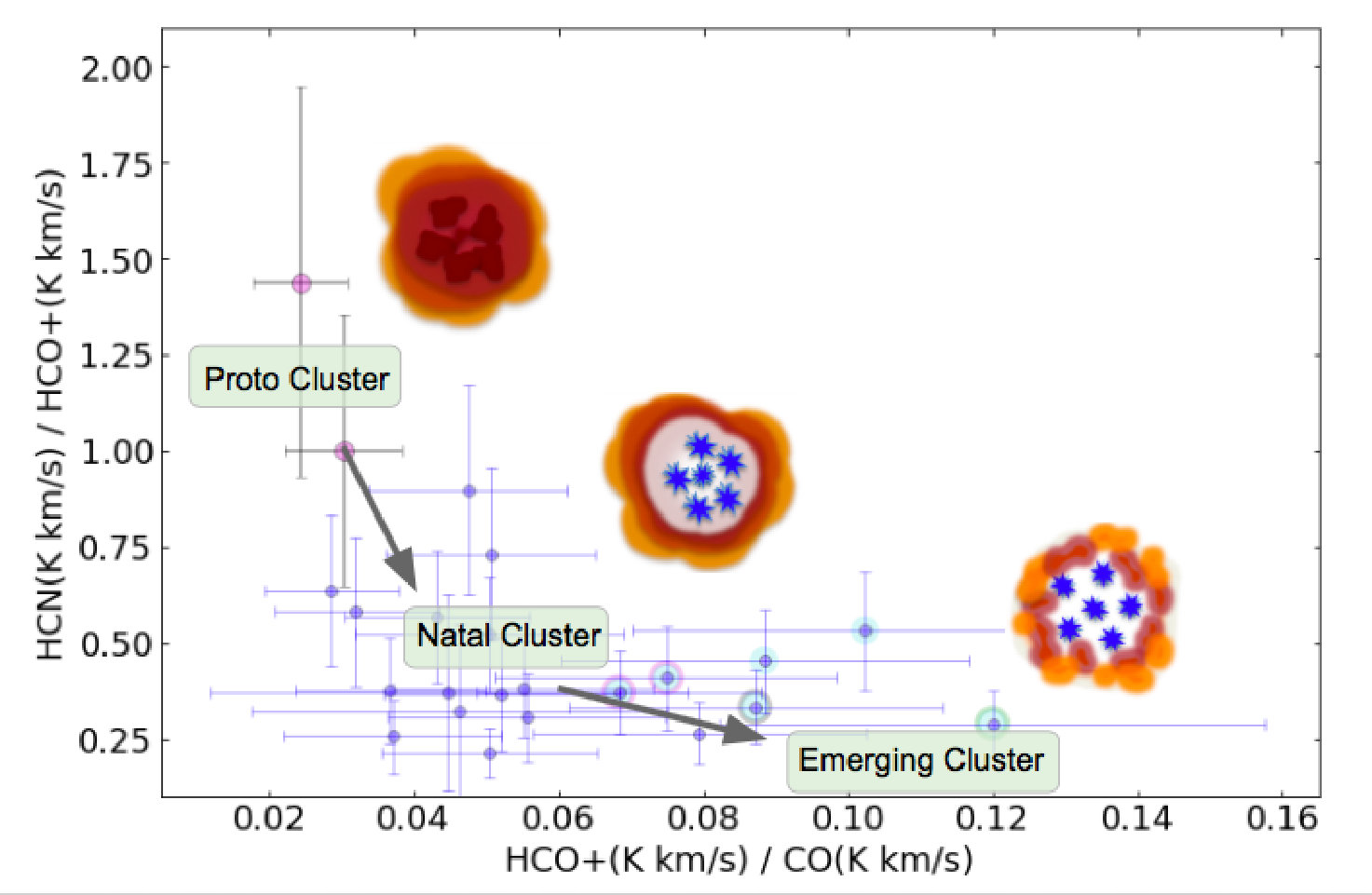

The trend shown in Figure 13 indicates that both the ratios HCN/HCO+ and HCO+/CO are affected as the cluster evolves. HCN/HCO+ appears to decrease with age, while HCO+/CO appears to increase with age. This evolution is shown schematically in Figure 14.

The mechanisms most likely to be driving the change in HCO+/CO as discussed in Johnson et al. (2018) are either the photo-enhancement of HCO+ in the PDRs around newly formed stars (Ginard et al., 2012) or the dissociation of CO due to radiation from massive stars. The HCO+ enhancement in these more evolved regions would also explain the decrease in HCN/HCO+ that we observe. This trend could also be caused by a decrease in gas density as the star clusters evolve, causing the density of the gas to drop below the critical density of HCN while remaining higher than the critical density of HCO+.

If the increase in the HCO+/CO ratio is due in part to the dissociation of CO as stars form, this would also be consistent with the analysis of Whitmore et al. (2014), which used CO brightness as a diagnostic of evolutionary stage for clusters.

4.5 CO-to-H2 Conversion Factor

In Figure 8, we see that $X_{CO}$ varies spatially by up to $\sim$80% of the average within the Firecracker region, and that this variation is not solely a result of Gaussian noise in the measurements. $X_{CO}$ is expected to vary based on many parameters: high densities will cause $X_{CO}$ to increase, while high gas temperatures and super-virial velocity dispersions will lead to lower $X_{CO}$ values (Bolatto et al., 2013). This results in a complicated picture for starbursting regions which experience all of these effects at once. Computational models by Narayanan et al. (2011) demonstrate that $X_{CO}$ is lowest in regions of high SFR.

Comparing these predictions to the observed spatial variations in the Firecracker, we note that the central peak of the 13CO emission, where we expect initial collapse and star formation to occur, does not correspond to a particularly low or high value of $X_{CO}$ in the region as we might expect. Rather, the maximum and minimum locations occur around the edge of the cloud and do not appear to be correlated with the mass surface density, temperature, or velocity dispersion. This may simply be due to the complicated interplay of these three parameters’ effects on $X_{CO}$.

4.6 Star Formation Efficiency

Another important parameter for studying the formation of globular clusters is the star formation efficiency (SFE), or how much of the gas in a molecular cloud is converted to stars. This value is defined as SFE = $M_{stars}/(M_{gas}+M_{stars})$. This parameter is important for the survival of the cluster, since much of the remaining gas will be dispersed after stars have formed. If the gas accounts for a large amount of the cluster’s mass, the cluster will not remain bound after it has dispersed. Due to this type of argument, we have long believed that SFEs of $\sim$50% are required to form globular clusters that last for $>10$ Gyr (Geyer & Burkert, 2001). However, more recent simulations have shown we may be able to relax that constraint to as little as $\sim$5%, although a higher SFE makes a cluster more likely to remain bound (Pelupessy & Portegies Zwart, 2012). This value more closely matches values of $<10$% for the SFE that has been measured in galactic clouds (Evans et al., 2009).

Recent computational models of massive star cluster formation show that there may be a correlation between the mass surface density, $\Sigma$, and the star formation efficiency. Both Kim et al. (2018) and Grudić et al. (2018) show clusters attaining SFEs of $\sim$50% at high surface densities, $1300\ M_{\odot}$ pc*-2* in Kim et al. (2018) and $3820\ M_{\odot}$ pc*-2* in Grudić et al. (2018). These surface densities are well matched to those we measure in the Firecracker cloud, which range from $1000-6000M_{\odot}$ pc*-2*, depending on the assumed mass estimate. This has promising implications for the potential of the Firecracker to form a bound SSC. However, we also note that neither of these models take into account a high external pressure surrounding the precursor cloud as is inferred for the Firecracker for it to be bound. This external pressure would be likely to have strong implications for the outcome of the simulations, as the initial velocity dispersion of the gas would be much higher in this case.

Work done by Matthews et al. (2018) attempts to observationally constrain the SFE, measuring the instantaneous mass ratio (IMR) in the Antennae overlap region. The IMR is an observational analog, defined as IMR = $M_{stars}/(M_{gas}+M_{stars})$, which would correspond to the SFE of an ideal system that had formed all its stars without yet dispelling its gas. Matthews et al. (2018) find no correlation of IMR with surface density, and find that very few clusters in the region show an IMR greater than 20% despite measuring surface densities up to $\sim 10^{4}\ M_{\odot}$ pc*-2*. This suggests the theoretical work may be optimistic in predicting SFEs in starbursting regions such as the Antennae galaxies.

5 Conclusions

We present ALMA observations of the proto-SSC Firecracker cloud in the overlap region of the Antennae, looking at emission from 12CO(2-1), 12CO(3-2), 13CO(2-1), HCN(4-3), and HCO+(4-3). These molecular lines were used to characterize the cloud and the surrounding environment at resolutions as low as $\sim$ 0.1" (10 pc). The findings are summarized below.

• •

We determine the mass of the cloud to be in the range 1–9$\times 10^{6}M_{\odot}$ and its characteristic radius is 22 pc. These both agree with previous measurements by Johnson et al. (2015) and are consistent with the cloud having the potential to form a super star cluster.

• •

We do not detect continuum emission at any of the three observed frequencies. This allows us to put an upper limit on the mass (9$\times 10^{6}M_{\odot}$), as well as constrain abundance ratios of 12CO/13CO and H2/12CO within this region. Certain combinations of these two ratios are disallowed by this upper mass limit.

• •

We calculate the CO-to-H2 conversion factor and determine that it varies spatially by up to $\sim$80% of the average, with average values in the range $X_{CO}=(0.12-1.1)\times 10^{20}$ cm*-2* (K km s*-1*)-1. This is consistent with $X_{CO}$ values typically adopted in starburst regions. The spatial variations cannot be explained solely by Gaussian noise in the measurements, and do not align with areas expected to have the greatest SFR. Instead, the variations likely depend on a complex combination of temperature, density, and velocity dispersion.

• •

We find that the radial profile of the column density can be fit by a Bonnor-Ebert profile characterized by $\xi_{max}=3.4\pm 0.4$, and that this profile is also consistent with a Gaussian profile. The Bonnor-Ebert fit would suggest that the Firecracker cloud might be described as an isothermal, self-gravitating, pressure-confined sphere, similar to those forming clusters in our galaxy on smaller scales. This profile would also suggest that the cloud is gravitationally stable. We caution though that simulations of dynamic clouds not in equilibrium have also been shown to be fit by Bonnor-Ebert profiles, which may be the case here for the Firecracker cloud.

• •

We determine from surface density and size-linewidth parameters that the cloud is not in free-fall or virial equilibrium, and so must be subject to a high external pressure, $P/k\gtrsim 10^{8}$ K cm*-3*, if it is a bound structure. A comparison with young massive clusters in NGC 253 that have detected star formation suggests a potential trend in which clusters with a low $M_{\text{gas}}/M_{*}$ ratio (and so are likely more evolved) are near virial equilibrium or free fall, while clusters with a higher $M_{\text{gas}}/M_{*}$ would require similar high pressures to remain bound. This would agree with theoretical predictions that high pressure environments are necessary for cluster formation. It also agrees with the Bonnor-Ebert fit’s prediction that the cloud is pressure-bound and gravitationally stable.

• •

The position-velocity diagram of the Firecracker and its surrounding cloud shows what may be a “broad bridge” feature, which is indicative of cloud-cloud collision. An estimate of the density and relative velocity of the colliding filaments suggests that they are capable of producing a ram pressure of $\sim 1.1\times 10^{9}$ K cm*-3*, consistent with the high pressures needed for the cloud to be bound.

• •

We demonstrate that the Firecracker cloud further supports the findings of Johnson et al. (2018) that HCN and HCO+ appear to trace the evolutionary stage of clusters. As stars begin to form, the HCN/HCO+ ratio decreases while the HCO+/CO is enhanced. This could be due to some combination of enhancement of HCO+ in PDRs as stars form, dissociation of CO from massive stars, and changes in gas density as the cluster evolves.

• •

The measured surface density range of $\Sigma=1000-6000M_{\odot}$ pc*-2* may indicate that the cloud is capable of a star formation efficiency as high as $\sim$50%. A high SFE is predicted to be necessary for a globular cluster to form and remain bound throughout its lifetime.
