Face Detection in Repeated Settings

TL;DR

This paper introduces a correlation-based face detection algorithm optimized for controlled location settings, outperforming Viola-Jones in accuracy and speed in scenarios with fixed backgrounds but variable pose, lighting, and scale.

Contribution

The paper presents a novel, fast, and easy-to-train face detection method tailored for environments with controlled location but uncontrolled pose, lighting, and scale.

Findings

Outperforms Viola-Jones in accuracy

Faster detection times

Easy and quick to train

Abstract

Face detection is an important first step before face verification and recognition. In unconstrained settings it is still an open challenge because of the variation in pose, lighting, scale, background and location. However, for the purposes of verification we can have a control on background and location. Images are primarily captured in places such as the entrance to a sensitive building, in front of a door or some location where the background does not change. We present a correlation based face detection algorithm to detect faces in such settings, where we control the location, and leave lighting, pose, and scale uncontrolled. In these scenarios the results indicate that our algorithm is easy and fast to train, outperforms Viola and Jones face detection accuracy and is faster to test.

Figures

Tables

Table 1. TABLE I: Accuracy of locating point between the eyes with filters trained and tested on the images with the same number of pixels between the eyes.

Pixels between Eyes	% Accuracy (within 5 pixels)
16	91.2
32	77.6
48	87.6
64	95.2
80	96.4
96	97.2

Table 2. TABLE II: Accuracy of locating point between the eyes with filters trained on images with different number of pixels between the eyes and tested on unprocessed dataset.

Training Pixel Octave	% Accuracy (within 5 pixels)
3	0.0
4	0.4
4.58	8.8
5	2.8
5.32	2.4
5.58	9.2
5.8	38.8
6	81.2
6.17	85.2
6.32	62.4
6.46	38.4
6.58	29.2
6.7	18.8
Max PSR	95.2

Table 3. TABLE III: Details of R-PaSC data set.

Number of Training Videos	256
Number of Training Frames	18966
Number of Test Videos	73
Number of Test Frames	1865
Number of People in Training Videos	128
Number of People in Test Videos	36
Number of locations	1

Equations

$$(g\ast h)(t)\equiv {\int }_{-\infty }^{\infty }{g}^{\ast }(\tau )h(t+\tau )d\tau ,$$

$$fconv\equiv g(-t)\ast h(t)$$

$$g\ast kh=k(g\ast h)$$

$$g\ast (h1+h2)=g\ast h1+g\ast h2.$$

$$Corr(g,h)\leftrightarrow G(f)H^{\ast }(f)$$

$$G=F\odot H^{\ast }$$

$$H_i^{\ast }=\frac{G_i}{F_i}$$

$$mi{n}_{H^{\ast }}\sum _i|F_i\odot H^{\ast }-G_i{|}^2,$$

$$H^{\ast }=\frac{{\sum }_i{G}_i\odot F_i^{\ast }}{{\sum }_i{F}_i\odot F_i^{\ast }}$$

$$PSR=\frac{peak-mean}{\sigma },$$

$$NCC(x,y)=\frac{{\sum }_{i=1}^W{\sum }_{j=1}^{H}I(x+i,y+j)\cdot T(i,j)}{\sqrt{{\sum }_{i=1}^W{\sum }_{j=1}^{H}I(x+i,y+j{)}^2}\cdot \sqrt{{\sum }_{i=1}^W{\sum }_{j=1}^{H}T(i,j{)}^2}},$$

Full text

1 Introduction

Automatic face detection is the task of determining where and how many human faces, if any, are in an image. Depending on the imaging scenario, face detection can be thought of either as a solved problem or an open challenge. At the easy end of the spectrum are mug shot photos, in which faces are shown fully frontal, at a known scale, with controlled illumination, and in front of a blank background. FERET [31] is an example of an easy data set. For easy data sets face detection is a solved problem, with the Viola-Jones algorithm [42] being the most widely used solution. At the other end of the spectrum are totally uncontrolled scenarios. In these conditions, faces may be shown from any angle, may be partially obscured, may appear at any scale and under arbitrary illumination conditions, may have motion blur, and may be set in any context. JANUS [17] is an example of a data set at the harder end of the spectrum, and recent studies suggest that face detection in uncontrolled scenarios is still an open research problem [7].

This paper addresses an intermediate point on the face detection difficulty spectrum. It is motivated by security applications that need to detect faces as a precondition for recognizing people. For example, an application might need to detect the faces of people in a waiting room or of people walking down a corridor. These applications lead to images like the ones shown in Figure 1. Under these conditions, faces are still seen from a wide range of angles and in motion, with variations in illumination. Occlusions also still occur. The variations in scale, however, are more limited. More importantly, although the immediate background behind the face varies as the subject walks, the overall context is constrained.

In security applications like these, the standard Viola-Jones face detector is only about 70% accurate (see Section 6 for details). Higher accuracies might be achieved by more recent techniques such as deep learning [21, 9] or deformable parts models [10], but they are computationally complex. Beyond recognition accuracy, one goal for security applications is to push the computation forward toward the camera, so that only face chips (and not whole images) have to be sent over the network to main processors. This favors simple algorithms with regular computations that can be run on inexpensive, low power processors.

This paper presents a novel face detector, Correlation Face Detector (CorrFaD), based on the Minimum Output Sum of Squared Error (MOSSE; [2]) algorithm for training correlation filters. CorrFaD is a fast and simple face detection algorithm that works well in the security applications described above. Two of the factors constrained in these applications are the background and the scale. Under these constraints, we show that CorrFaD is highly reliable and we make three claims:

CorrFaD outperforms the Viola-Jones face detector in surveillance settings such as the ones shown in Figure 1. 2. 2.

CorrFaD is fast. The time complexity to detect a face is $O(n~{}log(n))$. 3. 3.

CorrFaD is the first algorithm specifically tested on faces in a newly released dataset, the Point and Shoot Face Recognition Challenge (PaSC) [1].

The rest of this article is organized as follows: Section 2 introduces correlation and MOSSE correlation filter, and Section 3 presents some recent work on face detection. CorrFad and its scale sensitivity is discussed in detail in Section 4. In section 5 we present CorrFaD training and evaluation methods. Section 6 presents results of face detection in specific settings and section 7 briefly summarizes the limitations of CorrFaD. Finally, in Section 8 we discuss our findings.

2 Background: Correlation & Filters

In this section, we remind readers of the relevant properties of correlation and convolution. We then briefly review the state of the art in algorithms for learning optimal linear filters, with a particular focus on MOSSE [2], the algorithm at the heart of CorrFaD.

2.1 Correlation and Convolution

Cross-correlation is a similarity measure between two signals when one has a time-lag. In continuous domains it is expressed as:

[TABLE]

where $g$ and $h$ are continuous functions and $g^{*}$ is the complex conjugate of $g$. Convolution is similar, although one signal is reversed:

[TABLE]

Convolution and cross-correlation have two key features: shift invariance and linearity. Shift invariance means that the same operation is performed at every point in the image and linearity means that every pixel is replaced with a linear combination of its neighbors. Mathematically, linearity is represented as:

[TABLE]

and

[TABLE]

Correlation is often used to find parts of an image that match a template or filter. Since correlation is a similarity measure, maxima in the correlation surface represent locations where the image and filter are similar. However, the limits of correlation as a matching algorithm are well known. Of importance to this paper is the bias that image patches with high values tend to produce higher correlation scores, regardless of how well they match the filter. This can be addressed by normalizing the correlation scores by the standard deviation of the image patch.

2.2 Discrete Fourier Transform for Correlation

The computational cost of convolving an N$\times$N image with an M$\times$M filter is $N^{2}M^{2}$. The cost can be reduced by taking the Discrete Fourier Transform (DFT) of both the image and the filter using the Fast Fourier Transform (FFT) algorithm. According to the convolution theorem, the DFT of the convolution of two functions is the element-wise product of the DFT of one function with the complex conjugate of the DFT of the other, as shown below:

[TABLE]

where $G(f)$ and $H^{*}(f)$ are the Discrete Fourier Transform of $g(t)$ and the complex conjugate of the Discrete Fourier Transform of $h(t)$, respectively. The computational complexity of converting images into the frequency domain, computing their correlation as in Equation 5, and converting them back to the spatial domain (if necessary) is only $O(n\hskip 1.42271ptlog\hskip 1.42271ptn)$. This makes correlation a computationally efficient, if not necessarily accurate, matching algorithm.

2.3 Correlation Filters

Because of their speed, correlation filters [19] continue to be used in applications such as face verification [24], face recognition [20], and target detection [13]. Recent research has focused on improving performance by learning filters that will give the best possible results.

Matched filters [29] convolve an unknown signal with the conjugate of a time reversed known template to determine whether the template exists in the unknown signal. The goal is to maximize the Signal-to-Noise (SNR) ratio in the presence of additive stochastic noise.

Although matched filters are usually used in RADAR applications, they also find use in improving SNR in X-rays. Their use is limited in face detection applications because they require a large number of filters to account for variations in expressions, pose, age, illumination etc., [20].

Synthetic Discriminant Function (SDF) filters [14] are used for face verification. They are trained to produce correlation values of one for positive training samples and zero for negative training samples. A drawback of SDF filters is that they require carefully centered and cropped training samples in order to compute the optimal filter values [20].

Minimum-Variance Synthetic Discriminant Functions (MVSDF) filters [18] satisfy similar constraints to SDF filters [14] while minimizing the output variance due to white noise by removing the condition that the filter must be a linear combination of the positive training samples.

Minimum Average Correlation Energy (MACE) filters [27] minimize the average energy of the correlation surface over the training images. It is designed such that the correlation value is highest at object locations and zero everywhere else. MACE filters are sensitive to input noise and deviations from the training images because they emphasize high spatial frequencies in order to create sharp correlation peaks [20]. MACE filters have been successfully applied to face recognition and face verification [38, 40, 24, 39].

Optimal trade-off filters (OTF) [33] optimize a combination of three performance measures: SNR to measure noise tolerance, peak-to-correlation energy to measure peak sharpness, and Horner efficiency [15] [5] to measure the light-throughput efficiency of the filter. OTF filters can be set to optimize any one of these three measures while holding the other two at specific values.

Unconstrained Minimum Average Correlation Energy (UMACE) filters [25] create sharp correlation peaks for easy output detection even in the presence of noise and background clutter. Unlike other correlation filters, UMACE filters are not constrained to produce a pre-specified correlation value at a specific point.

Still more correlation filters can be found in the literature. Distance Classifier Correlation Filters (DCCF) [28] are designed to separate training images from different classes into well-separated clusters. Mahalanobis and Kumar [26] present polynomial correlation filters that convolve a filter with non-linear functions of the input image. Recently, Kerekes and Kumar [34] extended the correlation filter design using Mellin radial harmonic functions [35]. In this research we use MOSSE which is described next.

2.4 MOSSE Filters

With minor variations, the correlation filters described above are trained on positive and negative samples, where samples are filter-sized image windows that either are (positive) or are not (negative) centered on the target of interest. In our case, the targets of interest are faces. Typical training images, however, contain only a few image windows that are centered on faces but a large number of image windows that aren’t. Recently, new algorithms for training filters have been developed that take advantage of all of these negative samples and therefore perform particularly well in the context of known backgrounds. Historically, the first of these filters was ASEF [3], followed by MOSSE [2]. Since MOSSE filers are the foundation of CorrFaD, we take time to review MOSSE in detail here.

Unlike the filters described in Section 2.3, MOSSE [2] filters are trained on whole images that may contain zero, one or more faces111MOSSE filters can be trained to recognize other objects than faces, but faces are the targets of interest in this paper.. Instead of extracting sample windows from the training images, the user instead supplies idealized output images. Since the goal of a filter is to only respond to faces, the idealized output images are zero almost everywhere. However, where faces occur in the source image, the idealized output has a Gaussian impulse centered at the center of the face. Figure 2 shows three simple source images and the corresponding idealized output images.

The goal is to learn a filter $h$ that when correlated with training image $f$ will produce the given output image $g$. The filter is designed in the Fourier domain to exploit the convolution theorem. In the Fourier domain, the exact filter for a given training image and output image is $H$:

[TABLE]

where $\odot$ denotes element-wise multiplication and $*$ is the complex conjugate. This can be easily solved for the exact filter by:

[TABLE]

The right column of Figure 2 shows the exact filters for three simple face images. The filters are non-intuitive because they are overly specific. They contain lots of frequencies whose sole purpose is to exactly cancel out the background, and for a single image there is always a filter that will exactly recreate the idealized output image. The goal, however, is to learn a single filter $H$ that will come close to recreating the idealized output image corresponding to every training image. Thus the goal is to minimize

[TABLE]

where every training image has a unique value $i$. It is shown in [2] that this equation is minimized by

[TABLE]

The bottom right image in Figure 2 shows the resulting and more intuitive filter.

Before computing the MOSSE filter as above, the training images are pre-processed as in [3]. First, pixel values are transformed using the natural log function to help with low contrast lighting situations. Second, pixels are normalized such that the image has a mean of zero and a magnitude of one. Third, the image is multiplied by a cosine window. Such a window gradually reduces the pixel values near the edges to zero, putting more emphasis on the center of the image.

Having presented the correlation filter underlying our face detector, we next give a brief review of face detection research before introducing CorrFaD.

3 Background: Face Detection

The first step in face processing is to detect faces. Face detection determines whether an image contains faces, and if it does, reports the locations of each face [43]. Face detection is an active area of research including exemplar-based face detection [22] and cascade-based face detection [6]. Recently, convolutional deep neural networks have been used for face detection [23] [44] [9] including a multi-tasked cascaded convolutional network [45].

The recent work in face detection, including most of the citations above, has concentrated on finding faces under more and more challenging conditions. In terms of the introduction to this paper, these papers have concentrated on the hard end of the face detection spectrum. This is understandable, since face detection in mug shots and other easy settings is a solved problem. To address ever more challenging scenarios, however, these works have adopted techniques such as deep neural networks that consume significant computational resources.

We believe that many security applications, however, confront scenarios with multiple cameras but limited network bandwidth. In these cases, it is desirable to use computationally simple face detection algorithms that can be implemented near the camera, so that only detected faces have to be forwarded over the network. At the same time, the face detection algorithms have to be sophisticated enough to detect faces as they wander around a room or walk down a corridor. These security applications are not fully on the easy side of the face detection spectrum, either.

The most common inexpensive face detection algorithm is the Viola and Jones [41] [42] face detector. This algorithm can detect faces at 15 frames per second on traditional hardware. Special-purpose hardware can make it faster, and because of its speed it has been embedded in many point-and-shoot cameras. The Viola-Jones algorithm is notable for its integral image representation [8], the use of AdaBoost [12] for training, and its cascade of classifiers. The integral images and the classifier cascade, in particular, account for its speed.

This paper presents a new algorithm based on correlation that, like Viola-Jones, is fast enough and simple enough to embed in a camera. Unlike Viola-Jones, however, it can detect faces when people are moving around inside an environment like a waiting room where the pose and illumination change but there are background patterns that can be learned and discounted. In essence, CorrFaD learns correlation filters that respond to faces but not to the environment. As a result, it is able to outperform Viola-Jones without requiring significantly more computational resources.

4 Correlation-based Face Detection

Applications on the easy end of the face detection spectrum are well-served by fast algorithms, most notably Viola-Jones [42]. Our goal in developing CorrFaD was to push fast face detection techniques more toward the middle of the spectrum, and in particular to create a fast technique to detect faces in complex but repeated settings, for example waiting rooms and corridors.

Our hypothesis is that better algorithms for training optimal filters (as discussed in Section 2.3) enable face detection algorithms based on image correlation. Image correlation (a.k.a. template matching) is, of course, the oldest technique in computer vision. The process is well known. One simply convolves an image with a filter and thresholds the local maxima in the resulting convolution image. If the image size (i.e. scale) of the target is unknown, one can use image pyramids [32] to rescale the source image and efficiently locate targets at multiple scales.

The limits of image correlation are also well known, of course. One problem is setting the appropriate threshold. In most domains, the appearance of a target will change from image to image. In face recognition, for example, the appearance of a target is largely a function of viewpoint. We also expect illumination changes as a person walks around a room. In addition, the target object itself may change over time, as when people change expressions or hair styles. All of these factors degrade the response of the filter to faces, and it can be difficult or even impossible to find a threshold that separates the responses of true faces from the random responses of background objects.

MOSSE filters, however, minimize the problem of false responses to background objects. The MOSSE filter training algorithm explicitly creates filters that respond to faces but not to the background. While all the correlation filter training algorithms discussed above try to maximize target responses relative to background responses, none make comprehensive use of the backgrounds of the training images the way MOSSE does. As a result, as long as the training images are acquired in the same setting as the test images – for example, the same waiting room or corridor – nothing in the background should respond strongly to the MOSSE filter.

Geometric transformations remain the other major problem. Correlation is insensitive to changes in translation, but is unfortunately sensitive to changes in rotation or scale. Worse still, faces are non-planar objects in 3D; their 2D image appearance therefore depends on the orientation of the face in 3 space relative to the camera.

Fortunately, in most applications we do not expect to encounter faces at truly arbitrary orientations. People tend to stand or sit mostly upright; headstands are less common. Although we often look up or down, we do this mostly by moving our eyes. The tilt of our head is relatively subdued. We do expect rotations in the horizontal plane; faces may be oriented toward the camera, but they may also be facing to the left or right. We also expect changes in scale as people move closer to or farther from the camera.

Our approach to compensating for changes in orientation and scale is simple and brute force: more filters, combined with image pyramids. The rest of this section describes experiments to test the range of scales and orientations a MOSSE face filter responds to. As will be shown, 3 filters covers an octave of scale space, and at each of these scales we need filters for three orientations. As a result, 9 image convolutions per octave is enough to detect faces in many applications.

4.1 Scale Sensitivity

To measure the sensitivity of MOSSE face filters to changes in scale, we first conducted a set of experiments on images from the FERET [31] face data set. As mentioned in the introduction, FERET is an easy data set. Nonetheless, we use FERET in order to isolate the effects of scale from other factors. When we introduce the full CorrFaD algorithm in Section 5, we will evaluate its performance on more challenging data sets.

We use 500 images selected from FERET to measure scale sensitivity. Figure 3 shows 6 of the 500 images. As shown in Figure 3, FERET images have uniform backgrounds, so false matches from background features are not an issue. FERET images are also labeled in terms of pose; we use 500 frontal images so that there are no significant changes in orientation. Other sources of variation, such as changes in expression and illumination, remain. The 500 images are divided into training and test sets such that no subject appears in both the training and test set.

4.1.1 Baseline Scale Performance

The first experiment establishes a baseline: how well do MOSSE face filters perform when the scales of the faces in the test set, measured in terms of pixels between the eyes, are the same as the scales of the training images? To determine this, we re-scaled the images in both the training and test sets so as to make the interocular distances the same. We did this 6 times, creating data sets with interocular distances of 16, 32, 48, 64, 80 and 96 pixels. We then correlated test images with an interocular distance of 16 with a MOSSE filter trained on faces with 16 pixels between the eyes. We also correlated images with interocular distances of 32 with a filter training on faces with 32 pixels between the eyes, and so on. At each scale, we had 250 correlation tests, one for each test image. After each correlation we located the peak filter response. A trial was said to be a success if the peak was within 5 pixels of its ground truth location (the midpoint between the eyes).

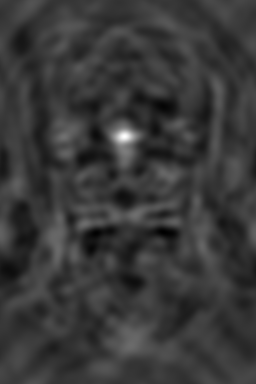

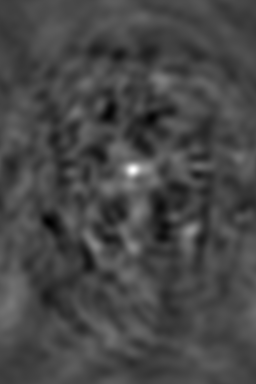

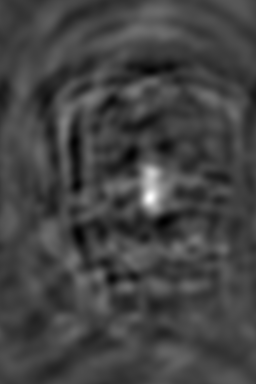

The results of these tests are presented in Table I. Not surprisingly, larger faces have more information and are therefore easier to detect than smaller ones. MOSSE filters correctly localize (to within 5 pixels) 91.2% of all faces when the interocular distance is 16 pixels; this rises to 97.2% when the interocular distance is 96 pixels. In general, however, MOSSE filters localize faces over 90% of the time in easy images from the FERET data set when there are no differences in scale or orientation. (There is a small, unexplained exception for faces with 32 pixels between the eyes.) Figure 4 shows visually what the MOSSE filters look like for different scales. The increase in detail explains the 6% rise in accuracy over the range of interocular distances.

4.1.2 Performance as a Function of Scale Change

Having established a baseline, our next goal is to measure the sensitivity of MOSSE face filters to changes in scale. Invoking scale space theory, we measure scale changes in terms of octaves. Every octave represents a doubling of the pixels between the eyes. Anticipating the use of image pyramids, our goal is to determine how many filters are needed per octave.

We begin by re-scaling the training images to an interocular width of 64 pixels (6 octaves) and training a MOSSE filter for faces as that scale. We then re-scale the test images to different interocular widths, starting at 52 pixels (5.7 octaves) between the eyes and increasing through 64 pixels up to 76 pixels (6.3 octaves) between the eyes. We then evaluate how well the Octave 6 MOSSE filter localizes faces for every scale of training image. The result is shown in Figure 5.

The horizontal axis of Figure 5 is the difference in scale (measured in octaves) between the filter and test image. The vertical axis is the percentage of time the filter localizes the face to within 5 pixels of its true position (a tight threshold, considering the interocular distance is 64 pixels). The curve of the data indicates that when the scale mismatch between the filter and target is plus or minus a tenth of an octave, the ability of the filter to localize the target drops about 10%. At plus or minus a sixth of an octave, localization ability drops about 20%. Beyond that, the decline is rapid. This suggests that between 3 and 5 MOSSE face filters are needed to cover one octave in scale space.

The results in Figure 5 were calculated at octave 6. As shown in Figure 4, MOSSE filters are more detailed at larger scales and less detailed at smaller scales. To see if this makes a difference, we repeated the experiment above at interocular distances of 16, 32, 48, 64, 80 and 96 pixels (4, 5, 5.58, 6, 6.32 and 6.58 octaves, respectively). These results are presented in supplemental material and they are qualitatively similar. As a result, between 3 and 5 MOSSE filters are needed to cover an octave of test scales anywhere in scale space.

4.2 Filter Selection

The previous experiment established that between 3 and 5 filters are needed per octave to compensate for changes in scale. Although the FERET faces are forward facing, when we move to more challenging domains we will also need multiple filters per scale to accommodate different poses. Using more than one filter introduces a challenge. Of the many filter responses to an image, how do we pick the local optima that matches best and therefore determines both the position and scale of the face? This section, establishes a methodology to pick the best match filter responses.

4.2.1 Peak-to-Sidelobe-Ratio (PSR)

To pick the best filter response from a batch of filter responses we use the Peak-to-Side-lobe Ratio (PSR) as recommended by Savvides et. al. [37]. PSR is a probabilistic measure of the height of a peak in terms of the mean and standard deviation of the surrounding signal. The response peak with the highest PSR is selected as the best filter and used to determine the location and size of the face in the image.

The Peak-to-Side-lobe-ratio (PSR) is defined as:

[TABLE]

where $peak$ is the value of a local maxima in the correlation surface, and, $mean$ and $\sigma$ are the mean and the standard deviation of the correlation surface excluding a 5$\times$5 pixel window around the local maxima. It is pertinent to mention that Saviddes et al. [37] did not compute the mean and standard deviation over the whole image (excluding the local peak). Instead, they estimated the mean and standard deviation in a 64$\times$64 pixel window around but excluding the local maxima. We tried this approach in pilot studies, but achieved better performance when the full image was used.

4.2.2 Selecting Filter Responses

The general approach to compensating for changes in scale and viewpoint in CorrFaD is to convolve the image with multiple filters and select the best responses. Unfortunately, more filters have the potential of introducing more false positives. To test this, we trained 13 filters at scales ranging from 3 octaves (8 pixels between the eyes) to 6.7 octaves (96 pixels between the eyes), and tested them on non-resized (unprocessed and random) test images. The results are presented in Table II. One observation from this table is that most of the faces in the FERET data set have between 64 and 80 pixels between the eyes. Another is that the average face responds correctly to about three filters, reinforcing the observation that filters detect faces over a range of sizes.

The most important line in Table II is the last one. This is the accuracy that results from selecting the peak with the highest PSR value for each image out of all the filter responses. This means that when an image is tested with each one of these filters, we pick the scale and pose of the filter that finds the highest PSR. Using this approach we correctly detected a face in 95.2% of our test images. At this accuracy it is significantly higher than the accuracy of any of the individual filters, suggesting that the risk of additional false positives is more than compensated for by the ability to select among filters at different scales.

5 CorrFaD: Detecting Faces in Repeated Settings

As mentioned in the introduction, face detection in easy data sets like FERET is a solved problem. Most recent research concentrates on face detection in unconstrained settings, even if the resulting algorithms are computationally expensive. This paper develops a simple algorithm for detecting faces in complex but repeated settings, a situation common in many surveillance applications.

Specifically, we advocate detecting faces by convolving the source image with a set of linear filters, and thresholding the maximum response. This is such a simple (and old) technique that its use in complex face detection scenarios may be surprising. Two factors have changed, however: (1) new optimal filter techniques create linear filters that are more robust to changes in lighting, expression and other factors; and (2) MOSSE filters in particular learn to discount repeated backgrounds. As a result, faces can be detected in even complex scenarios as long as the general location is repeated.

5.1 Datasets: PaSC and R-PaSC

The Point-and-Shoot Challenge (PaSC) data set was introduced for the handheld video face and person recognition competition at International Joint Conference on Biometrics (IJCB) in 2014 [16]. It was also the basis of a video person recognition evaluation at Face and Gesture conference in 2015 [36] and video person recognition challenge at the $8^{th}$ IEEE International Conference on Biometrics: Theory, Applications, and Systems (BTAS) in 2016 [30]. The data set contains videos of people performing every day tasks. As a result, the people in the videos walk around through different lighting conditions, sometimes getting closer to the camera and other times getting farther away. They often change expressions, and they rarely look at the camera. In addition, the cameras are inexpensive point-and-shoot that are generally held by hand, resulting in jitter and motion blur. In other words, PaSC is a challenging data set near the difficult end of the face detection spectrum, similar in many ways to JANUS [17].

The PaSC data set is, in fact, too difficult for the linear filters advocated here. As shown below, they are not able to reliably detect faces in the PaSC data set. Unlike JANUS, however, the PaSC data set was collected at a small set of indoor and outdoor locations. As a result, it is possible to create a set of smaller, restricted data sets that we will collectively call R-PaSC (Restricted-PaSC). Every data set in R-PaSC contains a set of training videos that were all collected at one location. The associated test videos were collected at the same location. The people are disjoint across the training and test sets, so that we are never testing on a video of a person that we trained on. Other than the location, all other sources of variation (e.g. expression, task) remain.However, as we will show below, just restricting the training and test location simplifies this task enough that MOSSE filters are now able to detect the faces.

To be specific, the unrestricted PaSC data set contains 2,802 videos of 265 people carrying out simple tasks. There are four to seven videos per subject using controlled videos and four to seven videos using hand held cameras in six different locations.

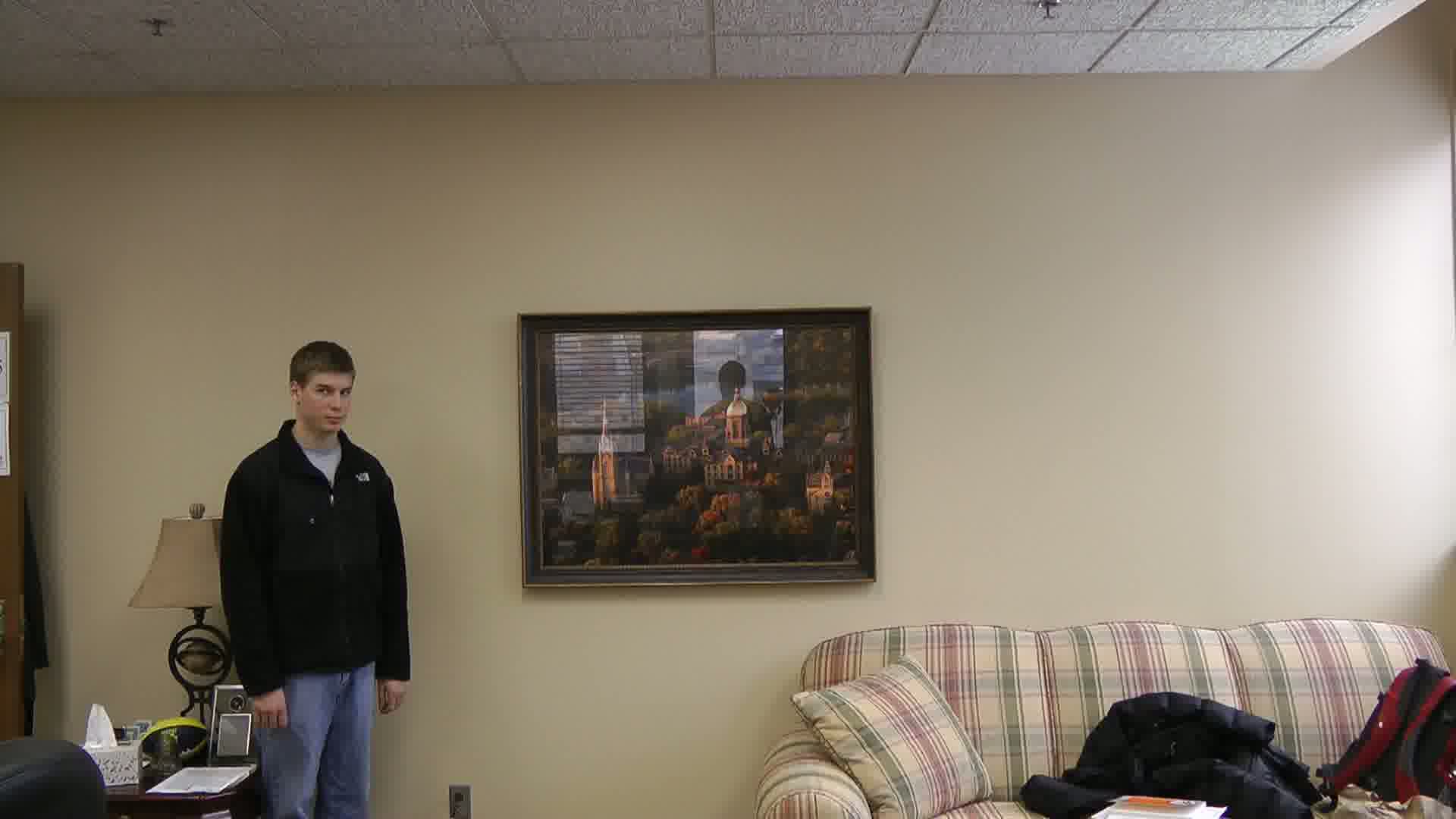

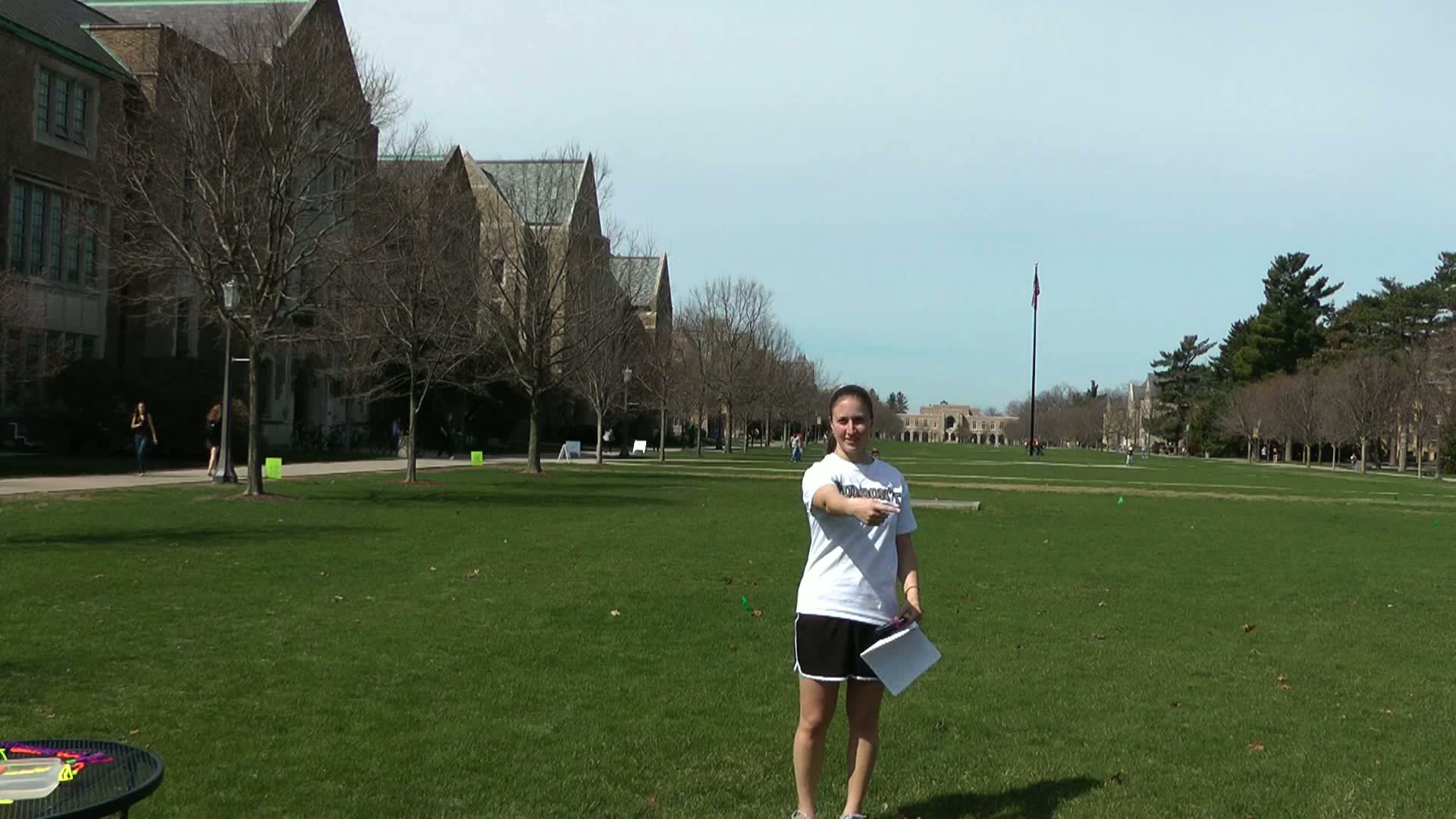

Since our goal for R-PaSC is to restrict to a particular setting, out of the 2,802 unrestricted PaSC videos, we picked 256 videos shot at a particular location for training and 73 videos for testing. Figure 6 displays frames from the videos shot at a particular location with different background objects. The details of this data set are presented in Table III. There is no overlap between the test and the training sets including people. The background is different in terms of the number of background objects but the location remains the same.

5.2 Training & Selecting Filters

The goal of this section is to evaluate whether a bank of MOSSE filters can be used to detect faces in surveillance applications with repeated settings. This requires that we first determine how many filters we need to span the range of scales and viewpoints we expect to encounter. Based on the available training data, we decide to limit the experiment to recognizing images of faces with between 16 and 128 pixels between the eyes (a three octave range) and in which both eyes are visible (i.e. no profiles or backs of heads).

In Section 4.1.2, we determined that between 3 and 5 filters per octave were needed to cover changes in scale. This was determined based on experiments with the FERET data set, so that confounding factors such as changes in illumination or expression would not alter the result. Real applications include these other factors, however, so we decided to confirm whether 3 to 5 filters per octave was still sufficient for this new, harder data set.

We ran a controlled experiment using the same methodology as in Section 4.1.2. We resampled the training images to have 64 pixels between the eyes, and resampled the test images to have between 45 and 90 pixels between the eyes (i.e. plus or minus half an octave) in increments of 0.05 octaves. The resampling was done on test images from the PaSC data set that have an interocular width greater than or equal to 64 pixels to avoid ”up sampling”. The results are shown in Figure 7.

Figure 7 shows the accuracy of localizing a target within 10% of the inter-ocular width in both x and y directions. Specifically, it shows the results of a filter trained for images of octave 6 inter-ocular width (i.e. 64 pixels) when tested on 21 different data sets whose inter-ocular widths range between 5.5 octaves and 6.5 octaves.

According to Figure 7, the detection accuracies for the quarter octave between 5.86 and 6.10 octaves stay between 70% and 75%. This is consistent with the previous results on FERET, and lead us to train four MOSSE filters per octave. We confirmed this result with additional experiments for filters trained on other inter-ocular widths. The results were consistent across these additional tests

The next challenge is to determine how many filters we need per scale to account for changes in viewpoint. We ran a pilot experiment to determine the range of pose variation, and found that there are three different ranges within the PaSC training dataset: less than -12∘ (left side facing the camera), between -12∘ and +12∘ (in and around frontal pose) and greater than +12∘(right side facing the camera). So, we have frontal or near frontal pose, left profile or between frontal and left profile pose and right profile or between right profile and near frontal pose. As a result, we use train filters for four scales and three viewpoints per octave, for a total of 12 filters per octave. Since we want to cover a range of interocular distances ranging from 16 to slightly over 128 pixels, we train a total of 39 filters covering $3\frac{1}{4}$ octaves.

When training these filters, we did not artificially resize any face images. Instead, we used 255,835 frames selected from 999 training videos to cover all 39 combinations of pose and scale. Nine of those trained filters are displayed in Figures 8, 9 and 10. The three filters in each figure have the same scale but different poses. To be more precise, in Figure 8, the left filter 8(a) has been trained on an image dataset containing images with 32 pixels between the eyes and a pose of greater than 12∘ or the right profile. Similarly, the filter in Figure 8(b) is trained on a dataset with images that have 32 pixels between the eyes and a frontal or near frontal pose. Finally, Figure 8(c) shows a filter trained on a dataset having images that have 32 pixels between the eyes and a pose of less than 12∘ or near left profile. Figures 9 and 10 can be explained in a similar fashion.

5.3 Evaluation Methodology

To evaluate the bank of MOSSE filters selected above as a face detection mechanism, we use two approaches. The first approach to find faces in this test dataset was the same as the bank of filters approach of Section 4.2. However, after many experiments it started to become clear that the convolution of the filters with a test image in the Fourier domain showed very poor accuracy results. On the contrary, our second approach, using spatial convolution to match just the faces with the test image proved to be a better option as is discussed in the next section.

5.3.1 Convolution Using Spatial Correlation

In this section, we present a case for using a bank of filters approach in the spatial domain instead of the bank of filters approach in the Fourier domain because the former approach is more effective on the PaSC dataset than the latter one. Although it seems contrary to some of my earlier approaches, a set of careful experiments clearly made it an approach of choice for this dataset. One of the preprocessing steps before the convolution in the Fourier domain involves normalization of the full image. This increases the likelihood of a higher correlation value at a location other than on the face, for example, near a light source. On the contrary, normalization in the case of spatial correlation is applied for each specific location separately, corresponding to the size of the template, which is usually much smaller than the image size. This approach gives a better chance of a correct match.

In order to explain the difference between the two approaches a little more, we will now use a toy example. Consider Figure 11 to be an input image and Figure 12 to be the filter (or template). We are interested in finding this template in the input image.

The first step is to normalize the input test image before convolving it with the template in the Fourier domain. Secondly, since the template is not the same size as the test image, the template needs to be padded with zeros to make it the same size as the test image. The template with the padded zeros is shown in Figure 13.

Convolution of the template and the test image results in a correlation surface with a maximum at coordinates $(0,0)$. This correlation surface is displayed in Figure 14.

On the contrary, spatial correlation, using OpenCV template matching, correctly identifies the peak at coordinates $(8,0)$. For the rest of this chapter we will follow the spatial template matching approach.

Specifically, the testing of PaSC datasets was carried out by using OpenCV template matching [4]. It is basically spatial correlation of templates with the test images. In particular, we used the normalized cross correlation coefficient of OpenCV template matching. It is mathematically represented by the equation 11. {strip}

[TABLE]

where $I$ is a source image, $T$ is a matching template of size $W\times H$, and $(x,y)$ is the location on the image, $I$, where the template is centered for matching.

For our experiments on the PaSC dataset, the templates to match were created by cropping out the faces from the trained filters. Since there are 39 filters corresponding to 13 scales and 3 poses for each scale, there are as many face templates. Some of these templates, displayed below in Figures 19 through  19 for scales of 16 through 32 pixels(4-5 octave in quarter steps) between eyes, display a pyramid of filters of different scales between these octaves.

The approach to detect faces in still images and the frames in videos is carried out using each of these filter templates, called the bank of filters, to match with a test image. Each of these templates is matched with a given test image using OpenCV template matching. The location of the peak correlation value is recorded. This location combined with the filter width and height forms a rectangle representing the detected face in the test image. A match is considered to be found between the returned face rectangle and the ground truth face rectangle if there is an overlap of 25% between the two rectangles. The ground truth face rectangles were obtained using the SDK 5.2.2 version of an algorithm developed by Pittsburgh Pattern Recognition (PittPatt) [1].

6 Location Specific Face Detection

The focus of this research is to detect faces in places, such as entrance to a sensitive building like an airport, nuclear facility, or any other places where confidentiality matters. With the goal of verification, the location in these settings remains more or less uniform with no control on pose or scale. In this section we present our results on a customized data set, obtained from the PaSC data set to maintain a uniform background. We hypothesize, a correlation filter designed for a specific setting with a specific background and not controlled for scale and pose, will yield a high accuracy in face detection. Rest of this section is dedicated to test this hypothesis.

6.1 Experimental Setup

This experiment is setup to test the hypothesis presented above. We have controlled for location and as a result created a customized dataset of video frames. In this dataset the location is the same between the training and the test datasets but there is no overlap of people between the two datasets. All the videos have been shot in an indoor location. Some of the frames from six different videos are presented in Figure 1.

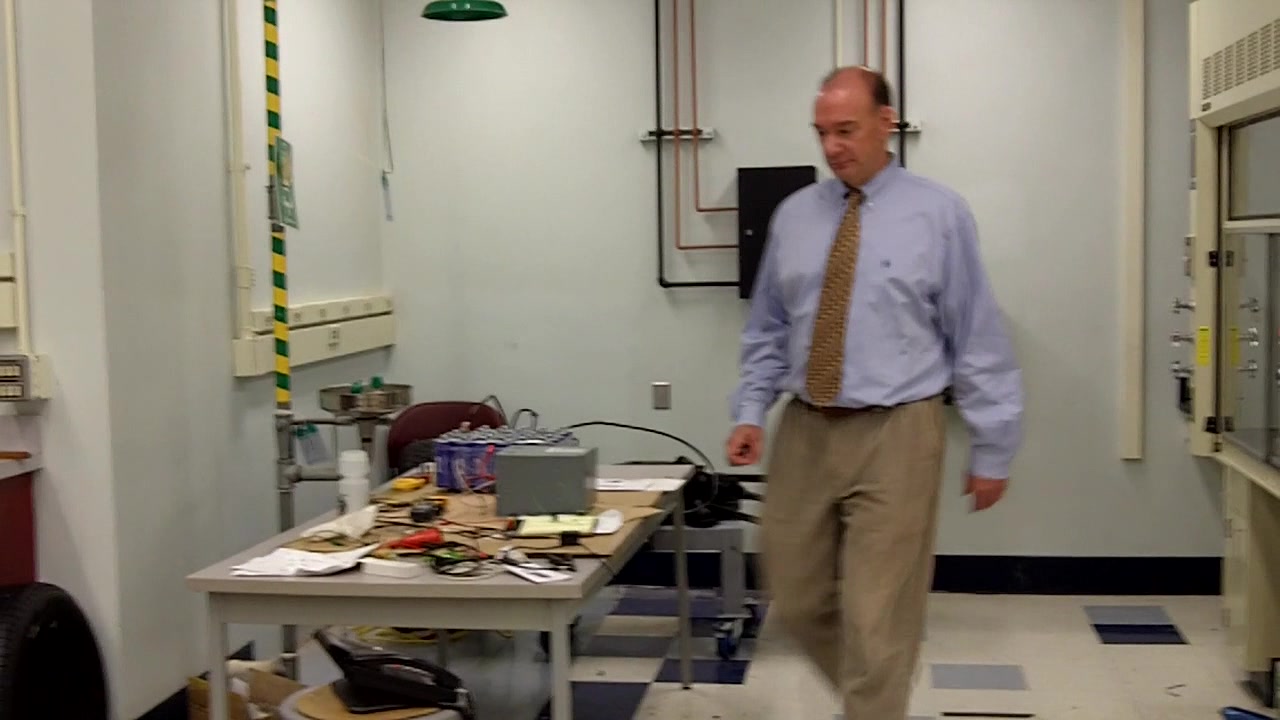

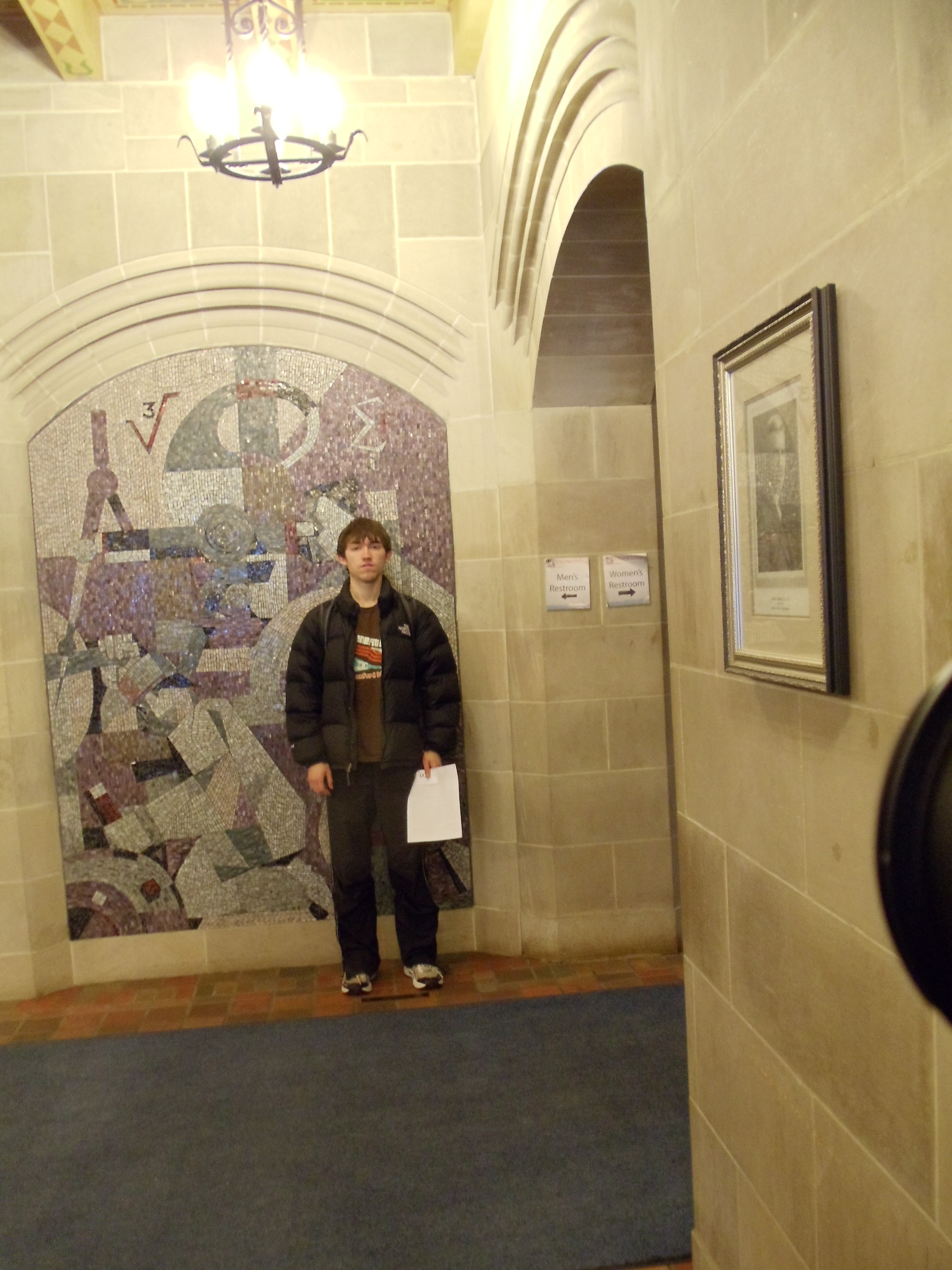

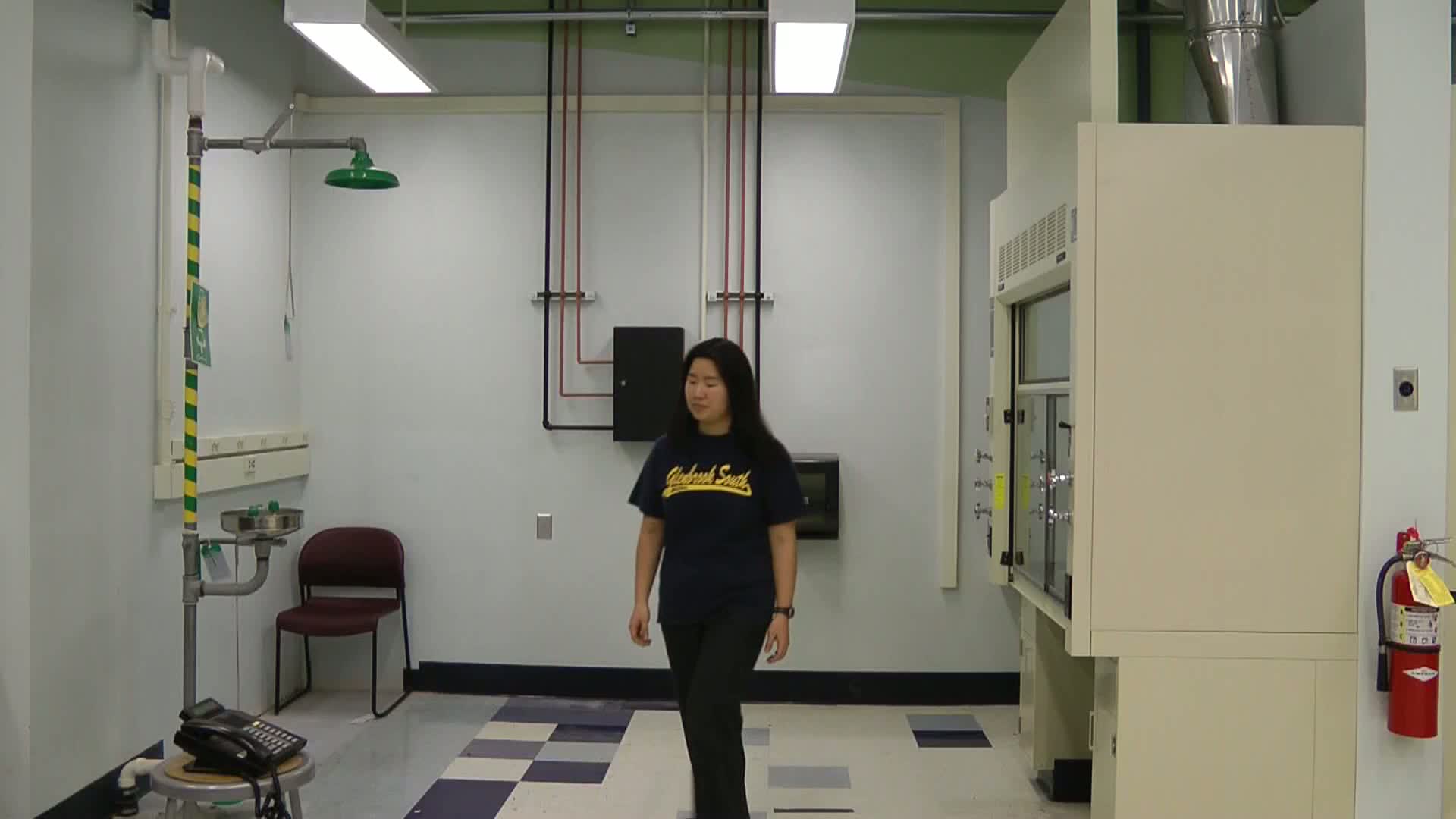

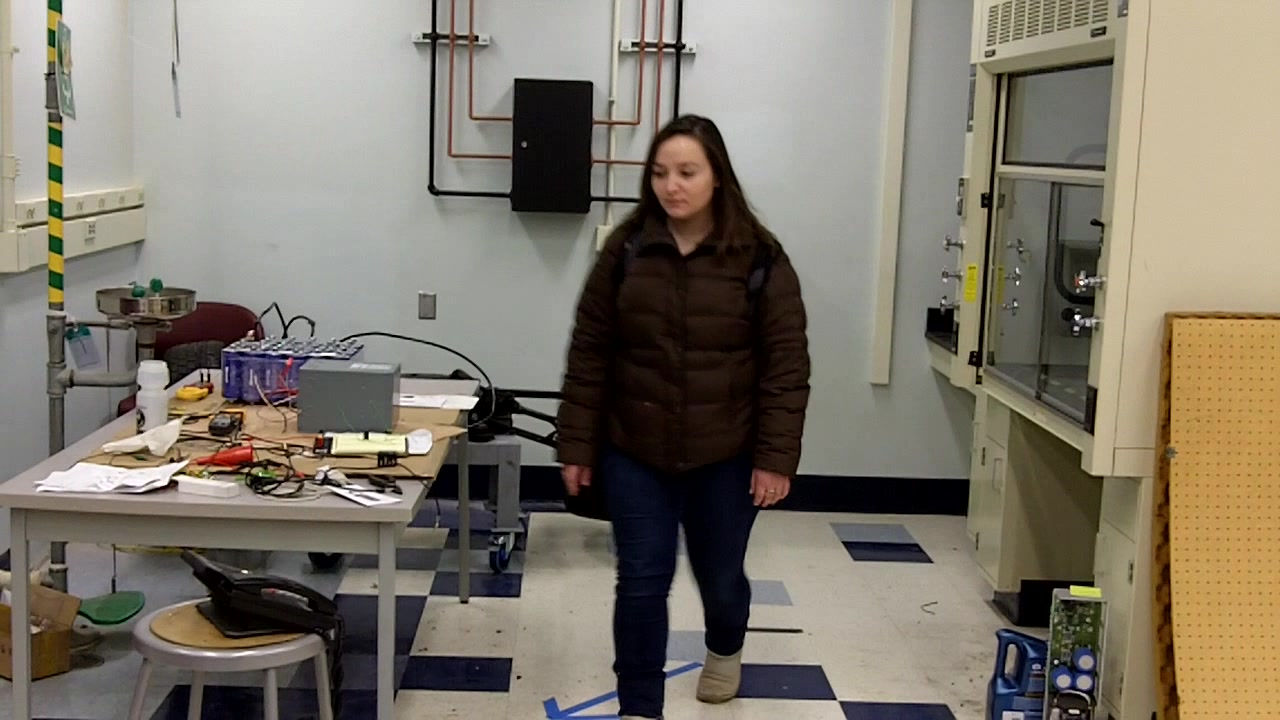

These frames are a representative of this dataset displaying some of the variations in scale and slight pose, in a specific setting. The training set consists of 256 videos with 18,966 frames. The filters trained for this particular location, and two closely related poses, and two different scales are shown in Figure 20.

The faces in the training video frames for this setting have an inter-ocular width between 16 and 32 pixels and two closely related poses near the left profile. Therefore, we created two different datasets for training. One set consists of images having greater than or equal to 16 but less than 24 pixels between the eyes. This training set is used to train the filter shown in Figure 20(a). The second training set consists of images that had an interocular width between 24 and 32 pixels. The filter trained on this dataset is presented in Figure 20(c).

Even though the filters are trained on the full frames to get rid of the clutter in the background, smaller face templates, shown in Figures 20(b) and  20(d), have been cropped from these trained filters to do a spatial template matching using OpenCV. This ensures that the normalization is taken at each location of an image corresponding to the size of the face template and not the entire image.

These two face templates have been spatially correlated, using OpenCV, with the frames of a test set consisting of 73 videos, containing 1,865 frames. Each of these videos has been shot at the same location and the inter-ocular width varies between 18 and 33 pixels. It may be reiterated that in our setup two filters have been trained on images with an interocular range of 16 to 32 pixels. If we take a look at Figure 7, one may notice that there is a range of test images that would give a good detection accuracy for a filter trained on images that are closer to the interocular width in the test dataset. Since the interocular widths of the images in the training and test datasets lie in the same range, the filter design choices in terms of interocular distance are appropriate.

6.2 Results

Each frame in the test dataset is matched with the face templates of Figures 20(b) and 20(d), and the coordinates of the location that returns the highest correlation value for these two matches is recorded. To choose between these two results, the coordinates of the one that has a higher correlation value is selected. This coordinate identifies the top left corner of the detected face rectangle. The width and the height of the face template determines the width and the height of the face rectangle. The face rectangle coordinates for each test image are recorded. These face rectangles are eventually used to determine the performance of the experiment.

The performance measure used in this experiment is based on an overlap of the face rectangle obtained by template matching of the face filters and the test images, with the face rectangle of the faces from the ground truth for each of these images. If there is an overlap of 25% or more between the two rectangles, the face in an image is recorded as detected.

Based on this criteria for accuracy, the algorithm was able to find a face match in 1,520 frames out of 1,865 frames which equates to an 81.5% detection rate. This result has been compared with face detection results obtained from OpenCV Viola and Jones’ face detector, which achieved an accuracy of 69.43% or 1,295 out of 1,865 frames. The criteria of accuracy for this face detector is the same as for the correlation filter based face detector. These two results are displayed side-by-side in Figure 21. It is clear that the correlation based face detector outperforms OpenCV Viola and Jones face detector in a specific scenario and it validates the hypothesis presented in the beginning of this section.

6.3 Conclusion

In this section, we hypothesized that the more specific a filter, the better the accuracy in detecting faces in an image. As such, a controlled experiment was devised in which the location in both training and test datasets was restricted. The inter-ocular widths between the training and the test datasets are also in the same range. The correlation filter based face detector was used to test the dataset and compared with the OpenCV Viola and Jones face detector. The results presented in Figure 21 clearly indicate that the correlation based approach is doing better for such a dataset and hence confirms the hypothesis.

This is one of the most significant face detection results obtained using correlation filters. A constant background setting gives an advantage to the approach because the correlation filter training appears to learn this setting and returns a filter suited for a similar background. Because of this learning, the filters ignore the background clutter during the testing process and avoid false positives. Therefore, one of the most important application of a correlation based face detection approach is to use it in specific situations. For example, people walking into a building through a specific door, or a security checkpoint where the setting remains mostly constant. These results are important to establish the significance of face detection using correlation filters that are trained for specific scenarios and is an attempt to lead this research in that direction.

7 Limitations of CorrFaD

Having established the scenario for which correlation based face detector, CorrFaD, is designed, this research would not be complete without studying the limitations of this approach. As previously admitted our approach is not designed for face detection in uncontrolled settings but rather repeated settings with a goal of face verification. In this section we summarize the findings of using CorrFaD in uncontrolled settings for images and videos (refer to supplemental material for a detailed discussion).

These image and video data sets represent a careful combination of uncontrolled scale, pose, lighting, and location along with the sensors used to capture it, just like numerous, handheld cameras and cellphones that people around the world use to take pictures. The results have been compared with the random results as well as OpenCV Viola and Jones face detector. It turns out that although our approach does much better than random experiment, it is not at all competitive with the Viola and Jones’ face detector when a single filter is used. However, when all thirty-nine filters covering thirteen different scales and three poses for each scale, are used, the accuracy of face detection by at least one of those filters comes very close to the Viola and Jones face detection results. To be precise it is 70.54% accuracy for our approach versus 87.31% accuracy using Viola and Jones face detector, on the still image data set. On the video data set, the accuracy is 84.07% versus 86.24%, for correlation filter based face detector and Viola and Jones face detector, respectively. The reason for presenting and comparing the results when all filters are being used is that even though, the filter that gives the top correlation value does not always find the right face, there is at least one filter in the set, that detects the face correctly with a high accuracy. This verifies the apprehension that correlation based face detection is not an approach of choice for so many variations (scale, pose, background etc.,) in the dataset. In fact we do not present it as such either and position it as an approach to be used for controlled background settings.

8 Discussion

In this paper we introduce a novel correlation based face detector, CorrFaD. Using CorrFaD for face detection involves a transition from target localization to face detection, using a batch of filters to determine the scale and pose of faces and finally, applying peak-to-sidelobe ratio to determine the face rectangle. It was applied to FERET, and PaSC image and video data sets.

Each of these images and video frames contains only a single face. CorrFaD is easy to train and fast in testing. However, like any other face detector this one also has to deal with many complexities associated with face detection. Some of these complexities are associated with faces of different sizes or scales, pose, uncontrolled lighting, background and location, while some others arise out of the basic principles of the process on which such a face detector is based.

Any correlation operation returns a peak value and hence by design it is suited to locate one face in an image associated with the highest peak. Our goal from the outset has been to work and apply this algorithm on datasets with a single face in each image, therefore, this correlation property is a feature. We have shown that this technique works very well for images with single face and controlled backgrounds but not for complex backgrounds and uncontrolled features involving pose, location and lighting. We do not present this technique for face detection in images taken under uncontrolled conditions and do not claim its strength in such data sets. There are techniques, for example Viola and Jones face detector, that are better suited for such datasets.

However, the strength of our correlation based face detector lies in specific and repeated settings. We have clearly demonstrated that, with controlled location and small variation in scale, pose and lighting, our technique significantly outperforms Viola and Jones’ face detector.

Prior to this research, there has been a lot of study on correlation filters and their applications but this is the first research that extends correlation filters to face detection. The goal is not to create the best face detection approach for all scenarios, but to extend correlation filters to an area where they have never been applied before. More specifically, this face detector has been designed to work under very controlled scenarios, specific to a situation. It has a potential value in scenarios such as, an airport security gate, an entrance to a sensitive building such as a nuclear reactor or an entrance to a train / bus station. We end this paper by summarizing the main findings of this research:

It is a fast algorithm suitable for face detection in cameras. 2. 2.

This is the first correlation based face detector. We have presented scenarios where such a face detector would be successful and where it may not be an approach of choice. 3. 3.

We have presented a methodology to use localization for face detection. 4. 4.

A correlation filter trained for a given scale and pose can be used for a small range of scales and poses around the training scale and pose. 5. 5.

Correlation based face detectors are most promising in deployments where the setting remains roughly constant and setting specific filters may learn to discount background distractions.
