Implications of chiral symmetry on $S$-wave pionic resonances and the scalar charmed mesons

TL;DR

This paper explores how chiral symmetry influences low-energy pionic resonances and scalar charmed mesons, revealing that traditional Breit-Wigner models overestimate their masses and proposing a two-state interpretation for the $D^*_0(2400)$.

Contribution

It demonstrates that considering chiral symmetry and final-state interactions explains B-meson decay data and suggests the $D^*_0(2400)$ is better described as two separate states.

Findings

Breit-Wigner parameterization overestimates resonance masses.

Experimental decay data are consistent with chiral effective field theory.

The scalar charmed meson $D^*_0(2400)$ likely consists of two states.

Abstract

The chiral symmetry of QCD requires energy-dependent pionic strong interactions at low energies. This constraint, however, is not fulfilled by the usual Breit--Wigner parameterization of pionic resonances, leading to masses larger than the real ones. We derive relations between nonleptonic three-body decays of the $B$-meson into a $D$-meson and a pair of light pseudoscalar mesons based on SU(3) chiral symmetry. Employing effective field theory methods, we demonstrate that taking into account the final-state interactions, the experimental data of the decays $B^-\to D^+\pi^-\pi^-$, $B_s^0\to \bar{D}^0K^-\pi^+$, $B^0\to\bar{D}^0\pi^-\pi^+$, $B^-\to D^+\pi^-K^-$ and $B^0\to\bar{D}^0\pi^-K^+$ can all be described by the nonperturbative $\pi/\eta/K$-$D/D_s$ scattering amplitudes previously obtained from a combination of chiral effective field theory and lattice QCD calculations. The results provide a strong support of the scenario that the broad scalar charmed meson $D^\ast_0(2400)$ should be replaced by two states, the lower one of which has a mass of around 2.1 GeV, much smaller than that extracted from experimental data using a Breit--Wigner parameterization.

Figures

Tables

Table 1. Table 1: Production vertices for the possible intermediate states contributing to B − → D + ​ π − ​ π − → superscript 𝐵 superscript 𝐷 superscript 𝜋 superscript 𝜋 B^{-}\to D^{+}\pi^{-}\pi^{-} . Here, p D ( s ) subscript 𝑝 subscript 𝐷 𝑠 p_{D_{(s)}} and p ϕ subscript 𝑝 italic-ϕ p_{\phi} denote the four-momenta of the charmed meson and the Goldstone boson, respectively.

(32)

Table 2. Table 2: Weak amplitudes contributing to the decays B s 0 → D ¯ 0 ​ K − ​ π + → superscript subscript 𝐵 𝑠 0 superscript ¯ 𝐷 0 superscript 𝐾 superscript 𝜋 B_{s}^{0}\to\bar{D}^{0}K^{-}\pi^{+} , B 0 → D ¯ 0 ​ π − ​ π + → superscript 𝐵 0 superscript ¯ 𝐷 0 superscript 𝜋 superscript 𝜋 B^{0}\to\bar{D}^{0}\pi^{-}\pi^{+} , B − → D + ​ π − ​ K − → superscript 𝐵 superscript 𝐷 superscript 𝜋 superscript 𝐾 B^{-}\to D^{+}\pi^{-}K^{-} , and B 0 → D ¯ 0 ​ π − ​ K + → superscript 𝐵 0 superscript ¯ 𝐷 0 superscript 𝜋 superscript 𝐾 B^{0}\to\bar{D}^{0}\pi^{-}K^{+} through coupled-channel effects.

(63)

Table 3. Table 3: The masses and widths of the P 𝑃 P - and D 𝐷 D -wave resonances are taken from the LHCb analyses  Aaij:2014baa ; Aaij:2016fma .

(95)

Table 4. Table 4: Values of the LECs from fitting to the LHCb data of the angular moments ⟨ P 0 ⟩ delimited-⟨⟩ subscript 𝑃 0 \langle P_{0}\rangle , ⟨ P 2 ⟩ delimited-⟨⟩ subscript 𝑃 2 \langle P_{2}\rangle and ⟨ P 13 ⟩ delimited-⟨⟩ subscript 𝑃 13 \langle P_{13}\rangle for the reactions B − → D + ​ π − ​ K − → superscript 𝐵 superscript 𝐷 superscript 𝜋 superscript 𝐾 B^{-}\to D^{+}\pi^{-}K^{-} , B s 0 → D ¯ 0 ​ K − ​ π + → superscript subscript 𝐵 𝑠 0 superscript ¯ 𝐷 0 superscript 𝐾 superscript 𝜋 B_{s}^{0}\to\bar{D}^{0}K^{-}\pi^{+} and B 0 → D ¯ 0 ​ π − ​ π + → superscript 𝐵 0 superscript ¯ 𝐷 0 superscript 𝜋 superscript 𝜋 B^{0}\to\bar{D}^{0}\pi^{-}\pi^{+} Aaij:2015vea ; Aaij:2014baa ; Aaij:2015sqa . The two errors correspond to the one-sigma uncertainties propagated from the input scattering amplitudes and from fitting to the experimental data, respectively. The asterisk marks an input value from Ref.  Du:2017zvv .

(100)

Table 5. Table 5: Values of the subtraction constant a A subscript 𝑎 𝐴 a_{A} and the phase parameters, denoted by δ D ∗ subscript 𝛿 superscript 𝐷 ∗ \delta_{D^{\ast}} , δ D ∗ ′ superscript subscript 𝛿 superscript 𝐷 ∗ ′ \delta_{D^{\ast}}^{\prime} , and δ D 2 subscript 𝛿 subscript 𝐷 2 \delta_{D_{2}} . The two errors correspond to the uncertainties propagated from the input scattering amplitudes and experimental data.

(105)

Equations

$$F_0(s)\propto \frac{1}{s-m_0^2+i{m}_0\Gamma },$$

$$\dfrac{d}{ds}|F_{0}(s)|^{2}\propto-\dfrac{2(s-m_{0}^{2})}{\big{[}(s-m_{0}^{2})^{2}+m_{0}^{2}\Gamma^{2}\big{]}^{2}}=0,$$

$$F_0^{\prime }(s)\propto \frac{E_{\pi }}{s-m_0^2+i{m}_0\Gamma }$$

$$\displaystyle\dfrac{d}{ds}|F_{0}^{\prime}(s)|^{2}\Big{\arrowvert}_{s=s_{\text{peak}}}=0.$$

$$\displaystyle\Delta\simeq\dfrac{\Gamma^{2}(m_{0}^{2}-M_{\pi}^{2}+M_{D}^{2})}{2m_{0}\big{[}2(m_{0}^{2}+M_{\pi}^{2}-M_{D}^{2})-\Gamma^{2}\big{]}}=\dfrac{\Gamma^{2}E_{D}}{4m_{0}E_{\pi}-\Gamma^{2}},$$

$$u(x)\mapsto g_{R}u(x)h(x{)}^{†}=h(x)u(x)g_L^{†},$$

$$\varphi =\left(\begin{array}{ccc}\frac{1}{\sqrt{2}}{\pi }^0+\frac{1}{\sqrt{6}}\eta & {\pi }^{+}& K^{+}\\ {\pi }^{-}& -\frac{1}{\sqrt{2}}{\pi }^0+\frac{1}{\sqrt{6}}\eta & K^0\\ K^{-}& {\bar{K}}^0& -\frac{2}{\sqrt{6}}\eta \end{array}\right).$$

$$u_{\mu }$$

$${\Gamma }_{\mu }$$

$$u_{\mu }\mapsto h{u}_{\mu }{h}^{†},$$

$${\Gamma }_{\mu }\mapsto h{\Gamma }_{\mu }{h}^{†}+h{\partial }_{\mu }{h}^{†}.$$

$$B\mapsto B{h}^{†},D\mapsto D{h}^{†},$$

$$B=(B^{-},B^0,B_s^0),\text{and}D=(D^0,D^{+},D_s^{+}).$$

$${\nabla }_{\mu }{D}^{†}$$

$${\chi }_{\pm }=u^{†}\chi u^{†}\pm u{\chi }^{†}u,$$

$$\chi =2B_0\text{diag}(m_u,m_d,m_s),$$

$${\chi }_{\pm }\mapsto h{\chi }_{\pm }{h}^{†}.$$

$${\nabla }_{\mu }{D}^{†}\sim \mathcal{O}(1),{\nabla }_{\mu }{B}^{†}\sim \mathcal{O}(1),u_{\mu }\sim \mathcal{O}(p),{\chi }_{\pm }\sim \mathcal{O}(p^2).$$

$$\displaystyle H_{\text{eff}}=\frac{G_{F}}{\sqrt{2}}V_{cb}^{\ast}V_{ud}\big{(}C_{1}\mathcal{O}^{d}_{1}+C_{2}\mathcal{O}^{d}_{2}\big{)}+(b\to s)+\text{h.c.},$$

$${\mathcal{O}}_1^d$$

$${\mathcal{O}}_2^d$$

$$H_i^j\mapsto H_{i^{\prime }}^{j^{\prime }}(g_L{)}_i^{i^{\prime }}(g_L^{†}{)}_{j^{\prime }}^j.$$

$$H_{\text{eff}}^{\prime }=\frac{G_F}{\sqrt{2}}{V}_{cb}^{\ast }{V}_{ud}{H}_i^{j}C(\bar{c}b{)}_L({\bar{q}}_L^i{q}_{Lj})$$

$$H=\left(\begin{array}{ccc}0& 0& 0\\ 1& 0& 0\\ V_{us}/V_{ud}& 0& 0\end{array}\right).$$

$$H\mapsto g_{L}H{g}_L^{†}.$$

$$t=uH{u}^{†}.$$

$$M\mapsto hM{h}^{†},$$

$$M=\left(\begin{array}{ccc}\frac{1}{\sqrt{2}}{\pi }^0+\frac{1}{\sqrt{6}}\eta & {\pi }^{+}& K^{+}\\ {\pi }^{-}& -\frac{1}{\sqrt{2}}{\pi }^0+\frac{1}{\sqrt{6}}\eta & K^0\\ K^{-}& {\bar{K}}^0& -\frac{2}{\sqrt{6}}\eta \end{array}\right).$$

$${\mathcal{L}}_{\text{eff}}$$

$$\mathcal{A}(B\to D\varphi M)={\mathcal{A}}_0(s)+\sqrt{3}{\mathcal{A}}_1(s)P_1(z)+\sqrt{5}{\mathcal{A}}_2(s)P_2(z),$$

$$A$$

Full text

Chiral symmetry, unitarity, coupled-channel dynamics, nonleptonic $B$-meson decays

I Introduction

Solving Quantum Chromodynamics (QCD), the fundamental theory of the strong interaction, is one of the most urgent and challenging tasks in contemporary physics. In principle, the hadronic spectrum is determined by QCD. However, the high nonlinearity of QCD at low energies does not allow for analytical solutions. A direct and clear connection between the fundamental theory and the observed hadronic spectrum is so far absent. Studies of the hadronic spectrum are particularly important in testing the fundamental theory. Therefore, establishing the correct spectroscopy plays an essential role for understanding how the fundamental theory, whose degrees of freedom are quarks and gluons, produces the hadronic spectrum.

The hadronic spectrum has received renewed interest with the recently collected vast amounts of experimental data for hadronic processes. In particular, many resonant structures were observed, and they could be the so-called exotic states which cannot be accommodated in the conventional quark model. The lightest scalar ($J^{P}=0^{+}$) charm-strange meson $D_{s0}^{\ast}(2317)$ Aubert:2003fg and the axial-vector ($J^{P}=1^{+}$) one $D_{s1}(2460)$ Besson:2003cp have attracted much attention as they are significantly lighter than the predictions from the quark model calculations, which are around 2.48 GeV and 2.55 GeV Godfrey:1985xj ; Godfrey:2015dva ; Ebert:2009ua , respectively. It is also noticed that the mass difference between the two states is equal to that between the ground-state pseudoscalar $D^{+}$ and the vector $D^{\ast+}$ within 2 MeV. Since attempts to adjust the quark model to adapt the two new states were at odds with previous expectations and raised new puzzles Cahn:2003cw , various theoretical investigations were stimulated to unravel their nature. Model proposed for them include $D^{(\ast)}K$ molecules Barnes:2003dj ; Szczepaniak:2003vy ; Chen:2004dy ; Guo:2006fu ; Guo:2006rp , tetraquarks Cheng:2003kg ; Maiani:2004vq , a mixture of $c\bar{q}$ with tetraquarks Browder:2003fk and a cousin of the light scalar mesons vanBeveren:2003kd . The situation has become more obscure by the subsequent observations of the scalar and axial-vector charm nonstrange mesons, $D_{0}^{\ast}(2400)$ Abe:2003zm ; Link:2003bd and $D_{1}(2430)$ Abe:2003zm in 2004. Their quantum numbers indicate that they should be the SU(3) partners of the $D_{s0}^{\ast}(2317)$ and $D_{s1}(2460)$, respectively, which sets the starting point for various theoretical studies, see, e.g., Refs. Mehen:2005hc ; Ananthanarayan:2007sa ; Colangelo:2012xi . However, this assignment immediately raises a puzzle: Why are the masses of the two strange mesons, $D_{s0}^{\ast}(2317)$ and $D_{s1}(2460)$, almost equal to or even lower than their nonstrange siblings, i.e., the $D_{0}^{\ast}(2400)$ and $D_{1}(2430)$.

While the mass of $D_{s0}^{\ast}(2317)$ is well measured and its width is very narrow Tanabashi:2018oca , the situation for the $D_{0}^{\ast}(2400)$ is obscure. Its width is very broad and its mass has a significant spread in different experimental measurements, e.g., from $2297\pm 8\pm 5\pm 19$ MeV at BABAR Aubert:2009wg to $2403\pm 14\pm 35$ MeV at FOCUS Link:2003bd . In the potential quark model, it would correspond to the lowest $c\bar{q}$ $P$-wave state with a predicted mass of about $2.4$ GeV Godfrey:1985xj ; Godfrey:2015dva , which is larger than the averaged mass $2318\pm 29$ MeV by the Particle Data Group (PDG) Tanabashi:2018oca . One reason why the analyses that led to the resonances parameters of the $D_{0}^{\ast}(2400)$ and $D_{1}(2430)$ in Refs. Link:2003bd ; Abe:2003zm ; Aubert:2009wg ; Aaij:2015kqa ; Aaij:2015sqa , used in the PDG average, should be questioned is that the amplitudes used were inconsistent with the constraints from the chiral symmetry of QCD, which, as a consequence of the Goldstone theorem, requires energy-dependent couplings for the pionic couplings. The standard Breit–Wigner (BW) parameterizations used in the experimental analyses correspond to using constant vertices, and lead to masses larger than their real values. Moreover, the signal ranges for these two states overlap with higher $S$-wave thresholds ($D^{(*)}\eta,D_{s}^{(*)}\bar{K}$) that need to be considered in a sound analysis. Fortunately, a theoretical framework satisfying such requirements is provided by the chiral perturbation theory (ChPT) for charmed mesons extended with a unitarization procedure, see, e.g., Refs. Kolomeitsev:2003ac ; Hofmann:2003je ; Gamermann:2006nm ; Guo:2006fu ; Guo:2006rp ; Guo:2008gp ; Guo:2009ct ; Liu:2012zya ; Yao:2015qia ; Du:2017ttu ; Guo:2018kno ; Guo:2018tjx .

In Ref. Du:2017zvv it is demonstrated that in the scenario that the lightest scalar (axial-vector) charmed mesons owe their existence to the nonperturbative $\pi/\eta/K$-$D^{(\ast)}/D_{s}^{(\ast)}$ scattering, all of the above mentioned puzzles in charmed meson spectroscopy get resolved. The $D_{s0}^{\ast}(2317)$ and $D_{s1}(2460)$ are dominantly $DK$ and $D^{\ast}K$ hadronic molecules (reviewed in Ref. Guo:2017jvc ), respectively; heavy-quark spin symmetry predicts that their binding energies are independent of the heavy meson spin. Most importantly, the ordering of the lightest strange, i.e. $D_{s0}^{\ast}(2317)$, and the non-strange scalar, i.e. $D_{0}^{\ast}(2400)$, becomes natural. The broad $D_{0}^{\ast}(2400)$ listed in the Review of Particle Physics (RPP) Tanabashi:2018oca should be replaced by two states with the lighter one located more than 100 MeV below its strange sibling, i.e. $D_{s0}^{\ast}(2317)$ Albaladejo:2016lbb ; Du:2017zvv , as well as the masses of $D_{0}^{\ast}(2400)$ listed in RPP Tanabashi:2018oca , which were extracted from BW parameterizations. Furthermore, it was demonstrated that the amplitudes for Goldstone boson ($\phi$)-$D^{(\ast)}$ scattering determined by combining unitarized ChPT with lattice QCD in Ref. Liu:2012zya are fully consistent the recent high quality LHCb data of the angular moments for the decay $B^{-}\to D^{+}\pi^{-}\pi^{-}$ Aaij:2016fma . In particular, that the LHCb data can be fitted with an amplitude having two $D_{0}^{*}$ states, none of whose masses agree with that of the experimental extractions for the $D_{0}^{*}(2400)$, means that the resonance parameters for the scalar charm-nonstrange meson need to be reconsidered by the PDG and by the community.

As the final-state interaction (FSI) between the two $\pi^{-}$ is negligible since they are in an isospin-two state, the reaction $B^{-}\to D^{+}\pi^{-}\pi^{-}$ Aaij:2016fma provides a great access to the $D\pi$ system and thus to the charm-nonstrange mesons. The energy range of the $D^{\ast}_{0}(2400)$ overlaps with two $S$-wave thresholds ($D\eta$ and $D_{s}\bar{K}$), and thus these channels need to be considered and leave their imprints on observables Du:2017zvv . It means that all channels, i.e., $D^{+}\pi^{-}$, $D^{0}\pi^{0}$, $D^{0}\eta$ and $D_{s}^{+}K^{-}$, coupled to the $D^{+}\pi^{-}$ need to be taken into account in the intermediate states for describing the $D^{+}\pi^{-}$ distributions $\lesssim 2.5$ GeV of the decay $B^{-}\to D^{+}\pi^{-}\pi^{-}$. The $D^{0}$, $D^{+}$, and $D_{s}^{+}$ mesons form a $\bar{3}$ representation of the light-quark SU(3) flavor symmetry. Using the SU(3) transformation properties of the effective Hamiltonian for weak nonleptonic $B$-meson three-body decays, a ratio between the four channels can be derived Savage:1989ub ; Du:2017zvv . Because the two $\pi^{-}$ could only be in a state where the relative angular momentum is even, the effective Lagrangian for the weak decays of $\bar{B}$ to $D$, induced by the Cabibbo-allowed transition $b\to c\bar{u}d$, with the emission of two symmetrized light pseudoscalar mesons was constructed in the Appendix of Ref. Du:2017zvv . In this paper, we extend the effective weak Lagrangian to include the Cabibbo-suppressed decays with two nonidentical light pseudoscalar mesons. Since we will focus on the energy region only a few hundred MeV above the corresponding thresholds, one of the light pseudoscalar mesons would move fast. For simplicity, we do not consider the FSIs from crossed channels, i.e., the interaction between $D/D_{s}$ and the fast moving light pseudoscalar meson and the interaction between the two light pseudoscalar mesons. As in the isobar model, the crossed-channel effects are simply assumed to be encoded in an extra complex factor which would be fixed by fitting to experimental data. However, the final-state interaction between the charmed meson and the soft light pseudoscalar meson and that from coupled channels are taken into account.

While the weak production vertices can be derived from the weak effective Lagrangian, the rescatterings between the charmed mesons and the soft light pseudoscalar mesons are described by the unitarized ChPT, see e.g. in Refs. Guo:2009ct ; Liu:2012zya ; Yao:2015qia ; Du:2017ttu ; Guo:2018tjx . In Ref. Liu:2012zya , the low-energy constants (LECs) of ChPT for charmed mesons, and thus the chiral amplitudes for the $D$-$\phi$ scattering, are obtained by fitting to a lattice QCD calculation of the scattering lengths for the channels of with connected Wick contractions only, i.e. $D\pi$ with isospin $I=3/2$, $D\bar{K}$ with $I=0$ and 1, $D_{s}K$ and $D_{s}\pi$. With the parameters fixed in Ref. Liu:2012zya , the predicted energy levels for the coupled-channel systems in a finite volume are found Albaladejo:2016lbb ; Albaladejo:2018mhb to be in a remarkable agreement with recent lattice QCD calculations Moir:2016srx ; Bali:2017pdv .111In an updated fit Guo:2018tjx to the lattice data, several different fits were found, and the parameters in the set which can reproduce the $D_{s0}^{*}(2317)$ mass as well as satisfy the $N_{c}$ scaling are similar to those determined in Ref. Liu:2012zya . It indicates the reliability of the well constrained chiral amplitudes in Ref. Liu:2012zya . As in Ref. Du:2017zvv , we will demonstrate that the amplitudes obtained in Ref. Liu:2012zya are consistent with the experimental data on the three-body decays $B_{s}^{0}\to\bar{D}^{0}K^{-}\pi^{+}$, $B^{0}\to\bar{D}^{0}\pi^{-}\pi^{+}$, $B^{-}\to D^{+}\pi^{-}K^{-}$ and $B^{0}\to\bar{D}^{0}\pi^{-}K^{+}$, and try to determine the LECs of the weak effective Lagrangian from these decays.

This paper is organized as follows. In section II, we will briefly discuss the implication of the chiral symmetry on pionic BW resonances. In section III, the chiral effective weak Lagrangian describing the $B$ meson decays to the $D$ meson associated with two light pseudoscalar mesons is constructed. The decay amplitudes satisfying unitarity for the reactions $B_{s}^{0}\to\bar{D}^{0}K^{-}\pi^{+}$, $B^{0}\to\bar{D}^{0}\pi^{-}\pi^{+}$, $B^{-}\to D^{+}\pi^{-}K^{-}$ and $B^{0}\to\bar{D}^{0}\pi^{-}K^{+}$ are derived in section IV. In section V, the so-called angular moments are calculated and fitted to experimental data. Finally, section VI comprises a brief summary.

II Implication of chiral symmetry on pionic resonances

The small masses of the $u$-, $d$- and $s$-quark compared with the QCD scale $\Lambda_{\text{QCD}}$ induce an approximate SU(3)${}_{L}\times$SU(3)R chiral symmetry for the strong interactions. As the chiral symmetry is spontaneously broken to its diagonal subgroup SU(3)V, the $\pi$, $K$, and $\eta$ mesons arise as the pseudo-Goldstone bosons. At the leading order (LO) in the chiral expansion, the interactions of Goldstone bosons with themselves and with matter fields are of a derivative form and thus energy-dependent. However, the standard BW parameterization used in the experimental analyses to extract the resonance parameters (mass and width) corresponds to a constant interaction for $S$-wave vertices. Were the energy-dependent interaction induced by the derivative coupling considered, the mass fitted using a normal BW parameterization would be shifted to a lower value. This point is illustrated in the following.

For simplicity, we neglect the energy-dependence of the decay width in this section. The BW parameterization for a resonance in the $D\pi$ $S$-wave reads

[TABLE]

where the $m_{0}$ and $\Gamma$ represent the BW mass and width of the resonance, respectively. Now let us calculate the peak position of this BW parameterization. It corresponds to the energy where

[TABLE]

which means that the BW mass for a resonance corresponds to the value of the peak position. In order to take the chiral symmetric constraint into account, one may simply modify Eq. (1) by introducing a pion energy factor as

[TABLE]

with $E_{\pi}=(s+M_{\pi}^{2}-M_{D}^{2})/(2\sqrt{s})$ the energy of the produced soft pion in the rest frame of the $D\pi$ system. The peak position $s_{\text{peak}}$ can be obtained with the same approach, that is

[TABLE]

It is easy to see that the peak position $s_{\text{peak}}$ is shifted from $m_{0}^{2}$. The shift is expected to be small compared with $m_{0}$ for $\Gamma\ll m_{0}$. Let $s_{\text{peak}}=(m_{0}+\Delta)^{2}$. Keeping only the term linear in $\Delta$, one gets

[TABLE]

where $E_{D}$ is the energy of the produced $D$ in the rest frame of $D\pi$ system with a total energy $m_{0}$. Thus, for the case $4m_{0}E_{\pi}>\Gamma^{2}$, e.g., that of the $D_{0}^{\ast}(2400)$, the shift $\Delta$ is positive, which means that the mass of the resonance is lower than the peak position.

Nevertheless, the modification in Eq. (2) can only be applied in a small energy region before the coupled-channel effect becomes important, and thus is not practical or systematic. A theoretical framework satisfying both the chiral symmetry constraint and unitarity taking into account coupled channels is needed. Such requirements are fulfilled by the unitarized ChPT, see, e.g., Refs. Dobado:1996ps ; Oller:1997ti ; Oller:1998hw ; Oller:2000fj ; GomezNicola:2001as .

III Chiral effective Lagrangian

While the ground state pseudoscalar octet ($\phi$) at low energies can be treated as the pseudo-Goldstone bosons associated with the spontaneous breaking of the approximate chiral symmetry into its diagonal subgroup SU(3)V, SU(3)V is realized in the Wigner–Weyl mode. It means that the non-Goldstone bosons (matter fields) form multiplets which correspond to different irreducible representations of SU(3). In particular, the $B^{-}$, $\bar{B}^{0}$, and $\bar{B}_{s}^{0}$ mesons, and $D^{0}$, $D^{+}$ and $D^{+}_{s}$ mesons form two $\bar{3}$ fundamental representations of SU(3). In the language of the Callan–Coleman–Wess–Zumino formalism Coleman:1969sm ; Callan:1969sn , the Goldstone bosons are realized nonlinearly in $u(x)$, which transforms under a global chiral transformation $g_{L}\times g_{R}\in\text{SU(3)}_{L}\times\text{SU(3)}_{R}$ as

[TABLE]

where the compensator field $h(x)$ is a nonlinear function of $g_{L}$, $g_{R}$ and $u(x)$, and it reduces to $h(x)=g_{L}=g_{R}$, independent of $u(x)$, for a SU(3)V transformation. We parameterize $u$ as $u=\exp(i\phi/(\sqrt{2}F_{0}))$, where $F_{0}$ is the pion decay constant in the chiral limit and

[TABLE]

From the chiral transformation properties of $u(x)$, one can derive the axial-vector $u_{\mu}$ and vector $\Gamma_{\mu}$ currents Coleman:1969sm ; Callan:1969sn :222The inclusion of the external currents is straightforward, see Refs. Gasser:1983yg ; Gasser:1984gg .

[TABLE]

The axial-vector $u_{\mu}$ transforms homogeneously,

[TABLE]

whereas $\Gamma_{\mu}$ transforms inhomogeneously,

[TABLE]

The transformation properties of the matter fields are not unique. It is, however, convenient to construct the triplets for the $B$ and $D$ mesons such that they transform under $g_{L}\times g_{R}$ as

[TABLE]

where we have introduced the notation

[TABLE]

In particular, the quantity $\Gamma_{\mu}$ transforms precisely as a gauge SU(3)V transformation. With it we can construct a covariant derivative for a matter fields, e.g.,

[TABLE]

To construct the effective Lagrangian, one has to specify the power counting rules. At low energies, the momenta as well as the masses of Goldstone bosons are counted as $\mathcal{O}(p)$ Weinberg:1978kz . However, the nonvanishing mass of the matter field in the chiral limit introduces new energy scales (here $M_{D}$ and $M_{B}$) which are larger than the hard chiral scale $\Lambda_{\chi}\sim 4\pi F_{0}$. Therefore, the temporal component of the momenta of $D$ and $B$ mesons should be counted as $\mathcal{O}(1)$, see, e.g., Refs. Gasser:1984gg ; Guo:2008gp ; Du:2016xbh . Yet, the small three-momenta of the $D$- and $B$-mesons are counted as $\mathcal{O}(p)$. To incorporate the explicit chiral breaking due to the nonvanishing light quark masses, a spurion $\chi_{\pm}$ is introduced as

[TABLE]

with

[TABLE]

where $B_{0}=|\langle 0|\bar{q}q|0\rangle|/F_{0}^{2}$ is a constant related to the quark condensate. The surion transforms under chiral symmetry as

[TABLE]

The power counting rules for the building blocks of the effective Lagrangian are

[TABLE]

With the above transformation properties and the power counting rules, one can construct the effective chiral Lagrangian for $D$-$\phi$ interactions, e.g. Refs. Hofmann:2003je ; Guo:2008gp ; Guo:2009ct ; Liu:2012zya ; Yao:2015qia ; Du:2016ntw .

At low energies, for the processes with $\Delta b=1$ and $\Delta c=1$ the interaction can be described by the effective weak Hamiltonian $H_{\text{eff}}$ which at LO has the form

[TABLE]

with $G_{F}$ the Fermi constant, $V_{ij}$ the Cabibbo–Kobayash–Maskawa (CKM) matrix elements, and $C_{i}$ the scale-dependent Wilson coefficients. Here, the tree-level operators read

[TABLE]

with the subscript $a$ and $b$ the color indices. The subscript $L$ indicates that only the left-hand components of the quarks are involved. Note that here the color space is irrelevant for our discussion, thus we simply drop the subscripts of $C_{i}$ and $\mathcal{O}_{i}$ hereafter. One can make the effective Hamiltonian fully chirally invariant by introducing a spurion $H_{i}^{j}$ transforming as Bijnens:2009yr

[TABLE]

Then the new Hamiltonian

[TABLE]

is chirally invariant. For Eq. (16), the spurion $H_{i}^{j}$ (the lower index labels rows and the upper one labels columns) corresponds to

[TABLE]

Here, $V_{us}/V_{ud}$ is nothing but $-\sin\theta_{1}$ (to be written as $-s_{1}$ for simplicity) with $\theta_{1}$ the Cabbibo angle. Then the component $H_{2}^{1}$ describes the Cabibbo-allowed decays and $H_{3}^{1}$ the Cabibbo-suppressed ones. In the matrix form, $H$ transforms under chiral symmetry as

[TABLE]

It is more convenient to introduce a homogeneously transforming suprion as

[TABLE]

With those ingredients, we are prepared to construct the effective Lagrangian describing the three-body nonleptonic decays of $B$ mesons to $D$ mesons and two light pseudoscalars. We are interested in the region of the invariant mass of a pair of the $D$ and one pseudoscalar not far from their threshold, such that this light pseudoscalar can be safely treated as a soft Goldstone boson, while the other one moves fast and can be treated as a matter field rather than a Goldstone boson. The fast moving pseudoscalar is realized linearly in a matrix form $M$ transforming as

[TABLE]

and it has the same form as $\phi$, i.e.

[TABLE]

Consequently, utilizing the power counting in Eq. (14), chiral symmetry implies that the effective Lagrangian at $\mathcal{O}(p)$ has the form of Savage:1989ub ; Du:2017zvv

[TABLE]

where the $c_{i}$ and $d_{i}$ are LECs, and $\langle\dots\rangle$ denotes the traces in the SU(3) light-flavor space. Note that the momentum operator $\nabla_{\mu}$ in Eq. (25) is chosen to act on the charmed meson field $D$. It could be on $B$ (or $M$) independently as well. However, in our case, $M_{B}\gg M_{D}+2M_{\pi}$ and $M_{D}\gg M_{\pi}$ imply that they would produce the same structures up to the LO and we can combine them by redefining the LECs in the heavy meson limit. This effective Lagrangian considers both the chiral symmetry and flavor SU(3) constraints (the latter has been considered in Ref. Savage:1989ub ). Finally, we divide the Lagrangaian (25) into two groups which are symmetric and antisymmetric in the two light pseudoscalars, which correspond to the cases where the relative orbital angular momentum of the light pseudoscalars pair is even and odd, respectively Savage:1989ub .

IV $B$-meson three-body decay amplitudes

The nonleptonic $B$-meson three-body decays $B\to D\phi M$, where $M$ denotes the fast moving light pesudoscalar and $\phi$ denotes the soft one as in the last section, provide access to the $D$-$\phi$ interaction via FSI.333We are only interested in the energy region where the $D$ and one of the light pseudoscalars have an invariant mass not far from their threshold. From now on, we write the decay product in the ordering that the charm meson is followed by the soft and hard light pseudoscalar subsequently. The FSI between the $D$ and the hard $M$ and that between $M$ and $\phi$, which are not expected to produce any nontrivial structure sensitive to the energy variation, are encoded into an extra complex factor for simplicity. The Feynman diagrams for the decay $B\to D\phi M$ are shown in Fig. 1, where the square denotes the FSI between $D$ and $\phi$.

The decay amplitude projected into the $D\phi$ channel at low energies can be decomposed into $S$-, $P$- and $D$-waves (corresponding to the orbital angular momentum of the $D\phi$ pair with $L=0$, $L=1$, and $L=2$, respectively),444Here, we neglect the partial waves with $L\geq 3$, which is perfectly fine in the energy region of interest as shown in the experimental data, see e.g. Refs. Aaij:2016fma ; Aaij:2014baa ; Aaij:2015vea ; Aaij:2015kqa ; Aaij:2015sqa .

[TABLE]

where $\mathcal{A}_{0,1,2}(s)$ correspond to the partial wave decomposed amplitudes for $D\phi$ in the $S$-, $P$- and $D$-waves, respectively, and $P_{L}(z)$ are the Legendre polynomials with $z$ the cosine of the helicity angle of the $D\phi$ system, i.e. the angle between the moving directions of the $\phi$ and the $M$ in the $D\phi$ rest frame. For the $P$- and $D$-waves, the resonances are relatively narrow and thus it is reasonable to parameterize them by BW amplitudes. For the $S$-wave, we calculate the diagrams in Fig. 1 with the effective Lagrangian (25) with the FSI provided by the $D\phi$ interaction determined in Ref. Liu:2012zya with the coupled-channel effects taken into account.

For the decay $B^{-}\to D^{+}\pi^{-}\pi^{-}$, the relative orbital angular momenta of the two light mesons could only be even, which correspond to the first term of the Lagrangian in Eq. (25), i.e. the terms with the LECs $c_{i}$. With the Lagrangian in Eq. (25), the production vertices for the possible intermediate states $D^{0}\pi^{0}$, $D^{+}\pi^{-}$, $D^{0}\eta$ and $D_{s}^{+}K^{-}$ are listed in Table 1.

In the heavy quark limit, $p_{D}\cdot p_{\phi}=M_{D}E_{\phi}$, with $E_{\phi}$ the energy of $\phi$ in the rest frame of $D\phi$. For convenience, we introduce two parameters $A$ and $B$ Du:2017zvv

[TABLE]

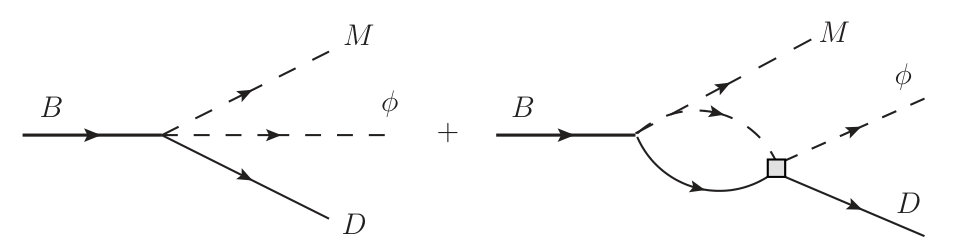

Taking the FSI into account, the $S$-wave decay amplitude for $B^{-}\to D^{+}\pi^{-}\pi^{-}$ reads

[TABLE]

where $s$ is the center-of-mass energy squared of the $D\phi$ system, $G_{D\phi}(s)$ is the loop function (the “fundamental bubble”) depicted in Fig. 1 coupling to the channel $D\phi$. Unitarity relates the imaginary part of the loop function $G_{D\phi}(s)$ with the $D\phi$ two-body phase factor $\rho(s)=q_{\phi}/(8\pi\sqrt{s})\theta(s-(M_{D}+M_{\phi})^{2})$, with $q_{\phi}$ magnitude of the $\phi$ three-momentum in the $D\phi$ center-of-mass frame, by $\text{Im}\,G_{D\phi}(s)=-\rho(s)$, which allows us to represent $G_{D\phi}(s)$ via a once-subtracted dispersion relation

[TABLE]

with $a_{A}$ a scale-dependent subtraction constant, $\sigma=\{[s-(M_{D}+M_{\phi})^{2}][s-(M_{D}-M_{\phi})^{2}]\}^{1/2}$ and $\mu$ the scale of dimensional regularization. The subtraction $a_{A}$ is related to the renormalization of the interaction vertices and varies for different processes. A change of $\mu$ can be absorbed into a corresponding change of $a_{A}$, and we will take $\mu=1$ GeV as in Ref. Liu:2012zya .

The amplitudes for the FSI can be expressed in the isospin basis. While $D^{+}\pi^{-}$ can be decomposed into isospin $I=1/2$ and $3/2$ systems, $D^{+}\eta$ and $D_{s}^{+}K^{-}$ can only form $I=1/2$. The relations between the isospin basis and physical particle basis are given by Guo:2009ct ; Yao:2015qia 555We use the phase convention such that $|\pi^{+}\rangle=-|1,+1\rangle$, $\bar{K}^{0}\rangle=-|\frac{1}{2},+\frac{1}{2}\rangle$, and $|D^{+}\rangle=-|\frac{1}{2},+\frac{1}{2}\rangle$, where the two numbers in $|\dots\rangle$ on the right hand side are isospin $I$ and the third component $I_{3}$.

[TABLE]

where the superscripts indicate the total isospin $I$. The amplitudes in the isospin basis can be found in Refs. Guo:2009ct ; Liu:2012zya ; Yao:2015qia . As a result, we get the $S$-wave decay amplitude for the process $B^{-}\to D^{+}\pi^{-}\pi^{-}$ Du:2017zvv

[TABLE]

Here, we write the scattering amplitudes in the matrix form $T_{ij}^{I}(s)$ with the total isospin $I$, where $i$, $j$ are channel indices with 1, 2 and 3 referring to $D\pi$, $D\eta$ and $D_{s}\bar{K}$, respectively. Note that only two LECs ($A$ and $B$) appear in Eq. (37).

The above amplitude can also be obtained in a different way Oset:2016lyh ; Albaladejo:2016hae without constructing the effective Lagrangian. At the quark level, the decay $B^{-}\to D^{+}\pi^{-}\pi^{-}$ is mediated by the weak process $b\bar{u}\to(W^{-}c)\bar{u}\to(d\bar{u}c)\bar{u}$. In order to obtain a three-meson final state, an extra $q\bar{q}$ pair must be created from the QCD vacuum. The quantum numbers of vacuum imply that the extra $q\bar{q}$ pair must be a SU(3) flavor singlet, $u\bar{u}+d\bar{d}+s\bar{s}$. Next we hadronize the $c\bar{u}d\bar{u}(u\bar{u}+d\bar{d}+s\bar{s})$ combination in terms of three pseudoscalar mesons. To this end, we introduce a $q\bar{q}$ matrix $\Phi$ Albaladejo:2016hae ,

[TABLE]

which fulfills

[TABLE]

where the singlet $(\bar{q}q)=(\bar{u}u+\bar{d}d+\bar{s}s+\bar{c}c)$ corresponds to a $\bar{q}q$ pair creation from the QCD vacuum.

In terms of pseudoscalar mesons, the matrix $\Phi$ has the form of

[TABLE]

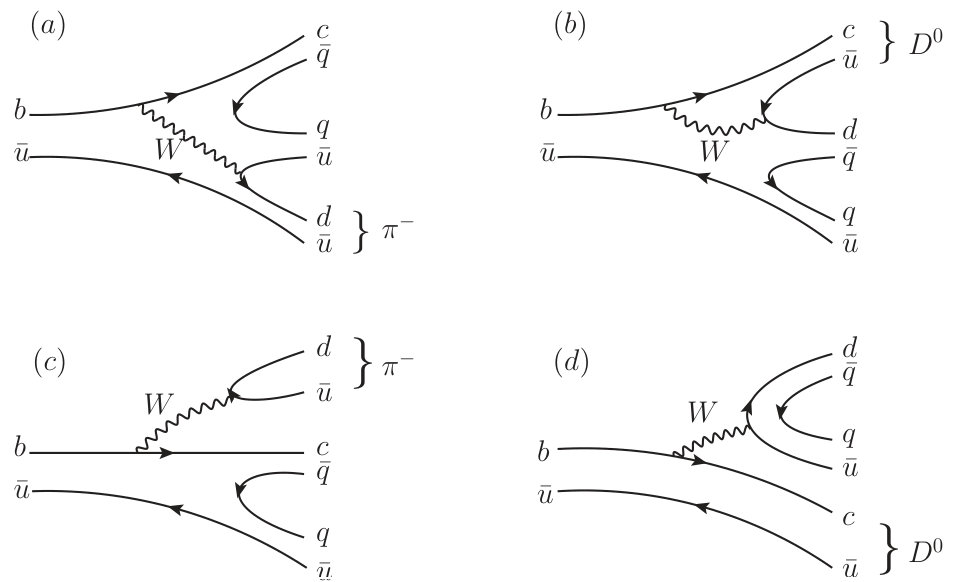

The hadronization of $c\bar{u}d\bar{u}(q\bar{q})$ could proceed through two distinct ways, i.e., $[d\bar{u}](\Phi\Phi)_{41}$ and $[c\bar{u}](\Phi\Phi)_{21}$, which correspond to the diagrams $(a,c)$, and $(b,d)$, respectively, in Fig. 2. These two sets of hadronization give two independent structures as

[TABLE]

and

[TABLE]

respectively. We assume that the production amplitudes for the diagrams in Fig. 2 are $a$, $b$, $c$ and $d$, respectively. Then the amplitudes for the processes in Table 1 are proportional to the following factors:

[TABLE]

respectively. Compared with the expressions in Table 1, we find $A=a+c$ and $B=2(b+d)/3$. Then the SU(3) flavor structure for the amplitudes of the four processes in Table 1 reads

[TABLE]

Expressed in the isospin basis, the amplitudes for the production of the $D\pi(I=1/2)$, $D\pi(I=3/2)$, $D\eta(I=1/2)$ and $D_{s}\bar{K}(I=1/2)$ channels have the ratios

[TABLE]

Since the $D\pi$ systems with $I=1/2$ and $3/2$ have both the $D^{0}\pi^{0}$ and the $D^{+}\pi^{-}$ components, we need to project out the $D^{+}\pi^{-}$ component and obtain the ratio for $D^{+}\pi^{-}(I=1/2)$ and $D^{+}\pi^{-}(I=3/2)$. As a result, trivial overall factors $\sqrt{\frac{2}{3}}$ and $-\sqrt{\frac{1}{3}}$ are needed for $I=1/2$ and $3/2$, respectively. Taking into account the chiral symmetry implying that the amplitudes are proportional to the energy of the Goldstone bosons and the FSI, we reobtain the amplitude in Eq. (37).

With the Lagrangian in Eq. (25), one can calculate the production vertices responsible for other processes $B_{s}^{0}\to\bar{D}^{0}K^{-}\pi^{+}$, $B^{0}\to\bar{D}^{0}\pi^{-}\pi^{+}$, $B^{-}\to D^{+}\pi^{-}K^{-}$, and $B^{0}\to\bar{D}^{0}\pi^{-}K^{+}$ as well. For these reactions experimental data are available from the LHCb experiment Aaij:2014baa ; Aaij:2015vea ; Aaij:2015kqa ; Aaij:2015sqa . The weak production vertices needed for those decays are listed in Table 2. Note that in Ref. Du:2017zvv , only the terms corresponding to an even relative angular momentum of the two light mesons are considered, i.e. the first term in the Lagrangian (25). It is appropriate for the decay $B^{-}\to D^{+}\pi^{-}\pi^{-}$ and numerically sufficient to describe the decay $B_{s}^{0}\to\bar{D}^{0}K^{-}\pi^{+}$. We find that the inclusion of the terms for the two light mesons with an odd relative angular momentum does not improve the fit quality significantly, which means that the experimental data used in Ref. Du:2017zvv are not sufficient to disentangle the contributions from the two terms. In this paper, more experimental data, i.e., $B^{0}\to\bar{D}^{0}\pi^{-}\pi^{+}$, $B^{-}\to D^{+}\pi^{-}K^{-}$, and $B^{0}\to\bar{D}^{0}\pi^{-}K^{+}$, are considered and a discrimination of both contributions is possible.

Although these decays have three hadrons in the final states, we expect that, at least in the low-energy tails of the invariant mass of the $D\phi$ subsystems, the effects from the crossed-channel FSIs (interactions between the soft and hard light mesons and those between the $D$ meson and the hard pseudoscalar meson) do not produce any nontrivial structure in the $D\phi$ distributions, which is supported by the analyses in Refs. Aaij:2014baa ; Aaij:2015vea ; Aaij:2015kqa ; Aaij:2015sqa . Therefore, for a description of the low-energy $D\phi$ systems, we do not need to account for the full three-body FSIs. The effects from the crossed-channel FSIs can thus be simply encoded into an extra undetermined complex factor for each partial wave as it is done in the isobar model. Following the procedures for the $B^{-}\to D^{+}\pi^{-}\pi^{-}$ above, one can obtain the $S$-wave amplitudes as666Hereafter, we neglect the overall factor $\frac{\sqrt{2}M_{D}}{F_{0}}$ for the $S$-wave amplitudes by absorbing it into the LECs.

[TABLE]

[TABLE]

[TABLE]

Next, we show that the $S$-wave decay amplitudes above satisfy the two-body unitarity relation

[TABLE]

where $T$ represents the $T$-matrix for the two-body scattering and fulfills the unitarity relation777Here, $T$ is defined via $S=1-iT$, with $S$ the $S$-matrix.

[TABLE]

which can be rewritten as

[TABLE]

The $T$-matrix in Ref. Liu:2012zya is given by

[TABLE]

where $V$ is the $S$-wave projection of the $D\phi$ scattering potentials from ChPT and $\tilde{G}$ is a diagonal matrix whose nonvanishing elements are the loop functions with the same form as the $G(s)$ function in Eq. (35) Liu:2012zya . It can be rewritten in a more concise form

[TABLE]

Since the $\tilde{G}$ matrix elements satisfy $\text{Im}\,\tilde{G}_{ii}(s)=-\rho_{ii}(s)$, with $\rho_{ii}(s)$ the two-body phase space factor in the $i$-th channel, and $V(s)$ is real for real $s$, it is easy to conclude that the $T$-matrix fulfills the two-body unitarity in Eqs. (69,70).

To show that the decay amplitudes in Eq. (37), (64-67) fulfill the two-body unitarity in Eq. (68), we write them in a matrix form

[TABLE]

In components, this reads

[TABLE]

where $P_{i}$ represents the weak production vertices given in Table 2. Making use of Eq. (72), the decay amplitudes in Eq. (73) can be rewritten as

[TABLE]

Because of the time reversal symmetry of the strong interaction, which means that $T^{\dagger}=T^{\ast}$, one obtains the desired two-body unitarity for the decay amplitudes

[TABLE]

Having constructed the $S$-wave amplitudes, the complex decay amplitudes for $P$- and $D$-waves are described by an isobar model as coherent sums of intermediate resonant decays. This is reasonable because of the relatively narrow widths of the resonances in $P$- and $D$-waves. The $P$- and $D$-wave amplitudes used in Ref. Du:2017zvv have the same BW form as that in the LHCb analysis Aaij:2016fma . For the low-energy $D^{+}\pi^{-}$ systems in processes $B^{-}\to D^{+}\pi^{-}\pi^{-}$ and $B^{-}\to D^{+}\pi^{-}K^{-}$, the $P$- and $D$-wave resonant contributions considered here include the ground state charmed vector meson $D^{\ast}$ and an excited state $D_{1}^{\ast}(2680)$ Aaij:2016fma in the $P$-wave, and the $D_{2}^{\ast}(2460)$ in the $D$-wave as in Ref. Du:2017zvv . For these decays, the $P$- and $D$-wave amplitudes are given by

[TABLE]

where the complex coefficients $c_{D^{*}}$, $c_{D^{*}}^{\prime}$ and $c_{D_{2}}$ vary for different decays and will be determined by fitting to the experimental data. $F_{i}(s,z)$ represents the contribution of each resonance to the corresponding decay. For the decays $B^{0}\to\bar{D}^{0}\pi^{-}\pi^{+}$ and $B^{0}\to\bar{D}^{0}\pi^{-}K^{+}$, the vector and tensor charmed mesons $D^{\ast}$ and $D^{\ast}_{2}(2460)$ are taken into account as those in the LHCb analysis Aaij:2015sqa ; Aaij:2015kqa ,

[TABLE]

For the decay $B_{s}^{0}\to\bar{D}^{0}K^{-}\pi^{+}$, we are interested in is the low-energy region of the $\bar{D}^{0}K^{-}$. The strange partners of the ones in Eq. (IV), i.e. the $D_{s}^{\ast}$ in $P$-wave and $D_{s2}(2573)$ in $D$-wave are included as

[TABLE]

$F_{i}(s,z)$ is a function of both the $D\phi$ invariant mass and $z$, the cosine of the $D\phi$ helicity angle. It has the form

[TABLE]

where $\vec{p}$ and $\vec{q}$ are the momenta of the hard light meson $M$ and the one of the resonance daughters, respectively, both evaluated in the rest frame of the resonance. Here, the relativistic BW propagator is given by

[TABLE]

where $q=|\vec{q}|$, $\Gamma_{0}$ is the width of the static resonance, and $q_{0}$ is $q$ evaluated at the resonance mass $m_{0}$. The $P$- and $D$-wave Blatt–Weisskopf barrier factors $X^{(J)}(x)$ are given by

[TABLE]

where $x_{0}$ represents the value of $x$ evaluated at $m=m_{0}$. The radius of the barrier, $r_{\text{BW}}$, is taken to be 4.0 GeV*-1* Aaij:2014baa ; Aaij:2015vea ; Aaij:2015kqa ; Aaij:2015sqa ; Aaij:2016fma . The angular probability distribution terms, $M^{(J)}$, are given in the Zemach tensor formalism Zemach:1963bc by

[TABLE]

which have similar structures as the Legendre polynomials referring to the angle between $\vec{p}$ and $\vec{q}$. The virtual contributions from the resonances with masses outside the kinematically allowed region, e.g. $D^{\ast}$, are described by the function $F_{i}(s,t)$ as well, however, with the modification that the mass $m_{0}$ is replaced by an effective mass $m_{0}^{\text{eff}}$ which is given by (see, e.g., Ref. Aaij:2016fma )

[TABLE]

where $m^{\text{max}}$ and $m^{\text{min}}$ represents the upper and lower limits of the kinematically allowed mass range.

V Numerical analysis

In this section, we demonstrate that the amplitudes in Eqs. (64)-(67) can indeed describe the data collected at the LHCb experiment in Refs. Aaij:2014baa ; Aaij:2015vea ; Aaij:2015kqa ; Aaij:2015sqa . We fit to the so-called angular moments, which contain important information about the partial-wave phase variations. The angular moments $\langle P_{L}\rangle$ are obtained by weighting the event distribution in the invariant mass by the Legendre polynomial of order $L$ with respect to $z$,

[TABLE]

The angular moments are most powerful when a resonance is present only in one invariant mass combination. The structures show up in moments up to 2$J$, where $J$ is the spin of the contributing resonance Aaij:2014baa . Neglecting partial waves with $L\geq 3$, the first few unnormalized moments (normalized relative to each another) are given by

[TABLE]

where $\delta_{i}$ is the phase of $\mathcal{A}_{i}$, i.e., $\mathcal{A}_{i}=|\mathcal{A}_{i}|e^{i\delta_{i}}$. Instead of $\langle P_{1}\rangle$ and $\langle P_{3}\rangle$, we analyze their linear combination as proposed in Ref. Du:2017zvv ,

[TABLE]

which only depends on the $S$-$P$ interference up to $L=2$ and is particularly sensitive to the $S$-wave phase motion.

Before fitting to the experimental data of the angular moments, let us investigate the $S$-wave amplitudes in Eqs. (64-67) in more detail. Although there are 11 unknown LECs in the Lagrangian (25), only 10 combinations are independent. Furthermore, to reduce the their correlations in the fit procedure, the LECs are redefined as

[TABLE]

In particular, the definitions of $A$, $B$ are same to that in Ref. Du:2017zvv , and thus we will the ratio $B/A$ determined therein by fitting to the high quality data for the decay $B^{-}\to D^{+}\pi^{-}\pi^{-}$, in which $B/A$ and the subtraction constant in the $G$ function are the only free parameters for the $S$-wave amplitude.888The value of $A$ cannot be determined since it serves as the normalization constant for the $S$-wave contribution as well. Moreover, although the subtraction constants for different channels could be different in principle, as in Ref. Du:2017zvv , a uniform value is taken to reduce the number of free parameters. For the $P$- and $D$-wave amplitudes in Eqs. (IV-IV), two real parameters, the magnitude and the phase of the corresponding $c_{D}$, are needed for each resonance. Since we are not interested in the precise $P$- and $D$-wave amplitudes, the resonance mass and width are taken as the central values reported in the LHCb analyses Aaij:2014baa ; Aaij:2016fma and the uncertainties therein are not considered. The used resonance parameters are listed in Table 3.

Moreover, we notice that only three sets of the weak production vertices in Table 2 are independent. Thus instead of fitting the four decay amplitudes to the experimental angular moments simultaneously, we fix the LECs in the amplitudes in Eqs. (64-67) by fitting to three of them, i.e. $B^{-}\to D^{+}\pi^{-}K^{-}$, $B_{s}^{0}\to\bar{D}^{0}K^{-}\pi^{+}$ and $B^{0}\to\bar{D}^{0}\pi^{-}\pi^{+}$, and then describe the angular moments for $B^{0}\to\bar{D}^{0}\pi^{-}K^{+}$ with the determined LECs. We fit to the data of the moments $\langle P_{0}\rangle$, $\langle P_{13}\rangle$, and $\langle P_{2}\rangle$ defined in Eqs. (V) and (87) up to $M_{D\pi}=2.54$ GeV as in Ref. Du:2017zvv for the decays $B^{-}\to D^{+}\pi^{-}K^{-}$ and $B^{0}\to\bar{D}^{0}\pi^{-}\pi^{+}$, and up to $M_{\bar{D}\bar{K}}=2.65$ GeV for $B_{s}^{0}\to\bar{D}^{0}K^{-}\pi^{+}$. The best fit results to the LHCb data of the angular moments for the reactions $B^{-}\to D^{+}\pi^{-}K^{-}$, $B_{s}^{0}\to\bar{D}^{0}K^{-}\pi^{+}$ and $B^{0}\to\bar{D}^{0}\pi^{-}\pi^{+}$ are shown in Figs. 3, 4 and 5, respectively. The best fit has a reasonable quality with $\chi^{2}/\text{d.o.f.}=1.2$ and the parameter values are listed in Tables 4 and 5. The bands in Figs. 3-5 reflect the one-sigma errors of the parameters in the scattering amplitudes determined in Ref. Liu:2012zya .

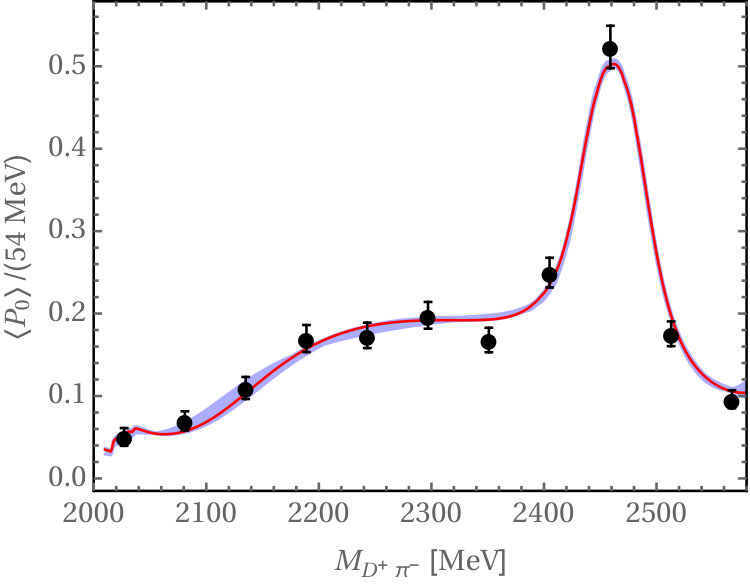

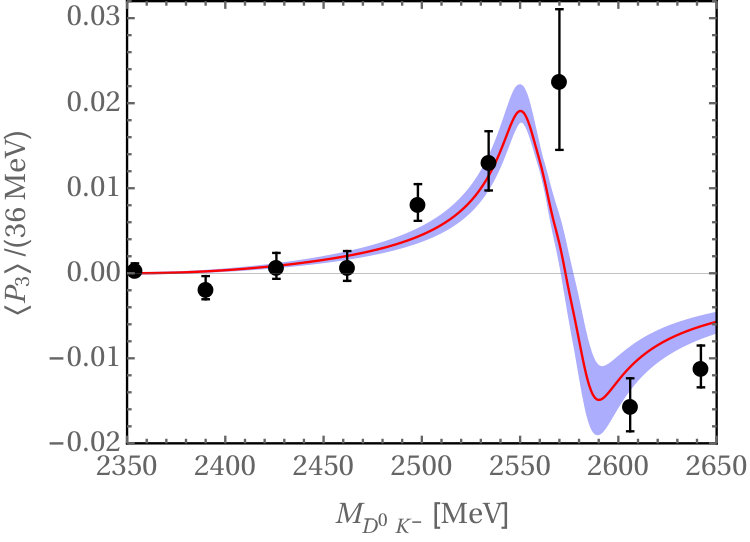

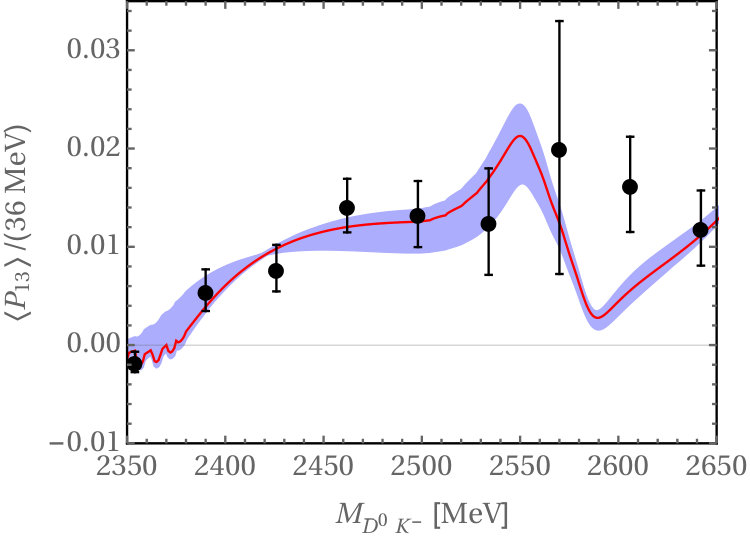

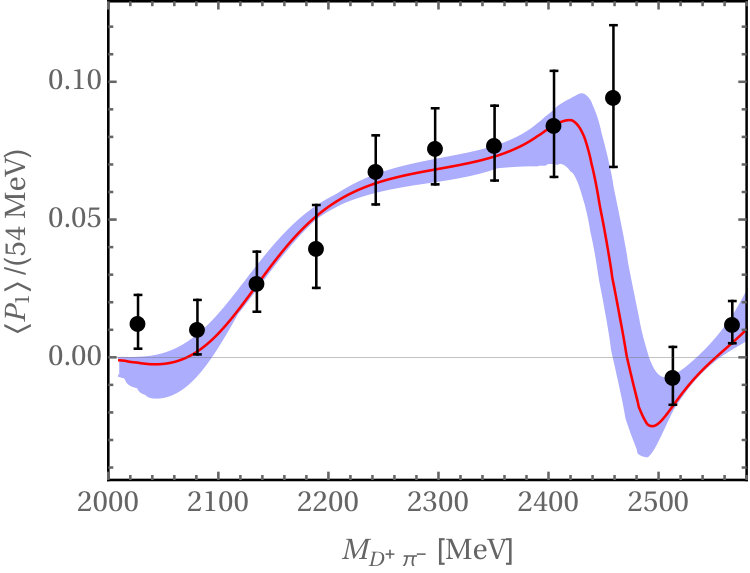

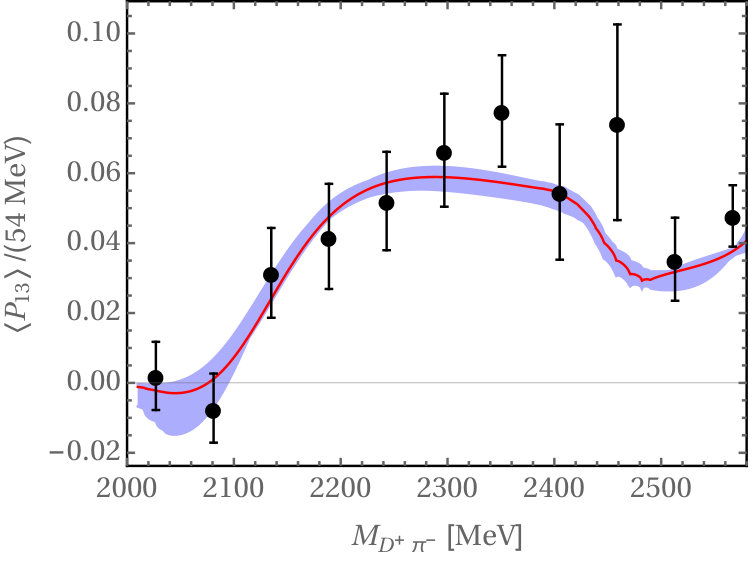

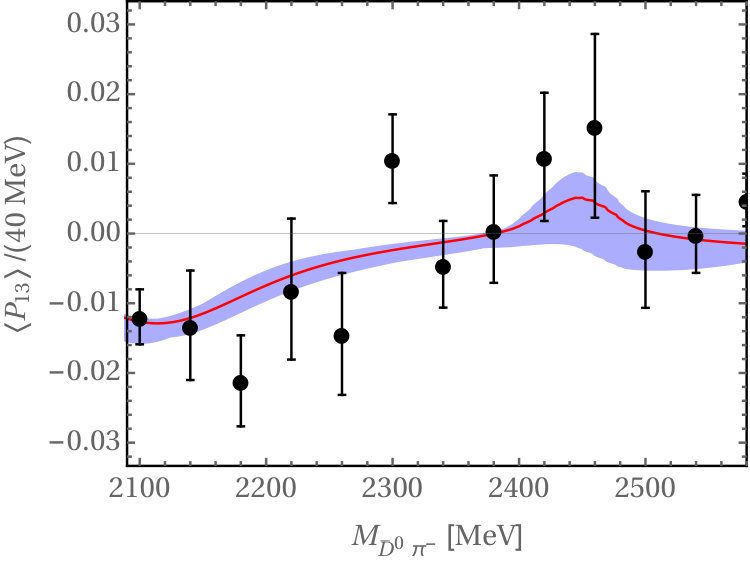

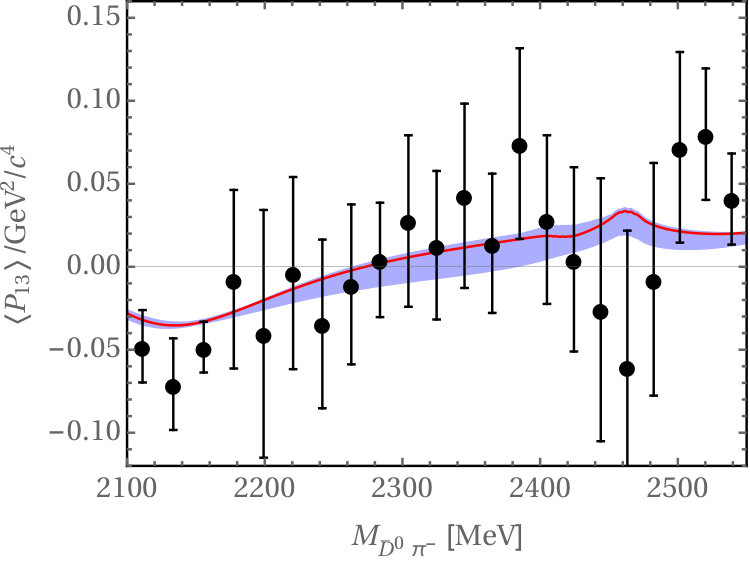

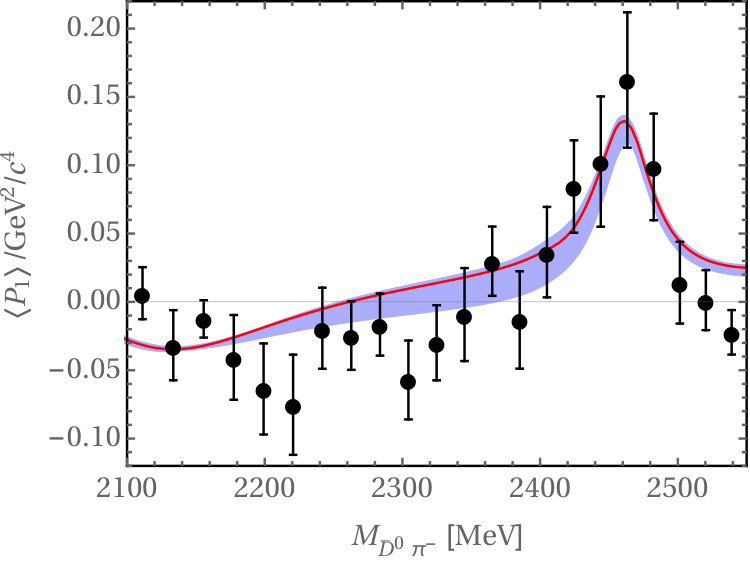

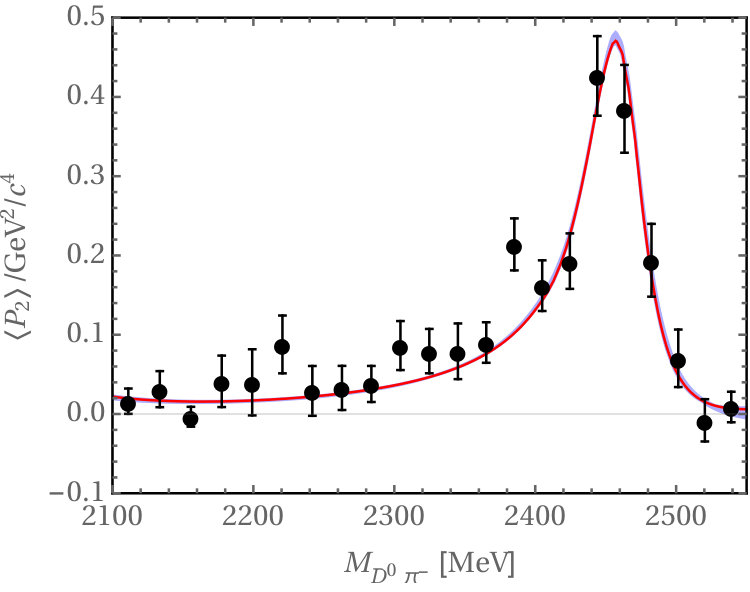

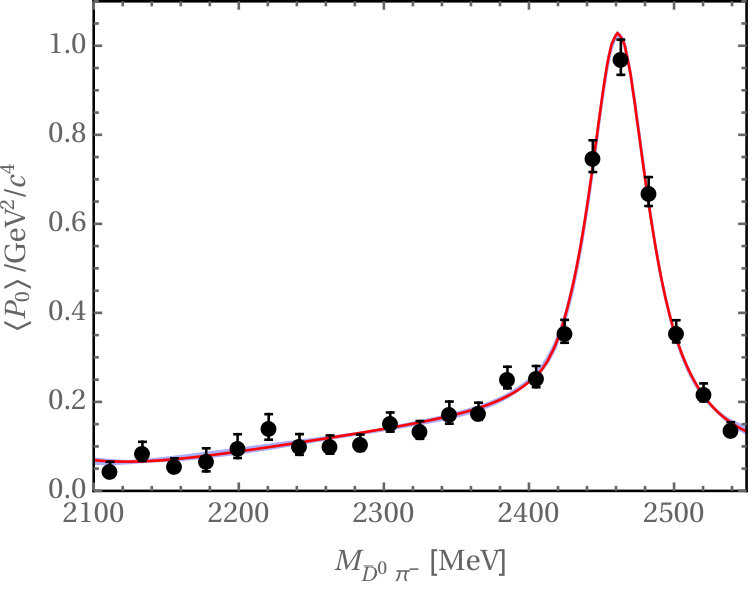

It is worth mentioning that in $\langle P_{13}\rangle$ for the reaction $B^{-}\to D^{+}\pi^{-}K^{-}$, where the $D_{2}(2460)$ does not play any role, the data show significant variations between 2.4 and 2.5 GeV, as that for $B^{-}\to D^{+}\pi^{-}\pi^{-}$ in Ref. Du:2017zvv . The data for the $B^{0}\to\bar{D}^{0}\pi^{-}\pi^{+}$ and $B^{0}\to\bar{D}^{0}\pi^{-}K^{+}$ also have a similar behavior, but with lower statistics, see Fig. 5 and Fig. 9 below. These features are in line with the expectation due to the opening of the $D\eta$ and $D_{s}\bar{K}$ thresholds, respectively, which leads to two cusps in the amplitude. This also implies the importance of the coupled-channel effects. Moreover, using the parameters in Table 4 and 5, we can predict the moments $\langle P_{1}\rangle$ and $\langle P_{3}\rangle$ separately, and the predictions are fully in line with the experimental data Aaij:2015vea ; Aaij:2014baa ; Aaij:2015sqa , see Figs. 6, 7 and 8.

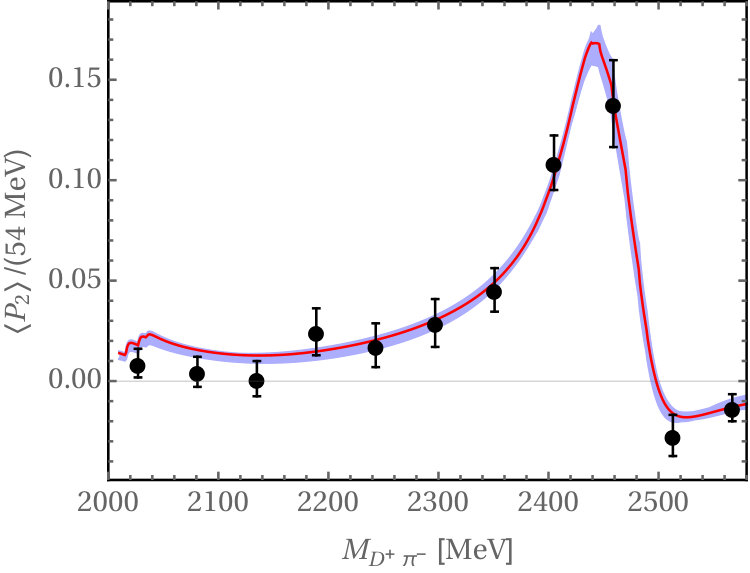

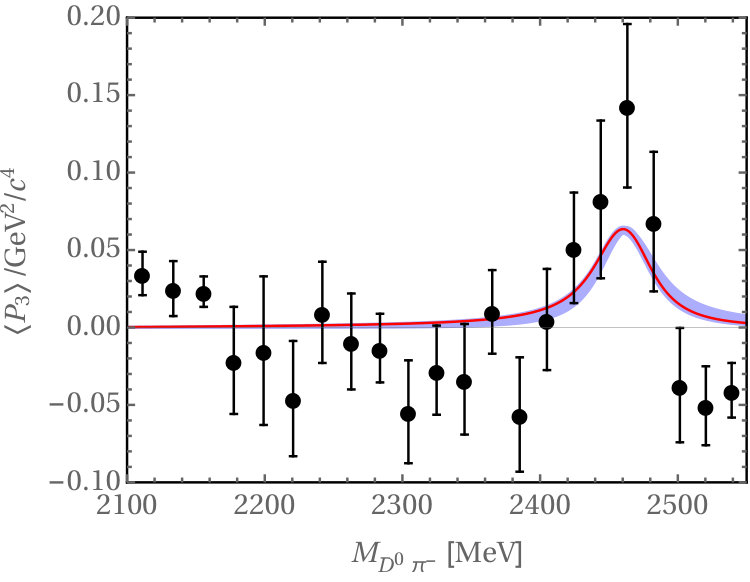

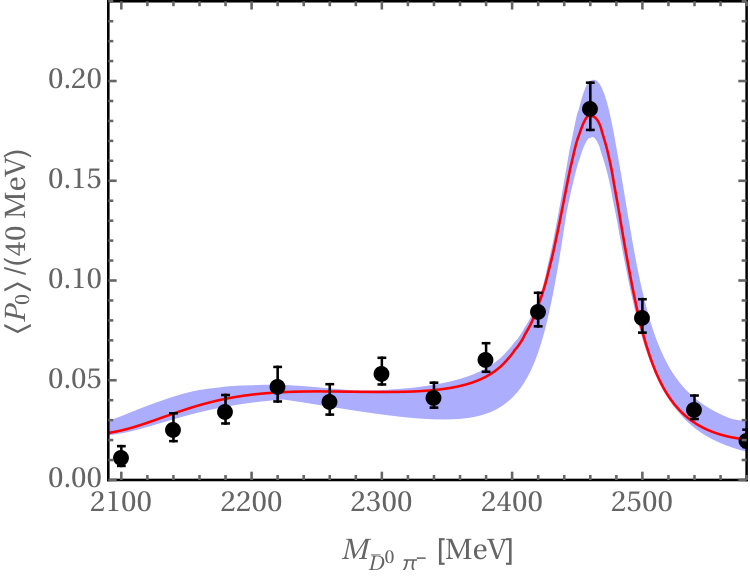

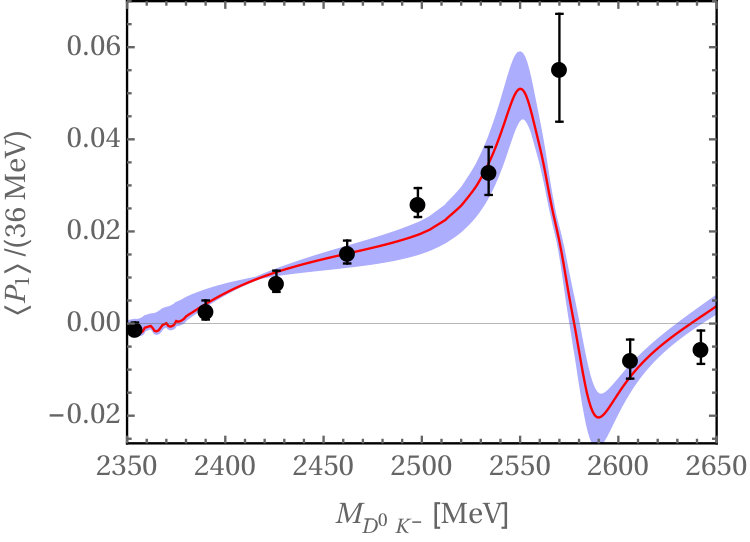

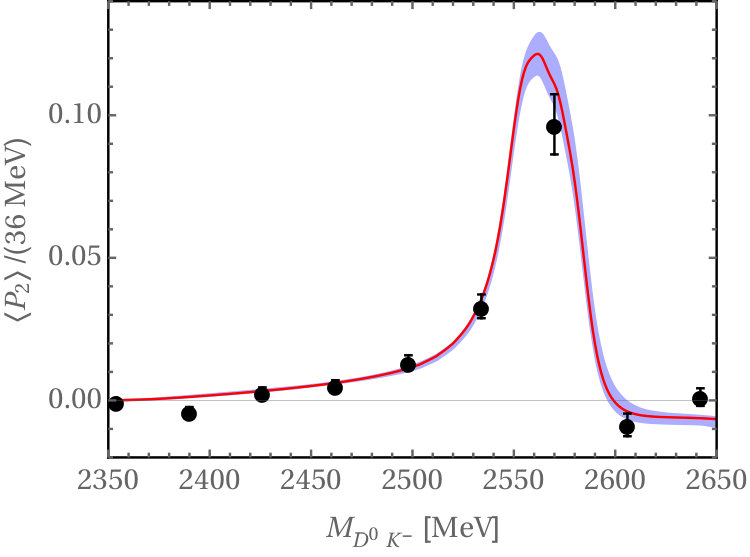

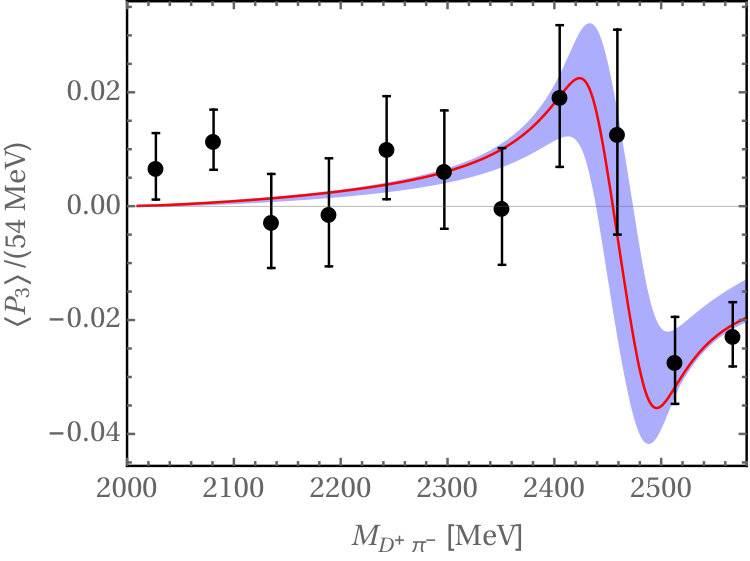

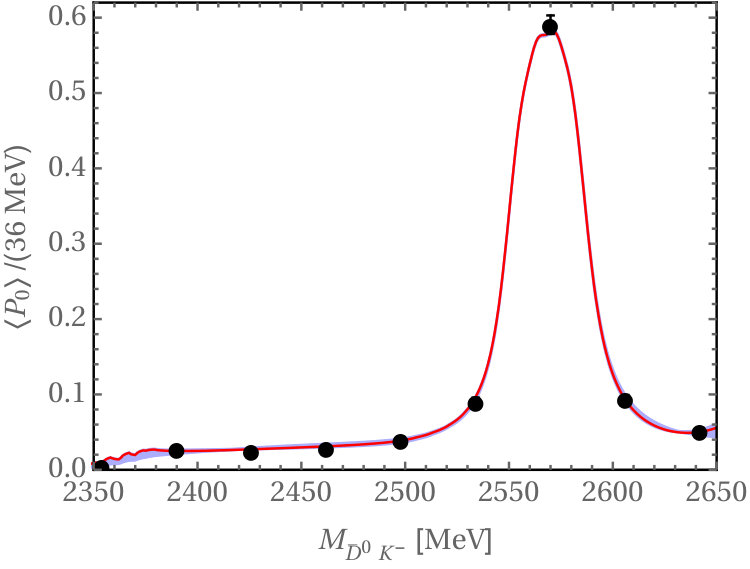

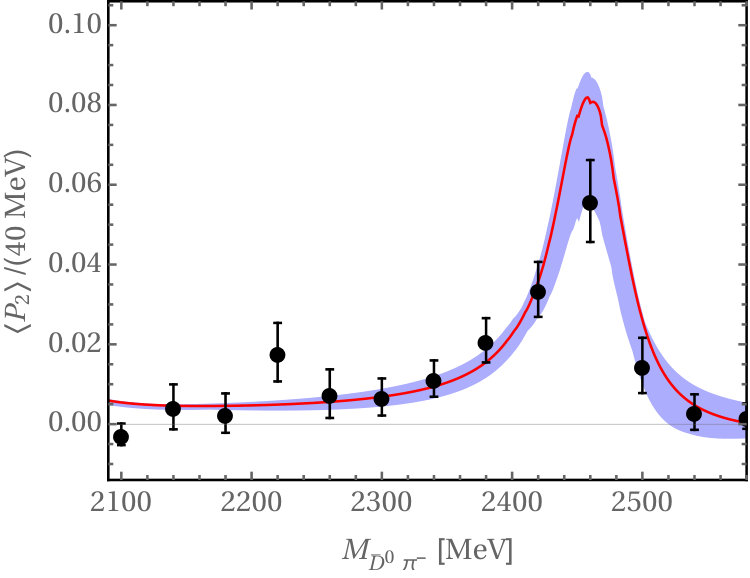

With the determined LECs in Table 4, we proceed to compare the angular moments for $B^{0}\to\bar{D}^{0}\pi^{-}K^{+}$ obtained from the amplitudes in Eqs. (67) and (IV) with the LHCb data Aaij:2015kqa . Except for the three normalization parameters (two for the resonances and one for the $S$-wave), there are only three real free parameters: two phase factors for the resonances and one subtraction constant $a_{A}$ in the $G$ function in the $S$-wave amplitude. We perform a fit in the energy region [2.1, 2.54] GeV and the fit result is shown in Fig. 9. The best fit has a $\chi^{2}/\text{d.o.f.}=1.8$ and the parameter values are $a_{A}=0.4^{+0.8}_{-0.5}$, $\delta_{D^{\ast}}=-2.5^{+0.2}_{-0.2}$, and $\delta_{D_{2}}=-5.9^{+0.2}_{-0.2}$, where only the errors from fitting to the experimental data are given. From Figs. 3-9, we see that the amplitudes in Eqs. (64)-(67) indeed can describe the experimental data collected by the LHCb Collaboration Aaij:2014baa ; Aaij:2015vea ; Aaij:2015kqa ; Aaij:2015sqa quite well. Since the poles in those scattering amplitudes in the complex energy plane correspond to the scalar charmed meson resonances, one can conclude that the scalar charmed meson spectrum predicted in Refs. Albaladejo:2016lbb ; Du:2017zvv is consistent with the LHCb data which are the best available data for the scalar charmed mesons. In particular, two poles, corresponding to two different resonances, exist in the $I=1/2$ nonstrange channel. The analyses in this work and in Ref. Du:2017zvv provide a strong support to such a spectrum, and thus the broad $D_{0}^{\ast}(2400)$ listed in RPP should be replaced by two states as advocated in Refs. Albaladejo:2016lbb ; Du:2017zvv . The lower one has a mass of around 2.1 GeV and is much lighter than that extracted from experiments using a naive single-channel BW parameterization.

VI Summary

We have shown that the constraints from chiral symmetry are not fulfilled by the standard BW parameterization for a pionic resonance. Using the BW parameterization to fit to the data can lead to a mass larger than its real value. In the case that the resonance width $\Gamma$ is relatively narrow, one can show that the induced shift is proportional to $\Gamma^{2}$. Nevertheless, a naive modification of the BW parameterization by introducing a pion energy factor is neither practical nor systematic since it can only be applied in a very limited energy region before the coupled-channel effects become sizable. Fortunately, unitarized ChPT provides a framework with the chiral symmetry constraint built in and coupled-channel effects taken into account. In the energy regime not far from the threshold of a charmed meson and a light pseudoscalar meson, it can thus be used to analyze the nonleptonic $B$ meson three-body decays to charm mesons with the emission of two light pseudoscalar mesons which provide access to the scalar charmed meson spectrum.

In order to consider in detail the FSIs between the charm meson and the light pseudoscalar meson for the reactions $B^{-}\to D^{+}\pi^{-}\pi^{-}$, $B_{s}^{0}\to\bar{D}^{0}K^{-}\pi^{+}$, $B^{0}\to\bar{D}^{0}\pi^{-}\pi^{+}$, $B^{-}\to D^{+}\pi^{-}K^{-}$ and $B^{0}\to\bar{D}^{0}\pi^{-}K^{+}$, we have constructed a chiral effective Lagrangian for the decays of the $B$- and $B_{s}$-mesons into a charmed meson associated with the emission of two light pseudoscalar mesons. Considering two-body coupled-channel unitarity, we have constructed the $D\phi$ $S$-wave amplitudes for these decays by making use of the effective weak Lagrangian. The involved LECs are thus free parameters in this framework. We have performed fits to the angular moments reported by the LHCb Collaboration for a series of related decays $B_{s}^{0}\to\bar{D}^{0}K^{-}\pi^{+}$, $B^{0}\to\bar{D}^{0}\pi^{-}\pi^{+}$, $B^{-}\to D^{+}\pi^{-}K^{-}$, and $B^{0}\to\bar{D}^{0}\pi^{-}K^{+}$ Aaij:2015vea ; Aaij:2014baa ; Aaij:2015sqa ; Aaij:2015kqa . In particular, the linear combination of two angular moments $\langle P_{13}\rangle=\langle P_{1}\rangle-{14}\langle P_{3}\rangle/9$ only depends on the $S$-$P$ interference when partial waves with $L\geq 3$ are neglected. Thus, $\langle P_{13}\rangle$ is the quantity that one should focus on in order to learn about the scalar charmed mesons. We found that the LHCb angular moment data for all these decays can be well described. The predicted $\langle P_{1}\rangle$ and $\langle P_{3}\rangle$ also agree with the measurements. Because the FSIs in these fits are taken from the unitarized ChPT amplitudes that were already fixed in Ref. Liu:2012zya , our analysis implies that the poles contained in these amplitudes can be regarded as the low-lying scalar charmed meson spectrum, and they such a spectrum is consistent with the best data Aaij:2014baa ; Aaij:2015sqa ; Aaij:2015vea ; Aaij:2015kqa ; Aaij:2016fma in that sector. In particular, the poles of the scalar charm-nonstrange mesons, $\left(2105^{+6}_{-8}-i\,102^{+10}_{-11}\right)$ MeV and $\left(2451^{+35}_{-26}-i\,134^{+7}_{-8}\right)$ MeV Du:2017zvv , are different from the resonance parameters of the $D_{0}^{\ast}(2400)$ listed in RPP Tanabashi:2018oca , which were extracted using a simple BW parameterization. The analysis in this work gives a further strong support to the two-$D_{0}^{*}$ scenario as advocated in Refs. Albaladejo:2016lbb ; Du:2017zvv . Better knowledge of the scalar and axial-vector charmed mesons as well as the corresponding bottom counterparts are expected with the Belle-II Kou:2018nap and the upcoming high-luminosity and high-energy LHC Cerri:2018ypt .

Acknowledgements.

This work is supported in part by the Deutsche Forschungsgemeinschaft (DFG) and the National Natural Science Foundation of China (NSFC) through the funds provided to the Sino-German Collaborative Research Center “Symmetries and the Emergence of Structure in QCD” (NSFC Grant No. 11621131001, DFG Grant No. TRR110), by the NSFC under Grant No. 11747601 and No. 11835015, by the Chinese Academy of Sciences (CAS) under Grant No. QYZDB-SSW-SYS013 and No. XDPB09, by the CAS Center for Excellence in Particle Physics (CCEPP), by the CAS President’s International Fellowship Initiative (PIFI) (Grant No. 2018DM0034), and by the VolkswagenStiftung (Grant No. 93562).
