Algorithmic complexity of multiplex networks

TL;DR

This paper introduces an information-theoretic approach to quantify the complexity of multilayer networks, enabling better understanding, classification, and dynamic analysis of complex systems compared to traditional single-layer models.

Contribution

It proposes a novel complexity measure based on Kolmogorov complexity for multilayer networks, facilitating low-dimensional representations and dynamic property preservation.

Findings

Multilayer networks encode more information than aggregated graphs.

The complexity measure helps classify networks into meaningful families.

Low-dimensional models retain key dynamical properties like epidemic thresholds.

Abstract

Multilayer networks preserve full information about the different interactions among the constituents of a complex system, and have recently proven quite useful in modelling transportation networks, social circles, and the human brain. A fundamental and still open problem is to assess if and when the multilayer representation of a system provides a qualitatively better model than the classical single-layer aggregated network. Here we tackle this problem from an algorithmic information theory perspective. We propose an intuitive way to encode a multilayer network into a bit string, and we define the complexity of a multilayer network as the ratio of the Kolmogorov complexity of the bit strings associated to the multilayer and to the corresponding aggregated graph. We find that there exists a maximum amount of additional information that a multilayer model can encode with respect to the equivalent single-layer graph. We show how our complexity measure can be used to obtain low-dimensional representations of multidimensional systems, to cluster multilayer networks into a small set of meaningful super-families, and to detect tipping points in the evolution of different time-varying multilayer graphs. Interestingly, the low-dimensional multiplex networks obtained with the proposed method also retain most of the dynamical properties of the original systems, as demonstrated for instance by the preservation of the epidemic threshold in the multiplex SIS model. These results suggest that information-theoretic approaches can be effectively employed for a more systematic analysis of static and time-varying multidimensional complex systems.

Figures

Tables

Table 1. Table 1: Reducibility of technological, social, and biological multiplex networks. From left to right, the columns report the number of layers in the original system ( M 𝑀 M ), the structural edge overlap ( o 𝑜 o ), the number of optimal layers ( M o ​ p ​ t ​ ( C ) subscript 𝑀 𝑜 𝑝 𝑡 𝐶 M_{opt}(C) ) obtained when maximising the quality function q ​ ( ∙ ) 𝑞 ∙ q(\bullet) , the value m ​ a ​ x ​ q ​ ( ∙ ) 𝑚 𝑎 𝑥 𝑞 ∙ max\;q(\bullet) , and the optimal value of complexity C o ​ p ​ t subscript 𝐶 𝑜 𝑝 𝑡 C_{opt} observed. The last two columns show the optimal number of layers M o ​ p ​ t ​ ( V ​ N ) subscript 𝑀 𝑜 𝑝 𝑡 𝑉 𝑁 M_{opt}(VN) and the corresponding value of the quality function q ​ ( ⋅ ) V ​ N 𝑞 subscript ⋅ 𝑉 𝑁 q(\cdot)_{VN} obtained when using the multiplex structural reducibility procedure introduced in Ref.  DeDomenico_Nicosia_2015 . Although the two methods yield different results, they share similar features, i.e. technological multiplex networks are less likely to be reduced compared to biological and social systems.

Multiplex	$M$	$o$	$M_{opt}\left(C\right)$	$\left[maxq{(\cdot )}_C\right]$	$C_{opt}$	$M_{opt}\left(VN\right)$	$q{(\cdot )}_{VN}$
London Tube DeDomenico_Nicosia_2015	13	0.006810	11	0.183	1.125	2	0.499
Barcelona Tube	11	0.002367	11	0.224	1.152	11	0.513
Bejing Tube	17	0.000197	15	0.199	1.140	17	0.528
Berlin Tube	9	0.001359	8	0.214	1.110	9	0.461
Airports North America Nicosia_Latora_2015	143	0.003958	129	0.143	1.271	93	0.697
Airports Europe Nicosia_Latora_2015	175	0.003185	163	0.162	1.413	109	0.675
Airports Asia Nicosia_Latora_2015	213	0.005477	209	0.180	1.636	146	0.291
Airports South America Nicosia_Latora_2015	58	0.014244	53	0.187	1.325	41	0.682
Airports Oceania Nicosia_Latora_2015	37	0.014532	27	0.185	1.192	31	0.665
Airports Africa Nicosia_Latora_2015	84	0.006876	74	0.191	1.274	65	0.719
EU airlines Cardillo et al. (2013)	37	0.005964	37	0.151	1.233	37	0.411
Train UK Santoro et al. (2018)	41	0.002687	24	0.120	1.019	15	0.225
APS countries	10	0.451138	10	0.176	1.618	2	0.047
Aarhus network Ded	5	0.189093	5	0.201	1.291	2	0.158
Terrorist network Nicosia_Latora_2015	4	0.153558	4	0.171	1.166	2	0.239
Pierre Auger collab. Domenico et al. (2015)	16	0.006901	10	0.117	1.018	15	0.423
Arabidopsis DeDomenico_Nicosia_2015	7	0.007690	6	0.105	1.023	7	0.421
Candida DeDomenico_Nicosia_2015	7	0.007892	5	0.177	1.030	3	0.620
Celegans DeDomenico_Nicosia_2015	6	0.003095	6	0.114	1.023	5	0.430
Drosophila DeDomenico_Nicosia_2015	7	0.004389	5	0.098	1.011	6	0.379
Gallus DeDomenico_Nicosia_2015	6	0.012923	5	0.179	1.043	5	0.577
Human Herpes-4 DeDomenico_Nicosia_2015	4	0.042056	2	0.196	1.063	4	0.353
Human HIV-1 DeDomenico_Nicosia_2015	5	0.022294	5	0.150	1.073	4	0.353
Mus DeDomenico_Nicosia_2015	7	0.010776	7	0.106	1.041	6	0.375
Oryctolagus DeDomenico_Nicosia_2015	3	0.019231	3	0.209	1.026	2	0.500
Plasmodium DeDomenico_Nicosia_2015	3	0.000206	2	0.128	0.987	3	0.611
Rattus DeDomenico_Nicosia_2015	6	0.012401	6	0.126	1.040	5	0.472
S. Cerevisiae DeDomenico_Nicosia_2015	7	0.017603	5	0.092	1.122	3	0.135
S. Pombe DeDomenico_Nicosia_2015	7	0.007070	5	0.099	1.067	2	0.206
Xenopus DeDomenico_Nicosia_2015	5	0.025692	5	0.169	1.071	4	0.410

Table 2. Table S-I: Statistics of multiplex complexity 𝒞 ​ ( ℳ ) 𝒞 ℳ \mathcal{C}(\mathcal{M}) for different real-world multiplex over 10000 prime-layer associations. From left to right, we report the complexity obtained using the canonical prime association 𝒞 C ​ A subscript 𝒞 𝐶 𝐴 \mathcal{C}_{CA} , the mean of the distribution when re-shuffling the prime association μ 𝜇 \mu , the standard deviation σ 𝜎 \sigma , the standard error of the mean ste ​ ( μ ) ste 𝜇 {\rm ste}(\mu) , the coefficient of variation c ​ v = σ μ 𝑐 𝑣 𝜎 𝜇 cv=\frac{\sigma}{\mu} , and the coefficient of variation over the sample σ μ ⋅ ( N ) \frac{\sigma}{\mu\cdot\sqrt{(}N)} . The last column reports the z-score of the prime canonical association 𝒞 C ​ A subscript 𝒞 𝐶 𝐴 \mathcal{C}_{CA} .

Multiplex	${𝒞}_{CA}$	$\mu$	$\sigma$	$ste\left(\mu \right)$	$cv$	$\frac{\sigma }{\mu \cdot \sqrt{(}N)}$	$Z$
London Tube	1.128292	1.115452	0.007446	0.000074	0.006675	0.000067	1.724483
Barcelona Tube	1.126812	1.119959	0.007222	0.000072	0.006448	0.000064	0.948881
Beijing Tube	1.120737	1.122686	0.010934	0.000109	0.009739	0.000097	-0.178297
Berlin Tube	1.107717	1.098907	0.009024	0.000090	0.008212	0.000082	0.976258
Airports North America	1.263749	1.250040	0.014373	0.000144	0.011498	0.000115	0.953842
Airports Europe	1.416298	1.352806	0.020549	0.000205	0.015190	0.000152	3.089739
Airports Asia	1.634686	1.591643	0.030954	0.000310	0.019448	0.000194	1.390522
Airports South America	1.306878	1.266330	0.019676	0.000197	0.015537	0.000155	2.060841
Airports Oceania	1.191390	1.139328	0.015222	0.000152	0.013361	0.000134	3.420186
Airports Africa	1.264403	1.230097	0.016762	0.000168	0.013626	0.000136	2.046697
EU airlines	1.218266	1.200618	0.016453	0.000165	0.013704	0.000137	1.072666
Train UK	1.019208	1.029434	0.017487	0.000175	0.016987	0.000170	-0.584796
APS countries	1.625382	1.590660	0.015224	0.000152	0.009571	0.000096	2.280844
Aarhus network	1.294118	1.284601	0.008598	0.000086	0.006693	0.000067	1.106912
Terrorist network	1.156780	1.145212	0.006786	0.000068	0.005925	0.000059	1.704832
Pierre Auger collab.	0.989371	0.997252	0.008041	0.000080	0.008063	0.000081	-0.980117
Arabidopsis	1.015857	1.017097	0.005778	0.000058	0.005681	0.000057	-0.214578
Candida	1.029647	1.033560	0.008517	0.000085	0.008241	0.000082	-0.459470
Celegans	1.020054	0.999806	0.010128	0.000101	0.010130	0.000101	1.999236
Drosophila	1.008709	1.021645	0.011899	0.000119	0.011647	0.000116	-1.087131
Gallus	1.049566	1.054286	0.012510	0.000125	0.011866	0.000119	-0.377249
Human Herpes-4	1.066253	1.065862	0.004286	0.000043	0.004021	0.000040	0.091231
Human HIV-1	1.033686	1.029318	0.016341	0.000163	0.015876	0.000159	0.267315
Mus	1.039883	1.039828	0.006973	0.000070	0.006706	0.000067	0.007934
Oryctolagus	1.009524	1.014351	0.007962	0.000080	0.007850	0.000078	-0.606175
Plasmodium	0.988591	0.991987	0.006902	0.000069	0.006957	0.000070	-0.492102
Rattus	1.048545	1.033855	0.011312	0.000113	0.010942	0.000109	1.298544
S. Pombe	1.061032	1.063236	0.007830	0.000078	0.007364	0.000074	-0.281524
Xenopus	1.053121	1.060337	0.006209	0.000062	0.005856	0.000059	-1.162198

Table 3. Table S-II: Statistics of multiplex complexity 𝒞 ​ ( ℳ ) 𝒞 ℳ \mathcal{C}(\mathcal{M}) for several synthetic and real-world multiplex over 10000 random independent node labellings. From left to right, we report the mean of the distribution μ 𝜇 \mu , the standard deviation σ 𝜎 \sigma , the standard error for the mean ste ​ ( μ ) ste 𝜇 {\rm ste}(\mu) , the coefficient of variation c ​ v 𝑐 𝑣 cv , and the coefficient of variation over the sample σ μ ⋅ ( N ) \frac{\sigma}{\mu\cdot\sqrt{(}N)} .

Multiplex	$\mu$	$\sigma$	$ste\left(\mu \right)$	$cv$	$\frac{\sigma }{\mu \cdot \sqrt{(}N)}$
Synthetic 8 layers	1.238824	0.001007	0.000010	0.000813	0.000008
Synthetic 20 layers	1.373632	0.001465	0.000015	0.001067	0.000011
Synthetic 32 layers	1.623441	0.002087	0.000021	0.001285	0.000013
London Tube	1.125283	0.009110	0.000091	0.008096	0.000081
Barcelona Tube	1.152427	0.013088	0.000131	0.011357	0.000114
Beijing Tube	1.140638	0.010211	0.000102	0.008952	0.000090
Berlin Tube	1.111365	0.011885	0.000119	0.010694	0.000107
Airports North America	1.270578	0.004499	0.000045	0.003541	0.000035
Airports Europe	1.412997	0.005673	0.000057	0.004015	0.000040
Airports Asia	1.638689	0.005555	0.000056	0.003390	0.000034
Airports South America	1.324929	0.009317	0.000093	0.007032	0.000070
Airports Oceania	1.191850	0.010755	0.000108	0.009024	0.000090
Airports Africa	1.273712	0.010209	0.000102	0.008015	0.000080
EU airlines	1.232830	0.006486	0.000065	0.005261	0.000053
Train UK	1.018875	0.003015	0.000030	0.002959	0.000030
APS countries	1.617794	0.012755	0.000128	0.007884	0.000079
Aarhus network	1.291076	0.018428	0.000184	0.014274	0.000143
Terrorist network	1.165705	0.013456	0.000135	0.011543	0.000115
Pierre Auger collab.	1.018169	0.005196	0.000052	0.005103	0.000051
Arabidopsis	1.023403	0.001587	0.000016	0.001551	0.000016
Candida	1.030212	0.010781	0.000108	0.010465	0.000105
Celegans	1.022841	0.002089	0.000021	0.002043	0.000020
Drosophila	1.010760	0.000851	0.000009	0.000842	0.000008
Gallus	1.042861	0.008910	0.000089	0.008544	0.000085
Human Herpes-4	1.063347	0.014228	0.000142	0.013381	0.000134
Human HIV-1	1.072567	0.007249	0.000072	0.006759	0.000068
Mus	1.041120	0.001317	0.000013	0.001265	0.000013
Oryctolagus	1.025862	0.011836	0.000118	0.011538	0.000115
Plasmodium	0.986594	0.002003	0.000020	0.002030	0.000020
Rattus	1.040003	0.002909	0.000029	0.002797	0.000028
S. Cerevisiae	1.122325	0.000883	0.000009	0.000786	0.000008
S. Pombe	1.067023	0.001699	0.000017	0.001592	0.000016
Xenopus	1.071017	0.007500	0.000075	0.007002	0.000070

Table 4. Table S-III: Reducibility of four synthetic multiplex benchmarks. From left to right, we report the total number of layers M 𝑀 M , the total number of distinct layers M d ​ i ​ s ​ t ​ i ​ n ​ c ​ t subscript 𝑀 𝑑 𝑖 𝑠 𝑡 𝑖 𝑛 𝑐 𝑡 M_{distinct} , the pattern of identical layers in the multiplex, and the number of optimal layers M o ​ p ​ t ​ ( C ) subscript 𝑀 𝑜 𝑝 𝑡 𝐶 M_{opt}(C) obtained when maximising the quality function q ​ ( ∙ ) 𝑞 ∙ q(\bullet) . The last column reports the optimal number of layers M o ​ p ​ t ​ ( V ​ N ) subscript 𝑀 𝑜 𝑝 𝑡 𝑉 𝑁 M_{opt}(VN) when using the multiplex structural reducibility procedure described in Ref.  DeDomenico_Nicosia_2015 . Notice that in all the cases 𝒞 ​ ( ℳ ) 𝒞 ℳ \mathcal{C}(\mathcal{M}) correctly identifies both the correct sequence of aggregation steps and the best partition, outperforming the procedure based on the Von Neumann entropy.

Benchmark ID	M	$M_{distinct}$	$pattern$	$M_{opt}\left(C\right)$	$M_{opt}\left(VN\right)$
1	15	5	{3,3,3,3,3}	5	5
2	20	10	{2,2,2,2,2,2,2,2,2,2}	10	12
3	15	5	{3,2,1,4,5}	5	5
4	50	5	{10,10,10,10,10}	5	14

Equations

$${\Omega }_{ij}=\{\begin{array}{l}\prod _{\alpha :a_{ij}^{[\alpha ]}=1}{p}^{[\alpha ]}\\ 0\text{if }{a}_{ij}^{[\alpha ]}=0\forall \alpha =1,\dots ,M\end{array}$$

$$\mathcal{C}\left(\mathcal{M}\right)=\frac{KC\left(\Omega \right)}{KC\left(W\right)},$$

$$q(\mathcal{X})=\frac{\mathcal{C}(\mathcal{X})}{\log K_{\mathcal{X}}}$$

$$\text{centering}{\Omega }_{ij}=\{\begin{array}{l}\prod _{\alpha :a_{ij}^{[\alpha ]}=1}{p}^{[\alpha ]}\\ 0\text{if }{a}_{ij}^{[\alpha ]}=0\forall \alpha =1,\dots ,M\end{array}\text{vspace}\ast 0.2cm\text{@add@centering}$$

$$\text{centering}{W}_{ij}=\{\begin{array}{l}\underset{i,j}{\max }\{{\Omega }_{ij}\}\text{if }{\Omega }_{ij}\ne 0\\ 0\text{otherwise}\end{array}\text{@add@centering}$$

$$\mathcal{C}\left(\mathcal{M}\right)=\frac{KC\left(\Omega \right)}{KC\left(W\right)}.$$

$$o_s=\frac{{\sum }_{i,j}^N{o}_{ij}}{M{\sum }_{i,j}^N\Theta (o_{ij})}$$

$$o=\frac{M}{M-1}\left(o_s-\frac{1}{M}\right)$$

$$k_i=\sum _{\alpha }{k}_i^{[\alpha ]}=\sum _{\alpha }\sum _j{a}_{ij}^{[\alpha ]},$$

$$P_i=\frac{M}{M-1}\left[1-\sum _{\alpha }{\left(\frac{k_i^{[\alpha ]}}{k_i}\right)}^2\right],$$

$$B_i=\sum _{\alpha }\theta \left(k_i^{[\alpha ]}\right),$$

$${\lambda }_i=\frac{1}{N-1}\sum _{\begin{array}{c}j\in N\\ j\ne i\end{array}}\frac{{\psi }_{ij}}{{\sigma }_{ij}}.$$

$$\mathcal{C}(\mathcal{M})=\frac{KC(\Omega )}{KC(W)}$$

$$\text{centering}{W}_{ij}=\{\begin{array}{l}max({\Omega }_{ij})\text{if }\exists \alpha :a_{ij}^{[\alpha ]}=1\\ 0\text{if }{a}_{ij}^{[\alpha ]}=0\forall \alpha =1,\dots ,M\end{array}\text{vspace}\ast 0.2cm\text{@add@centering}$$

$$\text{centering}{W}_{ij}=o_{ij}=\sum _{\alpha =1}^M{a}_{ij}^{[\alpha ]}\text{vspace}\ast 0.2cm\text{@add@centering}$$

$$\text{centering}{W}_{ij}=\{\begin{array}{l}{2}^{o_{ij}}\text{if }{o}_{ij}>0\\ 0\text{otherwise}\end{array}\text{vspace}\ast 0.2cm\text{@add@centering}$$

$$\tilde{q}(\mathcal{X})=\frac{\mathcal{C}(\mathcal{X})}{log(M\ast K_{\mathcal{X}}/K_{\mathcal{A}})}$$

$$h_{max}=\log {\lambda }_{max}$$

$${\tilde{h}}_{\max }=\frac{h_{\max }}{N}$$

$${\lambda }_i=\frac{1}{N-1}\sum _{\begin{array}{c}j\in N\\ j\ne i\end{array}}\frac{{\psi }_{ij}}{{\sigma }_{ij}}$$

Full text

I Introduction

The success of network science in modelling real-world complex systems Newman (2010); Latora et al. (2017) relies on the hypothesis that the interconnections among the elementary units of a system –i.e., the network of their interactions– are responsible for the emergence of complex dynamical behaviours Pastor-Satorras et al. (2015); Arenas et al. (2008). Traditionally, relevant contributions towards a better understanding of complex networks have come from statistical physics Jaynes (1957); Bianconi (2008); Anand and Bianconi (2009), where the main aim is to characterise the ensembles of random graphs comparable with an observed real-world network. However, really interesting results have also come from information theory. A quite prolific line of research in this area aims at adapting classical concepts and methods from information theory to networks analysis Dehmer (2008); Passerini and Severini (2009); Mowshowitz and Dehmer (2012). Some other studies have focused instead on the definition of entropy measures on empirical networks Dehmer and Mowshowitz (2011); Cimini et al. (2019), and on the quantification of the significance of structural indicators based on algorithmic information theory Morzy et al. (2017); Zenil et al. (2018).

Multi-layer and multiplex networks, which take into account different kinds of relations among the same set of nodes at the same time De Domenico et al. (2013); Boccaletti et al. (2014); Bianconi (2018), are a currently hot research topic in network science. The main idea behind the investigation of high-dimensional network representations is that retaining full information about the structure of a system under study is often fundamental to fully understand its behaviour. Indeed, multi-layer networks have helped unravelling interesting structural properties in transportation systems Cardillo et al. (2013); Gallotti et al. (2016) and neuroscience De Domenico et al. (2016a); Battiston et al. (2017a), and have revealed qualitatively new emerging phenomena, including abrupt cascading failures Buldyrev et al. (2010), super-diffusion Gómez et al. (2013), explosive synchronisation Nicosia et al. (2017), hyperfast spreading Soriano-Paños et al. (2018); Granell et al. (2013); Gleeson et al. (2016); De Domenico et al. (2016b).

These encouraging results have transformed our understanding of many physical systems, but an overarching question remains about whether it is necessary to incorporate all the available data about a system in order to fully characterise its behaviour Lacasa et al. (2018). Some recent studies have indeed shown that the multi-layer version of some dynamical processes cannot be reduced to the corresponding single-layer process on any simple combination of the existing layers Diakonova et al. (2016). Nevertheless, determining whether a lower-dimensional multi-layer network can exhibit the same structural and dynamical richness of the full multi-layer graph is still an open question. Some concrete attempts to solve this problem have come from a formalisation of multi-layer dimensionality reduction in terms of a quantum information problem DeDomenico_Nicosia_2015 , and from other approaches relying on mesoscopic similarity between layers Iacovacci et al. (lack); Kao and Porter (lack); Stanley et al. (lack); De Bacco et al. (lack). However, we still lack a convincing method to quantify the amount of information contained in a multi-layer network model, and to compare the information content of different multi-layer networks.

In this paper, we take an algorithmic complexity perspective on this problem, and we define the complexity measure $\mathcal{C}(\mathcal{M})$ to quantify the amount of information contained in a multiplex network $\mathcal{M}$. The measure leverages the classical concept of Kolmogorov complexity Kolmogorov (1998), according to which the complexity of a bit string is equal to the length of the shortest possible program that can produce that string as its output. In particular, we show that $\mathcal{C}(\mathcal{M})$ is quite useful in determining the optimal number of layers needed to represent a multi-layer network, and in detecting structural and dynamical similarities among multi-layer networks from different domains.

II Results

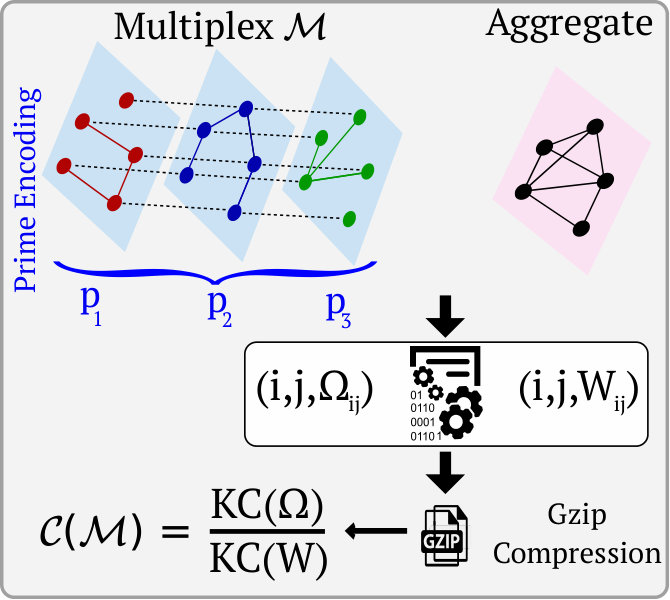

We propose here a formalism to quantity the complexity of a multiplex network over $N$ nodes and $M$ layers, based on the comparison of the Kolmogorov complexity of the multiplex and of the corresponding aggregated graph. We start by encoding the unweighted multiplex network $\mathcal{M}$ into the $N\times N$ prime-weight matrix $\Omega$ defined as follows:

[TABLE]

The prime-weight matrix is obtained by assigning a distinct prime number $p^{[\alpha]}$ to each of the $M$ layers of the multiplex, and then setting each element $\Omega_{ij}$ equal to the product of the primes associated to the layers where an edge between node $i$ and node $j$ actually exists. This procedure can be easily generalised to the case of weighted multiplex networks with integer weights, as explained in Appendix A. Note that, given a certain assignment of prime numbers to the $M$ layers, the matrix $\Omega$ is uniquely determined. Moreover, thanks to the unique factorisation theorem, the prime-weight matrix preserves full information about the multiplex network $\mathcal{M}$, i.e., about the placement of all its edges.

II.1 Complexity of multiplex networks

We define the complexity of a multiplex network $\mathcal{M}$ with $N$ nodes and $M$ layers as the ratio:

[TABLE]

where the numerator is the Kolmogorov complexity Kolmogorov (1998) of $\mathcal{M}$ and the denominator is the Kolmogorov complexity of the weighted aggregated graph associated to $\mathcal{M}$. In particular, the matrix $\Omega$ is the prime-weight matrix representation of $\mathcal{M}$, while $W$ is the single-layer network obtained by aggregating all the $M$ layers. We compute an approximation of the Kolmogorov complexity of a matrix by looking at the size of the compressed weighted edge list (see Appendix B and Supplementary Information S-1.5 for details). The measure of complexity in Eq. (2) effectively quantifies the relative amount of additional algorithmic information needed to encode the multiplex network with respect to the amount needed to encode the corresponding single-layer aggregated graph. As a particular case, $\mathcal{C}(\mathcal{M})=1$ if the multiplex network consists of $M$ identical layers, but in general $\mathcal{C}(\mathcal{M})\geq 1$, since the different possible arrangements of edges across the layers require more than one symbol to be encoded. The main hypothesis is that the higher the value of $\mathcal{C}(\mathcal{M})$, the larger the amount of information lost when representing the multiplex as a single-layer graph. In practice, if $\mathcal{C}(\mathcal{M})\approx 1$ it would not make much difference to represent the multiplex as a single-layer graph, since the multiplex representation is not adding much more information. Conversely, when $\mathcal{C}(\mathcal{M})>1$ the aggregation of the multiplex into a single-layer graph would discard relevant information, and the larger the value of $\mathcal{C}(\mathcal{M})$ the more important it is to retain the full multiplex model. The code for computing the complexity of a multiplex network is available at Pap .

II.2 Synthetic multiplex networks

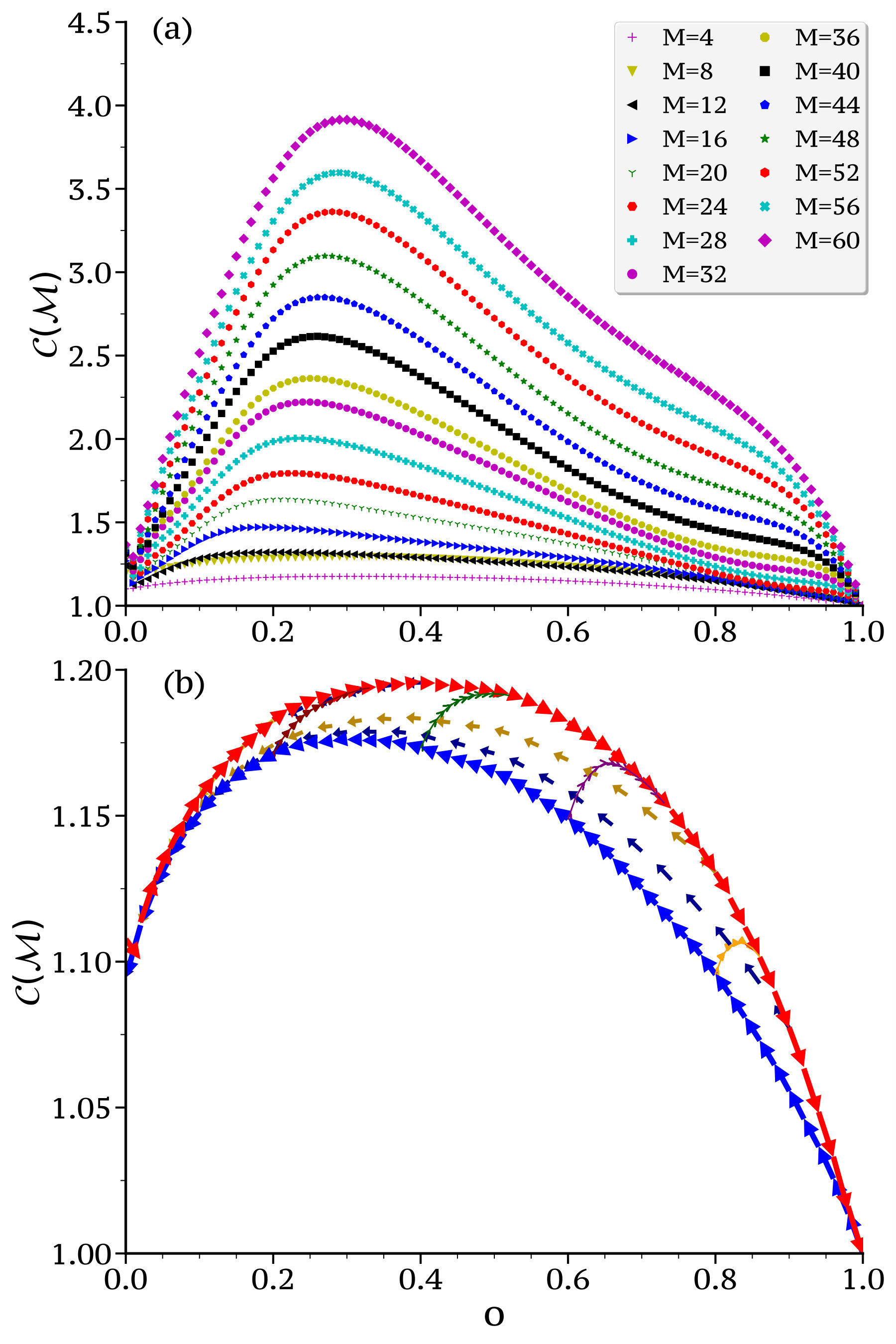

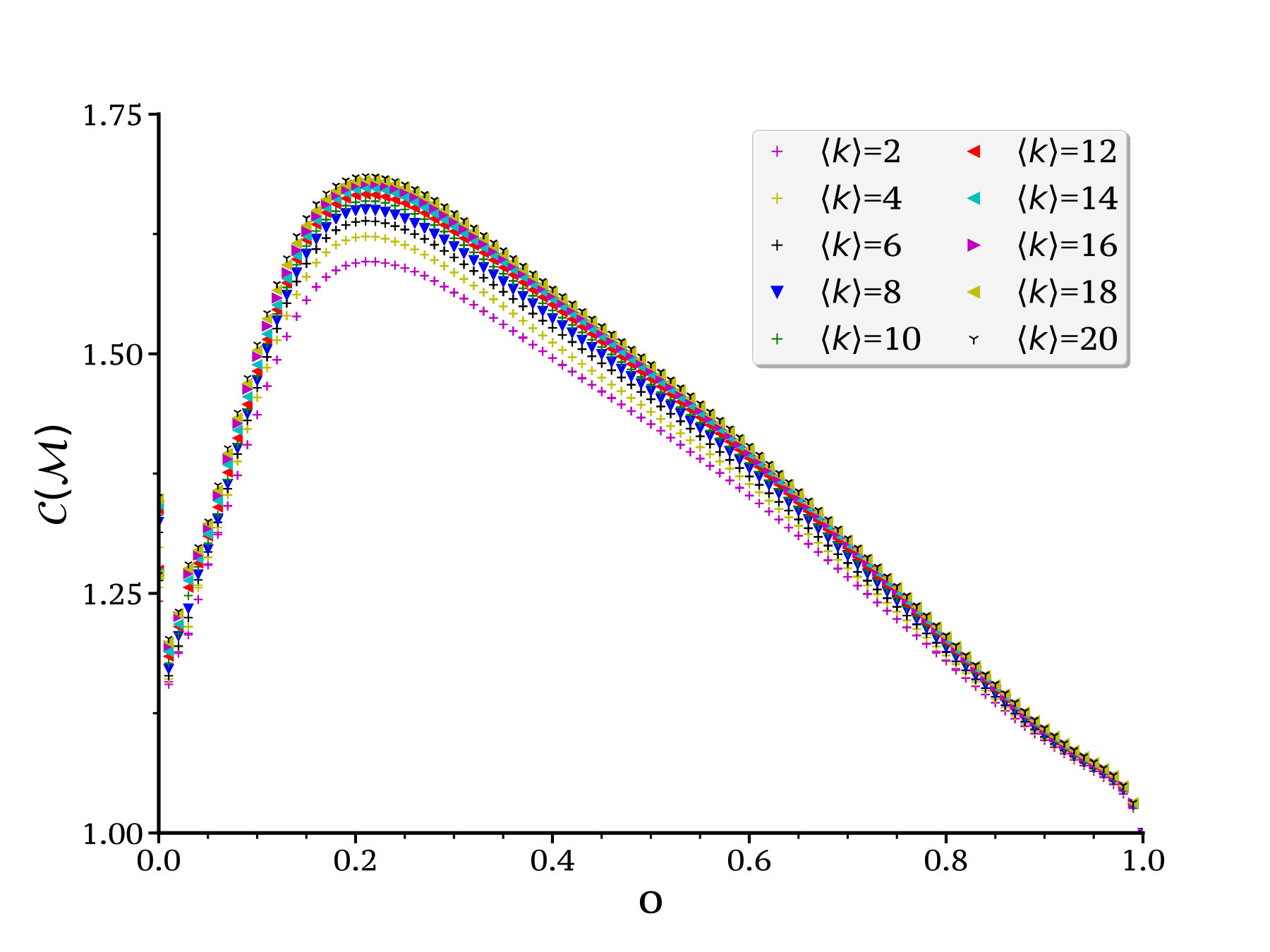

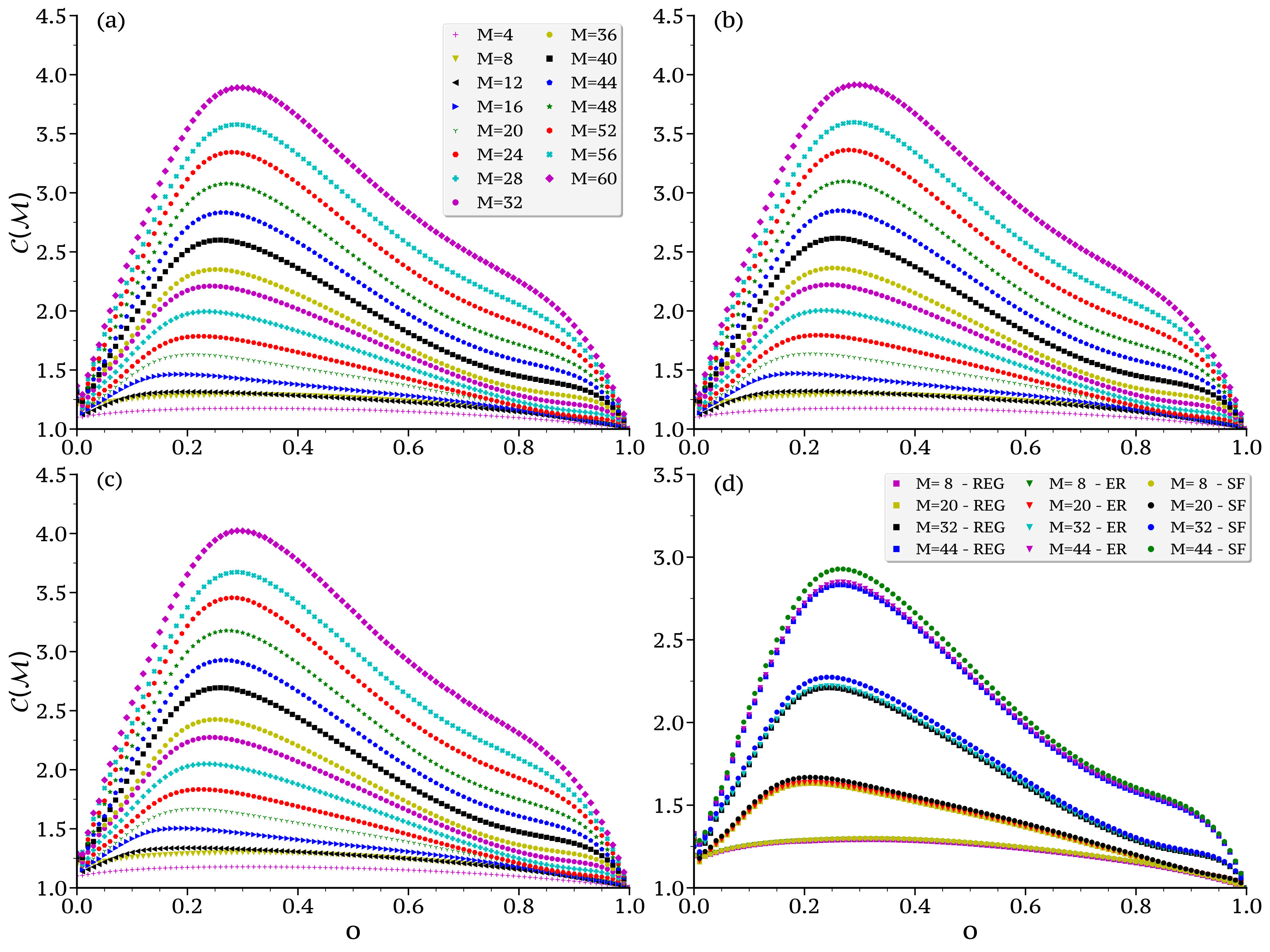

The fundamental ingredients contributing to the complexity of a multiplex network $\mathcal{M}$ as quantified by $\mathcal{C}(\mathcal{M})$ are the number of distinct pairs of nodes connected by an edge, and the actual number of distinct symbols present in the prime-weight matrix $\Omega$. In fact, both a larger number of connected pairs of nodes and a larger number of distinct symbols will in general result in a larger encoding, and a larger value of $\mathcal{C}(\mathcal{M})$. Indeed, the number of symbols present in $\Omega$ is equal to the number of different multiplex motifs with two nodes Battiston et al. (2017a).

The structural edge overlap $o$ is a an easy-to-compute proxy for the variety of different multi-edge configurations in a multiplex network (see Appendix C). In order to understand the effect of edge overlap on $\mathcal{C}(\mathcal{M})$, we considered ensembles of synthetic multiplex networks with different number of layers, where the total number of nodes and the average node degree on each layer are kept fixed ($N=10000$, $\langle k\rangle=6$), while the structural edge overlap $o$ is tuned as explained in Appendix D. The results are shown in Fig. 2(a). As expected, $\mathcal{C}(\mathcal{M})=1$ in multiplex networks with $M$ identical layers ($o=1$). Indeed, when we start rewiring the edges of a multiplex with $M$ identical layers, thus reducing the value of structural overlap, we expect $\mathcal{C}(\mathcal{M})$ to increase, since the prime-weight matrix contains a larger number of symbols. Conversely, when $o\approx 0$ each edge exists on exactly one of the $M$ layers, meaning that the number of distinct edges in the multiplex is roughly equal to the number of distinct edges in the aggregated graph. As a consequence, we expect the values of their Kolmogorov complexity to not differ too much, and the corresponding value of $\mathcal{C}(\mathcal{M})$ to be somehow close to $1$. This is exactly what we observe in Fig. 2(a), respectively for $o\approx 1$ and for $o\approx 0$. However, the most interesting result is that $\mathcal{C}(\mathcal{M})$ is a non-monotonic function of the structural edge overlap, for any value of $M$. In particular, it is evident from Fig. 2(a) that $\mathcal{C}(\mathcal{M})$ always has a maximum for $o\,\in\,[0.15,0.4]$, indicating that there exists indeed a maximum amount of additional information that a multiplex can encode with respect to the corresponding aggregate graph. We find it quite remarkable that the range at which $\mathcal{C}(\mathcal{M})$ peaks is compatible with the typical values of structural edge overlap observed in many real systems Diakonova et al. (2016).

*Structural hysteresis. – * In order to fully explore the behaviour of the complexity $\mathcal{C}$, we considered an ensemble of synthetic multiplex networks where we iteratively decrease and increase the structural overlap $o$ (see Appendix D for details). Interestingly, we found two robust and distinct trajectories when the structural overlap is decreased (resp. increased), characterised by a hysteresis loop (Fig. 2(b)). In the simulations, we start from a multiplex network with $N=10000$ nodes and $\langle k\rangle=6$, where the $M=4$ layers are identical Erdös-Renyi random graphs, and we iteratively rewire the links in order to decrease the total edge overlap until we obtain a multiplex network with $o=0$. After that, we successively increase the structural overlap until the system results in a multiplex network with $o=1$. Remarkably, $\mathcal{C}(\mathcal{M})$ remains a non-monotonic function of the structural edge overlap, but the plot of $\mathcal{C}(\mathcal{M})$ as a function of $o$ reveals the presence of a structural hysteresis, i.e., the trajectory leading from $o=1$ to $o=0$ is different from the one obtained when the structural overlap is increased from $o=0$ to $o=1$. This indicates that the procedures used to decrease and increase edge overlap are not ergodic, due to the intrinsic difference between the way overlap is created and destroyed. Indeed, if we start from a multiplex $\mathcal{M}$ with identical layers, the total number of ways in which a random rewiring can reduce the overlap is significantly larger than the total number of ways in which the edge overlap can be increased through a random move. Similar results are found when the graph on each layer is a regular or scale-free degree distribution, as shown in Supplementary Figure S-3. This result indicates that some caution is required when rewiring the edges of a multi-layer graph, which is a problem we will explore in a future work.

II.3 Multiplex complexity and reducibility

One of the main issues of multi-dimensional data sets is that they normally contain redundant information. Consequently, the direct transformation of each type of relation available in a multi-dimensional data set into a distinct layer of a multiplex network will possibly result in a structurally redundant representation of the original system. However, dealing with parsimonious models is always desirable, and is especially important in the case of multi-dimensional systems, where additional model complexity usually yields additional computational costs and raises some questions about the interpretability of the results. The “multiplex reducibility problem”, originally formulated in Ref. DeDomenico_Nicosia_2015 , is the problem of finding low-dimensional representations of a multiplex network which preserve as much structural information as possible about the original system.

The Multiplex complexity $\mathcal{C}(\mathcal{M})$ that we have defined provides a natural and meaningful way of obtaining reduced (low-dimensional) versions of a multiplex networks over $M$ layers. If we start from the original multiplex network $\mathcal{M}$ and we aggregate some of its layers, we obtain a reduced multiplex network $\mathcal{X}$ with $X\leq M$ layers, which will have a multiplex complexity $\mathcal{C}(\mathcal{X})$. We propose to quantify the normalised information content of the reduced multiplex network $\mathcal{X}$ as:

[TABLE]

where $K_{\mathcal{X}}$ is the number of distinct links in the multiplex $\mathcal{X}$. The normalisation by $\log K_{\mathcal{X}}$ is necessary, since in general the Kolmogorov complexity of a bit string of length $n$ is not smaller than $c+\log n$, for some $c\geq 0$ Delahaye and Zenil (2012). The length of the bit string associated to a multiplex network is proportional to the number of distinct links in the multiplex hence, on average, a multiplex with a larger number of edges is expected to have a higher multiplex complexity. This is an inconvenience for the multiplex reducibility problem, since a network with a larger number of layers would in principle have a larger number of edges as well. The normalisation used in $q(\mathcal{X})$ allows us to safely compare alternative low-dimensional multiplex networks obtained from the same original system.

Notice that $q(\mathcal{X})$ behaves as a quality function, meaning that larger values of $q(\mathcal{X})$ indicate that the (possibly reduced) multilayer network $\mathcal{X}$ encodes a relatively larger amount of information with respect to the corresponding weighted aggregated graph $W_{\mathcal{X}}$. Hence, our goal is to find argmax $[q(\mathcal{X})]$, which represents the optimally reduced multiplex $\mathcal{X}_{\textrm{max}}$ yielding the maximum value of information with respect to the aggregated graph. In particular, if all the layers of the multiplex network $\mathcal{X}$ are identical, then the maximum of $q$ will always be at $1=X\leq M$ layers, since the multiplex network and the aggregate graph are equivalent.

Maximising $q(\mathcal{X})$ by enumerating all the possible partitions of the $M$ layers is not feasible, since that number increases super-exponentially with $M$. Hence, here we employed a classical agglomerative greedy algorithm to approximate the optimal solution (see Appendix E). The code for obtaining lower-dimensional representations of a multiplex network using $q(\bullet)$ is available at Pap .

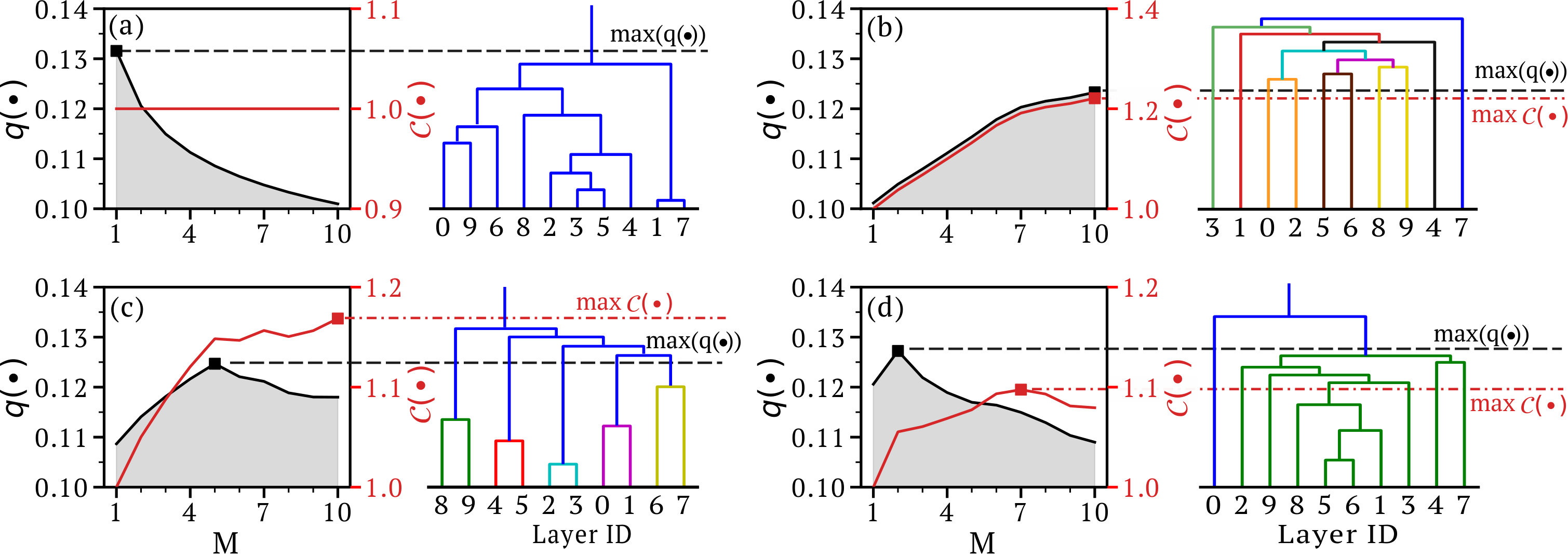

We started by testing the algorithm on ad-hoc synthetic multiplex networks where some of the $M$ layers are identical, thus reducing the number of truly distinct layers by construction. In Fig. 3 we report the results of the greedy reduction on four different synthetic benchmarks. In particular, we plot the global quality function $q(\bullet)$ and the complexity $\mathcal{C}(\bullet)$ as a function of the number of layers $M$ (left panels), and the dendrogram corresponding to the greedy aggregation steps (right panels). In all the cases considered, the maximum of the quality function $q(\bullet)$ correctly identifies the partition made of truly distinct layers, while in general the complexity $\mathcal{C}(\bullet)$ fails to identify the correct partition (see Supplementary Information Section S-2 for results on a wide set of synthetic benchmarks). This confirms our intuition that, by taking into account differences in the total number of edges of the multiplex, the quality function $q(\bullet)$ does a better job at discriminating between essential and redundant information. Indeed, while the multiplex with $M=10$ identical layers is always aggregated into a single-layer graph (Fig. 3(a)), in the multiplex with all distinct layers the maximum of $q(\bullet)$ is attained by the initial configuration with ten layers (Fig. 3(b)).

After having checked that $q(\bullet)$ identifies meaningful layer partitions in synthetic multiplex networks, we extended our analysis to real-world multiplex data sets. The results are reported in Table 1. Notice that most of the technological and biological multiplex networks in the Table admit reduced representations which have only a slightly smaller number of layers than the original systems. This is in agreement with the observation that in technological systems structural redundancy is purposedly avoided. Similarly, the poor redundancy observed in biological multiplex networks is in line with the functionally different role played by each layer (protein interaction, functional dependence, mechanical interaction, and so on). However, technological systems exhibit consistently larger values of multiplex complexity than biological systems. A comparison with the reducibility algorithm proposed in Ref. DeDomenico_Nicosia_2015 shows that our definition of multiplex complexity is in general more conservative, and often yields an optimal partition that has a slightly larger number of layers.

II.4 Structural and dynamical properties of reduced

multiplex networks

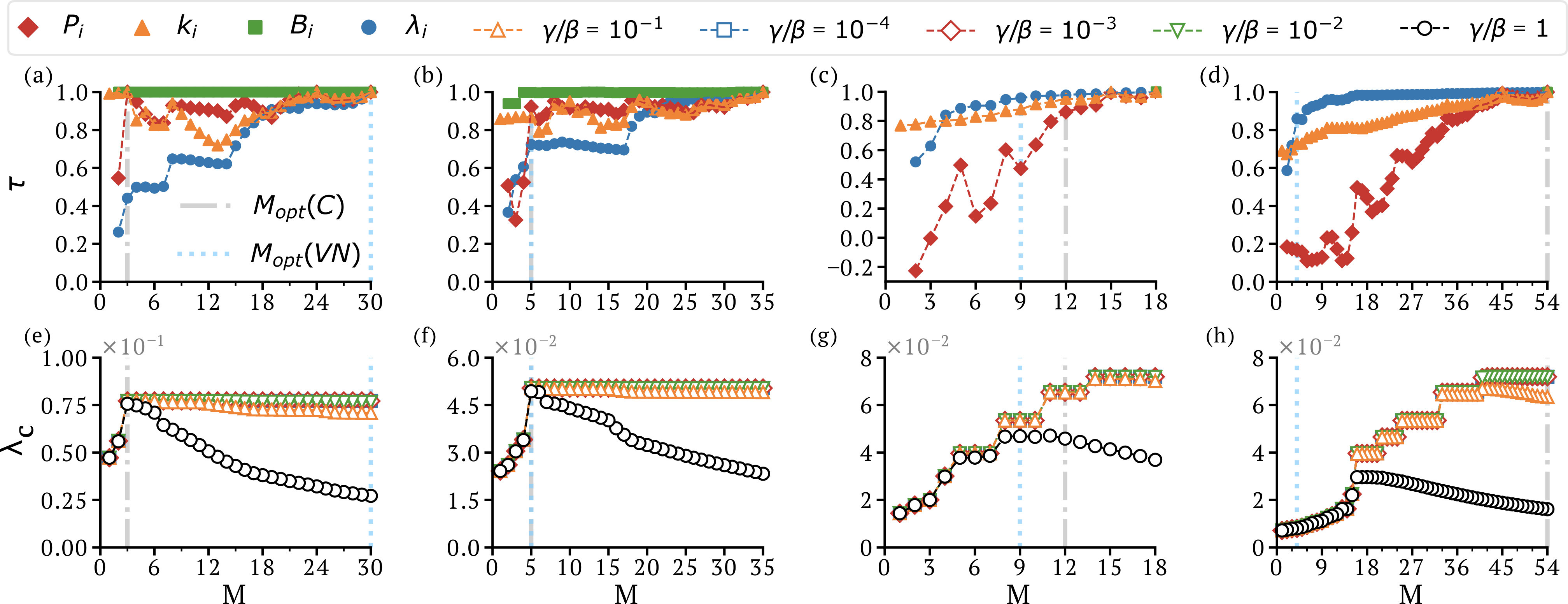

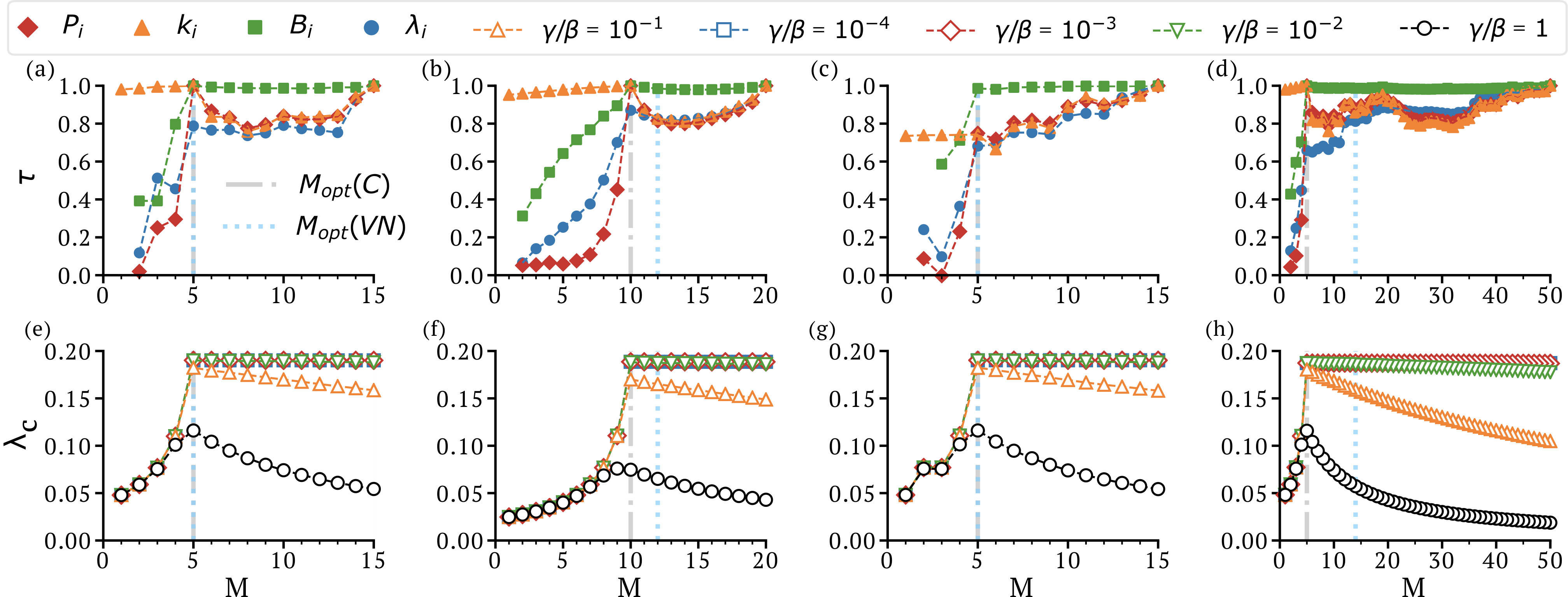

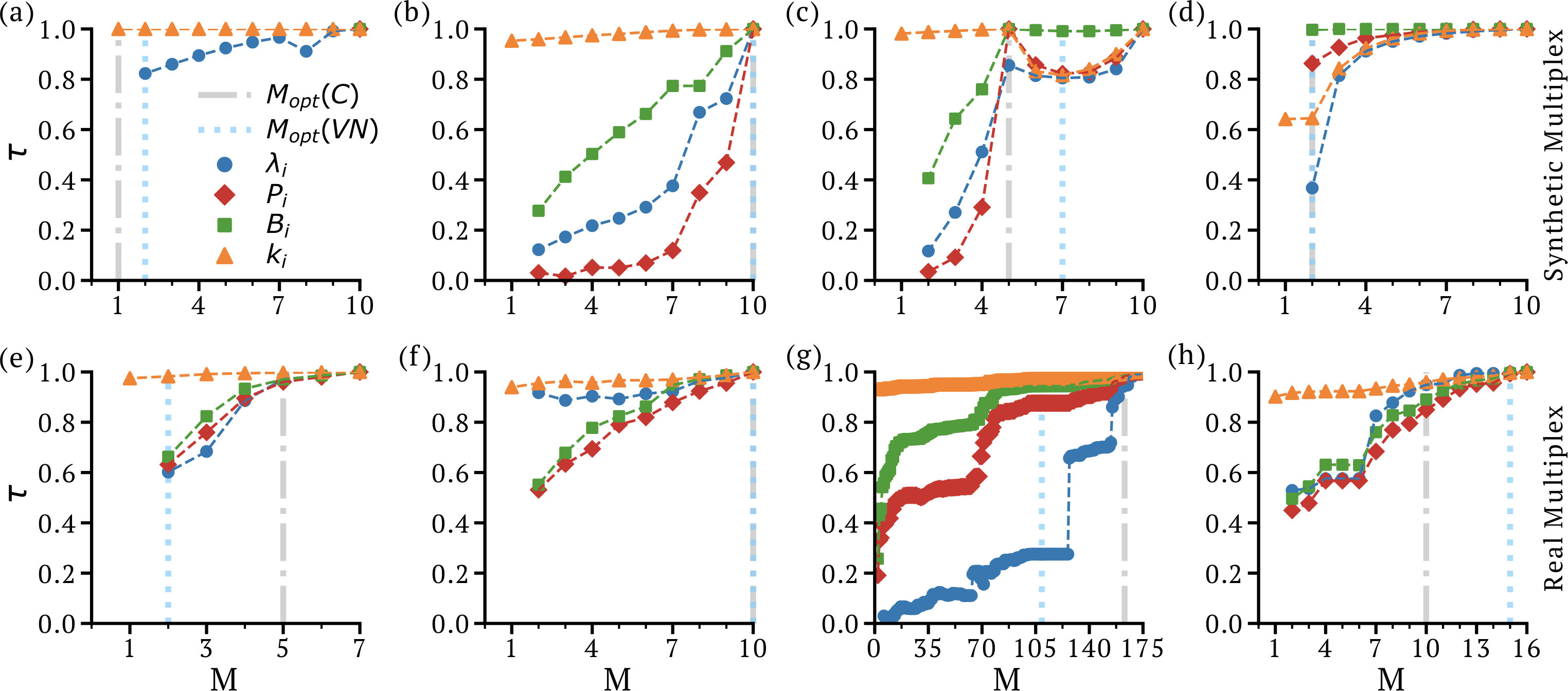

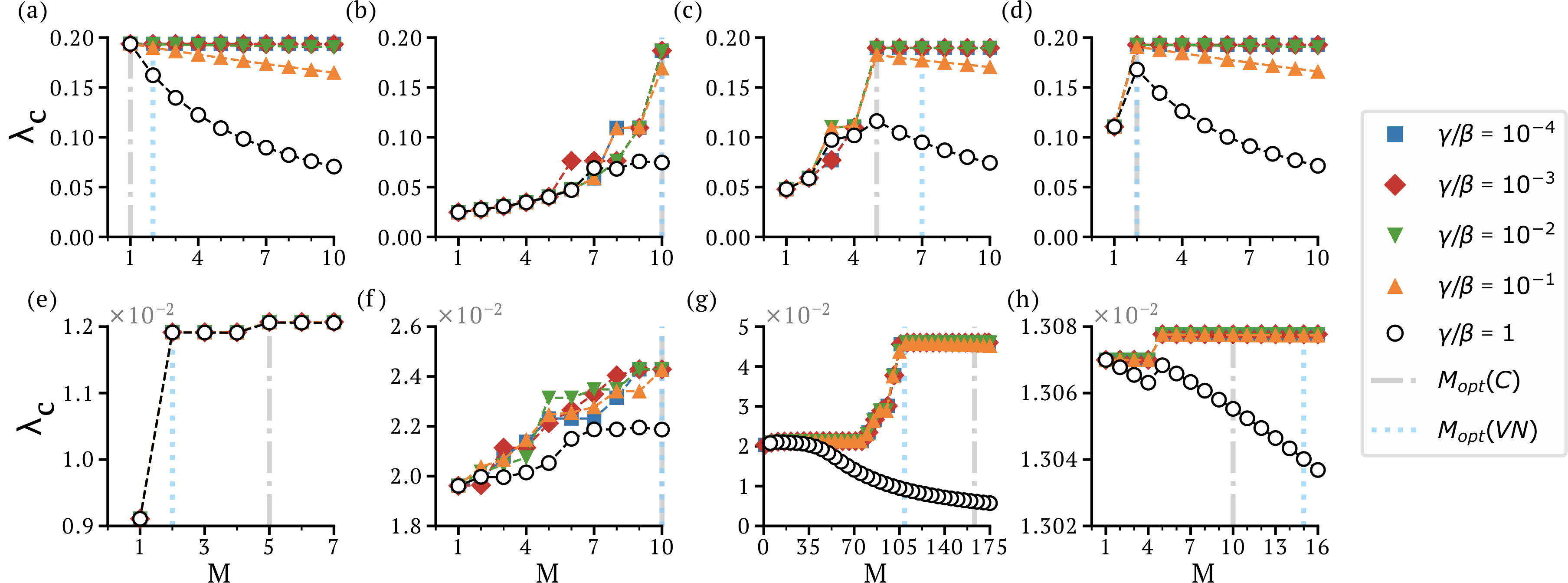

It is important to note that a layer reduction procedure is expected to remove redundancies while maintaining as much information as possible about the original system. However, there is in general no a-priori guarantee that the reduced multiplex obtained by aggregating some of the layers actually preserves any of the structural or dynamical properties of the original multiplex network to a given level of accuracy. To explore this aspect of layer reduction, we compared the distributions of four structural indicators in the original multiplex networks and in the networks obtained by using the aggregation procedure described above. In Figure 4, we report the Kendall’s $\tau$ correlation coefficient of the rankings induced by total node degree, node activity, participation coefficient, and node interdependence in both synthetic and real multiplex networks (see Appendix F for a formal description of those structural measures). Interestingly, in almost all the multiplex networks considered, the optimal partition identified by the multiplex complexity preserves most of the structural properties of the original system, as confirmed by the relatively high values of correlation ($\tau>0.8$). Conversely, the optimal aggregations based on von Neumann entropy DeDomenico_Nicosia_2015 often correspond to relatively lower values of correlation. We argue that this is a very desirable feature of the definition of complexity we have proposed. Indeed, a decrease of structural correlation is a clear indication that aggregation is creating structural artefacts. At the same time, the fact that the configuration found by using $q(\bullet)$ always yields high values of correlation with the original multiplex network confirms that the procedure is removing only truly redundant information, preserving most of the salient properties of the system. This is clearly visible when considering synthetic benchmarks (Fig. 4(a-d)), where the optimal partition of the multiplex made of only distinct layers is known by construction. Despite the value of the Kendall’s correlation decreases as the number of layers diminishes, the method based on multiplex complexity correctly identifies the optimal partition in all the cases considered.

Although the presence of high correlation between the structural properties of a multiplex network and its reduced counterpart indicates that the two systems are structurally similar, this will not guarantee in general that a dynamical process happening on the reduced multiplex network will exhibit a phenomenology similar to that observed on the original multiplex. As an example, we considered a multiplex SIS epidemic Cozzo et al. (lack) and we computed the epidemic threshold $\lambda_{c}$ of the system at each step of the greedy aggregation procedure. In this process, the epidemic threshold depends on the contagion parameter $\gamma/\beta$, that represents the ratio of intra-layer vs inter-layer contagion. In Fig. 5 we report the results of our analysis for both synthetic and real-world multiplex networks for different values of the contagion parameter $\gamma/\beta$. Notice that any drop in the value of the critical threshold corresponds to an important change in the structure of the reduced multiplex, e.g., to the formation of new (possibly artificial) structural patterns. This is easily observable in synthetic benchmarks (Fig. 5(a)-(d)), where the epidemic threshold of the reduced multiplex remains the same as that of the original multiplex up to the point where $q(\bullet)$ is optimal, and then decreases abruptly. This means that, with respect to epidemic spreading, the reduced multiplex obtained by optimising the quality function $q(\bullet)$ has basically the same dynamical behaviour as the original multiplex, while further aggregations yield a system with different dynamics. As a consequence, the optimal reduced multiplex network (which has a smaller number of layers) can be used to make meaningful predictions about the dynamics of spreading of the original system. These results provide further evidence that the multiplex reduction based on Kolmogorov complexity somehow outperforms the reduction based on von Neumann entropy. See Figure S-6 and S-7 in the Supplementary Information for additional evidence on several other synthetic benchmarks.

We obtain a similar but more intriguing picture for real-world multiplex networks, as shown in Fig. 5(e)-(h). We notice that both methods preserve most of the information of the original multiplex, yielding approximately the same performance. Nevertheless, by looking at both the structural and dynamical features over the aggregation steps, it appears that the method based on $\mathcal{C}(\mathcal{M})$ is a bit more conservative, and finds a reduced multiplex that simultaneously preserves as much as possible of both the structural and dynamical features of the original system. Indeed, the best layer partition identified by the method proposed here has high values of Kendall’s correlation of structural properties ($\approx 0.8$) and small variation of the epidemic threshold.

II.5 Complexity of time-varying multiplex networks

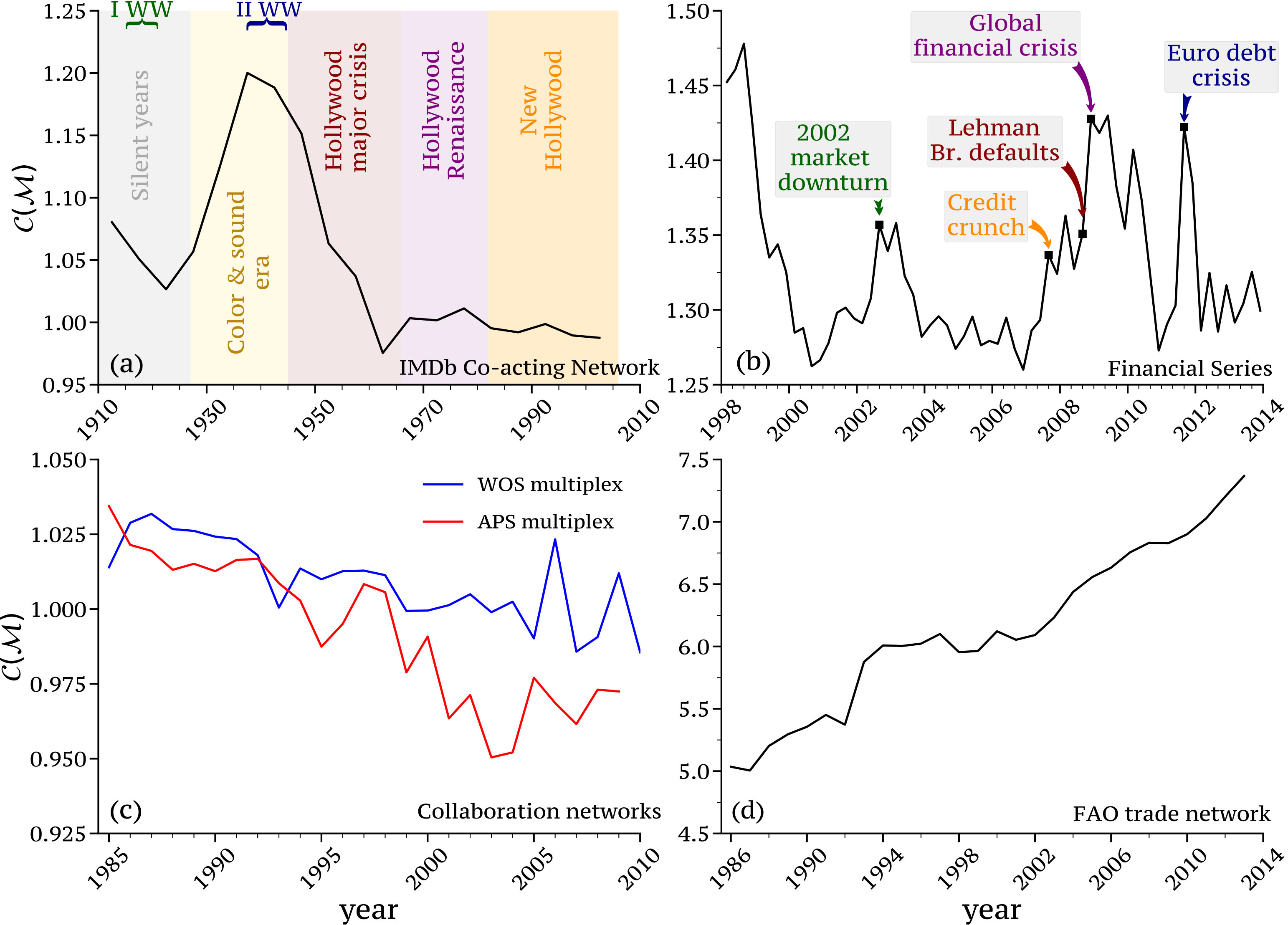

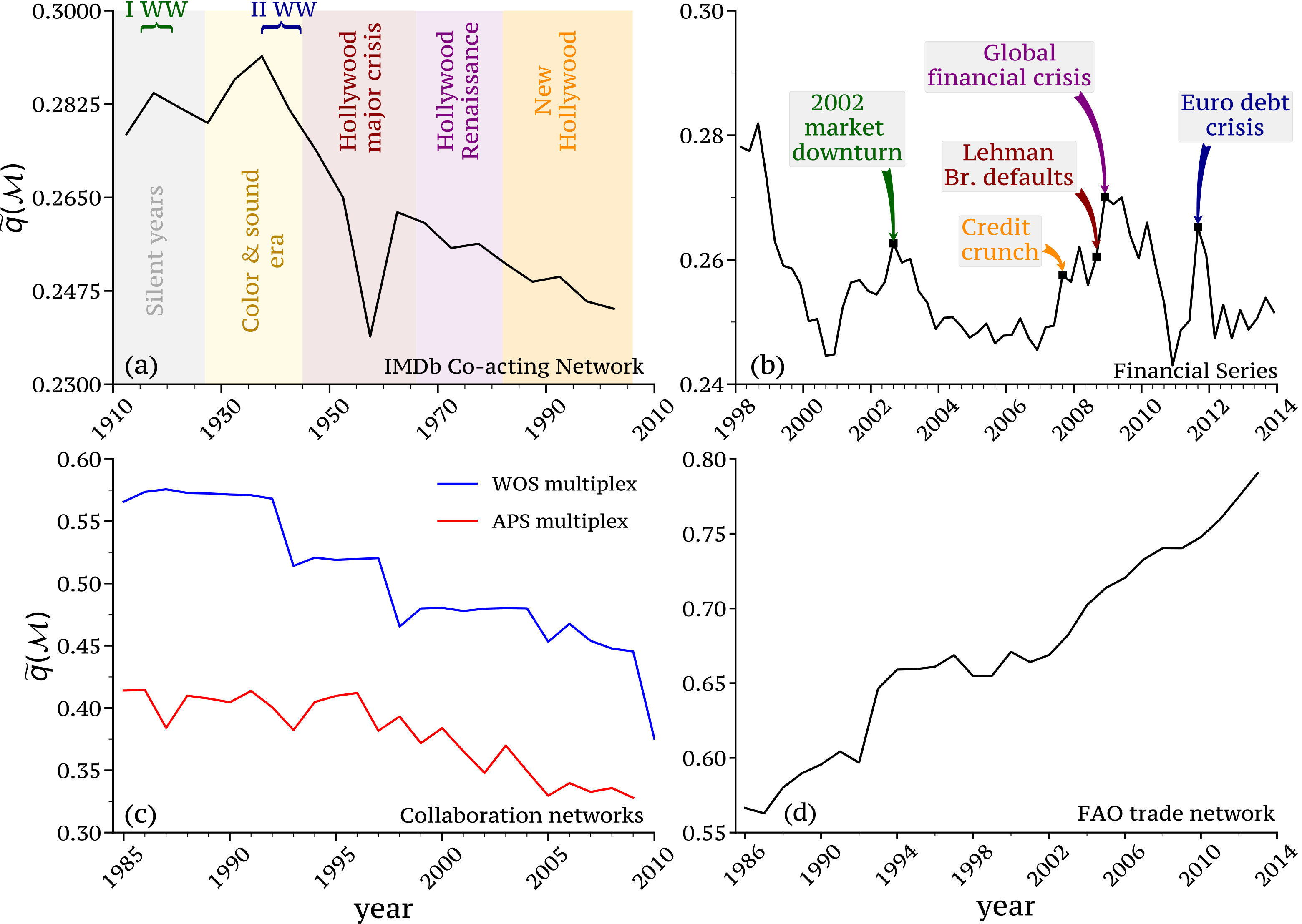

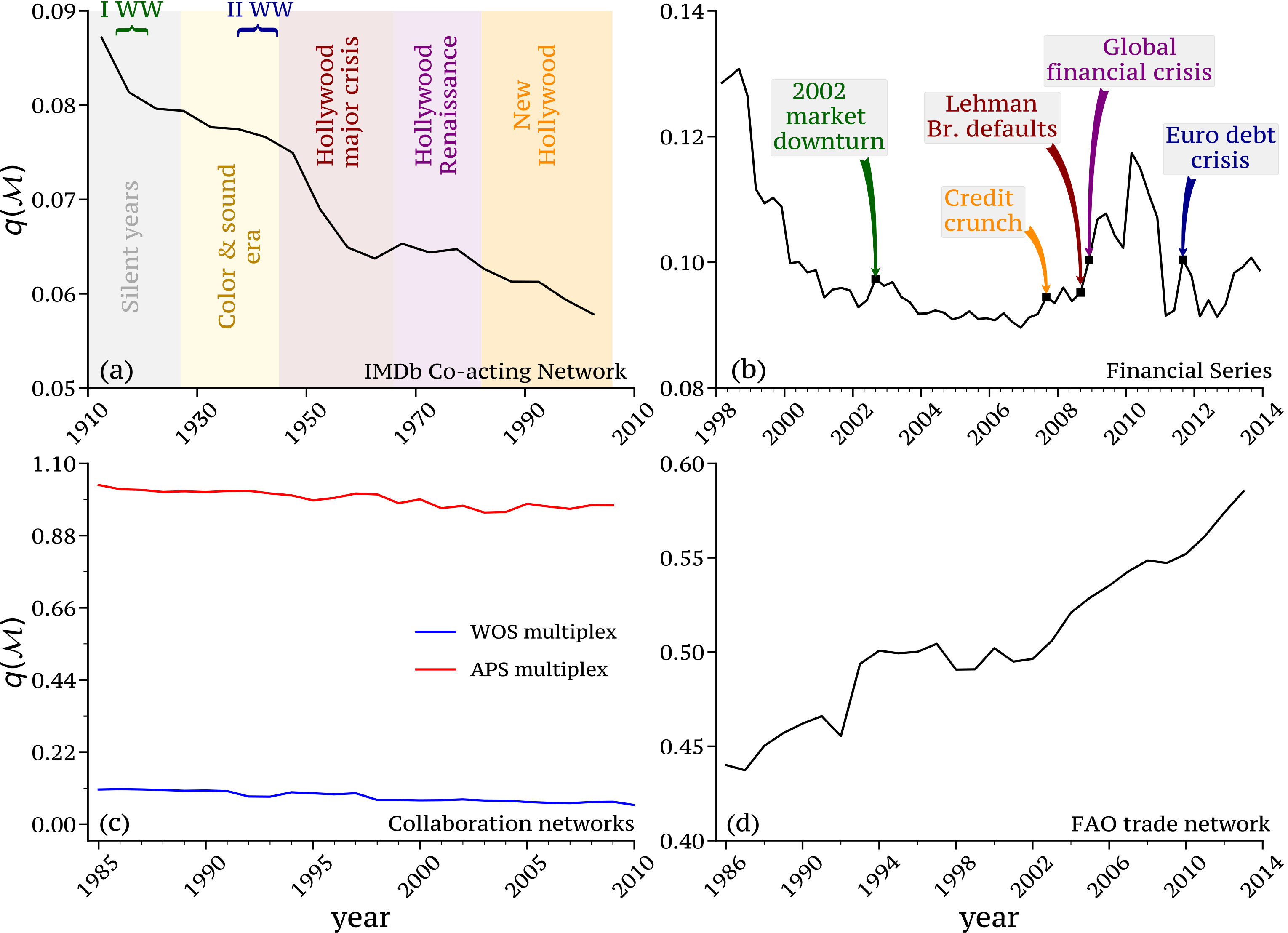

The multiplex complexity $\mathcal{C}(\mathcal{M})$ can be used to track the temporal evolution of the structure of time-varying multiplex networks. In Fig. 6 we show how the complexity of five large-scale multiplex networks has changed over time (see Appendix G for details about the data sets). Interestingly, $\mathcal{C}(\mathcal{M})$ provides a very good picture of the alternating behaviour of the IMDb movie co-starring network over about a century (Fig. 6(a)), and of the network of 35 major assets in the NYSE and NASDAQ financial markets in the period 1998-2013 (Fig. 6(b)). In both cases, local maxima of complexity are consistent with the most notable periods of crisis in each data set, while local minima of complexity seem to be precursors of renaissance in IMDb and of stability in the financial market. The value of complexity of scientific collaboration networks (APS and Web of Science, Fig. 6(c)) has remained stable around $\mathcal{C}(\mathcal{M})=1$ over the last 35 years. This is mainly due to the fact that in these multiplex networks each layer represents a different field or sub-field of science, and authors normally tend to publish in one or at most a couple of fields. In fact, the structural overlap of those multiplexes is always very small, and the large majority of pairs of nodes are connected in at most two layers. As a result, there is not indeed much benefit in considering the multiplex representation, since the information encoded in the different layers is comparable to that contained in the corresponding aggregated graph.

It is worth noting that the complexity of the FAO multiplex network of food exchange has kept increasing steadily in the last 30 years (Fig. 6(d)). This is most probably linked to the globalisation of commercial exchanges in general, which is reflected also in a more intricate pattern of relations among countries across a wide range of products. See section S-3 of Supplementary Information and figures therein for further analyses of the same data-sets.

II.6 Mapping multiplex networks

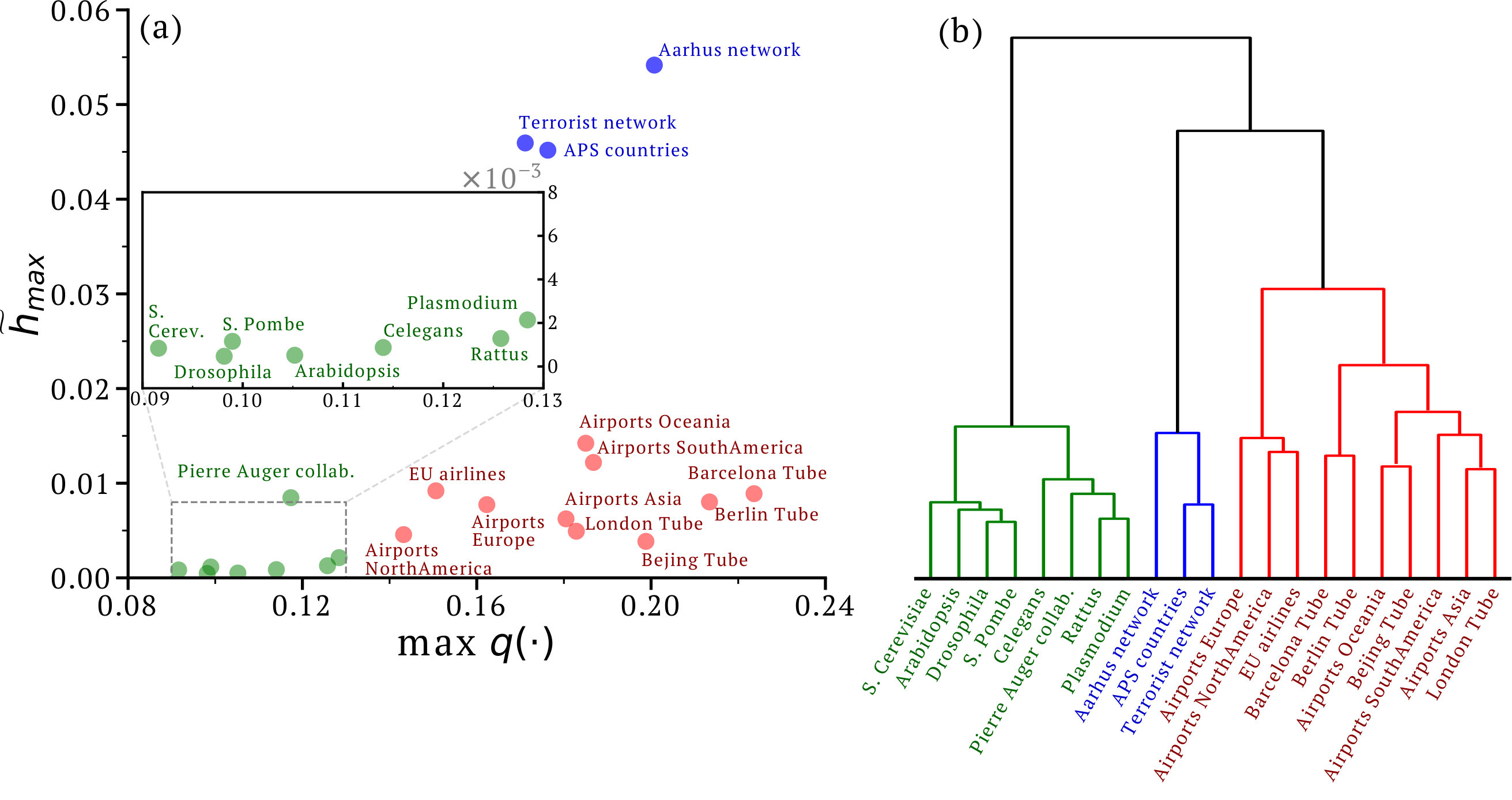

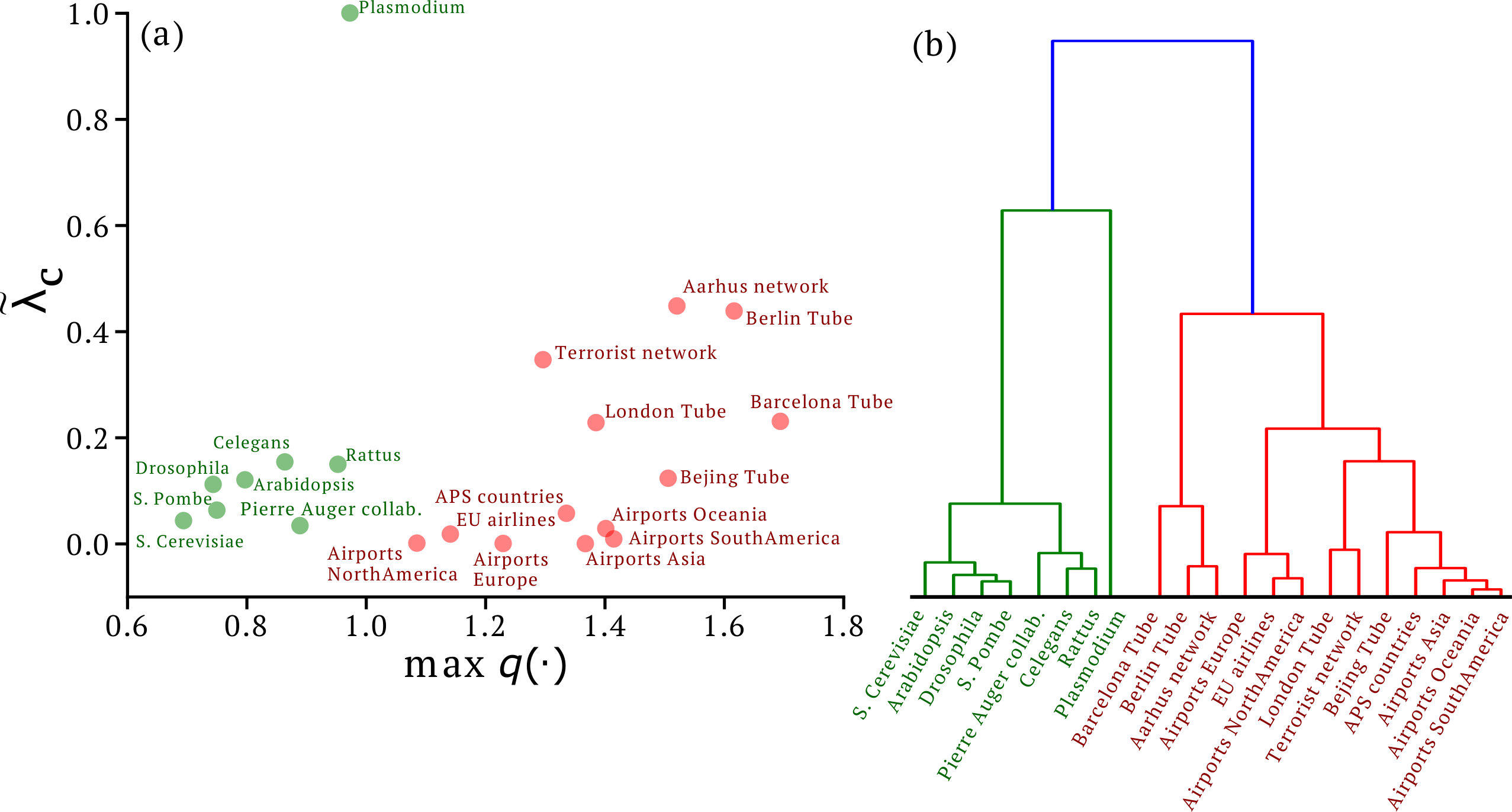

Finally, in Fig. 7 we show how multiplex complexity can be used to obtain a planar embedding of multiplex networks of different kind, and to reveal the presence of interesting clusters. For each multiplex network, we used the maximum value of the quality function $\max q(\bullet)$ as one of the coordinates, and the normalised epidemic threshold $\tilde{\lambda}_{c}=\lambda_{c}/M_{opt}(\mathcal{C})$ of the SIS dynamics Cozzo et al. (lack) with contagion parameter $\gamma/\beta=1$ as the other one. Notice that $\tilde{\lambda}_{c}$ removes the dependence on the number of layers of the multiplex, making it possible to compare reduced multiplex networks with different numbers of layers. Moreover, since the epidemic threshold is intimately connected to the spreading dynamics on a graph, the information it provides is somehow orthogonal to that captured by multiplex complexity, which is instead a purely structural quantity. In Fig. 7(a) we indicated with different colours the two largest groups obtained through hierarchical clustering in the ($\tilde{\lambda}_{c}$, $\max q(\bullet)$) plane, while in Fig. 7(b) we show the corresponding dendrogram, highlighting all the aggregation steps, where at each step of the procedure we merge two clusters based on the minimum increase in total within-cluster variance over all possible pairs Ward1963hierarchical . Interestingly, these two descriptors are already sufficient to cluster multiplex networks with different functions, so that all the biological multiplex networks appear in the same cluster and social and technological systems are put in another cluster. A more intriguing picture, where biological, social, and technological networks are put in three distinct clusters, is obtained when the normalised epidemic threshold is replaced by another dynamical descriptor, i.e., the maximal entropy rate per node Battiston_exploration_2016 (results reported in Supplementary Information Section S-4).

III Discussion

Quantifying the structural information encoded in a network is of fundamental importance to identify the key components of the system it represents. Indeed, information theory has already proven quite successful at extracting meaningful structural information from graphs Rosvall and Bergstrom (2008); Passerini and Severini (2009); DeDomenico_Nicosia_2015 and at providing sound null-models for different network-related tasks Peixoto (2015, 2018); Godoy-Lorite et al. (2016). In the case of multi-dimensional data sets, and in particular of the multi-layer networks constructed from them, assessing the actual amount of information contributed by each additional layer is of fundamental importance. Despite the current trends in Data Science seem to suggest otherwise, more data is not always a bliss. Not all additional data available is indeed informative, and quite often more data implies more redundancy and more noise.

The algorithmic information approach proposed in this paper condenses the structural properties of a multiplex in a number – the multiplex complexity $\mathcal{C}(\mathcal{M})$. But since $\mathcal{C}(\mathcal{M})$ is defined as the ratio between the Kolmogorov complexity of the multiplex and that of the corresponding aggregated graph, its values allow us to assess to which extent a given multiplex representation of a system is more informative than a single-layer graph (e.g., if $\mathcal{C}(\mathcal{M})$ is larger than 1). Consequently, it is meaningful to rank different multiplex networks according to their value of $\mathcal{C}(\mathcal{M})$, since those values are indeed telling us how much a multiplex representation deviates from the corresponding null-model hypothesis, i.e., that the system can be represented instead as a single-layer graph.

One of the most appealing aspects of $\mathcal{C}(\mathcal{M})$ is that it can be successfully employed to detect redundancy in a multiplex network, and to obtain meaningful lower-dimensional representations of a system. In particular, it is worth noting that the quality function $q(\bullet)$ provides a consistent way to quantify the differences in complexity between alternative low-dimensional representations of the same system. The main difference between $\mathcal{C}(\mathcal{M})$ and $q(\bullet)$ is that the former quantifies the relative information encoded in a multiplex with respect to the aggregated graph, while the latter appropriately takes into account the fact that multiplex networks with different numbers of edges, even if obtained by reducing the same original multiplex network, will in general be associated to different aggregated graphs.

The results about multiplex reducibility shown in the paper have a double-pronged significance. On the one hand, the fact that almost all the multiplex networks analysed admit a more compact lower-dimensional version is a warning against the quest to obtain more and more detailed data. There is a clear indication that not just more data points (edges), rather more informative data points are needed to complement the information already provided by existing layers. On the other hand, the possibility of reducing the number of layers of a multiplex has a lot of practical implications. Even simple multilayer structural descriptors, such as clustering coefficient, average shortest path or any centrality measure based on paths scale super-linearly or exponentially as a function of the number of layers. Hence, a sound procedure to reduce the dimensionality of a network, without sacrificing information, would considerably speed-up most of the computations on multiplex networks, without compromising on accuracy. Indeed, the optimal aggregations found by the quality function $q(\mathcal{M})$ often offer a substantial reduction in the number of layers needed to represent the system while still retaining most of the structural complexity of the original system (i.e., without introducing structural artefacts) as well as the salient characteristics determining the behaviour of dynamical processes happening on it (see the example of the preservation of the epidemic threshold in reduced multiplex networks). This is confirmed by synthetic benchmarks, where the optimal partitions is known, but also true for real systems, where $q(\mathcal{M})$ efficiently balances both the structural and dynamical features in the aggregation procedure. In a way, these results represent an important step towards finding minimal higher-order models that best compress information while preserving the original structural and dynamical patterns Lambiotte et al. (2019).

We believe it is quite remarkable that a reduction of layers based on the multiplex complexity proposed here usually produces reduced graphs that are sensibly different from those obtained using the classical reduction method based on von Neumann entropy DeDomenico_Nicosia_2015 . We recall here that the definition of von Neumann entropy of a graph relies on a purely formal parallel between the quantum mixing operator and the rescaled Laplacian of the graph. It is true that the rescaled Laplacian is somehow related to the diffusive properties of the system, thus providing a concise description of the global properties of the graph. However, it is relatively difficult to pin-point a specific graph property as responsible for a change of value of the von Neumann entropy. This fact was also noted by the authors of Ref. DeDomenico_Nicosia_2015 in the SI of the same paper, where they showed by simulation that a difference in the placement of a single edge of the graph can frequently result in relatively large fluctuations of the value of von Neumann entropy. Conversely, the multiplex complexity $\mathcal{C}(\mathcal{M})$ proposed here links quite closely to the traditional meaning of complexity of a system as the amount of information needed to fully describe it. This link is made possible by the prime-weight matrix, which encodes the full structure of the system in a string of bits. It is true that, in principle, the prime-weight matrix encoding depends on the chosen assignment of labels to nodes and primes to layers. However, it is remarkable that the assignment of primes to layers in increasing order of total number of edges provides a consistent approximation of Kolmogorov complexity, although a quite conservative one. Due to the way $\mathcal{C}(\mathcal{M})$ is defined, its value varies in a somehow predictable way if the edges of the graph are re-organised. In particular, if we add a single edge to an existing multiplex, then we can expect the value of multiplex complexity to change only slightly. Moreover, if the newly added edge increases the structural overlap of the multiplex, then the value of $\mathcal{C}(\mathcal{M})$ will increase if the original multiplex had a small structural overlap, or decrease if the multiplex had a large structural overlap. In this sense, $\mathcal{C}(\mathcal{M})$ is more closely associated to the structure of the system, and its changes provide information that are more readily interpretable.

Code availability

Implementations of the algorithms to compute the complexity $\mathcal{C}(\mathcal{M})$ and to obtain reduced representations of a multiplex network based on the function $q(\bullet)$ are available at Pap : https://github.com/andresantoro/ALCOREM. All the data sets analysed in the paper can be downloaded from the same URL.

Acknowledgments

The authors thank Lucas Lacasa for helpful conversations. A.S. acknowledges support from The Alan Turing Institute under the EPSRC Grant No. EP/N510129/1. This work made use of the MidPLUS cluster, EPSRC Grant EP/K000128/1.

Appendix A Prime-weight matrix encoding

An unweighted multiplex network $\mathcal{M}$ over $N$ nodes is a set of $M$ unweighted graphs (layers), each representing one type of interaction among the $N$ nodes. In this framework, each node has a replica on each of the $M$ layers, and the structure of each of the layers is in general distinct. The classical way to represent an unweighted multiplex network is by means of a vector of adjacency matrices $\mathcal{A}=\{a_{ij}^{[\alpha]}\},\quad\alpha=1,\ldots,M$ Battiston_2014 . The generic element $a^{[\alpha]}_{ij}$ of the adjacency matrix $A^{[\alpha]}$ at layer $\alpha$ is equal to $1$ if and only if node $i$ and node $j$ are connected by a link at that layer, and zero otherwise. If we assign a distinct prime number $p^{[\alpha]}$ to each of the $M$ layers, we can define the prime-weight matrix $\Omega$ whose elements are:

[TABLE]

The matrix $\Omega\in\mathbb{R}^{N\times N}$ is a compact encoding of the vector of adjacency matrices $\mathcal{A}$. In fact, thanks to the unique factorisation theorem, the adjacency matrix of a generic layer $\alpha$ can be obtained from $\Omega$ by considering all the elements $\Omega_{ij}$ which are divisible by the corresponding prime $p^{[\alpha]}$. Notice that this encoding works also for graphs with integer weights on the links, e.g., by associating to each pair of nodes $(i,j)$ the number $\Omega_{ij}=\prod_{\alpha=1}^{M}\left(p^{[\alpha]}\right)^{w^{[\alpha]}_{ij}}$, where $w^{[\alpha]}_{ij}$ is the weight of the edge $(i,j)$ on layer $\alpha$. Nevertheless, in this paper we always consider the case of unweighted multiplex networks, therefore all the weights $w_{i,j}^{[\alpha]}$ are equal to 1.

Although the actual set of primes associated to the layers does not impact the construction of $\Omega$, for practical reasons it makes sense to always use the sequence of the first $M$ primes $\{2,3,5,...\}$, since the actual number of bits required to store the matrix $\Omega$ is $O\left(N^{2}M\log_{2}\left[\max_{\alpha}\{p^{[\alpha]}\}\right]\right)$. Notice that, given a multi-layer graph with $M$ layers and a set of $M$ distinct primes, we can construct $M!$ distinct prime-weight matrices, one for each of the possible permutations of the primes associated to the $M$ layers. In this paper we choose a canonical prime association, that is the one that associates prime numbers to layers in increasing order of their total number of edges. In practice, we assign the prime $2$ to the layer with the smallest total number of edges $K^{[\alpha]}=1/2\sum_{ij}a^{[\alpha]}_{ij}$, the prime $3$ to the layer with the second-smallest total number of edges, and so on (see section S-1 of the Supplementary Material for a detailed discussion regarding the canonical prime association).

Appendix B Multiplex Complexity

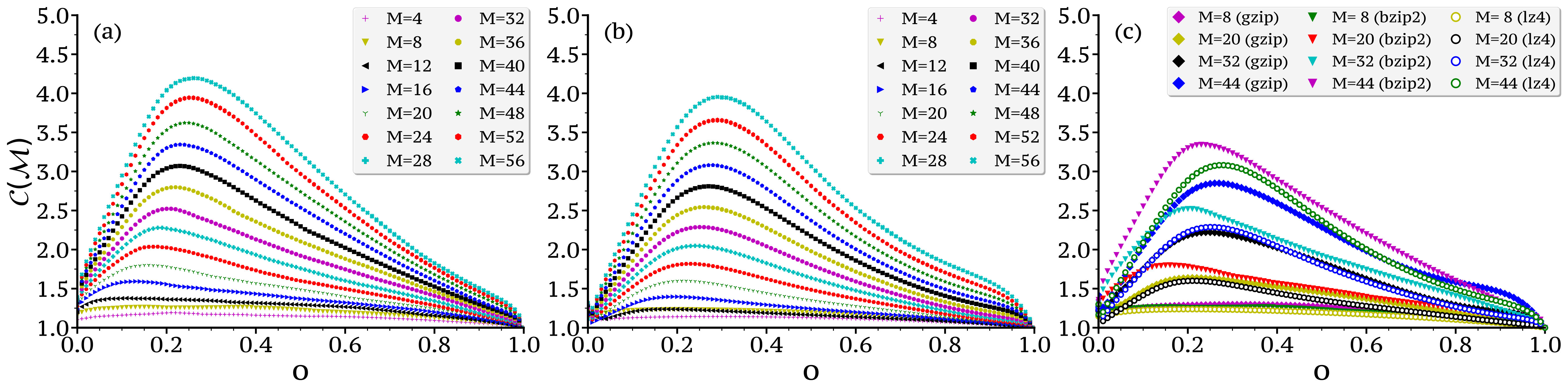

The Kolmogorov complexity $KC(S)$ of a bit string $S$ is defined as the length of the shortest computer program that generates $S$ as output Kolmogorov (1998). However, it is easy to prove that $KC(S)$ is a non-computable function Chaitin (1969), thus it is only possible to approximate it. A common approach is to compress $S$ using a given compression algorithm, and to consider the length of the compressed string $S^{\prime}$ as an estimate of $KC(S)$. In fact, it is possible to obtain $S$ from the compressed string $S^{\prime}$ by using the decompression routine corresponding to the compression algorithm used to obtain $S^{\prime}$. Thus, the concatenation of $S^{\prime}$ and the decompression routine is a program able to generate $S$, and its length is an upper bound for $KC(S)$. We associate a bit string $S(\mathcal{M})$ to a given multiplex network $\mathcal{M}$ by considering the bit string of the edge list associated to the prime-weight matrix $\Omega$, where edges are listed in lexicographic order and each edge reports the corresponding entry of $\Omega$ (see SI section S-1.2 for a discussion about fluctuations due to node labelling). We define the Kolmogorov complexity $KC(\mathcal{M})$ of the multiplex $\mathcal{M}$ as the length of the bit string $S^{\prime}(\mathcal{M})$ obtained by compressing $S(\mathcal{M})$ with gzip (https://www.gzip.org). Notice that this is not the only feasible choice, as any other compression algorithm can be used instead of gzip for computing an upper bound of $KC$ (see SI section S-1.4 and figures therein for additional comparisons between different compression algorithms).

The complexity $\mathcal{C}(\mathcal{M})$ of a multiplex network $\mathcal{M}$ is equal to the Kolmogorov complexity of its prime-weight matrix $\Omega$ divided by the Kolmogorov complexity of the single-layer weighted matrix $W$, obtained by considering the aggregate binary matrix multiplied by the largest entry of $\Omega$. In other terms, we express $W$ as:

[TABLE]

Thus, the complexity $\mathcal{C}({\mathcal{M}})$ of the multiplex $\mathcal{M}$ is defined as:

[TABLE]

Notice that alternative representations of $W$ are possible. One possibility is to set the weight of each existing edge $W_{ij}=o_{ij}$, where $o_{ij}=\sum_{\alpha}a_{ij}^{[\alpha]}$. Another option is to set $W_{ij}=2^{o_{ij}}$. Nevertheless, our definition of $W$ is the only one that guarantees that $\mathcal{C}\left(\mathcal{M}\right)=1$ when all the layers of the multiplex $\mathcal{M}$ are identical (see SI Section S-1.5 and Figure S-5 for comparisons between different representations of $W$).

In general, the complexity of a multiplex might depend on the association of prime numbers to layers and on the actual node labelling. Numerical evidence confirms that the value of multiplex complexity obtained using the canonical prime association is always in the right-most tail of the corresponding distribution (see SI section S-1.1 and table therein for further details). As a consequence, the canonical prime association represents a conservative upper-bound for the actual value of Kolmogorov complexity.

To reduce the effect of the other source of variability in the values of $\mathcal{C}(\mathcal{M})$ (i.e., the actual labelling of nodes, which affects the lexicographic ordering of the edge list), we define $\mathcal{C}(\mathcal{M})$ as the average of the multiplex complexity obtained by using the canonical prime association on $10^{3}$ realisations of node relabelling on the same multiplex graph (see SI S-1.2 for details on the distribution of $\mathcal{C}(\mathcal{M})$ as a function of node relabellings).

Appendix C Structural edge overlap

Given a multiplex $\mathcal{M}$ and a pair of nodes $(i,j)$, the overlap $o_{ij}$ of the pair is defined as the number of layers in which an edge exists between node $i$ and node $j$. The matrix $O=\{o_{ij}\}$ is the overlapping matrix associated to the multiplex $\mathcal{M}$ Battiston_2014 . The edge overlap $o_{s}$ of a multiplex network is the expected number of layers in which a pair of nodes is connected by an edge Battiston_2014 ; Battiston et al. (2017b):

[TABLE]

where $\Theta(x)$ is the Heaviside function, i.e. $\Theta(x)=1$ if $x>0$, and $1/M\leq o_{s}\leq 1$. In particular, $o_{s}=1/M$ when there is no edge appearing in more than one layer, while $o_{s}=1$ when all the $M$ layers are identical. We define the structural overlap of a multiplex as:

[TABLE]

where the linear transformation $f(o_{s}):=\frac{M}{M-1}(o_{s}-\frac{1}{M})$ maps $o_{s}$ onto $[0,1]$.

Appendix D Synthetic networks

The results shown in Fig. 2(a) correspond to multiplex networks with $N=10000$ nodes. The plots are obtained by starting from a multiplex network with $M$ identical Erdös-Rényi random graphs as layers (thus having structural overlap $o=1$), and then iteratively rewiring the edges on each layer in order to decrease the structural overlap to $o=0$. Edge rewiring is performed by selecting a pair of edges and swapping their end-points uniformly at random. This rewiring procedure is similar to the one used in Ref. Diakonova et al. (2016), and preserves the degree sequence at each layer. Consequently, the layers of all the multiplex networks obtained through relabelling are Erdös-Rényi random graphs belonging to the same ensemble. The value of multiplex complexity corresponding to a certain value of structural overlap is obtained by averaging over $10^{2}$ distinct realisations.

The algorithm to increase the structural overlap of the multiplex is similar to that used to decrease it, with the only difference that a rewiring is accepted only if results in the increase of the edge overlap of at least one of the two edges involved in the rewiring.

Appendix E Reducibility

Computing the global maximum of the quality function $q(\bullet)$ is in general computationally unfeasible, since it requires to enumerate all the possible partitions of $M$ objects. This is a NP-hard problem that requires a number of operations that scales super-exponentially with $M$ Bell (lack). In order to avoid this problem, we used instead a greedy algorithm, which reduces the time complexity to $\mathcal{O}(M^{2})$. The algorithm starts from the original multiplex with $M$ layers and at each step computes the complexity of the two-layer multiplex networks corresponding to all the possible pairs of layers. We call $\bar{D}$ the pair of layers with the maximum value of complexity, and we consider the set of pairs of layers whose overlap is larger than or equal to that of $\bar{D}$. Then, we aggregate the pair of layers $D$ of that set yielding the smallest value of complexity $\mathcal{C}(D)$. Aggregation is performed by considering the union of the edges in the two layers. The rationale behind this choice is that if two layers form a duplex with relatively high overlap and small complexity, then they are similar enough and can be thus flattened in a single layer. The iteration of this procedure will result in a sequence of multiplex networks with $\{M,M-1,M-2,\ldots,2,1\}$ layers. Among those $M$ reduced multiplex networks, we choose the one yielding the largest value of $q(\bullet)$.

Appendix F Structural multiplex measures

To analyse the structural properties of both synthetic and real multiplex networks, we considered four different structural descriptors Battiston_2014 ; Nicosia_Latora_2015 .

Total degree –

[TABLE]

i.e., the total number of links incident on node $i$ across all the layers.

Node participation coefficient –

[TABLE]

which measures the heterogeneity of the number of neighbours of node $i$ across the layers.

Node activity –

[TABLE]

i.e., the number of layers on which node $i$ has at least one neighbour. Here $\theta$ represents the Heaviside step function.

Node interdependence –

[TABLE]

In the expression, $\psi_{ij}$ is the number of shortest paths between $i$ and $j$ that span across more than one layer, while $\sigma_{ij}$ is the total number of shortest paths between $i$ and $j$. If $\lambda_{i}\approx 1$ then $i$ fully exploits the multiplex structure of the system to reach other nodes, while if $\lambda_{i}\approx 0$ node $i$ reaches other nodes through shortest paths whose edges are on just one layer. In SI section S-5 we describe an algorithm to compute node interdependence that exploits the prime-weight matrix introduced in this paper.

Appendix G Multiplex data sets

The data sets introduced in this paper for the reducibility comparisons are: (i) the undirected routes of the 11 lines of the Barcelona tube network (https://www.tmb.cat/), (ii) the 9 lines of the Berlin tube (https://www.berlin.de/en/public-transportation/), (iii) the 17 lines of the Beijing subway (https://www.bjsubway.com/), and (iv) the scientific collaboration among countries (APS countries) obtained considering the papers published in the journals of the American Physical Society. For the latter, starting with the multiplex data set introduced in Nicosia_Latora_2015 , we constructed a weighted multiplex collaboration network, in which nodes represent countries and a link connects two countries if scientists based in those countries co-authored a paper together. Authors having multiple affiliations were considered as belonging to multiple countries. The weight on each link represents the number of co-authorship relations between the corresponding two countries. In our analysis the unweighted version of such system has been used.

In addition, the time-varying data sets used in this paper are: (i) the IMDb co-starring network Nicosia_Latora_2015 , (ii) the financial multiplex network constructed from price time series of 35 major assets in NYSE and NASDAQ Musmeci et al. (2017), (iii) the physics collaboration multiplex network of the American Physical Society (APS) and Web of Science (WOS) Nicosia_Latora_2015 , and (iv) the FAO food import/export multiplex network (http://www.fao.org/statistics/databases). From each original data set (i,iii,iv), we constructed a time varying multiplex network by partitioning the original system in temporal windows of one year. In this process, we associate to each time window the corresponding static multiplex network containing all the links registered in that year.

S-1 Algorithmic complexity

In the main text, we introduced the complexity measure $\mathcal{C}(\mathcal{M})$ to evaluate the relative amount of additional information needed to encode a multiplex network with respect to the amount needed to encode the corresponding single-layer aggregated graph. This quantity relies on the approximation of the Kolmogorov Complexity (KC) of a string and it is formally defined as:

[TABLE]

where $KC(\Omega)$ represents the KC of the prime-weight matrix $\Omega$, while $KC(W)$ is the KC of the single-layer weighted matrix $W$, obtained by considering the aggregate binary matrix multiplied by the largest entry of $\Omega$. Notice that among the possible definition of $W$, we consider the following representation:

[TABLE]

so that the complexity $\mathcal{C}$ of multiplex consisting of all identical layers is exactly equal to one. In general, the numerical computation of the complexity measure $\mathcal{C}$ is based on the approximation of the Kolmogorov Complexity by means of the compression algorithm gzip. In particular, this quantity will, in general, depend on two factors, namely the actual assignment of prime numbers to the layers and the actual labelling of the $N$ nodes. Here we investigate how $\mathcal{C}(\mathcal{M})$ depends on these two factors, and we show that the results reported in the main text are robust with respect to prime-layer association and node labellings. Lastly, we present extensive numerical simulations to estimate the impact of (i) alternative representations of the weighted network $W$, and (ii) different compression algorithms when computing the complexity $\mathcal{C}(\mathcal{M})$ of a multiplex network.

S-1.1 Prime association

In all the results reported in the main text, the complexity $\mathcal{C}(\mathcal{M})$ was obtained using the “canonical prime association”, where prime numbers are associated to layers in increasing order of their total number of edges. In practice, we assign the prime 2 to the layer with the smallest total number of edges $K^{[\alpha]}=\frac{1}{2}\sum_{ij}a^{[\alpha]}$, the prime $3$ to the layer with the second-smallest total number of edges, and so on. In general, a multiplex with $M$ layers admits $M!$ different primes association, one for each of the possible permutations of the primes associated to the M layers.

To support the choice of this particular prime association, we report in Table S-I some statistics of the distribution of complexity $\mathcal{C}(\mathcal{M})$ over 10000 prime associations for all the real-world multiplex used in the main text. As expected, the prime-weight matrix encoding depends on the chosen assignment of primes to layers. Nevertheless, it is worth noting that the distribution of complexity for all the multiplex considered is quite peaked around the mean (very small standard deviation), and has a coefficient of variation $cv=\frac{\sigma}{\mu}$ which is smaller than $1\%$ for almost all the distributions. In particular, the value of complexity obtained using the prime canonical association $\mathcal{C}_{CA}$ is normally located in the right-most tail of the corresponding distribution, as confirmed by the value of the associated z-score $Z$. Consequently, the value of complexity computed using the canonical prime association is normally an upper-bound for the actual value of complexity (i.e., the value corresponding to the actual Kolmogorov Complexity of the multiplex and of the corresponding aggregated graph).

S-1.2 Node relabelling

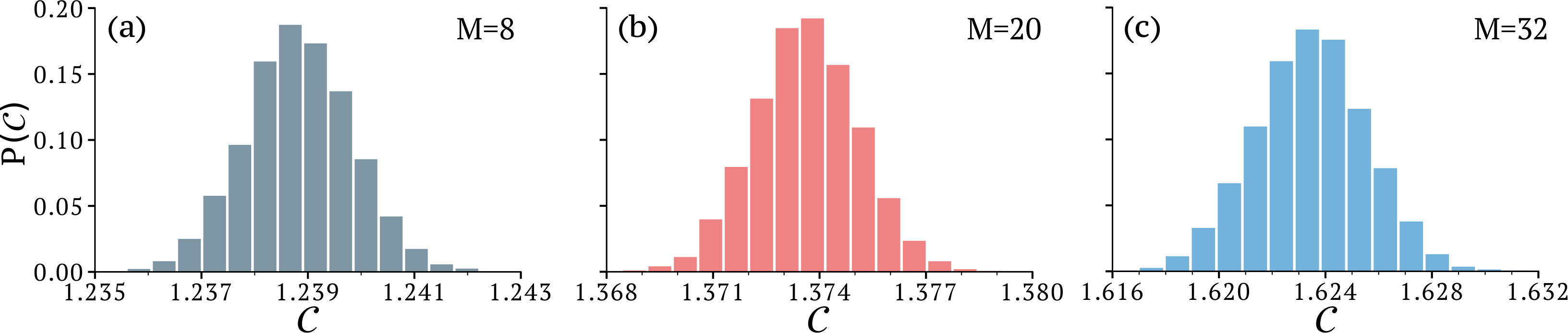

Here we study the effect of node relabelling on the value of complexity $\mathcal{C}(\mathcal{M})$, by computing the distribution of complexity over 10000 independent random node labellings for both synthetic and real-world multiplex networks. In Figure S-1 we report the distribution of complexity for three synthetic multiplex networks having the same number of nodes and different number of layers. In all the three cases, we find that the distribution of complexity has a coefficient of variation ($cv$) less than $0.2\%$, indicating that the distribution is indeed quite peaked around its mean.

The complexity distribution for real-world multiplex networks behaves in a similar way. In Table S-II we report some statistics for the distribution of complexity under node relabelling for the multiplex networks studied in the main text. Also in this case, the distribution of complexity is peaked around the mean with a small variance for almost all the cases. Hence, to account for the intrinsic stochasticity due to node relabelling of the gzip algorithm, in all our simulations of the main article we always refer to the mean Complexity, which is obtained when averaging the value of $\mathcal{C}(\mathcal{M})$ obtained over $10^{3}$ independent node labellings.

S-1.3 Average degree and topology

In Figure S-2 we report the value of complexity in the ensembles of synthetic multiplex networks with different average degree on each layer, where the total number of nodes and the number of layers are kept fixed ($N=10000$, $M=20$), while the the structural edge overlap $o$ is tunable. As expected, the complexity increases slightly as a function of the average degree $\langle k\rangle$, while the shape of the curve and the position of the maximum remain unchanged.

In addition, we also report in Figure S-3 the comparison of complexity in the ensembles of synthetic multiplex networks with different topologies, namely, regular, Erdös-Rényi, and scale-free networks ($\gamma=2.7$) with the same average degree. In this case, we observe a slight difference in the values of complexity depending on the topology. Interestingly, scale-free multiplexes have a higher complexity compared to multiplex having ER or regular topologies.

S-1.4 Role of the compression protocol

As discussed in the main text, the Kolmogorov Complexity of a binary string is in general incomputable. For this reason, to approximate the KC it is usually necessary to compute an upper bound of the KC by means of a compression protocol. In our work, we used the gzip algorithm (https://www.gzip.org), even if this is not the only viable choice and other compression algorithms could have been used. Here we considered the effect of two alternative compression protocols, namely bzip2 (https://www.bzip.org) and lz4 (https://www.lz4.org), when computing the complexity function $\mathcal{C}$.

In Figure S-4 we report the results of our analysis when computing the Complexity $\mathcal{C}$ as a function of the structural edge overlap and different number of layers for multiplex networks with $N=10000$, $<k>=6$ on each layers. Overall, for both the compression protocols, we still observe the same qualitative behaviour of the Complexity presented in the main paper using gzip, i.e. $\mathcal{C}(\mathcal{M})$ is a non-monotonic function of the structural edge overlap. Yet, the compression protocols approximate in a different way the KC of binary strings, so that there exists a quantitative difference between the numerical values of the Complexity (see Fig. S-4(c) for a comparison between compression protocols).

S-1.5 Role of the aggregate matrix W

Here we study the effect ot the aggregate matrix $W$ when computing the complexity $\mathcal{C}$. Indeed, as mentioned when introducing Eq. S-1, the value of the complexity generally depends on the definition of $W$. Thus, we identified two alternative representations that could have been used in place of the one presented in the main paper (i.e. Eq. S-2). In formula:

[TABLE]

or:

[TABLE]

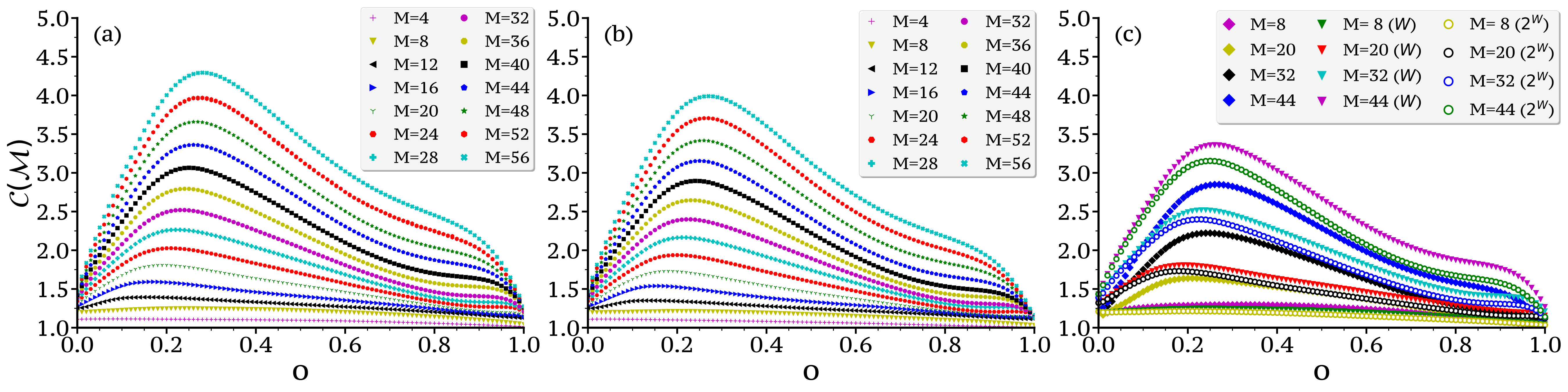

For the alternative definitions of $W$, we report in Figure S-5 the complexity $\mathcal{C}$ as a function of the structural edge overlap and different number of layers for multiplex networks with $N=10000$, $<k>=6$ on each layers. Notice that with both the representations, the values of complexity are in general smaller then the ones presented in the main paper. This is a due to a difference in size (in terms of bit) of the symbols used in the aggregate.

However, for both the definitions, we still observe a similar qualitative behaviour of the one presented in the main paper, so that $\mathcal{C}(\mathcal{M})$ is a non-monotonic function of the structural edge overlap. Yet, it appears that the maximum value of complexity, as well as the numerical values, depend on the aggregate representation used when computing $\mathcal{C}(\mathcal{M})$. We report in Figure S-5(c) a comparison between the different representations of $W$.

S-2 Reducibility on synthetic multiplex

networks

To test the performance of our reducibility procedure, we created new ad-hoc synthetic multiplex networks by tuning the total number of layers and by considering different groups of identical layers. Indeed, as presented in the main paper, we constructed several benchmarks where pairs or group of layers are identical to each other (i.e., whose layer adjacency matrices are identical). In this way, the number of truly distinct layers is by construction smaller than or equal to the total number of layers $M$. In all the benchmarks layers are Erdös-Renyi random graphs with $N=1000$ and $\langle k\rangle=4$.

We report in Table S-III four different synthetic benchmarks, along with the pattern of identical layers in each multiplex. For instance, the pattern $\{3,3,3,3,3\}$ in the first benchmark corresponds to a multiplex with $M=15$ layers where every subsequent triplets of layers are identical, i.e., layer1 is identical to layer2 and layer3, layer4 is identical to layer5 and layer6, and so on. We report in the third column of the table the number $M_{distinct}$ of layers that are truly distinct, in the sense mentioned above.

Notice that in all the benchmark considered, the reducibility measure based on the multiplex complexity $\mathcal{C}(\mathcal{M})$ identifies both the correct sequence of aggregation steps and the optimal partition. Conversely, the reducibility procedure based on the Von Neumann entropy introduced in Ref. DeDomenico_Nicosia_2015 fails in some particular instances. For the sake of clarity, we also report in Figure S-6 the Kendall’s $\tau$ correlation coefficient of the rankings induced by total node degree, node activity, participation coefficient, and node interdependence (Fig. S-6 - top row) and the critical threshold $\lambda_{c}$ of the SIS dynamic (Fig. S-6

• bottom row) as a function of the greedy aggregation steps for the four synthetic benchmarks presented in Table S-III.

S-2.1 Multiplex with different

topologies

We additionally test the reducibility procedure on four other synthetic benchmarks, where the average degree and the topology of each layer are not kept fixed. In particular, we firstly consider two benchmarks with $N=1000$ nodes, constructed through two different models, namely, Barabasi-Albert linear preferential attachment graphs (BA), and ER graphs. We consider a multiplex consisting of M= 30 layers, where every group composed of 10 layers is respectively identical to a BA with $m=3$, an ER with $\langle k\rangle=4$, and an ER with $\langle k\rangle=8$. Within this setting, the number of distinct layers is by construction equal to 3. In the second benchmark, the number of total layers is equal to $M=35$. In this case, we vary the average degree for both the ER and BA models. The first five layers correspond to a BA with $m=3$, next five layers are identical to a single realisation of a BA model with $m=5$. The remaining layers are grouped in 7,6, and 10 layers respectively which are sampled from an ER graphs with $\langle k\rangle=4,6,8$. Thus, the number of truly distinct layers are only 5.

The last two benchmarks are similar to the one introduced in Nicosia_Latora_2015 (Supplementary Note 1), with layers drawn from BA with $m=4$, ER with $p=0.05$ and Watts-Strogatz small-world models (WS, $m=5,p=0.2$). More precisely, the two benchmarks have $N=200$ nodes with respectively one (three) realisations for each model, named “master layers” and respectively called BA 1 (BA 2, BA 3), ER 1 (ER 2, ER 3), and WS 1 (WS 2, WS 3). For each realisation, we constructed 5 more layers, each characterised by an increasing amount of edge intersection with the corresponding master layer, i.e 10%, 25%, 50%, 75%, 100%. Thus, we obtained two synthetic benchmarks respectively made of 3 (9) groups of 6 layers each, for a total of $M=18,54$ layers. We report in Figure S-7 the Kendall’s $\tau$ correlation coefficient of the rankings induced by total node degree, node activity, participation coefficient, and node interdependence (Fig. S-7 - top row) and the critical threshold of the SIS dynamic (Fig. S-7 - bottom row) as a function of the greedy aggregation steps for these four synthetic benchmarks.

For the first two synthetic benchmarks (Fig. S-7(a,b-e,f)) the reducibility measure based on Complexity seems to outperform the one based Von Neumann Entropy. Indeed, the optimal partition made of only distinct layers is only identified by the complexity reducibility. However, when considering the last two benchmarks, we again observe that the quality function $q(\bullet)$ based on Complexity seems to be very conservative (in the some cases, extremely conservative) compared to the procedure based on the Von Neumann entropy. Remarkably, in both cases, the aggregation steps are almost the same, so that layers having the same topology will be aggregated first in the procedure.

S-3 Time-varying multiplex networks

Here, we analyse the impact of different functions in tracking the evolution of time-varying real multiplex network. We report in Figure S-8 the results obtained for the same four data sets presented in the main text using the quality function $q(\mathcal{M})=\mathcal{C}(\mathcal{M})/\log{K_{\mathcal{M}}}$, where $K_{\mathcal{M}}$ represents the number of links in the multiplex. Notice that in this case the function $q$ does not perform well when describing changes with time. This issue intrinsically lies in the definition of $q$, which does not consider the variation of the number of edges in the aggregate over time.

To test our hypothesis, we therefore considered a modified version of the quality function $q$, defined as:

[TABLE]

where $M$ represents the number of layers of the multiplex $\mathcal{X}$, while $K_{\mathcal{X}}$ and $K_{\mathcal{A}}$ respectively represent the number of link in the multiplex and in the aggregate.

In Figure S-9, we report the values of the quality function $\widetilde{q}$ over time, for the same four time-varying multiplex networks. Interestingly, we observe a similar picture of the one presented in the main article, so that local maxima of complexity are consistent with the most notable periods of crisis in each data set, while local minima of complexity seem to be precursors of renaissance in IMDB or stability in the financial market.

S-4 Carthography of real systems

In this section we further show how multiplex complexity can be used to obtain a planar embedding of multiplex networks, in a similar fashion as presented in the main text. In this case, for each multiplex network in the data set, we use the maximum value of the quality function $\max q(\bullet)$ as one of the coordinates, while we employ the maximal entropy rate per node $\tilde{h}_{\rm max}$ as the other one. Note that $\tilde{h}_{\rm max}$ is linked to the dispersiveness of random walks on a graph, and it thus carries information about the the large-scale dynamical properties of a multiplex Battiston_exploration_2016 . Notice that for a multiplex $\mathcal{M}$, the maximal entropy rate is defined as:

[TABLE]

where $\lambda_{max}$ is the maximum eigenvalue of the overlapping matrix $O$ associated to $\mathcal{M}$ Battiston_exploration_2016 . To account for the dependence of $\lambda_{max}$ on the total number of nodes in the graph, we use the normalised maximal entropy rate:

[TABLE]

Thus, as mentioned also in the main paper, also this measure provide a perspective on a system that is orthogonal to that captured by multiplex complexity, which is instead a purely structural quantity. In Fig. S-10 we indicated with different colours the three largest group obtained through Ward’s method Ward1963hierarchical , while in Fig. S-10(b) we show the corresponding dendrogram, highlighting all the aggregation steps. Interestingly, solely with these two measures we are able to group together biological, social and technological network in three different clusters.

S-5 Numerical approaches for node interdependence

The encoding of a multiplex network through the prime-weight matrix $\Omega$ allows to define an efficient algorithm for the computation of node interdependence. The node interdependence is defined as follows:

[TABLE]

where $\psi_{ij}$ represents the number of shortest paths from $i$ to $j$ that use edges lying in at least two layers, while $\sigma_{ij}$ represents the total number of shortest paths between node $i$ and $j$ in the multiplex. With a naive approach, the computation of such quantity requires computing the number of shortest paths in the multiplex, which usually scales exponentially with the number of layers. If we consider the prime-weight matrix $\Omega$ associated to a multiplex $\mathcal{M}$, we can compute the node interdependence of each node using elementary properties of composite numbers. The procedure is detailed below:

Algorithm: node interdependence $\lambda_{i}$

1.

Calculate the unweighted aggregate ${W}$ and prime-weight matrix ${\Omega}=\{\Omega_{ij}\}$ associated to the multiplex $\mathcal{M}$.

Enumerate all the shortest paths from node $i$ using the Breadth-First Search (BFS) algorithm newman2018networks applied to the graph associated to W. Set $\lambda_{i}\leftarrow 0$.

2.

Set $\sigma_{ij}\leftarrow 0$ and $\psi_{ij}\leftarrow 0$.

3.

We indicate the generic shortest path from $i$ to $j$ as the sequence $T=\{i,n_{1},n_{2},\ldots,n_{k},j\}$, where $j\neq i$. We also indicate as $f(\Omega_{ij})$ the number of prime factors of $\Omega_{ij}$ .

4.

Compute $P=\displaystyle\prod_{s=i,s\in T}^{n_{k}}f(\Omega_{s,\,s+1})$ and set $\sigma_{ij}\leftarrow\sigma_{ij}+P$.

5.

Set $G\leftarrow GCD(\Omega_{i,\,n_{1}},\Omega_{n_{1},\,n_{2}},\ldots,\Omega_{n_{k},\,j})$. If $G$ is not equal to 1, then $\psi_{ij}\leftarrow\psi_{ij}+f(G)$. Repeat from step 3. for all the shortest paths from $i$ to $j$.

6.

Set $\lambda_{i}\leftarrow\lambda_{i}+\frac{\sigma_{ij}-\psi_{ij}}{\sigma_{ij}}$. Repeat from step $2.$ for all the nodes $j$ different from $i$.

In the algorithm, $GCD(a,b)$ is the greatest common divisor of $a$ and $b$ (i.e., the largest positive integer that divides both $a$ and $b$ without a remainder). The algorithm combines two major ingredients from number theory, namely the unique factorisation theorem (i.e. using the prime-weight matrix) and the properties of GCD. On the one hand, with the prime-weight matrix it is possible to count all the available shortest paths between two pairs of nodes in the multiplex networks. On the other hand, the GCD properties lead to a fast distinction between paths, selecting paths lying in just one layer to the others.
