Counting Classical Nodes in Quantum Networks

TL;DR

This paper introduces a new method to quantify classical nodes in quantum networks using EPR steerability, demonstrated experimentally with photonic networks up to 6 quantum and 18 classical nodes, aiding in understanding quantum network integrity.

Contribution

It presents a novel figure of merit for classical nodes in quantum networks based on EPR steerability, with experimental validation in photonic systems.

Findings

Successfully quantified classical nodes in quantum networks.

Demonstrated the method with up to 6 quantum and 18 classical nodes.

Provided a new way to identify nonclassical correlations in graph states.

Abstract

Quantum networks illustrate the use of connected nodes of quantum systems as the backbone of distributed quantum information processing. When the network nodes are entangled in graph states, such a quantum platform is indispensable to almost all the existing distributed quantum tasks. Unfortunately, real networks unavoidably suffer from noise and technical restrictions, making nodes transit from quantum to classical at worst. Here, we introduce a figure of merit in terms of the number of classical nodes for quantum networks in arbitrary graph states. Such a network property is revealed by exploiting a novel Einstein-Podolsky-Rosen steerability. Experimentally, we demonstrate photonic quantum networks of $n_q$ quantum nodes and $n_c$ classical nodes with $n_q$ up to 6 and $n_c$ up to 18 using spontaneous parametric down-conversion entanglement sources. We show that the proposed method is faithful in quantifying the classical defects in prepared multiphoton quantum networks. Our results provide novel identification of generic quantum networks and nonclassical correlations in graph states.

Figures

c to measure the expected value of $\hat{R}_{m_{k}}$, in which the transmitted photons are projected on eigenstate $\ket{+1}_{m_{k}}$ of $\hat{R}_{m_{k}}$ with eigenvalue $+1$, while the reflected photons are projected on $\ket{-1}_{m_{k}}$ of $\hat{R}_{m_{k}}$ with eigenvalue $-1$. The angle setting of QWP and HWP to perform measurements of $X$, $Y$ and $Z$ are shown in Table. [1](#Sx7.T1). Thus, the expected value of $\langle\hat{R}_{m_{k}}\rangle$ can be obtained by $\frac{N_{+1}-N_{-1}}{N_{+1}+N_{-1}}$, where $N_{+1(-1)}$ is the recorded counts on detector behind transmitted (reflected) ph

Tables

Table 1. Table 1 : Angle setting of QWP and HWP in X 𝑋 X , Y 𝑌 Y , Z 𝑍 Z detection.

Observable	QWP	HWP	Expected value
$X$	45∘	22.5∘	$\frac{N_{+1}-N_{-1}}{N_{+1}+N_{-1}}$
$Y$	0∘	22.5∘
$Z$	0∘	0∘

Equations

$$|G⟩⟨G|=\sum _{\vec{m}}{h}_{\vec{m}}\underset{k=1}{\overset{N}{⨂}}{\hat{R}}_{m_k},$$

$$F(N)=\sum _{\vec{m}}{h}_{\vec{m}}⟨R_{m_1}...R_{m_N}⟩$$

$$|G⟩=\frac{1}{\sqrt{r}}\sum _{v=0}^{r-1}{|v⟩}_{sQ}{|v⟩}_{sc},$$

$$|G⟩⟨G|=\frac{1}{r}\sum _{v,v^{\prime },{\vec{m}}_c}{h}_{{\vec{m}}_c}^{v{v}^{\prime }}{|v⟩}_{sQsQ}⟨v^{\prime }|\underset{k\in V_c}{⨂}{\hat{R}}_{m_k},$$

$$F=\frac{1}{r}\sum _{v,v^{\prime },{\vec{m}}_c}{h}_{{\vec{m}}_c}^{v{v}^{\prime }}⟨{|v⟩}_{sQsQ}⟨v^{\prime }|⟩⟨\prod _{k\in V_c}{R}_{m_k}⟩.$$

$${\mathcal{F}}_{n_c}=\frac{1}{4}(1+2^{\frac{-n_c}{2}}\sqrt{4+2^{n_c}}),$$

$$|G⟩=\prod _{(i,j)\in E}{U}_{(i,j)}|f_0⟩,$$

$$|G⟩⟨G|=\sum _{\vec{m}}{h}_{\vec{m}}\underset{k=1}{\overset{N}{⨂}}{\hat{R}}_{m_k},$$

$$F(N)$$

$${\text{v}}_k\equiv \{R_{m_k}=v_{m_k}|m_k=1,2,3\},$$

$${\text{v}}_{k,1}=\{+1,+1,+1\},{\text{v}}_{k,2}=\{+1,+1,-1\},$$

$${\text{v}}_{k,3}=\{+1,-1,+1\},{\text{v}}_{k,4}=\{+1,-1,-1\},$$

$${\text{v}}_{k,5}=\{-1,+1,+1\},{\text{v}}_{k,6}=\{-1,+1,-1\},$$

$${\text{v}}_{k,7}=\{-1,-1,+1\},{\text{v}}_{k,8}=\{-1,-1,-1\}.$$

$${\mathcal{F}}_{n_c}=\underset{V_c,\{R_{m_k}\}}{\max }F,$$

$$|G⟩=\frac{1}{\sqrt{r}}\sum _{v=0}^{r-1}{|v⟩}_{sQ}{|v⟩}_{sc},$$

$$|G⟩⟨G|=\frac{1}{r}\sum _{v,v^{\prime },{\vec{m}}_c}{h}_{{\vec{m}}_c}^{v{v}^{\prime }}{|v⟩}_{sQsQ}⟨v^{\prime }|\underset{k\in V_c}{⨂}{\hat{R}}_{m_k},$$

$$\left|G\right\rangle\!\!\left\langle G\right|=\left(\begin{array}[]{cc}\hat{f}_{00}&\hat{f}_{01}\\ \hat{f}_{10}&\hat{f}_{11}\end{array}\right),$$

$$F=\frac{1}{r}\sum _{v,v^{\prime },{\vec{m}}_c}{h}_{{\vec{m}}_c}^{v{v}^{\prime }}⟨{|v⟩}_{sQsQ}⟨v^{\prime }|⟩⟨\prod _{k\in V_c}{R}_{m_k}⟩.$$

$$\mathcal{F}_{n_{c}}=\max_{\{\textbf{v}_{k}|k\in V_{c}\}}E[\left(\begin{array}[]{cc}f_{00}&f_{01}\\ f_{10}&f_{11}\end{array}\right)],$$

$$f_{00}=\frac{1}{2},f_{01}=\frac{1}{2^{n_c+1}}(1+i{)}^{n_c},$$

$$f_{10}=\frac{1}{2^{n_c+1}}(1-i{)}^{n_c},f_{11}=0.$$

$$|G_3^{star}⟩=\frac{1}{\sqrt{2}}({|0⟩}_{sQ}{|0⟩}_{sc}+{|1⟩}_{sQ}{|1⟩}_{sc}).$$

$$\{{|0⟩}_{sQ}={|1⟩}_1{|1⟩}_1,{|1⟩}_{sQ}={|-1⟩}_1{|-1⟩}_1\},$$

$$\{{|0⟩}_{sc}={|1⟩}_3,{|1⟩}_{sc}={|-1⟩}_3\}.$$

$${|0⟩}_{scsc}⟨0|=\frac{1}{2}({\hat{R}}_0+{\hat{R}}_3),{|0⟩}_{scsc}⟨1|=\frac{1}{2}({\hat{R}}_1+i{\hat{R}}_2),$$

$${|1⟩}_{scsc}⟨0|=\frac{1}{2}({\hat{R}}_1-i{\hat{R}}_2),{|1⟩}_{scsc}⟨1|=\frac{1}{2}({\hat{R}}_0-{\hat{R}}_3),$$

$$f_{00}=\frac{1}{2},f_{01}=\frac{1}{4}(1+i),f_{10}=\frac{1}{4}(1-i),f_{11}=0,$$

$${\mathcal{F}}_1\simeq 0.6830,$$

$$\{{|0⟩}_{sQ}={|1⟩}_3,{|1⟩}_{sQ}={|-1⟩}_3\},$$

$$\{{|0⟩}_{sc}={|1⟩}_1{|1⟩}_1,{|1⟩}_{sc}={|-1⟩}_1{|-1⟩}_1\}.$$

$${|0⟩}_{scsc}⟨0|=\frac{1}{4}({\hat{R}}_0{\hat{R}}_0+{\hat{R}}_0{\hat{R}}_1+{\hat{R}}_1{\hat{R}}_0+{\hat{R}}_1{\hat{R}}_1),$$

$${|0⟩}_{scsc}⟨1|=\frac{1}{4}(-{\hat{R}}_2{\hat{R}}_2-i{\hat{R}}_2{\hat{R}}_3-i{\hat{R}}_3{\hat{R}}_2+{\hat{R}}_3{\hat{R}}_3),$$

Full text

Quantum mechanics enables nonclassical correlations to exist across the whole of a network via connecting individual quantum nodes, forming a joint quantum many-body system Ritter et al. (2012). Quantum networks Kimble (2008); Wehner et al. (2018) have far greater capacity than the classical ones and serve as well-advanced transmitters of quantum information for all the distant network participants. Such utilities encourage important applications in distributed quantum information processing, from quantum secret sharing (QSS) Hillery et al. (1999); Chen et al. (2005); Markham and Sanders (2008); Bell et al. (2014); Lu et al. (2016); Huang et al. (2019) to distributed sensing Kómár et al. (2014); Proctor et al. (2018), and from distributed quantum computation Raussendorf and Briegel (2001); Walther et al. (2005); Broadbent et al. (2009); Barz et al. (2012) to quantum conference key agreement and distribution Chen and Lo (2007); Lo et al. (2014); Epping et al. (2017). The physical realization of these distributed quantum tasks requires suitable connectivities between nodes and network topologies to initialize the nodes in the multipartite entangled states, known as graph states Hein et al. (2004) [see Fig. 1(a)].

To establish a quantum network in graph states with tailored topology, quantum information demands to be sent, received, stored, and exchanged between remote quantum nodes via photonic channels in general Kimble (2008); Wehner et al. (2018); Ritter et al. (2012); Northup and Blatt (2014); Monroe et al. (2014); Reiserer and Rempe (2015); Sipahigil et al. (2016); Kalb et al. (2017); Pirker et al. (2018); Humphreys et al. (2018); Chou et al. (2018); Jing et al. (2019); Yu et al. (2020). Then, it is essential to characterize a created network before it carries out a given distributed task, such as a QSS scheme. A conventional way to detect entanglement in the laboratory is an entanglement witness (EW), which employs deduction from the predictions of quantum theory Horodecki et al. (2009); Gühne and Tóth (2009); McCutcheon et al. (2016). However, inevitable imperfections of network nodes, such as the intrinsic fragility of quantum systems and errors present in actual implementations, can cause quantum nodes to become classical systems that obey the laws of classical physics, therefore leading to the failure of state preparation or decay of quantum networks Kimble (2008); Wehner et al. (2018); Ritter et al. (2012); Northup and Blatt (2014); Monroe et al. (2014); Reiserer and Rempe (2015); Sipahigil et al. (2016); Kalb et al. (2017); Pirker et al. (2018); Humphreys et al. (2018); Chou et al. (2018); Jing et al. (2019); Yu et al. (2020). Moreover, when network participants only have limited knowledge about the node imperfections, the network nodes then become untrusted to the participants as untrusted nodes. Considering the existence of untrusted nodes in the created network, the EW is no longer reliable in verification of multipartite entanglement. This raises a natural question: How can a verifier, such as the dealer in QSS, objectively and reliably detect the presence of classical nodes in a given network for distributed tasks?

In this Letter, we address this issue by exploiting a novel Einstein-Podolsky-Rosen (EPR) steerability Wiseman et al. (2007); Jones et al. (2007); Li et al. (2015), which is capable of excluding the existence of classical nodes in quantum networks. More importantly, the EPR steerability presents more fine-grained information about the created network, i.e., the capability of counting the number of classical nodes in the created network, which is not possible in other schemes Pappa et al. (2012); McCutcheon et al. (2016).

Given an ideal $N$-node quantum network in arbitrary graph state $\ket{G}$, where each node contains a qubit, its general state decomposition can be explicitly expressed as Nielsen and Chuang (2010); James et al. (2001)

[TABLE]

where $h_{\vec{m}}$ are coefficients and $\hat{R}_{m_{k}}$ represents the $m_{k}$th observable of the $k$th node. We then introduce the network fidelity function for arbitrary target graph states $\left|G\right\rangle$ of $N$ nodes

[TABLE]

where $\vec{m}\equiv(m_{1},...,m_{N})$ and $R_{m_{k}}$ is the outcome of the $m_{k}$th measurement of $\hat{R}_{m_{k}}$ on the $k$th node. In our study, the measurements on each qubit are performed with the observables in Pauli matrices, $\{\hat{R}_{m_{k}}|m_{k}=0,1,2,3\}$, where $\hat{R}_{0}=I$, $\hat{R}_{1}=X$, $\hat{R}_{2}=Y$, and $\hat{R}_{3}=Z$. Note that the fidelity function [Eq. (2)] is state dependent and we obtain $F=1$ for an ideal quantum network regardless of what fidelity function is chosen. We utilize the network fidelity function, which measures the closeness of created networks and target graph states, as the basis for counting classical nodes. This makes our framework capable of being used in a wide variety of circumstances and applications based on the fidelity measure.

When classical nodes exist in the created network, the network becomes a hybrid system consisting of $n_{q}$ quantum nodes and $n_{c}$ classical nodes, where $N=n_{q}+n_{c}$. The index set of the network nodes, $V$, can then be divided into the quantum-node subset, $V_{Q}$, and the classical-node subset, $V_{c}$, accordingly. An essential difference between quantum and classical nodes is that physical properties of quantum nodes might not have definite values. In contrast, variables in classical nodes are in existing states independent of observation, known as the assumption of realism Mermin (1993); Gühne et al. (2005); Brunner et al. (2014). In our framework, a node is defined as being classical if, for any physical properties of interest, it is classical realistic, i.e., the state of each classical node can be specified by a pre-existing and fixed set of measurement outcomes Li et al. (2015). Note that with the increase of noises, the quantum nodes can eventually be described by the classical realistic theory. See Supplementary Material (SM) for detailed discussion of classical nodes SM .

Before the state decays, the state vector of the target graph state can always be represented in the Schmidt form of rank $r$ Li et al. (2010)

[TABLE]

for $r\geq 2$, where $\{\left|v\right\rangle_{sQ}\}$ and $\{\left|v\right\rangle_{sc}\}$ are the Schmidt bases for the nodes in the vertex sets $V_{Q}$ and $V_{c}$, respectively. This representation shows us the following form under the state decomposition [Eq. (1)] for the nodes in $V_{c}$

[TABLE]

where $\left|v\right\rangle_{\!scsc}\!\!\left\langle v^{\prime}\right|=\sum_{\vec{m}_{c}}h_{\vec{m}_{c}}^{vv^{\prime}}\bigotimes_{k\in V_{c}}\hat{R}_{m_{k}}$, $\vec{m}_{c}\equiv\{m_{k}|k\in V_{c}\}$, and $h_{\vec{m}_{c}}^{vv^{\prime}}$ denote the decomposition coefficients. With the classical realistic theory for a complete description of the total state of the $n_{c}$ classical nodes in terms of the preexisting outcome sets: $\{\textbf{v}_{k}|k\in V_{c}\}$, the network fidelity function [Eq. (2)] can be rephrased as the following explicit form:

[TABLE]

The maximum fidelities between target graph states $\ket{G}$ and $N$-node networks having $n_{c}$ classical nodes can then be described by the equation

[TABLE]

where $1\leq n_{c}\leq N-1$, holding for arbitrary target graph states (See SM for the detailed derivation SM ). The threshold fidelities $\mathcal{F}_{n_{c}}$ strictly decrease with the number of classical nodes $n_{c}$. It turns out that there exists a one-to-one correspondence between the number of classical nodes and the relevant maximum fidelity values. For instance, $\mathcal{F}_{1}\simeq 0.6830$, $\mathcal{F}_{2}\simeq 0.6036$, and $\lim_{n_{c}\rightarrow\infty}\mathcal{F}_{n_{c}}\simeq 0.5000$. The hybrids of quantum and classical nodes are then comparable in fidelity to the netwroks composed entirely of quantum nodes with $F\leq\mathcal{F}_{1}$. This implies that the collection $\{\mathcal{F}_{n_{c}}\}\equiv\{\mathcal{F}_{n_{c}}|n_{c}=1,2,...,N-1\}$ of the threshold fidelities can serve as a set of graduations to indicate the degree of network imperfection. That is, if the measured fidelity $F$ is found to be $\mathcal{F}_{n^{\prime}_{c}+1}<F\leq\mathcal{F}_{n^{\prime}_{c}}$, then one can infer that there are $n^{\prime}_{c}$ classical nodes in the created network. Note that the preexisting state model used here is distinct from hidden variable models, such as the Mermin-Peres square, where noncontextual outcomes apply to each of nine observables for the tests of state-independent quantum contextuality in two-qubit systems Mermin (1990); Peres (1990); Mermin (1993); Cabello (2008); Amselem et al. (2009); Kirchmair et al. (2009). By contrast, our quantum-classical hybrid model for the derivation of $\mathcal{F}_{n_{c}}$ combines both preexisting outcomes from $n_{c}$ classical nodes and quantum measurements performed in $n_{q}$ quantum nodes.

Indeed, the collection $\{\mathcal{F}_{n_{c}}\}$ quantitatively describes how the nonclassical correlations among nodes of the graph states vary between the quantum-classical hybrids. If $F>\mathcal{F}_{n_{c}}$ for a created network, then it is impossible to simulate the correlations between nodes using any networks mixed with classical defects of the minimum classical nodes, $n_{c}$. Such a quantum characteristic can be interpreted as the genuine multi-subsystem EPR steering SM , a new type of genuine multipartite EPR steerability He and Reid (2013) of graph states Li et al. (2015). Notably, the new-found criterion $F>\mathcal{F}_{n_{c}}$ is stricter than EW ${F}>1/2$ for genuine multipartite entanglement Horodecki et al. (2009); Gühne and Tóth (2009); McCutcheon et al. (2016) of networks, in which a network containing classical nodes can mimic the networks with genuine multipartite entanglement to show $1/2<{F}<\mathcal{F}_{1}$. This serious flaw makes EW unreliable in verification of genuine multipartite entanglement for distributed quantum tasks.

We experimentally demonstrate our protocol on multipartite graph states in star graph $\ket{G^{star}_{N}}$, which is equivalent to a Greenberg-Horne-Zeilinger (GHZ) state $\ket{GHZ}_{N}=(1/\sqrt{2})(\ket{0}^{\otimes N}+\ket{1}^{\otimes N})$ via local operation and classical communication (LOCC). The experimental setup to generate a six-photon GHZ state $\ket{GHZ}_{6}=(1/\sqrt{2})(\ket{H}^{\otimes 6}+\ket{V}^{\otimes 6})$ with $H$ the horizontal polarization and $V$ the vertical polarization is shown in Fig. 1(b). An experimental state, denoted as $\rho^{GHZ}_{6}$, is generated by employing the typical spontaneous parametric down-conversion entangled photon source and photonic interferometry technologies (see SM for more details SM ). The network fidelity $F(6)$ of the generated state $\rho^{GHZ}_{6}$ is measured by the device shown in Fig. 1(c), which is consisted of a quarter-wave plate (QWP), half-wave plate (HWP), a polarization beam splitter (PBS) and two detectors. By properly choosing the angle of QWP and HWP, the expected value of $I$, $X$, $Y$ and $Z$ can be readout. The experimental results of measured $F(6)$ are shown in Fig. 2(a), from which we calculate that $F(6)=0.792\pm 0.006$ [shown with blue bar in Fig. 2(c)]. Then $F(6)$ exceeds the threshold fidelity $\mathcal{F}_{1}=0.683$ by more than 18 standard deviation, which indicates there is no classical node in the tested network.

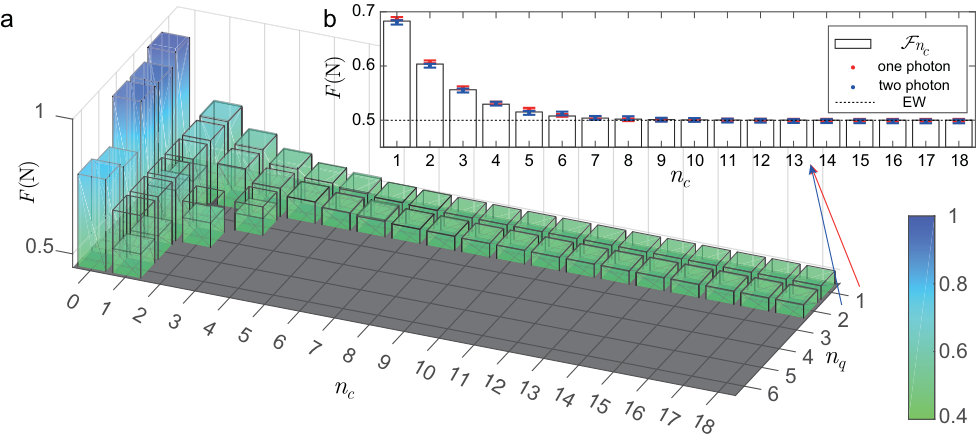

We then consider the case where $n_{c}$ classical nodes exist in the $N$-node network, and show that $F(N)$ is bounded by the threshold fidelity $\mathcal{F}_{n_{c}}$ even with the optimal “cheating strategy” (OCS). The OCS of one untrusted node in bipartite quantum correlation has been well discussed Bennet et al. (2012). We generalize the OCS of $n_{c}$ untrusted (classical) nodes existing in $N$-node network as: the $n_{c}$ untrusted nodes first prepare the entangled state $\ket{\xi}_{n_{q}}$ for $n_{q}$ trusted (quantum) nodes based on their knowledge of the $N$-node network, where $n_{q}=N-n_{c}$. Then, according to the measurement setting for the network fidelity function [Eq. (2)], the $n_{c}$ untrusted nodes broadcast their results $\in\{+1,-1\}$ to achieve the maximal $F(N)$ SM . The experimental results of $F(6)$ under the OCS are shown in Fig. 2(b), from which we calculate $F(6)=0.538\pm 0.007$ [shown with red bar in Fig. 2(c)]. As shown in Fig. 3(a), we can see that $F(6)$ either with $n_{c}=0$ or $n_{c}=1$ exceeds the EW threshold McCutcheon et al. (2016), which is a strong evidence that EW is no longer reliable in quantum network identification. However, with our criteria, the measured $F(6)$ does not exceed the threshold fidelity $\mathcal{F}_{1}$, which indicates there are classical nodes in the measured network. One may notice that, in the case of $n_{c}=1$ under the OCS, $F(6)=0.538\pm 0.007$ is lower than $\mathcal{F}_{3}$ but higher than $\mathcal{F}_{4}$, where the fidelity threshold overcounts the number of classical nodes in the created network. This is caused by the imperfections in the state preparation, where $F(6)=0.792\pm 0.006$ in the case of $n_{c}=0$, and such imperfections prevent us from achieving the optimal fidelity $\mathcal{F}_{1}\simeq 0.6830$ with the OCS. These imperfections can be evaluated by our fidelity criteria in terms of the number of classical nodes. For $\mathcal{F}_{4}<F(6)=0.538\pm 0.007<\mathcal{F}_{3}$, the quantity of classical defects in the created network effectively equals to three classical nodes with the optimal mimicry.

We also experimentally prepare various $N$-node quantum networks with $n_{q}$ up to 6 and $n_{c}$ up to 18, where $N=n_{q}+n_{c}$ SM . For each network, $n_{c}$ nodes employ OCS to achieve maximal network fidelity $F(N)$. The measured $F(N)$ are shown in Fig. 3(a). It is clear that $F(N)$ with $n_{c}$ classical nodes are bounded by the threshold fidelity $\mathcal{F}_{n_{c}}$. One may notice that $F(N)$ decreases much faster than $\mathcal{F}_{n_{c}}$ as $n_{q}$ is increased. This is mainly caused by the imperfections in the state preparation, in which more imperfections are introduced when coherently manipulating more photons. When $n_{q}\geq 3$, $F(N)$ decreases below EW threshold (0.5) quickly as $n_{c}$ is increased ($n_{c}\geq 4$). We investigate $F(N)$ of networks with $n_{q}=1$ and $n_{q}=2$ for large $n_{c}$ as the one-photon and two-photon states are prepared with high fidelities. The results of $F(N)$ for $n_{q}=1$ and $n_{q}=2$ are particularly shown in Fig. 3(b), from which we can see that $F(N)$ fits $\mathcal{F}_{n_{c}}$ very well. We analyze the standard deviation $\mathcal{E}$ of $F(N)$ in verifying entanglement and evaluating $n_{c}$. We observe $\mathcal{E}>3$ when $n_{c}\leq 6$ in the created network with $n_{q}=1$ and $n_{q}=2$, which reflects a high confidence level of our criteria SM .

Our results, to the best of our knowledge, demonstrate the first method capable of counting the number of classical nodes in quantum networks. Moreover, the proposed method reveals that the quantum-classical hybrid networks with OCS can surpass the seminal EW threshold of ${F}>1/2$, which causes serious flaws in using the verification of EW in quantum networks McCutcheon et al. (2016). Our proof-of-principle photonic networking experiments, with $n_{q}$ up to 6 and $n_{c}$ up to 18, validated the proposed threshold network fidelities $\mathcal{F}_{n_{c}}$, and showed the failure of using EW for genuine multipartite entanglement verification. Our results therefore not only open a new way to characterize classical defects in quantum networks Kimble (2008); Wehner et al. (2018); Ritter et al. (2012); Northup and Blatt (2014); Monroe et al. (2014); Reiserer and Rempe (2015); Sipahigil et al. (2016); Kalb et al. (2017); Pirker et al. (2018); Humphreys et al. (2018); Chou et al. (2018); Jing et al. (2019); Yu et al. (2020) for a wide range of distributed quantum tasks Hillery et al. (1999); Chen et al. (2005); Markham and Sanders (2008); Bell et al. (2014); Lu et al. (2016); Huang et al. (2019); Kómár et al. (2014); Proctor et al. (2018); Raussendorf and Briegel (2001); Walther et al. (2005); Broadbent et al. (2009); Barz et al. (2012); Chen and Lo (2007); Lo et al. (2014); Epping et al. (2017), but also provide novel insights in multipartite nonclassical correlations in graph states Monz et al. (2011); Aguilar et al. (2014); Aolita et al. (2015). We expect that our formalism could be extended to the other types of quantum states, such as $W$ states, for characterization of multipartite entanglement with further studies Horodecki et al. (2009); Gühne and Tóth (2009); Walter et al. (2013).

Supplementary Information

Graph states

Suppose that each quantum node is a quantum two-dimensional system (qubit). An edge, say $(i,j)\in E$, corresponds to a two-qubit conditional transformation among the two qubits (vertices) $i$ and $j$ by $U_{(i,j)}\!\!=\!\!\sum_{v_{i}=0}^{1}\left|v_{i}\right\rangle\!\left\langle v_{i}\right|\otimes(Z_{j})^{v_{i}}$, where $\{\left|v_{i}\right\rangle\}$ is an orthonormal basis of the $i$th qubit and $Z_{j}=\sum_{v_{j}=0}^{1}(-1)^{v_{j}}\left|v_{j}\right\rangle\!\left\langle v_{j}\right|$. The state vector of a graph state is determined by the target graph $G(V,E)$, where $|V|=N$ indicates the total node number and $E$ tells us how the nodes are connected together to show the network topology; that is,

[TABLE]

where $\left|f_{0}\right\rangle=[(\left|0\right\rangle+\left|1\right\rangle)/\sqrt{2}]^{\otimes N}$ is the initial state of the network.

Fidelity function $F(N)$

For a $N$-node network in arbitrary graph state $\left|G\right\rangle$ as shown in the main text, the value of the fidelity function $F(N)$ under given experimental results shows the fidelity of the created network and the target graph state. The way the graph state $\left|G\right\rangle\!\!\left\langle G\right|$ is decomposed decides the construction of the fidelity function, which can be understood by the following explicit general decomposition for arbitrary graph states Nielsen and Chuang (2010); James et al. (2001)

[TABLE]

where $\hat{R}_{m_{k}}$ represents the $m_{k}$th observable of the $k$th qubit. For instance, suppose that the created network is in a $N$-qubit state described by a density operator $\rho_{\text{expt}}$, the network fidelity function of $\rho_{\text{expt}}$ and $\left|G\right\rangle\!\!\left\langle G\right|$ satisfies the relation

[TABLE]

where $\left\langle R_{m_{1}}...R_{m_{N}}\right\rangle=\text{tr}(\rho_{\text{expt}}\bigotimes_{k=1}^{N}\hat{R}_{m_{k}})$.

In this work, we assume that the measurements on each qubit are performed with the observables in the Pauli matrices, $\{\hat{R}_{m_{k}}|m_{k}=0,1,2,3\}$, where $\hat{R}_{0}=I$, $\hat{R}_{1}=X$, $\hat{R}_{2}=Y$, and $\hat{R}_{3}=Z$. The spectral decomposition of the Pauli matrices: $\hat{R}_{0}=\sum_{v_{m_{k}}=\pm 1}\left|v_{m_{k}}\right\rangle_{m_{k}m_{k}}\!\!\left\langle v_{m_{k}}\right|$, and $\hat{R}_{m_{k}}=\sum_{v_{m_{k}}=\pm 1}v_{m_{k}}\left|v_{m_{k}}\right\rangle_{m_{k}m_{k}}\!\!\left\langle v_{m_{k}}\right|$ for $m_{k}=1,2,3$, reminds us the relation between the measurement outcomes $R_{0}=\text{tr}(\left|v_{m_{k}}\right\rangle_{m_{k}m_{k}}\!\!\left\langle v_{m_{k}}\right|\hat{R}_{0})=1$ and $R_{m_{k}}=\text{tr}(\left|v_{m_{k}}\right\rangle_{m_{k}m_{k}}\!\!\left\langle v_{m_{k}}\right|\hat{R}_{m_{k}})=v_{m_{k}}$ and the state of the measured qubit $\left|v_{m_{k}}\right\rangle_{m_{k}}$. Note that there are the following relationships between the different eigenstates of $\hat{R}_{m_{k}}$: $\left|\pm 1\right\rangle_{1}=(\left|0\right\rangle\pm\left|1\right\rangle)/\sqrt{2}$ and $\left|\pm 1\right\rangle_{2}=(\left|0\right\rangle\pm i\left|1\right\rangle)/\sqrt{2}$, where $\left|0\right\rangle\equiv\left|1\right\rangle_{3}$ and $\left|1\right\rangle\equiv\left|-1\right\rangle_{3}$ are also used in the definition of graph state (7). Therefore the states $\left|G\right\rangle\!\!\left\langle G\right|$ can be specified by the decomposition (8) using the orthonormal set of matrices, $\{\bigotimes_{k=1}^{N}\hat{R}_{m_{k}}/\sqrt{2}\}$, from which the fidelity function $\mathcal{F}$ is then constructed. In this case the constituent $2^{N}$ matrices with $h_{\vec{m}}=2^{-N}$ consist of the stabilizer of the graph state Hein et al. (2004). In addition to Pauli matrices used here, the fidelity function can also be constructed in the same manner when the observables for state decomposition are not orthonormal.

Classical nodes

Suppose a given $N$-node network with the desired target graph state decays into a hybrid of quantum and classical nodes. As shown in the main text, the index set of the network nodes, $V$, can then be divided into the quantum-node subset, $V_{Q}$, and the classical-node subset, $V_{c}$, accordingly. We assume that there are $n_{c}$ classical nodes in the hybrid network, i.e., $|V_{c}|=n_{c}$, and $|V_{c}|+|V_{Q}|=N$. Classical nodes possess physical properties that exist independent of observation Gühne et al. (2005). The state of each classical node can be specified by a preexisting and fixed set of measurement outcomes Li et al. (2015)

[TABLE]

where $k\in V_{c}$. For $v_{m_{k}}=\pm 1$, we have $8$ possible such sets denoted by $\textbf{v}_{k,\eta}=\{v_{1},v_{2},v_{3}\}$, where

[TABLE]

Incoherent manipulations of qubits cause the qubits to decay such that the qubit states can eventually be described by the classical realistic theory, such as measurements on qubits, and qubit storage or transmission under the action of a noisy channel.

For example, suppose that the observable $Z$ is chosen for a measurement on the superposition state $\ket{1}_{1}=(\ket{1}_{3}+\ket{-1}_{3})/\sqrt{2}$. After measurement, the qubit becomes a definite state in one of the two post-measurement states $\ket{1}_{3}$ and $\ket{-1}_{3}$, independent of the observation with respect to the measurement of the observable $Z$. That is, in terms of the classical realistic theory, if the measurement outcome is $v_{3}=1$ ($v_{3}=-1$), the probability of constantly observing $v_{3}=1$ ($v_{3}=-1$) under the measurement of $Z$ is $p(v_{3}=1)=\sum_{\eta=1,3,5,7}p(\textbf{v}_{k,\eta})=1$ ($p(v_{3}=-1)=\sum_{\eta=2,4,6,8}p(\textbf{v}_{k,\eta})=1$), where $p(\textbf{v}_{k,\eta})$ is the probability of being in the preexisting state $\textbf{v}_{k,\eta}$.

Moreover, after many rounds of the same measurements on the same initial superposition state, and taking all post-measurment states into account, the average post-measurement state, $\rho_{\text{avg}}=(\ket{1}_{33}\!\bra{1}+\ket{-1}_{33}\!\bra{-1})/2$, can be described in the same manner. One can think of $\rho_{\text{avg}}$ as one composed of preexisting states $\textbf{v}_{k,\eta}$ with a probability distribution $p(\textbf{v}_{k,\eta})$ such that $p(v_{3}=1)=\sum_{\eta=1,3,5,7}p(\textbf{v}_{k,\eta})=1/2$ and $p(v_{3}=-1)=\sum_{\eta=2,4,6,8}p(\textbf{v}_{k,\eta})=1/2$.

From the viewpoint of physically motivated operational meaning, once we have the preexisting recipe of $\textbf{v}_{k,\eta}$ with the probability distribution $p(\textbf{v}_{k,\eta})$, the post-measurement state $\rho_{\text{avg}}$ can be prepared accordingly by incoherently mixing the states $\ket{1}_{3}$ and $\ket{-1}_{3}$. It is clear that $\textbf{v}_{k,\eta}$ exist independent of observation; after all, the prescribed information about $\textbf{v}_{k,\eta}$ has been shown in the preexisting recipe.

The descriptions of the classical nodes illustrated above can be directly applied to the cases where qubit storage or transmission undergoes noisy channels, such as the final state $\ket{v_{3}}_{3}$ which results from the initial state $\ket{1}_{1}$ through an amplitude damping channel, and the complete mixed state $\rho_{\text{avg}}$ derived from $\ket{1}_{1}$ via a full decoherence process.

Set of graduations $\{\mathcal{F}_{n_{c}}\}$

To examine the minimum deviation of a $N$-node network with $n_{c}$ classical nodes from the target graph state, we evaluate the maximum fidelity by performing the following task

[TABLE]

where the maximization is over all vertex sets $V_{c}$ with $|V_{c}|=n_{c}$ and all outcomes from measurements on the classical and quantum nodes, $\{R_{m_{k}}\}$. Next, we illustrate the step-by-step derivation for Eq. (3-6) in the main text. The fidelity (11) is determined in three steps:

First, as shown in Eq. (3) in the main text, before the state decay, when explicitly considering Eq. (11), the state vector of the target graph state can always be represented in the Schmidt form of rank $r$ Li et al. (2010)

[TABLE]

for $r\geq 2$, where $\{\left|v\right\rangle_{sQ}\}$ and $\{\left|v\right\rangle_{sc}\}$ are the Schmidt bases for the nodes in the vertex sets $V_{Q}$ and $V_{c}$, respectively. This representation shows us the following form under the state decomposition for the nodes in $V_{c}$

[TABLE]

where $\left|v\right\rangle_{\!scsc}\!\!\left\langle v^{\prime}\right|=\sum_{\vec{m}_{c}}h_{\vec{m}_{c}}^{vv^{\prime}}\bigotimes_{k\in V_{c}}\hat{R}_{m_{k}}$, $\vec{m}_{c}\equiv\{m_{k}|k\in V_{c}\}$, and $h_{\vec{m}_{c}}^{vv^{\prime}}$ denote the decomposition coefficients. Alternatively, it can be represented in the matrix form in the basis, $\{\left|v\right\rangle_{sQ}\}$. Let us take $r=2$ for example, we have

[TABLE]

where $\hat{f}_{vv^{\prime}}=1/2\sum_{\vec{m}_{c}}h_{\vec{m}_{c}}^{vv^{\prime}}\bigotimes_{k\in V_{c}}\hat{R}_{m_{k}}$.

Second, we use the classical realistic theory to give a complete description of the total state of the $n_{c}$ classical nodes in terms of the preexisting outcome sets: $\{\textbf{v}_{k}|k\in V_{c}\}$. The network fidelity function (Function) can be rephrased as the following explicit form

[TABLE]

Note that $R_{m_{k}}$ are the preexisting outcomes given in $\textbf{v}_{k}$ (10) where $\textbf{v}_{k}\in\{\textbf{v}_{k,\eta}|\eta=1,2,...,8\}$.

Finally, through the expression (15) for the fidelity function, the maximization task (11) becomes

[TABLE]

where $f_{vv^{\prime}}=1/2\sum_{\vec{m}_{c}}h_{\vec{m}_{c}}^{vv^{\prime}}\left\langle\prod_{k\in V_{c}}R_{m_{k}}\right\rangle$ and $E[\cdot]$ denotes the largest eigenvalue of the matrix represented in the orthonormal basis $\{\left|0\right\rangle_{sQ},\left|1\right\rangle_{sQ}\}$. Note that, given a set of $f_{vv^{\prime}}$, the eigenvector of $E[\cdot]$ correspond to the state of quantum nodes. Here $r=2$ is shown to be necessary for the maximum of $F$. One always can find at least one bipartite splitting of the network nodes in the target graph to have such Schmidt rank of state decomposition under the condition $|V_{c}|=n_{c}$. When the fidelity functions are specified in the orthonormal sets of Pauli matrices and the classical nodes are described under the assumption of realism Gühne et al. (2005) given in (10), we obtain

[TABLE]

Thus we arrive the result of Eq. (6) in the main text by calculating the maximum eigenvalue of the matrix with the above matrix elements. From the viewpoint of the operational meaning, as the quantum nodes are prepared in the eigenstate of such maximum eigenvalue and the classical nodes are in a specific state $\{\textbf{v}_{k}|k\in V_{c}\}$, the resulting hybrid of quantum and classical nodes can show the best fidelity, $\mathcal{F}_{n_{c}}$.

It is worth noting that the choice of $\{\textbf{v}_{k}|k\in V_{c}\}$ for the maximum eigenvalue $\mathcal{F}_{n_{c}}$ is not unique. Then there exist alternative to the matrix elements $f_{vv^{\prime}}$ (17) for matrices with the same maximum eigenvalue, $\mathcal{F}_{n_{c}}$, but different eigenvectors. This also means that there are more than one quantum-classical hybrids that can be used to achieve the best fidelity, $\mathcal{F}_{n_{c}}$.

Next, we give a concrete example of three-qubit star-graph (or chain-graph) state to illustrate the three steps in our method for determining $\mathcal{F}_{n_{c}}$ (11). According to (7) and (12) a three-qubit star-graph state can be expressed as

[TABLE]

As will be shown bellow, the Schmidt basis $\{\ket{0}_{sc},\ket{1}_{sc}\}$ corresponds to either one ($n_{c}=1$) or two ($n_{c}=2$) nodes in $V_{c}$.

In the case of $n_{c}=1$, we assume that the 3rd qubit is the node belonging to $V_{c}$ and connected with the other two qubits in $V_{Q}$. Then we have

[TABLE]

and

[TABLE]

With the following explicit decomposition for the nodes in $V_{c}$:

[TABLE]

we obtain Eq. (13). As the 3rd qubit decays to a classical node which can be specified by a preexisting state $\textbf{v}_{3}$, any observable in the classical node has a predetermined value that exists independent of observation according to (10), and from which we arrive at Eq. (15). When setting $\textbf{v}_{3}$ as $\textbf{v}_{3,1}$, we obtain the results of Eq. (17) with

[TABLE]

and the minimum deviation of a network mixed with a single classical node:

[TABLE]

as shown in Eq. (2) for $n_{c}=1$ in the main text.

Similarly, in the case of $n_{c}=2$, where the 3rd qubit is assumed to be in $V_{Q}$ and connected with the other two qubits in $V_{c}$, we have

[TABLE]

and

[TABLE]

To derive Eq. (13), the following state decomposition is used

[TABLE]

When the 1st and the 2nd qubits decay into two classical nodes which can be specified by the preexisting states of $\textbf{v}_{1}$ and $\textbf{v}_{2}$, respectively, the fidelity function (9) becomes Eq. (15), and any observable in the two classical nodes has a predetermined value that exists independent of observation according to (10). As $\textbf{v}_{1}=\textbf{v}_{1,3}$ and $\textbf{v}_{2}=\textbf{v}_{2,3}$, we obtain the elements of the matrix represented in the orthonormal basis [see Eqs. (16) and (17)]:

[TABLE]

and from which we get the the maximum fidelity for a network consisting of one quantum node and two classical nodes:

[TABLE]

This result consistent with Eq. (2) for $n_{c}=2$ shown in the main text.

Genuine multi-subsystem EPR steering

Satisfying the criterion

[TABLE]

confirms that, the correlation between the network nodes of a created state is stronger than all the correlations that can be created by the quantum-node subsets, $V_{Q}$, and the classical-node subsets, $V_{c}$ with $|V_{c}|=n_{c}$, for all possible bipartitions of the hybrid of quantum and classical nodes. This concretely describes the steering effects Wiseman et al. (2007); Jones et al. (2007) between two subsystems with $n_{c}$ and $n_{q}$ nodes, respectively. Moreover, since all possible configurations of splitting $N$ nodes into two subsystems are considered in the criterion, we call such steerability the genuine multi-subsystem EPR steering. This description generalizes the concept of genuine multipartite EPR steering He and Reid (2013); Li et al. (2015), where only the extreme value of $\mathcal{F}_{n_{c}}$ is involved. Such steerability is shown if the created network with a fidelity that goes beyond the threshold

[TABLE]

From the result of $\mathcal{F}_{n_{c}}$ , it is clear that $\mathcal{F}>\mathcal{F}_{1}$ is a fidelity criterion for genuine multipartite EPR steering.

Optimal Cheating Strategy (OCS) and its experimental realization

In the $N$-node network with $n_{c}$ untrusted (classical) nodes and $n_{q}$ trusted (quantum) nodes, the $n_{c}$ untrusted nodes prepare the entangled state $\ket{\xi}_{n_{q}}$ based on their knowledge of the network fidelity function $F(N)$. Combining with the measurement results of prepared $\ket{\xi}_{n_{q}}$, the $n_{c}$ untrusted nodes broadcast their results $\in\{+1,-1\}$, according to the measurement setting for the network fidelity function. In this section, we detail the experimental state preparation of quantum networks with $N=n_{c}+n_{q}$ nodes.

.1 $n_{c}=0$

As we mentioned in the main text, we test our procedure on multiphoton graph state in star graph, which is equivalent to N-photon Greenberger-Horne-Zeilinger (GHZ) state via local operation and classical communication (LOCC). The building block to generate a N-photon GHZ state is entangled photon pair from spontaneous parametric down conversion (SPDC). Experimentally, we use an ultraviolet pulse (with central wavelength of 390nm, pulse duration of 140fs) to pump a 2mm Beta Barium Borate (BBO) crystal (as shown in Fig. 4a). The generated twin photons are entangled both in polarization degree of freedom (DOF) and frequency DOF, and separated with opening angle of 6*∘. To compensate the time and spatial walk-off, an half-wave plate set at 45∘* and a 1mm BBO crystal are inserted in each path. Using narrow-band filters with full-width at half maximum ($\lambda_{\text{FWHM}}$) of 3 nm, the maximally entangled photon pair can be obtained $\ket{GHZ}_{2}=\frac{1}{\sqrt{2}}(\ket{HH}+\ket{VV})$. The generated photons are highly frequency-correlated, which is not suitable for multiphoton experiments. To enhance the multiphoton coincidence count rate, we recombine the generated photons on a polarization beam splitter (PBS) to eliminate frequency correlationKim et al. (2003); Yao et al. (2012) (similar to the setup shown in Fig. 4b, but remove polarizer (POL), quarter-wave plate (QWP) and one HWP). By properly choosing narrow bandpass filters (full-width half-maximum (FWHM) of 3nm and 8nm in our experiment), we can obtain $\ket{GHZ}_{2}$ with higher counter rate.

To generate $\ket{GHZ}_{3}$, the ultraviolet pulse goes to shine another 2mm BBO crystal. A heralded single-photon source is obtained by triggering one photon of the second entangled photon pair. The heralded single-photon is rotated to $\ket{+}=\frac{1}{\sqrt{2}}(\ket{H}+\ket{V})$ and then superposed with one photon from the first $\ket{GHZ}_{2}$ on a PBS. When two photons arrive at PBS simultaneously and come out from two output ports, $\ket{GHZ}_{3}$ can be obtained. The setup is shown in Fig. 4c.

$\ket{GHZ}_{4}$ is generated without triggering one photon from the second SPDC (as shown in Fig. 4d). Similarly, by successively shinning a third BBO crystal and proper operations, $\ket{GHZ}_{5}$ and $\ket{GHZ}_{6}$ can be obtained (as shown in Fig. 4e and Fig. 1b in the main text).

.2 $n_{c}=1$

To show the optimal “cheating strategy” (OCS) for quantum network $\ket{GHZ}_{N}$ with $n_{c}=1$, first, we have the following state decomposition according to Eq. (13):

[TABLE]

Alternatively, the above state decomposition can be represented in the matrix form in the basis $\{\ket{H}^{\otimes N-1},\ket{V}^{\otimes N-1}\}$ of the qubits in $V_{Q}$:

[TABLE]

where $Z\equiv\ket{H}\!\!\bra{H}-\ket{V}\!\!\bra{V}$, $X\equiv\ket{H}\!\!\bra{V}+\ket{V}\!\!\bra{H}$, and $Y\equiv-i\ket{H}\!\!\bra{V}+i\ket{V}\!\!\bra{H}$ for the qubit in $V_{Q}$. Note that the last matrix form corresponds to Eq. (14).

Secondly, suppose that $\ket{H}\equiv\ket{1}_{3}$ and $\ket{V}\equiv\ket{-1}_{3}$ and apply the assumption of classical state $\textbf{v}_{k,1}=\{+1,+1,+1\}$ to the node in $V_{c}$, the above matrix becomes

[TABLE]

where the matrix elements are consistent with the ones shown in Eq. (17) for $n_{c}=1$. Then, the maximum eigenvalue of this matrix is just the threshold fidelity, $\mathcal{F}_{1}\simeq 0.6830$; the corresponding eigenvector is $\ket{\xi}_{N-1}=\cos\theta\ket{H}^{\otimes N-1}+\sin\theta e^{i\phi}\ket{V}^{\otimes N-1}$ of the quantum nodes, where $\sin\theta=\frac{1}{\sqrt{3+\sqrt{3}}}$ and $\phi=-\frac{\pi}{4}$. That is, as the quantum nodes are prepared in $\ket{\xi}_{N-1}$ and the classical node is in the state $\textbf{v}_{k,1}$, the OCS can be achieved to show the best fidelity of $\ket{GHZ}_{N}$ and the hybrid of quantum and classical nodes, $\mathcal{F}_{1}$.

Experimentally, the preparation of $\ket{\xi}_{N-1}$ can be performed by projecting $\ket{GHZ}_{N}$ onto the state $\ket{\xi^{\prime}}=\cos\theta\ket{H}+\sin\theta e^{-i\phi}\ket{V}$ with QWP and POL shown in Fig. 1d in the main text. By properly choosing the angles of QWP and POL, projection of arbitrary $\ket{\xi^{\prime}}$ can be realized. As explained in the section of classical nodes, such a measurement can make a quantum node classical, which results in $n_{c}=1$ required in the present cheating scenario.

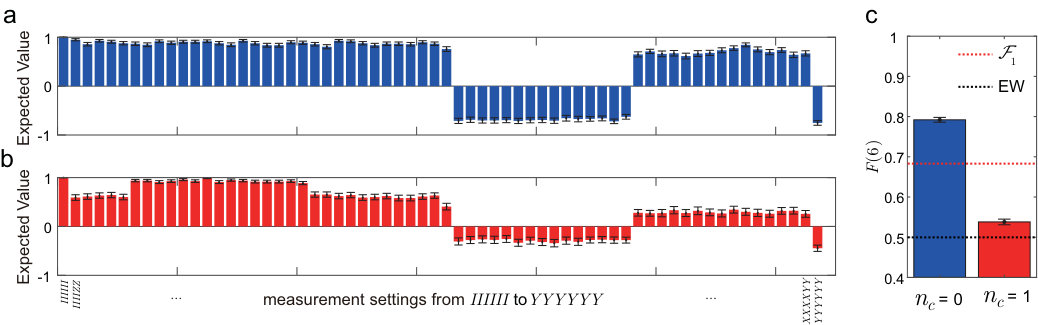

In the case of $N=6$ with $n_{c}=1$ and $n_{q}=5$ shown in Fig. 1 in the main text, we experimentally realize OCS by projecting one photon from $\ket{GHZ}_{6}$ on $\ket{\xi^{\prime}}=\cos\theta\ket{H}+\sin\theta e^{-i\phi}\ket{V}$ (see Fig. 1d in the main text), which leaves five trusted nodes sharing a five-photon state $\ket{\xi}_{5}=\cos\theta\ket{H}^{\otimes 5}+\sin\theta e^{i\phi}\ket{V}^{\otimes 5}$. Since the choice of $\textbf{v}_{k}$ for the maximum eigenvalue $\mathcal{F}_{1}$ is not unique, the choice of $\theta$ and $\phi$ in OCS is not unique as well, so that they constitute an ensemble denoted as $\{\ket{\xi}_{5}\}$. In our experiment, we select $\sin\theta=\frac{1}{\sqrt{3+\sqrt{3}}}$ and $\phi=-\frac{\pi}{4}$ for $\textbf{v}_{k}=\textbf{v}_{k,1}$ as shown above. One can choose other preexisting states to achieve OCS, such as $\textbf{v}_{k}=\textbf{v}_{k,2}$. For such an alternative, one needs to perform the projection onto the state $\ket{\xi^{\prime}}$ with $\sin\theta=\frac{1}{\sqrt{3-\sqrt{3}}}$ and $\phi=-\frac{\pi}{4}$. We also experimentally reconstruct the landscape of network fidelity in the case of $n_{q}=1$ with different $\theta$ and $\phi$ setting. The results are shown in Fig. 5

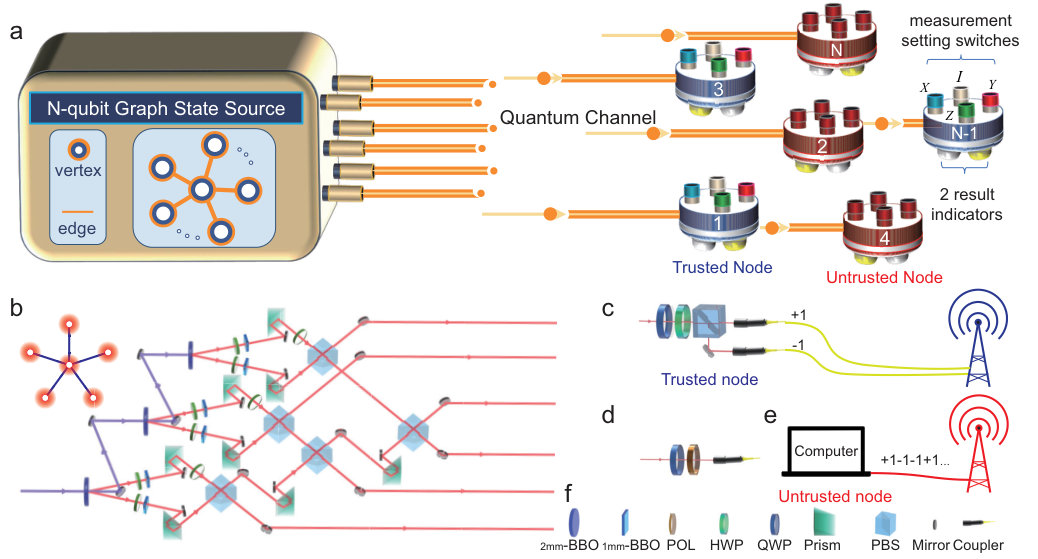

The trusted nodes use the experimental setup shown in Fig. 1c to measure the expected value of $\hat{R}_{m_{k}}$, in which the transmitted photons are projected on eigenstate $\ket{+1}_{m_{k}}$ of $\hat{R}_{m_{k}}$ with eigenvalue $+1$, while the reflected photons are projected on $\ket{-1}_{m_{k}}$ of $\hat{R}_{m_{k}}$ with eigenvalue $-1$. The angle setting of QWP and HWP to perform measurements of $X$, $Y$ and $Z$ are shown in Table. 1. Thus, the expected value of $\langle\hat{R}_{m_{k}}\rangle$ can be obtained by $\frac{N_{+1}-N_{-1}}{N_{+1}+N_{-1}}$, where $N_{+1(-1)}$ is the recorded counts on detector behind transmitted (reflected) photon. For $\hat{R}_{m_{k}}=I$, the angle setting of QWP and HWP can be arbitrarily chosen, and $\langle I\rangle=\frac{N_{+1}+N_{-1}}{N_{+1}+N_{-1}}=1$. Then, combining the results from untrusted node $\in\{+1,-1\}$ according to the measurement setting for the network fidelity function (1) in the main text, we obtain the network fidelity $F(6)=0.538\pm 0.007$, shown with red bar in Fig. 2c in the main text. We emphasize that for the case of $n_{c}=1$ and $n_{q}=6$, we choose the OCS of $n_{c}\geq 2$, which means we experimentally prepare a six-photon state to simulate the seven-node network with one photon projected on $\ket{\xi^{\prime}}$.

.2.1 $n_{c}\geq 2$

For general $\ket{GHZ}_{N}$ with $2\leq n_{c}<N$, we have the following state decomposition according to Eq. (13)

[TABLE]

in the basis $\{\ket{H}^{\otimes n_{q}},\ket{V}^{\otimes n_{q}}\}$ of the qubits in $V_{Q}$. When setting $\textbf{v}_{k,1}=\{+1,+1,+1\}$ for $k\in V_{c}$ under the assumption of realism, we get the matrix elements as described in Eq. (17), and they constitute a matrix with a maximum eigenvalue, $\mathcal{F}_{n_{c}}$, and a corresponding eigenvector, $\ket{\xi}_{n_{q}}=\cos\theta\ket{H}^{\otimes n_{q}}+\sin\theta e^{i\phi}\ket{V}^{\otimes n_{q}}$. Therefore, to achieve OCS for $n_{c}\geq 2$, one needs to prepare the state of quantum nodes in $\ket{\xi}_{n_{q}}$ and all the classical nodes in $\textbf{v}_{k,1}$. This corresponds to the choice of

[TABLE]

and $\phi=-\frac{n_{c}\pi}{4}$, for achieving $\mathcal{F}_{n_{c}}$ in our OCS experiments.

Experimentally, we demonstrate the OCS without manipulating $\ket{GHZ}_{N}$ when $n_{c}\geq 2$, but simulate the networks with $n_{c}\geq 2$ by directly creating the state $\ket{\xi}_{n_{q}}$ instead. Recall the general OCS for arbitrary $n_{c}$: the $n_{c}$ untrusted nodes prepare the entangled state $\ket{\xi}_{n_{q}}$ for $n_{q}$ trusted nodes based on their knowledge of the network fidelity function (1) in the main text. We prepare state $\ket{\xi}_{n_{q}}$ with chosen $\theta$ and $\phi$. The choice of $\theta$ and $\phi$ is dependent on $n_{c}$, which is equivalent to the network with $n_{q}+n_{c}$ nodes.

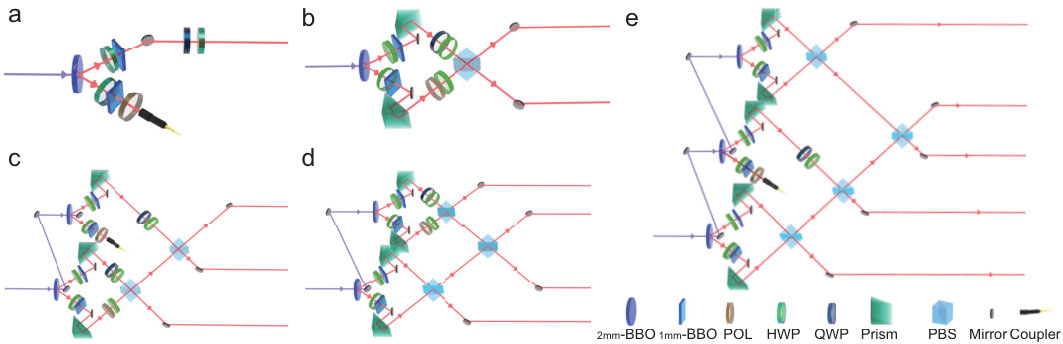

The experimental setups to simulate networks with $n_{q}+n_{c}$ nodes are shown in Fig. 4. For network with $n_{q}=1$, its equivalent quantum state is a single-photon state. As shown in Fig. 4a, triggering one photon of $\ket{GHZ}_{2}$ on $\ket{H}$ leaves the other photon on state $\ket{H}$. Then, by applying a QWP and HWP on it, arbitrary $\ket{\xi}_{1}$ can be generated.

$\ket{\xi}_{2}$ is generated by overlapping one photon on $\ket{\xi}_{1}$ and another photon on $\ket{+}$ on a PBS (shown in Fig. 4b). Similar to the generation of $\ket{GHZ}_{N}$, $\ket{\xi}_{n_{q}}$ with $n_{q}=3,4,5$ can be generated with setups shown in Fig. 4c, d and e, respectively.

I statistical significance

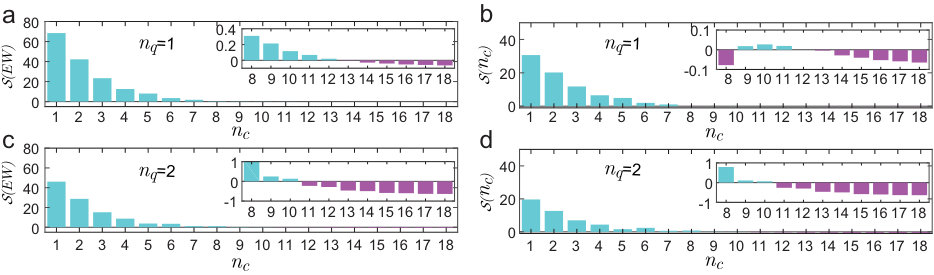

In the main text, we analyze the standard deviation $\mathcal{E}$ of $F(N)$ in verifying entanglement and evaluating $n_{c}$, which is also related to statistical significance $\mathcal{S}$ Jungnitsch et al. (2010). The significance of $F(N)$ in EW is defined as $\mathcal{S}(EW)=(F(N)-0.5)/\mathcal{E}$, where 0.5 is the threshold of EW and $\mathcal{E}$ is the statistical error of $F(N)$ in our experiment. Similarly, the significance of $F(N)$ in evaluating $n_{c}$ is defined as $\mathcal{S}(n_{c})=(F(N)-\mathcal{F}_{n_{c}-1})/\mathcal{E}$. The larger the statistical significance is, the higher confidence interval we can obtain regarding the conclusion. The significance of $F(N)$ in networks with $n_{q}=1$ and $n_{q}=2$ are shown in Fig. 6a and c, the value of significance of $F(N)$ in EW is greater than 3 and with maximal value of 68.5 when $n_{c}\leq 6$, which represents a high confidence interval in EW. Again, it indicates EW is not confidential in identification of quantum network. With our criteria (shown in Figs. 6b and d), $F(N)$ can be employed as an confidential indicator in evaluating $n_{c}$ when $n_{c}\leq 6$. Although $F(N)$ could exhibit graduation when $n_{c}\geq 7$ (insets in Figs. 6b and d), it can not be employed as a confidential indicator to evaluating $n_{c}$ as $\mathcal{S}(n_{c})$ goes to subtle values.
