Experimental band structure spectroscopy along a synthetic dimension

TL;DR

This paper demonstrates the first direct experimental measurement of band structure along a synthetic frequency dimension in a dynamically modulated ring resonator, enabling flexible engineering of photonic band structures.

Contribution

It provides the first experimental measurement of synthetic dimension band structure and shows how to reconfigure couplings and engineer complex band features.

Findings

Successful direct measurement of synthetic band structure

Reconfigurable coupling strengths and ranges

Implementation of long-range coupling and gauge potentials

Abstract

In recent years there has been significant interest in the concepts of synthetic dimensions, where one couples the internal degrees of freedom of a particle to form higher-dimensional lattices in lower-dimensional physical structures. For these systems the concept of band structure along the synthetic dimension plays a central role in their theoretical description. Here we provide the first direct experimental measurement of the band structure along the synthetic dimension. By dynamically modulating a ring resonator at frequencies commensurate with its mode spacing, we realize a periodically driven system with a synthetic frequency dimension lattice. The strength and range of the couplings along the lattice can be dynamically reconfigured by changing the amplitude and frequency of modulation. We show theoretically and demonstrate experimentally that time-resolved transmission measurements of this system result in a direct "read out" of its band structure. We also show how long-range coupling, photonic gauge potentials and nonreciprocal bands can be realized in the system by simply incorporating additional frequency drives, enabling great flexibility in engineering the band structure.

Figures

Equations

$${\dot{a}}_m(t)=im\Omega a_m+i\sum _n{J}_{mn}(t)a_n(t)$$

$$i{\dot{b}}_m=-\sum _n{J}_{n-m}(t)b_n{e}^{i(n-m)\Omega t}$$

$$i|\dot{b}⟩=H(t)|b⟩.$$

$$i{\dot{\tilde{b}}}_k$$

$$H_k(t)$$

$$(H_k(t)-i{\partial }_t){\psi }_{kn}(t)={ϵ}_{k,n}{\psi }_{kn}(t),$$

$${\dot{b}}_m=$$

$$s_{\mathrm{out}}(t)$$

$$i{\partial }_t|b⟩=(-i\gamma +H(t))|b⟩-\sqrt{\gamma }{e}^{-i\omega t}|s_{\mathrm{in}}⟩$$

$$|b(t)⟩=e^{-i\omega t}|b^{\prime }(t)⟩;|b^{\prime }(t)⟩=|b^{\prime }(t+T)⟩$$

$$⟨k|\left[\omega -(H(t)-i{\partial }_t)+i\gamma \right]|b^{\prime }⟩$$

$$\mathrm{or},(\omega -(H_k(t)-i{\partial }_t)+i\gamma ){\tilde{b}}_k^{\prime }$$

$$\begin{gathered} \frac{1}{T}{\int }_0^T\mathrm{d}t{\psi }_{kn}^{\ast }(t)(\omega -(H_k(t)-i{\partial }_t)+i\gamma ){\tilde{b}}_k^{\prime }(t) \\ =-\sqrt{\gamma }{s}_{\mathrm{in}}{\int }_0^T\mathrm{d}t{\psi }_{kn}^{\ast }(t)\delta (k-t) \end{gathered}$$

$$⟨{\psi }_{kn}|{\tilde{b}}_k^{\prime }{⟩}_T=-\frac{\sqrt{\gamma }{s}_{\mathrm{in}}{\psi }_{kn}^{\ast }(t=k)}{\omega -{ϵ}_k-n\Omega +i\gamma }$$

$$s_{\mathrm{out}}(t;\omega )$$

$$=-e^{-i\omega t}{s}_{\mathrm{in}}\sum _n{\frac{i\gamma |{\psi }_{kn}(t){|}^2}{\omega -{ϵ}_k-n\Omega +i\gamma }|}_{k=t}$$

$$T_{\mathrm{out}}(t=k;\Delta \omega )=\frac{{\gamma }^2}{(\Delta \omega -{ϵ}_k{)}^2+{\gamma }^2}|{\psi }_{kn}(t){|}^4$$

Full text

The concept of band structure for periodic systems plays a central role in understanding the electronic properties of solid-state systems as well as the photonic properties of photonic crystals and metamaterials Ashcroft and Mermin (1976). Recently, there has been significant interest in creating analogous periodic systems not in real space but in synthetic space, allowing one to explore higher-dimensional physics with a structure of fewer physical dimensions Boada et al. (2012); Jukić and Buljan (2013); Celi et al. (2014); Mancini et al. (2015); Stuhl et al. (2015); Luo et al. (2015); Yuan et al. (2016); Ozawa et al. (2016); Lohse et al. (2018); Zilberberg et al. (2018); Lustig et al. (2019). Synthetic dimensions are internal degrees of freedom of a system that can be configured into a lattice, for example the hyperfine spin states in cold atoms Celi et al. (2014); Sundar et al. (2018); Mancini et al. (2015); Stuhl et al. (2015); Saito and Furukawa (2017); Ghosh et al. (2017); Cooper et al. (2018); Yılmaz and Oktel (2018), the orbital angular momentum of photons Luo et al. (2015, 2017); Zhou et al. (2017); Cheng et al. (2018), or the modes at different frequencies of optical ring resonators Yuan et al. (2016); Ozawa et al. (2016). These systems are again characterized by a band structure in synthetic space, but an experimental demonstration of directly measuring this band structure is lacking.

In this work we provide the first direct experimental demonstration of a band structure in the synthetic dimension. For this purpose, we consider a particular construction of a synthetic space – the equidistant frequency modes of a ring resonator. This synthetic frequency dimension enables one to study fundamental physics such as the effective gauge field and magnetic field for photons, 2D topological photonics in a 1D array, and 3D topological photonics in planar structures Yuan et al. (2016, 2018a); Ozawa et al. (2016); Martin et al. (2017); Peng and Refael (2018); Hey and Li (2018); Ozawa et al. (2018); Lin et al. (2018). Moreover, the concept is interesting for applications such as unidirectional frequency translation, quantum information processing, nonreciprocal photon transport and spectral shaping of light Yuan and Fan (2016); Joshi et al. (2018); Roztocki et al. (2017); Lu et al. (2018); Sounas and Alù (2017); Qin et al. (2018a, b); Schwartz and Fischer (2013); Shcherbakov et al. (2017); Plansinis et al. (2015); Yuan et al. (2018b). While the frequency dimension has been theoretically investigated in great detail, mostly using the band structure in synthetic space, there is a dearth of experimental realizations of this concept Qin et al. (2018a); Bell et al. (2017). Related to but different from our work, the band structure has been indirectly inferred from transport measurements in the synthetic temporal dimension, using pulses in fiber loops to simulate photonic lattices Wimmer et al. (2015).

We realize the synthetic dimension in a ring resonator containing an electro-optic modulator (EOM). By periodically driving the modulator at a frequency commensurate with the mode spacing or free-spectral range (FSR) of the ring, we introduce coupling between the modes and realize a synthetic frequency dimension lattice. The equidistance of the modes enables the realization of a long synthetic dimension with more than ten modes, all with uniform hopping implemented by a single modulation signal. Since the reciprocal space of such a frequency lattice is the time axis, we theoretically prove that temporally-resolved measurements of the transmission through the ring reveal its band structure, and demonstrate this method in experiments. Furthermore, we show that additional frequency drives enable us to engineer the band structure and to realize complex long-range coupling, photonic gauge potentials and nonreciprocal bands. We anticipate that the band-structure-measurement technique introduced here can be applied to a wide variety of geometries which utilize synthetic frequency dimensions, including those that show nontrivial topological physics Yuan et al. (2016); Ozawa et al. (2016, 2018); Lu et al. (2014); Lin et al. (2016, 2018).

Results

Theory

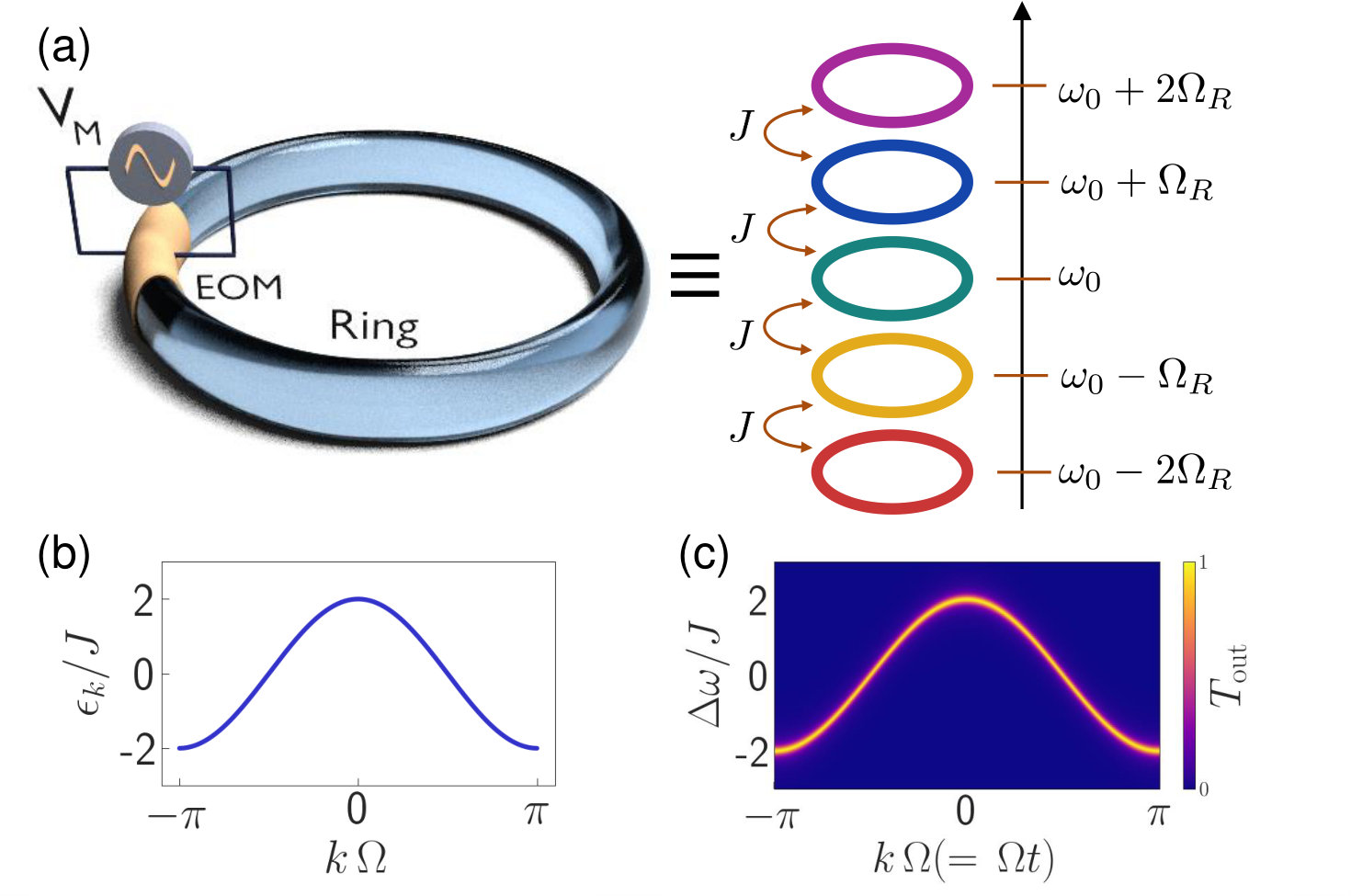

We illustrate the concept that underlies the measurement of band structure in synthetic space using a simple model of a ring resonator. In the absence of group-velocity dispersion, the longitudinal modes of a ring resonator are equally spaced by the FSR, $\Omega_{R}/2\pi=c/n_{g}L$, where $n_{g}$ and $L$ are the group index and length of the ring respectively, and $c$ is the speed of light. In a static ring, these modes are uncoupled from each other. One can introduce coupling between the modes by incorporating a phase modulator in the ring [Fig. 1(a)]. Here we consider on-resonance coupling where the modulation signal’s periodicity $T_{M}=2\pi/\Omega_{M}$ matches the roundtrip time of the ring, $T_{R}=2\pi/\Omega_{R}$.

The equations of motion for the amplitude of the $m-$th mode $a_{m}$ for such a ring modulated at frequencies commensurate with its FSR can be written as (see Supplementary Information Section A),

[TABLE]

where $\dot{a}_{m}\equiv\mathrm{d}a_{m}/\mathrm{d}t$, $\Omega_{R}=\Omega_{M}=\Omega$ and $T=2\pi/\Omega$. $J_{mn}(t)=J_{mn}(t+T)$ is the coupling introduced by the periodic modulation signal $V_{M}(t)$. Througout this paper, all frequencies are measured against the resonance frequency of the 0-th order mode. In the Supplementary Information we justify that $J_{mn}(t)$ depends only on $n-m$ and derive the explicit relation between $J_{n-m}(t)$ and $V_{M}(t)$. By going to a rotating frame defined by $b_{m}=a_{m}e^{-im\Omega t}$, the equations of motion become,

[TABLE]

Defining a column vector $|b\rangle\equiv(\ldots,b_{m-1},b_{m},b_{m+1},\ldots)^{T}=\sum_{m}b_{m}|m\rangle$, where $|m\rangle$ is the $m$-th unmodulated cavity mode, Eq. (2) can be written as a matrix equation

[TABLE]

Here $H(t)$ is the Hamiltonian with the matrix elements, $H_{mn}(t)=\langle m|H(t)|n\rangle=-J_{n-m}(t)\,e^{i(n-m)\Omega t}.$

This Hamiltonian $H(t)$ has two symmetries. The first is the modal translational symmetry along the frequency axis between the equally spaced modes, since the matrix element $H_{mn}$ depends only on $m-n$. This symmetry permits the definition of a conserved Bloch quasimomentum $k$ in the associated reciprocal space. Since the reciprocal space here is conjugate to the frequency dimension, we expect it to be identified with time. We will formally show that this is indeed the case below. The second symmetry is the time-translation symmetry $H(t)=H(t+T)$. This leads to Floquet bands with quasienergies $\epsilon_{k}$ that are defined in the interval $[-\Omega/2,\Omega/2]$. The relationship between the quasienergy $\epsilon_{k}$ and the quasimomemtum $k$ is the band structure.

Define the Bloch modes $|k\rangle=\sum_{m}e^{-im\Omega k}|m\rangle$. The state vector $|b\rangle$ can be written as $|b\rangle=(\Omega/2\pi)\int_{-\pi/\Omega}^{\pi/\Omega}\mathrm{d}k\,\tilde{b}_{k}|k\rangle$. Eq. (3) then reads,

[TABLE]

where we have used $\langle k|H(t)|k^{\prime}\rangle=\delta(k-k^{\prime})H_{k}(t)$. $H(t)$ is already diagonal in $k$-space at each instant $t$ due to its modal translational symmetry. Since $H_{k}(t)$ is also time-periodic, the Floquet quasienergies $\epsilon_{k,n}$ and eigenfunctions $\psi_{kn}(t)$ are well-defined and satisfy

[TABLE]

with ${\psi_{kn}(t)}={\psi_{kn}(t+T)}$, and $\epsilon_{k,n}=\epsilon_{k}+n\Omega$.

The above discussion was for a closed system. Next, we turn to an open system, where the ring is coupled to through- and drop-port waveguides [Fig. 2(a)], and show how its band structure can be read-out directly by time-resolved transmission measurements. Starting from Eq. (1), assuming all modes couple to both waveguides with equal rates $\gamma$, and by going to the rotating frame, the input-output equations are,

[TABLE]

where $s_{\rm in}$ is the amplitude of the monochromatic input wave at frequency $\omega$ [Fig. 2(a)]. The last step in Eq. (6b) follows from the definition of $\tilde{b}_{k}=\sum_{m}b_{m}e^{im\Omega k}$. It explicitly shows that the quasimomentum $k$ is mapped to the time $t$ in the cavity output field $s_{\rm out}$. By defining a column vector $|s_{\rm in}\rangle=s_{\rm in}\sum_{m}e^{-im\Omega t}|m\rangle$, we can write Eq. (6a) more compactly as:

[TABLE]

At steady-state, we can write,

[TABLE]

From Eqs. (7) and (8) we have,

[TABLE]

Since $|b^{\prime}\rangle$ is time periodic, the eigenstates $\psi_{kn}(t)$ of the Floquet Hamiltonian $H_{k}(t)-i\partial_{t}$ form a complete basis for expanding $\tilde{b}^{\prime}_{k}$. These expansion coefficients can be obtained by taking the inner product of Eq. (9) with $\psi_{kn}^{*}(t)$, defined as $\langle f(t)|g(t)\rangle_{T}=(1/T)\int_{0}^{T}\mathrm{d}tf^{*}(t)\cdot g(t)$:

[TABLE]

Using Eq. (5) in Eq. (10), the inner product is,

[TABLE]

Finally, we can write the output field from Eq. (6b) by using Eq. (8) and then expanding $\tilde{b}^{\prime}_{k}(t)$ in the $\psi_{kn}$ basis,

[TABLE]

Eq. (12) shows that the transmission at time $t$ is exclusively determined by the quasienergies and eigenstates at $k=t$. For $\gamma\ll\Omega$ and $|J_{n-m}|<\Omega/2$, only the term for which $n\Omega$ is closest to the input frequency $\omega$ contributes significantly to the sum in Eq. (12). Using this $n$, and denoting the input detuning by $\Delta\omega\equiv\omega-n\Omega$, we can write the normalized transmission $T_{\rm out}=|s_{\rm out}/s_{\rm in}|^{2}$ as,

[TABLE]

Eq. (13) shows that for a fixed input detuning $\Delta\omega$ that is within a band of the system, the temporally-resolved transmission exhibits peaks at those times $t$ for which the system has an eigenstate with $\epsilon_{k}=\Delta\omega,k=t$. Thus, measuring the times at which the transmission peaks appear in each modulation period $2\pi/\Omega$, as a function of $\Delta\omega$, yields the Floquet band structure of the system.

When the magnitude of $J$ is much smaller than $\Omega$, one can use the rotating wave approximation in Eq. (2), by Fourier expanding $J_{n-m}(t)$ and keeping only the terms on the right-hand side of Eq. (2) that are time-independent. This allows us to define an effective time-independent Hamiltonian, $H_{k}^{\rm eff}=-\sum_{s}\tilde{J}_{s;\,q=-s}\ e^{-is\Omega k}$, where $\tilde{J}_{s;\,q}\equiv(1/T)\int_{0}^{T}\mathrm{d}t\,J_{s}(t)e^{-iq\Omega t}$. As an example, suppose $J_{s}(t)=-2J_{1}\cos\Omega t$, then the system has the band structure of a 1D nearest-neighbor-coupled tight-binding model, $\epsilon_{k}=2J_{1}\cos k\Omega$ [Fig. 1(b)]. In Fig. 1(c) we plot the numerically calculated time-resolved transmission of Eq. (13) obtained by diagonalizing the full Floquet Hamiltonian without making the rotating wave approximation, which agrees well with the band structure in Fig. 1(b). For details of the numerical diagonalization, see Supplementary Information.

Experimental setup

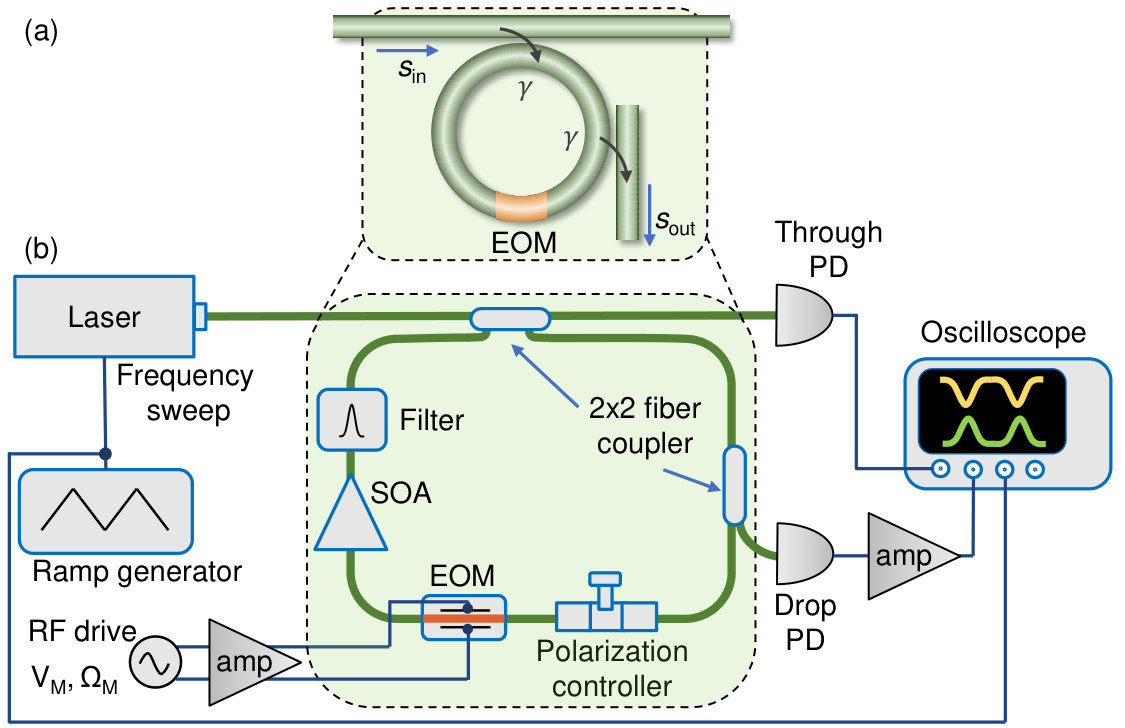

We implement the synthetic frequency dimension using a fiber ring resonator incorporating an electro-optic lithium niobate phase modulator, as shown in Fig. 2(b). The ring has a roundtrip length of $\sim$13.5 m, corresponding to a mode spacing $\Omega_{R}=2\pi\cdot 15.04$ MHz (see Supplementary Information section B)Dutt et al. (2019). We use a narrow linewidth continuous wave (cw) laser as the input. Its frequency could be scanned by a range much larger than $\Omega_{R}$ to observe multiple Floquet bands beyond the first Floquet Brillouin zone. The setup also includes a semiconductor optical amplifier (SOA) to partially compensate various losses, including the loss from the modulator. The residual loss and the input coupling leads to a cavity photon decay rate of $2\gamma=2\pi\cdot$ 300 kHz. The setup is stable for more than 1 ms, which is sufficient for obtaining the entire band structure. Thus there is no need for active feedback stabilization. Note that Spreeuw et al. have reported band gaps in a Sagnac fiber ring using Faraday elements and counterpropagating modes; however, the absence of frequency-dimension coupling precluded the mapping out of the entire band structure Spreeuw et al. (1988).

To measure the time-resolved transmission that is necessary to read out the band structure, we monitor the through- and drop-port outputs on a fast photodiode (bandwidth $>$ 5 GHz), connected to a 1 GHz oscilloscope. We scan the laser frequency slowly at 100–500 Hz such that the system reaches steady state at each frequency. This enables us to map out the band structure in a line-by-line raster scan fashion.

Experimental results

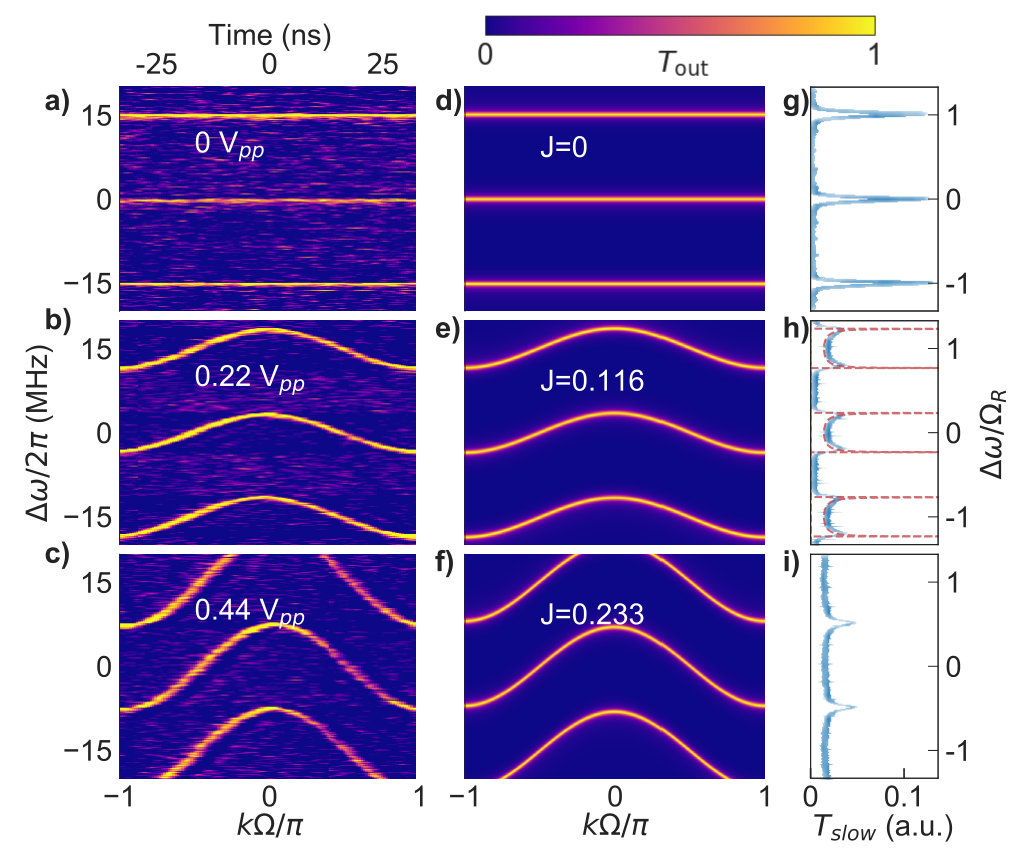

We plot the experimentally measured band structure in Fig. 3(a)-(c), where the modulation voltage has a form $V_{M}(t)=V_{1}\cos\Omega t$, and observe excellent agreement with the theoretically calculated band structure for a nearest-neighbor coupled 1D lattice based on Eq. (12)[Fig. 3(d)-(f)]. Both the cosine dependence of the band on the quasimomentum $k(=t)$, and the increase of the width of the band with increasing modulation amplitude are observed. At a fixed detuning $\Delta\omega$, the transmission response of the system is $2\pi/\Omega_{M}$-periodic along the time axis. The response is also periodic along the $\Delta\omega$-axis. Both of these periodic responses are expected due to the modal translational symmetry and time periodicity as discussed earlier.

The results in Fig. 3(a)-(c) were obtained using a fast photodiode with a bandwidth $>$ 5 GHz. If we instead use a slower photodiode with a bandwidth less than the modulation frequency $\Omega_{M}$, the photodiode provides a time-averaged response, and we observe transmission spectra as shown in Fig. 3(g)-(i). Such transmission spectra represent a direct observation of the photonic density of states (DOS) of the synthetic-space lattice, as can be seen by integrating Eq. (12) over $k$, which yields the imaginary part of the Green’s function for the band, and hence the DOS, in the limit of weak waveguide-cavity coupling ($\gamma\to 0$), and assuming $|\psi_{kn}(t)|$ to be independent of $k$. As a demonstration, the red dashed lines in Fig 3(h) denote the DOS of a 1D lattice with nearest-neighbor coupling, and match the experimentally measured data well after accounting for the smearing due to a finite $\gamma$. The van Hove singularities associated with the DOS of periodic systems are also clearly visible at the edges of the band Young ; Van Hove (1953); Cortes and Jacob (2013).

In the synthetic space, it is straightforward to create a wide variety of band structures by simply changing the modulation pattern. Different modulation patterns correspond to different coupling configurations in the tight-binding lattice Yuan et al. (2018c). Such a flexibility is unique to synthetic space and is unmatched in either solid-state materials or photonic crystals. As an illustration, long-range coupling can be achieved by using a modulation with a frequency that is a multiple of the FSR Yuan et al. (2018c); Bell et al. (2017). Fig. 4(a) shows the measured band structure of the system when $\Omega_{M}=2\Omega_{R}=2\pi\cdot 30.08$ MHz, which creates a lattice with only next-nearest neighbor coupling. This system has a response that is periodic at a frequency of $2\Omega_{R}$. Thus, the first Brillouin zone extends from $k=-\pi/2\Omega_{R}$ to $\pi/2\Omega_{R}$, which is half the extent shown in Fig. 4(a). The resulting measurement shown in Fig. 4(a) agrees with the band structure for a tight-binding model with only next-nearest neighbor coupling.

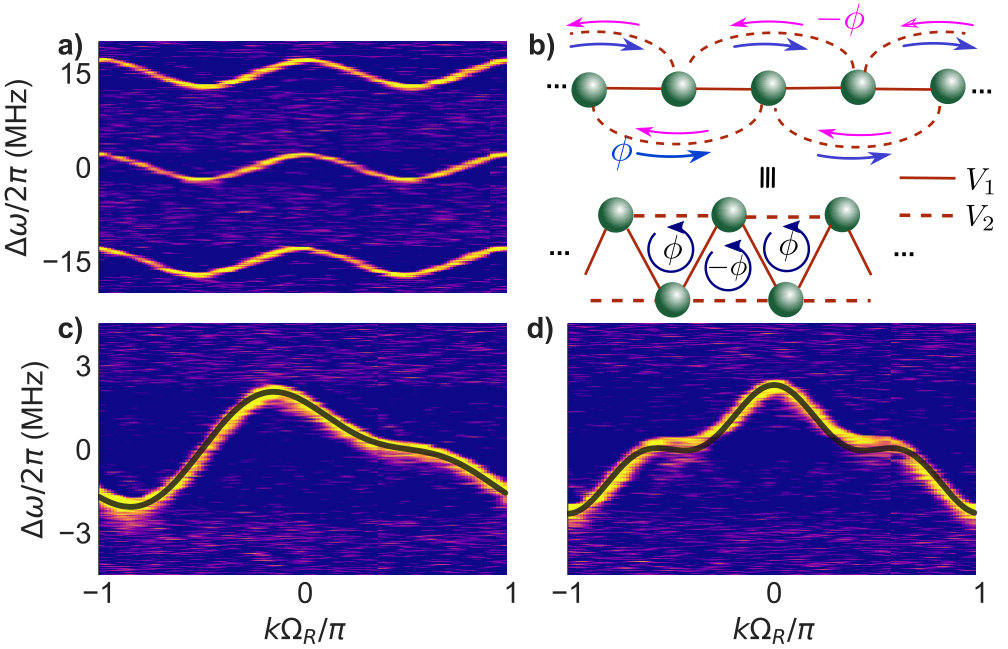

Moreover, the inclusion of both nearest-neighbor and long-range hopping leads to a photonic gauge potential whose effects can be observed in the band structure Yuan et al. (2018c). As a demonstration, we apply a modulation signal of the form $V_{M}=V_{1}\cos\,\Omega_{R}t+V_{2}\cos\,(2\Omega_{R}t+\phi)$. In this case, $\phi$ is the photonic gauge potential, as can be seen by representing the corresponding tight-binding lattice in terms of a collection of plaquettes, and by noticing that $\phi$ corresponds to a magnetic flux that threads each plaquette. [Fig. 4(b)] Fang et al. (2012a, b). Figs. 4(c) shows the experimentally obtained band structure for $\phi=\pi/2$. Note that this band is asymmetric around $k=0$, and hence nonreciprocal. This indicates the breaking of time-reversal symmetry in the structure due to the presence of the gauge potential $\phi$. In Fig. 4(d) we show the band structure for an even longer range hopping, obtained by applying a modulation signal $V_{M}(t)=V_{1}\cos\Omega t+V_{2}\cos 3\Omega t$.

Discussion

We have theoretically proposed and experimentally demonstrated a technique to directly measure the band structure of a system with a synthetic dimension. The fiber ring resonator with a modulator allows for independent tuning of the strength and range of the coupling along this synthetic lattice, making it dynamically tunable. By combining multiple frequency drives and incorporating long-range hopping, we have demonstrated a photonic gauge potential and its effect on the band structure.

The synthetic frequency dimension platform that we have experimentally demonstrated here, along with the band structure measurement technique, is ripe for probing systems beyond 1D Lin et al. (2018); Kraus et al. (2012, 2013); Zilberberg et al. (2018); Lohse et al. (2018); Lustig et al. (2019). For example, 2D quantum Hall phenomena such as one-way edge states Yuan et al. (2016); Ozawa et al. (2016); Minkov and Savona (2016) and synthetic Hall ribbons Hügel and Paredes (2014); Atala et al. (2014); Mancini et al. (2015); Ghosh et al. (2017) could be observed in extensions of our system, with the added benefit of frequency conversion from transport along the synthetic dimension. Even within 1D, there have been proposals to realize unique photon transport phenomena using dynamically modulated cavities, which could be implemented in a reconfigurable fashion in our platform Minkov and Fan (2018); Hey and Li (2018). Longer fiber ring resonators in the pulsed regime have been previously used for realizing parity-time symmetry Regensburger et al. (2012) and optical Ising machines McMahon et al. (2016) and soliton interactions Jang et al. (2013), in a synthetic temporal dimension Vatnik et al. (2017); Pankov et al. (2019) that is complementary to our cw-pumped synthetic frequency dimension. Lastly, the advent of on-chip silicon Tzuang et al. (2014); Dong et al. (2008) and lithium niobate ring resonators Zhang et al. (2019) with modulation bandwidths higher than the FSR of on-chip ring resonators can enable synthetic dimensions and topological photonics in a monolithically integrated platform.

**Acknowledgements

**This work is supported by a Vannevar Bush Faculty Fellowship (Grant No. N00014-17-1-3030) from the U. S. Department of Defense, and by a MURI grant from the U. S. Air Force Office of Scientific Research (Grant No. FA9550-17-1-0002). M.M. acknowledges support from the Swiss National Science Foundation (Grant No. P300P2_177721).
