An all-loop result for the strong magnetic field limit of the Heisenberg-Euler effective Lagrangian

TL;DR

This paper derives an explicit all-loop expression for the strong magnetic field limit of the Heisenberg-Euler effective Lagrangian in QED, revealing that it depends solely on one-loop data and revising previous irreducible-based results.

Contribution

It introduces a novel algebraic method to determine the all-loop strong magnetic field behavior using one-particle reducible contributions, simplifying previous approaches.

Findings

Explicit all-loop expression for strong magnetic field limit.

Leading behavior depends only on one-loop Lagrangian.

Revises previous results based on irreducible diagrams.

Abstract

We provide an explicit expression for the strong magnetic field limit of the Heisenberg-Euler effective Lagrangian for both scalar and spinor quantum electrodynamics. To this end, we show that the strong magnetic field behavior is fully determined by one-particle reducible contributions discovered only recently. The latter can efficiently be constructed in an essentially algebraic procedure from lower-order one-particle reducible diagrams. Remarkably, the leading strong magnetic field behavior of the all-loop Heisenberg-Euler effective Lagrangian only requires input from the one-loop Lagrangian. Our result revises previous findings based exclusively on one-particle irreducible contributions. In addition we briefly discuss the strong electric field limit and comment on external field QED in the large $N$ limit.

Figures

Equations

$${\mathcal{L}}_{\text{HE}}=\sum _{\ell =0}^{\infty }{\mathcal{L}}^{\ell \text{-loop}},$$

$${\mathcal{L}}^{1\text{-loop}}(B)=$$

$${\mathcal{L}}_{1\text{PI}}^{\ell \text{-loop}}(B)=$$

$$\displaystyle\quad\times\Bigl{[}1+{\cal O}\bigl{(}\tfrac{1}{\ln(\frac{eB}{m^{2}})}\bigr{)}\Bigr{]}\quad\text{for}\quad\ell\geq 2\,,$$

$$\beta\bigl{(}\alpha(\mu^{2})\bigr{)}=\frac{1}{\alpha(\mu^{2})}\,\mu^{2}\frac{{\rm d}\alpha(\mu^{2})}{{\rm d}\mu^{2}}\,,$$

$${\mathcal{L}}_{1\mathrm{PR}}^{\ell \text{-loop}}(B)=$$

$$\displaystyle\quad\cdots\Bigl{(}\frac{1}{2}\frac{{\cal L}_{1\text{PI}}^{l_{n}\text{-loop}}}{\partial B}\frac{\partial}{\partial B}\Bigr{)}^{m_{n}}{\cal L}_{1{\rm PI}}^{k\text{-loop}}(B)\,,$$

$$\Delta{\cal L}^{\ell\text{-loop}}_{1{\rm PR}}(B)=\frac{1}{2}\Bigl{(}\frac{1}{2}\frac{\partial{\cal L}^{1\text{-loop}}}{\partial B}\frac{\partial}{\partial B}\Bigr{)}^{\ell-1}{\cal L}^{1\text{-loop}}(B)\,.$$

$$\Delta {\mathcal{L}}_{1\mathrm{PR}}^{\ell \text{-loop}}(B)=$$

$$=$$

$$\displaystyle\quad\times\Bigl{[}1+{\cal O}\bigl{(}\tfrac{1}{\ln(\frac{eB}{m^{2}})}\bigr{)}\Bigr{]},$$

$${\mathcal{L}}^{\ell \text{-loop}}(B)=$$

$$\displaystyle\quad\times\Bigl{[}1+{\cal O}\bigl{(}\tfrac{1}{\ln(\frac{eB}{m^{2}})}\bigr{)}\Bigr{]}\,.$$

$${\mathcal{L}}_{\mathrm{HE}}(B)=-\frac{1}{2}{B}^2+$$

$$\displaystyle\times\Bigl{[}1+\alpha^{1\text{-loop}}(eB)\frac{\beta_{1}}{2}\ln\bigl{(}\tfrac{eB}{m^{2}}\bigr{)}\Bigr{]}$$

$$\displaystyle\times\Bigl{[}1+{\cal O}\bigl{(}\tfrac{1}{\ln(\frac{eB}{m^{2}})}\bigr{)}\Bigr{]}\,,$$

$${\alpha }^{1\text{-loop}}({\mu }^2)=\frac{\alpha }{1-\alpha {\beta }_1\ln (\frac{{\mu }^2}{m^2})},$$

$$\displaystyle\alpha^{1\text{-loop}}(eB)\big{|}_{B\to-{\rm i}E}$$

$$\displaystyle\quad\quad\times\Bigl{[}1+{\cal O}\bigl{(}\tfrac{1}{\ln(\frac{eE}{m^{2}})}\bigr{)}\Bigr{]}\,.$$

$${\mathcal{L}}_{\mathrm{HE}}(E)=\frac{1}{2}{E}^2-$$

$$\displaystyle\times\Bigl{\{}1+\alpha^{1\text{-loop}}(eE)\frac{\beta_{1}}{2}\Bigl{[}\ln\bigl{(}\tfrac{eE}{m^{2}}\bigr{)}-{\rm i}\frac{\pi}{2}\Bigr{]}\Bigr{\}}$$

$$\displaystyle\times\Bigl{[}1+{\cal O}\bigl{(}\tfrac{1}{\ln(\frac{eE}{m^{2}})}\bigr{)}\Bigr{]}\,.$$

$$w(E)=$$

$$\displaystyle\quad\times\Bigl{[}1+{\cal O}\bigl{(}\tfrac{1}{\ln(\frac{eE}{m^{2}})}\bigr{)}\Bigr{]}\,.$$

$$N\to \infty ,\text{while keeping}N\alpha =\text{const.}$$

$$F^{\mu \nu }\sim \sqrt{N},\text{such that}e{F}^{\mu \nu }=\text{const.}$$

$${\mathcal{L}}_{\mathrm{HE}}^{\text{large}N}(B)=-\frac{1}{2}{B}^2+$$

$$\displaystyle\times\Bigl{[}1+\frac{1}{2}\frac{\alpha N\beta_{1}\ln(\tfrac{eB}{m^{2}})}{1-\alpha N\beta_{1}\ln(\frac{eB}{m^{2}})}\Bigr{]}$$

$$\displaystyle\times\Bigl{[}1+{\cal O}(\tfrac{1}{\ln(\frac{eB}{m^{2}})})\Bigr{]}\,.$$

$${\mathcal{L}}_{\mathrm{HE}}^{\text{large}N}(E)=\frac{1}{2}{E}^2-$$

$$\displaystyle\times\Bigl{[}1+\frac{1}{2}\frac{\alpha N\beta_{1}\bigl{[}\ln(\tfrac{eE}{m^{2}})-{\rm i}\frac{\pi}{2}\bigr{]}}{1-\alpha N\beta_{1}\ln(\frac{eE}{m^{2}})}\Bigr{]}$$

$$\displaystyle\times\Bigl{[}1+{\cal O}(\tfrac{1}{\ln(\frac{eE}{m^{2}})})\Bigr{]}\,.$$

Full text

Introduction

The Heisenberg-Euler effective Lagrangian Heisenberg:1935qt ; Weisskopf ; Schwinger:1951nm is a central quantity in the development of quantum field theory. It studies the effect of quantum fluctuations on the effective theory of prescribed electromagnetic fields in the vacuum, and allows for the systematic derivation of quantum corrections to Maxwell’s classical theory of electrodynamics. The latter manifest themselves in effective, nonlinear self-couplings between electromagnetic fields, giving rise to light-by-light scattering phenomena Euler:1935zz . Moreover, in electric fields the Heisenberg-Euler effective Lagrangian develops a non-perturbative imaginary part which can be associated with an instability of the quantum vacuum towards the formation of a state featuring real electrons and positrons Sauter:1931zz . For reviews emphasizing various theoretical aspects as well as prospects for the experimental detection of such effects, see Dittrich:1985yb ; Fradkin:1991zq ; Dittrich:2000zu ; Dunne:2004nc ; Marklund:2008gj ; Dunne:2008kc ; Heinzl:2008an ; DiPiazza:2011tq ; Dunne:2012vv ; Battesti:2012hf ; King:2015tba ; Karbstein:2016hlj ; Battesti:2018bgc .

Here, we focus on the on-shell renormalized Heisenberg-Euler effective Lagrangian ${\cal L}_{\rm HE}$ for quantum electrodynamics (QED) in $d=3+1$ space-time dimensions and a prescribed constant electromagnetic field $F^{\mu\nu}$. As in the derivation of ${\cal L}_{\rm HE}$ the dynamical fermion and photon fields are integrated out, ${\cal L}_{\rm HE}$ can be represented in terms of Feynman diagrams featuring internal fermion and photon lines only; cf., e.g., Gies:2016yaa . In turn, the only physical dimensionful scale inherited by ${\cal L}_{\rm HE}$ from the microscopic theory of QED is the electron mass $m$. Each coupling of a photon to a fermion line is mediated by the elementary charge $e=\sqrt{4\pi\alpha}$, implying that each internal photon line comes with a factor of $\alpha$. On the other hand, the external field dependence of any loop diagram is entirely in terms of the combined parameter $eF^{\mu\nu}$. The latter combination actually forms a renormalization group (RG) invariant, and hence is independent of the renormalization scale Ritus:1975 . Correspondingly, it is convenient to formally treat the parameter $\alpha$ and the combination $eF^{\mu\nu}$ as independent. The power of the former counts the number of internal photon lines $n_{\gamma}$ in a given diagram, and the power of the latter the number of couplings to the external fields.

The entire field dependence of ${\cal L}_{\rm HE}$ in constant fields can be encoded in the gauge and Lorentz invariants of the electromagnetic field, ${\cal F}=\frac{1}{4}F_{\mu\nu}F^{\mu\nu}=\frac{1}{2}(\vec{B}^{2}-\vec{E}^{2})$ and ${\cal G}=\frac{1}{4}F_{\mu\nu}{}^{\star}\!F^{\mu\nu}=-\vec{B}\cdot\vec{E}$, with dual field strength tensor ${}^{\star}\!F^{\mu\nu}$. Besides, CP invariance of QED demands the effective Lagrangian to be even in the pseudoscalar quantity $\cal G$. For field configurations fulfilling ${\cal G}=0$ and ${\cal F}>0$ (${\cal F}<0$) it is always possible to find a Lorentz frame in which the field is purely magnetic (electric). Moreover, a result determined in purely magnetic fields $B=|\vec{B}|$ can always be translated to the analogous one in purely electric fields $E=|\vec{E}|$ by means of the replacement $B\to-{\rm i}E$ and vice versa; cf., e.g., Jentschura:2001qr .

The Heisenberg-Euler effective Lagrangian admits a diagrammatic expansion in the number of loops $\ell$ of the constituting Feynman diagrams,

[TABLE]

where ${\cal L}^{0\text{-loop}}=-\frac{1}{4}F_{\mu\nu}F^{\mu\nu}$ is the classical Maxwell Lagrangian. Note that in purely magnetic fields we have ${\cal L}^{0\text{-loop}}(B)=-\frac{1}{2}B^{2}$. The $\ell$-loop contribution scales as ${\cal L}^{\ell\text{-loop}}\sim(\frac{\alpha}{\pi})^{\ell-1}$, where $\alpha\equiv\alpha(m^{2})=\frac{e^{2}}{4\pi}\simeq\frac{1}{137}$ is the fine-structure constant; we use the Heaviside-Lorentz System with $c=\hbar=1$. Contributions beyond one loop generically decompose into one-particle irreducible (1PI) and one-particle reducible (1PR) diagrams Gies:2016yaa , such that for $\ell\geq 2$ we have ${\cal L}^{\ell\text{-loop}}={\cal L}_{1{\rm PI}}^{\ell\text{-loop}}+{\cal L}_{1{\rm PR}}^{\ell\text{-loop}}$; of course, the one-loop Lagrangian ${\cal L}^{1\text{-loop}}$ is 1PI by definition.

The one- and two-loop results ${\cal L}^{1\text{-loop}}$ and ${\cal L}^{2\text{-loop}}$ are known explicitly for both spinor Heisenberg:1935qt ; Ritus:1975 ; Gies:2016yaa and scalar Weisskopf ; Ritus:1977 QED; see also Dittrich:1985yb ; Fliegner:1997ra ; Kors:1998ew ; Dunne:2004nc ; Edwards:2017bte ; Ahmadiniaz:2017rrk . On the three-loop level, first analytical results for ${\cal L}^{3\text{-loop}}$ have been obtained in 1+1 dimensions Huet:2009cy ; Huet:2011kd ; Huet:2018ksz .

Following the discovery of the nonvanishing of the 1PR contributions to ${\cal L}_{\rm HE}$ in constant fields, a variety of further studies focusing on 1PR contributions in external-field QED have been performed Edwards:2017bte ; Karbstein:2017gsb ; Ahmadiniaz:2017rrk ; Edwards:2018vjd ; Ahmadiniaz:2019nhk .

Strong magnetic fields

A particularly interesting parameter regime is the regime of strong magnetic fields characterized by $\frac{eB}{m^{2}}\gg 1$. In this limit analytical insights are possible at all loop orders. It is in particular well known in the literature that the 1PI contribution to ${\cal L}_{\rm HE}$ at $\ell$ loops scales as Weisskopf ; Ritus:1975 ; Dittrich:1975au ; Dittrich:1985yb ; Heyl:1996dt ; Ritus:1998jm ; Dittrich:2000zu ; Dunne:2004nc

[TABLE]

where $\beta_{1}=\frac{1}{3\pi}$ ($\beta_{1}=\frac{1}{12\pi}$) and $\beta_{2}=\frac{1}{4\pi^{2}}$ ($\beta_{2}=\frac{1}{4\pi^{2}}$) are the renormalization scheme independent coefficients of the $\beta$ function of spinor (scalar) QED,

[TABLE]

with \beta\bigl{(}\alpha\bigr{)}=\beta_{1}\alpha+\beta_{2}\alpha^{2}+{\cal O}(\alpha^{3}), governing the running of the fine structure constant.

The structure of Eq. (2) can be derived Ritus:1975 with the help of the Callan-Symanzik equation Callan:1970yg ; Symanzik:1970rt . It is the result of a close connection between the short-distance behavior of renormalized Green’s functions and the strong-field limit of associated quantities calculated in prescribed background fields Coleman:1973jx ; Ritus:1975 ; Ritus:1977 ; Matinyan:1976mp ; Dittrich:1985yb ; Ritus:1998jm ; Dittrich:2000zu ; Dunne:2004nc in the absence of zero modes Dunne:2002ta ; cf. in particular the review Dunne:2004nc and references therein.

On the other hand, Ref. Karbstein:2017gsb provides an explicit prescription of how to construct all possible 1PR contributions to a given quantity in constant electromagnetic fields from 1PI contributions of lower loop order. Adopting the prescription of Karbstein:2017gsb to ${\cal L}_{\rm HE}$ in purely magnetic fields, up to potential symmetry factors associated with different diagram topologies which turn out to be irrelevant for the following discussion, we obtain

[TABLE]

where the second sum is taken over all sequences of positive integer indices $\{l_{i},m_{i},n\}\geq 1$, with $i\in\{1,\ldots,n\}$, such that $\sum_{i=1}^{n}l_{i}m_{i}=\ell-k$.

As will be shown in a moment, the leading contribution to Eq. (4) in the strong magnetic field limit arises from contributions involving derivatives of ${\cal L}^{1\text{-loop}}$ only. Correspondingly, the constituting diagrams are made up of $\ell_{f}=\ell$ charged-particle loops, and can be expressed as

[TABLE]

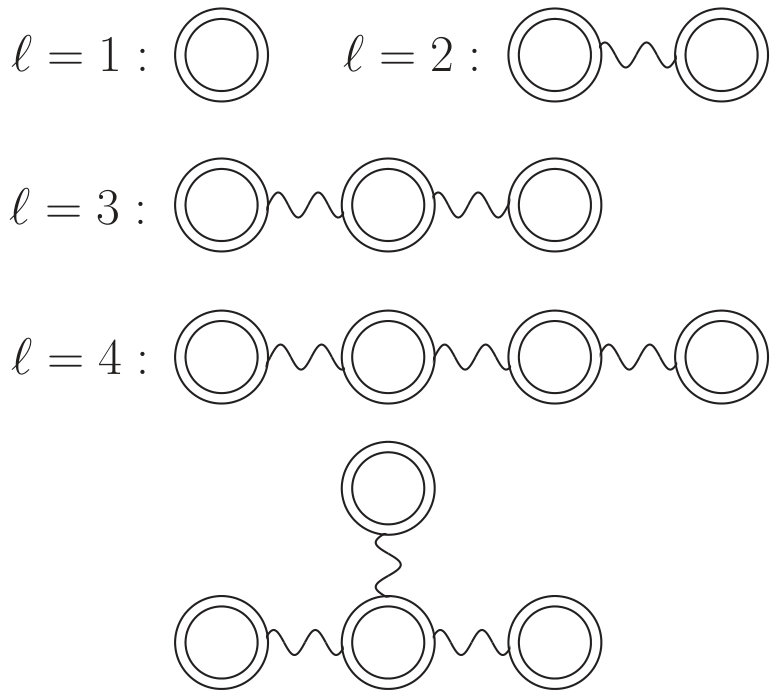

For a graphical representation, see Fig. 1.

In a next step, we insert the first line of Eq. (2) into Eq. (5). This will allow us to determine the leading contribution to $\Delta{\cal L}^{\ell\text{-loop}}(B)$ in the limit of a strong magnetic field. As $\frac{\partial}{\partial B}[B^{n}\ln^{l}(B)]=(\frac{\partial}{\partial B}B^{n})\ln^{l}(B)[1+{\cal O}(\ln^{-1}(B))]$, with $\{n,l\}\in\mathbb{N}$, the leading strong field behavior arises from the contribution with all derivatives for $B$ acting on the power of $B$ and none on the logarithm. Hence, with regard to the extraction of the leading strong field behavior of $\Delta{\cal L}^{\ell\text{-loop}}$ via derivatives for $B$, Eq. (2) effectively appears as quadratic in $B$. The logarithm rather plays the role of an inert factor associated with each charged-particle loop. For a graphical illustration, see Fig. 2.

In turn, we obtain

[TABLE]

for $\ell\geq 2$. This also explains why the dominant 1PR contribution arises from the 1PR diagram involving ${\cal L}^{1\text{-loop}}$ insertions only: Insertions of higher-loop 1PI contributions (2) into Eq. (4) immediately result in a subleading scaling with respect to the power of the logarithm at a given loop order $\ell$. Correspondingly, for $\ell\geq 2$ the leading strong field behavior of the 1PR contribution ${\cal L}^{\ell\text{-loop}}_{1{\rm PR}}$ is given by the expression in Eq. (6). Subleading 1PR contributions can, in principle, be determined along the same lines. However, in general their actual determination is much more complicated.

A comparison of Eqs. (2) and (6) unveils that for all loop orders $\ell\geq 2$ the 1PR contribution dominates the 1PI one, and the leading strong field limit is dictated by the coefficient $\beta_{1}$ of the QED $\beta$ function alone. In turn, for $\ell\geq 2$ the leading strong field behavior of the Heisenberg Euler effective Lagrangian is given by

[TABLE]

Note that this behavior is in accordance with Weisskopf’s investigation Weisskopf:1939zz showing that the logarithmic divergence at $\ell\geq 2$ loop order scales at most as the $\ell$th power of the logarithm. A resummation of Eq. (7) to all loops via Eq. (1) yields

[TABLE]

with the one-loop running of the fine structure given by

[TABLE]

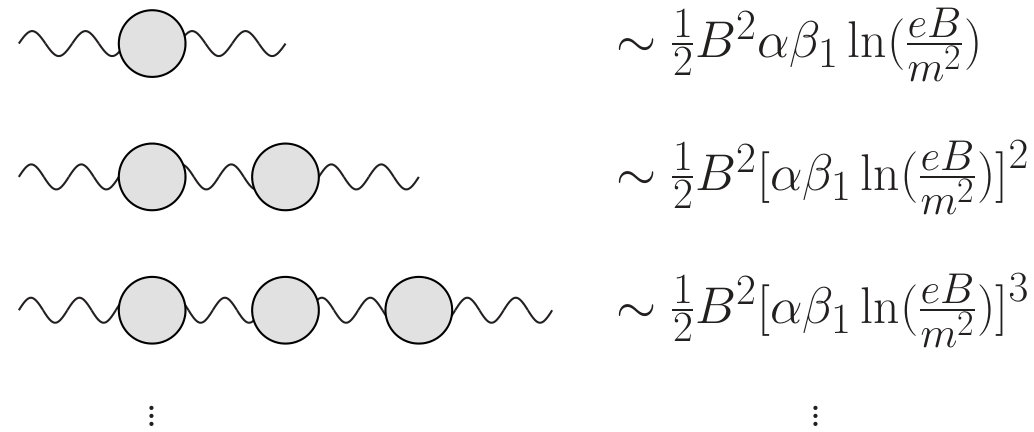

and $\alpha\equiv\alpha(m^{2})$. This expression (8) is convergent for $\alpha\beta_{1}\ln(eB/m^{2})<1$. The appearance of Eq. (9) in this context is not surprising. The resummation of chain diagrams as depicted in Fig. 2 is reminiscent of the calculation of an exact two-point function by summing up all 1PI insertions. Upon restriction to one-loop insertions this generically gives rise to the one-loop running of quantities.

Equation (8) supersedes the expression obtained in Dittrich:1985yb which is based on the resummation of the leading logarithms in the 1PI sector of ${\cal L}_{\rm HE}$ only and completely neglects 1PR contributions. It is interesting to note the structural similarity of this result with the leading contributions to $\sum_{\ell=0}^{2}{\cal L}^{\ell\text{-loop}}(B)$ given in Eqs. (2) and (7); more specifically, we have ${\cal L}_{\rm HE}(B)=-\frac{1}{2}B^{2}+{\cal L}^{1\text{-loop}}(B)+{\cal L}^{2\text{-loop}}(B)|_{\alpha\to\alpha^{1\text{-loop}}(eB)}$. This structure is actually not too surprising: From an effective field theory point of view it is natural that the couplings are evaluated at the relevant momentum scale, which in the strong magnetic field limit $eB\gg m^{2}$ amounts to the RG invariant combination $eB$.

Some additional comments are in order here. The coupling (9) diverges at the Landau pole $\mu^{2}=m^{2}\,{\rm e}^{\frac{1}{\alpha\beta_{1}}}$. In the present case, the pole in the all-order result (8) cannot be considered as the artifact of a finite-loop-order calculation which might presumably be removed by higher-loop corrections within perturbative QED. Manifestly non-perturbative lattice studies of QED indicate that it could nevertheless lie in a region of the parameter space which is made inaccessible by spontaneous chiral symmetry breaking Gockeler:1997dn . In any case, within the Standard Model of particle physics quantum corrections of other particle degrees of freedom become relevant way before the Landau pole of QED is reached.

Even though it is clearly beyond the validity regime of perturbation theory, it is interesting to observe that in the formal limit of $\alpha\beta_{1}\ln(eB/m^{2})\gg 1$, i.e., beyond the Landau pole, the factor of unity in the denominator of Eq. (9) can be neglected and the terms in the second line of Eq. (8) combine to a factor of $\frac{1}{2}$ such that ${\cal L}_{\text{HE}}(B)\to-\frac{1}{2}B^{2}+\frac{1}{2}(eB)^{2}\frac{\beta_{1}}{8\pi}\ln(\frac{eB}{m^{2}})$.

Strong electric fields

As noted in the introduction, the result for a purely electric field follows from the purely magnetic field one by means of the replacement $B\to-{\rm i}E$. Taking into account that $\ln(eB/m^{2})|_{B\to-{\rm i}E}=\ln(eE/m^{2})-{\rm i}\pi/2$, it is straightforward to infer that

[TABLE]

In turn, the leading strong electric field behavior of ${\cal L}_{\text{HE}}$ is given by

[TABLE]

Note again the structural similarity of the all-order result (11) and the analogous expression for $\sum_{\ell=1}^{2}{\cal L}^{\ell\text{-loop}}(E)$. In the considered limit we have ${\cal L}_{\rm HE}(E)=\frac{1}{2}E^{2}+{\cal L}^{1\text{-loop}}+{\cal L}^{2\text{-loop}}(E)|_{\alpha\to\alpha^{1\text{-loop}}(eE)}$.

From Eq. (11) we can straightforwardly infer the all-loop strong electric field limit of the vacuum decay rate $w(E)=2\,{\rm Im}\{{\cal L}_{\text{HE}}(E)\}$ Heisenberg:1935qt ; Schwinger:1951nm ; c.f. also Dittrich:1985yb ; Dunne:2004nc ; Cohen:2008wz and references therein. Its explicit expression is given by

[TABLE]

Previously it was believed that the corresponding one-loop result, w^{1\text{-loop}}(E)=(eE)^{2}\frac{\beta_{1}}{8}\bigl{[}1+{\cal O}\bigl{(}1/\ln(\frac{eE}{m^{2}})\bigr{)}\bigr{]}, does not receive corrections from higher loops as long as $\alpha\beta_{1}\ln(\frac{eE}{m^{2}})\lesssim 1$ Dittrich:1985yb . As $\frac{w(E)}{w^{1\text{-loop}}(E)}\simeq 1+\alpha^{1\text{-loop}}(eE)\,\beta_{1}\ln(\frac{eE}{m^{2}})$, these quantities may, however, differ significantly from each other, and the new all-loop result (12) in general predicts a larger vacuum decay rate.

External field QED in the large $N$ limit

In the following, we briefly comment on the structure of the Heisenberg-Euler effective Lagrangian for QED with $N$ charged particle flavors of equal mass $m$. In contrast to standard QED, this theory features $N$ generations of electrons and positrons. More specifically we consider the ’t Hooft limit, characterized by sending

[TABLE]

At first sight, Eq. (13) necessarily implies $eF^{\mu\nu}\sim 1/\sqrt{N}$, which would render this limit rather uninteresting as physics would then be dominated by processes at zero field. However, we can easily arrive at an more interesting limit by demanding in addition that

[TABLE]

As the intensity of the prescribed field scales quadratically with $F^{\mu\nu}$, and the intensity generically scales linear with the number ${\cal N}$ of (microscopically unresolved) photons forming the macroscopic external field, physically Eq. (14) can be associated with the case where ${\cal N}\sim N$.

The effective Lagrangian ${\cal L}_{\text{HE}}$ for QED with $N$ charged particle flavors of equal mass follows straightforwardly from the one of ordinary QED with $N=1$: Aiming at extracting the former from the latter, it is helpful to represent it in terms of Feynman diagrams. As each fermion loop comes with a factor of $N$, the contribution of a Feynman diagram containing $\ell_{f}$ fermion loops is to be multiplied with an overall factor of $N^{\ell_{f}}$. On the other hand, in the ’t Hooft limit (13) each internal photon line comes with a factor of $\alpha\sim 1/N$. Hence, a Feynman diagram featuring $\ell_{f}$ fermion loops and $n_{\gamma}$ internal photon lines scales as $N^{\ell_{f}-n_{\gamma}}$, such that the diagrams maximizing the difference $\ell_{f}-n_{\gamma}>0$ dominate in the large $N$ limit. At a given loop order $\ell$, at most all loops are fermionic ones, i.e., $\ell=\ell_{f}$. To connect these $\ell_{f}$ fermion loops without forming an additional loop $n_{\gamma}=\ell_{f}-1$ photon lines are needed, and the respective class of diagrams scales linear with $N$, independently of the loop order. Given that such diagrams exist, this immediately implies that the leading diagrams at any loop order exhibit the same scaling with $N$ and thus are equally important.

In purely magnetic fields, the latter class of diagrams is precisely generated by Eq. (5), which also governs the leading strong magnetic (electric) field behavior of ordinary QED; cf. also Fig. 1. For the analogous result in arbitrary constant electromagnetic fields, see Ref. Karbstein:2017gsb . Correspondingly, the strong magnetic field limit of the Heisenberg-Euler effective Lagrangian in the ’t Hooft limit (13) and (14) is given by

[TABLE]

The analogous expression for a purely electric field is

[TABLE]

We emphasize that even though for $N=1$ Eqs. (15) and (16) reproduce the ordinary QED results discussed in Eqs. (8) and (11), they would even be correct when the correspondingly 1PI contributions in Eq. (2) would exhibit the same logarithmic scaling as in Eq. (6), the reason being that the 1PI contributions with $\ell\geq 2$ loops are generically suppressed by factors of $1/N$.

Finally, we note that prior to the discovery of the nonvanishing of the 1PR contributions to ${\cal L}_{\rm HE}$ by Ref. Gies:2016yaa , the one-loop result ${\cal L}^{1\text{-loop}}$ had been the only loop diagram which would have been considered as yielding a contribution $\sim N$. Instead, infinitely many 1PR diagrams contribute at linear order in $N$.

Conclusions and Outlook

In this article, we have explicitly determined the strong magnetic field limit of the Heisenberg-Euler effective Lagrangian. After demonstrating that beyond one loop this limit is fully determined by one-particle reducible contributions which were discovered only recently Gies:2016yaa , we extracted the leading contribution at each loop order $\ell$. In a next step, we resummed these leading contributions to obtain the leading strong magnetic field behavior of the all-loop Heisenberg-Euler effective Lagrangian. This result could then be straightforwardly translated to the case of a purely electric field, by means of the replacement $B\to-{\rm i}E$.

Finally, we briefly commented on external field QED in the large $N$ ’t Hooft limit. Here, we emphasized in particular the fact that the leading large $N$ behavior of the Heisenberg-Euler effective Lagrangian receives contributions from infinitely many one-particle reducible diagrams. The latter can, however, be efficiently constructed in an essentially algebraic procedure from the one-loop Heisenberg-Euler Lagrangian. This facilitates unprecedented analytical studies of the large $N$ all-loop Heisenberg-Euler Lagrangian at arbitrary field strengths.

Focusing on the paradigmatic example of the strong electric (magnetic) field limit of the Heisenberg-Euler effective Lagrangian, our results clearly illustrate that the whole class of 1PR tadpole diagrams in constant external fields Karbstein:2017gsb , which until recently Gies:2016yaa where believed to vanish identically, are not only non-zero but may even dominate physical observables of interest.

We expect our findings to be of interest not only for the research field of external-field QED, but also for other field theories in prescribed external fields, such as quantum chromodynamics (QCD) in (gluo)magnetic background fields where constant-field 1PR tadpole contributions were so-far not accounted for.

Acknowledgements.

It is a great pleasure to thank Holger Gies for valuable comments on this manuscript. This work has been funded by the Deutsche Forschungsgemeinschaft (DFG) under Grant No. 416607684 within the Research Unit FOR2783/1.
