On the Dynamics of Comets in Extrasolar Planetary Systems

TL;DR

This paper investigates the orbital dynamics of hypothetical comets in extrasolar systems with Jupiter-like planets using computer simulations, providing insights into how comets behave in different star-planet configurations.

Contribution

It presents the first detailed simulation-based analysis of exocomet dynamics in multiple star-planet systems, highlighting the influence of giant planets on cometary orbits.

Findings

Jupiter-like planets significantly alter incoming comet trajectories.

Cometary orbits are highly sensitive to planetary configurations.

Exocomets can be perturbed into star-crossing paths by giant planets.

Abstract

Since very recently, we acquired knowledge on the existence of comets in extrasolar planetary systems. The formation of comets together with planets around host stars now seems evident. As stars are often born in clusters of interstellar clouds, the interaction between the systems will lead to the exchange of material at the edge of the clouds. Therefore, almost every planetary system should have leftover remnants as a result of planetary formation in form of comets at the edges of those systems. These Oort clouds around stars are often disturbed by different processes (e.g., galactic tides, passing stars, etc.), which consequently scatter bodies from the distant clouds into the system close to the host star. Regarding the Solar System, we observe this outcome in the form of cometary families. This knowledge supports the assumption of the existence of comets around other stars. In the present work, we study the orbital dynamics of hypothetical exocomets, based on detailed computer simulations, in three star-planet systems, which are: HD~10180, 47~UMa, and HD~141399. These systems host one or more Jupiter-like planets, which change the orbits of the incoming comets in characteristic ways.

Figures

Tables

Table 1. Table 1: Properties of the planets in the system of HD 10180. For details and updates see http://exoplanet.eu/ .

Name	$a$ (au)	$e$	$m$ ($m_{\mathrm{Jupiter}}$)
HD 10180 e	0.270	0.0260	0.0789
HD 10180 f	0.49220	0.1350	0.0752
HD 10180 g	1.4220	0.00010	0.0673
HD 10180 h	3.40	0.080	0.2026

Table 2. Table 2: Properties of the planets in the system of 47 UMa. For details and updates see http://exoplanet.eu/ .

Name	$a$ (au)	$e$	$m$ ($m_{\mathrm{Jupiter}}$)
47 UMa b	2.1	0.032	2.53
47 UMa c	3.6	0.098	0.54
47 UMa d	11.6	0.16	1.64

Table 3. Table 3: Properties of the planets in the system of HD 141399. For details and updates see http://exoplanet.eu/ .

Name	$a$ (au)	$e$	$m$ ($m_{\mathrm{Jupiter}}$)
HD 141399 b	0.415	0.04	0.451
HD 141399 c	0.689	0.048	1.33
HD 141399 d	2.09	0.074	1.18
HD 141399 e	5.0	0.26	0.66

Full text

1 Introduction

For thousands of years the non-predictability of the appearance of comets contrary to the motion of the planets, the Sun, and the Moon led astronomers to the assumption that they originate within the Earth’s atmosphere. Thanks to Tycho Brahe, who measured their parallax at the end of the 16th century, it could be established that these objects originate as far away as at least 4 times the distance to our Moon. Using Newton’s laws, Sir Edmond Halley was even able to determine the orbit of a comet and predicted its reappearance after a period of 76 years. Before that comets were thought to be heavenly omens for disaster and catastrophes on Earth. Only recently, based on spectroscopic measurements, it was found that their role in the development of life on Earth is essential: although the Earth may have been formed with some water in the crust and the mantle already, a considerable part of it (as well as molecules of biochemical significance) has been transported onto the surface of the Earth afterward through asteroids and mainly comets. Comparing the estimated water content of comets within the Oort cloud111A reservoir of billions of comets in the Kuiper belt and in the Oort cloud thousands of au away from the Sun. the ratio between the water in this cloud compared to the Earth’s water in the oceans is estimated to be on the order of $10^{4}$! Still, there is an ongoing discussion whether the water in the oceans and the one observed in comets is different concerning the ratio of hydrogen to deuterium (e.g., Raymond and Izidoro, 2017)222So far, the deuterium/hydrogen (D/H) ratio has been measured in 11 different comets, covering both types, but only one shows similarity with Earth: the Jupiter-family Comet 103P/Hartley 2. However, as reported in Science, Rosetta found that the D/H ratio is more than three times higher than the values found in Earth’s oceans and on Hartley 2. Hence, this question is far from being settled!. Considering the large number of comets which entered the inner Solar System and collided with the Earth during the last billions of years, it is worth to pursue statistical analyses for these events in extrasolar planetary systems as well.

Our paper is structured as follows: In the next chapter, we explain how comets could have formed around other stars. Thereafter, we discuss the observational evidence for comets in extrasolar systems together with a list of exoplanetary systems with gas giants akin to Jupiter and Saturn. In the main chapter, we show the results of simulations for the three systems HD 10180, 47 UMa, and HD 141399. Finally, we discuss what kind of consequence our results would have on possible water transport to possible terrestrial planets in stellar habitable zones.

2 Extrasolar Oort Clouds

Stern (1987) explored how many comets from a so-called extrasolar Oort cloud may have hit the Earth as well as other terrestrial planets or Jupiter. According to his results Earth may have suffered from a cometary impact originating from an Oort cloud around a star other than the Sun every $10^{7}$ years333In this article the author distinguished between comet nuclei and coma.. In comparison, in this article the impact rate for Solar indigenous comets was found to be three orders of magnitude higher, which was estimated according to previously computed probability rates (Whipple, 1950).

We mention this because in this article the existence of extrasolar Oort clouds is assumed, a concept previously considered as well by other authors (e.g., Kaib and Quinn, 2008; Kaib et al., 2011; Brasser et al., 2006, 2007). In fact, the formation of the Sun was not an isolated event occurring in an interstellar cloud but took place in an extended cloud where many other stars were born as well. This process was accompanied by the formation of objects such as comets containing a large array of molecules, including many molecules of astrobiological relevance. Looking at the ingredients of known comets, as, e.g., 67P/Churyumov-Gerasimenko (visited by the Rosetta mission), the dust consists of almost 50$\%$ organic molecules and a notable part of water444The expression of ‘dirty snowball’ was introduced by Whipple (1950).. Thus, huge amounts of small icy bodies were created in the early disk around a star. Due to perturbations from nearby stars and other interstellar processes, many (or most) outer objects of this extrasolar Oort cloud were ejected and lost in the interstellar space as free interstellar comets (Stern, 1987). Alternatively, they were captured by the Sun or other stars, or were able to travel to the inner part of the Solar System as previously discussed.

Thus, comets should be considered a by-product of planet formation. This leads to the assumption that in most, if not all planetary system there should be cometary activity, despite the fact that the term “exocomets” has been coined only very recently.

The dynamics of scattering of planetesimals by a planet has been investigated, e.g., by Wyatt et al. (2017), who explored the scattering outcome depending on the mass and semi-major axis of the planet. Object trajectories resulted in accretion, ejection, remaining, escape, or placement in an Oort cloud or a depleted Oort cloud analogue.

Here we will present the dynamical studies pursued by our group through investigating the outcome of planet–planetesimal scattering in single star systems. Therefore, the interaction between test particles distributed in a disk about the host star and (at least) one massive planet will be explored. Statistics for sets of models will be shown. This will include studies of outwardly scattered objects from Solar System analogues to the Kuiper belt or the Oort Cloud. Semi-major axis, eccentricity, perihel, aphel, inclination, and orbital period after the integration of each test particle are determined and statistical analyses are performed.

Rappaport et al. (2018) presented observational evidence for exocomet transits in the data of the Kepler star KIC 3542116. The signals show a distinct asymmetric shape and duration of 1 day or shorter, and have been fitted with a simple dust-tail model. The model yields that these comets have approximately the mass of Halley’s comet. The inferred speeds during the transits are in the range of 35 to 50 km $\mathrm{s^{-1}}$ for the deeper transits, and 75 to 90 km $\mathrm{s^{-1}}$ for the more shallow and narrow transits. Similar observations of short-time events in high-resolution spectra of the Ca II K line of $\phi$ Leo have been presented by Eiroa et al. (2016) who compare those results to the ones found for $\beta$ Pic (Beust et al., 1990; Kiefer et al., 2014). Based on observational data from the Atacama Large Millimeter/submillimeter Array (ALMA) Matrà et al. (2017) presented evidence for exocometary gas released within a Kuiper Belt analogue at $\sim$136 au around the 440 Myr-old Formalhaut system. The amount of CO observed implies that it originates from exocometary ices within the belt and is consistent with observations of Solar System comets.

3 Evidence of the Existence of Extrasolar Comets

Welsh and Montgomery (2015) presented observations of absorption line profiles for Ca II K (3933 Å) for 15 A-type and two B-type stars with known debris disks. They found short-term absorption variation in the line profiles in one late B-type and four A-type stars. The observed spectra contain a rotationally-broadened absorption line at 3933 Å, which is typical for circumstellar gaseous disks co-rotating near to the stellar radial velocity of their host star. Additionally, they identified transient weak absorption lines occasionally appearing to be red-shifted or blue-shifted by tens of km s*-1*. These features are believed to be caused by falling evaporating bodies (FEBs) — analogues to comets in the Solar System — which evaporate material when approaching their host stars. As the circumstellar K-line may often vary in absorption strength itself, they applied the method of comparing the night-to-night equivalent width (EW) of each observed star in order to evaluate if the observed change is accompanied by a significant change in the main circumstellar line. They concluded that the observational results are consistent with the presence of FEBs.

Moreover, Welsh and Montgomery (2015) also discussed the systems of HD 64145, HD 56537, HD 58647 (late B-type), HD 108767, HD 9672, HD 80007, HD 109573, and $\beta$ Pictoris in detail. The key findings of this paper read as follows:

The stars hosting FEBs are on average 70 Myr younger than the non-FEB hosting stars — although one has to consider that obtaining accurate ages for A-stars is still problematic. They also could not find a statistically significant difference between stars based on their metallicity or chemical peculiarity. In the observed sample the FEB hosting stars are of an earlier type which, as argued by the authors, could be due to stellar activity. The detection of an FEB event itself strongly depends on the viewing angle of the disk (which must be close to edge-on) and the observational time frame (i.e., lower levels of activity need longer timespans of observation). They conclude that the detection of FEB activity can also be seen as evidence for the presence of associated exoplanets. FEB absorption in the Fe I line is only detected if the similar event is observed with an equivalent width value of $>50$ mÅ in the Ca II K-line profile. This relationship between the Fe I and Ca II circumstellar absorption in young disk systems is still not fully understood as discussed in more detail by Welsh and Montgomery (2016).

Rotational velocity, mid-IR excess, or chemical peculiarity do not differentiate between stars with or without FEB activity. Stellar age does not seem to be a significant factor either. While the above described paper investigated a sample of stars in order to arrive at conclusions about parameter revealing hints on the presence of exocomets, Marino et al. (2017) focused on ALMA observations of a single star system, i.e., $\eta$ Corvi. It is 1.5 Gyr old system with a two-component debris disk.

The underlying problem was finding a theoretical explanation for the hot dust disk, which cannot be explained by a collisional cascade in situ. However, they were able to present the analysis for the first ALMA band observations (7 runs at 340 GHz); those corresponded to observations of the continuum dust emission of $\eta$ Corvi’s outer belt at a wavelength of 0.88 mm. At this wavelength the continuum is dominated by $\sim$0.1 – 10.0 mm sized dust grains for which radiation forces are negligible. The outer disk is detected with a peak radius of 150 au and a radial width of over 70 au. In order to receive estimates for the different disk parameters, they modeled the observed values to four different disk models. The first model consisted of a simple belt with radial and vertical Gaussian mass distribution peaked at 150 au with a FWHM (full width half maximum) of 44 au fit best. The comet-like composition and short life time of the observed belt led to the conclusion that it is fed from the outer belt via scattering by a chain of planets.

They propose the following scenario as being responsible for the observations:

Volatile-rich solid material from the outer belt is scattered inwardly via a chain of planets. This icy material starts to sublimate and loses part of its volatiles at specific ice lines, thus producing the CO feature observed at $\sim$20 au. The authors deduced a probable mass distribution for the chain of planets responsible for the scattering, which should be close to flat between 3 and 30 Earth-masses. The inwardly scattered material could also explains an in situ collisional cascade or a collision with a planet of 4-10 Earth-masses located at $\sim$3 au (sweet spot of the system) releasing large amounts of debris and causing the asymmetric structure revealed in the observations.

In our investigation we concentrate on the orbital dynamics of exocomets as a theoretical study. We show results of computer simulations for three systems, which are: HD 10180, the 47 UMa system, and HD 141399. These systems are known to host one or more Jupiter-mass planets, which are expected to change the orbits of the incoming comets in characteristic ways.

4 Three examples about the dynamics of extrasolar comets

4.1 Numerical Setup

Guided by the structure of the Solar System and our knowledge about planet formation, we assume that most, if not all stellar systems harboring planets might also harbor an Oort-type cloud of comets away far from the star, resulting from the scattering processes occurring during the process of planet formation. These comets are expected to be gravitationally disturbed by, e.g., a passing star or by galactic tidal forces leading to highly eccentric cometary trajectories and allowing the small objects to enter the planetary region close to the star. The underlying injection mechanisms have been studied, e.g., by Fouchard et al. (2007), Fouchard et al. (2017), Fouchard et al. (2018) and Rickman et al. (2008).

We have not implemented the forces due to galactic tides and/or passing stars in our models as the initial semi-major axes of the comets are rather small and the eccentricities are rather large. Thus, the planets in the system will play the main role in the evolution of the cometary trajectories. Furthermore the timespan of our integrations is only 1 Myr, which is too short for the galactic tides to significantly affect the dynamics.

We consider tens of thousands of fictitious comets assumed as massless, which we distributed evenly in a sphere with initial conditions as follows:

$80~{}{\rm au}<a<200~{}{\rm au}$ with $\delta$a = 10 au

• -

$0.915<e<0.99$ with $\delta$e = 0.005

• -

$0<i<180$ with $\delta$i = 10

As the comets have been assumed to originate from an Oort-cloud analogue, they have been placed in highly eccentric orbits. The total integration time was set to 1 Myr. Whenever a comet was ejected from the system or underwent a collision, another comet was inserted with the same initial conditions as the previous comet. Since at that time of insertion the configuration of the planets is different from the previous setting, the newly inserted comet will undergo different dynamics within the system.

We track the comet’s osculating elements (e.g., semi-major axes and eccentricities) and determine if it is captured into a long-period or short-periodic orbit. This happens mostly for comets entering the system in the same plane as of the planets (see Figure 1). For some systems (as done for 47 UMa), we monitor the collisions in order to estimate the possible amount of water transported to an Earth-mass planet in the system’s habitable zone. The ejections and close encounters of the comets with the planets in the systems are examined as well.

The integration of the equations of motion was done with the Lie-integration method with adaptive step-size control (Hanslmeier and Dvorak, 1984; Eggl and Dvorak, 2010).

The initial conditions for the comets are the same for all three planetary systems considered. As the comets with smallest semi-major axes are started at 80 au, they are far enough outside the orbit of the outermost planet of each system. Nevertheless, the noticeably different orbits of the planets in the systems in combination with the initial conditions for the comets are expected to impact the results. A relatively large semi-major axis of the outermost planet is expected to lead to a higher possibility of interaction with the comets and may thus affect the results in a way that more collisions and/or captures might occur. As mentioned in section 2, one can assume that the cometary reservoirs have been formed inside a gas cloud with no preferences of inclination relative to the planetary orbits of the systems; consequently, the initial conditions were chosen as described.

Due to the lack of knowledge on the inclination of the planets in our study, all inclinations were set to randomly small values ($<$ 1*∘*).

4.2 HD 10180

4.2.1 The System

HD 10180 is a Sun-like star. Its parameters are: $T_{\mathrm{eff}}$=5910 K, $M$ = 1.06 $M_{\odot}$, combined with an age of about 4.3 Gyr (Lovis et al., 2011). The system consists of at least five Neptune-mass planets and one inner Earth-mass planet (HD 10180 b). Tuomi (2012) found two statistically significant signals corresponding to two additional super-Earth-mass planets located close-in. Thus, HD 10180 is a tightly packed system with 6, or possibly 9 planets. The most massive planet, HD 10180 h, is located beyond the other planets at a distance of approximately 3.4 au. For our numerical investigation we only took the four outer planets into account. The properties of the planets are shown in Table 1.

4.2.2 Results

Similar to the role of Jupiter in the Solar System, which is mostly responsible for the scattering of small objects (especially comets) originating from the outer parts of the system, in HD 10180 the outermost and most massive planet HD 10180 h is able to change the orbits of incoming comets most profoundly. A possible outcome of gravitational interaction of a comet with the planet is a capture of that small body in an orbit with a relatively low semi-major axis and small eccentricity. Such comets may stay in the system for longer time spans akin to the Jupiter-family or Halley-type comets in the Solar System. Figure 1 conveys the probability for an incoming comet to be captured in such an orbit depending on the initial conditions. The three peaks visible at about 30*∘, 90∘, and 150∘* (green lines in Figure 1) deserve more detailed investigations; they are most probably due to the Kozai mechanism.

Nevertheless, the most probable resulting trajectory after a close encounter is one leading to the escape of the comet from the system. Figure 2 shows the number of new comets injected into the system; this number agrees with the number of comets ejected from the system. It is found that the number of ejected comets increases for comets entering the system with relatively large initial eccentricities and relatively small initial inclinations. These initial parameters ensure that the comet is able to enter the system’s inner region and experiences relatively early close encounters resulting in its escape.

The interaction of a comet with the most massive planet HD 10180 h, leading to either a stable close-in orbit, a quasi-stable orbit, or a cometary escape, is revealed in an example given in Figure 3 of Loibnegger et al. (2017). Here over a period of approximately 1.5 Myr, a comet experiences a stable period. The orbit is captured at a perihelion distance of about 5 au before it undergoes a close encounter with the most massive planet leading to pronounced changes in its orbit.

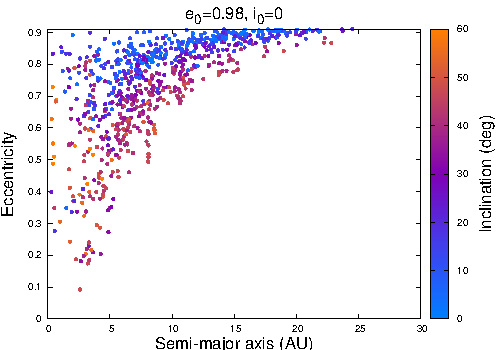

Figure 3 and 4 show the outcome of the scattering process when leading to cometary captures. Undergoing close encounters with a planet can lead to an exchange of sufficient amounts of angular momentum that puts the comet in an orbit with a reduced semi-major axis and eccentricity. The figures show the cometary orbital elements after an integration time of 1 Myr. We could not find a clear distinction between long-period and short-periodic comets, as given in our Solar System. However, it is evident that there are some comets captured in orbits of relatively low eccentricities ($e<0.3$) and semi-major axes ($a<10$ au). The color coding shows the inclination of the orbit of the captured comets. Nevertheless, one can observe that most of the comets are captured in highly eccentric orbits, which will most likely lead to their ejection from the system after some time. Interestingly, there is a reasonable number of comets being scattered into orbits with inclinations of up to 60*∘* (value measured at the end of the integration) even for comets entering the system with an initial inclination of zero.

4.3 47 UMa

4.3.1 The System

The system of 47 UMa shows significant similarities to the Solar System, although the host star is more evolved along the main-sequence. The stellar parameters are: $T_{\mathrm{eff}}$=5890 K, $M$ = 1.03 $M_{\odot}$, and $R$ = 1.17 $R_{\odot}$, which have been determined by Henry et al. (1997) and Gonzalez (1998) with updates by Kovtyukh et al. (2003) and van Belle and von Braun (2009). Observations revealed three Jupiter-type planets with properties shown in Table 2. According to Kopparapu et al. (2013) the limits of the system’s general habitable zone (HZ) are given as 1.19 au and 2.04 au. The outer parts of the radiative HZ is unavailable for hosting planets due to the influence of 47 UMa b, which is responsible for a truncation of the HZ at approximately 1.6 au.

For our simulations, besides the planets known in the 47 UMa system, we assumed additional Earth-mass planets orbiting in the HZ in order to investigate the transport of water by comets to potentially habitable terrestrial planets. These fictitious planets have been placed at 1.0 au, 1.25 au, and 1.584 au, respectively. The latter planet is assumed to be in 3:2 resonance with 47 UMa b.

4.3.2 Results

With respect to 47 UMa, we focused on the possibility of water transport by comets to the system’s HZ. Thus, we investigated the collisions of comets with fictitious Earth-mass planets with the known radius of the Earth. Figure 5 and 6 show collisions of comets with those bodies. It is evident that the number of comets in each case decreases with lower distance to 47 UMa b. The Hilda-type planet (originally placed at 1.584 au) did not undergo any collisions at all, which leads to the conclusion that an object in resonance with 47 UMa b is shielded from collisions by the massive planets.

In Figure 7 we show the number of collisions of comets with all planets in the 47 UMa system. One can observe that the innermost planet 47 UMa b receives the most collisions with comets with initially high eccentricities. Only those comets are able to come as close to the star to cross 47 UMa b’s orbit. The fictitious Earth-mass planet positioned further-in undergoes only very few collisions. Thus, the possibility of water transport by comets to terrestrial planets in 47 UMa’s HZ is uncertain.

Figures 8 and 9 depict the number of comets captured in orbits with moderate values for the semi-major axis and eccentricity as a function of their initial eccentricity and inclination. A repeating pattern emerges once again: Comets with relatively high initial eccentricities are able to get closer to the star and the inner planetary region. This increases the likelihood of close encounters with one of the system planets, allowing the comets to attain orbits with relatively small semi-major axes and eccentricities. Comets which plunge into the system in the plane of the planetary orbits are also more likely to experience orbit-changing encounters caused by one of the planets. Further results have been given by Cuntz et al. (2018).

4.4 HD 141399

4.4.1 The System

HD 141399 harbors 4 planets. Its parameters are: $T_{\mathrm{eff}}$=5600 K and $M$ = 1.07 $M_{\odot}$; thus, this star is somewhat cooler than the Sun but slightly more massive and has a metallicity of [Fe/H] = 0.35. The properties of the known planets are given in Table 3. The planets of the system have masses between 0.5 and 1.4 Jupiter masses. The system’s HZ extends from 1.04 au and 2.34 au (Kopparapu et al., 2013); this range corresponds to a domain between the planets HD 141399 c and HD 141399 d.

4.4.2 Results

We investigated the interaction of comets assumed to originate from an Oort cloud analogue with the four system planets of HD 141399. The cometary cloud was set up as described in the previous sections. We monitored the paths of the comets on their way through the system and pursued a statistical analysis of the captures, collisions, and escapes of the comets after their interaction with the planets.

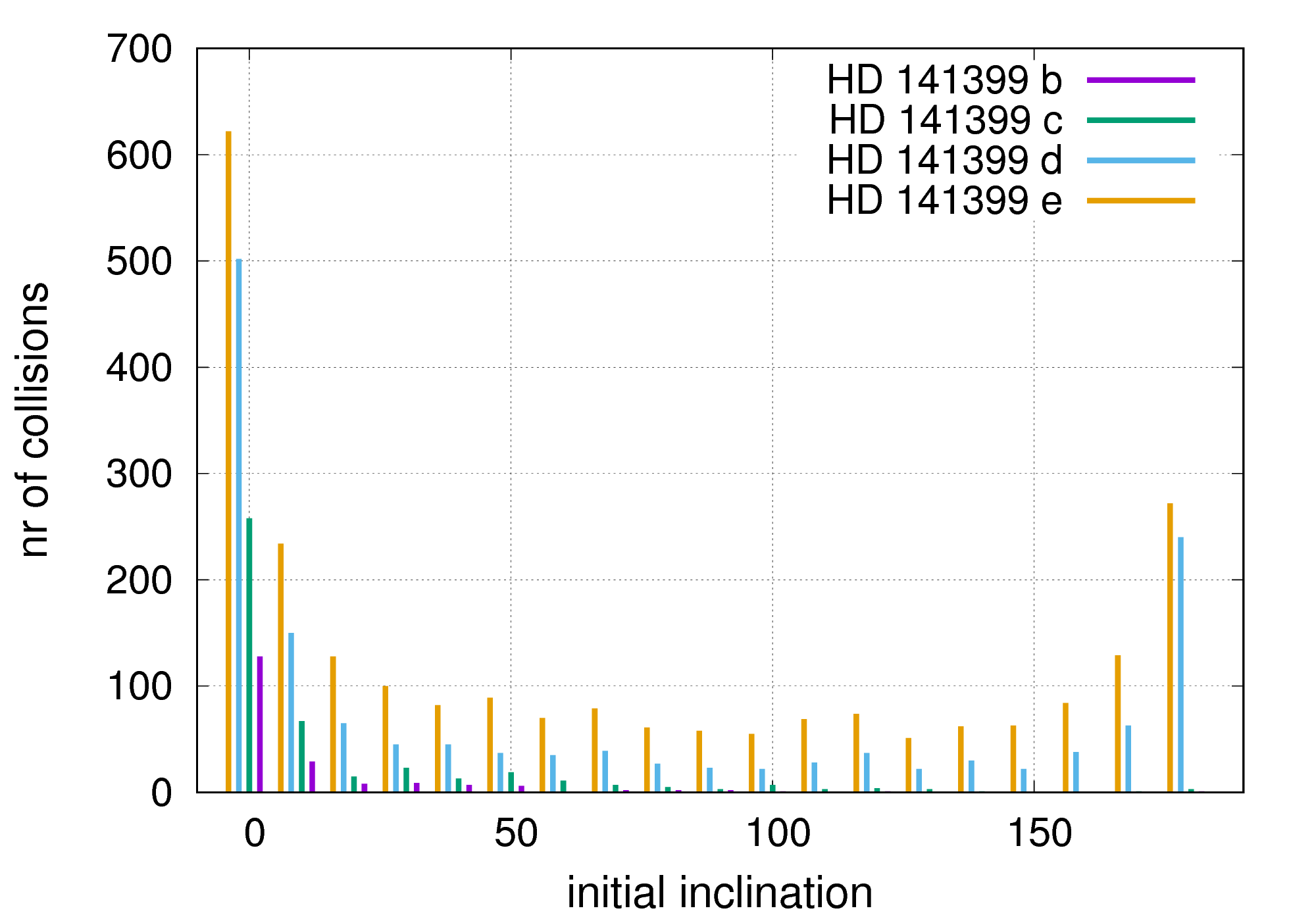

Figure 10 conveys the number of collisions with each planet. One can observe that the outermost planet HD 141399 e experiences most collisions with the cometary bodies. This is accounted for with the initial eccentricity of the comets entering the system. Trajectories of comets with initial eccentricities between 0.92 and 0.99 are included in our statistics. Comets with relatively low eccentricities are unable to reach the inner planetary system without undergoing close encounters and angular momentum exchange. However, they are able to reach the orbit of HD 131499 d. Thus, the average number of comets crossing the orbit of the outermost planet is greater than the number of comets reaching the orbit of one of the planets orbiting close to the star. Interestingly, the innermost planet HD 141399 b only encounters collisions with comets in prograde orbits rather than comets with low inclinations ($i<60^{\circ}$). All in all, it is more likely for comets entering the system in the ecliptic plane to collide with the planets than for comets entering the system with relatively high inclinations.

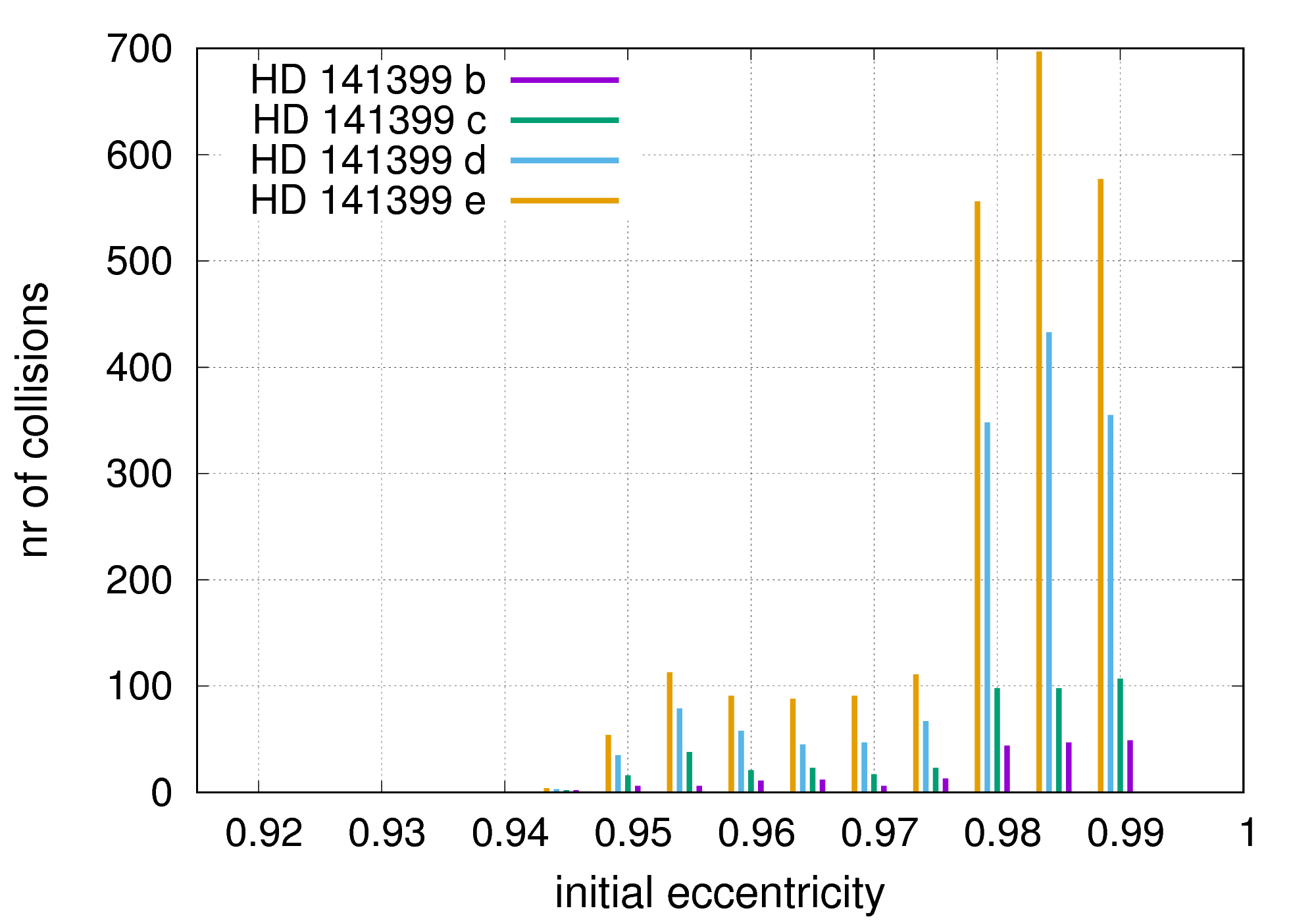

Figure 11 depicts the number of cometary collisions depending on the initial eccentricity for comets with initial semi-major axes of 100 au. Each bar includes the comets with all initial inclinations. One finds essentially the same behavior as given in Figure 10: The outermost planet HD 141399 e encounters most collisions with the comets entering the system. Comets with initial eccentricities lower than 0.945 do not reach the orbit of even this planet; therefore, no collisions occur for those comets. The higher the eccentricity, the more collisions with the planets occur. Interestingly, for comets with initial eccentricities of $e>0.98$, the number of collisions with the two outer planets drops while for the two inner planets that value stays about the same. This may be due to the trajectories of the comets. Comets with high values for the eccentricity pass by the outer planets rather quickly as their perihelion is farther in. Thus, the time of interaction with the outer planets is relatively short, thus reducing the probability of a collision with one of the planets.

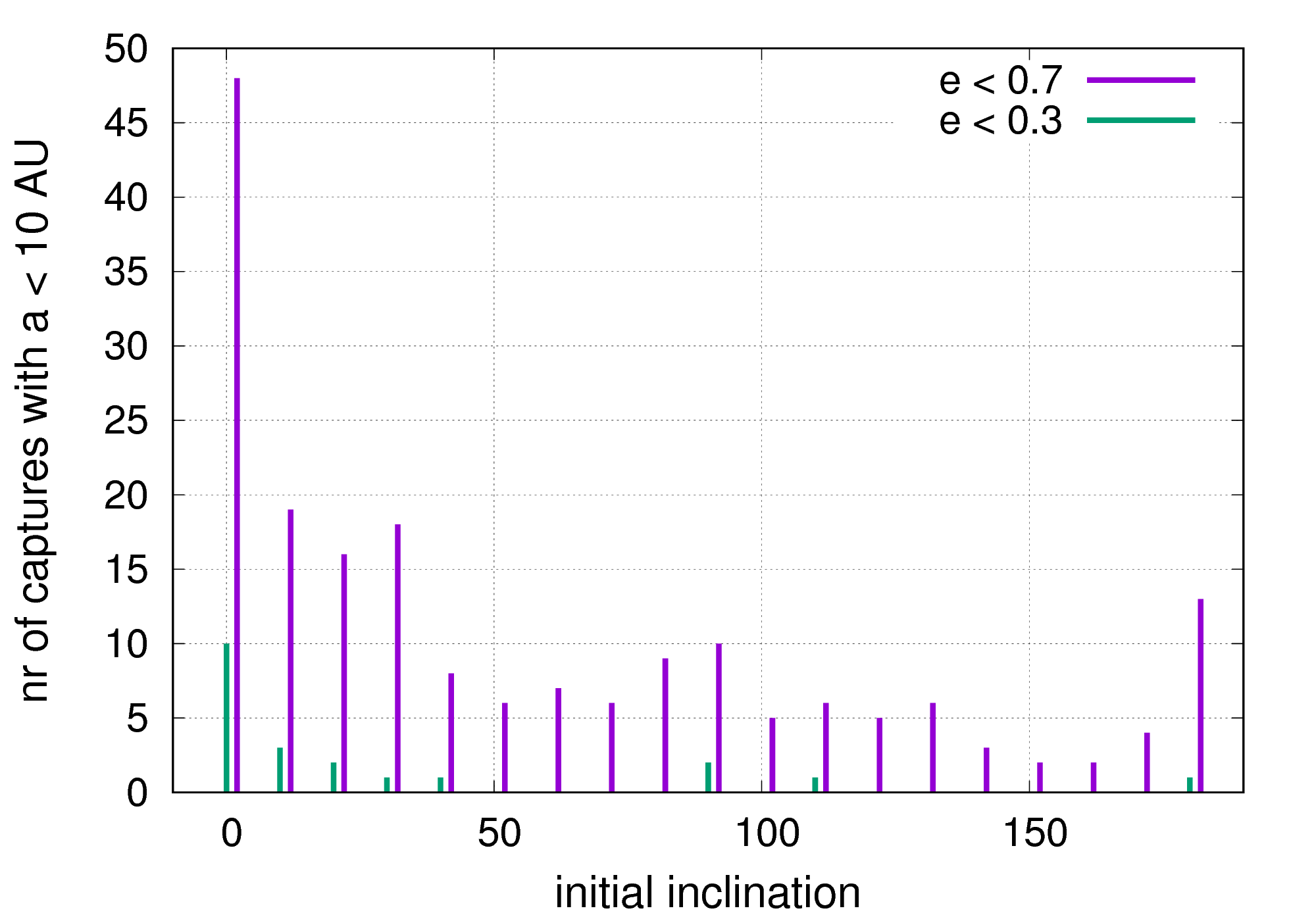

Another outcome based on the exchange of angular momentum between the planets and comets entering the system of HD 141399 is the capture of a comet in a moderate orbit. We define moderate orbits as orbits with $a<10$ au and eccentricities lower than 0.7 (violet line in Figure 12). In special cases the eccentricities dropped to 0.3 (green lines). These orbits represent short-periodic comets. In this figure the number of comets fulfilling this criterion is given as a function of the initial inclination of the comets. Each bar includes comets with all initial eccentricities. It is evident that the capture of a comet in such orbits is most likely for comets entering the system in the ecliptic plane. Interestingly, it is found that even comets with initially high inclination can be captured in such orbits. The likely underlying explanation considers the orbits of the two inner giant planets. The short-period orbits of HD 141399 b and HD 141399 c allow the planets to effectively interact with the comets entering the system from above, which makes it more likely for them to be scattered into orbits of small semi-major axes and low eccentricities.

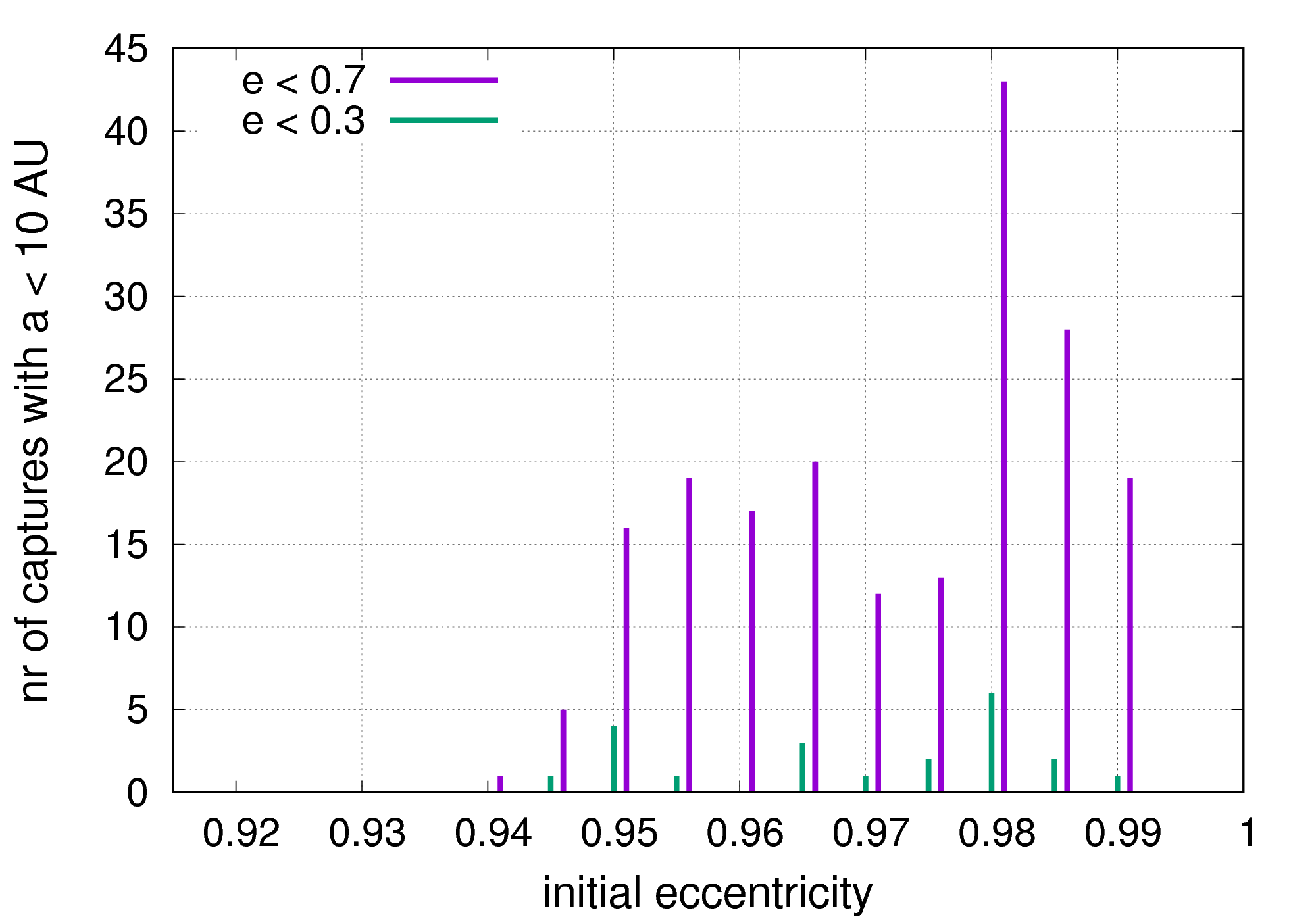

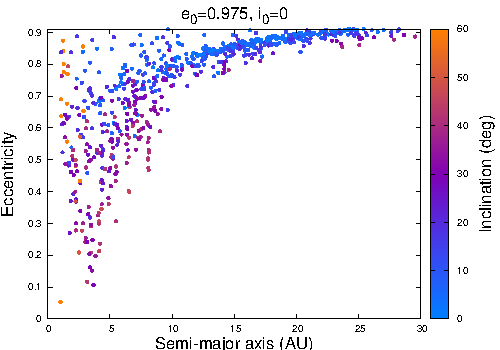

Figure 13 shows the same results but for the initial eccentricity of the comets. As expected, the number of comets captured into orbits with $a<10$ au and low eccentricities is higher for comets with initially high eccentricity. The same reasons apply to the probability of collisions with the planets apply here. Comets with initially high eccentricities are able to reach the planetary orbits and thus experience changes in their angular momentum resulting in capture. The same trend as given in Figure 11 is here visible as well: the probability for comets with initial eccentricity $e>0.98$ drops.

In Figure 14 we depict the Delaunay elements L and G of one comet experiencing a type of stable phase before undergoing a close planetary encounter and being scattered to a chaotic orbit; this behavior occurs at about 730 kyr after the integration has been started. L represents the evolution of the semi-major axis. One can clearly identify the stable phases also visible in Figure 15. Delaunay element G (i.e., the connection between $a$ and $e$) confirms that behavior.

The Delaunay elements are calculated as follows:

L = $\kappa$ $\cdot$ $\sqrt{a}$

G = L $\cdot$ $\sqrt{1-e^{2}}$

H = G $\cdot$ $\cos(i)$

Figure 15 shows the evolution of the semi-major axis of the same comet as depicted in Figure 14. The figure shows stable phases of the comet, which is captured in a more or less stable orbit about the host star. With $\kappa$ connected to the gravitational constant and the masses involved.

5 Conclusion

Since very recently we have evidence about comets in extrasolar planetary systems obtained through spectroscopic observations. The discovery of traces of objects, presumably created through stellar interaction, was first reported some 20 years ago; however, theoretical work predicting the existence of comets outside our Solar System has been presented even much earlier. We scratched on the history of the discovery of exocomets since the end of the last century and discussed the role of Oort clouds. They are expected to exist around virtually every star due to their formation history in large molecular clouds. We then explored the possible dynamics of comets penetrating the inner parts of extrasolar systems. Thus, we discussed three specific examples of extrasolar systems with gas giants in order to compare the outcomes with the cometary structure in our Solar System.

Our goal was twofold. First, we studied how the dynamical elements of comets arriving from large distances are altered, perhaps resulting in the formation of families of comets akin the Jupiter- and the Halley-cometary families in our Solar System. Second, we planned to determine the percentages of comets colliding with the planets or being ejected from the system because of close encounters with one of the large planets. However, in the three systems, which are: HD 10180, 47 UMa, and HD 141399, we could not identify the formation of such families. But we found evidence for long-term captures of comets into orbits where they spent up to millions of years in essentially stable orbits quite close to their host star.

For HD 10180, a tightly packed system with 6 or even 9 planets (including at least 5 Neptune-like giants), we were able to show how the exocomets may have been captured or ejected from the system depending on their initial eccentricities and inclinations.

For 47 UMa, a system containing three gas giants, we did the same type of investigation, but in addition we checked how a possible Earth-mass planet could get its water inventory from comets. Three different cases were pursued: an Earth-mass planet placed at 1 au, another Earth-mass planet placed at 1.5 au, and a third Earth-mass planet in the 3:2 MMR with the innermost system planet (47 UMa b); the habitable zone in 47 UMa is confined approximately between $\sim$0.9 au and $\sim$2.1 au for this late-stage main-sequence star. The results show that there is little opportunity for the Earth-mass planets to collect water due to cometary collisions. If water is present on any of those planets (if existing), an alternate mechanism of transport is required; see, e.g., Raymond and Izidoro (2017) and references therein for proposed scenarios.

HD 141399, a star hosting four massive gas giants, was the final exoplanetary system of our investigations aimed at studying cometary dynamics. In all of our numerical experiments, the outermost planet, although the least massive, suffered from many collisions, whereas the innermost giant planet had only very few ones.

As a supplementary aspect of our study, we also checked the Tisserand parameter T for the systems. However, no suitable information could be obtained from these values depicted in figure 16. It is well-known that in the Solar System Jupiter’s role is dominant (Carusi and Valsecchi (1992), Carusi et al. (1995)). However, for HD 10108 the gas giant at $a=3.4$ au (planet h) cannot play a dominant role due to the presence of another gas giant at $a=1.4$ au (planet g). Hence, no cometary family akin to the Jupiter family in the Solar System can therefore occur. Furthermore, in the other systems investigated here the Tisserand parameter is not giving important information on the cometary orbits either. Although the values interior to the location of planet h in the upper panel of Fig 16 show a similar signal like in the respective plot for Jupiter family comets (see Fig. 5 in Rickman (2010)), the dispersion is too large to draw meaningful conclusions. In the lower panel of Fig. 16 the Tisserand parameter (computed for planet g) is plotted versus the semi-major axis, but again no tendency can be seen due to the very large dispersion.

In the near future many more new observations are expected. Some of them may be indicators of comets very close to the host star. Thus, there will be a serious need for extending our numerical experiments to all systems with more than one giant planet to acquire a more complete picture on the role of exocomets in proliferating water to terrestrial planets. For that we will carefully investigate possible terrestrial planets in the stellar habitable zones. Our focus will be to determine the probability of collisions between comets, expected to originate from cometary clouds at the outskirts of those systems, and terrestrial system planets, as indicated by theory or established by observations.

{ack}

This research is supported by the Austrian Science Fund (FWF) through grant S11603-N16 (R.D. and B.L.). Moreover, M.C. acknowledges support by the University of Texas at Arlington. The computational results presented have been achieved in part using the Vienna Scientific Cluster (VSC).
