Brown Dwarfs and Directly Imaged Exoplanets in Young Associations

TL;DR

This paper emphasizes the importance of studying isolated young brown dwarfs within 150 parsecs to advance understanding of exoplanet atmospheres and formation mechanisms, advocating for future telescope investments.

Contribution

It highlights the discovery potential of young brown dwarfs in stellar associations and calls for targeted characterization efforts with next-generation telescopes.

Findings

Identification of young brown dwarfs within 150 pc as key to exoplanet studies

Proposal for dedicated observational campaigns with future telescopes

Linking brown dwarf studies to star formation and planetary atmospheres

Abstract

In order to understand the atmospheres as well as the formation mechanism of giant planets formed outside our solar system, the next decade will require an investment in studies of isolated young brown dwarfs. In this white paper we summarize the opportunity for discovery space in the coming decade of isolated brown dwarfs with planetary masses in young stellar associations within 150 pc. We suggest that next generation telescopes and beyond need to invest in characterizing young brown dwarfs in order to fully understand the atmospheres of sibling directly imaged exoplanets as well as the tail end of the star formation process.

Figures

Tables

Table 1. Table 1: Young Groups Found within 150pc of the Sun defined by BANYAN Σ Σ \Sigma

Banyan Name	Full Name	Age (Myr)
ABDMG	AB Doradus	149${}_{-19}{}^{}{}_{}{}^{+51}$
BPMG	$\beta$ Pictoris	24$\pm$3
CAR	Carina	45${}_{-7}{}^{}{}_{}{}^{+11}$
CARN	Carina-Near	$\sim$200
CBER	Coma Berenices	562${}_{-84}{}^{}{}_{}{}^{+98}$
COL	Columba	42${}_{-4}{}^{}{}_{}{}^{+6}$
EPSC	$ϵ$ Chamaeleontis	3.7${}_{-1.4}{}^{}{}_{}{}^{+4.6}$
ETAC	$\eta$ Chamaeleontis	11$\pm$3
HYA	the Hyades cluster	750$\pm$100
IC2602	IC 2602	46${}_{-5}{}^{}{}_{}{}^{+6}$
LCC	Lower Centaurus Crux	15$\pm$3
OCT	Octans	35$\pm$5
PL8	Platais 8	$\sim$60
PLE	the Pleiades cluster	112$\pm$5
THA	Tucana-Horologium	45$\pm$4
THOR	32 Orionis	22${}_{-3}{}^{}{}_{}{}^{+4}$
TWA	TW Hydra	10$\pm$3
UCL	Upper Centaurus Lupus	16$\pm$2
UMA	Ursa Major cluster	414$\pm$23
USCO	Upper Scorpius	10$\pm$3
XFOR	$\chi$ Fornax	$\sim$500

Full text

Astro2020 Science White Paper

Brown Dwarfs and Directly Imaged Exoplanets in Young Associations

Thematic Areas:                   $\XBox$ Planetary Systems       $\XBox$ Star and Planet Formation       $\Square$ Formation and Evolution of Compact Objects            $\Square$ Cosmology and Fundamental Physics $\XBox$ Stars and Stellar Evolution   $\Square$ Resolved Stellar Populations and their Environments              $\Square$ Galaxy Evolution                $\Square$ Multi-Messenger Astronomy and Astrophysics

Name: Jacqueline K. Faherty Institution: American Museum of Natural History Email: jfaherty@amnh.org Phone: +1 (212) 496-3527

Co-authors:

Katelyn Allers  (Bucknell University)

Daniella Bardalez Gagliuffi (American Museum of Natural History)

Adam J. Burgasser (University of California San Diego)

Jonathan Gagné (Université de Montréal)

John Gizis (University of Delaware)

J. Davy Kirkpatrick (IPAC)

Adric Riedel (STSCI)

Adam Schneider (Arizona State University)

Johanna Vos (American Museum of Natural History)

{justify}

Abstract: In order to understand the atmospheres as well as the formation mechanism of giant planets formed outside our solar system, the next decade will require an investment in studies of isolated young brown dwarfs. In this white paper we summarize the opportunity for discovery space in the coming decade of isolated brown dwarfs with planetary masses in young stellar associations within 150 pc. We suggest that next generation telescopes and beyond need to invest in characterizing young brown dwarfs in order to fully understand the atmospheres of sibling directly imaged exoplanets as well as the tail end of the star formation process.

{justify}

1. Overview on the Importance of Young Associations

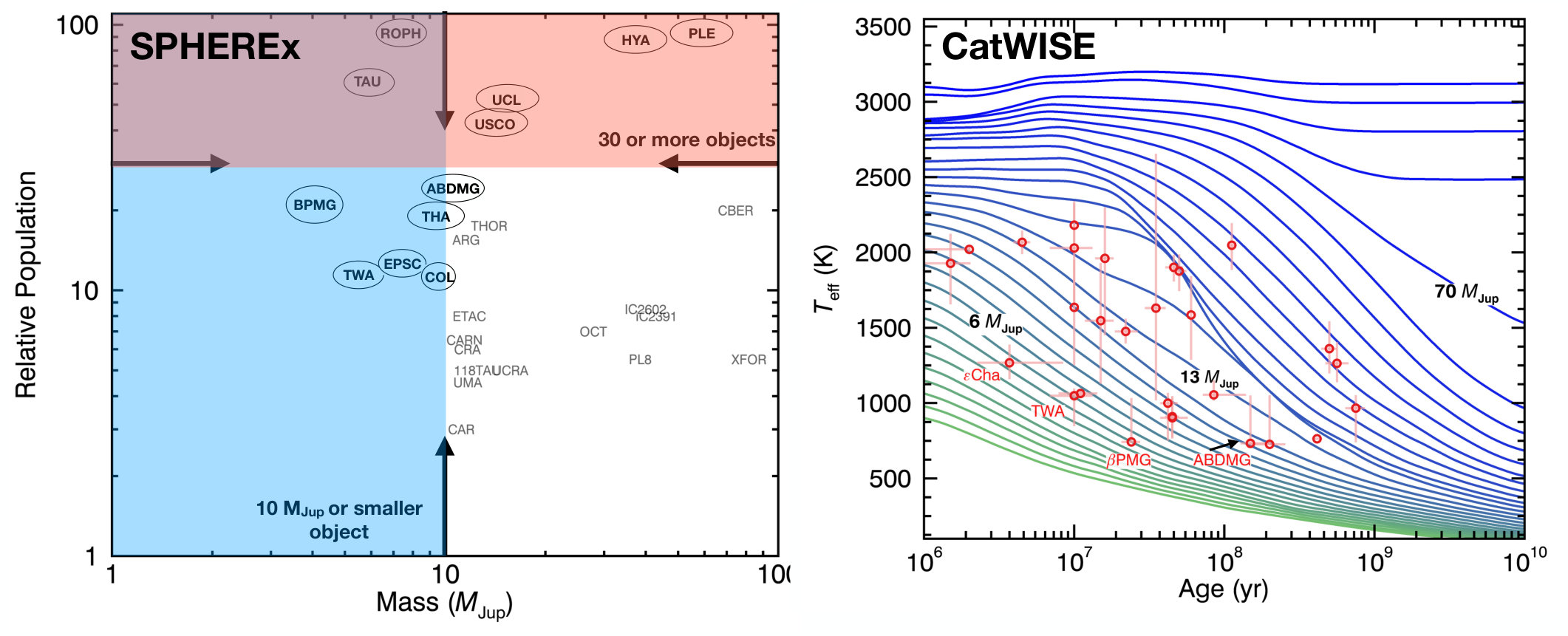

Young stellar associations are a goldmine for studies of the tail end of the mass function. Within 150 pc of the Sun there are more than 20 known associations of young stars known to be co-moving, of a similar age, and densely populated in space (see Figure  1 and Table  1 for a summary as well as [22]). In-depth studies of the closest associations to the Sun have revealed that they harbor large numbers of low–mass stars, brown dwarfs, and even objects whose mass falls below the deuterium burning boundary (so called free-floating planetary–mass objects; e.g., [29], [21], [16]). Moving groups contain the closest young stars to the Sun, therefore they are also the targeting ground of direct imaging campaigns for warm exoplanets. Associations such as Tucana-Horologium, TW Hydra, $\beta$ Pictoris and the AB Doradus moving group contain isolated objects that range in mass from a few solar masses down to a few Jupiter masses as well as stars with planetary–mass companions ([31], [25], [2], [38], [23], [35]). Observations of these associations enable investigations of the mass function, kinematics, and spatial distribution across the full range of objects generated through star formation processes in different isolated groups at young ($\sim$1–2 Myr), medium ($\sim$30–50 Myr), and older ($\sim$100–700 Myr) ages.

In the coming decade, ESA’s Gaia mission [27] will completely revolutionize our understanding of these nearby coherent groups. The vast number of stars within 150 pc with well measured kinematics will lead to greatly expanded membership lists of known associations. The microarcsecond precision of Gaia parallaxes and proper motions will allow us to more finely differentiate between groups with overlapping spatial positions and velocity dispersions and will likely lead to the discovery of entirely new and previously overlooked associations. Indeed, an examination of the Tycho Gaia Astrometric Survey (TGAS) as well as Gaia DR2 has already led to the refinement of known groups, expanded membership lists and the establishment of new associations (e.g. [18], [13], [17], [36], [30], [43]). However, despite Gaia’s ability to provide precise astrometry for young brown dwarfs in these associations, it cannot reach the expected bottom of the mass function at even the closest group at the youngest age.

2. The Initial Mass Function Into the Planetary Mass Regime.

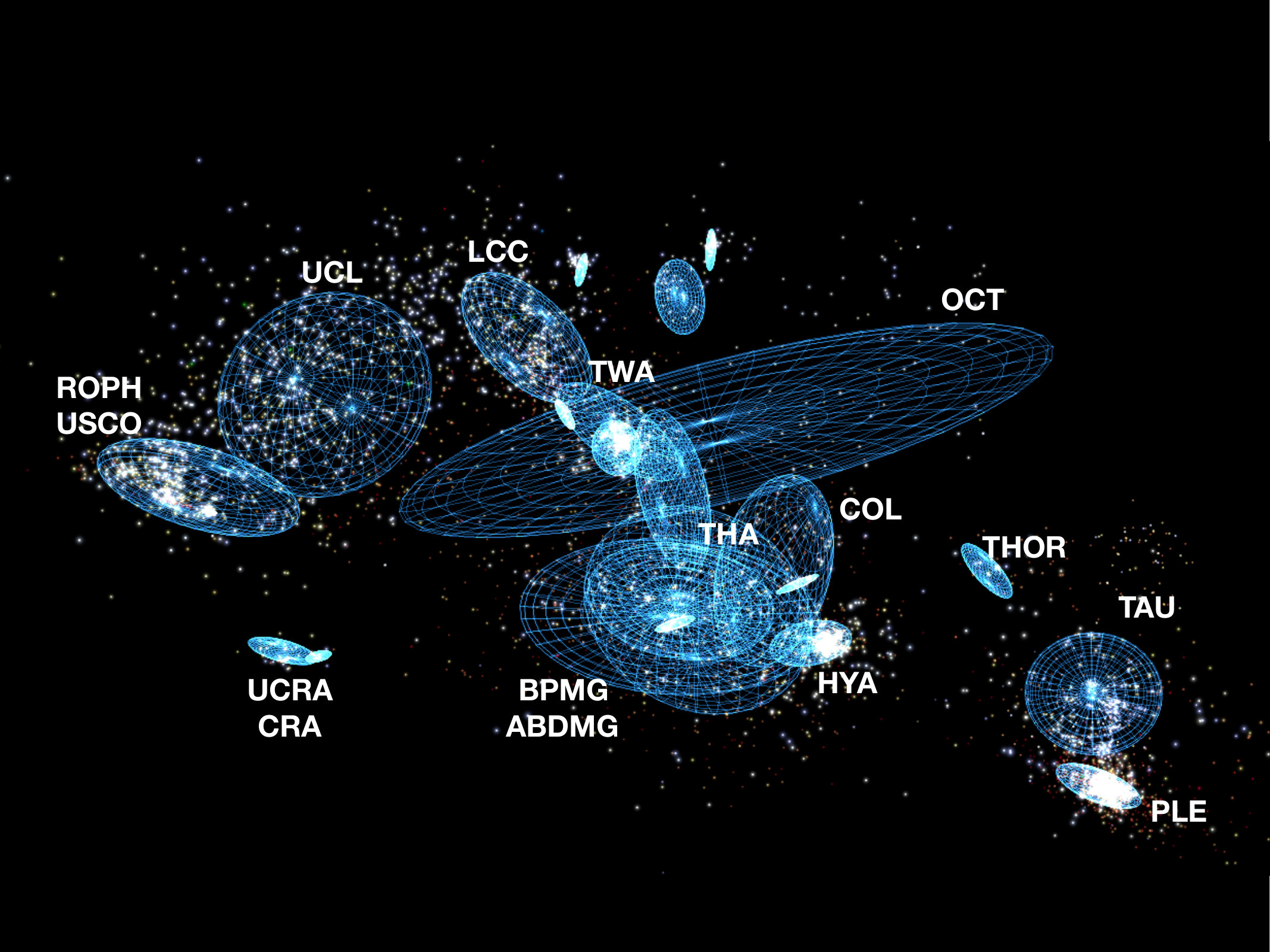

Initial mass function studies of nearby star-forming regions have begun probing the basement of the mass function (see Figure 2). While Gaia has provided (and will continue to do so in the coming decade) some higher-mass brown dwarf candidates, one must look in the infrared in order to fill in the lowest temperature young objects near the Sun (see also for example white papers from [26], [24]). The Wide-field Infrared Survey Explorer mission (WISE; [47]), the Two Micron All Sky Survey (2MASS; [41]), and Pan-Starrs ([32]) have all played a significant role in young brown dwarf studies. WISE in particular has identified candidates in star-forming groups such as Chamaeleon I, Taurus, and Perseus ([12]; [11]). While these very young associations ($\sim$1–3 Myr) and their yield of free floating planet candidates are exciting, the groups suffer from (at times extreme) reddening and are at larger distances making their lowest mass members difficult to study in detail.

Nearby ($<$ 100 pc) and slightly older ($\sim$10-50 Myr) young associations are not reddened and provide the opportunity for an easier characterization, but identifying the members of these nearer associations is more challenging because they are spread over large fractions of the sky therefore they require observationally expensive parallaxes and radial velocities to confirm membership. A dozen planetary-mass objects (model-dependent masses; see [7] and [4] white papers for alternate mass determination methods) in the range 6–13 MJup have recently been detected, making it possible to obtain spatial densities down to the lowest-masses of star formation in nearby young moving groups (see Figure  2). These first results suggest an over-density of planetary-mass objects compared to the predictions of a fiducial log-normal initial mass function, but they are still based on small-number statistics and are inconsistent with some open cluster studies ([40]; [34]). As stated below, the coming decade will see a push into discoveries in large numbers of the lowest possible masses formed through the star formation process but these new objects will require next generation instruments for membership confirmation and necessary characterization studies.

{justify}

3. Discoveries of Young Isolated Planetary Mass Objects In the Next Decade

The majority of young brown dwarf discoveries to date have been made using a combination of 2MASS, WISE, and/or Pan-STARRs data (e.g. [5], [1], [39], [19], [14]). However the limiting magnitudes and proper motions by the individual catalogs or the combination of catalogs meant that we have been restricted in discovery space for the lowest mass isolated objects. At present, there remains a large amount of kinematic discovery space for WISE, in particular with new all-sky epochs emerging from the ongoing NEOWISE campaign, which provides a 5-year baseline for higher precision and lower value proper motions ([33]). The coming decade will see astronomers taking advantage of that unexplored data. One catalog that will soon come on line is an all-sky kinematic catalog named CatWISE (Peter Eisenhardt NASA ADAP) with moderate precision proper motions for millions of faint (W2 $<$ 15.8 magnitude) mid-infrared sources. Using CatWISE as an example of the discoveries in waiting, we have investigated the potential of WISE data for uncovering new low temperature members of known moving groups and star forming regions. The right hand panel of Figure  3 shows the evolutionary models from [37] overplotted with the lowest-mass objects that can be detected by a catalog like CatWISE in the 21 closest young associations to the Sun (listed in Table  1). In groups such as AB Doradus, $\beta$ pictoris, $\eta$ Cha and TW Hya, we have the capability of discovering isolated objects with masses down to 6 MJup.

In addition to new WISE discoveries that we expect in the coming decade, there is the potential of discovery and characterization by NASA’s recently selected mission called the Spectro-Photometer for the History of the Universe, Epoch of Re-ionization and Ices Explorer (SPHEREx) mission slated to launch in 2023. SPHEREx is an all-sky mission that will take low resolution spectra in the near to mid infrared of millions of sources (within a 6” pixel radius) and will be very impactful on young brown dwarf studies. The left hand panel in Figure  3 uses the stated limiting magnitudes that SPHEREx will be operating with along with the distance boundaries for the young associations listed in Table  1 to demonstrate what we expect the yield of low resolution, near- to mid-infrared spectra will be in each group. As shown, a combination of the CatWISE catalog to kinematically identify sources and SPHEREx to obtain follow-up spectra will lead to an unprecedented library of very low mass sources. Several groups such as $\beta$ Pictoris, TW Hydra, and Taurus will be examined for an abundance of objects $<$ 10 MJup.

While this is extremely exciting to envision, one striking problem remains: in order to confirm membership in a young association we require high precision infrared parallaxes and radial velocities. While ground-based parallax programs have been tremendously effective at surveying brown dwarfs (e.g. [10], [28], [15], [46], [44]), the infrared magnitudes of isolated planetary-mass objects at the distances of young associations requires a new generation of instruments. As discussed in the white paper by [24], the James Webb Space Telescope (JWST) is ill suited for these astrometric studies because of high overheads in slewing between targets. WFIRST, with its 18-array infrared focal plane might be a suitable astrometric imager and would be greatly enhanced if the simple K-band filter was installed (see for example the white paper by [42]).

Moreover, the low resolution spectra of SPHEREx will help fill in the bolometric luminosities of new discoveries but will not allow us to probe atmosphere, metallicity, or gravity parameters in detail. For a more detailed examination of young brown dwarfs, medium-resolution (R$>$1000) spectra in the near to mid-infrared is required. These data will lead to distinguishing cloud features from temperature, metallicity or gravity signatures and enable detailed spectral inversion surveys to ground theoretical model predictions ([8]). The expected faint near infrared magnitudes ($J$ $<$ 18) of soon to be recovered planetary mass objects means JWST, with its sensitivity and numerous on-board spectrographs covering wavelength ranges where clouds are most influential, will be critical to young brown dwarf studies in the coming decade. Planned instruments on the Extremely Large Telescopes would also be sensitive enough to open a new window onto cloud physics of super Jupiter mass objects (see for example [45]).

4. Young Brown Dwarfs Put Directly Imaged Exoplanet Data into Context.

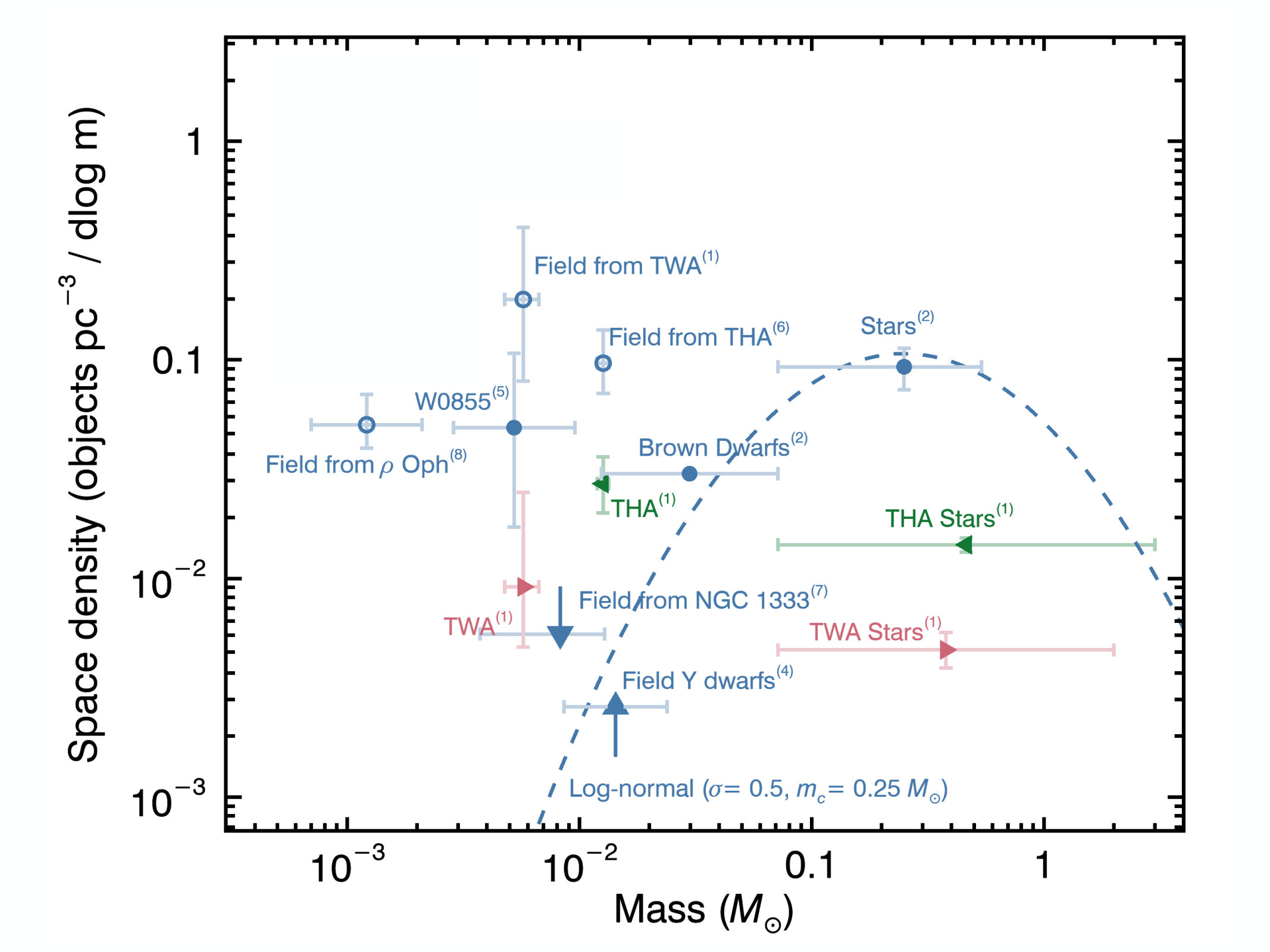

The targeting ground for directly-imaged exoplanets are the exact young associations near the Sun for which we are (and will be) identifying isolated brown dwarfs. Consequently, isolated planetary-mass brown dwarfs in these groups are critical for placing directly-imaged exoplanets into context. The sources will share initial conditions and subsequent parameters such as age and metallicity. As shown in Figure  4 there is already strong overlap in the populations of young brown dwarfs and giant planetary mass companions. Discoveries by instruments such as the Gemini Planet Imager, SPHERE, and Project 1640 have already used the population of young brown dwarfs in moving groups for comparison with newly found planets (e.g. [31], [6], [9]).

Isolated young brown dwarfs are equivalent in properties to giant planets (Teff, Lbol, Mass, gravity) yet vastly easier to study given that they do not have a bright host star to block in order to detect precious photons. Consequently studies of the abundances of young brown dwarfs (e.g. C/O ratio) which can be obtained through retrieval studies (see for example [8]) can be compared to sibling planets to tease out differences in formation mechanisms. Medium resolution spectra in the near and mid infrared can be used to investigate cloud properties and to help unwrap the influence of gravity, metallicity, weather, temperature and mass on the emergent observables. In the coming decade, it is critical that brown dwarf and directly-imaged exoplanet science continue to thrive in context.
