Two-dimensional optical quasicrystal potentials for ultracold atom experiments

TL;DR

This paper introduces a compact optical setup to generate two-dimensional quasicrystal potentials with 5-fold symmetry for ultracold atom experiments, enabling advanced quantum simulations of nonperiodic structures.

Contribution

It presents a novel optical design and prototype for creating quasicrystal potentials, including phase modulation techniques for excitations and transport studies.

Findings

Successful numerical verification of the optical design

Prototype system demonstration

Discussion of phase modulation for excitations

Abstract

Quasicrystals are nonperiodic structures having no translational symmetry but nonetheless possessing long-range order. The material properties of quasicrystals, particularly their low-temperature behavior, defy easy description. We present a compact optical setup for creating quasicrystal optical potentials with 5-fold symmetry using interference of nearly co-propagating beams for use in ultracold atom quantum simulation experiments. We verify the optical design through numerical simulations and demonstrate a prototype system. We also discuss generating phason excitations and quantized transport in the quasicrystal through phase modulation of the beams.

Figures

Tables

Table 1. Table 1: Fourier transform fit results

Quantity	Predicted	Fitted Values
In-plane wavevector of inner ring ($k_{\text{in}}$)	$70.0\mathrm{rad}/\mathrm{mm}$	$74.1\mathrm{rad}/\mathrm{mm}$
In-plane wavevector of outer ring ($k_{\text{out}}$)	$113.2\mathrm{rad}/\mathrm{mm}$	$119.3\mathrm{rad}/\mathrm{mm}$
Ratio of $k$-vectors ($k_{\text{out}}/k_{\text{in}}$)	$\left(1+\sqrt{5}\right)/2\approx 1.618$	$1.610$
Camera rotation about vertical axis	—	${10.1}^{\circ }$

Equations

$$\mathbf{E}(\mathbf{r},t)=\sum _{j=1}^N{E}_j\overrightarrow{{ϵ}_j}{e}^{i({\mathbf{k}}_j\cdot \mathbf{r}-\omega t+{\varphi }_j)},$$

$$I(\mathbf{r})=\frac{1}{2Z_0}⟨{\left|\mathbf{E}(\mathbf{r},t)\right|}^2⟩,$$

$$I(\mathbf{r})$$

$$\displaystyle=\frac{E^{2}}{2Z_{0}}\left(N+2\sum\limits_{j<\ell}\cos\Big{(}(\mathbf{k}_{j}-\mathbf{k}_{\ell})\cdot\mathbf{r}+(\phi_{j}-\phi_{\ell})\Big{)}\right)$$

$$\mathbf{E}(x,y,z,t)$$

$$I(x,y,z)$$

$$U(\mathbf{r})=\frac{3\pi c^2}{2{\omega }_0^3}\frac{\Gamma }{\Delta }I(\mathbf{r}),$$

$${\Gamma }_{\text{scat.}}\approx \frac{3\pi c^2}{2\hslash {\omega }_0^3}\frac{{\Gamma }^2}{{\Delta }^2}I(\mathbf{r}).$$

Full text

I Introduction

Quasicrystals (QCs) are solids, typically ternary metallic alloys, that lack translational symmetry but still exhibit long range order through a deterministic non-periodic tiling structure, leading to unusual geometric properties such as 5-, 8-, 10-, or 12-fold rotational symmetry and scale invarianceJanot (2012); Jannsen et al. (2018). Such non-periodic tilings have been studied by mathematicians, most notably in the 1970’s by PenroseGardner (1977), and have existed for centuries in art and architectureLu and Steinhardt (2007), but material examples were unknown until the serendipitous synthesis and discovery of QCs in an AlMn alloy by Shechtman was announced in 1984Shechtman et al. (1984), for which he was awarded the 2011 Nobel Prize in Chemistry. QCs have also been found naturally occurring in meteoritesBindi et al. (2009), and form spontaneously in some organic polymer systemsHayashida et al. (2007).

Our motivation is to study two-dimensional quasicrystals to better understand their physical properties, including topological structure, and inform potential applications through quantum simulation of these materials using ultracold atomsBloch (2005); Bloch et al. (2008); Sanchez-Palencia (2018). This Research Article presents our method of generating the quasicrystal optical potentials into which we will load quantum degenerate or nearly degenerate dilute atomic gases.

Current atomic physics studies of two-dimensional crystalline systems have been mostly limited to systems that can be generated by the interference of a small number of laser beams, such as square or hexagonal latticesJo et al. (2012); Tarruell et al. (2012), generated by the projection of digitally generated imagesGauthier et al. (2016) and holographically projected potentialsPasienski and DeMarco (2008); Gaunt and Hadzibabic (2012); Zupancic et al. (2016), or created by optical tweezer arraysNogrette et al. (2014); Barredo et al. (2016); Endres et al. (2016); Barredo et al. (2018). We instead use the interference of nearly co-propagating lasersNelson et al. (2007) to generate non-periodic quasicrystal potentials with 5-fold rotational symmetry. Key advantages of our method over those above are its compactness and simplicity.

This Research Article is structured as follows. We begin with a discussion of the known physical properties of quasicrystals and summarize the advantages of using ultracold atoms to model such systems (Sec. II). We then explain how interference can be used to generate quasicrystal optical potentials and present numerical simulations of our proposed optical system (Sec. III). In Sec. IV, we build a simplified optical system based on a shadow mask and show that it indeed generates the required potential. We conclude in Sec. V by introducing a novel type of quasicrystal excitations, phasons, that are inaccessible in material samples but that can be generated with our setup. These excitations can elucidate the topological structure of these materials.

II Background and motivation

Quasicrystals are often described as existing between the extremes of ordered crystals and amorphous materialsJanot (2012); Jannsen et al. (2018). Even when their constituent atoms are metallic, pure QCs show bulk properties distinct from those of crystalline metals and metallic glasses. Empirically, QCs act as a chimera of metals, nonmetals, and semiconductors. The key phenomenological observations of QCs were established in the 1990’sBiggs et al. (1990); de Boissieu et al. (1993); Janot et al. (1993); Pierce et al. (1993); Mayou et al. (1993); Lindqvist et al. (1993), but progress in understanding the underlying quantum states has slowed. Theoretical approaches to understanding QCs are difficult because of the nonperiodic geometry.

The primary unresolved issue that we will seek to address is the nature of the low-temperature localized state. Two-dimensional crystalline systems show a superfluid to Mott insulator transition at low temperatures and integer filling factors. This has been verified using time-of-flight imaging, noise-correlation measurementsSpielman et al. (2007), and in-situ imaging to determine compressibilityGemelke et al. (2009). Systems with disorder, however, exhibit Anderson localizationAnderson (1958); Abrahams et al. (1979) caused by the destructive interference of single-particle wavefunctions over multiple random paths. The experimental signature of Anderson localization is the exponential decay of particle momentum distributionsBilly et al. (2008); Chen et al. (2009); Choi et al. (2016). Some quasi-periodic systems exhibit weaker localization than disordered systemsLüschen et al. (2017); Bordia et al. (2017); Pilati and Varma (2017), and quasicrystals are also expected to show this behavior. Furthermore, interactions between particles, such as the contact interactions between bosonic atoms that we use, are predicted to induce a variety of many-body statesHou et al. (2018).

One challenge of studying quasicrystal systems is the difficulty in generating viable numerical predictions to compare with. Typical techniques for solving Schrödinger’s equation on crystalline systems (e.g. Bloch’s theorem, Wannier basis functions, or periodic boundary conditions) do not apply to our system because of the nonperiodic structure of the quasicrystalsJanot (2012); Jannsen et al. (2018). Direct approaches such as diagonalization of the full Hamiltonian are computationally intractable because of the large basis required to fully capture the structure. Although some one-dimensional nonperiodic systems have been solvedKohmoto et al. (1987); Schreiber et al. (2015); Singh et al. (2015), few two-dimensional systems have been solvedGrimm and Schreiber (2003); Jagannathan and Piéchon (2007); Fuchs and Vidal (2016); Bandres et al. (2016). As such, solving for the single-particle and many-particle eigenstates of the quasicrystal potential is beyond the scope of this article. Indeed, inspiring theorists and computationalists to take on this challenge is a motivating factor of our experiments.

Because calculations of quasicrystals are difficult, we approach the system by studying an analogous quantum mechanical system with similar geometry. This geometry will be implemented as an optical potential generated by interference. In a typical optical lattice, several laser beams of the same wavelength interfere with each other to create alternating stationary regions of high and low intensity. Optical lattices have been the cornerstone of quantum emulation experiments for the past two decadesBloch (2005); Bloch et al. (2008); Lewenstein et al. (2007); Daley (2018); Sanchez-Palencia (2018). The optical lattice plays the role of the ionic potential landscape in which the atoms, playing the role of electrons, live. We expand this technique to nonperiodic lattices. Earlier work on simulating quasicrystals with cold atoms used planar arrangements of interfering beamsGuidoni et al. (1997, 1999); Sanchez-Palencia and Santos (2005); Cetoli and Lundh (2011); Viebahn et al. (2018) or looked at one-dimensional systemsSingh et al. (2015); Macé et al. (2016). Our technical approach, described below, uses a compact setup requiring minimal optical access to the sample and gives us flexibility in choosing the size of the lattice spacing in the quasicrystal, which we use to match the lattice spacing to the resolution of our imaging system. We will also discuss various excitation modes in the quasicrystal, some of which are unique to these structures.

III Generating quasicrystal optical potentials

Our procedure for generating the quasicrystal optical potentials is described below, along with simulations to show its feasibility. A low-power prototype using this scheme is presented later in Sec. IV. The key element is a particular arrangement of optical fibers that will emit laser beams that interfere to generate the nonperiodic lattice. The technical requirements of the optical potential are (1) maximal overlapping of the constituent beams, (2) accurate setting of the polarization to ensure maximum contrast in the interference pattern, and (3) phase stability between the beams to prevent unwanted “phason” excitations in the lattice. These points will be addressed below. With these requirements met, we generate an optical potential with a characteristic scale of $\sim$2\text{,}\mathrm{\SIUnitSymbolMicro m}$$ at the plane of the atoms.

III.1 Interference of multiple plane waves

To motivate our approach, we first consider the behavior of interfering plane waves. The electric field $\mathbf{E}$ of a set of $N$ monochromatic plane waves is given by their superposition:

[TABLE]

where $\mathbf{r}$ is position, $t$ is time, $E_{j}$ is the electric field amplitude of the $j$-th beam, $\vec{\epsilon}_{j}$ is the polarization unit-vector, $\mathbf{k}_{j}$ is the propagation wavevector with magnitude $k$, $\omega=ck$ is the angular frequency of the light, and $\phi_{j}$ is the relative phase of the beam. We assume the light is propagating through vacuum with speed $c$. The physical electric field is equal to the real part of the above expression. The irradiance corresponding to this electric field is

[TABLE]

where $Z_{0}\approx$377\text{,}\mathrm{\SIUnitSymbolOhm}$$ is the impedance of the vacuum, and the angle brackets indicate time averaging.

If all of the beams have equal amplitude $E$ and polarization, then the irradiance becomes

[TABLE]

Taking the Fourier transform of $I(\mathbf{r})$ shows peaks at zero spatial frequency and at the differences of the input $\mathbf{k}_{j}$ vectors. For $N$ beams there will be $N(N-1)$ Fourier peaks in addition to the DC peak.

As a simple example, consider a pair of intersecting beams separated by an angle $2\alpha$, traveling in the $xy$ plane. We will use such as system, which we call a “pancake” lattice, in our experiment to generate a 1D lattice, one period of which contains the plane of our quasicrystal samples (details below in Sec. III.2). This provides the confinement normal to the sample plane.

The two beams travel with wavevectors $\mathbf{k}_{\pm}=\frac{2\pi}{\lambda}(\cos\alpha\,\hat{x}\pm\sin\alpha\,\hat{y})$ and are polarized in the $\hat{z}$ direction, where $\lambda$ is the wavelength of the light. Assuming the plane waves have equal amplitude $E$ and a phase difference of $\phi$ between them, the resulting electric field and irradiance are

[TABLE]

The cosine term indicates a standing wave in irradiance with wavelength $\lambda/(2\sin\alpha)$ and wavevector along $\hat{y}$. Changing the phase $\phi$ translates the standing wave along the $y$ direction. Note that in the limits of co-propagating ($2\alpha=0$) and counter-propagating ($2\alpha=\pi$) beams, we get the familiar results of simple superposition and a standing wave of wavelength $\lambda/2$, respectively.

Expanding the system to more beams yields increasingly more complex standing wave patterns. Three and four beams yield periodic 2-dimensional lattices in the $yz$ planeJo et al. (2012); Tarruell et al. (2012), but five interfering beams generate quasicrystals. Previous experiments have generated nonperiodic potentials using the interference of multiple intersecting lasers with all of the $\mathbf{k}_{j}$ in the same planeGuidoni et al. (1997); Sanchez-Palencia and Santos (2005); Macé et al. (2016); Viebahn et al. (2018). Instead, we will use five nearly co-propagating beams to generate our quasicrystal potential, similarly to how we use two nearly co-propagating beams in the example above. Our reasons for using this geometry are (1) the ability to choose the lattice scale by adjusting the angle $\alpha$, specifically to match the resolution of our imaging system, and (2) the compactness of the optical system – there is in effect only one (composite) beam path rather than separate paths for each beam.

III.2 Optics design

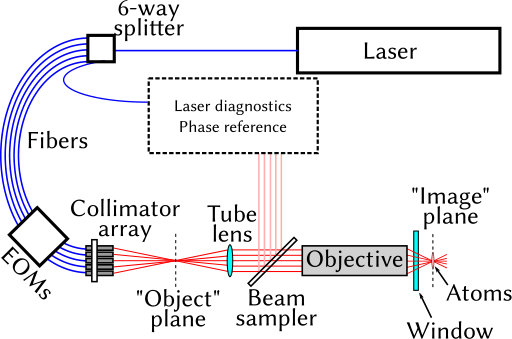

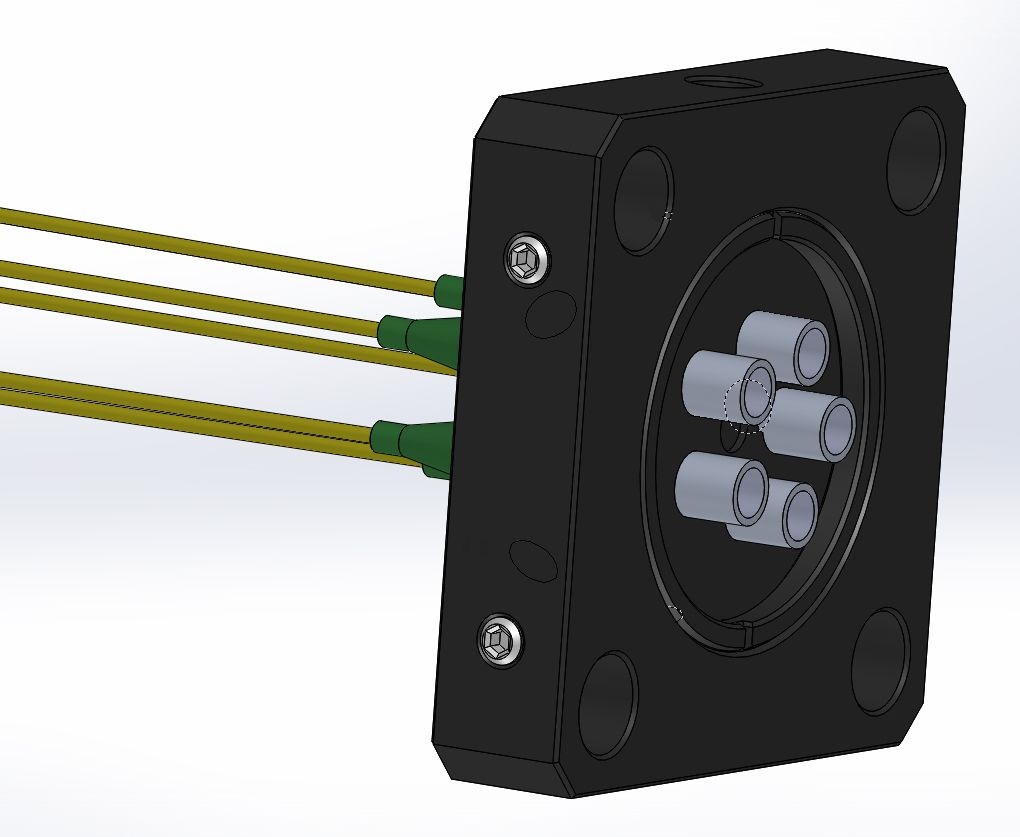

The optical layout is summarized in Fig. 1. The light source is a set of five $\mathrm{TEM}_{00}$ laser beams emitted from optical fiber pigtail collimators. The individual beams have a wavelength of $\lambda=$850\text{,}\mathrm{n}\mathrm{m}, beam radius ($1/e^{2}$) of $0.2\text{\,}\mathrm{m}\mathrm{m}$, beam divergence half-angle of $1.4\text{\,}\mathrm{m}\mathrm{r}\mathrm{a}\mathrm{d}$, and are circularly polarized. The collimators (modeled from OZ Optics LPC-01-2ASOZ Optics, Ltd ([2018](#bib.bib54))) are arranged equidistantly on a circle of radius $5\text{\,}\mathrm{m}\mathrm{m}$ and tilted towards the common axis by $\alpha=$10\text{\,}\mathrm{m}\mathrm{r}\mathrm{a}\mathrm{d} (Fig. 1, lower panel). Similar devices with fiber bundles have been used in the past to generate optical patternsTam et al. (2004), however those devices image the output fiber array rather than utilizing interference.

The beams intersect at a distance of 510 mm. At this location, the quasicrystal pattern appears with a lattice scale on the order of $\lambda/\alpha\sim$100\text{,}\mathrm{\SIUnitSymbolMicro m}. We demagnify this pattern by $50\times$ by sending the beams backwards through the same microscope used to image the atoms, projecting the interference pattern onto the plane of the atoms. The lattice scale is chosen to match the imaging resolution of the microscope objective (Mitutoyo G Plan Apo 50 Mitutoyo Corportation ([2012](#bib.bib56))) of $\sim$2\text{\,}\mathrm{\SIUnitSymbolMicro m} (Rayleigh criterion).

The confinement normal to the sample plane ($z$ axis) will be provided by an additional 1D lattice. Our system will use two crossed 2-W beams at $\lambda_{z}=$1064\text{,}\mathrm{n}\mathrm{m} with a $1/e^{2}$ radius of $50\text{\,}\mathrm{\SIUnitSymbolMicro m}$ and crossing half-angle of $\alpha_{z}=5^{\circ}$, resulting in an optical lattice spacing of $\lambda_{\textrm{lat.}}=\lambda_{z}/(2\sin\alpha_{z})=$6\text{\,}\mathrm{\SIUnitSymbolMicro m} (importantly, larger than the depth-of-focus of the imaging objective of $2\text{\,}\mathrm{\SIUnitSymbolMicro m}$, so that only one plane is in focus during data acquisition) and a trap depth of $U_{z}/k_{B}\approx$-1700\text{,}\mathrm{\SIUnitSymbolMicro K}, where $k_{B}$ is Boltzmann’s constant (Eq.([3](#S3.E3))). Approximating the bottom of the potential as a harmonic oscillator yields an energy spacing of $\hbar\omega_{\textrm{h.o.}}/k_{B}\approx$2.3\text{\,}\mathrm{\SIUnitSymbolMicro K}. This is about 30 times the expected temperature of the atoms, so the $z$ degrees of freedom are essentially frozen out, yielding an effectively two-dimensional system.

III.3 Simulation results

To show that our procedure for generating and modulating quasicrystal potentials is effective, we present a series of numerical simulations using realistic laboratory parameters. Later, in Sec. IV we demonstrate a low-power prototype of the optical system. We numerically simulate the system described above using the poppy wave optics software packagePerrin et al. (2012, 2019) for Python. The simulation uses Fresnel propagation of scalar waveforms in the paraxial approximation and includes all of the lenses (approximated as diffraction-limited thin lenses) and apertures in the path from the fibers to the atoms. Diffraction effects are included in the calculation for completeness resulting in weak Fresnel rings of about 10% modulation depth in irradiance.

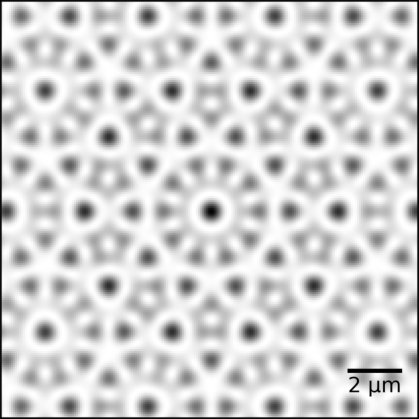

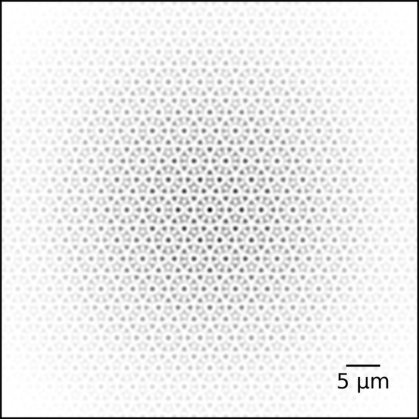

The irradiance predicted by the simulation is shown in Figs. 2 and 3. For the simulations the laser wavelength is $850\text{\,}\mathrm{n}\mathrm{m}$ and the total input power is $10\text{\,}\mathrm{m}\mathrm{W}$. Note that the irradiance is enhanced by a factor of 25 more than a single beam because we are constructively interfering five beams. The rotational symmetry of the quasicrystal potential is evident in the two-dimensional Fourier transform of the irradiance (Fig. 4).

In normal imaging applications of infinite-conjugate microscopes the distance between the tube lens and objective is unimportant, except that extending this too far will limit the field of view. In our application, however, the microscope needs to be bi-telecentric, such that the distance between the principle planes of the lenses is equal to the sum of their focal lengths, to ensure that the phase relationships, and therefore the interference pattern, of the light projected onto the atoms’ plane matches those where the beams from the fibers initially intersect. Otherwise, additional distortion and field curvature aberrations will deform the potential, creating unwanted effective strain in the QC latticeTian et al. (2015); Fujita et al. (2016).

For maximal interference contrast, all of the beams must have the same polarization. For two interfering beams, such as Eq. (3), the solution is for the beams to be linearly polarized perpendicular to their common plane of propagation. For the QC projection system, there is no common plane, so it is not possible to match the polarizations of the 5 beams. The optimal choice is for each beam to be circularly polarized. In this configuration a tiny fraction of the optical power ($\sim\sin^{2}\alpha$, where $\alpha=$10\text{,}\mathrm{m}\mathrm{r}\mathrm{a}\mathrm{d}$$ is the angle each beam makes with the optical axis) will form a traveling wave with longitudinal polarization relative to the optical axis, but the remainder combines coherently to form the standing wave interference pattern in the transverse plane. This traveling wave component contributes negligible heating to the atoms.

The potential energy landscape of atoms in the optical field is approximately

[TABLE]

where $I(\mathbf{r})$ is the position-dependent irradiance of the laser, $\Delta$ is the difference in frequency (detuning) between the laser and the nearest optical transition, $\omega_{0}$Miller et al. (1993). The equation above assumes $|\Delta|>>\Gamma$, so that hyperfine effects and power broadening may be ignoredFoote (2005). Note that while the irradiance is necessarily non-negative, the detuning may have either sign, resulting in either an attractive or repulsive potential for red- and blue-detuned light, respectively. In our experiment we exclusively use red-detuned, therefore attractive, optical trapping potentials. For our simulation, we are assuming 87Rb atoms. The relevant nearby transition is the D1 line at $795\text{\,}\mathrm{n}\mathrm{m}$ ($\omega_{0}=2\pi\times($377\text{,}\mathrm{T}\mathrm{H}\mathrm{z}$)$) with a linewidth of $\Gamma=2\pi\times($5.75\text{,}\mathrm{M}\mathrm{H}\mathrm{z}$)$Steck (2015). For our simulations the assumed laser wavelength is $\lambda=$850\text{,}\mathrm{n}\mathrm{m}$$, giving a detuning value of $\Delta=2\pi\times($-24.4\text{,}\mathrm{T}\mathrm{H}\mathrm{z}$)\approx$-4.2\text{\times}{10}^{6}$\Gamma$.

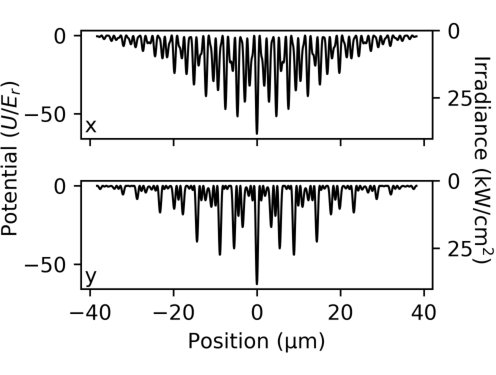

The maximum potential depth at the atoms, given by Eq. (4), is about $U=$-20\text{,}\mathrm{\SIUnitSymbolMicro K}$\;k_{B}$ or $-60$ lattice photon recoil energies, $E_{r}={(h/\lambda)}^{2}/m\approx$350\text{,}\mathrm{n}\mathrm{K}$\,k_{B}$. Because we are constructively interfering five beams, we get an intensity enhancement of $5^{2}$ in each well. The tunneling time between adjacent sites is long, on the order of $0.5\text{\,}\mathrm{s}$ (approximating adjacent sites as a quartic double-well potentialVerguilla-Berdecia (1993)), but this can be decreased by reducing the overall lattice depth. The detuning of the lattice laser is not large enough to neglect heating from spontaneous emission, which occurs at a rate of Foote (2005)

[TABLE]

From this, the heating of the atoms is estimated to be about $0.3\text{\,}\mathrm{\SIUnitSymbolMicro K}\text{\,}{\mathrm{s}}^{-1}$.

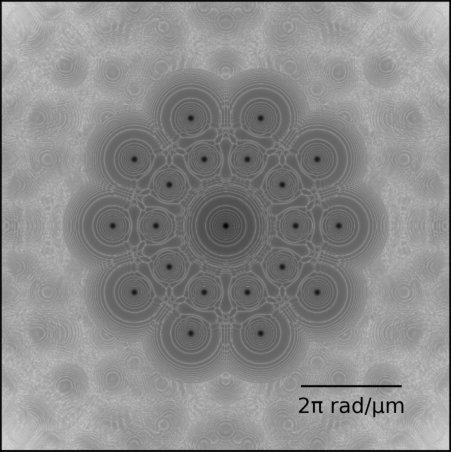

The two-dimensional spatial Fourier transform of the irradiance (Fig. 4) shows the presence of 20 Fourier peaks plus the DC peak, as anticipated by Eq. (2). This is one distinction between our artificial potential and a real quasicrystal. Real quasicrystals show an infinite sequence of quasi-Bragg peaks of wavevectors with irrational scalingJanot (2012). The peaks missing from our system are at large wavevectors and therefore describe short-range, high-energy modes. We are more interested in long-range, low-energy excitations; our system will be adequate for studying low-temperature behavior.

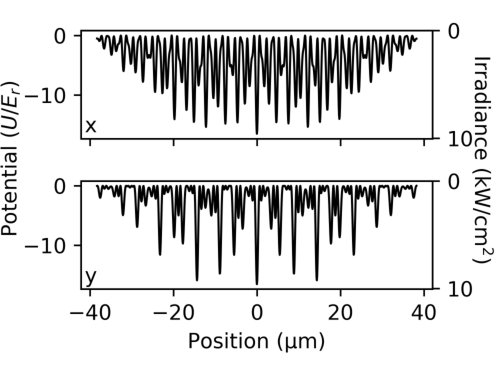

The central part of the potential is deeper because of the gaussian profile of the individual beams. We can flatten out the profile by inserting a neutral density apodizing filter (e.g. inverse-gaussian filters commercially available from ReynardReynard Corporation (2018) or approximately generated by imaging a gaussian beam onto a negative photographic plate) in the beam path at the “object” plane of the microscope (see Fig. 1), at a cost of overall trap depth. We have simulated this configuration with an inverse-gaussian filter with maximum attenuation of 0.3 OD and $1/e^{2}$ radius of $1.2\text{\,}\mathrm{m}\mathrm{m}$, showing a flat potential envelope with a diameter of approximately $40\text{\,}\mathrm{\SIUnitSymbolMicro m}$ (Fig. 5), compared to Fig. 2. The remaining site-to-site variations in depth after the flattening the potential envelope are inherent to quasicrystals. Our particular geometry has eight types of lattice sites, depending on the configuration of each site’s nearest neighborsNamin and Werner (2016). In particular, the number of nearest neighbors ranges from three to seven, resulting in varying well depths and tunneling rates.

The relative phases between the 5 input beams must be stable over a bandwidth comparable to the classical oscillation frequency within the individual lattice cites to avoid parametric heatingSavard et al. (1997), but the absolute values are not critical. Applying relative phases will alter the quasicrystal pattern (e.g. the individual frames of Fig. 8), but the quasicrystal symmetry itself is not dependent on having specific values of the phases. If the phases are intentionally shifted smoothly, the lattice potential evolves by exchanging nonlocal pairs of high and low points. This excitation is called a phason and is unique to quasicrystals. Further discussion of phasons follows in Sec. V.

The optical configuration is relatively robust to alignment errors of the fiber locations. Although it is difficult to quantify how these errors affect the potential, a reasonable qualitative evaluation is to look at the resulting Fourier transforms of the potential. We simulated randomly displacing the fibers in the transverse directions and found that for mean displacement errors $<$200\text{,}\mathrm{\SIUnitSymbolMicro m}$$ we still get 21 distinct Fourier peaks in two rings of 10 plus the DC peak. For larger displacement errors, the peaks begin to split, the ring structures in Fourier space break, and the resulting potentials develop striped structures. These tolerance simulation results make some intuitive sense: the displacement error of the beams must be less than the beams’ $1/e^{2}$ radius, which is also $200\text{\,}\mathrm{\SIUnitSymbolMicro m}$. We note that the potential may be monitored by directly imaging the beams, so any alignment errors can be readily corrected.

IV Proof-of-concept demonstration

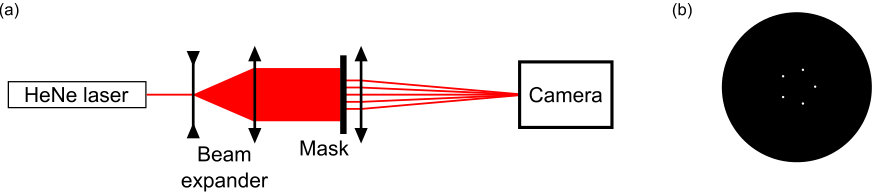

As a proof-of-concept demonstration of our method, we assembled a low-power system from a 2-mW HeNe laser, shadow mask approximating the apertures of the five collimation lenses, and a 500-mm focusing lens (Fig. 6). The shadow mask was made by poking holes into a piece of paper with a pin.

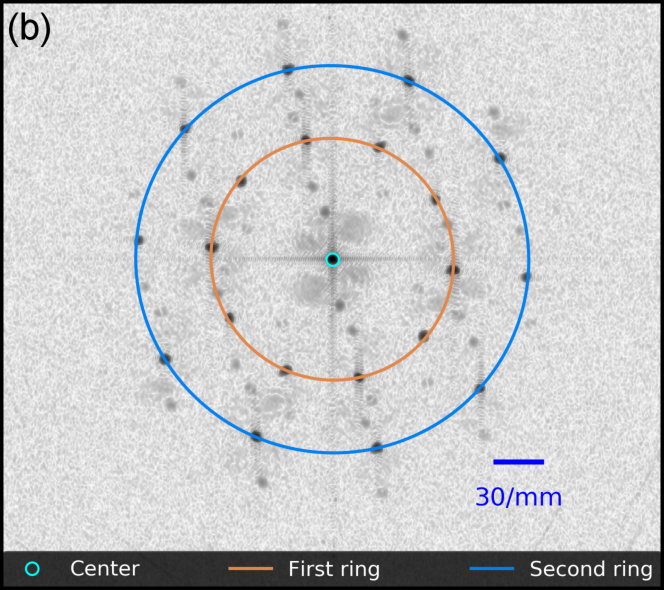

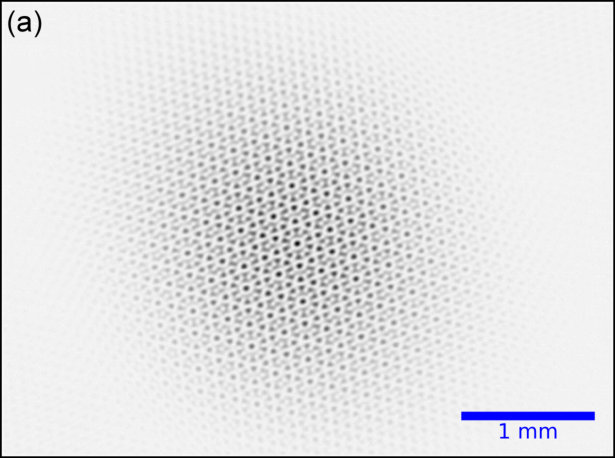

The interference pattern at the back focal point of the lens was imaged using a CCD camera (Fig. 7a). To verify the 5-fold rotational symmetry of the optical potential, we calculated the two-dimensional discrete Fourier transform of the image (Fig. 7b). The peaks are arranged in two rings of 10 peaks, consistent with 5-fold rotational symmetry, and the spatial frequencies of the peaks (Table 1) are consistent with the difference of the $\mathbf{k}$-vectors of the incident rays, as predicted by Eq. (2). The ratio of the spatial frequencies of the outer ring of peaks and the inner ring is equal to the golden mean $(1+\sqrt{5})/2\approx 1.618$, as predicted for regular quasicrystals with 5-fold rotational symmetryJanot (2012); Jannsen et al. (2018). Note that this mask method of generating the optical potentials is not suitable for use in the actual experiment because it is extremely inefficient with the laser power; the power throughput is only 0.1%.

V Modulation of quasicrystal potentials

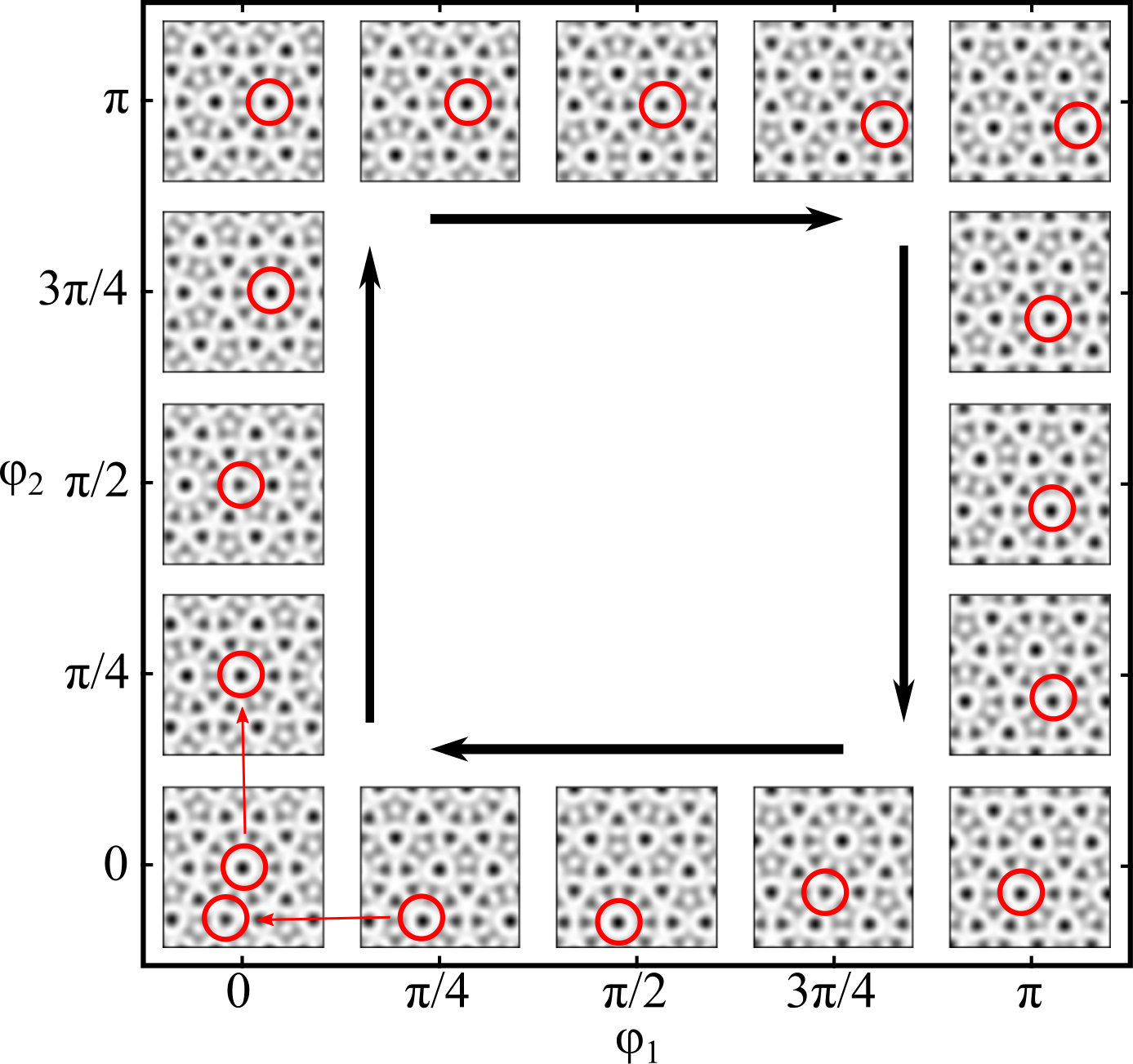

Phasons are a type of excitation unique to quasicrystals and to date unstudied in cold atoms systems. They can be created in our system by modulating the relative phases of the generating laser beams. As shown in Fig. 8, changing the phase of the beams generates a discontinuous translation of the potential pattern. However, unlike in periodic lattices, such as a 1D lattice, Eq. (3), the translation does not happen in physical space but in the higher-dimensional configuration spaceSocolar et al. (1986). Phason excitations mathematically fulfill a similar role to that phonons typically play in periodic systems. Unlike phonons, phasons represent nonlocal correlations between lattice sites as the lattice sites in the fictitious configuration space slide in and out of the cut representing physical space. In material systems, phasons are responsible for the diffuse background in x-ray scattering experimentsLètoublon et al. (2001); de Boissieu and Francoual (2005).

Controlling the relative phases of the interfering beams in real-time, for example using electro-optic modulators on each fiber (Fig. 1) or by modulating the temperatures or strains of the fibersLagakos et al. (1981), will generate phason excitations while the atoms are present. These modes are not directly accessible in solid materials, so measuring of them will provide a novel probe into quasicrystal physics. Modulating two or more phases in a closed cycle can result in net quantized translation of the particles, known as geometric or Thouless pumpingThouless (1983). Thouless pumping has recently been observed in other cold atom systems with topological orderMa et al. (2017); Bandres et al. (2016); Levy et al. (2015) and in particular bichromatic lattices, a type of one-dimensional quasicrystalLohse et al. (2015); Nakajima et al. (2016); Lu et al. (2016). This behavior is indicative of the underlying topological order of the system and can be used to empirically determine the Chern numbers of the quasicrystalKraus et al. (2012). Moving beyond adiabatic changes to the potential, rapid cyclic modulation of the phason modes may also induce topologically protected transport modes in the quasicrystalBandres et al. (2016).

Figure 8 shows a simulation of an adiabatic phason excitation. The phases of two of the beams are shifted in a cycle such that the final phase is the same as the initial phase, notably without invoking any $2\pi$ periodicity. Note that the circled well divides several times through the sequence, and that a particle that started in the initially highlighted well will have its wavefunction split and merged during these divisions, resulting in quantum entanglement of the wells in a way analogous to photons traversing a series of beamsplitters.

VI Conclusion

By utilizing nearly co-propagating beams, we have demonstrated the creation of 2D nonperiodic optical potentials that model quasicrystal behavior. Our system is compact and gives the user control of the lattice scale through the tilt angle of the beams. We also described how to create phason excitations though controlled phase modulation of the constituent beams. Furthermore, cycling of the beam phases will allow geometric pumping and measurement of topological parameters through transport measurements.

Funding

The Charles E. Kaufman Foundation, a member organization of the Pittsburgh Foundation (KA2015-79202).
