The influence of antiphase boundary of the MnAl $\tau$-phase on the energy product

TL;DR

This study investigates how antiphase boundary defects in MnAl τ-phase influence the energy product of permanent magnets, combining multiscale simulations and first-principles calculations to provide a comprehensive understanding.

Contribution

It introduces a multiscale approach linking atomistic, micromagnetic, and first-principles methods to quantify defect effects on magnetic properties of MnAl τ-phase.

Findings

Antiphase boundary defects reduce the energy product of MnAl τ-phase magnets.

The exchange interaction across defects can be accurately estimated from first-principles calculations.

Micromagnetic simulations reveal the impact of defect density on magnetic performance.

Abstract

In this work we use a multiscale approach toward a realistic design of a permanent magnet based on MnAl $\tau$-phase and elucidate how the antiphase boundary defects present in this material affect the energy product. We show how the extrinsic properties of a microstructure depend on the intrinsic properties of a structure with defects by performing micromagnetic simulations. For an accurate estimation of the energy product of a realistic permanent magnet based on the MnAl $\tau$-phase with antiphase boundaries, we quantify for the first time the exchange interaction strength across the antiphase boundary defect with a simple approach derived from the first-principles calculations. These two types of calculations performed at different scales are linked via atomistic spin dynamic simulations performed at an intermediate scale.

Figures

Equations

$$E(N_{cell})$$

Full text

MnAl has attracted a considerable interest since the discovery of the ferromagnetic $\tau$-MnAl phase in the early 1960s Kono ; Koch . The phase is metastable and forms for a concentration of Mn ions slightly higher than 50%. Mn and Al ions occupy the sites of the ordered L10 structure. This ferromagnetic phase exhibits a modest magnetization of 0.60 MA/m and an energy product $(BH)_{max}$ of 50 kJ/m3 Coey , but is appealing due to abundance and low cost of needed raw materials. However, the discovery of Nd-Fe-B permanent magnets had suspended further improvements of the $\tau$-MnAl ferromagnets for several decades. Although the advance in the energy product of rare-earth (RE) based magnets are not making further progress, it is their critical supply status that calls for developing alternative permanent magnets. From this perspective the $\tau$-MnAl phase with an estimated upper limit of $(BH)_{max}\approx$120 kJ/m3 could fill the niche between high-performance RE permanent magnets and general purpose ferrites. In practice, the maximum energy product of a magnetic material is affected by its microstructure, which, in turn, is determined by the methods of preparation. The L10 ordered MnAl shows potential in sense, and exhibits various types of defects, like anti-phase boundaries (APBs) Zijlstra and twins Bittner . After the formation of the $\tau$-phase the coercivity of the material is relatively low because of the presence of APBs Houseman . Both types of defects, APBs and twins may act as pinning centers for domain walls Jakubovics ; Thielsch . APBs may also be responsible for easy nucleation of domain walls. They could be created by a shear of the L10 lattice in the [101] direction by $(\vec{a}_{1}+\vec{a}_{3})/2$ giving rise to an anti-ferromagnetic (AFM) coupling between nearest Mn ions (Fig.1). As a result, the crystal is made of two antiparallel ferromagnetic regions, which lowers the energy product the system can host Zijlstra . Recent micromagnetic simulations have confirmed that both types of defects, APBs and twins, facilitate the domain wall nucleation and pinning Bance . The granular structure containing fine twining and APBs may reduce the $(BH)_{max}$ to just 5% of its theoretical maximum and should be avoided during the manufacturing process.

In a recent paper Pnieves , we have performed atomistic spin dynamics (ASD) simulations Eriksson on two-phase region of the MnAl $\tau$-phase to analyze the magnetic properties at the APB. Within the ASD the interacting magnetic ions are approximated by an effective 3D Heisenberg spin system and the dynamics is described by the stochastic Landau-Lifshitz-Gilbert (LLG) equations. By using the exchange coupling at the interface as a free parameter we have observed in the strong coupling regime the reorientation in the hard plane of the local magnetic moments of Mn atoms at the interface. This suggests that the nucleation process is favored at the APB if a strong antiferromagnetic interaction between Mn atoms exists at the interface. The critical value of the exchange interaction between Mn atoms at the APB, which leads to the formation of an APB, decorated with a domain wall, was calculated to be $\sim-10$ meV Pnieves .

In this work we aim to elucidate how the APB defects, decorated with a domain wall, influence the energy product of a permanent magnet based on MnAl $\tau$-phase. To obtain sensible results, we determine from ab-initio calculations the antiferromagnetic interaction between Mn atoms at the APB. We show that there indeed exists a strong antiferromagnetic interaction between Mn ions across the APB, which favors the nucleation process of reversed domains at very low field values at the defect. Using the obtained value of the antiferromagnetic exchange interaction between Mn atoms across the APB, we estimate the room temperature values of the anisotropy constant, saturation magnetization, and exchange stiffness via ASD calculations, and use them as an input to the micromagnetic simulations of realistic microstructure. We show in detail how the density of APBs lowers the coercive filed and decreases the energy product.

Determining the antiferromagnetic interaction between Mn atoms at the APB is central to this work. Usually, the exchange integrals $J_{ij}$ used to describe the interaction of spins in the Heisenberg model, are estimated from ab-initio calculations performed for the bulk. $J_{ij}$ are calculated generally by one of two methods. In one method one calculates the $J_{ij}$ via the Korringa-Kohn-Rostoker (KKR)-Green function formalism by considering the rotation of two spin moments at sites $i$ and $j$ with opposite angles and calculating the total energy variation Liechtenstein . This method readily provide the magnetic exchange interaction within the muffin-tin or atomic sphere approximation for metals, as well as for binary alloys through KKR-CPA scheme Faulkner . Another method is to use the frozen-magnon approach by calculating the total energy for a spiral magnetic configuration Rosengaard . Both methods are formally equivalent and complementary to each other Pajda . Within the framework of frozen-magnon approximation, the magnetic configuration is constrained to a spin-spiral with the wave vector $\mathbf{q}$ and the spin-wave energy $E(\mathbf{q})$ is calculated. Then, the exchange parameters $J_{ij}$ are obtained by Fourier-transformation.

In principle, one could advance both methods to calculate the exchange parameters for a structure with planar defects like interfaces or sandwiched layers with different magnetic properties. Here, however, we propose a basic approach to determine the $J_{ij}$ for atoms located at the interface, which is independent of the implementation of ab-initio method used to calculate the total energy of a magnetic structure. In the case of the APB it is based on the observation that the energy of magnetic interaction at the interface, $E_{\text{APB}}$, between two magnetic domains is mainly determined by the interaction between neighboring Mn ions at the interface. By interface energy per atom we understand the energy of a Mn atom at the interface in the average field created by surrounding atoms. The interface energy has mainly two contributions: one coming from spin-spin interaction within the same domain, and second from spin-spin interaction across the APB. The first contribution is identical for both collinear ferromagnetic (FM) and antiferromagnetic (AFM) spin configuration across the APB (see Ref. Pnieves ). The AFM configuration corresponds to a domain wall with a width equal to one lattice spacing. Let us denote the interaction between the Mn atoms located at positions $(0,0,0)$ and their first nearest neighbors at $(1/2,1/2,1/2)$ by $J_{AB}$, and between their second nearest neighbors by $J_{AC}$ and $J_{AD}$ (these second nearest neighbors are located at slightly different separation distances due to the relaxation of atomic positions at the APB). Then the second contribution to the interface energy per atom is given by $\pm 4(J_{AB}+J_{AC}+J_{AD}+...)$ for structures with AFM and FM collinear arrangements of spins across the planar interface, respectively (Fig.1). The second argument is that the energy difference between structures with AFM and FM collinear spin configurations across the interface is given by the difference of the interface energies, $\Delta E=E_{\text{APB}}^{\text{AFM}}-E_{\text{APB}}^{\text{FM}}$. The exchange parameters decrease with the interatomic distance. The second nearest Mn neighbors across the interface are located at distances almost twice larger than separation between nearest Mn atoms, thus, we may assume that the main contribution to the interface energy comes from the $J_{AB}$ term. In such a case, we can relate the difference in the interface energies of two configurations with the exchange integral between two neighboring Mn atoms: $J_{AB}=\Delta E/8$. In the case that the second nearest neighbors interactions are not negligible, then the $J_{AB}$ calculated here should be understood as an effective exchange interaction across the APB consistent with the coarse-grained model developed in Ref. Pnieves . Now, the problem of determining the $J_{ij}$ parameter is reduced to calculating the interface energy (the energy of a Mn atom at the planar defect).

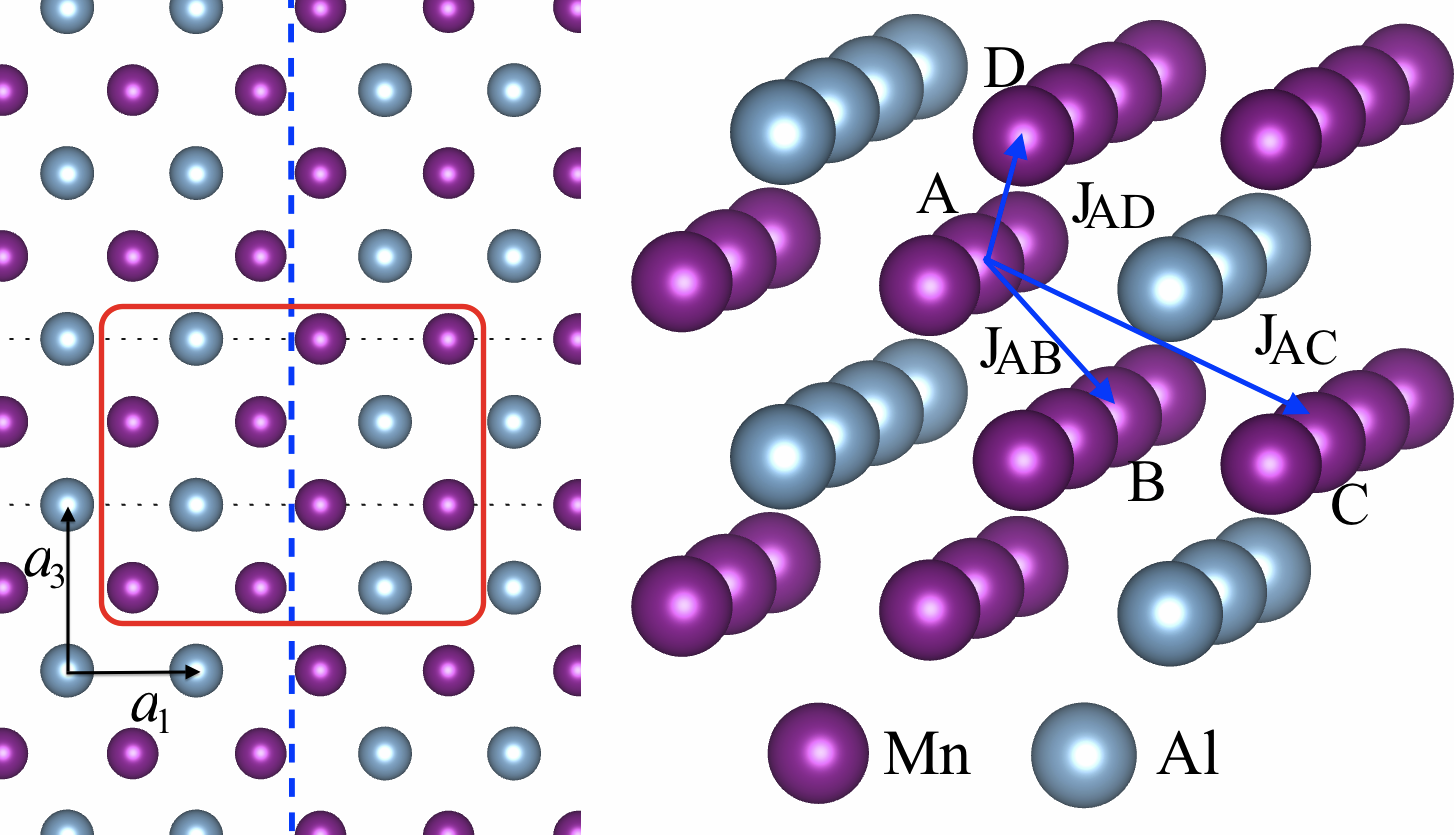

One may object that determining the interface energy is still not a trivial problem. We have realized that we can solve this problem by performing supercell calculations. In practical calculations the system with a single planar defect in the (100) plane is modeled as a supercell comprising two domains of $\tau$-MnAl periodically repeated in the [100] direction (Fig.1). The energy of the system with two regions of given collinear spin configuration is obtained in the limit of an infinitely large supercell. It is obvious, that the energy of the supercell, $E_{SC}$, divided by the number of atoms in the supercell, $N_{SC}$, should, in the limit of large supercell, converge to the value of the energy per atom in the bulk $\tau$-phase MnAl, $E_{bulk}$. The total energy of a supercell can be factorized into two terms, one accounting for the energy of atoms from the bulk like region, $E_{bulk}N_{bulk}$, plus the energy of atoms from the interface, $E_{\text{APB}}N_{\text{APB}}$, where $N_{bulk}+N_{\text{APB}}=N_{SC}$. Usually, a supercell comprises an integral number of unit cells. Due to the periodic boundary conditions our supercell model of the planar defect has two interfaces, thus two unit cells correspond to the interface region and the dependence of the energy per atom of a supercell as a function of the number of unit cells, $N_{cell}$, can be parametrized (according to the Heisenberg model) as:

[TABLE]

where parameters $a$ and $b$ would correspond to the $E_{bulk}$ and $E_{\text{APB}}$, respectively. Performing a set of energy calculations for different sizes of the supercell we can fit energy values to the Eq. 1 and obtain the energy of a Mn atom at the interface $E_{\text{APB}}=b$.

We have modeled the $\tau$-MnAl structure with ideal APB as a set of supercells of sizes $2N-1\times 1\times 1$, where $N=5,6,...,13$. Total energy of the system was calculated by using the VASP code VASP1 ; VASP2 . We have used PAW PBE 5.4 potentials PAW and an equally dense k-point mesh in the Brillouin zone. The energy cut-off was set to 450 eV and ions and supercell shape were optimized at each calculation. Performing a structural optimization is important for an accurate description of the interaction across the APB. With increasing the supercell size the average lattice parameters tend towards the $\tau$-MnAl bulk values, but the rate of convergence is quite slow. The analysis of interatomic distances shows that about 1% difference compared to the bulk structure occurs mainly in the vicinity of the APB, while atoms beyond next-nearest neighbors from the interface are bulk-like spaced even for small sizes of supercell. Finally, the estimation of the relaxation energy shows a similar (about 2 meV/atom difference) contribution to the interface energy due to lattice optimization for both types of APB. We show results of supercell calculations in Fig. 2. We can see that Eq. 1 perfectly fits calculated energy values and gives for the parameter $a=-6.631$ eV exactly the ground state energy for the bulk L10 MnAl Pnieves structure for both, FM and AFM collinear spin arrangements across the interface. This fitting provides us also with the energy $b$ of the Mn atoms at the interface, and the difference between these energies for two different types of APB is $\Delta b=b_{\text{AFM}}-b_{\text{FM}}=-143$ meV/atom. This difference comes entirely from different collinear spin arrangements across the interface and allow us to determine the value of the exchange integral to be $J_{AB}=\Delta b/8=-17.9$ meV.

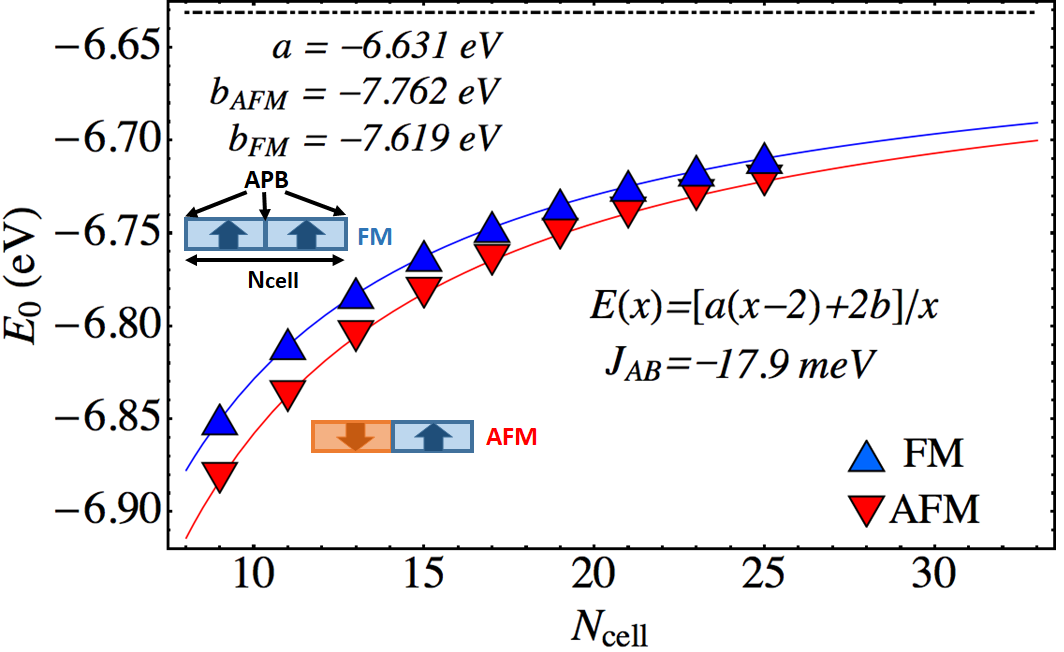

Our calculated value of the exchange interaction between Mn atoms at the APB is almost two times stronger than the critical one Pnieves . Thus, we demonstrate that the antiferromagnetic interaction between Mn atoms at the interface of a MnAl $\tau$-phase with APBs is strong enough to form domain walls at these defects, as it is observed in experiments Houseman ; Jakubovics ; Jaku ; Land . Additionally, the fact that the energy per atom in supercells with APBs is lower than in bulk ($a$), see Fig. 2, suggests that the formation of these planar defects may be energetically favorable and explains why they frequently form and stabilize in the synthesis processes.

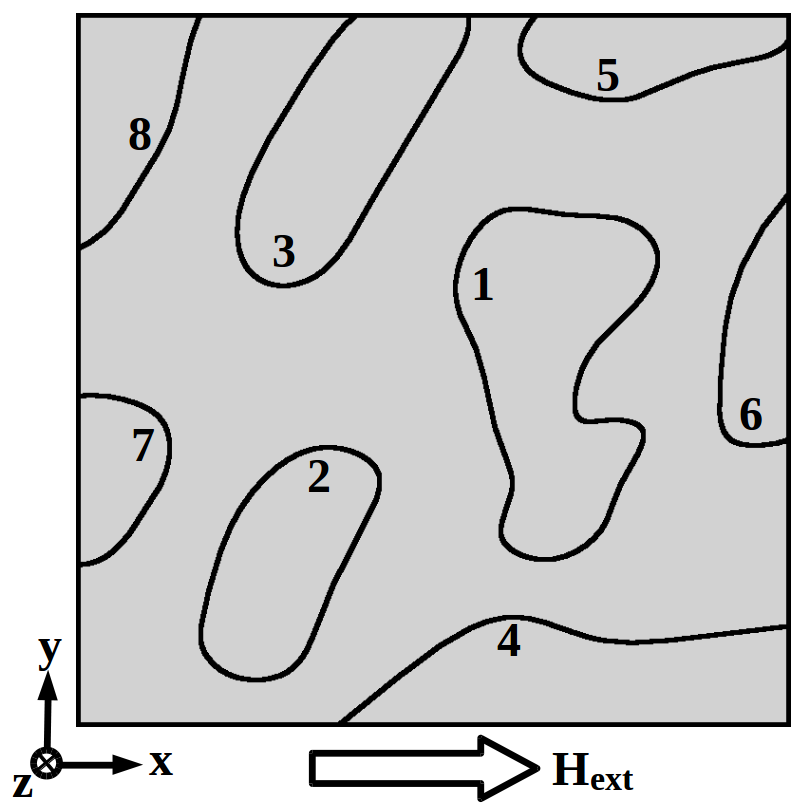

The presence of APBs has a significant influence on the magnetization reversal process. APBs act as nucleation sites for reversed domains and as pinning sites for domain walls. An antiphase boundary helps to initiate magnetization reversal. However, once a reversed domain is formed the domain wall gets pinned at the crystallographic defect. Using the room temperature material properties of MnAl (anisotropy constant $K=0.7$ MJ/m3, a magnetization $\mu_{0}$M${}_{\mathrm{s}}=0.8$ T and an exchange stiffness $A=7.6$ pJ/m) derived from first principle and ASD simulations Pnieves , we computed the influence of APBs on magnetization reversal by micromagnetic simulations. We created a micromagnetic model from a TEM micrograph of APBs published in 2001 Yanar (Fig. 3). In the model we neglected other defects such as twins Bittner . An APB is modeled by an antiferromagnetic coupling across the interface, whereby we use the same model as for antiferromagnetic coupling through thin Ru layers in magnetic recording media Dittrich ; Bance . Assuming a collinear AFM spin configuration across the APB and taking the exchange integral at the interface $J_{AB}=-17.9$ meV we derive an interface exchange energy density of $4J_{AB}/(a_{1}\cdot a_{3})=-120$ mJ/m2, where $a_{1}=0.276$ nm and $a_{3}=0.347$ nm are the lattice parameters of MnAl $\tau$-phase. At room temperature, taking into account a reduction of the micromagnetic exchange at the interface by thermal activation of both sides of the APB ($\propto m_{e}(T)^{2}$, where $m_{e}(T)$ is the equlibrium reduced magnetization at temperature T of bulk MnAl obtained by ASD Pnieves ) we arrive at an effective interface exchange energy density of $-71$ mJ/m2 (note that a higher value is obtained by rescaling temperature to experimental $m_{e}(T)$ in the ASD model Pnieves ; Evans ).

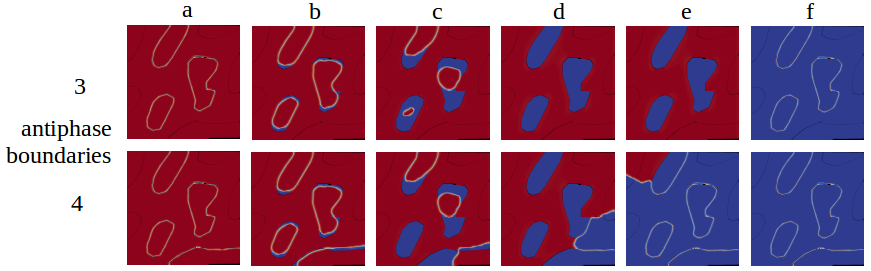

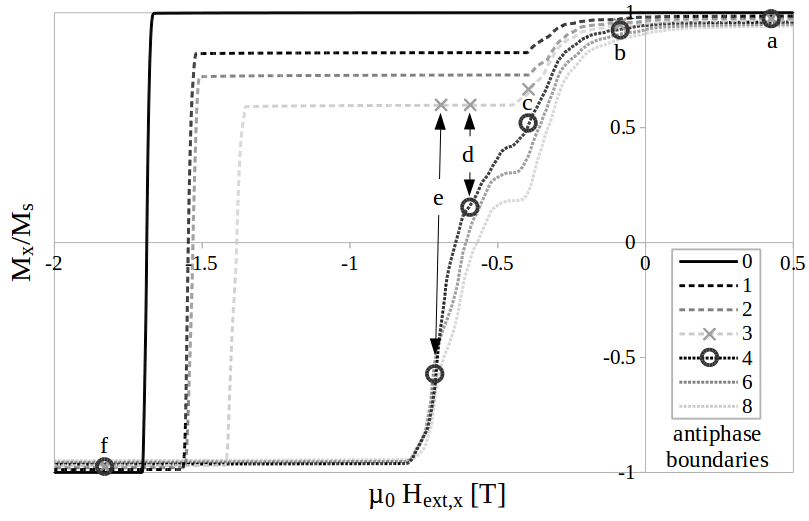

Fig. 4 shows the demagnetization curves for 0 to 8 activated APBs of the model in Fig. 3 using the above mentioned parameters. The APBs are activated consecutively in their respective order. The remanent magnetization decreases with increasing number of antiphase boundaries per grain. The reason why demagnetization curve in Fig. 3 has an unusual shape it is because we simulate a single grain, including more grains gives a typical, smooth and symmetric M vs H curve. The mechanism which explains the decrease of coercive field with the number of defects is the following: defects in the center of the model act as pinning sites (1–3 APBs), however defects close to the boundary nucleate the sample at low fields (4–8 APBs). Similarly, the energy density product decreases with increasing number of ABPs. The energy density product decreases rapidly, ranging from $(BH)_{\mathrm{m}ax}=114$ kJ/m3 for 1 APB per grain to $(BH)_{\mathrm{m}ax}=84$ kJ/m3 for 8 APBs per grain. Typically, in experiment one observes a $(BH)_{\mathrm{m}ax}$ around 50 kJ/m3 Coey , which suggests that there are more APBs per grain in the experimental samples. This is indeed correct, because we have chosen only a small section of the TEM image in  Yanar . Present calculations can reproduce observations with the number of APB being a determining factor.

In summary, we have performed numerical simulations at different scales to estimate the energy product of a realistic permanent magnet based on MnAl $\tau$-phase with APBs. First, we have obtained for the first time the value of the antiferromagnetic exchange interaction between Mn atoms across the APB by performing supercell electronic structure calculations. The calculated exchange interaction at the APB of MnAl $\tau$-phase is strong enough to form an APB decorated with a domain wall, which increase the phase stability, explaining why it is hard to avoid the formation of these defects in the synthesis processes. Second, we used previously calculated room temperature values of the anisotropy constant, saturation magnetization, and exchange stiffness by ASD simulations as input for micromagnetic simulations of the model of a MnAl $\tau$-phase with APBs. The micromagnetic modeling shows that ABPs deteriorate the loop shape through nucleation of reversed domains at very low field values and successive domain wall pinning. Especially defects close the boundary nucleate the sample rapidly. The energy density product decreases with increasing the number of antiphase boundaries.

Acknowledgment. This work was support by the EU H2020 project Novamag (Grant no 686056) and the Austrian Science Fund FWF (I3288-N36). O.E., H.C. H and E.K.D. also acknowledge support from the Swedish Research Council (VR), the foundation for strategic research (SSF), eSSENCE and STandUPP.
