Quantum correlations in neutrino oscillations in curved spacetime

TL;DR

This paper explores how gravity influences neutrino-antineutrino oscillations and quantum correlations, revealing that stronger gravitational fields suppress entanglement and affect non-classicality indicators.

Contribution

It introduces a study of gravity-induced neutrino-antineutrino oscillations using entanglement measures and non-classicality witnesses in curved spacetime, highlighting the impact of gravity on quantum correlations.

Findings

Entanglement decreases with increasing gravitational field strength.

Flavor entropy reveals suppression of quantum correlations due to gravity.

Mermin and Svetlichny inequalities relate to neutrino mass degeneracy.

Abstract

Gravity induced neutrino-antineutrino oscillations are studied in the context of one and two flavor scenarios. This allows one to investigate the particle-antiparticle correlations in two and four level systems, respectively. Flavor entropy is used to probe the entanglement in the system. The well known witnesses of non-classicality such as Mermin and Svetlichly inequalities are investigated. Since the extent of neutrino-antineutrino oscillation is governed by the strength of the gravitational field, the behavior of non-classicality shows interesting features as one varies the strength of the gravitational field. Specifically, the suppression of the entanglement with the increase of the gravitational field is observed which is witnessed in the form of decrease in the flavor entropy of the system. The features of the Mermin and the Svetlichny inequalities allow one to make statements about the degeneracy of neutrino mass eigenstates.

Figures

Equations

$$\left[i{\gamma }^{\mu }{\partial }_{\mu }-m+i{\gamma }^{\mu }{A}_{\mu }^g+{\gamma }^{\mu }{\gamma }^5{B}_{\mu }^g\right]\psi =0,$$

$$(H+\vec{\sigma }.{\vec{B}}^g{)}^2={\vec{p}}^2+{B_0^g}^2+m^2-2B_0^g\vec{\sigma }.\vec{p},$$

$$H=-\vec{\sigma }.{\vec{B}}^g\pm \left[\frac{{\vec{p}}^2+{B_0^g}^2}{2m}+m-\frac{B_0^g\vec{\sigma }.\vec{p}}{m}\right].$$

$$B_0^g=-\frac{4az}{{\bar{\rho }}^2\sqrt{2r^3}}\frac{\hslash c}{r_g},$$

$$B_0^g=\frac{4+3y^2-2y}{8+2y^2}\hslash c.$$

$$|{\nu }_1(0)⟩$$

$$|{\nu }_2(0)⟩$$

$$\tan \theta =\frac{m}{B_0^g+\sqrt{{B_0^g}^2+m^2}},\varphi =\arg (-m),$$

$$|{\nu }_1(t)⟩$$

$$|{\nu }_2(t)⟩$$

$$E_{\psi }=\sqrt{(\vec{p}-{\vec{B}}^g{)}^2+m^2}+B_0^g,$$

$$E_{{\psi }^c}=\sqrt{(\vec{p}+{\vec{B}}^g{)}^2+m^2}-B_0^g.$$

$${\mathcal{P}}_s(t)=1-{\sin }^{2}2\theta {\sin }^2\{(B_0^g-|\overrightarrow{B^g}|)(t)\}.$$

$$|{\nu }_1(0)⟩\equiv |10⟩,|{\nu }_2(0)⟩\equiv |01⟩.$$

$$|{\nu }_1(t)⟩$$

$$|{\nu }_2(t)⟩$$

$${\mathcal{U}}_{11}(t)={\cos }^2\theta e^{-i{E}_{{\psi }^c}t}+{\sin }^2\theta e^{-i{E}_{\psi }t},$$

$${\mathcal{U}}_{12}(t)=\sin \theta \cos \theta (e^{-i{E}_{\psi }t}-e^{-i{E}_{{\psi }^c}t}),$$

$${\mathcal{U}}_{21}(t)=\sin \theta \cos \theta (e^{-i{E}_{\psi }t}-e^{-i{E}_{{\psi }^c}t}),$$

$${\mathcal{U}}_{22}(t)={\sin }^2\theta e^{-i{E}_{{\psi }^c}t}+{\cos }^2\theta e^{-i{E}_{\psi }t}.$$

$$\mathcal{S}$$

$$-\sum _{\beta =1,2}(1-|{\mathcal{U}}_{\alpha \beta }(t){|}^2){\log }_2(1-|{\mathcal{U}}_{\alpha \beta }(t){|}^2).$$

$$\left(\begin{array}{c}{\psi }_e^c\\ {\psi }_{\mu }^c\\ {\psi }_e\\ {\psi }_{\mu }\end{array}\right)=\text{T}\left(\begin{array}{c}{\chi }_1\\ {\chi }_2\\ {\chi }_3\\ {\chi }_4.\end{array}\right),$$

$$=$$

$$\tan {\theta }_{e,\mu }$$

$$\tan {\varphi }_{1,2}$$

$$M_{1,2}$$

$$M_{3,4}$$

$$m_{(e,\mu )1}=-\sqrt{(B_0^g{)}^2+m_{e,\mu }^2}{m}_{(e,\mu )2}=\sqrt{(B_0^g{)}^2+m_{e,\mu }^2},$$

$$|{\psi }_e^c⟩\equiv {|1⟩}_{\bar{e}}\otimes {|0⟩}_{\bar{\mu }}\otimes {|0⟩}_e\otimes {|0⟩}_{\mu },$$

$$|{\psi }_{\mu }^c⟩\equiv {|0⟩}_{\bar{e}}\otimes {|1⟩}_{\bar{\mu }}\otimes {|0⟩}_e\otimes {|0⟩}_{\mu },$$

$$|{\psi }_e⟩\equiv {|0⟩}_{\bar{e}}\otimes {|0⟩}_{\bar{\mu }}\otimes {|1⟩}_e\otimes {|0⟩}_{\mu },$$

$$|{\psi }_{\mu }⟩\equiv {|0⟩}_{\bar{e}}\otimes {|0⟩}_{\bar{\mu }}\otimes {|0⟩}_e\otimes {|1⟩}_{\mu }.$$

$$P(a_1{a}_2{a}_3)=\int d\lambda \rho (\lambda )P_1(a_1|\lambda )P_2(a_2|\lambda )P_3(a_3|\lambda ),$$

$$P_B(a_1{a}_2{a}_3)=\sum _{k=1}^3{P}_k\int d\lambda {\rho }_{ij}(\lambda )P_{ij}(a_i{a}_j|\lambda )P_k(a_k|\lambda ).$$

$$M_4$$

$$+(AB{C}^{\prime }{D}^{\prime }+A{B}^{\prime }C{D}^{\prime }+A{B}^{\prime }{C}^{\prime }D+A^{\prime }BC{D}^{\prime }+A^{\prime }B{C}^{\prime }D$$

Full text

I Introduction

The phenomenon of neutrino oscillation is well known and establishes the non-zero mass of neutrinos. This idea was first introduced by Pontecorvo to explain the solar neutrino problem and later experimentally confirmed by Super-Kamiokande Sup (2003) and Sudbury Neutrino Observatory (SNO) Ahmad (2002). Till date, several experiments using solar, atmospheric, reactor and accelerator neutrinos have analyzed the data to calculate the oscillation parameters such as mixing angles and mass squared differences. Some of the upcoming experiments are planning to resolve some queries in neutrino sector like, CP-violating phase Schechter and Valle (1981), type of mass hierarchy, absolute mass scale of neutrinos Kobzarev et al. (1981) and existence of sterile neutrinos.

The effect of gravitational field on neutrino oscillation was also studied Sinha and Mukhopadhyay (2008). It was shown that while a nonzero (Majorana) mass of neutrinos is required for the neutrino-antineutrino mixing, for oscillation between neutrino and antineutrino (or their mass eigenstates) to occur, their energies must be split. This splitting of energy due to gravitational effect, “gravitational Zeeman effect”, also gives rise to the effective charge-parity-time reversal violation, as the effective masses (pertaining to the mass eigenstates) are different Mukhopadhyay (2007). Hence, along with the lepton number violation in the neutrino sector (due to Majorana mass), gravitational Zeeman effect leads to neutrino and antineutrino oscillation. In fact, gravitational Zeeman effect has many other consequences, e.g. neutrino asymmetry, baryogenesis, experimental tests of curvature couplings of spinors etc. Mohanty et al. (2002); Mukhopadhyay (2005); Debnath et al. (2006); Mavromatos and Sarkar (2013); Cuesta (2017). Moreover, the geometric phase in neutrinos has been a part of various studies in this context Blasone et al. (1999); He et al. (2005); Wang et al. (2001); Dajka et al. (2011); Mehta (2009); Dixit et al. (2018a). It is well-known that the neutrinos propagating in a varying magnetic field acquire a geometric phase Joshi and Jain (2016). However, the Zeeman like splitting was also shown to give rise to a geometric phase where the space-time curvature plays the role of the magnetic field Mukhopadhyay and Ganguly .

Gravitational field also modifies the mixing. In absence of gravity, this mixing is passive in the sense that the value of mixing angle is always $\pi/4$. The effect of gravity leads to active mixing, which depends on the strength of charge-parity-time reversal violation being determined by the strength of gravity itself. The gravity induced neutrino-antineutrino mixing also affects the flavor oscillations, thereby leading to modified neutrino oscillation even in the flavor sector. This naturally invites the investigation of different aspects of neutrino oscillations. In this direction, the present work is devoted to analyzing the neutrino-antineutrino mixing using various tools of quantum foundations.

Among the celebrated notions of quantum foundations are realism and locality. The former says that the existence of an observable quantity does not depend on the observer, while the latter holds that the information cannot reach instantaneously from one point of space to another. These two concepts were used by J. Bell to develop the famous Bell inequity (BI) Bell (1964), the violation of which rules out the hypothesis of the hidden variable theory as an alternative of quantum mechanics. The Bell type inequalities have been a subject matter of various works, for example, in optical and electronic systems Aspect et al. (1981); Tittel et al. (1998); Lanyon et al. (2013); Chakrabarty et al. (2011), in particle physics systems such as mesons Banerjee et al. (2016); Naikoo et al. (2018) and neutrinos Caban et al. (2006); Bramon et al. (2007); Alok et al. (2016); Banerjee et al. (2015); Cervera-Lierta et al. (2017); Kerbikov (2018); Fu and Chen (2017); Richter-Laskowska et al. (2018); Dixit et al. (2018b). A time analog of the Bell inequality, known as Legget-Garg inequality has gained a lot of attention recently Nikitin et al. (2015); Naikoo et al. (2017). The various avatars of Bell inequality have been developed to the study of nonlocality in a multipartite (more than two) systems, such as Mermin and Svetchlichny inequalities. Such manifestation of BI becomes important, for example, when dealing with the three flavors neutrino oscillation.

In this work, we explore various spatial quantum correlations in neutrinos propagating and oscillating in curved spacetimes. We have considered one and two-flavor neutrino cases, which lead to two- and four-level systems of neutrino-antineutrino oscillation, respectively. To study the correlation measures, the idea of mode entanglement is used Blasone et al. (2009), as discussed ahead.

The plan of this paper is as follows. In section II we briefly review the gravitational Zeeman effect. This is followed by a discussion of quantum correlations in one and two-flavor neutrino scenarios in section III. Section IV is devoted to the summary and conclusion.

II Gravitational “Zeeman effect”

Dirac equation in the presence of background gravitational fields, in a local inertial coordinate, reduces as (see, e.g., Birrell and Davies (1984); Kaku (1993); Mukhopadhyay (2007); Schwinger (2018))

[TABLE]

where $A^{g}_{\mu}$ and $B^{g}_{\mu}$ are the gravitational 4-vector potentials (gravitational coupling with the spinor), $m$ is the mass of spinor, and $\gamma^{5}=\gamma_{5}=i\gamma^{0}\gamma^{1}\gamma^{2}\gamma^{3}$ as usual. Here we choose $\hbar=c=1$. For simplicity, in rest of the discussion we retain and explore the consequence of the axial-vector-like term only in equation which suffices for the present purpose. Nevertheless, the vector-like term might be anti-Hermitian as well in a local coordinate (depending on the spacetime nature) and can be removed from the total Lagrangian when added to its complex conjugate part. This is particularly so for Majorana neutrinos, when massive neutrinos are most plausibly believed to be Majorana typed. Nevertheless, such a vector-like anti-Hermitian term would not contribute to the effective energy of the particle with an appropriate definition of dot-product in curved spacetime Schwinger (2018); Huang and Parker (2009).

Now for the nontrivial solution of $\psi$, the Hamiltonians of the spin-up and spin-down particles are given by

[TABLE]

where $B^{g}_{0}$ is the temporal component of $B^{g}_{\mu}$. In the regime of weak gravity and when $m$ is much larger than the rest of the terms in the R.H.S. of Eq. (2), it reduces to

[TABLE]

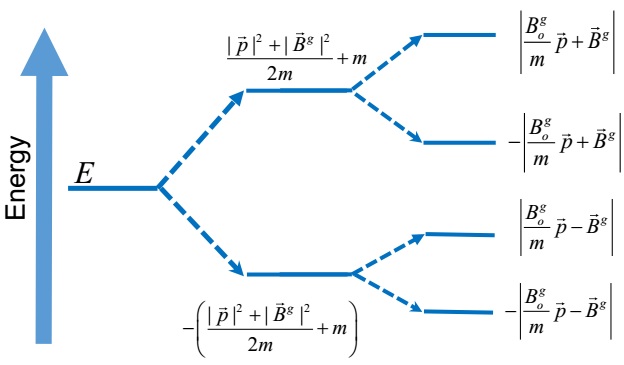

There are two-fold splits in dispersion energy, governed by two terms associated with the Pauli spin matrix, between up and down spinors for positive and negative energy solutions. See Fig. 1 demonstrating the same.

In order to have nonzero $B^{g}_{\mu}$, spherical symmetry has to be broken, hence in Schwarzschild geometry it vanishes. In Schwarzschild metric, any possible effect would arise from $A^{g}_{\mu}$, which is removed in the present formalism. Indeed it is known Obukhov et al. (2009); Dvornikov (2006) that spin evolution in spherical symmetric spacetime could arise only from an imaginary Lorentz vector-like term. On the other hand, in Kerr geometry $B^{g}_{\mu}$ survives. Also it survives in, e.g., early universe under gravity wave perturbation, Bianchi II, VIII and IX anisotropic universes. Note that in an expanding universe, gravitational potential $B^{g}_{\mu}$ turns to be constant at a given epoch which could act as a background effect.

In Kerr-Schild coordinate, after putting $\hbar$ and $c$ appropriately, the temporal part of $B^{g}_{\mu}$ reads as

[TABLE]

where $\bar{\rho}^{2}=2r^{2}+a^{2}-x^{2}-y^{2}-z^{2}$, $r$ is the radial coordinate of the system expressed in units of $r_{g}$, $r_{g}=GM/c^{2}$, $M$ and $a$ (varying from $-1$ to $+1$) are respectively mass and dimensionless angular momentum per unit mass of the black hole, $G$, $c$ and $\hbar$ are respectively Newton’s gravitation constant, speed of light and reduced Planck’s constant. Naturally, $B^{g}_{0}$ survives (and is varying with space coordinates) for any spinning black hole leading to gravitational Zeeman effect.

In Bianchi II spacetime with, e.g., equal scale-factors in all directions, $B^{g}_{0}$ survives as

[TABLE]

III Quantum correlations in neutrinos

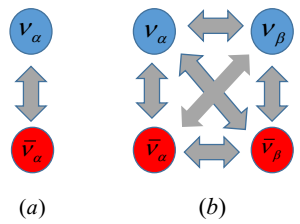

We are going to analyze the neutrino anti-neutrino oscillations in one and two flavor scenarios, which can be viewed as two and four level systems, respectively. The schematic diagram is given in Fig. 2.

III.1 Neutrino-antineutrino mixing in single flavor scenario

Let us consider, in Weyl representation, a 2-level system describing the mixing of neutrino ($\psi$) and antineutrino ($\psi^{c}$) Barenboim et al. (2002) in the presence of gravitational coupling. We can express the states with known mass (but unknown lepton number states, in the present case spin-states) in terms of states with known lepton/spin-states or vice versa. This is in the spirit of mixing in the neutral kaons, differing by two units of strangeness, whereas for neutrino and antineutrino it differs by two units of lepton number. The corresponding mass eigenstates for a particular flavor at $t=0$ are Mukhopadhyay (2007); Sinha and Mukhopadhyay (2008)

[TABLE]

when

[TABLE]

where $m$ is the Majorana mass of neutrino. Note that the mixing is maximum for $B_{0}^{g}=0$. However, at an arbitrary time $t$ the mass eigenstates are

[TABLE]

where the dispersion energies for neutrino and antineutrino respectively, due to gravitational Zeeman-splitting, from Eq. (2) are given by

[TABLE]

For ultra-relativistic neutrinos, $m\ll|\vec{p}|$ leading to $E_{\psi}-E_{\psi^{c}}\approx 2(B_{0}^{g}-|\vec{B}^{g}|)$, the survival probability of $\nu_{1}$ at time $t$ can be expressed as

[TABLE]

Note that $(\nu_{1}(0),\nu_{2}(0))$ is just the transformed spinor of original $(\psi^{c},\psi)$. In the limit of zero gravitational effect, i.e., $B_{\mu}^{g}\rightarrow 0$, $\mathcal{P}_{s}(t)\rightarrow 1$. Thus the neutrino-antineutrino oscillations primarily occur due to non-zero value of the gravitational potential, when the present analysis is performed for ultra-relativistic neutrinos.

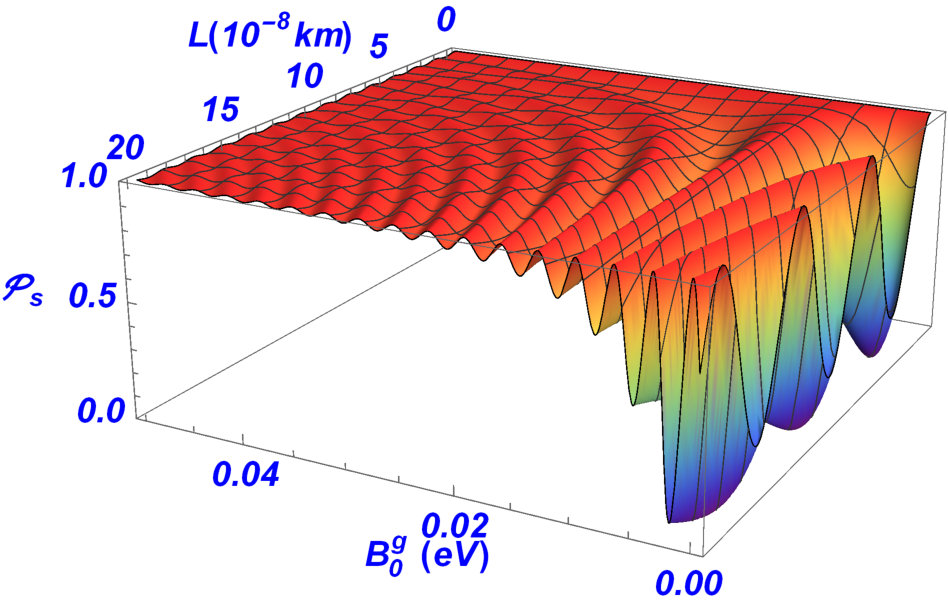

In Fig. 3a, the survival probability for $\nu_{1}\leftrightarrow{\nu}_{2}$ oscillations is shown as a function of gravitational potential and the distance ($L\approx ct$ in ultra relativistic limit 111Here, entire analysis is performed in local inertial coordinates. Hence, at each point, all the special relativistic norms are conveniently satisfied such that at a given local point, $B_{\mu}^{g}$ appears as constant background field Sinha and Mukhopadhyay (2008).) traveled by the neutrino/antineutrino. The survival probability can be seen to approach its maximum value unity as the gravitational potential increases. This implies that gravity suppresses the neutrino-antineutrino oscillations for a fixed $m$. Further, as noted earlier, the neutrino-antineutrino oscillation approaches maximum when $B_{0}^{g}\rightarrow 0$.

III.1.1 von Neumann entropy in oscillation

The neutrino-antineutrino system can be treated as an effective two qubit system Blasone et al. (2009); Alok et al. (2016); Banerjee et al. (2015); Blasone et al. (2014) with the following occupation number representation of states defined in Eq. (III.1) as

[TABLE]

The notation $\ket{10}$ amounts to asking whether we have a $\ket{\nu_{1}}$ state or not. In this notation, one can finally write

[TABLE]

where the coefficients can be obtained from Eqs. (III.1) and (III.1) as

[TABLE]

A standard measure of entanglement for pure states, of form Eq. (III.1.1), is given by von Neumann entropy

[TABLE]

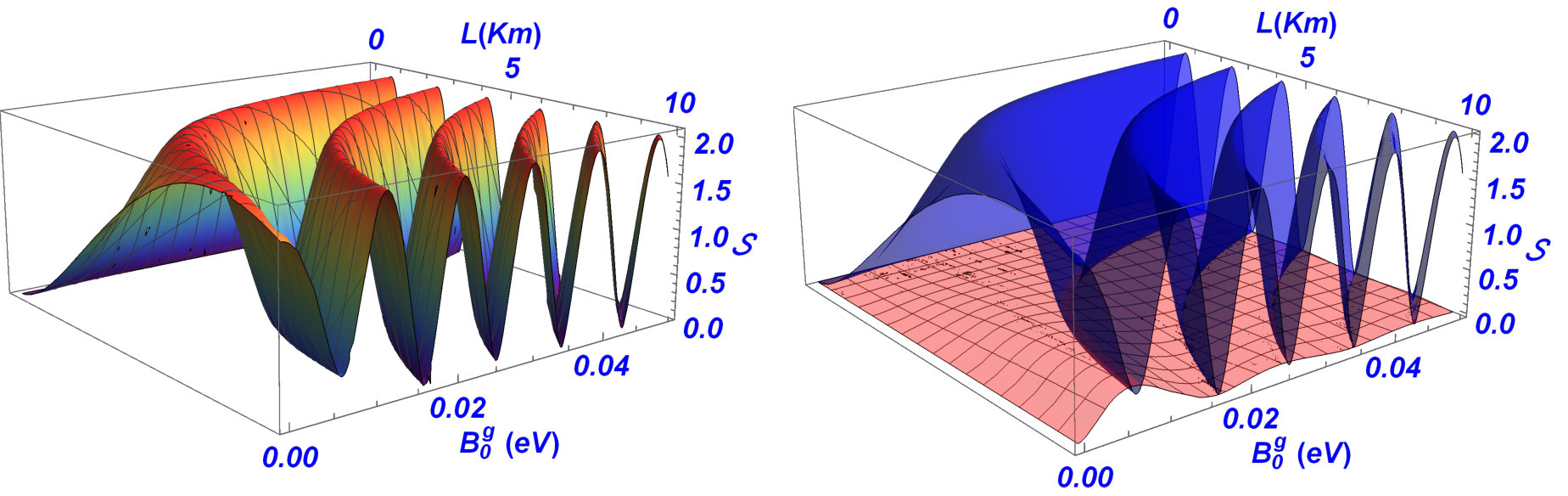

Here $\alpha=1~{}(2)$ corresponds to the $\nu_{1}$ ($\nu_{2}$) state. For the $\nu_{1}\leftrightarrow\nu_{2}$ oscillation, Fig. 3b shows the variation of $\mathcal{S}$ as a function of $B^{g}_{0}$ and $L$. The existence of entanglement is implied by $\mathcal{S}>0$. The von-Neumann entropy, as an entanglement measure, is suitable for neutrino system since it can be expressed in terms of the survival and transition probabilities, which are experimentally measurable quantities Alok et al. (2016). The increase in the gravitational potential is found to decrease the entanglement in the neutrino-antineutrino system for a fixed $m$. Further, the entropy attains its maximum value when the survival (and hence transition) probabilities, of neutrino and antineutrino, are equal.

III.2 Two-flavor oscillation with neutrino-antineutrino mixing

In this case, the flavor and mass eigenstates are related via a unitary matrix T as follows Sinha and Mukhopadhyay (2008):

[TABLE]

where

[TABLE]

The mixing angles are related to the masses and the gravitational scalar potential as Sinha and Mukhopadhyay (2008)

[TABLE]

The masses corresponding to the mass eigenstates are given as

[TABLE]

with

[TABLE]

and $m_{e\mu}$ being the mixing mass.

Now the system of 2-flavor neutrino oscillations under the influence of neutrino-antineutrino mixing, due to gravitational field, can be treated as a 4-qubit system. The occupation number representation can be given as

[TABLE]

Further, Mermin inequality is a generalized form of Bell inequality and its violation indicates the standard nonlocal correlations existing among different parties in a multipartite system Mermin (1990). This means that the probability distribution $P$ (say for a tripartite system) cannot be written in the local form

[TABLE]

where $\lambda$ is the shared local variable and $a_{1}$, $a_{2}$, $a_{3}$ are the outcomes of the measurements. However, this does not ensure the genuine multipartite nonlocality, i.e., if any two subsystems are nonlocally correlated, but uncorrelated from the third one, Mermin inequality can still be violated Collins et al. (2002); Scarani and Gisin (2001). To probe genuine nonlocal correlations, we make use of the Svetlichny inequality which is based on hybrid nonlocal-local realism Svetlichny (1987) as follows

[TABLE]

Here the subscript $B$ stands for bipartition sections. For a 4-qubit-system the Mermin ($M_{4}$) Alsina and Latorre (2016) and Svetlichny ($S_{4}$) Bancal et al. (2011) parameters are defined as

[TABLE]

[TABLE]

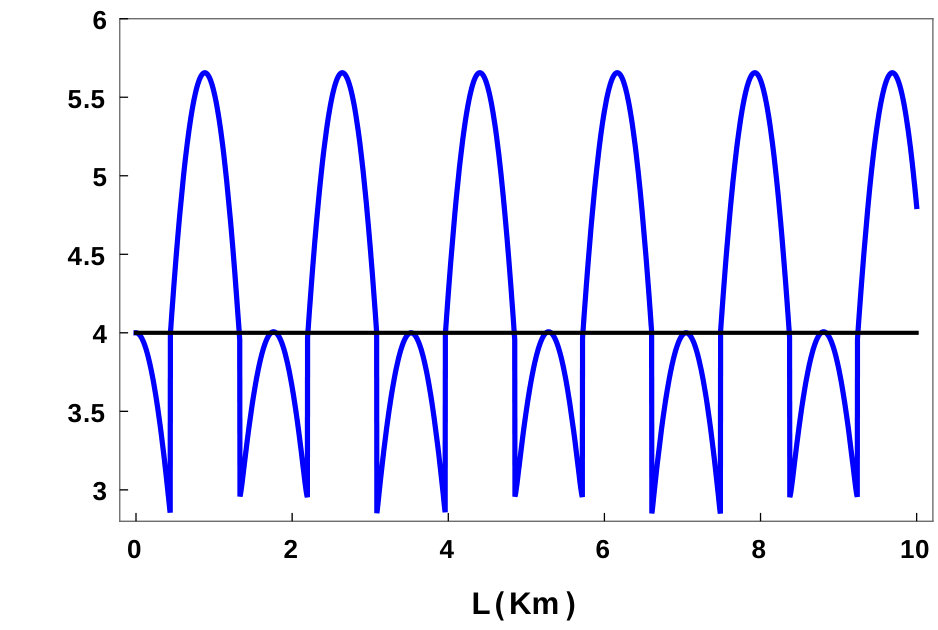

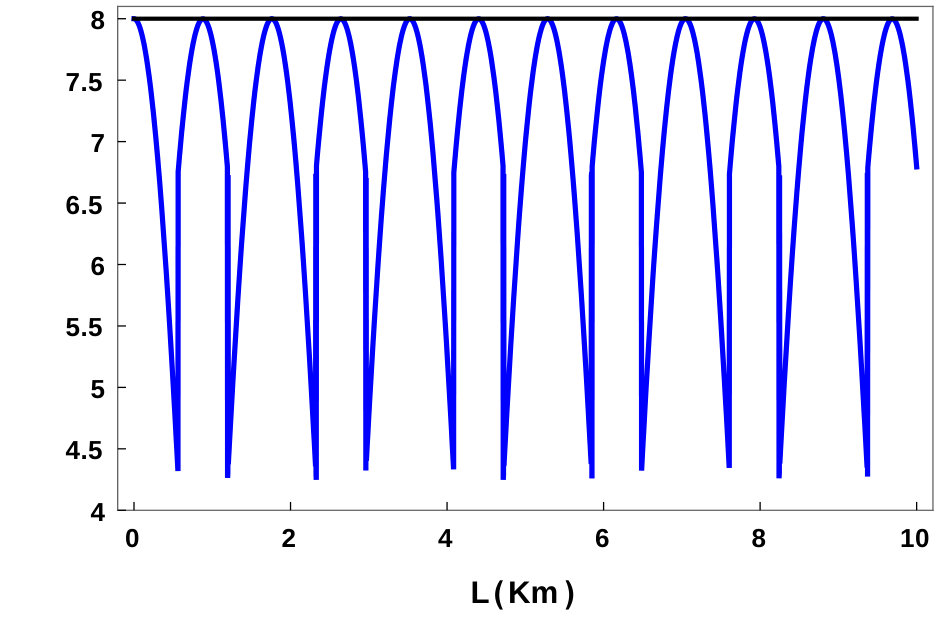

Here, $X$ and $X^{\prime}$ ($X=A,B,C,D$), are two different measurement settings pertaining to each qubit. The classical bounds on these parameters are $M_{4}\leq 4$ and $S_{4}\leq 8$. It is important to note that for the violation of Mermin inequality, at least one bipartite section must have the nonlocal correlations, while the Svetlichny inequality will be violated only when all the parties are nonlocally correlated.

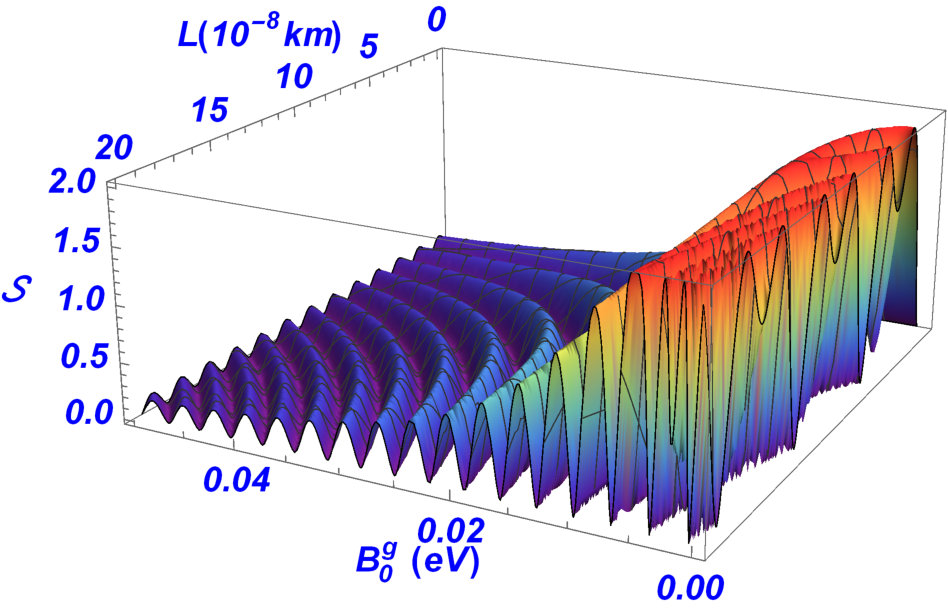

In Fig. 4, the variation of von-Neumann entropy ($\mathcal{S}$) is depicted with respect to the distance $L$ traveled by neutrinos and the gravitational potential $B_{0}^{g}$. In two flavor case the state of the system has four degrees of freedom to oscillate between. With initial state as $\nu_{e}$, oscillations occur between $\nu_{e}$, $\nu_{\mu}$, $\bar{\nu}_{e}$ and $\bar{\nu}_{\mu}$ flavor modes of the system. Figure 4a depicts the total flavor entropy with contribution from all the available modes of oscillation, while in Fig. 4b the contribution from particle and antiparticle modes separately is shown. For the sake of clarity, we have enhanced the magnitude of $\mathcal{S}$ by 10 times for antineutrino case. The particle degrees of freedom contribute more to $\mathcal{S}$ in comparison to the antiparticle degrees of freedom. That is, the neutrino-neutrino flavor mixing is dominating over the neutrino-antineutrino mixing. A common feature depicted in Figs. 3 and 4 is that for neutrino-antineutrino oscillations, $\mathcal{S}$ decreases with the increase in $B_{0}^{g}$. However, for neutrino-neutrino mixing, the increase in $B_{0}^{g}$ does not reduce the magnitude of $\mathcal{S}$ but increases the frequency of its oscillation. Figure 5 depicts Mermin and Svetlichny parameters with respect to $L$, with $B_{0}^{g}=5\times 10^{-2}$ eV. The violation of the classical bound of $M_{4}$ indicates the existence of residual nonlocality in the system. Further, $S_{4}$ does not cross the classical bound in our system, thereby showing the absence of genuine nonlocality. This can be attributed to equality of the two mass squared differences, i.e., $\Delta_{41}=\Delta_{32}=0$, suppressing the nonlocal correlations between the degenerate levels $\nu_{1}-\nu_{4}$ and $\nu_{2}-\nu_{3}$.

IV Summary and Conclusion

Spinors interacting with background gravitational field in an arbitrary spacetime are shown to acquire modified dispersion energy with energies for up and down spinors split: gravitational Zeeman splitting. It has important consequences for neutrino mixing and oscillation and in general various quantum correlations. However, for this to have occurred, at least in local coordinates, the spacetime should not be spherical symmetric. To have a nontrivial oscillation phase induced by the gravitational field of, e.g., black holes, such that effects due to neutrino mass are not dominant, the mass of the black hole producing gravitational fields must not be more than a millionth of a solar mass, hence be primordial in nature. In other words, only primordial black holes give rise to any practical gravitational Zeeman splitting. However, without gravitational Zeeman splitting there is no neutrino-antineutrino oscillation even if mixing is nonzero. Moreover, apart from black hole, there are many other scenarios, for e.g., early universe particularly in presence of tensor/gravitational perturbation, where strong gravitational effect leads to neutrino-antineutrino mixing and oscillation.

There are interesting consequences of the interplay between the influence of gravity on neutrino-antineutrino oscillations. Thus, for example, for a single flavor neutrino-antineutrino oscillations, entanglement is maximum for the case when the neutrino and antineutrino states are equally probable. Gravity however suppresses the entanglement between neutrino and antineutrino states, which is implied by a decrease in the von-Neumann entropy $\mathcal{S}$ with the increase in the gravitation potential $B_{0}^{g}$.

Further, in case of 2-flavor neutrino-antineutrino oscillations, $\mathcal{S}$ is non-zero which indicates absolute entanglement in the system. Mermin inequality is violated while Svetlichny is not, implying that the system is having absolute nonlocal correlations (nonlocality shared by at least two parties) but genuine nonlocal correlations (nonlocality shared among all parties) are absent, a consequence of the degeneracy in the levels $\nu_{1}-\nu_{4}$ and $\nu_{2}-\nu_{3}$.
