Diamagnetism of metallic nanoparticles as the result of strong spin-orbit interaction

TL;DR

This paper explains how strong spin-orbit interaction causes metallic nanoparticles to transition from paramagnetic to diamagnetic behavior, supported by symmetry analysis and random matrix theory, aligning with experimental observations.

Contribution

It introduces a theoretical framework using symmetry analysis and random matrix theory to quantify the diamagnetism in metallic nanoparticles due to spin-orbit interaction.

Findings

Magnetic susceptibility shifts from paramagnetic to diamagnetic with increasing spin-orbit interaction.

Analytical and numerical results match experimental data on gold nanorods.

The study maps susceptibility changes as a function of symmetry-breaking parameters.

Abstract

The magnetic susceptibility of an ensemble of clean metallic nanoparticles is shown to change from paramagnetic to diamagnetic one with the onset of spin-orbit interaction. The effect is quantified on the basis of symmetry analysis with the help of the random matrix theory. In particular, the magnetic susceptibility is investigated as the function of symmetry breaking parameter representing magnetic flux in the crossover from symplectic to unitary and from orthogonal to unitary ensembles. Corresponding analytical and numerical results provide a qualitative explanation to the experimental data on diamagnetism of an ensemble of gold nanorods.

Figures

Equations

$$⟨{\chi }_{\text{N}}⟩=⟨{\chi }_{\mu }⟩-\frac{1}{2}{\Delta }_{\text{E}}\frac{{\partial }^2}{\partial B^2}⟨(\delta N{)}^2{⟩}_{\mu },$$

$$P_{\text{GOE-GUE}}\propto \exp \left[(1+{\alpha }^2)\mathrm{Tr}\left(A^2-S^2\right)/2\right],$$

$$P_{\text{GSE-GUE}}\propto \exp \left[(1+{\alpha }^2)\mathrm{Tr}\left({\mathcal{A}}^2-{\mathcal{S}}^2\right)/2\right],$$

$$\lambda =\gamma \frac{\Phi }{{\Phi }_0}\sqrt{\frac{E_{\text{Th}}}{{\Delta }_{\text{E}}}},$$

$$⟨{\chi }_N⟩=-\frac{1}{2}{\chi }_0\frac{{\partial }^2⟨(\delta N{)}^2⟩}{\partial {\lambda }^2},{\chi }_0={\gamma }^2\frac{\hslash v_{\text{F}}}{{\Phi }_0^2}{L}^3.$$

$$\mathcal{M}=-\frac{{\Delta }_{\text{E}}}{2}\frac{\partial ⟨(\delta N{)}^2⟩}{\partial B}=-{\mathcal{M}}_0\frac{\partial ⟨(\delta N{)}^2⟩}{\partial \lambda },$$

$$⟨N^2⟩={\int }_{-X}^{X}dx{\int }_{-X}^{X}dy\left[\rho (x)\delta (x-y)+{\mathcal{R}}_2(x,y)\right],$$

$${\mathcal{R}}_2(x,y)=R(r)/{\Delta }^2,r=(x-y)/\Delta ,$$

$$\langle(\delta N)^{2}\rangle=\langle N\rangle-2\int_{0}^{\langle N\rangle}dr\;\big{(}\langle N\rangle-r\big{)}\,Y(r),$$

$$Y_{\text{GOE-GUE}}(r)=\frac{{\sin }^2(\pi r)}{(\pi r{)}^2}-D(r,\lambda )J(r,\lambda ),$$

$$D(r,\lambda )=\frac{1}{\pi }{\int }_0^{\pi }kdk{e}^{2{\lambda }^2{k}^2}\sin (kr),$$

$$J(r,\lambda )=\frac{1}{\pi }{\int }_{\pi }^{\infty }\frac{dk}{k}{e}^{-2{\lambda }^2{k}^2}\sin (kr),$$

$$Y_{\text{GSE-GUE}}(r)=\frac{{\sin }^2(\pi r)}{(\pi r{)}^2}-I(r,\lambda )K(r,\lambda ),$$

$$I(r,\lambda )=\frac{1}{\pi }{\int }_0^{\pi }\frac{dk}{k}{e}^{2{\lambda }^2{k}^2}\sin kr,$$

$$K(r,\lambda )=\frac{1}{\pi }{\int }_{\pi }^{\infty }kdk{e}^{-2{\lambda }^2{k}^2}\sin kr.$$

$$⟨(\delta N{)}^2⟩=⟨N^2⟩-⟨N{⟩}^2=\frac{2}{{\pi }^2\beta }\ln ⟨N⟩,$$

$$P_{\beta }(s)=c_{\beta }{s}^{\beta }{e}^{-a_{\beta }(s\Delta /\pi {)}^2},$$

$$\mathcal{M}=8{\mathcal{M}}_0\{\begin{array}{ll}\lambda +\mathcal{O}\left({\lambda }^2\right),& \text{GOE-GUE},\\ \frac{\mathrm{sign}(\lambda )}{\sqrt{2\pi }}-\lambda +\mathcal{O}\left({\lambda }^2\right),& \text{GSE-GUE},\end{array}$$

Full text

RMT

I Introduction

The theory of diamagnetic susceptibility of electrons in a bulk metal is non-trivial even for the case of weak magnetic fields and weakly interacting electrons Wilson (1953); Hebborn and Sondheimer (1960); Raoux et al. (2015). When applied to small metallic objects, additional complications arise due to spacial quantization. The authors of Ref. Altshuler et al., 1991 have demonstrated that the additional contribution to magnetic susceptibility can be expressed through the variance of the number of particles in a grand canonical system. According to the theory Altshuler et al. (1991, 1993) the ensemble of tiny conducting particles should demonstrate a strong paramagnetic response in contrast to a typically diamagnetic response of large metallic systems.

Magnetic susceptibility in an ensemble of mesoscopic particles has been subsequently analyzed by a number of authors von Oppen (1994); Oded Agam (1994); Ullmo et al. (1995); Richter et al. (1996a, b, c); E. Gurevich and B. Shapiro (1997); McCann and Richter (1999); Gómez Viloria et al. (2018) who employed various semiclassical methods to build up a quantitative theory. Still, only qualitative explanation of early experiments Levy et al. (1993); Mailly et al. (1993) with the arrays of ultraclean GaAs nanoparticles have been reached. Moreover, later experiments with silver and golden nanorings and nanoparticles Deblock et al. (2002); Crespo et al. (2004); Hori et al. (2004); Dutta et al. (2007); Garitaonandia et al. (2008); van Rhee et al. (2013) demonstrated large diamagnetic response, while a series of similar experiments revealed paramagnetic susceptibility Yamamoto et al. (2004); Guerrero et al. (2008a, b); Bartolomé et al. (2012); Agrachev et al. (2017) (see also Refs. van Rhee et al., 2013; Gómez Viloria et al., 2018 for the review). To explain such seemingly contradicting data one needs not only additional experimental efforts but also new theoretical insights.

In Ref. van Rhee et al., 2013 a qualitative explanation for the observed diamagnetic response was suggested. The explanation has linked the diamagnetic susceptibility to the onset of strong spin-orbit interaction. The latter is quite natural to expect in such heavy metal as gold, where large spin-orbit splitting of surface states at Au(111) surface (of the order of $0.1$ eV) has also been evidenced from the direct photoemission measurements Lashell et al. (1996); Reinert et al. (2001). However, no detailed theory of this effect was provided at that time (the change of the sign of magnetic susceptibility due to spin-orbit coupling was hypothesized just by analogy with mesoscopic magnetoresistance Hikami et al. (1980)). The aim of this work is to present a qualitative theory of the phenomenon on the basis of the random matrix approach.

Similarly to previous works we start with the well-established thermodynamic relation Altshuler et al. (1991)

[TABLE]

where $B$ is the magnetic field, $\chi_{\mu}$ and $\chi_{N}$ denote the statistical average of magnetic susceptibility in grand-canonical and canonical ensembles, respectively, while the angular brackets stand for the additional averaging over the ensemble of nanoparticles. This expression of Eq. (1) holds to the leading order in the ratio $\Delta_{\textrm{E}}/\varepsilon_{\textrm{F}}$, where $\Delta_{\textrm{E}}\sim 10$ meV stands for the mean level spacing in a nanoparticle and $\varepsilon_{\textrm{F}}\sim 10$ eV is the Fermi energy (to be specific, we use for estimates the parameters characteristic for the experiments [van Rhee et al., 2013]). The notation $\langle(\delta N)^{2}\rangle_{\mu}$ refers, at zero temperature, to the variance in the number of energy levels below the chemical potential $\mu$.

Below we compute the mean susceptibility $\langle\chi_{\textrm{N}}\rangle-\langle\chi_{\mu}\rangle$ from interpolating random matrix ensembles Wigner (1951, 1955); Dyson (1962); Mehta (1960, 2004); Beenakker (1997) that mimic level statistics in quantum dots with and without spin-orbit interaction.

Given large spin-orbit interaction in gold, we shall be especially interested in the crossover from the ensemble of symplectic to the ensemble of unitary random matrices: the so-called GSE-GUE crossover Taniguchi et al. (1994) (G in these abbreviations means Gaussian). Such a transitional ensemble qualitatively describes the evolution of energy level distribution with increasing magnetic field in a non-interacting ballistic quantum dot with strong spin-orbit interaction. For the sake of completeness, we also study the GOE-GUE crossover from orthogonal to unitary ensemble that similarly describes the evolution of level statistics with increasing magnetic field in the absence of spin-orbit interaction. As we have already mentioned, the latter case received a particularly detailed attention in the literature Dupuis and Montambaux (1991); Altshuler et al. (1991, 1993); von Oppen (1994); Oded Agam (1994); Ullmo et al. (1995); Richter et al. (1996a, b, c); E. Gurevich and B. Shapiro (1997); McCann and Richter (1999); Gómez Viloria et al. (2018) that unanimously predicted paramagnetic susceptibility. Surprisingly, there have been no such studies for the case of strong spin orbit interaction.

The quantity $\langle(\delta N)^{2}\rangle$ is determined, in a mesoscopic system, by the statistics of energy levels on the scale of the mean level spacing. The statistics turns out to be universal, i. e. independent of the microscopic details of the Hamiltonian. Such a universality has prompted the development of the random matrix theory (RMT), first, in the context of energy spectra in heavy atomic nuclei Wigner (1951, 1955), and later in application to disordered metallic granules Gor’kov and Eliashberg (1965); Halperin (1986). Since then, the RMT has been widely accepted as a standard tool to address various properties of mesoscopic systems Beenakker (1997). The RMT has been instrumental in addressing problems of quantum chaos Stöckmann (2000) and in developing general symmetry classification of non-interacting disordered systems Altland and Zirnbauer (1997).

Below we employ two transitional ensembles of random matrices: GOE-GUE Bohigas et al. (1995); Altland et al. (1993) and GSE-GUE Taniguchi et al. (1994). The energy level correlations in these ensembles have been computed analytically in Refs. Pandey and Mehta, 1983; Mehta and Pandey, 1983.

II Model

Let us describe first the construction of GOE-GUE transition. A Gaussian Orthogonal Ensemble (GOE) member is a real symmetric matrix $S$ of the dimension $M\times M$ parameterized by $M(M+1)/2$ independent random real elements $S_{ij}=S_{ji}$. These elements are distributed according to the Gaussian probability density $P\propto\exp(-\operatorname{Tr}S^{2}/2)$ that is manifestly invariant under orthogonal transformations.

Similarly, a member of the Gaussian Unitary Ensemble (GUE) is a random Hermitian matrix $H=S+iA$ that involve additional $M(M-1)/2$ real random variables $A_{ij}=-A_{ji}$ such that the joint probability density $P\propto\exp(-\operatorname{Tr}H^{2})$ is invariant under unitary transformations. Consequently, one can define a transitional ensemble of random matrices $H=S+i\alpha A$, where the parameter $\alpha$ varies from [math] (GOE) to $1$ (GUE). In this parameterization, the joint probability density of the variables $S_{ij}$, $A_{ij}$, yields

[TABLE]

which, for intermediate values of $\alpha$, is invariant neither under orthogonal nor under unitary rotations of the matrix $H=S+i\alpha A$. The specific feature of Eq. (2) is that the probability density of the eigenvalues $x_{n}$ of $H$ is given by the Wigner semicircle $\rho(x)=\sqrt{2M-x^{2}}/\pi$ independent of the value of $\alpha$. Even though the statistical properties of $H$ are not universal on the scale of the semicircle, $\sqrt{2M}$, they have a large degree of universality on the scale of the mean level spacing $\Delta$. Near the center of the semicircle the latter is given by $\Delta=1/\rho(0)=\pi/\sqrt{2M}$.

A similar construction can be proposed for the GSE-GUE crossover, that is appropriate for describing a system with strong spin-orbit interaction. Here we consider a $2M\times 2M$ matrix $H=\mathcal{S}+i\alpha\,\mathcal{A}$, that can be viewed as $M\times M$ matrix of quaternions. The latter can be represented by $\mathcal{S}=\sum_{\mu=0}^{3}S^{\mu}\sigma_{\mu}$ and $\mathcal{A}=\sum_{\mu=0}^{3}A^{\mu}\sigma_{\mu}$, where $\mathcal{S}^{\mu}$ are real symmetric and $\mathcal{A}^{\mu}$ are real antisymmetric matrices of the dimension $M\times M$, while $\sigma_{\mu}$ are Pauli matrices ($\sigma_{0}=1$). Similarly to Eq. (2) a joint probability density of the independent elements $\mathcal{S}^{\mu}_{ij}=S^{\mu}_{ji}$ and $\mathcal{A}^{\mu}_{ij}=-\mathcal{A}^{\mu}_{ji}$ is chosen to be

[TABLE]

where the parameter $\alpha$ interpolates now between GSE ($\alpha=0$) and GUE ($\alpha=1$). The density of states in the ensemble of Eq. (3) is also given by the Wigner surmise $\rho(x)=\sqrt{4M-x^{2}}/\pi$ with the spectrum width $4\sqrt{M}$ for $2M$ eigenvalues.

The crossover regime in both of the ensembles corresponds to $\alpha^{2}\propto 1/M$. It is, therefore, convenient to define a dimensionless parameter $\lambda=\alpha/\Delta\sqrt{2}$, where $\Delta=1/\rho(0)$ is the mean level spacing at the center of spectrum. The parameter $\lambda$ remains finite at $M$ tends to infinity.

It can be argued Beenakker (1997) that the dimensionless parameter $\lambda$ is set by

[TABLE]

where $\Phi$ is the magnetic flux piercing the system, $\Phi_{0}=hc/e$ is the magnetic flux quantum, $\gamma$ is a non-universal geometric factor and $E_{\textrm{Th}}$ is the Thouless energy Edwards and Thouless (1972). In a ballistic (ultraclean) metalic grain, the latter can be taken as $E_{\textrm{Th}}=\hbar v_{\textrm{F}}/L$, where $v_{\textrm{F}}$ is the Fermi velocity and $L$ is the system size. With the definition of Eq. (4) we may rewrite the leading contribution to the magnetic susceptibility in Eq. (1) as

[TABLE]

One can further observe that $\chi_{0}=-6\gamma^{2}\chi_{L}\,L^{3}$, where $\chi_{L}=-e^{2}k_{\textrm{F}}/24\pi^{2}mc^{2}$ is nothing but the Landau diamagnetic susceptibility per unit volume , estimating the sample cross section as $L^{2}$. Note that in all these estimations we assume a quadratic dispersion law for the conduction electrons, $\epsilon_{p}=p^{2}/2m$.

It is worth noting, that similarly to the expression of Eq. (1) for magnetic susceptibility, one can express mesoscopic contribution to the total magnetic moment of the system as

[TABLE]

with $\mathcal{M}_{0}=\gamma\sqrt{\hbar v_{F}\Delta_{E}L^{3}}/2\Phi_{0}=\gamma\mu_{\textrm{B}}/\sqrt{2}$ (where we have used an estimate $\Delta_{\textrm{E}}=4\pi^{2}\varepsilon_{\textrm{F}}/k_{\textrm{F}}^{3}L^{3}$ and the expression for Bohr magneton $\mu_{\textrm{B}}=e\hbar/2mc$).

In order to analyze the variance $\langle(\delta N)^{2}\rangle$ numerically we define $N$ as the number of eigenstates in a certain “energy” strip $x\in(-X,X)$. The universal regime corresponds to $X\ll\sqrt{M}$, hence $N\ll M$. In this case the density of eigenvalues can be regarded as constant with the mean level spacing $\Delta=\pi/\sqrt{2M}$ for GOE-GUE and $\Delta=\pi/2\sqrt{M}$ for GSE-GUE.

In order to compute $\langle(\delta N)^{2}\rangle$ analytically we refer to the corresponding formulas obtained in Refs. Pandey and Mehta, 1983; Mehta and Pandey, 1983 in the limit $1\ll N\ll M$. In particular, the number of particle variance in both GOE-GUE and GSE-GUE crosssover ensembles can be conveniently expressed as

[TABLE]

where $\mathcal{R}_{2}(x,y)=\langle\sum_{nm}\delta(x-x_{n})\delta(y-x_{m})\rangle$ is the level correlation function. For eigenvalues near the centrum of the spectrum ($X\ll\sqrt{M}$) we may regard $\mathcal{R}_{2}$ to be a function of a relative distance only,

[TABLE]

where $\Delta=1/\rho(0)$ is a constant. Then, we obtain

[TABLE]

where $Y(r)=1-R(r)$ is the two-level cluster function that has been computed analytically for the transition ensembles of Eqs. (2, 3) in the limit $M\to\infty$ Pandey and Mehta (1983); Mehta and Pandey (1983).

For a sake of completeness we reproduce here analytic results of Refs. Pandey and Mehta, 1983; Mehta and Pandey, 1983 for the cluster function. For the GOE-GUE transition (2) one finds

[TABLE]

while for the GSE-GUE transition (3) one finds

[TABLE]

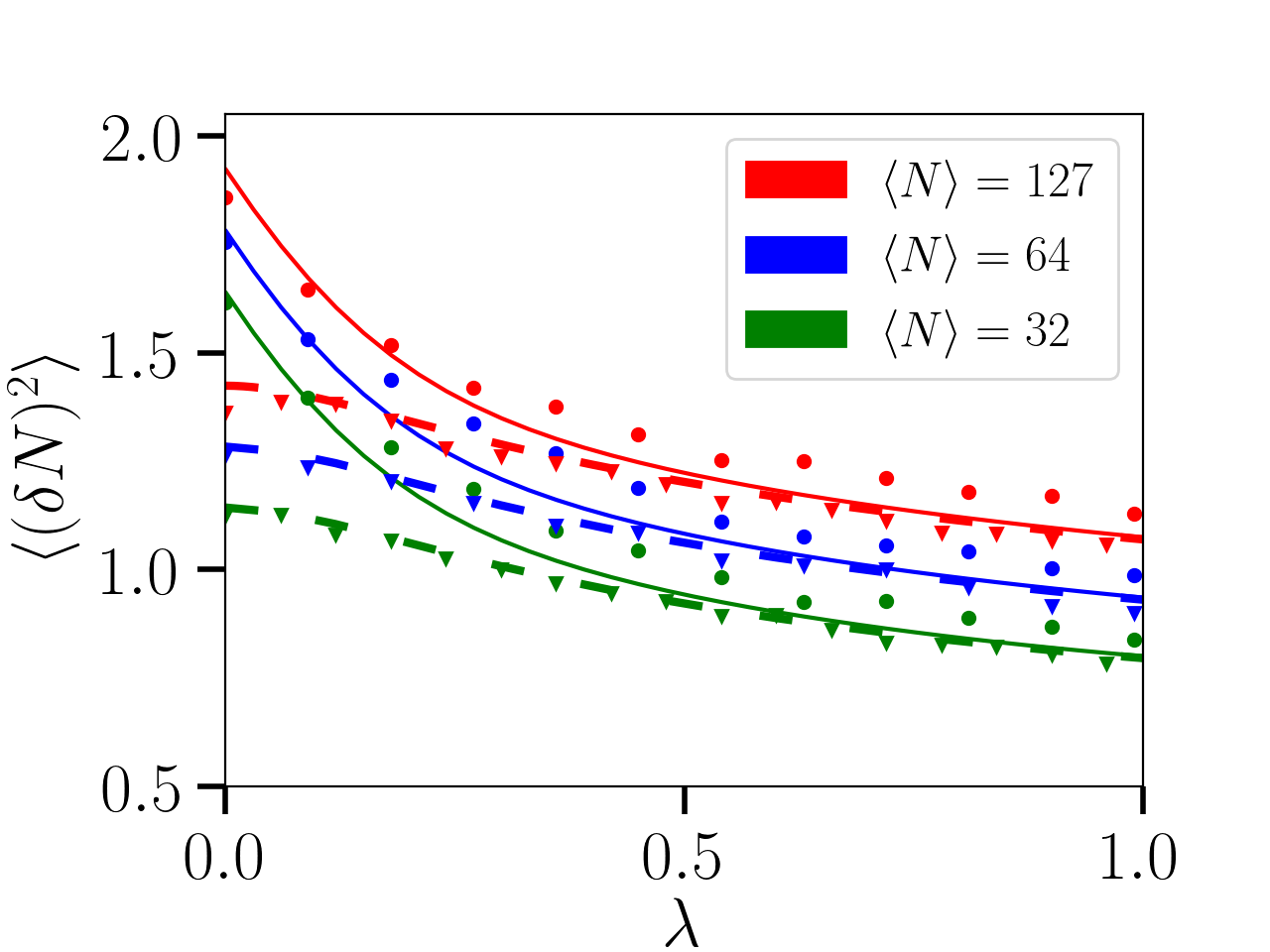

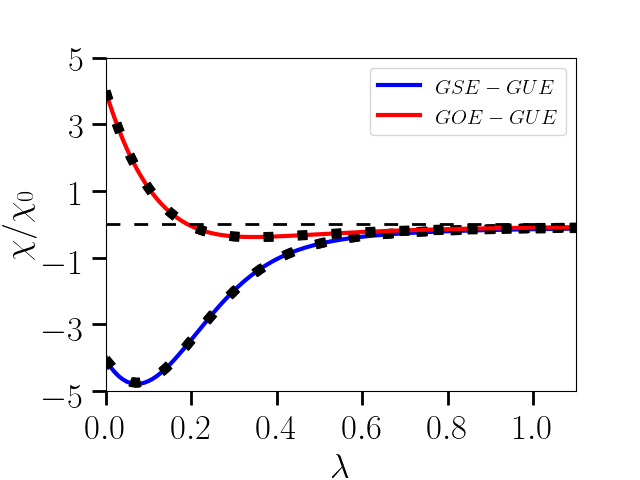

In Figs. 1, 3, 4, we use solid lines to plot the variance $\langle(\delta N)^{2}\rangle$ (obtained from Eqs. (9), (10), (11)) as well as its first and second derivative with respect to the parameter $\lambda$.

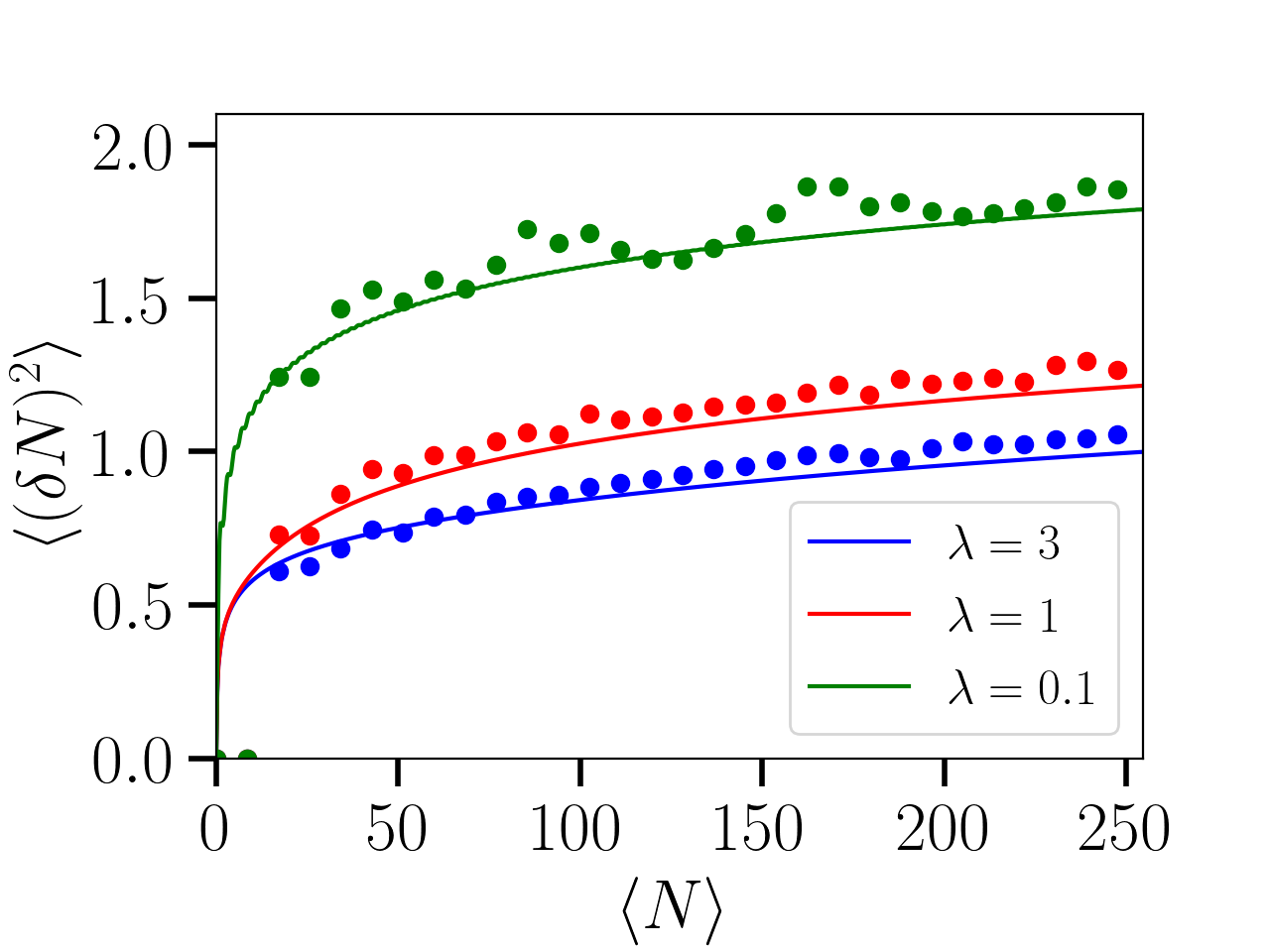

In Fig. 1 we also show the results of numerical computation of $\langle(\delta N)^{2}\rangle$ from the ensemble of random matrices defined in Eqs. (2) and (3) with $M=500$. Such a variance is expressed plotted there versus the mean number of states $\langle N\rangle=2X/\Delta$ in the strip. We find that the numerical results agree reasonably well with the results of Eqs. (9,10,11) up to $\langle N\rangle\sim M/4$.

In particular, we find that the variance scales as $\ln\langle N\rangle$ to reproduce the well-known result Dyson (1962),

[TABLE]

for the exact Wigner-Dyson ensembles: GOE ($\beta=1$), GUE ($\beta=2$), GSE ($\beta=4$).

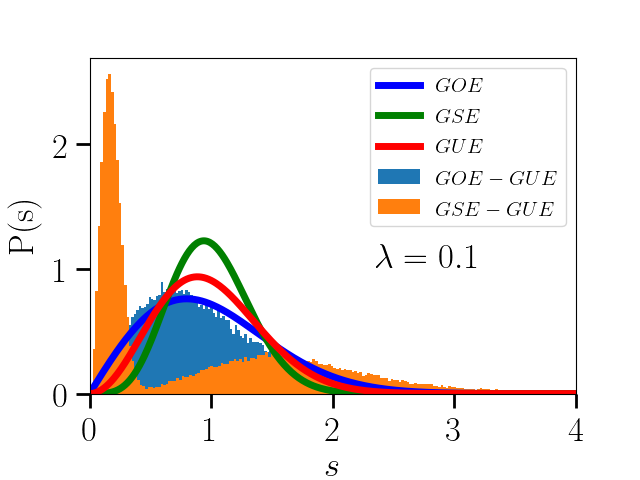

It is well known, since early works of Wigner Wigner (1951, 1955), that the mean level spacing distribution in the three Wigner-Dyson ensembles has the form

[TABLE]

where $s$ is the spacing between adjacent energy levels, $\Delta$ is the mean level spacing at the center of the semicircle, $c_{\beta}$ is a normalization constant, and $a_{\beta}=\pi/16$, $1/\pi$, $16/9\pi$ for $\beta=1$, $2$, and $4$, respectively. Thus, the level distribution is the most rigid (equally spaced) for GSE and the least rigid for GOE with GUE being in between. One may, therefore, naively expect that the variance $\langle(\delta N)^{2}\rangle$ must decrease with magnetic field in GOE-GUE crossover, but increase in GSE-GUE crossover. This logic is, however, misleading.

Indeed, in the absence of spin-orbit scattering, the metallic grain is characterized by $M$ double degenerate energy levels because the magnetic field, at $\Phi\sim\Phi_{0}$, is still too weak to induce any noticeable Zeeman splitting. Such a level degeneracy persists, therefore, even to the GUE limit. In contrast, in the GSE-GUE crossover, the Kramers degeneracy Landau and Lifshitz (1981) is completely lifted already for $\Phi\ll\Phi_{0}$ due to the onset of spin-orbit interaction. As the result the level distribution in the GSE-GUE crossover reveals two distinct peaks as illustrated in Fig. 2. The sharp peak at small spacings corresponds to weak Kramers degeneracy lifting, that provides a leading contribution to $\langle(\delta N)^{2}\rangle$ in the GSE-GUE crossover.

The role of the Kramers degeneracy lifting in GSE-GUE crossover is especially evident in the dependence of the total magnetic moment $\mathcal{M}$ on $\lambda$ that is illustrated in Fig. 3. While, in GOE-GUE crossover, the magnetization appears to be an analytic function of $\lambda$ that vanishes in the limit of zero field, $\lambda=0$, and increases with increasing $\lambda$, in GSE-GUE crossover the behavior of M is non-analytic at $\lambda=0$ due to the Kramers degeneracy lifting. Lifting of Kramers pairs spreads the delta function peak in the level spacing distribution (for $s=0$) that immediately results in a finite (and non-analytic) contribution to the mean magnetization.

Indeed, from Eqs. (9), (10), (11) one finds asymptotic expressions for the mean mesoscopic magnetic moment

[TABLE]

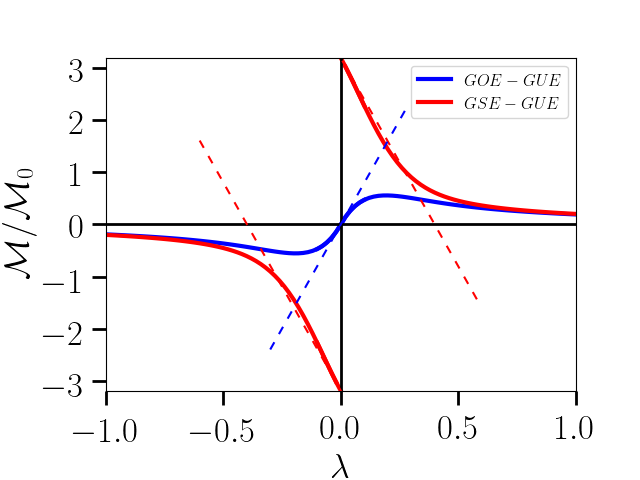

that clearly demonstrates a non-analytic behavior in GSE-GUE crossover. The asymptotic expressions from Eq. (14) are illustrated in Fig. 3 with dashed lines.

As the result of this phenomenon, the variance $\langle(\delta N)^{2}\rangle$ decays in both GSE-GUE and GOE-GUE transition ensembles as a functions of $\lambda$ as it is illustrated in Fig. 4.

Despite $\langle(\delta N)^{2}\rangle$ is a monotonously decaying function of $\lambda$ for both GOE-GUE and GSE-GUE crossovers, the second derivative entering Eq. (6) is manifestly different in these two cases. While it changes sign from negative to positive (from paramagnetic to diamagnetic susceptibility) in GOE-GUE crossover, it stays positive (diamagnetic susceptibility) for GSE-GUE crossover (i. e. for systems with strong spin-orbit interactions). The behavior of the susceptibility is illustrated in Fig. 5 using both analytic formulas as well as numerical simulations.

Thus, the symmetry analysis performed above reaches an opposite conclusion to that expressed in Ref. Mathur and Stone (1991). Namely, we find that spin-orbit interaction makes mesoscopic contribution to susceptibility entirely diamagnetic at any value of magnetic field. Instead, the susceptibility in system without spin-orbit interaction is strongly paramagnetic at small fields but becomes diamagnetic at finite fields corresponding to $\Phi/\Phi_{0}\sim(\Delta_{\textrm{E}}/E_{\textrm{Th}})^{1/2}$. We note, however, that our analysis ignores the details of electron-electron interactions that may also induce a sign reversal of magnetic susceptibility Eckern (1991); Principi et al. (2010).

Summary

To summarize, we computed magnetic susceptibility for metallic nanoparticles with strong spin-orbit interaction in the framework of random matrix theory. In such systems, the mesoscopic contribution to the susceptibility turns out to be entirely diamagnetic for any value of magnetic field that is consistent with recent experiments van Rhee et al. (2013). Our results, therefore, suggest that experimentally observed diamagnetism in an ensemble of metallic nanoparticles can be, indeed, a consequence of strong spin-orbit coupling. It would be interesting to check this experimentally by a systematic comparative study of light (weak spin-orbit coupling, paramagnetic response) and heavy (strong spin-orbit coupling, diamagnetic response) metals. Our consideration predicts that the enhancement factor for the diamagnetic susceptibility is independent on the size of nanoparticles but can be dependent on their geometric shape. We have also predicted a non-analytic behavior of magnetization at small fields due to Kramers degeneracy lifting in systems with strong spin-orbit interactions. The latter phenomenon can be also tested experimentally.

Acknowledgments — The authors are thankful to Yan Fyodorov for discussions. The authors acknowledge support from the JTC-FLAGERA Project GRANSPORT and the NWO via the Spinoza Prize. M.T. acknowledges the support from the Russian Science Foundation under Project 17-12-01359.
