UAV/UGV Autonomous Cooperation: UAV Assists UGV to Climb a Cliff by Attaching a Tether

TL;DR

This paper introduces a cooperative UAV-UGV system where the UAV assists the UGV in climbing cliffs by attaching a tether, enhancing terrain access and mapping in unknown environments.

Contribution

The paper presents a novel autonomous framework for UAV-UGV cooperation, including tether attachment and navigation in challenging terrains, with experimental validation.

Findings

UAV successfully anchors tether at cliff top

Enhanced UGV climbing capability with tether assistance

Autonomous navigation system effective in obstacle-rich environments

Abstract

This paper proposes a novel cooperative system for an Unmanned Aerial Vehicle (UAV) and an Unmanned Ground Vehicle (UGV) which utilizes the UAV not only as a flying sensor but also as a tether attachment device. Two robots are connected with a tether, allowing the UAV to anchor the tether to a structure located at the top of a steep terrain, impossible to reach for UGVs. Thus, enhancing the poor traversability of the UGV by not only providing a wider range of scanning and mapping from the air, but also by allowing the UGV to climb steep terrains with the winding of the tether. In addition, we present an autonomous framework for the collaborative navigation and tether attachment in an unknown environment. The UAV employs visual inertial navigation with 3D voxel mapping and obstacle avoidance planning. The UGV makes use of the voxel map and generates an elevation map to execute path planning based on a traversability analysis. Furthermore, we compared the pros and cons of possible methods for the tether anchoring from multiple points of view. To increase the probability of successful anchoring, we evaluated the anchoring strategy with an experiment. Finally, the feasibility and capability of our proposed system were demonstrated by an autonomous mission experiment in the field with an obstacle and a cliff.

Figures

Tables

Table 1. TABLE I : Comparison of different anchoring methods.

	1	2	3	4	5	6
device
simplicity	***	***	**	*	**	***
control
simplicity	**	*	*	***	***	**
lightness	***	***	**	*	**	***
unhooking
capability	*	*	***	*	**	*
strength	**	**	*	**	*	***

Equations

$$traversability=\frac{1}{2}(1-\frac{slop{e}_{rad}}{0.6})+\frac{1}{2}(1-\frac{roughness}{0.1})$$

$$cos{t}_i=\{\begin{array}{ll}\frac{W_T}{T_i+{ϵ}_T}+W_E{E}_i& \text{if index i is valid}\\ W_{NaN}& \text{otherwise}\end{array}$$

$${\sigma }_x^2$$

$${\sigma }_y^2$$

$${\sigma }_{xy}^2$$

$$\Sigma$$

$$peakness=\frac{1}{{\sigma }_l^2}$$

Full text

I INTRODUCTION

Recent advancements in the field of artificial intelligence and small, unmanned robots have lead to the growing range of applications. In the field of exploration robots, the ability to move through challenging environments, such as disaster areas, outdoor fields or planet surfaces is required.

The UAVs have recently gained much interest among researchers and industries owing to its high accessibility. They can go beyond obstacles, rough terrains or steep slopes, and are able to provide a view from a high altitude.

However, its payload or battery life is limited, and as a result, it becomes difficult to conduct missions that require heavy equipment or complex manipulations for the UAVs. On the other hand, the UGVs have a higher battery capacity and larger payload, meaning it can carry heavier sensors, powerful computers and complex manipulators to perform actions. In contrast, they often suffer from the limited sensor range, poor terrain traversability and climbing ability.

To address the limited sensor range of the UGVs, many researches for Air-Ground cooperation have been done. Michael et al. [1] built a 3D map of an earthquake-damaged building with a team of a UAV and a UGV. The UGV carries the UAV during the mission until they reach to a non-traversable area. When they arrive, the UAV takes off and gathers the data to create a map. Similarly, in [2, 3, 4, 5, 6, 7], UAVs and UGVs perform a cooperative navigation or an exploration where UAVs give a wider range of scanning for the UGVs to navigate through the unknown environment. To overcome the short battery life problem of UAVs, tether powered drones were developed [8, 9, 10]. They provide power from the ground station via the tether to enable the UAV to fly almost limitless. Moreover, [11, 12] developed a tether connected UAV/UGV cooperation system. They can utilize the advantages of both flying and ground robots.

However, all of these cooperative approaches use the UAVs only as a flying sensor that can provide a wider range of scanning.

To enhance the UGVs traversability, one of the solutions is to use a tethered vehicle equipped with a winch. Some off-road cars with a winch can climb a very steep slope by winding the tether anchored at the top of the slope. Also, [13, 14] developed a two-wheel rover which has a winch in the middle of the shaft. Their objective is to explore an inaccessible crater with a help of a mother vehicle. [15, 16] also demonstrated the dual rover system connected with a tether to explore the possible skylights on the moon. A four-wheeled parent rover waits near the edge and the two-wheeled child rover explores the steep terrain. [17, 18] made a tethered vehicle that can explore a steep terrain and create a 3D map of the environment.

Although they can enhance the rough and steep terrain traversability of the UGVs, the tether is required to be anchored beforehand at the top of the slope by a parent rover or a human. In this case, the reachability will be limited to the already accessible area by the UGV and area below, made possible by the tether. As an exception, in [19], a two-wheel rover equipped with a grappling hook, launches the hook to an object and use it as an anchor to raise itself. Nevertheless, it cannot climb over a cliff nor detect or observe the anchoring point unobservable from the lower ground.

In this research, we propose a UAV / UGV cooperative system which uses the UAV not only as a flying sensor but also as a device to anchor a tether on top of the cliff to assist the UGV to climb. To the best of our knowledge, this is the first system that uses a UAV to attach a tether that can be used by the UGV to extend the reachable area.

The contributions of this paper are:

Proposal of a novel cooperative system which:

• •

collaboratively navigate through the unknown environment,

• •

uses the UAV to attach a tether to an inaccessible place for the UGV,

• •

enhances the UGVs traversability by using the attached tether to climb a steep terrain 2. 2.

Comparison of the tether attachment methods, 3. 3.

Building a framework for autonomous collaborative navigation, cliff detection and tether attachment.

The remainder of this paper is organized as follows. Section 2 describes the proposed system and mission statement. The system overview of the UAV, UGV are given in Section 3 and 4 respectively. The tether attachment methods are shown in Section 5. Sections 6 describes our experimental set-up and results. In Section 7, we conclude with our vision towards the future work.

II Proposed System

The overview of the proposed system is described in this section. Then, the details of an experimental mission to demonstrate the feasibility will follow.

II-A System overview

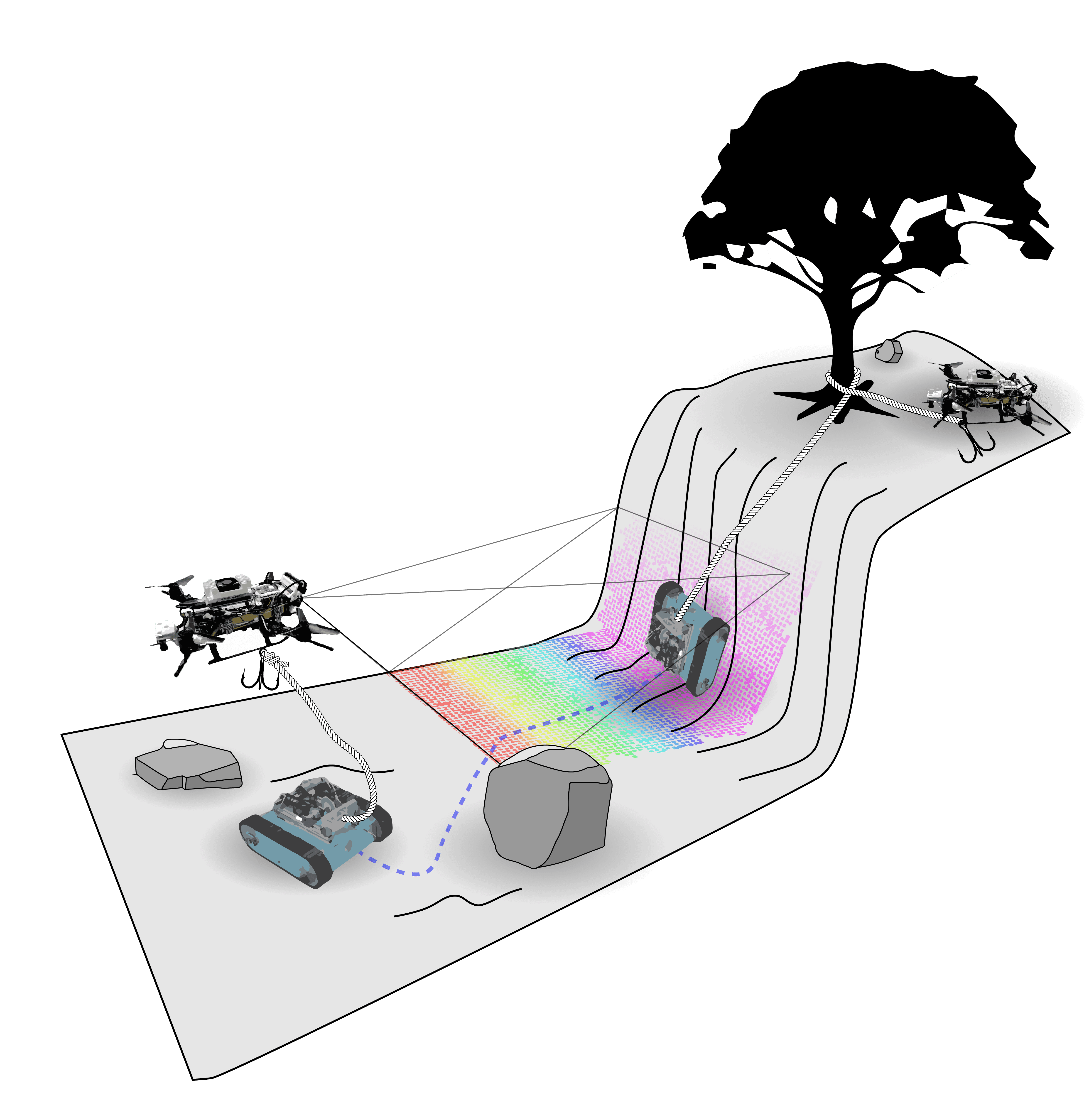

The main concept of our proposed system is that a UAV and a UGV are connected with a tether, allowing the UAV to attach the tether to a certain point, thus enhancing the accessibility of the UGV. The UAV can be considered as a useful tool for the UGV since it can extend the scannable and accessible area impossible to reach only with the UGV.

To realize this system, the UAV should be able to detect the anchoring point and automatically attach the tether to it. In addition, the UGV should be equipped with a winch powerful enough to lift its own mass. Furthermore, to operate autonomously, the UAV needs a position estimation, trajectory following, obstacle avoidance and a 3D mapping capability. Also, the UGV must plan a path based on the traversability analysis calculated from the UAV’s sensor measurement data. The two robots are connected to the same network via a Wifi connection and share information such as estimated pose and generated 3D map on Robot Operating System (ROS) (Fig.2). The details are described in the following sections (Section III, VII).

II-B Mission

We tested the feasibility of our concept by doing an experiment of an autonomous mission. In this mission, a UAV and a UGV start from a certain position and maneuver towards a goal position. Until they reach a cliff, the UAV move towards the goal ahead of the UGV, to create a map. The UGV plans a path that avoids obstacles or a rough terrain using this map and follows the UAV. Once they detect a cliff, the UAV flies above the cliff and starts searching an anchoring point. When it finds the point, the UAV starts flying around it to attach the tether and autonomously land to a safe area after the attachment. Then, the UGV starts winding the tether to climb the cliff. In this experiment, the mission finishes with the successful climb of the cliff. The tether attachment methods are explained in Section V.

III UAV System Overview

In this section, an overview of the UAV is described.

III-A Hardware

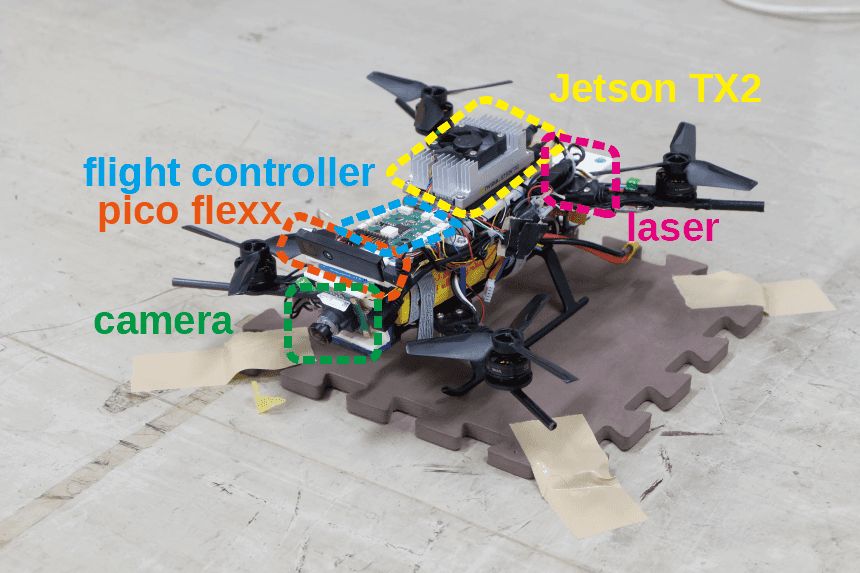

We developed a custom-made quadrotor with NVIDIA Jetson TX2 for fully onboard localization, mapping and navigation (Fig.4). A custom made flight controller was installed for attitude control and sensor interfaces. It has a global shutter monocular fisheye camera, a time-of-flight (ToF) sensor and a laser sensor for height measurement. The flight controller has an inertial measurement unit (IMU) for the attitude control. The frequency of each sensor measurements are image: 20hz, pointcloud: 5Hz, laser: 100Hz and IMU: 100Hz. The TX2 and the flight controller are connected with a serial communication link, sending telemetry at 100Hz and receiving commands at the same frequency.

III-B System

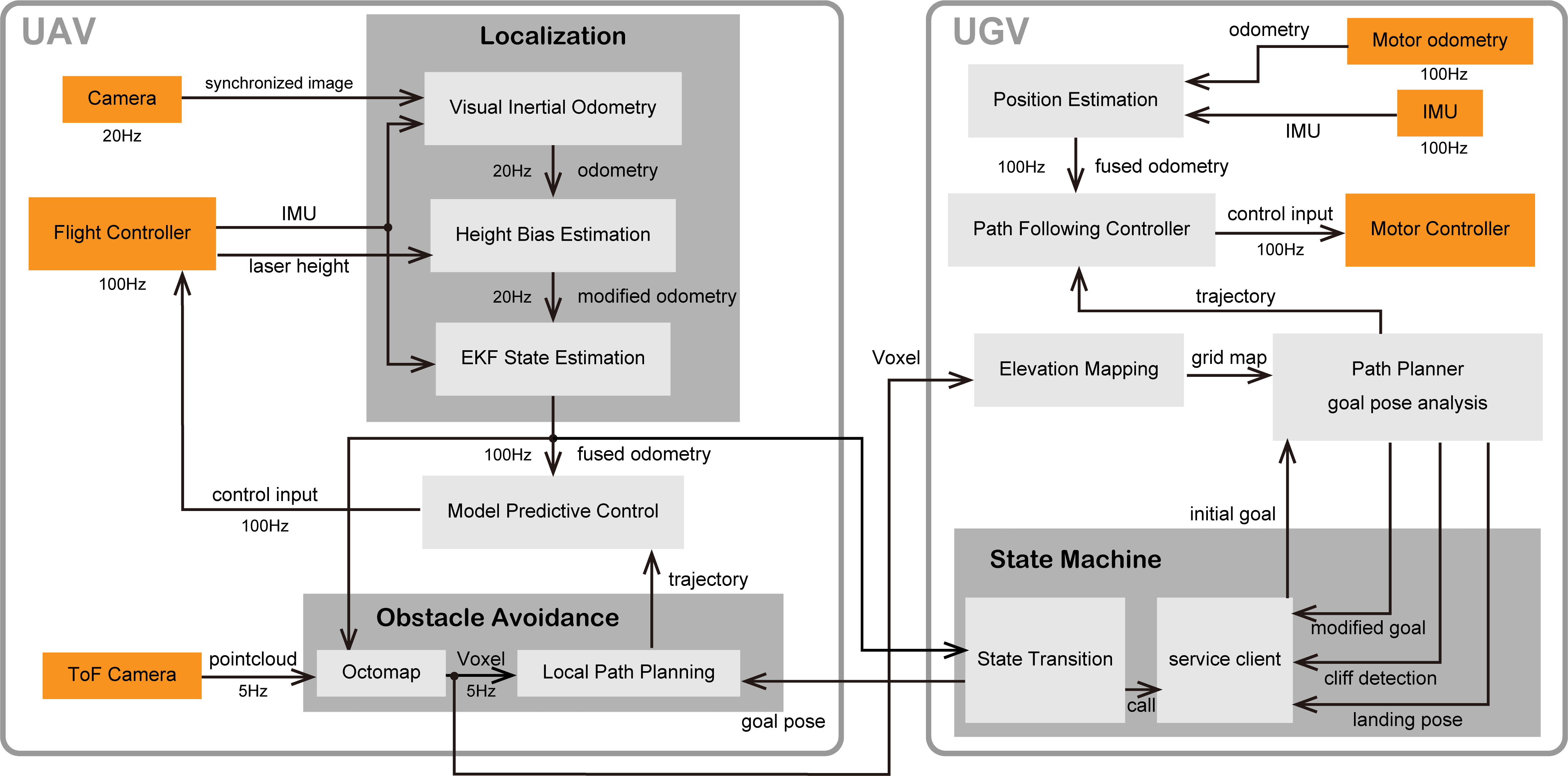

The navigation of the UAV runs on ROS. For the localization and position control, we followed the similar framework as [20]. The UAV uses Visual Inertial Odometry (VIO) to estimate the relative position and orientation from the reference frame. Since this position frequency is not high enough for position control, a Multi Sensor Fusion (MSF) framework [21] was used to fuse with the IMU measurement. In addition, as the tether attachment maneuver requires the UAV to fly near the structure or a cliff, an obstacle avoidance trajectory planning was performed to calculate a reference trajectory for the position control framework. For position control, a model predictive control (MPC) was used to calculate the roll, pitch, yaw rate and thrust command to the flight controller. The controller controls the motor speed with PID control to follow the given attitude.

III-B1 VIO

As also discussed by [22], there are several open-source libraries available for VIO [23, 24, 25, 26]. We used ROVIO because it does not need an initialization movement and computation is relatively lightweight.

III-B2 Sensor Fusion

Based on the estimated pose and velocity, we fused them with the height from the laser sensor to compensate the height drift of the VIO. A kalman filter was used to estimate the VIO bias, laser bias and also to filter out the outlier measurements of laser sensor based on the mahalanobis distance of the estimated variance. Then an Extended Kalman Filter (EKF) was used to fuse the height filtered odometry and the IMU measurement to acquire the high-frequency odometry estimation with the MSF framework.

III-B3 Obstacle Avoidance

For the obstacle mapping, Octomap [27] was used to create a voxel grid from the pointcloud. The position of the sensor is provided by the MSF. For the obstacle avoidance trajectory planning, we used the motion primitive approach in [28]. We customized the MRSL Motion Primitive Library ROS, the open-source ROS wrapped package of the planner in [28] to perform 5 Hz planning.

III-B4 Control

The attitude control was done on the flight controller with a PID control. Its input is the roll and pitch angle, angular velocity around the yaw axis and the thrust. To follow the trajectory from the planner, a linear MPC was used. We used the framework of [29] with the system identification of the first order attitude dynamics of the PID controlled quadrotor.

IV UGV System Overview

IV-A Hardware

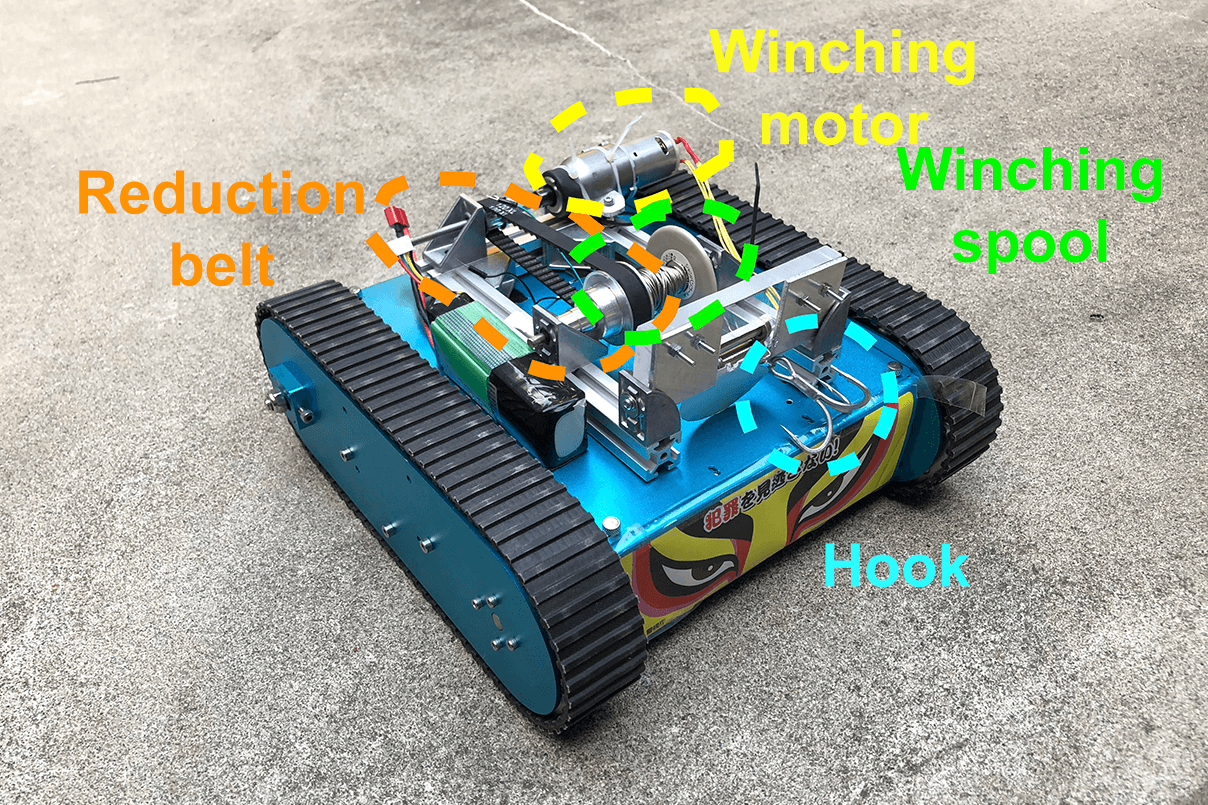

We developed a custom made ground robot based on a commercially available caterpillar platform with UP Core processing unit for onboard localization, mapping and navigation (Fig.4). The platform hosts IMU with accelerometer and gyroscope for attitude estimation and a custom made winch for climbing steep terrains. The robot also has a PID controller for each motor and tracks motor movements with encoders. Motor for tether winding uses sensorless relay-based switch for simple control, to enable high power output. Processing unit sends commands to the controller at 100Hz and receives odometry and attitude data at the same rate.

IV-B System

The on-board processing unit of the UGV runs ROS, which is connected to UAV as a client. For the localization, robot uses dead reckoning based on odometry and IMU data similar to [30]. The on-board computer receives voxel data of the surroundings from the UAV and translates it to grid map. Furthermore, the system performs path planning and cliff detection on processed map data. For a position control, UGV uses Pure Pursuit algorithm [31] to follow the path.

IV-B1 Map filtering

Before performing operations on grid map we filter it with several passes to suppress the noise of the depth measurements from the ToF camera.

By following the methods in [32, 5], the map was filtered sequentially by applying inpainting, slope and roughness calculation, and the traversability estimation as shown below.

[TABLE]

Finally, we apply a minimum filter with a radius of 30 cm to traversability layer, to expand non-traversable spots.

IV-B2 Path planning

Algorithm used for path planning is A* [33]. This algorithm searches for the optimal path on 2D grid with the lowest total cost, given start and goal points. The cost at index $i$ of the grid map is defined by the weighted sum of unknown area cost, elevation cost and inverse traversability as following.

[TABLE]

where $W_{NaN}$ is cost for an unknown area, $T_{i}$ corresponds to traversability, $W_{T}$ to the weight of traversability cost component, $\epsilon_{t}$ as a small value to avoid zero division, $E_{i}$ corresponds to elevation and $W_{E}$ to elevations weight.

Proposed algorithm doesn’t take into account a tether and models of UAV and UGV movements.

IV-B3 Cliff detection

To detect a cliff, the traversability layer was utilized with the accessibility analysis. If a low-cost path to the goal point could be found by the path planner, it is considered as cliff-free. On the contrary, if the cost of the path is higher than a certain threshold, the path is considered to contain a cliff. We perturbate the destination for the planner within a certain range around the given goal point to acquire the lowest cost path. If the lowest path cost still exceeds the threshold, it means there is an unavoidable cliff between the start and goal point. This perturbation technique is used to avoid a false detection if the goal point is on an obstacle. The goal point of the lowest cost path is sent to the state machine for the next maneuver.

IV-B4 Landing Pose Search

Landing place is chosen based on the current UAV’s position and it’s surroundings. It must have defined values of grid map, difference of elevation smaller than threshold, low slope and high traversability. We perform check of all these conditions around the current position of UAV, and if such place is found it is provided to the state machine.

V Tether Attachment

In our proposed system, the most unique part is the anchor attachment. The UAV is able to attach a tether on top of a cliff and also detect the optimal place to attach it using its own sensors. In this section, we discuss the possible options and the adopted method for our system.

V-A Comparison of the tether attachment methods

There are several possible ways to attach a tether to the environment.

V-A1 Using a grappling hook

Grappling hook is a device with multiple hooks attached to a rope, and used to temporarily secure one end of a rope. It has been used by ancient Japanese ninjas, and sailors in naval warfare to catch a ship rigging. This method does not need a heavy mechanism but only a lightweight hook. However, finding a right place to hook on is difficult, and the attachment is not secured meaning that it could be unhooked accidentally.

V-A2 Using tether winding technique

This method is also very simple. A tether is wound around a pole-like structure a few times and secured only with its friction. The UAV does not need a special device to attach it but, it needs to detect a pole-like structure and fly around in an appropriate path. [34] used this approach to make a rope bridge but, this was done with carefully pre-calculated trajectories and an accurate positioning with a motion capture system.

V-A3 Using a grasping device

Another possible way is to use a grasping device. The UAV itself can become a kind of anchor by grasping the anchoring point. It is easy to unlock the gripper when the UGV finished climbing. However, it cannot grasp a large structure, or may become too heavy to meet the torque requirement for large UGVs.

V-A4 Inserting a peg into the ground

Another way is to use a peg as an anchor to the ground. This method can be used at most places where there is a soil. It does not need an anchor to attach. The downside of this method is that the mechanism for insertion would become complex.

V-A5 Using a magnet

In [35], a UAV attaches tethers by launching a magnetic anchor device to the target. However, the target is limited to the magnetic surface.

V-A6 Hybrid of the grappling hook and winding technique

This method can utilize the benefits of both methods. The UAV winds the grappling hook around the target structure. Compared to methods V-A1 and V-A2, the chance of successful anchoring will be increased. The overviewing comparison can be seen on the Tab. I.

Comparing these methods, we decided to use the hybrid method of the hook and winding technique because of its simple mechanism and the high chance of successful attachment, although, a solution to unhook the tether should be considered in future research. To utilize this method, the UAV must detect a suitable target for the attachment.

V-B Anchor point detection

To attach a tether, an acceptable anchor point should be at least some height from a surface, not in a cluttered area and peaked from the surface by a certain degree. The anchor point can be a tree trunk, stump, outcropping rock or a pole and so on.

To detect the anchor point, a grid map generated on the UGV was used. The area around the current UAV position was scanned and a filter is applied to the elevation layer to calculate the peakness. a two dimensional gaussian distribution was fitted to a certain range around the cell. The elevation variance around the cell is calculated as below.

[TABLE]

where, $x_{c}$ and $y_{c}$ denotes the cell position of the center and $\mathcal{N}$ is a set of valid neighbourhood cells in a certain radius around the cell. N is the number of cells in $\mathcal{N}$ and $h(\bm{p})$ represents the relative elevation at $\bm{p}$ from the lowest cell in $\mathcal{N}$. Then, we took the eigenvalue of $\Sigma$ to acquire the aligned variance and used the larger value, $\sigma_{l}^{2}$ for the peak calculation. This is because we want to have a peaked structure and not the edge. If we take the smaller value or the mean value for the peak calculation, the edge is also detected to be the anchor point. Finally, the peakness is calculated as the inverse of the larger variance.

[TABLE]

If the peakness is bigger than a certain threshold, it is detected as the anchor point. This filter is only applied to the cells if they are the highest in a radius and the other invalid cells are ignored.

VI Experimental Result

We conducted several prior experiments to test each componets of the whole system as below.

• •

UAV navigation

• •

UGV wall and stairs climbing

• •

Tether attachment validation

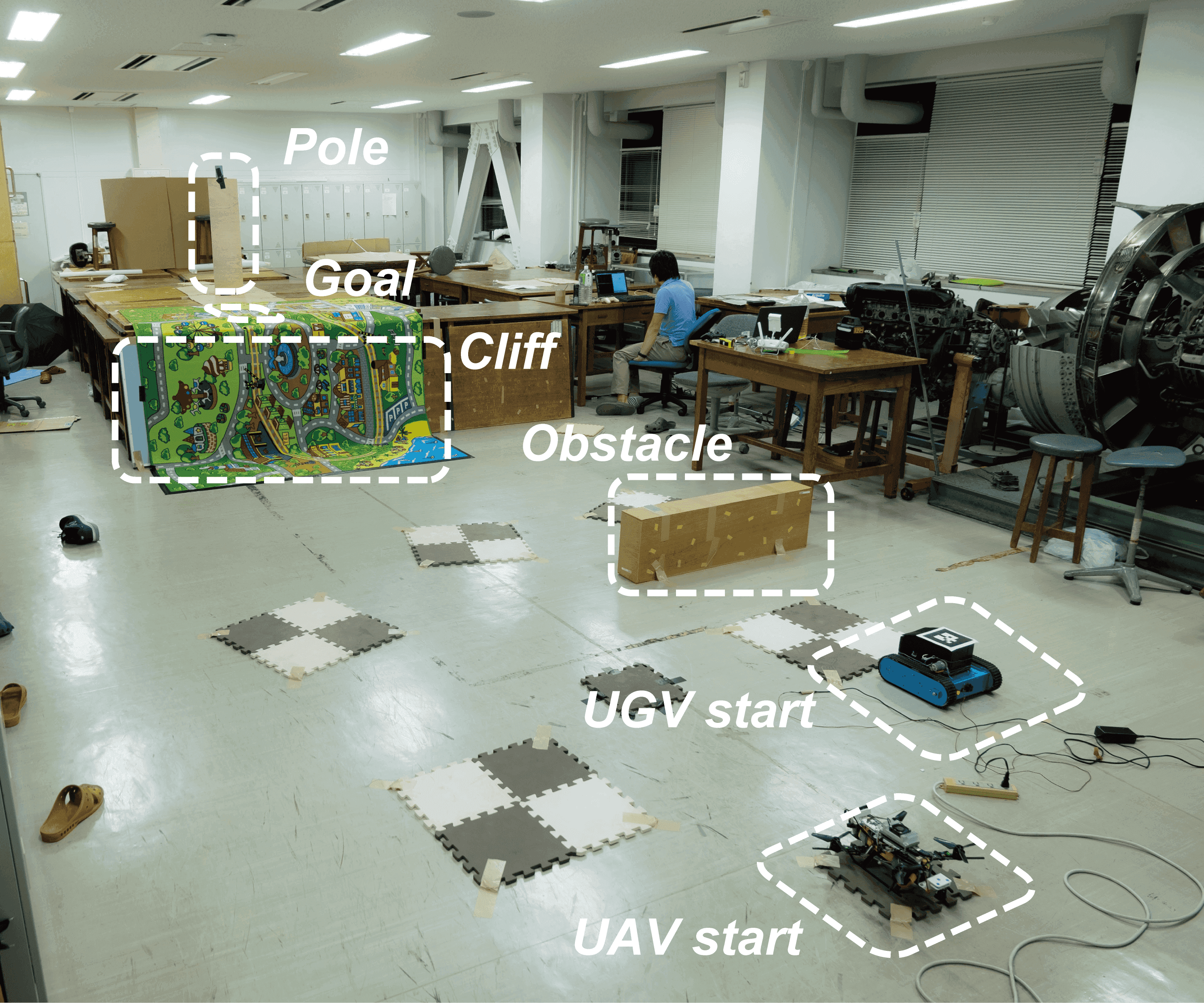

At last, a whole mission was conducted at the indoor field as shown in Fig. 3.

VI-A UAV* navigation*

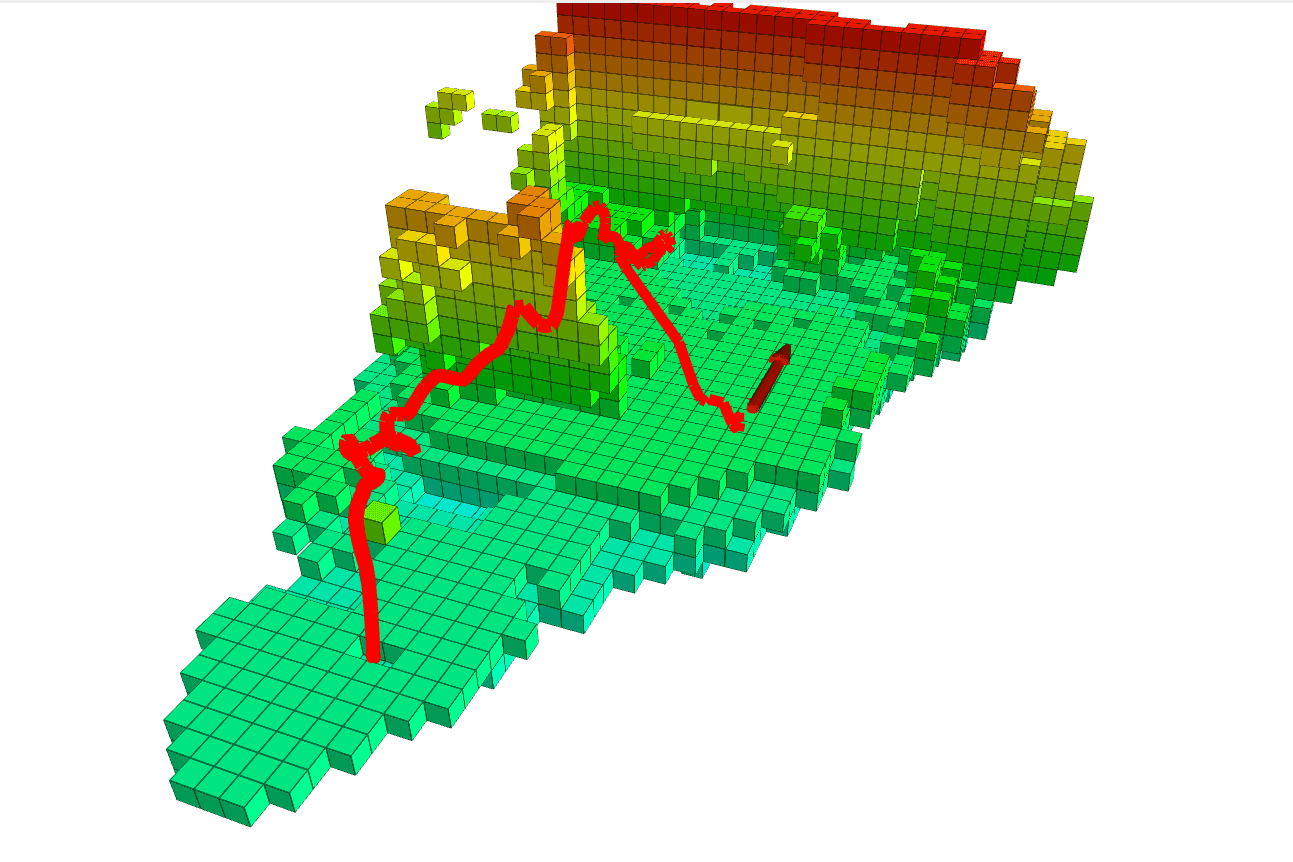

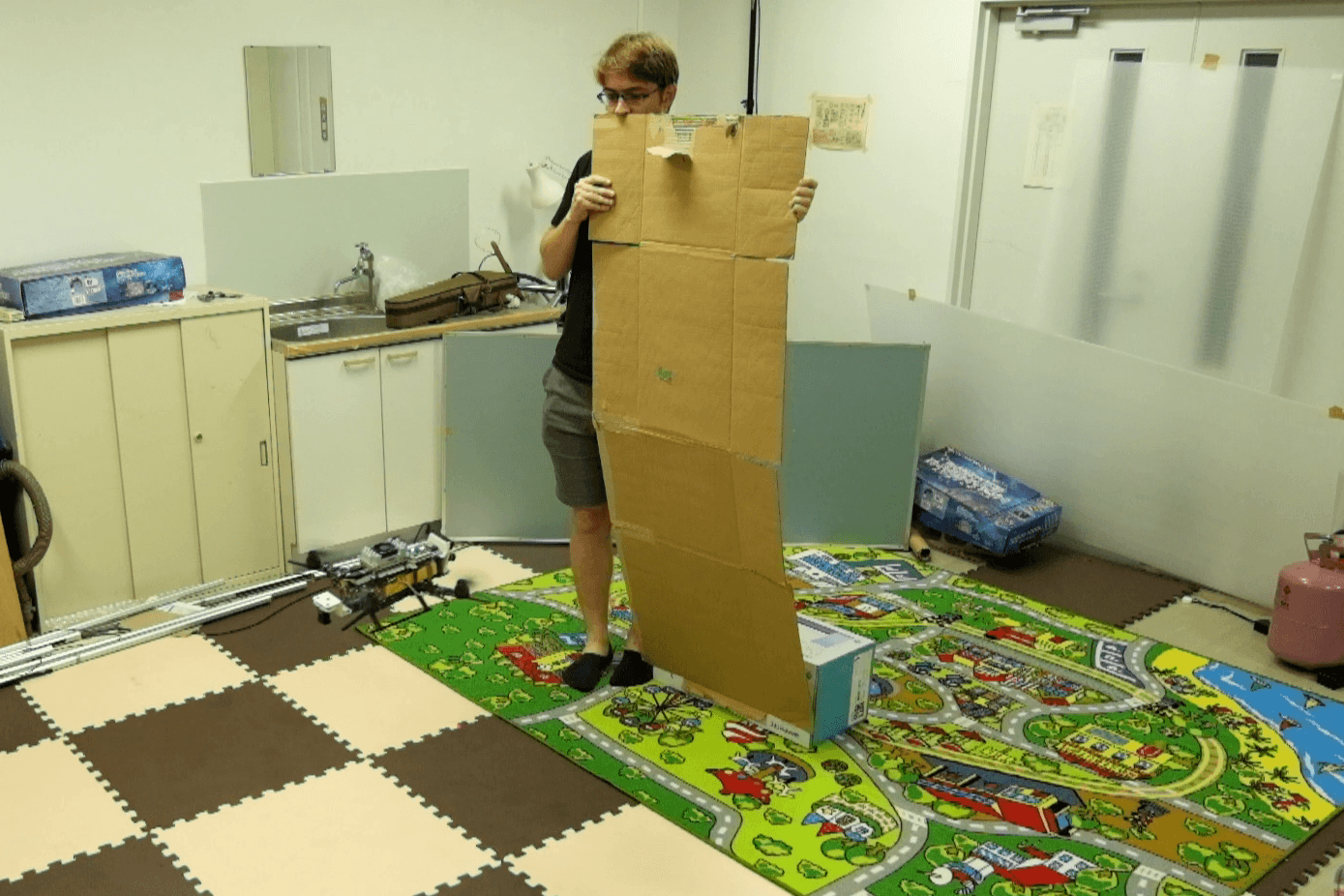

In this experiment, we tested VIO and sensor fusion, voxel mapping and local path planning. The UAV takes off automatically to one meter above and then, moves towards two meters in front. On the way, an obstacle held by a human appears and the UAV must avoid this obstacle to reach the goal. At last, a grid map is used to detect a safe area for landing and the UAV lands on the area. The final motor stop was done manually for the safety reason. The experiment setting is shown at Fig.5.

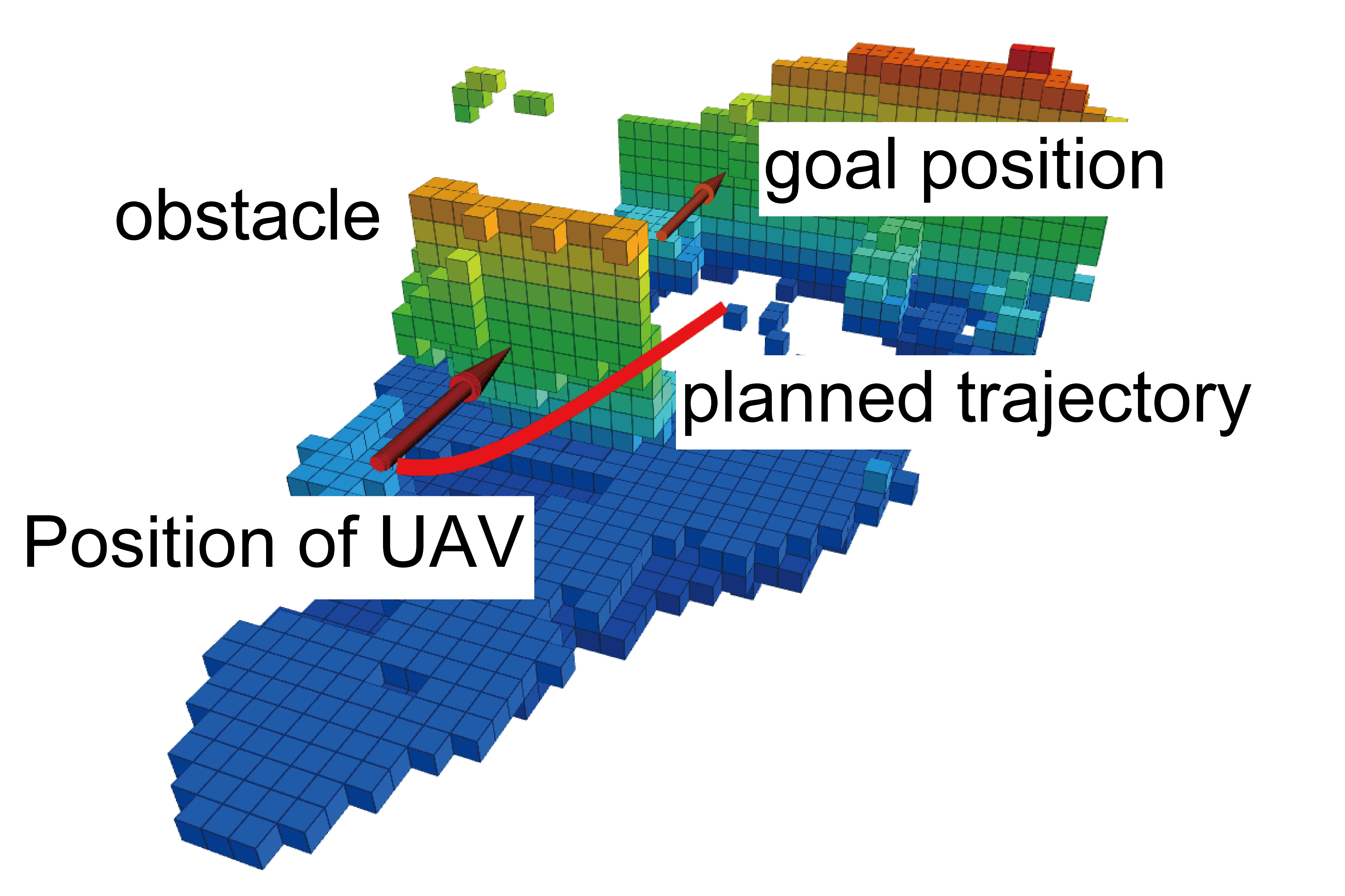

The result of the localization and position control was good enough to conduct a fully autonomous mission. The UAV successfully took off and avoided the obstacle as shown in Fig. 5. At last, the UAV successfully landed to the position calculated on the UGV.

VI-B UGV* Climbing*

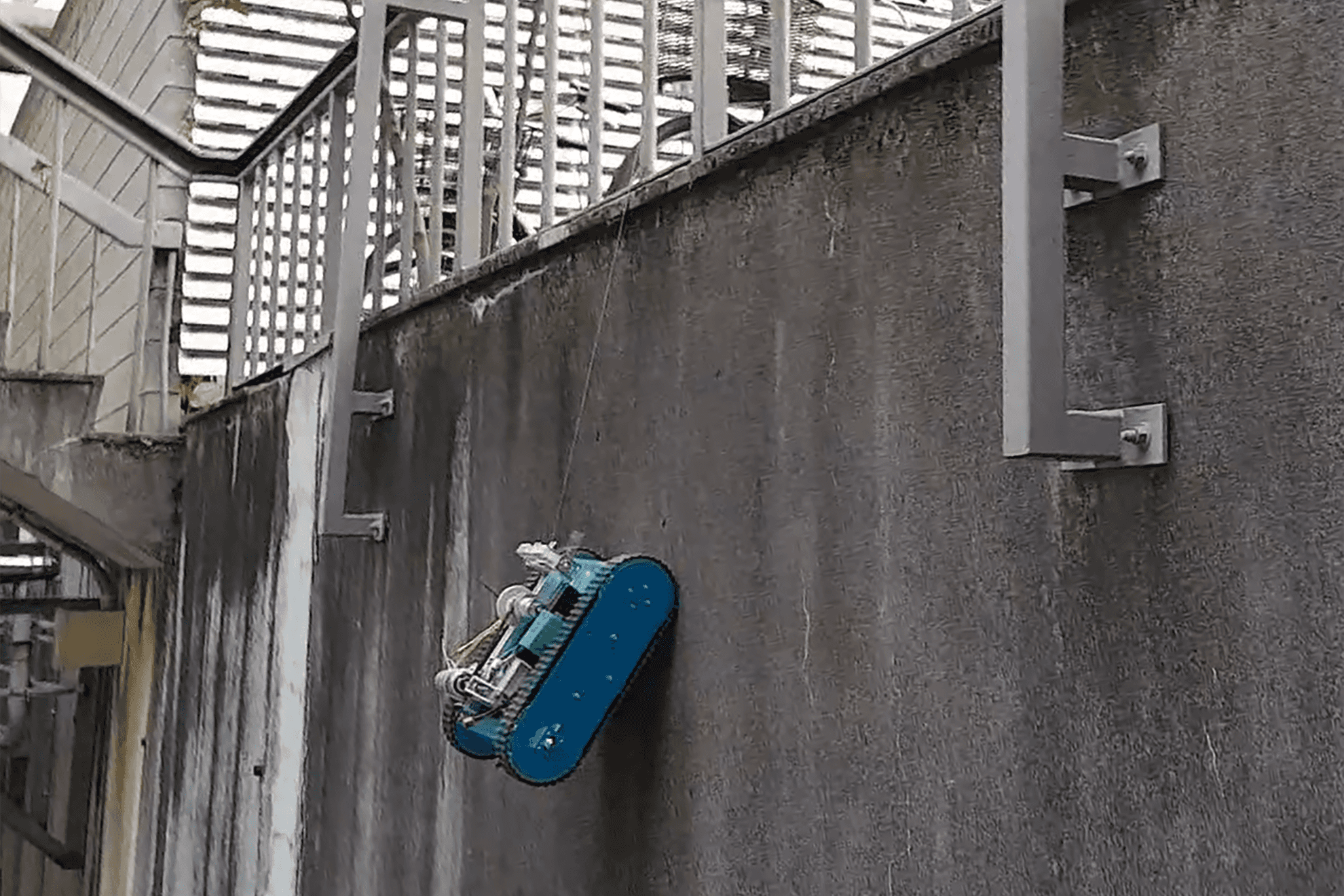

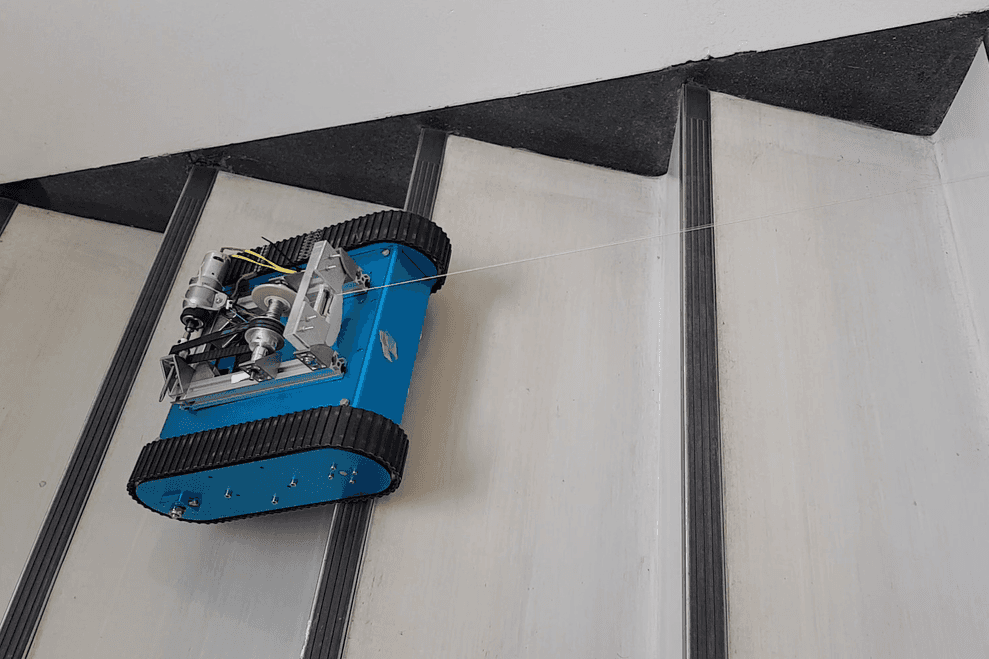

In this experiment, we tested the capability of the UGV’s winch for climbing. We attached a tether on the top of a wall and stairs by hand and winded the tether by its winch. As shown in Fig. 6, the UGV successfully climbed both vertical wall and stairs with manual control.

VI-C Tether attachment validation

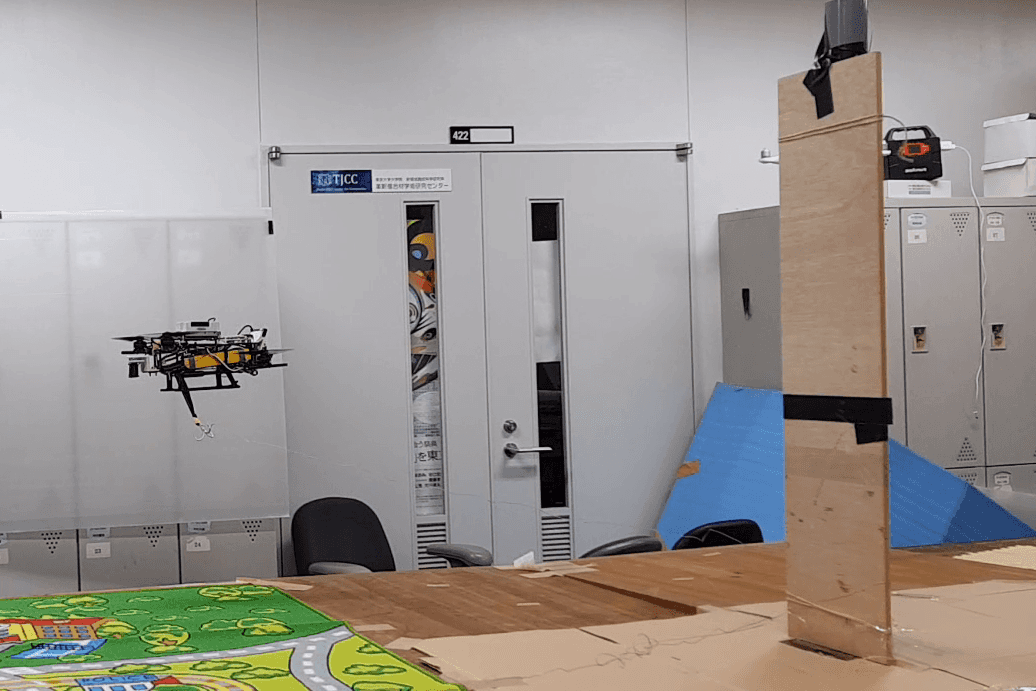

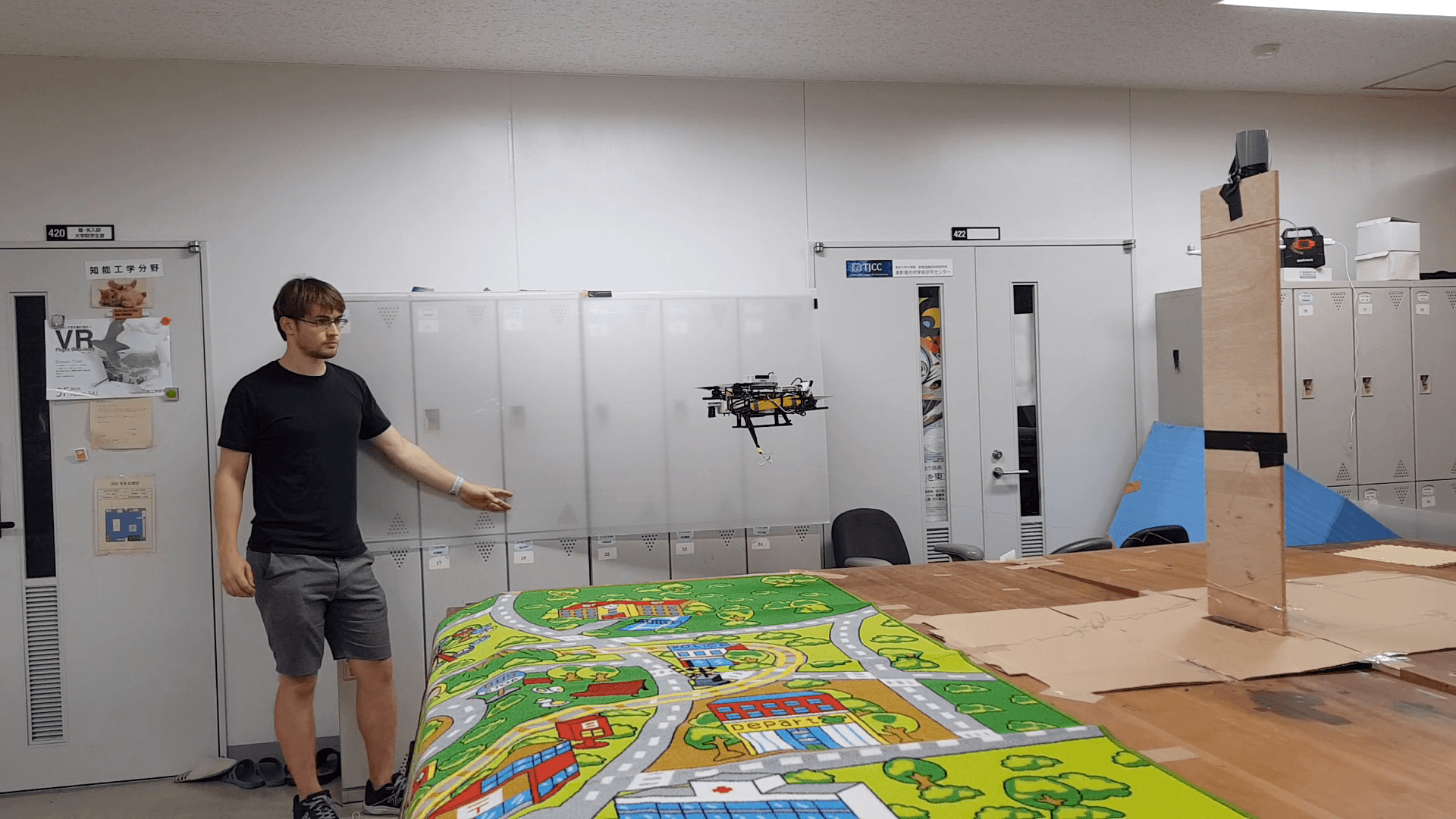

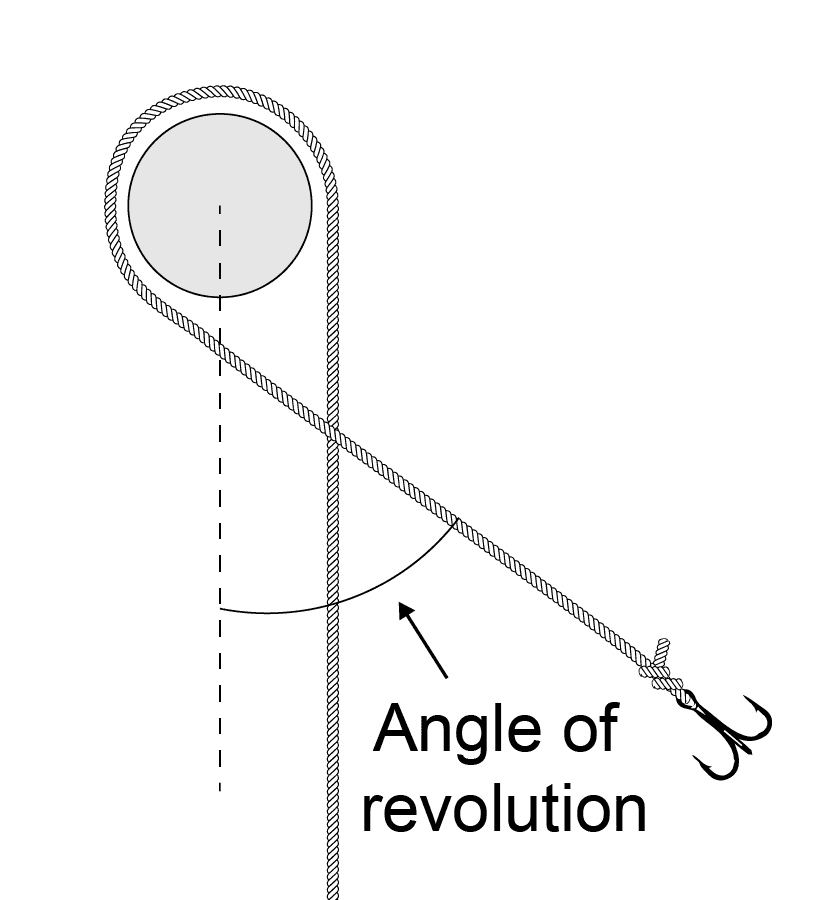

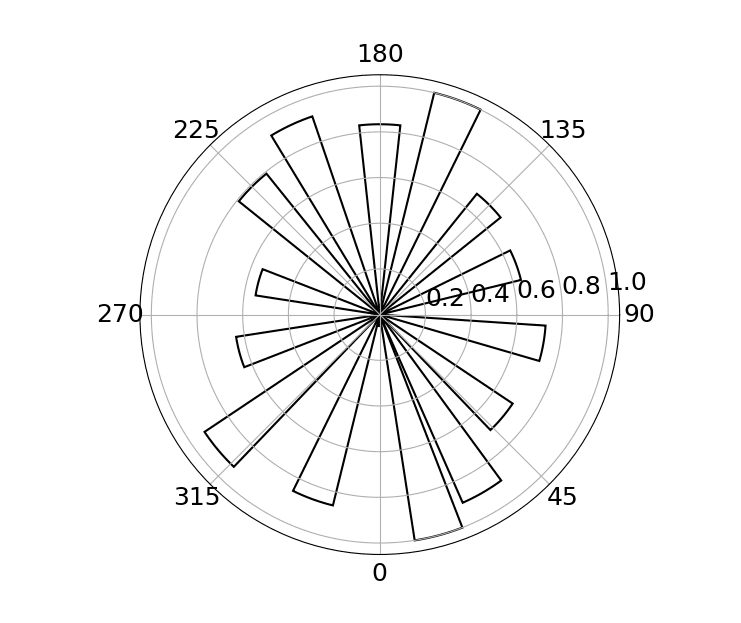

After detecting an anchor structure, the UAV flies around it to attach a tether. To find an optimal angle of revolution around the pole we performed an experiment to check the probability of successful attachment at each angle after one full revolution as shown in Fig. 7. To measure the success rate, we placed a hook by hand at every 20 degrees and pulled it with the winch on a smooth flooring. For this particular experiment, only times when the hook caught the tether was considered as a success, and therefore we counted as failures where hook got caught on the surroundings. As shown in Fig. 7 the most successful angle was found to be close to 0°or 180°. Finally, we selected 180°for our mission to increase the probability to be hooked to some structure and also to avoid the collision with UGV after the climbing.

VI-D Whole mission

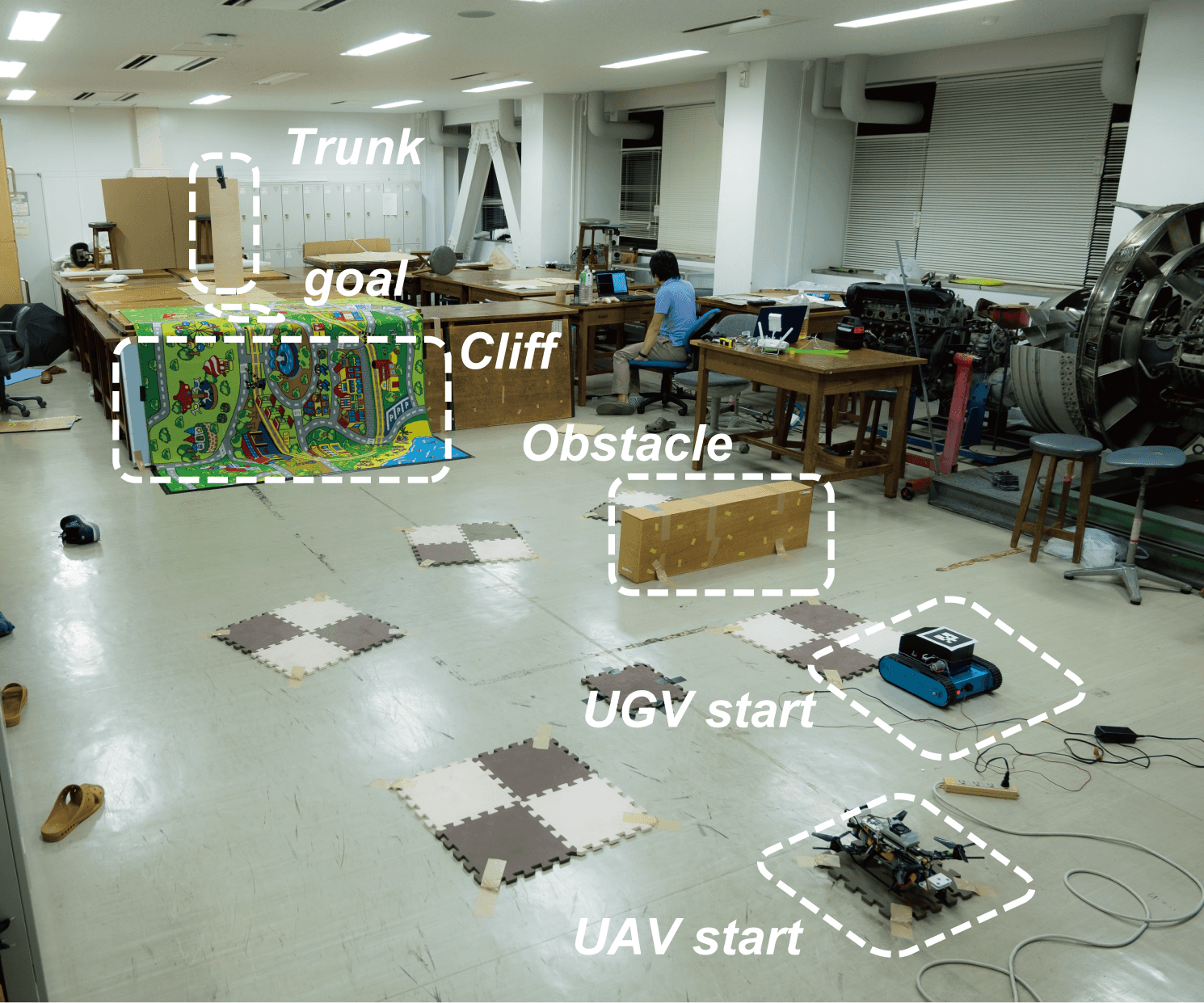

Finally, we conducted a whole autonomous mission experiment. The field was made in an indoor room with the obstacle in front of the UGV and a steep slope in the middle. On top of the slope, there is a pole which is intended to be an anchor point for tether attachment (Fig. 3). As described in the mission statement section II-B, the UAV and UGV cooperatively navigate and climb the cliff. For safety reasons, we stopped the motor of the UAV and turned on the winch switch manually in the experiment.

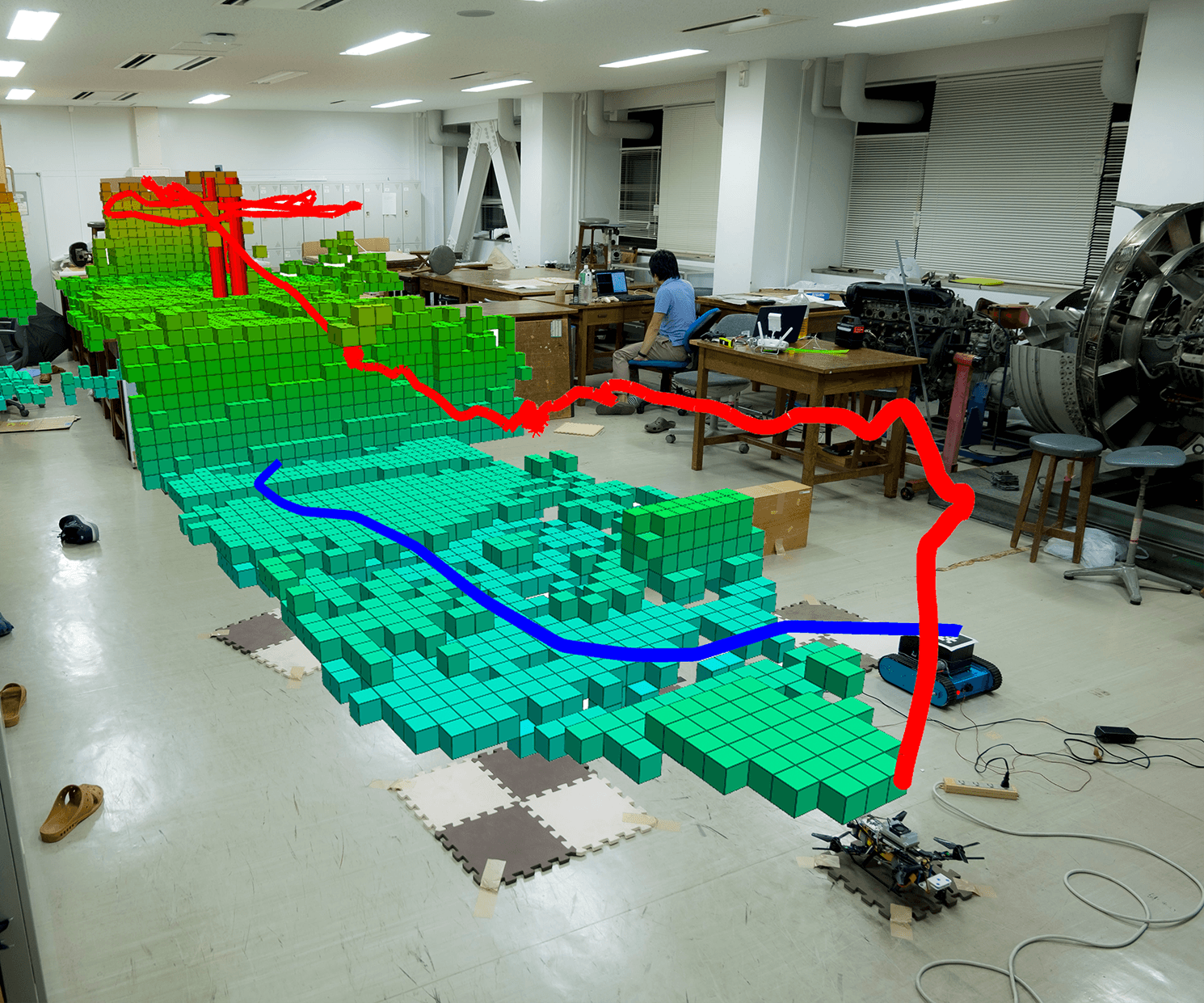

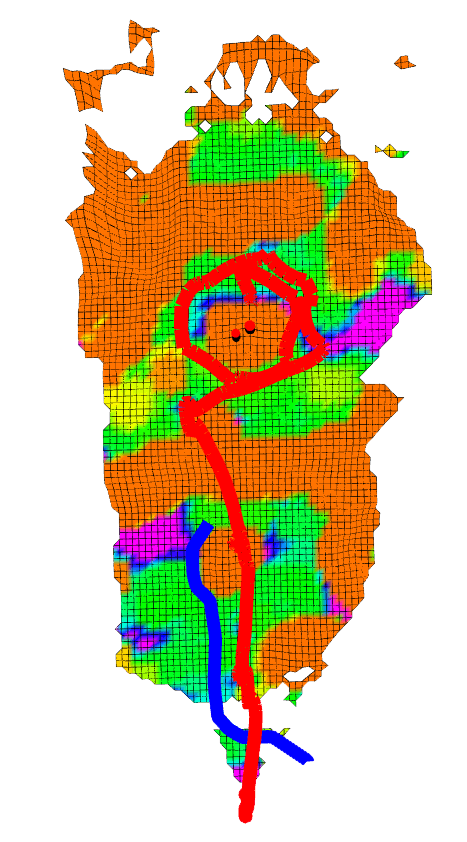

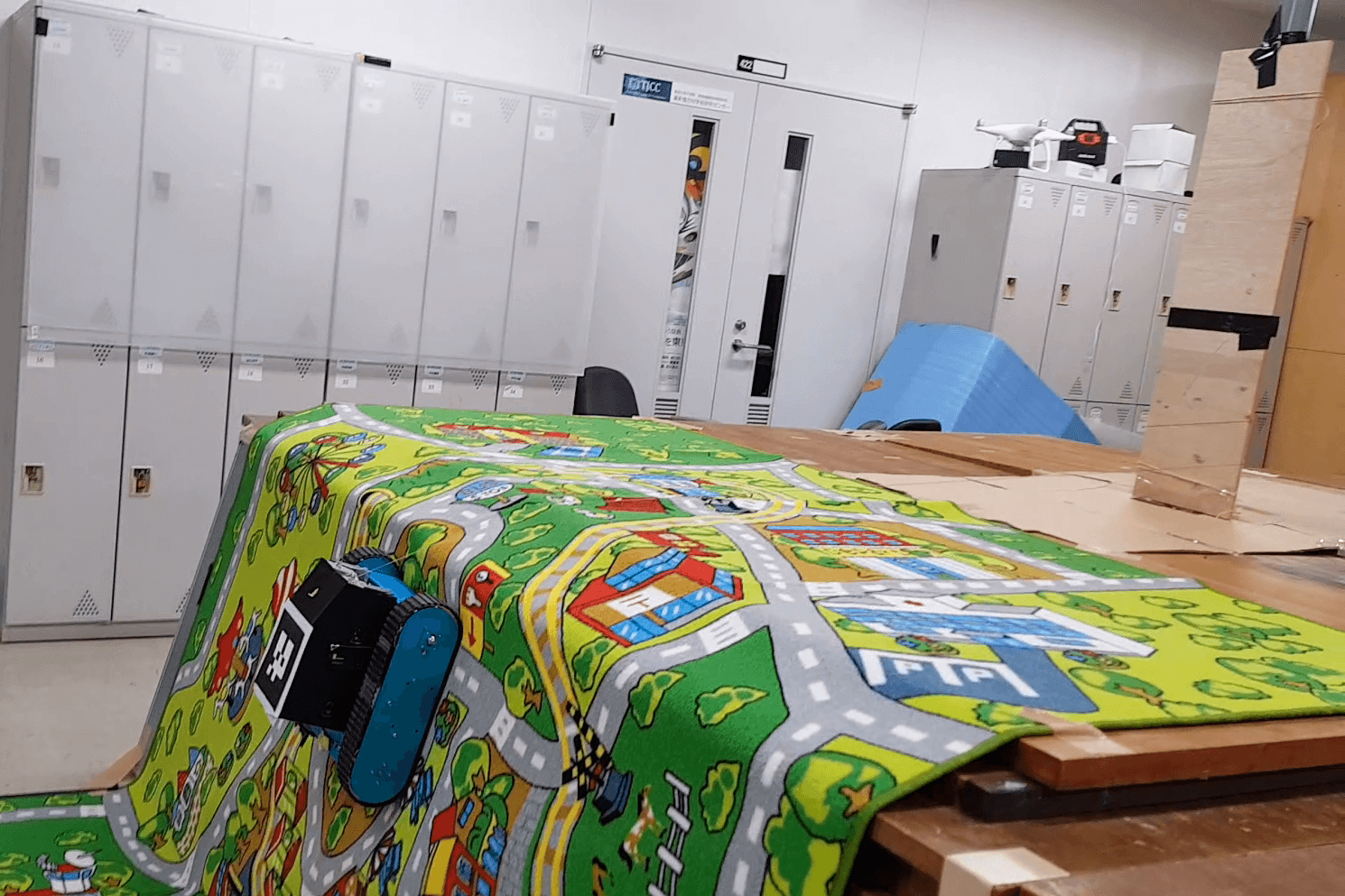

As shown in Fig. 3 and 8, The two robots successfully navigated through the field and reached the cliff while the UGV avoided the obstacle. Then, the cliff was detected and the UAV went above the cliff and began to search for a pole. After the detection of the pole, the UAV moved to the tether attachment state. With the completion of the anchoring, the UAV landed on a safe area and the UGV successfully climbed the cliff.

A lesson learned from this experiment is that, a tether tension control is necessary for the tethered cooperation. Since we did not have a tension control mechanism due to the lack of sensor, the tether needed to be extended from the start and as the result, the UGV suffered from the entangled tether many times. We observed that the navigation itself without the tether could be achieved with a high probability, however with the tether connection, the tether entangled to the UGV as the UGV move towards the tether on the ground, and we had to stop the experiment.

VII CONCLUSION

In this paper, we introduced a novel UAV / UGV cooperation system, which uses the UAV not only as a flying sensor but also as a tool to attach a tether to an unreachable area for the UGV to assist the UGV. We designed the autonomous system architecture based on ROS and open-source frameworks. Furthermore, we compared several tether attaching methods and chose a simple hybrid method that uses a grappling hook and winding technique to increase the probability of successful anchoring. We conducted several experiments that include the testing of the autonomous navigation, cliff climbing and tether attachment evaluation. Lastly, we executed the whole mission autonomously. The robots successfully finished the whole mission and both robots arrived on top of the cliff thus proving the feasibility of our proposed system.

For the future work, building smarter tether tension control system is crucial. Other directions are tether aware planning, power supply and communication via the tether, collaborative mapping and localization and tether unhooking.
