Smoothly non-isotopic Lagrangian disk fillings of Legendrian knots

TL;DR

This paper constructs new examples of Lagrangian ribbon disks in the symplectic 4-ball with identical Legendrian knot boundaries that are not smoothly isotopic, revealing novel distinctions in Lagrangian fillings.

Contribution

It introduces the first families of non-isotopic Lagrangian ribbon disks with the same boundary Legendrian knots and non-homeomorphic exteriors.

Findings

Existence of multiple non-isotopic Lagrangian ribbon disks with identical boundary knots

Disks have non-homeomorphic exteriors, indicating topological diversity

First explicit constructions of such Lagrangian fillings

Abstract

In this paper, we construct the first families of distinct Lagrangian ribbon disks in the standard symplectic 4-ball which have the same boundary Legendrian knots, and are not smoothly isotopic or have non-homeomorphic exteriors.

Figures

Equations

$$[\Sigma {]}^2+|⟨c_1(X),[\Sigma ]⟩|\le 2g(\Sigma )-2,$$

$${\pi }_1(W_{22})=⟨x_1,x_2,x_3|x_1{x}_2{x}_1^{-1}{x}_2^{-1}{x}_1{x}_2,x_3{x}_2{x}_3^{-1}{x}_2^{-1}{x}_3{x}_2⟩,$$

$${\pi }_1(W_{12})=⟨x_1,x_2,x_3|x_1{x}_2{x}_1^{-1}{x}_2^{-1}{x}_1{x}_2,x_3{x}_2^{-1}{x}_3^{-1}{x}_2{x}_3{x}_2^{-1}⟩.$$

$$r_1=x_1{x}_2{x}_1^{-1}{x}_2^{-1}{x}_1{x}_2,$$

$$r_2=x_3{x}_2{x}_3^{-1}{x}_2^{-1}{x}_3{x}_2,$$

$$r_3=x_3{x}_2^{-1}{x}_3^{-1}{x}_2{x}_3{x}_2^{-1}.$$

$$\alpha:\ \left\{\begin{array}[]{lr}x_{1},x_{3}\mapsto t,&\\ x_{2}\mapsto t^{-1},&\end{array}\right.\ \ \text{and}\ \ \beta:\ \left\{\begin{array}[]{lr}x_{1}\mapsto t,&\\ x_{2},x_{3}\mapsto t^{-1}.&\end{array}\right.$$

$$\{\begin{array}{ll}\alpha ({\partial }_{x_1}{r}_1)=\beta ({\partial }_{x_1}{r}_1)=2-t^{-1},& \alpha ({\partial }_{x_2}{r}_1)=\beta ({\partial }_{x_2}{r}_1)=2t-1,\\ \alpha ({\partial }_{x_2}{r}_2)=2t-1,& \alpha ({\partial }_{x_3}{r}_2)=2-t^{-1}\\ \beta ({\partial }_{x_2}{r}_3)=-2+t,& \beta ({\partial }_{x_3}{r}_3)=2-t,\end{array}$$

$$\alpha:\ \left[{\begin{array}[]{ccc}\partial_{x_{1}}r_{1}&\partial_{x_{2}}r_{1}&\partial_{x_{3}}r_{1}\\ \partial_{x_{1}}r_{2}&\partial_{x_{2}}r_{2}&\partial_{x_{3}}r_{2}\\ \end{array}}\right]\mapsto\left[{\begin{array}[]{ccc}2-t^{-1}&2t-1&0\\ 0&2t-1&2-t^{-1}\\ \end{array}}\right],$$

$$\beta:\ \left[{\begin{array}[]{ccc}\partial_{x_{1}}r_{1}&\partial_{x_{2}}r_{1}&\partial_{x_{3}}r_{1}\\ \partial_{x_{1}}r_{3}&\partial_{x_{2}}r_{3}&\partial_{x_{3}}r_{3}\\ \end{array}}\right]\mapsto\left[{\begin{array}[]{ccc}2-t^{-1}&2t-1&0\\ 0&-2+t&2-t\\ \end{array}}\right],$$

Full text

1. Introduction

Given a ribbon knot $K$ in $S^{3}$, it may bound distinct ribbon disks. For instance, in [1], Akbulut constructed a pair of ribbon disks which have the same boundary knots and diffeomorphic exteriors, and are not smoothly isotopic relative to the boundary.

The standard contact 3-sphere $(S^{3},\xi_{st})$ has a canonical symplectic filling $(B^{4},\omega_{st})$, the standard symplectic 4-ball. Given a Legendrian knot $L$ in $(S^{3},\xi_{st})$, if there is a Lagrangian surface $S$ in $(B^{4},\omega_{st})$ whose boundary is $L$, then we say that $S$ is a Lagrangian filling of $L$ ([6], [11]). There are some restrictions for a Legendrian knot admitting a Lagrangian filling. For instance, the sum of the Thurston-Bennequin invariant of a Lagrangian fillable Legendrian knot and the Euler characteristic of its bounding orientable Lagrangian surface is zero. See for example [7], [12] and [14]. The Legendrian unknot with Thurston-Bennequin invariant $-1$ bounds a Lagrangian disk. The Lagrangian disk fillable Legendrian nontrivial knot in $(S^{3},\xi_{st})$ with minimal crossing number is a Legendrian $\overline{9_{46}}$, the mirror of the knot $9_{46}$. This example appeared in [9], [20] and some other papers. There are more Lagrangian disk fillable Legendrian knots listed in [11, Table 1].

If a Legendrian knot $L$ is Lagrangian fillable, then one can naturally ask how many distinct Lagrangian surfaces filling $L$. Using symplectic invariants, people have found many examples of Legendrian knots each of which bounds distinct exact Lagrangian surfaces up to Lagrangian isotopy or Hamiltonian isotopy ([17], [23], [15], etc.). In particular, in [15, Section 3], Ekholm proved that there are two Lagrangian disks in $(B^{4},\omega_{st})$ which are filled by a Legendrian $\overline{9_{46}}$ and are not Hamiltonian isotopic to each other. Ekholm used this distinction to construct a non-loose Legendrian sphere which turns out to be wrong [16]. However, the erratum in [16] does not affect the distinction of the two Lagrangian disks. On the other hand, Auroux exhibited a Legendrian knot in the boundary of a Stein domain other than $(B^{4},\omega_{st})$ which fills two different Lagrangian disks [4, Corollary 3.4]. Those two disks are distinguished by the first homology groups of their exteriors.

In this paper, we construct the first families of distinct Lagrangian disks in $(B^{4},\omega_{st})$ which fill the same Legendrian knots in $(S^{3},\xi_{st})$, and are not smoothly isotopic or have non-homeomorphic exteriors.

Theorem 1.1**.**

There exist Legendrian knots in $(S^{3},\xi_{st})$ filling two Lagrangian disks which are not smoothly isotopic relative to the boundary, and have diffeomorphic exteriors.

Our first example is a Legendrian knot $\overline{9_{46}}$ shown in Figure 1. It bounds two Lagrangian disks which are not smoothly isotopic relative to the boundary. Their exteriors are diffeomorphic. These two Lagrangian disks are exactly the same as those in [15]. So Theorem 1.1 implies Ekholm’s result. Our second example is a Legendrian knot $\overline{9_{46}}\sharp\overline{9_{46}}$ shown in Figure 2. It bounds four Lagrangian disks which are pairwisely not smoothly isotopic relative to the boundary. In particular, some pairs of these four Lagrangian disks have non-homeomorphic exteriors in $B^{4}$.

Theorem 1.2**.**

There exists a Legendrian knot in $(S^{3},\xi_{st})$ filling two Lagrangian disks whose exteriors are not homeomorphic.

In [10], Conway, Etnyre and Tosun proved that the contact $(+1)$-surgery along a Legendrian knot $L$ in $(S^{3},\xi_{st})$ is strongly symplectically fillable if and only if $L$ bounds a Lagrangian disk $D$ in $(B^{4},\omega_{st})$, and the symplectic filling of the contact $(+1)$-surgery along $L$ can be constructed by removing a neighborhood of $D$ from $B^{4}$. They asked the following question.

Question 1.3** ([10]).**

Let $L$ be a Legendrian knot in $(S^{3},\xi_{st})$ with two (or more) distinct Lagrangian disk fillings in $(B^{4},\omega_{st})$. Does contact $(+1)$-surgery on $L$ have more than one Stein (or symplectic) filling up to symplectomorphism?

By Theorem 1.2 and the result in [10], there is a Legendrian knot along which the contact $(+1)$-surgery has two non-homeomorphic, and hence non-symplectomorphic, Stein fillings. This gives an evidence for Question 1.3.

Corollary 1.4**.**

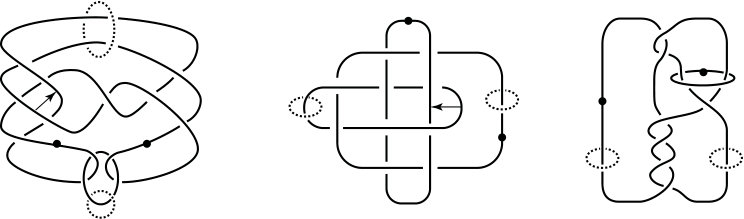

Let $L$ be the Legendrian knot $\overline{9_{46}}\sharp\overline{9_{46}}$ depicted in Figure 2. Then the contact $(+1)$-surgery on $L$ has two Stein fillings up to homeomorphism.

Taking connected sums of multiple copies of Legendrian $\overline{9_{46}}$ in Figure 1, we can find arbitrarily many distinct smooth isotopy classes of Lagrangian disks that fill a Legendrian knot.

Theorem 1.5**.**

For any positive integer $N$ there exists a Legendrian knot $\mathcal{L}$ in $(S^{3},\xi_{\text{st}})$ such that the number of smooth isotopy classes of Lagrangian disks that fill $\mathcal{L}$ in $(B^{4},\omega_{\text{st}})$ relative to the boundary is greater than $N$.

Here we raise a conjecture.

Conjecture 1.6**.**

Let $L$ be a Legendrian ribbon knot in $(S^{3},\xi_{\text{st}})$. Then $L$ bounds only finitely many Lagrangian isotopy types of Lagrangian ribbon disks in $B^{4}$.

Notice that it is not known whether this conjecture is true or not even in the case of smooth ribbon disks.

Acknowledgements**.**

The authors would like to thank John Etnyre and Honghao Gao for useful conversations. We are also grateful to the referee(s) for valuable suggestions. Part of this work was carried out while the first author was visiting University of Tsukuba and he would like to thank for their hospitality. The first author was partially supported by Grant No. 11871332 of the National Natural Science Foundation of China. The second author was partially supported by JSPS KAKENHI Grant Number 17K14180.

2. Preliminaries

2.1.

Suppose $K$ is a ribbon knot in $S^{3}$, and $D$ is a ribbon disk in $B^{4}$ bounded by $K$. We recall a recipe in [2, Section 1.4] and [19, Section 6.2] for drawing a handlebody decomposition of the exterior of $D$ in $B^{4}$. The ribbon knot can be turned into an unlink through some ribbon moves. A ribbon move means cutting and regluing along a band. We put dots on each component of the unlink so that they denote 4-dimensional 1-handles. Corresponding to each ribbon move, we add a 4-dimensional 2-handle along an unknot with framing [math] as shown in the bottom of Figure 3. Then we obtain a handlebody decomposition of the exterior of $D$.

2.2.

A smooth knot $L$ in a contact 3-manifold $(M,\xi)$ is Legendrian if $L$ is everywhere tangent to $\xi$. A properly embedded smooth surface $S$ in a symplectic 4-manifold $(W,\omega)$ is Lagrangian if $i^{\ast}\omega=0$, where $i:S\rightarrow W$ is the inclusion map. In this paper, we consider Lagrangian surfaces in $(B^{4},\omega_{st})$ which are bounded by a Legendrian knot in $(S^{3},\xi_{st})$. One can construct a Lagrangian surface in $(B^{4},\omega_{st})$ whose boundary is a Legendrian link in $(S^{3},\xi_{st})$ through a sequence of moves of three types below. See for example [8] and [17].

• •

Adding a maximal Thurston-Bennequin unknot,

• •

Pinch move,

• •

Legendrian isotopy.

Hence, if a Legendrian knot can be changed into a Legendrian unlink whose each component has maximal Thurston-Bennequin invariant $-1$ by a sequence of the (inverse) pinch moves and Legendrian isotopies, then the moves give a Lagrangian surface in $(B^{4},\omega_{st})$. Such Lagrangian surfaces are said to be decomposable [6].

We use the notation $\simeq$ to represent that the two surfaces in $B^{4}$ are smoothly isotopic relative to boundary.

2.3.

Let $L$ be a Legendrian knot in a contact 3-manifold $(Y,\xi)$. Perform $\frac{p}{q}$-surgery with respect to the contact framing, $pq\neq 0$, we obtain a closed 3-manifold, and denote it by $Y_{\frac{p}{q}}(L)$. Let $\nu(L)$ be the standard tubular neighborhood of $L$. Extend the contact structure $\xi$ on $Y\setminus\nu(L)$ to $Y_{\frac{p}{q}}(L)$ by a tight contact structure on the new glued-up solid torus, we obtain a contact structure on $Y_{\frac{p}{q}}(L)$, and denote it by $\xi_{\frac{p}{q}}(L)$. This operation is called a contact $\frac{p}{q}$-surgery. In [13], Ding and Geiges proved that every closed contact 3-manifold can be obtained by contact $(\pm 1)$-surgery along a Legendrian link in $(S^{3},\xi_{st})$. So the contact $(\pm 1)$-surgery plays a fundamental role in the constructions of contact 3-manifolds. The contact $(-1)$-surgery, a.k.a Legendrian surgery, along a Legendrian knot in $(S^{3},\xi_{st})$ yields a Stein fillable contact 3-manifold. However, the contact $(+1)$-surgery does not yield a symplectically fillable contact 3-manifold in general. Conway, Etnyre and Tosun gave a necessary and sufficient condition for a contact $(+1)$-surgery to be strongly symplectically fillable.

Theorem 2.1** ([10]).**

Let $L$ be a Legendrian knot in $(S^{3},\xi_{st})$. Then contact $(+1)$-surgery on $L$ is strongly symplectically fillable if and only if $L$ bounds a Lagrangian disk in $(B^{4},\omega_{st})$. In addition, if $L$ bounds a decomposable Lagrangian disk in $(B^{4},\omega_{st})$, then the filling can be taken to be Stein.

2.4.

We recall a topological characterization of Stein 4-manifolds given by Eliashberg and Gompf.

Theorem 2.2** ([18]).**

A smooth, compact, connected, oriented 4-manifold $X$ admits a Stein structure (inducing the given orientation) if and only if it can be presented as a handlebody by attaching 2-handles to a framed link in $\partial(D^{4}\cup\text{1-handles})=\sharp mS^{1}\times S^{2}$, where the link is drawn in a Legendrian standard form and the framing coefficient on each link component $K$ is given by $tb(K)-1$.

Any Stein 4-manifold has a special property about smooth embedded surfaces by the adjunction inequality coming from Seiberg-Witten theory. Here, we state the following result.

Theorem 2.3** ([21]).**

If $X$ is a 4-dimensional Stein manifold and $\Sigma\subset X$ is a closed, connected, embedded surface of genus $g$ in $X$, then

[TABLE]

unless $\Sigma$ is a sphere with $[\Sigma]=0$ in $H_{2}(X,{\mathbb{Z}})$.

This theorem implies that there is no smoothly embedded square $-1$ sphere in any Stein 4-manifold.

3. Non-isotopic Lagrangian disks

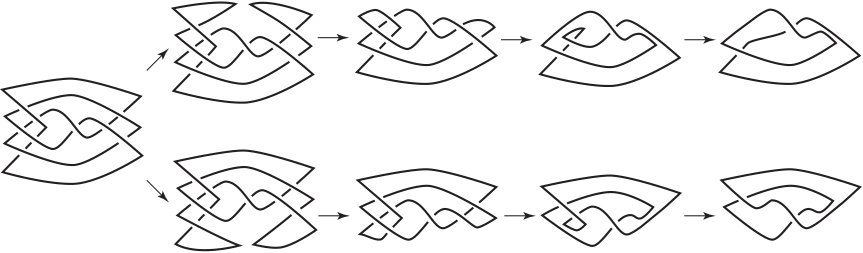

The Legendrian knot of knot type $\overline{9_{46}}$ in Figure 1 has two Lagrangian disk fillings as shown in Figure 5. Let $D_{1}$ and $D_{2}$ be the two Lagrangian disks, and $W_{1}$ and $W_{2}$ the exteriors of $D_{1}$ and $D_{2}$ respectively. In [15], Ekholm shows that $D_{1}$ and $D_{2}$ are not Hamiltonian isotopic to each other using a DGA. Our following result implies his result.

Proposition 3.1**.**

$D_{1}\not\simeq D_{2}$. $W_{1}$ and $W_{2}$ are diffeomorphic.

Proof.

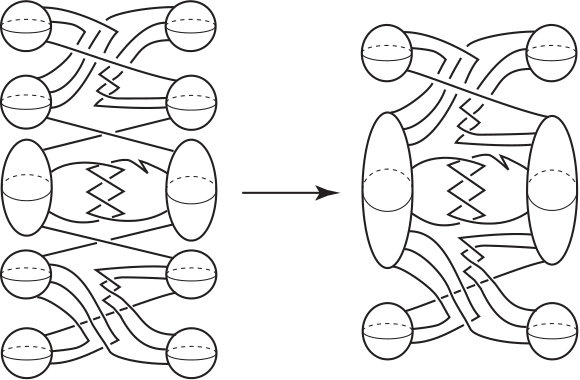

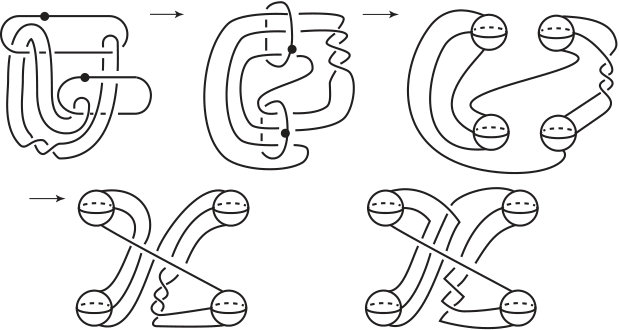

According to the recipe in Subsection 2.1, $W_{1}$ and $W_{2}$ have handle decompositions as shown in the top left and the bottom left of Figure 6 respectively. By symmetry, $W_{1}$ is diffeomorphism to $W_{2}$.

By assumption, $\partial D_{1}$ and $\partial D_{2}$ are the same knot in $S^{3}$, so their exteriors in $S^{3}$ coincide pointwisely. Both $\partial W_{1}$ and $\partial W_{2}$ can be seen as the [math]-surgery along $\partial D_{1}=\partial D_{2}$. Extending the identity of the knot exteriors to the [math]-surgeries, we get an identity map $Id:\partial W_{1}\to\partial W_{2}$.

Suppose that $D_{1}\simeq D_{2}$. Then the map $Id:\partial W_{1}\to\partial W_{2}$ can be extended to a diffeomorphism $f:W_{1}\to W_{2}$. We attach a $(-1)$-framed 2-handle $h$ on $W_{1}$ as in the top second diagram in Figure 6. Then $W_{1}\cup h$ is diffeomorphic to $W_{2}\cup h$ via $f$. Since both $\partial W_{1}$ and $\partial W_{2}$ are identified to the [math]-surgery along $\overline{9_{46}}$, we can replace the handle decomposition of $W_{1}$ in the top second diagram by that of $W_{2}$, and obtain the bottom second diagram in Figure 6 which represents $W_{2}\cup h$.

Canceling a 1/2-canceling pair in the handle decomposition of $W_{2}\cup h$ in the bottom second diagram of Figure 6, we obtain a simplified handle decomposition of $W_{2}\cup h$ which is shown in the bottom third diagram of Figure 6. Furthermore, by Gompf’s result in [18], we can transform it to a Stein handlebody as in the second fourth diagram. This means $W_{2}\cup h$ admits a Stein structure.

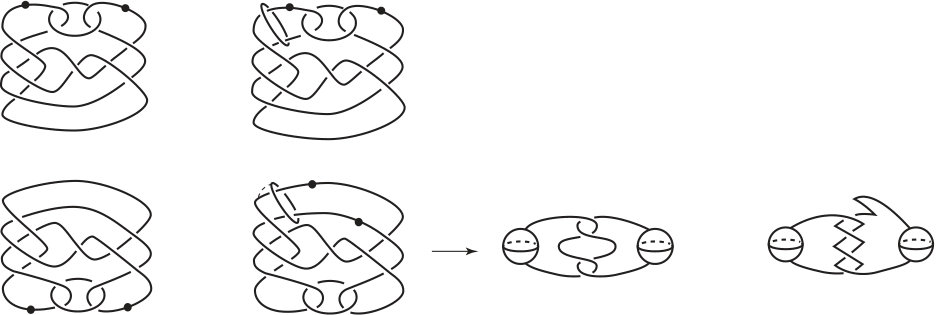

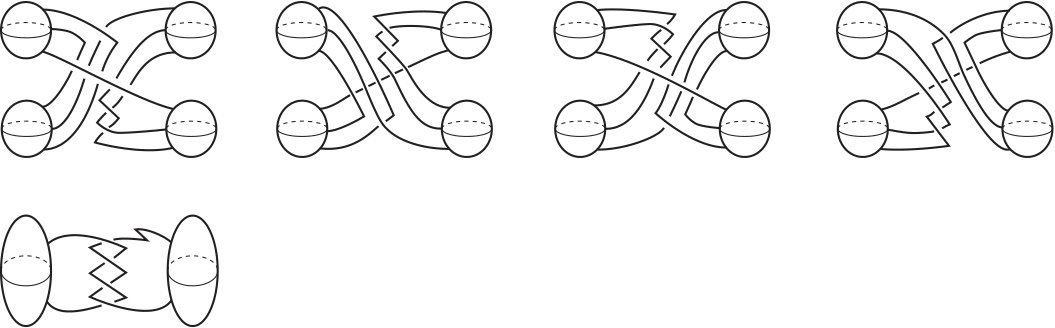

On the other hand, in $W_{1}\cup h$, we can find an embedded square $-1$ sphere. Indeed, as shown in Figure 7, the handlebody decomposition of $W_{1}\cup h$ in the top second diagram in Figure 6 can be transformed so that it contains an isolated $(-1)$-framed 2-handle. So $W_{1}\cup h$ never admit any Stein structure by Theorem 2.3.

As a result, $W_{1}\cup h$ and $W_{2}\cup h$ are not diffeomorphic. This implies $D_{1}\not\simeq D_{2}$. ∎

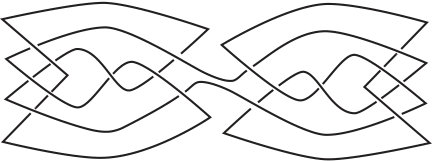

According to [17], the Legendrian knot of knot type $\overline{9_{46}}\sharp\overline{9_{46}}$ shown in Figure 2 bounds four Lagrangian disks $D_{11}$, $D_{12}$, $D_{21}$ and $D_{22}$ depicted in Figure 8. Let $W_{ij}$ denote the exteriors of disks $D_{ij}$ in $B^{4}$, where $i,j=1,2$.

The boundary connected sum of two properly embedded surfaces $S_{1}$ and $S_{2}$ in $B^{4}$ ($\partial S_{i}\neq\emptyset$) is removing two disk neighborhoods in $\partial B^{4}$ of two points in $\partial S_{1}$ and $\partial S_{2}$, respectively, and connecting the two arcs of $\partial S_{1}$ and $\partial S_{2}$ in the removed disks by an embedded band $I\times I$. Here $I\times\partial I$ is attached to the two arcs and $\partial I\times I$ is embedded in $\partial B^{4}$. In general, if orientations of $\partial S_{1}$ and $\partial S_{2}$ are given, then the boundary connected sum of $S_{1}$ and $S_{2}$ has two isotopy types. One is the case where the orientation of the boundary of the resulted surface is consistent with the given orientations of $\partial S_{1}$ and $\partial S_{2}$, and the other is the inconsistent case. The result of boundary connected sum of two surfaces $S_{1}$ and $S_{2}$ via any band is denoted by $S_{1}\natural S_{2}$. See Figure 9.

The boundary connected sums of the two Lagrangian disks $D_{1}$ and $D_{2}$ have four possibilities depending on the choices of $D_{i}$ and two ways of boundary connected sums. We remark that $D_{ij}$ in Figure 8 is the boundary connected sum of the Lagrangian disks $D_{i}$ and $D_{j}$ for $i,j\in\{1,2\}$.

Here we prove the following:

Proposition 3.2**.**

$D_{11}\not\simeq D_{22}$, $D_{12}\not\simeq D_{21}$. Both of these two pairs of disks have diffeomorphic exteriors.

Proof.

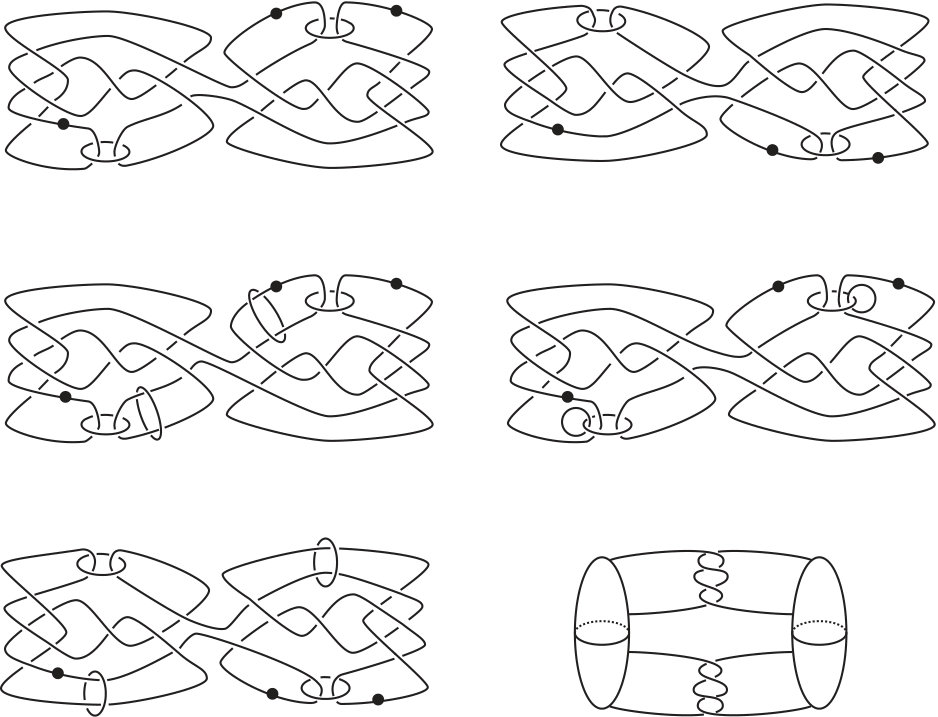

According to [2, Section 1.4], the handle decompositions of $W_{22}$ and $W_{11}$ are shown as in Figure 10. By symmetry of the diagrams, $W_{11}$ is diffeomorphic to $W_{22}$. Similarly, we know that $W_{12}$ is diffeomorphic to $W_{21}$.

We prove that $D_{11}\not\simeq D_{22}$. The way to prove it is essentially the same as that in the proof of Proposition 3.1. We attach two $(-1)$-framed 2-handles $k_{1}$ and $k_{2}$ on $W_{22}$. See the middle first diagram in Figure 10. The two attaching circles can be moved to the position shown in the middle second diagram by a handle sliding. If $D_{11}\simeq D_{22}$, then by the same argument as in the proof of Proposition 3.1, there is a diffeomorphism between the exteriors $W_{11}$ and $W_{22}$ which fixes the boundary. Replacing the handle decomposition of $W_{22}$ in the middle first diagram by that of $W_{11}$, we get the bottom first diagram. By handle cancellation, we obtain the last diagram which can be deformed into a Stein handlebody in a similar way to that used in the proof of Proposition 3.1. Hence, $W_{11}\cup k_{1}\cup k_{2}$ admits a Stein structure. On the other hand, by Theorem 2.3 again, $W_{22}\cup k_{1}\cup k_{2}$ never admit any Stein structure. This is because we can find two embedded square $-1$ spheres using the middle second diagram in Figure 10 and the argument in the proof of Proposition 3.1. This means $D_{11}\not\simeq D_{22}$.

We can also prove $D_{12}\not\simeq D_{21}$ in the similar way. ∎

In fact, the disks $D_{i1}\not\simeq D_{i2}$ and $D_{1j}\not\simeq D_{2j}$ for $i,j\in\{1,2\}$. We will prove that the fundamental groups of the exteriors of these pairs are not isomorphic in the next section.

Proof of Theorem 1.1.

It follows from Proposition 3.1 and Proposition 3.2. ∎

4. Non-homeomorphic Lagrangian disk exteriors

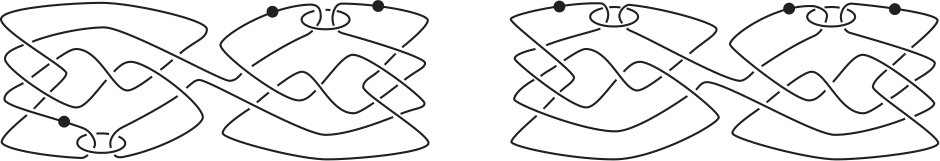

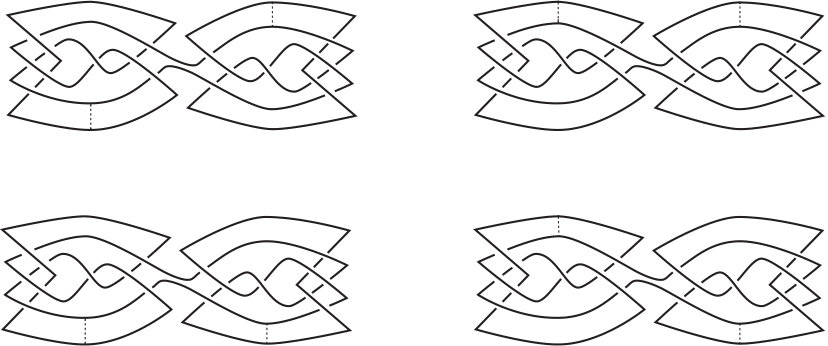

The handle decompositions of $W_{22}$ and $W_{12}$ are depicted in Figure 11. We prove that $W_{22}$ and $W_{12}$ have distinct topological types by showing that they have non-isomorphic fundamental groups.

Lemma 4.1**.**

The fundamental groups of $W_{22}$ and $W_{12}$ are computed as follows:

[TABLE]

[TABLE]

Proof.

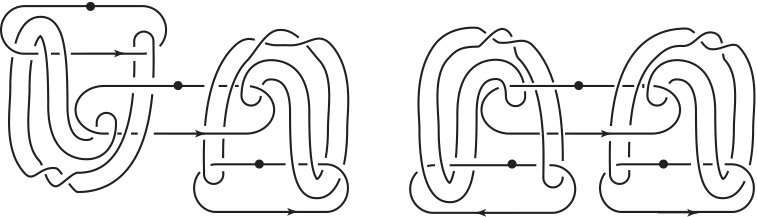

Deforming the handle decomposition in Figure 11, we get the diagrams of Figure 12. Then we have

[TABLE]

[TABLE]

[TABLE]

The presentations of $\pi_{1}(W_{22})$ and $\pi_{1}(W_{12})$ are $\langle x_{1},x_{2},x_{3}|r_{1},r_{2}\rangle$ and $\langle x_{1},x_{2},x_{3}|r_{1},r_{3}\rangle$, respectively. ∎

Lemma 4.2**.**

$\pi_{1}(W_{22})$* and $\pi_{1}(W_{12})$ are not isomorphic.*

Proof.

Let $t$ be a generator of $\mathbb{Z}$. We consider the abelianizations $\alpha:\pi_{1}(W_{22})\to\langle t\rangle\cong{\mathbb{Z}}$ and $\beta:\pi_{1}(W_{12})\to\langle t\rangle\cong{\mathbb{Z}}$ as follows,

[TABLE]

The abelianizations of the Fox derivatives for $r_{1},r_{2},r_{3}$ are

[TABLE]

and, obviously, $\partial_{x_{3}}r_{1}=\partial_{x_{1}}r_{2}=\partial_{x_{1}}r_{3}=0$. So the presentation matrix of $\pi_{1}(W_{22})$ is the following

[TABLE]

and the Alexander polynomial of $\pi_{1}(W_{22})$ is $(2-t^{-1})^{2}$.

In the same way, the presentation matrix of $\pi_{1}(W_{12})$ is as follows:

[TABLE]

and the Alexander polynomial of $\pi_{1}(W_{12})$ is $(2-t^{-1})(2-t)$.

Since $\pi_{1}(W_{22})$ and $\pi_{1}(W_{12})$ have different Alexander polynomials, they are not isomorphic. ∎

Proof of Theorem 1.2.

It follows from Lemma 4.1 and Lemma 4.2. ∎

5. Arbitrarily many non-isotopic Lagrangian disks

In this section we construct arbitrarily many smoothly non-isotopic Lagrangian fillings for Legendrian knots. At first, we give a Stein handlebody decomposition of $W_{2}$, the exterior of the disk $D_{2}$ in $B^{4}$.

Lemma 5.1**.**

There is a Stein handle decomposition of $W_{2}$ shown as in the bottom last diagram in Figure 13.

Proof.

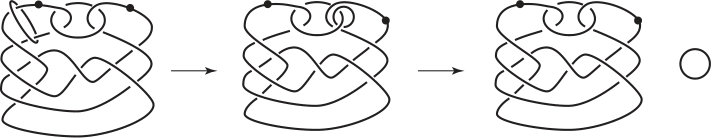

We isotope the handle decomposition of $W_{2}$ shown as in Figure 6 to the top two diagrams in Figure 13. Then we change the dotted circle presentation of the 1-handles to the ordinary presentation, and transform the smooth handle decomposition in the bottom second diagram to a Stein handlebody in the last diagram in Figure 13. Note that the Legendrian knot in the bottom last diagram has Thurston-Bennequin invariant $1$. ∎

Now we give a proof of Theorem 1.5.

Proof of Theorem 1.5.

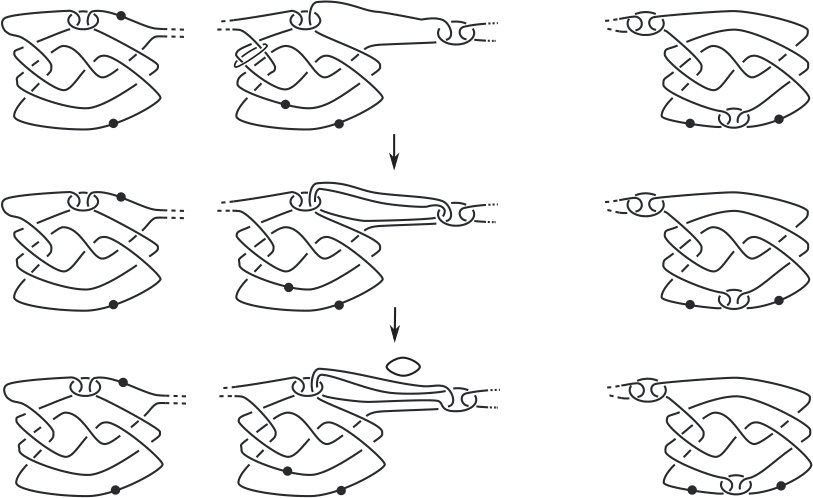

Taking Legendrian connected sum of $n$ copies of the Legendrian $\overline{9_{46}}$ in Figure 1, we get a Legendrian knot as in the first row of Figure 14. We denote it by $\mathcal{L}_{n}$.

Choosing one of the two pinch positions per a connected sum summand, we can get $2^{n}$ Lagrangian disks $D_{i_{1}i_{2}\cdots i_{n}}$, where $i_{j}\in\{1,2\}$. In fact, $D_{i_{1}i_{2}\cdots i_{n}}$ is the boundary connected sum $D_{i_{1}}\natural D_{i_{2}}\natural\cdots\natural D_{i_{n}}$ of $D_{i_{1}}$, $D_{i_{2}}$, $\cdots$, and $D_{i_{n}}$. The first row in Figure 14 represents one example of Lagrangian disks by indicating $n$ positions to pinch. By Lemma 5.1, the exterior of this disk has a Stein structure which can be drawn by piling vertically $n$ Stein handlebody diagrams of the four patterns in the first row of Figure 16 according to the $n$-tuple $(i_{1},i_{2},\cdots,i_{n})$, and put $n-1$ [math]-framed 2-handle to connect adjacent summands as in Figure 15.

Suppose that $D_{i_{1}i_{2}\cdots i_{n}}\simeq D_{j_{1}j_{2}\cdots j_{n}}$, where the two $n$-tuples $(i_{1},i_{2},\cdots,i_{n})$ and $(j_{1},j_{2},\cdots,j_{n})$ in $\{1,2\}^{n}$ are distinct. Then there exists $r\in\{1,\cdots,n\}$ such that $i_{r}\neq j_{r}$, say $i_{r}=1$ and $j_{r}=2$. Let $W$ and $W^{\prime}$ denote the exteriors of two disks $D_{i_{1}i_{2}\cdots i_{n}}$ and $D_{j_{1}j_{2}\cdots j_{n}}$ respectively. On the $r$-th summand we put a $(-1)$-framed 2-handle $h$ (see the second row in Figure 14) in a similar way to that depicted in Figure 6. By our assumption, $W\cup h$ and $W^{\prime}\cup h$ should be diffeomorphic by the same reason as the one in the proof of Proposition 3.1.

At first we claim that $W^{\prime}\cup h$ admits a Stein structure. We can perform a cancellation of $1/2$-canceling pair as in the proof of Proposition 3.1. The Stein handlebody diagram of $W^{\prime}\cup h$ can be constructed by piling $n$ choices of the five patterns in Figure 16 vertically, taking the last Stein diagram exactly once, and connecting them by $n-1$ 0-framed 2-handles. See Figure 17 for an example of Stein handlebody decomposition of $W^{\prime}\cup h$.

Then we claim that $W\cup h$ does not admit any Stein structure. We isotope the middle diagram of Figure 14 to the top diagram of Figure 18. Then, by handle sliding and blowdown, we can see that $W\cup h$ contains an embedded square $-1$ sphere. By Theorem 2.3, $W\cup h$ does not admit any Stein structure.

Thus, $W\cup h$ and $W^{\prime}\cup h$ are not diffeomorphic and this means that $D_{i_{1}i_{2}\cdots i_{n}}\not\simeq D_{j_{1}j_{2}\cdots j_{n}}$.

Therefore, for any number $N$, the Legendrian knot $\mathcal{L}_{n}$ where $n$ is an integer with $n>\log_{2}N$, has at least $N+1$ mutually smoothly non-isotopic Lagrangian ribbon disks in $B^{4}$. ∎

6. Relationship with the Akbulut cork

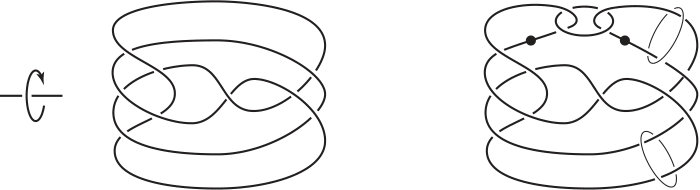

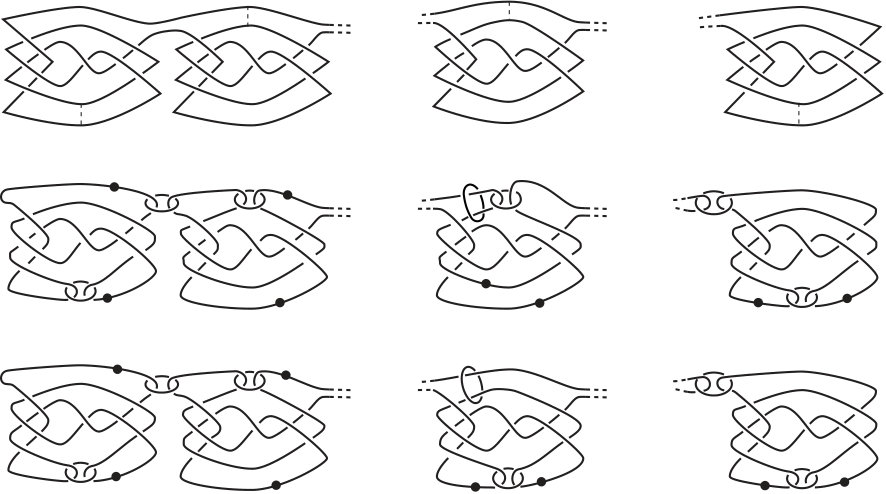

Let $C$ be a contractible 4-manifold depicted in Figure 19. There is an involution on $\partial C$ which is the $180^{\circ}$ rotation about the horizontal axis. The pair of $C$ and the involution is called an Akbulut cork. This involution can extend to a homeomorphism on $C$, but cannot extend to any diffeomorphism on $C$. There are two slice disks in $B^{4}$ constructed by the cork twist of $C$ in the following way.

Akbulut constructed two smoothly non-isotopic slice disks $d_{1}$ and $d_{2}$ of a common knot $K_{Ak}$ (Figure 7 in [1]) in $B^{4}$. In fact, each exterior of $d_{i}$ ($i=1,2$) in $B^{4}$ is diffeomorphic to the exterior of a slice disk in $C$. The property of the cork implies that $d_{1}\not\simeq d_{2}$.

In the proof of [3, Theorem 2], Akbulut and Yildiz proved that there is an involution of the boundary of the exterior of ribbon disk $d_{1}$ (or $d_{2}$) in $B^{4}$ extends to a homeomorphism, but does not extend to any diffeomorphism of the exterior. Here we consider an involution on $\partial W_{1}$ and the extendability.

Proposition 6.1**.**

Let $\iota$ be an involution on $\partial W_{1}=S^{3}_{0}(\overline{9_{46}})$ as in Figure 20, i.e., the $180^{\circ}$ rotation about horizontal axis. Then the action cannot extend to any self-homotopy equivalence on $W_{1}$.

Proof.

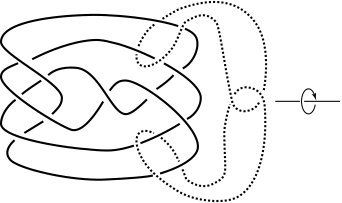

Let $c$ be a curve on $\partial W_{1}$ as in Figure 20. Then the image $\iota(c)$ by the map $\iota$ is indicated in Figure 20.

Attaching a 4-dimensional 2-handle $h$ on $W_{1}$ along $c$ (with a framing), we obtain a diffeomorphism $\partial W_{1}\times[0,1]\cup h\to\partial W_{1}\times[0,1]\cup_{\iota}h^{\prime}$. Here $h^{\prime}$ is a 2-handle along $\iota(c)$. If $\iota$ can homotopically extend inside $W_{1}$, then we can get a homotopy equivalence $W_{1}\cup h\to W_{1}\cup_{\iota}h^{\prime}$. In particular, $\pi_{1}(W_{1}\cup h)$ and $\pi_{1}(W_{1}\cup_{\iota}h^{\prime})$ must be isomorphic.

The former gives an isomorphism $\pi_{1}(W_{1}\cup h)\cong\pi_{1}(W_{1})$. In fact, because $c$ gives a trivial relator in $\pi_{1}(W_{1})$, attaching of $h$ does not change $\pi_{1}(W_{1})$. Due to the diffeomorphism in Figure 21, $\pi_{1}(W_{1})$ is isomorphic to $\langle x,y|y^{-1}xy=x^{2}\rangle$. This group is a solvable Baumslag-Solitar group [5] and it is well-known that it is non-abelian. On the other hand, the latter $\pi_{1}(W_{1}\cup_{\iota}h^{\prime})$ is isomorphic to ${\mathbb{Z}}$. See the last picture in Figure 6.

Thus, $\pi_{1}(W_{1}\cup h)$ and $\pi_{1}(W_{1}\cup_{\iota}h^{\prime})$ are not isomorphic. This contradiction implies that $\iota$ cannot extend to a self-homotopy equivalence from $W_{1}$ to itself. ∎

Remark 6.2**.**

Using a similar argument, there is an involution between the boundaries of exteriors of the pair of the disks $(D_{11},D_{22})$ (and $(D_{12},D_{21})$) which cannot extend to the inside as a self-homotopy equivalence.

Remark 6.3**.**

Our non-isotopy property of $D_{1}$ and $D_{2}$ can also be reinterpreted by the Akbulut cork $C$ in Figure 19. This is an idea by Akbulut [1]. The diffeomorphisms which can be seen in Figure 21 give a diffeomorphism between the exterior of the ribbon disk $D_{i}$ ($i=1,2$) in $B^{4}$ and the exterior of a slice disk $D$ in $C$. The spanning disk of right dotted circle in the last picture of Figure 21 is $D$. This diffeomorphism relates the symmetries of the ribbon disks $D_{1}$ and $D_{2}$ of $\overline{9_{46}}$ and the cork twist of $C$. Let $\gamma$ and $\delta$ be the meridians of a dotted 1-handle and a 2-handle of the handle decomposition of $C$. See the last picture of Figure 21. The two meridians are isotopic to the positions in the first picture in Figure 21 by the diffeomorphism. Furthermore, the meridians are moved to a symmetric position in $W_{1}$ and $W_{2}$ by an isotopy. In Figure 22 we draw the positions of $\gamma$ and $\delta$ in $S^{3}\setminus\overline{9_{46}}$. Thus, we can understand that the non-isotopiness of two disks is caused by the non-extendability property of the cork twist.

Remark 6.4**.**

Both of Akbulut’s slice disks $d_{1},d_{2}$ are not isotopic to any Lagrangian disk even if taking the mirror image. In fact, any ribbon disk in $B^{4}$ of both of $K_{Ak}$ and the mirror image $\overline{K_{Ak}}$ is not isotopic to a Lagrangian disk. If $K_{Ak}$ has a Legendrian knot $L$ that fills a Lagrangian disk, then $tb(L)=-1$ due to [7]. By [22], $tb(L)$ has an upper bound $tb(L)\leq\min\deg_{a}(F_{K_{Ak}})-1$. Here $\min\deg_{a}(F_{K_{Ak}})$ is the minimal $a$-degree of the Kauffman polynomial $F_{K_{Ak}}(a,z)$. By an easy calculation using the skein relation, $\min\deg_{a}(F_{K_{Ak}})=-1$. So $tb(L)\leq-2$, and there is no Lagrangian disk filling for $K$. Since $\min\deg_{a}(F_{\overline{K_{Ak}}})=-8$, $\overline{K_{Ak}}$ has no Lagrangian disk filling for the same reason.
