High-frequency EPR study on Cu$_4$Cu- and Co$_4$Co-metallacrown complexes

TL;DR

This study uses high-frequency EPR to analyze the magnetic properties of Cu4Cu and Co4Co metallacrown complexes, revealing their g-tensor anisotropy and zero-field splitting characteristics.

Contribution

It provides detailed high-frequency EPR data on metallacrown complexes, highlighting their anisotropic g-values and zero-field splitting, which were previously less characterized.

Findings

Cu4Cu exhibits axial g-anisotropy with g-values around 2.03-2.23.

No significant zero field splitting observed in Cu4Cu.

Co4Co shows a ground state with large anisotropy D and g=2.66.

Abstract

High-frequency/high-field electron paramagnetic resonance studies on two homo-nuclear 12-MC-4 metallacrown complexes Cu$_4$Cu and Co$_4$Co are presented. For Cu$_4$Cu, our data imply axial-type $g$-anisotropy with $g_{x}$ = 2.03 $\pm$ 0.01, $g_{y}$ = 2.04 $\pm$ 0.01, and $g_{z}$ = 2.23 $\pm$ 0.01, yielding $g=2.10 \pm 0.02$. No significant zero field splitting (ZFS) of the ground state mode is observed. In Co$_4$Co, we find a m$_S$ = $\pm$3/2 ground state with $g=2.66$. The data suggest large anisotropy $D$ of negative sign.

Figures

Equations

$$\hat{H}=g{\mu }_B{S}_{z}B+D\left(S_z^2+\frac{S(S+1)}{3}\right).$$

Full text

††journal: Advances in Magnetism at the Joint European Magnetic Symposia 2018 (JEMS2018)

1 Introduction and Experiment

Metallacrowns are coordination compounds including metal ions where a repeating sequence, i.e., [–M–O–N–], forms macroscopic rings. [1] The characteristic rings of regular metallacrowns involve oxygens pointing towards the core of the cycle, thereby offering coordination positions of central cations. The class of 12-MC-4 studied at hand comprises 12 atoms in the planar square cycle, i.e., four of which being metal ions, with an additional metal ion in slightly off-plane center site. Here, we present high-frequency/high-field electron paramagnetic resonance (HF-EPR) studies on two metallacrown 12-MC-4 complexes: (HNEt3)2Cu(II)[12-MCCu(II)N(Shi)-4] (i.e., Cu4Cu) and the mixed-valent (HPip)(Piv)[Li[Co(II)($\mu$2-Piv)2(Piv)12-MCCo(III)N(Shi)-45]]2) (i.e., Co4Co). In Co4Co, the low-spin Co(III) ions which are diamagnetic form the scaffold while the Co(II)-ion is located in the center position. Details of the synthesis method, structure information, and characterisation are reported in Ref. [1, 2].

HF-EPR measurements were carried out using a phase-sensitive millimeter-wave vector network analyzer (MVNA) from AB Millimètre covering the frequency range from 30 to 1000 GHz [3]. For each frequency range (Q,L,W band etc.), different sets of Schottky diode systems were used. Experiments were performed in a 16 T superconducting magnet with temperature control sensors in both probe and sample space. Loose powder was densely packed in the sample space of the cylindrical waveguide probe without any glue or grease. Analysis of the obtained EPR experimental data were performed using the program EasySpin [4].

1.1 Results on Cu4Cu

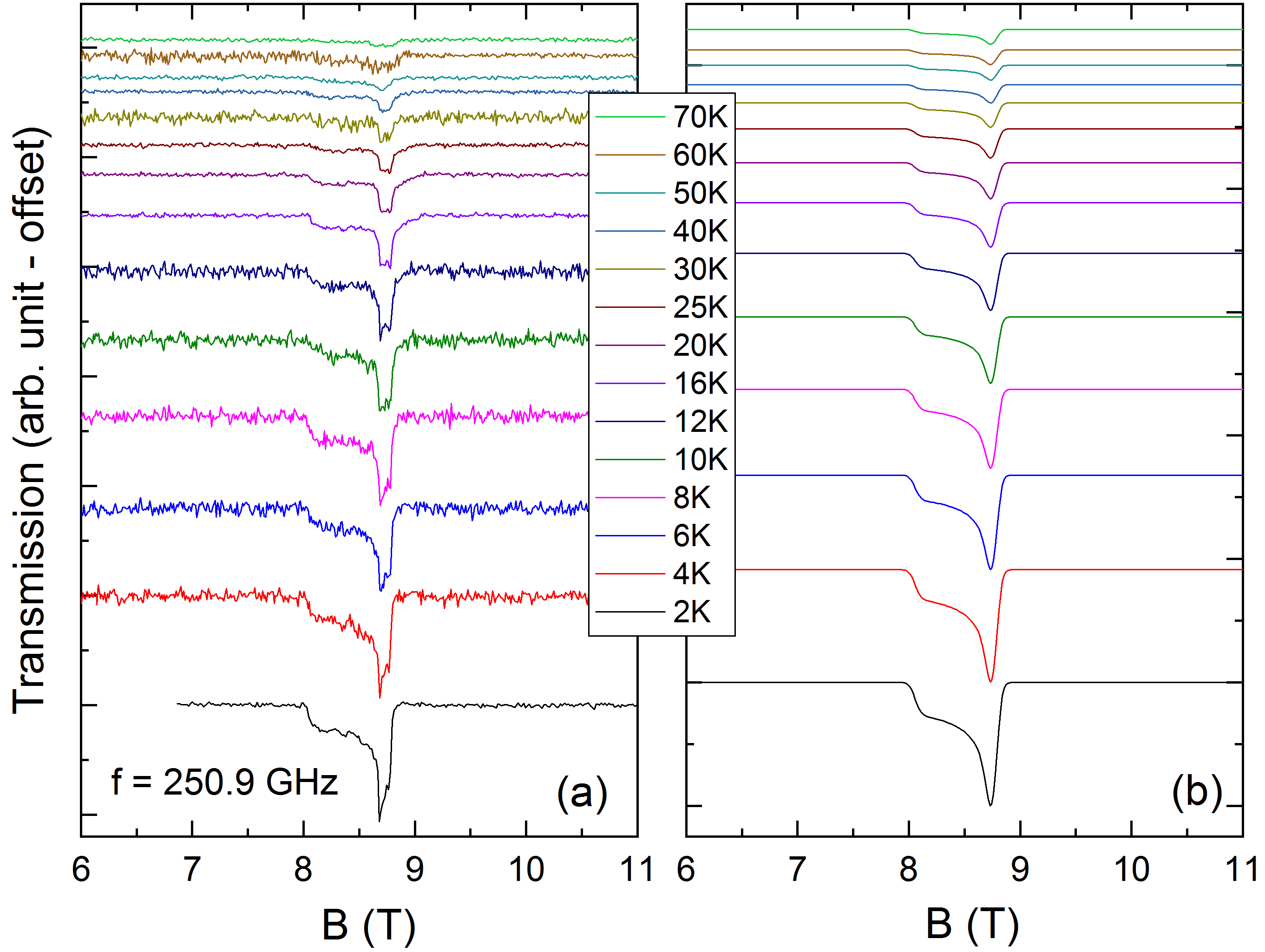

HF-EPR spectra of Cu4Cu obtained at $f=250.9$ GHz are shown in Fig. 1. We observe one broad resonance feature which implies the presence of a S = 1/2 ground state doublet in agreement of the susceptibility data analysis [2]. The resonances resemble typical powder spectra [5]. At $T=2$ K, a sharp peak appears in the high-field region of the resonance accompanied by a broad shoulder at lower field. This shape of the resonance clearly indicates an easy axis-type of $g$-anisotropy in the complex. The temperature dependence of the spectra at $f=250.9$ GHz shows a Curie-like decrease upon heating. Simulation of the resonances in terms of a uniaxial magnetic system with two magnetic principal axes corresponding to three components of the $g$-tensor yields a good description of the data as displayed by the experimental (a) and simulated (b) data in Fig. 1. Note, however, that the data exhibit a broad double feature of the resonance which is not reproduced by the simulation. We attribute this either to not fully aligned powder or to a few impurity spins in the complex.

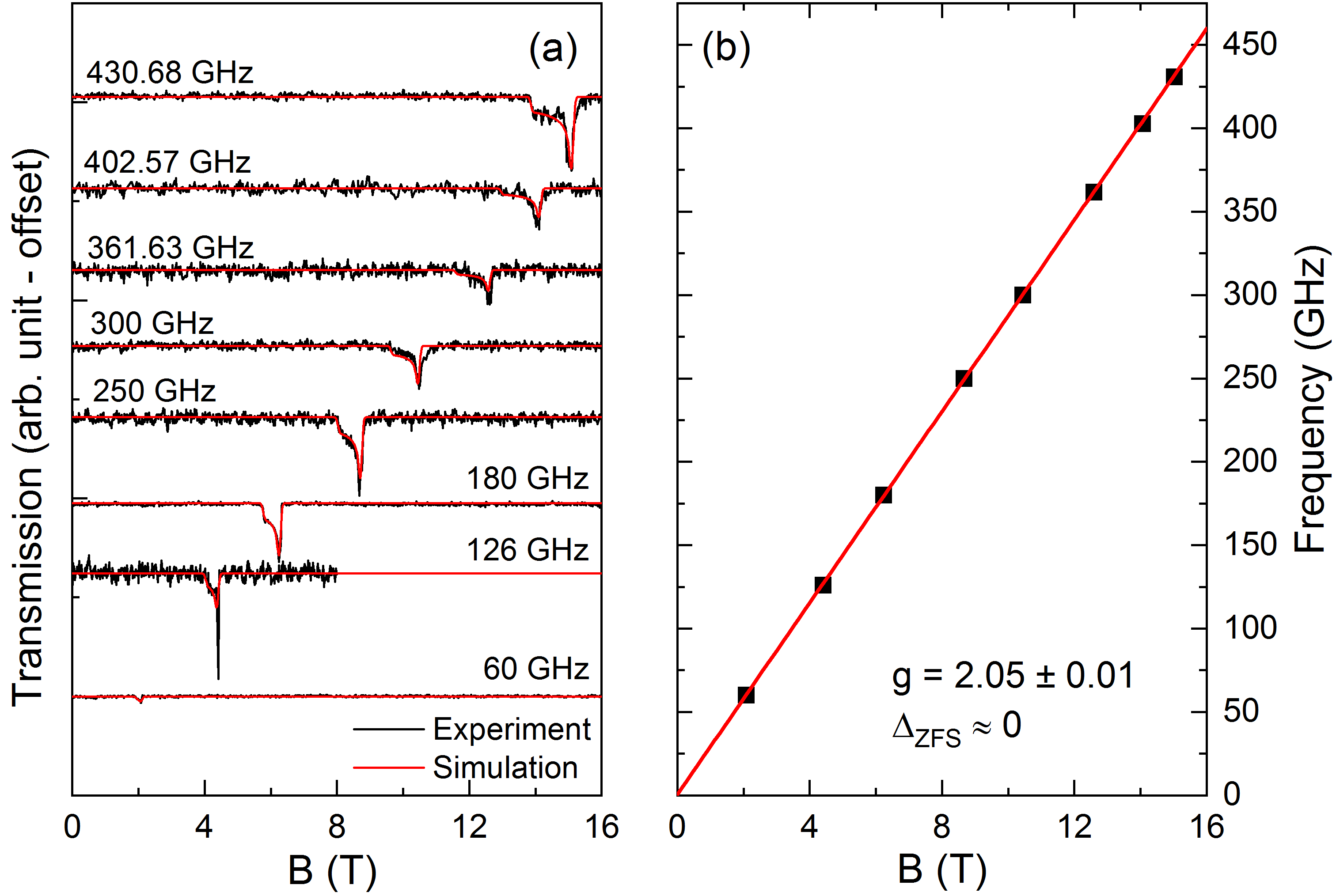

Quantitatively, the simulation yields gx = 2.03 $\pm$ 0.01, gy = 2.04 $\pm$ 0.01, and gz = 2.23 $\pm$ 0.01. As the sharp feature in the spectra corresponds to $g_{z}$, it can be determed from the spectra at various frequencies and at $T=4$ K presented in Fig. 2a. Again, all spectra are well simulated with the identical powder spectra simulation parameters. The resonance fields at the minima of the sharp resonance features linearly depend on the microwave frequency (see Fig. 2b). While the associated slope confirms the value of $g_{z}$, it also shows that the zero-field splitting associated with the resonance is negligible.

1.2 Results on Co4Co

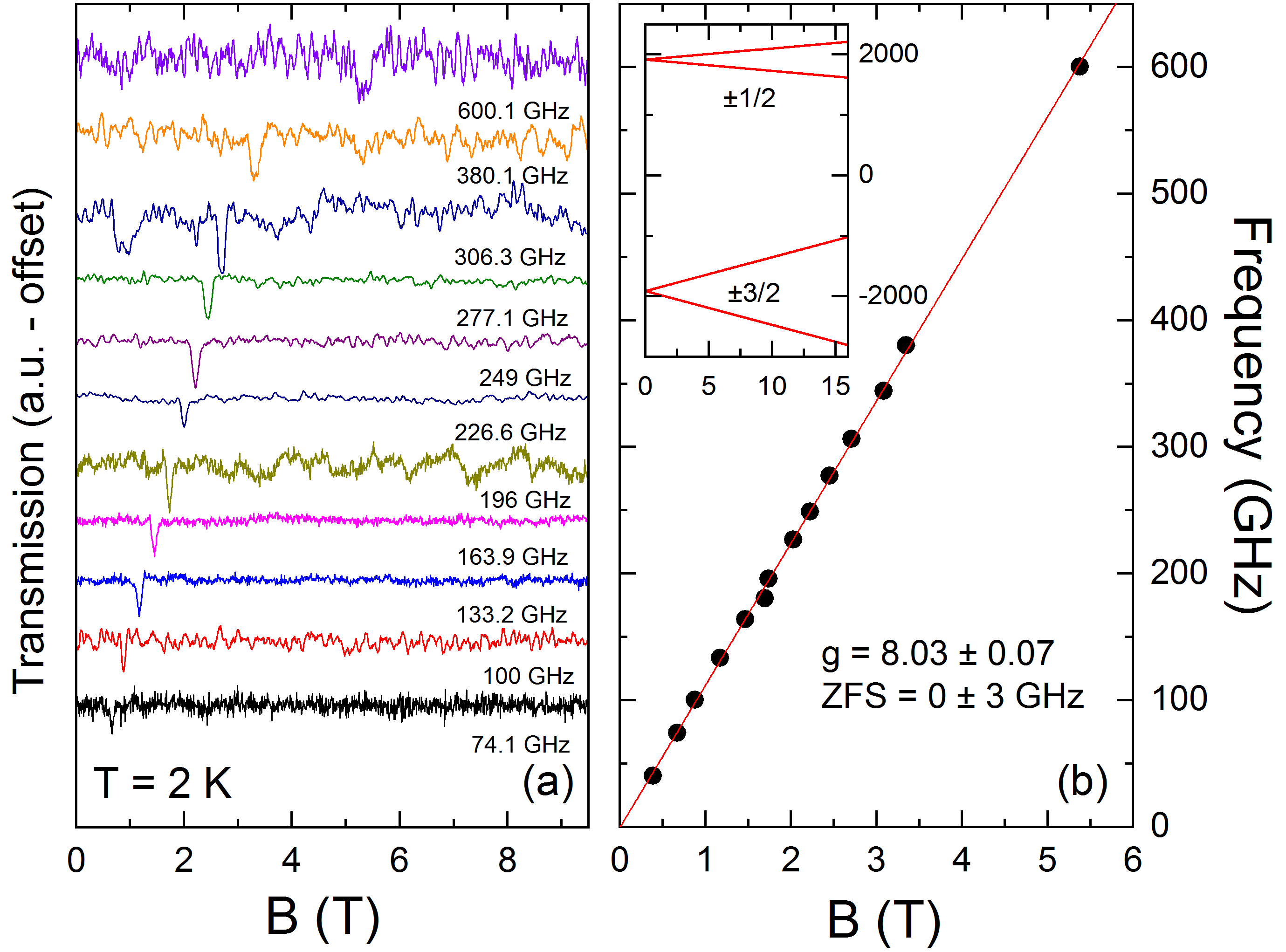

The HF-EPR spectra, at $T=2$ K, on Co4Co display a single peak feature (Fig. 3a). The frequency dependence of the resonance fields in Fig. 3b shows linear behaviour. The slope of the resonance branch corresponds to a $g$-factor of $g_{\rm fit}$ = $g\cdot\Delta$mS = 8.03(7) implying a forbidden resonance, $\Delta$mS $\neq\pm$1 with g = 2.00. Considering the metallacrown arrangement of the Co(II) ion hosted in a strongly distorted octahedron in the center of four diamagnetic Co(III)-ions suggests to attribute the resonance to the paramagnetic center ion. [1] From the observed slope of the resonance branch, we conclude that we observe a transition from the mS = -3/2 to the mS = 3/2 spin state which is allowed with the spin state mixing due to the off-axial anisotropy. Under this assumption, the effective $g$-factor amounts to $g=2.66(2)$. This is in good accordance to reported Co(II)-ions in distorted octahedral environment. [10, 11, 12] It also agrees to the $\chi T$-curve that obeys the characteristic behavior of an isolated six-coordinate Co(II) ion. From the high-temperature value of $\chi T$ the effective $g$-factor of 2.60 had been concluded previously [1] which reasonably matches to the more precise $g$-value derived from the EPR study at hand.

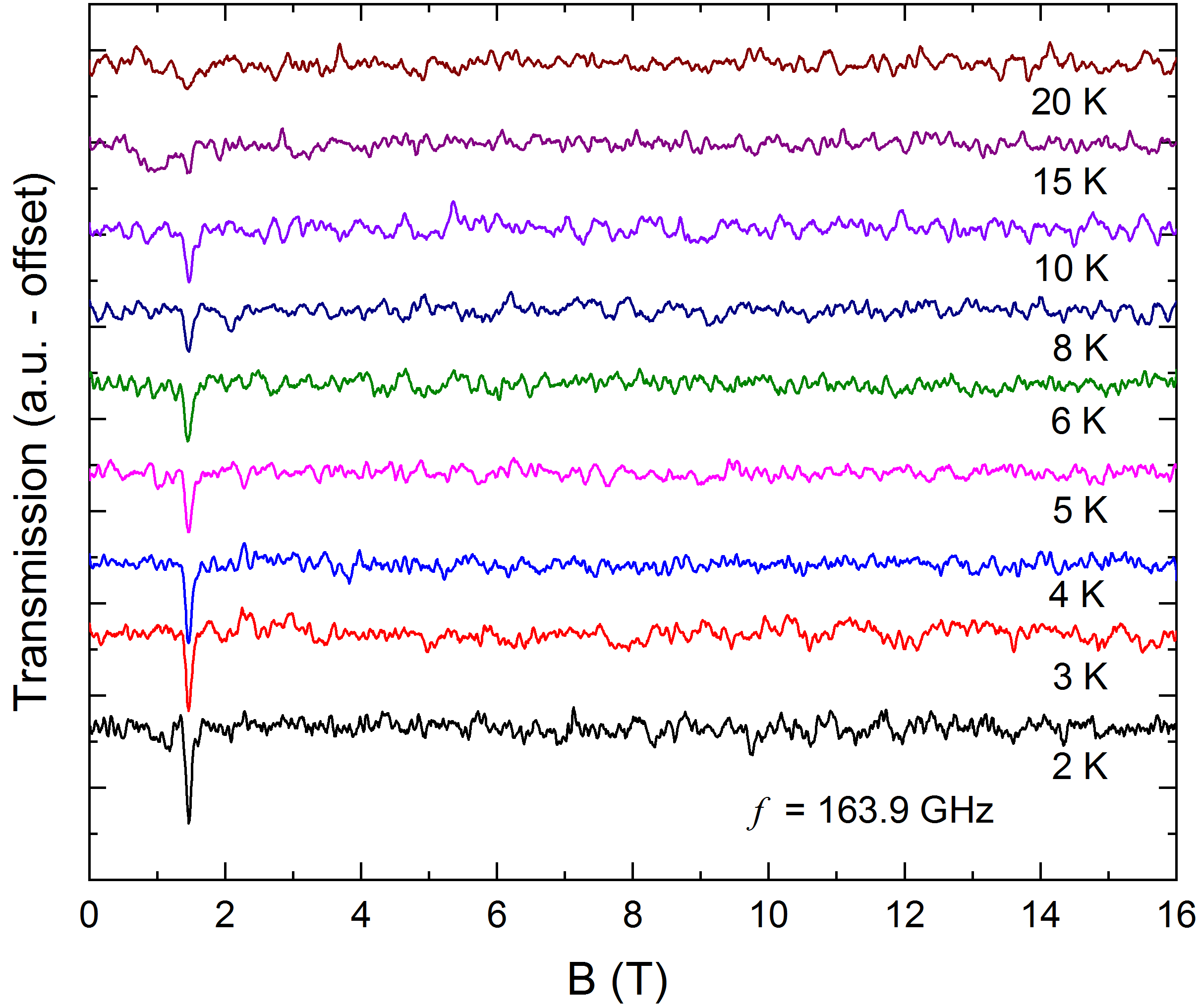

As expected for the $\Delta$mS = 3 transition in the mS = $\pm$ 3/2 Kramer’s doublet spin state, negligible zero-field splitting is observed in the experimental data. The temperature dependence of the HF-EPR spectra at 163.9 GHz presented in Fig. 4 shows a Curie-like decrease of intensity of the resonance feature upon heating and its disappearance at around 20 K. Note, that no additional, i.e., thermally activated resonances are observed up to 50 K. This is explained by large magnetic anisotropy $D$. In Ref. [1] it is argued that anisotropy of Co4Co is larger than $D=-64$ cm*-1*. Similarly large values are found in the literature for isolated high-spin Co(II) complexes in distorted octahedral coordination where, e.g., $g=2.580$, $|D|=87.9$ cm*-1* [10], $|D|=60(3)$ cm*-1*, $g_{z}=2.77(5)$, $g_{xy}=3.04(5)$ [11], and $|D_{1}|=63(1)$ cm*-1*, $|D_{2}|=58(1)$ cm*-1*,$g_{1}=2.53(1)$, $g_{2}=2.56(1)$ [12]. In order to assess the energy level diagram we used a phenomomenological Hamiltonian consisting of a Zeeman and a zero field splitting term, which is given by

[TABLE]

The resulting simulated diagram using $g=2.66$ and $D=-64$ cm*-1* is shown as inset in Fig 3b. It illustrates that the excited $\pm 1/2$ states are separated by nearly 200 K from the $\pm 3/2$ ground states.

2 Discussion and summary

Powder HF-EPR spectra presented here confirm the $S=1/2$ ground state in Cu4Cu. From previous susceptibility data, the exchange couplings $J_{1}=−155.2$ cm*−1* between the center and corner spins, and $J_{2}=−92.3$ cm*−1* between the nearest neighbor corner spins as well as $g=2.16$ had been deduced [7, 1]. The HF-EPR data imply axial-type $g$-anisotropy with $g_{x}$ = 2.03 $\pm$ 0.01, $g_{y}$ = 2.04 $\pm$ 0.01, and $g_{z}$ = 2.23 $\pm$ 0.01, yielding $g=(g_{x}+g_{y}+g_{z})/3=2.10\pm 0.02$. This value only slightly disagrees to the one observed in the static susceptibility. As expected for a Cu(II) system, neither significant zero field splitting (ZFS) of the ground state mode nor excited states are observed. This is in accordance to the minimal model using $J_{1}$ and $J_{2}$ mentioned above which implies the $S=1/2$ ground state being well separated from excited and $S=3/2$ states by 125.8 and 184.5 cm*−1* ($S=1/2$) and 213.8 cm*−1* ($S=3/2$). [2] In Co4Co, we find a $\pm 3/2$ ground state with $g=2.66$. The fact that the $\pm 3/2$ states are favoured with respect to the $\pm 1/2$ states implies negative sign of anisotropy $D$. Upon heating to 50 K we do not observe any signatures of excited state resonances which is consistent to a large values of $|D|$ of supposingly about 200 K. The data at hand demonstrate, that HF-EPR yields precise information on the actual spin ground state, the $g$-factor, and magnetic anisotropy in transition metal coordination complexes.
