The Well Order Reconstruction Solution for Three-Dimensional Wells, in the Landau-de Gennes theory

TL;DR

This paper investigates the existence, stability, and numerical solutions of Well Order Reconstruction Solutions (WORS) in three-dimensional nematic wells, extending previous 2D results to 3D with various boundary conditions.

Contribution

It proves the existence and stability of WORS in 3D wells for arbitrary heights and explores their behavior under different boundary conditions and well sizes.

Findings

WORS exist in 3D wells for all heights with natural and realistic boundary conditions.

WORS are stable for small well sizes and unstable as the size increases.

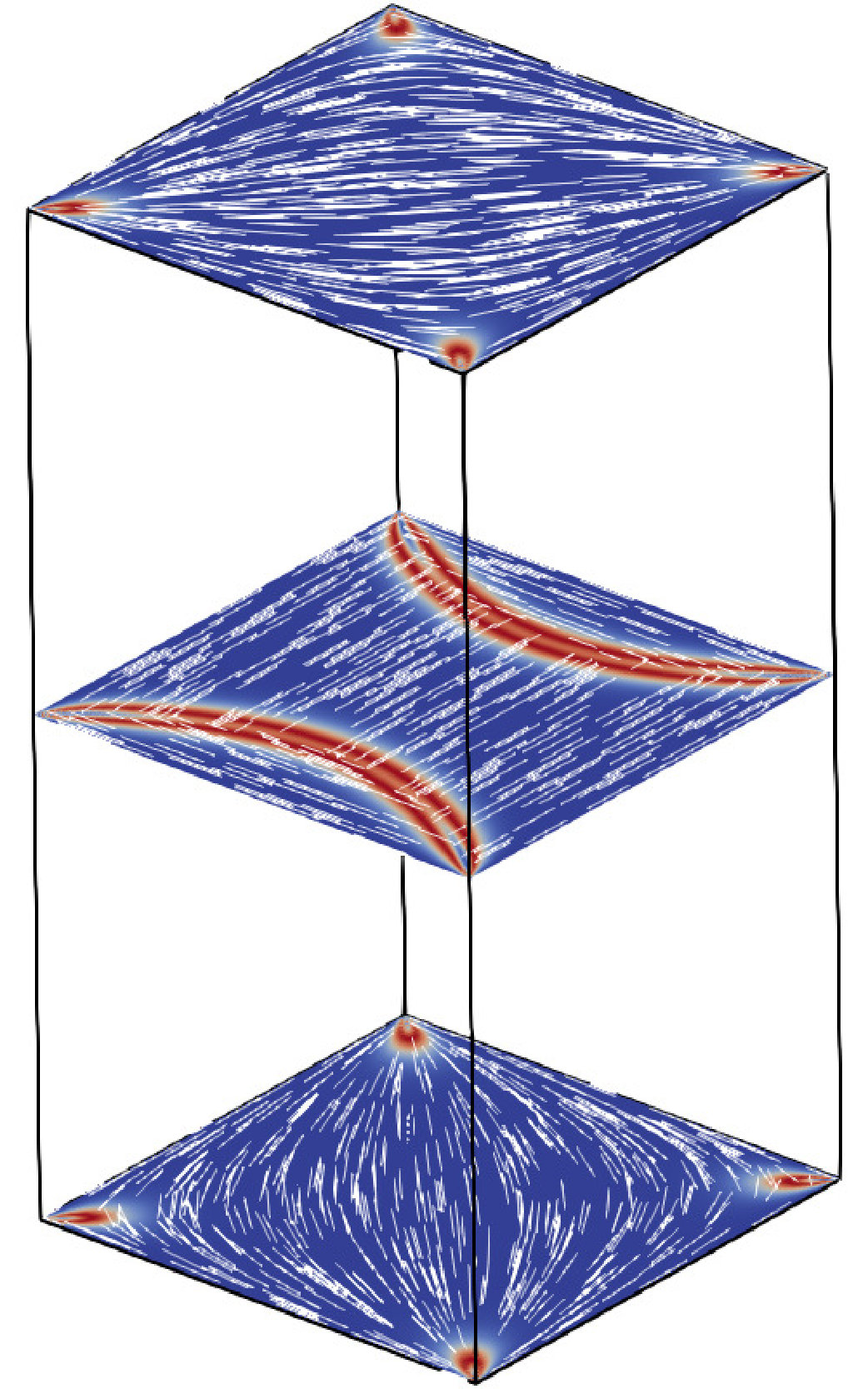

Numerical solutions reveal complex 3D defect structures and effects of surface anchoring.

Abstract

We study nematic equilibria on three-dimensional square wells, with emphasis on Well Order Reconstruction Solutions (WORS) as a function of the well size, characterized by $\lambda$, and the well height denoted by $\epsilon$. The WORS are distinctive equilibria reported in [10] for square domains, without taking the third dimension into account, which have two mutually perpendicular defect lines running along the square diagonals, intersecting at the square centre. We prove the existence of WORS on three-dimensional wells for arbitrary well heights, with (i) natural boundary conditions and (ii) realistic surface energies on the top and bottom well surfaces, along with Dirichlet conditions on the lateral surfaces. Moreover, the WORS is globally stable for $\lambda$ small enough in both cases and unstable as $\lambda$ increases. We numerically compute novel mixed 3D solutions for large $\lambda$ and $\epsilon$ followed by a numerical investigation of the effects of surface anchoring on the WORS, exemplifying the relevance of the WORS solution in a 3D context.

Figures

Equations

$$\mathbf{Q}\in S_0:=\left\{\mathbf{Q}\in {\mathbb{M}}^{3\times 3}:Q_{ij}=Q_{ji},Q_{ii}=0\right\}.$$

$$\mathbf{Q}=s\left(\mathbf{n}\otimes \mathbf{n}-\frac{\mathbf{I}}{3}\right)$$

$$V:=\Omega \times (0,h),$$

$$\Gamma :=\Omega \times \{0,h\}.$$

$${\mathcal{F}}_{\lambda }[\mathbf{Q}]:={\int }_V\left(\frac{L}{2}{\left|\nabla \mathbf{Q}\right|}^2+f_b(\mathbf{Q})\right)\mathrm{d}V$$

$$f_b(\mathbf{Q}):=\frac{A}{2}\mathrm{tr}{\mathbf{Q}}^2-\frac{B}{3}\mathrm{tr}{\mathbf{Q}}^3+\frac{C}{4}{\left(\mathrm{tr}{\mathbf{Q}}^2\right)}^2.$$

$$s_{+}:=\frac{B+\sqrt{B^2+24|A|C}}{4C}$$

$$\overline{V}:=\overline{\Omega }\times (0,ϵ),\overline{\Gamma }:=\overline{\Omega }\times \{0,ϵ\}$$

$$\overline{{\mathcal{F}}_{\lambda }}[\mathbf{Q}]:=\frac{{\mathcal{F}}_{\lambda }[\mathbf{Q}]}{L\lambda }={\int }_{\overline{V}}\left(\frac{1}{2}{\left|\overline{\nabla }\mathbf{Q}\right|}^2+\frac{{\lambda }^2}{L}{f}_b(\mathbf{Q})\right)\overline{\mathrm{d}V}.$$

$$\Delta \mathbf{Q}=\frac{{\lambda }^2}{L}\left\{A\mathbf{Q}-B\left(\mathbf{QQ}-\frac{\mathbf{I}}{3}|\mathbf{Q}{|}^2\right)+C|\mathbf{Q}{|}^2\mathbf{Q}\right\}.$$

$$\Omega :=\left\{(x,y)\in {\mathbb{R}}^2:|x|<1-\eta ,|y|<1-\eta ,|x+y|<1,|x-y|<1\right\}$$

$$C_1:=\left\{(x,y)\in {\mathbb{R}}^2:x+y=1,\eta \le x\le 1-\eta \right\}.$$

$$\mathbf{Q}={\mathbf{Q}}_{\mathrm{b}}\text{on }\partial V\setminus \Gamma =\partial \Omega \times (0,ϵ),$$

$${\mathbf{Q}}_{\mathrm{b}}(x,y,z):=\{\begin{array}{ll}{s}_{+}\left({\mathbf{n}}_1\otimes {\mathbf{n}}_1-\mathbf{I}/3\right)& \text{if }(x,y)\in C_1\cup C_3\\ s_{+}\left({\mathbf{n}}_2\otimes {\mathbf{n}}_2-\mathbf{I}/3\right)& \text{if }(x,y)\in C_2\cup C_4;\end{array}$$

$${\mathbf{n}}_1:=\frac{1}{\sqrt{2}}\left(-1,1,0\right),{\mathbf{n}}_2:=\frac{1}{\sqrt{2}}\left(1,1,0\right).$$

$$g_0(s):=\frac{s_{+}}{2\eta }s,\text{for }-\eta \le s\le \eta ,$$

$${\mathbf{Q}}_{\mathrm{b}}(x,y,z):=\{\begin{array}{ll}{g}_0(y)\left({\mathbf{n}}_1\otimes {\mathbf{n}}_1-{\mathbf{n}}_2\otimes {\mathbf{n}}_2\right)-\frac{s_{+}}{6}\left(2\hat{\mathbf{z}}\otimes \hat{\mathbf{z}}-{\mathbf{n}}_1\otimes {\mathbf{n}}_1-{\mathbf{n}}_2\otimes {\mathbf{n}}_2\right)& \text{if }(x,y)\in S_1\cup S_3,\\ g_0(x)\left({\mathbf{n}}_1\otimes {\mathbf{n}}_1-{\mathbf{n}}_2\otimes {\mathbf{n}}_2\right)-\frac{s_{+}}{6}\left(2\hat{\mathbf{z}}\otimes \hat{\mathbf{z}}-{\mathbf{n}}_1\otimes {\mathbf{n}}_1-{\mathbf{n}}_2\otimes {\mathbf{n}}_2\right)& \text{if }(x,y)\in S_2\cup S_4.\end{array}$$

$$\mathcal{B}:=\left\{\mathbf{Q}\in W^{1,2}(V,S_0):\mathbf{Q}={\mathbf{Q}}_{\mathrm{b}}\text{on }\partial \Omega \times (0,ϵ)\right\}.$$

$${\mathbf{Q}}_{WORS}=q\left({\mathbf{n}}_1\otimes {\mathbf{n}}_1-{\mathbf{n}}_2\otimes {\mathbf{n}}_2\right)-\frac{B}{6C}\left(2\hat{\mathbf{z}}\otimes \hat{\mathbf{z}}-{\mathbf{n}}_1\otimes {\mathbf{n}}_1-{\mathbf{n}}_2\otimes {\mathbf{n}}_2\right)$$

$$q\left(x,0\right)=q\left(0,y\right)=0,xyq(x,y)\ge 0.$$

$${\partial }_z\mathbf{Q}=0\text{on }\Gamma =\Omega \times \{0,ϵ\}.$$

$$I[\mathbf{Q}]:={\int }_{\Omega }\left(\frac{1}{2}{\left|\nabla \mathbf{Q}\right|}^2+\frac{{\lambda }^2}{L}{f}_b(\mathbf{Q})\right)\mathrm{d}S$$

$${\mathcal{B}}^{\prime }:=\left\{\mathbf{Q}\in W^{1,2}(\Omega ,S_0):\mathbf{Q}={\mathbf{Q}}_{\mathrm{b}}\text{on }\partial \Omega \right\}.$$

$$\{\begin{array}{rl}\Delta q_1& =\frac{{\lambda }^2}{L}{q}_1\left\{A+2B{q}_3+2C\left(q_1^2+3q_3^2\right)\right\}\\ \Delta q_3& =\frac{{\lambda }^2}{L}{q}_3\left\{A-B{q}_3+2C\left(q_1^2+3q_3^2\right)\right\}+\frac{{\lambda }^{2}B}{3L}{q}_1^2\end{array}$$

$$q_1(x,y)=q_{1\mathrm{b}}(x,y):=\{\begin{array}{ll}-s_{+}/2& \text{if }(x,y)\in C_1\cup C_3\\ s_{+}/2& \text{if }(x,y)\in C_2\cup C_4\\ g_0(y)& \text{if }(x,y)\in S_1\cup S_3\\ g_0(x)& \text{if }(x,y)\in S_2\cup S_4.\end{array}$$

$$xy{q}_1(x,y)\ge 0,q_3(x,y)<0\text{for any }(x,y)\in \Omega .$$

$$\begin{array}{rl}\mathbf{Q}(x,y)& =q_1^{WORS}(x,y)\left({\mathbf{n}}_1\otimes {\mathbf{n}}_1-{\mathbf{n}}_2\otimes {\mathbf{n}}_2\right)+q_3^{WORS}(x,y)\left(2\hat{\mathbf{z}}\otimes \hat{\mathbf{z}}-{\mathbf{n}}_1\otimes {\mathbf{n}}_1-{\mathbf{n}}_2\otimes {\mathbf{n}}_2\right),\end{array}$$

$${\Omega }_{+}:=\left\{(x,y)\in \Omega :x>0,y>0\right\}$$

$$\begin{array}{rl}G[q_1,q_3]& :={\int }_{{\Omega }_{+}}\left\{{\left|\nabla q_1\right|}^2+3{\left|\nabla q_3\right|}^2+\frac{{\lambda }^2}{L}\left(A(q_1^2+3q_3^2)+2B{q}_3{q}_1^2-2B{q}_3^3+C(q_1^2+3q_3^2{)}^2\right)\right\}\mathrm{d}S.\end{array}$$

$$\mathcal{G}:=\left\{(q_1,q_3)\in H^1({\Omega }_{+}{)}^2:q_3\le 0\text{ in }{\Omega }_{+},q_1=q_{1\mathrm{b}}\text{ on }\partial \Omega \cap \overline{{\Omega }_{+}},q_3=-s_{+}/6\text{ on }\partial \Omega \cap \overline{{\Omega }_{+}},q_1=0\text{ on }\partial {\Omega }_{+}\setminus \partial \Omega \right\}.$$

Full text

1 Introduction

Nematic liquid crystals (NLCs) are classical examples of mesophases or intermediate phases of matter between the solid and liquid phases, with a degree of long-range orientational order [7]. Nematics are directional materials with locally preferred directions of molecular alignment, described as nematic “directors” in the literature. The directional nature of nematics makes them highly susceptible to external light and electric fields, making them the working material of choice for the multi-billion dollar liquid crystal display industry [1]. Recently, there has been substantial interest in new applications for NLCs in nano-technology, microfluidics, photonics and even security applications [13]. We build on a batch of papers on NLCs in square wells, originally reported in [24] and followed up in recent years in [16], [10], [12], [15], [25], [3], [26] etc. In [24], the authors experimentally and numerically study NLC equilibria inside square wells with tangent boundary conditions on lateral surfaces, which means that the nematic molecules on these surfaces preferentially lie in the plane of the surfaces. They study shallow wells and argue that it is sufficient to study the nematic profile on the square cross-section and hence, model NLC equilibria on a square with tangent boundary conditions, which require the nematic directors to be tangent to the square edges creating a necessary mismatch at the square corners. They report two experimentally observed NLC equilibria on micron-sized wells, labelled as the diagonal solution for which the nematic director is along a square diagonal and a rotated solution for which the nematic director rotated by $\pi$ radians between a pair of parallel edges. They further model this system within a reduced two-dimensional continuum Landau-de Gennes (LdG) approach and recover the diagonal and rotated solutions numerically. The reduction from a 3D well to a 2D square domain can be rigorously justified using $\Gamma$-convergence [26].

In [10], the authors study the effects of square size on NLC equilibria for this model problem with tangent boundary conditions. They measure square size in units of a material-dependent length scale - the biaxial correlation length, which is typically in the nanometer regime. For micron-sized squares, the authors recover the diagonal and rotated solutions within a continuum LdG approach as before. As they reduce the square size, particularly from the micron to the nano-scale, they find a unique Well Order Reconstruction Solution (WORS) for squares smaller than a certain critical size, which in turn depends on the material constants and temperature. The WORS is an interesting NLC equilibria for two reasons - (i) it partitions the square into four quadrants and the nematic director is approximately constant in each quadrant according to the tangent condition on the corresponding edge and (ii) the WORS has a defect line along each square diagonal and the two mutually perpendicular defect lines intersect at the square centre, yielding the quadrant structure. Indeed, we speculate that this distinctive defect line could be a special optical feature of the WORS, if experimentally realised. The WORS has been analysed in [3] and [26], in terms of solutions of the Allen-Cahn equation and it is rigorously proven that the WORS is globally stable for sufficiently small squares i.e. for nano-scale geometries. Recent work shows that the WORS is also observable in molecular simulations and is hence, not a continuum artefact.

A potential criticism is that the WORS is an artefact of the 2D square domain and is hence, not relevant for 3D scenarios. In this paper, we address the important question - does the WORS survive in a three-dimensional square box? As proven in [26], the WORS does survive in the thin film limit but can we observe the WORS for square wells with a finite height? The answer is affirmative and we identify two physically relevant 3D scenarios for which the WORS exists, for all values of the well height and for all temperatures below the nematic supercooling temperature i.e. for temperatures that favour a bulk ordered nematic phase. The paper is organised as follows. In Section 2.1, we review the LdG theory for NLCs and introduce the domain and the boundary conditions in Section 2.2. Our analytical results are restricted to Dirichlet tangent conditions for the nematic directors on the lateral surfaces of the well, phrased in the LdG framework. In Section 3.1, we work with 3D wells that have natural boundary conditions on the top and bottom surfaces and study the existence, stability and qualitative properties of the WORS as a special case of a more general family of LdG equilibria; we believe these results to be of general interest. In Section 3.2, we work with 3D wells that have realistic surface energies that favour planar boundary conditions on the top and bottom and again prove the existence of the WORS for arbitrary well heights and low temperatures, accompanied by interesting companion results for surface energy. In Section 4, we perform a detailed numerical study of the 3D LdG model on 3D square wells. We discover novel mixed 3D solutions, that interpolate between different diagonal solutions, when the WORS is unstable. Further, we numerically study the effect of surface anchoring on the lateral surfaces on the stability of the WORS, in contrast to the analysis which is restricted to Dirichlet conditions on the lateral surfaces. The WORS ceases to exist as we weaken the tangential boundary conditions on the lateral surfaces; this is expected from [10] since the tangent conditions naturally induce the symmetry of the WORS in severe confinement. Our numerical results yield quantitative estimates for the existence of the WORS as a function of the anchoring strength on the lateral surfaces and these estimates can be of value in further work. We summarise our conclusions in Section 5.

2 Preliminaries

2.1 The Landau-de Gennes model

We work with the Landau-de Gennes (LdG) theory for nematic liquid crystals. The LdG theory is a powerful continuum theory for nematic liquid crystals and describes the nematic state by a macroscopic order parameter — the LdG $\mathbf{Q}$-tensor, which is a symmetric traceless $3\times 3$ matrix i.e.

[TABLE]

A $\mathbf{Q}$-tensor is said to be (i) isotropic if $\mathbf{Q}=0$, (ii) uniaxial if $\mathbf{Q}$ has a pair of degenerate non-zero eigenvalues and can be written in the form

[TABLE]

where $\mathbf{n}$ is the eigenvector with the non-degenerate eigenvalue and (iii) biaxial if $\mathbf{Q}$ has three distinct eigenvalues.

We assume that the domain is a three-dimensional well, filled with nematic liquid crystals,

[TABLE]

where $\Omega\subseteq{\mathbb{R}}^{2}$ is the two-dimensional cross-section of the well (more precisely, a truncated square, as described in Section 2.2) and $h$ is the well height [24, 10]. Let $\Gamma$ be the union of the top and bottom plates, that is,

[TABLE]

In the absence of surface anchoring energy, we work with a simple form of the LdG energy given by [7]

[TABLE]

The term $\left|\nabla\mathbf{Q}\right|^{2}:=\partial_{k}Q_{ij}\partial_{k}Q_{ij}$, for $i$, $j$, $k=1,\,2,\,3$, is an elastic energy density which penalises spatial inhomogeneities and $L>0$ is a material-dependent elastic constant. The thermotropic bulk potential, $f_{b}$, is given by

[TABLE]

The variable $A=\alpha(T-T^{*})$ is the re-scaled temperature, $\alpha$, $B$, $C>0$ are material-dependent constants and $T^{*}$ is the characteristic supercooling temperature [7, 19]. It is well-known that all stationary points of $f_{b}$ are either uniaxial or isotropic [7, 19, 17]. The re-scaled temperature $A$ has three characteristic values: (i) $A=0$, below which the isotropic phase $\mathbf{Q}=0$ loses stability, (ii) the nematic-isotropic transition temperature, $A={B^{2}}/{27C}$, at which $f_{b}$ is minimized by the isotropic phase and a continuum of uniaxial states with $s=s_{+}={B}/{3C}$ and $\mathbf{n}$ arbitrary, and (iii) the nematic superheating temperature, $A={B^{2}}/{24C}$, above which the isotropic state is the unique critical point of $f_{b}$. For a given $A<0$, let $\mathcal{N}:=\left\{\mathbf{Q}\in S_{0}\colon\mathbf{Q}=s_{+}\left(\mathbf{n}\otimes\mathbf{n}-\mathbf{I}/3\right)\right\}$ denote the set of minimizers of the bulk potential, $f_{b}$, with

[TABLE]

and $\mathbf{n}\in S^{2}$ arbitrary.

We non-dimensionalize the system using a change of variables, $\bar{\mathbf{r}}=\mathbf{r}/\lambda$, where $\lambda$ is a characteristic length scale of the cross-section $\Omega$. The rescaled domain and the rescaled top and bottom surfaces become

[TABLE]

where $\overline{\Omega}$ is the rescaled two-dimensional domain and $\epsilon:=h/\lambda$. The re-scaled LdG energy functional is

[TABLE]

In (2.5), $\overline{\nabla}$ is the gradient with respect to the re-scaled spatial coordinates, $\overline{\mathrm{d}V}$ is the re-scaled volume element and $\overline{\mathrm{d}S}$ is the re-scaled area element. In what follows, we drop the bars and all statements are to be understood in terms of the re-scaled variables.

Critical points of  (2.5) satisfy the Euler-Lagrange system of partial differential equations

[TABLE]

2.2 The 2D domain, $\Omega$,

and the boundary conditions on the lateral surfaces

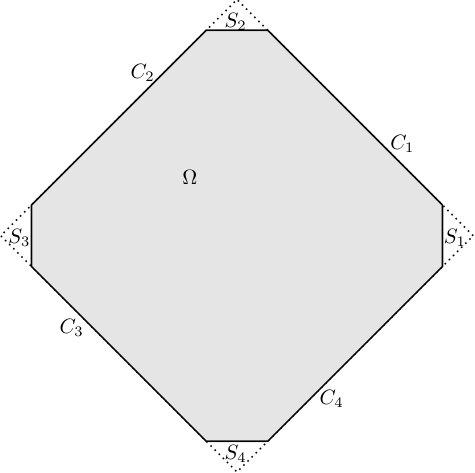

Let $\Omega$ be our two-dimensional (2D) cross-section which is a truncated square with diagonals along the coordinate axes:

[TABLE]

(see Figure 2.1). Here $\eta\in(0,\,1)$ is a small, but fixed parameter. The boundary, $\partial\Omega$, consists of four “long” edges $C_{1}$,…, $C_{4}$, parallel to the lines  $y=x$ and $y=-x$, and four “short” edges $S_{1},\,\ldots,\,S_{4}$, of length $2\eta$, parallel to the $x$ and $y$-axes respectively. The four long edges $C_{i}$ are labeled counterclockwise and $C_{1}$ is the edge contained in the first quadrant, i.e.

[TABLE]

The short edges $S_{i}$ are introduced to remove the sharp square vertices. They are also labeled counterclockwise and $S_{1}:=\{(1-\eta,\,y)\in{\mathbb{R}}^{2}\colon|y|\leq\eta\}$.

We impose Dirichlet conditions on the lateral surfaces of the well, $\partial\Omega\times(0,\,\epsilon)$:

[TABLE]

where the boundary datum $\mathbf{Q}_{\mathrm{b}}$ is independent of the $z$-variable, $\partial_{z}\mathbf{Q}_{\mathrm{b}}\equiv 0$. Following the literature on planar multistable nematic systems [24, 16, 10], we impose tangent uniaxial Dirichlet conditions on the long edges, $C_{1},\,\ldots,\,C_{4}$:

[TABLE]

where $s_{+}$ is defined in (2.3) and

[TABLE]

We prescribe Dirichlet conditions on the short edges too, in terms of a function, $g_{0}\colon[-\eta,\,\eta]\to[-s_{+}/2,s_{+}/2]$, chosen to eliminate discontinuities of the tangent Dirichlet boundary condition e.g.

[TABLE]

but the choice of $g_{0}$ does not affect qualitative predictions or numerical results. We define

[TABLE]

Given the Dirichlet conditions (2.8), our admissible class of $\mathbf{Q}$-tensors is

[TABLE]

3 The Well Order Reconstruction Solution (WORS) in a three-dimensional (3D) context and related results

In [10], the authors numerically report the Well Order Reconstruction solution (WORS) on the 2D domain, $\Omega$, with the Dirichlet conditions (2.9); which is further analysed in [3]. At a fixed temperature $A=-\frac{B^{2}}{3C}$, the WORS corresponds to a classical solution of the Euler-Lagrange equations (2.6) of the form

[TABLE]

with a single degree of freedom, $q\colon\Omega\to\mathbb{R}$ which satisfies the Allen-Cahn equation and has the following symmetry properties

[TABLE]

The WORS has a constant set of eigenvectors, unit-vectors $\mathbf{n}_{1},\mathbf{n}_{2}$ defined by (2.10) and the coordinate unit-vector $\hat{\mathbf{z}}$, and very importantly, has two mutually perpendicular defect lines, along the square diagonals, intersecting at the square centre, described by the nodal lines of $q$ above. These are defect lines in the sense that $\mathbf{Q}_{WORS}$ is uniaxial along these diagonal lines with negative order parameter, which physically implies that the nematic molecules lie in the plane of the square without a preferred in-plane direction along the defect lines i.e. they are locally disordered in the square plane along the defect lines. In [3], the authors prove that the WORS is globally stable for $\lambda$ small enough and unstable for $\lambda$ large enough. The analysis in [3] is restricted to a special temperature but numerics show that the WORS exists for all $A<0$ with the diagonal defect lines, and the eigenvalue associated with $\hat{\mathbf{z}}$ is negative for all $A<0$. The negative eigenvalue (associated with $\hat{\mathbf{z}}$) implies that nematic molecules lie in the $(x,y)$-plane and for non-zero $q$, there is a locally defined nematic director in the $(x,y)$-plane. In the next sections, we study the relevance of the WORS in 3D contexts i.e. does the WORS survive in 3D scenarios and what can be said about its qualitative properties?

3.1 Natural boundary conditions on the top and bottom plates

In this section, we study a special class of LdG critical points, including the WORS, with natural boundary conditions on the top and bottom plates. Minimizers of $\mathcal{F}_{\lambda}$ (see (2.5)), in the admissible class $\mathcal{B}$ in (2.12) satisfy the Euler-Lagrange system (2.6), subject to the Dirichlet boundary conditions (2.8) along with natural or Neumann boundary conditions on the top and bottom plates i.e.

[TABLE]

Throughout this section, we will treat $L>0$, $B$, $C>0$ as fixed parameters, while $\lambda$ and $A$ may vary.

Proposition 3.1**.**

For any $\lambda>0$ and  $A<0$, there exist minimizers $\mathbf{Q}$ of  $\mathcal{F}_{\lambda}$, in (2.5), in the admissible class $\mathcal{B}$, (see (2.12)). Moreover, minimizers are independent of the $z$-variable, that is $\partial_{z}\mathbf{Q}=0$ on $V$, and they minimize the 2D functional

[TABLE]

in the class

[TABLE]

This result can be proved, e.g., as in [2, Theorem 0].

Any ($z$-independent) critical point of the functional $I$ in the admissible class $\mathcal{B}^{\prime}$ is also a solution of the three-dimensional system (2.6), subject to the boundary conditions (2.8) and (3.2). This necessarily implies that the WORS is a LdG critical point on 3D wells V, of arbitrary height $\epsilon$, with natural boundary conditions on $\Gamma$. Therefore, in the rest of this section, we restrict ourselves to a 2D problem — the analysis of critical points of $I$ in  $\mathcal{B}^{\prime}$.

Our first result concerns the existence of a Well Order Reconstruction Solution (WORS)-like solution for all $A<0$ as proven below.

Proposition 3.2**.**

For any $\lambda>0$ and $A<0$, there exists a solution $(q_{1}^{WORS},\,q_{3}^{WORS})$ of the system

[TABLE]

subject to the boundary conditions

[TABLE]

and $q_{3}=-{s_{+}}/{6}$ on $\partial\Omega$, that satisfies

[TABLE]

Then

[TABLE]

is a WORS solution of the Euler-Lagrange system (2.6) on $V$, subject to the Dirichlet conditions (2.8) and natural boundary conditions on $\Gamma$.

Proof.

We follow the approach in [3]. Let

[TABLE]

be the portion of $\Omega$ that is contained in the first quadrant. For solutions of the form (3.8), the LdG energy reduces to

[TABLE]

We minimize $G$ in the admissible class

[TABLE]

We impose no boundary conditions for $q_{3}$ on $\partial\Omega_{+}\setminus\partial\Omega$. The function $q_{1\mathrm{b}}$ is compatible with the Dirichlet conditions (2.8). The class $\mathcal{G}$ is closed and convex. Therefore, a routine application of the direct method of the calculus of variations shows that a minimizer $(q_{1}^{WORS},\,q_{3}^{WORS})$ exists. Moreover, we can assume without loss of generality that $q_{1}^{WORS}\geq 0$ on $\Omega_{+}$ — otherwise, we replace $q_{1}^{WORS}$ with $|q^{WORS}_{1}|$ and note that $G[q_{1}^{WORS},\,q_{3}^{WORS}]=G[|q_{1}^{WORS}|,\,q_{3}^{WORS}]$.

We now claim that $q_{3}^{WORS}<0$ in $\Omega_{+}$. To prove this, let us consider a function $\varphi\in H^{1}(\Omega_{+})$ such that $\varphi\geq 0$ in $\Omega_{+}$ and $\varphi=0$ on $\partial\Omega\cap\overline{\Omega_{+}}$. For sufficiently small $t\geq 0$, the function $q_{3}^{t}:=q_{3}^{WORS}-t\varphi$ is an admissible perturbation of $q_{3}^{WORS}$, and hence, we have

[TABLE]

because $(q_{1}^{WORS},\,q_{3}^{WORS})$ is a minimizer. The derivative on the left-hand side can be computed explicitly and we obtain

[TABLE]

where

[TABLE]

For $|q_{3}|$ sufficiently small, we have $A-Bq_{3}+6Cq_{3}^{2}<0$ and $B+6Cq_{3}>0$, because $A<0$ and $B>0$. Therefore, there exists $\delta>0$ (depending only on $A$, $B$, $C$) such that

[TABLE]

Now, we define

[TABLE]

By taking $\delta<s_{+}/6$, we can make sure that $\varphi=0$ on $\partial\Omega\cap\overline{\Omega_{+}}$. Then, we can substitute $\varphi$ into (3.10) and obtain

[TABLE]

Due to (3.12), we conclude that $q_{3}^{WORS}\leq-\delta<0$ in $\Omega_{+}$. In particular, $(q_{1}^{WORS},\,q_{3}^{WORS})$ lies in the interior of the admissible set $\mathcal{G}$ and hence, it solves the Euler-Lagrange system (3.5) for the functional $G$, together with the natural boundary condition $\partial_{\nu}q_{3}=0$ on $\partial\Omega_{+}\setminus\partial\Omega$.

We extend $(q_{1}^{WORS},\,q_{3}^{WORS})$ to the whole of $\Omega$ by reflections about the planes $\{x=0\}$ and $\{y=0\}$:

[TABLE]

for any $(x,\,y)\in\Omega\setminus\overline{\Omega_{+}}$. An argument based on elliptic regularity, as in [5, Theorem 3], shows that $(q_{1}^{WORS},\,q_{3}^{WORS})$ is a solution of (3.5) on $\Omega$, satisfies the boundary conditions and (3.7), by construction. ∎

The WORS is a special case of critical points of (3.3), that have $\hat{\mathbf{z}}$ as a constant eigenvector and can be completely described by three degrees of freedom, i.e. they can be written as

[TABLE]

where $q_{1}$, $q_{2}$, $q_{3}$ are scalar functions and $\mathbf{n}_{1}$, $\mathbf{n}_{2}$ are given by (2.10). For solutions of the form (3.14), the LdG Euler-Lagrange system (2.5) reduces to

[TABLE]

This is precisely the Euler-Lagrange system associated with the functional

[TABLE]

where $F$ is the polynomial potential given by

[TABLE]

The Dirichlet boundary condition (2.8) for $\mathbf{Q}$ translates into boundary conditions for $q_{1}$, $q_{2}$ and $q_{3}$:

[TABLE]

where the function $q_{1\mathrm{b}}$ is defined by

[TABLE]

By adapting the methods in [9], we can construct solutions $(q_{1},\,q_{2},\,q_{3})$ to the system (3.15), subject to the boundary conditions (3.18), that satisfy $q_{3}<0$ in $\Omega$ and are locally stable. The WORS is a specific example of such a solution with a constant eigenframe and two degrees of freedom. In fact, the results in [26] show that the WORS loses stability with respect to solutions of the form (3.14), with $q_{2}\neq 0$, as $\lambda$ increases.

We say that a solution $(q_{1},\,q_{2},\,q_{3})$ of (3.15) is locally stable if, for any perturbations $\varphi_{1}$, $\varphi_{2}$, $\varphi_{3}\in C^{1}_{\mathrm{c}}(\Omega)$, there holds

[TABLE]

Given a locally stable solution $(q_{1},\,q_{2},\,q_{3})$ of (3.15), the corresponding $\mathbf{Q}$-tensor, defined by (3.14), is a solution of (2.6) and is locally stable in the restricted class of $\mathbf{Q}$-tensors that have $\hat{\mathbf{z}}$ as a constant eigenvector.

Proposition 3.3**.**

For any $A<0$, there exists a solution $(q_{1,*},\,q_{2,*},\,q_{3,*})$ of the system (3.15), subject to the boundary conditions (3.18), that is locally stable and has $q_{3,*}<0$ everywhere in $\Omega$.

Proof.

Let $\mathcal{A}$ be the set of triplets $(q_{1},\,q_{2},\,q_{3})\in H^{1}(\Omega)^{3}$ that satisfy the boundary conditions (3.18). The boundary data are piecewise of class $C^{1}$, so the class $\mathcal{A}$ is non-empty. Moreover, $\mathcal{A}$ is convex and closed in $H^{1}(\Omega)^{3}$.

To construct solutions with negative $q_{3}$, we first introduce the class

[TABLE]

The class $\mathcal{A}^{-}$ is a non-empty, convex and closed subset of $H^{1}(\Omega)^{3}$. A routine application of the direct method in the calculus of variations shows that the functional $J$, defined by (3.16), has a minimizer $(q_{1,*},\,q_{2,*},\,q_{3,*})$ in the class $\mathcal{A}^{-}$. To complete the proof, it suffices to show that $q_{3,*}\leq-\delta$ in $\Omega$, for some strictly positive constant $\delta$. Once this inequality is proved, it will follow that $(q_{1,*},\,q_{2,*},\,q_{3,*})$ lies in the interior of $\mathcal{A}^{-}$ and hence, it is a locally stable solution of the Euler-Lagrange system (3.15).

To prove that $q_{3,*}\leq-\delta$ in $\Omega$, we follow the same method as in Proposition 3.2. Let $\varphi\in H^{1}(\Omega_{+})$ be such that $\varphi\geq 0$ in $\Omega$ and $\varphi=0$ on $\partial\Omega$, then

[TABLE]

and hence,

[TABLE]

where

[TABLE]

As before, there exists a number $\delta>0$ (depending only on $A$, $B$, $C$) such that

[TABLE]

We can now show that $q_{3,*}\leq-\delta$ in $\Omega$ by repeating the same arguments of Proposition 3.2. ∎

We now consider solutions of (3.15), (3.18) that satisfy $q_{3}<0$ in $\Omega$, and prove bounds on $q_{3}$ as a function of the re-scaled temperature $A$.

Lemma 3.4**.**

Any solution $(q_{1},\,q_{2},\,q_{3})$ of the system (3.15), subject to  (3.18), satisfies

[TABLE]

where $s_{+}$ is the constant defined by (2.3).

This lemma be deduced from the corresponding maximum principle for the full LdG system (2.6); see for instance [18, Proposition 3].

Lemma 3.5**.**

Let $(q_{1},\,q_{2},\,q_{3})$ be a solution of the system (3.15), subject to  (3.18), such that $q_{3}<0$ everywhere in $\Omega$. Then $q_{1}^{2}+q_{2}^{2}<9q_{3}^{2}$ everywhere in $\Omega$.

Proof.

Define the functions $\xi_{1}:=-q_{1}/q_{3}$ and $\xi_{2}:=-q_{2}/q_{3}$. Then, for $k\in\{1,\,2\}$, we have

[TABLE]

Using the system (3.15), for $k\in\{1,\,2\}$ we obtain

[TABLE]

Now, we define a non-negative function $\xi$ by $\xi^{2}:=\xi_{1}^{2}+\xi_{2}^{2}$. We have

[TABLE]

and hence, thanks to (3.23),

[TABLE]

Finally, we obtain

[TABLE]

From the boundary conditions (3.18), we know that $\xi=\xi_{1}\leq 3$ on $\partial\Omega$. Then, the (strong) maximum principle applied to the differential inequality (3.24) implies that $\xi^{2}<9$ everywhere inside $\Omega$. Thus, the lemma follows. ∎

We define

[TABLE]

In the following propositions, we prove bounds on $q_{3}$, in terms of $s_{+}$ (see (2.3)) and $s_{-}$.

Proposition 3.6**.**

Let $-\frac{B^{2}}{3C}\leq A<0$ so that

[TABLE]

Let $(q_{1},\,q_{2},\,q_{3})$ be any solution of the PDE system (3.15), satisfying the boundary conditions (3.18), with $q_{3}<0$ in $\Omega$. Then

[TABLE]

Proof.

Firstly, we shall prove the upper bound $q_{3}\leq s_{-}/3$ in $\Omega$. Assume for a contradiction, that the maximum of $q_{3}$ is attained at some point $(x_{0},\,y_{0})\in\Omega$ such that $q_{3}(x_{0},\,y_{0})>s_{-}/3$. Then, using (3.25), the following inequalities hold:

[TABLE]

and

[TABLE]

We evaluate both sides of the equation for $q_{3}\in C^{2}(\Omega)$ in (3.15) at the point $(x_{0},\,y_{0})$:

[TABLE]

which leads to a contradiction. Since $q_{3}=-s_{+}/6\leq s_{-}/3$ on $\partial\Omega$, we conclude that $q_{3}\leq s_{-}/3$ on $\Omega$.

Now let’s prove the weaker lower bound $q_{3}\geq-\frac{B}{6C}$ in $\Omega$. Assume for contradiction that the minimum of $q_{3}$ is attained at some point $(x_{1},y_{1})\in\Omega$ such that $q_{3}(x_{1},y_{1})<-\frac{B}{6C}$. Then the following inequalities hold:

[TABLE]

and

[TABLE]

Recalling the equation for $q_{3}\in C^{2}(\Omega)$ in (3.15) and the boundary conditions (3.18), we get an immediate contradiction and obtain the lower bound $q_{3}\geq-\frac{B}{6C}$.

We are now ready to prove the optimal lower bound $q_{3}\geq-\frac{s_{+}}{6}$ in $\Omega$. Recalling Lemma 3.5 and $q_{3}\geq-\frac{B}{6C}$, we have that:

[TABLE]

Assume for a contradiction, that the minimum of $q_{3}$ is attained at some point $(x_{2},\,y_{2})\in\Omega$ such that $q_{3}(x_{2},y_{2})<-\frac{s_{+}}{6}$. Then, using (3.25), the following inequality holds:

[TABLE]

which when combined with the equation (3.27), yields $\Delta q_{3}(x_{2},y_{2})<0$. This is a contradiction, and the desired result follows.∎

Corollary 3.1**.**

Assume that $A=-\frac{B^{2}}{3C}$ and let $(q_{1},\,q_{2},\,q_{3})$ be a solution of (3.15) subject to boundary conditions (3.18) with $q_{3}<0$ in $\Omega$. Then $q_{3}=-\frac{s_{+}}{6}$ in $\Omega$.

Finally, we have the following inequalities for $A<-\frac{B^{2}}{3C}$:

[TABLE]

Proposition 3.7**.**

Assume that $A<-\frac{B^{2}}{3C}$. Let $(q_{1},\,q_{2},\,q_{3})$ be any solution of the PDE system (3.15) satisfying  (3.18) with $q_{3}<0$ in $\Omega$. Then

[TABLE]

Remark: The proof of Proposition 3.7 is completely analogous to that of Proposition 3.6. We first prove the lower bound $q_{3}\geq s_{-}/3$, then the weaker upper bound $q_{3}\leq-\frac{B}{6C}$, and finally the sharp upper bound $q_{3}\leq-s_{+}/6$. Each step is obtained by repeating almost word by word the arguments of Proposition 3.6. We omit the details for brevity. $\Box$

3.1.1 Stability/Instability of the WORS with natural boundary conditions.

We first recall a result from [3] that ensures that the WORS is globally stable with natural boundary conditions on $\Gamma$, for arbitrary well heights or all values of $\epsilon$.

Lemma 3.8**.**

For any $A<0$, there exists $\lambda_{0}>0$ (depending only on $A$, $B$, $C$, $L$) such that, for $\lambda<\lambda_{0}$, the functional (3.3) has a unique critical point in the class (3.4).

This result follows from a general uniqueness criterion for critical points of functionals of the form (2.5); see, e.g., [14, Lemma 8.2], [3, Lemma 3.2]. The WORS exists for all $\lambda$ and $A<0$ and an immediate consequence is that the WORS is the unique LdG energy minimizer for sufficiently small $\lambda$.

We now study the instability of the WORS with respect to in-plane perturbations of the eigenframe and these perturbations necessarily have a non-zero $q_{2}$ component, when $\lambda$ is large and $A$ is low enough. To this end, we take a function $\varphi\in C^{1}_{\mathrm{c}}(\Omega)$ and consider the perturbation

[TABLE]

where $\mathbf{n}_{1}$, $\mathbf{n}_{2}$ are defined by (2.10) and $t\in{\mathbb{R}}$ is a small parameter. We compute the second variation of the LdG energy  (3.3), about the WORS solution as discussed in Proposition 3.2:

[TABLE]

(see [26, Section 5.3]).

Proposition 3.9**.**

Let $A\leq-\frac{B^{2}}{3C}$. Let $(q_{1},\,q_{2},\,q_{3})$ be a solution of (3.15), subject to the boundary conditions (3.18), such that $q_{2}=0$ and $q_{3}<0$ everywhere in $\Omega$, such as the WORS-solution constructed in Proposition 3.2. For any function $\varphi\in C^{1}_{\mathrm{c}}(\Omega)$ that is not identically equal to zero, there exists a number $\lambda_{0}>0$ (depending on $A$, $B$, $C$, $L$ and $\varphi$) such that $H_{\lambda}[\varphi]<0$ when $\lambda\geq\lambda_{0}$.

Proof.

Due to Lemma 3.4 and Proposition 3.7, we have

[TABLE]

The equality holds if and only if $q_{3}=-s_{+}/6$ and $q_{1}^{2}+3q_{3}^{2}=s_{+}^{2}/3$, that is, if and only if $\left|q_{1}\right|=s_{+}/2$ and $q_{3}=-s_{+}/6$. However, from Lemma 3.5 we know that $3q_{3}<q_{1}<-3q_{3}$ inside $\Omega$, so we must have

[TABLE]

Then, for any fixed $\varphi\in C^{\infty}_{\mathrm{c}}(\Omega)$ that is not identically equal to zero, the quantity $H_{\lambda}[\varphi]$ defined by (3.30) becomes strictly negative for $\lambda$ large enough. ∎

3.2 Surface anchoring on the top and bottom plates

In this section, we consider more experimentally relevant boundary conditions on the top and bottom plates, $\Gamma:=\Omega\times\{0,\,\epsilon\}$. Instead of natural boundary conditions, we impose surface energies on $\Gamma$. The free energy functional, in dimensionless units, becomes

[TABLE]

and $f_{s}$ is the surface anchoring energy density defined by [20, 4, 23, 8]

[TABLE]

where $\alpha_{z}$ and $\gamma_{z}$ are positive coefficients. We remark that the second term in (3.32), $\gamma_{z}|(\mathbf{I}-\hat{\mathbf{z}}\otimes\hat{\mathbf{z}})\mathbf{Q}\hat{\mathbf{z}}|^{2}$, is equal to zero if and only if $\mathbf{Q}\hat{\mathbf{z}}$ is parallel to $\hat{\mathbf{z}}$. Therefore, the surface energy density $f_{s}$ favours $\mathbf{Q}$-tensors that have $\hat{\mathbf{z}}$ as an eigenvector, with constant eigenvalue $-s_{+}/3$, on the top and bottom plates. We have Dirichlet boundary conditions (2.8) on the lateral surface; and the admissible class is $\mathcal{B}$, defined by (2.12).

Lemma 3.10**.**

Critical points of the functional (3.31), in the admissible class $\mathcal{B}$ defined by (2.12), satisfy the Euler-Lagrenge system (2.6), subject to Dirichlet boundary conditions (2.8) on the lateral surfaces and

[TABLE]

Here, $\nu$ is the outward-pointing unit normal to $V$ and $\mathbf{H}$ is defined by

[TABLE]

Remark 1*.*

The matrix $\mathbf{H}(\mathbf{Q})$ is symmetric and traceless. Therefore, the Lagrange multipliers associated with the symmetry and tracelessness constraints have already been embedded in the definition of $\mathbf{H}$.

Remark 2*.*

Because of the boundary condition (3.33), $z$-independent solutions ($\partial_{z}\mathbf{Q}=0$) may not, in general, be solutions of the 3D problem with surface energy anchoring on the top and bottom plates. However, when $A=-B^{2}/(3C)$ we know that there exist $z$-independent solutions with $Q_{33}=-s_{+}/3$; they correspond to triplets $(q_{1},\,q_{2},\,q_{3})$ with constant $q_{3}=-s_{+}/6$ (see Corollary 3.1). These $z$-independent solutions with constant $Q_{33}$ are also solutions of the 3D problem with surface energies on the top and bottom plates.

Proof of Lemma 3.10.

Let $\mathbf{Q}\in\mathcal{B}$ be a critical point for $\mathcal{F}_{\lambda}$, and let $\mathbf{P}\in H^{1}(V,\,S_{0})$ be any perturbation such that $\mathbf{P}=0$ on $\partial V\setminus\Gamma$. We compute the first variation of $\mathcal{F}_{\lambda}$ with respect to $\mathbf{P}$:

[TABLE]

where $\mathbf{Q}\cdot\mathbf{P}:=\mathrm{tr}(\mathbf{Q}\mathbf{P})=Q_{ij}P_{ij}$. By integrating by parts, and noting that $\mathrm{tr}\mathbf{P}=0$, we obtain:

[TABLE]

We now deal with the integral on $\Gamma$. We first remark that

[TABLE]

because $\mathrm{tr}\mathbf{P}=0$. We also have

[TABLE]

Using (3.34), (3.35) and (3.36) we obtain

[TABLE]

for any $\mathbf{P}\in H^{1}(V,\,S_{0})$ such that $\mathbf{P}=0$ on $\partial V\setminus\Gamma$, and the lemma follows. ∎

Lemma 3.11**.**

There exists a constant $M$ (depending only on $A$, $B$, $C$ but not on $\lambda$, $L$, $\epsilon$) such that any solution $\mathbf{Q}$ of the system (2.6), subject to the boundary conditions (2.8) and (3.33), satisfies

[TABLE]

Proof.

Let $\mathbf{P}:=\mathbf{Q}+s_{+}(\hat{\mathbf{z}}\otimes\hat{\mathbf{z}})/2$. We have $\partial_{\nu}(\left|\mathbf{P}\right|^{2}/2)=\partial_{\nu}\mathbf{P}\cdot\mathbf{P}=\partial_{\nu}\mathbf{Q}\cdot\mathbf{P}$ and hence, by (3.33), we deduce that

[TABLE]

Similarly, we manipulate the Euler-Lagrange system to obtain

[TABLE]

The right-hand side of (3.38) is a quartic polynomial in $\mathbf{Q}$, with leading order term $C\left|\mathbf{Q}\right|^{4}$ and $C>0$. Therefore, there exists a positive number $M_{1}$ (depending on $A$, $B$ and $C$ only) such that the right-hand side of (3.38) is positive when $\left|\mathbf{Q}\right|\geq M_{1}$. By the triangular inequality, we have

[TABLE]

and hence the right-hand side of (3.38) is positive when $\left|\mathbf{P}\right|\geq M_{2}$. Finally, the boundary datum $\mathbf{Q}_{\mathrm{b}}$ on the lateral surfaces, defined by (2.8), satisfies $\left|\mathbf{Q}_{\mathrm{b}}\right|\leq(2/3)^{1/2}s_{+}$ on $\partial\Omega\times(0,\,\epsilon)$. By applying the maximum principle to (3.37) and (3.38), we obtain that

[TABLE]

Then, by the triangular inequality, $\mathbf{Q}$ is also bounded in terms of $A$, $B$ and $C$ only. ∎

Adapting the methods in [3], for any values of $\lambda$ and $\epsilon$, it is possible to construct a WORS-like solution for this 3D problem with surface anchoring on the top and bottom plates. The WORS has a constant eigenframe and, hence it can be completely described in terms of two degrees of freedom as before:

[TABLE]

where $q_{1}$, $q_{3}$ are scalar functions, $\mathbf{n}_{1}$, $\mathbf{n}_{2}$ are given by (2.10) and $q_{1}$ is constrained to vanish on the diagonals with symmetry

[TABLE]

Proposition 3.12**.**

For any $\lambda$, $\epsilon$ and $A$, there exists a solution of the form  (3.39), of the system (2.6), subject to the boundary conditions (2.8) and (3.33), satisfies (3.40) with $q_{1}=0$ along the square diagonals and has $q_{3}<0$ on $V$.

Proof.

Let

[TABLE]

Following the approach in [3], we consider the functional

[TABLE]

obtained by substituting the ansatz (3.39) into (3.31). We minimize $G$ among the finite-energy pairs $(q_{1},\,q_{3})\in H^{1}(V_{+})^{2}$, subject to the constraint $q_{3}\leq 0$ on $V$ and to the boundary conditions

[TABLE]

where the function $q_{1\mathrm{b}}$ is defined by (3.19). A routine application of the direct method of the calculus of variations shows that a minimizer $(q_{1}^{WORS},\,q_{3}^{WORS})$ exists. Without loss of generality, we can assume that $q_{1}^{WORS}\geq 0$ on $V_{+}$; otherwise, we replace $q_{1}^{WORS}$ with $|q^{WORS}_{1}|$ and note that $G[q_{1}^{WORS},\,q_{3}^{WORS}]=G[|q_{1}^{WORS}|,\,q_{3}^{WORS}]$.

We claim that $q_{3}^{WORS}\leq-\delta$ for some strictly positive constant $\delta$, depending only on $A$, $B$ and $C$. The proof of this claim follows the argument in Proposition 3.2. We take a perturbation $\varphi\in H^{1}(V_{+})$ such that $\varphi\geq 0$ in $V_{+}$ and $\varphi=0$ on $\partial V\cap\overline{V_{+}}$. Then, $q_{3}^{t}:=q_{3}^{WORS}-t\varphi$, for $t\geq 0$, is an admissible perturbation for $q_{3}^{WORS}$ and from the optimality condition

[TABLE]

we deduce

[TABLE]

The function $f(q_{1}^{WORS},\,q_{3}^{WORS})$ is defined by (3.11), and by (3.12) we know that there exists a constant $\delta\in(0,\,s_{+}/6)$ such that $f(q_{1},\,q_{3})>0$ for any $q_{1}\in{\mathbb{R}}$ and any $q_{3}\in[-\delta,\,0]$. We choose $\varphi$ as in (3.13) and, due to (3.43), we deduce that $q_{3}^{WORS}\leq-\delta$ in $V_{+}$.

Since $q_{3}^{WORS}$ is strictly negative, we can consider perturbations of the form $q_{3}^{t}:=q_{3}^{WORS}+t\varphi$, irrespective of the sign of $\varphi$, provided that $\left|t\right|$ is sufficiently small. As a consequence, $(q_{1}^{WORS},\,q_{3}^{WORS})$ solves the Euler-Lagrange system

[TABLE]

on $V_{+}$, as well as the boundary conditions

[TABLE]

and $\partial_{\nu}q_{3}=0$ on $\partial V_{+}\setminus\partial V$. We extend $(q_{1}^{WORS},\,q_{3}^{WORS})$ to the whole of $V$ by reflections about the planes $\{x=0\}$ and $\{y=0\}$:

[TABLE]

for any $(x,\,y,\,z)\in V\setminus\overline{V_{+}}$. The functions $q_{1}^{WORS}$, $q_{3}^{WORS}$, defined above, solve the Euler-Lagrange system (3.44) on $\Omega\setminus(\{x=0\}\cup\{y=0\})$. In fact, an argument based on elliptic regularity, along the lines of [5, Theorem 3], shows that $(q_{1}^{WORS},\,q_{3}^{WORS})$ is a solution of (3.44) on the whole of $\Omega$. Finally, using (3.44), (3.42) and (3.45), we can check that the $\mathbf{Q}$-tensor associated with $(q_{1}^{WORS},\,q_{3}^{WORS})$, as defined by (3.39), has all the required properties. ∎

Adapting a general criterion for uniqueness of critical points (see, e.g., [14, Lemma 8.2]), we can show that the functional (3.31) has a unique critical point in the admissible class (2.12) when $\lambda$ is small enough, irrespective of $\epsilon$, which implies that the WORS is globally stable for $\lambda$ sufficiently small with surface energies too.

Proposition 3.13**.**

There exists a positive number $\lambda_{0}$ (depending only on $A$, $B$, $C$) such that, when $\lambda<\lambda_{0}$, the system (2.6) has a unique solution that satisfies the boundary conditions (2.8), (3.33).

The main step of the proof is the following

Lemma 3.14**.**

For any $M>0$, there exists a $\lambda_{0}=\lambda_{0}(M,\,A,\,B,\,C,\,L,\,\Omega)$ such that, for $\lambda<\lambda_{0}$, the functional $\mathcal{F}_{\lambda}$ given by (3.31) is strictly convex in the class

[TABLE]

Once Lemma 3.14 is proved, Proposition 3.13 follows. Indeed, let us consider the constant $M$ given by Lemma 3.11. Then, any solution of the system (2.6), subject to the boundary conditions (2.8), (3.33), must belong to the class $X$, by Lemma 3.11. However, if $\mathcal{F}_{\lambda}$ is strictly convex in $X$, then it cannot have more than one critical point in $X$.

Proof of Lemma 3.14.

For any $\mathbf{Q}_{1},\mathbf{Q}_{2}\in X$, we have

[TABLE]

Since $f_{s}(\mathbf{Q})$ is a convex function of $\mathbf{Q}$, we have

[TABLE]

We now deal with the bulk term, $f_{b}$. Both $\mathbf{Q}_{1}$ and $\mathbf{Q}_{2}$ are equal to $\mathbf{Q}_{\mathrm{b}}$ on $\partial\Omega\times(0,\,\epsilon)$ and hence, $\mathbf{Q}_{2}-\mathbf{Q}_{1}=0$ on $\partial\Omega\times(0,\,\epsilon)$. For a.e. fixed $z_{0}\in(0,\,\epsilon)$, by the Poincaré inequality on $\Omega$, we have

[TABLE]

where $C_{1}(\Omega)$ is a positive constant that only depends on the geometry of $\Omega$. By integrating the previous inequality with respect to $z_{0}\in(0,\,\epsilon)$, we deduce that

[TABLE]

Since $|\mathbf{Q}_{1}|\leq M$ and $|\mathbf{Q}_{2}|\leq M$ everywhere in $V$, we have

[TABLE]

where $B_{M}=\left\{\mathbf{Q}\in S_{0}\colon|\mathbf{Q}|\leq M\right\}$ and $\left\|f_{b}\right\|_{W^{2,\infty}(B_{M})}$ is a positive constant that bounds the second derivatives of $f_{b}$ in $B_{M}$ (in particular, $\left\|f_{b}\right\|_{W^{2,\infty}(B_{M})}$ only depends on $M$, $A$, $B$ and $C$). Combining (3.50) and (3.51), we find a positive constant $C_{2}=C_{2}(f_{b},\,\Omega,\,M):=C_{1}(\Omega)\left\|f_{b}\right\|_{W^{2,\infty}(B_{M})}$ such that

[TABLE]

Now, we use (3.48) and (3.52) to bound the right-hand side of (3.47). We obtain

[TABLE]

If we take $\lambda<\lambda_{0}:=(\frac{L}{8C_{2}})^{1/2}$, then we have

[TABLE]

and the equality holds if and only if $\mathbf{Q}_{1}=\mathbf{Q}_{2}$. This proves that $\mathcal{F}_{\lambda}$ is strictly convex in $X$. ∎

We deduce that the WORS-solution survives in 3D wells, independently of the well height, with both natural boundary conditions and realistic surface energies on the top and bottom surfaces. Moreover, the WORS is globally stable for $\lambda$ small enough, independent of well height and in the next section, we complement our analysis with numerical examples.

4 Numerics

4.1 Numerical Methods

For computational convenience, in this section we take the cross-section of the well, $\Omega$, to be a (non-truncated) square with sides parallel to the coordinate axes, i.e. $\Omega=(-1,\,1)^{2}$. We consider the general $\mathbf{Q}$-tensor with five degrees of freedom

[TABLE]

where $\hat{\mathbf{x}}$, $\hat{\mathbf{y}}$ and $\hat{\mathbf{z}}$ are unit-vectors in the $x$-, $y$- and $z$-directions respectively.

Moreover, instead of considering Dirichlet conditions (infinite strong anchoring) on the lateral surfaces, we consider finite anchoring on the lateral surfaces, which allows us to study nematic equilibria without excluding the corners of the well [25]. More precisely, we impose surface energies on the lateral sides given by [10]

[TABLE]

where $\omega_{i}=\frac{W_{i}\lambda}{L}$ is the non-dimensionalized anchoring strength, $W_{i}$ is the surface anchoring, the function $g\in C^{\infty}([-1,1])$ eliminates the discontinuity at the corners e.g

[TABLE]

for a small constant $\delta$. The choice of $g$ does not affect numerical results qualitatively. We take $W_{1}=W_{2}=10^{-2}\mathrm{Jm}^{-2}$ to account for the strong anchoring on the lateral sides of well [21].

On $\Gamma$ - the top and bottom surfaces, the surface energy for finite tangential anchoring (3.32) can be written as

[TABLE]

where $w_{z}=\frac{W_{z}\lambda}{L}$ is the non-dimensionalized anchoring strength. The surface energy (4.4) favors planar boundary conditions on the top and bottom surface, such that $\hat{\mathbf{z}}$ is an eigenvector of $\mathbf{Q}$ with associated eigenvalue $-\frac{1}{3}s^{+}$.

Instead of solving the Euler-Lagrange equations for the LdG free energy, we use the energy-minimization based numerical method [6, 27] to find the minimizer of current system. The physical domain can be rescaled to $\Omega_{c}=\{(\bar{x},\bar{y},\bar{z})~{}|~{}\bar{x}\in[0,2\pi],\bar{y}\in[0,2\pi],\bar{z}\in[-1,1]\}$. Since $\mathbf{Q}$ is a symmetric and traceless matrix, $\mathbf{Q}$ can be written as

[TABLE]

We can expand $p_{i}$ in terms of special functions: Fourier series on $\bar{x}$ and $\bar{y}$, and Chebyshev polynomials on $\bar{z}$, i.e.

[TABLE]

where $L$, $M$, $N$ specify the truncation limits of the expanded series, $X_{l}$ and $Y_{m}$ are defined as

[TABLE]

Inserting (4.6) into the LdG free energy (2.5) with surface energy term (4.2) and (4.4), we get a function of $\mathbf{p}=(p_{lmn}^{i})\in\mathbb{R}^{D}$, where $D=(2L-1)\times(2M-1)\times N$. The minimizers of function $F(\mathbf{p})$ can be found by some standard optimization methods. In the following simulation, we mainly use L-BFGS, which is a type of quasi-Newton methods and is efficient for our problem[28].

The energy-minimization based numerical approach with L-BFGS usually converges to a local minimizer with a proper initial guess, but that is not necessarily guaranteed. Similar to Ref. [22], we can justify the stability of an obtained solution $\mathbf{p}$ by computing the smallest eigenvalue $\lambda_{1}$ of Hessian matrix $\mathbf{G}(\mathbf{p})$ corresponding to $\mathbf{p}$:

[TABLE]

where $\langle\cdot,\,\cdot\rangle$ is the standard inner product in $\mathbb{R}^{D}$. A solution is locally stable (metastable) if $\lambda_{1}>0$. Practically, $\lambda_{1}$ can be computed by solving the gradient flow equation of $\mathbf{v}$

[TABLE]

where $\gamma(t)$ is a relaxation parameter, and $\mathbf{G}\mathbf{v}=\mathbf{G}(\mathbf{p})\mathbf{v}$ is approximated by

[TABLE]

for some small constant $l$. We can choose $\gamma(t)$ properly to accelerate the convergence of the dynamic system (4.9).

In what follows, we frequently refer to the biaxiality parameter[18]

[TABLE]

such that $0\leq\beta^{2}\leq 1$ and $\beta^{2}=0$ if and only if $\mathbf{Q}$ is uniaxial or isotropic (for which we set $\beta^{2}=0$ by default).

4.2 Numerical Results

In the following, we take $A=-\frac{B^{2}}{3C}$ if not stated differently, so all material constants in Landau-de Gennes free-energy are fixed. The two key dimensionless variables are

[TABLE]

which describe the cross-sectional size and height of the square well respectively. Other dimensionless variables are related to the surface energy on all six surfaces.

4.2.1 Strong anchoring on the lateral surfaces

Firstly, we consider strong anchoring on the lateral surfaces, by taking $W_{1}=W_{2}=10^{-2}\mathrm{Jm}^{-2}$ in (4.2). For the surface energy on the top and bottom plates (see (4.4)), we take $W_{z}=10^{-2}\mathrm{Jm}^{-2}$ if not stated differently. For relatively large $\bar{\lambda}^{2}$, we find the well-known diagonal and rotated solutions as stable configurations for arbitrary $\epsilon$ [24]. These are essentially described by $\mathbf{Q}$-tensors of the form

[TABLE]

where $\mathbf{n}=\left(\cos\theta,\sin\theta,0\right)$, $q>0$, $q_{3}<0$, $\mathbf{I}_{2}$ is the identity matrix in two dimensions and $\mathbf{I}_{3}$ is the identity matrix in three dimensions respectively. Moreover, $\theta$ is a solution of $\Delta\theta=0$ on a square subject to appropriately defined Dirichlet conditions [15]. In the case of the diagonal solution, $\mathbf{n}$ roughly aligns along one of the square diagonals whereas for the rotated solution, $\theta$ rotates by approximately $\pi$ radians between a pair of opposite square edges. In Fig. 4.2(a)-(b). we plot a diagonal and a rotated solution for $\bar{\lambda}^{2}=100$ and $\epsilon=4$ with $A=-\frac{B^{2}}{3C}$. These solutions are z-invariant, as $|\partial_{z}\mathbf{Q}|^{2}\approx 10^{-12}$ in our numerical solutions.

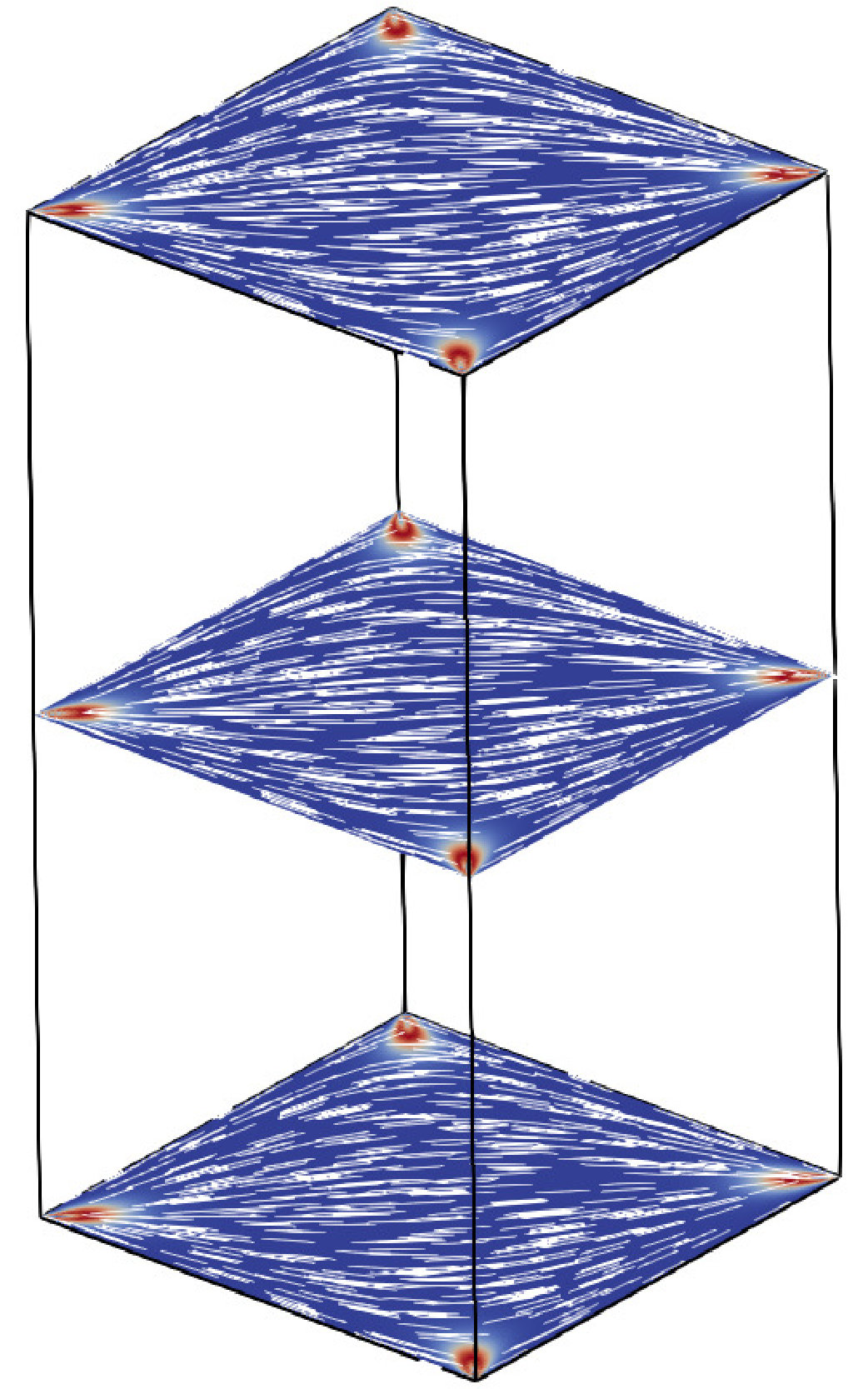

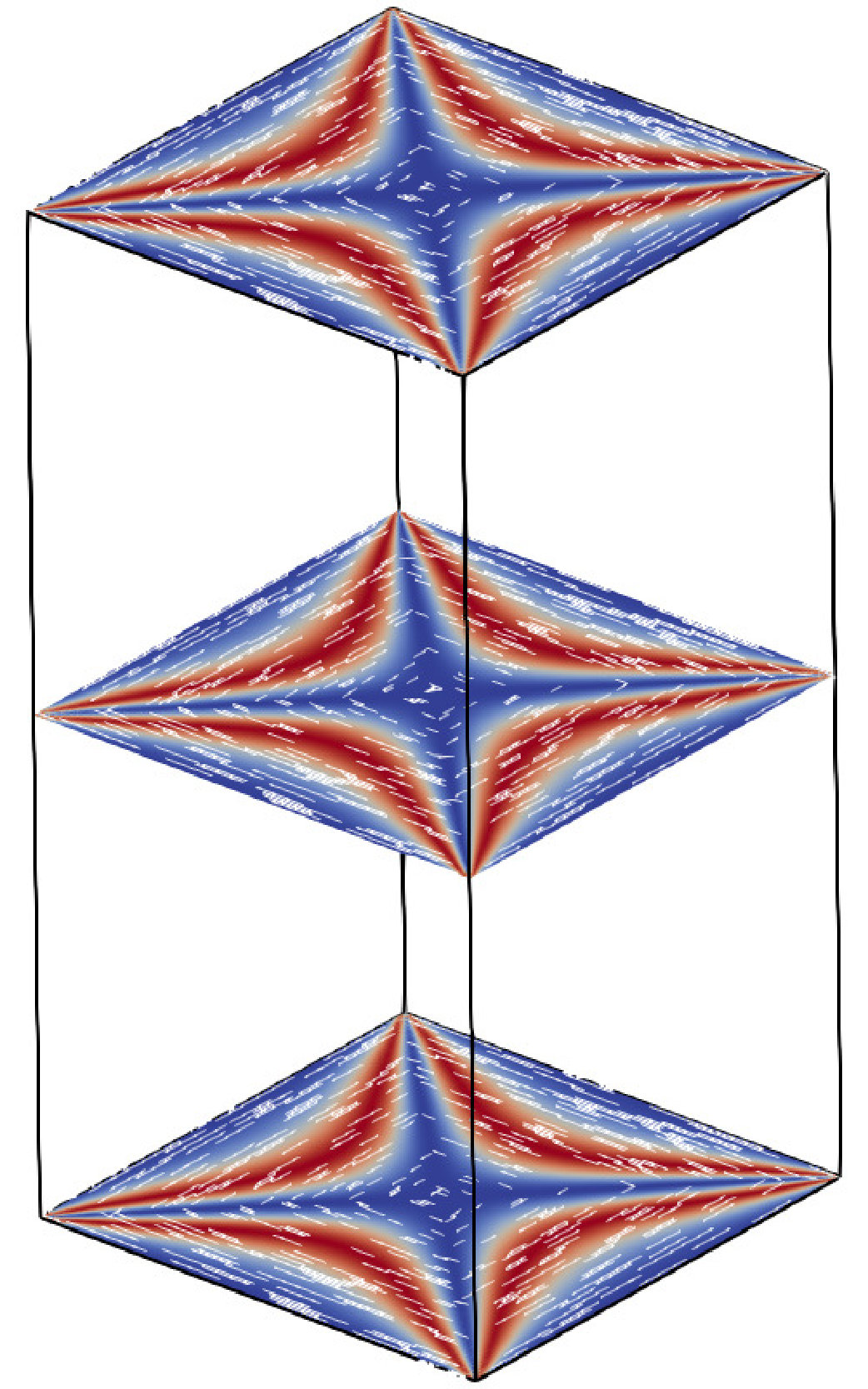

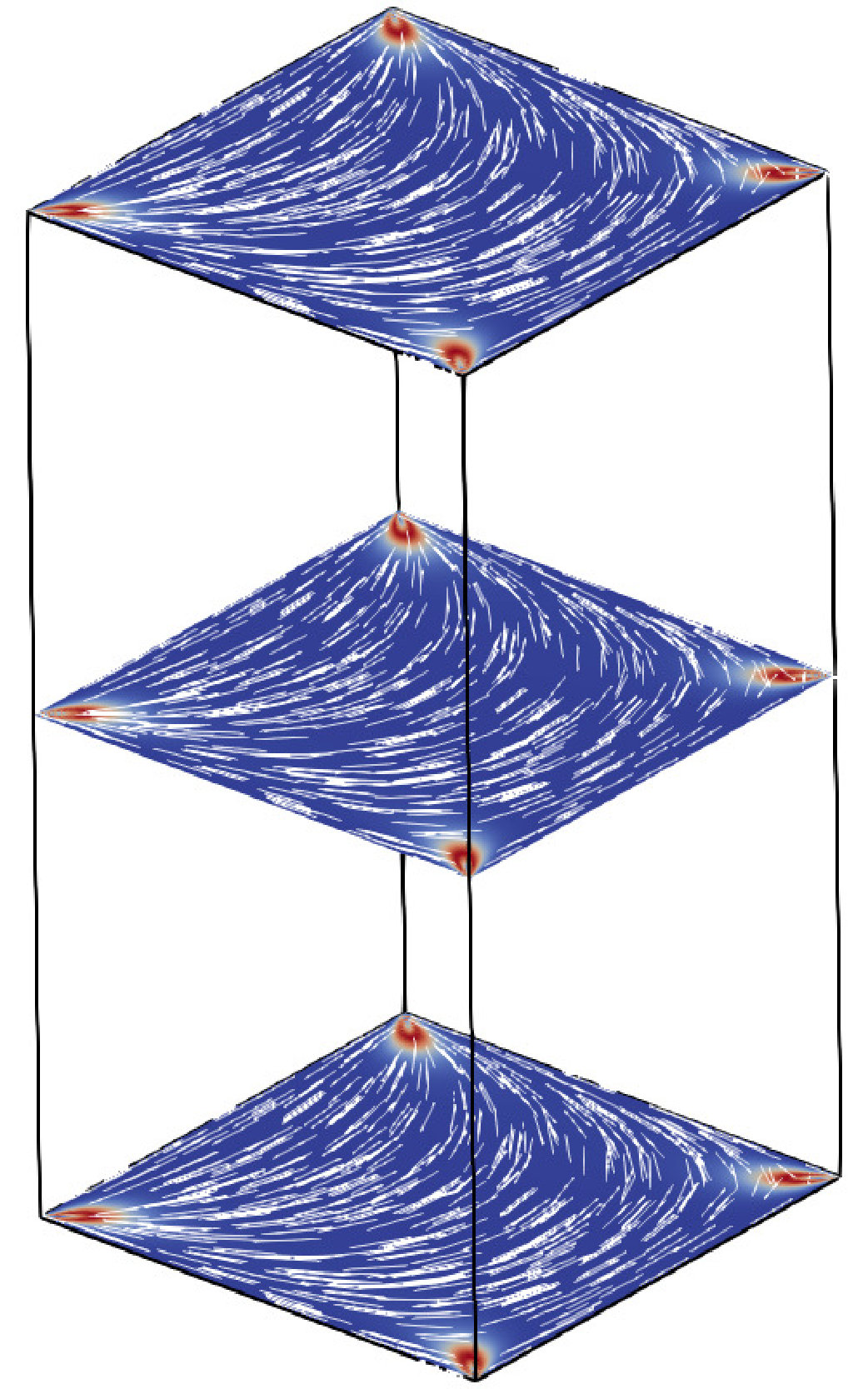

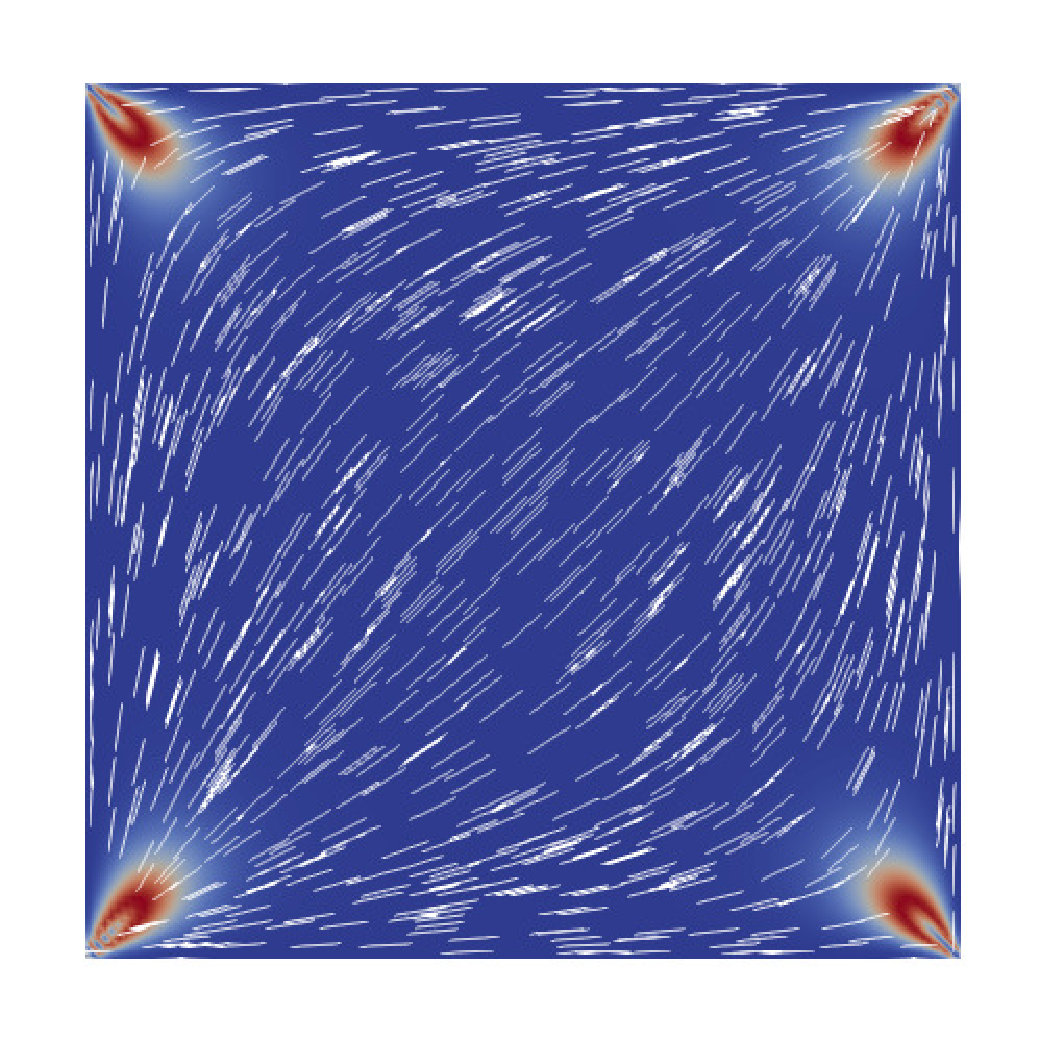

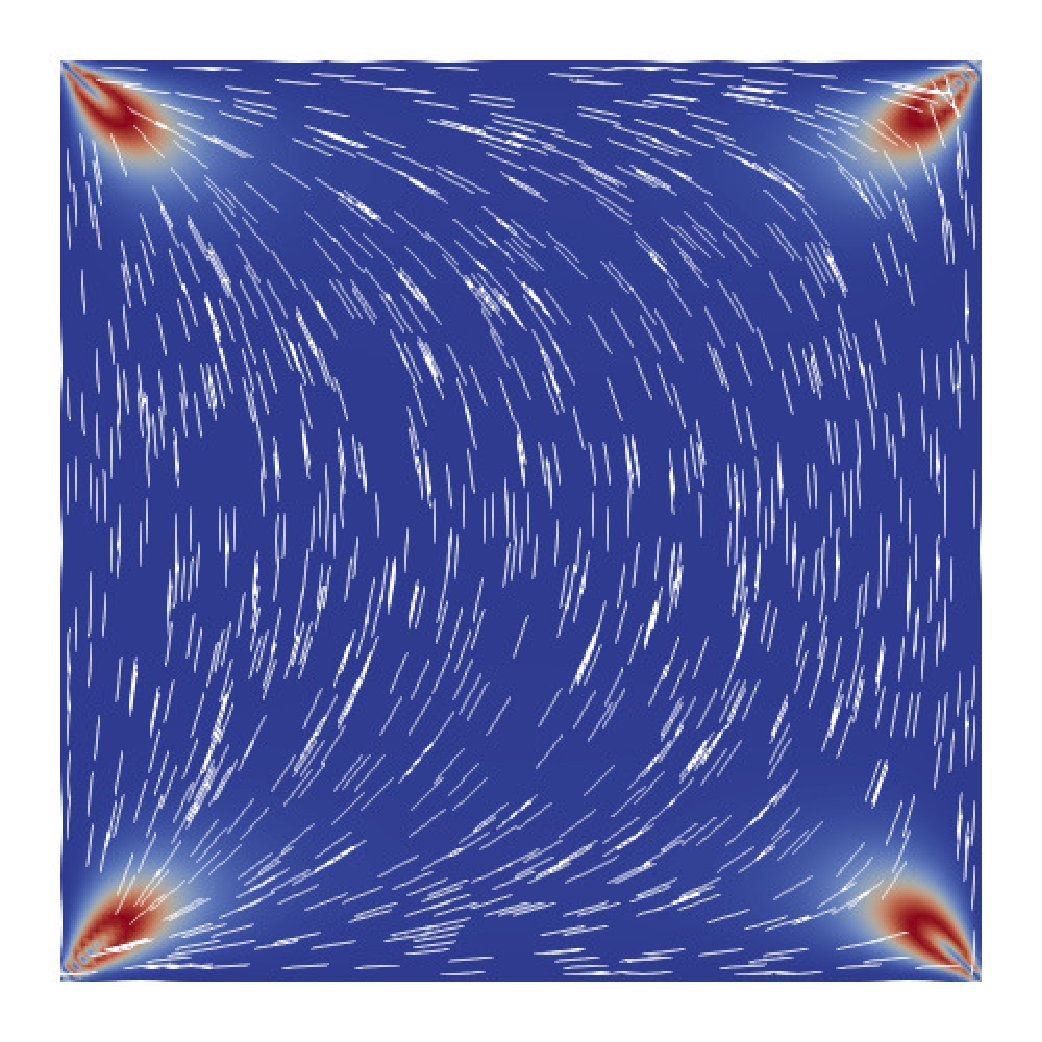

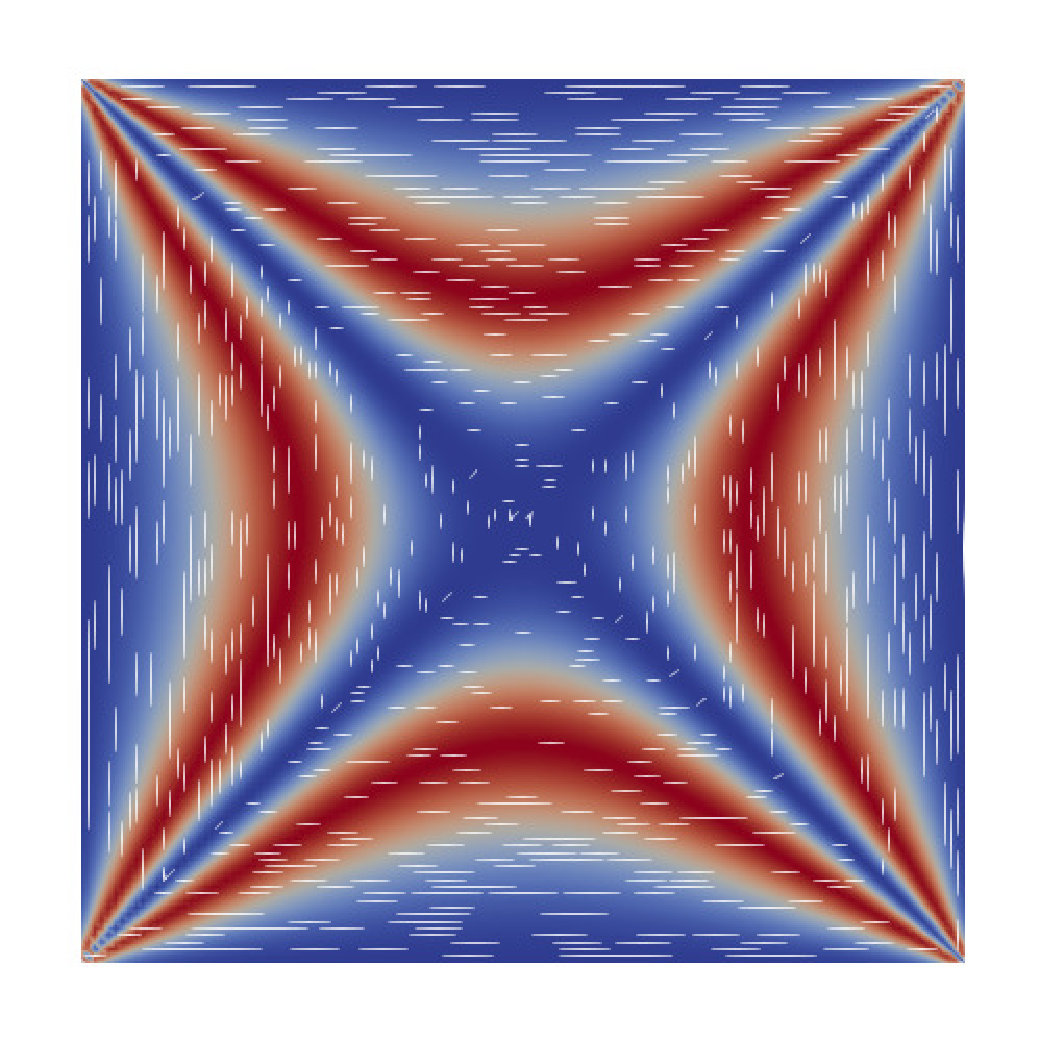

For sufficiently small $\bar{\lambda}^{2}$, we always get the WORS for arbitrary $\epsilon$, in accordance with the uniqueness results for small $\lambda$ in previous sections. In Fig. 4.2(c), we plot the WORS for $\bar{\lambda}^{2}=5$ and $\epsilon=4$ with $A=-\frac{B^{2}}{3C}$.

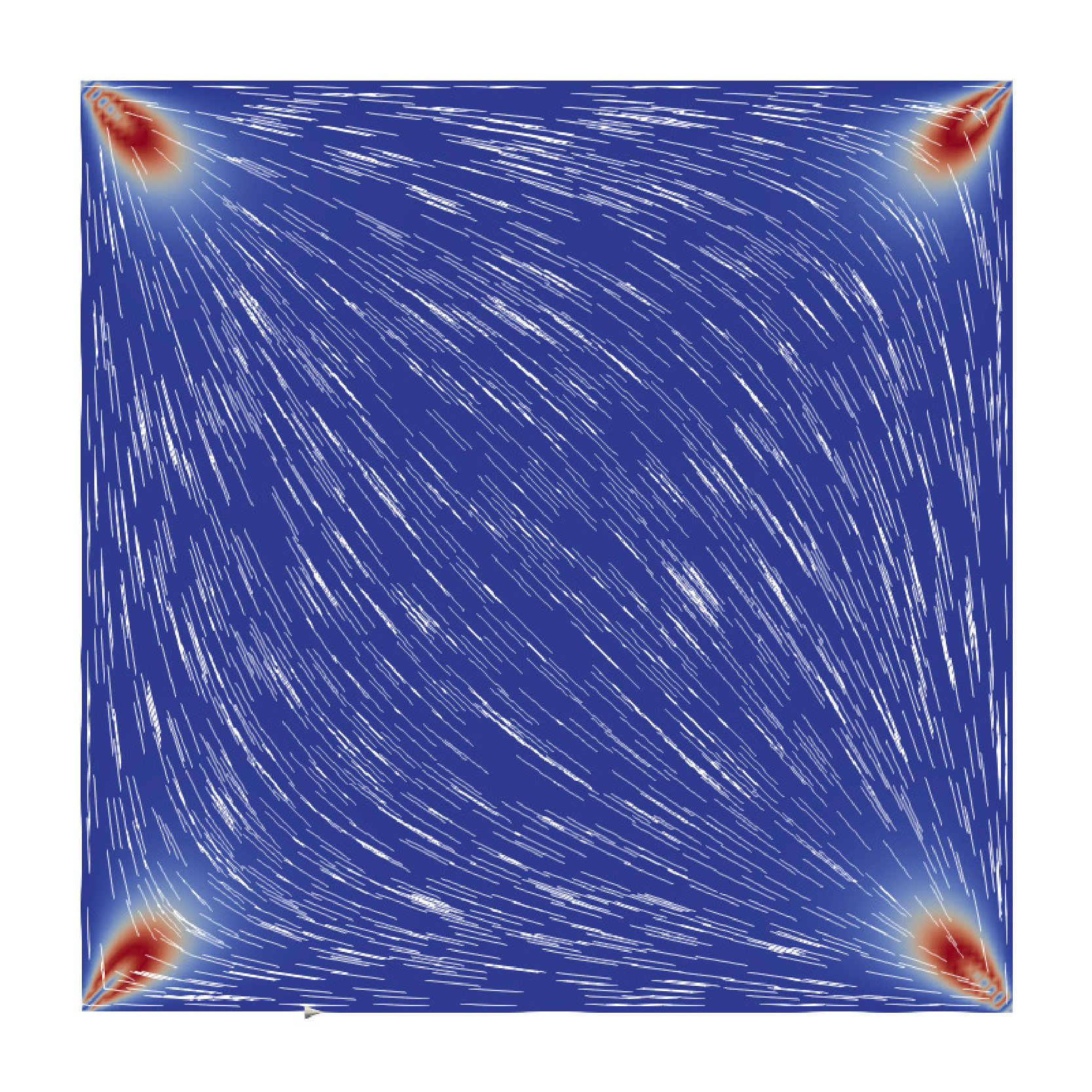

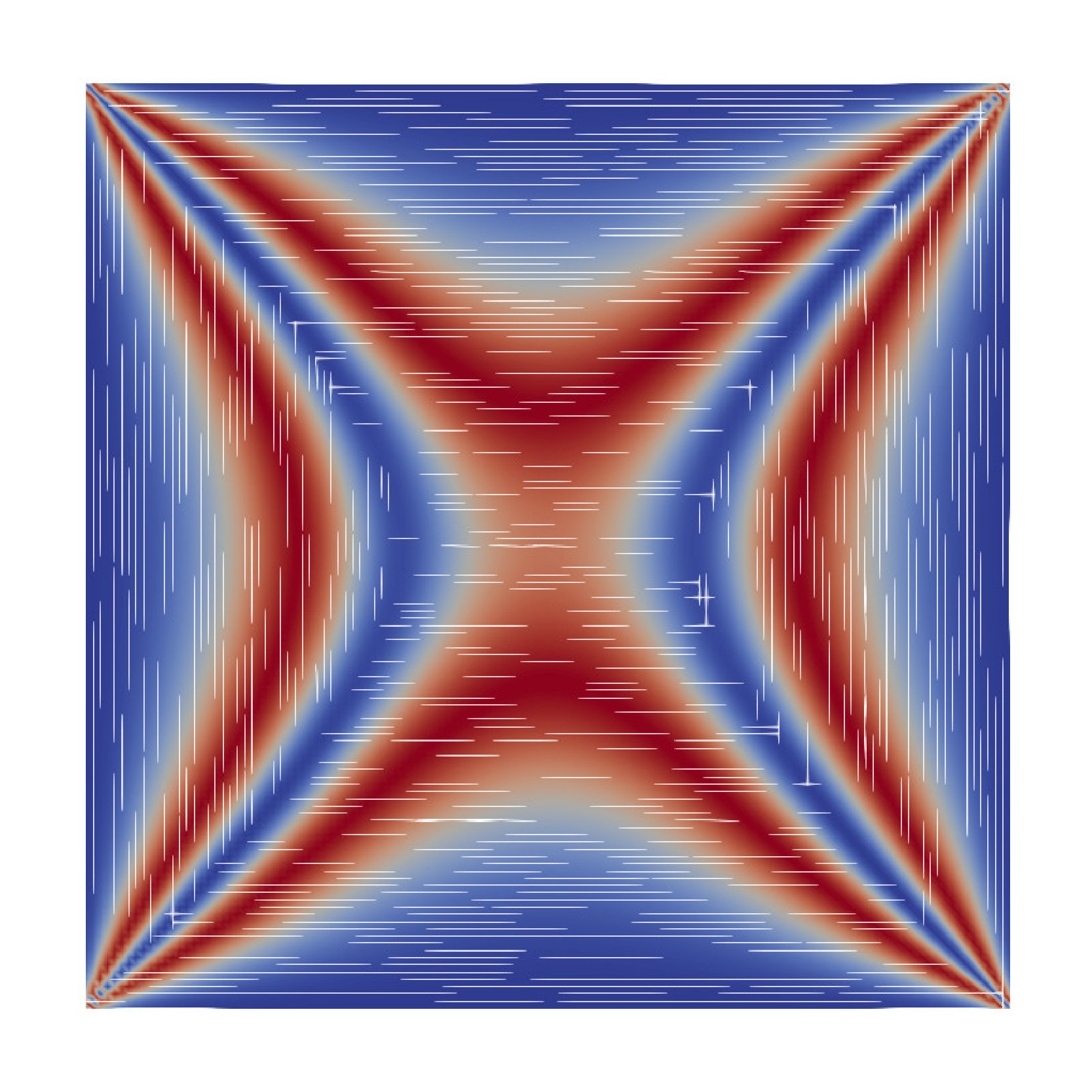

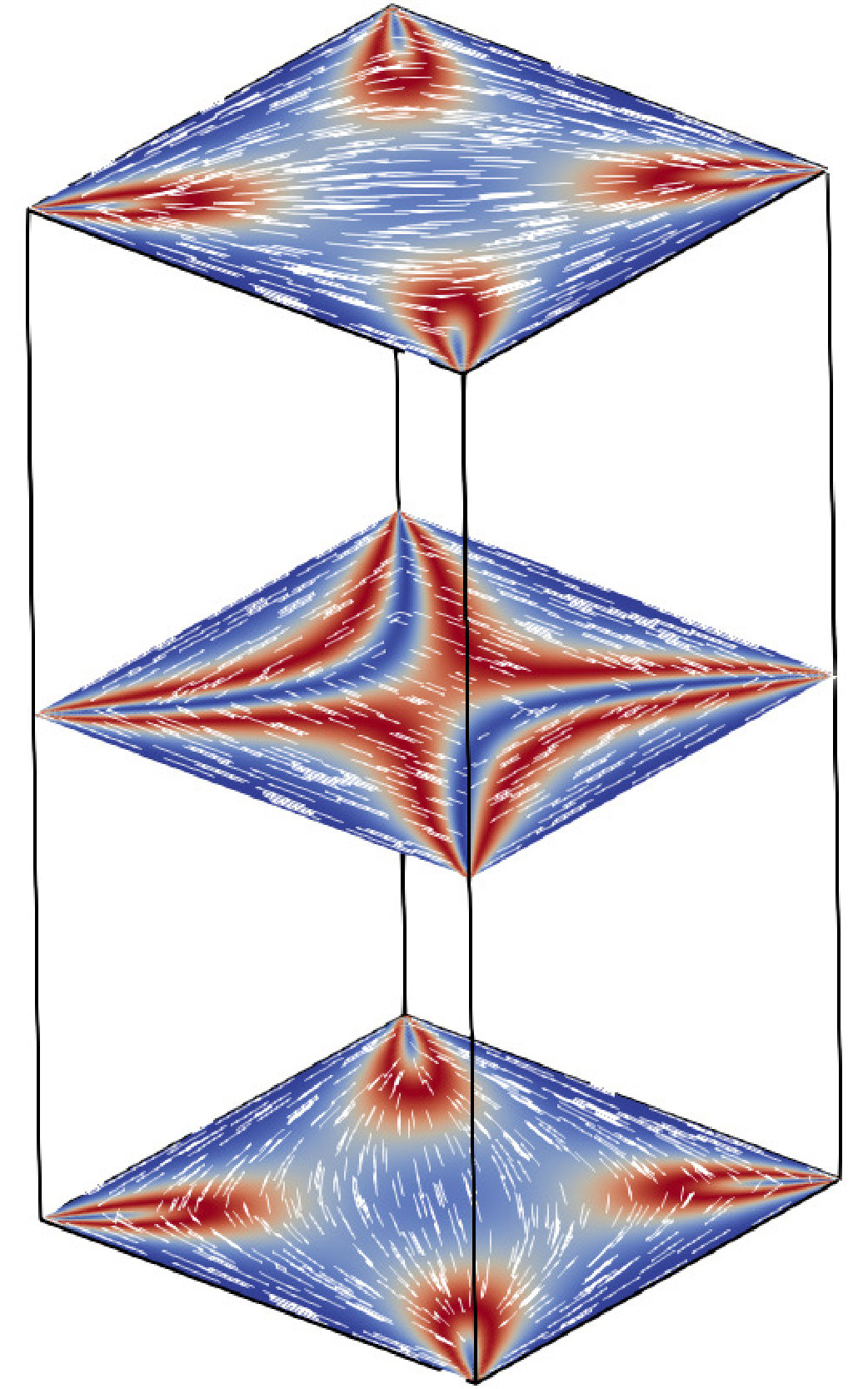

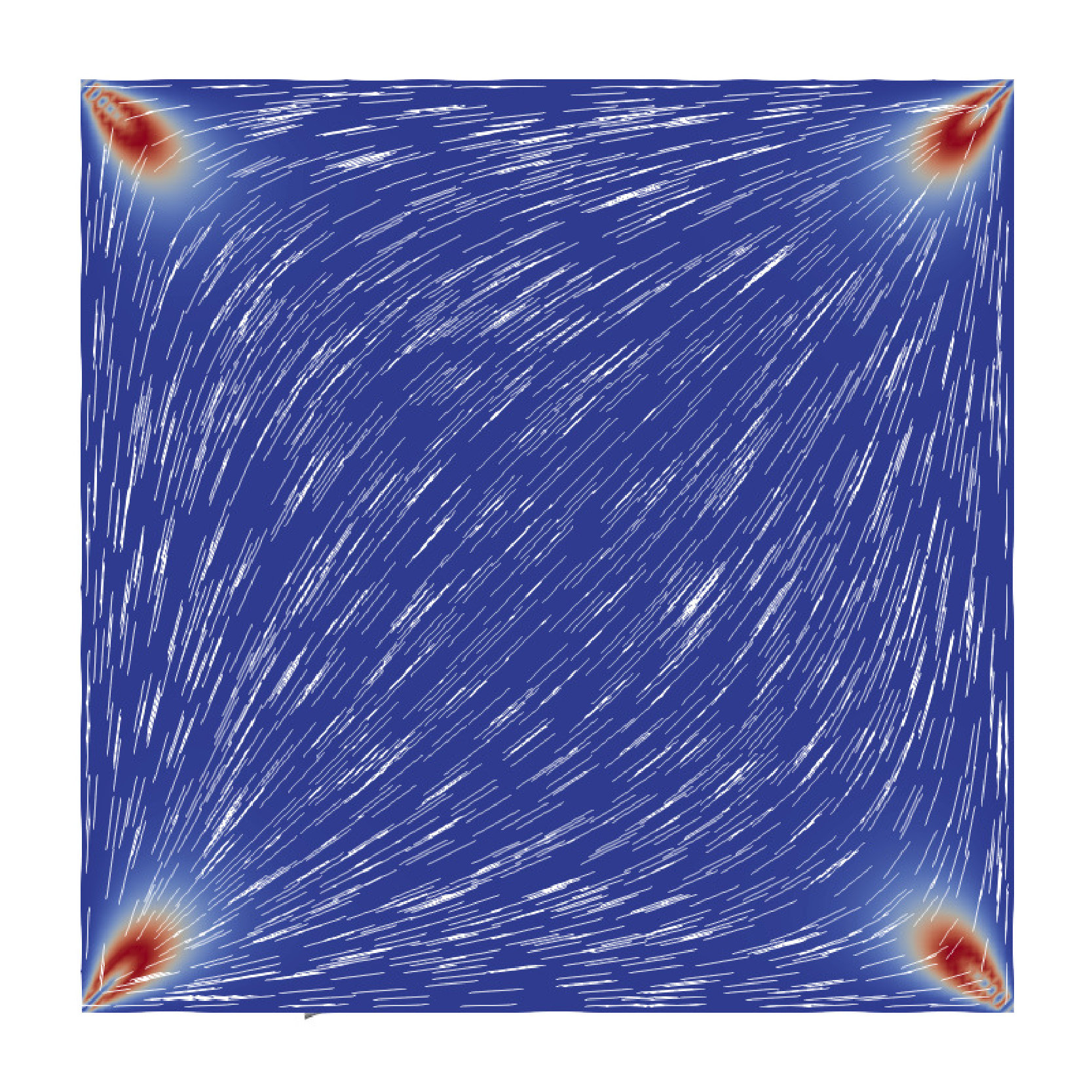

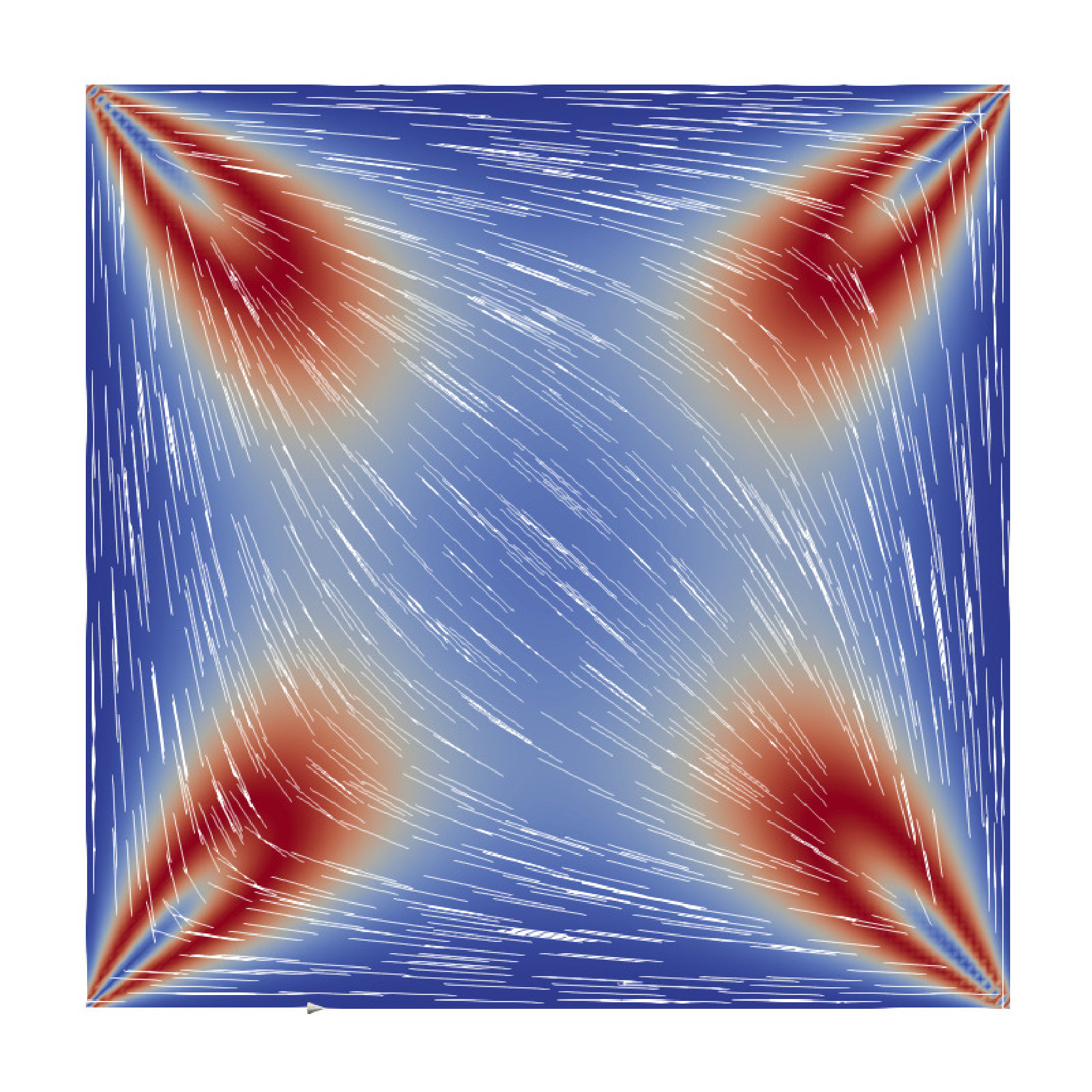

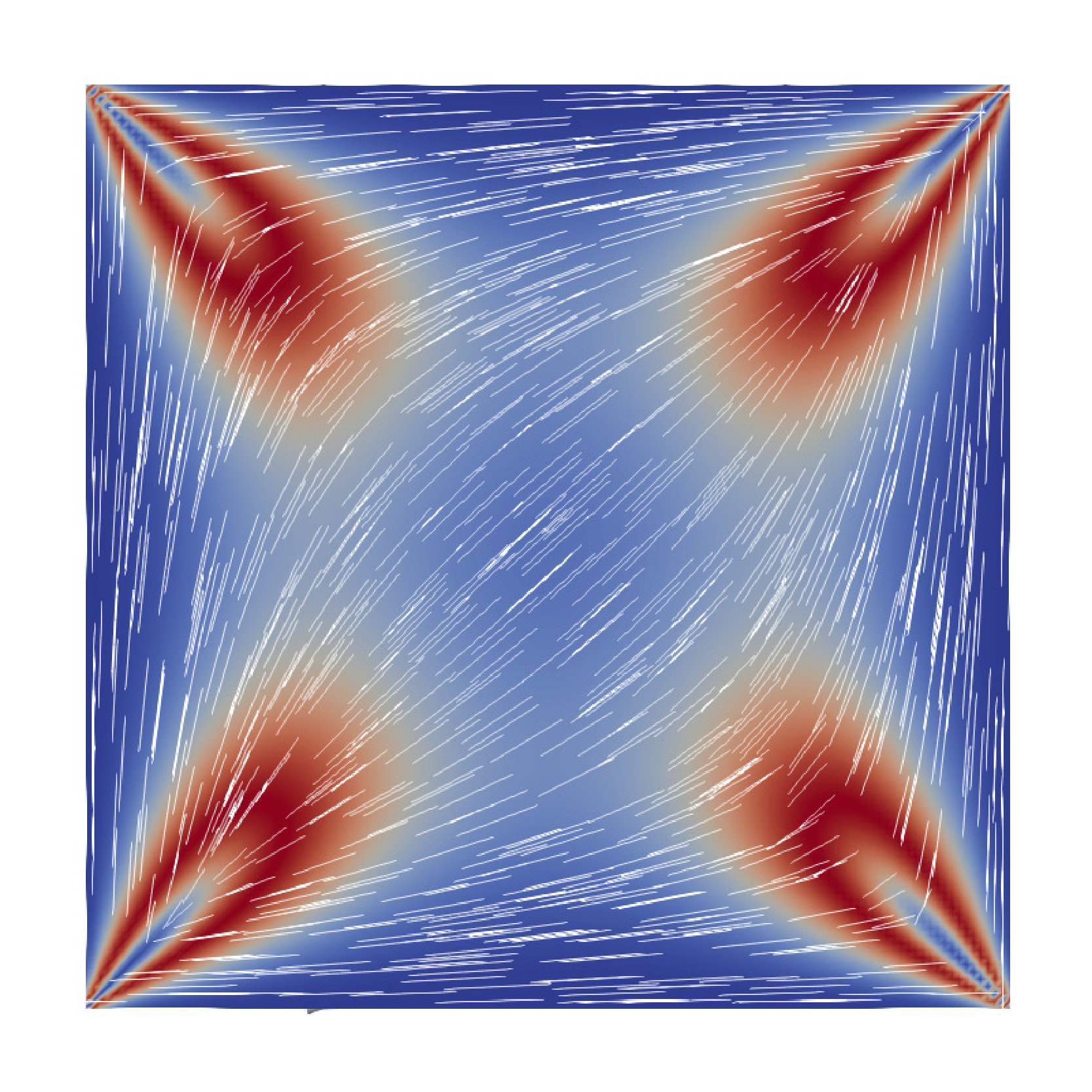

Interestingly, for $\epsilon$ large enough, we can have additional mixed locally stable solutions for relatively large $\bar{\lambda}^{2}$. In Fig. 4.3(a)-(b), we plot a mixed 3D solution for $\bar{\lambda}^{2}=100$ and $10$, with $\epsilon=4$. These mixed solutions can be obtained by taking a mixed initial condition as $\mathbf{Q}=s_{+}\left(\mathbf{n}\otimes\mathbf{n}-\frac{1}{3}\mathbf{I}_{3}\right)$ with

[TABLE]

The initial condition has two separate diagonal profiles on the top and bottom surfaces with a mismatch at the centre of the well, at $z=\frac{\epsilon}{2}$. In this case, the L-BFGS procedure converges to a locally stable solution that has different diagonal configurations on the top and bottom plates. On the middle slice, we have a BD-like profile (referring to the terminology in [3]), where the corresponding $\mathbf{Q}$ tensor is of the form

[TABLE]

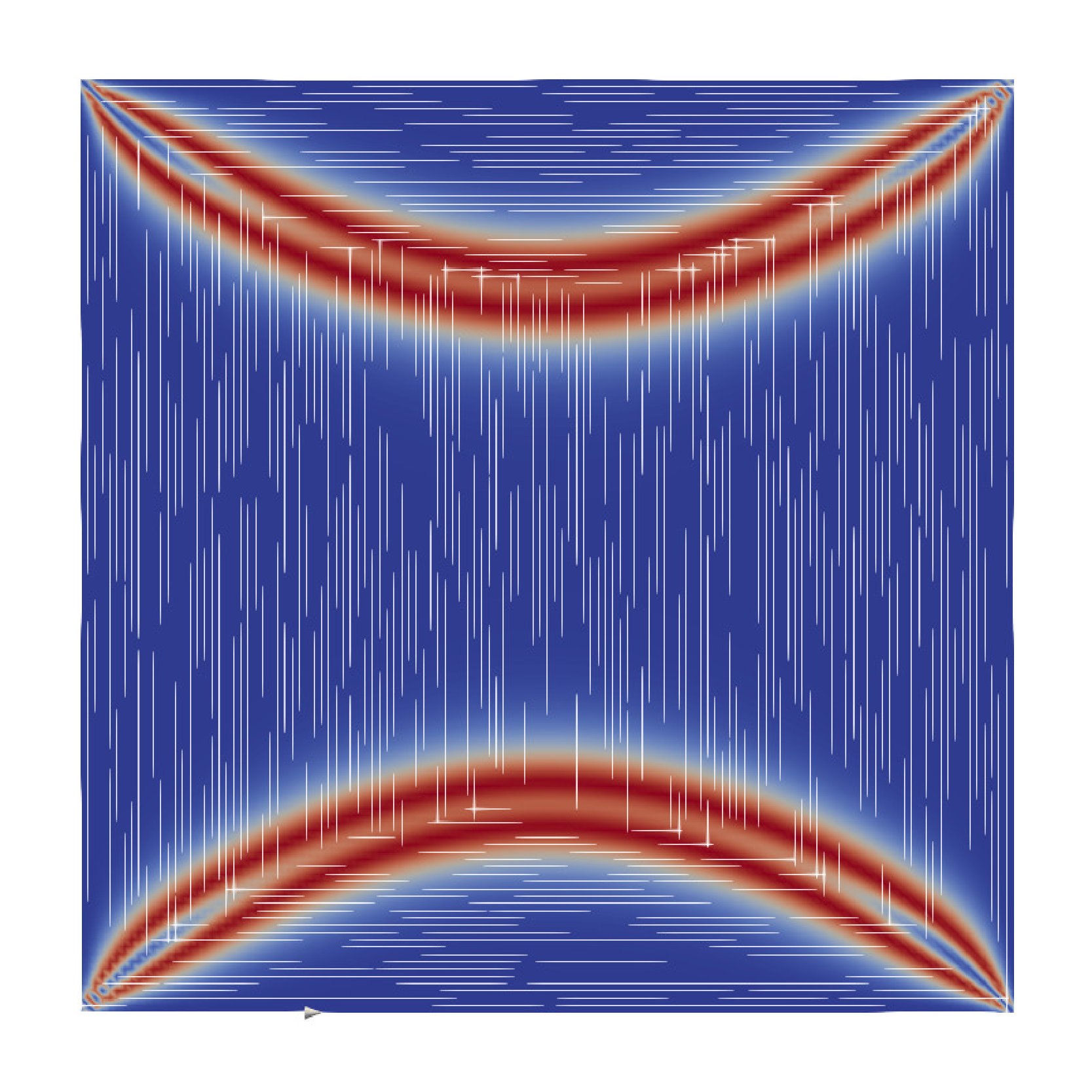

with two degrees of freedom, $q_{3}<0$ on the middle slide and $q_{1}=0$ near a pair of parallel edges of the square cross-section ($q_{1}=0$ describes a transition layer between two distinct values of $q_{1}$). We compute the smallest eigenvalue of the Hessian matrix corresponding to this solution, which is positive and hence, this mixed solution is numerically stable. Indeed, these mixed solutions have lower free energy than rotated solutions for $\bar{\lambda}^{2}=100$ and $\epsilon=4$. Numerical simulations show that mixed solutions cease to exist when $\epsilon$ or $\bar{\lambda}^{2}$ is small enough. For $\bar{\lambda}^{2}=100$, we cannot find such solutions for $\epsilon\leq 0.8$. We can generate more 3D configurations by mixing diagonal and rotated configurations on the top and bottom surfaces or two different rotated solutions but these are unstable according to our numerical simulations.

4.2.2 Weak anchoring on the lateral surfaces

In this section, we relax surface anchoring on the lateral surfaces and fix $W_{z}=10^{-2}\mathrm{Jm}^{-2}$ on the top and bottom plates with $\epsilon=0.2$.

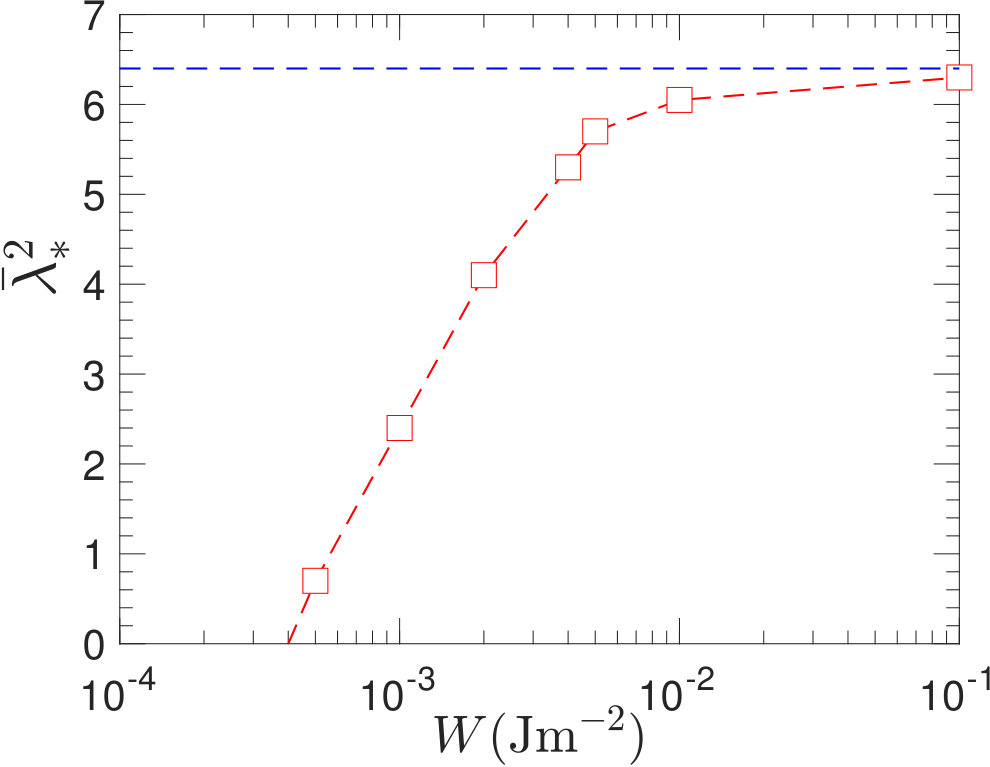

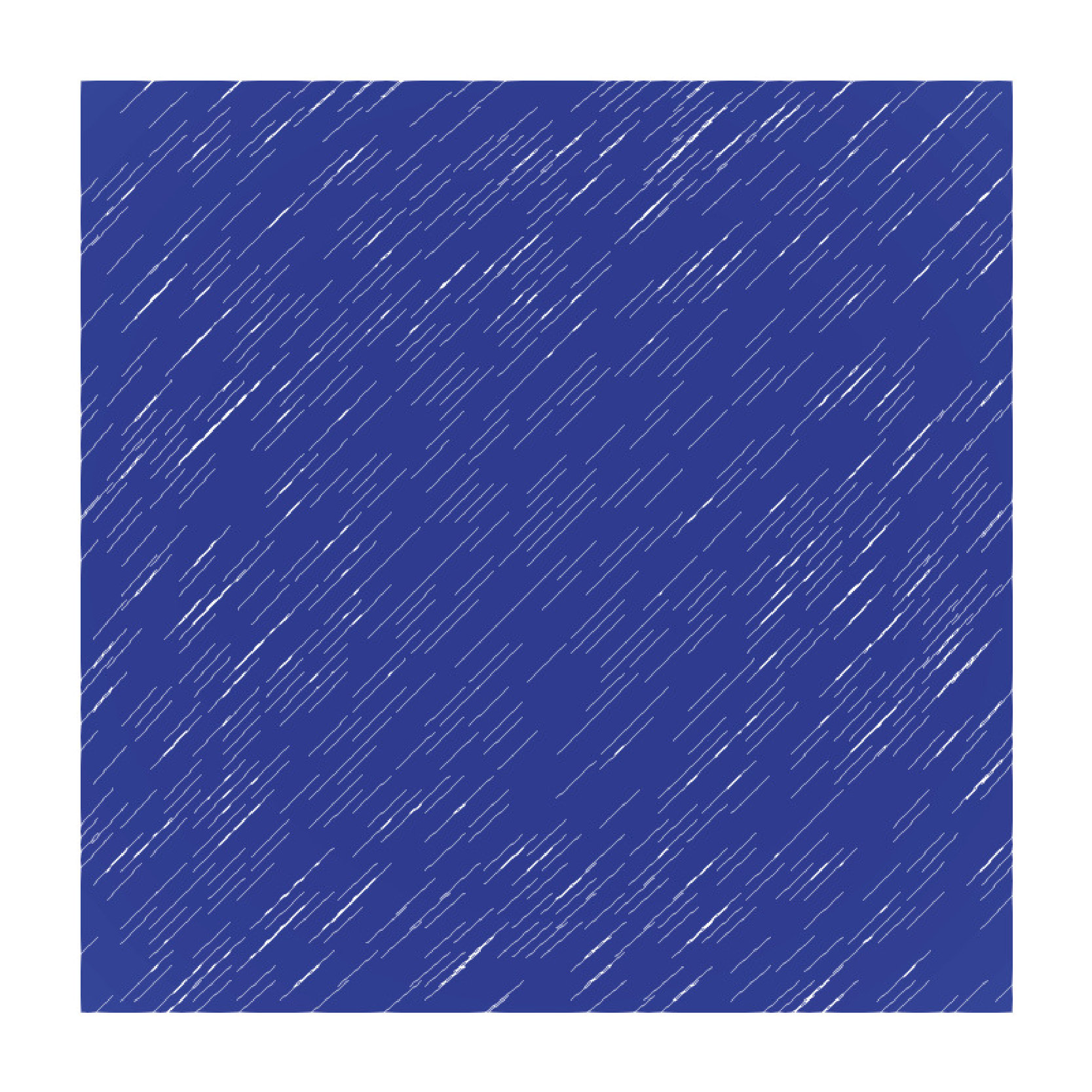

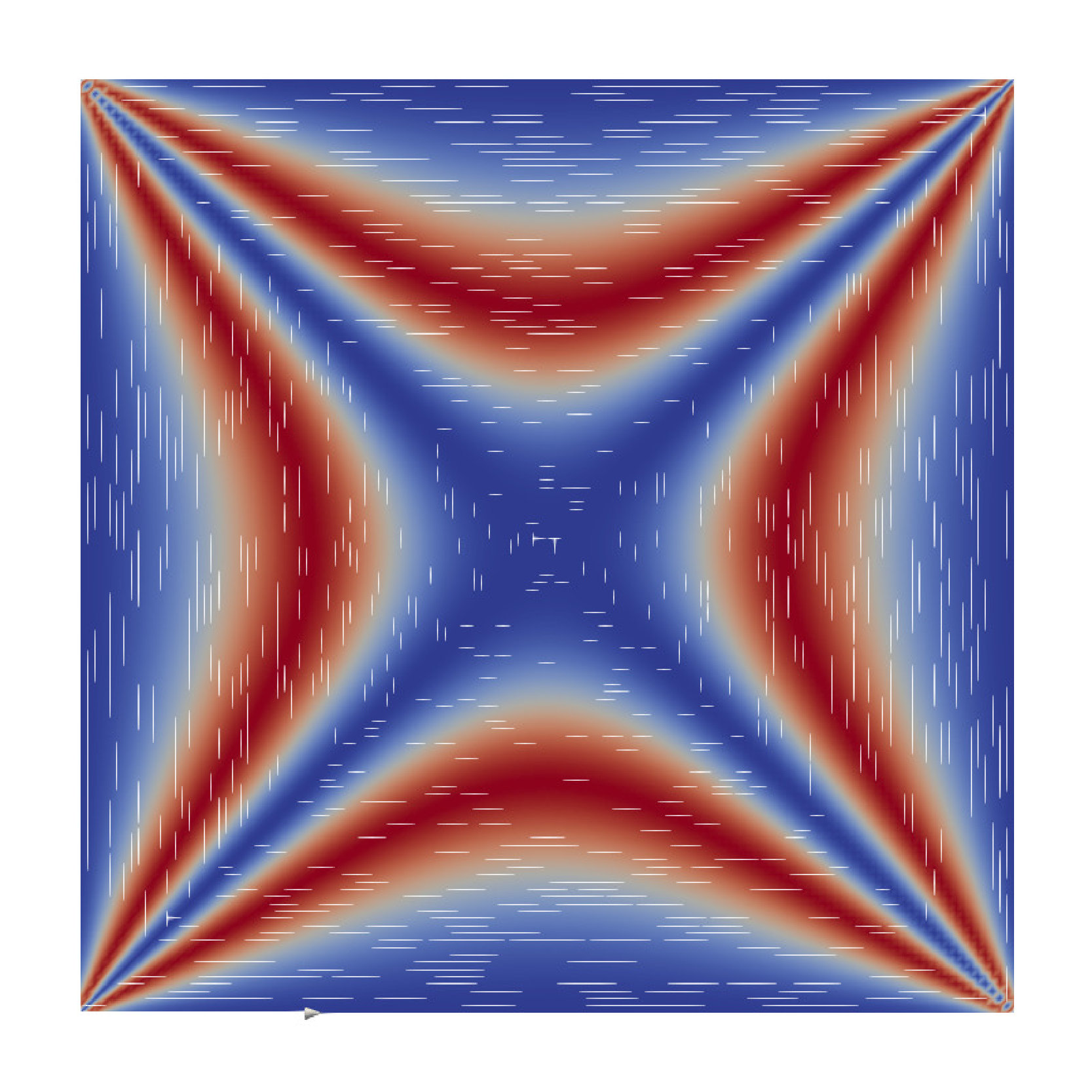

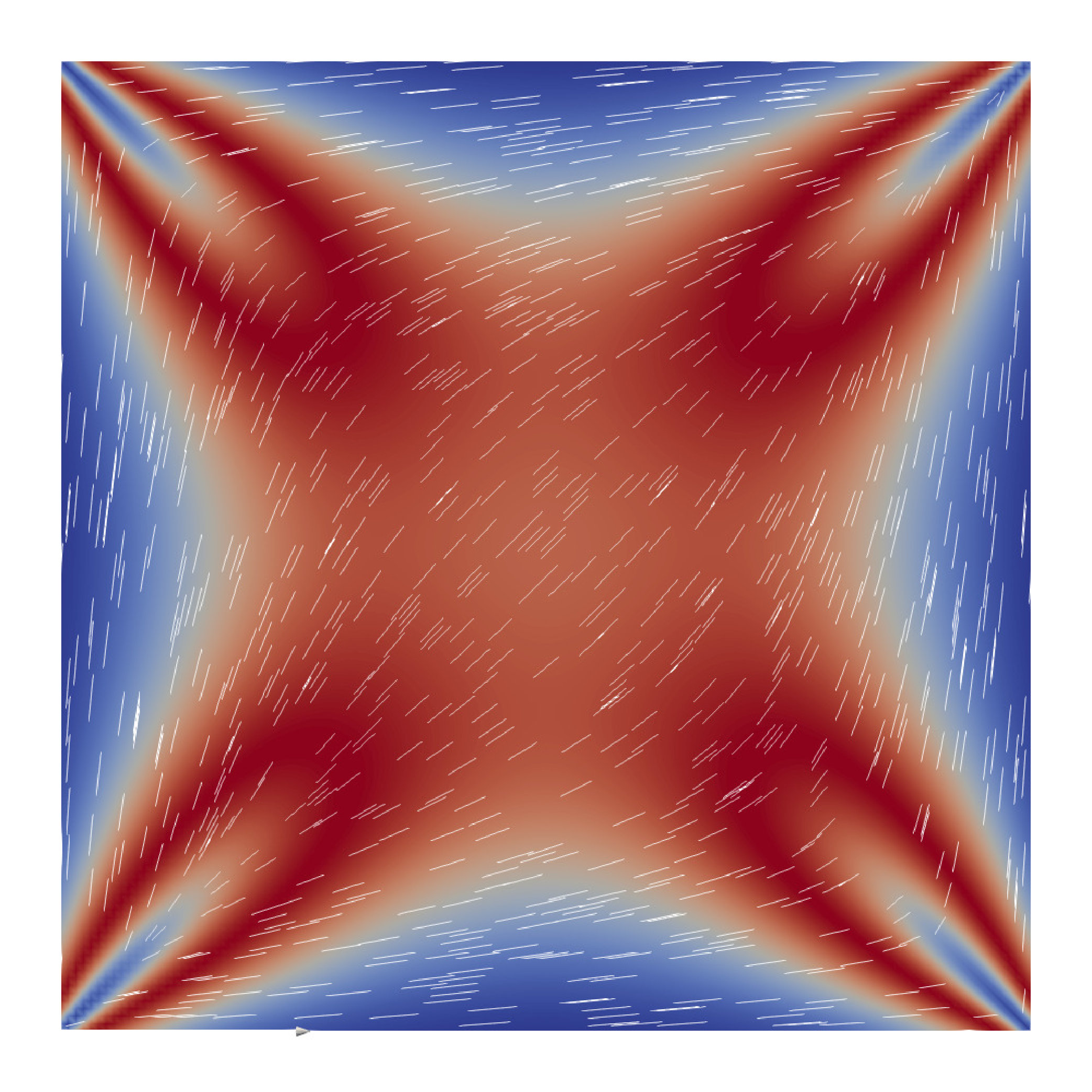

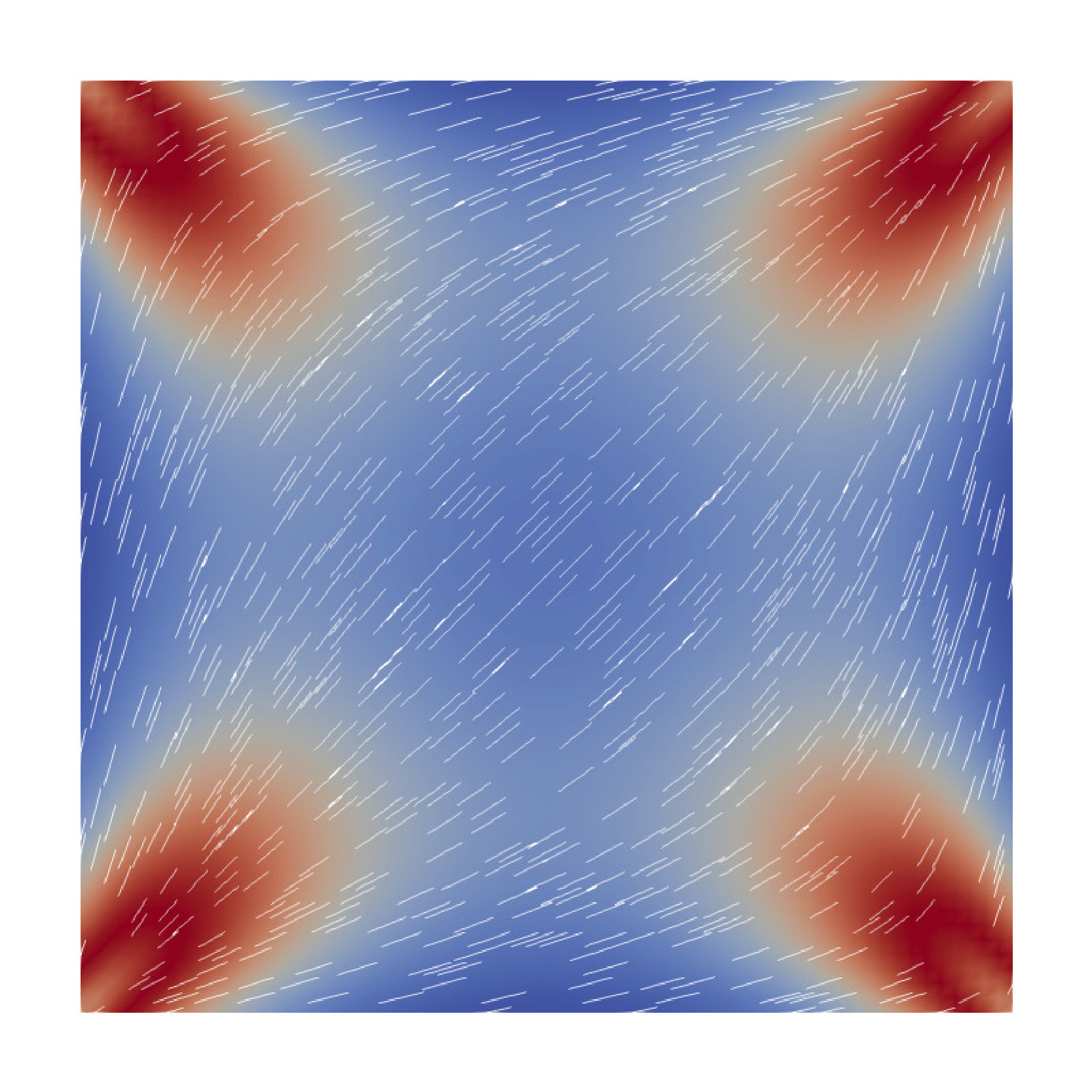

In Fig. 4.4, we plot numerical solutions for $W_{1}=W_{2}=10^{-2}\mathrm{Jm}^{-2},2\times 10^{-3}\mathrm{Jm}^{-2},10^{-3}\mathrm{Jm}^{-2}$ and $10^{-4}\mathrm{Jm}^{-2}$, respectively, with $\bar{\lambda}^{2}=5$ and $\epsilon=0.1$. All three solutions are obtained by using a diagonal-like initial condition. In the strong anchoring case ($W_{1}=W_{2}=10^{-2}\mathrm{Jm}^{-2}$), we get the WORS as expected, as the WORS is the unique critical point when $\bar{\lambda}^{2}$ is small enough. However, for $W_{1}=W_{2}=10^{-3}\mathrm{Jm}^{-2}$, we get a diagonal-like solution in which maximum biaxiality is achieved around the corner. By further decreasing the anchoring strength, the nematic director is almost uniformly aligned along the diagonal direction. Similar results were reported in [10].

For $W_{1}=W_{2}=10^{-3}\mathrm{Jm}^{-2}$, we can get the WORS by further decreasing $\bar{\lambda}^{2}$. However, the WORS ceases to exist for $W_{1}=W_{2}=10^{-4}\mathrm{Jm}^{-2}$. Quantitatively, we can compute bifurcation points $\bar{\lambda}^{2}_{*}$, such that the WORS is the unique solution for $\bar{\lambda}^{2}<\bar{\lambda}^{2}_{*}$, as a function of anchoring strength $W_{1}=W_{2}=W$, shown in Fig. 4.5. We can find $\bar{\lambda}_{*}^{2}$ by decreasing $\bar{\lambda}^{2}$ till diagonal-like intial conditions converge to WORS, since diagonal solutions cease to exist for $\bar{\lambda}^{2}<\bar{\lambda}^{2}_{*}$. The result in Fig. 4.5 is computed with $\epsilon=0.1$. However, this result is independent of $\epsilon$ as both diagonal and the WORS are z-invariant solutions for $A=-\frac{B^{2}}{3C}$.

Another way to relax the surface anchoring is to consider the surface energy

[TABLE]

where $\omega_{i}=\frac{W_{i}\lambda}{L}$ is the non-dimensionalized anchoring strength, $\alpha>0$ and $\gamma>0$ are constants. The second term in the surface energy (4.13) forces $\hat{\mathbf{x}}$ ($\hat{\mathbf{y}}$) to be an eigenvector of $\mathbf{Q}$ on the plane $y=0,~{}1$ ($x=0,~{}1$), while the first term forces the eigenvalue associated with $\hat{\mathbf{x}}$ ($\hat{\mathbf{y}}$) to be $\frac{2}{3}s_{+}$. Since the second term in (4.13) can be zero if we take $\mathbf{Q}=s_{+}\left(\hat{\mathbf{z}}\otimes\hat{\mathbf{z}}-\frac{1}{3}\mathbf{I}\right)$, which also makes the surface energy on the top and bottom plates ($\Gamma$) zero, we keep $\alpha$ non-zero to get interesting defect patterns.

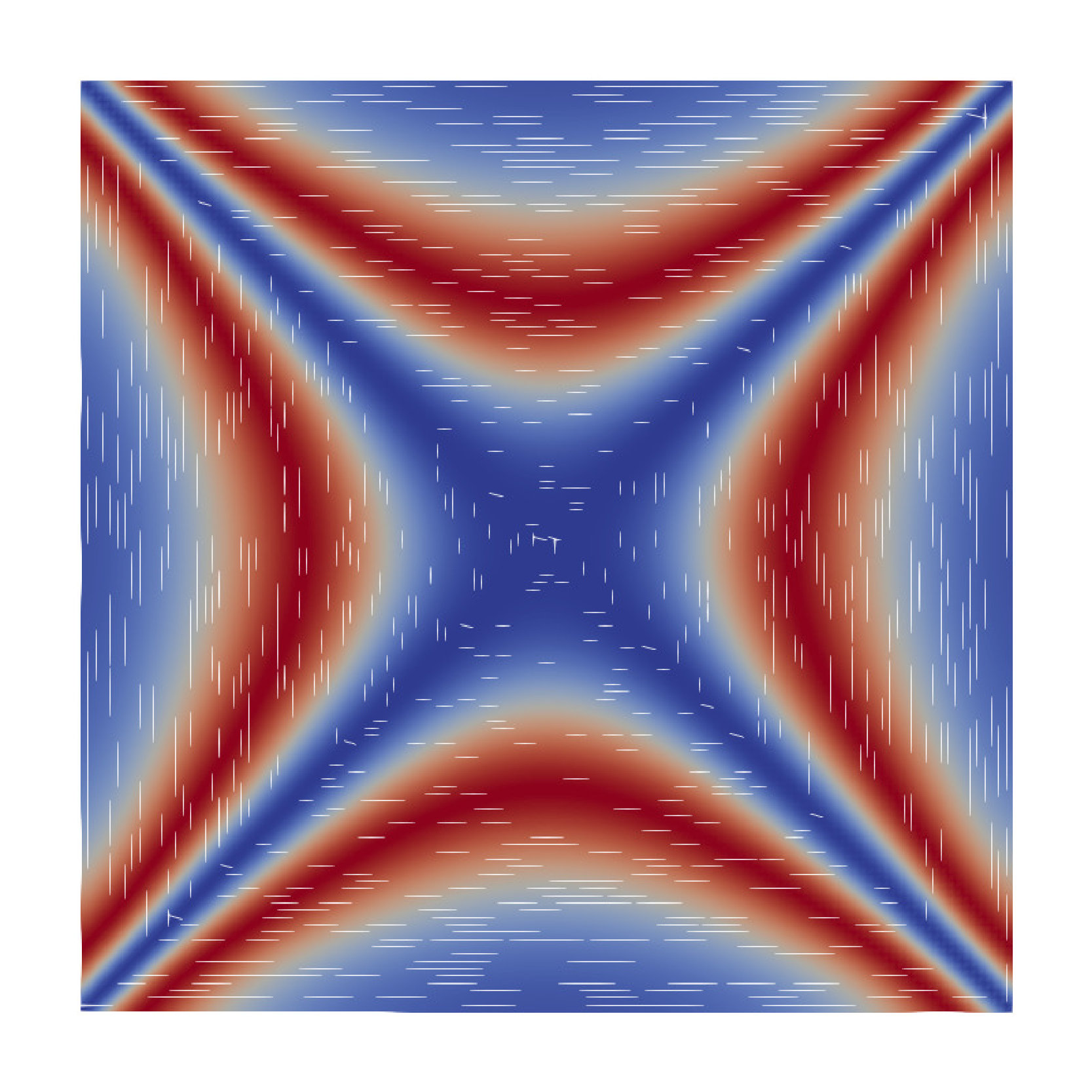

We fix $W_{i}=10^{-2}\mathrm{Jm}^{-2}$ and vary $\alpha$ and $\gamma$ to relax the anchoring on the lateral surfaces. Fig. 4.6 shows the numerical result for $\epsilon=0.1$ and $\bar{\lambda}^{2}=5$ with various $\alpha$ and $\gamma$, by using diagonal-like initial conditions. For $\alpha=\gamma=1$ and $W_{i}=10^{-2}\mathrm{Jm}^{-2}$, we can get a WORS-like solution, which has a strong biaxial region near the boundary. The biaxial regions near the boundary become larger as $\alpha$ gets smaller. We then fix $\alpha=1$ and vary $\gamma$. If $\gamma$ is small enough, the nematic director (the leading eigenvector of the $\mathbf{Q}$-tensor) is not tangent to the square edges and the WORS ceases to exist.

The above examples show that the WORS ceases to exist if the anchoring on the lateral surfaces is weak enough, and we always get a diagonal-like solution when the WORS ceases to exist. It should be remarked that the diagonal-like solutions tend to be defect-free around the corners with weak anchoring, as the nematic directors aren’t forced to be tangential to the square edges and there is no biaxial-uniaxial or biaxial-isotropic interface near the corners.

4.2.3 Escaped Solutions

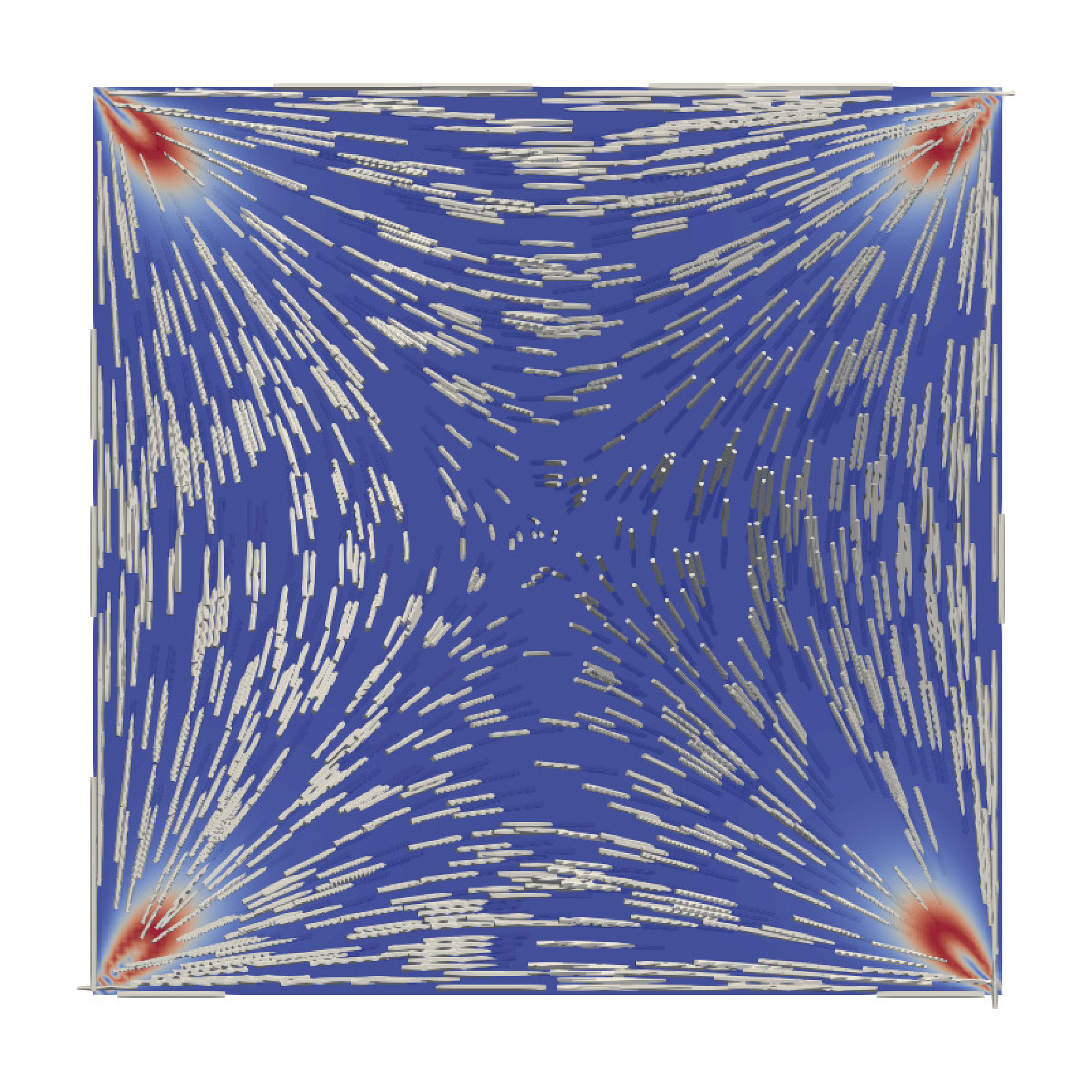

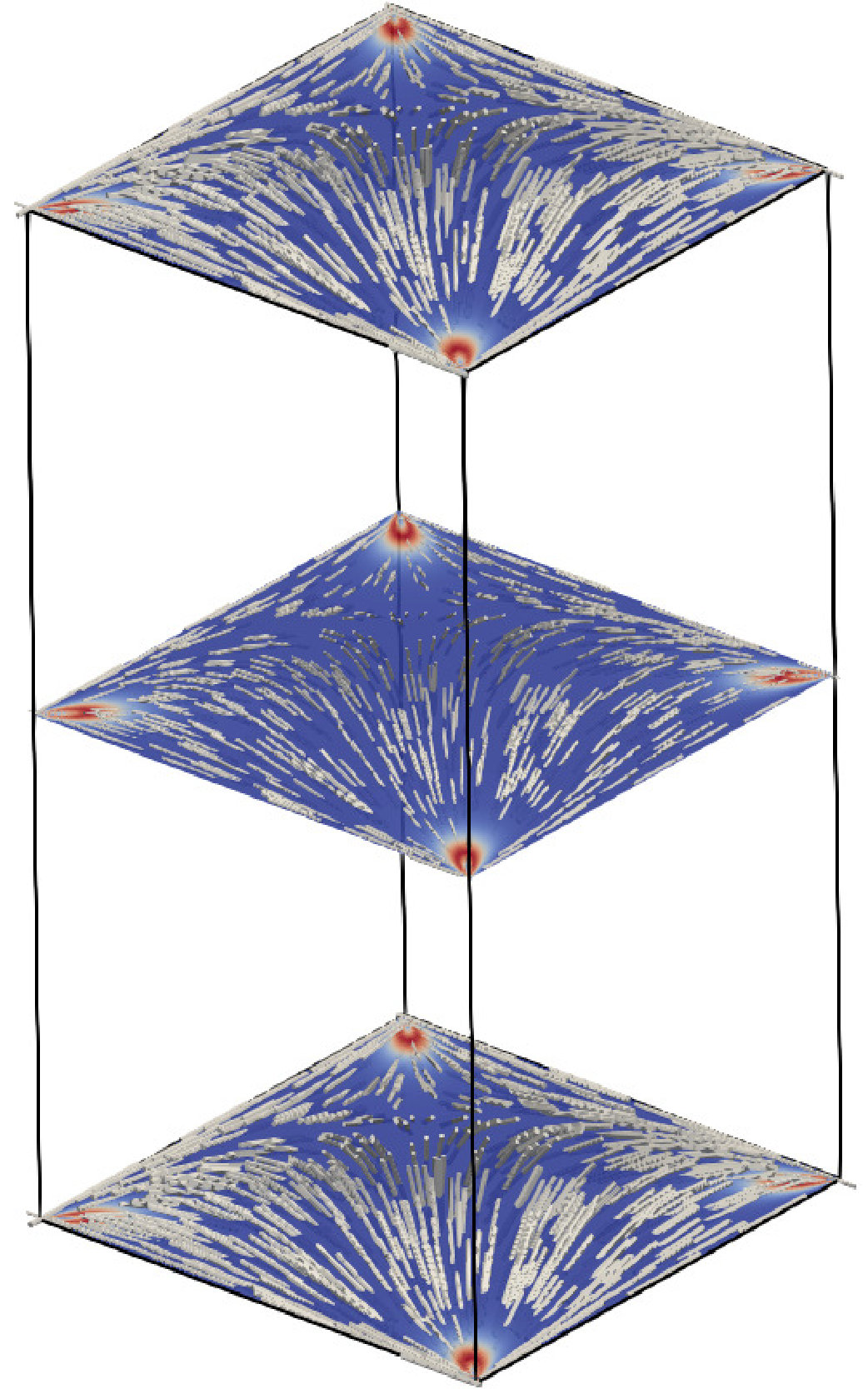

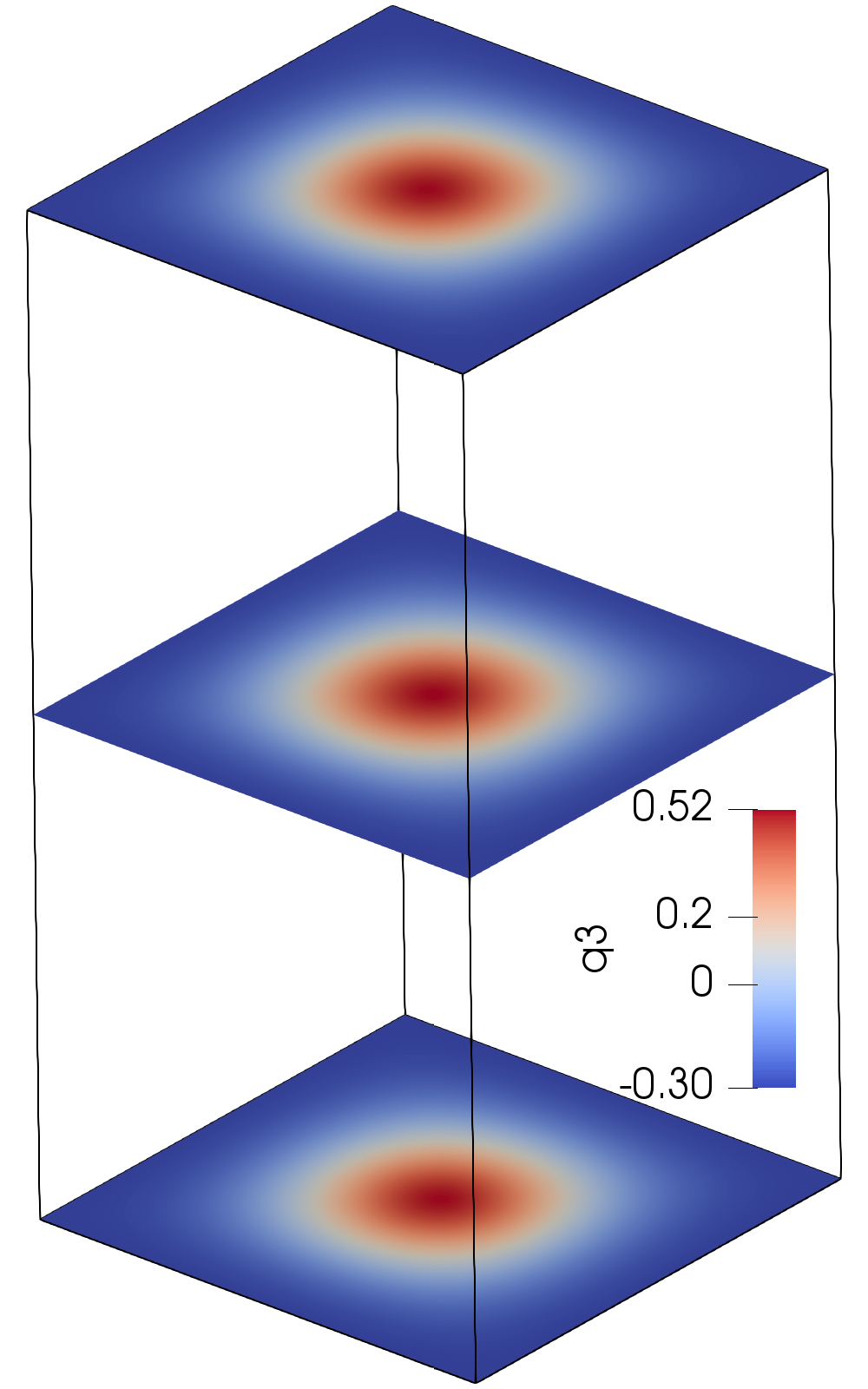

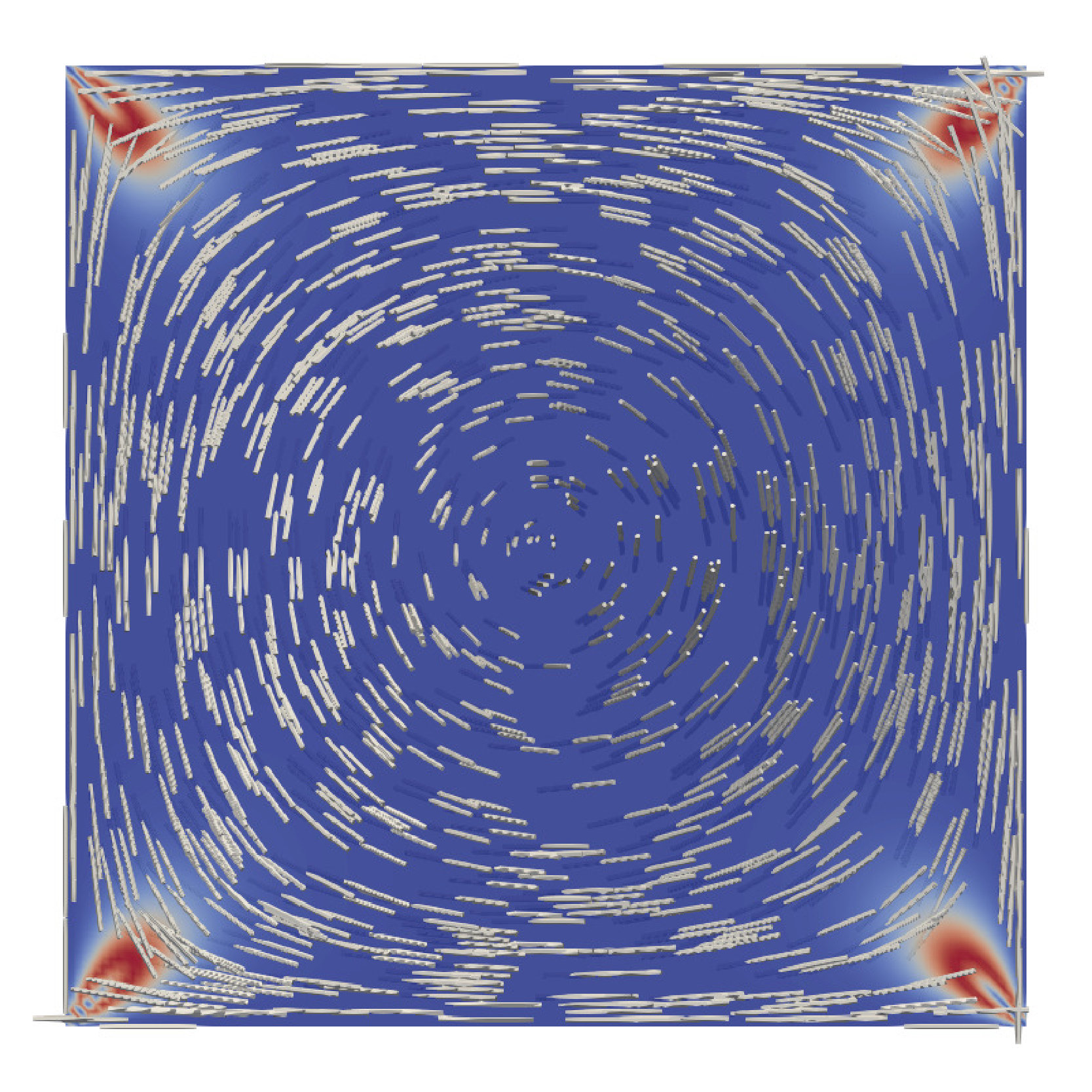

In Ref. [26], the authors show that there exists two escaped solutions with non-zero $q_{4}$ and $q_{5}$, and $q_{3}>0$, in the reduced 2D square domain for relatively large $\bar{\lambda}^{2}$. Our simulations show that these two escaped solutions can exist in 3D wells for similar values of $\bar{\lambda}^{2}$ if the anchoring strength on the top and bottom plates are weak enough and the escaped solutions are numerically locally stable. Fig. 4.7 (a)-(b) show the nematic director and biaxiality parameter in the middle slices of these two types of escaped configurations for $\bar{\lambda}^{2}=100$, $\epsilon=4$ and $W_{z}=10^{-5}\mathrm{Jm}^{-2}$, which are quite similar to the escaped configurations in a cylindrical cavity [11]. The value of $q_{3}$ in configuration 4.7(a) is plotted in Fig. 4.7 (d) and $q_{3}>0$ in the center of well.

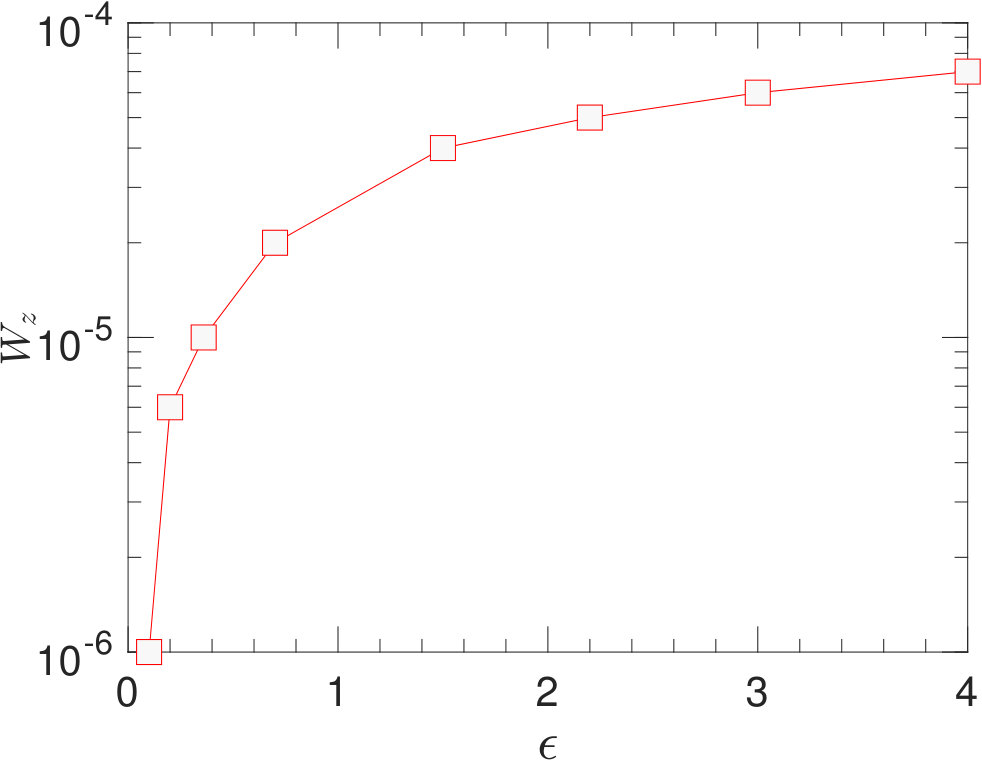

Strictly speaking, the two configurations in Fig. 4.7 are not z-invariant if $W_{z}\neq 0$. The escaped solutions cease to exist if either $\epsilon$ is small enough or if the anchoring $W_{z}$ is large enough. We can compute the critical achoring strength $W_{z}$ on the top and bottom plates, for which the escaped configurations cease to exist, as a function of $\epsilon$ for $\bar{\lambda}^{2}=100$, shown in Fig. 4.8.

5 Summary

In a batch of papers [10], [3] and [26], the authors study WORS-type solutions or critical points of the LdG free energy on square domains, and WORS-type solutions have a constant eigenframe with a distinct diagonal defect line connecting the four square vertices. It is natural to ask if WORS-type solutions are relevant for 3D domains or if they are a 2D-artefact. Our essential finding in this paper is to show that the WORS is a LdG critical point for 3D wells with a square cross-section and experimentally relevant tangent boundary conditions on the lateral surfaces, for arbitrary well height, with both natural boundary conditions and realistic surface energies on the top and bottom surfaces. In fact, for sufficiently small $\lambda$ - the size of the square cross-section, the WORS is the global LdG minimizer for these 3D problems, exemplifying the 3D relevance of WORS-type solutions for all temperatures below the nematic supercooling temperature.

We also numerically demonstrate the existence of stable mixed 3D solutions with two different diagonal profiles on the top and bottom well surfaces, for wells with sufficiently large $\epsilon$ and $\lambda$. These are again interesting from an applications point of view and are 3D solutions that are not covered by a purely 2D study. It is interesting to see that whilst the BD solution is an unstable LdG critical point on a 2D square domain, it interpolates between the two distinct diagonal profiles for a stable mixed 3D solution. Further work will be based on a study of truly 3D solutions that are not $z$-invariant and if they can related to the 2D solutions on squares reported in previous work i.e. can we use the zoo of 2D LdG critical points on a square domain reported in [22, 26] to construct exotic 3D solutions on a 3D square well? This will be of substantial mathematical and applications-oriented interest.

6 Acknowledgements

G.C.’s research was supported by the Basque Government through the BERC 2018-2021 program; by the Spanish Ministry of Science, Innovation and Universities: BCAM Severo Ochoa accreditation SEV-2017-0718; and by the Spanish Ministry of Economy and Competitiveness: MTM2017-82184-R. A.M. was supported by fellowships EP/J001686/1 and EP/J001686/2, is supported by an OCIAM Visiting Fellowship and the Keble Advanced Studies Centre. Y.W. would like to thank Professor Chun Liu, for his constant support and helpful advice.
