Halin graphs are 3-vertex-colorable except even wheels

TL;DR

This paper proves that all Halin graphs are 3-vertex-colorable except for even wheels and provides algorithms for coloring and chordal completion, with implementations and random graph generators.

Contribution

It establishes the 3-colorability of Halin graphs excluding even wheels and offers algorithms for coloring and chordal completion with open-source code.

Findings

Halin graphs are 3-colorable except even wheels.

Algorithms for coloring and chordal completion are provided.

Open-source Python implementations and random graph generators are available.

Abstract

A Halin graph is a graph obtained by embedding a tree having no nodes of degree two in the plane, and then adding a cycle to join the leaves of the tree in such a way that the resulting graph is planar. According to the four color theorem, Halin graphs are 4-vertex-colorable. On the other hand, they are not 2-vertex-colorable because they have triangles. We show that all Halin graphs are 3-vertex-colorable except even wheels. We also show how to find the perfect elimination ordering of a chordal completion for a given Halin graph. The algorithms are implemented in Python using the graphtheory package. Generators of random Halin graphs (general or cubic) are included. The source code is available from the public GitHub repository.

Figures

Full text

Halin graphs; vertex coloring; chordal completion

I Introduction

A Halin graph $H=T\cup C$ is a simple graph obtained by embedding a tree $T$, which has no nodes of degree two, in the plane. Then new edges connecting leaves and forming a cycle $C$ are added in such a way that the resulting graph $H$ is planar. These graphs were studied by Halin 1971_Halin and Kirkman (cubic graphs) 1856_Kirkman . Every Halin graph is Hamiltonian, 3-connected, and polyhedral. The simplest Halin graphs with $n$ vertices and $m$ edges are wheels $W_{n}$, then $T$ is a star and $C$ is formed from $n-1$ vertices. The smallest Halin graphs ($n<7$) are $W_{4}=K_{4}$, $W_{5}$, $W_{6}$, and a 3-prism. A fan in $H$ is composed of a non-leaf vertex $v$ of $T$, which is adjacent to exactly one other non-leaf vertex of $T$, and the leaves adjacent to $v$. If $H$ is not a wheel then it contains at least two fans 1983_Cornuejols .

Many computational problems that are hard on general graphs can be solved in polynomial time on Halin graphs. This is attributed to low treewidth equal to three 1988_Bodlaender_planar and tree-like structure 1990_Proskurowski_Syslo . Contracting a fan to a new single vertex leads to a smaller Halin graph. Successive fan contractions reduce any Halin graph to a wheel.

Some graph problems on Halin graphs can be solved using dynamic programming 1988_Bodlaender_dynamic , in some cases direct algorithms are known. Our aim is to present direct algorithms for vertex coloring and for finding a chordal completion of a given Halin graph. It is shown that all Halin graphs except even wheels can be optimally colored with three colors.

In this paper unweighted graphs are studied but let us mention two problems defined on weighted Halin graphs where the shrinking fans method is used to quickly find a solution. In 1983 Cornuejols et al. solved the travelling salesman problem 1983_Cornuejols . In 2007 a linear time algorithm finding the maximum-weighted matching was shown 2007_Lu_Li_Lou .

The paper is organized as follows. Section II deals with recognition algorithms for Halin graphs. In Section III vertex coloring of Halin graphs is described. Finding a chordal completion for Halin graphs is discussed in Section IV. In Section V exemplary calculations for several graph problems are shown. Conclusions are contained in Section VI.

II Recognition of Halin graphs

Halin graphs can be recognized in linear time. One can find a planar embedding of a given graph and then choose the proper outer face with $m-n+1$ edges 1983_Syslo_Proskurowski . Fomin and Thilikos 2006_Fomin_Thilikos showed that every planar drawing of a Halin graph has from one to four faces with $n/2+1$ vertices. It can be also used to recognize Halin graphs. However, both methods refer to planarity testing which is hard to implement.

In 2016 Eppstein presented a reduction algorithm avoiding planar embedding of a given graph 2016_Eppstein . Applying two safe reduction rules gradually shrinks the input graph to the wheel graph, provided the input graph is a Halin graph. The algorithm was implemented in Python by Eppstein and it was adapted for the graphtheory package graphs-dict . The algorithm outputs the set of vertices from the outer cycle and this set is used in next algorithms as a part of the input. If the set of outer cycle vertices is known then by means of a modified breadth-first search algorithm (BFS) it is easy to find the inner tree for a given Halin graph in linear time. It is useful to keep the inner tree as a dictionary with parent nodes and the outer cycle as a doubly linked cyclic list.

III Vertex coloring

Vertex coloring is a labeling of vertices with colors such that no two vertices sharing the same edge have the same color. The problem of finding the smallest number of colors needed to color a graph (the chromatic number) is NP-hard in general. However, in the case of Halin graphs an optimal coloring can be found in linear time.

A short description of the coloring algorithm is the following. Let $H=T\cup C$ be a Halin graph. First, color the tree $T$ with two colors $c_{1}$ and $c_{2}$. Conflicts of colors occur on the cycle $C$. Second, recolor some vertices from $H$ to resolve conflicts.

Case 1. If $C$ is even then recolor every second vertex of $C$ with the third color $c_{3}$. A color sequence is $[(c_{1}|c_{2})c_{3}]$, where $(\cdot|\cdot)$ means an alternative and $[\cdot]$ a repetition.

Case 2. If $H$ is an even wheel then recolor $C$ using two colors $c_{3}$ and $c_{4}$. A color sequence is $[c_{2}c_{3}]c_{4}$. Note that $c_{1}$ is for the hub.

Case 3. If $C$ is odd and cycle nodes have two colors $c_{1}$ and $c_{2}$, then find a color sequence $c_{1}c_{2}$. Recolor $C$ to get a color sequence $c_{1}c_{2}c_{3}[(c_{1}|c_{2})c_{3}]$.

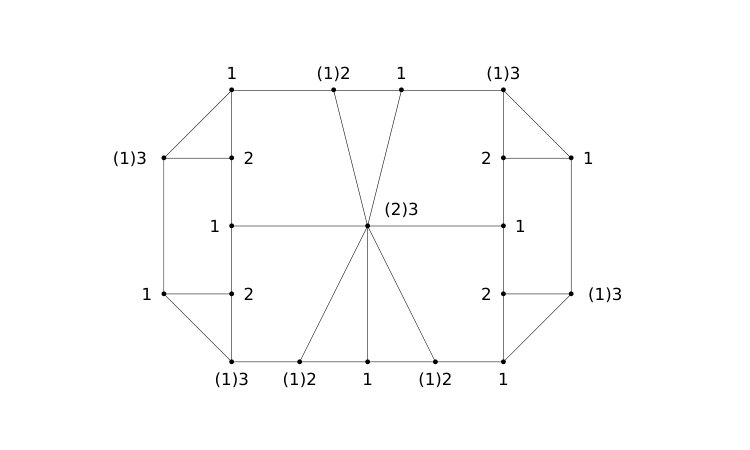

Case 4. If $C$ is odd and cycle nodes have one color, say $c_{1}$. Then there is an odd fan or pseudo-fan in $H$ with the center color $c_{2}$. Recolor $C$ to get a color sequence $c_{2}[c_{1}c_{2}][c_{1}(c_{3}|c_{2})]c_{1}c_{3}$ and recolor the (pseudo-)fan center with $c_{3}$. The sequence $c_{2}[c_{1}c_{2}]$ is for the odd (pseudo-)fan. The sequence $[c_{1}(c_{3}|c_{2})]c_{1}c_{3}$ means that if the parent node has color $c_{2}$ then a cycle node is recolored with $c_{3}$ but if the parent node has color $c_{3}$ then a cycle node is recolored with $c_{2}$ (see Figure 1).

The tree $T$ coloring runs in $O(n)$ time because this is BFS. The cycle $C$ coloring runs in time proportional to the cycle length and finding an odd (pseudo-)fan (case 4) is done in the same time. Therefore, the overall running time is $O(n)$.

IV Chordal completion

A chordal completion of a Halin graph $H$ is a chordal graph $G$ on the same vertex set $V(G)=V(H)$ such that $H$ is a subgraph of $G$. We are interested in a chordal completion with the treewidth equal to three because this is the treewidth of all Halin graphs 1988_Bodlaender_planar . Every chordal graph has a perfect elimination ordering (PEO). This is a vertex ordering such that, for each vertex $v$, $v$ with his neighbors that occur after $v$ in the order form a clique. We will show how to find a PEO for a chordal completion of a given Halin graph.

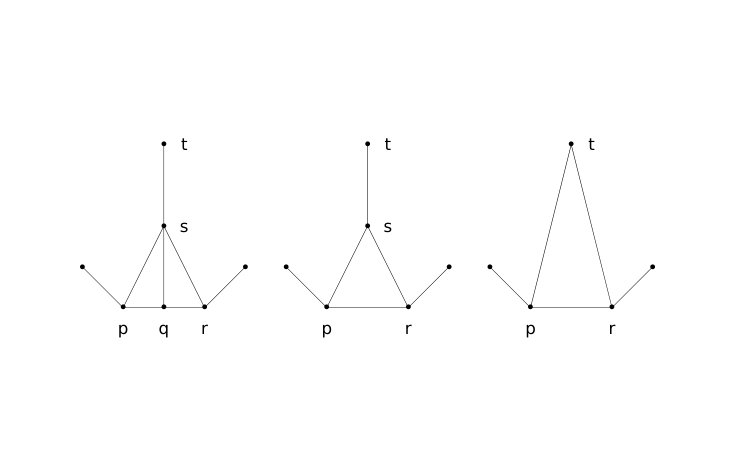

The algorithm takes a Halin graph $H$ and the set of his outer nodes as an input. The following two reduction rules are used in order to reduce $H$ to the four-vertex complete graph $K_{4}$ (see Figure 2).

R1. Let $p$, $q$, and $r$ be three vertices that induce a path, and this a part of a fan or a wheel with the center $s$. Add a new edge $pr$ to form a clique $\{p,q,r,s\}$. Delete $q$ from the graph and add $q$ to PEO.

R2. Let $p$ and $r$ be two vertices that form a small fan with the center in $s$. The third neighbor of $s$ is $t$. Add two new edges $pt$ and $rt$ to form a clique $\{p,r,s,t\}$. Delete $s$ from the graph and add $s$ to PEO.

The reduction rules lead to $K_{4}$ and the vertices from $K_{4}$ should be added to PEO in any order. Note that after R1 or R2 a smaller Halin graph is obtained. There are many possible reduction sequences and it corresponds to many possible PEO of different chordal completions. New edges added during reduction steps can be recorded and used to build the complete chordal supergraph of H.

Removing a node and adding it to PEO runs in constant time. The only problem is in finding fans until a graph will become a wheel. The algorithm runs along the cycle, finds both ends of a node sequence, removes the nodes between the ends, removes the center of the fan, and then repeats these steps. For large graphs the algorithm wraps several times around the inner tree. Our theoretical estimates for necklace graphs lead to $O(n^{2})$ running time but computer experiments on random Halin graphs suggest overall linear-time complexity.

V Python implementation

The algorithms presented in this work are implemented in the Python programming language python using the graphtheory package. It can be installed from the GitHub repository using Git, a distributed version control system 2016_Kapanowski . The package uses consistent graph interface, provides readable source code, and the real computational complexity is in agreement with the theory. The package has a growing number of available algorithms and graph generators, wheels and necklace graphs for example. Let us show exemplary calculations for Halin graphs.

⬇

from graphtheory.structures.edges import Edge

from graphtheory.structures.graphs import Graph

from graphtheory.planarity.halintools import *

from graphtheory.planarity.halin import HalinGraph

from graphtheory.planarity.halinnodecolor import HalinNodeColoring

from graphtheory.planarity.halinpeo import HalinGraphPEO

G = make_halin(10) # random Halin graph with 10 vertices

# G = make_halin_cubic(10) # random cubic Halin graph

# Recognition.

algorithm = HalinGraph(G)

algorithm.run()

outer = algorithm.outer # the outer cycle found

# Vertex coloring.

algorithm = HalinNodeColoring(G, outer)

algorithm.run()

print algorithm.parent # the inner tree as a dict

print algorithm.color # a dict with node colors

# Chordal completion.

algorithm = HalinGraphPEO(G, outer)

algorithm.run()

print algorithm.parent # the inner tree as a dict

print algorithm.order # PEO

VI Conclusions

Halin graphs are very interesting from the algorithmic point of view because they fall between trees and general planar graphs. Some graph problems remain hard even when their domains are restricted to planar graphs (3-colorability, node cover, independent set). On the other hand, for trees polynomial-time algorithms are known for almost all problems. That is why many studies were devoted to Halin graphs and many polynomial-time or even linear-time algorithms were described.

In this paper we showed that all Halin graphs are 3-vertex-colorable except even wheels. Our algorithm follow the definition of Halin graphs and first it colors an inner tree, then it recolors some vertices to remove conflicts. A different approach was described in a paper by Kavin at al. 2014_Kavin .

The second algorithm presented in this paper finds a perfect elimination ordering of a chordal completion for a given Halin graph. It is also possible to find the complete chordal subgraph with treewidth equal to three. Two reduction rules are introduced which make use of a recursive structure based on fans and wheels.
