Discovery of Resolved Magnetically Split Lines in SDSS/APOGEE Spectra of 157 Ap/Bp Stars

TL;DR

This study measures magnetic fields in 157 Ap/Bp stars using resolved magnetically split lines in SDSS/APOGEE spectra, significantly expanding the known sample and demonstrating the effectiveness of infrared observations for magnetic field detection.

Contribution

It provides the first large-scale measurement of magnetic fields in Ap/Bp stars using infrared spectra, extending the sample size and demonstrating the method's advantages over optical observations.

Findings

Measured magnetic fields for 157 stars, a 183% increase in known magnetic Ap/Bp stars.

Identified key spectral lines used for magnetic field estimation in the H-band.

Discovered the most magnetic star in the SDSS/APOGEE sample with a <B> of 25 kG.

Abstract

We report on magnetic field measurements of 157 chemically peculiar A/B stars (Ap/Bp) based on resolved, magnetically split absorption lines present in $H$-band spectra provided by the Sloan Digital Sky Survey (SDSS)/Apache Point Observatory Galactic Evolution Experiment (APOGEE) survey. These stars represent the extreme magnetic end of a still-growing sample of >900 Ap/Bp stars selected among the APOGEE telluric standard stars as those with Ce III absorption lines and/or literature Ap/Bp classifications. The lines most frequently resolved into their split components for these stars in the $H$-band pertain primarily pertain to Ce III, Cr II, Fe I, Mn II, Si I, and Ca II, in addition to one or more unidentified ions. Using mean magnetic field modulus (<B>) estimates for transitions with known Land\'e factors, we estimate effective Land\'e factors for 5 Ce III lines and 15 unknown lines and proceed to measure <B> of 157 stars, only 3 of which have previous literature estimates of <B>. This 183% increase in the number of Ap/Bp stars for which <B> has been measured is a result of the large number of stars observed by SDSS/APOGEE, extension of high-resolution Ap/Bp star observations to fainter magnitudes, and the advantages of long wavelengths for resolving magnetically split lines. With <B>=25 kG, the star 2MASS J02563098+4534239 is currently the most magnetic star of the SDSS/APOGEE sample. Effective Land\'e factors, representative line profiles, and magnetic field moduli are presented. The validity of the results is supported using optical, high-resolution, follow-up spectra for 29 of the stars.

Figures

Tables

Table 1. Table 1: Effective Landé g 𝑔 g Factors.

Ion	${\lambda }_{\mathrm{vac}}$	log($gf$)	$J_{\mathrm{low}}$	$g_{\mathrm{low}}$	$E_{\mathrm{low}}$	$J_{\mathrm{high}}$	$g_{\mathrm{high}}$	$E_{\mathrm{high}}$	$g_{\mathrm{eff}}$	Nstars
	(Å)				(eV)			(eV)
C i	16009.273	-0.090	2.0	1.000	9.631	3.0	1.001	10.406	$1.002\pm 0.050$	3
C i	16026.078	-0.140	2.0	1.000	9.631	3.0	1.074	10.405	$1.148\pm 0.050$	6
C i	16895.031	0.568	2.0	1.000	9.003	3.0	0.978	9.736	$0.956\pm 0.050$	19
Mg i	15753.291	-0.060	1.0	1.501	5.932	2.0	1.167	6.719	$1.000\pm 0.050$	2
Mg i	15770.150	0.380	2.0	1.501	5.933	3.0	1.334	6.719	$1.167\pm 0.050$	8
Mg ii	16764.796	0.480	0.5	0.666	12.083	1.5	0.800	12.822	$0.834\pm 0.050$	9
Mg ii	16804.520	0.730	1.5	1.334	12.085	2.5	1.200	12.822	$1.099\pm 0.050$	8
Al i	16723.524	0.152	0.5	0.666	4.085	1.5	0.800	4.827	$0.834\pm 0.050$	6
Al i	16755.140	0.408	1.5	1.334	4.087	2.5	1.200	4.827	$1.099\pm 0.050$	10
Si i	15888.794	-0.740	1.0	0.508	5.954	1.0	1.472	6.734	$0.990\pm 0.050$	2

Table 2. Table 2: Magnetic Field Modulus Estimates.

2MASS ID	Other ID	$V$	$H$	$N_{\mathrm{spectra}}$	S/N	Spec. Type	$⟨$B$⟩$ (kG)	$N_{\mathrm{lines}}$	$⟨$B$⟩$ (kG)	$N_{\mathrm{lines}}$
		(mag)	(mag)				$H$-band	$H$-band	Optical	Optical
00033808+7018217	HD 225114	8.10	8.19	12	726	A0p SrCrSi44Own data (ARC 3.5m/ARCES)	$7.46\pm 0.54$	8	$7.43\pm 0.32$44Own data (ARC 3.5m/ARCES)	36
00102704+7337035	TYC 4306-1062-1	10.84	10.07	9	537	$\cdots$	$4.17\pm 0.28$	16	$\cdots$	$\cdots$
00283062+6947472	TYC 4299-696-1	10.53	9.45	12	682	$\cdots$	$7.92\pm 0.89$	4	$\cdots$	$\cdots$
00284036+8418313	TYC 4615-2915-1	10.96	10.54	14	332	A2V22Skiff (2014)	$5.10\pm 0.22$	17	$\cdots$	$\cdots$
00323366+5512530	HD 2887	9.79	8.17	13	1793	A2:p SrCr44Own data (ARC 3.5m/ARCES)	$4.95\pm 0.24$	25	$4.97\pm 0.22$44Own data (ARC 3.5m/ARCES)	27
00331847+5716167	TYC 3662-378-1	10.70	10.37	6	481	$\cdots$	($8.53\pm 0.79$)	5	$\cdots$	$\cdots$
00564145+5739255	TYC 3676-505-1	11.19	10.96	3	86	$\cdots$	$18.49\pm 0.76$	6	$\cdots$	$\cdots$
00584870+6240562	TYC 4021-632-1	11.22	10.45	6	411	A2:p Eu44Own data (ARC 3.5m/ARCES)	$4.25\pm 0.29$	15	$4.60\pm 0.19$44Own data (ARC 3.5m/ARCES)	22
01052242+5010296	TYC 3271-1597-1	10.49	10.22	3	266	$\cdots$	($6.79\pm 1.13$)	3	$\cdots$	$\cdots$
01184266+5844433	TYC 3681-1528-1	10.49	9.99	4	355	B822Skiff (2014)	$9.67\pm 0.50$	9	$\cdots$	$\cdots$

Table 3. Table 3: Effective Landé g 𝑔 g Factors.

Ion	${\lambda }_{\mathrm{vac}}$	log($gf$)	$J_{\mathrm{low}}$	$g_{\mathrm{low}}$	$E_{\mathrm{low}}$	$J_{\mathrm{high}}$	$g_{\mathrm{high}}$	$E_{\mathrm{high}}$	$g_{\mathrm{eff}}$	Nstars
	(Å)				(eV)			(eV)
C i	16009.273	-0.090	2.0	1.000	9.631	3.0	1.001	10.406	$1.002\pm 0.050$	3
C i	16026.078	-0.140	2.0	1.000	9.631	3.0	1.074	10.405	$1.148\pm 0.050$	6
C i	16895.031	0.568	2.0	1.000	9.003	3.0	0.978	9.736	$0.956\pm 0.050$	19
Mg i	15753.291	-0.060	1.0	1.501	5.932	2.0	1.167	6.719	$1.000\pm 0.050$	2
Mg i	15770.150	0.380	2.0	1.501	5.933	3.0	1.334	6.719	$1.167\pm 0.050$	8
Mg ii	16764.796	0.480	0.5	0.666	12.083	1.5	0.800	12.822	$0.834\pm 0.050$	9
Mg ii	16804.520	0.730	1.5	1.334	12.085	2.5	1.200	12.822	$1.099\pm 0.050$	8
Al i	16723.524	0.152	0.5	0.666	4.085	1.5	0.800	4.827	$0.834\pm 0.050$	6
Al i	16755.140	0.408	1.5	1.334	4.087	2.5	1.200	4.827	$1.099\pm 0.050$	10
Si i	15888.794	-0.740	1.0	0.508	5.954	1.0	1.472	6.734	$0.990\pm 0.050$	2
Si i	15892.751	-0.030	1.0	1.005	5.082	1.0	0.996	5.862	$1.000\pm 0.050$	29
Si i	16064.397	-0.440	1.0	0.508	5.954	0.0	0.000	6.726	$0.508\pm 0.050$	4
Si i	16099.184	-0.110	2.0	1.168	5.964	1.0	1.472	6.734	$1.016\pm 0.050$	19
Si i	16220.100	-0.990	1.0	0.508	5.954	1.0	0.513	6.718	$0.510\pm 0.050$	2
Si i	16246.270	-1.200	2.0	1.168	5.964	3.0	1.330	6.727	$1.492\pm 0.050$	23
Si i	16560.871	-0.860	3.0	1.084	7.123	4.0	1.093	7.872	$1.106\pm 0.050$	1
Si i	16685.327	-0.500	2.0	1.334	5.984	3.0	1.330	6.727	$1.326\pm 0.050$	38
Si ii	16911.431	0.350	0.5	2.002	12.147	1.5	1.334	12.880	$1.167\pm 0.050$	18
S i	15408.000	0.520	2.0	1.167	8.699	3.0	1.084	9.504	$1.001\pm 0.050$	3
S i	15426.490	0.680	3.0	1.334	8.700	4.0	1.250	9.504	$1.124\pm 0.050$	10
S i	15482.712	0.000	2.0	1.501	8.046	1.0	2.002	8.846	$1.250\pm 0.050$	6
K i	15167.211	0.640	2.5	1.143	2.670	3.5	1.200	3.487	$1.271\pm 0.050$	1
Ca i	16155.175	0.362	1.0	1.496	4.532	2.0	1.166	5.300	$1.001\pm 0.050$	5
Ca i	16161.778	0.492	1.0	1.005	4.554	2.0	1.001	5.321	$0.999\pm 0.050$	3
Ca i	16201.500	0.638	2.0	1.501	4.535	3.0	1.334	5.300	$1.167\pm 0.050$	12
Ca ii	16114.659	-0.796	1.5	0.800	9.983	2.5	0.857	10.753	$0.900\pm 0.050$	1
Ca ii	16244.130	-0.790	1.5	1.334	10.107	2.5	1.200	10.870	$1.099\pm 0.050$	8
Ca ii	16565.589	0.366	0.5	0.666	9.235	1.5	0.800	9.983	$0.834\pm 0.050$	21
Ca ii	16654.425	0.626	1.5	1.334	9.240	2.5	1.200	9.984	$1.099\pm 0.050$	34
Ca ii	16667.278	-0.334	1.5	1.334	9.240	1.5	0.800	9.983	$1.067\pm 0.050$	7
Ti ii	15208.839	-0.440	2.5	0.579	8.045	2.5	0.572	8.860	$0.575\pm 0.050$	1
Ti ii	15734.183	0.438	6.5	1.231	8.132	5.5	1.273	8.920	$1.116\pm 0.050$	7
Ti ii	15869.777	0.239	5.5	1.147	8.114	4.5	1.172	8.896	$1.091\pm 0.050$	1
Ti ii	15878.172	-1.925	2.5	1.200	3.124	3.5	1.147	3.904	$1.081\pm 0.050$	6
Ti ii	15929.249	0.133	4.5	0.989	8.097	3.5	0.985	8.876	$0.996\pm 0.050$	1
Ti ii	15936.446	0.076	3.5	0.684	8.082	2.5	0.572	8.860	$0.824\pm 0.050$	1
Ti ii	16009.419	-2.184	1.5	0.800	3.095	2.5	0.870	3.869	$0.922\pm 0.050$	3
Ti ii	16190.997	-0.230	3.5	1.144	7.866	2.5	1.200	8.632	$1.074\pm 0.050$	1
Ti ii	16626.127	-2.669	2.5	1.200	3.124	2.5	0.870	3.869	$1.035\pm 0.050$	2
Ti ii	16727.485	-0.048	4.5	1.111	8.409	3.5	1.143	9.150	$1.055\pm 0.050$	1
Cr i	15684.347	0.270	2.0	2.002	4.697	3.0	1.680	5.487	$1.358\pm 0.050$	18
Cr i	15978.569	0.400	2.0	1.237	5.978	3.0	1.279	6.754	$1.321\pm 0.050$	10
Cr ii	15158.083	-0.509	4.5	1.275	10.768	4.5	1.436	11.586	$1.355\pm 0.050$	3
Cr ii	15165.729	-0.561	3.5	1.442	10.893	3.5	1.631	11.711	$1.536\pm 0.050$	1
Cr ii	15180.104	0.807	2.5	1.326	13.600	3.5	1.202	14.417	$1.047\pm 0.050$	3
Cr ii	15189.927	-0.706	2.5	1.590	10.850	1.5	1.948	11.667	$1.322\pm 0.050$	1
Cr ii	15204.755	0.934	3.5	1.404	13.615	4.5	1.298	14.430	$1.113\pm 0.050$	2
Cr ii	15252.203	-0.726	3.5	1.546	10.860	2.5	1.786	11.672	$1.246\pm 0.050$	3
Cr ii	15256.391	1.115	5.5	1.455	13.657	6.5	1.385	14.470	$1.192\pm 0.050$	3
Cr ii	15293.817	-0.455	3.5	1.590	10.754	3.5	1.948	11.565	$1.769\pm 0.050$	8
Cr ii	15369.672	0.399	6.5	1.385	10.804	5.5	1.455	11.610	$1.192\pm 0.050$	76
Cr ii	15373.877	0.671	3.5	1.675	13.650	4.5	1.488	14.457	$1.161\pm 0.050$	1
Cr ii	15375.106	-0.741	4.5	1.458	10.904	3.5	1.631	11.711	$1.155\pm 0.050$	3
Cr ii	15389.066	-0.857	1.5	1.756	10.845	0.5	3.310	11.651	$1.367\pm 0.050$	1
Cr ii	15409.033	-0.495	2.5	0.861	10.744	2.5	1.317	11.548	$1.089\pm 0.050$	3
Cr ii	15470.129	0.289	5.5	1.344	10.784	4.5	1.436	11.586	$1.137\pm 0.050$	59
Cr ii	15519.564	0.282	2.5	1.672	13.655	1.5	1.799	14.454	$1.577\pm 0.050$	1
Cr ii	15520.215	0.825	4.5	1.546	13.686	5.5	1.446	14.485	$1.221\pm 0.050$	4
Cr ii	15552.511	0.164	4.5	1.275	10.768	3.5	1.399	11.565	$1.058\pm 0.050$	36
Cr ii	15611.316	0.019	3.5	1.146	10.754	2.5	1.317	11.548	$0.932\pm 0.050$	21
Cr ii	15641.791	-0.147	2.5	0.861	10.744	1.5	1.069	11.536	$0.705\pm 0.050$	5
Cr ii	15926.280	-0.251	4.5	1.533	10.872	3.5	1.587	11.650	$1.438\pm 0.050$	25
Cr ii	16054.895	-0.234	4.5	1.458	10.904	4.5	1.554	11.676	$1.506\pm 0.050$	26
Cr ii	16159.919	-0.382	3.5	1.546	10.860	2.5	1.620	11.627	$1.454\pm 0.050$	18
Cr ii	16192.181	0.018	5.5	1.454	10.911	4.5	1.554	11.676	$1.229\pm 0.050$	37
Cr ii	16372.266	-0.397	3.5	1.186	10.893	3.5	1.620	11.650	$1.403\pm 0.050$	4
Cr ii	16617.092	-0.625	4.5	1.458	10.904	3.5	1.587	11.650	$1.232\pm 0.050$	7
Cr ii	16619.219	-0.608	2.5	1.389	10.881	2.5	1.620	11.627	$1.505\pm 0.050$	9
Mn i	15157.808	0.036	2.5	2.000	6.127	3.5	1.716	6.945	$1.361\pm 0.050$	2
Mn i	15221.919	0.507	3.5	2.000	4.889	3.5	1.938	5.703	$1.969\pm 0.050$	30
Mn i	15266.671	0.379	3.5	2.000	4.889	2.5	2.288	5.701	$1.640\pm 0.050$	23
Mn ii	15387.220	-0.272	4.0	1.651	9.864	4.0	1.751	10.670	$1.701\pm 0.050$	5
Mn ii	15412.667	0.237	5.0	1.601	9.865	4.0	1.751	10.670	$1.301\pm 0.050$	17
Mn ii	15586.570	-0.558	2.0	2.002	9.862	3.0	1.914	10.658	$1.826\pm 0.050$	3
Mn ii	15600.576	-0.140	3.0	1.752	9.863	3.0	1.914	10.658	$1.833\pm 0.050$	7
Mn ii	15620.314	-0.031	4.0	1.651	9.864	3.0	1.914	10.658	$1.257\pm 0.050$	8
Mn ii	15737.053	-0.303	1.0	3.004	9.862	2.0	2.293	10.650	$1.938\pm 0.050$	5
Mn ii	15746.494	-0.257	2.0	2.002	9.862	2.0	2.293	10.650	$2.147\pm 0.050$	4
Mn ii	15760.789	-0.479	3.0	1.752	9.863	2.0	2.293	10.650	$1.211\pm 0.050$	9
Fe i	15211.686	0.231	3.0	1.755	5.385	2.0	1.983	6.200	$1.527\pm 0.050$	35
Fe i	15223.777	-0.086	3.0	1.508	5.587	2.0	1.468	6.401	$1.548\pm 0.050$	6
Fe i	15243.880	-0.020	3.0	1.492	6.419	2.0	1.397	7.232	$1.587\pm 0.050$	2
Fe i	15249.140	-0.277	3.0	1.508	5.587	3.0	1.285	6.400	$1.397\pm 0.050$	17
Fe i	15298.742	0.622	5.0	1.585	5.308	5.0	1.595	6.119	$1.590\pm 0.050$	53
Fe i	15339.578	-0.007	2.0	2.009	5.410	1.0	2.963	6.218	$1.532\pm 0.050$	18
Fe i	15505.559	0.007	5.0	1.360	6.286	6.0	1.263	7.086	$1.020\pm 0.050$	4
Fe i	15592.522	0.323	4.0	1.487	6.367	4.0	1.493	7.162	$1.490\pm 0.050$	17
Fe i	15595.753	0.356	6.0	1.490	6.242	7.0	1.357	7.037	$0.958\pm 0.050$	13
Fe i	15608.489	0.005	6.0	1.490	6.242	6.0	1.433	7.036	$1.462\pm 0.050$	21
Fe i	15617.894	-0.785	3.0	1.294	6.350	4.0	1.219	7.144	$1.107\pm 0.050$	1
Fe i	15625.923	0.468	4.0	1.502	5.539	4.0	1.486	6.333	$1.494\pm 0.050$	47
Fe i	15636.221	-0.019	4.0	1.655	5.352	4.0	1.653	6.144	$1.654\pm 0.050$	31
Fe i	15657.151	-0.019	5.0	1.508	6.246	5.0	1.285	7.038	$1.397\pm 0.050$	3
Fe i	15666.296	-0.858	5.0	1.421	5.828	4.0	1.392	6.619	$1.479\pm 0.050$	33
Fe i	15681.805	-0.200	5.0	1.510	6.246	5.0	1.357	7.037	$1.433\pm 0.050$	1
Fe i	15690.729	-0.197	5.0	1.510	6.246	5.0	1.448	7.036	$1.479\pm 0.050$	15
Fe i	15696.145	0.133	5.0	1.510	6.246	6.0	1.433	7.036	$1.241\pm 0.050$	15
Fe i	15727.882	-0.485	2.0	1.503	5.621	3.0	1.645	6.409	$1.787\pm 0.050$	13
Fe i	15773.732	0.604	4.0	1.502	5.539	5.0	1.402	6.325	$1.202\pm 0.050$	10
Fe i	15778.381	0.343	4.0	1.574	6.299	5.0	1.412	7.085	$1.088\pm 0.050$	2
Fe i	15802.879	-0.099	4.0	1.514	6.252	5.0	1.448	7.036	$1.316\pm 0.050$	1
Fe i	15908.671	0.029	4.0	1.338	6.365	5.0	1.348	7.144	$1.368\pm 0.050$	10
Fe i	15910.390	0.289	2.0	1.503	5.621	3.0	1.285	6.400	$1.067\pm 0.050$	2
Fe i	15915.651	-0.405	4.0	1.331	5.874	3.0	1.210	6.653	$1.512\pm 0.050$	9
Fe i	15924.995	-0.239	4.0	1.585	6.258	5.0	1.357	7.037	$0.901\pm 0.050$	3
Fe i	15985.094	0.440	6.0	1.351	6.264	7.0	1.292	7.040	$1.115\pm 0.050$	17
Fe i	16042.203	-0.248	6.0	1.351	6.264	6.0	1.514	7.037	$1.433\pm 0.050$	8
Fe i	16045.040	0.247	4.0	1.331	5.874	4.0	1.409	6.647	$1.370\pm 0.050$	8
Fe i	16047.093	0.028	3.0	1.615	6.265	3.0	1.508	7.038	$1.562\pm 0.050$	2
Fe i	16106.810	0.402	4.0	1.331	5.874	5.0	1.275	6.644	$1.163\pm 0.050$	6
Fe i	16169.447	0.467	6.0	1.415	6.319	7.0	1.362	7.086	$1.203\pm 0.050$	27
Fe i	16208.682	-0.333	4.0	1.238	6.321	4.0	1.283	7.086	$1.260\pm 0.050$	2
Fe i	16212.175	-0.041	4.0	1.238	6.321	5.0	1.274	7.085	$1.346\pm 0.050$	24
Fe i	16217.970	-0.278	3.0	1.687	6.275	3.0	1.644	7.039	$1.665\pm 0.050$	14
Fe i	16230.054	-0.317	3.0	1.244	6.380	4.0	1.219	7.144	$1.182\pm 0.050$	4
Fe i	16236.084	0.464	4.0	1.355	6.380	5.0	1.348	7.144	$1.334\pm 0.050$	5
Fe i	16289.221	-0.961	3.0	1.318	6.398	4.0	1.441	7.159	$1.626\pm 0.050$	6
Fe i	16320.781	0.555	7.0	1.429	6.280	8.0	1.376	7.040	$1.190\pm 0.050$	19
Fe i	16386.732	-0.139	7.0	1.429	6.280	7.0	1.402	7.037	$1.415\pm 0.050$	13
Fe i	16491.173	0.708	5.0	1.421	5.828	6.0	1.334	6.580	$1.117\pm 0.050$	43
Fe i	16521.738	0.051	5.0	1.360	6.286	6.0	1.306	7.037	$1.171\pm 0.050$	29
Fe i	16528.983	-0.516	5.0	1.384	6.336	6.0	1.263	7.086	$0.960\pm 0.050$	16
Fe i	16536.502	-0.552	5.0	1.360	6.286	5.0	1.448	7.036	$1.404\pm 0.050$	4
Fe i	16556.519	-0.269	2.0	0.967	6.411	3.0	1.029	7.159	$1.091\pm 0.050$	1
Fe i	16617.302	-0.211	3.0	1.318	6.398	4.0	1.219	7.144	$1.071\pm 0.050$	10
Fe i	16650.424	-0.059	2.0	0.991	5.956	2.0	1.137	6.700	$1.064\pm 0.050$	8
Fe i	16665.933	-0.059	3.0	1.499	6.342	4.0	1.283	7.086	$0.959\pm 0.050$	1
Sr ii	15214.400	0.033	3.5	1.143	7.562	2.5	1.200	8.377	$1.072\pm 0.050$	14
Sr ii	15310.900	-0.018	0.0	0.857	7.562	1.5	0.800	8.372	$0.775\pm 0.050$	11
Ce iii	15720.131	-3.080	4.0	$\cdots$	0.000	5.0	$\cdots$	0.789	$1.390\pm 0.106$	22
Ce iii	15961.157	-1.120	4.0	$\cdots$	0.000	3.0	$\cdots$	0.777	$0.852\pm 0.056$	68
Ce iii	15964.928	-1.660	2.0	$\cdots$	0.815	2.0	$\cdots$	1.591	$0.970\pm 0.153$	25
Ce iii	16133.170	-0.920	6.0	$\cdots$	0.388	5.0	$\cdots$	1.156	$1.123\pm 0.048$	98
Ce iii	16292.642	-2.430	2.0	$\cdots$	0.467	2.0	$\cdots$	1.227	$0.929\pm 0.053$	50
????	15148.350	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$0.996\pm 0.099$	9
????	15177.029	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$1.076\pm 0.075$	6
????	15231.294	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$1.187\pm 0.067$	39
????	15345.935	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$1.308\pm 0.052$	24
????	15537.058	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$1.310\pm 0.070$	27
????	15679.045	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$0.922\pm 0.092$	15
????	15897.185	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$1.210\pm 0.152$	11
????	16016.308	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$1.084\pm 0.082$	14
????	16183.564	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$1.049\pm 0.059$	49
????	16266.545	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$1.046\pm 0.069$	9
????	16280.525	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$1.016\pm 0.065$	24
????	16313.711	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$0.802\pm 0.086$	17
????	16502.484	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$1.195\pm 0.050$	20
????	16801.411	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$1.055\pm 0.035$	9
????	16865.633	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$\cdots$	$0.903\pm 0.051$	16

Table 4. Table 4: Magnetic Field Modulus Estimates.

2MASS ID	Other ID	$V$	$H$	$N_{\mathrm{spectra}}$	S/N	Spectral Type	$⟨$B$⟩$ (kG)	$N_{\mathrm{lines}}$	$⟨$B$⟩$ (kG)	$N_{\mathrm{lines}}$
		(mag)	(mag)				$H$-band	$H$-band	Optical	Optical
00033808+7018217	HD 225114	8.10	8.19	12	726	A0p SrCrSi44Own data (ARC 3.5m/ARCES)	$7.46\pm 0.54$	8	$7.43\pm 0.32$44Own data (ARC 3.5m/ARCES)	36
00102704+7337035	TYC 4306-1062-1	10.84	10.07	9	537	$\cdots$	$4.17\pm 0.28$	16	$\cdots$	$\cdots$
00283062+6947472	TYC 4299-696-1	10.53	9.45	12	682	$\cdots$	$7.92\pm 0.89$	4	$\cdots$	$\cdots$
00284036+8418313	TYC 4615-2915-1	10.96	10.54	14	332	A2V22Skiff (2014)	$5.10\pm 0.22$	17	$\cdots$	$\cdots$
00323366+5512530	HD 2887	9.79	8.17	13	1793	A2:p SrCr44Own data (ARC 3.5m/ARCES)	$4.95\pm 0.24$	25	$4.97\pm 0.22$44Own data (ARC 3.5m/ARCES)	27
00331847+5716167	TYC 3662-378-1	10.70	10.37	6	481	$\cdots$	($8.53\pm 0.79$)	5	$\cdots$	$\cdots$
00564145+5739255	TYC 3676-505-1	11.19	10.96	3	86	$\cdots$	$18.49\pm 0.76$	6	$\cdots$	$\cdots$
00584870+6240562	TYC 4021-632-1	11.22	10.45	6	411	A2:p Eu44Own data (ARC 3.5m/ARCES)	$4.25\pm 0.29$	15	$4.60\pm 0.19$44Own data (ARC 3.5m/ARCES)	22
01052242+5010296	TYC 3271-1597-1	10.49	10.22	3	266	$\cdots$	($6.79\pm 1.13$)	3	$\cdots$	$\cdots$
01184266+5844433	TYC 3681-1528-1	10.49	9.99	4	355	B822Skiff (2014)	$9.67\pm 0.50$	9	$\cdots$	$\cdots$
01225971$-$7335020	HD 8700	9.83	9.42	3	327	A0p SiCrFe11Renson & Manfroid (2009)	$8.69\pm 0.33$	14	$\cdots$	$\cdots$
02084669+6240520	BD+62 352	10.16	9.57	6	543	B811Renson & Manfroid (2009)	($7.34\pm 1.16$)	3	$\cdots$	$\cdots$
02115402+3657583	HD 13404	8.79	8.36	3	526	A2p SrEu11Renson & Manfroid (2009)	$21.89\pm 0.57$	17	$\cdots$	$\cdots$
02210266+4256382	HD 14437	7.25	7.29	3	1358	B9p SrCrEu44Own data (ARC 3.5m/ARCES)	$6.61\pm 0.35$	17	$7.58\pm 0.05$55Mathys (2017)	1
02252994+4759115	HD 14873	9.12	8.48	7	951	A5p SrCr44Own data (ARC 3.5m/ARCES)	$5.63\pm 0.35$	14	$5.71\pm 0.27$44Own data (ARC 3.5m/ARCES)	26
02451791+6112352	BD+60 562	10.11	9.39	1	171	A0V22Skiff (2014)	$9.88\pm 0.35$	14	$\cdots$	$\cdots$
02463240+0001145	TYC 47-76-1	10.91	10.07	2	226	$\cdots$	($3.64\pm 0.41$)	10	$\cdots$	$\cdots$
02511543+6447560	BD+64 352	9.54	9.10	3	446	B8p Si44Own data (ARC 3.5m/ARCES)	$10.98\pm 0.58$	6	$10.56\pm 0.43$44Own data (ARC 3.5m/ARCES)	43
02563098+4534239	TYC 3297-975-1	10.66	9.92	7	441	A5:p EuSrCrSi44Own data (ARC 3.5m/ARCES)	$24.61\pm 0.72$	12	$23.56\pm 1.05$44Own data (ARC 3.5m/ARCES)	50
02594527+5419449	HD 18410	9.19	8.56	3	574	A2p SiCrEu11Renson & Manfroid (2009)	($5.01\pm 0.41$)	11	$\cdots$	$\cdots$
03001958+4355254	TYC 2859-794-1	11.36	10.51	7	332	$\cdots$	$5.33\pm 0.21$	17	$\cdots$	$\cdots$
03010340+5816543	HD 237049	9.34	8.58	7	871	A222Skiff (2014)	($5.07\pm 0.56$)	7	$\cdots$	$\cdots$
03080905+4355586	TYC 2859-1418-1	11.19	10.27	7	340	$\cdots$	$5.91\pm 0.18$	37	$\cdots$	$\cdots$
03112102+6310394	TYC 4053-630-1	10.17	9.89	3	301	B9p SiCr44Own data (ARC 3.5m/ARCES)	$14.52\pm 0.63$	7	$13.10\pm 0.58$44Own data (ARC 3.5m/ARCES)	50
03302967+4715089	TYC 3316-77-1	11.37	10.97	14	362	A222Skiff (2014)	$7.81\pm 0.43$	9	$\cdots$	$\cdots$
03414761+2335305	TYC 1799-1426-1	11.41	9.87	3	252	A6p EuSrSiCr44Own data (ARC 3.5m/ARCES)	$9.61\pm 0.17$	54	$9.66\pm 0.39$44Own data (ARC 3.5m/ARCES)	50
04011662+4655136	HD 25092	9.43	8.86	3	258	A3p EuSrCrSi44Own data (ARC 3.5m/ARCES)	$6.09\pm 0.40$	11	$6.47\pm 0.29$44Own data (ARC 3.5m/ARCES)	31
04013793+5736159	BD+57 764	10.00	9.56	3	217	B9p Si22Skiff (2014)	($5.60\pm 0.98$)	4	$\cdots$	$\cdots$
04021373+3709570	HD 279277	10.70	9.88	7	541	B8V22Skiff (2014)	$8.10\pm 0.62$	11	$\cdots$	$\cdots$
04064234+4546408	HD 25706	10.19	9.62	3	329	A0p Si11Renson & Manfroid (2009)	$9.33\pm 0.50$	9	$\cdots$	$\cdots$
04093719+5302064	TYC 3718-1499-1	11.13	10.56	12	546	$\cdots$	$5.33\pm 0.30$	12	$\cdots$	$\cdots$
04140370+4941107	TYC 3336-982-1	11.90	10.91	6	237	$\cdots$	($5.46\pm 0.76$)	5	$\cdots$	$\cdots$
04203778+2853313	HD 27404	8.78	7.28	6	1225	A0p Si11Renson & Manfroid (2009)	($5.29\pm 0.46$)	13	$\cdots$	$\cdots$
04294199+3041025	HD 282151	10.65	9.89	6	500	B933SIMBAD	$5.41\pm 0.41$	14	$\cdots$	$\cdots$
04434133+6356292	TYC 4086-1878-1	11.15	10.50	9	405	$\cdots$	($5.51\pm 0.47$)	12	$\cdots$	$\cdots$
04580135+3007324	HD 31552	8.95	7.46	1	527	A033SIMBAD	$4.16\pm 0.44$	10	$\cdots$	$\cdots$
05013296+6301162	HD 31629	9.29	8.79	9	696	A033SIMBAD	$7.92\pm 0.65$	8	$\cdots$	$\cdots$
05060835+3355072	HD 32633	7.05	7.03	3	1070	B9p SiCr11Renson & Manfroid (2009)	$10.25\pm 1.00$	4	$\cdots$	$\cdots$
05145454+1605118	HD 241957	9.88	8.95	3	275	A322Skiff (2014)	($5.00\pm 0.46$)	13	$\cdots$	$\cdots$
05151044+3300479	HD 241843	10.33	9.70	3	385	A0/222Skiff (2014)	$3.90\pm 0.33$	11	$\cdots$	$\cdots$
05225493+1346388	HD 243096	11.17	10.22	7	420	A522Skiff (2014)	($5.80\pm 0.65$)	6	$\cdots$	$\cdots$
05253809+3041142	HD 35379	8.90	8.83	3	525	B9p SiSr11Renson & Manfroid (2009)	$5.71\pm 0.91$	4	$\cdots$	$\cdots$
05254840+6216036	TYC 4085-1776-1	11.20	10.70	3	98	$\cdots$	$5.18\pm 0.19$	30	$\cdots$	$\cdots$
05331986+4013456	TYC 2914-1134-1	10.48	9.96	3	158	$\cdots$	$4.63\pm 0.41$	9	$\cdots$	$\cdots$
05332350+2606572	TYC 1852-651-1	11.69	10.78	14	424	$\cdots$	$5.10\pm 0.53$	6	$\cdots$	$\cdots$
05334537+1238120	HD 36644	9.57	9.10	4	467	A033SIMBAD	$18.48\pm 0.31$	25	$\cdots$	$\cdots$
05363639+3055204	TYC 2404-880-1	11.04	10.48	6	338	B8-A222Skiff (2014)	$6.27\pm 0.27$	15	$\cdots$	$\cdots$
05451425+3654510	TYC 2417-4-1	11.36	10.92	3	94	$\cdots$	$10.62\pm 0.42$	19	$\cdots$	$\cdots$
05472522+1238532	HD 38586	9.33	8.76	9	1059	B933SIMBAD	$6.73\pm 0.67$	5	$\cdots$	$\cdots$
05481976+3335169	HD 247628	10.50	10.07	3	122	A5p SiSr11Renson & Manfroid (2009)	$8.79\pm 0.22$	33	$\cdots$	$\cdots$
05482124+0305160	TYC 120-185-1	11.51	10.35	3	215	$\cdots$	$4.63\pm 0.33$	12	$\cdots$	$\cdots$
05482549$-$0045346	HD 38823	8.88	6.95	6	1885	A5p SrEuCr11Renson & Manfroid (2009)	$5.13\pm 0.35$	12	$\cdots$	$\cdots$
05510825+5316108	TYC 3750-928-1	11.53	10.96	7	275	$\cdots$	$5.37\pm 0.20$	26	$\cdots$	$\cdots$
05555073$-$7750438	HD 41613	9.81	8.89	2	295	A3p EuCr11Renson & Manfroid (2009)	$5.41\pm 0.37$	17	$\cdots$	$\cdots$
06010117+3214538	TYC 2423-267-1	10.78	10.30	14	512	$\cdots$	$9.87\pm 0.21$	37	$\cdots$	$\cdots$
06055681+1917131	TYC 1321-1213-1	10.58	10.33	9	361	$\cdots$	$5.76\pm 0.26$	15	$\cdots$	$\cdots$
06062179+2124358	HD 251556	10.26	10.24	6	396	B9V33SIMBAD	$6.83\pm 0.53$	5	$\cdots$	$\cdots$
06070875+1053283	TYC 721-523-1	10.92	10.65	7	230	$\cdots$	$8.54\pm 1.17$	3	$\cdots$	$\cdots$
06091241+2026527	HD 252382	10.63	10.45	9	391	B6III33SIMBAD	$5.60\pm 0.57$	7	$\cdots$	$\cdots$
06130161+7413402	TYC 4357-491-1	10.68	10.20	4	274	$\cdots$	$5.31\pm 0.30$	19	$\cdots$	$\cdots$
06163561$-$1829384	TYC 5938-2491-1	10.80	10.05	2	304	$\cdots$	$10.15\pm 0.35$	11	$\cdots$	$\cdots$
06171773$-$0214319	HD 291513	10.62	10.39	12	402	A222Skiff (2014)	$5.25\pm 0.48$	6	$\cdots$	$\cdots$
06285110+5412297	TYC 3765-681-1	10.81	10.55	3	189	$\cdots$	($9.27\pm 1.28$)	3	$\cdots$	$\cdots$
06340185+3331392	HD 46297	8.97	8.39	9	1185	A233SIMBAD	$6.06\pm 0.23$	36	$\cdots$	$\cdots$
06352208+3351329	TYC 2430-1205-1	10.86	10.41	9	450	$\cdots$	$5.63\pm 0.25$	27	$\cdots$	$\cdots$
06365367+0118455	HD 47074	9.43	9.33	12	881	A2p SrCrEu11Renson & Manfroid (2009)	$11.85\pm 0.15$	61	$\cdots$	$\cdots$
06411268+2405034	HD 47774	9.07	8.61	6	900	A033SIMBAD	$8.78\pm 1.36$	2	$\cdots$	$\cdots$
06444568+1135345	HD 263064	10.34	10.10	6	414	B8V22Skiff (2014)	($5.39\pm 0.51$)	6	$\cdots$	$\cdots$
06515922$-$0138404	HD 50169	9.35	8.95	8	698	A3p SrEuCr11Renson & Manfroid (2009)	$4.40\pm 0.26$	30	$5.03\pm 0.03$55Mathys (2017)	1
06545817+0408276	HD 266311	9.74	9.73	15	345	A2p SrCrEu11Renson & Manfroid (2009)	$4.43\pm 0.25$	24	$\cdots$	$\cdots$
06550983$-$3003440	HD 51203	10.39	9.89	4	413	A2p SrEuCr11Renson & Manfroid (2009)	$7.90\pm 0.51$	6	$\cdots$	$\cdots$
07051562+5542284	HD 52628	8.66	7.99	3	726	A2p CrEu11Renson & Manfroid (2009)	$6.68\pm 0.18$	53	$\cdots$	$\cdots$
07123042$-$2103537	HD 55540	9.52	9.37	3	398	A0p EuCr11Renson & Manfroid (2009)	$15.03\pm 0.89$	7	$12.73\pm 0.30$66Freyhammer et al. (2008)	1
07141263$-$0341299	HD 296704	10.22	10.27	3	235	B822Skiff (2014)	($4.69\pm 0.50$)	8	$\cdots$	$\cdots$
07163050+1519123	TYC 1346-358-1	11.21	10.86	3	188	A3p EuSrCrSi44Own data (ARC 3.5m/ARCES)	$17.20\pm 0.39$	13	$17.11\pm 0.60$44Own data (ARC 3.5m/ARCES)	50
07175283+1347078	HD 56514	9.63	9.05	3	522	A5:III:22Skiff (2014)	$6.60\pm 0.45$	8	$\cdots$	$\cdots$
07194142+1448162	TYC 775-617-1	11.03	10.60	3	122	$\cdots$	$7.05\pm 0.74$	5	$\cdots$	$\cdots$
07262241$-$6026516	TYC 8910-1832-1	11.03	10.10	1	105	$\cdots$	$6.71\pm 0.26$	19	$\cdots$	$\cdots$
07320894$-$5929216	TYC 8563-764-1	11.11	10.53	1	79	$\cdots$	$6.61\pm 0.70$	4	$\cdots$	$\cdots$
07320905+3922431	TYC 2962-181-1	11.36	10.77	5	196	A5p EuSrCr44Own data (ARC 3.5m/ARCES)	$9.26\pm 0.31$	18	$9.04\pm 0.40$44Own data (ARC 3.5m/ARCES)	50
07390490+4711571	BD+47 1470	9.66	9.33	2	413	A033SIMBAD	($5.25\pm 0.37$)	10	$\cdots$	$\cdots$
07470594+5338193	BD+53 1183	9.98	9.70	3	297	Ap CrSrEu11Renson & Manfroid (2009)	$5.34\pm 0.59$	9	$\cdots$	$\cdots$
07524109+4350146	HD 63813	9.71	9.19	2	342	A1-F0 Sr11Renson & Manfroid (2009)	($5.40\pm 0.34$)	15	$\cdots$	$\cdots$
07525522$-$5216518	TYC 8147-1121-1	11.69	10.95	1	110	$\cdots$	$13.08\pm 0.60$	14	$\cdots$	$\cdots$
07583427+2035316	HD 65240	9.13	8.43	1	442	A033SIMBAD	($4.97\pm 0.40$)	11	$\cdots$	$\cdots$
08053890+5121205	TYC 3414-366-1	10.30	9.70	2	284	$\cdots$	$5.87\pm 0.36$	13	$\cdots$	$\cdots$
08124763$-$1219281	HD 68619	9.96	9.46	3	392	A8/9V22Skiff (2014)	$4.36\pm 0.31$	14	$\cdots$	$\cdots$
08171198+4018115	TYC 2977-1620-1	11.11	10.61	3	263	$\cdots$	$6.00\pm 0.30$	22	$\cdots$	$\cdots$
08273117$-$4931353	HD 71860	9.88	9.18	1	294	A0p SiCr11Renson & Manfroid (2009)	$8.87\pm 0.29$	20	$\cdots$	$\cdots$
11193525+0955569	HD 98437	9.39	8.26	1	298	A333SIMBAD	($3.58\pm 0.33$)	31	$\cdots$	$\cdots$
12020633+1520417	HD 104505	9.74	9.51	3	272	A5p EuSr44Own data (ARC 3.5m/ARCES)	$7.59\pm 0.22$	39	$8.02\pm 0.28$44Own data (ARC 3.5m/ARCES)	50
12231298$-$6316319	TYC 8979-339-1	10.41	9.69	16	879	$\cdots$	$7.96\pm 0.17$	43	$\cdots$	$\cdots$
13402136+5712275	HD 119213	6.30	6.21	3	1293	A3p SrCr11Renson & Manfroid (2009)	$6.75\pm 0.98$	4	$\cdots$	$\cdots$
15404512$-$4004586	HD 139631	8.76	8.15	1	541	A0p EuCrSr11Renson & Manfroid (2009)	$9.06\pm 0.45$	11	$\cdots$	$\cdots$
16015886$-$3732036	HD 143473	8.86	6.98	1	865	B9p Si11Renson & Manfroid (2009)	($9.56\pm 1.19$)	4	$\cdots$	$\cdots$
16241403$-$4044107	HD 325559	10.33	8.51	9	1138	A022Skiff (2014)	($8.17\pm 1.15$)	3	$\cdots$	$\cdots$
16505838$-$6329330	CD-63 1232	9.73	9.78	5	395	$\cdots$	($8.33\pm 1.09$)	3	$\cdots$	$\cdots$
16595976+1002298	TYC 980-1372-1	10.91	10.35	4	279	$\cdots$	($6.46\pm 0.53$)	8	$\cdots$	$\cdots$
17080901$-$6045032	HD 154253	9.02	8.56	1	299	A0p SrCrEu11Renson & Manfroid (2009)	($5.67\pm 0.58$)	5	$\cdots$	$\cdots$
17293722$-$3030290	HD 317652	11.78	10.91	1	54	A33SIMBAD	$7.19\pm 0.48$	6	$\cdots$	$\cdots$
17355458$-$3350564	HD 159379	8.56	8.14	2	665	B9p Si11Renson & Manfroid (2009)	($5.90\pm 1.12$)	3	$\cdots$	$\cdots$
17380465$-$2146101	UCAC4 342-102489	11.89	10.88	1	133	$\cdots$	$4.62\pm 0.32$	11	$\cdots$	$\cdots$
17534913$-$3332308	HD 318569	10.42	9.88	3	194	A233SIMBAD	$7.37\pm 0.63$	6	$\cdots$	$\cdots$
17592320$-$2624123	HD 163850	9.84	9.28	1	171	B822Skiff (2014)	($7.63\pm 1.17$)	3	$\cdots$	$\cdots$
17594524+0302056	TYC 421-935-1	11.01	10.50	3	276	$\cdots$	$17.13\pm 0.33$	17	$\cdots$	$\cdots$
18010675$-$3137300	HD 318820	10.24	9.97	4	377	A022Skiff (2014)	$5.05\pm 0.62$	6	$\cdots$	$\cdots$
18061507+0237308	HD 165525	10.27	10.04	3	132	A222Skiff (2014)	$5.89\pm 0.52$	6	$\cdots$	$\cdots$
18133046$-$2815189	HD 166808	9.14	8.91	3	381	A2p SrCr11Renson & Manfroid (2009)	$5.02\pm 0.35$	12	$\cdots$	$\cdots$
18151324+0121014	UCAC4 457-075953	12.11	10.30	16	589	$\cdots$	$4.63\pm 0.26$	19	$\cdots$	$\cdots$
18171434+0013052	$\cdots$	12.34	10.82	16	371	$\cdots$	$10.53\pm 0.30$	15	$\cdots$	$\cdots$
18261274$-$0646548	BD-06 4760	10.24	8.33	3	300	A3V22Skiff (2014)	($4.64\pm 0.25$)	18	$\cdots$	$\cdots$
18300828$-$0235273	HD 170565	9.23	8.49	6	551	A5p SrEuCrSi44Own data (ARC 3.5m/ARCES)	$6.56\pm 0.34$	21	$6.93\pm 0.25$44Own data (ARC 3.5m/ARCES)	29
18305040$-$2402152	TYC 3895-1263-1	10.69	10.21	1	76	$\cdots$	($5.59\pm 1.00$)	4	$\cdots$	$\cdots$
18325156+1718124	BD+17 3622	8.85	8.69	3	522	A2p SrEuCr11Renson & Manfroid (2009)	$4.06\pm 0.24$	12	$\cdots$	$\cdots$
18521845+1437019	BD+14 3679	9.64	8.89	3	469	A033SIMBAD	$6.03\pm 0.40$	11	$\cdots$	$\cdots$
19013248+4151592	HD 177128	9.19	9.05	3	409	A1Vp SiCrCrEu22Skiff (2014)	$5.00\pm 0.25$	16	$\cdots$	$\cdots$
19120493+4817166	KIC 10852970	10.57	10.27	3	204	A2Vp33SIMBAD	$6.22\pm 0.36$	9	$\cdots$	$\cdots$
19130947+1201217	HD 179711	8.36	8.31	4	677	A0p Si11Renson & Manfroid (2009)	($6.81\pm 0.53$)	11	$\cdots$	$\cdots$
19152589$-$1142537	HD 180058	9.80	8.86	1	377	A3p Sr11Renson & Manfroid (2009)	($6.80\pm 0.61$)	5	$\cdots$	$\cdots$
19183796+3947264	KIC 4647715	10.99	10.69	5	255	A1Vp33SIMBAD	$6.33\pm 0.47$	8	$\cdots$	$\cdots$
19191030$-$0654130	TYC 5142-2803-1	11.45	10.69	13	239	$\cdots$	($5.90\pm 0.38$)	9	$\cdots$	$\cdots$
19192992+1504587	HD 231151	10.32	9.63	5	534	B922Skiff (2014)	$19.40\pm 0.44$	7	$\cdots$	$\cdots$
19195551+3652567	KIC 1157401	9.88	9.54	3	387	$\cdots$	($8.27\pm 0.60$)	5	$\cdots$	$\cdots$
19221039+5048401	KIC 12207099	10.20	10.31	2	219	A022Skiff (2014)	($6.08\pm 0.43$)	12	$\cdots$	$\cdots$
19224960$-$1335307	BD-13 5332	10.66	10.40	6	320	Ap Si11Renson & Manfroid (2009)	($5.91\pm 0.52$)	7	$\cdots$	$\cdots$
19265158$-$0038427	TYC 5131-1737-1	11.00	10.39	7	340	A022Skiff (2014)	$4.36\pm 0.23$	28	$\cdots$	$\cdots$
19292391$-$0857083	TYC 5722-1600-1	11.98	10.97	3	174	$\cdots$	($5.54\pm 0.86$)	4	$\cdots$	$\cdots$
19304169+1621445	HD 231627	10.82	10.05	3	258	A22Skiff (2014)	($6.57\pm 1.33$)	2	$\cdots$	$\cdots$
19305065+0102421	HD 183735	9.96	9.01	7	748	A2p SrCrEu11Renson & Manfroid (2009)	$5.75\pm 0.27$	21	$\cdots$	$\cdots$
19443776+1432091	HD 353513	10.80	10.52	3	200	A133SIMBAD	($5.64\pm 0.65$)	7	$\cdots$	$\cdots$
19462921+4737500	KIC 10483436	11.39	10.88	7	265	Ap33SIMBAD	($3.74\pm 0.35$)	7	$\cdots$	$\cdots$
19510964+1827101	HD 350689	11.40	10.90	6	172	B933SIMBAD	$5.15\pm 0.48$	13	$\cdots$	$\cdots$
19525699+1748543	HD 188103	8.02	8.13	19	1743	A0p SiSrEu44Own data (ARC 3.5m/ARCES)	$10.10\pm 0.62$	11	$10.74\pm 0.43$44Own data (ARC 3.5m/ARCES)	50
20020903+0753287	TYC 1071-2065-1	11.20	10.91	7	274	$\cdots$	($4.60\pm 0.21$)	17	$\cdots$	$\cdots$
20191831+2354023	HD 346258	9.94	9.65	3	361	A233SIMBAD	$4.76\pm 0.21$	27	$\cdots$	$\cdots$
21054288+4035346	BD+40 4409	9.94	9.52	3	356	A4p EuSrCrSi44Own data (ARC 3.5m/ARCES)	$9.42\pm 0.21$	44	$9.71\pm 0.38$44Own data (ARC 3.5m/ARCES)	50
21063689+4837401	HD 201250	8.84	8.79	25	1757	B8p Si44Own data (ARC 3.5m/ARCES)	$7.81\pm 0.69$	6	$7.81\pm 0.36$44Own data (ARC 3.5m/ARCES)	36
21090244+4844449	HD 201612	8.57	8.72	25	1838	B9p SiCrEu:44Own data (ARC 3.5m/ARCES)	$6.74\pm 0.49$	11	$7.43\pm 0.34$44Own data (ARC 3.5m/ARCES)	45
21135681+4702336	TYC 3593-1718-1	11.43	10.90	25	514	$\cdots$	$4.76\pm 0.26$	24	$\cdots$	$\cdots$
21220944+5640490	HD 203763	9.42	8.96	3	639	A4:p SrCrEu44Own data (ARC 3.5m/ARCES)	$4.72\pm 0.33$	17	$5.04\pm 0.25$44Own data (ARC 3.5m/ARCES)	17
21282592+4647232	TYC 3590-1739-1	10.78	10.30	16	541	$\cdots$	($6.29\pm 0.80$)	6	$\cdots$	$\cdots$
21402960+4326586	TYC 3196-875-1	10.77	10.59	12	505	$\cdots$	$6.81\pm 0.40$	10	$\cdots$	$\cdots$
21432172+4151293	TYC 3192-1815-1	11.10	10.66	12	485	$\cdots$	($4.88\pm 0.48$)	7	$\cdots$	$\cdots$
21460991+5247363	TYC 3967-1331-1	10.85	10.52	3	301	B:22Skiff (2014)	($4.65\pm 1.37$)	3	$\cdots$	$\cdots$
21480795+5802409	BD+57 2400	10.32	9.63	3	388	A5p EuSrCrSi44Own data (ARC 3.5m/ARCES)	$14.64\pm 0.74$	9	$15.12\pm 0.61$44Own data (ARC 3.5m/ARCES)	50
21535503+5417550	HD 208325	9.13	8.52	14	1234	A4p Sr44Own data (ARC 3.5m/ARCES)	$4.58\pm 0.42$	12	$5.12\pm 0.21$44Own data (ARC 3.5m/ARCES)	23
22054630+4913580	HD 209931	9.40	9.07	3	445	A0p SiCrSr44Own data (ARC 3.5m/ARCES)	$5.35\pm 0.63$	6	$5.91\pm 0.25$44Own data (ARC 3.5m/ARCES)	20
22094501+6154365	HD 210626	9.21	8.69	3	499	A0p CrSr44Own data (ARC 3.5m/ARCES)	$6.31\pm 0.50$	9	$6.29\pm 0.32$44Own data (ARC 3.5m/ARCES)	36
22102021+6618150	HD 210759	8.46	7.83	5	753	A2p CrSrEu44Own data (ARC 3.5m/ARCES)	$4.72\pm 0.23$	17	$5.10\pm 0.22$44Own data (ARC 3.5m/ARCES)	24
22430180+5141123	HD 235936	9.61	9.47	3	310	B9p CrSiSr44Own data (ARC 3.5m/ARCES)	$5.09\pm 1.17$	2	$4.90\pm 0.22$44Own data (ARC 3.5m/ARCES)	15
22480641+5906428	HD 216001	8.60	8.27	6	955	B8p SrSiCr44Own data (ARC 3.5m/ARCES)	$6.99\pm 0.51$	9	$7.75\pm 0.35$44Own data (ARC 3.5m/ARCES)	31
23102121+4717017	BD+46 3957	10.72	10.53	3	236	A3:p SrEuCrSi44Own data (ARC 3.5m/ARCES)	$18.36\pm 0.70$	12	$17.91\pm 0.77$44Own data (ARC 3.5m/ARCES)	50
23222946+6009121	$\cdots$	10.44	10.22	3	326	A0p CrEuSrSi44Own data (ARC 3.5m/ARCES)	$6.18\pm 0.52$	5	$6.72\pm 0.30$44Own data (ARC 3.5m/ARCES)	50
23223523+6201042	BD+61 2436	9.75	9.47	3	382	B9p CrSrSi44Own data (ARC 3.5m/ARCES)	$7.39\pm 0.58$	7	$7.53\pm 0.28$44Own data (ARC 3.5m/ARCES)	45
23270758+4933290	TYC 3645-984-1	10.54	10.30	6	445	A0p SrCr44Own data (ARC 3.5m/ARCES)	$6.06\pm 0.49$	8	$6.22\pm 0.27$44Own data (ARC 3.5m/ARCES)	36
23540533+6616511	BD+65 1962	10.69	9.94	3	319	$\cdots$	$6.52\pm 0.73$	4	$\cdots$	$\cdots$
23554319+5647321	BD+55 3046	9.44	9.15	4	559	B9p SiSr11Renson & Manfroid (2009)	$5.01\pm 0.36$	13	$\cdots$	$\cdots$

Equations

$$⟨B⟩=\frac{\Delta \lambda }{k{g}_{\mathrm{eff}}{\lambda }_0^2}$$

$$g_{\rm eff}=\frac{1}{2}(g_{\rm 1}+g_{\rm 2})+\frac{1}{4}(g_{\rm 1}-g_{\rm 2})\Big{[}J_{\rm 1}(J_{\rm 1}+1)-J_{\rm 2}(J_{\rm 2}+1)\Big{]},$$

Full text

atomic data, infrared: stars, stars: chemically peculiar, stars: magnetic field

1 Introduction

Globally ordered magnetic fields are observed in roughly 10–20% of intermediate and massive main sequence stars with spectral types between approximately F0 and B2. These stars, generally called chemically peculiar Ap and Bp stars (referred to as Ap stars in the rest of this Letter, for simplicity’s sake), exhibit strong overabundances of certain iron peak elements and rare earths. The majority also exhibit underabundances of He, C, and O relative to solar abundances (e.g. Ghazaryan et al., 2018), though the more massive Bp stars usually show overabundances of He and Si (e.g., Castro et al., 2017). These effects are caused by the disruption of normal diffusion processes by the strong magnetic fields. As stars of more than a few solar masses are expected to lack significant surface convection zones in which magnetic dynamos are generated in low-mass stars, the strong magnetic fields of Ap stars are unexpected and often attributed to fossil fields inherited from the collapsed gas clouds (Moss, 2001).

The magnetic fields of Ap stars are most frequently diagnosed through spectropolarimetric measurements of the mean longitudinal field, $\langle$Bz$\rangle$, which is strongly dependent on the line of sight but can be obtained for the majority of Ap stars regardless of their rotation rates. However, an important group is formed by the Ap stars with low projected rotational velocities and strong kG magnetic fields. For these stars, conventional spectroscopy of sufficient resolution can be used to measure the mean magnetic field modulus, $\langle$B$\rangle$, based on the wavelength separations of resolved, magnetically split lines (RMSLs). Although somewhat dependent on the geometry of the observation, $\langle$B$\rangle$ has the advantage of being primarily determined by the intrinsic stellar magnetic field strength. Prior to this work, 84 Ap stars with RMSLs were known (Mathys, 2017), and their study allowed the measurement of their magnetic fields and the establishment of a number of general properties. The star with the strongest magnetic field currently known, “Babcock’s Star” (HD 215441) is a B8V star with a surface dipole field strength of 34 kG (Babcock, 1960; Preston, 1969).

The vast majority of past studies of Ap stars with RMSLs have relied on optical data of very slowly rotating stars (for which the Doppler effect does not serve to blend the split components), but spectroscopy at longer wavelengths provides several advantages in terms of resolving magnetically split lines. For example, the wavelength separation of magnetically split components is proportional to the square of the wavelength, such that for a fixed effective Landé factor, the spectral resolution required to resolve the split components of a line is significantly lower in the $H$-band than it would be in the optical. Further, the Doppler effect has a linear dependence on wavelength, such that magnetic splitting can be resolved in the $H$-band for stars that are rotating too fast for the splitting to be resolved in the optical.

In this Letter we present the analysis of a sub-sample of 154 new stars with RMSLs in the $H$-band, as well as of 3 stars for which RMSLs had been observed previously in the optical. The 157 stars were identified among the largest-ever spectroscopic survey of Ap stars to date, being carried out by the Sloan Digital Sky Survey (SDSS-III and SDSS-IV; Eisenstein et al., 2011; Blanton et al., 2017) sub-survey known as the Apache Point Observatory Galactic Evolution Experiment (APOGEE; Majewski et al., 2017). This near-tripling of the number of Ap stars with $\langle$B$\rangle$ measurement is due partially to the volume and depth of the APOGEE survey. The 157 RMSL stars were identified among a much larger sample of $\sim$1000 Ap/Am stars with multi-epoch APOGEE observations, and the 91/157 stars with $V$ magnitudes greater than 10 represents a 3000% increase in the number of $V>10$ Ap stars for which $\langle$B$\rangle$ has been measured.

2 Data

2.1 APOGEE $H$-band Spectroscopy

This Letter focuses primarily on data from the two APOGEE instruments, which are 300-fiber, $R=22,500$, $H$-band spectrographs that operate on the Sloan 2.5m telescope (Gunn et al., 2006) at Apache Point Observatory (APO) and on the Du Pont 2.5m telescope at Las Campanas Observatory (LCO). Throughout this Letter, we refer to vacuum wavelengths when discussing the $H$-band data. Each APOGEE instrument records most of the $H$-band (15145–16960 Å) on three detectors, with coverage gaps between 15800–15860 Å and 16430–16480 Å and with each fiber having a $\sim$2″diameter on-sky field of view. Total exposure times in each observation are about one hour, and the the 2*∘–3∘* diameter APOGEE fields are usually observed multiple times on different nights, months, or years, to accumulate signal for fainter targets and to check for radial velocity variability. Individual spectra are ultimately combined into high signal-to-noise ratio (S/N) spectra for chemical abundance analysis. A detailed description of the APOGEE survey was presented by Majewski et al. (2017), and the data reduction process has been described in Nidever et al. (2015).

As discussed in Zasowski et al. (2013, 2017), 35/300 APOGEE fibers are placed on blank sky positions to facilitate the removal of airglow emission features from science spectra, and a further 15–35/300 fibers are placed on quasi-randomly selected hot stars that facilitate removal of telluric absorption features from science spectra. The latter are generally the bluest and brightest available stars in the field and are restricted to a magnitude range of roughly $6.5<H<11.0$. They are selected mostly based on raw Two Micron All-Sky Survey (2MASS; Skrutskie et al., 2006) $J-K$ color but also with spatial restrictions to account for variation of the telluric absorption across the field. To date, the APOGEE instruments have observed $>$40,000 telluric standard stars, permitting the serendipitous discovery of exotic objects including highly magnetized OB stars (Eikenberry et al., 2014), Be stars (Chojnowski et al., 2015), as well as a large sample of $>$900 Ap stars, some of which are the focus of this Letter.

2.2 ARCES Optical Spectroscopy

We also obtained optical spectra of 29 stars using the Astrophysical Research Consortium Echelle Spectrograph (ARCES; Wang et al., 2003) on the ARC 3.5m telescope at APO. ARCES covers the full optical spectrum (3500–10000 Å) at a resolution of $R$=31,500. We used standard Image Reduction and Analysis Facility (IRAF111IRAF is distributed by the National Optical Astronomy Observatories, which are operated by the Association of Universities for Research in Astronomy, Inc., under cooperative agreement with the National Science Foundation.) echelle data reduction techniques, including 2D to 1D extraction, bias subtraction, scattered light and cosmic ray removal, flat-field correction, wavelength calibration via Thorium–Argon lamp exposures, as well as continuum normalization and merging of orders.

3 Sample Selection

The APOGEE Ap star sample currently consists of 986 stars that APOGEE has observed together more than 5500 times, with the about 85% of the stars having been identified among the APOGEE telluric standard stars via an algorithm designed to search for the presence of the doubly ionized Cerium (Ce iii) lines that are usually the strongest absorption features aside from the broad hydrogen Bracket series lines. The other 15% of the stars lack the Ce iii lines and were instead added to the sample based on literature Ap/Bp/Am classifications (for detailed definitions of these spectral classes, see Chapter 5.2 of Gray & Corbally, 2009). These 986 Ap/Bp/Am stars therefore account for just over 2% of the APOGEE telluric standard stars, but this should be taken as a lower limit to the true fraction.

Whereas the overall sample will be discussed in future work, this Letter deals with the 157 stars (886 total spectra) for which RMSLs were visually identified in one or more APOGEE spectrum. For the majority of the 157 stars, RMSLs appear in multiple observations such that absorption lines in the combined spectra clearly exhibit splitting. However, 17/157 stars have only been observed once to date, and in another 49/157 cases, the RMSLs were noticed and measured in an individual spectrum rather than the combined spectrum. Usually this was due to one of the individual spectra having significantly higher S/N than the others, but in some cases, it was almost certainly due to temporal variability of the magnetic field strength.

4 Line Identification

We used the APOGEE linelist (Shetrone et al., 2015) to identify the majority of absorption lines present in the $H$-band spectra. Atomic data for the Ce iii lines was obtained from a Ce iii linelist computed by Biémont et al. (2002). This linelist was previously used by Hubrig et al. (2012, provided to them as private communication by Biemont et al.), who were the first to confirm the presence of Ce iii lines in $H$-band spectra of Ap stars. For the optical follow-up spectra, we relied on the Kurucz linelist2221995 Atomic Line Data (R.L. Kurucz and B. Bell) Kurucz CD-ROM No. 23. Cambridge, Mass.: Smithsonian Astrophysical Observatory. for line identification.

One or more ions are clearly missing from our $H$-band linelist, as indicated by several unidentified lines exhibiting RMSLs in the spectra of numerous stars. These features are usually detected simultaneously and they are occasionally the only metallic absorption features beyond Ce iii. They are probably due to some heavy element that cannot be identified owing to the limited availability of atomic data for $\lambda>10000$ Å. The strongest of these unknown lines is the 16184 Å line, for which magnetically split components are observed in $\sim$31% of the larger Ap star sample. We used a sub-sample of 20 narrow-lined Ap stars exhibiting the unknown lines to measure accurate wavelengths for the features. Figure 1 displays the full APOGEE spectrum of one such narrow-lined star (2MASSJ 01023033+7438487) along with a star for which the unknown lines are magnetically split (2MASSJ 06010117+3214538).

The Ce iii lines (15961, 15965, 16133 Å, and in cases of strong Ce iii, also 16292 and 15720 Å) are present in 100% of the sample at hand, with the 16133 Å line exhibiting RMSLs for 63% of the sample and with the weaker 15961 Å and 16292 Å lines being split for 43% and 32% of the sample, respectively. The Ce iii 15965 Å line is often blended with the strongest Si i line covered (15964 Å), such that the splitting of Ce iii 15965 Å can only be measured when the presence of Si i lines can be ruled out by confirming absence of Si i 15893 Å and 16685 Å. The fraction of stars with Ce iii 16133 Å measurements would be even higher were it not for a strong airglow feature (16129 Å) that is often poorly subtracted and may coincide with the blue wing of the Ce iii line depending on the stellar radial velocity.

Cr ii is the next most frequently magnetically split ion, with the splitting of the 15370 and 15470 Å lines being measurable in 50% and 39% of the sample, respectively. Other particularly useful lines include Fe i 15299 Å (34%), Fe i 15626 Å (31%), Fe i 16491 Å (27%), Si i 16685 Å (25%), as well as the unidentified line at 16184 Å (31%). Unlike the situation in the optical, where Ap stars typically exhibit numerous Fe ii and Ti ii lines, no Fe ii lines are confidently detected in the spectra of any stars, and Ti ii detections are quite rare. The star 2MASS J23102121+4717017 is the only available example where more than two magnetically split Ti ii lines were resolved.

5 Mean Magnetic Field Modulus Measurement

Given measurements of the wavelength separations of magnetically split components in a given absorption line and knowledge of the Landé $g$ factors of the associated energy levels, it is straightforward to compute the mean magnetic field modulus $\langle$B$\rangle$ in units of Gauss according to

[TABLE]

Here, $\Delta\lambda$ is the separation in Å between an outer and the central split component or else half of the separation between outer components in a triplet profile. $\lambda_{0}$ is the rest wavelength of the line in Å and $k$ is a constant, $4.67\times 10^{-13}$ Å*-1* G*-1*. It is important to note that although we have only analyzed spectral lines exhibiting apparent triplet profiles like those shown in the lower panels of Figure 1, the Zeeman patterns (see Mathys, 1990) of the $H$-band lines have not been investigated and Equation 1 is therefore an approximation.

The effective Landé factor ($g_{\rm eff}$) of a given transition is calculated using the total angular momentum quantum numbers ($J$) and Landé factors ($g$) of the lower (1) and upper level (2) as follows:

[TABLE]

where in the case of $J_{1}=J_{2}$, $g_{\rm eff}$ is simply the average of the Landé factors of the lower and upper levels.

To measure $\Delta\lambda$, we either fit Gaussians to the absorption features or simply estimated their positions visually. This was done interactively using the $splot$ program in IRAF. For each star, the splitting was measured for as many lines as possible and the results were averaged, with assumed or derived errors on $g_{\rm eff}$ being propagated appropriately. On average, measurements from $\sim$13 lines per star were used, but the range of number of lines used is quite large. In a few cases, the magnetic splitting could only be measured in two to three lines, often because the only metallic lines present are Ce iii. In the case of 2MASS J06365367+0118455 however, the splitting of 61 lines was measured.

The $J$ and $g$ values used here were taken from the Kurucz linelist, and we assumed a constant uncertainty of 0.02 for the $g_{\rm eff}$ of lines with existing laboratory data. However, laboratory data are unavailable for the Ce iii lines and for the unknown lines (see Section 4), such that it was necessary to estimate the $g_{\rm eff}$ of these lines. To do so, we defined a sub-sample of 34/157 stars with high-S/N spectra, particularly well-resolved magnetically split features, and measurements of lines with known $g_{\rm eff}$ in addition to Ce iii and the unknown lines. The lines with known $g_{\rm eff}$ were used to calculate preliminary $\langle$B$\rangle$ measurements for the 34 stars. These values were then used derive average estimates of $g_{\rm eff}$ for the Ce iii and unknown lines.

Table 1 summarizes the 149 lines used for measurement of $\langle$B$\rangle$, providing the vacuum wavelength, log($gf$), energy levels, and $g_{\rm eff}$ for each line, as well as the number of stars for which magnetic splitting was measured. Overall, we find relatively low $g_{\rm eff}$ for Ce iii and the unknown lines, which together average $g_{\rm eff}\sim$1.07. The weak Ce iii 15720 Å line has the highest estimated value at $g_{\rm eff}\sim$1.39, but unfortunately this line is rarely observed.

5.1 $H$-band Results

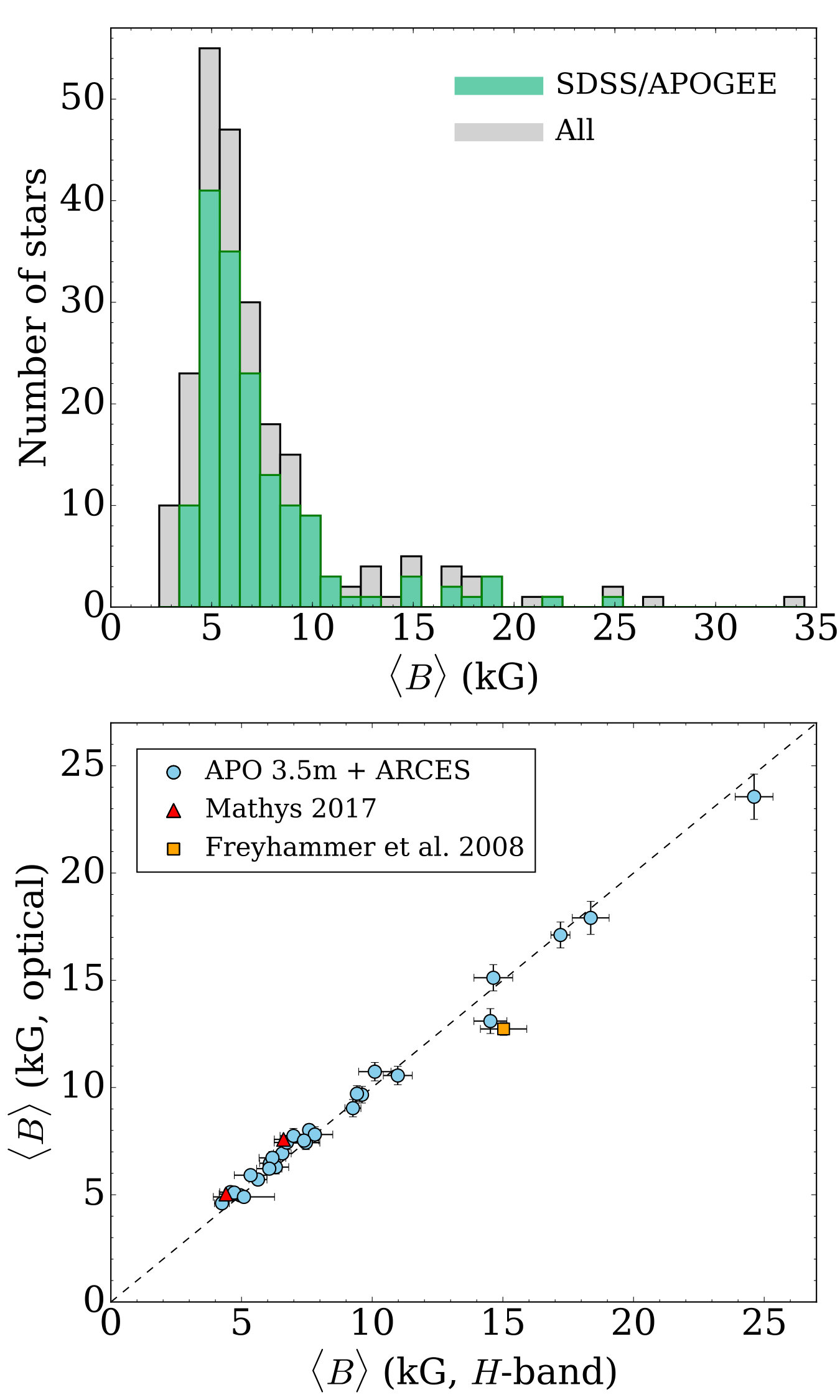

The upper panel of Figure 2 shows the distribution of measured $\langle$B$\rangle$ of all Ap stars known to exhibit RMSLs, with the new discoveries presented in this Letter shaded in green and with those from Mathys (2017) shaded in gray. The average for the APOGEE sample is $\langle$B\rangle$$\sim7.1 kG, while the average for all stars including those of Mathys (2017) is a bit higher at $\langle$B\rangle$$\sim7.3 kG due to the inclusion of Babcock’s Star. The distribution of $\langle$B$\rangle$ measured using APOGEE spectra ranges from $\sim$3.6 kG in the case of 2MASS J02463240+0001145 up to $\sim$25 kG in the case of 2MASS J02563098+4534239. A total of 19 new examples of stars with $\langle$B\rangle$$>10 kG are identified, thus filling in the previous gap between 10–11 kG.

The lower limit on $\langle$B$\rangle$ of $\sim$3.5 kG measurable from the APOGEE spectra is a consequence of resolving power, whereby the smallest splitting that we can measure is about 0.6 Å. For a star with strong Mn i 15222 Å ($g_{\rm eff}$=1.969), splitting should be visible down to $\langle$B$\rangle$ of just below 3 kG. No such examples have been found, however, meaning that it is not possible to investigate the notion of an intrinsic lower limit to measurable field strength of $\langle$B\rangle$$\sim 2 kG (Mathys, 2017).

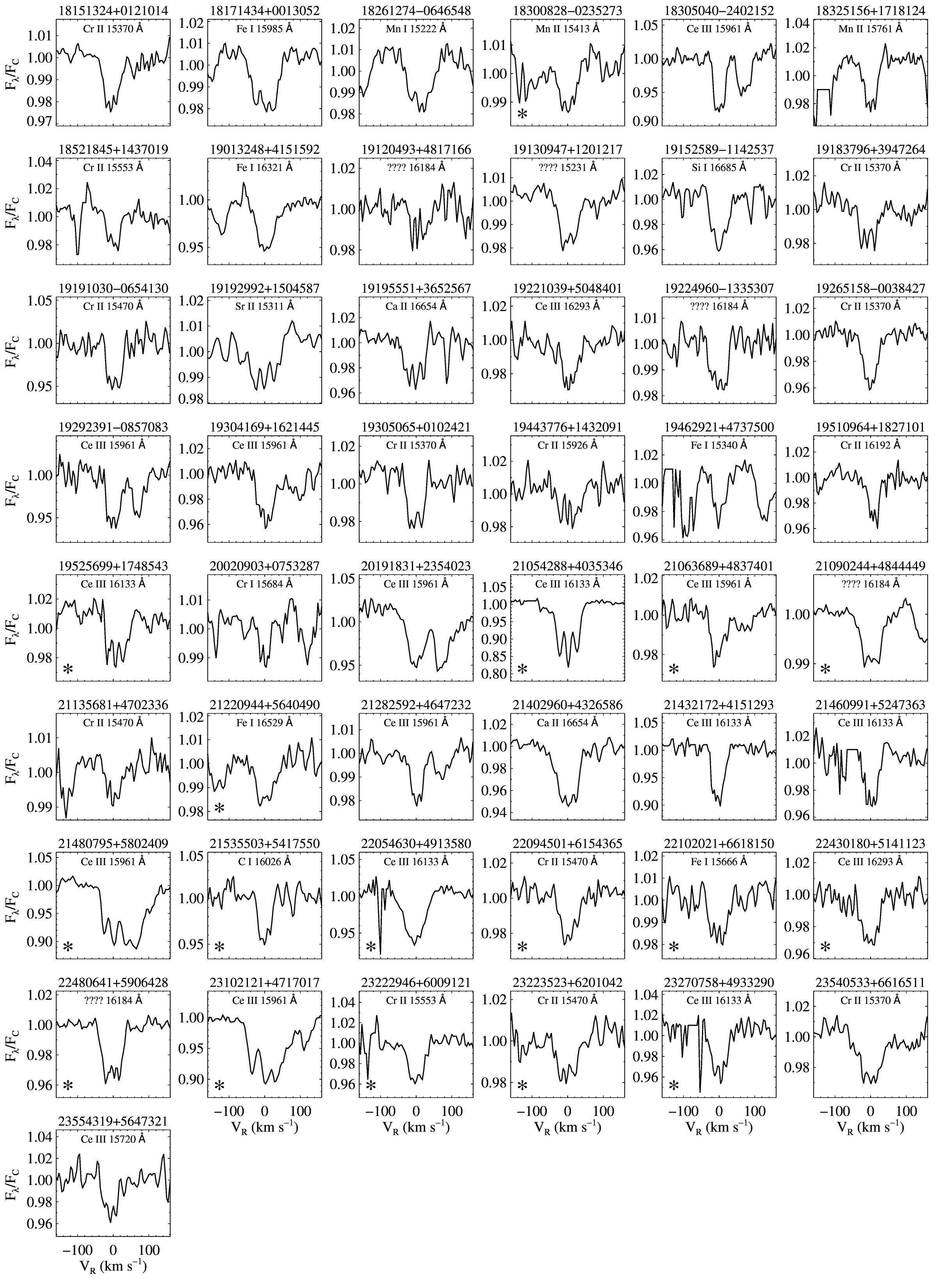

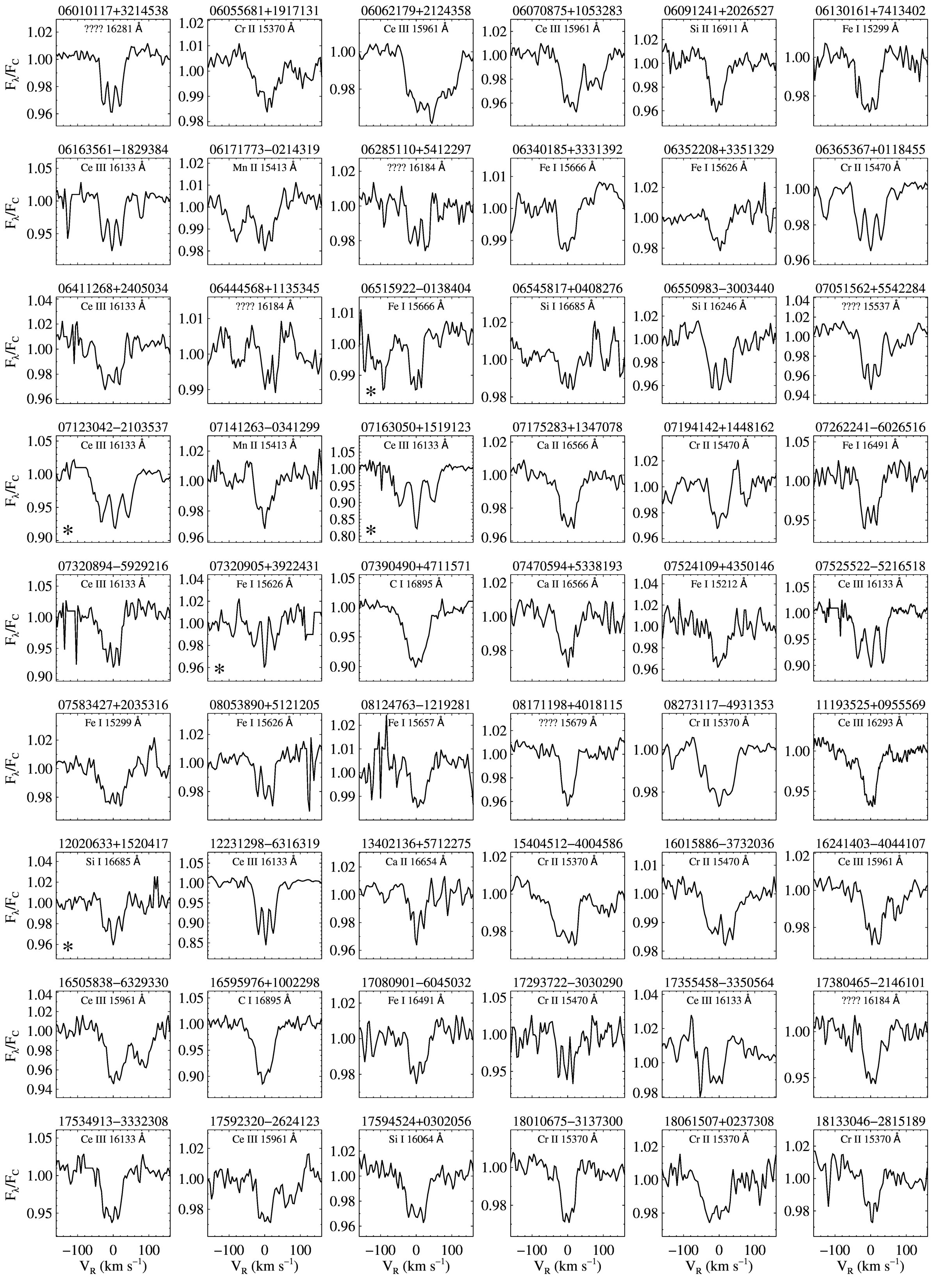

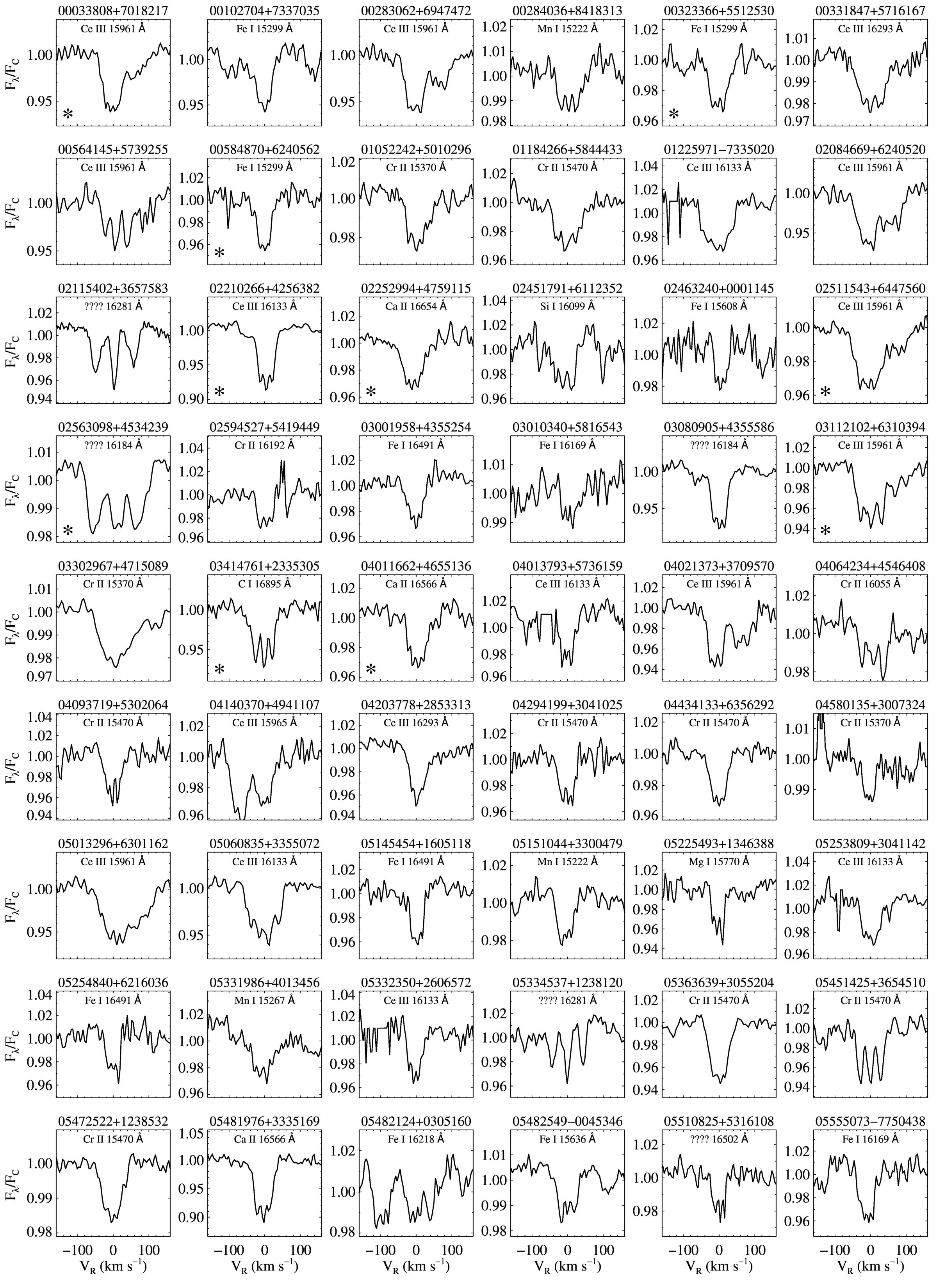

Figure 3 shows an example of a magnetically split line for each of the 157 stars, generally showing the most clearly resolved line. In the cases where Ce iii 16133 Å is displayed, narrow spikes blueward of the line are residuals from the imperfect removal of the aforementioned strong airglow line at 16129 Å.

5.2 Optical Results

The same procedure described in Section 5 was applied to the 29 optical follow-up spectra obtained with the ARC 3.5m telescope and ARCES spectrograph in order to provide a sanity check on the $H$-band measurements of $\langle$B$\rangle$. As expected, the stars exhibit numerous RMSLs in the optical. For the 19/29 stars with $\langle$B\rangle$$<8 kG, we relied primarily on limited numbers of long wavelength lines (7000–10200 Å), while for the 10/29 stars with $\langle$B\rangle$$>9 kG, we measured hundreds of RMSLs for each star, keeping the 50 lines nearest to the average. Another 3 of the 157 stars were included in the Mathys (2017) sample of stars for which magnetically split lines had been previously resolved in optical spectra.

As demonstrated in the lower panel of Figure 2, we find good agreement overall between the $H$-band and optical measurements, with the results agreeing to within a kG in most cases. The most discrepant results pertain to the star 2MASSJ 07123042-2103537 (HD 55540), where we find $\langle$B$\rangle$=15.0 kG despite Freyhammer et al. (2008) having found $\langle$B$\rangle$=12.7 kG. The three available APOGEE spectra of this star allow us to confirm that not only is the difference due to temporal variability of the observed $\langle$B$\rangle$, but also that the star is indeed radial velocity variable as pointed out by Freyhammer et al. (2008).

We also used the optical spectra to estimate traditional spectral types based on comparison of the target stars to a sample of 30 bright A and B stars with spectra in the ELODIE Archive (Prugniel & Soubiran, 2001). Stars with clear detections of He i 4471 Å and weak or missing Fe i, Mg i, Ca i, and Mn i lines were assigned temperature classes of B8 or B9, while the A stars were classified based on the equivalent widths of temperature-dependent lines ($e.g.,$ Fe i 4045 Å, Mg i 5183 Å, Ca i 4227 Å, Mn i 4031 Å) as well the ratios of neutral versus singly ionized lines ($e.g.,$ Mg i/Mg ii and Fe i/Fe ii). Due in part to difficulty finding the continuum around the wings of the hydrogen Balmer series lines in the ARCES camera’s small wavelength ranges per order, luminosity classes were not estimated. Anomalously strong absorption lines from Si, Cr, Sr, and Eu are specifically flagged.

Table 2 summarizes the $H$-band and optical magnetic field modulus measurements, giving 2MASS designations, alternate identifiers, $V$ magnitudes from UCAC4 (Zacharias et al., 2013), $H$ magnitudes from 2MASS, the number of APOGEE spectra of each star, the S/N ratio of the combined spectrum, a literature or estimated spectral type if available, the magnetic field modulus $\langle$B$\rangle$, and the number of spectral lines used to measure $\langle$B$\rangle$. In the cases where optical measurements were available, the final columns of Table 2 provide the associated $\langle$B$\rangle$ measurement and the number of spectral lines used. Less reliable measurements of $\langle$B$\rangle$, usually due to large scatter between different lines and/or measurements near the resolution limit of APOGEE are given in parentheses in Table 2.

6 Conclusions

Although spectroscopic observations at long wavelengths such as in the $H$-band help to maximize the $\Delta\lambda$ term of Equation 1 and to lessen the impact of blending due to the Doppler effect, this Letter represents the first serious exploitation of this wavelength regime for investigating the magnetic fields of Ap stars. The APOGEE sample of Ap stars with RMSLs represents a 183% increase in the number of Ap stars with $\langle$B$\rangle$ measurements, bringing the total to 238 stars. As the SDSS/APOGEE survey is still ongoing, this number is expected to increase. Detailed characterization of the now much larger sample of Ap stars with RMSLs may help to shed light on the origin of magnetic fields in stars with radiative envelopes as well as the relations between magnetism and other factors such as binarity and rotation. In particular, an investigation of the stellar parameters and chemical abundances of the sample would be a worthwhile effort, as would be high-resolution spectroscopic monitoring to measure the average value of $\langle$B$\rangle$ and the rotational period.

As demonstrated in the histogram of magnetic field modulus presented in Figure 2, more than 50% of Ap stars with magnetically split lines possess magnetic fields in the range of 4–7 kG. Despite the identification among the APOGEE sample of 19 new examples of stars with $\langle$B\rangle$$>10 kG, led by 2MASS J02563098+4534239 ($\langle$B$\rangle$=25 kG), the high-$\langle$B$\rangle$ tail of the distribution remains capped by the 34 kG magnetic field of Babcock’s Star (HD 215441; Babcock, 1960). The only other non-degenerate star known to approach 30 kG is HD 75049 (Elkin et al., 2010), for which $\langle$B$\rangle$ ranges from 24 to 30 kG over an orbital period. Among the more massive magnetic stars, which are He-rich early-type B stars, the strongest known magnetic field is only 21 kG (Hubrig et al., 2017). We can speculate that the magnetic field value of 34 kG likely represents a critical field strength above which stable magnetic fields do not exist in Ap stars. Such a limit would be probably be related to the restricted range of seed fields, of the order of milli-Gauss, that are observed in star-forming regions (Han & Zhang, 2007).

Acknowledgements. Funding for the Sloan Digital Sky Survey IV has been provided by the Alfred P. Sloan Foundation, the U.S. Department of Energy Office of Science, and the Participating Institutions. SDSS acknowledges support and resources from the Center for High-Performance Computing at the University of Utah. The SDSS web site is www.sdss.org.

SDSS is managed by the Astrophysical Research Consortium for the Participating Institutions of the SDSS Collaboration including the Brazilian Participation Group, the Carnegie Institution for Science, Carnegie Mellon University, the Chilean Participation Group, the French Participation Group, Harvard-Smithsonian Center for Astrophysics, Instituto de Astrofísica de Canarias, The Johns Hopkins University, Kavli Institute for the Physics and Mathematics of the Universe (IPMU) / University of Tokyo, Lawrence Berkeley National Laboratory, Leibniz Institut für Astrophysik Potsdam (AIP), Max-Planck-Institut für Astronomie (MPIA Heidelberg), Max-Planck-Institut für Astrophysik (MPA Garching), Max-Planck-Institut für Extraterrestrische Physik (MPE), National Astronomical Observatories of China, New Mexico State University, New York University, University of Notre Dame, Observatório Nacional / MCTI, The Ohio State University, Pennsylvania State University, Shanghai Astronomical Observatory, United Kingdom Participation Group, Universidad Nacional Autónoma de México, University of Arizona, University of Colorado Boulder, University of Oxford, University of Portsmouth, University of Utah, University of Virginia, University of Washington, University of Wisconsin, Vanderbilt University, and Yale University.

D.A.G.H. and O Z. acknowledge support from the State Research Agency (AEI) of the Spanish Ministry of Science, Innovation and Universities (MCIU) and the European Regional Development Fund (FEDER) under grant AYA2017-88254-P.

We thank the referee for numerous useful suggestions that improved this Letter.
