Spitzer Detection of the Transiting Jupiter-analog Exoplanet Kepler-167e

TL;DR

This study reports Spitzer observations of Kepler-167e, a Jupiter-analog exoplanet, confirming its transit timing and depth, and providing a precise ephemeris for future atmospheric studies, marking it as a key benchmark for comparative planetology.

Contribution

First detection of Kepler-167e's transit with Spitzer, establishing a precise transit ephemeris and ruling out large transit timing variations, enabling future atmospheric characterization.

Findings

Spitzer transit timing matches Kepler ephemeris.

No significant transit timing variations detected.

Predicted transmission spectrum for atmospheric studies.

Abstract

We acquired observations of a partial transit of Kepler-167e, a Jupiter-analog exoplanet on a 1,071-day orbit, well beyond its water ice line, with the Spitzer Space Telescope. The timing of the Spitzer transit is consistent with the ephemeris measured from the two transits observed previously by the Kepler Space Telescope. The Spitzer observation rules out the existence of transit timing variations (TTVs) of order hours to days that are known to exist for other long-period exoplanets. Such TTVs render transit follow-up efforts intractable due to the substantial observing time required and the high risk of non-detection. For Kepler-167e, however, we are now able to predict future transit times through the anticipated era of the James Webb Space Telescope with uncertainties of less than six minutes. We interpret the lack of TTVs as an indication that Kepler-167e either does not have an exterior massive companion or that the gravitational interactions with any companions are below our detection threshold. We also measure Kepler-167e's 3.6-$\mu$m transit depth and use exoplanet and solar system models to make predictions about its transmission spectrum. The transiting nature of Kepler-167e and its similarity to Jupiter make it a unique and exceptional target for follow-up atmospheric characterization. Kepler-167e falls into a truly rare category among transiting exoplanets, and with a precisely constrained transit ephemeris, it is poised to serve as a benchmark in comparative investigations between exoplanets and the solar system.

Figures

Tables

Table 1. Table 1: Timing of Past and Future Transits of Kepler-167e As Calculated in This Work

	$t_{\mathrm{mid}}$	$t_{\mathrm{mid}}$	${\sigma }_{t_{\mathrm{mid}}}$aaMid-transit time uncertainties (${\sigma }_{t_{\mathrm{mid}}}$) are measured or predicted for transits in the past or future, respectively.
Epoch	(BJDTDB)	(UTC)	(minutes)
0	2455253.28654	2010 Feb 25 18:51:27	$\pm$0.60
1	2456324.51962	2013 Feb 1 00:27:08	$\pm$0.62
2bbThis transit occurred after the primary Kepler mission ended.	$\cdots$	$\cdots$	$\cdots$
3	2458466.985	2018 Dec 14 11:38	$\pm$23
4ccThis transit is not observable by JWST due to solar avoidance constraints (see Section 4.1).	2459538.2189	2021 Nov 19 17:14	$\pm$3.0
5	2460609.4519	2024 Oct 25 22:50	$\pm$3.9
6	2461680.6850	2027 Oct 2 04:25	$\pm$4.7
7	2462751.9181	2030 Sep 7 10:01	$\pm$5.6

Full text

planets and satellites: fundamental parameters — planets and satellites: atmospheres — techniques: photometric — methods: observational — planets and satellites: individual (Kepler-167e)

††journal: ApJ Letters††software:

astropy (Astropy Collaboration et al., 2013),

BATMAN (Kreidberg, 2015),

corner (Foreman-Mackey, 2016),

emcee (Foreman-Mackey et al., 2013),

Exo-Transmit (Kempton et al., 2017),

forecaster (Chen & Kipping, 2017)

1 Introduction

Jovian planets are excellent candidates for comparative investigations between the solar system and exoplanets. In the solar system, the dynamics of Jupiter and Saturn likely sculpted the system’s final orbital architectures (e.g., Tsiganis et al., 2005; Morbidelli et al., 2007; Batygin & Laughlin, 2015). The Jovian planets also likely influenced the properties of Mars (Walsh et al., 2011) and the Earth, specifically related to the delivery of volatiles, the impact rates of minor bodies, and the development of life (e.g., Zahnle & Sleep, 1997; Morbidelli et al., 2000; Horner et al., 2010). In exoplanetary systems, evidence exists for the substantial migration of Jovian exoplanets (e.g., Lin et al., 1996). A full understanding of the mechanisms dictating this migration will come with repercussions for the occurrence rates and architectures of planetary systems hosting giant planets. This is equally true for the solar system, where such migration appears not to have occurred (e.g., Masset & Snellgrove, 2001; Morbidelli & Crida, 2007).

Although the discovery of exoplanets has so far been dominated by the transit method, Jovian planets are more readily discovered by radial velocity (RV) surveys. Unfortunately, atmospheric characterization of RV exoplanets (at least those that do not transit; Dalba et al., 2019) awaits the next generation of direct imaging observatories (e.g., the Wide Field Infrared Survey Telescope, Spergel et al., 2015).

Alternatively, follow-up characterization of Jovian-analog exoplanets (Jovian exoplanets with orbital properties or stellar irradiation resembling Jupiter or Saturn) is feasible via transit observations. Cassini spacecraft observations demonstrated the amenability of Saturn-analog exoplanets to transmission spectroscopy (Dalba et al., 2015). Atmospheric refraction provides another means of atmospheric characterization and one that is specifically tailored to Jovian-analog exoplanets (Dalba, 2017). Additionally, repeated transit observations offer an opportunity to detect and characterize exomoons (e.g., Kipping, 2011; Teachey et al., 2018; Teachey & Kipping, 2018).

However, the low transit probability of a Jovian-analog exoplanet is a major obstacle to their characterization. Despite this crippling bias, the four-year baseline of the primary Kepler mission (Borucki et al., 2010) enabled the discovery of Kepler-167e, a 0.9 $R_{\rm Jupiter}$ exoplanet orbiting a K-dwarf host star once every $\sim$1071 days (Kipping et al., 2016). Kepler-167e has been branded as a Jupiter-analog because of its size, its low eccentricity, and its Jupiter-like stellar insolation. Kepler observed only two transits of Kepler-167e, which did not allow for the detection of transit timing variations (TTVs). Around 50% of Kepler’s long-period transiting exoplanets and candidates exhibit TTVs of at least 2–40 hr (Wang et al., 2015). These variations are difficult to characterize with only a few observed transits and, for many cases, leave an insuperable uncertainty on the timing of future transits.

Here, we present observations acquired by the Spitzer Space Telescope of a partial transit of Kepler-167e. These observations confidently rule out the existence of TTVs that would have precluded characterization of this Jupiter-analog exoplanet with the Hubble Space Telescope (HST) and the upcoming James Webb Space Telescope (JWST). In Sections 2 and 3, we summarize the Spitzer observations and data analysis. In Section 4, we analyze the Kepler transits in conjunction with the Spitzer transit to constrain the magnitude of TTVs and to predict the transit times of Kepler-167e through 2030. Lastly, in Section 5, we discuss the immense potential of Kepler-167e as a target for follow-up characterization.

2 Spitzer Observations

The Spitzer Space Telescope observed Kepler-167e for 10 consecutive hours beginning on 2018 December 14 at 14:31 Coordinated Universal Time (UTC) under program 14047 (PI: P. Dalba). The Spitzer observations were designed as in Dalba & Muirhead (2016), to test the ephemeris of an exoplanet with only two previously observed transits for TTVs. The brightness of Kepler-167 ($K=11.832$) coupled with the anticipated transit depth ($\sim$1.6%) meant that this test did not require the observation of a full transit. In the absence of TTVs, we expected the observation window to be (roughly) centered on transit egress.

Observations were made using Channel 1 (3.6 $\mu$m) of the Infrared Array Camera (IRAC, Fazio et al., 2004) in accordance with the Spitzer best practices for high-precision photometry.111See https://irachpp.spitzer.caltech.edu/page/Obs%20Planning. The systematic noise is known to be $\sim$4 times higher in Channel 1 than in Channel 2 (e.g., Krick et al., 2016). Still, we observed in Channel 1 where Kepler-167 is brighter and where opacity from CH4 and higher-order hydrocarbons could have potentially affected the 3.6 $\mu$m transit depth (e.g., Dalba et al., 2015). In total, 2648 10.4 s exposures of Kepler-167 were acquired.

3 Spitzer Data Analysis

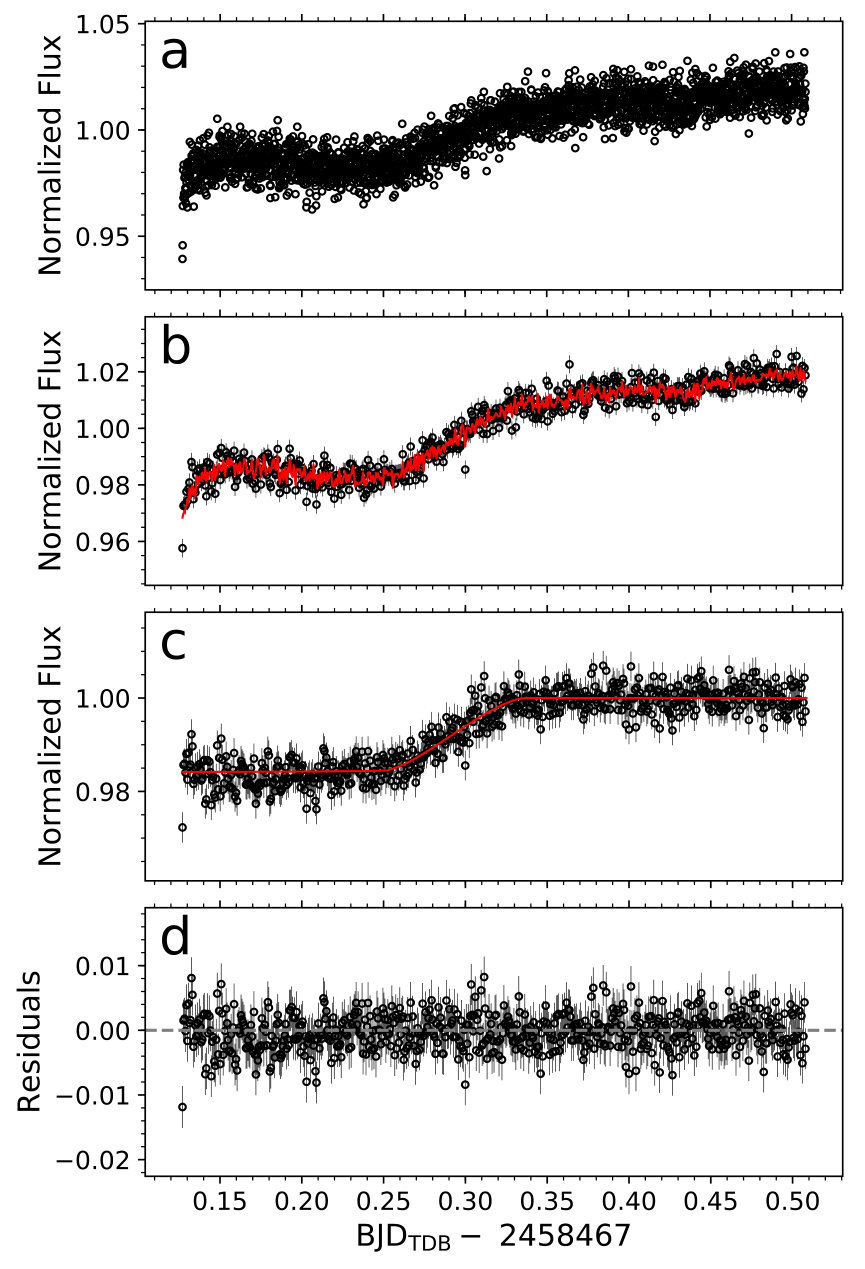

IRAC observations suffer from systematic noise due to intrapixel variations in quantum efficiency (i.e., the “pixel phase effect”). Here, we describe our methods to simultaneously account for this effect and fit the transit light curve of Kepler-167e.

To mitigate the pixel phase effect, we utilized Pixel-Level Decorrelation (PLD, Deming et al., 2015), which has been extensively used to derive accurate transit and eclipse depths from Spitzer data (see Tamburo et al., 2018, and references therein). For this observation, we modified this regression procedure to additionally choose the optimal grid of basis pixels. First, we created 25 different sets of basis pixel grids, starting with the single brightest pixel and including the next faintest pixel in subsequent grids as determined by the average flux captured over the time series. Then, for each combination of aperture radius and bin size, we performed a regression fit to the raw photometry for each of the 25 sets of pixels. The grid that optimized the Bayesian Information Criterion (Schwarz, 1978) was chosen for that particular combination of aperture radius and bin size. Finally, we used the Allan variance criterion to choose the best global regression solution.

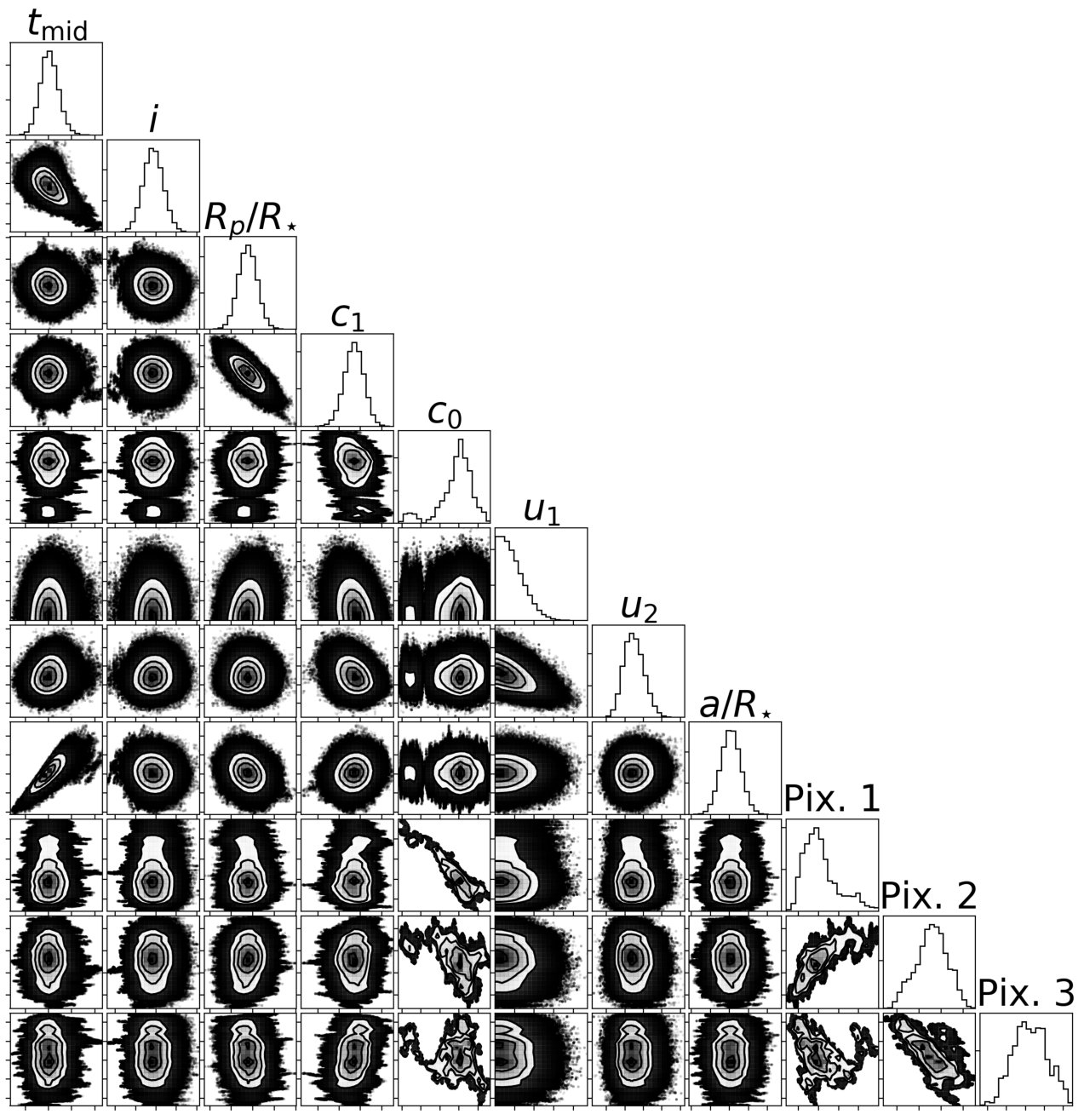

Our procedure selected a basis pixel grid consisting of the three brightest pixels (with coefficients “Pix. 1,” “Pix. 2,” and “Pix. 3”). The time series intensities of these pixels were normalized following Deming et al. (2015) and then fit to the photometry along with a linear temporal ramp function (with slope $c_{1}$ and offset $c_{0}$) and a transit model. The optimal PLD solution used photometry extracted from a 1.6 pixel radius aperture, binned by a factor of four. The photometry throughout each stage of this analysis is shown in Figure 1.

We then used the Markov chain Monte Carlo (MCMC) formalism described by Deming et al. (2015) to fit a transit model to the Spitzer data. We applied Gaussian priors to inclination ($i$) and the semi-major axis ($a$) scaled to the stellar radius ($R_{\star}$) using the parameters from Kipping et al. (2016). The quadratic limb darkening parameters ($u_{1}$ and $u_{2}$) were also given Gaussian priors centered at the values from Claret & Bloemen (2011) that most closely match Kepler-167 and with width 0.2. Mid-transit time ($t_{\rm mid}$) and the planet radius ($R_{p}$) scaled to the stellar radius were given uniform priors spanning the entire physically allowed parameter space. Alternatively, the orbital period ($P$), eccentricity ($e$), and longitude of periastron ($\omega$) were locked to their median values from Kipping et al. (2016). Fitting the partial Spitzer transit for these parameters would have yielded weak constraints and would have unrealistically inflated the uncertainties of the other parameters when marginalized over $P$, $e$, and $\omega$.

We ran three MCMC chains of 1$\,\times\,10^{6}$ steps each, with 1$\,\times\,10^{4}$-step burn-in periods. This burn-in was chosen to adjust the step size for each parameter to converge on an acceptance rate of 35%. We confirmed the convergence of the chains using the Gelman–Rubin statistic, which was at most 1.01 for the fitted physical parameters. Not all of the systematic parameters (i.e., $c_{0}$ and Pix. 1–3) achieved this level of convergence, as demonstrated by the posterior probability distributions in Figure 2. This is not unusual for PLD (e.g., see Figure 11 of Deming et al., 2015). However, the physical parameters do not correlate with these systematic parameters, so the impact on the inferred physical parameter values is negligible. As expected, our constraints on $i$ and $a/R_{\star}$ are consistent with, but less precise than, those reported by Kipping et al. (2016). We measured the mid-transit time and planet–star radius ratio to be $t_{\rm mid}~{}=~{}2458466.985^{+0.016}_{-0.015}$ BJDTDB222BJDTDB is Barycentric Julian Date (BJD) expressed as Barycentric Dynamical Time (TDB). and $R_{p}/R_{\star}~{}=~{}0.1260^{+0.0035}_{-0.0035}$. These uncertainties are based on the 16th and 84th percentiles of the posterior probability distributions.

To test the reliability of our basis pixel selection, and to ensure that the small basis set was not merely the result of the BIC’s complexity penalty, we completed our entire Spitzer data analysis again using the nine brightest pixels in PLD as the basis set. The physical (transit) parameters achieved the same convergence using this new model and their credible intervals were statistically indistinguishable from those shown in Figure 2. This result increases the confidence in the basis pixel selection procedure and in the resulting interpretation of the Spitzer data.

4 Confirmation of the Linear Ephemeris of Kepler-167e

TTVs can be effectively detected or ruled out for an exoplanet with at least three observed transits. Here, we measure individual mid-transit times of Kepler-167e in the Kepler data and combine these with the Spitzer transit time to quantify the extent to which TTVs affect the ephemeris. We acquired the pre-search data conditioning photometry (PDCSAP) from Data Release 25 for Quarters 4 (long cadence) and 16 (short cadence).333See https://archive.stsci.edu/kepler/. Accessed 2018 December 5. These PDCSAP fluxes were processed with version 9.3 of the Science Operations Center pipeline, which included improvements in the calculation of the stellar scene that resulted in more accurate crowding metrics (Dalba et al., 2017) and higher photometric precision on average (e.g., Twicken et al., 2016). Near each transit, the PDCSAP flux was relatively free from low-frequency noise and other systematic errors (Figure 3, left panels), so we did not complete any additional processing.

Both Kepler-167e transits were individually fit to transit models produced by the BAsic Transit Model cAlculatioN (BATMAN, Kreidberg, 2015) package using the MCMC ensemble sampler emcee (Foreman-Mackey et al., 2013). Flux “smearing” caused by the 29.4 minute sampling of the long cadence data was accounted for through numerical integration (Kipping, 2010; Southworth, 2011).

For each transit, Gaussian priors were imposed on $P$, $a/R_{\star}$, $i$, and $e$ using the values reported by Kipping et al. (2016). Uniform priors spanning the entire physically allowed parameter space were imposed on $t_{\rm mid}$, $R_{p}/R_{\star}$, $\omega$, and the quadratic limb darkening parameters—sampled following Kipping (2013). While the application of priors from Kipping et al. (2016) was somewhat circular (i.e., choosing priors based on analysis of a data set containing the same transit being fit), it assured that parameters that could not be precisely inferred from a single transit were constrained by the other transit. We gauged convergence of the fit by comparing the integrated autocorrelation time ($\tau$) to the length of the chains (e.g., Foreman-Mackey et al., 2013). Sampling continued until the chain lengths for all fitted parameters were at least 10$\tau$ (50$\tau$ in the case of $t_{\rm mid}$). For both transits, the effective number of samples of the $t_{\rm mid}$ posterior was of order 1.5$\,\times\,10^{4}$. The results of the Kepler fits are presented in Table 1 and Figure 3 (left panels).

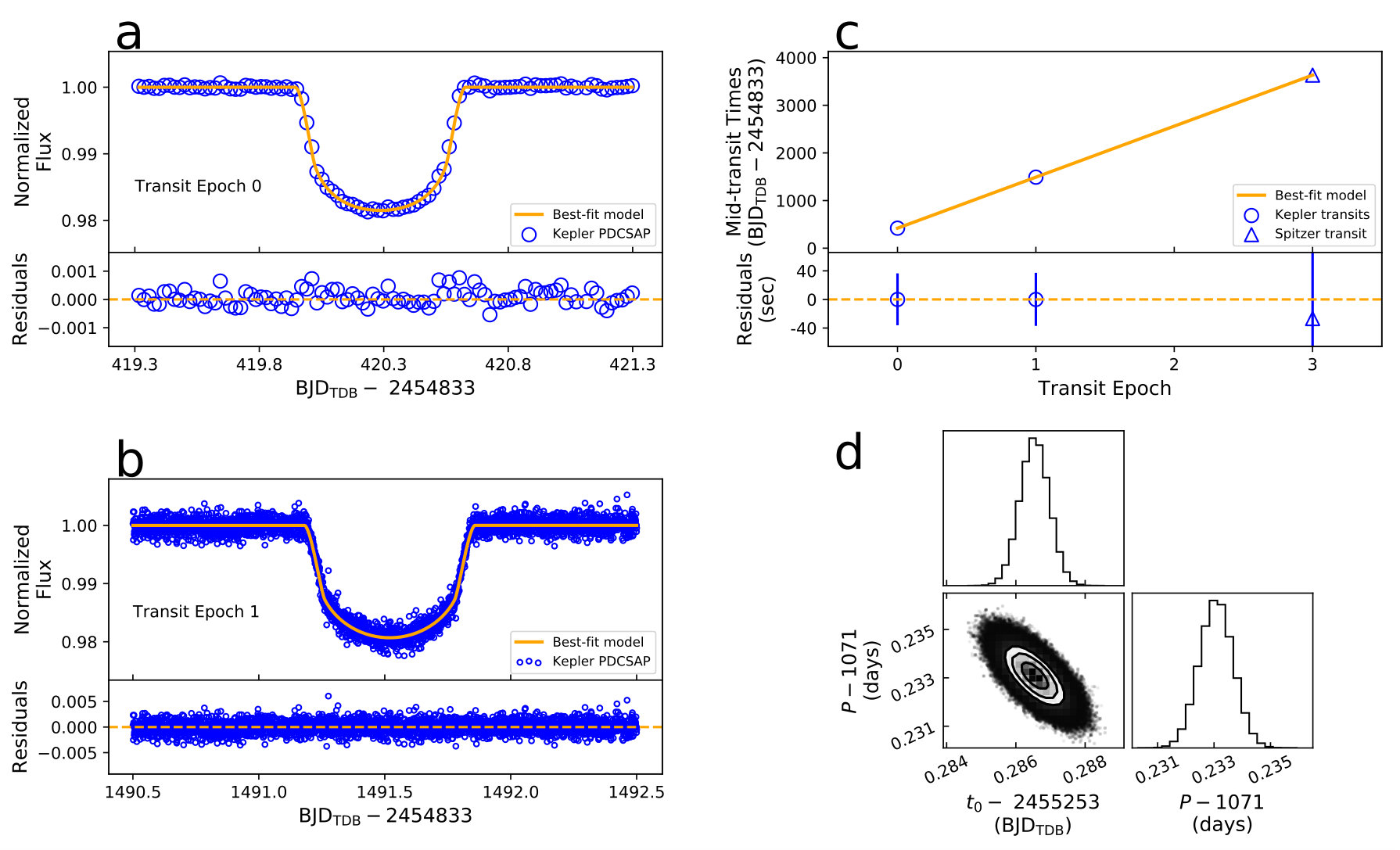

Kepler-167e’s three mid-transit times were fit with a linear model as a function of epoch (Figure 3, top right panel). The sampler emcee was again used to infer the fitted parameters and their uncertainties. Convergence of the fit was judged in the same fashion as before. The posterior probability distributions of the two linear parameters are shown in Figure 3 (bottom right panel).

For Kepler-167e, we report an orbital period of $P~{}=~{}1071.23308^{+0.00059}_{-0.00060}$ days and an initial transit epoch of $t_{0}~{}=~{}2455253.28654^{+0.00042}_{-0.00042}$ BJDTDB. These values are consistent with the ephemeris from Kipping et al. (2016). Therefore, the Spitzer observations have confirmed the accuracy of the linear ephemeris inferred from the two Kepler transits and enabled the accurate prediction of future transit times. The magnitude of the uncertainty on $P$ calculated in this work and by Kipping et al. (2016) is similar because of the relatively large uncertainty on the timing of the Spitzer transit compared to the Kepler transits. However, now the reported orbital period of Kepler-167e does not contain an unaccounted for source of uncertainty due to the unknown influence of TTVs.

We place upper limits on TTVs in the ephemeris of Kepler-167e by comparing the time intervals between subsequent transits. Epochs 0 and 1 are separated by $1071.23308\pm 0.00060$ days, and epochs 1 and 3 are separated by $2142.465\pm 0.016$ days. Dividing the latter in half, we find the difference between these two orbital period estimates to be $0.00058\pm 0.0079$ days, meaning that we do not measure a variation in the timing of the Kepler-167e transits. Based on our measurement uncertainty ($\sigma$), we rule out TTVs of order 11, 34, and 57 minutes to $1\sigma$, $3\sigma$, and $5\sigma$ significance, respectively.

The extent to which TTVs are ruled out is largely determined by the precision of the Spitzer observations. As mentioned in Section 2, the choice to observe in Channel 1 involved a direct trade-off between photometric precision and the test for hydrocarbon opacity near 3.6 $\mu$m. On the other hand, from only a partial transit, neither Channel would have been capable of matching the transit timing precision of the Kepler data, which indeed dominates the final ephemeris.

4.1 Future Kepler-167e Transit Times

Using the posterior probability distributions of the parameters in Kepler-167e’s linear transit ephemeris, we predicted its mid-transit times through 2030 (Table 1). In all cases, the uncertainty is less than six minutes, making Kepler-167e an accessible target to telescopes on which time is expensive and limited.

We used the HST Astronomer’s Proposal Tool444See http://www.stsci.edu/hst/proposing/apt. to determine that all transits through 2030 are observable by HST. We then used the JWST General Target Visibility Tool555See https://jwst-docs.stsci.edu/display/JPP/JWST+General+Target+Visibility+Tool+Help. to determine that Kepler-167’s annual window of JWST observability (based on solar elongation) spans mid-April to early November. In 2021, this window closes on approximately November 8. As a result, the 2021 transit of Kepler-167e cannot be observed by JWST. All other transits of Kepler-167e through 2030 will be observable by JWST.

5 Discussion: The Rarity of a Transiting Jupiter-analog

The transiting nature of Kepler-167e makes it a remarkably improbable target for follow-up observation. It is a member of a small group of transiting exoplanets that orbit their host stars from beyond the water ice line. Moreover, the timing of Kepler-167e’s future transits are not plagued by uncertainties from poorly constrained TTVs (Wang et al., 2015). Based on the Spitzer observations presented here, follow-up efforts for Kepler-167e are no longer high risk, only high-reward.

Kepler-167e bares several striking resemblances to Jupiter and Saturn that make it an exceptional target for future study. Its radius is within 10% of Jupiter’s and Saturn’s. Its equilibrium temperature ($T_{\rm eq}~{}\approx~{}131$ K, assuming a Jupiter-like Bond albedo) is only 20 K warmer than Jupiter’s. Its eccentricity ($e~{}=~{}0.062^{+0.104}_{-0.043}$) is consistent with Jupiter’s ($e~{}=~{}0.0489$) and Saturn’s ($e~{}=~{}0.0565$). These properties highlight potential connections between these planets’ formation and evolution histories that warrant further investigation.

5.1 The Next Steps in the Characterization of Kepler-167e

The immediate next step in the characterization of Kepler-167e is the measurement of its mass ($M_{p}$). Our references to Kepler-167e as an exoplanet have made the assumption that its mass is planetary. Kipping et al. (2016) argued that Kepler-167e is four times more likely to be planetary than sub-stellar, but its mass has not yet been measured. Obtaining the RV precision to distinguish between these two scenarios is likely possible from current precision-RV facilities assuming a sufficiently long baseline of observations is collected.

After Kepler-167e’s mass is measured, the next step is the characterization of its atmosphere via transmission spectroscopy. Using the Spitzer $R_{p}/R_{\star}$ measurement, we approximate the 3.6 $\mu$m transit depth of Kepler-167e as $(R_{p}/R_{\star})^{2}_{\rm Spitzer}~{}=~{}1.589\pm 0.088$%. This is indistinguishable from the more precise Kepler transit depth: $(R_{p}/R_{\star})^{2}_{\rm Kepler}~{}=~{}1.641\pm 0.017$% (Kipping et al., 2016). Featureless (flat) transmission spectra have previously been interpreted as signs of clouds or high mean molecular weight atmospheres (e.g., Kreidberg et al., 2014). However, we caution that more data are needed before an interpretation of Kepler-167e’s atmosphere can be made.

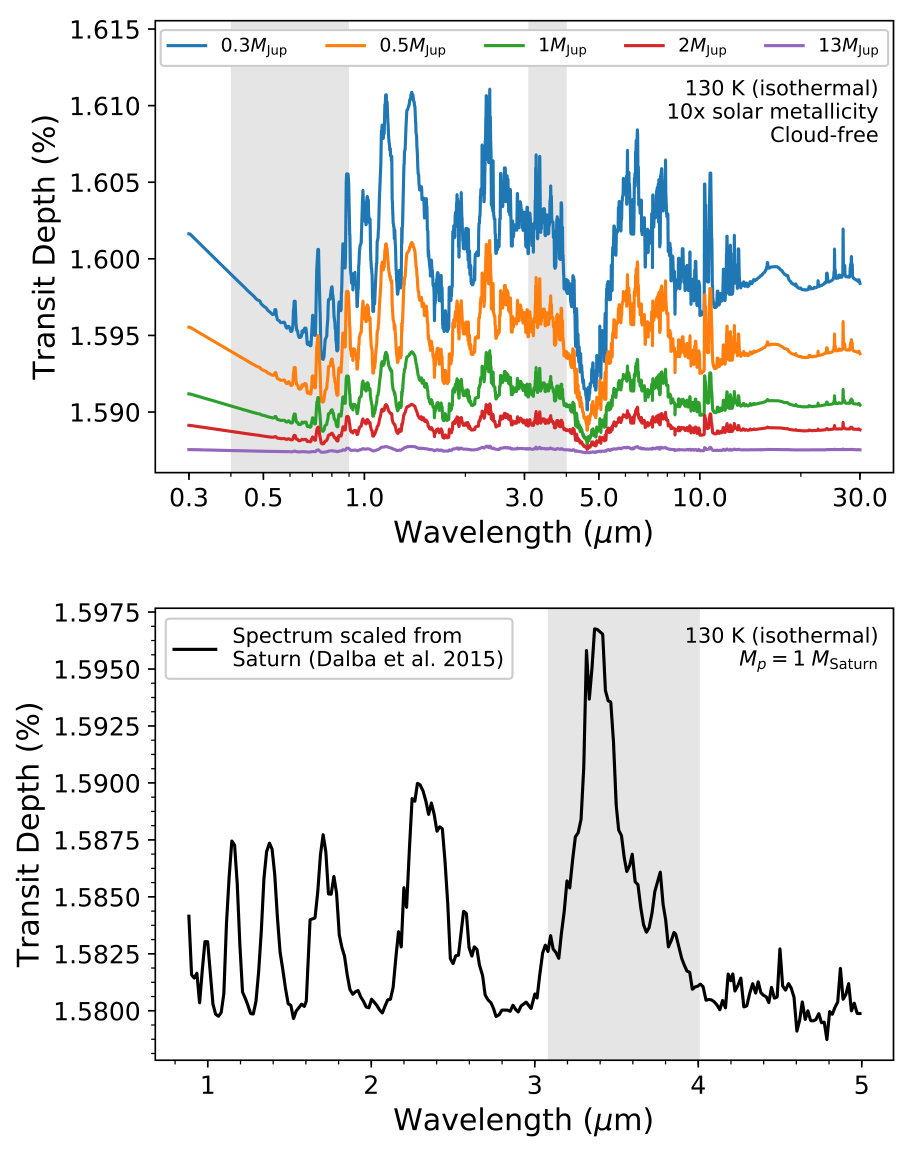

In Figure 4, we display several transmission spectrum models that may describe Kepler-167e. Here, we discuss these models and their implications for future observations.

First, we utilize Exo-Transmit (Kempton et al., 2017; Freedman et al., 2008, 2014; Lupu et al., 2014) to model transmission spectra of Kepler-167e for several masses assuming a 130 K isothermal, cloud-free atmosphere. We apply an equation of state that assumes equilibrium chemistry at 10 times the solar metallicity that includes the condensation of molecular species. The chosen masses span the planetary regime of the 16th–84th percentile uncertainty range predicted by forecaster (Chen & Kipping, 2017). At 130 K, many of the features are indicative of CH4 absorption. For H2O, deeper layers of the atmosphere act as a cold trap, condensing it into a cloud layer. Similarly, NH3 likely condenses (as is the case on Jupiter and Saturn). As expected, the size of the features scales strongly with $M_{p}$. For the $0.3~{}M_{\rm Jupiter}$ scenario, the peaks of the 1–2 $\mu$m CH4 features are $\sim$200 parts per million (ppm) above the deep 5 $\mu$m window, indicating the potential amenability of Kepler-167e to joint HST-JWST transmission spectroscopy. Even at $M_{p}=1~{}M_{\rm Jupiter}$, this peak-to-trough difference is $\sim$50 ppm.

Cloud layers and refraction boundaries (e.g., Misra et al., 2014) have not been included in the Exo-Transmit analysis. Clouds and refraction can truncate transmission spectra features at particular pressure levels thereby reducing their contrast. These effects can lead to degenerate interpretations of the spectra. Furthermore, Exo-Transmit does not include ice condensation or molecular diffusion (Kempton et al., 2017), which may occur in cold atmospheres. These processes can alter the chemical abundances and structure of an atmosphere and ultimately may change the nature and size of transmission spectrum features.

Second, we draw analogy to the solar system by scaling the reconstructed transmission spectrum of Saturn (Dalba et al., 2015) to Kepler-167e assuming $M_{p}~{}=~{}1~{}M_{\rm Saturn}$ (Figure 4, bottom panel). This spectrum is shifted to be consistent with the measured Spitzer transit depth. This comparison to Saturn enables the consideration of many of the complications that are not included in the Exo-Transmit models (e.g., photochemistry, ice condensation, and atmospheric refraction). The 50–75 ppm features blueward of 3 $\mu$m are caused by CH4 absorption, while the largest feature near 3.4 $\mu$m indicates additional opacity from larger hydrocarbons produced via CH4 photolysis (Dalba et al., 2015). If similar hydrocarbon photochemistry is ongoing in the atmosphere of Kepler-167e, it can potentially be identified and characterized via near-infrared transmission spectroscopy with JWST.

The baseline of Kepler-167e’s Saturn-based transmission spectrum is set by atmospheric refraction (Dalba et al., 2015). The importance of refraction in exoplanet transit observations can be assessed quantitatively (e.g., Hui & Seager, 2002; Dalba, 2017). Based on the criterion of Dalba (2017), there is a region of parameter space (spanning planet masses, atmospheric properties, and observation wavelength) for which refraction would set the baseline of Kepler-167e’s transmission spectrum. For this region, the out-of-transit flux increase caused by refraction (e.g., Sidis & Sari, 2010; Dalba, 2017) would also be present. Since transmission spectroscopy typically requires the observation of pre- and post-transit baseline, the out-of-transit flux increase would provide additional atmospheric information for little or no addition in observing time. However, we caution that an informed prediction of the magnitudes of refraction effects in future observations of Kepler-167e requires a mass measurement and additional modeling.

5.2 Concluding Remarks

The Spitzer observations presented here enable the accurate prediction of future transit times of Kepler-167e with a precision better than six minutes. This makes Kepler-167e a strong candidate for transmission spectroscopy that is accessible to HST and JWST. Although we have not simulated observations from these observatories—mainly due to the uncertainty introduced by Kepler-167e’s presently unknown mass—the integration of signal over its 16 hr long transit will likely enable novel investigations of cold exoplanet atmospheres. Kepler-167e’s many similarities to Jupiter place it in a truly rare category of transiting exoplanets and identify it as a benchmark for future comparative planetology investigations.

The authors thank the anonymous referee for an insightful review that improved the quality of this work. This work is based on observations made with the Spitzer Space Telescope, which is operated by the Jet Propulsion Laboratory, California Institute of Technology, under a contract with NASA. The authors acknowledge Philip Muirhead for contributing to the scientific development of this research. The authors also acknowledge Stephen Kane and Heather Knutson for helpful conversations and Drake Deming for providing a code to analyze full-frame Spitzer observations. Some of the data presented in this paper were obtained from the Mikulski Archive for Space Telescopes (MAST). STScI is operated by the Association of Universities for Research in Astronomy, Inc., under NASA contract NAS5-26555.
