Individual skyrmion manipulation by local magnetic field gradients

TL;DR

This paper introduces a novel, precise method for manipulating individual magnetic skyrmions using local magnetic field gradients from an MFM probe, avoiding current-induced heating and enabling better control.

Contribution

The study demonstrates a new approach to control single skyrmions with magnetic field gradients, providing a current-free alternative for skyrmion manipulation.

Findings

Skyrmions can be manipulated individually with high precision using an MFM probe.

The MFM probe's stray field can assist in skyrmion nucleation.

The method offers a new paradigm for skyrmion control without electrical currents.

Abstract

Magnetic skyrmions are topologically protected spin textures, stabilised in systems with strong Dzyaloshinskii-Moriya interaction (DMI). Several studies have shown that electrical currents can move skyrmions efficiently through spin-orbit torques. While promising for technological applications, current-driven skyrmion motion is intrinsically collective and accompanied by undesired heating effects. Here we demonstrate a new approach to control individual skyrmion positions precisely, which relies on the magnetic interaction between sample and a magnetic force microscopy (MFM) probe. We investigate perpendicularly magnetised X/CoFeB/MgO multilayers, where for X = W or Pt the DMI is sufficiently strong to allow for skyrmion nucleation in an applied field. We show that these skyrmions can be manipulated individually through the local field gradient generated by the scanning MFM probe with an unprecedented level of accuracy. Furthermore, we show that the probe stray field can assist skyrmion nucleation. Our proof-of-concepts results offer current-free paradigms to efficient individual skyrmion control.

Figures

Tables

Table 1. Table 1: DMI values extracted from average equilibrium domain widths. Saturation magnetisation M s subscript 𝑀 𝑠 M_{s} , effective perpendicular anisotropy constant K e ​ f ​ f subscript 𝐾 𝑒 𝑓 𝑓 K_{eff} , average equilibrium domain width (calculated as the average between the results of the two image analysis methods applied to several different images), absolute value of the DMI constant D 𝐷 D and of D s = D ⋅ t subscript 𝐷 𝑠 ⋅ 𝐷 𝑡 D_{s}=D\cdot t , where t 𝑡 t is the CoFeB thickness, are listed for all the samples investigated. The values of | D | 𝐷 |{D}| , and | D s | subscript 𝐷 𝑠 |{D_{s}}| are calculated assuming A 𝐴 A = 10 pJ/m. The errors in | D | 𝐷 |{D}| and | D s | subscript 𝐷 𝑠 |{D_{s}}| derive from the errors on estimating the average equilibrium domain width.

Multilayer	Ms (A/m)	Keff (J/m3)	Eq. width (nm)	$|$$𝐃$$|$ (mJ/m2)	$|$${𝐃}_{𝐬}$$|$ (pJ/m)
[Ta/CoFeB/MgO]×15	1.00 $\times$ 106	4.6 $\times$ 105	445 $\pm$ 7	0.08 $\pm$ 0.03	0.08 $\pm$ 0.03
[W/CoFeB/MgO]×15	1.17 $\times$ 106	4.1 $\times$ 105	365 $\pm$ 7	0.61 $\pm$ 0.03	0.37 $\pm$ 0.02
[Pt/CoFeB/MgO]×15	1.54 $\times$ 106	2.9 $\times$ 105	177 $\pm$ 4	1.0 $\pm$ 0.1	0.80 $\pm$ 0.08

Equations

$${\sigma }_{DW}=4\sqrt{A{K}_{eff}}-\pi |D|,$$

Full text

Most ferromagnetic materials exhibit collinear magnetic ordering due to the Heisenberg exchange interaction between neighbouring spins. However, in magnetic systems with large spin-orbit coupling and lack of structural inversion symmetry, the Dzyaloshinskii-Moriya interaction (DMI) [1, 2] can be strong enough to stabilise non-collinear spin textures, most notably magnetic skyrmions. Since their first discovery in chiral magnets [3, 4], magnetic skyrmions have attracted significant attention within the spintronics community due to their fascinating properties and potential applications [5, 6]. Indeed, their nanoscale dimensions combined with topological stabilisation [7] and low threshold current densities required for motion [8, 9, 10, 11, 12, 13], make magnetic skyrmions promising candidates for storage and logic devices. In this technological context, particularly interesting are skyrmions found in systems composed of a heavy metal layer and an ultra-thin magnetic film with perpendicular magnetic anisotropy (PMA) [13, 14, 15, 16, 17, 18, 19]. Here the DMI arises due to the broken inversion symmetry at the interface and the large spin-orbit coupling in the heavy metal atoms, which mediate the interaction between spins in the ferromagnet. The interfacial nature of the DMI in these material stacks promotes the stabilisation of skyrmions of the Néel type [15]. Typical systems investigated utilise Co or CoFeB as magnetic films and Pt as heavy metal layer, while either an oxide or another heavy metal are used as top layers. In these material stacks, current pulses are usually employed to drive skyrmion motion, exploiting the spin Hall effect in the heavy metal layer and consequent spin-orbit torque [16, 17, 18, 19]. However, despite the low values of depinning currents required, fast skyrmion motion is only attainable using large current densities, which are accompanied by undesired Joule heating effects. Among the alternative methods proposed, using field gradients has been very recently shown to be an effective, current-free method to move skyrmion lattices in a chiral magnet [20]. While a few theoretical studies have investigated this approach also for isolated skyrmions in thin-films [21, 22, 23], to the best of our knowledge no experimental work has yet been performed in these systems.

Here we show that isolated skyrmions can be manipulated individually and precisely using the local field gradient generated by a magnetic force microscopy (MFM) probe in ultra-thin films with PMA. The samples investigated consist of [X/CoFeB/MgO]15 multilayers, with X = Ta, W or Pt. CoFeB/MgO was chosen due to its excellent homogeneity in terms of both thickness and PMA strength, which results in a low pinning energy landscape [24, 16], making it a good candidate for reliable skyrmion motion. CoFeB is however a very soft magnetic material, meaning that imaging via MFM can be challenging due to potential perturbations caused by the probe stray field on the sample magnetic state (see Fig. 1). Indeed, magnetic stripe domains and their evolution into skyrmions, from which the DMI strength can also be extracted, have previously only been imaged at synchrotron facilities for these ultra-thin CoFeB layers, using non-interfering X-ray based methods [16, 18, 19, 25, 26, 27]. In this work we show that a technique as straightforward and readily available as MFM can be used on CoFeB-based stacks at room temperature and in ambient conditions to: (i) determine the DMI strength through measurements of magnetic stripe-domain widths, (ii) image magnetic skyrmions and manipulate their motion with a high level of accuracy, and (iii) assist skyrmion nucleation in field.

The labyrinth-like demagnetised state and its evolution with perpendicular field is imaged for all sample stacks, and the DMI constant $D$ is extracted from the average equilibrium domain width of the demagnetised state. Individual skyrmions are nucleated by the controllable shrinking of stripe domains in field. Since the probe-sample interaction is detrimental for imaging, we show that skyrmions can only be imaged in “single pass” MFM mode, with topography acquired prior to skyrmion nucleation. On the other hand, by exploiting the probe-sample interaction skyrmions can be moved in standard two pass MFM mode, through the local field gradient generated by the probe. This technique allows for the reversible and controllable manipulation of individual skyrmions, contrary to more conventional current-driven motion where skyrmions move in a collective manner. Finally, we show that the probe-sample interaction can also be used to create individual skyrmions at magnetic fields lower than their intrinsic nucleation field, by either collapsing stripe domains into skyrmions or by directly cutting through the stripe domains to generate skyrmions.

Results and discussion

Probe-sample interaction

Since MFM was used to investigate the magnetic configuration for all sample stacks, as well as to image, nucleate and manipulate individual skyrmions, it is important to assess the effects of probe-sample interaction during MFM scanning. The principle behind standard MFM imaging relies on detecting the probe phase shift resulting from its interaction with the magnetic stray field generated by the sample. In particular, MFM contrast is directly proportional to the gradient of the force experienced by the probe during scanning. It follows that image perturbations caused by the probe-sample interaction are a common artefact in MFM imaging, particularly for relatively soft magnetic materials like CoFeB.

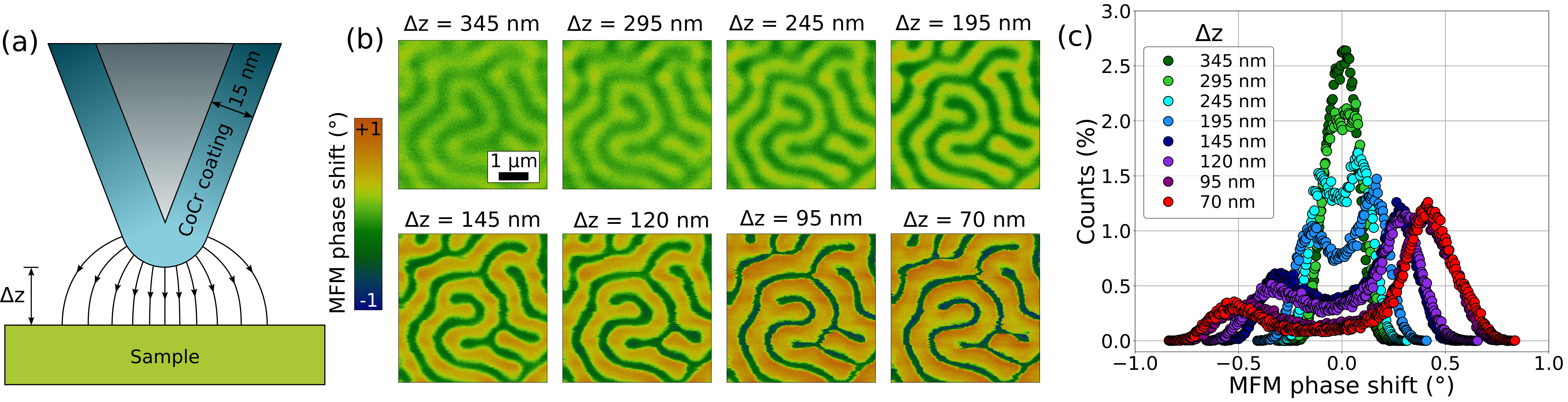

Probe-induced modifications are represented clearly in Fig. 1b,c, which show the demagnetised state for Ta/CoFeB/MgO imaged at different tip lift heights $\Delta z$ and the corresponding image histograms, respectively. While the contrast of domains magnetised up and down increases significantly upon reducing $\Delta z$, the influence of the tip, which has a stray field of $\sim$ 140 mT at its apex (see Supplementary Note 1 and Supplementary Figure 1), becomes more evident since the domains magnetised in the same direction as the local tip stray field expand at the expense of the others. This is reflected by an imbalance in the histogram peaks corresponding to the two domain types, which is visible already below $\Delta z$ as high as 245 nm. Significant domain distortions caused by the probe were also found in W/CoFeB/MgO, albeit of a reduced amount, while a much smaller effect was visible for the harder Pt/CoFeB/MgO sample even down to $\Delta z$ = 70 nm (see Supplementary Figures 2 and 3). This is consistent with magnetometry measurements which indicate that the perpendicular saturation field is lowest for Ta/CoFeB/MgO ($\sim$ 27 mT), intermediate for W/CoFeB/MgO ($\sim$ 36 mT) and highest for Pt/CoFeB/MgO ($\sim$ 94 mT) (see Supplementary Figure 4).

Distortions of the magnetic configuration caused by the probe-sample interaction are evidently detrimental for imaging, and precautions have to be taken in order to image the samples in the demagnetised state as well as to image individual skyrmions. Later we show that the same probe-sample interaction can actually be employed advantageously to control skyrmion motion.

DMI measurements

The DMI constant $D$ is known to reduce the domain wall energy density of Néel walls $\sigma_{DW}$, following the relationship[28, 29]:

[TABLE]

where $A$ is the exchange stiffness and $K_{eff}$ is the effective perpendicular anisotropy constant. Accordingly, domain formation becomes more favourable in the presence of a finite DMI and measurements of the domain width can then be used to directly quantify $D$ [16, 30]. In particular, following the approach implemented by Woo et al. [16], we extracted $D$ from the equilibrium domain width of the demagnetised state, where up and down domains have the same average size.

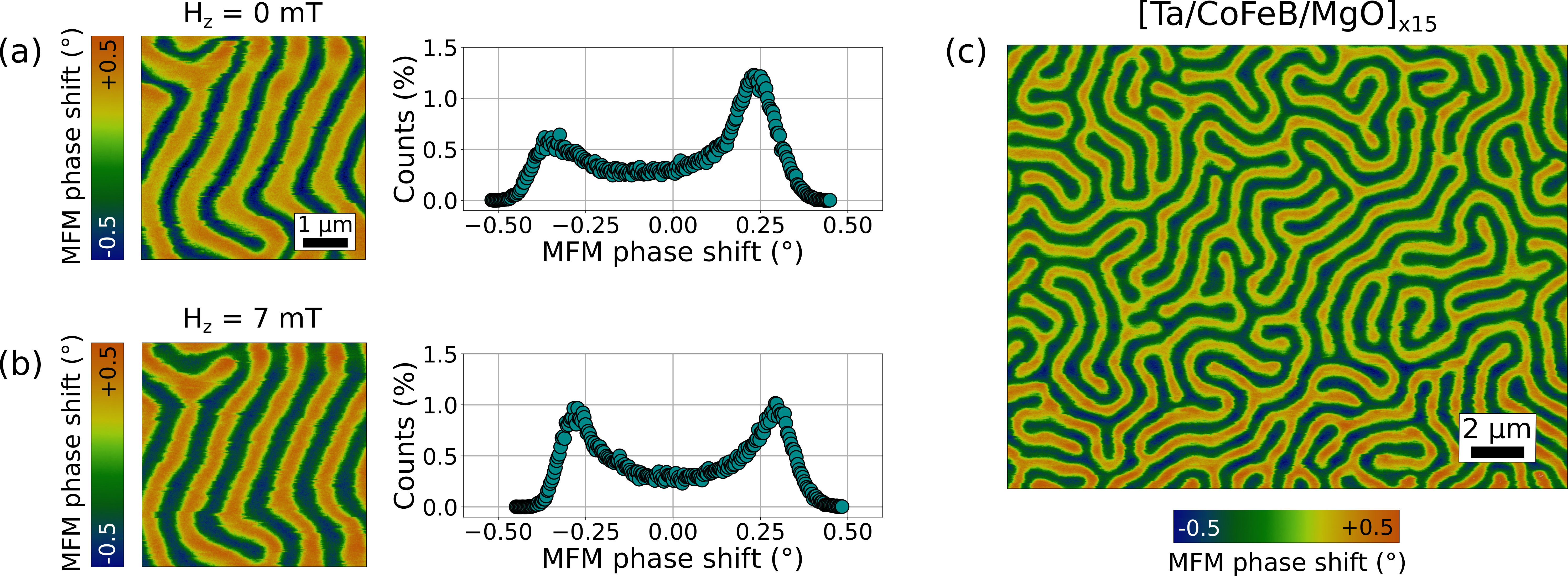

Since the MFM probe alters significantly the relative domain population when scanning at $\Delta z$ low enough to grant a good magnetic contrast (see Fig. 1), the demagnetised state of the samples was imaged while simultaneously applying an out-of-plane external bias field to counteract the perturbing effect of the tip. Only in this way it became possible to achieve an equal balance between up and down magnetised domains and image the demagnetised configuration as close as possible to an unperturbed state. This is schematically illustrated in Fig. 2a,b for the Ta/CoFeB/MgO multilayer: by scanning at $\Delta z$ = 145 nm, an equal domain distribution is restored upon application of a perpendicular field $H_{z}$ $\sim$ 7 mT.

In general, it was found that varying strengths of this bias field $H_{z}$ $\sim$ 7 $\pm$ 2 mT were needed to offset the local probe stray field at $\Delta z$ = 145 nm, which was attributed to variations among tips or their ageing stage. This value is in good agreement with the stray field value calculated through the tip transfer method, as explained in Supplementary Note 1. One of the MFM images for the demagnetised state of the Ta/CoFeB/MgO multilayer, that was analysed to quantify $D$, is shown in Fig. 2c. Similar images for the W-based and Pt-based stacks are displayed in Supplementary Figure 5. The labyrinth domain structure observed in all samples is typical of multilayers with PMA and is also consistent with the slanted perpendicular hysteresis loops (see Supplementary Figure 4).

Two different methods are used to extract the equilibrium domain width from the demagnetised images. The first approach relies on performing a 2-D fast Fourier transform (FFT) which, averaged across its radial profile, yields directly an amplitude peak at the reciprocal wavelength corresponding to the average domain periodicity [31]. The second approach uses an image segmentation process based on the random walker algorithm [32] to accurately separate pixels belonging to domains magnetised up or down. From this, the average domain width for each domain type is calculated as the ratio between the total area covered by one domain type and half of the total length of all domain edges detected (see Supplementary Note 2 and Supplementyary Figure 6). The average equilibrium domain widths extracted across several images via these two different methods are in excellent agreement. Using the approach implemented by Woo et al. [16], the domain wall energy density $\sigma_{DW}$ can then be extracted from the average equilibrium domain width according to the analytical domain-spacing model applicable to multilayers [33]. Finally, once $\sigma_{DW}$ is known, $D$ is easily calculated according to Eq. 1. For the exchange stiffness $A$ a value of 10 pJ/m was assumed. The DMI magnitude extracted for the different samples is summarised in Table 1, together with the average equilibrium domain width, and the relevant magnetic parameters, which were measured through vibrating sample magnetometry (VSM).

The magnitude of $D_{s}$ extracted for Ta/CoFeB/MgO and W/CoFeB/MgO multilayers is in line with values reported for similar systems, in experiments that quantify the DMI through current-driven or field-driven domain wall motion, as well as from measurements of equilibrium domain patterns [34, 35, 36, 26]. On the other hand, lower estimations of $D_{s}$ in these systems have been extracted through Brillouin Light Scattering (BLS) measurements [37, 38]. Regarding the Pt/CoFeB/MgO multilayer our measured $D_{s}$ is lower than what observed in similar multilayers through measurements of equilibrium domain patterns [18, 25, 27], but in good agreement with BLS experiments performed on individual layers [39, 38, 40]. In any case, only for W/CoFeB/MgO and Pt/CoFeB/MgO multilayers the DMI magnitude is significantly larger than the critical amount required to stabilise Néel domain walls [29], with $|D_{c}|=2\mathrm{ln}(2)\mu_{0}M_{S}^{2}t/\pi^{2}$ being 0.18 mJ/m2, 0.15 mJ/m2, and 0.33 mJ/m2 for Ta, W and Pt-based stacks, respectively. Furthermore, the DMI magnitude is always lower than the threshold value for spontaneous skyrmion generation [41], $|D_{th}|=4\sqrt{AK_{eff}}/\pi$, indicating that skymrion lattices or individual skyrmions cannot be generated in these systems without some form of external excitation. Indeed, as will be shown in the next section, skyrmions could only be stabilised in W/CoFeB/MgO and Pt/CoFeB/MgO multilayers by applying large perpendicular magnetic fields.

Skyrmion imaging and manipulation

For all investigated samples, application of a perpendicular magnetic field results in the contraction of stripe domains that are magnetised against the field direction. In systems with a large enough DMI these shrinking stripe domains can collapse into stable individual skyrmions upon increasing the perpendicular field towards saturation [14, 16, 19, 42]. This was observed in W/CoFeB/MgO and Pt/CoFeB/MgO multilayers, while the small DMI in the Ta-based stack prevented skyrmions from being stabilised in field.

In order to image the nucleation of skyrmions, standard two pass MFM imaging was initially attempted. However, the magnetic interaction between probe and sample during first pass line scans, when sample topography is recorded, was found to be too strong to allow for skyrmion imaging using this MFM mode, even when using commercial low moment field probes. As a matter of fact, individual skyrmions could only be imaged in “single pass” MFM mode, having acquired the topography of the whole region of interest separately (see Methods). In particular, the topography was recorded at a field below skyrmion nucleation, where stripe domains are still present and able to better withstand strong perturbations caused by probe-sample interactions. Upon increasing the field up to skyrmion nucleation, it becomes then possible to image unperturbed individual skyrmions by using the MFM in single pass mode, to record the phase signal only, at a set lift height. This is shown for Pt/CoFeB/MgO in Fig. 3b, where two skyrmions and a long stripe domain are imaged in single pass MFM at 71 mT, after having recorded the topography of the corresponding area at 50 mT. The probe is magnetised in the same direction as the external field, as shown by the sketch in Fig. 3a.

Skyrmion nucleation occurred at 32 mT and 57 mT for W/CoFeB/MgO and Pt/CoFeB/MgO multilayers, respectively. The skyrmion nucleation field was found to be highly reproducible, also across different sample regions. Furthermore, the position of the individual skyrmions was observed to vary from one nucleation cycle to another, indicating that pinning does not play a significant role in the skyrmion nucleation process. This is likely to be enabled by the energy landscape typical of CoFeB which features lower pinning than Co, as shown for both domain wall motion [24] and skyrmion motion [16].

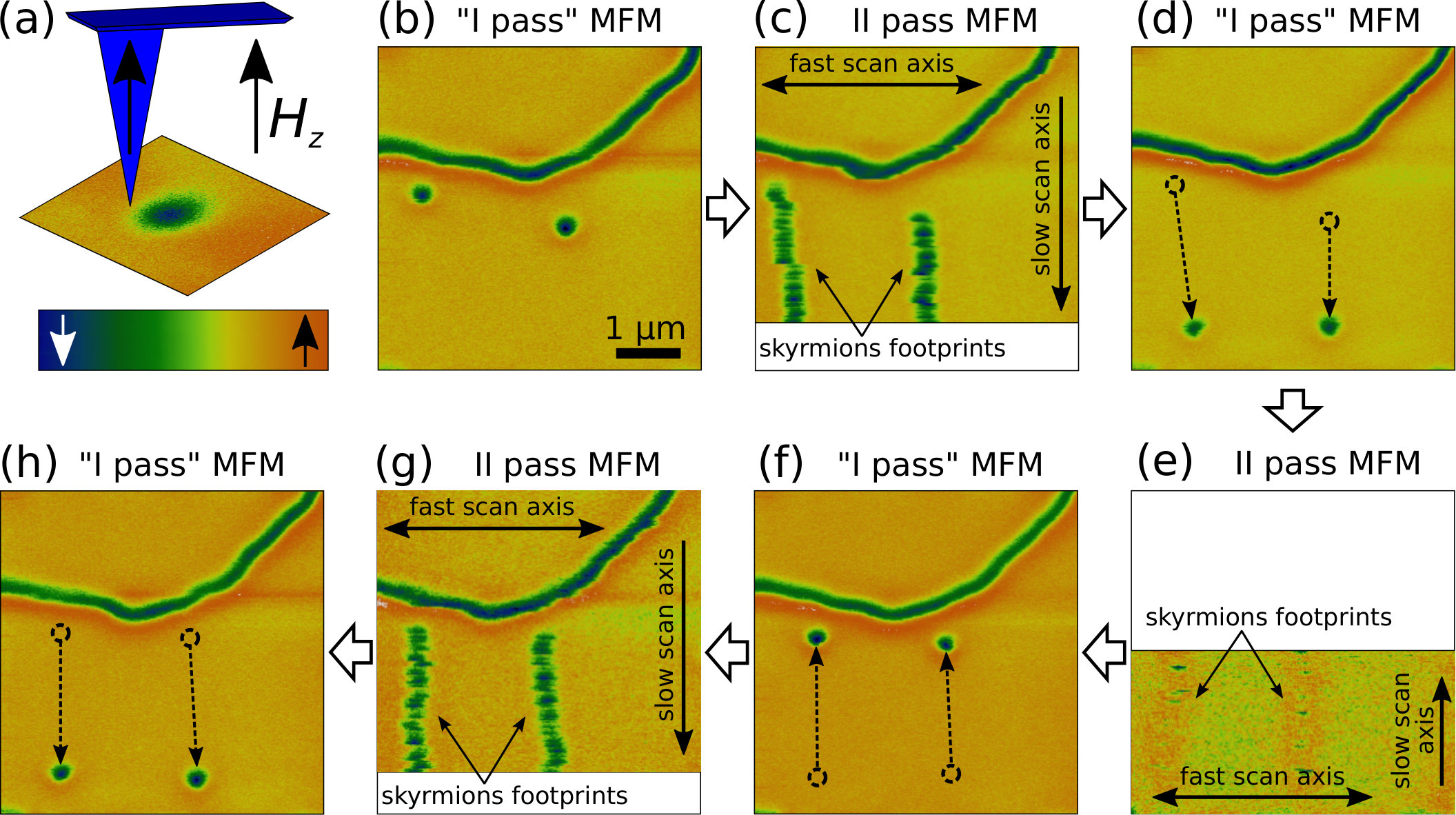

Although detrimental for imaging skyrmions, the probe-sample interaction can actually be exploited to move skyrmions efficiently. This is illustrated for Pt/CoFeB/MgO in Fig. 3c, which was acquired in standard two pass MFM, with the probe magnetised along the external field direction: during each line scan in first pass, because of the close proximity between probe and sample, the field gradient generated by the tip causes skyrmions to move further down, while during the second pass what is perceived as magnetic contrast is effectively the skyrmion trajectory. A comparison between Fig. 3b and Fig. 3d, which image the skyrmions before and after the two pass MFM scan, respectively, indicates that skyrmions have moved downwards by a few micrometers. Several repetitions of the single pass scan in Fig. 3d were acquired to ensure the stability of the new skyrmion position. It is interesting to observe that only skyrmions are moved by the MFM probe, while the position of the stripe domain visible at the top of the images in Fig. 3 is more stable against the local tip stray field. Motion of skyrmions occurs along the direction of the MFM slow scan axis, i.e. skyrmions move downwards when scanning in two pass mode from top to bottom. Therefore, skyrmion motion can easily be reversed by inverting the slow scan axis direction, as shown in the sequence of images in Fig. 3. Furthermore, it is important to note that the spacing $\delta$ between consecutive line scans along the slow scan axis should be kept small in order to attain reliable skyrmion motion. In our case, skyrmions could be moved effectively for $\delta$ $\sim$ 10-20 nm, while increasing the spacing to $\delta$ $\sim$ 40 nm or above resulted in stationary skyrmions or skyrmions that could only be moved a little before decoupling from the scanning tip. Arguably, a reliable motion cannot be expected if $\delta$ becomes comparable to the size of the skyrmion core. By using $\delta$ $\sim$ 10-20 nm in two pass MFM scans, individual skyrmion motion can be controlled with a high level of accuracy and the MFM tip can effectively become a tool to manipulate skyrmions in any desired manner. This is demonstrated in Fig. 4, where arbitrary geometrical patterns have been drawn with skyrmions, by moving them from random positions through a series of two pass MFM scans with different slow scan axis directions.

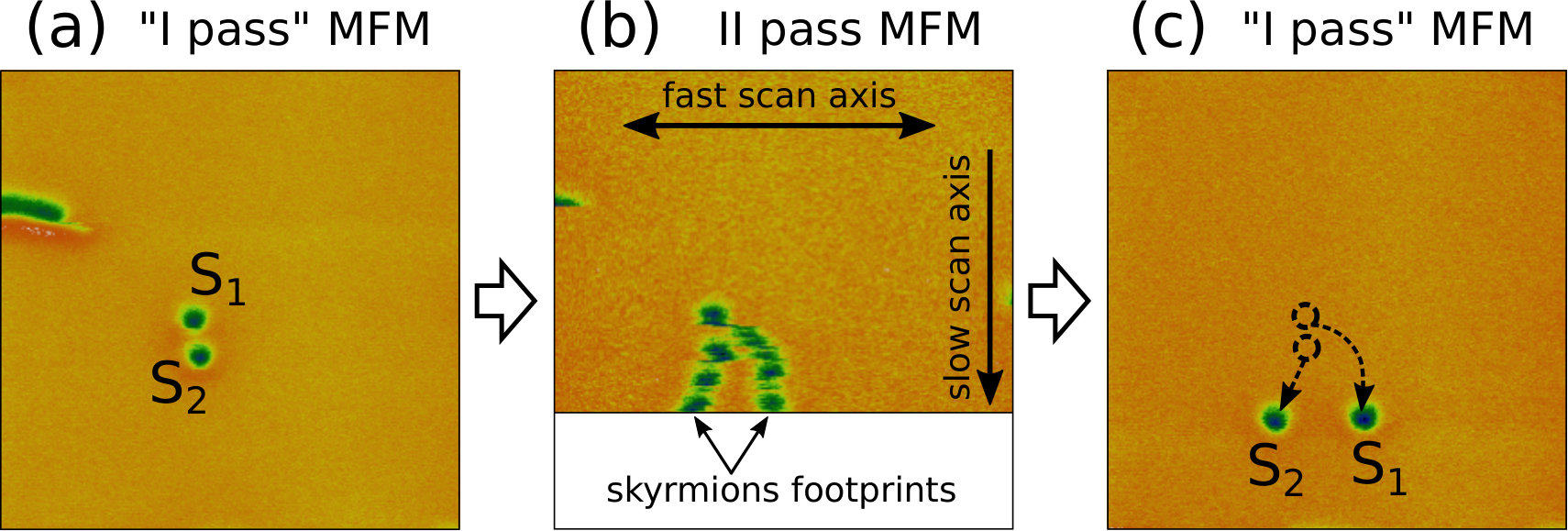

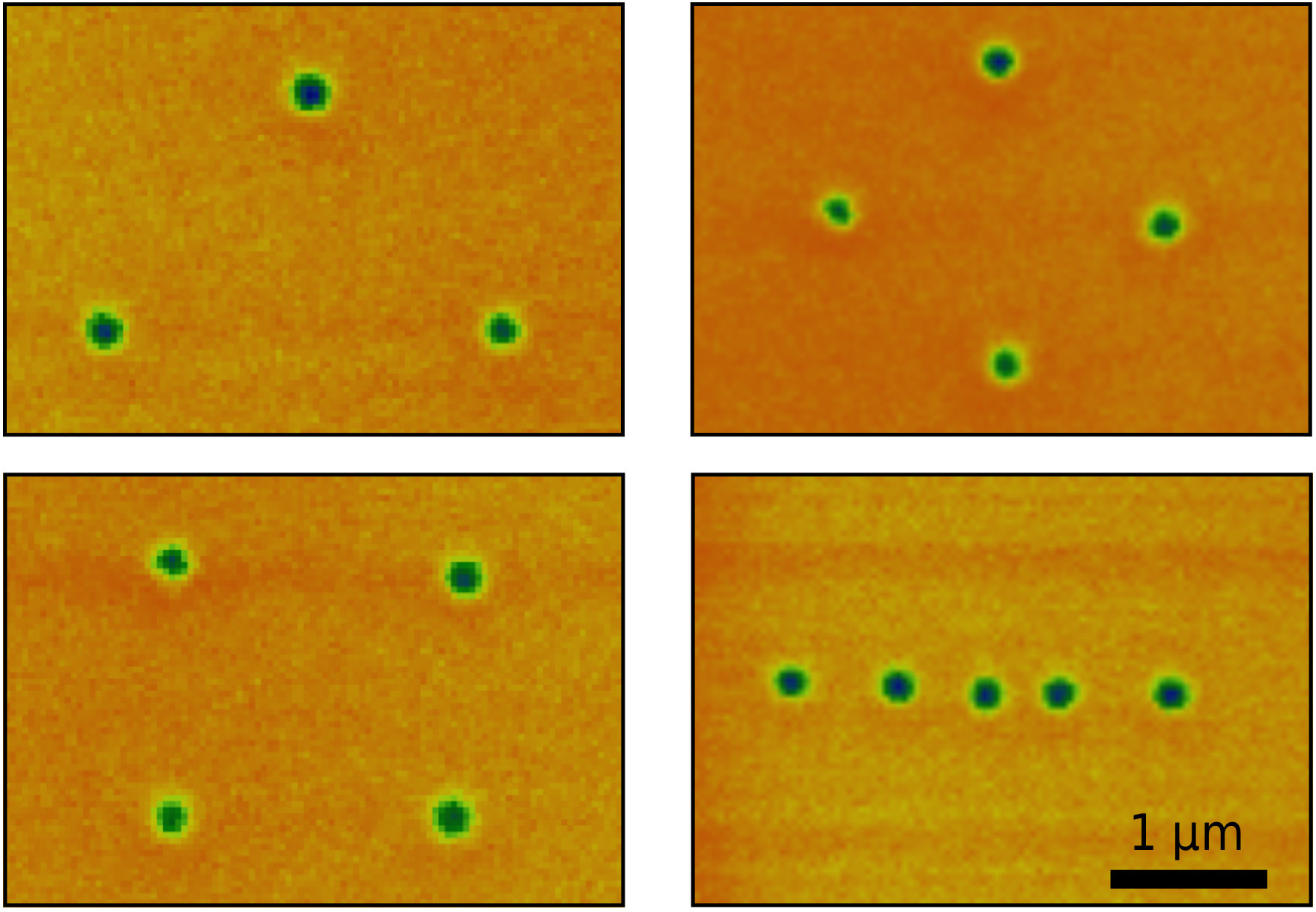

Finally, we investigate the dynamics of two adjacent skyrmions when being pushed against each other by the MFM probe. As illustrated in Fig. 5a, two individual skyrmions are initially positioned by the MFM tip next to each other, with skyrmion S1 being directly above skyrmion S2. When performing a two pass MFM scan from top to bottom, the local field gradient generated by the probe drives S1 towards S2. The two skyrmions “footprints” are visible in Fig. 5b and indicate that S1, when being pushed downwards, avoids interacting with S2 by suddenly jumping towards the right. Analogously, S2 moves slightly towards the left. The final skyrmions positions are illustrated in Fig. 5c.

The observed repulsive interaction between the two skyrmions is an indication of their topological nature and of the topological barrier stabilising their structure, which differentiate skyrmions from topologically trivial magnetic bubbles [43, 7, 5, 6].

Skyrmion nucleation at lower magnetic fields

We already mentioned that the skyrmion nucleation field for Pt/CoFeB/MgO was reproducibly found to be 57 mT. At this field, a few individual skyrmions are stabilised, while many long stripe domains are still present in a typical 10 $\times$ 10 $\mu$m2 image (see Fig. 6a). In order to convert all stripe domains into skyrmions, fields higher than 75 mT need to be applied. Here we show that the probe stray field can be used to promote skyrmion nucleation by assisting domain contraction without increasing the external field. This is illustrated through the sequence of MFM single pass images shown in Fig. 6.

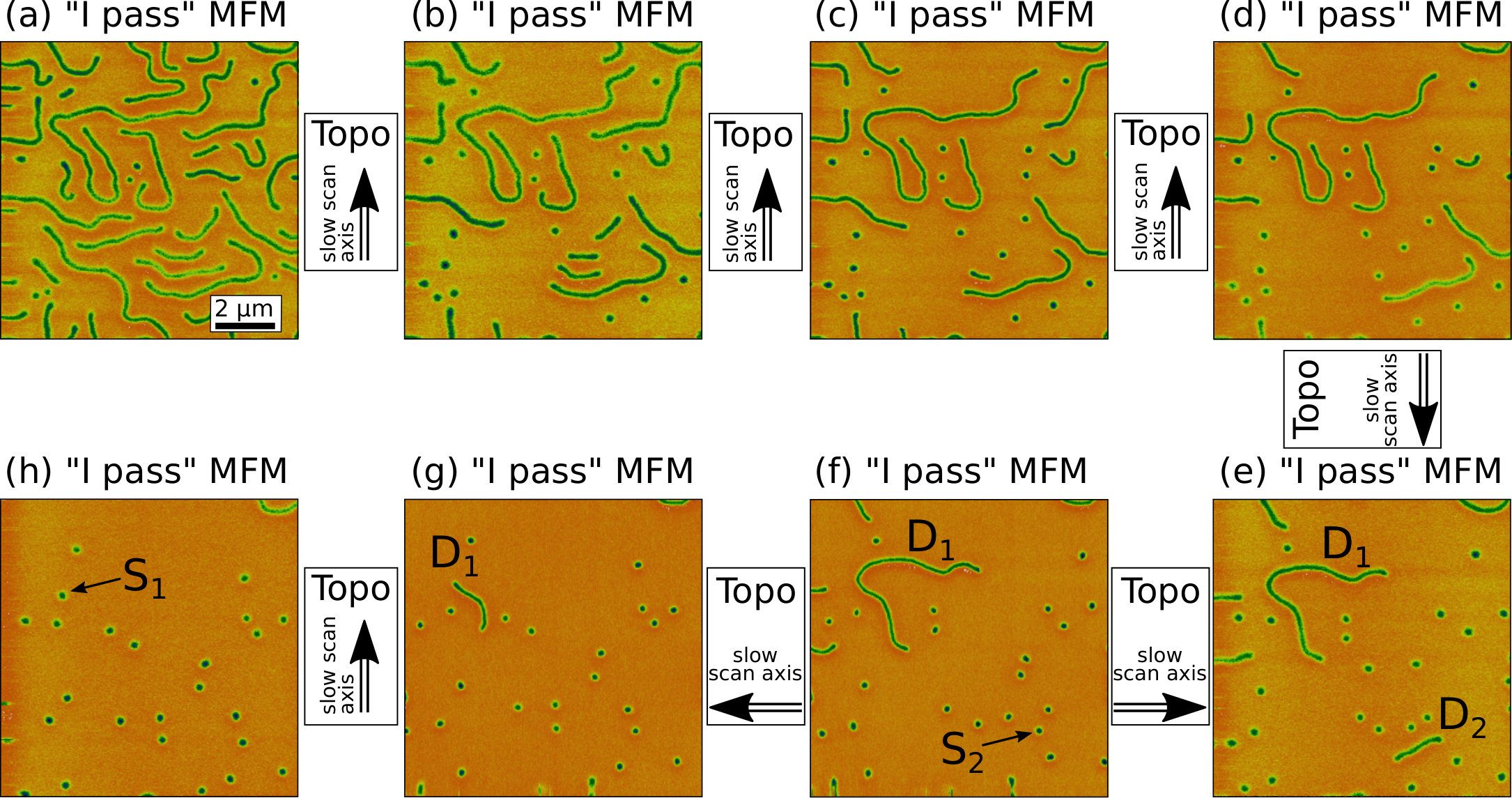

Between each image a topography scan is performed (not shown) with the direction of the slow scan axis as indicated. Many elongated domains are contracted into skyrmions after only one topography scan (see Fig. 6b), but repeating the topography scan in the same direction does not change significantly further the magnetic configuration, as several long domains remain unvaried (see Figs. 6c,d). However, it is found here that even these more persistent domains can collapse into skyrmions by changing the slow scan axis direction in such a way that the scanning tip moves against one of the domain extremities. For instance, the topography between Figs. 6e and 6f is scanned from left to right and leads to the contraction of stripe domain D2 into skyrmion S2, while leaving stripe domain D1 almost unaffected. To convert D1 into a skyrmion, the topography has to be scanned firstly from right to left, with the tip moving against the extremities of D1, leading to a shorter vertical stripe domain (see Fig. 6g), and then from bottom to top, finally resulting in skyrmion S1 (see Fig. 6h). Thus, this method allows to convert all stripe domains into skyrmions without increasing the external field, and more efficiently than what would otherwise be possible by keeping the same direction of the slow scan axis. It is important to note that skyrmions in Fig. 6 do not move during topography scans in the same reliable and controllable manner that was shown in Fig. 3. This is due to the fact that a larger line spacing $\delta$ $\sim$ 40 nm was used in Fig. 6, resulting in small or negligible skyrmion motion, as already explained.

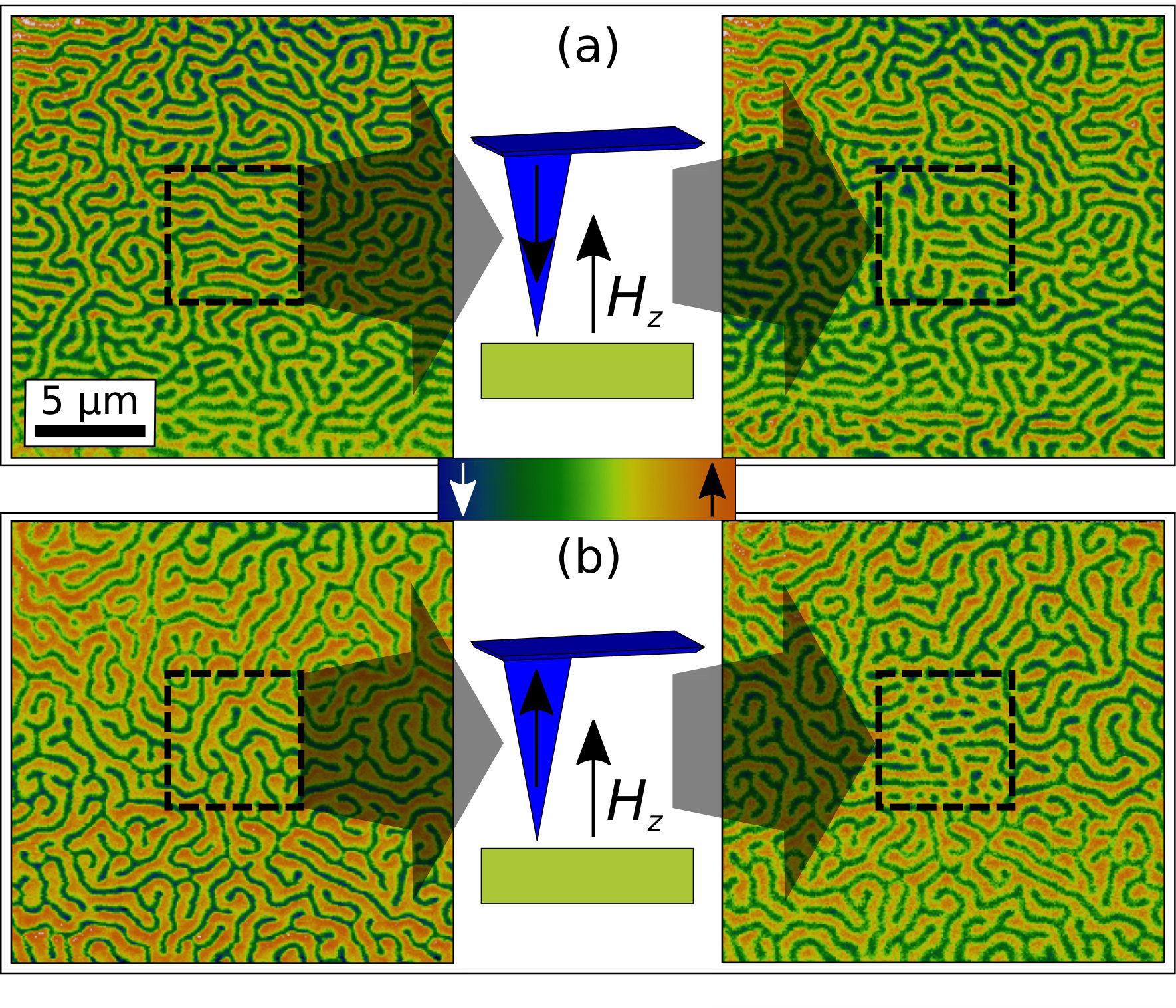

Finally, we discuss the possibility of nucleating skyrmions by “cutting” the stripe domains with the tip stray field. To this end, it is important to note that the switching field of the tip magnetisation was measured to be $\sim$ 40-50 mT (see Supplementary Figure 7), which means that when applying external fields larger than this value, the tip is always magnetised along the field direction. This is the case for all the MFM images presented for Pt/CoFeB/MgO thus far (i.e. Figs. 3-6), whereby external field and tip stray field are aligned in the same direction, opposing the magnetisation of the skyrmions core. Skyrmion nucleation through domain slicing was first attempted in these conditions for Pt/CoFeB/MgO, by scanning the tip several times in topography mode across a few stripe domains, under an applied perpendicular field $H_{z}$ = 57 mT. Despite external field and tip stray field being aligned with each other, no visible modification to the sample magnetic configuration was obtained. However, for the softer W/CoFeB/MgO only one topography scan in a modest external field ($\sim$ 10 mT) was sufficient to significantly alter the labyrinth-like magnetic state. This is shown in Fig. 7 for two possible magnetic configurations of the tip.

With the tip magnetisation aligned against the external field, the topography scan mainly leads to a rearrangement of the labyrinth domains (see Fig. 7a), with no significant skyrmion nucleation. On the other hand, when the tip magnetisation is in the same direction as the field, so that the tip stray field adds to the external field, some of the dark stripe domains are effectively sliced through by the scanning tip and individual skyrmions are created (see Fig. 7b), which is also consistent with previous work [44].

Conclusions

While MFM is well established as a tool to measure DMI and investigate nanoscale magnetic skyrmions in Co-based multilayer stacks [17, 42, 45, 46, 44], similar studies for CoFeB-based systems have involved using less widely available techniques, such as Scanning Transmission X-ray Microscopy (STXM) [16, 18, 26, 27], Magnetic Transmission soft X-ray Microscopy (MTXM) [16, 19] or X-ray holography [25]. MFM imaging of soft magnetic materials like CoFeB can actually be very challenging due to image deformations caused by the probe-sample magnetic interaction. However, in this work we performed extensive MFM imaging of CoFeB/MgO multilayers, and we demonstrated that MFM can be used as a versatile technique to ascertain DMI and study magnetic skyrmions also in these systems.

We determined the DMI from measurements of equilibrium domain widths in the demagnetised state. To minimise the effect of tip-induced perturbations, commercial low moment tips were used, in combination with large lift heights. A small bias field was applied during imaging of the demagnetised state to compensate for the imbalance between up and down magnetised domains due to the probe stray field. Image analysis was then performed to extract the average equilibrium domain width with two different approaches, which yielded results in excellent agreement, and the DMI was then quantified through analytical domain-spacing model for multilayers.

Furthermore, we explored how the probe-sample interaction can be beneficially exploited to attain individual skyrmion manipulation, as well as to assist skyrmion nucleation in field. In both cases, the local field gradient generated by the scanning MFM tip represents a tool not only to image skyrmions, but also to actively interact with them and manipulate their position controllably. Interestingly, while skyrmion imaging is only possible in “single pass” MFM scans, with the topography of the corresponding area acquired separately, standard two pass MFM provides a means to drive skyrmions (during topography scan, in first pass) and image their trajectory (during lift scan, in second pass). Skyrmion motion by this technique is reversible and highly controllable, also enabled by the low pinning landscape of CoFeB. Since the probe stray field opposes the direction of the skyrmions core magnetisation, we found that skyrmions move away from the scanning probe, in a direction approximately perpendicular to the probe fast scan axis (i.e. the trace/retrace axis). Furthermore, we show that the tip stray field in topography scans can also be used to promote the creation of skyrmions at fields lower than their intrinsic nucleation field by either collapsing labyrinth-like domains or directly cutting through them. Overall, our proof-of-concept results open alternative ways for the creation and manipulation of individual skyrmions in multilayers with perpendicular magnetic anisotropy.

Methods

Sample growth

The multilayer samples investigated consist of (all thicknesses in nm): (i) Si/SiO2/[Ta(5)/Co20Fe60B20(1)/MgO(2)]15/Ta(5), (ii) Si/SiO2/[W(5)/Co20Fe60B20(0.6)/MgO(2)]15/Ta(5), and (iii) Si/SiO2/Ta(5.7)/[Pt(3.4)/Co60Fe20B20(0.8)/MgO(1.4)]15/Ta(5). They were grown at room temperature by d.c. magnetron sputtering in a sputter system with a base pressure of 5 $\times$ 10*-8*mbar. After growth, the stacks were annealed in vacuum for 2 hours at a temperature of 300 *∘*C, for sample (i), and 400 *∘*C for samples (ii) and (iii). The 5 nm Ta capping layer was used to prevent sample oxidation. For sample (iii), the 5.7 nm thick Ta seed layer was used to improve adhesion between film and substrate.

Magnetometry

The magnetic properties of the multilayers were studied using vibrating sample magnetometry (VSM) at room temperature. Both in-plane and out-of-plane magnetic hysteresis loops were measured (see Supplementary Figure 4). All investigated samples exhibit PMA, with a saturation field that increases in going from sample (i) to sample (iii). The saturation magnetisation $M_{s}$ and the effective perpendicular anisotropy constant $K_{eff}$, which was extracted from the in-plane saturation field, are listed in Tab. 1.

Magnetic force microscopy imaging

MFM imaging of the multilayers was performed at room temperature with a NT-MDT Ntegra Aura scanning probe microscope (SPM). The system is fitted with an electromagnet which allows to apply out-of-plane magnetic fields up to $\sim$ 115 mT during scanning. Low moment tips (NT-MDT MFM-LM) were chosen in order to minimise probe-sample interaction. MFM imaging of the demagnetised state of the samples was carried out in standard two pass tapping mode, whereby for each scanned line topography is acquired during the first pass, while the MFM phase signal of that line is acquired during the second pass at a set lift height $\Delta z$. MFM imaging of individual skyrmions was instead performed in “single pass” tapping mode, which allows to acquire topography for the whole scanned area first, followed by the MFM phase signal for the same area at a set lift height $\Delta z$. By working in single pass mode, it is then possible to measure topography and phase separately, which was essential to image skyrmions. Furthermore, single pass mode allows to acquire the phase signal at different magnetic fields without the need to lower the probe close to the sample to retake topography. Finally, individual skyrmion manipulation was attained using standard two pass tapping mode: skyrmions move due to the field gradient generated by the probe during first pass, when topography is recorded, while their trajectory is imaged during second pass.

Acknowledgements

The authors thank the EMRP Joint Research Projects 15SIB06 NanoMag and 17FUN08 TOPS for financial support. In particular, A.C. thanks the Researcher Mobility Grant 15SIB06-RMG4. The EMRP is jointly funded by the EMRP participating countries within EURAMET and the European Union. The work in Mainz was supported by the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) - project number 290319996/TRR173. We are grateful to Craig Barton and Marco Coïsson for useful discussions.

Author contributions

A.C. conceived the experiment. M.V. grew the samples. A.C. and M.V. characterised the samples. A.C. and H.C.L. conducted the experiments. A.C., H.C.L., and F.G.S. analysed the results. A.C. wrote the manuscript. All authors discussed the results and reviewed the manuscript.

Additional information

Supplementary information accompanies this paper at

Competing interests: The authors declare no competing interests.
