KELT-23Ab: A Hot Jupiter Transiting a Near-Solar Twin Close to the TESS and JWST Continuous Viewing Zones

TL;DR

The paper reports the discovery and detailed characterization of KELT-23Ab, a hot Jupiter orbiting a near-solar twin star, which is well-positioned for future observations with TESS and JWST due to its location.

Contribution

This work provides the first detailed characterization of KELT-23Ab and its host star, including system parameters and potential binary association, highlighting its suitability for follow-up studies.

Findings

KELT-23Ab is a hot Jupiter with a mass of about 0.94 M_J and a radius of 1.32 R_J.

The host star has near-solar properties and is part of a possible long-period binary system.

The system's location near the TESS and JWST continuous viewing zones makes it ideal for future detailed observations.

Abstract

We announce the discovery of KELT-23Ab, a hot Jupiter transiting the relatively bright ($V=10.3$) star BD+66 911 (TYC 4187-996-1), and characterize the system using follow-up photometry and spectroscopy. A global fit to the system yields host-star properties of $T_{eff}=5900\pm49 K$, $M_*=0.945^{+0.060}_{-0.054} M_{\odot}$, $R_*=0.995\pm0.015 R_{\odot}$, $L_*=1.082^{+0.051}_{-0.048} L_{\odot}$, log$g_{*}=4.418^{+0.026}_{-0.025}$ (cgs), and $\left[{\rm Fe}/{\rm H}\right]=-0.105\pm0.077$. KELT-23Ab is a hot Jupiter with mass $M_P=0.938^{+0.045}_{-0.042} M_{\rm J}$, radius $R_P=1.322\pm0.025 R_{\rm J}$, and density $\rho_P=0.504^{+0.038}_{-0.035}$ g cm$^{-3}$. Intense insolation flux from the star has likely caused KELT-23Ab to become inflated. The time of inferior conjunction is $T_0=2458149.40776\pm0.00091~\rm {BJD_{TDB}}$ and the orbital period is $P=2.255353^{+0.000031}_{-0.000030}$ days. There is strong evidence that KELT-23A is a member of a long-period binary star system with a less luminous companion, and due to tidal interactions, the planet is likely to spiral into its host within roughly a Gyr. This system has one of the highest positive ecliptic latitudes of all transiting planet hosts known to date, placing it near the Transiting Planet Survey Satellite and James Webb Space Telescope continuous viewing zones. Thus we expect it to be an excellent candidate for long-term monitoring and follow-up with these facilities.

Figures

Tables

Table 1. Table 1: Literature Properties for KELT-23A

Other Names
	BD+66 911
	TYC 4187-996-1
	TIC 458478250
Parameter	Description	Value	Ref.
${\alpha }_{\mathrm{J2000}}$	Right Ascension (RA)	${15}^h{28}^{m}35\stackrel{s}{.}1926$	1
${\delta }_{\mathrm{J2000}}$	Declination (Dec)	$+66°21\prime 31\stackrel{\prime \prime }{.}544$	1
${\beta }_{\mathrm{J2000}}$	Ecliptic Latitude	+75°6′43″.21	1
${\lambda }_{\mathrm{J2000}}$	Ecliptic Longitude	163°17′10″.38	1
$B_T$	Tycho $B_T$ mag.	$11.029\pm 0.049$	2
$V_T$	Tycho $V_T$ mag.	$10.376\pm 0.039$	2
$B$	APASS Johnson $B$ mag.	$10.973\pm 0.021$	3
$V$	APASS Johnson $V$ mag.	$10.253\pm 0.024$	3
$g^{\prime }$	APASS Sloan $g^{\prime }$ mag.	$10.647\pm 0.026$	3
$r^{\prime }$	APASS Sloan $r^{\prime }$ mag.	$10.114\pm 0.080$	3
$i^{\prime }$	APASS Sloan $i^{\prime }$ mag.	$9.980\pm 0.070$	3
$J$	2MASS $J$ mag.	$9.208\pm 0.032$	4
$H$	2MASS $H$ mag.	$\ge {8.951}^{\ast }$	4
$K$	2MASS $K$ mag.	$\ge {8.904}^{\ast }$	4
WISE1	WISE1 mag.	$8.746\pm 0.022$	5
WISE2	WISE2 mag.	$8.778\pm 0.020$	5
WISE3	WISE3 mag.	$8.778\pm 0.019$	5
WISE4	WISE4 mag.	$8.672\pm 0.189$	5
${\mu }_{\alpha }$	Gaia DR2 proper motion	0.434 $\pm$ 0.039	1
	in RA (mas yr-1)
${\mu }_{\delta }$	Gaia DR2 proper motion	-12.217 $\pm$ 0.041	1
	in DEC (mas yr-1)
$\Pi$	Gaia DR2 Parallax (mas)	$7.973\pm 0.021$	1†
$RV$	Systemic radial	$-15.224\pm 0.10$	§2.3
	velocity ( km s-1)
$v\sin i_{\star }$	Stellar rotational	$2.42\pm 0.50$	§3.1
	velocity ( km s-1)
Sp. Type	Spectral Type	G2V	§3
Age	Age (Gyr)	${6.3}_{-3.2}^{+3.5}$	§3.3
$d_{\star }$	Distance (pc)	$125.42\pm 0.35$	1†
$A_V$	Visual extinction (mag)	$0.075\pm 0.015$	§3.2
$U^{††}$	Space motion ( km s-1)	$17.32\pm 0.03$	§4.2
$V$	Space motion ( km s-1)	$0.95\pm 0.07$	§4.2
$W$	Space motion ( km s-1)	$-0.90\pm 0.07$	§4.2

Table 2. Table 2: Photometric follow-up observations of KELT-23Ab

Observatory	Location	Aperture	Plate scale	Date	Filter	Exposure	RMSa	Detrending Parametersb	Transit
		(m)	($″{\mathrm{pix}}^{-1}$)	(UT 2018)		Time (s)	(10-3)		Coverage
WCO	PA, USA	0.35	0.45	26 January	$I$	90	2.42	Airmass, Total Counts, Y	Full Transit
PvdK	PA, USA	0.61	0.38	26 January	$r^{\prime }$	60	2.67	Airmass, FWHM	Full Transit
DEMONEXT	AZ, USA	0.50	0.90	03 February	$g^{\prime }$	30	4.95	Airmass, X	Full Transit
KeplerCam	AZ, USA	1.20	0.37	04 February	$i^{\prime }$	15	3.58	Airmass	Mid-Transit, Egress
astroLAB	Zillebeke, Belgium	0.684	1.86	17 February	$I$	5	6.01	Airmass, Sky Brightness	Partial Ingress, Egress
PvdK	PA, USA	0.61	0.38	10 March	$z^{\prime }$	60	2.86	Airmass, Y	Full Transit
ASP	MA, USA	0.355	0.69	19 March	$B$	30	5.80	Airmass, Total Counts, X	Full Transit
ASP	MA, USA	0.355	0.69	19 March	$R$	10	4.78	Airmass, Total Counts	Full Transit
WCO	PA, USA	0.35	0.45	19 March	$z^{\prime }$	120	4.60	Airmass	Full Transit
SOTES	Suwalki, Poland	0.10	1.65	31 May	$V$	120	4.05	Airmass, Total Counts	Full Transit
KUO	PA, USA	0.61	0.72	03 July	$V$	90	2.55	Airmass, Total Counts	Ingress, Mid-Transit, Post-Egress

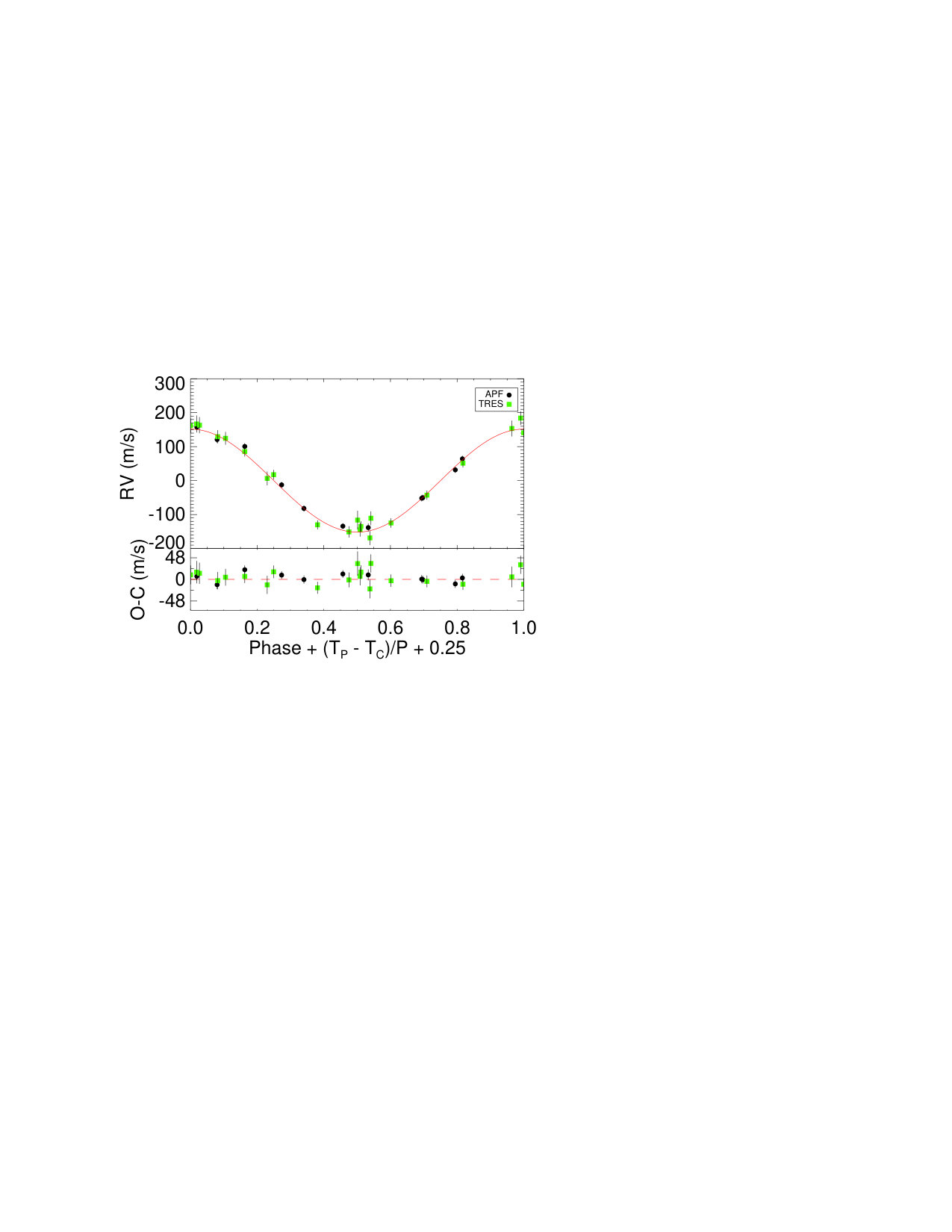

Table 3. Table 3: Absolute RVs and Bisector Spans for KELT-23Ab

${\mathrm{BJD}}_{\mathrm{TDB}}$	RV	${\sigma }_{\mathrm{RV}}$	Bisector	${\sigma }_{\mathrm{Bisector}}$	Source
	($m{s}^{-1}$)	($m{s}^{-1}$)	($m{s}^{-1}$)	($m{s}^{-1}$)
2458168.018618	-162.7	27.3	20.0	21.8	TRES
2458184.972170	116.6	24.9	19.4	23.1	TRES
2458200.902902	75.4	19.1	-20.8	14.2	TRES
2458201.932662	-222.8	21.0	-9.1	16.1	TRES
2458210.887269	-200.7	20.1	48.1	13.9	TRES
2458211.973315	127.7	20.1	26.2	11.7	TRES
2458218.822284	105.3	23.6	6.7	16.3	TRES
2458227.783676	101.9	21.1	-11.1	14.9	TRES
2458241.834480	-56.7	20.2	-22.3	14.2	TRES
2458243.807620	61.0	18.6	10.9	7.8	TRES
2458244.791342	-174.6	20.1	-6.9	11.0	TRES
2458245.744880	89.4	23.1	-44.5	25.2	TRES
2458255.919545	-217.4	16.3	-19.1	12.1	TRES
2458263.868286	72.6	13.4	-2.3	6.5	TRES
2458268.747169	16.4	14.6	4.0	12.5	TRES
2458269.736791	-194.2	13.7	-6.9	10.1	TRES
2458271.788423	-204.9	14.9	8.7	8.9	TRES
2458273.749890	-200.5	13.1	-7.0	14.3	TRES
2458274.733876	-19.2	12.3	-5.0	8.6	TRES
2458275.708487	-53.3	13.9	-10.2	10.9	TRES
2458276.745735	-113.8	13.0	21.2	17.7	TRES
2458167.067925	138.308	8.055	14.9	12.7	APF
2458207.851774	108.658	7.488	21.3	12.5	APF
2458210.942618	-130.985	10.568	42.4	12.2	APF
2458222.808525	36.404	6.853	18.2	13.1	APF
2458230.805805	-79.151	6.772	11.3	12.5	APF
2458233.858489	-49.625	7.187	21.0	12.6	APF
2458275.762324	-19.782	6.392	8.4	12.4	APF
2458283.751511	54.966	7.085	23.5	12.1	APF
2458285.739298	-59.795	6.269	23.4	12.0	APF
2458288.721088	147.346	6.433	25.7	12.5	APF
2458289.708981	-144.553	6.269	18.4	12.9	APF

Table 4. Table 4: Median values and 68% confidence intervals for the physical and orbital parameters of the KELT-23A system

Parameter	Units	Value	Adopted Value
		(MIST eccentric)	(MIST circular; $e$=0 fixed)
Stellar Parameters:
$M_{\ast }$	Mass ($M_{☉}$)	${0.942}_{-0.055}^{+0.062}$	${0.944}_{-0.054}^{+0.060}$
$R_{\ast }$	Radius ($R_{☉}$)	$0.996\pm 0.015$	$0.996\pm 0.015$
$L_{\ast }$	Luminosity ($L_{☉}$)	${1.082}_{-0.049}^{+0.051}$	${1.081}_{-0.048}^{+0.051}$
${\rho }_{\ast }$	Density (cgs)	${1.345}_{-0.087}^{+0.098}$	${1.349}_{-0.083}^{+0.090}$
$\log g$	Surface gravity (cgs)	${4.416}_{-0.027}^{+0.028}$	${4.417}_{-0.025}^{+0.026}$
$T_{\mathrm{eff}}$	Effective Temperature (K)	$5899\pm 49$	$5899\pm 49$
$\left[\mathrm{Fe}/H\right]$	Metallicity (dex)	$-{0.106}_{-0.077}^{+0.078}$	$-{0.105}_{-0.077}^{+0.078}$
${\left[\mathrm{Fe}/H\right]}_0$	Initial Metallicity	$-{0.072}_{-0.071}^{+0.070}$	$-0.071\pm 0.071$
$Age$	Age (Gyr)	${6.5}_{-3.3}^{+3.7}$	${6.4}_{-3.2}^{+3.5}$
$EEP$	Equal Evolutionary Point	${374}_{-32}^{+27}$	${374}_{-30}^{+27}$
$\dot{\gamma }$	RV slope (m/s/day)	$-{0.196}_{-0.090}^{+0.079}$	$-{0.276}_{-0.11}^{+0.098}$
Planetary Parameters:		b	b
$P$	Period (days)	$2.255249\pm 0.000012$	${2.255251}_{-0.000012}^{+0.000011}$
$R_P$	Radius ($R_J$)	$1.323\pm 0.025$	$1.323\pm 0.025$
$T_C$	Time of conjunction (${\mathrm{BJD}}_{\mathrm{TDB}}$)	${2458007.3184}_{-0.0029}^{+0.0027}$	${2458007.3194}_{-0.0028}^{+0.0027}$
$T_0$	Optimal conjunction Time (${\mathrm{BJD}}_{\mathrm{TDB}}$)	${2458140.3781}_{-0.0030}^{+0.0028}$	${2458140.3792}_{-0.0029}^{+0.0027}$
$a$	Semi-major axis (AU)	${0.03300}_{-0.00065}^{+0.00071}$	${0.03302}_{-0.00064}^{+0.00068}$
$i$	Inclination (Degrees)	${85.37}_{-0.30}^{+0.31}$	${85.37}_{-0.30}^{+0.31}$
$e$	Eccentricity	${0.036}_{-0.013}^{+0.014}$	—
${\omega }_{\ast }$	Argument of Periastron (Degrees)	$3_{-40}^{+36}$	—
$T_{eq}$	Equilibrium temperature (K)	$1562\pm 21$	$1561\pm 20$
$M_P$	Mass ($M_J$)	${0.936}_{-0.043}^{+0.047}$	${0.938}_{-0.044}^{+0.048}$
$K$	RV semi-amplitude (m/s)	${150.5}_{-3.7}^{+3.8}$	${150.6}_{-4.3}^{+4.4}$
$logK$	Log of RV semi-amplitude	$2.178\pm 0.011$	${2.178}_{-0.013}^{+0.012}$
$R_P/R_{\ast }$	Radius of planet in stellar radii	$0.1365\pm 0.0011$	$0.1365\pm 0.0010$
$a/R_{\ast }$	Semi-major axis in stellar radii	${7.13}_{-0.16}^{+0.17}$	${7.13}_{-0.15}^{+0.16}$
$\delta$	Transit depth (fraction)	${0.01863}_{-0.00030}^{+0.00031}$	$0.01864\pm 0.00028$
$Depth$	Flux decrement at mid transit	${0.01863}_{-0.00030}^{+0.00031}$	$0.01864\pm 0.00028$
$\tau$	Ingress/egress transit duration (days)	${0.01706}_{-0.00097}^{+0.0010}$	${0.01710}_{-0.00085}^{+0.00089}$
$T_{14}$	Total transit duration (days)	$0.0992\pm 0.0010$	$0.09921\pm 0.00092$
$T_{FWHM}$	FWHM transit duration (days)	${0.08211}_{-0.00061}^{+0.00060}$	${0.08208}_{-0.00060}^{+0.00061}$
$b$	Transit Impact parameter	${0.575}_{-0.031}^{+0.028}$	${0.576}_{-0.027}^{+0.024}$
$b_S$	Eclipse impact parameter	${0.575}_{-0.028}^{+0.027}$	—
${\tau }_S$	Ingress/egress eclipse duration (days)	${0.0171}_{-0.0010}^{+0.0011}$	—
$T_{S,14}$	Total eclipse duration (days)	${0.0994}_{-0.0025}^{+0.0024}$	—
$T_{S,FWHM}$	FWHM eclipse duration (days)	${0.0822}_{-0.0017}^{+0.0018}$	—
${\delta }_{S,3.6\mu m}$	Blackbody eclipse depth at 3.6$\mu$m (ppm)	$1484\pm 63$	${1482}_{-62}^{+64}$
${\delta }_{S,4.5\mu m}$	Blackbody eclipse depth at 4.5$\mu$m (ppm)	$1981\pm 74$	${1980}_{-73}^{+76}$
${\rho }_P$	Density (cgs)	${0.502}_{-0.035}^{+0.038}$	${0.503}_{-0.036}^{+0.039}$
$log{g}_P$	Surface gravity	${3.123}_{-0.026}^{+0.027}$	$3.124\pm 0.027$
$\Theta$	Safronov Number	${0.0495}_{-0.0015}^{+0.0016}$	$0.0496\pm 0.0017$
$⟨F⟩$	Incident Flux (109 erg s-1 cm-2)	${1.349}_{-0.070}^{+0.073}$	${1.349}_{-0.067}^{+0.070}$
$T_P$	Time of Periastron (${\mathrm{BJD}}_{\mathrm{TDB}}$)	${2458006.80}_{-0.25}^{+0.23}$	${2458007.3194}_{-0.0028}^{+0.0027}$
$T_S$	Time of eclipse (${\mathrm{BJD}}_{\mathrm{TDB}}$)	${2458006.234}_{-0.017}^{+0.015}$	${2458008.4470}_{-0.0028}^{+0.0027}$
$T_A$	Time of Ascending Node (${\mathrm{BJD}}_{\mathrm{TDB}}$)	$2458006.776\pm 0.018$	${2458006.7556}_{-0.0028}^{+0.0027}$
$T_D$	Time of Descending Node (${\mathrm{BJD}}_{\mathrm{TDB}}$)	${2458007.901}_{-0.017}^{+0.019}$	${2458007.8832}_{-0.0028}^{+0.0027}$
$ecos{\omega }_{\ast }$		${0.030}_{-0.012}^{+0.011}$	—
$esin{\omega }_{\ast }$		$0.001\pm 0.021$	—
$M_P\sin i$	Minimum mass ($M_J$)	${0.933}_{-0.043}^{+0.047}$	${0.935}_{-0.044}^{+0.048}$
$M_P/M_{\ast }$	Mass ratio	$0.000948\pm 0.000030$	$0.000949\pm 0.000033$
$d/R_{\ast }$	Separation at mid transit	${7.11}_{-0.25}^{+0.27}$	${7.13}_{-0.15}^{+0.16}$
$P_T$	A priori non-grazing transit prob	${0.1215}_{-0.0044}^{+0.0045}$	$0.1210\pm 0.0025$
$P_{T,G}$	A priori transit prob	${0.1599}_{-0.0058}^{+0.0059}$	$0.1593\pm 0.0035$
$P_S$	A priori non-grazing eclipse prob	$0.1211\pm 0.0029$	—
$P_{S,G}$	A priori eclipse prob	${0.1594}_{-0.0041}^{+0.0042}$	—

Table 5. Table 5: Median values and 68% confidence intervals for the additional parameters of KELT-23A from EXOFASTv2

Wavelength Parameters:
	linear limb-darkening	quadratic limb-darkening	Dilution
	$u_1$	$u_2$	$A_D$
$B$	$0.612\pm 0.050$	$0.202\pm 0.050$	$0.0013336\pm 0.0000067$
$I$	$0.268\pm 0.034$	$0.292\pm 0.034$	$0.002565\pm 0.000013$
$R$	$0.342\pm 0.047$	$0.289\pm 0.048$	$0.003504\pm 0.000018$
$g^{\prime }$	${0.512}_{-0.046}^{+0.047}$	$0.227\pm 0.047$	$0.0014614\pm 0.0000073$
$i^{\prime }$	${0.315}_{-0.049}^{+0.050}$	$0.312\pm 0.049$	$0.009836\pm 0.000049$
$r^{\prime }$	$0.374\pm 0.045$	$0.300\pm 0.047$	$0.003357\pm 0.000017$
$z^{\prime }$	$0.200\pm 0.034$	$0.258\pm 0.034$	$0.02120\pm 0.00011$
$V$	$0.448\pm 0.036$	$0.300\pm 0.035$	$0.002566\pm 0.000013$
Telescope Parameters:		Mist Eccentric		Mist Circular
		APF	TRES	APF	TRES
${\gamma }_{\mathrm{rel}}$	Relative RV Offset (m/s)	${7.2}_{-3.8}^{+4.0}$	$-{59.7}_{-4.5}^{+4.8}$	${7.6}_{-5.2}^{+5.5}$	$-{56.1}_{-4.8}^{+4.9}$
${\sigma }_J$	RV Jitter (m/s)	${9.1}_{-4.3}^{+5.5}$	${5.4}_{-5.4}^{+7.4}$	${14.4}_{-4.3}^{+6.3}$	${8.4}_{-8.4}^{+6.5}$
${\sigma }_J^2$	RV Jitter Variance	${82}_{-60}^{+130}$	${28}_{-78}^{+130}$	${210}_{-110}^{+220}$	${70}_{-89}^{+150}$
Transit Parameters (MIST circular Fit):
Observation	Added Variance	TTV (days)	Baseline flux	detrending coeff	detrending coeff	detrending coeff
	${\sigma }^2$	(days)	$F_0$	$C_0$	$C_1$	$C_2$
WCO UT 2018-01-26 ($I$)	$-{0.00000126}_{-0.00000062}^{+0.00000071}$	${0.0088}_{-0.0028}^{+0.0029}$	$0.99953\pm 0.00022$	$-{0.00120}_{-0.00061}^{+0.00062}$	$-{0.00034}_{-0.00046}^{+0.00047}$	$-{0.00117}_{-0.00063}^{+0.00062}$
PvdK UT 2018-01-26 ($r^{\prime }$)	${0.00000673}_{-0.00000068}^{+0.00000077}$	${0.0076}_{-0.0028}^{+0.0029}$	$1.00025\pm 0.00021$	$-0.00067\pm 0.00060$	$-0.00089\pm 0.00068$	$-0.00061\pm 0.00061$
DEMONEXT UT 2018-02-03 ($g^{\prime }$)	${0.0000231}_{-0.0000018}^{+0.0000019}$	${0.0073}_{-0.0028}^{+0.0029}$	$1.00001\pm 0.00028$	$-0.00017\pm 0.00064$	${0.00079}_{-0.00064}^{+0.00063}$	—
KeplerCam UT 2018-02-04 ($i^{\prime }$)	${0.0000132}_{-0.0000013}^{+0.0000015}$	${0.0062}_{-0.0028}^{+0.0029}$	$0.99974\pm 0.00031$	$0.00022\pm 0.00049$	—	—
astroLAB UT 2018-02-17 ($I$)	${0.0000002}_{-0.0000051}^{+0.0000061}$	${0.0059}_{-0.0028}^{+0.0029}$	${1.00163}_{-0.00063}^{+0.00064}$	$-0.0014\pm 0.0016$	$-0.0012\pm 0.0016$	—
PvdK UT 2018-03-10 ($z^{\prime }$)	${0.00000648}_{-0.00000099}^{+0.0000011}$	${0.0062}_{-0.0029}^{+0.0030}$	$0.99924\pm 0.00025$	$0.00081\pm 0.00072$	$0.00061\pm 0.00073$	—
ASP UT 2018-03-19 ($B$)	${0.0000218}_{-0.0000039}^{+0.0000043}$	${0.0099}_{-0.0030}^{+0.0032}$	${0.99946}_{-0.00052}^{+0.00051}$	$-0.0011\pm 0.0014$	$-0.0025\pm 0.0016$	$-0.0018\pm 0.0014$
ASP UT 2018-03-19 ($R$)	${0.0000126}_{-0.0000017}^{+0.0000019}$	${0.0106}_{-0.0029}^{+0.0030}$	$1.00072\pm 0.00027$	$-{0.00143}_{-0.00072}^{+0.00073}$	$-0.00108\pm 0.00073$	—
WCO UT 2018-03-19 ($z^{\prime }$)	${0.0000008}_{-0.0000016}^{+0.0000019}$	${0.0138}_{-0.0032}^{+0.0034}$	${1.00005}_{-0.00062}^{+0.00061}$	${0.00071}_{-0.0010}^{+0.00099}$	—	—
SOTES UT 2018-05-31 ($V$)	${0.0000055}_{-0.0000020}^{+0.0000025}$	${0.0131}_{-0.0033}^{+0.0034}$	$1.00059\pm 0.00041$	$-{0.00183}_{-0.00096}^{+0.00095}$	$0.00035\pm 0.00097$	—
KUO UT 2018-07-03 ($V$)	${0.00000294}_{-0.00000074}^{+0.00000084}$	${0.0121}_{-0.0032}^{+0.0034}$	$0.99865\pm 0.00032$	$-{0.00298}_{-0.00095}^{+0.00094}$	$-{0.00147}_{-0.00097}^{+0.00096}$	—

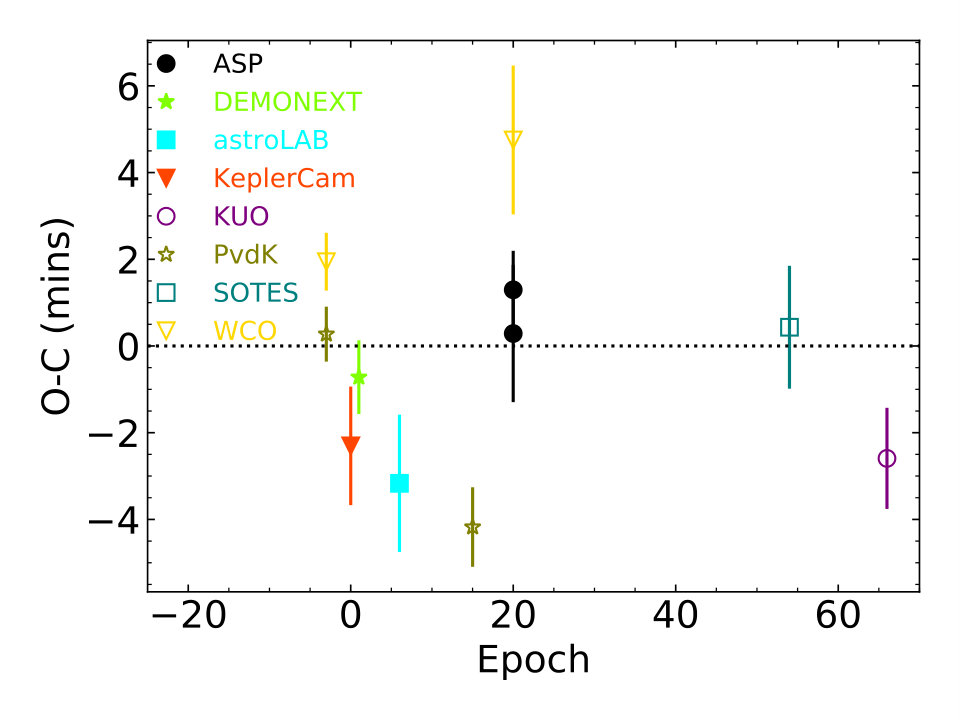

Table 6. Table 6: Transit Times for KELT-23Ab

Epoch	$T_0$	${\sigma }_{T_0}$	O-C	O-C	Telescope
	(${\mathrm{BJD}}_{\mathrm{TDB}}$)	(s)	(s)	(${\sigma }_{T_0})$
-3	2458144.8984	40	116	2.9	WCO
-3	2458144.89724	38	16	0.4	PvdK
1	2458153.91793	51	-43	-0.8	DEMONEXT
0	2458153.91681	82	-138	-1.7	KeplerCam
6	2458167.4484	95	-190	-2.0	astroLAB
15	2458187.74583	55	-250	-4.5	PvdK
20	2458196.77035	95	17	0.2	ASP
20	2458196.77106	54	77	-1.4	ASP
20	2458196.7735	103	285	2.7	WCO
54	2458273.45249	85	25	0.3	SOTES
66	2458302.76997	70	-155	-2.2	KUO

Table 7. Table 7: Relative fluxes for the companion star, determined by the SED analysis (Section 3.2 ).

Filter	$F_B/F_A$	Filter	$F_B/F_A$
$B$	0.00134	$g^{\prime }$	0.00146
$V$	0.00257	$r^{\prime }$	0.00337
$R$	0.00352	$i^{\prime }$	0.00993
$I$	0.01282	$z^{\prime }$	0.02166

Full text

planets and satellites: detection – planets and satellites: gaseous planets – techniques: photometric – techniques: spectroscopic – techniques: radial velocities – methods: observational

††software: numpy (Oliphant, 2015), matplotlib (Hunter, 2007), scipy, (Jones et al., 2001–), astropy, (Price-Whelan et al., 2018)

1 Introduction

The first known transiting exoplanet, HD 209458b (Charbonneau et al., 2000; Henry et al., 2000), is now but one of over 3000 confirmed exoplanets. Most of these planets were discovered by the Kepler mission (Borucki et al., 2010; Howell et al., 2014; Coughlin et al., 2016), and the first of many new discoveries are now coming from the Transiting Exoplanet Survey Satellite (TESS; Ricker et al. 2015; Huang et al. 2018; Vanderspek et al. 2019). The short period, massive planet population known as hot Jupiters produce signals that are large enough to be detected from ground-based transit surveys such as the Trans-atlantic Exoplanet Survey (TrES; Alonso et al. 2004), the XO project (McCullough et al., 2005), the Wide Angle Search for Planets (WASP; Pollacco et al. 2006), the Hungarian Automated Telescope Network (HATNet; Bakos et al. 2004), the Qatar Exoplanet Survey (QES; Alsubai et al. 2013), the Next-Generation Transit Survey (NGTS; Wheatley et al. 2013), the Multi-site All Sky Camera (MASCARA; Talens et al. 2017), and the Kilodegree Extremely Little Telescope (KELT; Pepper et al. 2003, 2007, 2012).

The majority of the known Kepler planets orbit faint stars, but have relatively long periods compared to the transiting planets found by ground-based surveys due to the long duration and continuous observations of Kepler’s prime survey. Indeed, ground-based surveys are typically only sensitive to planets with periods of less than roughly ten days due primarily to the effects of weather, the diurnal cycle, and the atmosphere, resulting in a non-continuous cadence and poor sensitivity to longer planets, but find planets around stars that are much brighter than Kepler due to their smaller apertures and ability to monitor much larger regions of the sky. One such survey, KELT111https://keltsurvey.org, is a pair of telescopes situated in the Northern and Southern Hemispheres, in Arizona (KELT-North) and South Africa (KELT-South) respectively. KELT-North and South each have apertures 42mm in diameter with a $26\arcdeg\times 26\arcdeg$ field of view and a $23\arcsec$ pixel scale. KELT-North and KELT-South began collecting data in 2005 and 2009, respectively. Between them, they survey roughly 61% of the sky at 10-20 minute cadence with about 1% photometric precision down to V$\sim$11. KELT is most sensitive to giant planets transiting stars between 8th and 11th magnitude in the $V$-band, a range that is often missed by radial velocity surveys and many other transit surveys, because either the hosts are too faint and numerous (for RV), or because stars at the brighter end of this magnitude range are saturated for ground-based surveys with larger apertures than KELT. This range implies KELT is biased toward detecting inflated, giant planets (Gaudi, 2005) around hot, luminous stars (Bieryla et al., 2015). Since the targets selected by KELT are relatively bright they present a valuable opportunity for atmospheric characterization. KELT has discovered over 20 exoplanets, the latest being KELT-21b (Johnson et al., 2018a) from KELT-North and KELT-22Ab (Labadie-Bartz et al., 2018) from KELT-South.

The inflated giant planets sought by KELT are hot Jupiters. They typically have masses greater than 0.25 $M_{\textrm{J}}$, radii between 1 and 2 $R_{\textrm{J}}$, and periods less than 10 days. They present a unique opportunity to study the evolution and formation of exoplanetary systems. Hot Jupiters are fairly easy to detect, however Wright et al. (2012) and Fressin et al. (2013) estimate that only around 1% of Sun-like stars host hot Jupiters, making them relatively rare compared to smaller planets. The frequency and depth of photometric transits of the hot Jupiters make them optimal for detection by the above-mentioned surveys. KELT plays an important role discovering and confirming some of the most promising hot Jupiters for follow-up observations by the Hubble Space Telescope (HST), Spitzer Space Telescope (see Beatty et al., 2018), and the James Webb Space Telescope (JWST).

Gas giants also present a unique opportunity to study atmospheric characteristics in planets outside of our solar system. Transmission spectroscopy is the illumination through the planet’s atmosphere by the host star during a transit. This effect allows us to study the atmospheric composition, wind speeds, haze, rotation rate, etc. (Charbonneau et al., 2002; Brogi et al., 2016; Sing et al., 2016). In addition to transmission spectroscopy, secondary eclipses give insight into the planet’s albedo and thermal emission in the near infrared (Garhart et al., 2019).

Here we report the discovery of KELT-23Ab, a hot Jupiter orbiting a Sunlike star. KELT-23A is a bright ($V=10.25$), near-Solar metallicity ($\left[{\rm Fe}/{\rm H}\right]=-0.105$), main-sequence, G2-type host whose composition may give insight into planetary formation processes around Sunlike stars. Meléndez et al. (2009) found that the Sun’s composition has a distinguishing abundance pattern that is not shared by solar analogs known to host hot Jupiters. More recently, Bedell et al. (2018) analyzed the abundance ratios of Sunlike exoplanet hosts within the Solar neighborhood and found that a majority of them have similar abundance patterns. A differential abundance analysis may give clues as to why the Solar system does not host a hot Jupiter, yet KELT-23A does. Our analysis suggests that KELT-23Ab is on a decaying orbit and is spiraling in toward the host star, a circumstance that could provide an opportunity to better understand the late stages of giant planet orbital evolution around a Sunlike star.

In Section 2 we describe the initial discovery light curve, follow-up photometry and spectroscopy, and adaptive optics observations. In Section 3 we use follow-up observations to characterize the host star. In Section 4 we fit a global model to the planetary system to measure the planet’s parameters. We also search for transit timing variations and consider the likelihood of a wide binary companion to KELT-23A. We conclude that the planetary host is the brighter of the two stars and have therefore given it the appropriate designation (“A”) in its name. Finally, in Sections 5 and 6 we rule out the possibility of a false positive scenario and discuss the tidal evolution of the system, stellar abundances, and future observations.

2 Discovery and Follow-Up Observations

2.1 KELT-North Observations and Photometry

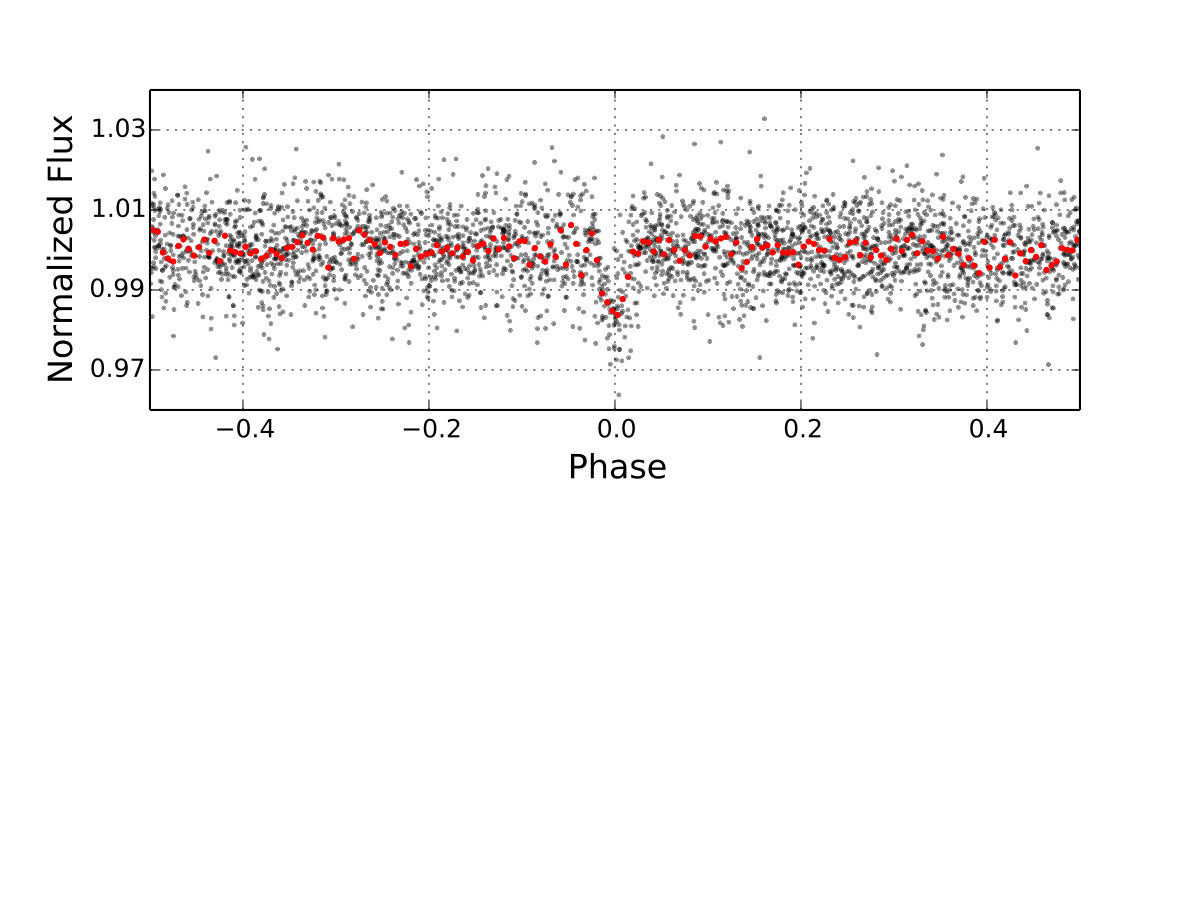

KELT-23A is located in KELT-North survey field 22, a $26\arcdeg\times 26\arcdeg$ region centered at ($\alpha_{\rm J2000}=16^{h}03^{m}12\fs 0$, $\delta_{\rm J2000}=+57\arcdeg 00\arcmin 00\farcs 0$). We observed the field a total of 3308 times from 2012 February to 2017 August. TYC 4187-996-1 was identified as a transit candidate within the field at $\alpha=15^{h}28^{m}35\fs 1926,~{}\delta=+66\arcdeg 21\arcmin 31\farcs 544$. The initial discovery light curve, shown in Figure 1, contains a significant Box-Least-Squares (Kovács et al., 2002) signal with a period of 2.2552375 days, a transit duration of 1.80 hours, and a transit depth of 12.8 mmag. The KELT image analysis and light curve production pipeline is described in detail in Siverd et al. (2012). Table 1 shows photometric and astrometric properties of KELT-23A.

2.2 Photometric Time-series Follow-up

The KELT-Follow-Up Network (FUN) is a collaboration of around 60 observatories spread throughout the Northern and Southern hemispheres.222A more complete listing of KELT-FUN observatories can be found at https://keltsurvey.org/  The KELT-FUN follow-up photometry is used to better constrain the transit parameters, eliminate false-positives, and determine accurate ephemerides. KELT-FUN members plan photometric follow-up observations through the use of TAPIR (Jensen, 2013), a web-based transit prediction calculator. KELT-FUN members generally use the AstroImageJ (AIJ) package (Collins & Kielkopf, 2013; Collins et al., 2017)333https://www.astro.louisville.edu/software/astroimagej/ to reduce and perform a preliminary analysis of their light curves. We obtained 11 follow-up transits between 26 January 2018 and 03 July 2018 from the observatories listed in Table 2. The specifications listed in Table 2 are taken from Collins et al. (2018), which is the most current listing of KELT-FUN instrument specifications. The follow-up light curves span the Johnson $BVRI$ and Sloan $g^{\prime}r^{\prime}i^{\prime}z^{\prime}$ filter sets. As part of the follow-up confirmation process the transits in different bandpasses were checked for chromatic variations. No chromatic variations were found. The individual light curves are shown in Figure 2.

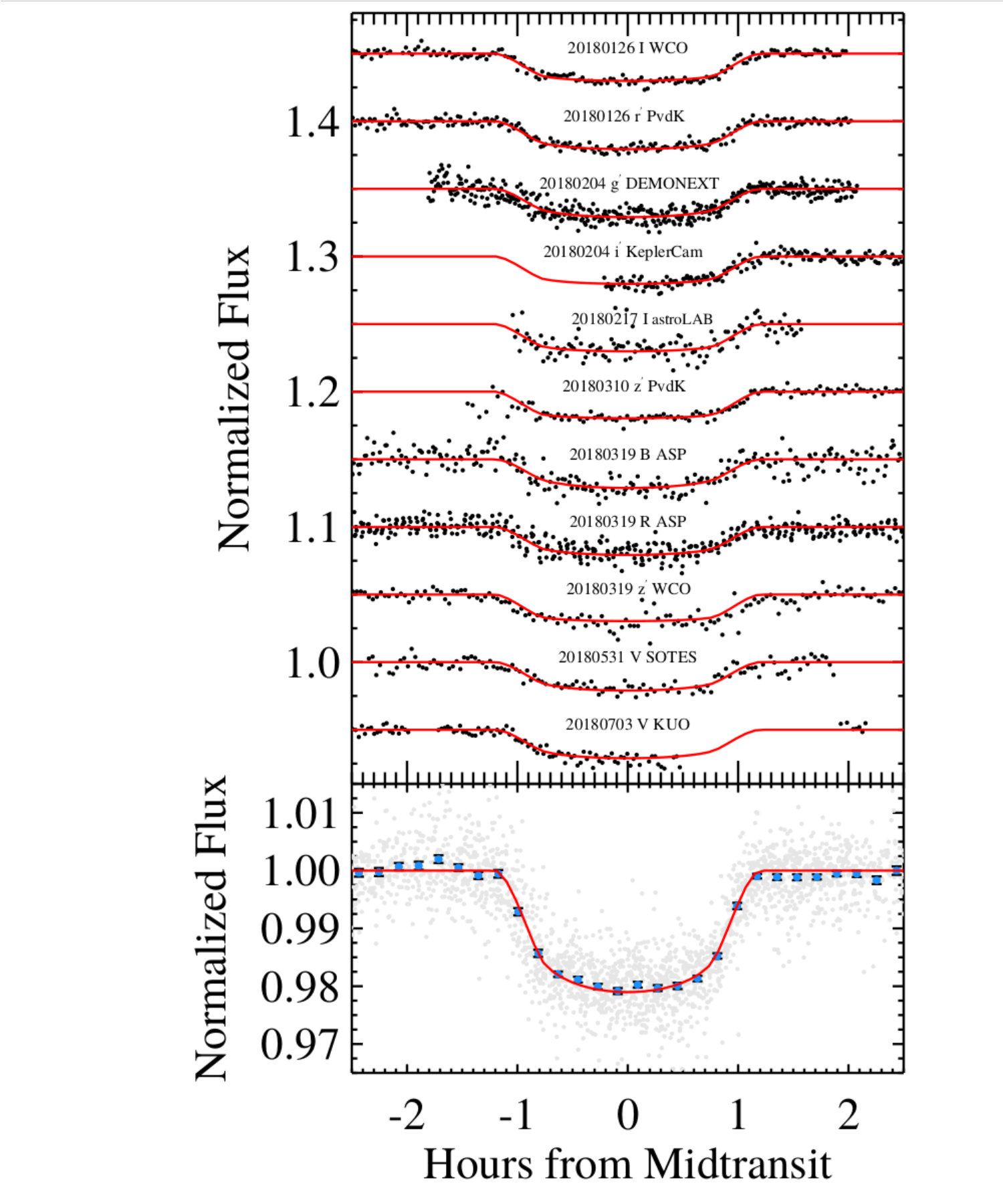

The KELT-FUN light curves were detrended by various parameters such as airmass, full-width-half-max (FWHM), X position, Y position, sky brightness, and total comparison star counts. To determine the best set of detrending parameters we used the Bayesian Information Criterion (BIC) of a preliminary fit to the detrended data. Detrending parameters that produced a drop in BIC of 10 or greater were selected for the global fit (Section 4.1). These free parameters can be found in Table 2. In all cases, airmass was selected as a detrending parameter due to the pervasive airmass-dependent systematic effects seen in differential photometry. Other parameters such as X and Y target pixel position were evaluated as they can induce trends in the light curve due to flatfielding. Observatories that perform a meridian flip during observations additionally have the option of detrending by meridian flip in AIJ as a meridian flip can cause a shift in position of the target. Meridian flip detrending was not found to be necessary for any KELT-FUN light curves in the current analysis.

2.3 Spectroscopic Follow-up

2.3.1 TRES at FLWO

We obtained 21 spectra from the Tillinghast Reflector Échelle Spectrograph (TRES444http://tdc-www.harvard.edu/instruments/TRES; Szentgyorgyi & Fűrész 2007; Fűrész et al. 2008) on the 1.5 m telescope at the Fred Lawrence Whipple Observatory on Mount Hopkins, Arizona, USA. We observed KELT-23A with TRES between UT 18 February 2018 and UT 07 June 2018. TRES is a $2.3\arcsec$ (as projected on the sky) fiber-fed échelle spectrograph with a wavelength dispersion between $3900-9100$Å and a resolving power of R$\sim 44,000$. Radial velocities were obtained through the procedure described below. These spectra were also used to calculate Bisector Spans (BSs) for use in false-positive analysis in Section 5. The procedure for calculating BSs can be found in detail in Buchhave et al. (2010). The TRES RVs and BSs can be seen in Table 3.

Relative RVs from TRES are found by first designating the spectrum with the highest Signal-to-Noise ratio (SNR) as the reference spectrum. Each individual spectrum is then cross-correlated with the reference. This cross-correlation utilizes the portion of the spectrum between $4300-5660$Å. To obtain absolute RVs from TRES the reference spectrum’s Mg b region (5190Å) is cross correlated with the appropriate Kurucz (1992) stellar atmosphere spectrum. From there, absolute RVs are adjusted to the International Astronomical Union (IAU) Radial Velocity Standard Star system (Stefanik et al., 1999). This correction is of the order $-0.61$ km s*-1* and serves to correct for the non-inclusion of gravitational redshift in the model spectrum. The absolute RV of the KELT-23A system was found to be $-15.224\pm 0.10$ km s*-1*, where the uncertainty is a result of the residual systematic error in the transformation to the IAU system. The TRES RVs are plotted in Figure 3 in green.

2.3.2 APF at Lick Observatory

We obtained 11 spectra of KELT-23A between UT 17 February 2018 and UT 20 June 2018 from the Levy spectrograph on the 2.4-meter Automated Planet Finder (APF555https://www.ucolick.org/public/telescopes/apf.html: Vogt et al. 2014) telescope at Lick Observatory, Mount Hamilton, CA. The APF spectra have a resolution of R$\sim 100,000$ and are obtained through a $1\arcsec\times 3\arcsec$ slit. Observations were done through an iodine cell, which imprints a forest of absorption lines onto the stellar spectrum to serve as a wavelength and instrumental broadening reference. The procedure for obtaining radial velocities from APF spectra differs from the procedure for TRES and is described in great detail in Fulton et al. (2015). The method of extracting RVs from the APF spectra involves deconvolving the stellar spectrum from the iodine cell’s absorption line forest. The deconvolved stellar spectrum is then used to evaluate the doppler shift and model the instrumental point-spread function (Butler et al., 1996).

2.4 High-Contrast Imaging

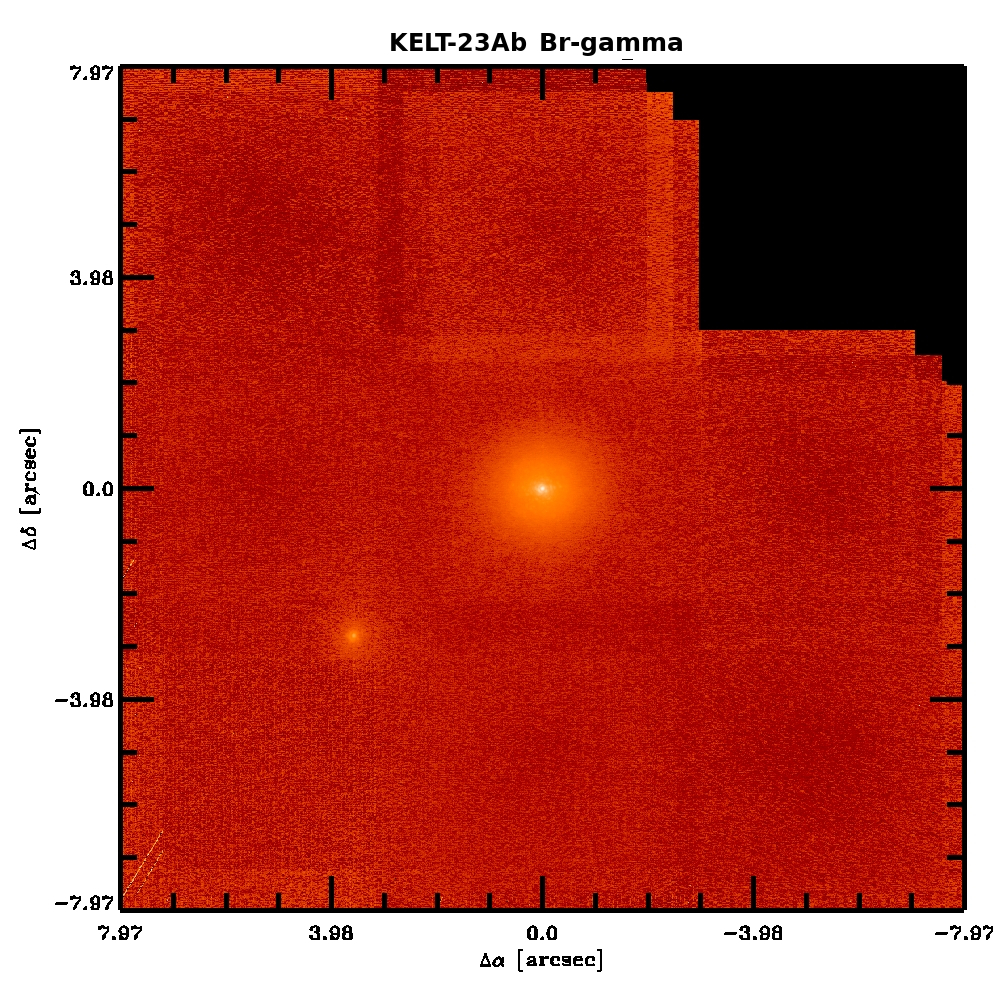

As part of our standard process for validating transiting exoplanets, we observed KELT-23A with infrared high-resolution adaptive optics (AO) imaging at Keck Observatory. The high-resolution AO imaging has demonstrated the ability to resolve faint stellar companions, as in the case of the hierarchical triple KELT-21 system (Johnson et al., 2018b). The Keck Observatory observations were made with the NIRC2 instrument on Keck-II behind the natural guide star AO system. The observations were made on 2018 Jun 06 in the standard 3-point dither pattern that is used with NIRC2 to avoid the left lower quadrant of the detector which is typically noisier than the other three quadrants. The dither pattern step size was $3\arcsec$ and was repeated twice, with each dither offset from the previous dither by $0.5\arcsec$.

The observations were made in the narrow-band $Br-\gamma$ filter $(\lambda_{o}=2.1686;\Delta\lambda=0.0326\mu$m) with an integration time of 10 seconds with one coadd per frame for a total of 90 seconds on target. The camera was in the narrow-angle mode with a full field of view of $\sim 10\arcsec$ and a pixel scale of approximately $0.099442\arcsec$ per pixel. The Keck AO observations clearly detected a companion star 4.5$\arcsec$ to the southwest of the primary star which is the known star 2MASS J15283577+6621288 (Figure 5) and must be accounted for in the transit depth determinations for observations that do not resolve the stars (Ciardi et al., 2015). No additional stellar companions were detected to within a resolution $\sim 0.05\arcsec$ FWHM (Figure 6).

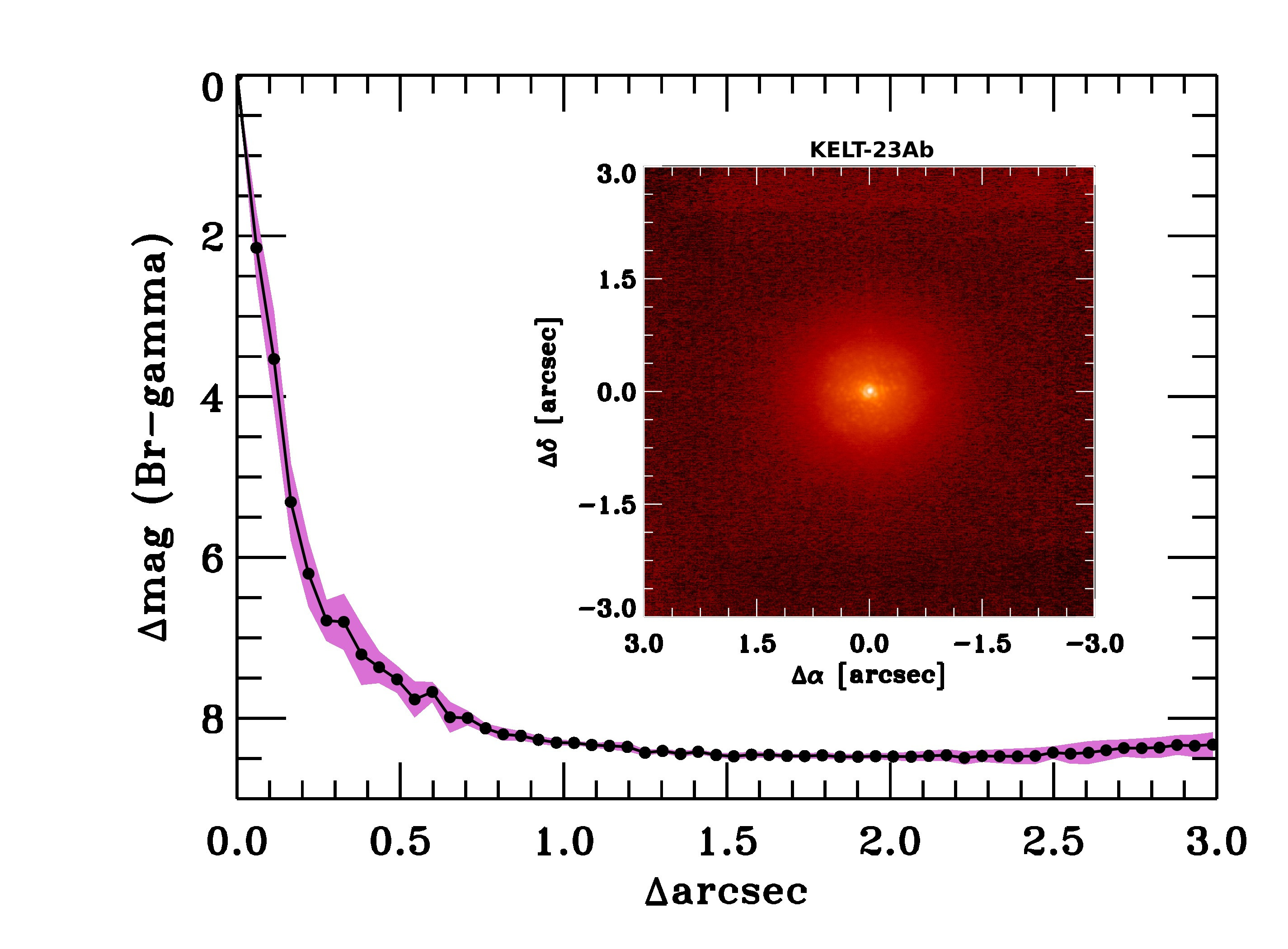

The sensitivities of the final combined AO image were determined by injecting simulated sources azimuthally around the primary target every $45^{\circ}$ at separations of integer multiples of the central source’s FWHM (Furlan et al., 2017). The brightness of each injected source was scaled until standard aperture photometry detected it with $5\sigma$ significance. The resulting brightness of the injected sources relative to the target set the contrast limits at that injection location. The final $5\sigma$ limit at each separation was determined from the average of all of the determined limits at that separation and the uncertainty on the limit was set by the rms dispersion of the azimuthal slices at a given radial distance. The sensitivity curve is shown in Figure 6 along with an inset image zoomed to the primary target showing no other companion stars.

3 Host Star Properties

3.1 Spectral Analysis

Spectral analysis allows us to obtain initial estimates of several characteristics of KELT-23A. The TRES spectra were analyzed using the Spectral Parameter Classification (SPC) procedure outlined in Buchhave et al. (2012). SPC cross-correlates the spectra against a grid of stellar atmospheres made by Kurucz (1979, 1992). Allowing SPC to vary all parameters, we obtain a preliminary $T_{\rm eff}\,=5915\pm 50$K, $\log{g_{\star}}=4.45\pm 0.10$ (cgs), $\left[{\rm Fe}/{\rm H}\right]=-0.09\pm 0.08$, and $v\sin{I_{*}}=2.42\pm 0.502$ km s*-1*. The errors reported represent mean errors. The low $v\sin{I_{*}}$ value indicates that the spectra are not significantly broadened by stellar rotation. The APF spectra were also analyzed and yielded a stellar effective temperature of $5775\pm 110$K and a [Fe/H] of $-0.03\pm 0.06$. The larger quantity and SNR of the TRES spectra led us to accept the values obtained by the SPC over those obtained on the APF spectra.

3.2 SED Analysis

Using KELT-23A’s spectral energy distribution (SED) together with the Gaia parallax, we were able to determine an empirical constraint on its radius. We use broadband photometry, shown in Table 1, spanning the wavelength range 0.2–22 $\mu m$ from the GALEX NUV to the WISE4 passbands. We excluded the 2MASS $H$ and $K_{S}$ bands because they contained the “U” quality flag in the 2MASS catalog, meaning that the magnitude listed is an upper limit. We adopted the $T_{\rm eff}$ and [Fe/H] from the spectrosopic analysis (see Section 3.1), such that the one remaining free parameter of the fit is extinction, $A_{V}$. We use Kurucz (1979, 1992) stellar atmosphere models to fit the SED, and the bolometric flux $F_{\rm bol}$ is obtained by numerically integrating the (unreddened) fitted SED model. The existence of a known companion within $4.5\arcsec$ (Section 2.4) indicates that the fluxes in the above bandpasses are blended, so we simultaneously fitted the companion star’s SED by enforcing the same distance and extinction (see Section 4.4) but in this case fitting for $T_{\rm eff}$, and then subtracting the companion star’s $F_{\rm bol}$ in order to obtain the true $F_{\rm bol}$ for KELT-23A alone.

We obtain a good fit with reduced $\chi^{2}=4.4$, resulting in a best fit $A_{V}=0.075\pm 0.015$ and a (companion flux-corrected) $F_{\rm bol}$ for KELT-23A of $(2.056\pm 0.071)\times 10^{-9}$ erg s*-1* cm*-2*. With the Gaia DR2 parallax (corrected for the systematic offset from Stassun & Torres, 2018), we obtain a preliminary stellar radius for KELT-23A of 0.959$\pm$0.016 $\,R_{\sun}$.

3.3 Stellar Models and Age

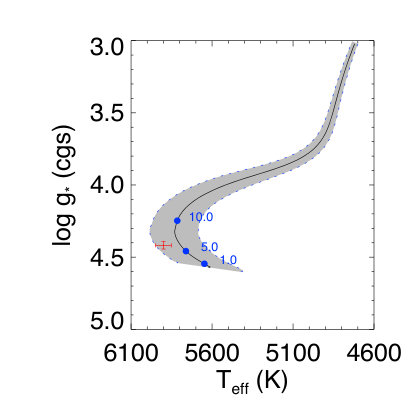

We estimate the age of KELT-23A using the stellar parameters determined from the circular MESA Isochrones and Stellar Tracks (MIST; Dotter 2016; Choi et al. 2016; Paxton et al. 2011, 2013, 2015) model fit in Section 4.1 and Table LABEL:tab:KELT-23A. We also determine an evolutionary track for KELT-23A, using a similar process to that in Siverd et al. (2012). In short, we find the intersection of the evolutionary track corresponding to the M\textsubscript{\star} and $\left[{\rm Fe}/{\rm H}\right]$ with the best fitting isochrone for our $T_{\rm eff}\,$ and $\log{g_{\star}}$. We find an age of $6.3^{+3.5}_{-3.2}$ Gyr, where the uncertainty only accounts for observational uncertainty in the parameters used in the fit. This does not account for systematic uncertainties or calibration uncertainties in the MIST model. We find that KELT-23A is a main-sequence G2V type star in the second half of its lifetime on the main-sequence, making KELT-23A a slightly older Solar-type star.

The star’s metallicity suggests that it could also be slightly sub-Solar. A more detailed analysis of individual elemental abundances of the host star is encouraged in order to search for deviations from the Solar abundance ratios.

4 Analysis and Results

4.1 EXOFASTv2 Global Fit

In order to gain a more complete understanding of the KELT-23A system’s parameters, we simultaneously fit the ground based photometric observations from the KELT-Followup Network (See Figure 2) and the radial velocities (See Figure 3) from TRES using EXOFASTv2 (Eastman et al., 2013; Eastman, 2017). Within the global fit, the MIST stellar evolution models are simultaneously fit to constrain the stellar parameters. We place a Gaussian prior on the $\left[{\rm Fe}/{\rm H}\right]$ of -0.09$\pm$0.08 and $T_{\rm eff}\,$ of 5915$\pm$50 K from the SPC analysis of the TRES and APF spectra (See §3.1). We also place a Gaussian prior on R\textsubscript{\star} from the value given by the SED analysis (see §3.2, Figure 7). We perform two separate fits of KELT-23Ab, one where eccentricity is a free parameter and the other where eccentricity is enforced to be zero. The results of our two fits are shown in Table LABEL:tab:KELT-23A and LABEL:tab:KELT-23A_other.

4.2 UVW Space Motion

We computed the three-dimensional space motion of KELT-23A to characterize it kinematically in a Galactic context. The systemic velocity was measured to be $-15.224\pm 0.10$ km s*-1* (Section 2.3), which is within $1\sigma$ of the value reported by Gaia DR2 ($RV_{Gaia}=-14.891\pm 0.379$; Katz et al. 2018), and the proper motion of the system was found to be $\mu_{\alpha}=0.434\pm 0.039$ mas yr*-1* and $\mu_{\delta}=-12.217\pm 0.041$ mas yr*-1* (Table 1). We adopt the distance value derived from the Gaia parallax (Table 1), and the standard of rest values from Coşkunoǧlu et al. (2011). We calculate the space motion to be ($U$, $V$, $W$) = ($17.32\pm 0.03$, $0.95\pm 0.07$, $-0.90\pm 0.07$) km s*-1*. When compared with the distributions in Bensby et al. (2003), we find a 99.4% probability that KELT-23A is a member of the thin disk population in the Galaxy. KELT-23A’s near-Solar metallicity and relatively low velocities are consistent with the age derived in Section 3.3.

4.3 Transit Timing Variation Results

Transit timing variations (TTVs) can be evidence of an unobserved planetary companion gravitationally perturbing the observed planet (Agol et al., 2005; Holman & Murray, 2005). Hot Jupiters seldom show significant TTVs because they rarely have companions close to their mean motion resonances (Steffen et al., 2012). However, there is at least one example of a Hot Jupiter that exhibits TTVs due to a nearby companion, specifically WASP-47b, which was discovered by Hellier et al. (2012) and whose TTVs due to a nearby Neptune-mass companion were discovered in K2 data by Becker et al. (2015). Therefore, it is important that we continue to search for Hot Jupiters with detectable TTVs, as these rare systems can provide rich and precious information about the emplacement mechanisms of hot Jupiters.

To analyze any possible TTVs we first converted each observatory’s photometric time stamps to $\rm{BJD_{TDB}}$ (Eastman et al., 2010) before the global fit in Section 4.1. The accuracy of the time stamps is assured by the synchronization to a standard clock by each observatory during observations. This synchronization assures that any uncertainty in $T_{0}$ is a result of the global fit. We then plotted the O-C residuals between the observed transit times and the calculated transit times using the ephemeris determined in Section 4.1 (Table LABEL:tab:KELT-23A). The O-C residuals are in Table 6 and plotted in Figure 9. Similar to the KELT-14 TTV analysis (Rodriguez et al., 2016), it would appear that there are significant TTVs. However, observatory-dependent factors such as seeing conditions and astrophysical red-noise (Carter & Winn, 2009) can induce discrepancies in the observed transit mid-times. Due to these factors, we do not claim that the observed TTVs are astrophysical in nature and conclude that they are likely spurious and a result of systematics. Continued monitoring, especially at the precision that will be reached by TESS, will unveil any true TTVs.

4.4 Evidence for a Wide Binary Star System

As with some other recently discovered hot-Jupiter hosts, such as KELT-18 (McLeod et al., 2017), there is evidence that KELT-23A is a member of a wide binary star system. The nearby star described in Section 2.4 is most likely gravitationally bound to KELT-23A. The agreement of the parallaxes of both components within their sub-one percent uncertainties, and the consistency of their relative proper motion with their expected orbital motion, lead us to conclude that the nearby star is bound to KELT-23A.

The nearby star’s Gaia DR2 parallax (also corrected for the systematic offset from Stassun & Torres, 2018) is $7.977\pm 0.052$ mas and places the star at a distance of $125.36\pm 0.82$ pc, equal to KELT-23A’s Gaia-derived distance to within the small uncertainty. At that distance, with an apparent angular separation of 4.5$\arcsec$, the projected (minimum) distance between the two stellar components would be 570 AU.

The nearby star’s Gaia DR2 proper motions of $\mu_{\alpha}=1.567\pm 0.092$ mas yr*-1* and $\mu_{\delta}=-11.902\pm 0.107$ mas yr*-1* are close to KELT-23A’s (Table 1) and give the two stars a relative proper motion between them of just 1.2 mas yr*-1*. This corresponds to a relative tangential velocity of 0.72 km s*-1*, which could be produced by orbital motion. For illustration, a 0.25 M*⊙* companion at 570 AU from KELT-23A would be in a 12,000 yr orbit. KELT-23A would have a (circular) orbital speed of 0.28 km s*-1* and the companion’s orbital speed would be 1.12 km s*-1*. A 0.5 M*⊙* companion would orbit with a period of 11,000 yr giving KELT-23A and its companion (circular) orbital speeds of 0.52 km s*-1* and 1.0 km s*-1*, respectively. The SED analysis (Section 3.2) produces relative fluxes for the companion (Table 7) that are consistent with a $\sim$ 0.3 M*⊙* star.

The presence of KELT-23A’s distant companion adds it to a family of systems that are informing the developing theories about the formation of hot Jupiters. One way to drive a gas giant planet inward toward its host star is through eccentric orbital interactions with a distant companion star via Kozai-Lidov oscillations (Fabrycky & Tremaine, 2007). The planet’s orbit would later circularize due to tidal friction as the planet approaches the host star.

5 False Positive Analysis

KELT-23Ab underwent the same rigorous vetting process used for all KELT planet candidates. We first obtain KELT-FUN photometry of the candidate (Section 2.2). Follow-up observers have instruments capable of observing the target at faster cadences with greater photometric accuracy and greater angular resolution than KELT. In addition, follow-up photometric observations ideally span a large wavelength range in order to check for wavelength dependent transit depths. Our observations span the $B$ - $z^{\prime}$ range and show no wavelength dependent anomalies. All of our observed light curves are well fit with our global planetary model. The model consists of an opaque circular planet of constant achromatic radius on a Keplerian orbit. (Section 4.1).

An indication that our follow-up TRES spectra are contaminated with a close stellar partner would be double absorption lines. Our 11 TRES spectra and 15 APF spectra show no double absorption lines. We find no evidence for a stellar partner blended in the spectra, signifying that the periodic RV signal arises from KELT-23A.

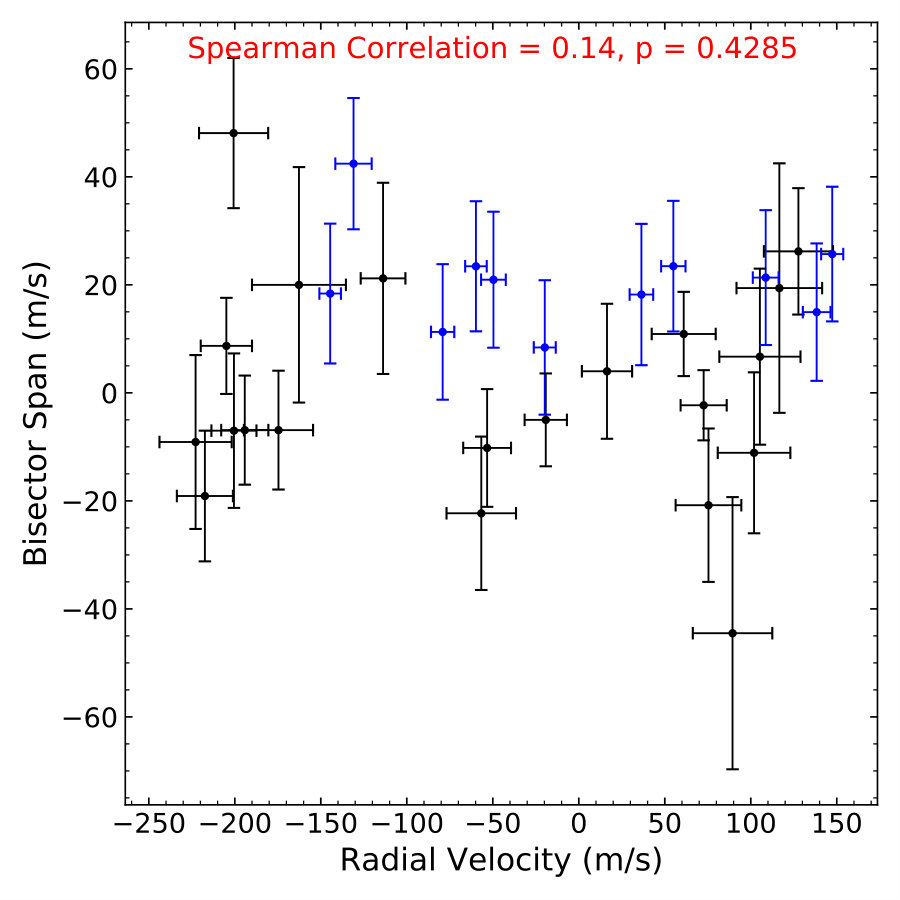

To rule out any other sources of periodic radial velocity anomalies we analyzed the bisector spans of each spectrum (Buchhave et al., 2010), found in Table 3. Between the RVs and the BSs, we calculated a Spearman correlation of 0.14 and a p-value of 0.4285, indicating that there is no correlation between the bisector spans and the radial velocities. We conclude that the observed periodic radial velocity changes are due to the reflex motion of the star caused by the transiting companion.

As a final check, the AO images were analyzed for a companion within 5$\arcsec$ of KELT-23A. There exists a close stellar companion within $4.5\arcsec$ of KELT-23A, which was previously known. This companion was not resolved by the photometry and measures were taken to deblend the fluxes by examining the flux ratios between KELT-23A and the stellar companion in the Johnson-Cousins and SDSS filters. Through the previously mentioned checks, we conclude that the photometric anomalies and spectroscopic RV signal are best described by a planet orbiting KELT-23A.

6 Discussion

6.1 Tidal Evolution and Irradiation History

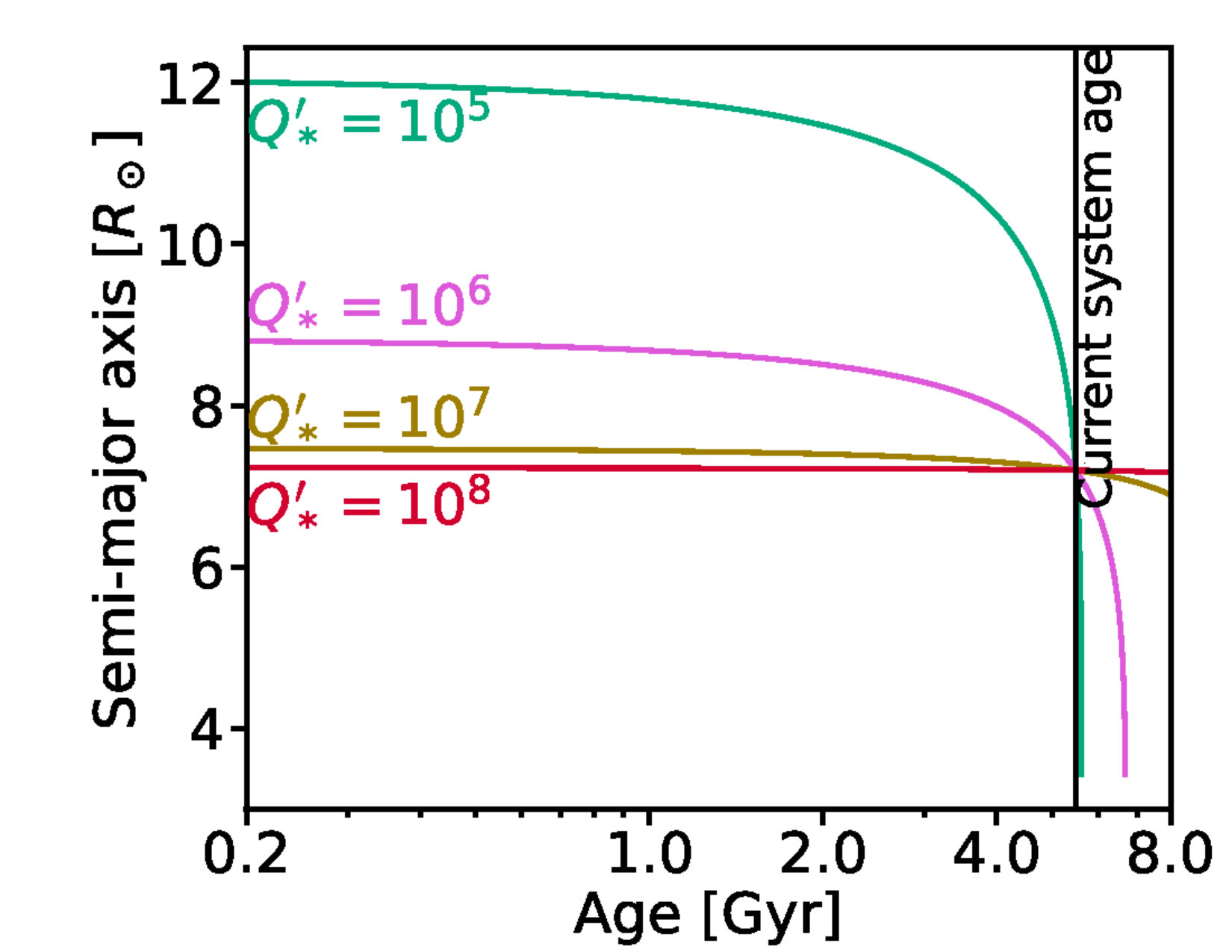

We simulate the past and future evolution of KELT-23Ab’s orbit using the parameters derived in Section 4.1 as boundary conditions. We use the POET code for this simulation (Penev et al., 2014) under several assumptions: a circular orbit, no perturbing companion planets, and a constant phase lag (constant tidal quality factor). The simulation analyzes the change in semi-major axis over time due to the tidal forces exchanged by the star and planet. The simulation also analyzes the change in incident flux received by the planet over time. This change in incident flux is a result of both the changing semi-major axis and host star luminosity as it evolves. Tidal force strengths are parameterized through the tidal dissipation parameter, Q${}^{\prime}_{*}$. This parameter is defined as the quotient of the tidal quality factor (Q∗) and the Love number (k2). We test values of Q${}^{\prime}_{*}$ ranging from 105 to 108 stepping up only the order of magnitude. This large range in tidal dissipation factor allows us to probe a large range of timescales for energy dissipation. These timescales correspond to the large range of proposed mechanisms for tidal dissipation.

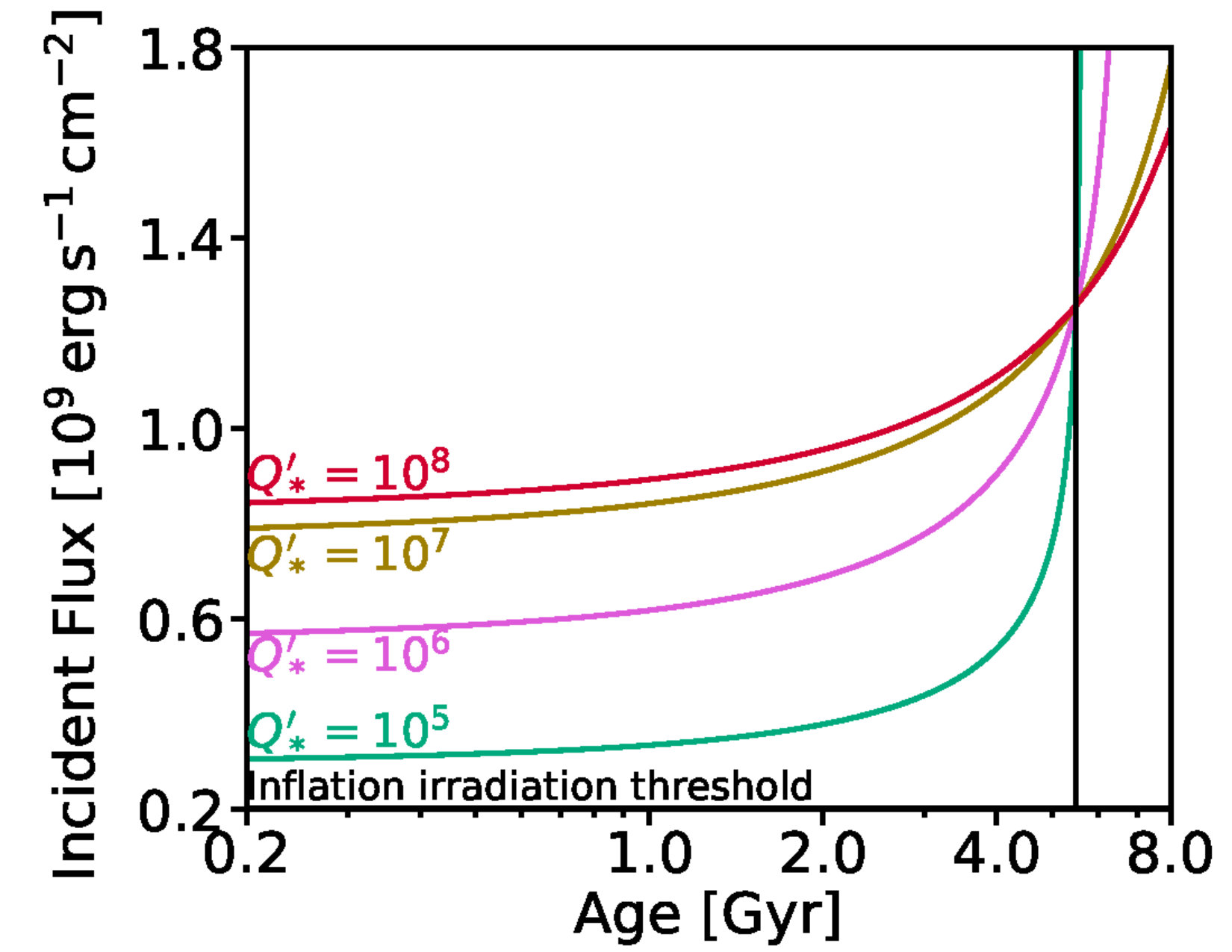

If tides have been the primary cause of changing orbital properties, then KELT-23Ab has been above the inflation irradiation threshold, as defined in Demory & Seager (2011) ($2\times 10^{8}$ erg s*-1* cm*-2*), for its entire history, regardless of the Q${}^{\prime}_{*}$ chosen. Currently, KELT-23Ab receives an incident flux about 6 times larger than the Demory & Seagar inflation threshold (Figure 10; Upper panel). KELT-23Ab’s large radius, $R_{\textrm{P}}=1.322\pm 0.025$ $R_{\textrm{J}}$, is almost certainly due to its long history of high stellar irradiation.

The future of KELT-23Ab is highly dependent on the value of Q${}^{\prime}_{*}$. A large value (108) will keep the planet in orbit for several Gyrs. A small value (105) will quickly cause the planet to spiral into its host star, as seen in the bottom panel of Figure 10.

If, in addition to the orbital properties, the spin of the star is known, then it is possible to constrain $Q_{*}^{{}^{\prime}}$, following the procedure of Penev et al. (2018). Briefly, the procedure relies on comparing the observed spin of the star to the one predicted by gyrochronology and assuming that any excess spin is due to tidal dissipation transferring orbital angular momentum to the star. Not having a measurement of the stellar spin, we can instead simply evaluate the frequency-dependent tidal dissipation found in Penev et al. (2018) at the tidal period of this system, resulting in an expected value of log($Q_{*}^{{}^{\prime}}$)$=5.8$. If this truly is the case then KELT-23Ab is expected to spiral into its host within the next Gyr or so.

While KELT-23Ab is not an extreme case of star-planet tidal interactions like WASP-18b (Hellier et al., 2009), the differences in host star properties, mainly the prevalence of a larger surface convection zone on KELT-23A, could potentially lead to observable TTVs in the system over a long time period. Nonetheless, tidal interactions within the KELT-23Ab system are almost certainly strong enough to conspire with potential Kozai-Lidov oscillations to produce a hot Jupiter, if the nearby star is indeed bound to KELT-23A.

6.2 Future Observations

The KELT-23A system presents a unique opportunity for follow-up from TESS and the JWST. KELT-23Ab has the second-highest ecliptic latitude ($\beta=75\arcdeg.112$) of any transiting exoplanet, second only to Qatar-1b (Alsubai et al., 2011). The system’s high ecliptic latitude makes it visible to the JWST 61% of the year. JWST will be able to characterize planetary atmospheres through the transmission spectroscopy method (Beichman et al., 2014) and KELT-23Ab will be a well-suited candidate for extensive atmospheric studies due to its high equilibrium temperature ($T_{\rm eq}=1561$ K) and relatively low surface gravity ($\log{g_{\rm P}}=3.124$). It is also possible to probe the dayside thermal emission of the planet by obtaining infrared photometry near secondary eclipse, as described by Rodriguez et al. (2016) in reference to KELT-14b.

The system will also receive multi-sector coverage from TESS, which can be used to determine the transit ephemeris with extremely high precision and detect any TTVs too small to observe from the ground. TESS’s photometric precision would allow for the detection of an Earth-sized companion at an orbital period of several days. TESS will observe many consecutive transits that can be used to study details of the system’s transit morphology.

TESS’s relatively long observing baseline for KELT-23A will also allow detailed characterization of the planet using the TESS light curve alone. KELT-23A should be observed by TESS in three sectors during Year 2 of its mission. Given KELT-23A’s TESS bandpass magnitude of $T=9.739$, we estimate that TESS should achieve a per-point photometric precision of 180 ppm hr*-1/2* on KELT-23A. Over the three 26-day sectors, TESS will observe $\sim 34.5$ orbital periods of KELT-23Ab. Phase-folding the TESS data on the period implies a binned light curve precision of $\sim 30$ ppm hr*-1/2*. Additionally, TESS’s high photometric precision could detect microvariability of the host star due to stellar oscillations (Campante et al., 2016).

We use the Price & Rogers (2014) expressions for the analytic precision estimates on the transit observables given finite exposure times to estimate the precision with which TESS can measure the time of transit center $T_{C}$, the ingress/egress durations $\tau$, and the transit and eclipse depths. With the aforementioned per-point precision and estimated number of observable transits, TESS should measure $T_{C}$ to $10^{-4}$ days, approximately 9 seconds, at both the two-minute or 30-minute cadences (a factor of 10 improvement over the current precision), the ingress/egress duration $\tau$ to fractional uncertainties of $2\%$ and $6\%$ at each cadence, and the transit depth $\delta$ to 0.5% at both cadences. Following Stevens et al. (2018), the improvement in the precision on $\tau$ at the two-minute cadence would improve the stellar density precision to $\approx 3\%$ (from the current $6\%$) in the limit that the ingress/egress duration is the dominant source of uncertainty.

We calculate the anticipated secondary eclipse depth due to reflected light via Equation (39) of Winn et al. (2010). The depth is $4\times 10^{-4}A_{\lambda}$, where $A_{\lambda}$ is the geometric albedo. For even a very large albedo, $A_{\lambda}=0.3$, the fractional uncertainties on the reflected light eclipse depths are 71% and 79% at two-minute and 30-minute cadence.

Assuming that the temperature of KELT-23Ab is equal to the equilibrium temperature, $T_{\rm eq}=1534$K, as well as perfect heat redistribution in its atmosphere, we calculate the expected secondary eclipse depth from KELT-23Ab’s thermal emission to be 5 mmag in the TESS passband; the fractional uncertainty is calculated to be 2% at both TESS cadences, so thermal emission should be readily detectable.

Using this temperature, the results from our global fit, and Equation (35) of Winn et al. (2010), we calculate a scale height of 3\times 10^{-3}$$\,R_{\rm J} and an expected transmission signal of $10^{-4}$, as is expected for a typical hot Jupiter.

We estimated the amplitudes of three components of the phase curve of KELT-23Ab (Doppler beaming, ellipsoidal variations, and reflection) using the equations presented in Faigler & Mazeh (2011), Shporer et al. (2011), and Shporer et al. (2018), and our measured parameters of KELT-23Ab. The amplitude of each phase curve component, however, depends upon a coefficient $\alpha$ which is of order unity (see Eqns. 1-3 of Shporer et al., 2011). We assumed that the beaming coefficient $\alpha_{\mathrm{beam}}=1$, and calculated the ellipsoidal and reflection coefficients per Shporer et al. (2018) and Faigler & Mazeh (2011), respectively, using the linear limb darkening coefficient from the $i^{\prime}$ band (as an approximation to the TESS bandpass) and estimated albedo, respectively. This resulted in $\alpha_{\mathrm{ellip}}=1.08$, and $\alpha_{\mathrm{refl}}=0.3$ ($3.0$) if the planetary geometric albedo is $0.03$ ($0.3$). These imply phase curve amplitudes of $A_{\mathrm{beam}}\sim 2$ ppm, $A_{\mathrm{ellip}}\sim 3$ ppm, and $A_{\mathrm{refl}}\sim 11$ ($110$) ppm. Comparing these to the estimated phase curve precision, this suggests that the beaming and ellipsoidal components will be undetectable, while the reflected light may be detectable, depending upon the albedo. To first order, however, the amplitude of the thermal phase curve should be similar to the secondary eclipse depth (assuming a large day-night temperature contrast). Our estimated TESS secondary eclipse depth of 4.9 mmag is much larger than the reflected light component, suggesting that the TESS phase curve will be dominated by thermal emission from the planet.

7 Conclusion

KELT-23Ab is an inflated hot Jupiter with an orbital period of $2.255354$ days hosted by a G2V solar analog. The star-planet tidal interactions suggest that KELT-23Ab could be consumed by its host in about 1 Gyr. Systems like KELT-23A pose important questions as to why some Solar-type stars host hot Jupiters and others do not. TESS will provide many transits that will be used to search for more subtle lightcurve effects in the secondary eclipse from the planet’s reflection and thermal emission. We calculate that the thermal emission from the planet will be comparable to the secondary eclipse depth and will be easily detectable in the TESS phase curve. KELT-23Ab’s close proximity to the JWST CVZ means it will be visible for 61% of the year. This long-term visibility makes KELT-23Ab an excellent follow-up candidate for atmospheric characterization from the JWST.

This project makes use of data from the KELT survey, including support from The Ohio State University, Vanderbilt University, and Lehigh University, along with the KELT follow-up collaboration. Work performed by J.E.R. was supported by the Harvard Future Faculty Leaders Postdoctoral fellowship. D.J.S. and B.S.G. were partially supported by NSF CAREER Grant AST-1056524. Work by S.V.Jr. is supported by the National Science Foundation Graduate Research Fellowship under Grant No. DGE-1343012. Work by G.Z. is provided by NASA through Hubble Fellowship grant HST-HF2-51402.001-A awarded by the Space Telescope Science Institute, which is operated by the Association of Universities for Research in Astronomy, Inc., for NASA, under contract NAS 5-26555. This paper includes data taken at The McDonald Observatory of The University of Texas at Austin. This work has made use of NASA’s Astrophysics Data System, the Extrasolar Planet Encyclopedia, the NASA Exoplanet Archive, the SIMBAD database operated at CDS, Strasbourg, France, and the VizieR catalogue access tool, CDS, Strasbourg, France. We make use of Filtergraph, an online data visualization tool developed at Vanderbilt University through the Vanderbilt Initiative in Data-intensive Astrophysics (VIDA). We also used data products from the Widefield Infrared Survey Explorer, which is a joint project of the University of California, Los Angeles; the Jet Propulsion Laboratory/California Institute of Technology, which is funded by the National Aeronautics and Space Administration; the Two Micron All Sky Survey, which is a joint project of the University of Massachusetts and the Infrared Processing and Analysis Center/California Institute of Technology, funded by the National Aeronautics and Space Administration and the National Science Foundation; and the European Space Agency (ESA) mission Gaia (http://www.cosmos.esa.int/gaia), processed by the Gaia Data Processing and Analysis Consortium (DPAC, http://www.cosmos.esa.int/web/gaia/dpac/consortium). Funding for the DPAC has been provided by national institutions, in particular the institutions participating in the Gaia Multilateral Agreement. Any opinions, findings, and conclusions or recommendations expressed are those of the author and do not necessarily reflect the views of the National Science Foundation. This material is based upon work supported by the National Science Foundation under Grant No. 1559487. KP acknowledges support from NASA grants 80NSSC18K1009 and NNX17AB94G. We thank Alex Jensen for observations that contributed to this work. JL acknowledges support from FAPESP (grant 2017/23731-1). We also thank the anonymous referee for valuable comments that improved this manuscript. DJ acknowledges support from the Carol and Ray Neag Undergraduate Research Fund.
