Reliable State Machines:
A Framework for Programming Reliable Cloud Services
Suvam Mukherjee
Microsoft Research, India
&Nitin John Raj
IIIT-Hyderabad, India
&Krishnan Govindraj
Microsoft Research, India
&Pantazis Deligiannis
Microsoft Research, India
&Chandramouleswaran Ravichandran
Microsoft Azure, USA
&Akash Lal
Microsoft Research, India
&Aseem Rastogi
Microsoft Research, India
&Raja Krishnaswamy
Microsoft Azure, USA
Building reliable applications for the cloud is challenging because of unpredictable failures during a program’s execution. This paper presents a programming framework called Reliable State Machines (RSMs), that offers fault-tolerance by construction. Using our framework, a programmer can built an application as several (possibly distributed) RSMs that communicate with each other via messages, much in the style of actor-based programming. Each RSM is additionally fault-tolerant by design and offers the illusion of being “always-alive”. An RSM is guaranteed to process each input request exactly once, as one would expect in a failure-free environment. The RSM runtime automatically takes care of persisting state and rehydrating it on a failover. We present the core syntax and semantics of RSMs, along with a formal proof of failure-transparency. We provide an implementation of the RSM framework and runtime on the .NET platform for deploying services to Microsoft Azure. We carried out an extensive performance evaluation on micro-benchmarks to show that one can build high-throughput applications with RSMs. We also present a case study where we rewrote a significant part of a production cloud service using RSMs. The resulting service has simpler code and exhibits production-grade performance.
1 Introduction
The industry trend in Cloud Computing is increasingly moving towards companies building and renting cloud services to provide software solutions to their customers [1]. A cloud service in this context refers to a software application that runs on multiple machines in the cloud, making use of the available resources – both compute and storage – to offer a scalable service to its customers. In this paper, we consider the problem of programming reliable cloud services.
Cloud services are essentially distributed systems consisting of concurrently running, communicating processes or agents111We use the term agents in this paper as a programming construct to distinguish from systems constructs like processes or physical/virtual machines.. Agents typically maintain state, and process user requests as they arrive, which may cause their state to get updated. Consider a word-counting application: the application receives a stream of words (or strings) as input and continuously produces output in the form of the highest frequency word that it has seen so far. Programming such an application for the single-machine scenario is easy – the application maintains a map from words to their frequencies as seen so far, and for each new word, it updates the map and outputs the word if it is the new highest frequency word. However, to design a more scalable application, this map can be split across multiple distributed agents. More specifically, the distributed word count application can be designed as follows. A main agent receives input words from clients, and sends each word to one of several counting agents (based on some criteria, such as the hash of a word) for processing. Every counting agent maintains its own word-frequency map and the local maximum; whenever the local maximum changes, it sends a message to the max agent. The max agent collates the local maxima from all the counting agents and outputs the global maximum.
A reliable cloud service must be resilient to hardware and software failures that can cause agents to crash, and to network failures that can cause message duplications, reorderings, and drops. To handle crashes in the word-counting service, the programmer needs to use some form of persistent storage for the input stream and the word-frequency maps, and write boilerplate code to read and write this state, while carefully orchestrating it with the rest of the computation. The programmer must also handle network message drops (to avoid missing a word) and duplications (to avoid counting the same occurrence of a word twice). While some existing programming frameworks and languages for distributed systems, such as Orleans [2], Kafka [3], Akka [4], Azure Service Fabric [5], among others, provide the necessary building blocks of persistent storage, transactions, etc., the programmer still has to carefully put them all together. Thus, an application that is quite simple to program in the single-machine scenario, quickly becomes a non-trivial task in the distributed setting.
In this paper, we present a novel programming framework, called Reliable State Machines (RSMs), to program reliable, fault-tolerant cloud services. The RSM framework enables a programmer to focus only on the application-specific logic, while providing resilience against failures – both machines and network – through language design and runtime.
At a high-level, RSMs are based on the actor style of programming where an RSM is the unit of concurrency. An RSM is programmed like a communicating state machine – the programmer defines the types of events that the RSM can receive, and handlers for each event type. Optionally, the programmer can declare some RSM-local state to be persistent. The event handlers can manipulate state, send messages to other RSMs, and create new RSMs. Issues of orchestrating reads and writes of the persistent state with event handlers, handling network failures, etc., are left to the RSM runtime. The runtime ensures that the effects of an event handler are committed atomically in an all-or-nothing fashion. This ensures that an RSM appears to process an input message exactly once. In addition, the runtime provides a networking module for exact once delivery of messages. RSMs are build on top of the P# framework [6], which provides convenient .NET syntax for programming state machines [7] and enables programmers to systematically test their applications against functional specifications [8]. We provide an overview of the RSM framework, as well as the programming of the word-counting application using RSMs in Section 2.
We formalize the syntax and semantics of RSMs and prove a failure transparency theorem. The theorem states that the semantics of RSMs that includes runtime failures is a refinement of the failure-free semantics in terms of the observable behavior of an RSM. As a result, programmers can program and test their applications assuming failure-free semantics, while the failure transparency theorem guarantees the same behavior even in the presence of runtime failures. Section 3 contains details of our formalization.
We have developed two different implementations of our framework – one on top of the Azure Service Fabric platform [9] and the other using Apache Kafka [10, 3] – demonstrating that the basic concepts behind RSMs are general and can be implemented on different platforms (Section 4). Our evaluation (Section 6) shows that performance-wise RSMs are competitive with other production cloud programming frameworks, even with the additional guarantees of failure transparency, and it is possible to build high-throughput applications using RSMs. To evaluate the programming and testing experience, we present a case study where we re-implement an existing production-scale backend service of Microsoft Azure. We show that the RSM implementation of the service is simple, easier to reason about, amenable to systematic testing via the P# framework, and meets its scalability requirements (Section 5).
2 Overview
This section presents an overview of the RSM framework. We show how to program the word-count example with RSMs, followed by details of the RSM runtime and failure transparency. In the rest of the paper, we use events and messages interchangeably.
2.1 Programming and testing the word count example
As mentioned in Section 1, we design the distributed word-count application using three types of RSMs: (a) a main RSM that sets up other RSMs, receives words from the client, and forwards them to the word-count RSMs, (b) word-count RSMs that maintain the highest frequency word they have individually seen so far, and (c) a max-RSM that aggregates local maxima from the word-count RSMs, and outputs the global maximum.
Listing 1 shows the source code for the main-RSM using an abbreviated C#-like syntax. RSMs are programmed as state machines. The programmer first declares the three event types to use in the program: WordEvent, WordFreqEvent, and InitEvent, each carrying the mentioned payloads. Values of type rsmId (e.g., used in the payload of InitEvent) are RSM instance ids. We will explain the use of these events as we go along.
The main RSM has two states: Init is the start state, and Receive is the state in which it receives the input words. The machine declares two persistent fields: a WordCountMachines dictionary to maintain the rsmId of each word count RSM, and a MaxMachineId for the rsmId of the max machine. Fields declared with the “Persistent” types denote persistent local state of the RSM. In the Init state, the main-RSM creates an instance of max-RSM and N instances of word-count RSMs (using the create API), and sends the rsmId of the max-RSM instance to every word count RSM as payload in the InitEvent event (using the send API). The persistent fields are also updated (using store). The machine then transitions to the Receive state (using the jump API). In the Receive state, when the machine receives a WordEvent from the environment, which contains the next word, it forwards the word to an appropriate max count machine. Since the Receive state specifies no transitions, the RSM remains in the Receive state, ready to receive the next word.
Listing 2 shows the code for a word-count RSM. It maintains, in its persistent state, a running map of word frequencies (WordFreq) and the highest frequency (HighFreq) that it has seen so far. Whenever the highest frequency changes, it forwards the corresponding word to the max machine, using the rsmId stored in the TargetMachine field. This RSM also shows the use of volatile state in the form of the field WordsSeenSinceLastCrash; this field is reset every time the RSM fails. Such variables can be used for gathering information such as program statistics that are not required to survive failures. Note that the execution of each handler (its call stack, all local variables, etc.) is also carried out on volatile memory.
A word count machine has two states: Init and DoCount. In the Init state, it waits for the InitEvent (from the main machine). The rest of the code is straightforward.
The max-RSM, shown below, simply takes a maximum over the frequencies that it receives, and forwards the maximum one to an external service (which may print to console or write to an output file).
Implementation.
The RSM programming framework is embedded in C#, and uses the P# state machine programming model. Each RSM is defined as a C# class, with local-state as class fields, and event handlers as class methods. Using RSMs does not require the user to learn a new programming language. We provide more implementation details in Section 4.
Testing the application.
Having written the application in our framework, the programmer can also test it by supplying a specification and ask the P# tester to validate the specification. In the word count application, for example, a functional correctness specification – eventually the word with the highest frequency is output by the MaxMachine RSM – can be tested. The P# tester uses state-of-the-art algorithms to search over the space of possible executions of an RSM program for bugs [11, 8]. P# testing can help catch many bugs. For instance, changing any of the persistent variables of the RSMs to volatile will render the program incorrect; indeed if the MaxMachines don’t persist their word frequency maps, upon restart, their output may not be correct. If the MainMachine does not use the same hash function inside GetTargetMachine for all input words, then also the specification will fail (because it may forward two different occurrences of the same word to two different RSMs), etc. We confirmed that the P# tester is indeed able to find all these errors very quickly.
Summary.
Our framework frees the programmer from the burden of designing and programming for failures. In the word count application, as we can see above, the source code only contains the application-specific logic, and no boilerplate code for handling failures, restarts, etc. There is still concurrency in the program that may be hard to reason about, which is why we provide P# testing. We describe the RSM runtime that provides resilience from machine and network failures next.
2.2 RSM runtime

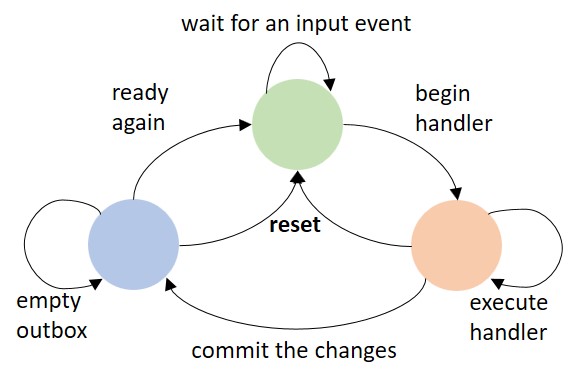

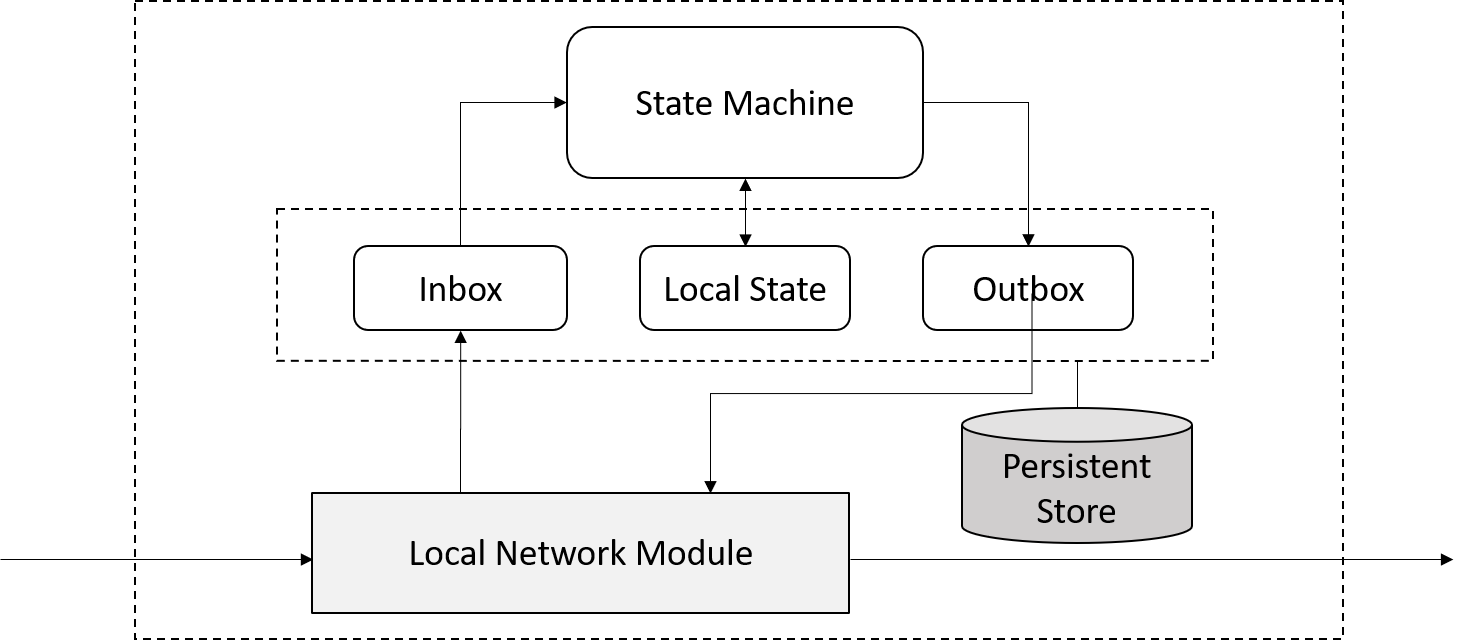

Figure 1 shows the runtime architecture of a single RSM. The runtime ensures that each RSM has a unique rsmId. An RSM is associated with its own inbox of input events, an outbox of output events (the events that it sends out), and local state that consists of both persistent and volatile (in-memory) components. The inbox, outbox, persistent fields, and the current state of the RSM state machine (e.g. Init or Receive in Listing 1) are backed by a persistent store (e.g. a replicated storage system). Each RSM also has a local networking module that is responsible for communicating with other RSMs or to clients or external services. The inbox and outbox are queues, following the standard FIFO enqueue and dequeue semantics.
The execution of an RSM consists of three operations.
- •
Input. The networking module receives messages over the network and enqueues them to the inbox.
- •
Processing. The processing inside an RSM is single-threaded. It iteratively dequeues an event from the inbox and processes it by executing its corresponding event handler. The handler can create other RSMs or send events to existing ones. Each of these requests are enqueued to the outbox. The handler can also mutate the persistent and volatile local state of the RSM.
- •
Output. The networking module dequeues messages from the outbox and sends them over the network to their destination.
These operations can execute in any order. In our implementation of RSMs (Section 4), we run them in parallel using background tasks; we ensure that the enqueue and dequeue operations on the queues (inbox and outbox) are linearizable [12], and thus, safe to execute concurrently.
Exact-once processing.
The RSM runtime ensures that the effects of an event handler are committed to the persistent storage atomically. In particular, the dequeue of an event from the inbox, and the result of processing (including all updates made to persistent fields as well as all enqueues to the outbox) are committed to the persistent storage in an all-or-nothing fashion. Thus, if the RSM fails before committing, then on restarting the RSM, would still be at the head of the inbox, and none of its effects would have been propagated to the rest of the system. If the RSM fails after committing, then the event has been processed and will not appear in the inbox on restart. The RSM only sends out those events that have been committed successfully to the outbox.
Networking module.
The networking modules work with each other to ensure exact-once delivery of events between RSMs, i.e., an event is dequeued from the outbox of an RSM and enqueued to the inbox of the target RSM atomically. While exact-once delivery is default, the programmer can choose more relaxed delivery semantics. All our examples (Section 4) use the stricter exact-once implementation.
To communicate with external non-RSM services, the RSM framework has the notion of an environment that acts as an interface to the outside world. The environment can supply input by enqueueing to the inbox of an RSM. The RSMs can in turn send events to a special rsmId called env, which references the environment. Such events still get enqueued to the outbox of the RSM. When committed, they are forwarded to their intended destination through plug-ins to the networking module supplied by the user.
Non-determinism.
We allow RSM handlers to be non-deterministic, i.e., two executions of an event handler on the same event and starting from the same local state may produce different output. For instance, consider an extension to the word-count example where each input word is associated with a timestamp. The main-RSM forwards only those words with a timestamp not older than hours. Main-RSM can simply look up the current time of day and make the decision of forwarding the word on not. This action is non-deterministic.
Non-determinism does not change the RSM guarantees in any way: all state changes made by an event handler are first committed locally. This ensures that all non-deterministic choices are resolved and recorded before they are propagated outside the RSM.
Using P# for testing.
We chose P# for two reasons. First, it provides various programming conveniences for writing state machines and is already in use for writing production code [7, 13]. Second, P# offers means of writing end-to-end specifications of a collection of communicating state machines. The specifications (both safety and liveness) can then be validated using powerful systematic search over the space of all interleavings of the program. This method has been shown to be very effective at finding concurrency bugs [11, 6, 8, 14]. In our work, we provide an automatic way of lowering an RSM program to a P# program. A programmer can write the specification of an RSM program, then validate the specification using P# systematic testing. We provide more details on testing of our main case study in Section 6.2.
Failure transparency.
Using the exact-once processing and exact-once delivery, the RSM framework provides a failure transparency property. The property essentially says that the observable behavior of an RSM is independent of the failures of the machine and the network. This enables the programmers to focus only on the application-specific logic when programming RSMs, and also test only for the failure-free executions. The property relies on the non-interference of the persistent storage from the volatile class fields. Intuitively, the volatile class fields are reset on failures, and so, if they leak into event payloads for example, the crashes can be observable. On the other hand, volatile local variables of an event handler are different, as upon a restart, they are always re-initialized.
3 Formalization of RSMs
In this section, we formalize a core of the RSM programming model, called small RSM or , and its operational semantics. We state and prove the failure transparency theorem in Section 3.2.
3.1 Syntax and semantics
Figure 2 shows the syntax. For simplicity, we present the syntax in A-normal form [15], where most of the sub-expressions are values. An RSM in is declared as a class definition , consisting of persistent and volatile fields, and an event handler statement , with local variables and statement (handlers for specific event types can be encoded in using if statements in ). All the variables and fields in are integer-typed.
Statements in the language include local variable assignment (), assignment to volatile fields (), persistent field updates (), conditional statements () and sequencing (). While the volatile fields can be operated upon directly (e.g. adding two of them), to work on the persistent fields, they first need to be loaded into local variables, and then stored back. The form creates a new RSM and binds its RSM id to the variable (the ids are also integer-valued). Finally the statement form is used to send an event of event type (an integer) with payload to the destination machine with RSM id . Expressions in the language include values , reading a persistent field (), and binary operations . We also model non-determinism in the language – the expression form evaluates to a random integer at runtime.
3.1.1 Local evaluation judgment
Operational semantics of consists of two judgments, a local evaluation judgment for reducing the event handler statement to process an event, and a global judgment where the configuration consists of all the RSMs executing concurrently. We first present the local evaluation judgment.
Local evaluation judgments are of the form , where the syntax for , , and is shown in Figure 3. and are field map and local environment, mapping fields and local variables to values. contains three special variables , , and that map to the source RSM, event type, and the payload of the current event that is being processed; these fields are initialized in the global judgment. is a list of output events. An event is a triple of the form , where is the destination RSM id, is the event type, and is the event payload. Notably , , and are all non-persistent. Their interaction with the persistent state happens in the global judgment. Statement reduction uses an auxiliary expression evaluation judgment of the form . Statements at runtime include an additional skip form to denote the terminal statement.
Figure 4 shows the selected rules for statement reduction and expression evaluation. The expression rules are all standard, notably rule E-star non-deterministically evaluates the expression to some integer . Most of the statement reduction rules are also standard. For example, rule L-store uses the expression evaluation form to evaluate , and stores the result in the field map . Rule L-if branches based on the evaluated value of . Rule L-create simply records the creation request in the output events list with a special event type . Finally, rule L-send evaluates each of the send arguments, and updates the output event list .
3.1.2 Global evaluation judgment
Global evaluation judgment has the form . and are maps with RSM ids as domains. The map maps the RSM ids to local configurations , where , , , and come from the local judgment, and is a (volatile) bit that is if the machine is currently processing an event or [math] otherwise. We will also write and to denote the map components for persistent and volatile fields respectively. The map maps each RSM id to its class and persistent storage, i.e. , where is the inbox persisting the incoming events, is the outbox persisting the outgoing events, is the persistent fields map, and is the trace of the RSM that records its observable behavior; the trace is ghost and is only used to state and prove the failure transparency theorem. The grammar for , , and is same as that of the event list , while persistent field map is a field map like . Finally, is the signature that maps class to its definition.
At a high-level, each RSM (a) reads an event from its input queue, (b) processes it using its handler statement, (c) commits the events generated and the persistent field map in its persistent store, (d) empties the outbox in the persistent store, and starts from (a) again. At each of these steps, the machine can crash and recover, where all of its non-persistent data (including the local state , , ) is lost. The global semantics essentially implements this state machine for each RSM, while executing the RSMs concurrently with each other.
Figure 6 shows the global semantics judgment. In all the rules, one of the machines takes the step. Using the Rule G-start, a machine enters the event handler for processing the head event in the input event queue. The local state of the machine currently is at rest, i.e. and , as well as the outbox is empty. The rule creates the local environment (using the auxiliary function, shows in the same figure), by initializing the local variables as per the RSM definition , and also adding the mappings for event source, event type and event payload (, and ). The local state of the machine is changed to process the handler statement and the bit is set to . The persistent store is left unchanged.
Rule G-local shows the local evaluation rule, where a machine takes local step in executing the event handler. The rule uses the local semantics judgment in the premise, and updates accordingly.
Once a machine has finished executing the event handler for the head input event, it uses the rule G-commit to commit the persistent state. In the rule, the local state of the machine has reached the end of handler execution ( and ). is changed by setting the bit to [math] and the local event list is reset to empty. The changes to are: (a) the head event is removed from , (b) the output event list from the local state is committed to the outbox , and (c) the new values of the persistent variables from the local state are committed to . The (ghost) trace of the machine remains unchanged; the machine next proceeds to send the events out of the outbox, and append the trace accordingly.
Rule G-create handles the create event (rule L-create, Figure 4). The auxiliary function updates the persistent store . For the creator machine , it removes the create event from the outbox , and adds it to the ghost trace . For the new machine , it initializes the persistent store by reading off the initial persistent variables map from the signature . Rule G-send sends an event from machine to . The auxiliary function removes the event from the outbox of , and adds it to the ghost trace, as well as to the inbox of . The rule models the exact-once delivery network module.
Finally, a machine can fail at any point in the execution. The rule G-reset models the machine reset. As expected, upon reset, the local volatile state, including the event list , volatile variables, environment , are all lost. The fields map in the local state is re-initialized (using ) by reading off the persistent variables from and volatile variables from the signature . The bit is also set to [math]. We next present our main theorem of failure transparency.
3.2 Failure transparency
To state the theorem, we first define a notion of equivalence for local states . Below, is an RSM id.
Definition 3.1** (Equivalence of local states).**
Two local states, and are equivalent, written as , if they are equal in all components, except for the volatile class fields in their field maps, i.e. , , , , and .
Our failure transparency theorm relies on non-interference of persistent state from volatile fields. We formally state the property below (we use to denote the machine taking a step):
Proposition 3.1** (Non-interference).**
Let be a run, s.t. each step in the run is a G-local step taken by machine , and is terminal (i.e. ). Then, , there exists s.t. where and each step is a G-local step.
In a supplementary technical report, we present an information-flow type system for that provides this non-interference property for well-typed programs. Note that non-determinism in our language does not raise any complications, since to get this property, we can essentially replay the non-deterministic choices from the run in the premise to the run in the conclusion.
Given Proposition 3.1, we are now ready to state the failure transparency theorem. We consider a run of a machine that processes an event end-to-end. We prove that, given any such run that includes failures (i.e. the rule G-reset), we can construct a run without failures, but with same observable traces .
Theorem 3.1** (Failure transparency).**
Let , where is ready for a machine (i.e. it satisfies the premises of the G-start rule), and
all steps in are either G-start, G-local, or G-reset, 2. 2.
* is a G-commit step, and* 3. 3.
all steps in are either G-create, G-send, or G-reset
Then, , there exists s.t.
* ,* 2. 2.
none of the steps in (a) are G-reset, and 3. 3.
**
Crucially, , and hence the trace of machine remains same in the conclusion of the theorem. Thus, we prove that the machine run with failures is a refinement of the machine run without failures w.r.t. its observable behavior.
4 Implementation
This section describes an instantiation of RSMs as a .NET object-oriented programming framework. The framework is split into two logical parts: the frontend and the backend. The frontend implements the programmer-facing APIs while the backend is responsible for the distributed-system aspects, including state persistence and remote machine communication. An illustration of the RSM architecture is shown in Figure 7.
The frontend exposes an RSM.ReliableMachine base class. An RSM is programmed as a class that derives from ReliableMachine. An RSM instance is an object of such a class and event handlers are implemented as methods of the class. The base class implements the functionality to drive a state machine. The state machine structure is based on P#, similar to the word-count code shown in Section 2. We focus the discussion here on the reliability aspects of RSMs. The frontend also provides a runtime, RSM.ReliableMachineRuntime, that implements the APIs for creating RSMs and sending messages between them. Each RSM carries a reference to the runtime in order to invoke these APIs. The runtime is also responsible for rsmId management, ensuring that each RSM is associated with a unique id throughout its lifetime.
The frontend provides two generic types for declaring local persistent state of an RSM: RSM.PersistentRegister<T> and RSM.PersistentDictionary<TKey, TValue>. The former implements a Get-Put interface for getting access to the underlying T object, similar to the load and store semantics of our formal language. The object is automatically serialized (on Put) and deserialized (on Get) in the background.222We use the protobuf-net serializer in RSMs, although other mechanisms are possible. The PersistentDictionary type is similar, although it additionally allows access to individual keys. This has the advantage that if an RSM handler only accesses a few keys, then only those keys (and their corresponding values) are serialized and stored, without having to serialize the entire dictionary.
The programmer can declare fields inside an RSM class with these “Persistent” types to get access to persistent local state. Any other fields in the class are treated with volatile semantics. The current state of the state machine is maintained in a PersistentRegister so that the RSM resumes operation from the correct state on failover.
RSMs, once created, stay alive listening to incoming messages, until they are explicitly halted. ReliableMachine exposes an option of halting the RSM. The runtime reclaims any resources of an RSM when it halts.

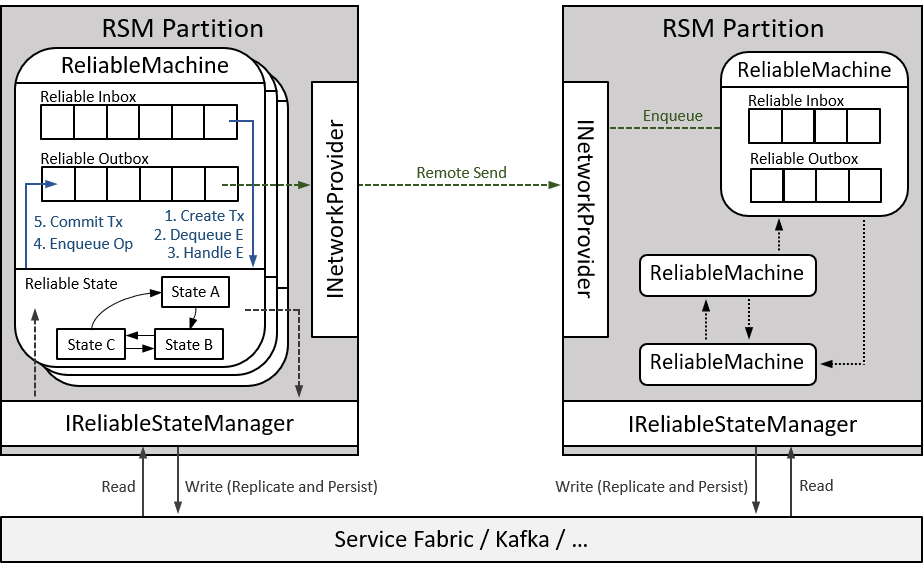

The RSM runtime works against RSM.IReliableStateManager and RSM.INetworkProvider interfaces, each of which are implemented by the backend. IReliableStateManager is responsible for creating the inbox and outbox queues, as well as to back the persistent fields of an RSM. INetworkProvider allows communication between remote RSMs. We provide two backend implementations: one using Azure Service Fabric (Sections 4.1 and 4.2) and the other one uses Apache Kafka (Section 4.3). We additionally provide a P#-based backend implementation for the purpose of high-coverage systematic testing (Section 4.4).
4.1 Azure Service Fabric backend
Background. Azure Service Fabric (SF) [9] provides infrastructure for designing and deploying distributed services on Azure. A user begins by setting up an SF cluster on a required number of Azure VMs. SF sets up a replicated on-disk storage system on the cluster. An application deployed to an SF cluster benefits from having access to co-located storage, instead of having to access a remote storage system. The store uses primary-secondary-based replication. The user can choose a replication factor (say, ) in which case each update to the store is applied to replicas, with each replica located on a different machine. Updates are only allowed on primary and then pushed to the secondaries.
SF provides various means of programming a service for deployment to an SF cluster. The most relevant to our discussion is a stateful application called reliable services [16]. Such an application consists of multiple partitions [17]; each partition roughly resembles an individual process constituting the failure domain for the application. Each partition is associated with its own primary and secondaries. The partition’s process is co-located with the primary. (Thus, an application with partitions will have a total of primaries and secondaries, distributed evenly across the SF cluster.) From the programmer’s perspective, each partition gets its own StateManager [18] object that provides access to its store. When a machine carrying a primary fails, one of its secondaries is promoted to become a primary and the corresponding partition is re-started on the new primary. A new secondary is elected and brought up to date in the background. Thus, a machine failure results in restarting of any partition located on it, but all data written to their StateManager is still available upon restart.
The SF StateManager provides APIs for transacted access to storage [19]. A user can create a transaction, use it to perform reads and writes to the store, and then commit it. SF transactions have the database ACID semantics [20], i.e., they are atomic, consistent, isolated, and durable with respect to the other transactions. As a form of convenience, the user can access the store via a dictionary interface (IReliableDictionary) and a queue interface (IReliableQueue). These interfaces are shown in Listing 4. (We qualify the SF interfaces with SF and the RSM types with RSM to avoid any confusion.) The SF.IReliableQueue interface, for example, supports enqueue and dequeue operations, each of which require the associated transaction. (These are awaitable C# methods [21], hence the return type Task.) These operations appear to take place (with respect to other transactions) only when their associated transaction is committed. A transaction can span multiple of these reliable collections. The method DictionaryToQueueAtomicTransfer in Listing 4 illustrates an atomic transfer of a value from a dictionary to a queue: it reads from a dictionary and writes to the queue in the same transaction.
RSM backend.
We can now describe a vanilla implementation of RSMs using SF. Various optimizations are described in Section 4.2. An RSM program deploys as a stateful service on an SF cluster. A single partition contains exactly one instance of RSM.ReliableMachineRuntime that may host any number of RSM instances. RSM.IReliableStateManager is implemented as a wrapper on top of the SF StateManager and the RSM.INetworkProvider on top of the SF remoting library for RPC communication [22].
The runtime remembers all hosted RSM instances in a persistent dictionary of the type SF.IReliableDictionary<rsmId, bool>. When a partition comes up (or fails over), it creates a new runtime, which then immediately reads this dictionary to identify the set of RSMs that it had hosted before failure (if any). It then re-creates the RSMs with the same ids. All persistent state associated with an RSM is attached to its id so that an RSM can rehydrate its state on failover as long as it retains its id.
The types RSM.PersistentDictionary and RSM.PersistentRegister are implemented as wrappers on top of SF.IReliableDictionary. The RSM types hide SF transactions from the programmer. The inbox and outbox are just SF reliable queues (SF.IReliableQueue). An RSM executes as an event-handling loop. Each iteration of the loop constructs an SF transaction (say, Tx) and performs a dequeue on the inbox using the transaction. If it finds that the queue is empty, the loop terminates and is woken up later only when a message arrives to the RSM. (This ensures that the RSM takes no compute resources when it has no work to perform.) If a message is found in the inbox, then the RSM goes on to execute the corresponding handler. Any access made by the handler to a persistent field gets attached with the same transaction Tx. Sending a message to an RSM is performed as an enqueue of the pair to the outbox queue, also on the same transaction Tx. When the handler finishes execution, the RSM commits Tx and repeats the loop to process other messages in the inbox. Using the same transaction throughout the lifetime of a handler ensures that all effects of processing a message happen atomically with the dequeue of that message.
Networking and exact-once delivery.
RSMs have two additional background tasks: the first one is responsible for emptying the outbox, and the other one listens on the network for incoming messages to add them to the inbox. These tasks are spawned on-demand as work arrives in order to avoid unnecessary polling. These tasks co-operate to ensure exact-once delivery between RSMs, even under network failures or delays (as long as the connection is eventually established).
The runtime maintains two reliable dictionaries called SendCounter and ReceiveCounter that map rsmId to int. Pseudo-code for the outbox-draining task of an RSM with id r1 is shown in Listing 5. It creates a transaction tx1 and performs a dequeue on the outbox to obtain the pair of message and destination, respectively. It then sends the tuple over the network to r2 and waits for an acknowledgement. If it gets the acknowledgement within a certain timeout period, it increments SendCounter[r2] and commits tx1 to complete the message transfer. If it times-out waiting for an acknowledgement from r2, it retries by sending the message again.
The automatic retry implies that the receiver might get duplicate messages; however, each such duplicate will be attached with the same counter value, which the receiver can use for de-duplication. This is achieved in the input-ingestion procedure shown in Listing 6. The receiver r2, when it gets the tuple , first checks if equals ReceiveCounter[r1]. If so, it increments ReceiveCounter[r1] and enqueues to its inbox. If not, it drops the message because its a duplicate. Regardless, it always sends an acknowledgement back to r1.
Note that each of the tasks including input-ingestion, outbox-draining, and the event-handling, use their own transactions that are different from each other. This enables the RSM to run these tasks completely independently and in parallel to each other. SF transactions provide ACID semantics, so concurrent enqueue and dequeue operations on queues are safe.
RSM creation.
When an RSM r1 wishes to instantiate a new RSM of class , it first creates a globally unique rsmId . This creation can be done in several ways. Our implementation uses inter-partition communication to first decide the partition that will host the newly created RSM. It then grabs a unique counter value from that partition. The pair of partition name and unique counter value on that partition makes the rsmId globally unique. Once this value is obtained, r1 enqueues the pair to its outbox. No RSM is actually created until the pair is committed to the outbox: only its id is constructed eagerly. If r1 fails before committing, then the value is lost forever. When r1 is restarted, it will construct a new (but still globally unique) id.
The outbox-draining task of r1, when it picks up a tuple , will send a message to the partition on which is located. Like before, this message is sent repeatedly until acknowledged. On the receipt of this message, the RSM runtime instantiates a new RSM of type only if it does not already have an RSM associated with . If it does have such an RSM, then it drops the message because it must be a duplicate request, one that it has carried out already. The recipient sends back an acknowledgement to the sender regardless.
4.2 Optimizing the SF backend
The following lists some of the most important performance optimizations that we found useful for the SF backend.
Shared inbox and outbox.
Creating a separate reliable queue for the inbox and outbox of each RSM does not scale well unfortunately, especially when the application creates a large number of RSMs. Each creation incurs an I/O operation. To optimize the RSM creation time, we instead use a single data structure that is shared across all RSMs in the same partition: one for all inboxes and one for all outboxes.
These shared structures are implemented as an SF.IReliableDictionary whose key is a tuple of rsmId and an index (long). Each RSM maintains its own head and tail indices, denoting the contiguous index range that contains its inbox or outbox contents. An RSM r1, for instance, can enqueue to its outbox by writing it to the key and incrementing tail. For efficiency, the head and tail values are only kept in-memory. On failover, the RSM runtime reads through the shared dictionary to identify the per-RSM head and tail values, before it instantiates the RSMs with these values. Additional care is required to ensure proper synchronized access to head and tail values by the various tasks associated with an RSM. Using these shared structures allowed us to significantly scale machine creations (Section 6.1).
Batching.
We use batching in various forms to optimize overall throughput (Section 6.1). First, the event-handling loop of an RSM can dequeue multiple messages from its inbox in the same transaction and process all of them (sequentially, one after the other) before committing all of their effects together. The commit is a high-latency operation because SF must replicate all updates to the secondaries and wait for a quorum. This form of inbox-batching helps hide some of this latency. Second, the outbox-draining task can dequeue multiple messages from the outbox in the same transaction, and as long as they are intended for the same destination partition, send them over the network together as a batch.
Non-persistent inbox.
Sending a message from RSM r1 to r2 requires several I/O operations: r1 first commits to its outbox, next it sends over the network to r2, and finally r2 commits to its inbox. Interestingly, we can do away with a persistent inbox and only keep it in memory without sacrificing any of the RSM framework guarantees. Our optimization works as follows. The input-ingestion task of r2 simply enqueues to an in-memory inbox but it does not immediately send an acknowledgement back to r1. Instead, r2 waits until it is done processing . After r2 commits the effects of processing to its own outbox, it sends the acknowledgement back to r1, after which r1 will remove from its outbox. This is safe: the message sits in the (persistent) outbox of r1 until r2 is done processing it.
4.3 Kafka backend
Apache Kafka [10, 3] is a popular distributed messaging platform that has been used in large production systems by companies such as Netflix, Pinterest and Spotify [23]. Kafka supports named sequences of messages called topics, each being persisted and replicated for fault-tolerance. A producer appends messages to the tail of a topic. There is no explicit deletion of messages; the user can configure an expiry time, upon which the corresponding messages are removed by the system. In order to read a message, a consumer subscribes to the topic and maintains a per-topic index, referred to as the consumer’s offset. The read cycle involves the consumer reading the message at its offset, incrementing the offset, and then storing the new offset value in a topic of its own called the offset-topic. Kafka supports different consumers to read from different offsets of a topic concurrently. Starting in version v0.11.0, Kafka introduced the notion of cross-topic transactions. These allow a producer to write to multiple topics atomically: either all the writes succeed or none of them do. Consumers cannot observe the writes made in a transaction until the transaction commits. A Kafka stream is a combination of a Kafka producer and consumer: it consumes messages from an input topic and publishes messages to one or more output topics. Kafka supports building stateful applications on top of streams via a key-value state store and convenient Java/Scale APIs. Exact-once processing of messages can be achieved by transactionally writing the offset, state and published messages to their respective topics.
Kafka-based RSMs.
At a high level, the Kafka-based backend for RSMs comprises of the following: Kafka topics serve the role of persistent queues, Kafka transactions allow exact-once processing, and Kafka streams provide APIs for a key-value store to back an RSM’s persistent local state. We put these various features of Kafka together to support the RSM semantics.
A Kafka RSM (K-RSM) has an associated inbox topic, and a state topic for its persistent local state. The RSM also maintains its read offset into the inbox as part of its persistent local state. An RSM executes as follows: it reads a message from the inbox at its read offset and starts a Kafka transaction Tx. It then runs the handler code for . Any changes to the persistent local state are written to the state topic under Tx. Any message sends are written directly to the inbox topics of the receiver K-RSMs, also under Tx. Finally, the incremented offset is written to the state topic and the transaction Tx is committed. Note that there was no need to have an outbox: Kafka transactions ensure that the effects of processing a message by one RSM are not observed by other RSMs until its transaction commits. (SF transactions, on the other hand, cannot span across reliable collections in different partitions, which is why we needed an outbox for the SF backend.) Restart of an RSM simply involves recovering its state from the state topic that additionally provides it the read offset of the last un-processed message.
A user begins by starting a Kafka cluster, configured to their own requirements. The K-RSM backend then attaches to the cluster to execute the RSM program. Unlike SF reliable collections, Kafka topics must be preallocated to a fixed number, which would typically be much smaller than the number of RSM instances that a program may create. The K-RSM backend shares a single topic across multiple RSM instances, which works because each RSM maintains its own offset value. The assignment of RSMs to topics is currently done in a simple round-robin fashion but more sophisticated policies are possible as well. Similar to the SF backend, messaging in Kafka benefits greatly from batching: both when writing to a destination topic and when reading from the inbox topic.
4.4 P# backend
We additionally designed a backend for the purpose of testing RSM programs. The backend does not support distribution; it simulates the entire program execution in a single process. The backend essentially translates an RSM program to a P# program for systematic testing against a specification. We first briefly summarize P# capabilities [6].
P# provides an in-memory framework for implementing concurrent programs; it does not provide any support for distribution or persistence. A P# program consists of multiple state machines that communicate via messages. The PSharpTester tool takes a P# program as input and repeatedly executes it multiple times. It takes over the scheduling of the program so that it can search over the space of all possible interleavings. PSharpTester employs a state-of-the-art portfolio of search strategies that has proven to be effective in finding bugs quickly [11, 8]. A user can write a specification in the form of a monitor that is checked by the PSharpTester in each execution of the program. Both safety and liveness specifications [14] are supported.
The P# backend for RSMs allows one to write specification monitors in the same way as P# and test their correctness using PSharpTester. It is worth noting that the backend is designed with the intention of testing the user logic as opposed to the RSM runtime itself. For this, the backend ensures that only the concurrency (and complexity) in the user program is exposed to the PSharpTester; the concurrency inside the runtime (which is useful for gaining performance) is disabled.
An RSM translates almost directly to a P# machine, with the following modifications. First, the backend provides mock implementations for all persistent types (simulated in-memory for efficiency). Second, the three tasks associated with an RSM (i.e., input-ingestion, event-handling and outbox-draining) are run sequentially, one after the other. Third, the exact-once network delivery algorithm is assumed correct, so the outbox-to-inbox transfer is done atomically (and in-memory).
An important aspect of the backend is simulating failures in the RSM program. The failure-transparency property of RSMs crucially helps here: as long as the programmer makes correct use of volatile memory (Proposition 3.1), failures have no effect at all on the semantics of the program (Theorem 3.1). Thus, the backend only needs to check for Proposition 3.1 on the program. This is done as follows. The backend, at the time it is about to commit a transaction in the event-handling loop of an RSM, non-deterministically chooses to carry out the following steps: (1) record the persistent state of the RSM (both local state and outbox), (2) reset the volatile state of the RSM, (3) abort the transaction, thus requiring the RSM to re-process the input message, and (4) when the RSM reaches the commit point again, assert that the persistent state equals the recorded state. If a failure of this assertion is reported by PSharpTester, the programmer is directly informed of incorrect usage of volatile state.
5 Case-Study: PoolServer
We used the RSM framework to redesign the core functionality of an in-production service, called the PoolServer, on Microsoft Azure. This section describes the operations supported by the service (Section 5.1) and its implementation using RSMs (Section 5.2), highlighting the gains in programmability and testing of the service. We demonstrate scalability of the RSM code in Section 6.2.
5.1 Service description
The PoolServer (PS) is a generic resource management service. A cloud platform will typically provide various kinds of compute and storage resources, for instance, virtual machines, that can be used in conjunction by a user to implement certain functionality. The PoolServer is designed to offer a convenient abstraction over a low-level resource provider to maintain a collection of resources. A user can request the PoolServer for a set of resources (called a pool). The PoolServer calls into the resource provider to allocate these resources.

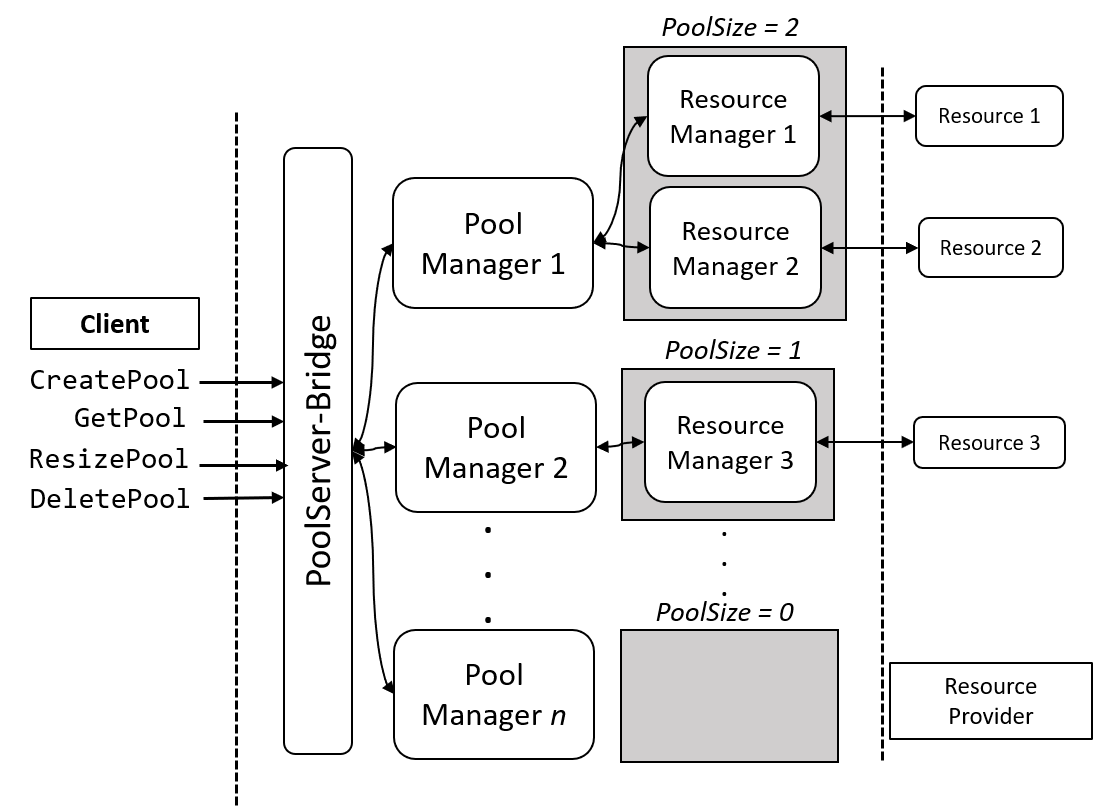

Fig. 8(a) shows a high-level view of the PoolServer (PS). Each pool has a designated owner and supervises a number of resources. Individual resources can turn unhealthy (e.g., a VM becomes unresponsive), in which case, it is the responsibility of PS to explicitly delete that resource and allocate a new one to ensure that each pool eventually reaches its desired size. Also, there should be no garbage resources: one that is allocated by the resource provider but is not associated with any pool.
A client can fire a pool creation request to PS, with the desired number of resources as a parameter. In response, PS creates a fresh pool, owned by , with resources in it. The client can query the health, resize or delete any existing pool that it owns.
The PoolServer must be responsive and scalable. It must be able to handle pool creation requests from multiple clients at the same time. Further, the creation of a pool itself should not add much overhead over the actual allocation of the resources. PS should also tolerate failures. If the PS crashes, it should not lose information about the pools that it had already created, or was in the middle of creating. For instance, if a requested pool of size had reached size when the PS crashed, it must resume and allocate the remaining .
5.2 RSM based PoolServer
We implemented the PoolServer using RSMs. We denote this implementation as RsmPs. It supports the core functionality that was described in the previous section. In comparison, the real production service (denoted ProdPs) offers a richer API to its clients, but the additional features are unrelated to matters of reliability or concurrency. Fig. 8(b) shows the high-level architecture of RsmPs. There are two RSM types: one called the resource manager (RM) that is responsible for the lifetime of a single resource, and another called pool manager (PM) that is responsible for the lifetime of a single pool. This division ensures that the complexities of dealing with the external resource provider are limited to the RM. Future changes to the resource provider APIs will likely not impact the PM.
A client can issue requests such as CreatePool, GetPool, ResizePool or DeletePool to RsmPs. These requests are translated to messages that are directed to the PM that owns the corresponding pool. The state machine structures of RM and PM are shown pictorially in Figure 9. We explain the functioning of these RSMs by tracing through the CreatePool operation.

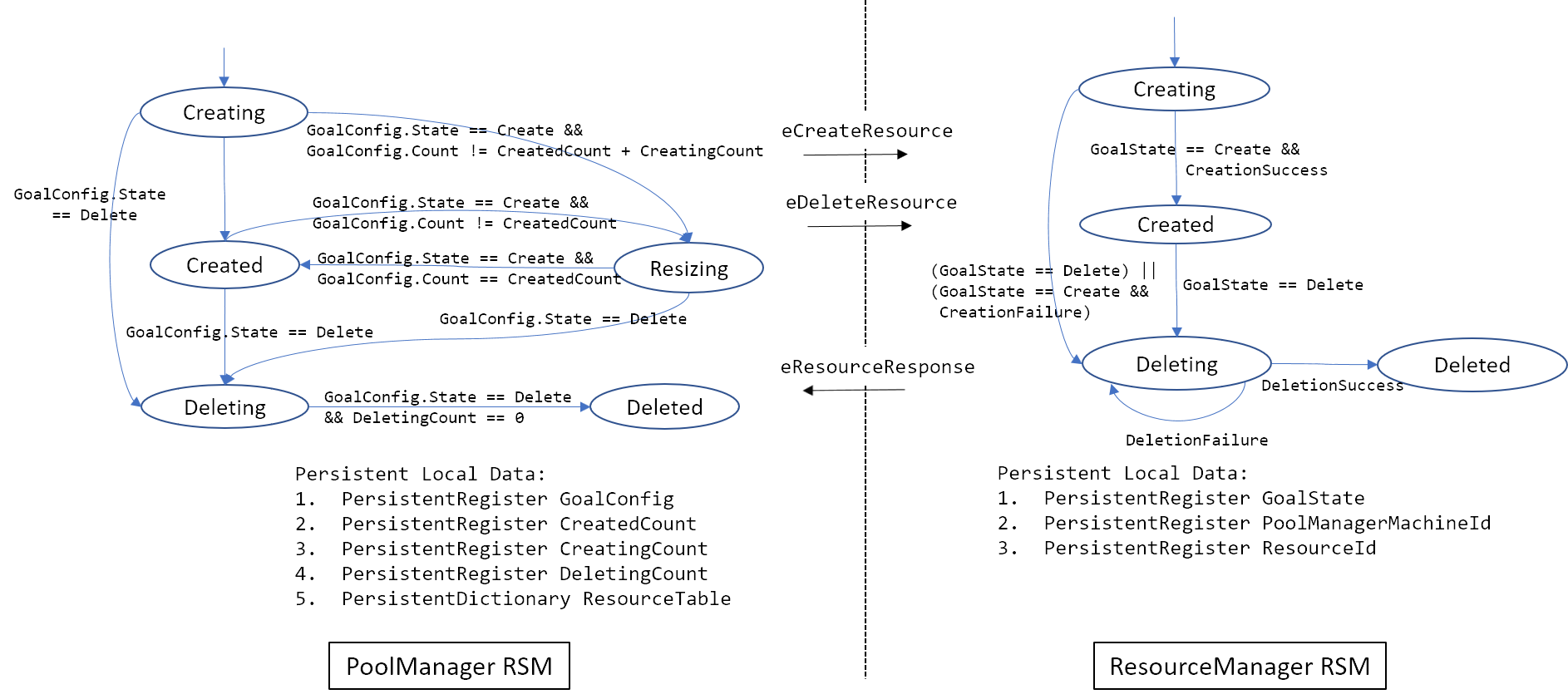

In response to a client’s pool creation request, RsmPs creates a new PM instance. Each such instance maintains three counters: CreatingCount, CreatedCount and DeletingCount which are, respectively, the number of resources that are under creation, already created, and under deletion. The PM additionally maintains a GoalConfig that specifies the desired number of resources in the pool (Count), and the intended State of the pool (either Create or Delete). Finally, the RSM maintains a dictionary ResourceTable containing the rsmIds of all the RM instances that it owns.

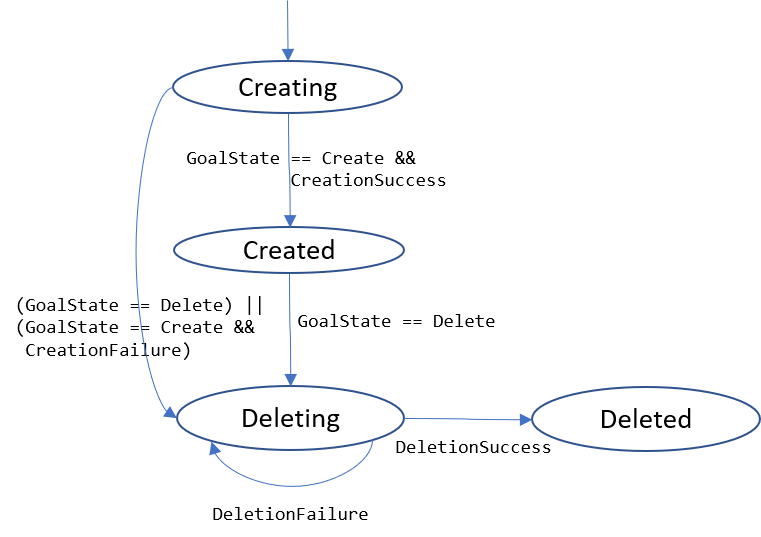

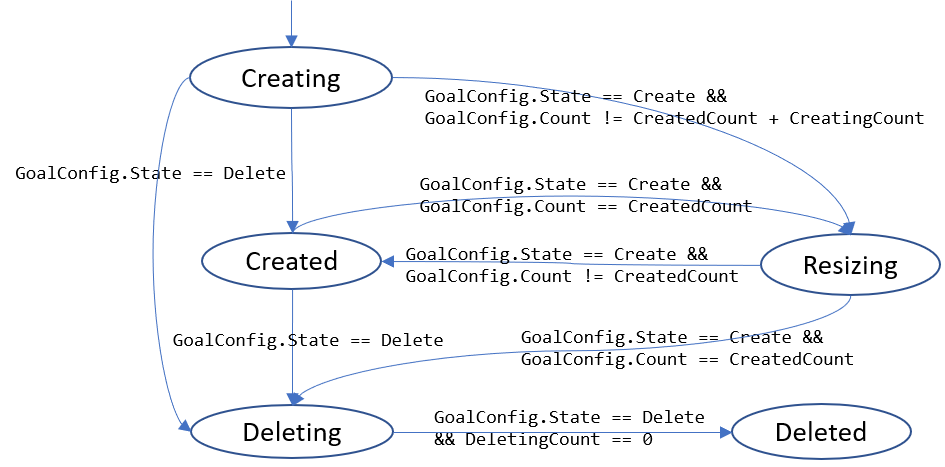

A PM instance starts off in the Creating state with an empty ResourceTable and each counter set to [math]. Its GoalConfig will get initialized to the pool size that was requested by the client (on receiving the creation request) and the RSM will transition to its Resizing state realizing that it does not have enough resources created. In the resizing state, the RSM looks at the difference between GoalState.Count and , say , and fires off the operation ScaleUp(pmId, m) whose code is shown in Listing 7, where pmId is the rsmId of the current PM instance. We note that this entire operation is devoid of any failover or retry logic: the PM does not have to worry about failures of the machine hosting it, or about the failures of the RM instances that it creates. The runtime ensures that the exact number of instances requested will be eventually created (and no more).
An RM instance reliably persists the handle (PoolManagerMachineId) to the PM instance that created it, the goal state (GloalState) that is either Create or Delete, and the resource identifier (ResourceId) returned by the resource provider. An RM starts off in the Creating state, fires off a request to the resource provider, which if successful (CreationSuccess) causes a transition to the Created state. It then informs the PM about successful creation of the resource. The PM waits in its Resizing state until it gets enough success responses from its RM instances, i.e., until GoalConfig.Count == CreatedCount.
If a resource ever goes unhealthy, the corresponding RM instance transitions to the Deleting state and asks the resource provider to de-allocate the resource. On successful deallocation, the RM transitions to the Deleted state, and informs the PM, upon which the PM will issue the ScaleUp operation to allocate a new resource. Pool deletion is similar and implemented via a corresponding ScaleDown operation. Both RMs and PMs halt themselves after transitioning to the Deleted state.
Correctness.
We use the P#-testing backend to check the conformance of RsmPs to the following specifications. The testing helped weed out several bugs while implementing the RSM program. These properties were tested against a model of the resource provider where the allocation of a resource can non-deterministically fail (but eventually allocation is successful on repeated attempts) and the resource can go unhealthy at any time.
Property 1**.**
Immediately following a ScaleUp or ScaleDown operation, the number of resources under creation, or already created, equals the desired number of resources.
Property 2**.**
If a client issues the sequence of requests , , , , then RsmPs will eventually create a pool with exactly resources.
Property 3**.**
On issuing a DeletePool, eventually all resources of the pool are disposed.
A comparison of RsmPs with ProdPs.
The resource and pool managers lend themselves naturally to a state machine encoding. The state machines manage the life-cycle of a resource or a pool, respectively. ProdPs had a similar design, however, communication was not through message passing but rather via shared tables, maintained as SF reliable collections. One agent would update a table and other agents would continuously pool these tables to get the updates. Polling increased CPU utilization: RsmPs uses roughly less CPU than ProdPs. Implicit communication also made the code harder to reason for correctness.
A direct comparison between the code size of ProdPs and RsmPs is not possible because the former implements more features. However, RsmPs implements all of the core functionality in approximately lines of code, several times smaller than the corresponding functionality in ProdPs. The designers of ProdPs attest to the benefits listed here.
To contain code complexity, ProdPs was not designed to be responsive during resize operations: it would wait to finish one resize operation before looking at subsequent resize requests. RsmPs, on the other hand, is fully responsive in such scenarios. The PM state machine can handle new resize requests while it is in the Resize state: it simply updates its GoalConfig and issues either ScaleUp and ScaleDown until the pool reaches its goal state. Importantly, the P#-based testing infrastructure of RSMs provides strong confidence in exploring a more responsive (and more complex) state-machine design. We show in Section 6.2 that RsmPs is able to comfortably attain production scales.
6 Evaluation
This section reports on a performance evaluation of our RSM implementation. Section 6.1 measures common performance metrics on micro-benchmarks. Section 6.2 evaluates the performance of our implementation of the PoolServer case study (RsmPs). We draw comparisons with the Reliable Actors programming model of Service Fabric [5] (denoted sfActor). Reliable actors are an implementation of the “virtual actors” paradigm [2]. It serves as a useful baseline for experimentation because it builds on SF much like our SF backend implementation. Further, reliable actors do not provide failure transparency guarantees, although the programmer is given access to a persistent key-value store. This allows us to measure the relative overheads with providing a by-construction fault-tolerant runtime. In the rest of this section, we use the generic term agents to denote both sfActors and RSMs.
6.1 Microbenchmarks
Our microbenchmarks evaluate the following three scenarios: creation: where we measure the creation time for agents, messaging latency between two agents and processing throughput, where we measure the time taken to process a sequence of messages by an agent. In the subsequent discussion, we use sfRSM and bRSM to denote the SF-based RSM implementation, with and without optimizations mentioned in Section 4.2, respectively. We use kRSM to denote the Kafka-based RSM implementation.
Cluster Setup. The sfActor, bRSM and sfRSM services were deployed on a -node Service Fabric cluster on Microsoft Azure, where each node had a D4_v2 configuration ( CPU cores, GB RAM, and a GB local solid-state drive). The Kafka experiments were run on an Azure HDInsight cluster with the following configuration: 2 head nodes of type D4_v2 executing the RSM runtime and application 3 worker nodes hosting the Kafka topics, with a total of cores and GB RAM, and a total of premium disks of size TB each nodes for running Apache Zookeeper, with a total of cores and GB RAM. (Zookeeper serves as a coordinator for Kafka nodes and manages cluster metadata.) Because of the different cluster setup, sfRSM and kRSM are not directly comparable.
Creation.
It is important to keep overheads with creation low in order to provide most flexibility in programming RSM applications. In this experiment, we measure the time taken by a client to sequentially create agents. Both the client and the created agents reside on the same partition, which allows us to eliminate any networking overheads from the creation times.

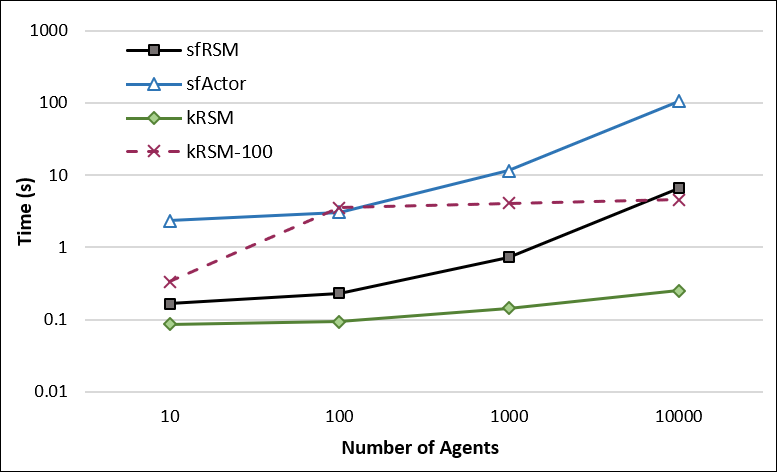

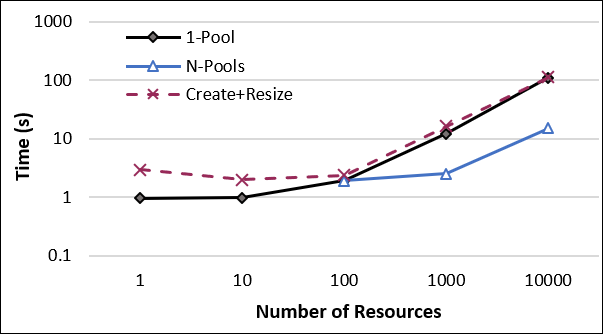

Fig. 10 summarizes the results. The average creation time for sfRSM is ms, nearly faster than sfActor (ms). With all optimizations turned off, the average creation time of bRSM (ms) is that of sfRSM. The speedup in creation time for sfRSM primarily stems from the shared inbox-outbox optimization. The creation times for both sfActor and sfRSM scale linearly with the number of agents created. For sfRSM, the bulk of the creation time is expended in committing a single SF transaction, which persists the initial local state of the machine and its rsmId to the runtime. Creations in kRSM are measured differently. We create the Kafka topics ahead of time because creating topics on-the-fly is much slower than pre-creating them in bulk, and more importantly there is a limit to the number of topics that can be supported on each worker node. A kRSM creation now simply involves assigning two existing topics from the pool, along with persisting the id and initial state. We run two experiments, kRSM- and kRSM-, where we multiplex the RSMs onto a single topic and topics, respectively. Note that all the writes during creation for kRSM- are batched into a single transaction, while the writes for kRSM- involve transactions. As Fig. 10 shows, both kRSM- and kRSM- creations are fairly lightweight, with average creation times of ms and ms respectively (but discounting the topic pre-creation time).
In a separate experiment, we measured the creation throughput, by firing creation requests in parallel. sfActor and bRSM could achieve a maximum throughput of and creations per second, respectively, while sfRSM could hit a maximum of creations per second. The faster creations for sfRSM stems from its optimizations, which result in frugal CPU and IO requirements. kRSM creation throughput was creations per second.
Messaging.
This experiment measures the cost of exact-once messaging. The experiment comprises of two agents that repeatedly send a single message ( bytes) back-and-forth and we measure messaging latencies. Messaging in sfActor is unreliable (best-effort, and lost on failures). We optionally make the agents in sfActor persist their incoming message.
Table. 1 shows the latency measurements at different quantiles. Unsurprisingly, sfActor exhibits the lowest latencies. When we persist the messages in sfActor, which introduces one write per message transfer, it increases the latency significantly. sfRSM requires two write operations per message, making it nearly twice as expensive as sfActor with message persistence. Kafka, being a messaging system, is optimized for low-latency operations, even with exact-once guarantees. kRSM has better latency than sfActor with message persistence.
Throughput.
In this experiment, a producer and a consumer agent are located on different partitions. The producer keeps sending messages (with a varying payload size) to the consumer. The consumer simply keeps a running count of the number of bytes received. We measure the time taken to process all the requests, and report the throughput in MB/s.

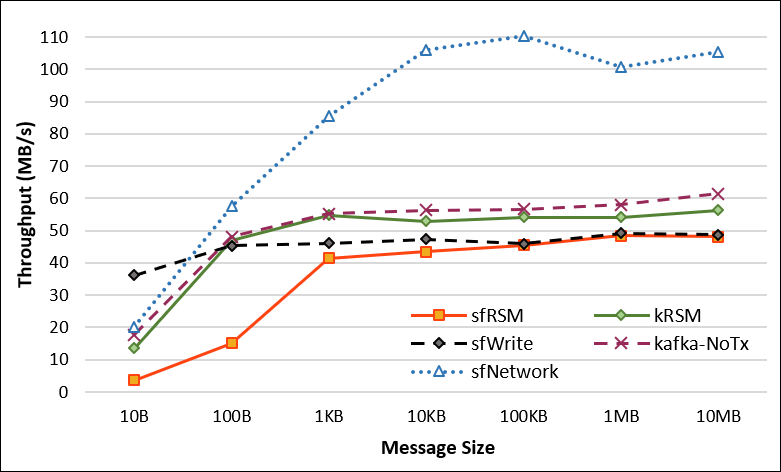

Fig. 11 summarizes the results. sfRSM automatically batches messages to increase throughput. sfActor has no default batching mechanism, although increasing message sizes decreases benefits to be gained from batching. At large message sizes, sfActor was able to achieve a maximum throughput of MB/s. In comparison, the maximum throughput for sfRSM (across all message sizes) was MB/s. To account for this difference, we precisely timed all micro-operations involved in the sfRSM runtime.
Sending a message from the producer to the consumer at least involves writing to the outbox and then sending the message over the network. We separately measured the best throughput of writing to a SF reliable collection (sfWrite) and sending data over the network as fast as possible via (unreliable) RPC (sfNetwork). Clearly, the throughput of sfRSM will be bounded by the smaller of these two values. As Fig. 11 shows, the writes constitute the limiting factor, and sfRSM incurs very little overhead over the sfWrite throughput, especially for large message sizes. Smaller message sizes implies a larger number of messages per batch, which increases the serialization overhead, and the number of times the consumer executes its handler. This effect, consequently, widens the gap between the sfRSM and sfWrite throughputs for smaller message sizes. This result shows that any improvements in the write throughput of reliable collections will directly speed up RSMs. The gap between sfRSM and sfNetwork is the cost of reliable messaging. Nonetheless, even at the small message size of bytes, sfRSM are able to do roughly message transfers per second; enough for many realistic applications.
kRSM throughput peaks at MB/s. With Kafka, the persistence and message transfer happen together as a topic write. The upper bound for kRSM is to use non-transactional writes (kafka-NoTx). Fig. 11 shows that kRSM have little overhead compared to the throughput of kafka-NoTx.
6.2 RsmPs Case Study
**Performance. ** We measure the time taken to create a given number of resources in a single partition, assuming that the resource-provider calls are instantaneous. Fig. 12 summarizes the results.
In the first experiment, denoted as -Pool, we create a single pool with progressively increasing number of resources. The more realistic scenario, which arises in production, is to have multiple pools of small sizes in a single partition. In the N-Pools experiment, we create multiple pools (each of size ) in parallel such that the total number of resources matches the -axis. We make two observations: (i) the creation times for both -Pool and N-Pools increase linearly with the number of resources (ii) for the same number of resources, the increased parallelism in N-Pools results in the creation times being an order of magnitude faster than -Pool. We would like to emphasize that the workloads here are realistic, and are based on requirements provided by the developers of the in-production ProdPs service. The aforementioned results were reviewed by the developers, who confirmed that RsmPs comfortably scales to production workloads.
To evaluate the responsiveness of RsmPs, we issue , followed immediately by , where . The requirement is to ensure that the total time stays close to . The Create+Resize line in Fig. 12 summarizes the result (with the value on the -axis). We see that as we increase , the Create+Resize curve lies very close to -Pool, which is testament to the service’s responsiveness. For small values of , the gap is wider because almost all of the allocations kick-in by the time the resize request is processed.
Testing.
For testing, we create mocks of both the client and the Resource Provider services, since they are external to RsmPs. Our mocks are vanilla P# machines. The testing exercise was done on a laptop with a dual-core i processor, with GB RAM. The tester performed iterations, with a scheduling strategy chosen from a pre-defined portfolio, with each exploration having a depth of steps. Note that the test for Property 1 is a safety-check, while the tests for Properties 2 and 3 are liveness-checks. The client issued a request. We deliberately injected a bug in the ScaleUp operation by removing the updates to CreatingCount. The resulting violation of Property 1 was detecting in s, generating an error witness of around steps. We fixed the error, and issued , followed by , and Property 2 was verified in s. To verify Property 3, we issue followed by a deletion and the tester verified the property in s.
We further injected a bug by converting the CreatedCount to be volatile. (This means that if the machine was in the middle of a creation operation when it failed, it would lose track of all the resources it had created, and therefore the pool would never reach the Created state.) The tester is able to quickly find a violation of property 2, in s.
Other applications.
We have evaluated the applicability of the RSM language and runtime by encoding several other real-world applications. One example is a Banking application, where accounts are encoded as RSMs, and there are broker RSMs which are tasked with transferring money from one account to the other, without incurring any financial losses on failures. The application specification can be encoded as a liveness property. Another example is a Survey application [24, 25], where subscribers can create surveys, which users can respond to. Each survey is managed by an RSM, and an overall coordinator RSM creates surveys, reports survey status, deletes surveys, etc. From a user perspective, responsiveness is a key metric. The application also needs to ensure specifications like a user vote is counted exactly once. The RSM framework allowed us to design these responsive applications, with all the specifications thoroughly tested.
7 Related Work
Actor frameworks. Actor-based programming [26] refers to the general style of programming where the concurrent entities in the program (called actors) each have their own local state that is not shared with other actors. Communication and co-ordination between actors happens via message passing. The actor programming abstraction is a natural fit for distributed cloud applications. Some of the popular instances of actor-based frameworks and languages include Akka [4], Erlang [27], and Orleans [2].
For fault tolerance, each of these frameworks provide access to a persistent store that is automatically restored to the last saved state when a failed actor recovers. However, the responsibility of committing the persistent state and ensuring that it is consistent with the rest of the system still falls on the programmer. Moreover, the communication between actors is best-effort, and the programmer is again responsible for managing retries and de-duplication of messages. More specifically, unlike RSMs, these frameworks do not provide failure transparency by-construction.
Orleans introduced the concept of “virtual actors”: these actors need not be explicitly created. They are instantiated on demand when they receive a message. Further, they are location independent, allowing the Orleans runtime to dynamically load-balance the placement of actors across a cluster, even putting frequently-communicating actors together [28]. RSM instances must be explicitly created, but they are location independent. Our implementation, however, currently does not attempt to move an RSM after it has been created. The initial placement of a fresh RSM can be controlled by the programmer, after which the instance is permanently tied to that location. Service Fabric Reliable Actors [5] are also an implementation of the virtual actors paradigm. We provide an empirical comparison of RSMs with Reliable Actors in Sec. 6.
Reactive programming. Reactive frameworks [29] are used in the development of event-driven and interactive applications. These frameworks provide a programmatic way of setting up a dataflow graph that marks functional dependencies between variables. As the value of certain variables change over time, the rest of the dependent variables are updated automatically. Recent work [30] describes an extension to REScala [31] in order to provide fault-tolerance support in distributed reactive programming. The framework relies on taking snapshots of critical data and then uses replay to construct the entire program state on failure. This requires deterministic execution. Further, the input signals are not captured as part of the snapshots, causing them to differ on re-execution or even get duplicated. These issues require programmer support. On the other hand, RSMs can support non-deterministic handlers and guarantees exact once processing because input (i.e. inbox) is part of the reliable state that RSMs maintain. The REScala extension provides eventual consistency for updates to shared data, making use of state-based conflict-free replicated data types (CRDTs) [32]. RSMs do not have shared state; maintaining common state between two RSMs can be done by creating (and communicating with) another RSM that owns the state. RSM messaging is reliable: this provides strong consistency between RSMs, however, it is less resilient to network outages than CRDTs because the latter allows for progress even in a disconnected state.
Big-data analytics. Big-data processing systems such as SPARK [33] and SCOPE [34] are popular frameworks for data analytics. They provide a SQL-like programming interface that gets compiled to map-reduce stages for distributed execution on a fault-tolerant runtime. These systems, however, are meant for data-parallel batch processing. They execute on immutable input that is known ahead of time.
Other frameworks. Ramalingam et al. [24] provide a monadic framework that makes functional computation idempotent. Their transformation records the sequence of steps that have already been executed. On re-execution, such steps are skipped. Idempotent computation enables fault-tolerance: simply keep re-executing until completion. Their work focuses on state updates made by a single sequential agent. They assume determinism of the computation and do not handle communication. RSM programs, on the other hand, support multiple concurrent agents with possible non-deterministic execution. RSMs ensure idempotence by atomically committing the effects of processing of a message along with the dequeue of the message from the inbox.
Another class of languages for distributed systems, including Orca [35] and X10 [36], rely on distributed shared memory. They enable applications that span multiple machines while allowing the freedom to access memory across machine boundaries. They mostly focus on in-memory computation, without support for state persistence or fault tolerance.
The reference list from the paper itself. Each links out to its DOI / PubMed record.
- 1[1] Enterprise workloads in the cloud. https://www.forbes.com/sites/louiscolumbus/2018/01/07/83-of-enterprise-workloads-will-be-in-the-cloud-by-2020/#636ee 7856261 .
- 2[2] Philip A Bernstein, Sergey Bykov, Alan Geller, Gabriel Kliot, and Jorgen Thelin. Orleans: Distributed virtual actors for programmability and scalability. MSR-TR-2014–41 , 2014.
- 3[3] Jay Kreps, Neha Narkhede, and Jun Rao. Kafka: a distributed messaging system for log processing. In 6th International Workshop on Networking Meets Databases (Net DB) , 2011.
- 4[4] Akka. https://akka.io/ . [Online; accessed 10-January-2019].
- 5[5] Service Fabric Reliable Actors. https://docs.microsoft.com/en-us/azure/service-fabric/service-fabric-reliable-actors-introduction .
- 6[6] Pantazis Deligiannis, Alastair F. Donaldson, Jeroen Ketema, Akash Lal, and Paul Thomson. Asynchronous programming, analysis and testing with state machines. In ACM SIGPLAN Conference on Programming Language Design and Implementation , pages 154–164, 2015.
- 7[7] P#: Safe Asynchronous Event-Driven Programming. https://github.com/p-org/P Sharp . [Online; accessed 1-January-2019].
- 8[8] Pantazis Deligiannis, Matt Mc Cutchen, Paul Thomson, Shuo Chen, Alastair F. Donaldson, John Erickson, Cheng Huang, Akash Lal, Rashmi Mudduluru, Shaz Qadeer, and Wolfram Schulte. Uncovering bugs in distributed storage systems during testing (not in production!). In File and Storage Technologies, FAST , pages 249–262, 2016.
