Generic optical excitations of correlated systems: $\pi$-tons

TL;DR

This paper introduces $$-tons, a new type of polariton arising from antiferromagnetic or charge density wave fluctuations in strongly correlated systems, significantly affecting optical conductivity across various models.

Contribution

It identifies and characterizes $$-tons as a novel polariton type in correlated materials, extending the understanding of light-matter interactions beyond excitons.

Findings

$$-tons dominate the vertex correction to optical conductivity.

They are prevalent in multiple correlated models, both insulating and metallic.

$$-tons influence optical properties in strongly correlated systems.

Abstract

The interaction of light with solids gives rise to new bosonic quasiparticles, with the exciton being---undoubtedly---the most famous of these polaritons. While excitons are the generic polaritons of semiconductors, we show that for strongly correlated systems another polariton is prevalent---originating from the dominant antiferromagnetic or charge density wave fluctuations in these systems. As these are usually associated with a wave vector ${\mathbf k}= (\pi,\pi,\ldots)$ or close to it, we propose to call the derived polaritons $\pi$-tons. These $\pi$-tons yield the leading vertex correction to the optical conductivity in all correlated models studied: the Hubbard, the extended Hubbard model, the Falicov-Kimball, and the Pariser-Parr-Pople model, both in the insulating and in the metallic phase.

Figures

Equations

$$\mathcal{H}=-t\sum _{⟨ij⟩\sigma }{c}_{i\sigma }^{†}{c}_{j\sigma }^{}+U\sum _i{n}_{i\uparrow }{n}_{i\downarrow }+\frac{1}{2}\sum _{i\ne j,\sigma {\sigma }^{\prime }}{V}_{ij}{n}_{i\sigma }{n}_{j{\sigma }^{\prime }}$$

$$\chi$$

$${\Phi }_{\overline{ph},d,\mathbf{k}{\mathbf{k}}^{\prime }\mathbf{q}=0}^{{\nu }_n{\nu }_n^{\prime }{\omega }_n}=-\frac{1}{2}({\Phi }_{ph,d}+3{\Phi }_{ph,m}{)}_{\mathbf{k}\mathbf{k}{\mathbf{k}}^{\prime }-\mathbf{k}}^{{\nu }_n{\nu }_n+{\omega }_n{\nu }_n^{\prime }-{\nu }_n}$$

$$\chi$$

$$F_{d/m,\mathbf{k}{\mathbf{k}}^{\prime }\mathbf{q}}^{\nu {\nu }^{\prime }\omega }$$

$${\Phi }_{ph,m,\mathbf{k}{\mathbf{k}}^{\prime }\mathbf{q}}^{\nu {\nu }^{\prime }\omega }\cong {\Phi }_{ph,m,}(\mathbf{q},\omega )=-\frac{\chi (\mathbf{q},\omega )}{{\left(\frac{1}{\beta N}{\sum }_{{\nu }^{\prime \prime }{\mathbf{k}}^{\prime \prime }}{G}_{{\mathbf{k}}^{\prime \prime }{\nu }^{\prime \prime }}{G}_{({\mathbf{k}}^{\prime \prime }+\mathbf{q})({\nu }^{\prime \prime }+\omega )}\right)}^2}.$$

$${\Phi }_{\overline{ph},d,\mathbf{k}{\mathbf{k}}^{\prime }\mathbf{q}=0}^{\nu {\nu }^{\prime }\omega }\cong -\frac{3}{2}{\Phi }_{ph,m,}(\mathbf{k}-{\mathbf{k}}^{\prime },\nu -{\nu }^{\prime }).$$

$$F_{d,\mathbf{k}{\mathbf{k}}^{\prime }\mathbf{q}=0}^{\nu {\nu }^{\prime }\omega }={\Phi }_{\overline{ph},d,\mathbf{k}{\mathbf{k}}^{\prime }\mathbf{q}=0}^{\nu {\nu }^{\prime }\omega }$$

Full text

Since the springtime of modern physics, the interaction of solids with light has been of prime interest. The arguably simplest kind of interaction is Einstein’s Noble prize winning photoelectric effect Einstein (1905), where the photon excites an electron across the band gap. More involved processes beyond a mere electron-hole excitation can be described in general by effective bosonic quasiparticles, coined polaritons since a polar excitation is needed to couple the solid to light.

The prime example of a polariton is the exciton Frenkel (1931); Wannier (1937), where the excited electron-hole pair is bound due to the Coulomb attraction between electron and hole. This interaction is visualized in Fig. 1 (a). Since it is an attractive interaction, an exciton requires the exciton binding energy less than an unbound electron-hole pair. Other polaritons describe the coupling of the photon to surface plasmons, magnons or phonons.

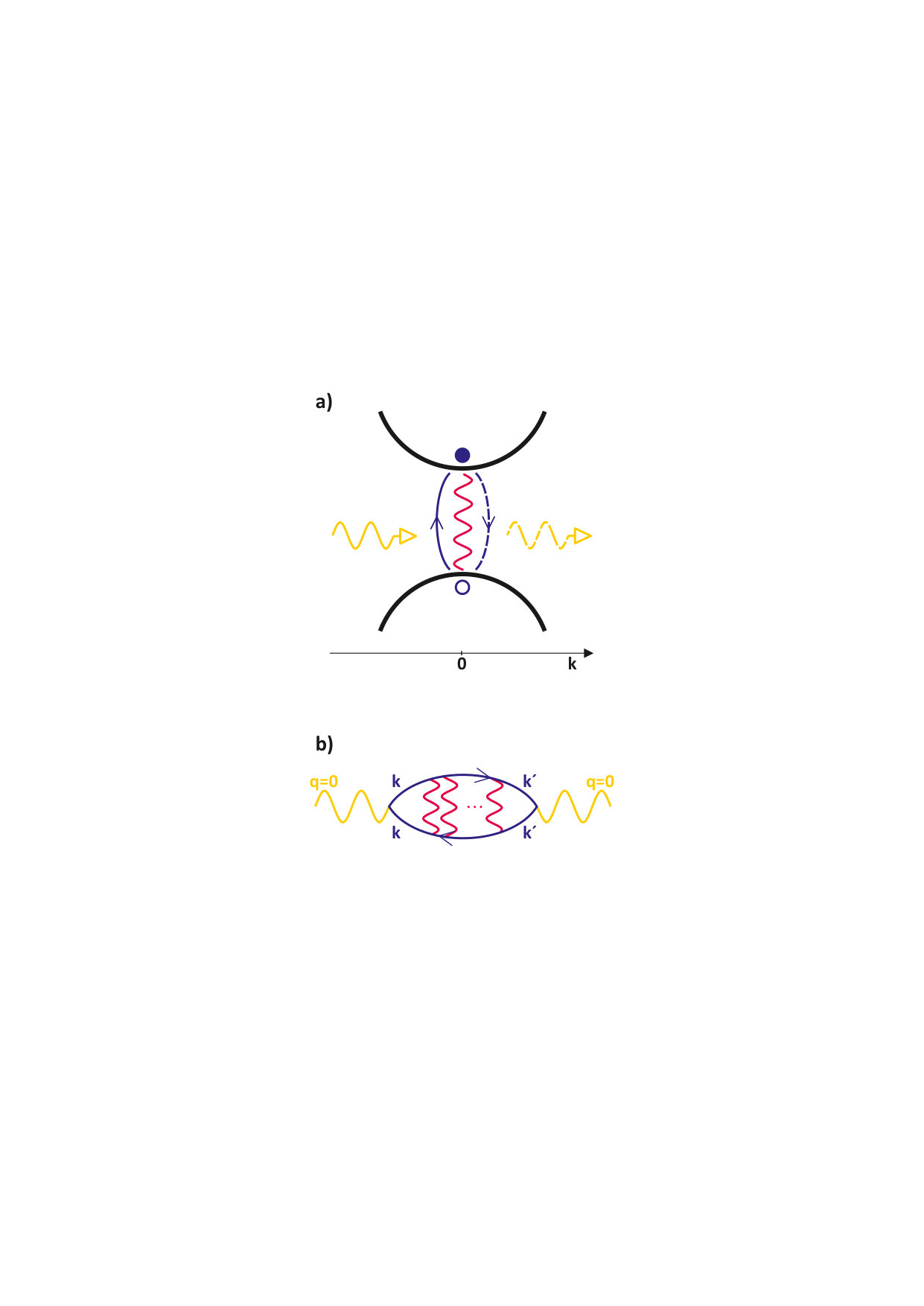

Fig. 1 (b) describes the exciton in terms of Feynman diagrams: the incoming photon creates the electron-hole pair (distinguishable by the different [time] direction of the arrows) which interact with each other repeatedly and finally recombine emitting a photon. Since the energy-momentum relation of light is very steep compared to the electronic bandstructure of a solid, the transferred momentum from the photon is negligibly small ${\mathbf{q}}=0$. Thus, electron and hole have the same momentum. For semiconductors this is often the preferable momentum transfer as well, connecting the bottom of the conductance with the top of the valence band as in Fig. 1 (a).

In this paper we show that the generic polaritons for strongly correlated systems are strikingly different. While semiconductors are band insulators with a filled valence and empty conduction band, strongly correlated systems are typically closer to a half-filled (or in general integer filled) band which is split into two Hubbard bands by strong electronic correlations as visualized in Fig. 1 (c) for a Mott insulator. (In case of a metallic system there is an additional quasiparticle band). Both metal and insulator are prone to strong antiferromagnetic (AFM) or charge density wave (CDW) fluctuations with a wave vector close to ${\mathbf{q}}=(\pi,\pi,\ldots)$ Keimer (2013); Aeppli (2004). Indeed these fluctuations can be described by the central part of the Feynman diagram Fig. 1 (b), where the bare ladder diagrams correspond to the random phase approximation (RPA). However the wave vector ${\mathbf{q}}=(\pi,\pi,\ldots)$ cannot directly couple to light, which only transfers ${\mathbf{q}}=0$. Hence an exciton-like polariton as displayed in Fig. 1 (b) is not possible for AFM or CDW fluctuations.

As we will show in this paper, the $(\pi,\pi,\ldots)$ fluctuations nonetheless constitute the dominant vertex corrections beyond a bare (bubble) particle-hole excitation. This is possible through a process where the central part of the Feynman diagram Fig. 1 (b), i.e., the $(\pi,\pi,\ldots)$ fluctuations, are rotated (and flipped) as sketched in Fig. 1 (d). Now it is possible to transfer ${\mathbf{q}}=0$ from the photon and to pick up nonetheless the strong AFM or CDW fluctuations at ${\mathbf{k}}-{\mathbf{k}}^{\prime}\approx(\pi,\pi,\ldots)$. The physics of the associated process is visualized in Fig. 1 (c). First, the light creates an electron-hole pair. Through the Coulomb interaction this electron hole-pair creates by impact ionization a second electron-hole pair at a wave vector displaced by $(\pi,\pi,\ldots)$, and the two interact repeatedly with each other, before emitting a photon again. Note that if one assigns times to the electron-photon and Coulomb interactions in Fig. 1 (d) there are, after the first and till the last Coulomb interaction, always two particle and two hole Green’s functions [cf. Supplemental Material (SM) Fig. S8]. This makes the $\pi$-ton distinctively different from Mott excitons Clarke (1993); Wróbel and Eder (2002); Essler et al. (2001); Jeckelmann (2003) or quasiparticle-quasihole excitations, including those envisaged in Lin et al. (2009) where the importance of AFM fluctuations was realized.

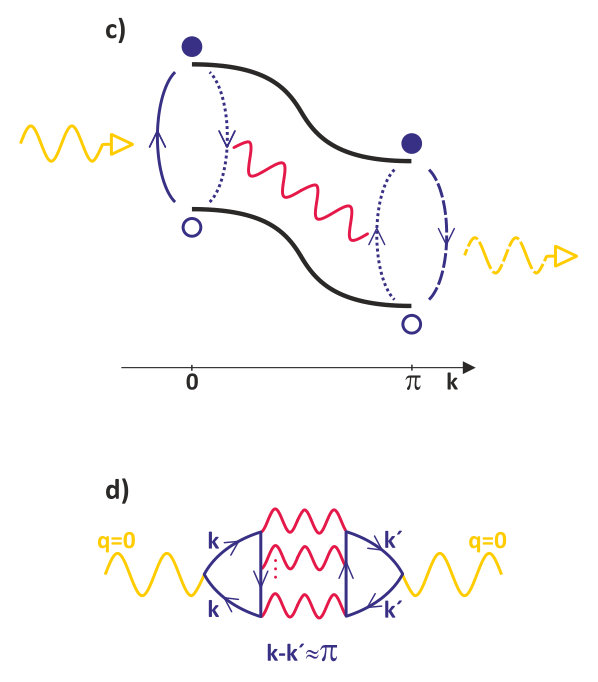

This excitation resembles to some extent 111Different is: in a superconductor two particles interact through repeated ladders, here two electron-hole pairs interact through a single ladder. the pairing of electrons in superconductors through magnetic fluctuations. Since AFM or CDW fluctuations are typically at or close to a wave vector $(\pi,\pi,\ldots)$, we suggest to call this polariton a $\pi$-ton. But of course if a strongly correlated system happens to have its dominant fluctuations at another wave vector ${\mathbf{k}}-{\mathbf{k}}^{\prime}\neq 0$, the same processes described in this paper allow for the coupling to light, creating polaritons.

In hindsight it appears rather obvious that AFM or CDW fluctuations couple this way to light. Why has this not been realized before? This is because numerical methods such as quantum Monte Carlo Lin et al. (2009) or exact diagonalization Vučičević et al. (2019) suffer from the difficulty to analyze the underlying physical processes highlighted by the parquet decomposition, and analytical methods as e.g. RPA or FLEX Kontani (2006) have been mostly biased with respect to certain channels such as the particle-hole ($ph$) channel in Fig. 1 (b) for excitons. Similar Feynman diagrams but with maximally crossed interaction lines, i.e., the particle-particle ($pp$) channel, have been made responsible for weak localization Altshuler and Aronov (1985) and strong localization Abrahams et al. (1979) in disordered systems. But the third (rotated) transversal particle-hole ($\overline{ph}$) channel of Fig. 1 (d) has, to the best of our knowledge, not been considered hitherto, except for the second order diagram, the Aslamazov-Larkin correction Aslamazov and Larkin (1968); Bergeron et al. (2011); Chubukov et al. (2014) which for half-filling compensates the second-order diagram of the $pp$-channel. Let us emphasize that it is however the whole ladder which is responsible for strong AFM or CDW fluctuations.

Our insight has only been possible because of recent methodological advances which allow us to study all three aforementioned channels unbiasedly, using the parquet equations Bickers (2004); Li et al. (2016, 2019) within the dynamical vertex approximation (D$\Gamma$A) Toschi et al. (2007); Kusunose (2006); Katanin et al. (2009), the dual fermion approach (DF) Rubtsov et al. (2008) and the parquet approximation (PA) Bickers (2004). For a review of these and related methods Rohringer et al. (2013); Taranto et al. (2014); Ayral and Parcollet (2015); Li (2015), see Rohringer et al. (2018).

Models and methods. Let us now turn to the actual calculations, starting with introducing the models, which all can be summarized in the Hamiltonian

[TABLE]

where $c^{(\dagger)}_{i\sigma}$ represents annihilation (creation) operator for an electron with spin $\sigma$ at site $i$; $n_{i\sigma}=c^{\dagger}_{i\sigma}c_{i\sigma}$; $\langle ij\rangle$ sums over each nearest neighbor pair $i,j$ once. For the Hubbard model (HM) we have a local interaction $U$ only, i.e., $V_{ij}=0$, and $t$ denotes the hopping. We also study the extended Hubbard model (EHM), with nearest-neighbor interaction $V_{ij}=V$. The Pariser-Parr-Pople model (PPP) Pople (1953); Pariser and Parr (1953) describes conjugated $\pi$-bonds in carbon-based organic molecules and is here employed for a benzene ring, i.e., a one-dimensional chain with six sites, periodic boundary conditions and interactions between all sites. Finally, the Falicov-Kimball model (FKM) Falicov and Kimball (1969); Freericks and Zlatić (2003) has the same form as the HM but the hopping is only for one spin species. All models are solved for the square lattice (except PPP) at half-filling in the paramagnetic phase; $t\equiv 1$ and Planck constant $\hbar\equiv 1$ set our unit of energies and frequencies; for the optical conductivity lattice constant $a\equiv 1$, elementary charge $e\equiv 1$.

We employ the method which we consider most appropriate for the four models, i.e., the parquet D$\Gamma$A for the HM Kauch et al. (2019), the PA for the EHM and PPP (which is here more precise than a non-self-consistent D$\Gamma$A Pudleiner et al. (2019a, b)), and a parquet variant of the DF, extending earlier DF approaches Otsuki et al. (2014); Yang et al. (2014); Ribic et al. (2016). We solve the parquet equations on a $6\times 6$ momentum grid, except for the PPP for benzene which has 6 sites or momenta. For the HM, EHM and PPP we use the victory code Li et al. (2019) to solve the parquet equations, and w2dynamics Wallerberger et al. (2019) to calculate the fully irreducible vertex in case of the HM; for the FKM we employ a reduced frequency structure of the vertex Ribic et al. (2016, 2017) implemented in a special-purpose parquet code Astleithner et al. (2019).  ¿ The optical conductivity \sigma(\omega)\!=\!\Re\,\frac{\raisebox{2.0pt}{\chi}_{jj}^{\mathbf{q}=0}(\omega+i\delta)-\raisebox{2.0pt}{\chi}_{jj}^{\mathbf{q}=0}(i\delta)}{i(\omega+i\delta)}, for $\delta\!\to\!0$, is calculated from the current-current correlation function \raisebox{2.0pt}{\chi}_{jj}^{\mathbf{q}=0} at Matsubara frequency $\omega_{n}$ and momentum $\mathbf{q}=0$ , which can be separated into a bubble term consisting of two Green’s functions $G_{k}$ only and vertex corrections $F^{kk^{\prime}q}_{d}$ in the following way:

[TABLE]

Here, we use a four-vector notation $k=(\mathbf{k},\nu_{n})$ with $q=(\mathbf{q}=0,\omega_{n})$; $\gamma_{\mathbf{k}}^{\mathbf{q}=0}=\partial\epsilon_{\mathbf{k}}/\partial\mathbf{k}$ denotes the dipole matrix elements given by the derivative of the energy-momentum relation in the Peierls approximation 222except for the PPP model where $\gamma_{\mathbf{k}}\equiv 1$, which corresponds to the dynamical compressibility; for additional results with $\gamma_{\mathbf{k}}^{\mathbf{q}=0}=\partial\epsilon_{\mathbf{k}}/\partial\mathbf{k}$ see SM.; $\beta=1/T$ is the inverse temperature and $N$ the number of ${\mathbf{k}}$-points.

In the parquet-based approaches employed, the vertex $F$ contains contributions from the fully irreducible vertex $\Lambda$ as well as contributions that are reducible in the three channels ($ph$, $\overline{ph}$, $pp$): $F=\Lambda+\Phi_{ph}+\Phi_{\overline{ph}}+\Phi_{pp}$ 333For a similar analysis for the self-energy cf. Gunnarsson et al. (2016). The density component $F_{d}$ that enters the optical conductivity denotes the even spin combination Rohringer et al. (2018); Li et al. (2016).

Inserting in Eq. 2 instead of $F$ one of the summands $\Lambda$, $\Phi_{ph/{\overline{ph}}/{pp}}$ we obtain the contributions from the respective channels: \raisebox{2.0pt}{\chi}^{\Lambda}, \raisebox{2.0pt}{\chi}^{ph}, \raisebox{2.0pt}{\chi}^{\overline{ph}}, and \raisebox{2.0pt}{\chi}^{pp}. The most simple contributions to \raisebox{2.0pt}{\chi}^{ph} and \raisebox{2.0pt}{\chi}^{\overline{ph}} are just the ladder diagrams of Fig. 1 (b) and (d), respectively. For the analytic continuation of the optical conductivity to real frequencies we employ the maximum entropy method Geffroy et al. (2019); for the PPP we use Padé interpolation.

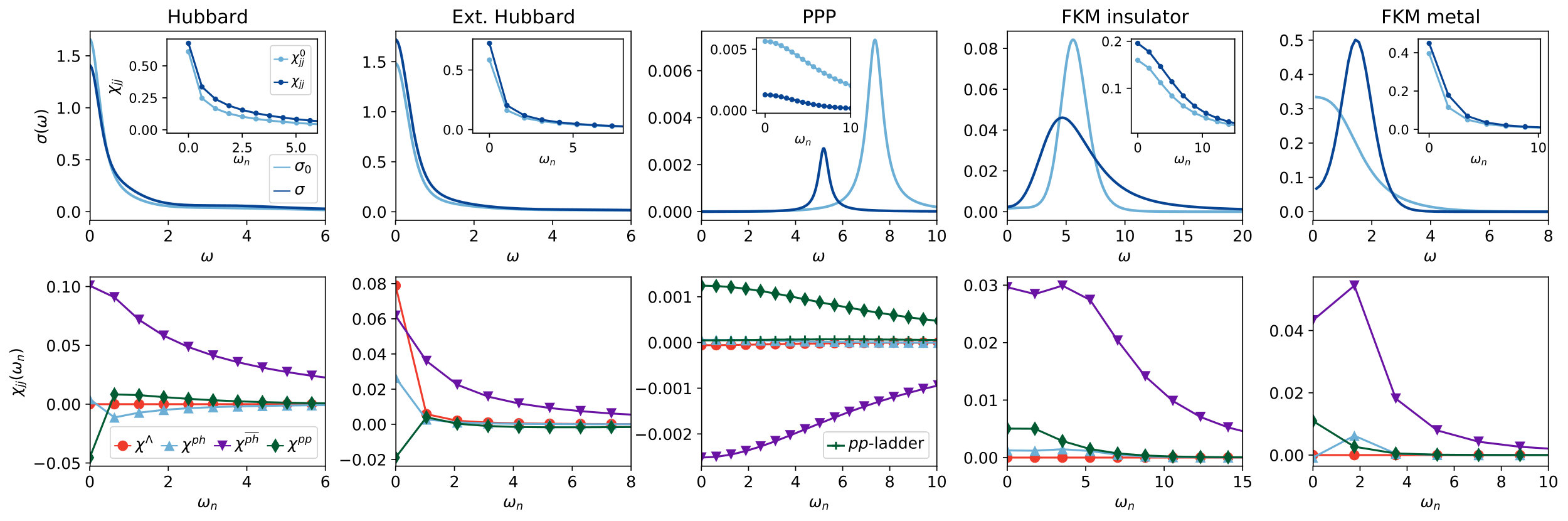

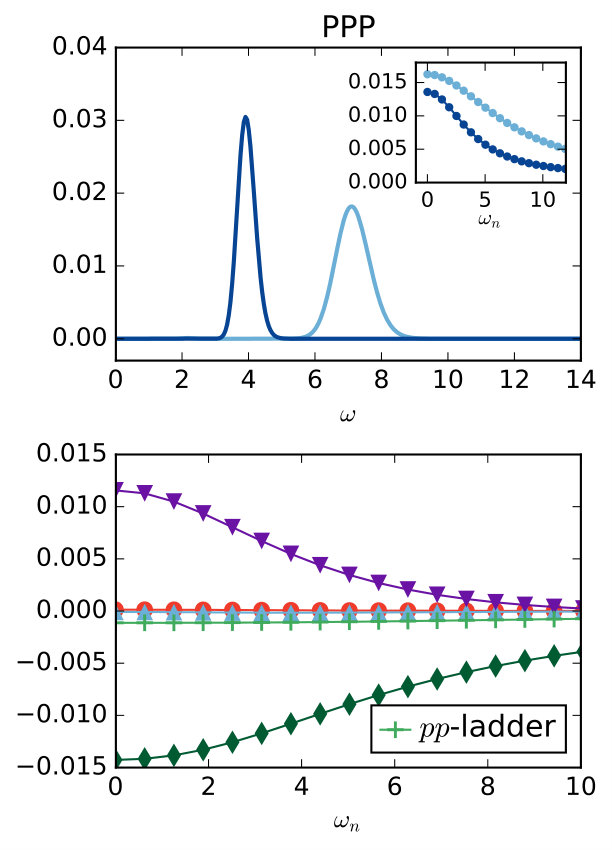

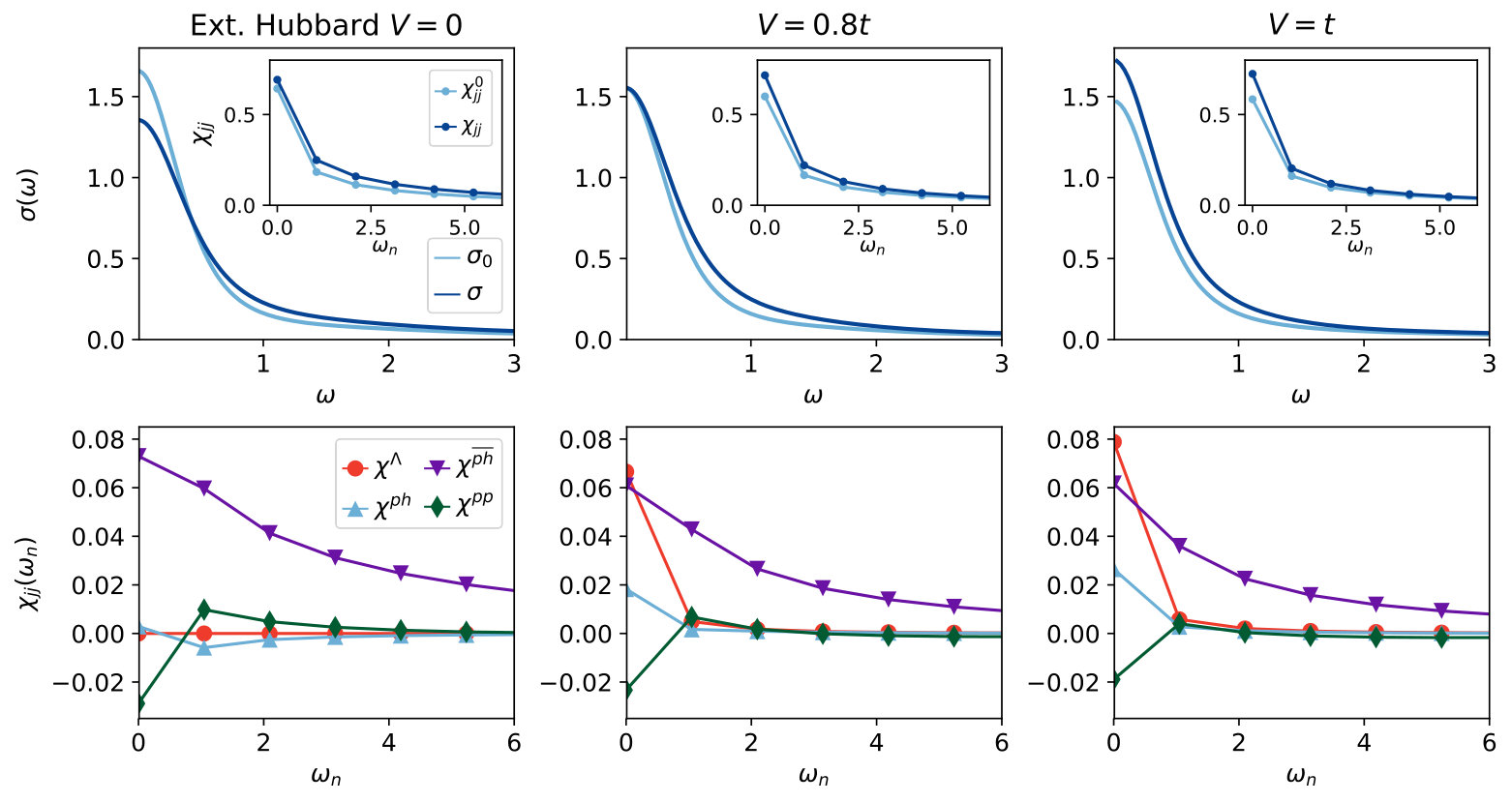

Results: Optical Conductivity. Let us now turn to the results, starting with the optical conductivity in Fig. 2 (top). Within the four models, we studied five physically different examples: HM (metal), EHM (metal), PPP (insulator), FKM (insulator), and FKM (metal) [see SM for results at different parameters]. In all five cases we see noticeable vertex corrections. For the two insulators, especially for the PPP, there is a strong reduction of the optical gap compared to the one-particle gap (bare bubble contribution $\sigma_{0}$). Usually one would associate such a reduction to the exciton binding energy. However, when inspecting the contribution of the individual channels in Fig. 2 (bottom), we see that it is not the $ph$-channel of the exciton but the $\overline{ph}$-channel which is dominating and responsible for the reduction of the optical gap. Note that a $ph$-ladder built from a local interaction (RPA) or a local vertex (as e.g. in dynamical mean field theory Georges et al. (1996)) has zero contribution to the optical conductivity 444Because $G_{q+k}G_{k}$ in Eq. (2) is even in $\mathbf{k}$ for ${\mathbf{q}=0}$ and $\gamma_{\mathbf{k}}^{\mathbf{q}=0}$ is odd. This is why we included in our study also the PPP and EHM where through non-local interaction one obtains simple ladder contributions in the $ph$-channel 555The non-zero $ph$ contributions in the HM and FKM stem from insertions of other diagrams into the $ph$-ladder through the parquet equations..

For two of the metallic cases (HM and FKM) the vertex corrections reduce the conductivity at small frequencies. One might be tempted to associate this with weak localization corrections, i.e., the $pp$-channel. But again by inspecting the vertex contributions in Fig. 2 (bottom) we see that it is the $\overline{ph}$-channel that is dominating; the $pp$ contribution is small. The third metallic case (EHM) is different in the sense that, besides the $\overline{ph}$-channel, the bare vertex $\Lambda$ contributes to a similar amount. This is because the non-local interaction provides an additional way to polarize the system and hence to couple to light.

In all cases except for the EHM, the $pp$-channel provides the second largest contribution. One might suspect that this stems from simple RPA-like ladder diagrams as envisaged in the theory of weak localization. But this is not the case. In the case where this $pp$-channel is largest, i.e., for the PPP, we additionally plot the contribution from a bare RPA-like $pp$-ladder. It is negligibly small.

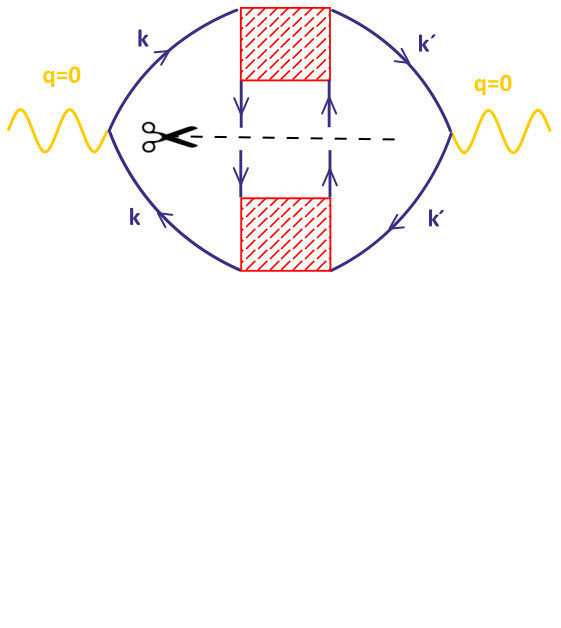

Physical origin of vertex corrections. Why does the $\overline{ph}$-channel give such a big contribution? It is because of the dominant fluctuations in the system. These are AFM or CDW fluctuations at a wave vector $(\pi,\pi,\ldots)$ (see below). These fluctuations are already generated by RPA-ladder diagrams in the $ph$-channel and in the $\overline{ph}$-channel as visualized in Fig. 1. Let us emphasize however, that the employed parquet methods take many more Feynman diagrams and the mutual coupling of these channels into account. This coupling, in particular the $pp$-inclusions, leads to a damping of the contribution of $ph$- and $\overline{ph}$-channel. One can still envisage the physics as in Fig. 1 (d) but with a renormalized (screened) interaction and a renormalized propagator.

The fact that, on the other hand, the bare $pp$-ladder in Fig. 2 (bottom middle) is small shows us that there is a strong feedback of the AFM or CDW fluctuations into the $pp$-channel through the parquet equations, which leads to the considerable contributions of the $pp$-channel. In other words, these $pp$ contributions arise (only) as a consequence of the enhanced AFM and CDW fluctuations.666In contrast, the bare $ph$-ladder would be much larger without feedback from the other channels.

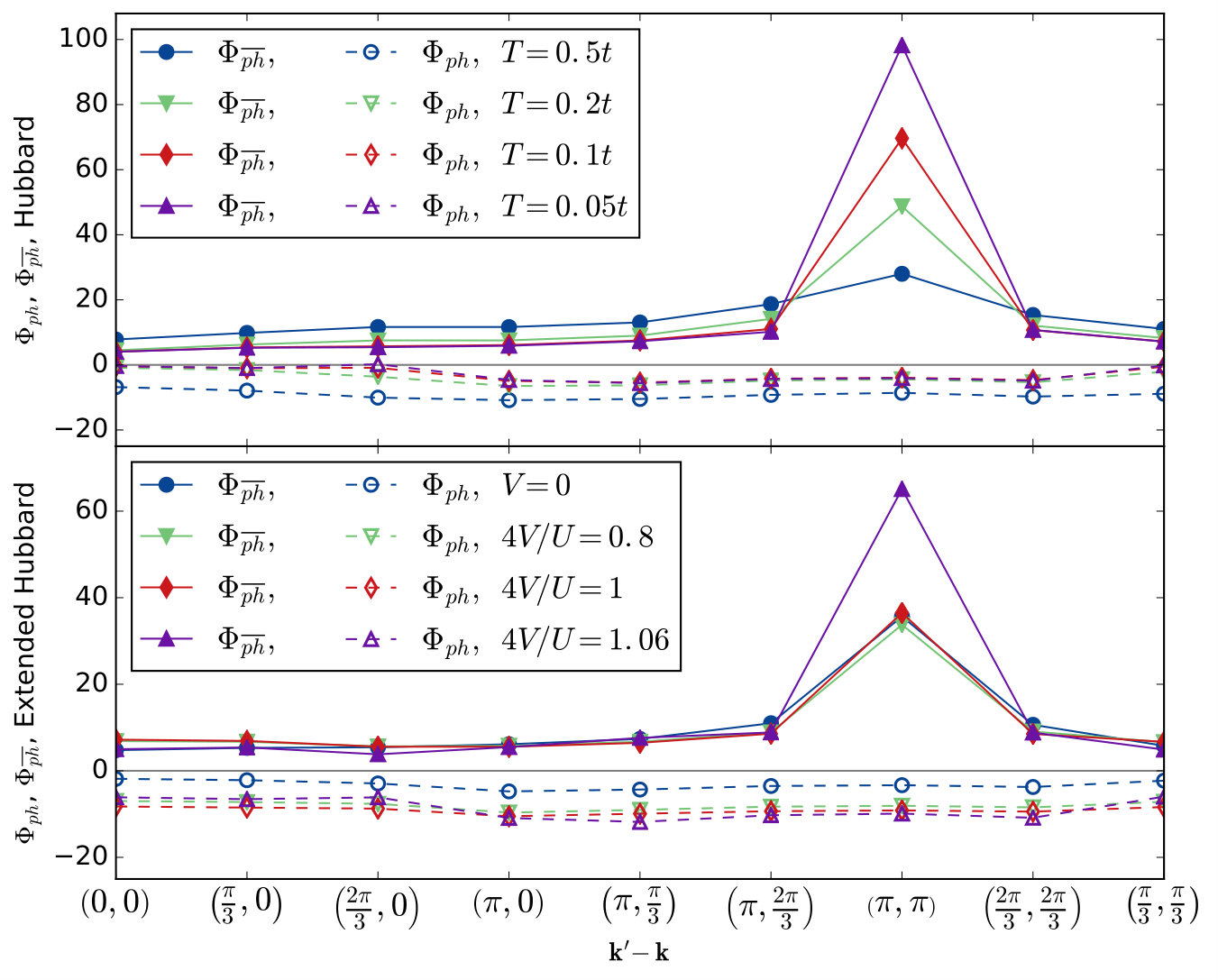

To demonstrate the importance of the $(\pi,\pi)$ contribution, we plot in Fig. 3 the reducible contributions $\Phi$ to the full vertex $F$ as a function of $\mathbf{k}^{\prime}-\mathbf{k}$ for the $ph$ and $\overline{ph}$-channel, setting $\mathbf{q}=0$ for the optical conductivity. Note that although the reducible $ph$ and $\overline{ph}$ vertices are interrelated, it is a different momentum and frequency combination that enters the optical conductivity [see SM]. As we see in Fig. 3 this $ph$-contribution is small and the $\overline{ph}$-contribution is strongly peaked at the wave vector $\mathbf{k}^{\prime}-\mathbf{k}=(\pi,\pi)$ because of the strong AFM and CDW fluctuations for the HM and EHM, respectively. A similar finding holds for the FKM and PPP model [see SM]. Hence we can conclude that it is indeed predominately the $\mathbf{k}^{\prime}-\mathbf{k}=(\pi,\pi)$ contribution that is responsible for the vertex corrections in the optical conductivity, and therefore we call these polaritons $\pi$-tons.

Characteristics of the $\pi$-ton. While AFM and CDW fluctuations are dominant at all parameters and temperatures analyzed, they become—as a matter of course—stronger when we approach a corresponding phase transition. This effect can be seen in Fig. 3 For the HM (top panel of Fig. 3), reducing the temperature means that AFM fluctuations become strongly enhanced, cf. Katanin et al. (2009); Rohringer et al. (2011); Otsuki et al. (2014); Schäfer et al. (2017); Gukelberger et al. (2017). While there is no finite-temperature phase transition in two dimensions, the correlation length becomes exponentially large Schäfer et al. (2015). For the EHM, Fig. 3 (bottom), we instead enhance the non-local interaction $V$. This way we approach a phase transition towards CDW ordering (at $4V=U$ in the atomic limit and at a slightly larger $V$’s here Pudleiner et al. (2019b)).

Conclusion and outlook. We have provided compelling evidence for what appears to be the generic polaritons in strongly correlated electron systems—at least in one and two dimensions. These polaritons, coined $\pi$-tons, consist of two particle-hole pairs coupled to the incoming and outgoing light, respectively, and glued together by AFM and CDW fluctuations. Let us emphasize that having two particle-hole pairs (or two holons and two doublons) is a distinct difference to (Mott) excitons Clarke (1993); Wróbel and Eder (2002); Essler et al. (2001); Jeckelmann (2003).

In other numerical calculations $\pi$-tons can be identified by doing a channel diagnostics [see SM]. In case of $\pi$-tons it will show the predominance of the particle-hole transversal channel and in case of (Mott) excitons of the particle-hole channel instead. This diagnostics requires only full knowledge of the one- and two-particle Green’s functions.

The experimental validation of $\pi$-tons is more challenging. Indeed, the optical conductivity has been studied for a wide range of materials Basov et al. (2011); Uchida et al. (1991); Tajima (2016); Lunkenheimer et al. (2006); Gössling et al. (2008a, b); Lo Vecchio et al. (2015); Ruppen et al. (2017). But now that we know that there are $\pi$-tons, too, we need to distinguish these $\pi$-tons from excitons or in metals from weak localization corrections. We see three routes to do so [see SM for an extended discussion 777See Supplemental Material [url] for an extended discussion, which includes Refs. Pavarini et al. (2005); Maier et al. (2007); Rømer et al. (2015); Kampf and Brenig (1992); Si et al. (2015)]:

(1) Employing the characteristics of $\pi$-tons to rely on AFM or CDW fluctuations 888possibly also orbital fluctuations with ${\mathbf{q}}=(\pi,\pi,\ldots)$, we can employ a control parameter such as temperature, uniaxial pressure or a magnetic field to change these fluctuations. If there are $\pi$-tons there will be corresponding changes in the optical spectrum. Indeed such a characteristic change, specifically an unusual reduction of the optical gap around the Néel temperature, has been already observed in SmTiO3,Gössling et al. (2008a). To ensure that this effect actually originates from $\pi$-tons excluding a simple reduction of the one-particle gap or spin-polaron formations Martinez and Horsch (1991); Clarke (1993); Wróbel and Eder (2002); Sangiovanni et al. (2006); Taranto et al. (2012), additional angular resolved photoemission spectroscopy (ARPES) and inverse ARPES are necessary as a function of the control parameter.

(2) In a joint experimental and theoretical effort we can take the experimental one-particle spectrum $A_{{\bf k}\nu}$ (as e.g. measured in ARPES/inverse ARPES) and the experimental dynamic spin susceptibility $\chi_{m}({\mathbf{q}},\omega)$ (as e.g.  measured by neutron spectroscopy) and calculate from this the optical conductivity $\sigma(\omega)$ including $\pi$-tons and compare it with the measured one.

(3) Last but not least we can do ab initio calculations of strongly correlated materials for which $\pi$-tons may be expected, e.g., along the line of Galler et al. (2017), and calculate the optical spectrum including $\pi$-tons and exciton contributions. Given good agreement with experiment and sizable $\pi$-ton effects, this would provide excellent evidence for $\pi$-tons.

.1 A. Optical conductivity upon approaching the phase transition

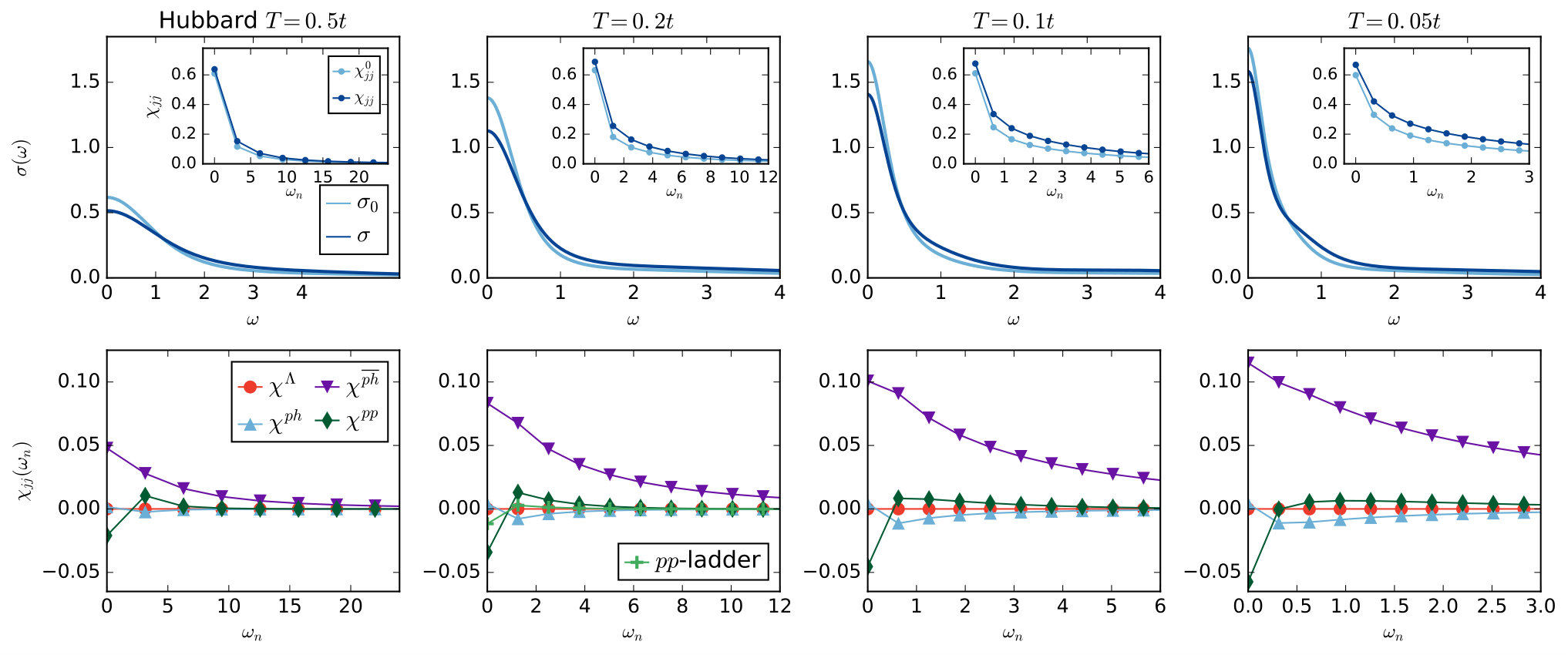

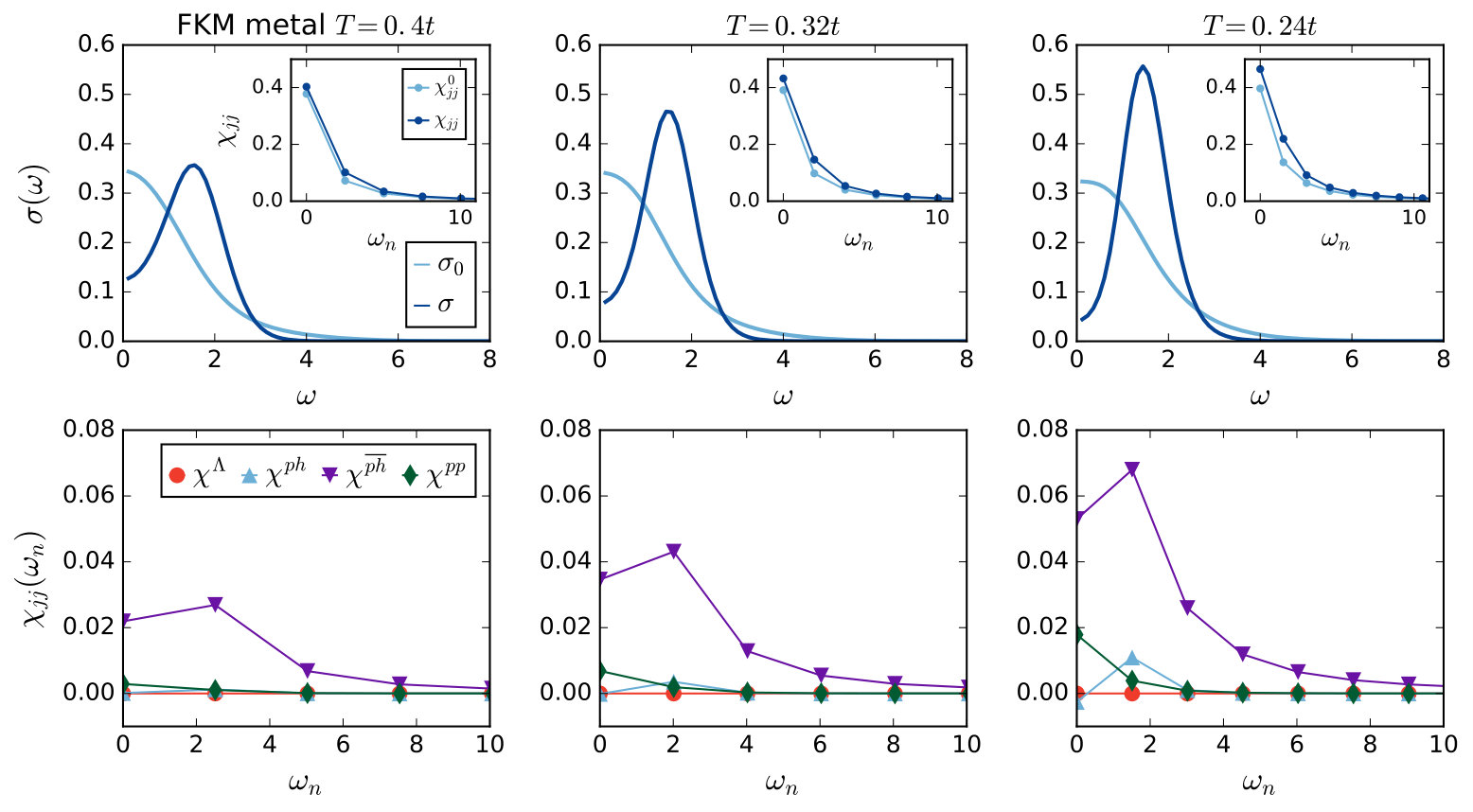

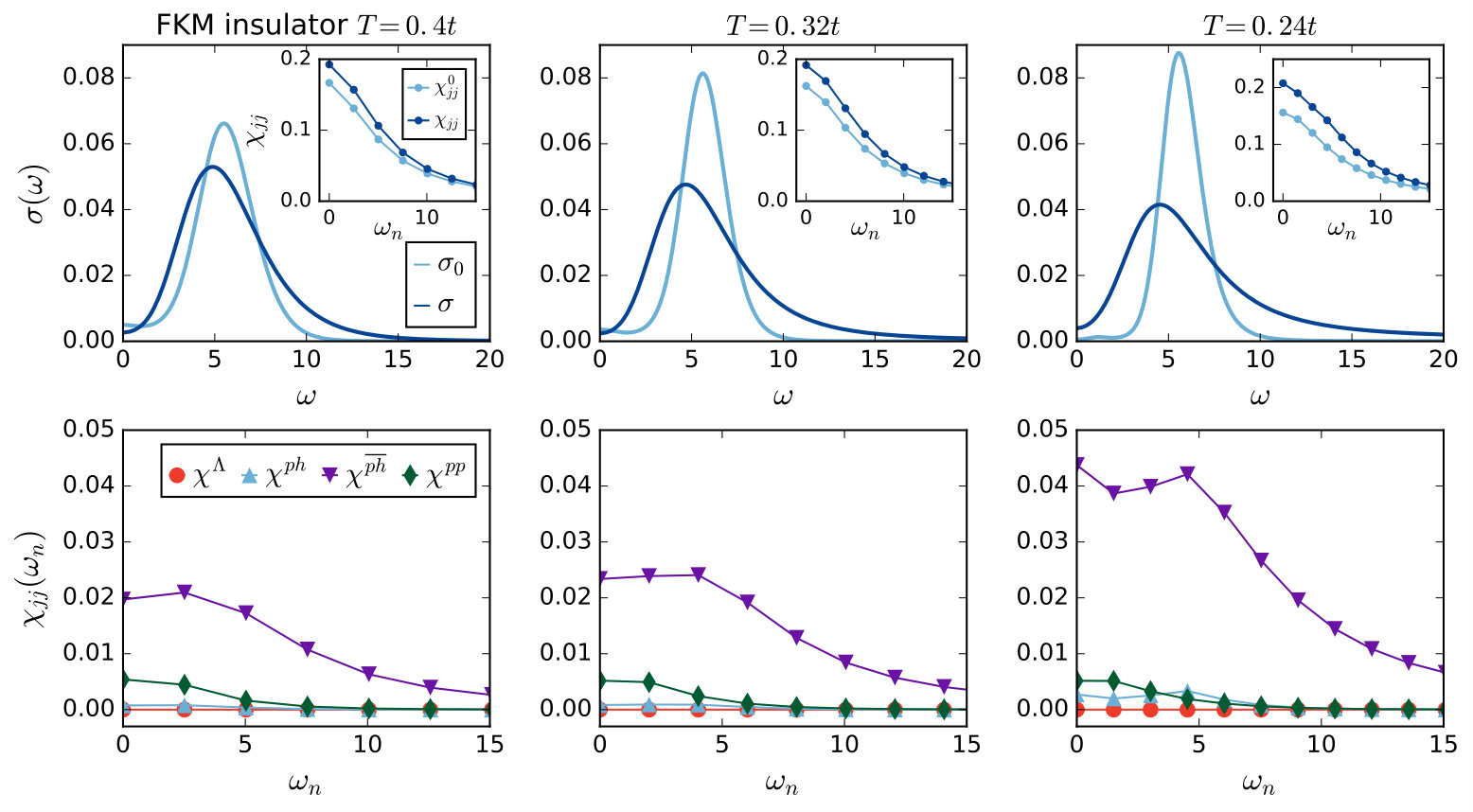

In the Hubbard model (HM; Fig. S1) and Falicov-Kimball model (FKM; Figs. S3-S4) we approach the antiferromagnetic (AFM) or charge density wave (CDW) transition by lowering the temperature. In case of the HM the AFM transition is at $T=0$; in case of FKM the CDW transition is around $T=0.12t$ for the metal with $U=2t$ and around $T=0.2t$ for the insulator with $U=6t$ Ribic et al. (2016). For the extended HM (EHM; Fig. S2), on the other hand, we approach the CDW transition by increasing the nearest-neighbor interaction $V$ (the transition to CDW is around $V=1.06t$ Pudleiner et al. (2019b)).

In all cases studied, as we approach the phase transition the vertex contribution becomes larger. As shown in the bottom panels of Figs. S1-S4 the largest overall contribution to the vertex part is \raisebox{2.0pt}{\chi}^{\overline{ph}} [except for the Pariser-Parr-Pople (PPP) model in Fig. S2, where it is \raisebox{2.0pt}{\chi}^{pp}], with the second biggest being \raisebox{2.0pt}{\chi}^{pp} (with the exception of the EHM in Fig. S2, where it is \raisebox{2.0pt}{\chi}^{\Lambda}). However, as explained in the main text, the large values of \raisebox{2.0pt}{\chi}^{pp} mainly come from insertions of other diagrams into the pure RPA-like $pp$-ladder that are generated in the parquet solution (for comparison see the bottom middle left plot in Fig. S1 and the bottom right of Fig. S2, where the contribution from a $pp$-ladder without other diagrammatic insertions is shown).

.2 B. Relation between the $ph$ and $\overline{ph}$ reducible contributions to the full vertex $F_{d}$

As we have shown in the main paper and in the previous Section, the transversal particle-hole ($\overline{ph}$) channel contains the most important vertex corrections to the optical conductivity. On the other hand this $\overline{ph}$ channel has just the same structure as the $ph$ channel. Indeed, it is the rotated version of that channel. The optical conductivity contribution is only different because, when connected with the electron-photon interaction lines, we select different momenta of the two respective channels.

Specifically, the $\overline{ph}$-reducible vertex at ${\mathbf{q}}=0$ is connected to the ${ph}$-reducible vertex vertices as follows

[TABLE]

with $d$ ($m$) denoting the even (odd) spin combination, see Rohringer et al. (2018); Li et al. (2016) for more details. This above combination of arguments of the ${ph}$-reducible vertex $\Phi_{{ph},d/m}$ is entering the optical conductivity as the transversal particle-hole channel, whereas $\Phi_{ph,d,{\mathbf{k}\mathbf{k^{\prime}}\mathbf{q}=0}}^{\nu_{n}\nu_{n}^{\prime}\omega_{n}}$ is the contribution that enters as the particle-hole channel when calculating the optical conductivity.

.3 C. Reducible contributions to the full vertex $F_{d}$ in the $ph$ and $\overline{ph}$ channels for the FKM

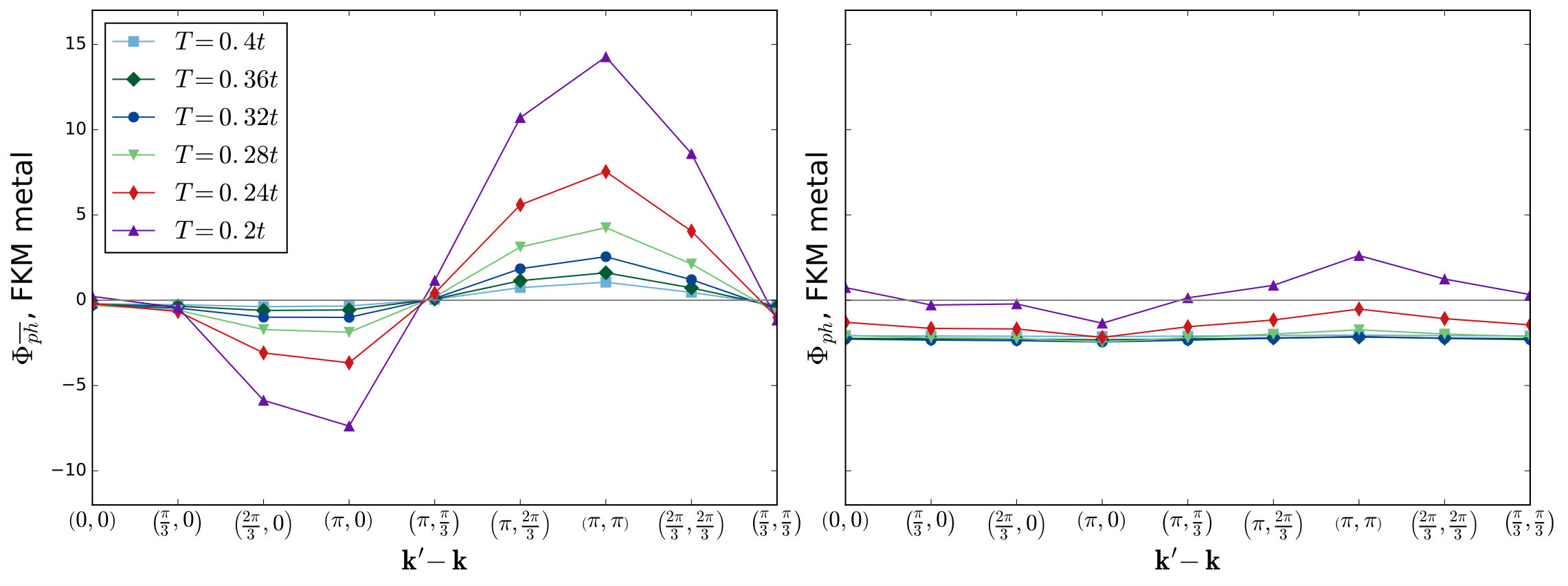

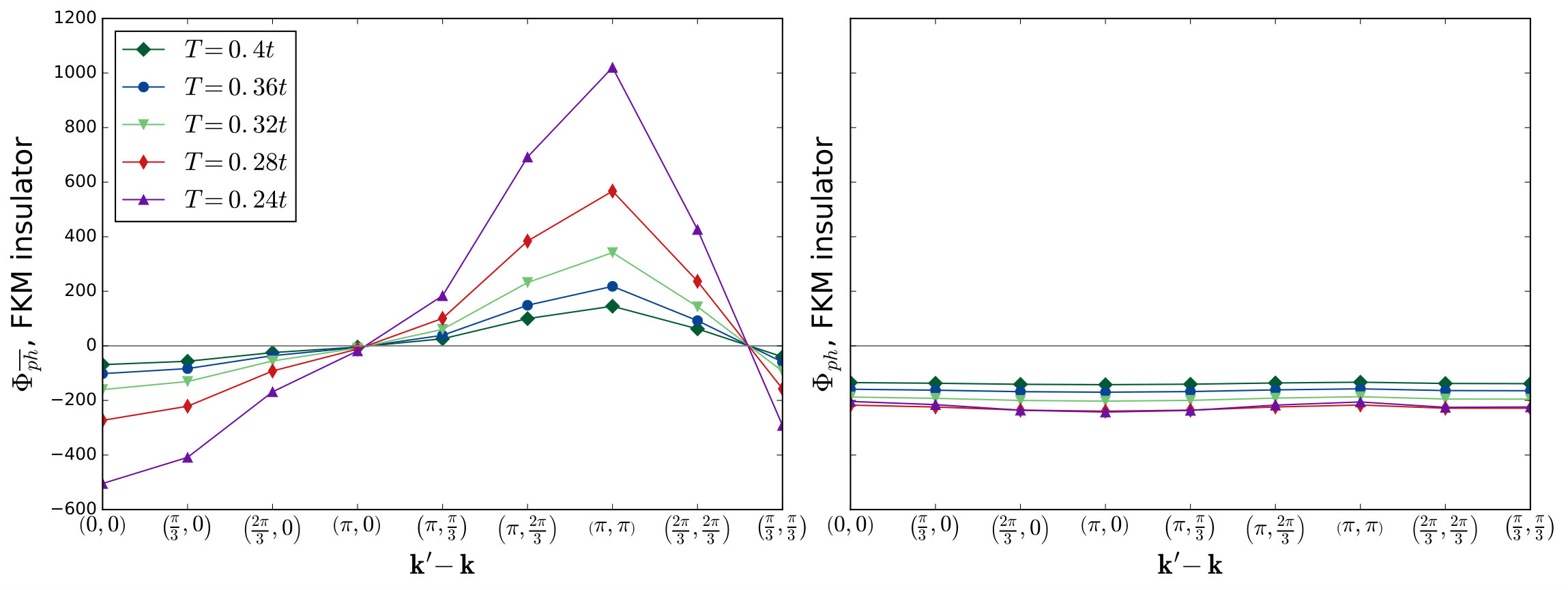

We also show in Figs. S5-S6 the reducible contributions $\Phi_{\overline{ph}}$ and $\Phi_{ph}$ to the full vertex $F_{d}$ for the FKM in the metallic (Fig. S5) and insulating (Fig. S6) phase. Also in this case, similarly as for the HM, EHM and PPP model shown in the main text, the $\mathbf{k}^{\prime}-\mathbf{k}=(\pi,\pi)$ contribution to $\Phi_{\overline{ph}}$ is the largest. As we approach the phase transition, it grows, whereas $\Phi_{ph}$ stays small and does not depend on $\mathbf{k}^{\prime}-\mathbf{k}=(\pi,\pi)$ much, except for the lowest temperature of $T=0.2t$ in Fig. S5 where a small $\mathbf{k}^{\prime}-\mathbf{k}$ dependence develops.

Let us note that the FKM is difficult to solve in D$\Gamma$A as the latter requires a mixed vertex with mobile and immobile electrons Ribic et al. (2016, 2017). This is the reason why we employ the dual fermion approach for the FKM.

.4 D. Reducible contributions to the full vertex $F_{d}$ in the $ph$ and $\overline{ph}$ channels for the PPP model

In the main paper, we have shown that the reducible vertex contributions for the HM and extended model are strongly peaked at $\mathbf{k}^{\prime}-\mathbf{k}=(\pi,\pi)$, and in the previous section that the same holds for the FKM. Here, we turn to the PPP model, which has a one-dimensional momentum vector since it can be considered as a Hubbard model on a six site ring with additional non-local interactions to all sites. This allows us to show the dependence of both one-dimensional vectors, $\mathbf{k}^{\prime}-\mathbf{k}=(\pi,\pi)$ and $\mathbf{k}$ (or, alternatively, $\mathbf{k}^{\prime}$ and $\mathbf{k}$), with six ${\mathbf{k}}$-points each, as well as on the Matsubara frequency in a three-dimensional plot.

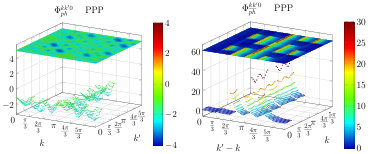

This plot is shown in Fig. S7. Again we see that the $\overline{ph}$-channel is largest with a pronounced peak at $\mathbf{k}^{\prime}-\mathbf{k}=(\pi,\pi)$. This confirms the picture of the $\pi$-tons feeding upon strong AFM or CDW fluctuations.

Let us also note that, despite the size of its gap, the PPP model is not a Mott insulator but has a mildly strong self-energy Pudleiner et al. (2019a).

.5 E. Identification of $\pi$-tons in other numerical methods

In this Section, we would like to briefly outline how to analyze numerical data for the existence of $\pi$-tons. A first indication and hint is the ionicity (number of doublons relative to the ground state) of the optically excited states, specifically those affected by vertex corrections (e.g. states below the one-particle gap). If a wave function is given for this excited state as in exact diagonalization (ED), density matrix renormalization group (DMRG) etc. the number of doublons can be readily calculated from this wave function.

If we are well in the Mott insulating state so that doublons are otherwise suppressed, this ionicity should be approximately one doublon in case of (Mott) excitons Essler et al. (2001); Jeckelmann (2003) including spin Peierls physics Gössling et al. (2008a); Wróbel and Eder (2002); Clarke (1993) and two doublons or more if $\pi$-tons are present (see Fig. S8) 999Other processes with two doublons considered so far are Aslamazov-Larkin diagrams where also two interaction lines can be substituted by the antiferromagnetic spin susceptibility Kampf and Brenig (1992). Such a diagram is part of the particle-hole transversal channel but if we couple the antiferromagentic spin susceptibility this way, there is no strong peak around ${\mathbf{k}}-{\mathbf{k}^{\prime}}=\pi$ in contrast to Fig. 3. Also biexcitons, which include two particles and two hoels as well, do not show such a ${\mathbf{k}}-{\mathbf{k}^{\prime}}$-dependence.. For this reason Mott excitons should also be more important than $\pi$-tons around the atomic limit. But when there are large vertex corrections in the one-dimensinal EHM, i.e. for $2V\lesssim U$, the ionicity in DMRG is too large for plain Mott excitons Jeckelmann (2003).

A further difference to (Mott) excitons and spin Peierls physics is that in these pictures electron and hole have a total momentum ${\bf q}=0$. This might help avoiding breaking up AFM bonds in the spin Peierls picture. Wheras for teh $\pi$-ton the electron and hole at the cut line in Fig. S8 may carry a total momentum of ${\bf q}=\pi$. This way the spin background can be rotated just as in an AFM paramagnon.

More direct evidence can be obtained by doing a diagnostics of the contribution of the different channels. To this end, the one-particle Green’s function $G_{{\bf k}\nu}$ and two-particle Green’s function $G_{\sigma\sigma^{\prime},\mathbf{k}\mathbf{k^{\prime}}\mathbf{q}}^{(2),\nu\nu^{\prime}\omega}$ are needed as input from any numerical calculation, see Rohringer et al. (2018) for the frequency definition and further details. In this Section we denote the Matsubara frequencies by $\nu$ and $\omega$, i.e. we skip the subscript $n$.

(1) From $G$ and $G^{(2)}$, we can calculate the generalized susceptibilities in the paramagnetic phase for the density ($d$) and magnetic ($m$) component as follows:

[TABLE]

(2) These susceptibilities are connected to the full vertex $F$ via

[TABLE]

and we can resolve this equation for $F$. Here, the division by $G$’s will lead to quite some noise at large (Matsubara) frequency. But the dependence of the final result, the channel-decomposed optical conductivity on this noise is rather mild.

(3) Having $F$ and the one-particle Green’s function, we can (matrix) invert the Bethe-Salpeter equation in all three channels to obtain the particle-hole irreducible vertex $\Gamma$ in each channel. Let us state the Bethe-Salpeter equation only for the $ph$-channel explicitly

[TABLE]

(4) From $F$ and $\Gamma_{\ell}$, we obtain the reducible vertex $\Phi_{\ell,d/m,\mathbf{k}\mathbf{k^{\prime}}\mathbf{q}}^{\nu\nu^{\prime}\omega}=F_{d/m,\mathbf{k}\mathbf{k^{\prime}}\mathbf{q}}^{\nu\nu^{\prime}\omega}-\Gamma_{\ell,d/m,\mathbf{k}\mathbf{k^{\prime}}\mathbf{q}}^{\nu\nu^{\prime}\omega}$ in each channel $\ell\in\{ph,\overline{ph},pp\}$.

(5) Now we set $F=\Phi_{\ell}$ and calculate with Eq. (2) of the main text the contribution of the $\ell=ph$ channel (excitons), $\ell=\overline{ph}$ channel ($\pi$-tons) and $\ell=pp$ (cooperons/weak localization). This way we can detect which kind of physics is dominant. A further analysis which momenta yield the main contributions, as in our paper, is possible as well.

.6 F. Experimental validation of $\pi$-tons

Let us start by mentioning that a strongly correlated transition metal oxide, SmTiO3,Gössling et al. (2008a) might actually show $\pi$-tons in its optical spectrum. More precisely, SmTiO3 shows a reduction of the optical gap like in our calculations — around the $T$-induced antiferromagnetic transition. Since the one-particle gap is expected to increase upon antiferromagnetic order, and many other mechanism could be ruled out 101010Gössling et al. Gössling et al. (2008a) show that the first peak of the optical conductivity is within the one-particle gap, so that the authors ruled out Mott excitons as discussed in Essler et al. (2001); Jeckelmann (2003) since unrealistically large (for a transition metal oxide) nearest-neighbor interaction are required for such an in-gap optical peak within the Mott exciton picture. Gössling et al. Gössling et al. (2008a) instead consider a holon and doublon coupled in a spin-Peierls-like mechanism Wróbel and Eder (2002); Clarke (1993). But if this variant of a Mott exciton is present it should foremost result in the development of additional characteristic (T-dependent) peaks in the optical spectrum not a shift of the gap edge Taranto et al. (2012), exactly as it was observed in LaSrMnO4 Gössling et al. (2008b)., this hints towards $\pi$-tons (which reduce the gap and rely on strong antiferromagnetic fluctuations). However, this is certainly not a full fledged proof for $\pi$-tons since as (quite typical in solid state physics) also all kind of other effects such as e.g. an orbital disproportionation that affects the one-particle gap might be present.

A smoking gun experiment is difficult to pursue but nonetheless doable.

(1) One possibility is to employ our knowledge that the $\pi$-tons rely on antiferromagnetic and charge density wave fluctuations (in contrast to all other known polaritons such as excitons and Mott excitons), and to change the strength of these fluctuations by an external parameter. Essentially that is what the aforementioned experiments for SmTiO3 did with the parameter being temperature. Other possible parameters are e.g. uniaxial pressure or, for antiferromagnetic fluctuations, a magnetic field. But to be sure that the effect is not a one-particle effect, one needs (on top of what one has done for SmTiO$3$) to perform angular resolved photoemission spectroscopy (ARPES)/inverse ARPES to be sure that the observed reduction of the optical gap is not a one-particle effect.

In the case of SmTiO3, such ARPES experiments will also confirm (or disconfirm) the spin-polaron Mott exciton picture of Wróbel and Eder (2002); Clarke (1993); Gössling et al. (2008a). This picture has characteristic peaks in the optical conductivity and in the one-particle spectrum Martinez and Horsch (1991); Sangiovanni et al. (2006). In the optical conductivity of SmTiO3 such peaks are not visible but it is certainly most valuable to confirm this by ARPES. While we think that SmTiO3 is a good candidate, as a matter of course other strongly correlated materials can be investigated along this first route to validate $\pi$-tons experimentally.

As for the control parameters, please note, that in case of a magnetic field one can, as a matter of course, not do ARPES; and the energy scale of typical magnetic field strengths is only sufficient to suppress antiferromagnetism with a Néel temperature of a few Kelvin. Hence temperature or uniaxial pressure appear to be more suitable control parameters. Note that by uniaxial pressure one can e.g. split the $t_{2g}$ energy levels in a $d^{1}$ configuration. Without splitting one $d$ electron in three $t_{2g}$ supports a paramagnetic or ferromagnetic configuration. With splitting, one has a half-filled situation with one $d$ electron in one (split-off) $t_{2g}$ level which is favorable for antiferromagnetism. 111111A similar effect to uniaxial pressure occurs in a dimensional reduction through heterostructures. It leads e.g. in SrRuO3 to a change from a ferromagnetic to an antiferromagnetic phase Si et al. (2015)

(2) A second possibility is to do a third experiment (besides ARPES and optics) measuring the antiferromagnetic spin susceptibility e.g. with neutron spectroscopy. From the ARPES bandstructure and the spin susceptibility we can calculate the optical spectrum. If this agrees with experiment and the optical gap sensitively depends on the $\pi$-ton contribution, we have an elegant proof of $\pi$-tons based on a joint theoretical and experimental study.

This validation is based on our observation that the by far most important contribution to the vertex corrections in the optical conductivity, the $\pi$-ton, stems from the transversal particle-hole channel. For antiferromagnetic fluctuations this can, in turn, be calculated to a good accuracy from the dynamic antiferromagnetic spin susceptibility.

Since neutron spectroscopy is restricted to low energies (meV to hundreds meV’s), such an experiment is best done for an antiferromagnet with a low Néel temperature so that one does not miss important contributions in the dynamic spin susceptibility.

Let us briefly sketch the calculation needed for this validation: From the (inverse) ARPES, we directly get the spectrum $A_{{\mathbf{k}}\nu}$ and from this the Green’s function $G_{{\mathbf{k}}\nu}$. From the experimental susceptibility \raisebox{2.0pt}{\chi}_{m}({\mathbf{q}},\omega) in turn we get the estimate of the magnetic $ph$-reducible vertex $\Phi_{ph,m}$. Under the assumption that the AFM fluctuations are strong, the bosonic momentum and frequency dependence will dominate giving 121212Here we assume \raisebox{2.0pt}{\chi}_{m}\gg\raisebox{2.0pt}{\chi}_{0} and neglect the terms with the bare susceptibility \raisebox{2.0pt}{\chi}_{0}=-\frac{1}{\beta N}\sum_{\nu^{\prime\prime}\,{\bf k}^{\prime\prime}}G_{\mathbf{k}^{\prime\prime}\nu^{\prime\prime}}G_{(\mathbf{k}^{\prime\prime}+\mathbf{q})(\nu^{\prime\prime}+\omega)}, but they can also be explicitely included.

[TABLE]

Asuming the dominance of AFM fluctuations over density fluctuations, we can further write, after Eq. S1,

[TABLE]

To obtain only the $\pi$-ton contribution to the optical conductivity we finally need to insert

[TABLE]

and the Green’s function $G_{{\mathbf{k}}\nu}$ into Eq. (2) 131313One can either translate the Green’s function and susceptibility from the experimental data into Matsubara frequencies or use a real frequency version of Eq. (2) in the main text to calculate the current-current correlation function and from this the optical conductivity.

Let us note that a similar approach is followed for high-temperature superconductivity, where the Eliashberg equation is solved with the interaction vertex calculated from magnetic susceptibility as an input Maier et al. (2007); Rømer et al. (2015).

(3) A third possibility is to do ab initio calculations with predictive power for a material with an optical spectrum that strongly depends on a parameter such as temperature, and to compare the calculated optical spectrum (including $\pi$-tons 141414This is possible e.g. by advanced numerical methods such as the ab initio dynamical vertex approximation Galler et al. (2017).) and with experiment. If the optical spectrum and the parameter-dependence agree well, this is compelling proof that the effect originates from $\pi$-tons. This would also be a possibility for SmTiO3, for which density functional theory plus dynamical mean-field theory (DFT+DMFT) calculations without vertex corrections Pavarini et al. (2005); Gössling et al. (2008a) show a way too large optical gap. Do vertex corrections, do $\pi$-tons reduce this to the experimentally measured gap? Such a calculation is feasible but a major endeavor, and hence beyond the scope of the present paper.
